Abstract
Objective
NIPA1 mutations have been implicated in hereditary spastic paraplegia (HSP) as the cause of spastic paraplegia type 6 (SPG6). The aim of this study was to investigate the clinical and genetic features of SPG6 in a Taiwanese HSP cohort.
Methods
We screened 242 unrelated Taiwanese patients with HSP for NIPA1 mutations. The clinical features of patients with a NIPA1 mutation were analyzed. Minigene‐based splicing assay, RT‐PCR analysis on the patients' RNA, and cell‐based protein expression study were utilized to assess the effects of the mutations on splicing and protein expression.
Results
Two patients were identified to carry a different heterozygous NIPA1 mutation. The two mutations, c.316G>A and c.316G>C, are located in the 3′ end of NIPA1 exon 3 near the exon–intron boundary and putatively lead to the same amino acid substitution, p.G106R. The patient harboring NIPA1 c.316G>A manifested spastic paraplegia, epilepsy and schizophrenia since age 17 years, whereas the individual carrying NIPA1 c.316G>C had pure HSP since age 12 years. We reviewed literature and found that epilepsy was present in multiple individuals with NIPA1 c.316G>A but none with NIPA1 c.316G>C. Functional studies demonstrated that both mutations did not affect splicing, but only the c.316G>A mutation was associated with a significantly reduced NIPA1 protein expression.
Interpretation
SPG6 accounted for 0.8% of HSP cases in the Taiwanese cohort. The NIPA1 c.316G>A and c.316G>C mutations are associated with adolescent‐onset complex and pure form HSP, respectively. The different effects on protein expression of the two mutations may be associated with their phenotypic discrepancy.
Introduction
Hereditary spastic paraplegias (HSPs) comprise a heterogeneous group of inherited neurodegenerative diseases characterized by slowly progressive spasticity and weakness of the lower limbs with or without involvement of other neurological systems. 1 HSPs are categorized into pure or complex form based on the clinical presentations. The typical features of pure HSPs include progressive bilateral lower extremities spasticity and weakness, hypertonic urinary bladder, and mild diminution of vibrational sensation in the lower limbs, while complex HSPs present with additional neurological or systemic abnormalities. To date, there have been more than 80 genes or genetic loci implicated in HSP. 2 , 3 , 4 However, only a few of them, including SPAST, ATL1, KIF1A, CYP7B1, SPG7, and SPG11, account for a significant number of patients with HSP. The contribution of mutations in other HSP disease gene, such as NIPA1, to HSP remains not fully clear, especially in Asian populations, because the relevant studies are still sparse.
Hereditary spastic paraplegia 6 (SPG6) is an autosomal dominant HSP caused by a mutation in the NIPA magnesium transporter 1 gene (NIPA1). 5 NIPA1 encodes magnesium transporter NIPA1 protein (NIPA1), which consists of 329 amino acids and nine transmembrane domains (Fig. 1A). 6 The NIPA1 protein is highly expressed in neuronal and epithelial cells and localized to cytoplasmic membranes. 7 The pathogenic mechanisms of NIPA1 mutations include dysfunction of magnesium transporters, 8 neuronal cell death caused by accumulation of mutant proteins in the endoplasmic reticulum, 7 and dysregulation of axonal maintenance by inhibiting bone morphogenic protein (BMP) signaling pathways. 9 To date, only a few different mutations in NIPA1 have been identified in SPG6 patients and were all missense mutations, including p.N42K (c.126C>G), 10 p.T45R (c.134C>G), 5 p.N83K (c.249C>G), 11 p.A100T (c. 298G>A), 12 p.G106R (c.316G>A or c.316G>C), 10 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 p.Q244R (c.731A>G), 29 and p.K250Q (c.748A>C) (Fig. 1A). 26 SPG6 typically presents as pure HSP, but may also exhibit complex HSP. 28

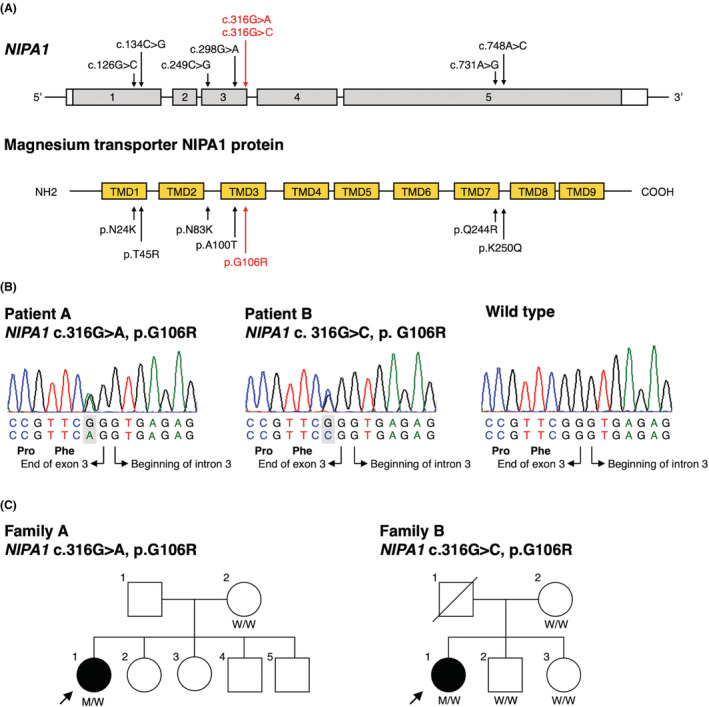

Figure 1.
Genetic analysis of NIPA1 mutations in the Taiwanese patients with hereditary spastic paraplegia (HSP). (A) Schematic illustration of structures of the NIPA1 gene and the NIPA1 protein. The currently known pathogenic NIPA1 mutations were labelled. The two mutations identified in this study were labelled in red. (B) Sanger sequence traces revealing the NIPA1 c.316G>A and c.316G>C mutations, which putatively lead to the same amino acid change, p.G106R, and are located near to the exon–intron boundary. The altered nucleotides are labelled in gray. (C) The pedigrees of the two HSP patients with the NIPA1 mutations. The probands are indicated by arrows. The “M” represents a mutant NIPA1 allele and the “W” means a wild type allele. The squares and circles denote for males and females. The filled and open symbols represent affected and unaffected members, respectively. A slash indicates a deceased individual.
To further understand the role of SPG6 in HSP in Han Chinese populations, we screened a cohort of 242 unrelated Taiwanese patients with HSP for NIPA1 mutations. We identified two different pathogenic variants, c.316G>A and c.316G>C, which alter the same nucleotide near the exon–intron boundary region of NIPA1 and putatively lead to the same amino acid change (p.G106R), and each was found in one single patient with apparently sporadic disease. We further characterized the clinical features of NIPA1 mutations and demonstrated that both variants did not affect NIPA1 splicing.
Methods
Study subjects
A consecutive series of 242 unrelated individuals with a clinical impression of HSP were recruited from the Neurology Service of Taipei Veterans General Hospital between January 1998 and January 2022. All the participants fulfilled the clinical diagnosis criteria for HSP. 30 Among the 242 patients, 95 patients (39%) had a clear family history of HSP, and 147 (61%) were apparently sporadic cases of idiopathic progressive spastic paraparesis. All the participants were Taiwanese of Han Chinese ethnicity. Blood samples were collected after written informed consents were obtained. This study was approved by the Institutional Review Board of Taipei Veterans General Hospital.
Mutational analysis
Mutational analysis of NIPA1 was performed by utilizing a targeted resequencing panel covering 76 HSP disease genes and other 57 genes associated with diseases manifesting HSP‐like phenotype (Table S1) on an Illumina HiSeq2500 platform. Alignment of the sequenced reads and the identification of sequence variants were performed with the reference Human Genome version 38 (hg38/GRCh38). The NIPA1 variants changing the coding sequence were reconfirmed by Sanger sequencing, and the amplicon sequences were compared with reference NIPA1 coding sequence (NM_144599.5). Multiplex ligation‐dependent probe amplification (MLPA) analyses with the MLPA Probemix P211 HSP region kit (MRC‐Holland, Amsterdam, the Netherlands), covering the NIPA1 gene, were performed according to the manufacturer protocol in the 110 HSP patients whose genetic diagnosis remained uncertain after targeted resequencing. We also conducted in silico prediction of the functional effects of variants using two bioinformatic programs, MutationTaster (http://www.mutationtaster.org/) 31 and Combined Annotation Dependent Depletion (CADD, GRCh38‐v1.6; https://cadd.gs.washington.edu). 32
Clinical evaluations
The two probands and their family members received a complete neurological examination and history taking. Disease severity was evaluated using the Spastic Paraplegia Rating Scale (SPRS) and the SPATAX‐EUROSPA disability stage. 30 , 33 SPRS is a validated HSP‐specific severity scale, measuring 13 items designed to rate functional impairment of walking ability, muscle strength, spasticity, pain, and urinary function. Each item is scored from 0 to 4, where 0 represents full function and 4 indicates most severe impairment. SPATAX‐EUROSPA disability stage grades functional impairment from 0 (no functional handicap), 1 (signs at examination), 2 (able to run, walking unlimited), 3 (unable to run, limited walking without aid), 4 (walking with one stick), 5 (walking with two sticks), 6 (requiring wheelchair) to 7 (confined to bed). Mini‐Mental State Examination (MMSE) was performed for neuropsychological assessment. 34
Minigene splicing assay
A wild‐type human genomic DNA fragment containing NIPA1 exon 3 and the adjacent upstream and downstream intron sequences (>300 bps) was cloned into the pET01 exon‐trap vector (MoBiTec, Göttingen, Germany) (Fig. 2A). The NIPA1 c.316G>A and c.316G>C mutations were introduced into the construct by PCR‐based site directed mutagenesis method using pfu Turbo polymerase (Agilent, Santa Clara, CA, USA), respectively. All constructs were verified by Sanger sequencing. HEK293T cells were maintained in Dulbecco's modified Eagle medium (HyClone, Cytiva, Marlborough, MA, USA) supplemented with 10% fetal bovine serum (Invitrogen, ThermoFisher Scientific, Waltham, MA, USA) in a 5% CO2, 37°C incubator. The Exontrap constructs were transfected into HEK293T cells using Lipofectamine 2000 (Invitrogen). At 24 h after transfection, total RNA was extracted from cell lysates with RNeasy Mini Kit (Qiagen, Hilden, Germany). Two micrograms of RNA were reverse‐transcribed with SuperScript III reverse transcriptase (Invitrogen). The plasmid‐derived cDNA was amplified using the primer pairs targeting exon 1 and exon 2 of the pET01 vector for analyzing the splicing products (Fig. 2A). The sequences of the forward and reverse primers were 5′‐GATGGATCCGCTTCCTGCCCC‐3′ and 5′‐CTCCCGGGCCACCTCCAGTGCC‐3′, respectively. The sizes and the sequences of the amplicons were analyzed by electrophoresis and Sanger sequencing.

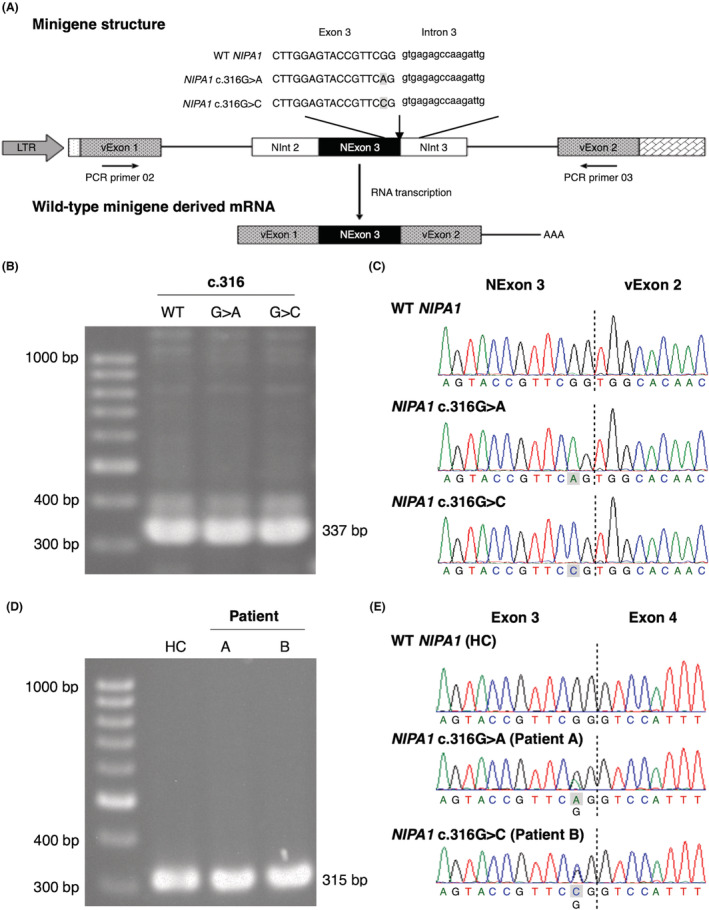

Figure 2.
In vitro minigene splicing assay and RT‐PCR analysis on the RNA from peripheral blood leukocytes of the patients. (A) The schematic structure of the minigene construct comprising the NIPA1 genomic sequence of exon 3 (NExon 3), the adjacent upstream and downstream intron sequences (NInt 2 and NInt 3), and the backbone of pET01 exon‐trap vector, including the vector exons (vExon 1 and vExon 2). The horizontal arrows depict the targeted sites of the primers used in this studies (PCR primers 02 and 03). The sequences of the wild‐type (WT) and mutant minigene constructs flanking the boundary of NExon 3 and NInt 3 are shown with the mutant nucleotides labeled in gray. The mRNA derived from the WT construct contains vExon 1, NExon 3 and vExon 2. LTR: Long Terminal Repeat promoter of the Rous sarcoma virus. (B) PCR amplification of the cDNA products from WT and the two mutant minigene constructs expressed in HEK293T cells generated the same size amplicons (337 bp), suggesting that NIPA1 mRNA from WT and the two mutant constructs are not differentially spliced. (C) The cDNA electropherograms of NIPA1 NExon 3 and vExon 2 junction of WT and the two mutant constructs revealed the same sequence, indicating normal splicing pattern. (D) The amplicons generated by PCR amplification of the cDNA products from a healthy control (HC), patient A carrying NIPA1 c.316G>A and patient B carrying NIPA1 c.316G>C showed identical size (315 bp). (E) The cDNA electropherograms of NIPA1 Exon 3 and Exon 4 junction of a healthy control and the two patients with SPG6 revealed the same splicing pattern, suggesting that both NIPA1 c.316G>A and c.316G>C do not affect splicing.
Reverse transcription polymerase chain reaction (RT‐PCR) analysis on the RNA from the patients' peripheral blood leukocytes
We extracted total RNA from peripheral blood leukocytes of the patients with SPG6 and one healthy control. The RNA was reverse‐transcribed into double‐strand cDNA with SuperScript III reverse transcriptase (Invitrogen), which was further amplified using a pair of the primers targeting the exon 1 and exon 4 of the NIPA1 cDNA product, respectively. The sequences of the forward and reverse primers were 5′‐GTCGTGTCGAGCCTGGTG‐3′ and 5′‐GGAGTGGATAATCAGCACGA‐3′. We analyzed the sizes and the sequences of the amplicons using electrophoresis and Sanger sequencing.
Analysis of NIPA1 steady‐state expression
A human NIPA1 cDNA clone was purchased from TransOMIC (BC156247; Huntsville, AL, USA). The full‐length coding region of NIPA1 was cloned into pFLAG‐CMV‐5a (Sigma‐Aldrich, St. Louis, MO, USA) to generate the wild‐type NIPA1 expression plasmids. The NIPA1 mutations, c.316G>A and c.316G>C were introduced into the wild‐type expression plasmids, separately, by using QuikChange Site‐Directed Mutagenesis method (Stratagene; Agilent, Santa Clara, CA, USA). The plasmids expressing wild‐type, each one of the two mutant NIPA1, or empty vector were transfected into HEK293T cells, respectively, using Lipofectamine 2000 (Thermo Fisher Scientific, Waltham, MA, USA). Forty‐eight hours post‐transfection, cells were harvested and analyzed by western blotting. The steady‐state NIPA1 expression levels were analyzed using the FLAG antibody (#8146, Cell Signaling Technology, Danvers, MA, USA). Actin was used as a loading control to ensure an equal amount of protein loading (MAB1501; Merck Millipore, Burlington, MA, USA).
Results
Identification of NIPA1 mutations
Among the 242 unrelated patients with HSP, we identified two heterozygous missense mutations in NIPA1, and each was found in one single patient. None of the patients had large fragment deletion or duplication in NIPA1 according to the MLPA analysis. The two mutations were NIPA1 c.316G>A and c.316G>C, which alter the same nucleotide and putatively lead to the same amino acid substitution from glycine to arginine at the codon 106 (p.G106R) (Fig. 1B). The mutated nucleotide is located in the 3′ end of NIPA1 exon 3 with only one nucleotide adjacent to the exon–intron boundary. Both mutations have been recognized as pathogenic mutations for SPG6 before. 10 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 The CADD v1.6 Phred scores of NIPA1 c.316G>A and c.316G>C were 28 and 27.9, respectively. Both MutationTaster and CADD predicted the two variants as disease‐causing mutations. The pedigrees of the two patients were shown in Figure 1C.
Clinical information of the two patients with SPG6
The genetic and clinical features of the two patients with SPG6 were summarized in Table 1. The patient A is heterozygous for NIPA1 c.316G>A. She was born from non‐consanguineous healthy parents and had no family history of neurological diseases. She started to have slowly progressive gait disturbance since age 19 years, and as the disease progressed, she needed two walking sticks for ambulation at age 35 years. Urinary urgency was also noticed. In addition to the motor symptoms, she was diagnosed with idiopathic generalized epilepsy at the age 17 years and schizophrenia at age 20 years, presenting with both visual and auditory hallucination. The epilepsy and psychiatric symptoms have remitted without further need of antiepileptic or antipsychotic drugs since approximately age of 30 years. Neurological examination at age 45 years revealed lower limbs spasticity and weakness, general hyperreflexia with bilateral knee and ankle clonus, and bilateral extensor plantar responses. Impaired vibration and proprioceptive sensation in the distal lower limbs were also noted. Her SPRS score was 31. Her mother, who did not carry the NIPA1 c.316G>A mutation, presented with normal findings in the neurological examination at age 66 years. Regrettably, we cannot approach the patient's father and siblings.
Table 1.
Clinical characteristics of the two Taiwanese SPG6 patients.
Patient A | Patient B | |
---|---|---|
NIPA1 mutation | c.316G>A (p.G106R) | c.316G>C (p.G106R) |
Sex | Female | Female |
Age at onset (years) | 17 | 12 |
Age at examination (years) | 45 | 34 |
SPATAX‐EUROSPA disability stage (0–7) a | 5 | 5 |
SPRS (0–52) | 31 | 26 |
Muscle power (hip flexors) b | 4 | 4 |
Deep tendon reflex c | ||
Biceps | +++ | ++ |
Knee | ++++ | +++ |
Ankle | ++++ | ++++ |
Plantar response | Extensor | Extensor |
Sensory impairment | ||
Pain | − | − |
Proprioception | + | − |
Vibration | + | + |
Urinary urgency | + | − |
Tremor | − | − |
MMSE score | 30 | 30 |
Additional manifestations | Epilepsy, schizophrenia | − |
SPRS, Spastic Paraplegia Rating Scale; MMSE, mini‐mental state examination; +, presence; −, absence.
Disability score: 0 (no functional handicap),1 (no functional handicap but signs at examination), 2 (mild, able to run, walking unlimited), 3 (moderate, unable to run, limited walking without aid), 4 (severe, walking with one stick), 5 (walking with two sticks), 6 (unable to walk, requiring wheelchair) and 7 (confined to bed).
Medical Research Council (MRC) Scale for muscle strength: 0–5.
National Institute of Neurological Disorders and Stroke (NINDS) Scale for tendon reflex: 0–++++.
The patient B was a 34‐year‐old lady, carrying a heterozygous NIPA1 c.316G>C mutation, developed slowly progressive gait impairment and stiffness in the lower limbs and trunk since age 12 years. Her motor function deteriorated progressively, and she needed to use two sticks for walking since age 32 years. Neurological examination in age 34 years demonstrated lower limbs spasticity and weakness, general hyperreflexia, bilateral extensor plantar responses, and impaired vibration over distal lower limbs. Her SPRS score was 26. Her mother, elder sister, and elder brother, who did not carry the mutation, were normal in the neurological examinations at age 58, 37, and 35 years, respectively. Her father died of esophageal cancer in his fifties and was reported to have a normal gait.
NIPA1 c.316G>A and c.316G>C do not affect splicing
Although NIPA1 c.316G>A and c.316G>C may lead to the same amino acid residue alternation, the two patients harboring either of the two mutations presented with different clinical manifestations; one carried pure HSP phenotype and the other had HSP with epilepsy and schizophrenia. In addition, we reviewed literature and found that epilepsy has been found in multiple individuals with the c.316G>A mutation but not in those with the c.316G>C mutation (Table S2). 10 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 Therefore, we wondered whether these two mutations might have different effects on the molecular mechanism. Since NIPA1 c.316G>A and c.316G>C are located in the exon–intron boundary region, we investigated whether these two mutations had different impacts on splicing utilizing a minigene assay. However, PCR amplification of the cDNA products from the wild‐type or mutant minigene constructs containing either of the two mutations expressed in HEK293T cells demonstrated no difference in size (Fig. 2B). Sanger sequencing analysis of the PCR products also revealed the same splicing pattern (Fig. 2C). We further analyzed the mRNA obtained from peripheral blood leukocytes of the two SPG6 patients carrying either on of the NIPA1 c.316G>A and c.316G>C mutations by RT‐PCR and Sanger sequencing. Again, there was no splicing alteration for both of the mutations (Fig. 2D and E).
NIPA1 c.316G>A and c.316G>C have different effects on protein expression
To investigate the influence of the two NIPA1 mutations on protein expression, the relative abundance of the NIPA1 protein in the HEK293T cell transfection studies were determined by Western blotting analysis. As shown in Figure 3, the steady‐state level of the c.316G>A NIPA1 was significantly lower than that of the wild‐type protein (P = 0.0039) and the c.316G>C NIPA1 (P = 0.0324). There was no significant difference between the wild‐type protein and the c.316G>C NIPA1, although the P value was close to the boundary of significance (P = 0.0517).

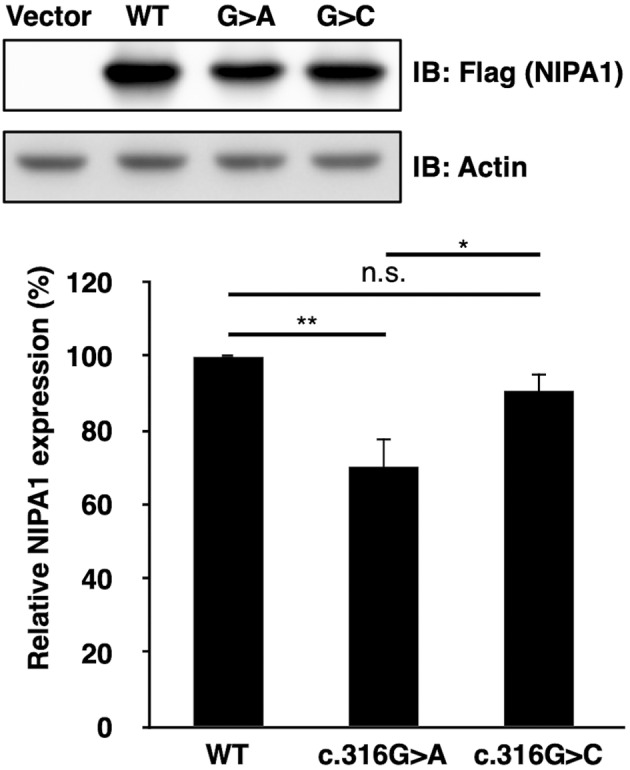

Figure 3.
In vitro expression of the NIPA1 variants in HEK293T cells. Representative western blot analysis of steady‐state expression of NIPA1 proteins in HEK293T cells transfected with NIPA1 constructs. Actin was used as a loading control. Densitometric quantification is shown below. The error bars indicate standard error of the mean (SEM) from four independent experiments. The asterisk indicates a statistically significant difference (**P < 0.01, *P < 0.05). n.s., not significant.
Discussion
In this study, we identified two patients with SPG6 after screening a Taiwanese cohort of 242 unrelated HSP patients for NIPA1 mutations. One patient had complex form HSP with epilepsy, schizophrenia, and a heterozygous c.316G>A mutation in NIPA1, and the other one had pure HSP and a heterozygous NIPA1 c.316G>C mutation. Both mutations occur at the nucleotide close to the splicing site and may lead to the same amino acid alternation, p.G106R, according to the codon changes. In vitro minigene analysis and RT‐PCR analysis on the RNA obtained from the patients' blood leukocytes suggest that both mutations do not affect NIPA1 splicing. The cell‐based study revealed that the c.316G>A mutation resulted in significantly reduced NIPA1 protein expression, but c.316G>C mutation did not. These findings may have the following implications.
First, although SPG6 usually manifests pure HSP with autosomal dominant inheritance, it may also present with complex HSP in individuals without family history of HSP. One study reviewed and analyzed 110 genetically confirmed SPG6 cases and found 23% of the patients had complex HSP and 10% of the patients also had generalized epilepsy. 28 The additional neurological manifestations in SPG6 could be epilepsy, 10 , 14 , 20 , 24 , 27 , 28 ataxia, 24 , 25 cognitive impairment, 14 , 17 , 21 motor neuron disease, 27 and/or peripheral neuropathy. 18 , 19 , 21 , 24 Interestingly, SPG6 with complex HSP is usually caused by NIPA1 c.316G>A mutation, but may be infrequently found in patients with NIPA1 c.316G>C, c.134C>G (p.T45R), or c.249C>G (p.N83K) mutation, too. 11 , 28 , 35 De novo NIPA1 mutation had also been reported in few SPG6 patients with apparently sporadic phenotype. 10 , 24 In this study, both SPG6 patients had no family history, and one had pure HSP and the other had HSP with epilepsy and schizophrenia. These findings suggest that SPG6 should be still considered as a potential diagnosis in patients with apparently sporadic spastic paraplegia with or without additional neurological involvement and of unknown cause.
Second, NIPA1 mutation appears to be an uncommon cause of HSP in Taiwan. Our study identified NIPA1 mutations in 2 of the 242 unrelated HSP patients, suggesting that SPG6 may account for approximately 0.8% (2/242) of HSP patients in Taiwan. However, the percentage of individuals with SPG6 to overall HSP patients varies across different populations. Previous studies demonstrated that the prevalence of NIPA1 mutations in HSP patients ranged from 0% in Japanese people, 36 0.9%–1.9% in European populations, 17 , 20 , 29 5.6% in Korean individuals, 25 and 3.6%–8.6% in Chinese cohorts. 10 , 24 In addition to ethnic and geographic factors, the wide variation of the prevalence of SPG6 in different populations may result from disease rarity. It is always challenging to precisely estimate the prevalence of a rare disease like SPG6, as single individuals may have a large impact on the percentage in a cohort. On the other hand, comparing to mutations in most of other HSP disease genes, NIPA1 mutations might be not so rare. In our Taiwanese HSP cohort, NIPA1 mutations are only obviously rarer than mutations in SPAST, CYP7B1, or ATL1, 37 , 38 but are comparable to or more common than mutations in other HSP disease genes. Therefore, NIPA1 mutations are a relatively uncommon but still appreciable cause for HSP.
Third, the two SPG6 cases in the study suggest that NIPA1 c.316G>A seems to be associated with epilepsy, but the c.316G>C variant does not. We further reviewed literature and found that epilepsy was present in 17 of the 60 SPG6 cases with NIPA1 c.316G>A and none of the 20 individuals with SPG6 cause by the c.316G>C mutation (Table S2). 10 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 , 27 , 28 Therefore, epilepsy is much more frequently associated with NIPA1 c.316G>A than c.316G>C (P = 0.0046, Fisher's exact test). This phenotypic discrepancy is surprising because both the c.316G>A and c.316G>C putatively lead to the same p.G106R amino acid alteration according to their codon changes (GGG>AGG, GGG>CGG). Furthermore, the nucleotide altered by both mutations is located very close to the boundary between exon 3 and intron 3 of NIPA1. Hence, the two NIPA1 mutations might have different influences on NIPA1 splicing. However, the in vitro minigene‐based splicing assays and the RT‐PCR analysis on the RNA from the patients' blood leukocytes revealed that both NIPA1 c.316G>A and c.316G>C did not affect splicing. Interestingly, the cell‐based study showed that the c.316G>A mutation but not c.316G>C mutation resulted in a significantly reduced NIPA1 protein expression, which may be responsible for the phenotypic discrepancy. However, it remains elusive how NIPA1 c.316G>A and c.316G>C mutations could exert a different effect on NIPA1 expression. Despite synonymous codons encode the same amino acids, the different mRNA structures and codon usage bias may still influence the initiation and elongation, and further the efficacy and accuracy of translation. 39 , 40 , 41 Further study is mandatory to elucidate the underlying mechanism responsible for the difference between the phenotypes associated the c.316G>A and c.316G>C mutations.
Epilepsy is not common in patients with HSP and may serve as a diagnostic clue for a few HSP subtypes. It has been reported in patients with several different autosomal dominant HSPs, including SPG3A (ATL1), SPG6 (NIPA1), SPG18 (ERLIN2), and SPG31 (REEP1). Among autosomal recessive HSPs, epilepsy was found with SPG11 (SPG11), SPG15 (ZFYVE26), SPG35 (FA2H), SPG44 (GJC2), SPG47 (AP4B1), SPG49 (TECPR2), SPG50 (AP4M1), SPG51 (AP4E1) and SPG77 (FARS2). Patients with the X‐linked inherited SPG2 (PLP1) may also have epilepsy. 42 In addition, it is worthy to note that some other monogenic diseases may also present with spastic paraplegia and epilepsy, such as Friedreich's ataxia (FXN), adrenoleukodystrophy (ABCD1), and GLUT‐1 deficiency syndrome (SLC2A1). Epilepsy may provide an extra diagnostic clue in patients presenting spastic paraplegia, but others clinical features or genetic characteristics should always be taken into consideration.
In conclusion, SPG6 accounted for 0.8% (2 out of 242) of HSP cases in the Taiwanese cohort. The NIPA1 c.316G>A and c.316G>C mutations are associated with adolescent‐onset complex and pure form HSP, respectively. Although neighbouring to the exon–intron boundary, both NIPA1 mutations do not affect splicing. The c.316G>A but not c.316G>C is associated with a significantly reduced NIPA1 protein expression, which may explain for the phenotypic discrepancy.
Conflict of Interest
The authors disclose no conflicts of interest.
Supporting information
Table S1. The gene list of the targeted resequencing panel for hereditary spastic paraparesis.
Table S2. Previously published SPG6 patients carrying NIPA1 c.316G>A or c.316G>C variants.
Acknowledgments
The authors thank for the patients who participated in this study. The authors also acknowledge the Genomics Center for Clinical and Biotechnological Applications of National Core Facility for Biopharmaceuticals, Taiwan (MOST 109‐2740‐B‐010‐002) for sequencing service. This work was supported by the grants from Ministry of Science and Technology, Taiwan, ROC (MOST 107‐2314‐B‐075‐014‐MY3; 109‐2314‐B‐075‐044‐MY3) and Brain Research Center, National Yang‐Ming University from the Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) in Taiwan.
Funding Statement
This work was funded by Ministry of Science and Technology, Taiwan grants 109‐2314‐B‐075‐044‐MY3 and 107‐2314‐B‐075‐014‐MY3; Brain Research Center; National Yang‐Ming University ; Ministry of Education (MOE) .
References
- 1. Fink JK. Advances in the hereditary spastic paraplegias. Exp Neurol. 2003;184(Suppl 1):S106‐S110. [DOI] [PubMed] [Google Scholar]
- 2. Boutry M, Morais S, Stevanin G. Update on the genetics of spastic paraplegias. Curr Neurol Neurosci Rep. 2019;19(4):18. [DOI] [PubMed] [Google Scholar]
- 3. Shribman S, Reid E, Crosby AH, Houlden H, Warner TT. Hereditary spastic paraplegia: from diagnosis to emerging therapeutic approaches. Lancet Neurol. 2019;18(12):1136‐1146. [DOI] [PubMed] [Google Scholar]
- 4. Darios F, Coarelli G, Durr A. Genetics in hereditary spastic paraplegias: essential but not enough. Curr Opin Neurobiol. 2022;72:8‐14. [DOI] [PubMed] [Google Scholar]
- 5. Rainier S, Chai JH, Tokarz D, Nicholls RD, Fink JK. NIPA1 gene mutations cause autosomal dominant hereditary spastic paraplegia (SPG6). Am J Hum Genet. 2003;73(4):967‐971. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 6. Chai JH, Locke DP, Greally JM, et al. Identification of four highly conserved genes between breakpoint hotspots BP1 and BP2 of the Prader‐Willi/Angelman syndromes deletion region that have undergone evolutionary transposition mediated by flanking duplicons. Am J Hum Genet. 2003;73(4):898‐925. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 7. Zhao J, Matthies DS, Botzolakis EJ, Macdonald RL, Blakely RD, Hedera P. Hereditary spastic paraplegia‐associated mutations in the NIPA1 gene and its Caenorhabditis elegans homolog trigger neural degeneration in vitro and in vivo through a gain‐of‐function mechanism. J Neurosci. 2008;28(51):13938‐13951. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 8. Goytain A, Hines RM, El‐Husseini A, Quamme GA. NIPA1(SPG6), the basis for autosomal dominant form of hereditary spastic paraplegia, encodes a functional Mg2+ transporter. J Biol Chem. 2007;282(11):8060‐8068. [DOI] [PubMed] [Google Scholar]
- 9. Wang X, Shaw WR, Tsang HT, Reid E, O'Kane CJ. Drosophila spichthyin inhibits BMP signaling and regulates synaptic growth and axonal microtubules. Nat Neurosci. 2007;10(2):177‐185. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 10. Fu J, Ma M, Li G, Zhang J. Clinical and genetic features of Chinese patients with NIPA1‐related hereditary spastic paraplegia type 6. Front Genet. 2022;13:859688. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 11. Fabbro D, Mio C, Fogolari F, Damante G. A novel de novo NIPA1 missense mutation associated to hereditary spastic paraplegia. J Hum Genet. 2021;66(12):1177‐1180. [DOI] [PubMed] [Google Scholar]
- 12. Kaneko S, Kawarai T, Yip E, et al. Novel SPG6 mutation p.A100T in a Japanese family with autosomal dominant form of hereditary spastic paraplegia. Mov Disord. 2006;21(9):1531‐1533. [DOI] [PubMed] [Google Scholar]
- 13. Chen S, Song C, Guo H, et al. Distinct novel mutations affecting the same base in the NIPA1 gene cause autosomal dominant hereditary spastic paraplegia in two Chinese families. Hum Mutat. 2005;25(2):135‐141. [DOI] [PubMed] [Google Scholar]
- 14. Reed JA, Wilkinson PA, Patel H, et al. A novel NIPA1 mutation associated with a pure form of autosomal dominant hereditary spastic paraplegia. Neurogenetics. 2005;6(2):79‐84. [DOI] [PubMed] [Google Scholar]
- 15. Bien‐Willner R, Sambuughin N, Holley H, Bodensteiner J, Sivakumar K. Childhood‐onset spastic paraplegia with NIPA1 gene mutation. J Child Neurol. 2006;21(11):974‐977. [DOI] [PubMed] [Google Scholar]
- 16. Munhoz RP, Kawarai T, Teive HA, et al. Clinical and genetic study of a Brazilian family with spastic paraplegia (SPG6 locus). Mov Disord. 2006;21(2):279‐281. [DOI] [PubMed] [Google Scholar]
- 17. Klebe S, Lacour A, Durr A, et al. NIPA1 (SPG6) mutations are a rare cause of autosomal dominant spastic paraplegia in Europe. Neurogenetics. 2007;8(2):155‐157. [DOI] [PubMed] [Google Scholar]
- 18. Liu SG, Zhao JJ, Zhuang MY, et al. Clinical and genetic study of SPG6 mutation in a Chinese family with hereditary spastic paraplegia. J Neurol Sci. 2008;266(1–2):109‐114. [DOI] [PubMed] [Google Scholar]
- 19. Du J, Hu YC, Tang BS, et al. Expansion of the phenotypic spectrum of SPG6 caused by mutation in NIPA1. Clin Neurol Neurosurg. 2011;113(6):480‐482. [DOI] [PubMed] [Google Scholar]
- 20. Svenstrup K, Moller RS, Christensen J, Budtz‐Jørgensen E, Gilling M, Nielsen JE. NIPA1 mutation in complex hereditary spastic paraplegia with epilepsy. Eur J Neurol. 2011;18(9):1197‐1199. [DOI] [PubMed] [Google Scholar]
- 21. Martinez‐Lage M, Molina‐Porcel L, Falcone D, et al. TDP‐43 pathology in a case of hereditary spastic paraplegia with a NIPA1/SPG6 mutation. Acta Neuropathol. 2012;124(2):285‐291. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22. Hedera P. Recurrent de novo c.316G>a mutation in NIPA1 hotspot. J Neurol Sci. 2013;335(1–2):231‐232. [DOI] [PubMed] [Google Scholar]
- 23. Arkadir D, Noreau A, Goldman JS, Rouleau GA, Alcalay RN. Pure hereditary spastic paraplegia due to a de novo mutation in the NIPA1 gene. Eur J Neurol. 2014;21(1):e2. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24. Lu C, Li LX, Dong HL, et al. Targeted next‐generation sequencing improves diagnosis of hereditary spastic paraplegia in Chinese patients. J Mol Med (Berl). 2018;96(7):701‐712. [DOI] [PubMed] [Google Scholar]
- 25. Kim A, Kumar KR, Davis RL, et al. Increased diagnostic yield of spastic paraplegia with or without cerebellar ataxia through whole‐genome sequencing. Cerebellum. 2019;18(4):781‐790. [DOI] [PubMed] [Google Scholar]
- 26. Zhao M, Chen YJ, Wang MW, et al. Genetic and clinical profile of Chinese patients with autosomal dominant spastic paraplegia. Mol Diagn Ther. 2019;23(6):781‐789. [DOI] [PubMed] [Google Scholar]
- 27. Tanti M, Cairns D, Mirza N, McCann E, Young C. Is NIPA1‐associated hereditary spastic paraplegia always 'pure'? Further evidence of motor neurone disease and epilepsy as rare manifestations. Neurogenetics. 2020;21(4):305‐308. [DOI] [PubMed] [Google Scholar]
- 28. Spagnoli C, Schiavoni S, Rizzi S, et al. SPG6 (NIPA1 variant): a report of a case with early‐onset complex hereditary spastic paraplegia and brief literature review. J Clin Neurosci. 2021;94:281‐285. [DOI] [PubMed] [Google Scholar]
- 29. Balicza P, Grosz Z, Gonzalez MA, et al. Genetic background of the hereditary spastic paraplegia phenotypes in Hungary ‐ an analysis of 58 probands. J Neurol Sci. 2016;364:116‐121. [DOI] [PubMed] [Google Scholar]
- 30. Chrestian N, Dupre N, Gan‐Or Z, et al. Clinical and genetic study of hereditary spastic paraplegia in Canada. Neurol Genet. 2017;3(1):e122. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 31. Schwarz JM, Cooper DN, Schuelke M, Seelow D. MutationTaster2: mutation prediction for the deep‐sequencing age. Nat Methods. 2014;11(4):361‐362. [DOI] [PubMed] [Google Scholar]
- 32. Rentzsch P, Witten D, Cooper GM, Shendure J, Kircher M. CADD: predicting the deleteriousness of variants throughout the human genome. Nucleic Acids Res. 2019;47(D1):D886‐D894. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 33. Schüle R, Holland‐Letz T, Klimpe S, et al. The spastic paraplegia rating scale (SPRS): a reliable and valid measure of disease severity. Neurology. 2006;67(3):430‐434. [DOI] [PubMed] [Google Scholar]
- 34. Shyu YI, Yip PK. Factor structure and explanatory variables of the mini‐mental state examination (MMSE) for elderly persons in Taiwan. J Formos Med Assoc. 2001;100(10):676‐683. [PubMed] [Google Scholar]
- 35. Boysen S, Elumalai V, ElSheikh RH, Aravindhan A, Veerapandiyan A. Epilepsy in hereditary spastic paraplegia associated with NIPA1 gene. J Clin Neurosci. 2022;100:212‐213. [DOI] [PubMed] [Google Scholar]
- 36. Ishiura H, Takahashi Y, Hayashi T, et al. Molecular epidemiology and clinical spectrum of hereditary spastic paraplegia in the Japanese population based on comprehensive mutational analyses. J Hum Genet. 2014;59(3):163‐172. [DOI] [PubMed] [Google Scholar]
- 37. Chou CT, Soong BW, Lin KP, et al. Clinical characteristics of Taiwanese patients with hereditary spastic paraplegia type 5. Ann Clin Transl Neurol. 2020;7(4):486‐496. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 38. Hsu SL, Hsueh HW, Chen SY, et al. Clinical and genetic characterization of hereditary spastic paraplegia type 3A in Taiwan. Parkinsonism Relat Disord. 2021;87:87‐91. [DOI] [PubMed] [Google Scholar]
- 39. Novoa EM, de Pouplana LR. Speeding with control: codon usage, tRNAs, and ribosomes. Trends Genet. 2012;28(11):574‐581. [DOI] [PubMed] [Google Scholar]
- 40. Quax TE, Claassens NJ, Soll D, van der Oost J. Codon bias as a means to fine‐tune gene expression. Mol Cell. 2015;59(2):149‐161. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 41. Parvathy ST, Udayasuriyan V, Bhadana V. Codon usage bias. Mol Biol Rep. 2022;49(1):539‐565. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 42. de Souza P, de Rezende Pinto W, de Rezende Batistella GN, Bortholin T, Oliveira AS. Hereditary spastic paraplegia: clinical and genetic hallmarks. Cerebellum. 2017;16(2):525‐551. [DOI] [PubMed] [Google Scholar]
