Accelerating ammonia synthesis in a membraneless flow electrolyzer through coupling ambient dinitrogen oxidation and water splitting

Summary

An electrochemical approach for ammonia production is successfully developed by coupling the anodic dinitrogen oxidation reaction (NOR) and cathodic hydrogen evolution reaction (HER) within a well-designed membraneless flow electrolyzer. The obtained reactor shows the preferential yield of ammonia over nitrogen oxides on the vanadium nitride catalyst surface. At an applied oxidation potential of 2.25 V versus the reversible hydrogen electrode (vs RHE), a promoted ammonia production rate and Faradaic efficiency (FE) were obtained with 9.9 mmol g⁻¹ h⁻¹ (0.029 mmol cm⁻² h⁻¹) and 4.8%, respectively. Besides, the negative affection of ammonia contamination is efficiently alleviated. Density functional theory calculations revealed that the thermodynamic energy needed to produce ammonia (−0.63 eV) is far lower than that of producing nitrogen oxide (0.96 eV) from hydrogenated nitrogen oxides [∗N₂OH] splitting, confirming the coupling of NOR and HER.

Graphical abstract

Highlights

• •The NOR and HER were coupled in a designed membraneless flow electrolyzer
• •The ammonia was formed on the surface of VN nanoparticles at an oxidation potential
• •The proposed method alleviated ammonia contamination and promoted ammonia production
• •The coupling strategy showed good universality for the other type of VN microparticles

Materials science; Materials chemistry; Catalysis

Introduction

The cyclic transformation of nitrogen is one of the vital material cycles in the biosphere.^1,2,3 The fixing dinitrogen from the atmosphere occupies a pivotal role and has been industrially realized to synthesize ammonia by the Haber−Bosch (H−B) process since the early 1900s.^4,5 This technological innovation has unburdened mankind from solely relying on biological-based nitrogen fixation and revolutionized the agricultural production system.^1,3 However, the energy sources and the hydrogen used in the H–B process still primarily originated from fossil fuel combustion and methane reforming. All of which released tremendous amounts of greenhouse gases and excessive energy consumption.^6,7 Therefore, the development of advanced energy-conservation nitrogen fixation methods with less greenhouse gas emissions is urgently needed.

Coupling renewable energy and a water-based hydrogen source,^8,9,10,11 the electrochemical fixation of dinitrogen (EFN) under ambient conditions was on the rise in recent years.^1,7,12 To date, most of the EFN research focused on the dinitrogen reduction reaction (NRR) to form ammonia (Figure 1), including novel electrocatalysts, reaction optimization, and exploring electrocatalytic mechanisms.^{13,14,15,16,17,18,19,20} Unfortunately, considering the inert molecular structure of N₂ (bond energy: 940.95 kJ mol⁻¹) and ubiquitous ammonia in aqueous solutions, organic solvents, catalysts, membranes, etc., satisfactory results on NRR from H₂O and N₂ under ambient conditions are significantly limited.^{21,22,23,24,25} To date, the EFN process is still far from ideal. The intractable challenges remain in low efficiency, poor conversion, severe contamination, unsound mechanism, etc.^22,25 Therefore, the need of superior and efficient protocols to enhance ENF performance is critical to overcome ammonia contamination. On top of that, the probing mechanism is also necessary to investigate.

Figure 1.

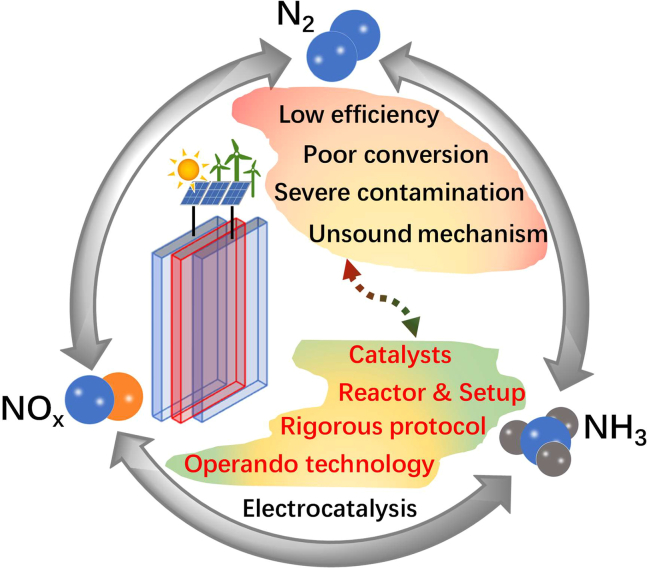

Schematic of electrocatalytic nitrogen fixation and potential challenges

Heuristically, the fixation of nitrogen could be realized by forming nitrogen oxides (NO_x) from the oxidation of N₂ activated by lightning,^1,26 plasma,²⁷ as well as other mimetic process in electrocatalytic nitrogen oxidation reaction (NOR, Figure 1).^28,29 Meanwhile, significant progress has been achieved in converting NO_x into ammonia by electrocatalytic hydrogenation with high-efficiency catalysts (Figure 1).^30,31,32,33 In addition, the microflow cell configuration could substantially improve the electrocatalytic performance of various reduction reactions in both aqueous^{34,35,36,37,38} and organic electrolytes.⁸ Given that the Nafion membrane used in NRR systems has been experimentally confirmed with unfavorable outcome such as imprecise ammonia quantification and long-term instability in practical scenarios^23,39 by accumulating and releasing ammonium ions (NH₄⁺) during ion exchange with acid groups,^22,39,40 therefore, it is logical to establish a membraneless microflow cell system with an integrated protocol of NOR and NO_x reduction reaction to achieve the aforementioned synergistic EFN process.

In this work, we proposed a novel pathway for ambient ammonia synthesis that successfully couples the electrochemical NOR with the hydrogen evolution reaction (HER) process (ENH) in a single microflow cell unit (Figure 2). Commercial vanadium nitride nanoparticles (VN NPs) were applied as the electrocatalyst to in-situ oxidize N₂ into ∗NO_x species at the anode side, while the H₂ from cathodic water splitting was then transferred to the anode and subsequently reduced the ∗NO_x species into ammonia. The coupled anodic and cathodic reactions in one single flow electrolyzer effectively alleviated circumambient ammonia contamination and promoted ammonia production (ammonia yield rate: 9.9 mmol g⁻¹ h⁻¹ (0.029 mmol cm⁻² h⁻¹) and FE: 4.8%). Furthermore, density functional theory (DFT) calculations indicate that the thermodynamic energy barrier to produce ammonia is much smaller than that of nitrogen oxide, confirming a preferential coupling process for ammonia synthesis, by providing a novel way for the hydrogenation process in the formation of ammonia during the electrochemical fixation of nitrogen. We believe the proposed strategy could create new insights into promoting ammonia synthesis under ambient conditions.

Figure 2.

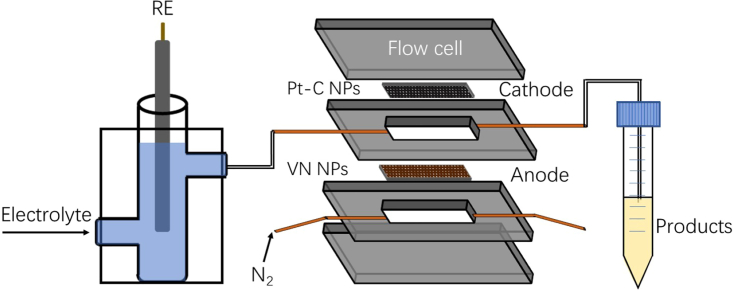

Schematic representation of the electrochemical flow cell used in this work

Results

Owing to the preferential N₂ adsorption energy,^9,41,42 the active interface properties, and the strong oxidizing tendency,⁴³ the commercial VN NPs were loaded on a gas diffusion layer (GDL) and conducted as the anodic catalyst in this work (see STAR Methods for details). Scanning electron microscopy (SEM) images (Figures 3A and 3B) showed the well-dispersed nature of the ca. 200-nm-diameter nanoparticles on the GDL and good porosity of the catalyst layer, both of which are favorable for stabilizing the electrode−electrolyte interface in the flow cell system.⁴⁴ The corresponding high-resolution transmission electron microscopy (HRTEM) image illustrates well-resolved lattice fringes with an interplanar distance of 0.204 nm, this can be indexed to the (200) plane of fcc phased VN crystal (Figure 3C). In addition, the powder X-ray diffraction (PXRD) pattern (Figure 3D) of the VN nanoparticles further confirmed the face-centered cubic crystal structure of the as-purchased VN NPs (JCPDS No. 25-1252).⁹ Surface composition analysis of the as-obtained electrode was accomplished by X-ray photoelectron spectroscopy (XPS, Figure S1A) and energy-dispersive X-ray spectroscopy (EDS, Figure S1B), indicating the presence of V, N, C, and O. These characterizations jointly confirmed that the commercial VN NPs can be an ideal candidate for catalyzing ENH process in the flow cell.

Figure 3.

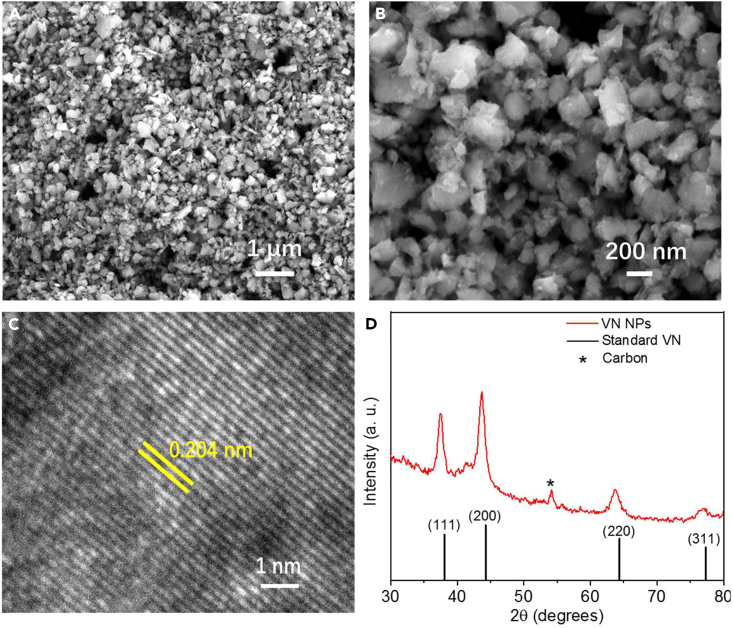

Microstructural characterizations of VN NPs

(A) SEM image, (B) SEM image, (C) HRTEM image, and (D) PXRD spectrum.

The ENH performance of the as-prepared electrodes was systematically assessed in a membraneless flow cell electrolyzer with two compartments (Figures 2 and 4A), in which the anodic reaction (NOR) and cathodic reaction (HER) were coupled to facilitate the production of ammonia (see STAR Methods for details). The amount of produced ammonia was quantified via a combination of the Nessler method and ¹H NMR spectroscopy (see STAR Methods for details) and the corresponding calibration curves for the NH₄⁺ assay are presented in Figure S2. We first optimized the ENH performance of the electrolyzer by screening different catalyst loadings (Table S1), types of electrolytes (Table S2), flow rates of electrolytes (Table S3), and current densities (Figures 4B and 4C, Table S4). With a catalyst loading of 3 mg cm⁻², electrolyte of 0.05 M H₂SO₄, and current density of 50 mA cm⁻², the optimal ammonia yield rate and FE on the as-described membraneless flow cell electrolyzer were obtained with 9.90 mmol g⁻¹ h⁻¹ (0.029 mmol cm⁻² h⁻¹) and 4.8%, respectively, at a potential of 2.25 V vs RHE. At a higher current density (100 mA cm⁻²), the cell yielded a highly unstable current profile and lower ENH activity likely resulted from the gas accumulation and severe corrosion of the carbon substrate at the anode (Figures 4B and 4C).^34,45 It is worth mentioning that the optimized flow rate of electrolyte was finally chosen as 1 mL min⁻¹, which can be attributed to the severely poor stability and insufficient yield rate of ammonia at higher flow rates (2 and 5 mL min⁻¹, Table S3). The production of ammonia from ENH was further analyzed according to the ¹H NMR results at different current densities (Figures 4D and 5A). In addition, the ¹⁵N₂ and ¹⁴N₂ isotope labeling results (Figure 4E) within 5 min for the first or second cycle clarify that the nitrogen source is from N₂ activation (see STAR Methods for details), excluding N leaching from VN or N concentration from surrounding contamination.

Figure 4.

The electrochemical performance of the VN NPs electrode

(A) Schematic of nitrogen fixation by the membraneless flow electrolyzer.

(B) Chronopotentiometric curves for ENH at various current densities in 0.05 M H₂SO₄ electrolyte.

(C) FEs and yield rates of ammonia under different current densities. The error bars represent the s.d. for at least three independent measurements.

(D) ¹H NMR spectra for the collected samples.

(E) ¹H NMR spectra for the obtained electrolytes from different operating parameters.

Figure 5.

Quantification and verification of produced ammonia from ENH

(A) Comparison of Nessler method and NMR method for quantifying the NH₄⁺ obtained from different current densities. The error bars represent the s.d. for at least three independent measurements.

(B) LSV curves of VN NPs in N₂-saturated, air-saturated, and Ar-saturated 0.05 M H₂SO₄ electrolyte.

A comparison of the ENH performance in this work and reported literature is shown in Table 1. In terms of the current density, ammonia yield rate, FE, and energy efficiency, the electrocatalytic performance in this work is superior to the reported literature.^{8,9,13,16,17,18,28,29,46,47} By replacing feed gas, the steady-state linear sweep voltammogram (LSV) curves for the VN NPs (Figure 5B) showed a decline in current density with the sequence of N₂, air, and Ar-saturated electrolyte. The enhanced current in N₂ and air-saturated electrolytes should result from the ENH process.⁴⁸ The trace yield of ammonia from the Ar-saturated electrolyte is likely contributed from the NO_x⁻ residues in the electrolyte or catalyst.²⁴ The corresponding higher ENH performance in N₂ and air-saturated electrolytes confirms that the catalytic conversion of N₂ to ammonia occurs in this system (Table S5). Furthermore, significant amounts of ammonia were also produced on bulk VN (Figure S3 and S4), suggesting that the formation of ammonia is universal in VN-catalyzed ENH.

Table 1.

Comparison of the catalytic performances (j-Current density, Faradaic efficiency-FE, Ammonia yield rate, and Energy efficiency-EE) of VN NPs toward ENH with recently reported NRR and NOR catalysts at ambient conditions

Electrocatalyst	j (mA cm-2)	FE (%)	Ammonia yield rate (mmol g-1 h-1)	Ammonia yield rate (mmol cm-2 h-1)	EE (kJ mol–1 NH3)	Reference
VN NPs	50	4.78	9.9	3.0∗10-2	15542	This work
VN nanoparticles	0.096	6	2.4	1.2∗10-3	–	Yang et al.9
BiNCs/CB/CP	4.2	66	200	5.2∗10-2	264	Hao et al.13
Cu/PI-300	1.7	6.56	0.2	1.01∗10-3	–	Lin et al.46
Au-TiO2/CP	1.6∗10-3	8.1	1.3	1.9∗10-5	715	Shi et al.47
Fe/FTO	1.4∗10-3	60	0.12	1.7∗10-5	386	Zhou et al.16
Au film	1.1∗10-3	0.12	–	1.4∗10-5	120606	Yao et al.18
PEBCD/CC	2.8∗10-3	2.85	0.027	3.4∗10-5	5078	Chen et al.17
Stainless steel cloth, GDE	8.8	35.3	–	1.1∗10-1	–	Lazouski et al.8
ZnFexCo2-xO4 spinel oxides	0.01	10.1	0.13 (NO3-)	3.3∗10-5	–	Dai et al.28
Ru/TiO2	3.0	26.1	0.16 (NO3-)	1.6∗10-5	–	Kuang et al.29

As shown in Figures 6A and 7 inset, the obtained VN NPs have a negligible decay in ammonia yield and FE during five rounds of recycling test at 50 mA cm⁻², indicating their decent stability for ENH. The applied potential positively shifted with additional cycles (Figure 7), which could also mainly originate from the carbon corrosion of the GDL substrate.⁴⁵ After the stability test, photographs of the VN NPs-deposited GDL show that the VN NPs remained in good condition on the front side, while severe etching occurred on the back side (Figure S5). In addition, the GC spectrum reveals the formation of monoxide (Figure S6) during the ENH process, further verifying the existence of the side reaction of carbon oxidation.

Figure 6.

Electrochemical stability investigation

(A) Five cycle ENH performance of VN NPs at 50 mA cm⁻².

(B) High-resolution N1s XPS spectra of VN NPs before the ENH stability test.

(C) High-resolution N1s XPS spectra of VN NPs after the ENH stability test.

Figure 7.

Electrochemical stability investigation

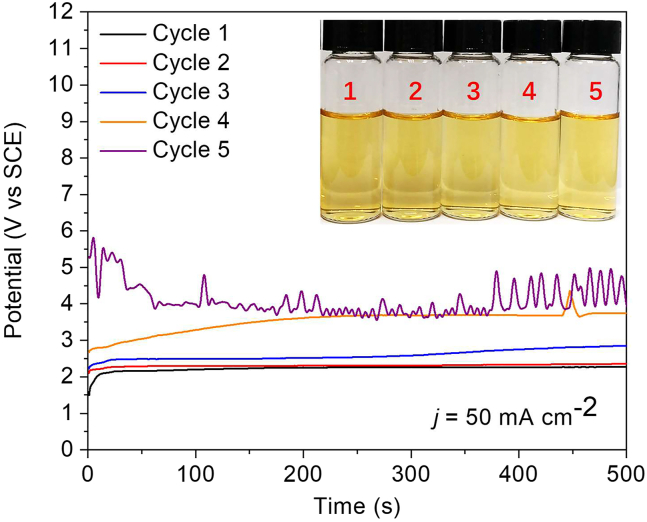

Five cycle chronopotentiometric curves of ENH process by using VN NPs as the catalyst in 0.05 M H₂SO₄ (inset: the corresponding H₂SO₄ electrolyte solution reacted with the Nessler agent).

Furthermore, when the applied current density was decreased to 10 mA cm⁻², the ENH process achieved stable potential curves (Figure S7A) and kept constant for twelve cycles (Figure S7B), indicating that carbon erosion could cause negative effects on the ENH process. This further suggested the necessity to explore suitable carbon-free gas diffusion layers in future studies. More importantly, the basic physical structures of the VN NPs observed on SEM (Figure S8A), HRTEM (Figure S8B), PXRD (Figure S9A), XPS (Figures S9B, S9C, and S10A), and EDS (Figure S10B) were all well maintained after the stability test at 50 mA cm⁻², further confirming the excellent durability of the ENH system. For instance, the nitrogen atomic content is almost unchanged as comparing the VN NPs before (11.04 at%) and after (10.94 at%) stability test at 50 mA cm⁻² (Figures S1A and S10A). As illustrated from the N1s XPS spectra of VN NPs before and after the ENH stability test (Figures 6B and 6C), the obvious higher N-containing species on VN NPs before the stability test should be originated from quaternary-N of ammonia, which could be due to the adherence of atmospheric ammonia contaminant on the commercial VN NPs as stored in the ambient condition.⁴⁹ The other nitrogen species show almost no change, such as VN and VN_xO_y.^9,50 These results support the conclusion that the produced ammonia is derived from ENH.

Systematic control experiments were conducted to investigate the reaction mechanism of the coupled NOR and HER process. As shown in Figures 8A and 8B, in the instantly collected solution, the trace amount of NO₂ was converted into NO₂⁻ by reacting with KOH, triggering a chromogenic azide reaction (Table 2), and turning the solution into a magenta color with an UV-visible absorption peak ca. 550 nm.⁵¹ Meanwhile, with the I₂ formed from the reaction of NO₂ and potassium iodide (KI), KI test paper displayed a blue color when dipped in the outlet solution from the ENH reaction (Figure 8A inset, Table 2).⁵² The chromogenic reaction of NO₂ evidenced the occurrence of the NOR at the anode, suggesting the smooth proceeding electrooxidation process to the in-situ-form ∗NO_x intermediates. Moreover, to determine the quantity of NO₂⁻ contamination in N₂ source, the experiment of simple N₂ purging under open circuit potential (OCP) for about 10 min was performed. As shown in the Figures S11A and S11B, the collected electrolyte has no color reaction with KI tester and cannot trigger a chromogenic azide reaction, indicating the trace existence of NO₂⁻. Meanwhile, the same control tests were conducted by feeding Ar under OCP and a current density of 50 mA cm⁻² (Figures S12A and S12B). The results show the same phenomenon as in the N₂ case except that the much lower content of NO₂⁻ could be detected, which is in good agreement with the results as measured by the Nessler method (Table S5). Those results exclude the NO₂⁻ contamination from N₂ source. Besides, considering that ammonia was generally derived from the electron-accepting process of nitrogen, the reduction reaction of ∗NO_x must have happened.

Figure 8.

Control experiments for mechanism investigation

(A) UV spectra. The inset in a, shows KI test paper treated with the corresponding samples.

(B) Photographs of different samples after Azide reaction.

(C) Comparison of ammonia yield rates obtained with the membraneless, membrane, and H₂ feed membrane flow electrolyzer at 50 mA cm⁻². The error bars represent the s.d. for at least three independent measurements.

Table 2.

Chromogenic reaction equations in detecting NO₂

Disproportionation and Azide reaction:
2NO2 +2KOH → KNO3 +KNO2 + H2O HCl+NO2- + H2N-Ph-SO3H → ClN2-Ph-SO3- +2H2O ClN2-Ph-SO3-+ H2N-Np → H2N-Np-N=N-Ph-SO3-(magenta) +HCl
KI test paper reaction:
NO2 +KI → 2KNO3 + 2NO + I2 (blue)

With the membraneless configuration of the flow electrolyzer, the hydrogen produced from the HER at the cathode could transfer across the thinner electrolyte to the anode surface and reduce the in-situ-formed ∗NO_x to produce ammonia conveniently. Figure 8C shows that the ammonia yield rate in the membraneless flow cell was approximately two times higher than that in the membrane flow cell. In addition, in the membraneless flow cell, hydrogen was detected on the anode side by GC measurement (Figure S6). The lower ammonia yield rate in the membrane flow cell could be ascribed to the blocked hydrogen permeation by the Nafion 211 membrane⁵³ and the trace ammonia contamination.³⁹ Furthermore, to verify the H₂-permeation reaction process in the membraneless cell, extra hydrogen was fed from the cathode side of the membrane flow cell, and the ammonia yield rate obviously increased (Figure 8C). Conversely, when replacing the cathode with IrO₂ NPs-loaded GDL or bare GDL (Table S6), which are generally recognized to have low activity toward HER, ammonia formation would be suppressed. These results evidently proved the ammonia formation process should be the coupling of the NOR and HER.

The yellow V₂O₅ NPs (Figure S13A Inset), which were directly converted from the commercial VN NPs by pyrolysis treatment in air, showed almost no ENH activity (Figure S13 and Table S7). In conjunction with the isotopic labeling results (Figure 4E), a similar mechanism to the Mars-van Krevelen mechanism in NRR can be proceeded in ENH,^9,10,54 in which N₂ exchanges with N from VN to form ammonia. DFT calculations were carried out to further verify the coupling mechanism of NOR and HER (see STAR Methods for details) and the higher selectivity of ammonia than nitrogen oxide on VN (111). As depicted in Figures 9 and 10, the VN catalyst was firstly activated through energetically favorable hydrogenation and oxidation processes to form oxygen-doped VN with nitrogen vacancy (VNO-vac) sites. Meanwhile, some nitrogen on the catalyst surface was lost as a nitrogen source to form ammonia, and vacancies for adsorbing N₂ were left. This mechanism explained the nitrogen exchange between the catalyst and N₂, in good accordance with the isotopic results for both ¹⁵NH₄⁺ and ¹⁴NH₄⁺ (Figure 4E) and the previously reported electrochemical NRR on VN NPs.⁹

Figure 9.

DFT calculations optimized geometric structures and intermediates on the VN NPs (Red: V, Gray: N, Blue: O, Green: H)

Figure 10.

DFT calculations free energy evolution for ammonia and nitrogen dioxide formation on VN (111) at 0 V (vs RHE)

Theoretically, VNO-vac sites would subsequently adsorb N₂ molecules (N₂∗) and then preferentially convert them into hydrogenated nitrogen oxides (N₂OH∗) at oxidation potentials (Figure 11). Under an atmosphere with H₂, the N₂OH∗ intermediate preferentially forms N₂HOH∗ through a chemical hydrogenation pathway (ΔG_τ = −0.63 eV) in competition with N₂O∗ from dehydration proton-coupled electron transfer (ΔG_τ = 0.96 eV). The following steps in the ammonia formation process are all more energetically favorable than those of nitrogen oxides (NO₂, Figure 10). The ultra-low concentration of NO₂ could be removed by the flowing electrolyte or in-situ converted to ammonia by H₂. Therefore, ammonia is the major product even at the oxidation potential following the pathway of N₂---N₂OH--- N₂OH₂---N₂H---N₂H₂---NH₃, in well accordance with the experimental observations (Figures 4 and 8). In addition, due to the lower kinetics of the HER in alkaline media than in acidic media,⁵⁵ ammonia formation was impeded in the first 400 s at a current density of 50 mA cm⁻² (Figure S13). Once sufficient H₂ was produced in the system (Figure S14 and S15), the ammonia yield returned to normal and was almost the same as that in acidic media (Figures 6A and S14C). These results strongly demonstrated the efficient production of ammonia through the coupling of NOR and water splitting in one single flow electrolyzer.

Figure 11.

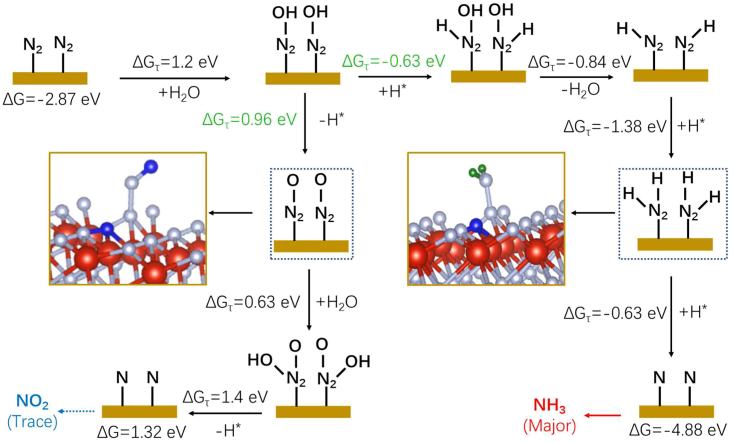

DFT calculations proposed mechanism for ammonia and nitrogen dioxide formation on VNO-vac sites

Discussion

In summary, a nitrogen fixation strategy for electrochemical ammonia synthesis from nitrogen and water was proposed. This method has the benefit of high yield under ambient conditions through the coherent cooperation of anodic nitrogen oxidation and cathodic hydrogen evolution. Systematic investigations and experimental results demonstrate that the coupled anodic NOR and cathodic HER accelerated the ammonia synthesis from N₂ in a membraneless flow electrolyzer. The process promoted ammonia production (ammonia yield rate: 9.9 mmol g⁻¹ h⁻¹ (0.029 mmol cm⁻² h⁻¹), Faradaic efficiency: 4.8%), and alleviated circumambient ammonia contamination. Moreover, simulation model further revealed the reaction mechanism and indicated that the coupled NOR and HER process could improve energy efficiency and facilitate the overall ammonia synthesis process. We believe this electrochemical integration strategy positively promotes the ammonia production yield and detection accuracy toward ammonia synthesis from nitrogen and water. Future studies may find or design suitable gas diffusion layers and the rational cell creation for promoting the development of nitrogen fixation through the electrochemical pathway.

Limitations of the study

The very limited N₂ solubility in aqueous media severely drags down the efficiency for electrochemical fixation of nitrogen. Meanwhile, most of the NRR/NOR performance associating electrochemical current density is far from enough to industrially obtain profits. To overcome those bottleneck problems, it is highly urgent to design advanced cell configuration with well-defined gas-liquid-solid triple-phase interface in the absence of mass transport limitations. Hence, vast efforts should also be devoted to the novel cell design for promoting the development of nitrogen fixation through electrochemical pathway in the prospective study.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Chemicals, peptides, and recombinant proteins
VN NPs	3A Chemicals Co., Ltd	CAS: 24646-85-3
Bulk VN	3A Chemicals Co., Ltd	CAS: 24646-85-3
Pt/C (20 wt% Pt)	Johnson Matthey	CAS: 7740-06-4
NH4Cl	Aladdin	CAS: 12125-02-9
H2SO4	Fisher	CAS: 7664-93-9
KOH	Aladdin	CAS: 1310-58-3
Dimethyl sulfoxide	Alfa Aesar	CAS: 67-68-5
D2O	Energy Chemical	CAS:7789-20-0
HANNA agent	HANNA Inc.	Product number: HI93715-05
p-aminobenzene-sulfonamide	Adamas-beta	CAS: 63-74-1
N-(1-Naphthyl) ethylenediamine dihydrochloride	Aladdin	CAS: 1465-25-4
KI test paper	Shanghai SSS Reagent Co., Ltd	Product number: C148-2017
N2 (99.999%)	Nanjing Tianze Gas Co., Ltd	CAS: 7727-37-9
N2 (15N, 98%)	Sigma-Aldrich	CAS: 29817-79-6
Ar (99.999%)	Nanjing Tianze Gas Co., Ltd	CAS: 7740-37-1
Nafion (10 wt% aqueous solution)	Fuel Cell Store	CAS: 66796-30-3
Gas diffusion layer	Fuel Cell Store	Product number: Sigracet 29 BC
Nafion 211 membrane	Fuel Cell Store	Product number: 1600001-2
Software and algorithms
Graph plotting	Origin Lab	Origin: Data Analysis and Graphing Software (originlab.com)
VASP 5.3.5	VASP Software	VASP - Vienna Ab initio Simulation Package
Other
SEM	LEO153VP, ZEISS Inc.	https://www.zeiss.com.cn/microscopy/products/electron-microscopy/evo.html
TEM	JEM-2800, JEOL Inc.	http://www.bahens.cn/product/55.html
XRD	D8 ADVANCE, Bruker Inc.	https://www.instrument.com.cn/netshow/C123139.htm
XPS	PHI 5000, HITACHI Inc.	https://www.instrument.com.cn/netshow/C191769.htm
Ammonia detector	HI96715, HANNA Inc.	https://b2b.baidu.com/land?id=bb23248c6763b817cd5391f1e80eafdd10
UV spectrophotometer	UH5300, ULVAC-PHI, Inc.	http://www.app17.com/c143174/products/d9951153.html

Resource availability

Lead contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contact, Wenlei Zhu (wenleizhu@nju.edu.cn).

Materials availability

This study did not generate new unique reagents.

Method details

Material characterization

All chemicals were of analytical grade without further purification unless otherwise noted. Commercial vanadium nitride nanoparticles with 40 nm diameter (VN NPs) and bulk vanadium nitride nanoparticles with 500 nm diameter (bulk VN) were used as catalysts in this work and bought from 3A Chemicals Co., Ltd. (Shanghai, China). The microstructure of the catalysts was characterized by field emission scanning electron microscopy (SEM, LEO153VP, 10 kV) with an energy-dispersive X−ray (EDS) spectrometer and high-resolution transmission electron microscopy (HRTEM, JEOL, JEM-2800). Powder X-ray diffraction (PXRD) measurements were conducted on a D8 ADVANCE X-ray diffractometer (Bruker Corporation, America). X-ray photoelectron spectra (XPS) were measured on a PHI 5000 VersaProbe (Ulvac-Phi, Japan), and XPS fitting was conducted by CasaXPS software with the adventitious carbon peak calibrated to 284.8 eV. All peaks were fitted using a Gaussian/Lorentzian product line shape and a Shirley background. Ultraviolet-visible (UV) spectra were recorded on a UH5300 spectrophotometer (Shimadzu, Kyoto, Japan).

Flow cell electrolysis

Electrochemical measurements were performed on an Autolab potentiostat (PGSTAT 204) in a three-electrode system. In this study, the carbon paper with a microporous layer (Sigracet 29 BC, Fuel Cell Store, America) was used as the gas diffusion layer (GDL) for supporting catalysts, collecting current and acting as a pathway for gas from flow channels to the catalyst surface. A Pt/C (platinum, nominally 20% on carbon black, Alfa Aesar)-coated GDL with a loading of 0.5 mg cm⁻² was used as the counter electrode unless otherwise noted. A saturated calomel electrode (SCE, saturated KCl, INESA Scientific Instrument CO., LTD) or Ag/AgCl (saturated KCl, CH Instruments, Inc.) electrode was used as the reference electrode (RE). A VN NPs-coated GDL was applied as the working electrode unless otherwise noted and was prepared by drop-casting a catalyst ink. We weighed the GDL before and after deposition to record its actual catalyst loading and maintained a loading of 3 mg cm⁻² for all electrodes unless otherwise noted. To prepare the catalyst ink, 100 mg of catalyst was ultrasonically dispersed in a mixture of 3 mL of n-propanol and 20 μL of Nafion (10 wt% aqueous solution, Fuel Cell Store, America). Then, the mixture was sonicated for 30 min prior to dropcasting. Nafion 211 membrane (Fuel Cell Store) was used in the membrane flow cell.

The electrolysis experiments were performed in a two-channel flow cell (channels dimension 2 × 0.5 × 0.2 cm³, Figure 2). The device was fabricated from acrylic and included a gas channel for feeding high-purity N₂ (99.999%), a liquid channel for flowing electrolytes, and solid acrylic end pieces. PTFE gaskets were placed between each component for sealing, and the device was tightened using six bolts. The electrode geometric area was 1 cm², and the distance between the anode and cathode was 2 mm. An external SCE (electrolyte of acidic media) or Ag/AgCl (electrolyte of alkaline media) reference electrode located ∼5 cm from the inlet of the cathode was used to measure the anodic half-cell potential. All potential measurements were converted to the RHE based on the following formula: E_RHE = E_Hg/HgCl2 + E^θ_Hg/HgCl2 + 0.059 × pH (in volts) or E_RHE = E_Ag/AgCl + E^θ_Ag/AgCl + 0.059 × pH (in volts). The measured pH values of the bulk electrolyte were used for RHE conversions unless stated otherwise.

The N₂ (99.999%), Ar (99.999%), or air (pumped from the atmosphere) flow rate was set at 10 mL min⁻¹ via a mass flow controller (Sevenstar, CS300). The flow rates of electrolyte, sulfuric acid (H₂SO₄ with different concentrations, 98%) or potassium hydroxide (1 M KOH, 99.99%) aqueous solution were controlled via a peristaltic pump (Chuangrui Precision Pump Co., Ltd., China), with the electrolyte flow rate set to 1 mL min⁻¹ unless otherwise noted. Prior to electrochemical reactivity studies, all the electrodes assembled into the flow electrolyzer were first rinsed with the electrolyte at 1 mL min⁻¹ for 15 min to clear surface impurities.

In the stability investigation experiments, a constant current density of 50 mA cm^-2 was applied for 500 seconds in the membraneless flow cell with a VN NPs-coated GDL as the anode and Pt/C-coated GDL as the cathode. N₂ was fed into the cell at a flow rate of 10 mL min⁻¹. The same configuration was run for five cycles, and the cell was rinsed with fresh 0.05 M H₂SO₄ for 5 min with a flow rate of 1 mL min⁻¹ after each cycle. To acquire the energy efficiency, the ENH test was performed at 50 mA cm⁻² for ca. 20 minutes in a membraneless flow cell with two electrodes, i.e., an anode (VN NPs on a GDL with a loading of 3 mg cm⁻²) and cathode (Pt-C on a GDL with a loading of 0.5 mg cm⁻²), in which the electrolyte was 0.05 M H₂SO₄ by feeding N₂ at a flow rate of 10 mL min⁻¹.

Product quantification

The amount of ammonia produced in one single-pass electrolysis was determined using the Nessler method without a condensing process. The calibration curves were made by using NH₄Cl solutions in 0.05 M H₂SO₄ (adjusting pH to 13.5 with 1 M KOH solution) or 1 M KOH solution with known concentrations using a photometer (HI 96715, HANNA). After ammonia in an acidic electrolyte was collected in an aseptic centrifuge tube, KOH solution (1 M) was added to adjust the pH of the solution to 13.5 before its qualification.

The quantification of the ammonia amount in single-pass electrolysis was also verified by using ¹H NMR (Bruker AVIII 500 MHz). The ¹H NMR spectra were obtained using a water suppression method with 1500 scans. Typically, 500 μL of collected single-pass electrolyte was mixed with 100 μL of internal standard solution [25 ppm (m/m) dimethyl sulfoxide (≥99.9%, Alfa Aesar) in D₂O (99.8%)]. Gas products from the anode were determined on a gas chromatograph (GC, Agilent 7890B) equipped with Hayesep D and Molsieve 5A columns leading to a thermal conductivity detector (TCD) and a Hayesep D column leading to a flame ionization detector (FID). Hydrogen and oxygen were measured using TCD, while monoxide was detected using FID.

The Faradaic efficiency (FE) of ammonia formation was calculated as follows:

$$\mathrm{F}\mathrm{E}(\%)=\left(3\mathrm{F}\times \mathrm{C}\times \mathrm{V}\right)/\mathrm{Q}$$ Equation 1

where F is the Faraday constant, C is the measured ammonia concentration, V is the volume of the electrolyte, and Q is the total charge passed through the electrode during electrolysis.

The yield rates of ammonia production were calculated by the following equations:

$$r_{\left(\mathrm{m},\mathrm{N}\mathrm{H}4+\right)}=\left(\mathrm{C}\times \mathrm{V}\right)/\mathrm{t}\times \mathrm{m}$$ Equation 2

$$r_{\left(\mathrm{A},\mathrm{N}\mathrm{H}4+\right)}=\left(\mathrm{C}\times \mathrm{V}\right)/\mathrm{t}\times \mathrm{A}$$ Equation 3

where C is the measured ammonia molar concentration, V is the volume of the electrolyte, t is the electrochemical oxidation reaction time, m is the loading mass of the electrocatalyst, and A is the geometric area of the working electrode.

The energy efficiency was calculated by the following equation:

$$ϵ=\mathrm{Ǝ}/{\mathrm{n}}_{\mathrm{N}\mathrm{H}3}$$ Equation 4

where Ǝ is the applied electric energy and n is the measured ammonia molar amount.

¹⁵N₂ electrolysis

The labeled isotope experiment was performed using ¹⁵N₂ gas (98 at% ¹⁵N₂, Sigma-Aldrich) for electrolysis. Typically, ¹⁵N₂ was injected into the flow cell with a flow rate of 10 mL min⁻¹, and the flow rate of 0.05 M H₂SO₄ electrolyte was set at 1 mL min⁻¹. Electrolysis tests were conducted at a constant oxidation current of 50 mA cm⁻² for two cycles with each cycle lasting 5 min, and the relevant single-pass electrolyte was collected for analysis by ¹H NMR.

Computational methods

All the calculations were performed with density functional theory (DFT) as implemented in the Vienna Ab initio Software Package (VASP 5.3.5) code, the Perdew–Burke–Ernzerhof (PBE) generalized gradient approximation and the projected augmented wave (PAW) method.^56,57 The cut-off energy for the plane-wave basis set was set to be 400 eV. The convergence criteria for the electronic self-consistent iteration and force were set to 10⁻⁵ eV and 0.01 eV/Å, respectively. A 4 × 4 supercell of the VN (111) surface including 6 atomic layers was constructed to model the catalyst in this work, with the bottom of two layers fixed in structural relaxation. The Brillouin zone of the surface unit cell was sampled by Monkhorst–Pack (MP) grids.⁵⁸ The VN (111) surface was determined by a 3 × 3 × 1 Monkhorst−Pack grid.⁵⁹ A vacuum layer of 15 Å was introduced to avoid interactions between periodic images. The adsorption energy (E_ads) of the surface species is defined by

$${\mathrm{E}}_{\mathrm{a}\mathrm{d}\mathrm{s}}={\mathrm{E}}_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}-{\mathrm{E}}_{\mathrm{s}\mathrm{u}\mathrm{r}\mathrm{f}\mathrm{a}\mathrm{c}\mathrm{e}}-{\mathrm{E}}_{\mathrm{s}\mathrm{p}\mathrm{e}\mathrm{c}\mathrm{i}\mathrm{e}\mathrm{s}}$$ Equation 5

where E_total represents the total energy of the adsorbed species on the catalyst surface, E_surface is the energy of the empty surface, and E_species is the energy of the species in the gas phase.
