. 2023 May 16;20(6):3241–3248. doi: 10.1021/acs.molpharmaceut.3c00241

Visualizing Galectin-3 Binding Protein Expression with ImmunoPET

Outi Keinänen †,‡,§, Samantha M Sarrett †,§,∥, Samantha Delaney †,§,∥, Cindy Rodriguez †,§,⊥, Eric J Dayts †, Emily Capone #,∇,○, Frederic Sauniere ∇, Rodolfo Ippoliti ◆, Gianluca Sala #,∇,○, Stefano Iacobelli ∇, Brian M Zeglis †,§,∥,⊥,◨,*
PMCID: PMC10245371  PMID: 37191353

Abstract

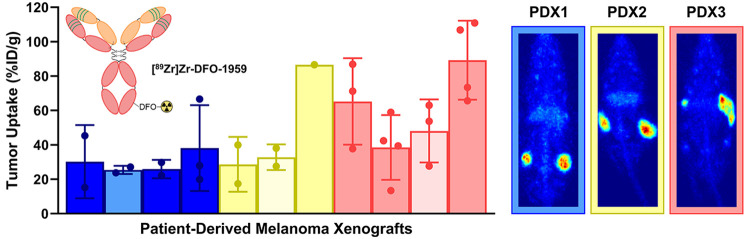

graphic file with name mp3c00241_0004.jpg

Galectin-3 binding protein (Gal-3BP) is a glycoprotein that is overexpressed and secreted by several cancers and has been implicated as a marker of both tumor progression and poor prognosis in melanoma, non-small cell lung cancer, head and neck squamous cell carcinoma, and breast cancer. The expression of Gal-3BP by a variety of neoplasms makes it an enticing target for both diagnostics and therapeutics, including immuno-positron emission tomography (immunoPET) probes and antibody-drug conjugates (ADCs). Herein, we report the development, in vitro characterization, and in vivo evaluation of a pair of Gal-3BP-targeting radioimmunoconjugates for 89Zr-immunoPET. A humanized anti-Gal-3BP antibody, 1959, and its corresponding ADC, 1959-sss/DM4 (DM4 = ravtansine), were modified with desferrioxamine (DFO) to yield DFO-1959 and DFO-1959-sss/DM4 immunoconjugates bearing 1–2 DFO/monoclonal antibody. Both DFO-modified immunoconjugates retained their affinity for Gal-3BP in enzyme-linked immunosorbent assay experiments. The chelator-bearing antibodies were radiolabeled with zirconium-89 (t1/2 ≈ 3.3 d) to produce radioimmunoconjugates — [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 — with high specific activity (>444 MBq/mg, >12 mCi/mg) and stability (>80% intact after 168 h in human serum at 37 °C). In mice bearing subcutaneous Gal-3BP-secreting A375-MA1 xenografts, [89Zr]Zr-DFO-1959 clearly delineated tumor tissue, reaching a maximum tumoral activity concentration (54.8 ± 15.8%ID/g) and tumor-to-background contrast (tumor-to-blood = 8.0 ± 4.6) at 120 h post-injection. The administration of [89Zr]Zr-DFO-1959 to mice bearing subcutaneous Gal-3BP-expressing melanoma patient-derived xenografts produced similarly promising results. [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 exhibited nearly identical pharmacokinetic profiles in the mice bearing A375-MA1 tumors, though the latter produced higher uptake in the spleen and kidneys. Both [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 effectively visualized Gal-3BP-secreting tumors in murine models of melanoma. These results suggest that both probes could play a role in the clinical imaging of Gal-3BP-expressing malignancies, particularly as companion theranostics for the identification of patients likely to respond to Gal-3BP-targeted therapeutics such as 1959-sss/DM4.

Keywords: galectin-3 binding protein, positron emission tomography, immunoPET, theranostic imaging, Zr-89, antibody-drug conjugate

Introduction

Galectin-3 binding protein — Gal-3BP; also known as LGALS3BP, 90K, or Mac-2-Binding Protein (Uniprot ID: Q08380) — is a highly glycosylated oligomeric protein that was originally identified in the conditioned medium of human breast cancer cells.1 Gal-3BP is produced at low levels by healthy cells and tissues, but dramatically increased expression levels have been found in the tumors of patients with a variety of malignancies.2−6 Gal-3BP expression and secretion have been shown to be markers of poor prognosis in breast cancer, non-small cell lung cancer, head and neck squamous cell carcinoma, and melanoma.3,4,7−10 Along these lines, Gal-3BP is believed to be a driving force in several processes leading to cell transformation and tumor progression, including the regulation of adhesion processes, the stimulation of tumor angiogenesis, and the induction of immune escape.5,8,11,12 Several groups have also identified Gal-3BP as a major component of cancer-derived extracellular vesicles (EVs).13−16

The expression of Gal-3BP by a variety of cancers has made it a particularly enticing target for the development of therapeutics. Indeed, an antibody-drug conjugate (ADC) based on the Gal-3BP-targeting monoclonal antibody (mAb) 1959 (i.e., 1959-sss/DM3 (DM3 = maytansinoid DM3)) has recently been shown to suppress tumor growth and prolong survival in murine models of melanoma and neuroblastoma.17,18 In mice bearing melanoma xenografts, for example, a dose of 10 mg/kg 1959-sss/DM3 completely halted tumor growth and resulted in the survival of 100% of mice after 150 days, all with no observed mortality or treatment-related toxicity. The efficacy of 1959-sss/DM3 is especially remarkable given that Gal-3BP is secreted and that the ADC itself is non-internalizing. While conventional wisdom has held that ADCs must be internalized to efficiently deliver their toxic cargo, several recent studies have underscored the potential of non-internalizing ADCs — including the family based on 1959 — that target tumor- or stroma-associated antigens and exploit the reducing nature of the tumor microenvironment to release disulfide-linked toxins that can then diffuse into nearby tumor cells.19−21

Over the last two decades, ADCs have emerged as a highly promising class of therapeutics, with several gaining Food and Drug Administration (FDA) approval and many more in the clinical pipeline.22,23 Yet the biochemical complexity of human tumors means that the accurate selection of patients likely to respond to ADC therapy is critical. PET imaging — and particularly immunoPET using mAbs labeled with zirconium-89 (89Zr; t1/2 ≈ 3.3 d) — has shown great promise in the preclinical development and clinical deployment of ADCs.24,25 The ZEPHIR trial, for example, clearly demonstrated that theranostic immunoPET with 89Zr-trastuzumab can help delineate patients likely to respond to therapy with trastuzumab emtansine: investigators found that patients in the “positive” immunoPET group exhibited a median time-to-treatment failure (TTF) of 11.2 months compared to 3.5 months for those in the “negative” immunoPET group.26

Herein, we report the synthesis, characterization, and in vivo evaluation of two Gal-3BP-targeting radioimmunoconjugates: [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 (DFO = desferrioxamine). While Gal-3BP is a secreted antigen, high concentrations of the protein remain in close proximity to tumor cells.17,18 Indeed, the feasibility of targeting shed antigens for immunoPET has already been demonstrated with several biomarkers, most notably CA19-9, CA-125, and VEGF-A.27−29 In the end, our probes demonstrated highly promising in vivo behavior in two murine models of melanoma, suggesting that they could ultimately play an important role in the clinic as companion theranostic imaging agents.

Methods and Materials

Materials

Unless otherwise noted, all chemicals were purchased from commercial vendors and used without further purification. All water used was ultrapure (>18.2 MΩ cm at 25 °C), and dimethyl sulfoxide was of molecular biology grade (>99.9%). p-SCN-Bn-DFO was purchased from Macrocyclics, Inc. (Plano, TX). 89Zr was produced via the 89Y(p,n)89Zr reaction and purified at Memorial Sloan Kettering Cancer Center as [89Zr]Zr-oxalate in 1.0 M oxalic acid or bought from 3D Imaging (Little Rock, AR) as [89Zr]Zr-oxalate in 1.0 M oxalic acid. Human IgG (#I4506) was purchased from Sigma-Aldrich (St. Louis, MO). All in vivo experiments were performed in accordance with published protocols approved by the Institutional Animal Care and Use Committees of Hunter College, Weill Cornell Medical College, and Memorial Sloan Kettering Cancer Center. All instruments were calibrated and maintained according to standard quality control practices and procedures. UV–vis measurements were taken on a Shimadzu BioSpecNano Microvolume UV–vis Spectrophotometer (Shimadzu Scientific Instruments, Kyoto, Japan). Radioactivity was measured using a CRC-15R Dose Calibrator (Capintec, Inc., Ramsey, NJ), and biodistribution samples were counted on a calibrated Automatic Wizard2 γ-counter (PerkinElmer, Inc., Waltham, MA). The radiolabeling of the immunoconjugate was monitored using glass-fiber, silica-impregnated instant thin-layer chromatography (iTLC) paper (Pall Corp., East Hills, NY) and analyzed on an AR-2000 radio-TLC plate reader using Winscan Radio-TLC software (Bioscan, Inc., Washington, DC). Matrix-assisted laser desorption/ionization time-of-flight (MALDI-ToF) mass spectrometry service was provided by the Alberta Proteomics and Mass Spectrometry Facility (University of Alberta, Alberta, Canada).

1959 and 1959-sss/DM4

1959 and 1959-sss/DM4 were produced as previously described.1,18 Briefly, 1959 is a humanized variant of the murine Gal-3BP-binding antibody SP2, which itself was generated by immunizing mice with proteins secreted by CG-5 human breast cancer cells.1 The production of 1959 was achieved by grafting the complementarity determining regions (CDRs) of SP2 onto a human IgG1 scaffold, placing the recombinant genes into the pCDNA3.1 expression vector, transfecting Chinese Hamster Ovary-S cells, and purifying the antibody product using a Protein-A column.18 1959-sss/DM4 is a linker-less ADC wherein a pair of toxins (DM4, a derivative of maytansine) is site-specifically appended to free cysteine residues within a genetically engineered variant of 1959 (i.e., 1959-sss) in which the serine residues at positions 220, 226, and 229 of the heavy chain have been replaced with cysteines (US 2008/0305044 A1).18,30

Bioconjugation

1959 (4.97 mg, 33 nmol) was dissolved in 128 μL of Chelex-treated (Chelex 100 Resin, Bio-Rad Laboratories, Inc.) phosphate-buffered saline (Chelex PBS, pH 7.4), and the pH of the solution was adjusted to 8.8–9.0 with 0.1 M Na2CO3. Five equivalents of p-SCN-Bn-DFO (12.5 μL, 10 mg/mL in DMSO) were added to the solution in small aliquots. The resulting solution was incubated at 37 °C for 1 h with shaking at 500 rpm. The DFO-modified antibody was then purified using size exclusion chromatography (Sephadex G-25 M, PD-10 column, GE Healthcare; dead volume: 2.5 mL, eluted with 2 mL of Chelex PBS, pH 7.4) and concentrated using centrifugal filtration units with a 50,000 Da molecular weight cutoff (Amicon Ultra 2 mL Centrifugal Filtration Units, MilliporeSigma Corp., Burlington, MA). DFO-1959 was obtained in an overall yield of 93% relative to the 1959 starting material. DFO-1959-sss/DM4 was prepared as described above with the following modifications: 1.1 mg (7.3 nmol) of 1959-sss/DM4 and 2.8 μL of p-SCN-Bn-DFO (10 mg/mL in DMSO) were used (yield: 89%). DFO-huIgG was prepared as described above with the following modifications: 3.2 mg (21.3 nmol) of huIgG and 8.1 μL of p-SCN-Bn-DFO (10 mg/mL in DMSO) were used (yield: 93%). Size exclusion high-performance liquid chromatography (SE-HPLC) was used to assess whether aggregates formed after modification. To this end, PBS pH 7.4 was used as a mobile phase with a flow rate of 0.75 mL/min on a Superdex 200 Increase 10/300 GL column (Cytiva, Global Life Sciences Solutions USA LLC, Marlborough, MA).

Mass Spectrometry

Matrix-assisted laser desorption/ionization (MALDI) mass spectrometry was used to determine the number of DFO moieties per antibody (Alberta Proteomics and Mass Spectrometry Facility, University of Alberta, Canada). The immunoconjugates were analyzed in triplicate using a Bruker Ultraflex MALDI-ToF/ToF (Bruker Daltonic GmbH). To this end, 1 μL of each sample (1 mg/mL) was mixed with 1 μL of sinapic acid (10 mg/mL in 50% acetonitrile/water and 0.1% trifluoroacetic acid). One μL of the sample/matrix solution was then spotted onto a stainless-steel target plate and allowed to air-dry. Ions were analyzed in positive mode, and external calibration was performed using a standard protein mixture (bovine serum albumin). The difference between the mass of each DFO-bearing immunoconjugate and its unmodified parent antibody was calculated, and the degree of labeling was determined via division by the mass of p-SCN-Bn-DFO.

ELISA

The binding of 1959, DFO-1959, 1959-sss/DM4, and DFO-1959-sss/DM4 to Gal-3BP was investigated via enzyme-linked immunosorbent assay (ELISA) with the D2 protein, a recombinant fragment of the lectin-binding region of Gal-3BP. D2 protein was diluted to 5 μg/mL in PBS, and the wells of an ELISA plate (Nunc MaxiSorp flat-bottom 96 well plate, Fisher Scientific) were coated with 100 μL/well for 2 h at room temperature. After a brief blocking period (40 min with PBS containing 10% fetal calf serum (FCS)), the immunoconjugates were diluted in blocking buffer (5 μg/mL), and 100 μL/well were applied for 2 h at room temperature. The bound immunoconjugates were detected using 1:5000 horseradish peroxidase (HRP)-labeled antihuman IgG (JacksonImmunoResearch Laboratories, West Grove, PA). 3,3′,5,5′-Tetramethylbenzidine (TMB) substrate was used to develop the bound horseradish peroxidase (HRP) secondary antibody, and the color reaction was stopped with 2 N H2SO4 after 10 min. Optical densities at 450 nm were determined using a SpectraMax i3 plate reader (Molecular Devices). Binding data was collected in triplicate, averaged, and plotted.

Radiolabeling

A solution of [89Zr]Zr-oxalate (150.6 MBq, 4.07 mCi) in 1.0 M oxalic acid was adjusted to pH 7.0–7.5 with 1.0 M Na2CO3, resulting in a total volume of 110 μL. After the bubbling of CO2(g) ceased, the 89Zr solution was added to the DFO-1959 solution (266 μg in 29.2 μL of Chelex PBS, pH 7.4). The resulting mixture was placed on an agitating thermomixer at 350 rpm for 20 min at 37 °C. The progress of the reaction was then assayed using radio-iTLC with an eluent of 50 mM ethylenediaminetetraacetic acid (EDTA) pH 5.0. The immunoconjugate was purified using size exclusion chromatography (Sephadex G-25 M, PD-10 column, GE Healthcare; dead volume: 2.5 mL, eluted with 500 μL fractions of Chelex PBS, pH 7.4). The radiochemical purity of the final radiolabeled construct was assayed via radio-iTLC using 50 mM EDTA pH 5.0 as an eluent. In the radio-iTLC experiments, the radioimmunoconjugate remains at the baseline, while free 89Zr4+ cations and [89Zr]Zr-EDTA travel with the solvent front. For the radiolabeling of DFO-1959-sss/DM4, 100 μg of the construct and 62.9 MBq (1.7 mCi) of [89Zr]Zr-oxalate (total volume of 59 μL) were used. For the radiolabeling of DFO-huIgG, 100 μg of the construct and 33.3 MBq (0.9 mCi) of [89Zr]Zr-oxalate (total volume of 340 μL) were used.

In Vitro Stability

The stabilities of the radioimmunoconjugates with respect to loss of radioactivity and aggregation were investigated via incubation in human serum for 7 days at 37 °C (n = 3) with shaking at 350 rpm. At 24, 72, 120, and 168 h, the radiochemical purity of the radiolabeled antibodies were determined in triplicate via radio-iTLC with an eluent of 50 mM EDTA pH 5.0. At 24 and 120 h, the stabilities of the constructs were monitored via radio-SE-HPLC (Superdex 200 Increase 10/300 GL column, 0.75 mL/min flow rate, and PBS pH 7.4 as an eluent).

Melanoma Cell Lines

The human melanoma cancer cell line A375-MA1 was purchased from the American Type Culture Collection (ATCC, Manassas, VA) and maintained in Dulbecco’s Modified Eagle Medium supplemented with 10% heat-inactivated fetal calf serum, 100 units/mL penicillin, and 100 units/mL streptomycin in an incubator (Heracell 150i, ThermoFisher Scientific) set to 37 °C and 5% CO2. The cell lines were harvested and passaged upon reaching 80% confluency using 0.25% trypsin/0.53 mM EDTA in Hank’s Buffered Salt Solution without calcium and magnesium. All media was purchased from the Media Preparation Facility at MSKCC.

Xenograft Models

Six- to eight-week-old female athymic nude mice were obtained from Charles River Laboratories (Wilmington, MA) and allowed to acclimatize for approximately 1 week prior to inoculation. Animals were housed in ventilated cages and given water and food ad libitum. Mice were anaesthetized by inhalation of 2% isoflurane (Baxter Healthcare, Deerfield, IL)/oxygen gas mixture and xenografted subcutaneously on the right flank with 5 × 106 A375-MA1 cells in 150 μL of cell suspension of a 1:1 mixture of fresh media/Matrigel (Corning Life Sciences, Corning, NY). The A375-MA1 tumors reached the ideal size for imaging and biodistribution studies (∼100 cm3) after approximately 2 to 3 weeks. Mice bearing melanoma patient-derived xenograft (PDX)-tumors were received from the MSKCC Anti-Tumor Assessment Core Facility. Three different PDX cell lines were investigated: JW-217a (disease stage: 1Bc T1bN0M0), JW-218a (disease stage: 4), and JW-159a (disease stage: 2c T4bN0M0). The PDXs were inoculated bilaterally, yielding 1–4 tumors of varying sizes per mouse. The PDX tumors reached the ideal size for imaging and biodistribution studies after ∼5–6 weeks.

Immunohistochemistry

Gal-3BP expression was evaluated by immunohistochemistry (IHC) in harvested tumors from mice. The tumors were snap frozen as optimal cutting temperature (OCT) blocks and cut to 10 μm thick sections. The sections were fixed with acetone (10 min), blocked with 1% bovine serum albumin (BSA) in PBS solution (30 min), and incubated with 1959 (2 μg/mL, 1 h). Goat anti-human IgG conjugated with AlexaFluor 488 (1:200 dilution, 1 h incubation, A11013, Invitrogen) was used as the secondary antibody.

PET Imaging

PET imaging was conducted on a microPET Focus 120 small-animal scanner (Siemens Medical Solutions, Malvern PA). Approximately 5 min prior to PET image acquisition, mice were anaesthetized by inhalation of 2% isoflurane/oxygen gas mixture and kept under anesthesia for the duration of the scan. Static scans were recorded at 24, 48, 72, 96, and 120 h after the intravenous administration of the 89Zr-labeled immunoconjugates (Table 1). An energy window of 350–700 keV and a coincidence timing window of 6 ns were used. Data were sorted into 2-dimensional histograms by Fourier rebinning, and transverse images were reconstructed by filtered back-projection (FBP). The imaging data were then normalized to correct for nonuniformity of response of the detector, physical decay of the radionuclide to the time of injection, dead-time count losses, and positron-branching ratio, but no attenuation, scatter, or partial-volume averaging correction was applied. The counting rates in the reconstructed images were converted to activity concentrations (percentage injected dose per gram of tissue [%ID/g]) using a system calibration factor derived from the imaging of a mouse-sized water-equivalent phantom containing 89Zr. Maximum intensity projection (MIP) images were generated from 3-dimensional ordered subset expectation maximization reconstruction (3D-OSEM). The resulting images were analyzed using ASIPro VM software (Concorde Microsystems). Table 1 lists the administered doses to mice.

Table 1. Doses of Radioimmunoconjugates Administered to the Mice.

Radioimmunoconjugate Mass (μg) Radioactivity (MBq) Specific Activity (MBq/mg)
[89Zr]Zr-DFO-1959 6.0–6.7 2.95–3.30 492
[89Zr]Zr-DFO-1959-sss/DM4 6.5–6.7 3.06–3.16 474
[89Zr]Zr-DFO-huIgG 7.2–7.3 2.19–2.20 303
Open in a new tab

Ex Vivo Biodistribution Studies

Athymic nude mice bearing subcutaneous A375-MA1 (right flank, ∼100 mm3, n = 5–6 per cohort) were randomized prior to the study and were gently warmed with a heat lamp for 5 min prior to the administration of [89Zr]Zr-DFO-1959, [89Zr]Zr-DFO-1959-sss/DM4, or [89Zr]Zr-DFO-huIgG via tail vein injection (t = 0). Table 1 lists the administered doses. [89Zr]Zr-DFO-1959 was also investigated in PDX-bearing mice using the same dose as in the A375-MA1 experiments (n = 3–4 per cohort). All mice were euthanized via CO2(g) asphyxiation at 120 h post-injection, and selected tissues were collected and placed into preweighed tubes. The mass of each organ was determined, and each sample was then counted using a Wizard2 automatic gamma counter. Four aliquots (5 μL) were weighed and counted as internal standards for each radiolabeled construct. The total injected dose was found as the mass injected dose × internal standard average counts/g. The percent injected dose (%ID) was determined as the counts for the tissue ×100/total injected dose. The %ID/g was calculated as the %ID/tissue mass in g.

Statistical Analysis

Statistical differences were analyzed with GraphPad Prism software (9.5 GraphPad Software Inc., San Diego, CA, USA) via one-way analysis of variance (ANOVA) tests. P ≤ 0.05 *, P ≤ 0.01 **, P ≤ 0.001 ***, and P ≤ 0.0001 ****.

Results

Bioconjugation and Radiolabeling

The bioconjugation of 1959, 1959-sss/DM4, and huIgG produced immunoconjugates with degrees of labeling between 1 and 2 DFO/mAb (Table S1). Subsequent ELISA experiments demonstrated that the ability of 1959 and 1959-sss/DM4 to bind Gal-3BP was not impacted by modification with DFO (Figure S1). The radiolabeling of DFO-1959, DFO-1959-sss/DM4, and huIgG with 89Zr produced radioimmunoconjugates in high radiochemical yield (>80%) and radiochemical purity (>99%). SE-HPLC before and after modification with DFO revealed little to no aggregation (Figure S2). Finally, radio-iTLC measurements demonstrated that both [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 remained >80% stable to demetalation over 7 days in human serum at 37 °C (Figure S3).

Comparing [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4

The in vivo behavior of [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 was compared in mice bearing subcutaneous A375-MA1 xenografts to determine if the pharmacokinetic profile of the 89Zr-labeled mAb accurately reflects that of the 89Zr-labeled ADC. The data indicate that the radioimmunoconjugates effectively target tumor tissue (Figure 1 and Table S2). At 120 h post-injection, both [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 produced high tumor uptake (54.8 ± 15.8%ID/g and 41.8 ± 12.7%ID/g, respectively) compared to only 6.0 ± 3.1%ID/g for [89Zr]Zr-DFO-huIgG, the isotype-specific control. Furthermore, the uptake of both probes in nontarget organs was low at later time points (<5%ID/g), ultimately yielding promising tumor-to-healthy organ activity concentration ratios. That said, statistically significant differences in uptake were observed in two tissues: the kidneys and the spleen (Figure S4). In the former, the uptake of [89Zr]Zr-DFO-1959-sss/DM4 (9.7 ± 2.3%ID/g) was double that of [89Zr]Zr-DFO-1959 (4.2 ± 0.6%ID/g; P-value = 0.0002). In the latter, the 89Zr-labeled ADC likewise produced a higher activity concentration (9.3 ± 3.4%ID/g) than the 89Zr-labeled mAb (5.0 ± 0.9%ID/g; P-value = 0.0096).

Figure 1.

Figure 1

Open in a new tab

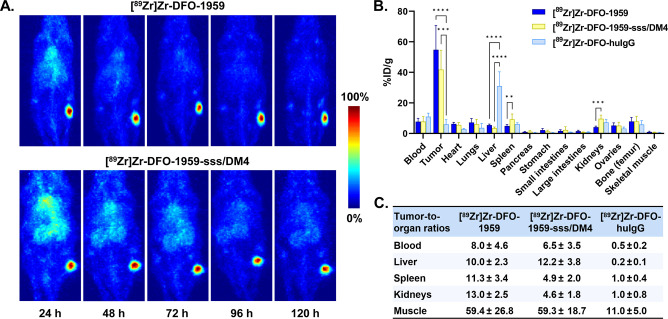

Biodistribution of [89Zr]Zr-DFO-1959, [89Zr]Zr-DFO-1959-sss/DM4, and [89Zr]Zr-DFO-huIgG in mice bearing A375-MA1 tumors. (A) Maximum intensity projection (MIP) PET images of a representative mouse from each cohort acquired at 24, 48, 72, 96, and 120 h after intravenous injection. (B) Ex vivo biodistribution of [89Zr]Zr-DFO-1959, [89Zr]Zr-DFO-1959-sss/DM4, and [89Zr]Zr-DFO-huIgG in selected tissues 120 h post-injection. (C) Selected tumor-to-healthy organ activity concentration ratios at 120 h post-injection. P ≤ 0.05 *, P ≤ 0.01 **, P ≤ 0.001 ***, and P ≤ 0.0001 ****.

ImmunoPET in Patient-Derived Xenograft Models of Melanoma

Following the experiments in the mice bearing A375-MA1 xenografts, we next sought to study our radioimmunoconjugates in a more realistic recapitulation human disease: mice bearing patient-derived xenografts (PDXs). To this end, we acquired slides of three melanoma PDXs — JW-217a, JW-218a, and JW-159a — from the Memorial Sloan Kettering Anti-Tumor Assessment Core. All three exhibited Gal-3BP staining on par with the A375-MA1 cells, a finding that aligns with literature reports regarding the expression of Gal-3BP in melanoma (Figures 2 and S5).25,31

Figure 2.

Figure 2

Open in a new tab

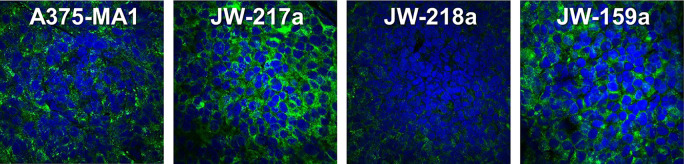

Confocal microscopy images of melanoma cell lines stained for Gal-3BP with 1959. Blue: DAPI; Green: Goat antihuman IgG secondary antibody conjugated with AlexaFluor 488.

In light of these in vitro data, we moved to interrogate the behavior of [89Zr]Zr-DFO-1959 in athymic nude mice bearing subcutaneous PDXs. As shown in Figure 3 and Table S3, the radioimmunoconjugate clearly visualized JW-217a, JW-218a, and JW-159a xenografts with high tumor-to-background contrast. Critically, however, substantial heterogeneity was observed in the uptake of [89Zr]Zr-DFO-1959 in the different PDXs. For example, higher uptake was observed in the JW-159a tumors than the JW-217a xenografts (P-value: 0.0112). Heterogeneous uptake was also seen between different tumors of a single PDX type in a single mouse (Figure 3C and Table S4). To wit, the four tumors isolated from M11 (JW-159a xenografts) exhibited uptake values ranging from ∼60%ID/g to >100%ID/g; M4 (JW-217a xenografts) had tumors with lower but equally heterogeneous uptake values ranging from ∼20%ID/g to ∼70%ID/g. Taken together, these data suggest that factors beyond antigen expression levels—perhaps perfusion or stromal density—may also be influencing the accumulation of the radioimmunoconjugate in the tumor tissue.

Figure 3.

Figure 3

Open in a new tab

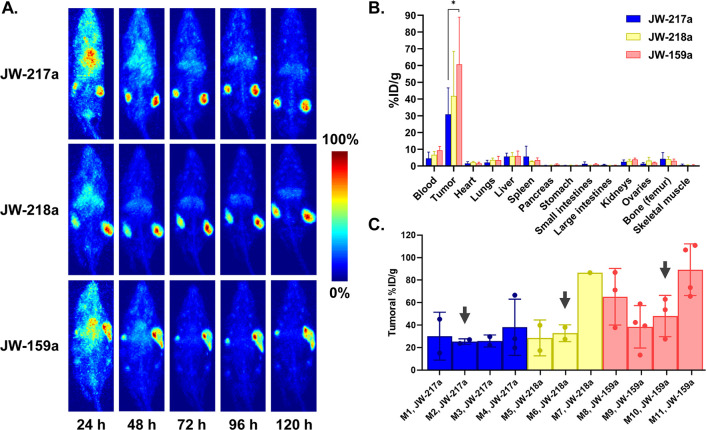

Performance of [89Zr]Zr-DFO-1959 in PDX models of melanoma. (A) MIP PET images acquired 24, 48, 72, 96, and 120 h after the administration of [89Zr]Zr-DFO-1959. (B) Ex vivo biodistribution data collected 120 h after the administration of [89Zr]Zr-DFO-1959 (* P = 0.0112). (C) Uptake values for each mouse and tumor. The PDXs were inoculated bilaterally, yielding 1–4 tumors of varying sizes per mouse. Arrows indicate the mice shown in (A).

Discussion

Two overarching impressions arise from these data: (1) [89Zr]Zr-DFO-1959 effectively delineated Gal-3BP-expressing A375-MA1 and patient-derived melanoma xenografts and (2) [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 displayed similar—but not identical—pharmacokinetic profiles in an A375-MA1 xenograft model of melanoma.

The first result clearly suggests that [89Zr]Zr-DFO-1959 could be a useful tool for clinical imaging. Given that Gal-3BP has been linked to poor prognosis, tumor progression, and immune escape in several malignancies, the radioimmunoconjugate could play a role in prognostic imaging. Perhaps even more likely, [89Zr]Zr-DFO-1959 could be used as a companion theranostic agent in support of Gal-3BP-targeted therapies, including ADCs like 1959-sss/DM4. This brings us to the second result. The past two decades have played witness to the advent of ADCs as targeted therapeutics, but the intrinsic heterogeneity of cancer has meant that the prospective identification of patients likely to respond to therapy is of paramount importance. Studies like the ZEPHIR trial underscore the potential of 89Zr-immunoPET in this regard, but a growing body of evidence suggests that simple radiolabeled antibodies may not be ideal companion imaging agents for ADCs because the latter bear hydrophobic toxins that can alter their pharmacokinetic profiles.32−35 Indeed, several recent studies have shown that radiolabeled ADCs can have drastically different biodistributions than their parent antibodies, with uptake in both tumor tissue and healthy organs differing substantially.32−35 This phenomenon has fueled interest in the use of the ADCs themselves as platforms for companion theranostic imaging.36 In the present study, the biodistributions of [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 were largely similar in athymic nude mice bearing A375-MA1 xenografts, but the latter produced nearly double the uptake in the spleen and kidneys. These data suggest that the pharmacokinetic profile of the 89Zr-labeled mAb broadly reflects that of 1959-sss/DM4, and thus [89Zr]Zr-DFO-1959 could likely be effectively deployed as a companion theranostic for the ADC. However, further experimentation is needed to determine whether the differences in renal and splenic uptake are substantial enough to affect the ability of the 89Zr-labeled mAb to predict the clinical efficacy or toxicity of the ADC.

Conclusions

Herein, we have described the development of a pair of Gal-3BP-targeting radioimmunoconjugates for 89Zr-immunoPET: [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4. The expression of Gal-3BP by a variety of cancers has made it a particularly enticing target for the development of therapeutics. Our probes demonstrated highly promising in vivo behavior in two murine models of melanoma, suggesting that they could ultimately play an important role in the clinic as companion theranostic imaging agents. Moving forward, we aim to explore the utility of [89Zr]Zr-DFO-1959 and [89Zr]Zr-DFO-1959-sss/DM4 for the imaging of cancers other than melanoma, to further interrogate the differences between the in vivo behavior of the [89Zr[Zr-mAb and the [89Zr]Zr-ADC, and to investigate the potential of 1959 as a platform for Gal-3BP-targeted radioimmunotherapy with β- and α-emitting radionuclides.

Acknowledgments

This work was supported by funding from the Academy of Finland (OMK; Decision No. 331659), the National Institutes of Health (F31CA275334 to SD as well as R01CA240963, U01CA221046, and R01CA244327 to BMZ), Fondazione-AIRC (GS; IG2021 id 25696), and Dept. MeSVA (University of L’Aquila; RI). The authors thank the MSKCC Small Imaging Core Facility and Radiochemistry and Molecular Imaging Probe Core, which are supported by NIH awards P30 CA008748-48, S10 OD016207-01, and S10 RR020892-01. The MSKCC Anti-tumor Assessment Core, Elisa de Stanchina, Omar Hayatt, and Jedd Wolchok are gratefully acknowledged for providing the PDX models.

Glossary

Abbreviations

%ID/g

percent injected dose per gram of tissue

CDX

cell line-derived xenograft

DFO

desferrioxamine

DM4

ravtansine (maytansinoid)

ELISA

enzyme-linked immunosorbent assay

Gal-3BP

galectin-3 binding protein

HRP

horseradish peroxidase

huIgG

antihuman immunoglobulin G antibody

iTLC

instant thin layer chromatography

mAb

monoclonal antibody

MSKCC

Memorial Sloan Kettering Cancer Center

PDX

patient-derived xenograft

PET

positron emission tomography

PBS

phosphate-buffered saline

RCP

radiochemical purity

SE-HPLC

size exclusion high-performance liquid chromatography

TMB

3,3′,5,5′-tetramethylbenzidine

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acs.molpharmaceut.3c00241.

  • ELISA results, SE-HPLC chromatograms, in vitro stability results, statistical analyses, additional confocal images, and tables of ex vivo biodistribution data (PDF)

The authors declare the following competing financial interest(s): EC, FS, GS, and SI are employees of Mediapharma srl, which holds intellectual property on the 1959 mAb.

Supplementary Material

mp3c00241_si_001.pdf (1.8MB, pdf)
