Abstract
Given sustained high vaccination coverage and enhanced surveillance for measles, Spain has been free of endemic measles transmission since 2014, achieving elimination certification from the World Health Organization in 2017. In November 2017, measles was introduced through an imported case travelling to the Valencian Community, causing an interregional outbreak. Here, we describe the outbreak using data reported to the national epidemiological surveillance network. The outbreak involved 154 cases (67 males, 87 females) notified in four regions; 148 were laboratory-confirmed and six epidemiologically linked. Most cases were adults aged 30–39 (n = 62, 40.3%) years. Sixty-two cases were hospitalised (40.3%) and 35 presented complications (22.7%). Two thirds of the cases (n = 102) were unvaccinated including 11 infants (≤ 1 year) not yet eligible for vaccination. The main route of transmission was nosocomial; at least six healthcare facilities and 41 healthcare workers and support personnel were affected. Sequencing of the viral nucleoprotein C-terminus (N450) identified genotype B3, belonging to the circulating MVs/Dublin.IRL/8.16-variant. Control measures were implemented, and the outbreak was contained in July 2018. The outbreak highlighted that raising awareness about measles and improving the vaccination coverage in under-vaccinated subgroups and personnel of healthcare facilities are key measures for prevention of future outbreaks.
Keywords: measles, Outbreak, nosocomial transmission, Healthcare workers, Waning immunity, Spain
Key public health message.
What did you want to address in this study?
Measles is a highly contagious viral disease typically characterised by a maculo-papular rash, fever, cough, coryza and conjunctivitis and can lead to serious complications, even death. In Europe, the immunisation programmes recommend two doses of measles-mumps-rubella (MMR) vaccine in early childhood. We wanted to describe an interregional outbreak of measles in Spain after the country gained measles elimination status in 2017.
What have we learnt from this study?
We found that the main route of transmission was within the hospital setting, and the outbreak spread to several healthcare facilities, affecting patients, visitors and staff. Not all healthcare staff were vaccinated, although some of them had received two doses of measles vaccine. Almost one in five cases presented so-called modified measles, i.e. they did not have all the typical symptoms of measles.
What are the implications of your findings for public health?
Despite high MMR coverage, the risk of outbreaks remains because of under-vaccinated subgroups and importation. In the healthcare setting, monitoring the measles immunity of healthcare staff and support personnel and implementing infection control measures in waiting rooms and emergency departments are important. During measles outbreaks in the post-elimination era, patients with atypical clinical presentation should be tested, independent of their vaccination status.
Background
Measles is a highly contagious epidemic-prone disease caused by measles virus (MeV; family Paramyxoviridae, genus Morbillivirus). The disease is typically characterised by a maculopapular rash, fever, cough, coryza and conjunctivitis and can lead to serious complications, even death [1]. The use of effective vaccines against measles has resulted in a decrease in the disease incidence, morbidity and mortality globally. In Spain, a single-dose measles-mumps-rubella (MMR) vaccine was added in the national immunisation programme in 1981 for infants at 15 months of age [2]. Since 2012, a first dose is recommended to be administered to children at 12 months and a second at 3–4 years of age. The national vaccination coverage for the first dose of MMR has been maintained above 95% for more than 20 years and, according to the latest published data, the coverage in 2020 was 95.4% for the first dose and 91.2% for the second [3].
Following the 1998 recommendations of the World Health Organization Regional Office for Europe (WHO/Europe) for measles elimination in each country of the European Region [4], Spain prepared a national plan for the elimination of measles [2,5]. The plan was approved in 2000. As a result of sustained high vaccination coverage and enhanced disease surveillance, Spain was able to provide documented evidence for interruption of endemic MeV transmission for 36 consecutive months [6], and thereby gained its measles elimination certification in 2017. Maintaining the elimination status is challenging, as the risk of importation and outbreaks among susceptible pockets of the population remains, especially in a context of resurgence of measles across Europe [7]. In addition, in countries that have eliminated measles, nosocomial spread is an important mode of transmission and a notable threat because of a lower suspicion for measles among healthcare workers and delays in detecting measles cases [8].
Outbreak detection
In November 2017, an adolescent with measles presentation sought care at a hospital in Valencia, Spain. They had travelled from Romania, where the MeV MVs/Dublin.IRL/8.16[B3]-variant was widely circulating, to Valencia by public transport with a family member. Upon laboratory confirmation of measles 2 days later, the public health authorities were notified and an epidemiological investigation began. Within 10 days, two more cases were notified: a family member of the index case and an infant who was at the same paediatric unit as the index case. Thereafter, a measles outbreak was declared in the Valencian Community. The outbreak lasted for 8 months and included 154 cases and spread to the nearby region of Catalonia. Cases were also reported in two other regions: Madrid and Asturias.
In this report, we describe this interregional outbreak using data reported to the National Epidemiological Surveillance Network (RENAVE in Spanish). We explore the role of nosocomial infections to the magnitude of this outbreak and present the control measures implemented, as well as the lessons learnt.
Methods
Measles surveillance
Measles is a mandatory notifiable disease in Spain. Any suspected case of measles is notified to local public health services, which are responsible for case investigation, samples collection, control measures and reporting to regional public health services. The regional public health services report the cases to the RENAVE and complete a standardised case questionnaire via the Spanish surveillance system electronic platform (SiViES).
Case definition and classification
The RENAVE uses the European Union case definition for measles [9,10]. The clinical criteria include fever (> 38 °C) and maculopapular rash and at least one of the following symptoms: cough, coryza or conjunctivitis. The laboratory criteria include any of the following: (i) MeV-specific antibody response (IgM or IgG seroconversion) in serum or saliva, (ii) detection of MeV nucleic acid, (iii) isolation of MeV or (iv) detection of MeV antigen. Cases were classified as possible cases if they only met the clinical criteria. Probable cases were those who met the clinical criteria and had an epidemiological link to a laboratory-confirmed case. Confirmed cases were defined as those who had not been vaccinated recently (between 7 days and 8 weeks) and met the clinical and laboratory criteria. A measles outbreak was defined as two or more confirmed cases who are temporally related (with dates of rash onset occurring between 7 and 18 days apart), and epidemiologically or virologically linked or both.
To improve the sensitivity of the case definition, we included modified measles, as suggested elsewhere [11]. Cases with atypical clinical presentation who did not meet all clinical criteria but met the laboratory criteria were classified as confirmed cases.
Laboratory diagnosis and genomic analysis
Clinical specimens, i.e. serum for serology and throat swab or urine for molecular detection, were submitted to local or regional laboratories for laboratory investigation of measles [12]. In addition, most of the samples from confirmed cases were sent for genotyping to the national reference laboratory for measles and rubella at the National Centre for Microbiology at Instituto de Salud Carlos III in Madrid; the samples from cases reported in Catalonia were sent to the Catalonia regional reference laboratory for measles and rubella.
For molecular analysis, the 450 nucleotides that encode the C-terminus of the viral nucleoprotein (N450), defined by WHO for genotyping, were amplified and sequenced according to a protocol previously described [13]. Sequences were edited using BioEdit v.7.2.5 and aligned with MAFFT v.7 software. Every N450 sequence was named in accordance with the WHO´s standard nomenclature and deposited in the WHO Measles Virus Nucleotide Surveillance (MeaNS) database [14]. The MeaNS tools for genotyping and searching for identical sequences were used to assign a genotype and N450 sequence variant or ‘named strain’. Each set of identical sequences was identified by the name of the earliest sequence for those not linked to any described ‘named strain’ [15]. Phylogenetic analysis was performed by the method of maximum likelihood (ML) using PhyML (http://www.atgc-montpellier.fr/phyml/) with the best evolutionary model previously selected in the model selection tool SMS. The phylogenetic tree was edited using MEGA v.7 software.
Epidemiological investigation
The local and regional public health services led the epidemiological investigation and the implementation of control measures. They interviewed suspected cases using a standardised measles questionnaire to identify the potential exposure including visits to healthcare centres, to determine links with confirmed cases and to trace contacts. The questionnaire included items on demographic and clinical characteristics, complications, risk factors (e.g. recent travel and vaccination history) and laboratory results [9]. The questionnaires were then completed and submitted to the RENAVE.
Data analysis
Cumulative incidences (per 100,000 population) per region and per province were computed using population data (1 Jan 2018) from the Spanish National Institute of Statistics (INE) [16]. We calculated frequencies, proportions, medians and interquartile range, according to the type and distribution of the variables. These analyses were performed in Microsoft Excel and in RStudio (Version 1.4.1106) [17].
Results
Overall, 180 suspected cases linked to this measles outbreak were notified to the RENAVE. Of these, 148 were laboratory-confirmed, six were probable and 26 were excluded, as they did not meet the laboratory criteria for measles. Both laboratory-confirmed and probable cases were considered in our analyses.
Epidemiological investigation
The first case had rash onset on mid-November 2017 and the last case on mid-July 2018. Figure 1 shows the evolution of the outbreak in terms of week of symptom onset and region of residence of cases.

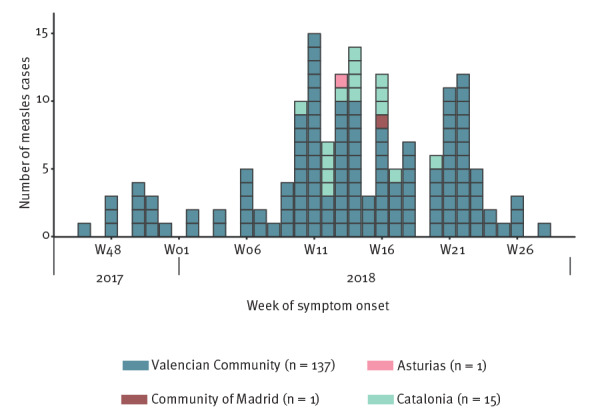

Figure 1.
Measles cases by date of symptom onset and autonomous region in an interregional outbreak, Spain, November 2017–July 2018 (n = 154)
The outbreak began in the Valencian Community and spread to neighbouring territories. In the Valencian Community, the provinces affected were Valencia (4.9 cases/100,000 population) and Castellón (2.5 cases/100,000 population). In the region of Catalonia, the province of Tarragona (1.8 cases/100,000 population) had several cases. One case from Asturias (0.1 case/100,000 population) and one case from the Community of Madrid (< 0.1 case/100,000 population) were also reported.
The epidemiological investigation revealed transmission chains with nosocomial, intrafamilial and community transmission. The index case was hospitalised at a healthcare centre (Centre A) 1 day after developing symptoms. Two children, as well as a healthcare worker, were exposed to the case in the hospital’s emergency waiting room at Centre A and developed a rash in the 12 days following. More patients, visitors and healthcare professionals were affected. Other healthcare centres and personnel were consequently affected because of infected patients or infected personnel visiting different health centres within the same region, adding to a total of 108 cases in this chain by mid-July 2018.
Another chain with prominent hospital transmission comprising 14 cases was identified in Tarragona in March 2018. The primary case, who was also identified retrospectively, accompanied a family member to Centre A in Valencia in mid-February 2018, where they were exposed to a measles case. Upon return to Tarragona, the patient developed symptoms later in March 2018 and visited a hospital the following day. This event resulted in the initiation of a transmission chain in that healthcare setting (Centre B); eight cases were hospital staff.
Another transmission chain with 14 cases was detected in Castellón and involved children and employees at a kindergarten, healthcare-associated cases, as well as community cases. The primary case, who was identified retrospectively, had been hospitalised in Centre B in Valencia. In total, this chain affected six infants and children: of these, three were less than 1 year of age and therefore unvaccinated. The primary case was 1 year old, but vaccination had been postponed because of health problems; the case had unvaccinated siblings under the age of 5 years.
The outbreak investigation also revealed intrafamilial transmission among unvaccinated members of a Roma community (n = 15 cases) in Valencia. It was not possible to be linked with a confirmed measles case nor a healthcare centre.
The shortest chain including two cases, occurred in a transport setting. A case from Asturias visited Valencia at the time of the outbreak and then travelled with a person from Madrid, who then tested positive for measles. No further cases were identified related to these two cases.
Transmission settings
Transmission of measles occurred primarily in healthcare centres (n = 65, 42.2%) and affected medical and non-medical personnel, as well as patients and visitors. According to the case investigation forms, cases were mostly exposed in waiting rooms, emergency and paediatric wards. More than a quarter of the cases (n = 41, 26.6%) reported that they were not aware of a contact with a measles case, while 37 (24.0%) were exposed in households. Other settings of transmission included schools, kindergarten, workplaces and means of transport (n = 11, 7.1%).
Figure 2 illustrates the spread of the outbreak in the various healthcare centres, according to the exposure setting. More than six centres were affected, and cases related to these centres were reported almost until the end of the outbreak. Spread between centres occurred via healthcare workers, patients and caregivers who visited different centres.

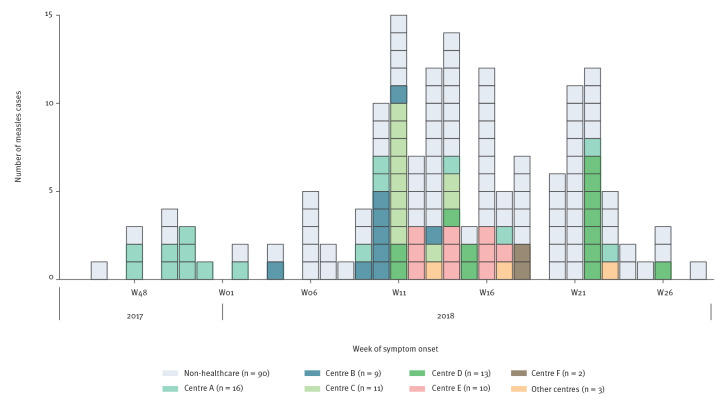

Figure 2.
Measles cases by healthcare centre in an interregional measles outbreak, Spain, November 2017–July 2018 (n = 154)
Characteristics of cases
The main demographic and clinical characteristics of the confirmed and probable cases are summarised in the Table. The median age of cases was 33 years (range: 0–55 years) and 87 were females (56.5%). Eleven cases occurred in infants aged less than 1 year and another 11 in children between 1 and 9 years of age. The greatest proportion of infections (n = 62, 40.3%) was observed among those between 30 and 39 years of age. At least one in four cases (n = 41, 26.6%) worked in a healthcare setting as either a healthcare worker or as support personnel.
Table. Characteristics of measles cases of an interregional measles outbreak, Spain, November 2017–July 2018 (n = 154).
Characteristics | Cases | |
---|---|---|
n | % | |
Sex | ||
Females | 87 | 56.5 |
Males | 67 | 43.5 |
Age group (years) | ||
< 1 | 11 | 7.1 |
1–4 | 5 | 3.2 |
5–9 | 6 | 3.9 |
10–14 | 2 | 1.3 |
15–19 | 5 | 3.2 |
20–29 | 29 | 18.8 |
30–39 | 62 | 40.3 |
40–49 | 25 | 16.2 |
50–59 | 9 | 5.8 |
All, median age (range) | 33 (0–55) | |
Vaccination status | ||
0 doses | 102 | 66.3 |
1 dose | 10 | 6.5 |
≥ 2 doses | 21 | 13.6 |
Unknown | 21 | 13.6 |
Healthcare centre staff | ||
Yes | 41 | 26.6 |
No | 113 | 73.4 |
Measles presentation | ||
Classic | 126 | 81.8 |
Modified | 28 | 18.2 |
Symptomsa | ||
Rash | 153 | 99.4 |
Fever | 149 | 96.8 |
Cough | 100 | 64.9 |
Coryza | 64 | 41.6 |
Conjunctivitis | 51 | 33.1 |
Hospitalisation | ||
Yes | 62 | 40.3 |
No | 92 | 59.7 |
Complications | ||
No complications | 101 | 65.6 |
Diarrhoea | 5 | 3.2 |
Pneumonia | 14 | 9.1 |
Otitis | 3 | 1.9 |
Other | 11 | 7.1 |
Unknown | 20 | 13.0 |
a Multiple symptoms are possible.
There were 28 cases (18.2%) who did not meet the case definition for classic measles and were considered as examples of modified measles (Table). These cases were identified through contact tracing and active case search. All but one case presented rash (n = 153, 99.4%) and the vast majority (n = 149, 96.7%) reported fever. Sixty-two cases (40.3%) were hospitalised and 33 (21.4%) presented complications. The most common complication was pneumonia (n = 14, 9.1%). No deaths were notified.
Vaccination status
Overall, 102 of 133 cases with known vaccination status were unvaccinated (76.7%) and of these, five received a measles-containing vaccine dose for prophylactic purposes after being identified as contacts of confirmed cases. Ten (7.5%) were vaccinated with one dose and 21 (15.8%) had received two doses. The distribution of cases by vaccination status and age group is provided in Figure 3. Among the unvaccinated children aged under 15 years, there were 11 infants aged under 1 year who were not eligible for vaccination. Of the 37 healthcare professionals and support personnel in healthcare facilities with known vaccination status, 20 (54.1%) were unvaccinated, four (10.8%) had received one dose and 13 (35.1%) had received at least two doses.

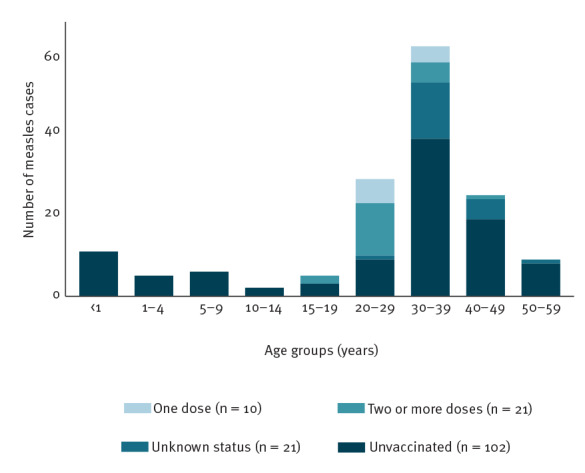

Figure 3.
Measles cases by vaccination status and age group in an interregional measles outbreak, Spain, November 2017–July 2018 (n = 154)
Molecular analysis
Specimens from all transmission chains were genotyped. Genotype B3 was identified in all specimens analysed (n = 69 cases). Most of the N450 sequences were identical to the MVs/Dublin.IRL/8.16/[B3]-variant (GenBank accession number: KY013331), which was circulating in different European countries at that time and was responsible for an epidemic in Romania [18]. In addition, two N450 sequences showing only one nucleotide mutation compared to the MVs/Dublin.IRL/8.16[B3]-variant were identified: Mvs/Valencia.ESP/50.17/2 (C291T) and MVs/Valencia.ESP/22.18/3 (A83G). All the sequences belonged to the same phylogenetic clade according to the phylogenetic analysis (Figure 4).

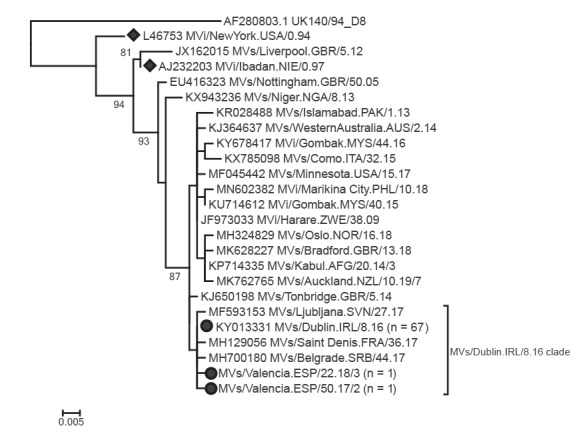

Figure 4.
Phylogenetic tree of available measles virus genotype B3 N450 variant sequences with sequences from this outbreak, Spain, November 2017–July 2018
MeV: measles virus; N450: C-terminus of the MeV viral nucleoprotein.
Sequences detected in the outbreak (n = 69), Spain (Nov 2017–July 2018) were compared to the variants (named strains) of MeV genotype B3 previously described and deposited in MeaNS (n = 20). Analysis was carried out in PhyML, using TN93 + I as an evolutionary model and bootstrap for the statistical analysis. Bootstrap values above 80 are shown. A MeV D8 genotype reference sequence (AF280803) was used as the outgroup to root the tree. Two MeV genotype B3 references sequences designated by WHO were included (black diamond). The sequences detected in the outbreak are labelled with a black circle. The n equals the number of sequences identified in the outbreak.
Outbreak control measures
Upon detection of the outbreak, local and regional public health authorities implemented control measures. Cases were advised to stay in isolation for 4 days after the onset of symptoms, and contact tracing was performed to identify susceptible contacts, i.e. those unvaccinated or with unknown vaccination status who had a greater risk of infection. The list of passengers who used the same public transport as the index case was shared with the corresponding autonomous regions.
During contact tracing, the immunisation status of contacts of all cases was assessed and prophylactic MMR vaccine was offered to unvaccinated or partially vaccinated contacts, as well as immunoglobulin where appropriate.
Extensive measures were taken in healthcare settings. The regional public health services published recommendations regarding vaccination of healthcare workers and other personnel and highlighted the importance of complete immunisation. Healthcare services were asked to identify and vaccinate susceptible healthcare workers. Vaccination was provided to susceptible employees, i.e. those born after 1971, without proof of vaccination or laboratory proof of immunity. In some centres, a serological test for measles IgG was offered before vaccination. Healthcare workers who had been in contact with cases and did not receive vaccination were excluded from work for at least 18 days since the day they had contact with the measles case. Information about measles was shared among the healthcare networks to raise awareness about the disease and alert health professionals about the risk of measles transmission, independent of age.
Reports and press releases were prepared and shared with the health community and with the public. The National Center for Epidemiology, the working group who revises the national plan for measles elimination and the epidemiologists at the regional public health authorities shared a weekly report on this outbreak. In August 2018, the outbreak was proclaimed over, after no new cases were identified for two consecutive incubation periods.
Discussion
We describe an interregional outbreak of measles genotype B3 in Spain, which occurred 5 months after the country gained its elimination status in 2017. The outbreak lasted for 8 months and involved 154 cases, which corresponded to a national cumulative incidence of 0.3 per 100,000 population. Two in five cases required hospitalisation, slightly less than the overall hospitalisation rate in Europe [19]. The outbreak underscored the severity of measles, with fourteen cases of pneumonia reported.
The outbreak that started in Valencia was linked to an imported case from Romania, where an active MVs/Dublin.IRL/8.16[B3]-variant measles epidemic was ongoing at that time [18]; most of the sequences identified in this outbreak were the same strain. Previous work described two transmission chains of this outbreak [20,21]. The outbreak investigation and the extensive contact tracing conducted by the local and regional epidemiological services in the Valencian Community and Catalonia found a clear epidemiological link between the outbreak in Valencia and the transmission chains in Castellón and Tarragona, which was then complemented by the virological and molecular study. The primary cases for the two latter transmission chains visited healthcare facilities in the city of Valencia during the ongoing measles outbreak.
The molecular analysis together with the temporal and spatial data from the epidemiological investigation suggested the existence of a single outbreak. Nevertheless, to differentiate the chains of transmission and possible importations not detected by the epidemiological investigation, the use of more variable genome regions may be valuable. This would provide more resolution in a complementary way for the analysis of N450 variants, given the wide circulation of variants such as MVs/Dublin.IRL/8.16[B3].
The age distribution of cases in an outbreak depends on the immunity of the affected population. Spain has a high childhood vaccination coverage, which is one explanation why cases aged 20 years and above accounted for most cases (81.1%) in this outbreak, while in 2018 in the EU/EEA, the most affected age groups were those below 20 years (64%) [19]. These findings are consistent with the results of the national seroprevalence study that was conducted in 2017–18 [22]. The study showed that participants in the age group 20–29 years (cohorts born between 1988 and 1997) had the lowest seropositive percentage (87%), and the lowest levels of antibodies against measles, suggesting a possible waning effect because of the longer period since vaccination, as other authors have previously described [23], and the absence of contact with the MeV [21,24]. Moreover, during the first years of the implementation of measles vaccination in Spain, the coverage was not high [25], which created immunity gaps among those born close to the implementation; it was only since 1999 that the coverage for the first dose of MMR has been maintained above 95% [26]. The low coverage at the beginning of the implementation, in combination with the lack of vaccination registries, could have also contributed to the relatively high percentage of individuals with unknown vaccination status in the 30–39-year age group. In this outbreak, we also noted an immunity gap among children and among unvaccinated young adults of the Roma community, as has been observed in previous outbreaks in Spain [27,28] and other European countries [29,30]. These findings indicate that there are still susceptible pockets in the population.
Measles occurred among fully vaccinated individuals, as reported elsewhere [23,24,31-34]. In populations with high vaccination coverage, the expected proportion of vaccinated cases is also higher. Moreover, in this study we observed that three in five fully vaccinated cases were healthcare workers with a median age of 27 years. Apart from the waning immunity in those aged 20–39 years, healthcare workers also experience higher levels of exposure to MeV and thus have a higher risk of infection. Of note, none of the vaccinated cases were hospitalised and only one case reported complications, as vaccinated cases usually experience milder disease [23,24,31-34].
Previous reports suggest that infection of vaccinated individuals does not frequently result in secondary cases [23,24,34,35], which can be explained by the lower viral load of breakthrough infections compared with naive infections [21,34]. Albeit rare, secondary transmission to unvaccinated individuals has been observed in situations of intense exposure, such as within the same household [32]. In this outbreak, secondary transmission was noted in at least one chain; an unvaccinated case was infected after travelling with a case vaccinated with a single dose of MMR.
Transmission of MeV in healthcare settings is an emerging public health threat and has become an important mode of transmission, especially in countries where measles has been eliminated [8,26,36]. Frequent nosocomial outbreaks have been reported across Europe [23,37-39]. Cases involved healthcare workers, visitors and patients. Transmission mainly occurred in waiting rooms, emergency and paediatric wards, in line with other outbreaks [40-42].
Mitigating nosocomial transmission as early as possible is crucial, as patients may have an elevated risk for severe disease because of underlying conditions [8]. In addition to the health-related risks for patients, visitors and healthcare workers, the cost of controlling a measles outbreak in a healthcare setting is considerable and absenteeism results in disruption of services [36]. These consequences add to the importance of achieving high two-dose vaccination uptake among healthcare workers. Although vaccination against measles in healthcare workers in Spain is not mandatory, since 2017 the national vaccination guidelines recommend two MMR doses for susceptible professionals [43]. In addition, the updated national plan for the elimination of measles and rubella recommends that individuals working at healthcare facilities, including students, should be vaccinated against measles and rubella [44]. The spread of this protracted outbreak to several facilities highlights the need to implement these guidelines to prevent future outbreaks. Healthcare centres should ensure that all professionals have presumptive evidence of immunity to measles upon employment, routinely monitor their status and organise catch-up vaccinations. These activities should not only target permanent staff but also support personnel who are contracted by other companies [21,39], as well as students and volunteers of non-governmental organisations who work in these settings.
In addition, it is important that isolation protocols and infection control guidelines be instituted in hospitals, to minimise nosocomial spread of infection. Good practices used in other countries, such as pre-screening over the phone [35], screening in the prodromal phase [45] or isolation in different rooms or even at home, can be adopted. Some of these practices have been successfully implemented in Spain during the COVID-19 pandemic, demonstrating that these preventive measures are feasible. Moreover, hygiene masks can be used in emergency departments and waiting rooms, especially at times of ongoing measles epidemics [8,33]. In this outbreak, we also observed that cases had been infected after visiting multiple healthcare centres seeking medical care while symptomatic, after providing care or accompanying measles cases in their family. Therefore, strategies for raising awareness about measles should include messages for caregivers, parents and patients, especially at times of an ongoing epidemic.
Delays in detecting measles or misdiagnoses because of atypical presentation of the disease could have contributed to the spread of the outbreak. Modified measles symptoms have been reported in vaccinated individuals [11] and have also been observed in Spain over the last years [33]. In this outbreak, approximately one in five cases did not develop cough, coryza or conjunctivitis, but the vast majority (96.1%) presented both rash and fever. Conducting more sensitive investigations during outbreaks, including all patients with febrile rash, has been previously recommended [46]. The use of a more sensitive case definition for modified measles suitable has been applied in outbreaks in communities with high vaccination coverage; this has been discussed elsewhere [11,37].
Our study is subject to some limitations. Firstly, for some cases it was not possible to identify the exposure context. Secondly, some important variables such as vaccination status had missing values. This was observed particularly among those aged 30 years or above because of lack of registers and electronic records, or lack or loss of vaccination cards, which led to self-reported vaccine status in some instances.
Despite the outbreak, the measles elimination status in Spain was maintained, as the import-related cases did not induce endemic transmission. The high levels of population immunity against measles, the highly effective MMR vaccine, and an effective public health response to reported measles cases limited the size and duration of the outbreak. However, as the risk of measles outbreaks related to importation of the virus remains, vaccination activities should be reinforced for the under-vaccinated subpopulations and the overall coverage must be maintained high to prevent future outbreaks and reduce disease morbidity and mortality.
Conclusions
This interregional outbreak of measles in Spain occurred after the country gained its elimination status. The outbreak was linked to an imported case and involved 154 cases, mostly young adults (aged 19–40 years) and unvaccinated children (aged under 1 year). Despite the high MMR coverage, there are still under-vaccinated subgroups in the population and the risk of outbreaks due to importation remains. The main route of transmission was nosocomial, and the outbreak spread to several healthcare facilities, affecting patients, visitors and staff. This highlights the importance of implementing the national guidelines for measles immunisation for healthcare professionals and support personnel. In the post-elimination era, delays in diagnosis or misdiagnoses can be prevented by raising awareness about measles and the atypical presentation of the disease.
Ethical statement
The data of this study were obtained by the National Epidemiological Surveillance Network (RENAVE in Spanish) and collected in an anonymous database (SiViES). For this reason, it was not necessary to obtain an additional informed consent of the patients for this work.
Funding statement
This work was funded by the Instituto de Salud Carlos III (ISCIII) (PI19ICIII/0041).
Data availability statement
The two N450 sequences different to the MVs/Dublin.IRL/8.16 variant (KY013331) have the accession numbers ON885947 and ON885948 and were deposited at GenBank (NCBI).
Acknowledgements
We would like to thank all the colleagues at the local and regional public health services who were involved in the outbreak investigation and the control measures, as well as the colleagues involved in the laboratory investigations. Special thanks go to all healthcare workers who managed cases, assisted with control measures and reported cases. We acknowledge all patients and their families for their cooperation.
Conflict of interest: None declared.
Authors’ contributions: DP, NLP and JMC were the main study researchers. They planned the content; DP wrote the first version of the manuscript, JMC performed data collection and statistical analysis. NLP contributed to analysis of the epidemiological data and preparation of tables and graphs. All of the authors made a critical review of all versions of the manuscript IHZ, MCM, KVB, JRS, NT, JFP and other. JEE, AFG were responsible for the National Measles Surveillance Laboratory Network. MMM was responsible for the measles laboratory surveillance at the Microbiology Department, Hospital Clínic de Barcelona. Barcelona, Spain.
References
- 1.Heymann DL. Control of Communicable Diseases Manual. 20th ed. Washington, DC: American Public Health Association Press; 2014. [Google Scholar]
- 2.Masa Calles J, López Perea N, Torres de Mier MV. Epidemiologic Surveillance on Measles, Rubella and Congenital Rubella Syndrome. Spain. Rev Esp Salud Pública. 2015;89(4):365-79. 10.4321/S1135-57272015000400005 [DOI] [PubMed] [Google Scholar]
- 3.Ministerio de Sanidad. Portal Estadístico - Área de Inteligencia de Gestión. Sistema de Información de Vacunaciones (SIVAMIN). [Statistical Portal - Management Intelligence Area. Vaccination Information System (SIVAMIN)]. Madrid: Ministry of Health. [Accessed: 16 Nov 2022]. Spanish. Available from: https://pestadistico.inteligenciadegestion.sanidad.gob.es/publicoSNS/S/sivamin
- 4.Ramsay M; World Health Organization Regional Office for Europe (WHO/Europe). A strategic framework for the elimination of measles in the European Region by Mary Ramsay, February 1997 Copenhagen: WHO/Europe; 1999. Available from: https://apps.who.int/iris/handle/10665/108278
- 5.Consejo Interterritorial (Ponencia de vigilancia epidemiológica). Ministerio de Sanidad. Plan de Eliminación del Sarampión en España. [Measles Elimination Plan in Spain]. Madrid: Instituto de Salud Carlos III (ISCIII); 2000. Spanish. Available from: https://www.isciii.es/QueHacemos/Servicios/VigilanciaSaludPublicaRENAVE/EnfermedadesTransmisibles/Documents/archivos%20A-Z/Sarampi%C3%B3n/Plan_Eliminaci%C3%B3n_Sarampi%C3%B3n_Espa%C3%B1a_2000.pdf
- 6.World Health Organization Regional Office for Europe (WHO/Europe). 6th meeting of the Regional Verification Commission for Measles and Rubella Elimination (RVC). Copenhagen: WHO/Europe; 2017. [Google Scholar]
- 7.European Centre for Disease Prevention and Control (ECDC). Measles and rubella surveillance: 2017 : surveillance report. Stockholm: ECDC; 2018. Available from: https://www.ecdc.europa.eu/sites/default/files/documents/Measles-and-Rubella-Surveillance-2017.pdf
- 8.Botelho-Nevers E, Gautret P, Biellik R, Brouqui P. Nosocomial transmission of measles: an updated review. Vaccine. 2012;30(27):3996-4001. 10.1016/j.vaccine.2012.04.023 [DOI] [PubMed] [Google Scholar]
- 9.Centro Nacional de Epidemiología. Instituto de Salud Carlos III. Red Nacional de Vigilancia Epidemiológica. Protocolos de la Red Nacional de Vigilancia Epidemiológica. [Protocols of the National Public Health Surveillance Network]. Madrid: Spanish government; 2015. Available from: https://www.isciii.es/QueHacemos/Servicios/VigilanciaSaludPublicaRENAVE/EnfermedadesTransmisibles/Documents/PROTOCOLOS/PROTOCOLOS%20EN%20BLOQUE/PROTOCOLOS_RENAVE-ciber.pdf
- 10.European Commission (EC). Commission implementing decision (EU) 2018/ 945 of 22 June 2018 on the communicable diseases and related special health issues to be covered by epidemiological surveillance as well as relevant case definitions. Official Journal of the European Union. Luxembourg: Publications Office of the European Union. 6.7.2018. L170/1. Available from: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32018D0945
- 11.Augusto GF, Cruz D, Silva A, Pereira N, Aguiar B, Leça A, et al. Challenging measles case definition: three measles outbreaks in three Health Regions of Portugal, February to April 2018. Euro Surveill. 2018;23(28):1800328. 10.2807/1560-7917.ES.2018.23.28.1800328 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 12.World Health Organization (WHO). Manual for the laboratory-based surveillance of measles, rubella, and congenital rubella syndrome. Geneva: WHO; 2018. Available from: https://www.who.int/teams/immunization-vaccines-and-biologicals/immunization-analysis-and-insights/surveillance/surveillance-for-vpds/laboratory-networks/measles-and-rubella-laboratory-network/manual-for-the-laboratory-based-surveillance-of-measles-rubella-and-congenital-rubella-syndrome
- 13.Mosquera MM, Ory F, Echevarría JE. Measles virus genotype circulation in Spain after implementation of the national measles elimination plan 2001-2003. J Med Virol. 2005;75(1):137-46. 10.1002/jmv.20248 [DOI] [PubMed] [Google Scholar]
- 14.Genetic diversity of wild-type measles viruses and the global measles nucleotide surveillance database (MeaNS). Wkly Epidemiol Rec. 2015;90(30):373-80. [PubMed] [Google Scholar]
- 15.Gil H, Fernández-García A, Mosquera MM, Hübschen JM, Castellanos AM, de Ory F, et al. Measles virus genotype D4 strains with non-standard length M-F non-coding region circulated during the major outbreaks of 2011-2012 in Spain. PLoS One. 2018;13(7):e0199975. 10.1371/journal.pone.0199975 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 16.Instituto Nacional de Estadística (INE). INEbase. Demografía y población. Cifras de población y Censos demográficos. Cifras de población. [Population figures. Results.] Madrid: INE. [Accessed: 14 Oct 2021]. Spanish. Available from: https://www.ine.es/dyngs/INEbase/operacion.htm?c=Estadistica_C&cid=1254736176951&menu=resultados&secc=1254736195196&idp=1254735572981
- 17.RStudio Team. RStudio: Integrated Development for R. Boston: RStudio, PBC; 2020. Available from: http://www.rstudio.com
- 18.Lazar M, Stănescu A, Penedos AR, Pistol A. Characterisation of measles after the introduction of the combined measles-mumps-rubella (MMR) vaccine in 2004 with focus on the laboratory data, 2016 to 2019 outbreak, Romania. Euro Surveill. 2019;24(29):1900041. 10.2807/1560-7917.ES.2019.24.29.1900041 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 19.European Centre for Disease Prevention and Control (ECDC). Measles - Annual Epidemiological Report for 2018. Stockholm: ECDC; 2020. Available from: https://www.ecdc.europa.eu/en/publications-data/measles-annual-epidemiological-report-2018
- 20.Bellido-Blasco JB, Gil-Fortuño M, Herrero-Ballester JV, Fernández-García A, Guerrero-Jiménez FD, Safont-Adsuara L, et al. Brote de sarampión originado en una guardería. Cadena de transmisión y control. Gac Sanit. 2019;33(Espec Congr):126-257. Available from: https://www.gacetasanitaria.org/index.php?p=revista&tipo=pdf-simple&pii=X0213911119000670
- 21.Torner N, Ferràs J, Curto L, Rebull J, Sol J, Costa J, et al. Measles outbreak related to healthcare transmission. Vacunas. 2021;22(1):20-7. 10.1016/j.vacun.2020.08.002 [DOI] [Google Scholar]
- 22.Consejo Interterritorial del Sistema Nacional de Salud. 2° Estudio de Seroprevalencia en España. [2nd seroprevalence study in Spain, September 2020]. Madrid, Ministry of Health; 2021. Available from: https://www.sanidad.gob.es/profesionales/saludPublica/prevPromocion/vacunaciones/comoTrabajamos/docs/EstudioSeroprevalencia_EnfermedadesInmunoprevenibles.pdf
- 23.Hahné SJM, Nic Lochlainn LM, van Burgel ND, Kerkhof J, Sane J, Yap KB, et al. Measles outbreak among previously immunized healthcare workers, the Netherlands, 2014. J Infect Dis. 2016;214(12):1980-6. 10.1093/infdis/jiw480 [DOI] [PubMed] [Google Scholar]
- 24.Augusto GF, Silva A, Pereira N, Fernandes T, Leça A, Valente P, et al. Report of simultaneous measles outbreaks in two different health regions in Portugal, February to May 2017: lessons learnt and upcoming challenges. Euro Surveill. 2019;24(3):1800026. 10.2807/1560-7917.ES.2019.24.3.1800026 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 25.Masa-Calles J, Lopez-Perea N. El retraso en la eliminación del sarampión en Europa: razones, obstáculos y perspectivas. Boletín epidemiológico semanal. 2019 Nov 18;27(6):63-9. Available from: https://revista.isciii.es/index.php/bes/article/view/1098
- 26.Masa-Calles J, López-Perea N, Godoy P. Perfil epidemiológico del sarampión en España: casos en adultos, secundarios a la importación y asociados con la asistencia sanitaria. [The Spain profile of measles: Cases in adults, imported-related and associated to health care]. Semergen. 2020;46(2):77-80. 10.1016/j.semerg.2019.12.012 [DOI] [PubMed] [Google Scholar]
- 27.Centro Nacional de Epidemiología. Instituto de Salud Carlos III (ISCIII). Informe de la vigilancia del Sarampión, la Rubéola y el Síndrome de Rubéola Congénita en España, año 2011. [Report on the surveillance of Measles, Rubella and Congenital Rubella Syndrome in Spain, 2011.] Madrid: ISCIII; 2012. Spanish. Available from: https://www.isciii.es/QueHacemos/Servicios/VigilanciaSaludPublicaRENAVE/EnfermedadesTransmisibles/Documents/archivos%20A-Z/Sarampi%C3%B3n/Informe_Plan_Eliminaci%C3%B3n_Sarampi%C3%B3n_Rub%C3%A9ola_%20Espa%C3%B1a_2011.pdf
- 28.García Comas L, Ordobás Gavín M, Sanz Moreno JC, Ramos Blázquez B, Rodríguez Baena E, Córdoba Deorador E, et al. outbreak research work group . Community-wide measles outbreak in the Region of Madrid, Spain, 10 years after the implementation of the Elimination Plan, 2011-2012. Hum Vaccin Immunother. 2017;13(5):1078-83. 10.1080/21645515.2016.1267081 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 29.Muscat M, Marinova L, Mankertz A, Gatcheva N, Mihneva Z, Santibanez S, et al. The measles outbreak in Bulgaria, 2009-2011: An epidemiological assessment and lessons learnt. Euro Surveill. 2016;21(9):30152. 10.2807/1560-7917.ES.2016.21.9.30152 [DOI] [PubMed] [Google Scholar]
- 30.Kondova IT, Milenkovic Z, Marinkovic SP, Bosevska G, Kuzmanovska G, Kondov G, et al. Measles outbreak in Macedonia: epidemiological, clinical and laboratory findings and identification of susceptible cohorts. PLoS One. 2013;8(9):e74754. 10.1371/journal.pone.0074754 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 31.Cherry JD, Zahn M. Clinical characteristics of measles in previously vaccinated and unvaccinated patients in California. Clin Infect Dis. 2018;67(9):1315-9. 10.1093/cid/ciy286 [DOI] [PubMed] [Google Scholar]
- 32.Iwamoto M, Hickman CJ, Colley H, Arciuolo RJ, Mahle CE, Deocharan B, et al. Measles infection in persons with secondary vaccine failure, New York City, 2018-19. Vaccine. 2021;39(38):5346-50. 10.1016/j.vaccine.2021.07.078 [DOI] [PubMed] [Google Scholar]
- 33.López-Perea N, Fernández-García A, Echevarría JE, de Ory F, Pérez-Olmeda M, Masa-Calles J. Measles in vaccinated people: epidemiology and challenges in surveillance and diagnosis in the post-elimination phase. Spain, 2014-2020. Viruses. 2021;13(10):1982. 10.3390/v13101982 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 34.Sundell N, Dotevall L, Sansone M, Andersson M, Lindh M, Wahlberg T, et al. Measles outbreak in Gothenburg urban area, Sweden, 2017 to 2018: low viral load in breakthrough infections. Euro Surveill. 2019;24(17):1900114. 10.2807/1560-7917.ES.2019.24.17.1900114 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 35.Rasmussen LD, Fonager J, Knudsen LK, Andersen PHS, Rønn J, Poulsen MW, et al. Phylogenetic and epidemiological analysis of measles outbreaks in Denmark, 2013 to 2014. Euro Surveill. 2015;20(39). 10.2807/1560-7917.ES.2015.20.39.30027 [DOI] [PubMed] [Google Scholar]
- 36.Maltezou HC, Wicker S. Measles in health-care settings. Am J Infect Control. 2013;41(7):661-3. 10.1016/j.ajic.2012.09.017 [DOI] [PubMed] [Google Scholar]
- 37.Sá Machado R, Perez Duque M, Almeida S, Cruz I, Sottomayor A, Almeida I, et al. Measles outbreak in a tertiary level hospital, Porto, Portugal, 2018: challenges in the post-elimination era. Euro Surveill. 2018;23(20):18-00224. 10.2807/1560-7917.ES.2018.23.20.18-00224 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 38.Maltezou HC, Dedoukou X, Vernardaki A, Katerelos P, Kostea E, Tsiodras S, et al. Measles in healthcare workers during the ongoing epidemic in Greece, 2017-2018. J Hosp Infect. 2018;100(4):e261-3. 10.1016/j.jhin.2018.06.007 [DOI] [PubMed] [Google Scholar]
- 39.Porretta A, Quattrone F, Aquino F, Pieve G, Bruni B, Gemignani G, et al. A nosocomial measles outbreak in Italy, February-April 2017. Euro Surveill. 2017;22(33):30597. 10.2807/1560-7917.ES.2017.22.33.30597 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 40.Currie J, Davies L, McCarthy J, Perry M, Moore C, Cottrell S, et al. Measles outbreak linked to European B3 outbreaks, Wales, United Kingdom, 2017. Euro Surveill. 2017;22(42):17-00673. 10.2807/1560-7917.ES.2017.22.42.17-00673 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 41.Filia A, Tavilla A, Bella A, Magurano F, Ansaldi F, Chironna M, et al. Measles in Italy, July 2009 to September 2010. Euro Surveill. 2011;16(29):19925. 10.2807/ese.16.29.19925-en [DOI] [PubMed] [Google Scholar]
- 42.Grammens T, Schirvel C, Leenen S, Shodu N, Hutse V, Mendes da Costa E, et al. Ongoing measles outbreak in Wallonia, Belgium, December 2016 to March 2017: characteristics and challenges. Euro Surveill. 2017;22(17):30524. 10.2807/1560-7917.ES.2017.22.17.30524 [DOI] [PMC free article] [PubMed] [Google Scholar]
- 43.Grupo de trabajo de la Ponencia de Programa y Registro de Vacunaciones. Vacunación en trabajadores sanitarios. [Vaccination in healthcare workers]. Comisión de Salud Pública del Consejo Interterritorial del Sistema Nacional de Salud. Madrid, Ministry of Health, Social Services and Equality; 2017. Spanish. Available from: https://www.mscbs.gob.es/profesionales/saludPublica/prevPromocion/vacunaciones/vacunas/docs/Vacunacion_sanitarios.pdf
- 44.Consejo Interterritorial del Sistema Nacional de Salud. Plan estratégico para la eliminación del sarampión y la rubeola en España 2021-2025. [Strategic plan for the elimination of measles and rubella in Spain 2021-2025]. Madrid, Ministry of Health; 2021. Spanish. Available from: https://www.sanidad.gob.es/profesionales/saludPublica/prevPromocion/vacunaciones/sarampion-rubeola/docs/PlanEstrategico_SarampionyRubeola.pdf
- 45.Song K, Lee JM, Lee EJ, Lee BR, Choi JY, Yun J, et al. Control of a nosocomial measles outbreak among previously vaccinated adults in a population with high vaccine coverage: Korea, 2019. Eur J Clin Microbiol Infect Dis. 2022;41(3):455-66. 10.1007/s10096-021-04390-4 [DOI] [PubMed] [Google Scholar]
- 46.De Ory F, Peña-Rey I. Sarampión en la línea de meta de la eliminación. [Measles at the point of being eliminated]. Enferm Infecc Microbiol Clin. 2010;28(2):73-4. Spanish. 10.1016/j.eimc.2009.12.002 [DOI] [PubMed] [Google Scholar]
