. Author manuscript; available in PMC: 2024 Jun 1.
Published in final edited form as: J Biomed Inform. 2023 Mar 17;142:104343. doi: 10.1016/j.jbi.2023.104343

Representing and Utilizing Clinical Textual Data for Real World Studies: An OHDSI Approach

Vipina K Keloth 1, Juan M Banda 2, Michael Gurley 3, Paul M Heider 4, Georgina Kennedy 5, Hongfang Liu 6, Feifan Liu 7, Timothy Miller 8, Karthik Natarajan 9, Olga V Patterson 10,11,12, Yifan Peng 13, Kalpana Raja 1, Ruth M Reeves 14,15, Masoud Rouhizadeh 16,17, Jianlin Shi 10,11,18, Xiaoyan Wang 19, Yanshan Wang 20, Wei Wei-Qi 15, Andrew E Williams 21, Rui Zhang 22, Rimma Belenkaya 23, Christian Reich 24, Clair Blacketer 25,26, Patrick Ryan 9,25, George Hripcsak 9, Noémie Elhadad 9,*, Hua Xu 1,*
PMCID: PMC10428170  NIHMSID: NIHMS1897646  PMID: 36935011

Abstract

Clinical documentation in electronic health records contains crucial narratives and details about patients and their care. Natural language processing (NLP) can unlock the information conveyed in clinical notes and reports, and thus plays a critical role in real-world studies. The NLP Working Group at the Observational Health Data Sciences and Informatics (OHDSI) consortium was established to develop methods and tools to promote the use of textual data and NLP in real-world observational studies. In this paper, we describe a framework for representing and utilizing textual data in real-world evidence generation, including representations of information from clinical text in the Observational Medical Outcomes Partnership (OMOP) Common Data Model (CDM), the workflow and tools that were developed to extract, transform and load (ETL) data from clinical notes into tables in OMOP CDM, as well as current applications and specific use cases of the proposed OHDSI NLP solution at large consortia and individual institutions with English textual data. Challenges faced and lessons learned during the process are also discussed to provide valuable insights for researchers who are planning to implement NLP solutions in real-world studies.

Keywords: Real-world study, Natural language processing, Electronic health records

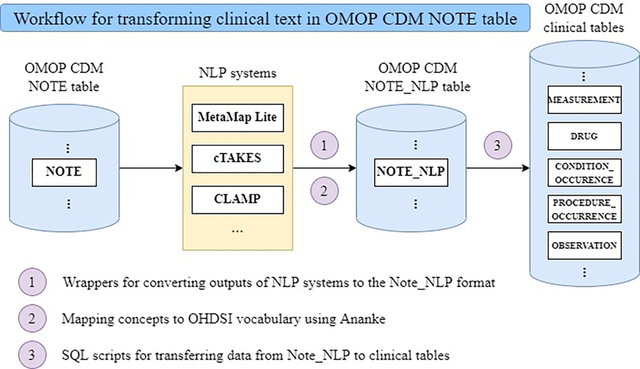

Graphical Abstract

graphic file with name nihms-1897646-f0001.jpg

1. Introduction

The use of real-world data has gained increasing popularity in drug development, drug regulation, clinical trial feasibility, and observational research, especially in cases where clinical trials are too difficult or expensive to conduct [1–4]. The United States Food and Drug Administration (FDA) defines real-world data (RWD) as “the data relating to patient health status and/or the delivery of health care routinely collected from a variety of sources.” [5] The sources of RWD include electronic health records (EHRs), claims and billing data, disease registries, and patient-generated health data like the ones from electronic devices (wearables), software applications (apps), and social media [6]. While EHRs, claims data, and patient registries are used widely for clinical evidence generation [7–9], the COVID-19 pandemic witnessed an increased use of data from wearables and social media for epidemiological studies [10–12]. As data from these diverse sources can provide new insights and evidence regarding the benefits and risks of medical products and services, RWD is being generated and used by multiple stakeholders such as pharmaceutical companies, researchers, payers, providers, patients, and regulatory agencies. For example, FDA’s Real-World Evidence (RWE) program promotes shared learning and provides guidelines to assist developers interested in RWD to develop RWE for regulatory decisions [13].

One of the main challenges in conducting high-quality, reproducible real-world studies is achieving data standardization across different collaborative sites. To achieve that goal, extensive efforts have been devoted to developing and maintaining common data models (CDM) for real-world clinical data through various initiatives. The Informatics for Integrating Biology and the Bedside (i2b2) [14] data model is one of the earliest models and follows the entity-attribute-value (EAV) approach. The schema has a central “fact” table with each row representing a single observation about a patient. The FDA leads the Sentinel System which coordinates the development of the Sentinel Common Data Model (SCDM) [15]. The SCDM v8.0.0 includes 16 tables with a major focus on using RWD to study medical product safety. The National Patient-Centered Clinical Research Network (PCORnet) CDM [16] is based on the FDA Mini-Sentinel CDM [17] thus leveraging existing analytic tools and expertise, and prioritizing analytic functionality in the CDM design. The Observational Health Data Sciences and Informatics (OHDSI) [18] community has invested tremendous effort in the development and maintenance of the Observational Medical Outcomes Partnership (OMOP) CDM and Standardized Vocabularies [19]. At present, OMOP CDM has been applied to over 300 sites, containing data on over 800 million unique patients, resulting in over 300 publications [20].

One of the features that sets OMOP CDM apart from other CDMs is the incorporation of representations and tools that can deal with clinical textual data. Clinical notes contain abundant information about patients’ prior medical history, psychosocial and family history, disease course and progress, as well as information regarding the healthcare process (e.g., tests, treatments, and procedures). Clinical Natural Language Processing (NLP), while being an active area of research, has played a crucial role in extracting relevant patient information embedded in clinical narratives [21–23]. Several general clinical NLP tools, such as MedLEE [24], MetaMap/MetaMap Lite [25, 26], cTAKES [27], and CLAMP [28], have been developed and have evolved over the years to contribute to multiple types of real-world studies, including pharmacovigilance, comparative effectiveness research, and drug repurposing. To promote the use of textual information present in EHRs for observational studies, the OHDSI NLP Working Group [29] was established in 2015 as part of the OHDSI consortium. The major focus includes defining representations of textual data, developing NLP and ETL (Extract, Transform and Load) tools, and facilitating real world studies incorporating evidence in clinical documents.

In this paper, we summarize the development of representations for storing clinical text and its NLP outputs in the OMOP CDM and its current applications to real-world studies with multiple use cases of English textual data. A summary of the ETL tools developed for aiding this process is also provided. Furthermore, we discuss the lessons learned during this process and future development plans.

2. Methods

The NLP framework of the OMOP CDM has been developed in close collaboration with the ‘CDM and Vocabulary Development Working Group’ (CDM WG) and the ‘NLP Working Group’ (NLP WG) with active input from the OHDSI community. The CDM WG at OHDSI is responsible for the development, maintenance, and promotion of the OMOP CDM. To enable the storing of clinical text and the information extracted by the NLP tools from the text into the OMOP CDM, the NLP WG was engaged to work closely with the CDM WG. NLP WG scheduled multiple meetings to gather opinions from team members regarding the tables to be added to the OMOP CDM. Based on information collected during the conference calls and the open discussions on OHDSI forums, a proposal was submitted to the CDM WG. This was followed by further discussions between CDM WG and NLP WG. The initial proposal was updated after every discussion. The process was iterated upon until the proposal’s approval. Two tables, NOTE and NOTE_NLP, were incorporated into the OMOP CDM. These tables store the clinical text and the output of clinical NLP tools (Figure 1).

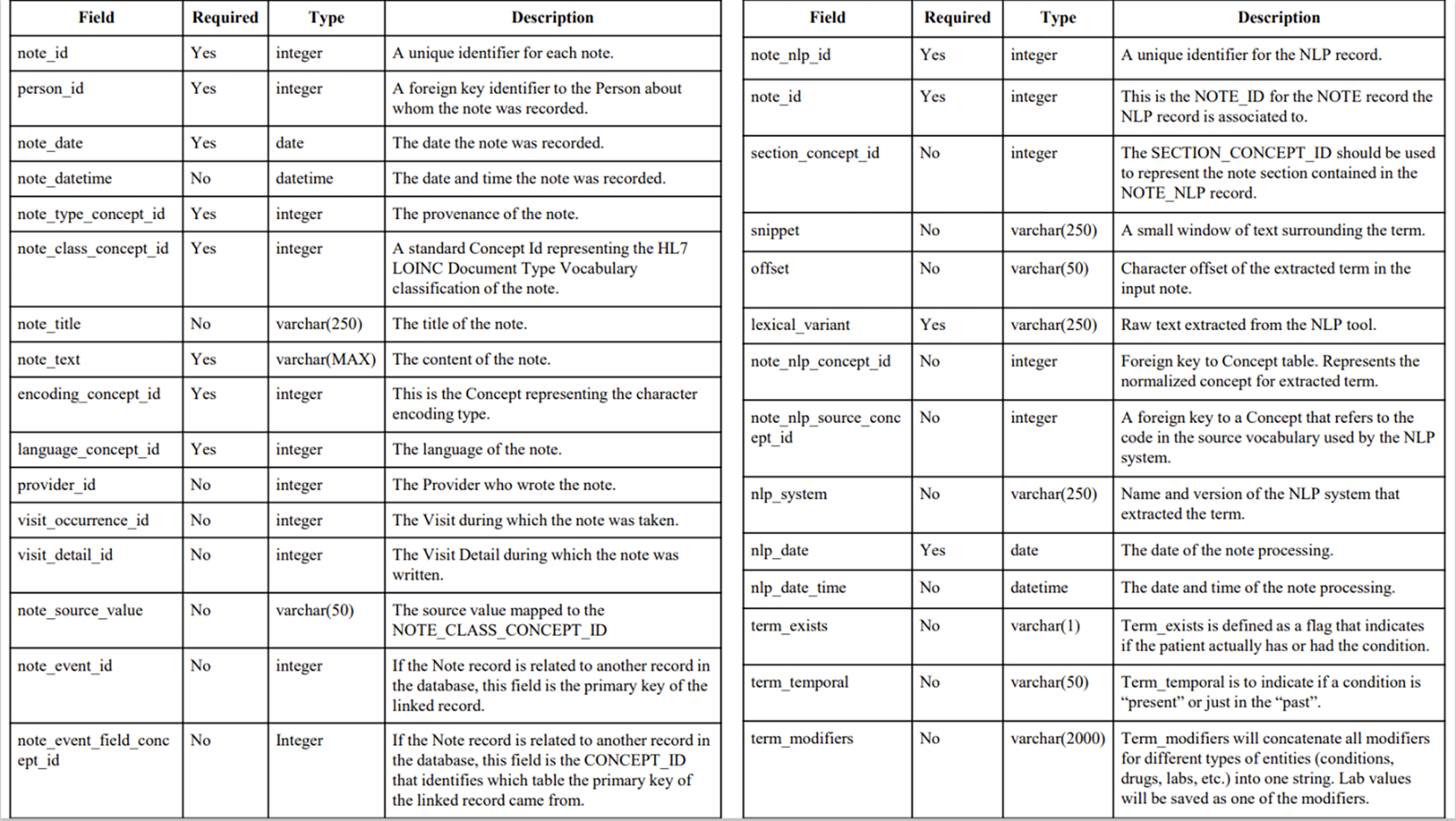

Figure 1:

Figure 1:

Open in a new tab

Schema of NOTE (left) and NOTE_NLP (right) tables in OMOP CDM 5.4 [30]

The NLP tools can extract a wide variety of information including concepts (e.g., cardiovascular disease), values (e.g., body temperature, blood pressure), and modifiers (e.g., severity, certainty). To determine the fields in the NOTE and NOTE_NLP tables, our approach was aligned with the principles of OMOP CDM, focusing on fields that demonstrated their usefulness in real-world applications. An extensive search and review of use cases from the literature, use cases from networks such as eMERGE [31], and use cases recorded by several OHDSI working groups for various projects were collected. Trade-offs were made to decide the fields to be included (see Discussion).

2.1. Representing clinical text data in OMOP CDM

The two NOTE and NOTE_NLP tables store the note information and output from clinical NLP tools respectively. The NOTE table includes the unstructured clinical documentation of patients in EHRs, along with additional meta information such as dates the notes were recorded and types of notes. The NOTE_NLP table encodes all NLP output from the clinical notes. Each row represents a clinical concept and includes information on the concept (i.e., name and concept id), its commonly used modifiers (e.g., existence, temporal), and other relevant contextual information such as the section it belongs to, a snippet of surrounding words, and offsets in the note. Such context information could be used as source evidence to facilitate chart review, e.g., to highlight the context of extracted concepts for quick review. Moreover, context text can also be used to train NLP models, e.g., abbreviation disambiguation models based on local context. Data provenance information like the name and version of the NLP system used for processing the clinical text is also included. As NLP systems may output different types and values for modifiers, a field called “term_modifiers” was proposed to store a list of modifier names and values.

2.2. Workflow and tools for generating NOTE_NLP table

As shown in Figure 2, the ETL workflow for textual data in the CDM consists of the following steps: (1) executing the NLP systems to process the textual notes in the NOTE table. Users can use their preferred NLP systems such as cTAKES, MetaMap Lite, or CLAMP for this task; 2) converting NLP system output into the NOTE_NLP table. As different NLP systems have different output formats and use different coding terminologies, we developed additional tools to facilitate the conversion (see sections below); and (3) transferring concepts from NOTE_NLP to individual clinical tables in CDM. SQL scripts were developed for this purpose. More details of the developed tools are described below.

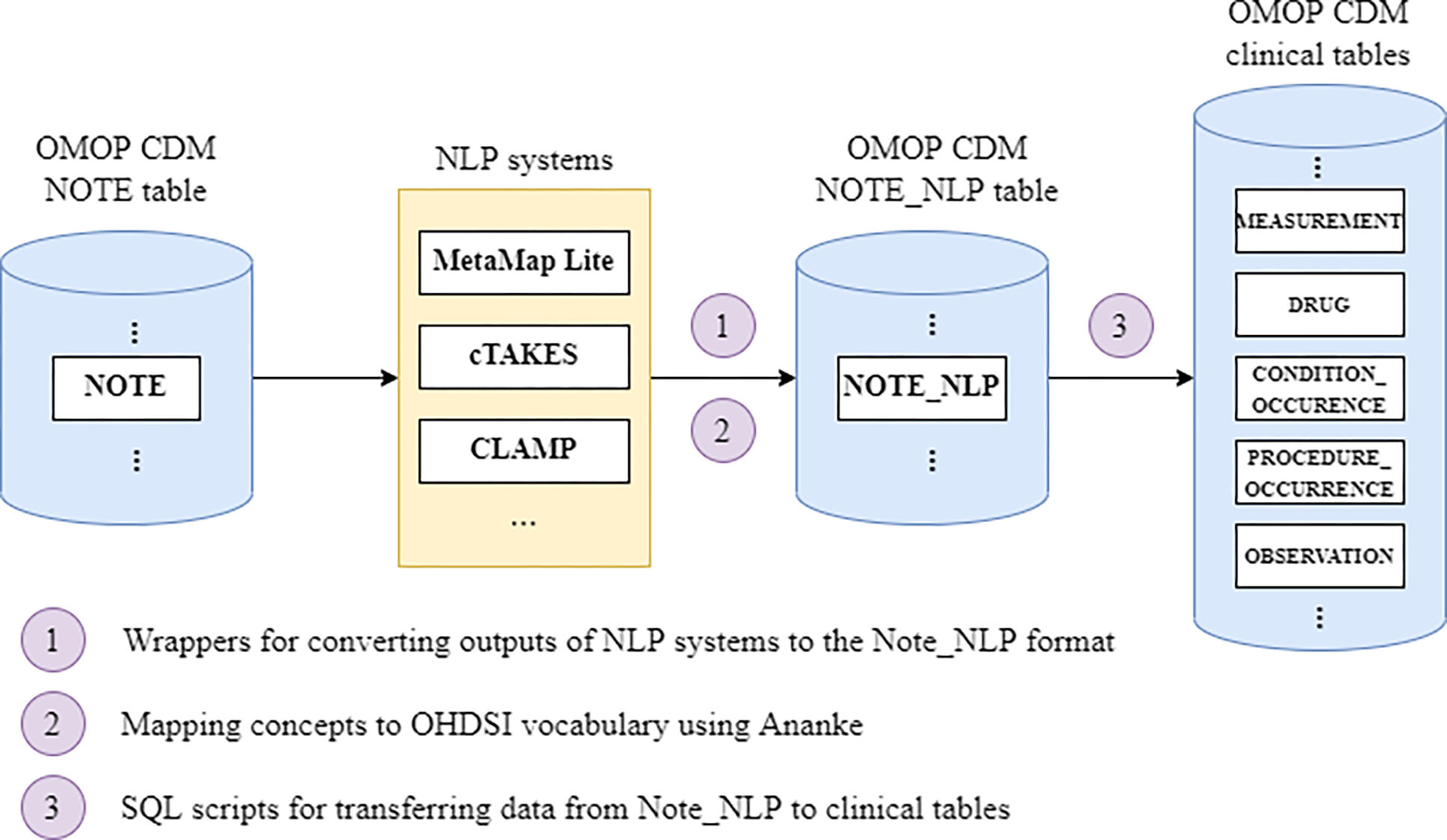

Figure 2:

Figure 2:

Open in a new tab

An overview of the workflow for transforming clinical text in the NOTE table

Wrappers for converting outputs of NLP systems to the NOTE_NLP format:

To reduce the complexity of transforming the output of clinical NLP tools into structured fields, wrappers were implemented in Java to support concept extraction [32]. Currently, wrappers are available for cTAKES, MetaMap Lite, and CLAMP [32]. The wrappers take the clinical text files as input and output the extracted concepts along with text snippets, offset, the corresponding UMLS Concept Unique Identifiers (CUIs), date, and other temporal and existential modifiers as .txt or .xmi files.

Mapping concepts to OHDSI vocabulary using Ananke:

The NLP systems (and therefore the wrappers) map the extracted concepts to the UMLS concept unique identifiers (CUIs), not to the concept identifiers within the OHDSI vocabulary. To bridge this gap, Ananke [33] was built as a tool that provides direct mappings between UMLS CUIs and OHDSI concept identifiers. It leverages the OHDSI vocabulary and the UMLS synonyms and concept relationships. As a single mapping file, this can be plugged in at the time of moving NLP output into the NOTE_NLP table to standardize extracted concepts.

SQL scripts for transferring data from NOTE_NLP to clinical tables:

The terms extracted and normalized from the clinical text data may correspond to conditions, procedures, measurements, etc. The NOTE_NLP table acts as an intermediate storage for these concepts. We developed SQL scripts to transfer the data from the NOTE_NLP table to the corresponding clinical event tables such as CONDITION_OCCURRENCE, PROCEDURE_OCCURRENCE, MEASUREMENT, DRUG_EXPOSURE, and OBSERVATION. All developed tools have been made publicly available in the OHDSI NLP WG GitHub repository [34].

3. Implementation Status and Lessons Learned

3.1. Implementation Status

Since the release of the NOTE/NOTE_NLP tables in OMOP CDM in 2017, researchers have started exploring their use for real-world research, including several large initiatives and many individual healthcare systems. We highlight some of them below.

The All of Us Research Program (AoU):

The AoU [35] is building a nationwide cohort to support precision medicine research by collecting genomic, clinical (e.g., EHRs), and lifestyle data for more than one million patients in the U.S. The Data and Research Center at Vanderbilt University Medical Center is following the OMOP CDM to standardize clinical data from EHRs, including textual documents. The ETL workflow developed by the OHDSI NLP WG has been implemented and tested using a small collection of synthetic textual data and the CLAMP NLP tool. A more detailed plan for collecting and processing textual data from AoU participating sites has been developed, following the OHDSI NLP workflow, and hopefully will be ready for the research community to use in 2023.

The National COVID Cohort Collaborative (N3C):

The N3C [36] is a collaborative initiative to collect COVID-19 clinical data to answer critical research questions related to the pandemic. A Data Enclave was developed to serve as a secure platform used by contributing members to store clinical data. An NLP workgroup at N3C has been formed to promote the use of textual documents for COVID-19 research. They have developed an ETL process to populate signs and symptoms of COVID-19 into the NOTE_NLP tables using an example NLP engine MedTagger [37], and implemented and evaluated its performance across multiple participating sites [38].

The Veterans Health Administration (VHA):

The VHA is a branch of the U.S. Department of Veterans Affairs (VA) that provides healthcare to over 9 million veterans every year. The Corporate Data Warehouse (CDW) is a national data repository comprising data from several VHA clinical and administrative systems. To facilitate collaboration and reuse of analytic tools, the VA Informatics and Computing Infrastructure (VINCI) resource center mapped all VHA medical records to OMOP CDM [39]. The data gets updated regularly and ongoing effort is dedicated to maintaining and expanding the dataset with additional data sources within VHA. The use of NOTE_NLP table has been evaluated for mapping the output of an NLP system designed to extract left ventricular ejection fraction (LVEF) from echocardiogram reports [40].

Table 1 shows a list of individual healthcare systems which have adopted the OHDSI NLP solution, together with their use cases.

Table 1.

Summary of sites that adopted the OHDSI NLP solution.

Healthcare organization NLP tools used Applications and use cases
University of Utah Health (1.5 million patients) A generic rule-based NLP system, EasyCIE [41] Two NLP pipelines to identify and classify the venous thromboembolism (VTE) and pulmonary embolism (PE) patients [42]
Columbia University Irving Medical Center (6.6 million patients) Multiple locally trained tools including MedLEE [24], HealthTermFinder [43], and MedTagger [44] for N3C. Cohort identification, characterization studies, and predictive analytics tasks, for instance, eMERGE phenotypic algorithms [45], infectious disease surveillance [46]
Weill Cornell Medicine (3 million patients) An open-source radiology text analysis system, RadText [47] Information extraction tasks from radiology reports.
University of Minnesota M Health Fairview (4.5 million patients) Locally trained NLP algorithms [48, 49] Two applications: (1) COVID-19 sign/symptom extraction from clinical notes; and (2) dietary supplements (DS) information extraction.
UMass Memorial Health (the largest health care system in Central Massachusetts, serving 3.2 million patients) cTAKES [27] A pilot study to develop suicide prediction models by extracting features (e.g., history of self-harm) from clinical notes.
University of Pittsburgh Medical Center (the largest health care system in west Pennsylvania, over 5.5 million outpatient visits every year) Locally trained NLP algorithms [50] Extracting lifestyle-related factors such as sleep-related concepts
Sydney Partnership for Health, Research, Education and Enterprise (includes data from multiple local health districts in New South Wales, Australia) A broad data engineering system based on the Luigi library [51], which supports multiple spaCy and Hugging Face [52, 53] models trained on local data. Study the prevalence and impact of variation in clinical cancer care.
Sema4 - Mount Sinai Genomics Inc. (the Centrellis health ecosystem including multiple health systems serving >10 million patients) Locally developed NLP pipelines based on CLAMP [28] Five NLP pipelines for extracting genetic variants, protein biomarkers, family medical history, diseases, and procedures.
Medical University of South Carolina (the primary Research Data Warehouse includes ~1.5 million patients) DECOVRI [54] built on Apache UIMA [55]; custom medspaCy pipelines [56, 57] Data Extraction for COVID-19 Related Information (specifically, symptom monitoring); custom pipelines used by the NLP Core, the unstructured data request service center for research at MUSC
Open in a new tab

3.2. Lessons Learned

Based on discussions with sites that have implemented the OHDSI NLP solution, several common issues have been identified and we summarize our lessons learned as follows.

Gaps in standardization of concepts extracted by NLP:

As clinical documents often contain deeper and broader information about patients, customized NLP systems may extract concepts that are not included in the current OMOP standard vocabularies. Several sites reported this issue, including the University of Pittsburgh Medical Center - UPMC (i.e., sleep-related concepts [50]), Sydney Partnership for Health, Research, Education and Enterprise (i.e., cancer-related information), Sema4 (i.e., genetic variants), and Medical University of South Carolina - MUSC (i.e., social determinants of health [58]). Potential solutions to address this challenge often rely on two approaches: (1) to leverage existing extensions to OMOP CDM, e.g., OMOP oncology extension for cancer information and the genomic common data model (G-CDM) for genetic variants [59]; and (2) to develop custom CDM extensions locally (e.g., the sleep project at UPMC).

Challenges about the use of NLP systems:

As shown in Table 1, different NLP systems have been used by different healthcare systems to support diverse applications, which makes it difficult to develop a unified NLP solution based on a single NLP tool. The main reason is that off-the-shelf clinical NLP systems often cannot achieve optimal performance on local data, often requiring customization by a local team. Furthermore, as reported by several sites (e.g., Columbia University Irving Medical Center – CUIMC and MUSC), sometimes multiple NLP systems are deployed at one site, to support different applications. As each NLP system outputs large data into the NOTE_NLP table, it adds a data storage burden to their infrastructure, according to CUIMC. MUSC also expressed the challenge of comparing extractions between NLP systems/versions, as the current design of the NLP workflow does not differentiate incremental vs. repeated processing of textual data, which we plan to address in our future work.

Implementation issues to meet local application needs:

All sites agree that full implementation of the NLP solution to include all textual documents in an EHR is a complex task, requiring significant amounts of resources and effort. A practical solution is to start with pilot projects that are focused on specific applications (e.g., disease-specific studies in Table 1), to assess the feasibility and required resources in a local setting, before rolling out for full implementation. Some sites also reported customized solutions to meet their local needs. For example, the University of Utah Health does not maintain a full OMOP CDM. Instead, a view is created using a schema similar to the NOTE table and the NOTE_NLP table is used to save the snippet-level NLP output. Furthermore, two additional tables are used to save document-level and patient-level NLP output, so that the identified patients with corresponding evidence in notes can be easily searched using join queries.

4. Discussion

Following the proposed OMOP CDM representations for clinical textual data, researchers have actively worked on this topic. In addition to the efforts described in Section 3, a few studies were published that utilized the NOTE and NOTE_NLP tables along with the ETL tools for transforming textual data for use in observational studies [60–63]. For example, one study described the experiences in transforming the notes from MIMIC into OMOP CDM and evaluated the difficulty and analyzed the benefits of this transformation [60]. We are aware that requirements for textual data in real-world research can change over time, which requires us to update the NOTE_NLP table accordingly by taking into consideration the feedback from multi-institutional network studies and other research projects. A process for updating OMOP CDM NLP framework is in place, by interactively engaging the community, the CDM WG, and the NLP WG. For example, a proposal from the NLP WG to address minor issues such as adding polymorphic foreign keys to the NOTE_NLP table to link it to the clinical event tables [19], which is proposed by end users, is under consideration by the CDM WG.

During the development and refinement of the OHDSI NLP framework for clinical textual data, several issues have been identified and actively discussed by researchers in this area. We summarize them as the following.

4.1. Representations of clinical concepts, modifiers, and more

The need for a lean standardized solution to store NLP output is still an ongoing challenge. The NOTE_NLP table provides an initial version of a standardized representation for clinical concepts extracted by NLP systems, following OHDSI vocabularies. One of the main challenges while developing the first version of the NOTE_NLP table is to set the balance between the complexity of NLP outputs and the simplicity of the OMOP CDM. NLP systems could generate diverse types of information at different linguistic levels (e.g., syntactic and semantic information), all of which could be useful for downstream text analysis. However, the OMOP CDM WG requires that each field in the table should demonstrate its utility in clinical studies (e.g., frequently used in different studies). Therefore, it has been an iterative process to define the fields in the NOTE_NLP. Each field was extensively discussed and decided based on its importance for NLP and its utility for clinical studies (e.g., use cases in the eMERGE network).

Take modifiers associated with clinical concepts as an example, two potential representations were discussed: (1) store all modifiers in a new table, with linkage to concepts in the NOTE_NLP table; and (2) store select modifiers that have demonstrated clinical utility as columns in the NOTE_NLP table. After discussion, only two modifiers: “term_exists” (i.e., to indicate whether a patient has a condition, but is more complex than the simple affirmed/negated dichotomy) and “term_temporal” (i.e., presenting a present vs. past condition) are specified in the NOTE_NLP table, while all other modifiers (e.g., values of lab tests and signature information of medications) are concatenated and represented by a single field (“term_modifiers”). The decision was made due to several reasons: (1) the addition modifier table will increase the complexity of OMOP CDM, but its utility has not been fully demonstrated yet; (2) modifiers and their value sets generated by different NLP systems are often diverse and hence it is challenging to define a commonly accepted standard for all modifiers; (3) “term_exists” and “term_temporal” have been used in multiple phenotyping tasks in eMERGE studies; and (4) storing all other modifiers in one field makes it simple; but it still allows users to develop more use cases for additional modifiers, to inform additional changes in future. For example, in an effort to map LVEF extraction output to OMOP CDM 5.2 format, researchers revealed that a certain level of data loss has to be accepted when the dataset is large and multiple modifiers need to be recorded [40]. While utilization of this field is simple for data storage and transmission, it may become a considerable bottleneck when the processed dataset grows (see Efficiency of retrieving section). Those findings provide valuable evidence for representing modifiers in the next version of NOTE_NLP and other related tables.

Several other representation challenges are also discussed at OHDSI NLP WG meetings. For example, standardizing note types and sections within clinical notes remains challenging. One ongoing project at OHDSI NLP WG is to standardize note types based on the LOINC Document Ontology [64, 65]. More recently, NLP artifacts from novel deep learning architectures such as word embeddings have also been brought up by researchers, and how to represent such more NLP-focused data (i.e., to support NLP method development) is also under discussion.

4.2. Efficiency of retrieving NLP derived data

While the current solution (and proposed improvements) allows for data provenance and meta-data storage, the NOTE_NLP table in institutions with millions of patients often surpasses several billion rows. This makes any join operations on any highly indexed and shared RDBMS environments quite computationally expensive. On the storage side, having redundant fields leads to high storage costs, particularly for institutions that rely on cloud platforms as their datastore. It is vital to evaluate the trade-offs between performance, storage, and usability to be able to properly accommodate NLP derived elements into the OMOP CDM. Our current approach moves NLP-extracted concepts to their respective clinical domain tables (CONDITION_OCCURRENCE, OBSERVATION, PROCEDURE_OCCURRENCE, etc.) so that other OHDSI tools (e.g., ATLAS) can be easily applied to analyze textual data without major modifications to the tool’s codebase. However, the NOTE and NOTE_NLP tables can be directly applied to support clinical studies, e.g., researchers may conduct keyword search to identify patients of interest or review patients’ charts. In such a scenario, it is critical to efficiently search through massive textual documents and their NLP outputs. Filtering rows by key/value pairs in the “term_modifiers” column, which would potentially represent a substring of the column, is computationally expensive for traditional SQL-style databases or expensive in terms of storage because of the additional indexing required on the column. Therefore, schemaless databases such as MongoDB and Elasticsearch have been discussed as potential solutions. These architectures naturally support faceted field queries, which would mitigate many of the difficulties in representing an open class of valid term_modifiers with an open class set of modifier values. Nevertheless, it will require a substantial amount of effort to implement such scalable solutions for big data. Some recent work in this direction includes a prototype query engine developed using MongoDB named DataSphere [66]. This system demonstrated that a NoSQL approach can significantly reduce the query construction time while also improving the speed of query execution. Experimental results from another study using MongoDB [67], executing a set of temporal queries on COVID-19 EHR data (1.3 million patients) achieved an average execution time of seconds or less. The authors of these studies claim that their approach applies to many data models including OMOP CDM. More recently, to support massive data storage and high-performance analytics, some institutes are also using cloud data warehouses such as Amazon RedShift and Google BigQuery [63]. These data warehouses are designed to ingest, store and visualize data easily and enable large-scale, ad-hoc online analytical processing. Furthermore, novel efficient querying technologies have been investigated for OMOP CDM databases. For example, Callahan et al. [68] developed the Advanced Cohort Engine (ACE) that uses a temporal query language (TQL) and an in-memory datastore of patient objects to build cohorts, and it shows a better performance than BigQuery over an OMOP CDM v5.3 database.

4.3. Tools to support processing and analyzing textual data

Although tools have been developed to facilitate clinical text processing, challenges still exist when users apply such tools to their local data and specific use cases. As shown in Table 1, diverse NLP systems have been used at different institutions for text processing, which increases the complexity of developing common ETL tools that can work with different NLP systems. Our current strategy is to accommodate general purpose, widely used clinical NLP systems such as cTAKES, MetaMap, and CLAMP initially when developing ETL tools. The next step is to engage the NLP community to implement an OHDSI NLP output component within each individual NLP system. For example, MedTagger and DECOVRI can now generate outputs that are in compliance with the NOTE_NLP table [38, 54]. To further streamline the NLP ETL process, we have also worked on a toolkit called THEIA [69], which supports indexing and visualization of clinical text stored in OMOP CDM tables using NLP tools such as CLAMP, MetaMap Lite, and cTAKES. Moreover, tools to facilitate the use of NLP outputs have also been developed. For example, Automated PHenotype Routine for Observational Definition, Identification, Training and Evaluation (APHRODITE) [70] is an R package built for the OHDSI community that implements two methodologies to build probabilistic phenotype definitions: XPRESS [71] and Anchor Learning [72]. It is one of the few OHDSI tools that support using data found in the NOTE_NLP table to identify cohorts of patients and build machine learning models using term mentions in the NOTE_NLP table as features. It has been shown that using NLP-extracted terms as features in probabilistic phenotype models improves accuracy, recall, and positive predictive value by around 10% on average [70], making the utility of having them available in the OMOP CDM crucial for phenotyping efforts. In the future, we expect more tools will be developed to make it more convenient for end users to leverage textual data and NLP for real world studies.

4.4. Other issues for using NLP in real world studies

There are limitations when applying NLP to real-world evidence generation. First, none of the existing NLP systems extracts information from clinical documents without errors. There are concerns about how such errors from NLP may impact the downstream analyses, which is understandable. However, in general, combining NLP results with coded data often provides a more accurate status of patients, e.g., phenotyping [73]. This is why unstructured data and NLP are mentioned in the FDA guidance for using real-world data to support drug regulatory decision making [74]. Nevertheless, it is very important to carefully evaluate the proposed NLP approach, including the utility of the CDM model, the workflow of textual data processing, the performance of NLP systems, as well as the quality of original and derived data from the workflow, to ensure reproducibility of clinical research using NLP. Currently, most studies would include an evaluation of the performance of the NLP system used (e.g., DECOVRI [54]). However, few studies have reported the quality of workflows and data derived from the workflows. Fortunately, researchers have started exploring this important issue, e.g., Digan et al. [75] have proposed an approach to document the reproducibility of clinical NLP frameworks using workflow management systems. The OHDSI NLP working group has recognized this issue and is planning studies on quality assessments of textual data, workflows, NLP systems, as well as user experience.

It is also important that we can trace back to the original sources when evidence generated by NLP solutions is questioned and reviewed. Many of the clinical data tables containing coded data provide an explicit column for indicating provenance, which includes “NLP” (with concept code OMOP4976931) as one of the standardized “Accepted Concepts”. For instance, the PROCEDURE_OCCURRENCE table includes the column “procedure_type_concept_id” to “determine the provenance of the Procedure record, as in whether the procedure was from an EHR system, insurance claim, registry, or other sources”.

Another consideration of using clinical documents is privacy and security concerns, as textual data may contain sensitive patient identifier information. For example, the “snippet” field in the NOTE_NLP table records text around a concept, which may contain sensitive information. One potential solution is to run de-identification programs to remove protected health information [76] before extracting snippets. Of course, none of the de-identification programs achieve 100% sensitivity and/or accuracy. In extreme cases, institutions can decide not to populate “snippet”, as it is an optional field in NOTE_NLP. For multi-site studies, the OHDSI consortium currently takes a distributed approach, where each participating site shares analysis results from their local datasets, instead of patient-level data. However, the OMOP CDM has been used to standardize data in centralized repositories as well, e.g., N3C and AoU, which often rely on traditional approaches (e.g., multi-site IRB) to ensure privacy protection. In the setting of distributed data networks, federated learning that allows data analysis across sites without sharing individual patient data has received great attention and has shown promise in multi-site studies [77].

5. Conclusion

In summary, text documents in EHRs are important parts of real-world data and NLP enables the use of textual data in real-world studies. Although issues still exist, the OHDSI NLP WG has proposed a framework for representing and utilizing textual data in real-world evidence generation, as an initial step to advance the field. Future work includes the development of more methods, tools, and applications to enable efficient and accurate use of textual data for real-world research.

Acknowledgment

Dr. Hua Xu and Dr. Hongfang Liu were supported in part by NCATS 1U01TR002062. Dr. Yifan Peng was supported in part by the National Library of Medicine under Award No. 4R00LM013001. Dr. Rui Zhang was supported in part by NCCIH R01AT009457 and NCATS UL1TR002494. Dr. Paul M. Heider was partially supported through a Patient-Centered Outcomes Research Institute (PCORI) Award (ME-2018C3–14549) and the SmartState Endowment for Translational Biomedical Informatics. Dr. Juan M. Banda was supported in part by a grant from the National Institute on Aging (3P30AG059307–02S1). Dr. George Hripcsak was supported by the National Library of Medicine award R01 LM006910.

Footnotes

Conflict of Interest

Dr. Hua Xu and The University of Texas Health Science Center at Houston have research related financial interests at Melax Technologies Inc. Dr. Xiaoyan Wang has related financial interests at Sema4 Mount Sinai Genomics Inc.

Declaration of interests

The authors declare the following financial interests/personal relationships which may be considered as potential competing interests:

Hua Xu reports financial support was provided by National Institutes of Health. Hua Xu reports a relationship with Melax Technologies Inc. that includes: consulting or advisory and equity or stocks. Hua Xu reports a relationship with Bayer Corporation that includes: consulting or advisory. Hua Xu has patent with royalties paid to UTHealth. Dr. Hua Xu is an associate editor of Journal of Biomedical Informatics.

Publisher's Disclaimer: This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please note that during the production process errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.
