Abstract
We present a genome assembly from an individual female Tachina lurida (a tachinid fly; Arthropoda; Insecta; Diptera; Tachinidae). The genome sequence is 899.2 megabases in span. Most of the assembly is scaffolded into 6 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 17.3 kilobases in length. Gene annotation of this assembly on Ensembl identified 12,127 protein coding genes.
Keywords: Tachina lurida, a tachinid fly, genome sequence, chromosomal, Diptera
Species taxonomy
Eukaryota; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Diptera; Brachycera; Muscomorpha; Eremoneura; Cyclorrhapha; Schizophora; Calyptratae; Oestroidea; Tachinidae; Tachininae; Tachinini; Tachina; Tachina lurida (Fabricius, 1781) (NCBI:txid631329).
Background
Tachina lurida (Diptera, Tachinidae) is a medium sized (9–12 mm) long tachinid fly. In older literature ( van Emden, 1954) the species is referred to as Servillia lurida, but taxonomic revisions have reduced Servillia to a subgenus of Tachina ( Chandler, 1998). Members of the subgenera Servillia Robineau-Desvoidy are characterised by a dense coat of long hairs. These long hairs can obscure the larger bristles on the body, and in the field the overall appearance of T.lurida is that of a pale brown, very ‘furry’ fly. The body is mostly dark, with orange patches at the sides of the upper segments of the abdomen and the apex of the scutellum.
The larvae are solitary internal parasites of a range of tree-feeding Lepidoptera larvae, mostly from the family Noctuidae including the Common Quaker Orthosia stabilis ( Belshaw, 1993) and the Small Quaker Orthosia cruda. Other occasionally recorded hosts include Sphingidae ( Van Emden, 1954) and Lasiocampidae ( Tschorsnig & Herting, 1994). Eggs are laid on the host foodplant in the vicinity of the host and the fly pupates in the empty host integument.
In Britain, Tachina lurida is a widespread species, most often recorded from woodland margins. The majority of the records are from the south-east of Britain, with scattered records extending northwards and westwards into Wales and southern Scotland. There are no records from Ireland. The species is single brooded, with the adults on the wing between later March or early April through until June.
Genome sequence report
The genome was sequenced from one female Tachina lurida ( Figure 1) collected from Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (51.76, –1.34). A total of 23-fold coverage in Pacific Biosciences single-molecule HiFi long reads was generated. Primary assembly contigs were scaffolded with chromosome conformation Hi-C data. Manual assembly curation corrected 158 missing joins or mis-joins and removed 6 haplotypic duplications, reducing the assembly length by 0.31% and the scaffold number by 71.72%, and increasing the scaffold N50 by 80.12%.
Figure 1. Photograph of the Tachina lurida (idTacLuri1) specimen used for genome sequencing.
The final assembly has a total length of 899.2 Mb in 41 sequence scaffolds with a scaffold N50 of 167.3 Mb ( Table 1). Most (99.94%) of the assembly sequence was assigned to 6 chromosomal-level scaffolds, representing 5 autosomes and the X sex chromosome. Chromosome-scale scaffolds confirmed by the Hi-C data are named in order of size ( Figure 2– Figure 5; Table 2). While not fully phased, the assembly deposited is of one haplotype. Contigs corresponding to the second haplotype have also been deposited. The mitochondrial genome was also assembled and can be found as a contig within the multifasta file of the genome submission.

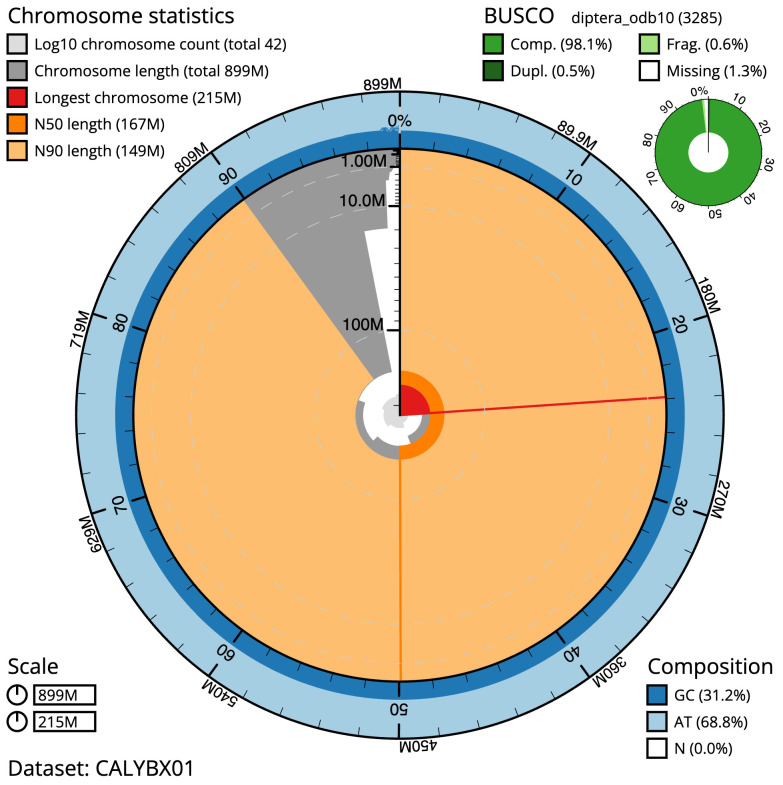

Figure 2. Genome assembly of Tachina lurida, idTacLuri1.1: metrics.
The BlobToolKit Snailplot shows N50 metrics and BUSCO gene completeness. The main plot is divided into 1,000 size-ordered bins around the circumference with each bin representing 0.1% of the 899,175,728 bp assembly. The distribution of scaffold lengths is shown in dark grey with the plot radius scaled to the longest scaffold present in the assembly (215,246,178 bp, shown in red). Orange and pale-orange arcs show the N50 and N90 scaffold lengths (167,332,097 and 149,348,092 bp), respectively. The pale grey spiral shows the cumulative scaffold count on a log scale with white scale lines showing successive orders of magnitude. The blue and pale-blue area around the outside of the plot shows the distribution of GC, AT and N percentages in the same bins as the inner plot. A summary of complete, fragmented, duplicated and missing BUSCO genes in the diptera_odb10 set is shown in the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idTacLuri1.1/dataset/CALYBX01/snail.

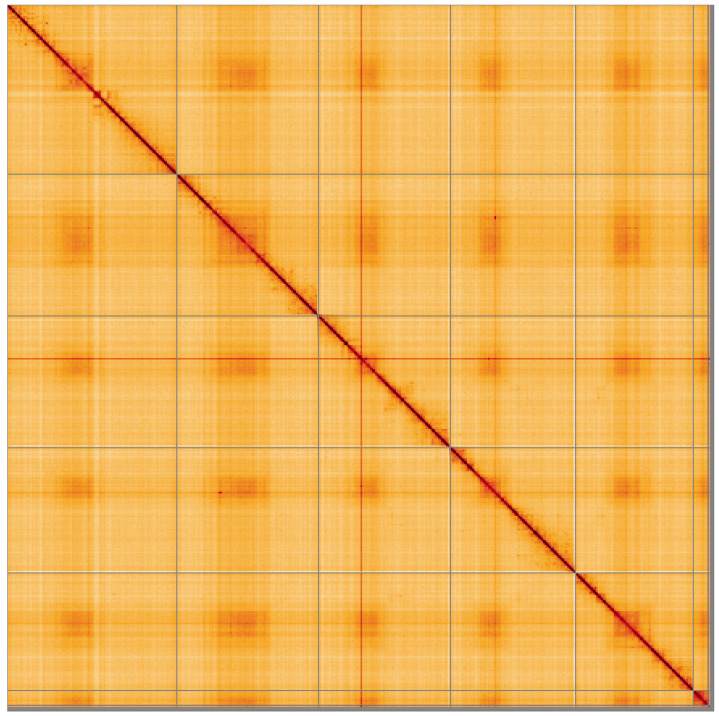

Figure 5. Genome assembly of Tachina lurida, idTacLuri1.1: Hi-C contact map of the idTacLuri1.1 assembly, visualised using HiGlass.
Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=KadJZgl7S3O2L2x87cUSqQ.
Table 1. Genome data for Tachina lurida, idTacLuri1.1.
| Project accession data | ||
|---|---|---|
| Assembly identifier | idTacLuri1.1 | |
| Species | Tachina lurida | |
| Specimen | idTacLuri1 | |
| NCBI taxonomy ID | 631329 | |
| BioProject | PRJEB53395 | |
| BioSample ID | SAMEA10166766 | |
| Isolate information | idTacLuri1, female: thorax (DNA sequencing), head
(Hi-C scaffolding) abdomen (RNA sequencing) |
|
| Assembly metrics * | Benchmark | |
| Consensus quality (QV) | 60.9 | ≥ 50 |
| k-mer completeness | 100% | ≥ 95% |
| BUSCO ** | C:98.1%[S:97.5%,D:0.5%],
F:0.6%,M:1.3%,n:3,285 |
C ≥ 95% |
| Percentage of assembly mapped
to chromosomes |
99.94% | ≥ 95% |
| Sex chromosomes | X chromosome |
localised homologous
pairs |
| Organelles | Mitochondrial genome
assembled |
complete single alleles |
| Raw data accessions | ||
| PacificBiosciences SEQUEL II | ERR9836430 | |
| Hi-C Illumina | ERR9837130 | |
| PolyA RNA-Seq Illumina | ERR10123707 | |
| Genome assembly | ||
| Assembly accession | GCA_944452675.1 | |
| Accession of alternate haplotype | GCA_944452685.1 | |
| Span (Mb) | 899.2 | |
| Number of contigs | 544 | |
| Contig N50 length (Mb) | 3.8 | |
| Number of scaffolds | 41 | |
| Scaffold N50 length (Mb) | 167.3 | |
| Longest scaffold (Mb) | 215.3 | |
| Genome annotation | ||
| Number of protein-coding genes | 12,127 | |
| Number of non-coding genes | 1,518 | |
| Number of gene transcripts | 18,745 | |
* Assembly metric benchmarks are adapted from column VGP-2020 of “Table 1: Proposed standards and metrics for defining genome assembly quality” from ( Rhie et al., 2021).
** BUSCO scores based on the diptera_odb10 BUSCO set using v5.3.2. C = complete [S = single copy, D = duplicated], F = fragmented, M = missing, n = number of orthologues in comparison. A full set of BUSCO scores is available at https://blobtoolkit.genomehubs.org/view/idTacLuri1.1/dataset/CALYBX01/busco.

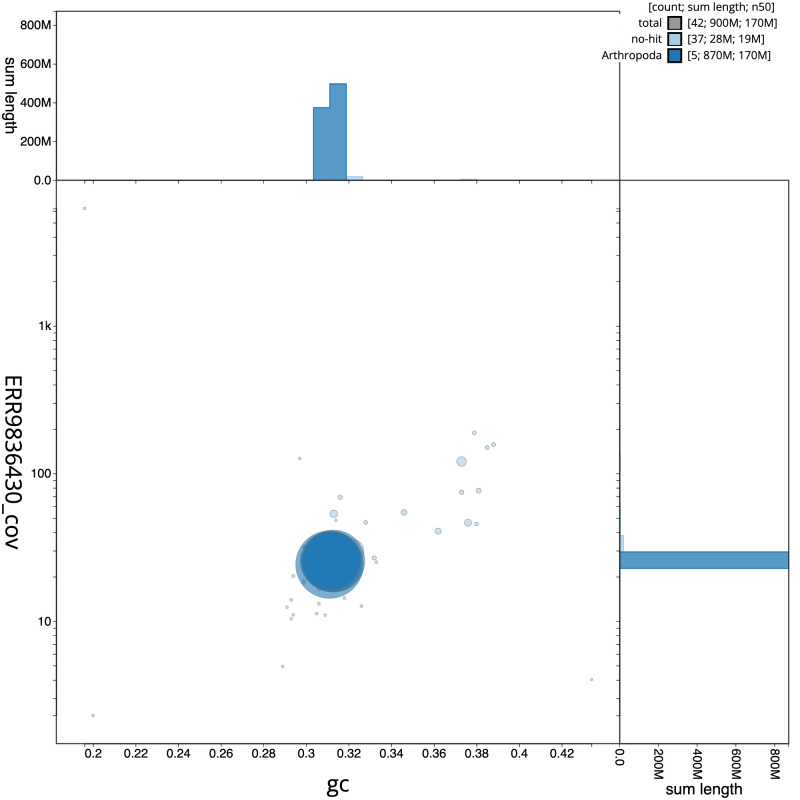

Figure 3. Genome assembly of Tachina lurida, idTacLuri1.1: BlobToolKit GC-coverage plot.
Scaffolds are coloured by phylum. Circles are sized in proportion to scaffold length. Histograms show the distribution of scaffold length sum along each axis. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idTacLuri1.1/dataset/CALYBX01/blob.

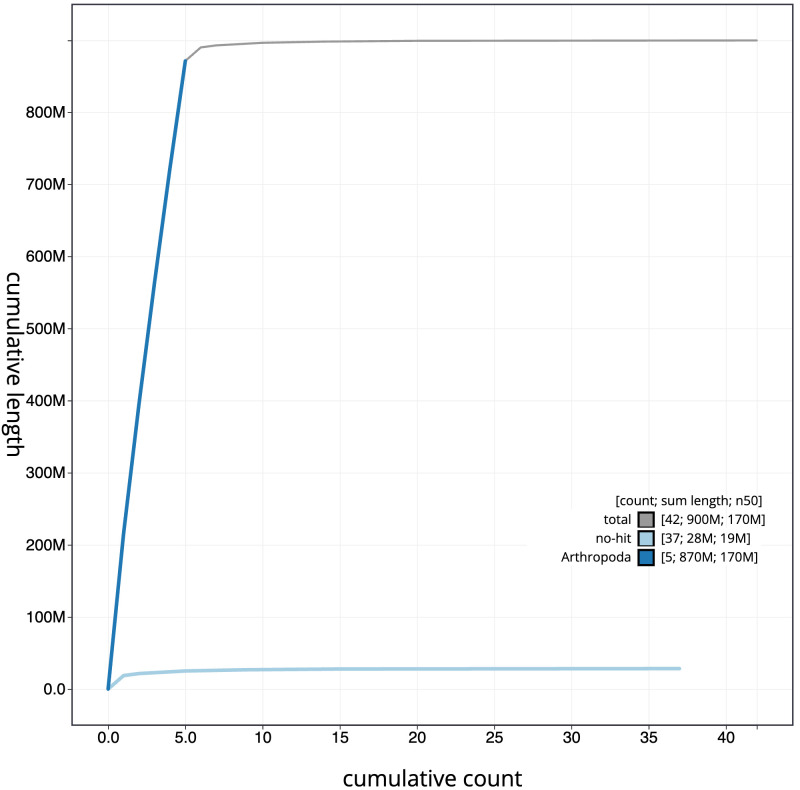

Figure 4. Genome assembly of Tachina lurida, idTacLuri1.1: BlobToolKit cumulative sequence plot.
The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/idTacLuri1.1/dataset/CALYBX01/cumulative.
Table 2. Chromosomal pseudomolecules in the genome assembly of Tachina lurida, idTacLuri1.
| INSDC
accession |
Chromosome | Length
(Mb) |
GC% |
|---|---|---|---|
| OX101752.1 | 1 | 215.25 | 31.0 |
| OX101753.1 | 2 | 179.98 | 31.5 |
| OX101754.1 | 3 | 167.33 | 31.0 |
| OX101755.1 | 4 | 158.88 | 31.0 |
| OX101756.1 | 5 | 149.35 | 31.0 |
| OX101757.1 | X | 18.71 | 32.0 |
| OX101758.1 | MT | 0.02 | 20.0 |
The estimated Quality Value (QV) of the final assembly is 60.9 with k-mer completeness of 100%, and the assembly has a BUSCO v5.3.2 completeness of 98.1% (single = 97.5%, duplicated = 0.5%), using the diptera_odb10 reference set ( n = 3,285).
Metadata for specimens, spectral estimates, sequencing runs, contaminants and pre-curation assembly statistics can be found at https://links.tol.sanger.ac.uk/species/631329.
Genome annotation report
The Tachina lurida genome assembly (GCA_944452675.1) was annotated using the Ensembl rapid annotation pipeline ( Table 1; https://rapid.ensembl.org/Tachina_lurida_GCA_944452675.1/Info/Index). The resulting annotation includes 18,745 transcribed mRNAs from 12,127 protein-coding and 1,518 non-coding genes.
Methods
Sample acquisition and nucleic acid extraction
A female Tachina lurida (specimen ID Ox001286, individual idTacLuri1) was collected from Wytham Woods, Oxfordshire (biological vice-county Berkshire), UK (latitude 51.76, longitude –1.34) on 2021-04-23 using a net. The specimen was collected and identified by Steven Falk (independent researcher), and was then snap-frozen on dry ice.
DNA was extracted at the Tree of Life laboratory, Wellcome Sanger Institute (WSI). The idTacLuri1 sample was weighed and dissected on dry ice with tissue set aside for Hi-C sequencing. Thorax tissue was disrupted using a Nippi Powermasher fitted with a BioMasher pestle. High molecular weight (HMW) DNA was extracted using the Qiagen MagAttract HMW DNA extraction kit. HMW DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system with speed setting 30. Sheared DNA was purified by solid-phase reversible immobilisation using AMPure PB beads with a 1.8X ratio of beads to sample to remove the shorter fragments and concentrate the DNA sample. The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer and Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
RNA was extracted from abdomen tissue of idTacLuri1 in the Tree of Life Laboratory at the WSI using TRIzol, according to the manufacturer’s instructions. RNA was then eluted in 50 μl RNAse-free water and its concentration assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit RNA Broad-Range (BR) Assay kit. Analysis of the integrity of the RNA was done using Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.
Sequencing
Pacific Biosciences HiFi circular consensus DNA sequencing libraries were constructed according to the manufacturers’ instructions. Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit. DNA and RNA sequencing was performed by the Scientific Operations core at the WSI on Pacific Biosciences SEQUEL II (HiFi) and Illumina NovaSeq 6000 (RNA-Seq) instruments. Hi-C data were also generated from head tissue of idTacLuri1 using the Arima2 kit and sequenced on the Illumina NovaSeq 6000 instrument.
Genome assembly, curation and evaluation
Assembly was carried out with Hifiasm ( Cheng et al., 2021) and haplotypic duplication was identified and removed with purge_dups ( Guan et al., 2020). The assembly was then scaffolded with Hi-C data ( Rao et al., 2014) using YaHS ( Zhou et al., 2023). The assembly was checked for contamination and corrected as described previously ( Howe et al., 2021). Manual curation was performed using HiGlass ( Kerpedjiev et al., 2018) and Pretext ( Harry, 2022). The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2022), which runs MitoFinder ( Allio et al., 2020) or MITOS ( Bernt et al., 2013) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
A Hi-C map for the final assembly was produced using bwa-mem2 ( Vasimuddin et al., 2019) in the Cooler file format ( Abdennur & Mirny, 2020). To assess the assembly metrics, the k-mer completeness and QV consensus quality values were calculated in Merqury ( Rhie et al., 2020). This work was done using Nextflow ( Di Tommaso et al., 2017) DSL2 pipelines “sanger-tol/readmapping” ( Surana et al., 2023a) and “sanger-tol/genomenote” ( Surana et al., 2023b). The genome was analysed within the BlobToolKit environment ( Challis et al., 2020) and BUSCO scores ( Manni et al., 2021; Simão et al., 2015) were calculated.
Table 3 contains a list of relevant software tool versions and sources.
Table 3. Software tools: versions and sources.
| Software
tool |
Version | Source |
|---|---|---|
| BlobToolKit | 4.1.7 |
https://github.com/blobtoolkit/
blobtoolkit |
| BUSCO | 5.3.2 | https://gitlab.com/ezlab/busco |
| Hifiasm | 0.16.1-r375 |
https://github.com/chhylp123/
hifiasm |
| HiGlass | 1.11.6 | https://github.com/higlass/higlass |
| Merqury | MerquryFK |
https://github.com/thegenemyers/
MERQURY.FK |
| MitoHiFi | 2 |
https://github.com/marcelauliano/
MitoHiFi |
| PretextView | 0.2 |
https://github.com/wtsi-hpag/
PretextView |
| purge_dups | 1.2.3 |
https://github.com/dfguan/purge_
dups |
| sanger-tol/
genomenote |
v1.0 |
https://github.com/sanger-tol/
genomenote |
| sanger-tol/
readmapping |
1.1.0 |
https://github.com/sanger-tol/
readmapping/tree/1.1.0 |
| YaHS | yahs-
1.1.91eebc2 |
https://github.com/c-zhou/yahs |
Genome annotation
The Ensembl gene annotation system ( Aken et al., 2016) was used to generate annotation for the Tachina lurida assembly (GCA_944452675.1). Annotation was created primarily through alignment of transcriptomic data to the genome, with gap filling via protein-to-genome alignments of a select set of proteins from UniProt ( UniProt Consortium, 2019).
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.
Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
Ethical review of provenance and sourcing of the material
Legality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
Funding Statement
This work was supported by Wellcome through core funding to the Wellcome Sanger Institute (206194) and the Darwin Tree of Life Discretionary Award (218328).
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
[version 1; peer review: 2 approved]
Data availability
European Nucleotide Archive: Tachina lurida. Accession number PRJEB53395; https://identifiers.org/ena.embl/PRJEB53395. ( Wellcome Sanger Institute, 2022)
The genome sequence is released openly for reuse. The Tachina lurida genome sequencing initiative is part of the Darwin Tree of Life (DToL) project. All raw sequence data and the assembly have been deposited in INSDC databases. Raw data and assembly accession identifiers are reported in Table 1.
Author information
Members of the University of Oxford and Wytham Woods Genome Acquisition Lab are listed here: https://doi.org/10.5281/zenodo.4789928.
Members of the Darwin Tree of Life Barcoding collective are listed here: https://doi.org/10.5281/zenodo.4893703.
Members of the Wellcome Sanger Institute Tree of Life programme are listed here: https://doi.org/10.5281/zenodo.4783585.
Members of Wellcome Sanger Institute Scientific Operations: DNA Pipelines collective are listed here: https://doi.org/10.5281/zenodo.4790455.
Members of the Tree of Life Core Informatics collective are listed here: https://doi.org/10.5281/zenodo.5013541.
Members of the Darwin Tree of Life Consortium are listed here: https://doi.org/10.5281/zenodo.4783558.
References
- Abdennur N, Mirny LA: Cooler: Scalable storage for Hi-C data and other genomically labeled arrays. Bioinformatics. 2020;36(1):311–316. 10.1093/bioinformatics/btz540 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Aken BL, Ayling S, Barrell D, et al. : The Ensembl gene annotation system. Database (Oxford). 2016;2016: baw093. 10.1093/database/baw093 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Allio R, Schomaker-Bastos A, Romiguier J, et al. : MitoFinder: Efficient automated large-scale extraction of mitogenomic data in target enrichment phylogenomics. Mol Ecol Resour. 2020;20(4):892–905. 10.1111/1755-0998.13160 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Belshaw R: Tachinid Flies. Diptera: Tachinidae. Handbooks for the Identification of British Insects. London: The Royal Entomological Society of London.1993. Reference Source [Google Scholar]
- Bernt M, Donath A, Jühling F, et al. : MITOS: Improved de novo metazoan mitochondrial genome annotation. Mol Phylogenet Evol. 2013;69(2):313–319. 10.1016/j.ympev.2012.08.023 [DOI] [PubMed] [Google Scholar]
- Challis R, Richards E, Rajan J, et al. : BlobToolKit - interactive quality assessment of genome assemblies. G3 (Bethesda). 2020;10(4):1361–1374. 10.1534/g3.119.400908 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Chandler PJ: Handbooks for the Identification of British Insects. Vol 12, Part 1: Diptera. London: Royal Entomological Society.1998;12 [Google Scholar]
- Cheng H, Concepcion GT, Feng X, et al. : Haplotype-resolved de novo assembly using phased assembly graphs with hifiasm. Nat Methods. 2021;18(2):170–175. 10.1038/s41592-020-01056-5 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Di Tommaso P, Chatzou M, Floden EW, et al. : Nextflow enables reproducible computational workflows. Nat Biotechnol. 2017;35(4):316–319. 10.1038/nbt.3820 [DOI] [PubMed] [Google Scholar]
- Guan D, McCarthy SA, Wood J, et al. : Identifying and removing haplotypic duplication in primary genome assemblies. Bioinformatics. 2020;36(9):2896–2898. 10.1093/bioinformatics/btaa025 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Harry E: PretextView (Paired REad TEXTure Viewer): A desktop application for viewing pretext contact maps.2022; [Accessed 19 October 2022]. Reference Source
- Howe K, Chow W, Collins J, et al. : Significantly improving the quality of genome assemblies through curation. GigaScience. Oxford University Press,2021;10(1): giaa153. 10.1093/gigascience/giaa153 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Kerpedjiev P, Abdennur N, Lekschas F, et al. : HiGlass: Web-based visual exploration and analysis of genome interaction maps. Genome Biol. 2018;19(1):125. 10.1186/s13059-018-1486-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Manni M, Berkeley MR, Seppey M, et al. : BUSCO Update: Novel and Streamlined Workflows along with Broader and Deeper Phylogenetic Coverage for Scoring of Eukaryotic, Prokaryotic, and Viral Genomes. Mol Biol Evol. 2021;38(10):4647–4654. 10.1093/molbev/msab199 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Rao SSP, Huntley MH, Durand NC, et al. : A 3D map of the human genome at kilobase resolution reveals principles of chromatin looping. Cell. 2014;159(7):1665–1680. 10.1016/j.cell.2014.11.021 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Rhie A, McCarthy SA, Fedrigo O, et al. : Towards complete and error-free genome assemblies of all vertebrate species. Nature. 2021;592(7856):737–746. 10.1038/s41586-021-03451-0 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Rhie A, Walenz BP, Koren S, et al. : Merqury: Reference-free quality, completeness, and phasing assessment for genome assemblies. Genome Biol. 2020;21(1):245. 10.1186/s13059-020-02134-9 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Simão FA, Waterhouse RM, Ioannidis P, et al. : BUSCO: assessing genome assembly and annotation completeness with single-copy orthologs. Bioinformatics. 2015;31(19):3210–3212. 10.1093/bioinformatics/btv351 [DOI] [PubMed] [Google Scholar]
- Surana P, Muffato M, Qi G: sanger-tol/readmapping: sanger-tol/readmapping v1.1.0 - Hebridean Black (1.1.0). Zenodo. 2023a. 10.5281/zenodo.7755665 [DOI] [Google Scholar]
- Surana P, Muffato M, Sadasivan Baby C: sanger-tol/genomenote v1.0.dev (v1.0.dev). Zenodo. 2023b; [Accessed 17 April 2023]. 10.5281/zenodo.6785935 [DOI] [Google Scholar]
- Tschorsnig HP, Herting B: Die Raupenfliegen (Diptera: Tachinidae) Mitteleuropas: Bestimmungstabellen und Angaben zur Verbreitung und Ökologie der einzelnen Arten. Stuttgarter Beiträge Zur Naturkunde501. 1994;506:1–170. Reference Source [Google Scholar]
- Uliano-Silva M, Ferreira GJRN, Krasheninnikova K, et al. : MitoHiFi: a python pipeline for mitochondrial genome assembly from PacBio High Fidelity reads. BioRxiv. 2022. 10.1101/2022.12.23.521667 [DOI] [PMC free article] [PubMed] [Google Scholar]
- UniProt Consortium: UniProt: a worldwide hub of protein knowledge. Nucleic Acids Res. 2019;47(D1):D506–D515. 10.1093/nar/gky1049 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Van Emden FI: Diptera Cyclorrhapha, Calyptrata (I) Section (a). Tachinidae and Calliphoridae. In: Handbooks for the identification of British insects. in: Entomological Society of London,1954. Reference Source [Google Scholar]
- Vasimuddin M, Misra S, Li H, et al. : Efficient Architecture-Aware Acceleration of BWA-MEM for Multicore Systems.In: 2019 IEEE International Parallel and Distributed Processing Symposium (IPDPS). IEEE:2019;314–324. 10.1109/IPDPS.2019.00041 [DOI] [Google Scholar]
- Wellcome Sanger Institute: The genome sequence of a tachinid fly, Tachina lurida (Fabricius, 1781). European Nucleotide Archive. [dataset], accession number PRJEB53395,2022. [Google Scholar]
- Zhou C, McCarthy SA, Durbin R: YaHS: yet another Hi-C scaffolding tool. Bioinformatics. 2023;39(1): btac808. 10.1093/bioinformatics/btac808 [DOI] [PMC free article] [PubMed] [Google Scholar]
