Antimicrobial susceptibility testing to evaluate minimum inhibitory concentration values of clinically relevant antibiotics

Summary

Antimicrobial susceptibility testing is used to determine the minimum inhibitory concentration (MIC), the standard measurement of antibiotic activity. Here, we present a protocol for evaluating MIC values of clinically relevant antibiotics against bacterial isolates cultured in standard bacteriologic medium and in mammalian cell culture medium. We describe steps for pathogen identification, culturing bacteria, preparing MIC plates, MIC assay incubation, and determining MIC. This protocol can potentially optimize the use of existing antibiotics while enhancing efforts to discover new ones.

For complete details on the use and execution of this protocol, please refer to Heithoff et al.¹

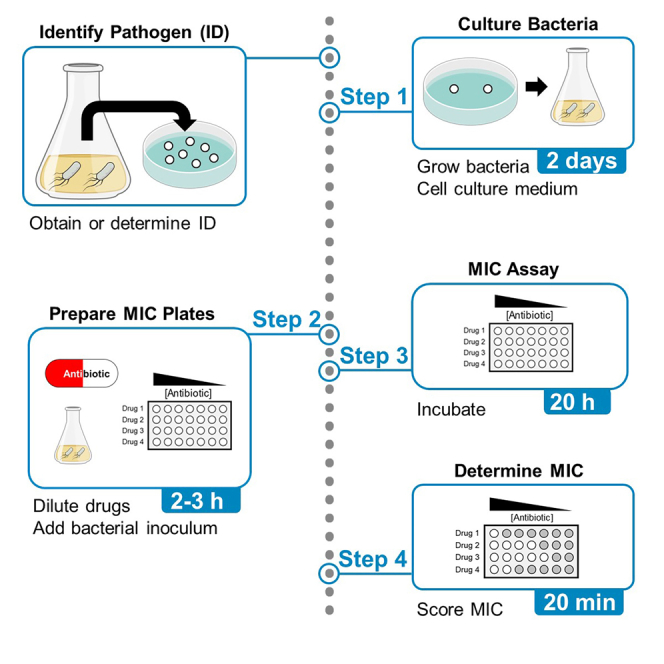

Graphical abstract

Highlights

• •Protocol for antibiotic tests in cell culture medium to improve diagnostic accuracy
• •Step-by-step guide for testing in cell culture medium
• •Step-by-step guide for testing in human sera and urine

Publisher’s note: Undertaking any experimental protocol requires adherence to local institutional guidelines for laboratory safety and ethics.

Antimicrobial susceptibility testing is used to determine the minimum inhibitory concentration (MIC), the standard measurement of antibiotic activity. Here, we present a protocol for evaluating MIC values of clinically relevant antibiotics against bacterial isolates cultured in standard bacteriologic medium and in mammalian cell culture medium. We describe steps for pathogen identification, culturing bacteria, preparing MIC plates, MIC assay incubation, and determining MIC. This protocol can potentially optimize the use of existing antibiotics while enhancing efforts to discover new ones.

Before you begin

Antimicrobial resistance (AMR) to existing medications is one of the biggest challenges facing public healthcare.² Antimicrobial susceptibility testing (AST) is used to determine the minimum inhibitory concentration (MIC), the standard measurement of antibiotic activity. MICs define the clinical breakpoint, the concentration of antibiotic used to indicate whether an infection with a particular bacterial isolate is likely to be treatable in a patient. Clinical breakpoints are used by clinical microbiological laboratories to define patient isolates as susceptible (S), intermediate (I), or resistant (R) to a panel of antibiotics. Thus, the MIC assay is the gold standard for guiding physician treatment practices.

This protocol evaluates MIC values of clinically relevant antibiotics against bacterial isolates cultured in standard bacteriologic medium (cation-adjusted Mueller-Hinton broth [CAMHB]) and in mammalian cell culture medium (Dulbecco’s modified Eagle’s medium [DMEM]).^1,3,4 Before commencing AST, it is essential to prepare the required reagents (media, buffers, antibiotics) (Table 1); identify the pathogen to be tested; select antibiotic concentration test ranges; and determine pathogen growth conditions to obtain adequate densities for reliable MIC determination.

• 1.
  Identify Pathogen (ID).

  • a.
    Obtain ID from clinical laboratory or determine by standard ID methods (PCR, microarray, immunology).
• 2.
  Determine antibiotic panel and concentration ranges.

  • a.
    Select antibiotics with guidance from Clinical and Laboratory Standards Institute (CLSI) and European Committee on Antimicrobial Susceptibility Testing (EUCAST), or institutional policy.
  • b.
    Determine MIC test range.

    • i.
      Access the EUCAST MIC distribution repository⁵; https://mic.eucast.org/search/.
    • ii.
      Select pathogen from the drop-down list.
    • iii.
      Select antibiotic and view predicted susceptibility profile for each pathogen (e.g., Staphylococcus aureus susceptibility to ciprofloxacin) (Figure 1).
    • iv.
      Select a continuous range of ten 2-fold dilutions that encompass the clinical breakpoints used to categorize bacterial isolates as susceptible (S) or resistant (R) (if available) using the CLSI⁶ and EUCAST⁷ databases; e.g., https://www.eucast.org/clinical_breakpoints (Figures 1 and 2).
    • v.
      Calculate 2 × the highest antibiotic concentration within the desired test range for each antibiotic (source for microtiter plate serial dilution).

Note: Standard 96-well microdilution plates accommodate eight antibiotics for MIC testing: (8 antibiotics) × ([10 antibiotic concentrations] + 1 [positive control (bacteria, no antibiotic)] + 1 [negative control (media only)]).

• 3.
  Prepare antibiotic stock solutions.

  • a.
    Antibiotic stock solutions are typically solubilized in deionized H₂O (filtered and autoclaved) (10 mg/mL); vortex, and/or heat to 37°C (Table 1). If antibiotic is not soluble in H₂O, use the least toxic solvent available (ethanol, methanol, acetone); optimal drug stock concentration > 1 mg/mL.
  • b.
    Store at 4°C protected from light for up to two weeks. If antimicrobials are unstable at 4°C, store frozen as per manufacturer recommendations.
• 4.
  Determine bacteria concentration in standard and physiologic medium after 18 h culture (3 biological replicates).

  • a.
    Culture bacterium (18 h) in standard (CAMHB) and physiologic media (DMEM).

    • i.
      See step-by-step method details, Step 1, 2.
  • b.
    Calculate bacteria concentration after culture.

    • i.
      Serially dilute bacterial culture 1:10; repeat 5–7 times; plate 100 μL of last 3 dilutions on bacteriological media (step-by-step method details, Step 1).
    • ii.
      Count colonies after 18 h incubation.
    • iii.
      Calculate colony forming units (cfu/mL) according to the dilution factor (avg. of 3 replicates).

Note: Alternatively, OD₆₀₀ can be used to estimate cfu/mL; however, cfu/mL equivalents can vary between and within bacterial species.

CRITICAL: Human pathogen isolates are potentially hazardous. Always follow universal safety precautions and institutional guidelines while handing these materials.

Table 1.

Commonly used antibiotic stock concentrations and solvents

Antibiotic	Type	Solventa	Stock conc. (mg/mL)
Ampicillin	Ampicillin sodium	H2O	10
Azithromycin	Azithromycin dihydrate	Ethanol (∼95%)	10
Ceftriaxone	Ceftriaxone disodium salt	H2O	1
Cephalexin	Cephalexin monohydrate	H2O	10
Ciprofloxacin	Ciprofloxacin	0.1 N HCl	1
Colistin	Colistin sulfate	H2O	10
Daptomycin	Daptomycin	H2O	10
Ertapenemb	Ertapenem sodium	H2O	10
Imipenemb	Imipenem monohydrate	H2O	1
Linezolid	Linezolid	H2O	1
Piperacillinc	Piperacillin monohydrate	Methanol	10
Streptomycin	Streptomycin sulfate	H2O	10
Sulfamethoxazole	Sulfamethoxazole	Acetone	50
Tazobactam	Tazobactam	H2O	1
Tetracycline	Tetracycline hydrochloride	Methanol	10
Trimethoprim	Trimethoprim	Methanol	1
Vancomycin	Vancomycin hydrochloride	H2O	10

^aH₂O: deionized water (filtered and autoclaved).

^bStore at -80°C (drug powder and subaliquots); store all other antibiotic subaliquots at 4°C.

^cPiperacillin solubilization requires agitation (3 min).

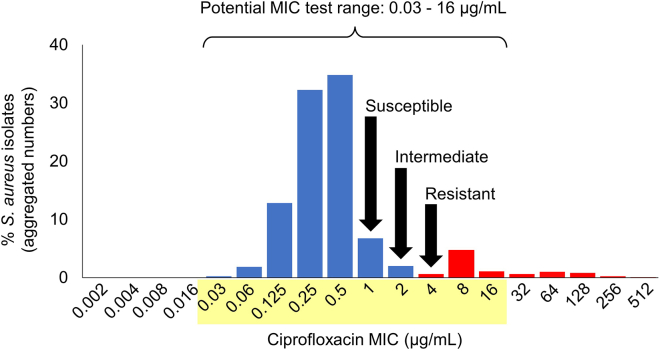

Figure 1.

Antibiotic test range

EUCAST curates a database of MIC results for a variety of antibiotics and bacterial pathogens that can be used to select an appropriate drug concentration range.⁵ Depicted is the MIC test range of ciprofloxacin against S. aureus (yellow), whereby the blue bars depict the percentage of S. aureus isolates classified as susceptible “S” or intermediate “I”; and red bars depict the percentage of isolates classified as resistant “R”.

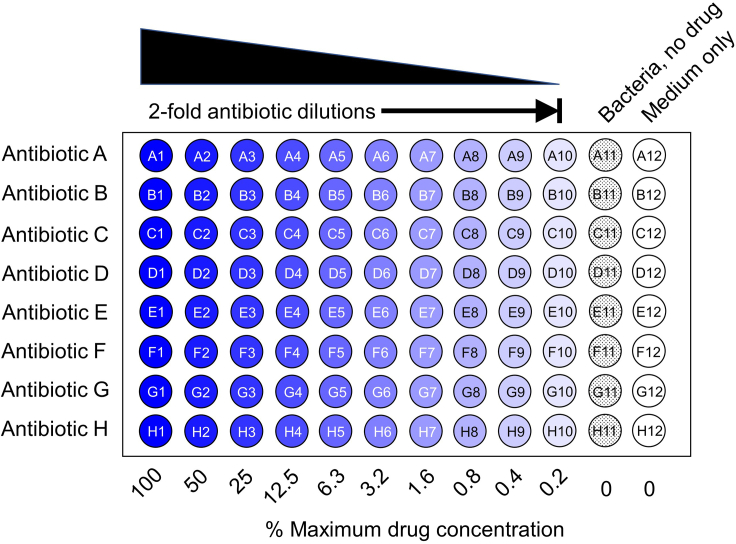

Figure 2.

MIC schema

Standard 96-well microtiter plates for MIC testing can accommodate eight antibiotics (A-H) and ten antibiotic concentrations, representing 2-fold drug dilutions of the maximum drug concentration tested (columns 1-10). The positive control wells contain bacteria without drugs (column 11). The negative control wells contain media only (column 12).

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Bacterial and virus strains
Acinetobacter baumannii	ATCC 19606	2208
Enterobacter cloacae	ATCC 13047	CDC 442-68
Enterococcus faecium	Heithoff et al.1	MT3336
Escherichia coli	ATCC 25922	(Migula) Castellani and Chalmers
Klebsiella pneumoniae	ATCC 13883	NCTC 9633
K. pneumoniae	Heithoff et al.8	CRE MT3325
Pseudomonas aeruginosa	ATCC 10145	(Schroeter) Migula
Salmonella enterica Typhimurium	ATCC 14028	CDC 6516-60
Staphylococcus aureus, MRSA	Diekema et al.9	CA-MRSA USA300
S. aureus, MRSA	Heithoff et al.8	MRSA MT3302
S. aureus, MSSA	Yang et al.10	MSSA Newman
Streptococcus pneumoniae	Lanie et al.11	D39 (ser. 2)
S. pneumoniae	Carter et al.12	Daw 25 (ser. 35C)
Biological samples
Human donor sera	Millipore Sigma	Cat # S1-LITER
Human donor urine	Innovative Research	Cat # 50-203-6075
Chemicals, peptides, and recombinant proteins
Ampicillin	Millipore Sigma	Cat # A9518
Azithromycin	Millipore Sigma	Cat # PHR-1088
Ceftriaxone	Millipore Sigma	Cat # C5793
Cephalexin	US Pharmacopeia	Cat # 1099008
Ciprofloxacin	Honeywell Fluka	Cat # 17850
Colistin sulfate	Millipore Sigma	Cat # C4461
Daptomycin	Tokyo Chemical Industry Co.	Cat # D4229
Ertapenem	Millipore Sigma	Cat # SML1238
Imipenem	US Pharmacopeia	Cat # 1337809
Linezolid	US Pharmacopeia	Cat # 1367561
Piperacillin monohydrate	US Pharmacopeia	Cat # 1541500
Streptomycin	Fisher Scientific	Cat # BP910
Sulfamethoxazole	Honeywell Fluka	Cat # S7507
Tazobactam	US Pharmacopeia	Cat # 1643383
Tetracycline	Fisher Scientific	Cat # BP912
Trimethoprim	Millipore Sigma	Cat # T7883
Vancomycin	Millipore Sigma	Cat # V8138
Columbia CNA agar with 5% sheep blood	Becton Dickinson	Cat # 221352
Dulbecco’s modified Eagle’s medium (DMEM, high glucose)	Life Technologies	Cat # 11965-092
Luria-Bertani broth (LB)	Davis et al.13	Davis et al.13
Lysed horse blood (LHB)	Lampire Biological Laboratories	Cat # 7233402
Cation-adjusted Mueller-Hinton broth (MHB)	CLSI14	CLSI14
Todd-Hewitt broth (THB)	Becton Dickinson	Cat # 249240
Tryptic soy broth (TSB)	Becton Dickinson	Cat # 211825
Yeast extract (YE)	Genesee Scientific	Cat # 20-254
Other
Conical tubes, 50 mL	Corning	Cat # 352098
Microfuge tubes, 1.7 mL	Genesee Scientific	Cat # 22-281
Microtiter plates (96-well)	Genesee Scientific	Cat # 25-104
Petri dishes	Genesee Scientific	Cat # 32-107G

Step-by-step method details

Culture bacteria under physiologic conditions (DMEM)

Timing: 2 days

Environmental sensitization to physiologic conditions during bacterial culture and AST can have up to a 1000-fold effect on antibiotic susceptibility.¹⁵ Consequentially, physiologic conditions should be implemented for any standardized AST protocol for widespread clinical utility. Detailed below is an AST protocol whereby both bacterial culture and MIC assays are performed in standard CAMHB and in DMEM cell culture medium.

• 1.
  Isolate bacteria on bacteriologic agar media.

  • a.
    LB: Gram-negative pathogens.
  • b.
    Incubate 18 h, 37°C, ambient atmosphere.

    Note: Pathogen-specific media/incubation.¹⁴

    • i.
      E. faecium/S. aureus: TSB, incubate 18 h, 37°C, ambient atmosphere.
    • ii.
      S. pneumoniae: CNA + 5% sheep blood, incubate 18 h, 37°C, 5% CO₂ atmosphere.
• 2.
  Culture bacterium (3 biological replicates).

  • a.
    Inoculate 1 colony per replicate into 0.5 mL of 100% CAMHB and DMEM.
  • b.
    Incubate 18 h, 37°C.

    • i.
      CAMHB, ambient atmosphere, shaking (225 rpm).
    • ii.
      DMEM, 5% CO₂ atmosphere, standing.

      Note: Pathogen-specific media/incubation.¹⁴

    • iii.
      S. aureus CAMHB: inoculate with 5–7 colonies; no incubation.
    • iv.
      S. aureus DMEM: supplemented with 5% v/v LB; inoculate with 1 colony; incubate 18 h, 37°C, 5% CO₂ atmosphere, standing.
    • v.
      S. pneumoniae CAMHB: supplemented with 5% v/v LHB; inoculate with 5 colonies; incubate 4 h, 37°C; ambient atmosphere, standing.
    • vi.
      S. pneumoniae DMEM: supplemented with 5% v/v LHB; inoculate with 5 colonies; incubate 4 h, 37°C; 5% CO₂ atmosphere, standing.

Prepare microtiter plates to determine MIC

Timing: 2–3 h

MIC testing requires preparing appropriate antibiotic concentration test ranges and bacterial inoculum concentrations for reliable MIC determination.

• 3.
  Prepare antibiotic dilutions (3 biological replicates).

  • a.
    Prepare 100 mL of test media (CAMHB and DMEM).
  • b.
    Prepare media-diluted drug stock.

    • i.
      Dilute concentrated drug stock (e.g., 10 mg/mL) into ∼400 μL of test media (CAMHB or DMEM) to generate a media-diluted drug stock at 2 × the highest drug concentration in test range.
  • c.
    Add 100 μL each media-diluted drug stock to wells in column 1 (rows A₁-H₁) on microtiter plate (Figure 2).
  • d.
    Add 50 μL test media (CAMHB or DMEM) to columns 2 through 12.
  • e.
    Serial dilution of antibiotics.

    • i.
      Pipette 50 μL of antibiotic from wells in column 1 into column 2.
    • ii.
      Pipette up and down 3 times; repeat serial dilutions from wells in columns 3 through 10.
    • iii.
      Discard 50 μL from wells in column 10.

      Note: Pathogen-specific media.

    • iv.
      E. faecium CAMHB/DMEM: supplemented with 30% v/v TSB.
    • v.
      S. aureus DMEM: supplemented with 5% v/v LB.
    • vi.
      S. pneumoniae CAMHB/DMEM: supplemented with 5% v/v LHB.¹⁴
• 4.
  Addition of bacterial inoculum.

  • a.
    Dilute 18 h culture (Step 2b) to 10⁶ cfu/mL (2 × bacterial inoculum) in test media (CAMHB and DMEM). Seven mL of 2 × inoculum is required per microtiter plate.

    Note: Cfu/mL for each pathogen/media was already determined by direct colony count (see before you begin, Step 4).

    • i.
      Transfer 100 μL to microfuge tube to verify inoculum cfu/mL in Step 6.
    • ii.
      Decant remaining ∼7 mL to sterile Petri dish (to facilitate pipetting).
  • b.
    Add 50 μL of 2 × bacterial inoculum to all wells except column 12 (media only).
  • c.
    Add 50 μL of additional media to wells in column 12 (media only).

    Note: Pathogen-specific media.

    • i.
      E.faecium CAMHB/DMEM: supplemented with 30% v/v TSB.
    • ii.
      S. aureus DMEM: supplemented with 5% v/v LB.
    • iii.
      S.pneumoniae CAMHB/DMEM: supplemented with 5% v/v LHB.¹⁴

MIC assay incubation

Timing: 20 h

Constant incubation time is critical for reliable MIC determination.

• 5.
  Incubate 20 h, 37°C, standing.

  • a.
    CAMHB, ambient atmosphere.
  • b.
    DMEM, 5% CO₂ atmosphere.
• 6.
  Confirm 2 × bacterial inoculum (10⁶ cfu/mL) (aliquoted in Step 4a).

  • a.
    Serially dilute (∼10³-fold); plate 100 μL onto LB agar.
  • b.
    Incubate 18 h, 37°C, ambient atmosphere.
  • c.
    Verify actual 2 × bacterial inoculum is within 3-fold of target (10⁶ cfu/mL).

    Note: Pathogen-specific media.

    • i.
      E. faecium/S. aureus: TSB agar; incubate 18 h, 37°C, ambient atmosphere.
    • ii.
      S. pneumoniae: THB + 2% YE agar; incubate 18 h, 37°C, 5% CO₂ atmosphere.

Determine MIC

Timing: 20 min

The MIC is the lowest antibiotic concentration that inhibits bacterial growth.

• 7.
  Determine MIC.

  • a.
    Score growth in test wells (presence/absence of turbidity) (Figures 3 and 4).
  • b.
    Confirm growth in bacteria/media, no drug wells (positive control).
  • c.
    Confirm no growth in media-only wells (negative control).
• 8.
  Interpret MIC value with respect to clinical breakpoints.

  • a.
    Susceptible (S), intermediate (I), or resistant (R) to antibiotics tested.

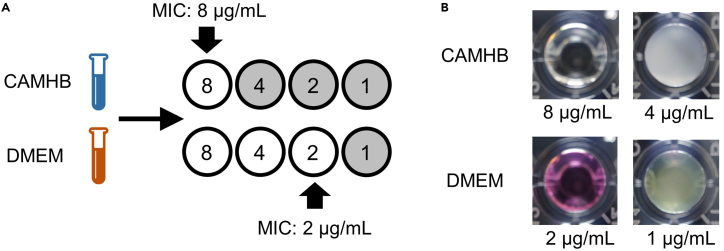

Figure 3.

MIC determination

(A) MIC assay performed on a bacterium grown in CAMHB and DMEM; gray circles depict bacterial growth within a microtiter plate well; white circles depict no growth.

(B) Microtiter plate well images of an MIC assay with ertapenem tested against S. aureus grown in CAMHB (MIC = 8 μg/mL) and DMEM (MIC = 2 μg/mL).

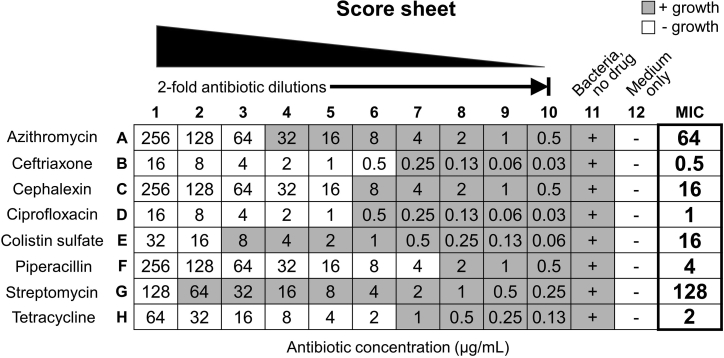

Figure 4.

AST score-sheet

Depicted is an exemplar AST score sheet of bacterial growth (gray) or no growth (white) in CAMHB as a function of antibiotic concentration on a microtiter plate (columns 1–10). The positive control wells contain bacteria, no drug (column 11). The negative control wells contain media only (column 12). The MIC is the lowest antibiotic concentration that inhibits bacterial growth and is recorded in the “MIC” column for each antibiotic (rows A–H).

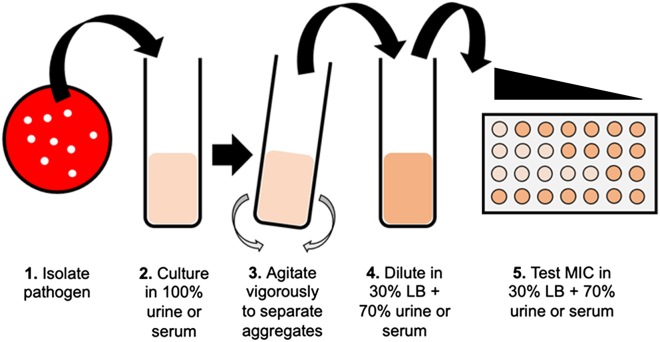

Alternate AST protocol for human sera or urine

Timing: same as CAMHB/DMEM protocol

AST in human sera and urine presents a formidable challenge as these host fluids can be inhibitory to bacterial culture. Some pathogens form bacterial cell-to-cell aggregates in sera and/or do not grow to adequate bacterial cell densities in sera or urine for reliable MIC determination. Detailed below is an AST protocol developed for pooled human donor sera or urine (Figure 5).

• 9.
  Isolate bacteria on bacteriologic media.

  • a.
    Step 1, step-by-step method details.
• 10.
  Culture bacterium in undiluted pooled human donor sera or urine.

  • a.
    Inoculate 1 colony/per replicate into 0.5 mL in host fluid (3 biological replicates).
  • b.
    Incubate 18 h, 37°C.

    • i.
      Sera: 5% CO₂ atmosphere, standing.
    • ii.
      Urine: ambient atmosphere, shaking (225 rpm).

      Note: Pathogen-specific media.

    • iii.
      A. baumannii: heat-inactivated sera supplemented with 40% v/v CAMHB; heat-inactivate sera at 56°C for 30 min; mix (sera will form a thick gel at ∼60°C).
    • iv.
      S. pneumoniae sera/urine: supplemented with 30% v/v THB, inoculate with 5 colonies; incubate 4 h, 37°C; sera: 5% CO₂ atmosphere, standing; urine: ambient atmosphere, standing.
• 11.
  Prepare antibiotic dilutions.

  • a.
    Step 3, step-by-step method details.

    Note: Pathogen-specific media.

    • i.
      A. baumannii: heat-inactivated sera supplemented with 40% v/v CAMHB.
    • ii.
      E. faecium sera/urine: supplemented with 30% v/v TSB.
    • iii.
      S. pneumoniae sera/urine: supplemented with 30% v/v THB.
• 12.
  Addition of bacterial inoculum.

  • a.
    Step 4, step-by-step method details.

    • i.
      Vortex overnight inoculum (15 s, maximum speed) to disrupt aggregates.
  • b.
    Dilute cultures to 2 × 10⁶ cfu/mL (2 × inoculum) in sera or urine supplemented with 30% v/v LB.

    • i.
      Vortex (5 s, maximum speed, benchtop vortex) between dilutions.
  • c.
    Transfer 100 μL to microfuge tube to verify actual 2 × bacterial inoculum is within 3-fold of target (2 × 10⁶ cfu/mL).

    • i.
      cfu/mL verified in Step 14.

      Note: Pathogen-specific media.

    • ii.
      A. baumannii: heat-inactivated sera supplemented with 40% v/v CAMHB.
    • iii.
      E. faecium sera/urine: supplemented with 30% v/v TSB.
    • iv.
      S. pneumoniae sera/urine: supplemented with 30% v/v THB.
• 13.
  Incubate 20 h, 37°C, standing.

  • a.
    Sera: 5% CO₂ atmosphere.
  • b.
    Urine: ambient atmosphere.
• 14.
  Confirm 2 × bacterial inoculum (2 × 10⁶ cfu/mL).

  • a.
    Aliquoted in Step 12.
  • b.
    Step 4, 6, step-by-step method details.
• 15.
  Determine MIC.

  • a.
    Step 7, step-by-step method details.
• 16.
  Interpret MIC value with respect to clinical breakpoints.

  • a.
    Step 8, step-by-step method details.

Figure 5.

AST protocol for testing in pooled human donor sera or urine

(1) Bacterial pathogens are isolated; (2) grown in 100% pooled human donor serum or urine; (3) agitated to separate bacterial cell-to-cell aggregates; (4) diluted into supplemented human fluids (30% LB + 70% sera or urine); and (5) MIC testing is performed in supplemented human fluids in microtiter plates.

Expected outcomes

Clinical implementation of testing in cell culture medium may identify existing antibiotics for the potential treatment of AMR infections that are rejected by standard testing based on standard bacteriologic medium; and antibiotics that are ineffective despite indicated use by standard testing. Testing in DMEM revealed that β-lactam antibiotics were effective for the treatment of S. aureus in murine models of sepsis despite being rejected by testing in CAMHB (R to S, Table 2). Reciprocally, testing in DMEM revealed that colistin was ineffective for the treatment of A. baumannii, K. pneumoniae, or P. aeruginosa despite indicated use by testing in CAMHB (S to I/R). These data suggest that an AST experimental pipeline based on cell culture medium may improve the means by which antibiotics are tested, developed and prescribed. The protocol enables growth support for most bacterial isolates observed in clinical practice, and can be readily adapted to existing protocols and instrumentation. These features make the methodological transition to cell culture medium simple, scalable and affordable. Additionally, the experimental AST protocol based on human sera or urine has potential application for the translational development of precision personalized medicine that optimizes the identification and prescription of appropriate antibiotics for individual patients. Taken together, the experimental AST protocols described herein provide a platform for the discovery and development of new compounds as more accurate testing streamlines the identification of lead candidates early in the discovery process, potentially leading to significant time, cost and life savings.¹

Table 2.

Predictive accuracy of discordant MICs derived from AST in CAMHB vs. DMEM in Gram-positive and Gram-negative murine sepsis models¹

	MIC values (μg/mL)		Mouse Survivors	CAMHB vs. DMEM Predicted/Actual
Pathogen/Antibiotic	CAMHB	DMEM
Gram-positive
MRSA USA300
Ceftriaxone	256 R	8 S	10/10	R to S
Ertapenem	8 R	2 S	9/10	R to S
Piperacillin/Tazobactam	64/4 R	4/4 S	8/10	R to S
MRSA MT3302
Ceftriaxone	64 R	8 S	8/10	R to S
Cephalexin	128 R	8 S	6/10	R to S
Piperacillin/Tazobactam	64/4 R	4/4 S	8/10	R to S
MSSA Newman
Cephalexin	32 R	4 S	8/10	R to S
Gram-negative
A. baumannii 19606
Colistin	0.5 S	4 R	5/10	S to I/R
E. cloacae 13047
Ceftriaxone	4 R	0.25 S	7/10	R to S
K. pneumoniae 13883
Colistin	0.25 S	16 R	3/10	S to R
K. pneumoniae MT3325
Tetracycline	4 S	16 R	5/10	S to I/R
P. aeruginosa 10145
Colistin	0.5 S	8 R	2/10	S to R
S. Typhimurium 14028
Streptomycin	16 I	4 S	9/10	I to S

MICs and susceptibility designations were determined by broth microdilution in CAMHB and DMEM.^16,17,18Virulence assays: discordant MICs derived from AST in CAMHB and DMEM were tested for diagnostic accuracy in murine sepsis models (n = 10).^10,19CAMHB vs. DMEM Predicted/Actual: the susceptibility designations denote the CAMHB predicted susceptibility vs. the DMEM predicted and actual clinical outcomes. S, susceptible; I, intermediate; R, resistant.

Limitations

The AST experimental pipeline has the following limitations. First, MIC assays performed in vitro do not recapitulate all interactions between antibiotics and the host/bacterial pathogen, which can have a marked impact on drug potency. Second, results from the AST experimental pipeline cannot be generalized for MIC determinations within a species until a large number of clinical isolates are tested to ensure sufficient clinical representation. Third, clinical outcomes derived from systemic infection may not apply to localized infections (respiratory, skin, UTI) and thus, testing in physiologic media more representative of the corresponding site of infection might increase diagnostic accuracy. Last, the safety and efficacy of antibiotics identified by the experimental pipeline in animals must be confirmed in human studies before they can be generalized for patient treatment.

Troubleshooting

Problem 1

Insufficient bacterial growth during cell culture and/or MIC assay (Step 2, 7, step-by-step method details).

Potential solution

• •Media supplementation with rich media (LB, CAMHB or TSB) at 30% v/v.
• •Increase supplemented above 30% v/v.

Problem 2

All MIC-test wells containing bacteria and antibiotic are turbid (columns 1–10); or none of the MIC-test wells are turbid (columns 1–10) (Step 7, step-by-step method details).

Potential solution

• •MIC > highest drug concentration tested (all test wells are turbid); retest with higher drug concentration range.
• •MIC < lowest drug concentration tested (none of the test wells are turbid); retest with lower drug concentration range.

Problem 3

Inconsistent bacterial growth in sera during cell culture and/or MIC assay (Step 10, 15, alternate AST protocol for human sera or urine).

Potential solution

• •Increase vortex time to disrupt bacterial cell-to-cell aggregates.
• •Minimize standing time before cell dilution series and bacterial plating.

Resource availability

Lead contact

Further information and requests for resources and reagents should be directed to the lead contact, Michael J. Mahan (mahan@ucsb.edu).

Materials availability

This study did not generate new unique reagents.

Data and code availability

• •All data reported in this paper will be shared by the lead contact upon request
• •This study did not generate new sequencing data or code.
• •Any additional information required to reanalyze the data reported in this paper is available from the lead contact upon request.
