. 2023 May 11;33(8):998–1005. doi: 10.4014/jmb.2302.02002

Anti-Inflammatory Efficacy of Human-Derived Streptococcus salivarius on Periodontopathogen-Induced Inflammation

Dong-Heon Baek 1, Sung-Hoon Lee 1,*
PMCID: PMC10468666  PMID: 37635315

Abstract

Streptococcus salivarius is a beneficial bacterium in oral cavity, and some strains of this bacterium are known to be probiotics. The purpose of this study was to investigate the anti-inflammatory effect and mechanism of S. salivarius G7 lipoteichoic acid (LTA) on lipopolysaccharide (LPS) and LTA of periodontopathogens. The surface molecules of S. salivarius G7 was extracted, and single- or co-treated on human monocytic cells with LPS and LTA of periodontopathogens. The induction of cytokine expression was evaluated by real-time PCR and ELISA. After labeling fluorescence on LPS and LTA of periodontopathogens, it was co-treated with S. salivarius LTA to the cell. The bound LPS and LTA were measured by a flow cytometer. Also, the biding assay of the LPS and LTA to CD14 and LPS binding protein (LBP) was performed. The surface molecules of S. salivarius G7 did not induce the expression of inflammatory cytokines, and S. salivarius G7 LTA inhibited the inflammatory cytokines induced by LPS and LTA of periodontopathogens. S. salivarius G7 LTA inhibited the binding of its LPS and LTA to cells. Also, S. salivarius G7 LTA blocked the binding of its LPS and LTA to CD14 and LBP. S. salivarius G7 has an inhibitory effect on inflammation induced by LPS or LTA of periodontopathogens, and may be a candidate probiotics for prevention of periodontitis.

Keywords: Streptococcus salivarius, lipoteichoic acid, anti-inflammatory efficacy, periodontitis, Toll-like receptor

Introduction

The major bacteria related diseases in the oral cavity can be broadly divided into diseases of teeth and gingival region. Periodontitis, one of the diseases of the gingival region initiates host immune response of gingival tissue against virulence factors of Gram-negative anaerobe in oral cavity [1]. Among Gram-negative anaerobe, Porphyromonas gingivalis (P. gingivalis), Tannerella forsythia (T. forsythia), and Treponema denticola (T. denticola) were classified as a red complex by Socransky group because they were frequently detected in patient with periodontitis according to epidemiological examination [2]. Also, Filifactor alocis (F. alocis) is recently emerging as important bacterium related with periodontitis because this bacterium is detected in endodontic and periodontal inflammation regions [3, 4]. Furthermore, unlike other periodontopathogens, F. alocis is Gram-positive microbe and has a virulent factor as lipoteichoic acid (LTA) [5].

Streptococcus salivarius (S. salivarius) is an early colonizer species that colonizes the human oral cavity from newborn infant and persists a predominant member of the commensal microbiota throughout the life [6, 7]. Recently, S. salivarius is included in the inventory of microbial food cultures with safety demonstration in fermented food products according to the international Dairy Federation [8]. Many strains produce bacteriocin-like inhibitory substance (BLIS) which plays an important role in both stabilizing the oral microbiota and preventing overgrowth by various pathogens with infectious disease in oral cavity [9]. The antibacterial activity using BLIS on many strains of S. salivarius has been examined, and most S. salivarius showed antibacterial activity against periodontopathogens [10-12]. Also, the isolated strain K12 has been showed neutralizing halitosis and inhibition of biofilm formation [10, 13]. These characteristics of S. salivarius are being attempted to be developed as probiotics that maintain oral healthy, and many studies have shown results safety and antibacterial activity of isolated S. salivarius [13-16].

The effects of S. salivarius on periodontitis was presented as a result of its antibacterial activity against the related bacteria and the existing studies on biofilm. However, among the many studies of S. salivarius, the study on the inhibitory mechanism of S. salivarius for the induction of inflammation by lipopolysaccharide (LPS) of periodontopathogens is not little known.

The aim of present study was to be investigate the inhibitory effect of S. salivarius G7 LTA on inflammatory cytokines-induced by LPS or LTA of periodontopathogen and be analyze mechanism of their anti-inflammation.

Materials and Methods

Bacterial Species and Culture Conditions

Isolated strain of Streptococcus salivarius G7 (formerly KCOM 2137) from human oral cavity were used in this study and donated from Greenstore Co. (Korea). S. salivarius ATCC 7073 as a type strain was used as a comparison strain. S. salivarius were cultured and maintained with trypticase soy broth (BD Biosciences, USA) supplemented with 0.5% glucose (TSBG). Porphyromonas gingivalis ATCC 33277 was cultivated in brain heart infusion (BD Biosciences) supplemented with hemin (1 μg/ml) and vitamin K (0.2 μg/ml), and Tannerella forsythia ATCC 43037 was cultured modified new oral spirochete medium [17]. Finally, Filifactor alocis ATCC 35896 was cultivated using columbia media (BD Biosciences), L-cysteine·HCl (2 g/l), L-arginine·HCl (4 g/l), and yeast extract (5 g/l), hemin (1 μg/ml) and vitamin K (0.2 μg/ml). The periodontopathogens was maintained in anaerobic chamber (85% N2, 10% CO2, and 5% H2).

Preparation of Surface Proteins from Bacteria

In order to examine effect of bacterial surface proteins on the induction of cytokine expression in THP-1 cells, S. salivarius were cultured in TSBG and harvested by centrifugation at 4,000 ×g for 5 min at 4°C. The bacteria were washed three times with cold phosphate buffered saline (PBS, pH 7.2) and resuspended in 1 ml of 8 M (Tris-buffered) urea containing 5 mM ethylene-diamine tetraacetic acid (EDTA) [18]. After incubation for 30 min at room temperature with shaking using a rotator (IKA Co., Germany), the supernatant was centrifuged at 11,000 ×g for 6 min to collect solubilized proteins. The solution containing solubilized proteins was filtered with 0.45 μm of polyvinylidene fluoride (PVDF) filter (Millipore, USA). The solution was transferred into standard RC dialysis membrane tubing (Spectrum Laboratories Inc., USA), and the tube was dialyzed in cold PBS (pH 7.2) to remove urea. The proteins were measured with Bradford assay kit (Bio-Rad Lab., USA).

Preparation of LTA and LPS

LTA was extracted from S. salivarius and F. alocis according to method reported by Yoo and Lee [5]. The bacteria were collected by centrifugation at 7,000 ×g for 10 min at 4°C and washed three times with 0.1 M sodium citrate buffer (pH 4.5) followed by resuspended with 0.1 M sodium citrate buffer. The suspension was treated with lysozyme (100 μg/ml; Sigma-aldrich Co., USA) at 37°C for 3 h and immediately treated proteinase K (100 μg/ml; Promega Co., USA) at 55°C for 2 h. After performing ultra-sonication (Sonics & Materials Inc., USA) by cycling 20 × 10 sec pulses on ice output setting 10 W with 5 sec rests in between pulses, the suspension was added with an equal volume of n-butyl alcohol, and the mixture was then shaken on an orbital shaker for 2 h at room temperature followed by centrifugated at 13,000 ×g for 15 min, the upper phase was removed by suction, and the lower phase was transferred into standard RC dialysis membrane tubing (Spectrum Laboratories Inc., USA) in 0.1 M sodium citate with 15% n-propyl alcohol for 12 h to solubilize LTA. The preparation was reacted with octyl-sepharose CL-4B Fast flow (GE Healthcare Life Sciences, Sweden), and LTA was eluted with a linear gradient (15 to 60% of n-propyl alcohol in 0.1 M sodium citrate) in ion-exchange chromatography with DEAE-Sepharose (GE Healthcare Life Sciences, USA). Each fraction (3 ml) was investigated inorganic phosphate assay with ammonium molybdate to check containing LTA, and the fractions containing LTA were pooled and lyophilized. In other experiment, LPS was isolated from P. gingivalis and T. forsythia by the method of described by Lee SH. The bacteria were harvested by centrifugation at 7,000 ×g for 5 min at 4°C and washed two times with phosphate buffered saline (PBS, pH 7.2). The bacterial pellet was lysed with lysis buffer composed with phenol, DNase, and RNase. The mixture was vortexed until the pellet disappeared, and chloroform was then added into the mixture. After vortexing the mixture for 10 sec, the preparation was centrifuged at 13,000 ×g for 15 min at 4°C, and the supernatant was transferred into new tube. The supernatant was incubated with endonuclease (100 units/ml) (Merck Millipore, Germany) at 37°C for 2 h and treated with proteinase K (200 μg/ml) (Promega Co.) at 55°C for 1 h. the preparation was mixed with lysis buffer and chloroform flowing the protocol described above. The supernatant was mixed with isopropyl alcohol, and the LPS was harvested by centrifugation 12,000 × g for 15 min and washed with 75%ethyl alcohol. LPS was dissolved with endotoxin-free water and frozen at -80°C. After lyophilizing, the dry weight of LPS was measured.

Labelling of LPS and LTA with Fluorescence and Biotin

The extracted LPS (1 mg) from P. gingivalis and T. forsythia or the extracted LTA (1 mg) from F. alocis were reacted with cold sodium metaperiodate at 4°C for 30 min to oxidize of polysaccharide part of LPS and LTA and then dialyzed in 100 mM sodium acetate (pH 5.5) for 12 h. The solution containing the LPS or the LTA was mixed with 10 mM Alexa Fluor 488 hydrizide (Invitrogen, USA) which was prepared by dissolving with 200 mM KCl and dialyzed two times in coupling buffer (0.1M sodium phosphate, 0.15M NaCl, pH 7.2) for 6 h followed by dialyzed three times in 1 L of endotoxin-free water for 12 h. After freezen drying the samples, the Fluor 488-labelled LPS and LTA was dissolved with endotoxin-free water at a concentration of 1 mg/ml. The fluorescence-labelled LPS was transferred into new tube and stored in -20°C.

Cell culture and Treatment

THP-1 cells as a human monocytic cell line were purchased from the Amedrican Type Culture Collection and maintained with RPMI 1640 medium (Welgene, Korea) supplemented with 10% fetal bovine serum (Hyclone, USA) and antibiotics (100 U/ml of penicillin and 100 μg/ml of streptomycin sulfate) (Welgene). The cells were cultivated overnight, plated in 12-well plate (SPL Biosciences, Korea) at a concentration of 1 × 106 cells/ml and treated with the surface extract from S. salivarius in the presence of heat inactivated human serum (Sigma-aldrich Co., USA). In other examination, the cells were treated with the surface extract from S. salivarius in the presence or the absence of P. gingivalis LPS, T. forsythia LPS, and F. alocis LTA. THP-1 cells were harvested to analyze signaling pathway using immune blot and RNA expression using real-time RT-PCR, and the culture supernatants were collected for ELISA and stored at -70°C until measuring cytokine production.

Real-Time Polymerase Chain Reaction

The THP-1 cells were harvested by centrifugation at 2,000 ×g for 5 min at 4°C and treated with TRIzol RNA isolation kit (Invitrogen Life Tech., USA) to extract total RNA followed by performed the protocol according to the manufacturer’s method. Complementary DNA was synthesized by Maxime RT Premix (iNtRON, Korea). cDNA was mixed with 10 μl of 2× TB Green Premix EX Taq II (Takara Co., Japan), 0.4 μM of each specific primer, and ROX II dye. Distilled water was then filled to a final volume of 20 μl. The mixture was performed 40 PCR cycles (95°C for 15 sec, 60°C for 10 sec and 72°C for 33 sec) using ABI PRISM 7500 real-time PCR system (Applied Biosystems, USA). The amplification products were analyzed using a dissociation curve to confirm specific amplification. Critical threshold cycle (Ct) was defined as the cycle at which fluorescence became detectable as against the background and inversely proportional to the logarithm of the initial number of template cDNA. The levels of glyseraldehyde-3-phophate dehydrogenase (GAPDH) was used as a reference to normalize expression levels and quantify change of inflammatory cytokines. The sequences of primers for real-time PCR were as follows: 5¢-CAG GGA CCT CTC TCT AAT CA-3¢ and 5¢-AGC TGG TTA TCT CTC AGC TC-3¢ for the TNF-α gene; 5¢-GTG AAG GTG CAG TTT TGC CA-3¢ and 5¢-TCT CCA CAA CCC TCT GCA C-3¢ for the IL-8 gene; 5¢-GTG GTG GAC CTG ACC TGC-3¢ and 5¢-TGA GCT TGA CAA AGT GGT CG-3¢ for the GAPDH gene.

ELISA

The conditioned media of various molecules treated cells were centrifuged at 7,000 ×g for 10 min at 4°C to remove cell debris, and the supernatants were transferred into new tube. TNF-α and IL-8 levels was measured by an ELISA kit (R&D systems, Inc., USA) according to the manufacturer’s protocol.

LPS and LTA Binding Assay

To investigate LPS and LTA binding on the cell, THP-1 cells were treated with Alexa Fluor 488-labelled LPS or LTA in the presence or the absence of LTA from S. salivarius at the various concentrations at 37°C for 1 h in a CO2 incubator. The cells were harvested by centrifugation at 500 ×g for 3 min and washed three times with cold DPBS (Dulbecco’s phosphate buffered saline, pH 7.2). The binding of Alexa 488-labelled LPS and LTA to cells were analyzed by flow cytometry (FACS calibur, BD Biosciences, USA). The data were collected by counting 10,000 cells, and binding of Alexa Fluor 488-labeled LPS and LTA was detected in FL-1 channel. The data were analyzed using CellQuest software (BD Biosciences).

Biding Assay to LBP and CD14

Anti-human LBP monoclonal Ab (MAB870, R&D Systems, USA) and anti-human CD14 polyclonal Ab (AF982, R&D systems) were dissolved in DPBS at a concentration of 1 μg/ml. The antibodies (50 ng/well) were coated on EIA plate (Corning Co., USA) at 4°C for 12 h. The antibody coated wells were washed five times with DPBS containing 0.1% tween 20 (DPBST) and blocked with 1% bovine serum album (BSA) in DPBST for 2 h in mild shaking condition. Recombinant human LBP (rhLBP, R&D Systems) and human CD14 (rhCD14, R&D Systems) were dissolved in DPBS at a concentration of 2 μg/ml and were added into suitable Ab-coated well. The plate was incubated at room temperature for 4 h and then washed five times with DPBST. The biotin-labelled LPS or LTA was treated or co-treated with S. salivarius LTA for 2 h at room temperature. Biotin-labelled LPS and LTA bound on rhLBP and rhCD14 were reacted with 50 μl of horseradish peroxidase (HRP)-labelled streptavidin (1 μg/ml) in DPBST containing 2% BSA for 1 h. After washing five times with DPBST, 3,3’,5,5’-tetramethylbenzidine (TMB) solution was added into the well. The plate was incubated at room temperature for 30 min, and the enzyme reaction was stopped by 1N sulfuric acid. The absorbance was measured at 450 nm of wavelength by a microplate reader (Biotek, USA).

Statistical Analysis

Statistical analysis was performed by IBM SPSS statics ver. 23 software (IBM Co., USA). The data distribution was examined by Kolmogorov-Smirnov test, and the difference among groups of the data was analyzed by non-parametric Kruskal-Wallis test. Statistical significance among groups was defined by p value of less than 0.05. Post-hoc analysis to compare differences between individual groups was examined by Mann-Whitney U test, which was corrected for multiple comparisons by Bonferroni methods.

Results

Virulence of Surface Molecules of S. salivarius

First, in order to investigate the virulence of surface molecules of S. salivarius, the surface proteins and the LTA were used. When The surface protein and LTA of S. salivarius type strain and G7 were treated on THP-1 cells at concentration of 0.5, 1 and 5 μg/ml, the two molecules showed no significant difference in the induction of TNF-α and IL-8 expression compared to the control (Figs. 1A and 1B). Furthermore, the surface protein and the LTA did not show significant difference in the induction of TNF-α and IL-8 production (Figs. 1C and 1D). E. coli LPS (10 ng/ml) as a positive control significantly induced TNF-α and IL-8 expression.

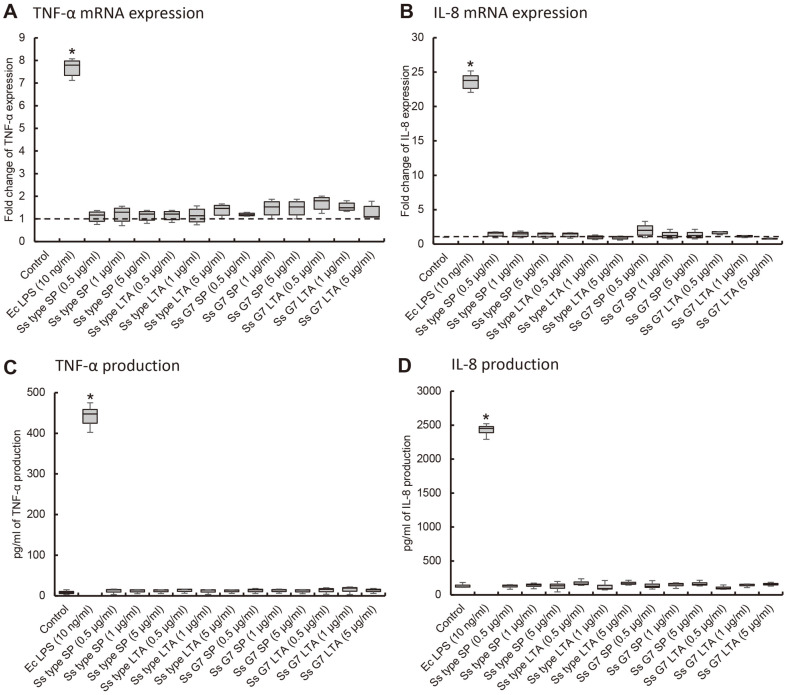

Fig. 1. The effect of surface protein and LTA of S. salivarius on the induction of TNF-α and IL-8 expression.

Fig. 1

Open in a new tab

THP-1 cells were treated with the surface protein (SP) (0.5, 1, and 5 μg/ml) and LTA (0.5, 1, and 5 μg/ml) of S. salivarius or E. coli LPS (10 ng/ml). The expression of TNF-α (A, C) and IL-8 (B, D) was analyzed by real-time RT-PCR (A, B) and ELISA (C, D). The experiments were performed three times in triplicate, and data are represented as the median (horizontal lines), interquartile range (boxes), and full ranges (whiskers). Asterisk (*) indicates statistically significant differences compared with the control group (p < 0.05). The dotted line indicates the control level.

Antagonistic Effect of S. salivarius LTA on LPS of Periodontopathogens

The surface proteins from S. salivarius did not affect induction of LPS and LTA of periodontopathogens (data not shown). However, the LTA of S. salivarius showed inhibitory effect on the induction of pro-inflammatory cytokines. P. gingivalis LPS induced the expression of cytokines as TNF-α and IL-8, and S. salivarius LTA significantly inhibited the induction of TNF-α and IL-8 expression (Figs. 2 and S1). Also, LTA of S. salivarius type strain and G7 significantly reduced the cytokine expression induced by T. forsythia LPS (Figs. 3 and S2). LTA of S. salivarius G7 inhibited the expression of the cytokines induced by P. gingivalis and T. forsythia LPS more than LTA of S. salivarius type strain.

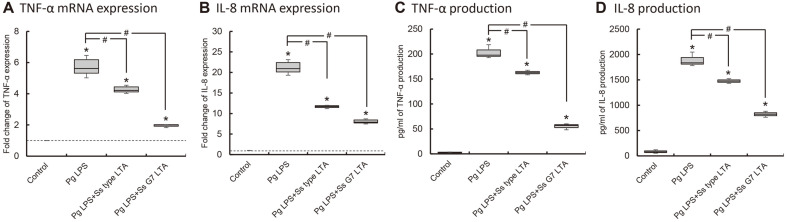

Fig. 2. The inhibitory effect of LTA of S. salivarius on the induction of TNF-α and IL-8 expression by P. gingivalis LPS.

Fig. 2

Open in a new tab

THP-1 cells were co-treated with S. salivarius LTA (1 μg/ml) and P. gingivalis LPS (100 ng/ml), and the expression of TNF-α (A, C) and IL-8 (B, D) was measured by real-time RT-PCR (A, B) and ELISA (C, D). The experiments were performed three times in triplicate, and Asterisk (*) indicates statistically significant differences compared with the control group (p < 0.05). Sharp (#) indicates statistically significant differences compared with P. gingivalis LPS treated cell (p < 0.017). Data are represented as the median (horizontal lines), interquartile range (boxes), and full ranges (whiskers). The dotted line indicates the control level.

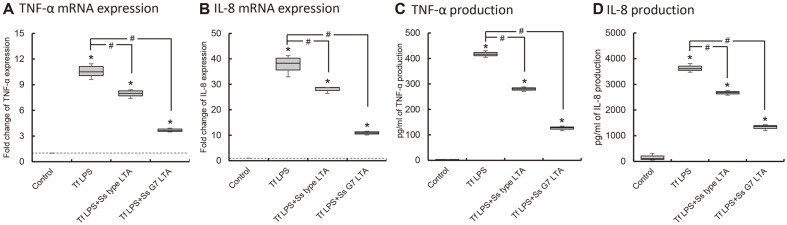

Fig. 3. The inhibitory effect of LTA of S. salivarius on the induction of TNF-α and IL-8 expression by T. forsythia LPS.

Fig. 3

Open in a new tab

THP-1 cells were co-treated with S. salivarius LTA (1 μg/ml) and T. forsythia LPS (100 ng/ml), and the expression of TNF-α (A, C) and IL-8 (B, D) was measured by real-time RT-PCR (A, B) and ELISA (C, D). The experiments were performed three times in triplicate, and Asterisk (*) indicates statistically significant differences compared with the control group (p < 0.05). Sharp (#) indicates statistically significant differences compared with T. forsythia LPS treated cell (p < 0.017). Data are represented as the median (horizontal lines), interquartile range (boxes), and full ranges (whiskers). The dotted line indicates the control level.

Antagonistic Effect of S. salivarius LTA on LTA of F. alocis

LTA of F. alocis as a periodontopathogen significantly induced TNF-α and IL-8 expression and production. As shown Figs. 4 and S3, LTA of S. salivarius significantly reduced TNF-α and IL-8 expression induced by LTA of F. alocis. Comparing two LTA of S. salivarius, LTA of G7 strain reduced the expression of TNF-α and IL-8 expression induced by F. alocis LTA more than LTA of type strain.

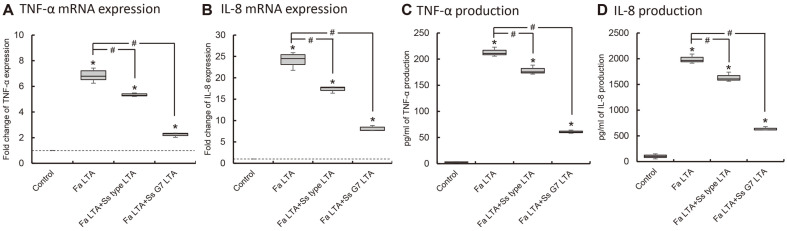

Fig. 4. The inhibitory effect of LTA of S. salivarius on the induction of TNF-α and IL-8 expression by F. alocis LTA.

Fig. 4

Open in a new tab

THP-1 cells were co-treated with S. salivarius LTA (1 μg/ml) and F. alocis LTA (100 ng/ml), and the expression of TNF-α (A, C) and IL-8 (B, D) was measured by real-time RT-PCR (A, B) and ELISA (C, D). The experiments were performed three times in triplicate, and Asterisk (*) indicates statistically significant differences compared with the control group (p < 0.05). Sharp (#) indicates statistically significant differences compared with F. alocis LTA treated cell (p < 0.017). Data are represented as the median (horizontal lines), interquartile range (boxes), and full ranges (whiskers). The dotted line indicates the control level.

Binding Inhibition of S. salivarius LTA

In order to investigate inhibitory mechanism of S. salivarius LTA, LPS and LTA reactions occurring outer cells were investigated. After labelling LPS and LTA from periodontopathogens with fluorescence, the labelled LPS and LTA were cotreated on THP-1 cells with S. salivarius LTA. The levels of P. gingivalis and T. forsythia LPS binding to the cells was suppressed in the presence of S. salivarius LTA (Figs. 5A and 5B). Binding of F. alocis LTA on the cells was also reduced by LTA of S. salivarius G7 and type strain (Fig. 5C). Consistent with the cytokine inhibition tendency, LTA of S. salivarius G7 reduced the binding of LPS and LTA of periodontopathogens more than LTA of S. salivarius type strain.

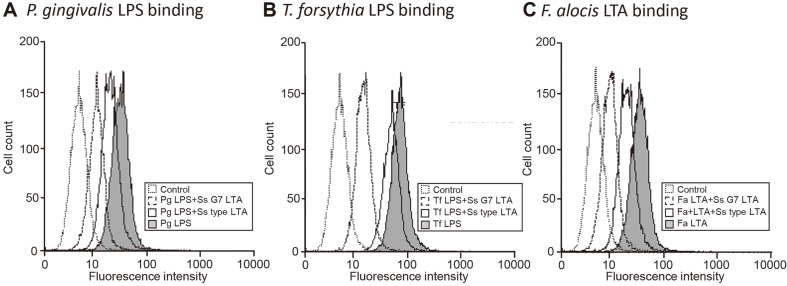

Fig. 5. Binding inhibition of LPS or LTA of periodontopathogens by S. salivarius LTA.

Fig. 5

Open in a new tab

THP-1 cells were incubated with Alexa Fluor 488-labelled LPS (100 ng/ml) or LTA (100 ng/ml) of periodontopathogens alone or with S. salivarius LTA (1 μg/ml) for 1 h. The bound LPS or LTA was analyzed by flow cytometry.

Involvement of CD14 and LBP in Antagonistic Effect of S. salivarius LTA

CD14 and LBP are involved in the binding and stimulating of LPS and LTA to cells [5, 17]. Therefore, we investigated whether the antagonistic effect of S. salivarius LTA was related to CD14 and LBP. S. salivarius LTA inhibited the binding of P. gingivalis and T. forsythia LPS to both CD14 and LBP (Fig. 6). Also, the LTA interrupted the binding of F. alocis LTA to CD14 as well as LBP.

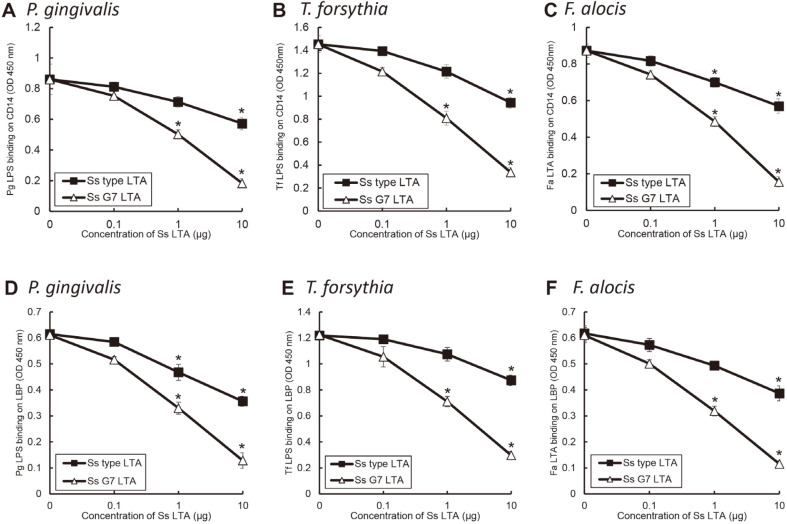

Fig. 6. Binding inhibition of LPS or LTA of periodontopathogens to CD14 and LBP by S. salivarius LTA. EIA plates were coated with rhCD14 (A-C) and rhLBP (D-F).

Fig. 6

Open in a new tab

The plates were incubated with biotinylated P. gingivalis LPS (100 ng/ml), T. forsythia LPS (100 ng/ml), and F. alocis LTA (100 ng/ml) in the presence or the absence of S. salivarius G7 LTA and type strain LTA. The bound LPS and LTA were detected using HRP-labelled streptavidin and TMB solution. The experiments were performed three times in duplicate, and data are represented as means and standard deviations. Asterisk (*) indicates statistically significant differences compared with non-treated group (p < 0.05).

Discussion

The oral cavity is characterized by the presence of multi-species bacteria like gut tract and the coexistence of soft and hard tissues unlike gut tract. Therefore, to apply beneficial bacteria for the oral cavity is more difficult than for colonic conditions. Until recently, probiotics were developed for the purpose of preventing oral diseases induced by bacteria, and some bacteria were recommended as beneficial bacteria and progressed to the commercialization stage [19-21]. However, among these probiotics, some species have aciduricity like Streptococcus mutans which is a cariogenic bacterium and can have harmful effects on the tooth as a hard tissue [22, 23]. Therefore, we began to investigate the beneficial effects of isolated S. salivarius, which do not have aciduricity and is a commensal bacterium, and first investigated the inhibitory effect on inflammation in this study.

The surface molecules of S. salivarius G7, surface protein and LTA, did not induce the expression of inflammatory cytokines. The bacterial surface molecules are the components that attaches first to the cells and relates with biofilm formation. Therefore, the characteristics of S. salivarius surface molecules were first investigated and the effects of the surface molecules on LPS and LTA of periodontopathogens, which are periodontitis inducing factor, were investigated. When the LPS and the LTA of periodontopathogens was co-treated with the surface molecules of S. salivarius G7 on the cells, LTA of S. salivarius G7 inhibited the induction of inflammatory cytokine expression by LPS and LTA of periodontopathogens such as P. gingivalis, T. forsythia, and F. alocis. Surface protein of S. salivarius G7 did not affect. General LPS and LTA bind and stimulate Toll-like receptor (TLR) 4 and 2, respectively [24]. T. forsythia LPS activates human cell via TLR4, and P. gingivalis LPS stimulates human cell via TLR2 and TLR4 according to hemin concentration [17, 25]. Also, F. alocis LTA activates TLR2 [5]. Therefore, in order to analyze the mechanism of the inhibitory effects of S. salivarius G7 LTA on LPS and LTA of periodontopathogens, cell attachment of its LPS and LTA was first investigated. S. salivarius G7 LTA inhibited the binding of LPS and LTA of periodontopathogens to the cells. It is known that LTA stimulates cells by binding to TLR2 and TLR6 heterodimers [26]. If S. salivarius G7 LTA first bind to TLR2 first and inhibits the binding of other ligand to TLR2, the inhibition for activity of T. forsythia LPS to cell cannot occur. Treponema medium and T. socaranskii glycolipid has antagonistic activity against TLR4 ligand [27, 28], and Capnocytophaga ochracea and P. gingivalis LPS also showed the antagonism against Escherichia coli LPS as a TLR4 ligand [29]. As shown in these studies, most studies have been reported the antagonistic effect of the ligand for the same receptor, and it is not known that LTA has an inhibitory effect on both LPS and LTA as in this study. In addition, the binding inhibition of S. salivarius G7 LTA was not clearly observed without serum.

Finally, we evaluated whether the antagonistic effect of S. salivarius G7 LTA on LTA and LPS of periodontopathogens was related to CD14 and LBP. The action of LBP and CD14 is required for LPS and LTA to bind to and stimulate TLRs [24]. LPS and LTA form micelle in aqueous solution due to hydrophilic (O-antigen of LPS and glycerol-phosphate unit of LTA) and hydrophobic unit (lipid A for LPS and diacyl chain of LTA) [17, 30]. Micellized LPS and LTA is transported by LBP to CD14 which concentrates LPS and LTA on TLR4 and TLR2, respectively [31, 32]. As shown in the results, S. salivarius G7 LTA inhibit LPS and LTA of periodontopathogens binding to LBP and CD14 in a dose-dependent manner. The structure of LTA describes diacylglycerol-containing glycolipid anchor and a covalently coupled polymeric backbone (called glycerol-phosphate units) [33], and the diacyl chains as fatty acid in LTA attaches TLR2 and TLR6 heterodimer [26]. Therefore, the structural different of diacyl chain indicate differences in bioactivity [34]. In detail, attachment and stimulation of the diacyl chain for TLR2 differ according to its number of carbon atoms, and depending on the structure of its glycerol-phosphate units, the binding to CD14 and LBP is different [35, 36]. Based on these studies, S. salivarius G7 LTA has the binding site for CD14 and LBP, but its acyl chain may not stimulate TLR2. Furthermore, S. salivarius G7 LTA bind and consume CD14 and LBP, thereby reducing the binding of LPS or LTA of periodontopathogens to CD14 and LBP. Eventually, the transfer of LPS or LTA of periodontopathogens to TLR may be reduced. By these mechanisms, S. salivarius G7 LTA could inhibit periodontopathogen LPS or LTA-induced inflammation.

Taken together, the surface molecules of S. salivarius G7 did not affect the induction of inflammatory cytokine expression. Among surface molecules, LTA of S. salivarius G7 showed inhibitory activity to inflammatory cytokines induced by LPS or LTA of periodontopathogens. Furthermore, these inhibitory effects may be caused by inhibiting the binding of LPS and LTA of periodontopathogens to CD14 and LBP, which are required for cell receptor attachment.

In conclusions, the surface molecules of S. salivarius G7 did not induce the expression of inflammatory cytokines, and LTA of S. salivarius G7 inhibited the expression of inflammatory cytokines induced by LPS of P. gingivalis and T. forsythia or LTA of F. alocis. The anti-inflammatory mechanism of S. salivarius G7 LTA was demonstrated by its inhibitory effect on competition with the LPS and the LTA of periodontopathogens for attachment of CD14 and LBP. S. salivarius G7 may be a candidate for prevention of periodontitis induced by LPS and LTA of bacteria.

Supplemental Materials

Supplementary data for this paper are available on-line only at http://jmb.or.kr.

Acknowledgments

This study was supported by a research fund of Dankook University in 2020.

Footnotes

Conflict of Interest

The authors have no financial conflicts of interest to declare.

References

  • 1.Cekici A, Kantarci A, Hasturk H, Van Dyke TE. Inflammatory and immune pathways in the pathogenesis of periodontal disease. Periodontol 2000. 2014;64:57–80. doi: 10.1111/prd.12002. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Socransky SS, Haffajee AD, Cugini MA, Smith C, Kent RL., Jr Microbial complexes in subgingival plaque. J. Clin. Periodontol. 1998;25:134–144. doi: 10.1111/j.1600-051X.1998.tb02419.x. [DOI] [PubMed] [Google Scholar]
  • 3.Aruni AW, Mishra A, Dou Y, Chioma O, Hamilton BN, Fletcher HM. Filifactor alocis--a new emerging periodontal pathogen. Microbes Infect. 2015;17:517–530. doi: 10.1016/j.micinf.2015.03.011. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4.Montagner F, Jacinto RC, Signoretti FG, Sanches PF, Gomes BP. Clustering behavior in microbial communities from acute endodontic infections. J. Endod. 2012;38:158–162. doi: 10.1016/j.joen.2011.09.029. [DOI] [PubMed] [Google Scholar]
  • 5.Yoo HJ, Lee SH. Virulence of Filifactor alocis lipoteichoic acid on human gingival fibroblast. Arch. Oral Biol. 2022;135:105370. doi: 10.1016/j.archoralbio.2022.105370. [DOI] [PubMed] [Google Scholar]
  • 6.Park HK, Shim SS, Kim SY, Park JH, Park SE, Kim HJ, et al. Molecular analysis of colonized bacteria in a human newborn infant gut. J. Microbiol. 2005;43:345–353. [PubMed] [Google Scholar]
  • 7.Carlsson J, Grahnen H, Jonsson G, Wikner S. Early establishment of Streptococcus salivarius in the mouth of infants. J. Dent. Res. 1970;49:415–418. doi: 10.1177/00220345700490023601. [DOI] [PubMed] [Google Scholar]
  • 8.Bourdichon F, Budde-Niekiel A, Dubois A, Fritz D, Hatte J, Laulund S, et al. Bulletin of the IDF No 495/2018; Inventory of Microbial Food Cultures with Safety Demonstration in Fermented Food Products: Update of the Bulletin of the IDF No. 455, 2012, pp. Ed. International Dairy Federation; 2018. [Google Scholar]
  • 9.Wescombe PA, Hale JD, Heng NC, Tagg JR. Developing oral probiotics from Streptococcus salivarius. Future Microbiol. 2012;7:1355–1371. doi: 10.2217/fmb.12.113. [DOI] [PubMed] [Google Scholar]
  • 10.Masdea L, Kulik EM, Hauser-Gerspach I, Ramseier AM, Filippi A, Waltimo T. Antimicrobial activity of Streptococcus salivarius K12 on bacteria involved in oral malodour. Arch. Oral Biol. 2012;57:1041–1047. doi: 10.1016/j.archoralbio.2012.02.011. [DOI] [PubMed] [Google Scholar]
  • 11.Staskova A, Sondorova M, Nemcova R, Kacirova J, Madar M. Antimicrobial and antibiofilm activity of the probiotic strain Streptococcus salivarius K12 against oral potential pathogens. Antibiotics (Basel) 10 doi: 10.3390/antibiotics10070793. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Jansen PM, Abdelbary MMH, Conrads G. A concerted probiotic activity to inhibit periodontitis-associated bacteria. PLoS One. 2021;16:e0248308. doi: 10.1371/journal.pone.0248308. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Yoo HJ, Jwa SK, Kim DH, Ji YJ. Inhibitory effect of Streptococcus salivarius K12 and M18 on halitosis in vitro. Clin. Exp. Dent. Res. 2020;6:207–214. doi: 10.1002/cre2.269. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Fields FR, Li X, Navarre WW, Naito M. Complete genome sequence of Streptococcus salivarius DB-B5, a novel probiotic candidate isolated from the supragingival plaque of a healthy female subject. Microbiol. Resour. Announc. 2020;9:e00916–20. doi: 10.1128/MRA.00916-20. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Poorni S, Nivedhitha MS, Srinivasan M, Balasubramaniam A. Effect of probiotic Streptococcus salivarius K12 and M18 lozenges on the cariogram parameters of patients with high caries risk: a randomised control trial. Cureus. 2022;14:e23282. doi: 10.7759/cureus.23282. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Srikham K, Daengprok W, Niamsup P, Thirabunyanon M. Characterization of Streptococcus salivarius as new probiotics derived from human breast milk and their potential on proliferative inhibition of liver and breast cancer cells and antioxidant activity. Front. Microbiol. 2021;12:797445. doi: 10.3389/fmicb.2021.797445. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Kim YJ, Lee SH. Reducing the bioactivity of Tannerella forsythia lipopolysaccharide by Porphyromonas gingivalis. J. Microbiol. 2014;52:702–708. doi: 10.1007/s12275-014-4324-5. [DOI] [PubMed] [Google Scholar]
  • 18.Tiong HK, Hartson S, Muriana PM. Comparison of five methods for direct extraction of surface proteins from Listeria monocytogenes for proteomic analysis by orbitrap mass spectrometry. J. Microbiol. Methods. 2015;110:54–60. doi: 10.1016/j.mimet.2015.01.004. [DOI] [PubMed] [Google Scholar]
  • 19.Romani Vestman N, Chen T, Lif Holgerson P, Ohman C, Johansson I. Oral microbiota shift after 12-week supplementation with Lactobacillus reuteri DSM 17938 and PTA 5289; a randomized control trial. PLoS One. 2015;10:e0125812. doi: 10.1371/journal.pone.0125812. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Anusha RL, Umar D, Basheer B, Baroudi K. The magic of magic bugs in oral cavity: probiotics. J. Adv. Pharm. Technol. Res. 2015;6:43–47. doi: 10.4103/2231-4040.154526. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Bowen DM. Probiotics and oral health. J. Dent. Hyg. 2013;87:5–9. [PubMed] [Google Scholar]
  • 22.Patnaik R, Louie S, Gavrilovic V, Perry K, Stemmer WP, Ryan CM, et al. Genome shuffling of Lactobacillus for improved acid tolerance. Nat. Biotechnol. 2002;20:707–712. doi: 10.1038/nbt0702-707. [DOI] [PubMed] [Google Scholar]
  • 23.Wang RM, Li N, Zheng K, Hao JF. Enhancing acid tolerance of the probiotic bacterium Lactobacillus acidophilus NCFM with trehalose. FEMS Microbiol Lett. 2018 doi: 10.1093/femsec/fny217. doi: 10.1093/femsec/fny217. Online ahead of print. [DOI] [PubMed] [Google Scholar]
  • 24.Akira S, Takeda K. Toll-like receptor signalling. Nat. Rev. Immunol. 2004;4:499–511. doi: 10.1038/nri1391. [DOI] [PubMed] [Google Scholar]
  • 25.Al-Qutub MN, Braham PH, Karimi-Naser LM, Liu X, Genco CA, Darveau RP. Hemin-dependent modulation of the lipid A structure of Porphyromonas gingivalis lipopolysaccharide. Infect. Immun. 2006;74:4474–4485. doi: 10.1128/IAI.01924-05. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Henneke P, Morath S, Uematsu S, Weichert S, Pfitzenmaier M, Takeuchi O, et al. Role of lipoteichoic acid in the phagocyte response to group B streptococcus. J. Immunol. 2005;174:6449–6455. doi: 10.4049/jimmunol.174.10.6449. [DOI] [PubMed] [Google Scholar]
  • 27.Asai Y, Hashimoto M, Ogawa T. Treponemal glycoconjugate inhibits Toll-like receptor ligand-induced cell activation by blocking LPS-binding protein and CD14 functions. Eur. J. Immunol. 2003;33:3196–3204. doi: 10.1002/eji.200324219. [DOI] [PubMed] [Google Scholar]
  • 28.Lee SH, Kim KK, Rhyu IC, Koh S, Lee DS, Choi BK. Phenol/water extract of Treponema socranskii subsp. socranskii as an antagonist of Toll-like receptor 4 signalling. Microbiology (Reading) 2006;152:535–546. doi: 10.1099/mic.0.28470-0. [DOI] [PubMed] [Google Scholar]
  • 29.Yoshimura A, Kaneko T, Kato Y, Golenbock DT, Hara Y. Lipopolysaccharides from periodontopathic bacteria Porphyromonas gingivalis and Capnocytophaga ochracea are antagonists for human Toll-like receptor 4. Infect. Immun. 2002;70:218–225. doi: 10.1128/IAI.70.1.218-225.2002. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Wicken AJ, Evans JD, Knox KW. Critical micelle concentrations of lipoteichoic acids. J. Bacteriol. 1986;166:72–77. doi: 10.1128/jb.166.1.72-77.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Schroder NW, Schumann RR. Non-LPS targets and actions of LPS binding protein (LBP) J. Endotoxin. Res. 2005;11:237–242. doi: 10.1179/096805105X37420. [DOI] [PubMed] [Google Scholar]
  • 32.Sugawara S, Arakaki R, Rikiishi H, Takada H. Lipoteichoic acid acts as an antagonist and an agonist of lipopolysaccharide on human gingival fibroblasts and monocytes in a CD14-dependent manner. Infect. Immun. 1999;67:1623–1632. doi: 10.1128/IAI.67.4.1623-1632.1999. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Fischer W. Lipoteichoic acid and lipids in the membrane of Staphylococcus aureus. Med. Microbiol. Immunol. 1994;183:61–76. doi: 10.1007/BF00277157. [DOI] [PubMed] [Google Scholar]
  • 34.Han SH, Kim JH, Martin M, Michalek SM, Nahm MH. Pneumococcal lipoteichoic acid (LTA) is not as potent as staphylococcal LTA in stimulating Toll-like receptor 2. Infect. Immun. 2003;71:5541–5548. doi: 10.1128/IAI.71.10.5541-5548.2003. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Jimenez-Dalmaroni MJ, Radcliffe CM, Harvey DJ, Wormald MR, Verdino P, Ainge GD, et al. Soluble human TLR2 ectodomain binds diacylglycerol from microbial lipopeptides and glycolipids. Innate Immun. 2015;21:175–193. doi: 10.1177/1753425914524077. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Hermann C, Spreitzer I, Schroder NW, Morath S, Lehner MD, Fischer W, et al. Cytokine induction by purified lipoteichoic acids from various bacterial species--role of LBP, sCD14, CD14 and failure to induce IL-12 and subsequent IFN-gamma release. Eur. J. Immunol. 2002;32:541–551. doi: 10.1002/1521-4141(200202)32:2&#x0003c;541::AID-IMMU541&#x0003e;3.0.CO;2-P. [DOI] [PubMed] [Google Scholar]
