Abstract
Species of Apiospora are distributed worldwide as endophytes, pathogens and saprobes. In this study, we analysed Apiospora strains isolated from diseased leaves in Yunnan Province and dead culms in Shaanxi Province, China and we identified fungal species based on multi-locus phylogeny of ITS, LSU, tef1 and tub2 genes, along with the morphological characters, host and ecological distribution. Analyses revealed three new species, namely A.corylisp. nov., A.lophatherisp. nov. and A.oenotheraesp. nov. and one known species A.arundinis. Illustrations and descriptions of the four taxa are provided, along with comparisons with closely-related taxa in the genus.
Key words: Apiosporaceae, Ascomycota, morphology, phylogeny, taxonomy
Introduction
Species in Apiospora are distributed worldwide, primarily in temperate and tropical regions. These fungi can be found in various habitats, including soil, plant materials and insect exoskeletons (Pintos and Alvarado 2021). Many species of Apiospora are associated with plants as endophytic or saprophytic taxa and some can be important plant pathogens (Crous and Groenewald 2013; Wang et al. 2018; Kwon et al. 2021). In recent years, researchers have continuously discovered new Apiospora species in China (Wang et al. 2018; Senanayake et al. 2020, 2023; Feng et al. 2021; Liu et al. 2023).
Apiospora, the type genus of Apiosporaceae, was recognised and established by Saccardo (1875) with A.montagnei as the type species. For a long time, Apiospora was believed to be the sexual state of the genus Arthrinium (Ellis 1965; Samuels et al. 1981; Crous and Groenewald 2013). However, Ellis (1965) synonymised several other asexual genera with basauxic conidiogenesis under Arthrinium, such as Papularia, which was considered the asexual morph of Apiospora by von Höhnel (1919), Petrak (1925) and Hudson (1960, 1963). The asexual morph of Apiospora and Arthrinium are difficult to differentiate, based on morphology alone and the morphological relationships between Arthrinium and Apiospora have been hotly debated since Ellis (1965).
With the help of molecular phylogeny, Apiospora and Arthrinium were initially categorised in their own family Apiosporaceae (Hyde et al. 1998). Later, Crous and Groenewald (2013) considered that Apiospora was actually the sexual form of Arthrinium and both genera aligned to form a monophyletic clade. Following the principle of one fungi, one name policy (Hawksworth et al. 2011), the older name Arthrinium was recommended for use in unitary nomenclature (Réblová et al. 2016). However, due to several names with comparable sexual morphs to those of Arthrinium described as A.montagnei, the exact identity of A.montagnei remained uncertain (Hudson et al. 1976; Pintos et al. 2019; Pintos and Alvarado 2021). With the availability of sequence data of A.montagnei, Pintos and Alvarado (2022) revealed that Apiospora and Arthrinium are distinct genera. With most Apiospora species sharing similar morphologies, molecular phylogenetic information is necessary for accurate species identification (Pintos and Alvarado 2022).
The aim of the present study is to research new Apiospora samples found in western China, including one known species of A.arundinis and three new species and to describe them, based on morphological characters and phylogeny inferred from the combined ITS, LSU, tef1 and tub2 sequences dataset. To identify and compare these species with morphologically similar and phylogenetically related species, thorough analyses have been conducted.
Materials and methods
Sample collection and fungal isolation
Diseased leaves with dried dark brown spots of Oenotherabiennis and Lophatherumgracile, as well as diseased leaves with white round patches and black cracks of Brunfelsiabrasiliensis were collected from two locations in Yunnan Province: Lincang City (1547 m elevation; 23°52'12"N, 100°4'12"E) and Xishuangbanna City (763 m elevation; 22°1'48"N, 100°52'48"E). Dead plant culms of Corylusyunnanensis were collected in Ankang City (1683 m elevation; 33°26'37"N, 108°26'4"E), located in Shaanxi Province. All samples were placed in paper bags and transported to the laboratory for isolation. The samples were surface-sterilised by being exposed to 75% ethanol for one minute, followed by 1.25% sodium hypochlorite for three minutes, then another minute of exposure to 75% ethanol. The samples were then rinsed with distilled water for two minutes and dried on sterile filter paper. The affected portions of the leaves were excised into 0.5 × 0.5 cm fragments using a sterile razor blade. The fragments were then placed on to potato dextrose agar plates (PDA; containing 200 g potatoes, 20 g dextrose and 20 g agar per litre). The plates were incubated at a temperature of 25 °C to obtain pure cultures. All specimens were deposited at the Museum of Beijing Forestry University (BJFC) and all cultures were preserved at the China Forestry Culture Collection Center (CFCC).
Morphological observation
The morphology of the isolates was examined by analysing sporulating axenic cultures cultivated on PDA in darkness at 25 °C. After a 7-day incubation period, colony diameters were measured and colony characters were recorded. Slide mounts were prepared in lactic acid or water, obtained from colonies sporulating on PDA. Observations were conducted using a Leica DM 2500 dissecting microscope (Wetzlar, Germany) and a Nikon Eclipse 80i compound microscope, equipped with differential interference contrast (DIC) illumination. Images were captured with a Nis DS-Ri2 camera and processed using the Nikon Nis Elements F4.30.01 software. For measurement purposes, 50 conidiogenous cells and conidia were randomly selected. Conidial length was measured from the base of the basal cell to the base of the apical appendage, while conidial width was measured at its widest point. Taxonomic novelties were deposited in MycoBank (http://www.mycobank.org).
DNA extraction, PCR amplification and phylogenetic analyses
Genomic DNA was extracted from colonies grown on PDA using a cetyltrimethylammonium bromide (CTAB) method (Doyle and Doyle 1990). The extracted DNA products were stored at -20 °C until analysis. Four different loci were targeted for sequencing, including the nrDNA internal transcribed spacer regions 1 and 2 with the intervening 5.8S subunit (ITS), a partial sequence of the large subunit nrDNA subunit (LSU), a partial sequence of the translation elongation factor 1-alpha gene (tef1) and a partial sequence of the beta-tubulin gene (tub2). They were all amplified with the primer pairs and polymerase chain reaction (PCR) programme listed in Table 1.
Table 1.
Gene regions and respective primer pairs used in the study.
Locus | PCR primers | PCR: thermal cycles: (Annealing temperature in bold) | Reference |
---|---|---|---|
ITS | ITS1/ITS4 | (94 °C: 30 s, 55 °C: 30 s, 72 °C: 45 s) × 35 cycles | White et al. 1990 |
LSU | LR0R/LR5 | (94 °C: 30 s, 48 °C: 50 s, 72 °C: 1 min 30 s) × 35 cycles | Cubeta et al. 1991 |
tef1 | EF1-728F/EF2 | (95 °C: 30 s, 51 °C: 30 s, 72 °C: 1 min) × 35 cycles | O’Donnell et al. 1998; Carbone and Kohn 1999 |
tub2 | Bt-2a/Bt-2b | (95 °C: 30 s, 56 °C: 30 s, 72 °C: 1 min) × 35 cycles | Glass and Donaldson 1995 |
The PCR products were assayed by electrophoresis in 2% agarose gels. Amplified PCR products were sent to a commercial sequencing provider (Tsingke Biotechnology Co. Ltd., Beijing, China). The quality of the chromatograms was verified and nucleotide sequences were assembled using SeqMan v.7.1.0. Reference sequences from related publications (Wang et al. 2018; Pintos and Alvarado 2021; Samarakoon et al. 2022; Liu et al. 2023) were retrieved from the National Center for Biotechnology Information (NCBI; https://www.ncbi.nlm.nih.gov). Sequences were aligned on the web server using MAFFT at the web server (http://mafft.cbrc.jp/alignment/server) (Katoh et al. 2019) and further corrected manually utilising MEGA 7.0.21 (Kumar et al. 2016).
The phylogenetic analyses of the combined loci were performed using Maximum Likelihood (ML) and Bayesian Inference (BI) methods. To implement ML, RAxMLHPC BlackBox 8.2.10 (Stamatakis 2014) was used on the CIPRES Science Gateway portal (https://www.phylo.org) employing a GTR GAMMA substitution model with a total of 1000 bootstrap replicates. The Bayesian posterior probabilities (BPP) were determined by Markov Chain Monte Carlo (MCMC) sampling in MrBayes v.3.2.6 (Ronquist et al. 2012). Six simultaneous Markov chains were run for 1 million generations starting from random trees, sampling trees every 100th generation. To ensure accuracy, 25% of aging samples were discarded, running until the average standard deviation of the split frequencies dropped below 0.01. The phylogram was visualised in FigTree v.1.3.1 (http://tree.bio.ed.ac.uk/software) and edited using Adobe Illustrator CS5 (Adobe Systems Inc., USA). The newly-generated nucleotide sequences were deposited in GenBank (Table 2).
Table 2.
Isolates and GenBank accession numbers used in the phylogenetic analyses.
Species | Isolate/Strain | Host/ Substrate | Origin | GenBank accession numbers | |||
---|---|---|---|---|---|---|---|
ITS | LSU | tef1 | tub2 | ||||
Apiosporaacutiapica | KUMCC 20-0210 (Type) | Bambusabambos | China | MT946343 | MT946339 | MT947360 | MT947366 |
A.agari | KUC 21333 (Type) | Agarumcribrosum | Korea | MH498520 | MH498440 | MH544663 | MH498478 |
A.aquatica | MFLU 18-1628 (Type) | Submerged wood | China | MK828608 | MK835806 | NA | NA |
A.arctoscopi | KUC 21331 (Type) | Egg of Arctoscopusjaponicus | Korea | MH498529 | MH498449 | MN868918 | MH498487 |
A.arundinis | CBS 10612 | Unkown substrate | Germany | KF144883 | KF144927 | KF145015 | KF144973 |
LX 1918 | Saccharumofficinarum | China | MW534386 | NA | MW584370 | MZ090019 | |
CFCC 58977 | Brunfelsiabrasiliensis | China | OR125562 | OR133584 | OR139968 | OR139976 | |
LS 107 | Brunfelsiabrasiliensis | China | OR125563 | OR133585 | OR139969 | OR139977 | |
A.aurea | CBS 24483 (Type) | Air | Spain | AB220251 | KF144935 | KF145023 | KF144981 |
A.balearica | CBS 145129 (Type) | Poaceae | Spain | MK014869 | MK014836 | MK017946 | MK017975 |
A.bambusae | ICPM 6889 (Type) | Bamboo | China | MK014874 | MK014841 | MK017951 | MK017980 |
A.bambusicola | MFLUCC 20-0144 (Type) | Schizostachyumbrachycladum | Thailand | MW173030 | MW173087 | MW183262 | |
A.biserialis | CGMCC 320135 (Type) | Bamboo | China | MW481708 | MW478885 | MW522938 | MW522955 |
A.camelliae-sinensis | LC 5007 (Type) | Camelliasinensis | China | KY494704 | KY494780 | KY705103 | KY705173 |
A.chromolaenae | MFLUCC 17-1505 (Type) | Chromolaenaodorata | Thailand | MT214342 | MT214436 | MT235802 | NA |
A.chiangraiense | MFLUCC 21-0053 (Type) | Bamboo | Thailand | MZ542520 | MZ542524 | NA | MZ546409 |
A.cordylinae | GUCC 10027 (Type) | Cordylinefruticosa | China | MT040106 | NA | MT040127 | MT040148 |
A.coryli | CFCC 58978 (Type) | Corylusyunnanensis | China | OR125564 | OR133586 | OR139974 | OR139978 |
CFCC 58979 | Corylusyunnanensis | China | OR125565 | OR133587 | OR139975 | OR139979 | |
A.cyclobalanopsidis | CGMCC 320136 (Type) | Cyclobalanopsidisglauca | China | MW481713 | MW478892 | MW522945 | MW522962 |
A.descalsii | CBS 145130 (Type) | Ampelodesmosmauritanicus | Spain | MK014870 | MK014837 | MK017947 | MK017976 |
A.dichotomanthi | LC 4950 (Type) | Dichotomanthustristaniaecarpa | China | KY494697 | KY494773 | KY705096 | KY705167 |
A.dongyingensis | SAUCC 0302 (Type) | Bamboo | China | OP563375 | OP572424 | OP573264 | OP573270 |
A.esporlensis | CBS 145136 (Type) | Phyllostachysaurea | Spain | MK014878 | MK014845 | MK017954 | MK017983 |
A.euphorbiae | IMI 285638b | Bambusa | Bangladesh | AB220241 | AB220335 | NA | AB220288 |
A.fermenti | KUC21289 (Type) | Seaweed | Korea | MF615226 | MF615213 | MH544667 | MF615231 |
A.gaoyouense | CFCC 52301 (Type) | Phragmitesaustralis | China | MH197124 | NA | MH236793 | MH236789 |
A.garethjonesii | JHB004 (Type) | Bamboo | China | KY356086 | KY356091 | NA | NA |
A.gelatinosa | HKAS 111962 (Type) | Bamboo | China | MW481706 | MW478888 | MW522941 | MW522958 |
A.guiyangensis | HKAS 102403 (Type) | Poaceae | China | MW240647 | MW240577 | MW759535 | MW775604 |
A.guizhouensis | LC 5322 (Type) | Air in karst cave | China | KY494709 | KY494785 | KY705108 | KY705178 |
A.hainanensis | SAUCC 1681 (Type) | Bamboo | China | OP563373 | OP572422 | OP573262 | OP573268 |
A.hispanicum | IMI 326877 (Type) | Maritime sand | Spain | AB220242 | AB220336 | NA | AB220289 |
A.hydei | CBS 114990 (Type) | Bambusatuldoides | China | KF144890 | KF144936 | KF145024 | KF144982 |
A.hyphopodii | MFLUCC 15-0003 (Type) | Bamboo | China | KR069110 | NA | NA | NA |
A.ibericum | AP 10118 (Type) | Arundodonax | Portugal | MK014879 | MK014846 | MK017955 | MK017984 |
A.intestini | CBS 135835 (Type) | Gut of grasshopper | India | KR011352 | MH877577 | KR011351 | KR011350 |
A.italicum | CBS 145138 (Type) | Arundodonax | Italy | MK014880 | MK014847 | MK017956 | MK017985 |
A.jatrophae | CBS 134262 (Type) | Jatrophapodagrica | India | JQ246355 | NA | NA | NA |
A.jiangxiensis | LC 4577 (Type) | Maesa sp. | China | KY494693 | KY494769 | KY705092 | KY705163 |
A.kogelbergensis | CBS 113333 (Type) | Restionaceae | South Africa | KF144892 | KF144938 | KF145026 | KF144984 |
A.koreanum | KUC 21332 (Type) | Egg of Arctoscopusjaponicus | Korea | MH498524 | MH498444 | MH544664 | MH498482 |
A.lageniformis | KUC 21686 (Type) | Phyllostachysnigra | Korea | ON764020 | ON787759 | ON806624 | ON806634 |
A.locuta-pollinis | LC 11683 (Type) | Brassicacampestris | China | MF939595 | NA | MF939616 | MF939622 |
A.longistroma | MFLUCC 11-0481 (Type) | Bamboo | Thailand | KU940141 | KU863129 | NA | NA |
A.lophatheri | CFCC 58975 (Type) | Lophatherumgracile | China | OR125566 | OR133588 | OR139970 | OR139980 |
CFCC 58976 | Lophatherumgracile | China | OR125567 | OR133589 | OR139971 | OR139981 | |
A.malaysiana | CBS 102053 (Type) | Macarangahullettii stem colonised by ants | Malaysia | KF144896 | KF144942 | KF145030 | KF144988 |
A.marianiae | AP18219 (Type) | Phleumpratense | Spain | ON692406 | ON692422 | ON677180 | ON677186 |
A.marii | CBS 49790 (Type) | Atmosphere, pharmaceutical excipients, home dust and beach sands | Spain | MH873913 | KF144947 | KF145035 | KF144993 |
A.marinum | KU 21328 (Type) | Seaweed | China | MH498538 | MH498458 | MH544669 | MH498496 |
A.mediterranea | IMI 326875 (Type) | Air | Spain | AB220243 | AB220337 | NA | AB220290 |
A.minutisporum | 17E-042 (Type) | Soil | Korea | LC517882 | NA | LC518889 | LC518888 |
A.montagnei | AP 301120 (Type) | Arundomicrantha | Spain | ON692408 | ON692424 | ON677182 | ON67718 |
A.mori | MFLU 18-2514 (Type) | Morusaustralis | China | MW114313 | MW114393 | NA | NA |
A.mukdahanensis | MFLUCC 22-0056 (Type) | Bambusoideae | Thailand | OP377735 | OP377742 | OP381089 | NA |
A.multiloculata | MFLUCC 21-0023 (Type) | Bambusae | Thailand | OL873137 | OL873138 | NA | OL874718 |
A.mytilomorpha | DAOM 214595 (Type) | Andropogon | India | KY494685 | NA | NA | NA |
A.neobambusae | LC 7106 (Type) | Bamboo | China | KY494718 | KY494794 | KY806204 | KY705186 |
A.neochinensis | CFCC 53036 (Type) | Fargesiaqinlingensis | China | MK819291 | NA | MK818545 | MK818547 |
A.neogarethjonesii | HKAS 102408 (Type) | Bambusae | China | MK070897 | MK070898 | NA | NA |
A.neosubglobosa | JHB007 (Type) | Bamboo | China | KY356090 | KY356095 | NA | NA |
A.obovatum | LC4940 (Type) | Lithocarpus | China | KY494696 | KY494772 | KY705095 | KY705166 |
A.oenotherae | CFCC 58972 (Type) | Oenotherabiennis | China | OR125568 | OR133590 | OR139972 | OR139982 |
LS 395 | Oenotherabiennis | China | OR125569 | OR133591 | OR139973 | OR139983 | |
A.ovata | CBS 115042 (Type) | Arundinariahindsii | China | KF144903 | KF144950 | KF145037 | KF144995 |
A.paraphaeosperma | MFLUCC13-0644 (Type) | Bambusa | Thailand | KX822128 | KX822124 | NA | NA |
A.phragmitis | CBS 135458 (Type) | Phragmitesaustralis | Italy | KF144909 | KF144956 | KF145043 | KF145001 |
A.phyllostachydis | MFLUCC 18-1101 (Type) | Phyllostachysheteroclada | China | MK351842 | MH368077 | MK340918 | MK291949 |
A.piptatheri | CBS 145149 (Type) | Piptatherummiliaceum | Spain | MK014893 | MK014860 | MK017969 | NA |
A.pseudomarii | GUCC 10228 (Type) | Aristolochiadebilis | China | MT040124 | NA | MT040145 | MT040166 |
A.pseudohyphopodii | KUC 21680 (Type) | Phyllostachyspubescens | Korea | ON764026 | ON787765 | ON806630 | ON806640 |
A.pseudoparenchymaticum | LC 7234 (Type) | Bamboo | China | KY494743 | KY494819 | KY705139 | KY705211 |
A.pseudorasikravindrae | KUMCC 20-0208 (Type) | Bambusadolichoclada | China | MT946344 | NA | MT947361 | MT947367 |
A.pseudosinensis | CBS 135459 (Type) | Bamboo | Netherlands | KF144910 | KF144957 | KF145044 | NA |
A.pseudospegazzinii | CBS 102052 (Type) | Macarangahullettii | Malaysia | KF144911 | KF144958 | KF145045 | KF145002 |
A.pterosperma | CPC 20193 (Type) | Lepidospermagladiatum | Australia | KF144913 | KF144960 | KF145046 | KF145004 |
A.pusillisperma | KUC 21321 (Type) | Seaweed | Korea | MH498533 | MH498453 | MN868930 | MH498491 |
A.qinlingense | CFCC 52303 (Type) | Fargesiaqinlingensis | China | MH197120 | NA | MH236795 | MH236791 |
A.rasikravindrae | NFCCI 2144 (Type) | Soil in karst cave | China | JF326454 | NA | NA | NA |
A.sacchari | CBS 21230 | Phragmitesaustralis | Korea | KF144919 | KF144965 | KF145050 | KF145008 |
A.saccharicola | CBS 19173 | Air | Netherlands | KF144920 | KF144966 | KF145051 | KF145009 |
A.sargassi | KUC21228 (Type) | Sargassumfulvellum | Korea | KT207746 | KT207696 | MH544677 | KT207644 |
A.sasae | CBS 146808 (Type) | Sasaveitchii | Netherlands | MW883402 | MW883797 | MW890104 | MW890120 |
A.septata | CGMCC 320134 (Type) | Bamboo | China | MW481711 | MW478890 | MW522943 | MW522960 |
A.serenensis | IMI 326869 (Type) | Food, pharmaceutical excipients, atmosphere and home dust | Spain | AB220250 | AB220344 | NA | AB220297 |
A.setariae | CFCC 54041 (Type) | Setariaviridis | China | MT492004 | NA | NA | NA |
A.setostroma | KUMCC 19-0217 (Type) | Bambusoideae | China | MN528012 | MN528011 | MN527357 | NA |
A.sichuanensis | HKAS 107008 (Type) | Poaceae | China | MW240648 | MW240578 | MW759536 | MW775605 |
A.sorghi | URM 93000 (Type) | Sorghumbicolor | Brazil | MK371706 | NA | NA | MK348526 |
A.sphaerosperma | CBS114314 (Type) | Hordeumvulgare | Iran | KF144904 | KF144951 | KF145038 | KF144996 |
A.stipae | CBS 146804 (Type) | Stipagigantea | Spain | MW883403 | MW883798 | MW890082 | MW890121 |
A.subglobosa | MFLUCC 11-0397 (Type) | Bamboo | Thailand | KR069112 | KR069113 | NA | NA |
A.subrosea | LC7292 (Type) | Bamboo | China | KY494752 | KY494828 | KY705148 | KY705220 |
A.taeanensis | KUC21322 (Type) | Seaweed | Korea | MH498515 | MH498435 | MH544662 | MH498473 |
A.thailandica | MFLUCC 15-0202 (Type) | Rotten wood | China | KU940145 | KU863133 | NA | NA |
A.vietnamense | IMI 99670 (Type) | Citrussinensis | Vietnam | KX986096 | KX986111 | NA | KY019466 |
A.xenocordella | CBS 47886 (Type) | Soil from roadway | Zimbabwe | KF144925 | KF144970 | KF145055 | KF145013 |
A.yunnana | MFLUCC 15-0002 (Type) | Bamboo | China | KU940147 | KU863135 | NA | NA |
Arthriniumcrenatum | CBS 146353B (Type) | Grass | France | MW208931 | MW208861 | MW221917 | MW221923 |
Notes: Strains in this study are marked in bold. NA = not available.
Results
Phylogeny
The combined ITS, LSU, tef1 and tub2 dataset comprised 99 strains, including eight newly-sequenced strains, with Arthriniumcrenatum (CBS 146353) as the outgroup taxon. Multi-locus sequences contain 2,709 characters including gaps with ITS (1–610), LSU (611–1399), tef1 (1400–1948) and tub2 (1949–2691). Of these characters, 1,635 were constant, 367 were variable and parsimony-uninformative and 707 were parsimony-informative. For ML analysis, the matrix had 1,192 distinct alignment patterns. Estimated base frequencies were A = 0.229212, C = 0.248907, G = 0.263837, T = 0.258044; substitution rates: AC = 1.129211, AG = 2.936388, AT = 0.925501, CG = 0.917970, CT = 4.199729, GT = 1.0; gamma distribution shape parameter: α = 0.250690; and likelihood value of ln: -22 496.696950.
The ML tree topology agreed with the BI analysis and, therefore, only the ML tree is presented (Fig. 1). The strains obtained in this study were categorised into four clades, representing one known species and three new species (Fig. 1). The known species is A.arundinis and three new species are now recognised as A.coryli, A.lophatheri and A.oenotherae.

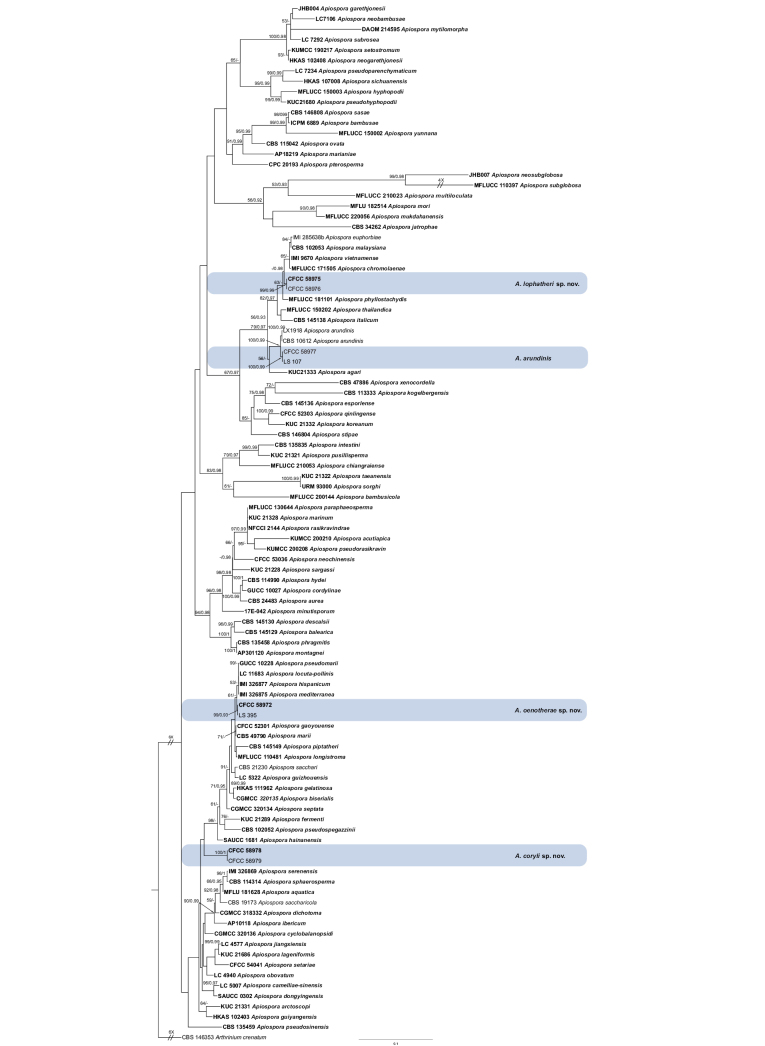

Figure 1.
Phylogram of Apiospora, based on combined ITS, LSU, tef1 and tub2 genes. ML bootstrap support values (≥ 50%) and Bayesian posterior probability (≥ 0.90) are shown as first and second position above nodes, respectively. Strains from this study are shown in blue boxes, ex-type or ex-epitype cultures are indicated in bold face. Some branches were shortened according to the indicated mulipliers.
Taxonomy
. Apiospora arundinis
(Corda) Pintos & P. Alvarado, Fungal Systematics and Evolution 7: 205 (2021)
05626E62-5E3C-55EF-9D8A-04B58A926EA0
Figure 2.
Apiosporaarundinis (CFCC 58977) A leaf of host plant B colony on PDA C conidiomata formed in culture D, E conidiogenous cells giving rise to conidia F conidia. Scale bars: 1000 µm (C); 10 µm (D–F).
Description.
Asexual morph: Mycelium consisting of smooth, hyaline, branched, septate, 1.1–5.9 µm diam. hyphae (n = 20). Conidiophores reduced to conidiogenous cells. Conidiogenous cells subglobose to ampulliform, erect, blastic, aggregated in clusters on hyphae, smooth, branched, 3.4–9.4 × 1.5–6.4 µm, mean (± SD): 6.8 (± 1.6) × 3.9 (± 1.3) µm (n = 50). Conidia globose, subglobose to lenticular, with a longitudinal germ slit, occasionally elongated to ellipsoidal, brown to dark brown, smooth to finely roughened, 6.4–10.4 × 5.2–8.3 µm, mean (± SD): 7.7 (± 0.6) × 6.8 (± 0.7) µm, L/W = 1.0–1.5 (n = 50). Sexual morph: Undetermined.
Culture characteristics.
On PDA, colonies thick and dense, margin undulate and irregular, pale yellow pigment diffused into medium, surface with patches of iron-grey aerial mycelia, reverse yellowish-brown, mycelia white to grey, sporulation on hyphae, reaching 9 cm in 7 days at 25 °C.
Specimens examined.
China, Yunnan Province: Xishuangbanna Botanical Garden, on diseased leaves of Brunfelsiabrasiliensis, 6 June 2022, S.J. Li, BJFC-S1918; living cultures CFCC 58977, LS 107).
Notes.
In this study, two isolates clustered together with the culture of A.arundinis with high-support values (ML/BI = 100/0.99)in the multi-locus phylogenetic tree (Fig. 1). Thus, these isolates were identified as A.arundinis and Brunfelsiabrasiliensis as a new host record for this species. Apiosporaarundinis was introduced from Phyllostachyspraecox, Castaneamollissima and Saccharumofficinarum in China (Chen et al. 2014; Jiang et al. 2021; Liao et al. 2022). Comparing with the description from Chen et al. (2014) (5–7 × 2–4 µm), Jiang et al. (2021) (3–4 µm) and Liao et al. (2022) (4.5–7.4 × 3.3–4.4 µm), the conidia in this study show larger sizes (6.4–10.4 × 5.2–8.3 µm). These differences may result from different host and habitat.
. Apiospora coryli
S.J. Li & C.M. Tian sp. nov.
C96D4D20-1AAE-5841-8C28-0671DF4611BB
849126
Figure 3.
Apiosporacoryli (CFCC 58978, ex-holotype culture) A leaf of host plant B colony on PDA C conidiomata formed in culture D, E conidiogenous cells giving rise to conidia F conidia. Scale bars: 1000 µm (C); 10 µm (D–F).
Type.
China, Shanxi Province: Ankang City, Huoditang Forest Farm, on dead plant culms of Corylusyunnanensis, 16 July 2021, R. Yuan & S.J. Li, holotype BJFC-S1920, ex-type living cultures CFCC 58978, CFCC 58979.
Etymology.
Named after the host from which it was isolated.
Description.
Asexual morph: Derived from sporulated cultures on PDA, hyphae hyaline, branched, septate, 1.1–5.2 µm diam. Conidiophores reduced to conidiogenous cells. Conidiogenous cells erect, aggregated in clusters on hyphae, hyaline to pale brown, smooth, doliiform to clavate or lageniform, 2.6–10.6 × 2.1–5.8 µm, mean (± SD): 5.5 (± 2.4) × 3.4 (± 1.1) µm (n = 50). Conidia brown to dark brown, globose to subglobose, oval or irregular, smooth to finely roughened, guttulate, usually with a longitudinal germ slit, 7.4–18.4 × 6.2–12.5 µm, mean (± SD): 10.8 (± 1.7) × 9.4 (± 1.3) µm, L/W = 0.8–1.6 (n = 50). Sexual morph: Undetermined.
Culture characteristics.
On PDA, colonies circular, flat, entire margin, thick and cottony, concentrically spreading with aerial mycelium, margin regular, reddish-brown pigment diffused into medium, surface dark yellowish-brown, reverse dark reddish-brown to yellowish-brown from the centre, mycelia white to pale umber, sporulation on hyphae, reaching 9 cm in 7 days at 25 °C.
Notes.
Strains of A.coryli constitutes a distinct clade, but there is poor support value in concatenated gene trees (Fig. 1). The most prominent distinguishing characteristic is the production of reddish-brown pigments on the culture medium.
. Apiospora lophatheri
S.J. Li & C.M. Tian sp. nov.
2CD5427F-4DD4-56BE-BEC8-CEC89EE63775
849123
Figure 4.
Apiosporalophatheri (CFCC 58975, ex-holotype culture) A leaf of host plant B colony on PDA C conidiomata formed in culture D conidiogenous cells giving rise to conidia E, F conidia. Scale bars: 1000 µm (C); 10 µm (D–F).
Type.
China, Yunnan Province, Xishuangbanna Primeval Forest Park, on diseased leaves of Lophatherumgracile, 4 June 2022, S.J. Li, holotype BJFC-S1917; ex-type living cultures CFCC 58975, CFCC 58976.
Etymology.
Named after the host from which it was isolated.
Description.
Asexual morph: Sporulated on PDA, mycelium consisting of hyaline, smooth, branched, septate hyphae 1.0–5.2 µm in diam. (n = 20). Conidiophores reduced to conidiogenous cells. Conidiogenous cells aggregated in clusters on hyphae, hyaline to pale brown, smooth, doliiform, clavate to ampulliform, 2.2–11.9 × 2.2–4.9 µm, mean (± SD): 6.4 (± 2.5) × 3.4 (± 0.6) µm (n = 50). Conidia globose, subglobose to lenticular, with a longitudinal germ slit, olive to dark brown, smooth to finely roughened and two or more conidia are produced on each conidiogenous cell, 5.1–8.9 × 4.6–7.7 µm, mean (± SD): 6.5 (± 0.8) × 5.9 (± 0.7) µm, L/W = 1.0–1.4 (n = 50). Sexual morph: Undetermined.
Culture characteristics.
On PDA, colonies flat, spreading, margin circular, thick, concentrically spreading with aerial mycelium, surface light greyish-brown, reverse tawny pigment diffused in media, mycelia white to grey and pale brown, sporulation on hyphae, reaching 9 cm in 7 days at 25 °C.
Notes.
Phylogenetic analysis indicated that Apiosporalophatheri is closely related to a clade comprising A.chromolaenae, A.euphorbiae, A.italicum, A.malaysiana, A.phyllostachydis, A.thailandica and A.vietnamense (Fig. 1). We compared the new species with phylogenetically similar taxa, based on morphological differences (Table 3) and base pair differences (Table 4). A.lophatheri can be differentiated from A.chromolaenae by its wider conidiogenous cells (2.2–11.9 × 2.2–4.9 µm vs. 6.5–12 × 1–2 µm) (from Euphorbia sp.; collected in Zambia; Ellis (1965)) and by 18 gene base pair differences (17/529 in ITS, 1/838 in LSU). A.lophatheri differs from A.euphorbiae by its larger olive to dark brown conidia (5.1–8.9 × 4.6–7.7 µm vs. 4–5.5 × 3–4 µm) (from Euphorbia sp.; collected in Zambia; Ellis (1965)), with nucleotide differences in ITS as 3/529, in LSU as 2/318, in tub2 as 22/801. A.italicum has smaller conidia (4–6 × 3–4 µm) (from Arundodonax; collected in Italy; Pintos et al. (2019)) and has 125 nucleotides differences (41/552 in ITS, 2/828 in LSU, 27/432 in tef1, 55/838 in tub2). Additionally, A.lophatheri is distinguished from A.malaysiana by having larger globose or subglobose conidia (5.1–8.9 × 4.6–7.7 µm vs. 5–6 × 3–4 µm) (from Macarangahullettii; collected in Malaysia; Crous and Groenewald (2013)), with 43 nucleotide differences (3/529 in ITS, 1/838 in LSU, 18/424 in tef1, 21/801 in tub2). A.lophatheri differs from A.phyllostachydis by its relatively shorter conidiogenous cells (2.2–11.9 × 2.2–4.9 µm vs. 20–55 × 1.5–2.5 µm) (from Phyllostachysheteroclada; collected in China; Yang et al. (2019)) and by 48 nucleotides differences (7/529 in ITS, 3/838 in LSU, 12/424 in tef1, 26/795 in tub2). A.lophatheri can be differentiated from A.thailandica by having shorter conidiogenous cells (2.2–11.9 × 2.2–4.9 µm vs. 11.5–39 × 2–3.5 µm) (from bamboo; collected in Thailand; Dai et al. (2017)) and by 12 nucleotides differences (9/529 in ITS, 3/828 in LSU). The conidia of A.lophatheri are significantly wider and paler-coloured than those of A.vietnamense (5.1–8.9 × 4.6–7.7 µm vs. 5–6 × 3–4 µm) (from Citrussinensis; collected in Vietnam; Wang et al. (2018)) and there are 7 nucleotides differences between the two species (2/526 in ITS, 2/803 in LSU, 3/315 in tub2). Therefore, A.lophatheri is described as a new species, based on phylogeny and morphological comparison.
Table 3.
Summary of morphology of new Apiospora species and phylogenetic related species.
Species | Isolation source | Country | Conidiogenous cells (µm) | Conidia in surface view | Conidia in side view | References | ||
---|---|---|---|---|---|---|---|---|
Shape | Diam (μm) | Shape | Diam (μm) | |||||
A.gaoyouense | Phragmitesaustralis | China | 1–2 × 2–3 | globose to elongate ellipsoid | 5–8 | lenticular | 4–8 | Jiang et al. (2018) |
A.hispanicum | Maritime sand | Spain | – | globose to ellipsoid | 7.5–8.5 × 6–7.5 | lenticular | 6.5 | Larrondo (1992) |
A.locuta-pollinis | Brassicacampestris | China | 3–7.5 × 3–6 | globose to elongate ellipsoid | 8–15× 5–9.5 | – | – | Zhao et al. (2018) |
A.longistroma | Bamboo | Thailand | – | asexual morph: Undetermined | – | – | – | Dai et al. (2017) |
A.marii | Beach sand/ Poaceae | Spain | 5–10 × 3–4.5 | globose to elongate ellipsoid | 8–10(−13) | lenticular | (5–)6(−8) | Crous and Groenewald (2013) |
A.mediterranei | Airborn spore/ grass | Spain | – | lentiform | 9–9.5 × 7.5–9 | – | – | Larrondo (1992) |
A.oenotherae | Oenotherabiennis | China | 2.0–14.2 × 1.1–4.9 | globose, subglobose to lenticular | 6.6–13.9 × 5.5–10.1 | – | – | This study |
A.piptatheri | Piptatherummiliaceum | Spain | 6–27 × 2–5 | globose to elongate ellips oid | 6–8 × 3–5 | lenticular | 4.5–6 | Pintos et al. (2019) |
A.pseudomarii | Aristolochiadebilis | China | 8–13 × 2.5–5 | subglobose to ellipsoid | 6–9 × 4.5–6 | – | – | Chen et al. (2021) |
A.chromolaenae | Chromolaenaodorata | Thailand | 6.5–12 × 1–2 | elongated, broadly fliform to ampulliform | 4–6×4.5–6.5 | – | – | Mapook et al. (2020) |
A.euphorbiae | Bambusa | Bangladesh | – | circular or nearly circular | (4–)4.7(–5.5) | lenticular | (3–)3.2(–4) | Sharma et al. (2014) |
A.italicum | Arundodonax | Italy | (3–)4–7(–9) × (1.5–)2–3(–5) | globose | 4–6×3–4 | lenticular | – | Pintos et al. (2019) |
A.lophatheri | Lophatherumgracile | China | 2.2–11.9 × 2.2–4.9 | globose, subglobose to lenticular | 5.1–8.9 × 4.6–7.7 | – | – | This study |
A.malaysiana | Macarangahullettii | Malaysia | 4–7 × 3–5 | globose | 5–6 | lenticular | 3–4 | Crous and Groenewald (2013) |
A.phyllostachydis | Phyllostachysheteroclada | China | 20–55 × 1.5–2.5 | globose to subglobose, oval or irregular | 5–6 × 4–6 | – | – | Yang et al. (2019) |
A.thailandicum | Bamboo | Thailand | 11.5–39 × 2–3.5 | globose to subglobose, elongated to ellipsoidal | 5–9 × 5–8 | – | – | Dai et al. (2017) |
A.vietnamense | Citrussinensis | Vietnam | 4–7 × 3–5 | globose | 5–6 | lenticular | 3–4 | Wang et al. (2017) |
Table 4.
DNA base differences comparing Apiosporalophatheri sequences and sequences from related species.
Taxa | Loci | Nucleotides difference without gaps | Rates of base pair differences |
---|---|---|---|
A.chromolaenae | ITS | 17/529 (40, 102, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122) | 3.21% |
LSU | 1/838 (426) | 0.12% | |
A.euphorbiae | ITS | 3/515 (26, 88, 89) | 0.58% |
LSU | 2/318 (146, 306) | 0.63% | |
tub2 | 22/801 (95, 96, 123, 151, 154, 163, 166, 182, 185, 193, 216, 237, 312, 347, 372, 429, 453, 454, 474, 559, 569, 574) | 2.75% | |
A.italicum | ITS | 41/552 (40, 82, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 132, 165, 177, 180, 205, 207, 213, 487, 529) | 7.43% |
LSU | 2/828 (406, 416) | 0.24% | |
tef1 | 27/432 (16, 18, 19, 20, 21, 22, 23, 24, 25, 27, 35, 46, 53, 60, 75, 80, 90, 102, 119, 123, 125, 172, 210, 211, 240, 248, 272) | 6.25% | |
tub2 | 55/838 (5, 29, 44, 45, 46, 92, 99, 119, 121, 122, 126, 155, 157, 171, 185, 188, 193, 194, 196, 198, 202, 297, 219, 229, 240, 265, 315, 338, 358, 363, 367, 368, 382, 384, 386, 390, 403, 407, 412, 430, 434, 454, 463, 465, 467, 480, 491, 499, 502, 556, 564, 580, 642, 756, 757) | 6.56% | |
A.malaysiana | ITS | 3/529 (40, 102, 103) | 0.57% |
LSU | 1/838 (426) | 0.12% | |
tef1 | 18/424 (15, 16, 19, 27, 29, 38, 52, 56, 82, 83, 91, 93, 95, 111, 115, 202, 203, 264) | 4.25% | |
tub2 | 21/801 (95, 96, 123, 151, 154, 163, 166, 182, 185, 193, 216, 237, 312, 347, 372, 429, 453, 474, 559, 569, 574) | 2.62% | |
A.phyllostachydis | ITS | 7/529 (40, 44, 85, 102, 106, 433, 500) | 1.32% |
LSU | 3/838 (7,8,9) | 0.36% | |
tef1 | 12/424 (16, 19, 26, 27, 51, 52, 53, 111, 197, 202, 203, 264) | 2.83% | |
tub2 | 26/795 (35, 52, 55, 84, 89, 112, 116, 147, 151, 175, 178, 186, 209, 211, 231, 329, 352, 354, 360, 462, 469, 489, 570, 572, 575, 608) | 3.27% | |
A.thailandicum | ITS | 9/529 (40, 82, 102, 107, 122, 175, 177, 183, 501) | 1.70% |
LSU | 3/828 (5, 416, 434) | 0.36% | |
A.vietnamense | ITS | 2/526 (37, 99) | 0.38% |
LSU | 2/803 (237, 391) | 0.25% | |
tub2 | 3/315 (72, 82, 87) | 0.95% |
. Apiospora oenotherae
S.J. Li & C.M. Tian sp. nov.
4E48C012-D878-50A9-B0E6-70877ECBD3A5
849125
Figure 5.
Apiosporaoenotherae (CFCC 58972, ex-holotype culture) A leaf of host plant B colony on PDA C conidiomata formed in culture D, E conidiogenous cells giving rise to conidia F conidia. Scale bars: 1000 µm (C); 10 µm (D–F).
Type.
China, Yunnan Province, Lincang City Triangle Plum Garden, on diseased leaves of Oenotherabiennis, 26 April 2022, S.J. Li, holotype BJFC-S1919, ex-type living cultures CFCC 58972, LS 395.
Etymology.
Named after the host from which it was isolated.
Description.
Asexual morph: Hyphae hyaline, branched, septate, 1.2–4.8 µm in diam. (n = 20). Conidiophores reduced to conidiogenous cells. Conidiogenous cells smooth, ampulliform to doliiform, 2.0–14.2 × 1.1–4.9 µm, mean (± SD): 5.4 (± 2.9) × 3.1 (± 1.1) µm (n = 50). Conidia globose, subglobose to lenticular, with a longitudinal germ slit, occasionally elongated to ellipsoidal, colourless to dark brown, smooth to finely roughened, 6.6–13.9 × 5.5–10.1 µm, mean (± SD): 8.9 (± 1.2) × 7.8 (± 1.1) µm, L/W = 1.0–1.5 (n = 50). Sexual morph: Undetermined.
Culture characteristics.
On PDA, colonies thick, concentrically spreading with aerial mycelium, circular, margin irregular, yellow to pale green pigment diffused into medium, surface with aerial mycelia, the reverse lightly pigmented with a few dark yellow patches, mycelia white to grey, sporulation occurs after 10 days, reaching 9 cm in 7 days at 25 °C.
Notes.
Apiosporaoenotherae belongs to the large clade, where it shows a relationship with A.gaoyouense, A.hispanicum, A.locuta-pollinis, A.longistroma, A.marii, A.mediterranei, A.piptatheri and A.pseudomarii (Fig. 1), but differs in distinct morphological characters (Table 3) and nucleotide differences (Table 5). A.oenotherae differs from A.gaoyouense by its production of significantly conidiogenous cells (2.0–14.2 × 1.1–4.9 µm vs. 1–2 × 2–3 μm) (from Phragmitesaustralis; collected in China; Jiang et al. (2018)) and the presence of 30 distinct nucleotide positions (9/583 in ITS, 12/413 in tef1, 9/784 in tub2). A.oenotherae is distinct from A.hispanicum in producing larger conidial cells (6.6–13.9 × 5.5–10.1 µm vs. 7.5–8.5 × 6.2–7.6 µm) (from maritime sand; collected in Spain; Larrondo and Calvo (1992)) and in 30 nucleotides differences (1/539 in ITS, 1/320 in LSU, 28/796 in tub2). A.oenotherae differs from A.locuta-pollinis by its production of significantly conidiogenous cells (2.0–14.2 × 1.1–4.9 µm vs. 3–7.5 × 3–6 μm) (from hive-stored pollen; collected in China; Zhao et al. (2018)) and by the presence of 19 distinct nucleotide positions (1/539 in ITS, 7/416 in tef1, 11/485 in tub2). A.longistroma can be distinguished by growth rate, growing slowly on PDA, reaching 60 mm in 4 weeks (from bamboo; collected in Thailand; Dai et al. (2017)) and by the presence of 8 distinct nucleotide positions (6/572 in ITS, 2/840 in LSU). Moreover, A.mari produces elongated cells intermingled amongst conidia (from beach sand; collected in Spain; Crous and Groenewald (2013)), but A.oenotherae does not and can be distinguished by the presence of 23 distinct nucleotide positions (1/539 in ITS, 10/414 in tef1, 12/787 in tub2). Strains of A.mediterranei were isolated from pharmaceutical excipient, air-borne and on grass in Spain, while those of A.oenotherae collected from Oenotherabiennis in China. There are no discernible morphological characters distinguishing these species, but the elongated stem branches and the presence of 30 distinct nucleotide positions (1/539 in ITS, 1/320 in LSU, 28/796 in tub2) serve as clear indicators of their distinct and phylogenetically well-separated taxa. A.oenotherae differs from A.piptatheri because of its wider conidial cells (6.6–13.9 × 5.5–10.1 µm vs. 6–8 × 3–5 μm) (from Piptatherummiliaceum; collected in Spain; Pintos et al. (2019)) and the presence of 14 distinct nucleotide positions (10/528 in ITS, 4/827 in LSU). It also differentiates from A.pseudomarii through the production of notably wider conidial cells (6.6–13.9 × 5.5–10.1 µm vs. 6–9 × 4.5–6 µm) and through 12 unique nucleotide positions (5/556 in tef1, 7/416 in tub2) (from Aristolochiadebilis; collected in China; Chen et al. (2021)).
Table 5.
DNA base differences comparing Apiosporaoenotherae sequences and sequences from related species.
Taxa | Loci | Nucleotides difference without gaps | Rates of base pair differences |
---|---|---|---|
A.gaoyouense | ITS | 9/583 (9, 10, 22, 36, 533, 535, 544, 555, 557) | 1.54% |
tef1 | 12/413 (34, 48, 56, 57, 69, 90, 122, 129, 134, 170, 226, 228) | 2.91% | |
tub2 | 9/784 (538, 760, 766, 767, 768, 771, 775, 781, 782) | 1.15% | |
A.hispanicum | ITS | 1/539 (528) | 0.19% |
LSU | 1/320 (13) | 0.31% | |
tub2 | 28/796 (30, 186, 539, 761, 766, 767, 768, 769, 770, 771, 772, 773, 774, 775, 776, 777, 778, 779, 780, 781, 782, 783, 784, 785, 786, 787, 792, 794) | 3.52% | |
A.locuta-pollinis | ITS | 1/539 (528) | 0.19% |
tef1 | 7/416 (33, 38, 94, 173, 177, 212, 258) | 1.68% | |
tub2 | 11/485 (237, 459, 465, 466, 467, 470, 474, 480, 481, 483, 485) | 2.27% | |
A.longistroma | ITS | 6/572 (20, 30, 38, 177, 213, 530) | 1.05% |
LSU | 2/840 (655, 825) | 0.24% | |
A.marii | ITS | 1/539 (528) | 0.19% |
tef1 | 10/414 (35, 49, 57, 58, 91, 123, 135, 171, 227, 229) | 2.42% | |
tub2 | 12/787 (30, 186, 539, 761, 767, 768, 769, 772, 776, 782, 783, 785, 787) | 1.52% | |
A.mediterranei | ITS | 1/539 (528) | 0.19% |
LSU | 1/320 (13) | 0.31% | |
tub2 | 28/796 (30, 186, 539, 761, 766, 767, 768, 769, 770, 771, 772, 773, 774, 775, 776, 777, 778, 779, 780, 781, 782, 783, 784, 785, 786, 787, 792, 794) | 3.52% | |
A.piptatheri | ITS | 10/528 (30, 38, 142, 177, 182, 213, 420, 421, 430, 431) | 1.89% |
LSU | 4/827 (417, 431, 480, 632) | 0.48% | |
A.pseudomarii | ITS | 5/556 (425, 528, 541, 560, 561) | 0.90% |
tef1 | 7/416 (33, 38, 94, 173, 177, 212, 258) | 1.68% | |
tub2 | 1/718 (520) | 0.14% |
Discussion
Apiospora has been revised using different approaches and its taxonomy and classification have changed several times since its introduction. The taxonomic classification of the genus in relation to Arthrinium has been a topic of debate (Crous and Groenewald 2013; Pintos and Alvarado 2021). Morphologically, Apiospora and Arthrinium share similarities in basauxic conidiogenesis. The conidia of Apiospora are typically lenticular or obovoid in the side view, with colours ranging from pale brown to brown. Conversely, the conidia of Arthrinium exhibit various shapes, such as angular, curved, fusiform, globose, navicular and polygonal (Kunze 1817; Hyde et al. 1998; Wang et al. 2018; Pintos and Alvarado 2021).
Recently, several revisions have been made in the course of unitary nomenclature resulting in the discovery of a plethora of new species, based on multigene phylogenies (Kwon et al. 2021; Pintos and Alvarado 2021, 2022; Liu et al. 2023). Currently there are 93 accepted species in Apiospora (Table 2), which are found on a wide range of materials.
In this study, A.arundinis and A.lophatheri were collected from the tropical region of Xishuangbanna City, while A.coryli was discovered in Ankang City and A.oenotherae was found in Lincang City, which are both subtropical regions. Consistent with previous studies, the majority of Apiospora species inhabit a diverse range of habitats primarily located in tropical and subtropical regions (Pintos and Alvarado 2021).
Specimens of Apiospora were collected from the Qinling Mountains in Ankang City and, in addition to A.coryli, Jiang et al. reported species found including A.qinlingense and A.neochinensis (Jiang et al. 2018; Jiang et al. 2020). Amongst these species, A.coryli was found to have longer conidiogenous cells (2.6–10.6 × 2.1–5.8 µm) compared to A.qinlingense (1–2 × 2–3 µm) and A.neochinensis (1.5–6.5 × 1–3.5 µm) and much larger spores than A.qinlingense (4–18.4 × 6.2–12.5 µm vs. 5–8 × 5–8 µm) (Table 6). These morphological differences suggest that A.coryli is distinct from A.qinlingense and A.neochinensis. This distinction is also supported by phylogenetic analysis shown in Fig. 1 which revealed that these species are phylogenetically distant from each other. Different species have been discovered in this region over several years, indicating that variation in species may be linked to the timing of collection, host plants, growth rates, developmental cycles and activity levels. These findings highlight the diversity of fungi within Apiospora genus in the subtropical region of the Qinling Mountains and suggest the existence of numerous undiscovered species with significant research potential. Further investigation is necessary to determine the value of specific regions for future research on fungi.
Table 6.
Synopsis of new Apiospora species and species collected from the Qinling Mountains in Apiospora.
Species | Conidiogenous cells (µm) | Conidia (µm) | Host | Date | References |
---|---|---|---|---|---|
Apiosporacoryli | 2.6–10.6 × 2.1–5.8 | 4–18.4 × 6.2–12.5 | Corylusyunnanensis | 16 July 2021 | Present study |
A.qinlingense | 1–2 | 5–8 | Fargesiaqinlingensis | 27 June 2017 | Jiang et al. 2018 |
A.neochinensis | 1.5–6.5 × 1–3.5 | 8–12 × 5.5–9 | Fargesiaqinlingensis | 16 July 2018 | Jiang et al. 2020 |
* Newly described taxa are in bold.
This paper reports the initial discovery of A.lophatheri on Lophatherumgracile (Poaceae). While numerous Apiospora have been discovered on Poaceae plants worldwide, previous research has primarily focused on bamboo, with limited investigation into herbaceous plants, such as Lophatherum (Liu et al. 2023). However, prior to this study, Apiospora had not been previously found on Brunfelsia (Solanaceae) and Oenothera (Onagraceae). While Cercosporabrunfelsiicola has been reported on other host Brunfelsiauniflora within the genus and Pestalotiopsisoenotberae has been identified specifically on Oenotheralaciniata, the restricted cultivation of these plants along with insufficient research on their associated fungi have resulted in few related studies (Venkatasubbaiah et al. 1991; Hidayat and Meeboon 2014). This discovery highlights potential interactions between these plant species and their fungal counterparts, emphasising the importance of uncommon herbaceous plants for fungal taxonomy alongside Rosaceae and silvicultural species like Populus (Peng et al. 2022; Lin et al. 2022). Hence, collecting various specimens is crucial for studying and identifying the fungi of Apiospora, while also promoting fungal diversity.
Most Apiospora species exhibit round or lenticular conidia, as demonstrated in this study. Nevertheless, the sizes of these conidia often overlap amongst morphologically similar, but phylogenetically distinct species within the genus Apiospora. For example, the conidia of A.piptatheri (7.5–10 × 7–9 µm) and A.pseudosinense (8–10 × 7–10 µm) are similar, but the two species are comparable despite their distinct evolutionary lineages in Fig. 1 (Crous and Groenewald 2013; Pintos et al. 2019). Therefore, relying merely on morphology can pose challenges for accurate identification.
The monophyly of taxonomic classification units at every rank is crucially important. Morphology is frequently insufficient for phylogenetic classification and, thus, molecular evidence has become increasingly significant and indispensable for identifying and classifying fungal taxa. In recent years, there has been a steady growth in DNA sequencing data available for Apiospora species (Crous and Groenewald 2013; Wang et al. 2018; Pintos et al. 2019), leading to the recognition of 93 species of Apiospora. Sequence data are accessible for ITS in 93 species, LSU in 80, tef1 in 71 and tub2 in 73, facilitating accurate and swift identification (Wang et al. 2018; Pintos et al. 2019). However, using ITS alone has its limitations in identifying Apiospora species. Therefore, LSU, tef1, tub2 and multigene sequence data (ITS, LSU, tef1 and tub2) have been particularly useful in establishing phylogenetic relationships and increasing accuracy in Apiospora identification. Furthermore, this study yielded 32 sequence datasets for four gene regions (ITS, LSU, tef1 and tub2), enhancing our comprehension of the genus Apiospora. Novel species were identified by examining morphological and molecular characteristics, host associations and ecological distributions.
Supplementary Material
Citation
Li S, Peng C, Yuan R, Tian C (2023) Morphological and phylogenetic analyses reveal three new species of Apiospora in China. MycoKeys 99: 297–317. https://doi.org/10.3897/mycokeys.99.108384
Additional information
Conflict of interest
The authors have declared that no competing interests exist.
Ethical statement
No ethical statement was reported.
Funding
This study is financed by National Natural Science Foundation of China (Project No.: 31670647).
Author contributions
Conceptualization, Shuji Li and Chengming Tian; data curation, Shuji Li;funding acquisition, Chengming Tian; investigation, Shuji Li and Rong Yuan; project administration, Chengming Tian; resources, Shuji Li and Rong Yuan; supervision, Chengming Tian; writing-original draft, Shuji Li; writing-review and editing, Shuji Li, Cheng Peng, and Chengming Tian. All authors have read and agreed to the published version of the manuscript.
Author ORCIDs
Shuji Li https://orcid.org/0009-0006-4734-8399
Chengming Tian https://orcid.org/0000-0002-3352-7664
Data availability
All of the data that support the findings of this study are available in the main text or Supplementary Information.
Supplementary materials
Isolates and GenBank accession numbers used in the phylogenetic analyses
This dataset is made available under the Open Database License (http://opendatacommons.org/licenses/odbl/1.0/). The Open Database License (ODbL) is a license agreement intended to allow users to freely share, modify, and use this Dataset while maintaining this same freedom for others, provided that the original source and author(s) are credited.
Shuji Li, Cheng Peng, Rong Yuan, Chengming Tian
Data type
docx
References
- Carbone I, Kohn LM. (1999) A method for designing primer sets for speciation studies in filamentous ascomycetes. Mycologia 91(3): 553–556. 10.1080/00275514.1999.12061051 [DOI] [Google Scholar]
- Chen K, Wu XQ, Huang MX, Han YY. (2014) First report of brown culm streak of Phyllostachyspraecox caused by Arthriniumarundinis in Nanjing, China. Plant Disease 98(9): е1274. 10.1094/PDIS-02-14-0165-PDN [DOI] [PubMed]
- Chen TZ, Zhang Y, Ming XB, Zhang Q, Long H, Hyde KD, Li Y, Wang Y. (2021) Morphological and phylogenetic resolution of Arthrinium from medicinal plants in Yunnan, including A.cordylines and A.pseudomarii spp. nov. Mycotaxon 136(1): 183–199. 10.5248/136.183 [DOI] [Google Scholar]
- Crous PW, Groenewald JZ. (2013) A phylogenetic re-evaluation of Arthrinium. IMA Fungus 4(1): 133–154. 10.5598/imafungus.2013.04.01.13 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Cubeta MA, Echandi E, Abernethy T, Vilgalys R. (1991) Characterization of anastomosis groups of binucleate Rhizoctonia species using restriction analysis of an amplified ribosomal RNA gene. Phytopathology 81(11): 1395–1400. 10.1094/Phyto-81-1395 [DOI] [Google Scholar]
- Dai DQ, Phookamsak R, Wijayawardene NN, Li WJ, Bhat DJ, Xu JC, Taylor JE, Hyde KD, Chukeatirote E. (2017) Bambusicolous fungi. Fungal Diversity 82(1): 1–105. 10.1007/s13225-016-0367-8 [DOI] [Google Scholar]
- Doyle JJ, Doyle JL. (1990) Isolation of plant DNA from fresh tissue. Focus 12: 39–40. [Google Scholar]
- Ellis MB. (1965) Dematiaceous Hyphomycetes. VI. Mycological Papers 103: 1–46. [Google Scholar]
- Feng Y, Liu JK, Lin CG, Chen YY, Xiang MM, Liu ZY. (2021) Additions to the genus Arthrinium (Apiosporaceae) from bamboos in China. Frontiers in Microbiology 12: e661281. 10.3389/fmicb.2021.661281 [DOI] [PMC free article] [PubMed]
- Glass NL, Donaldson GC. (1995) Development of primer sets designed for use with the PCR to amplify conserved genes from filamentous ascomycetes. Applied and Environmental Microbiology 61(4): 1323–1330. 10.1128/aem.61.4.1323-1330.1995 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Hawksworth DL, Crous PW, Redhead SA, Reynolds DR, Samson RA, Seifert KA, Taylor JW, Wingfield MJ, Abaci Ö, Aime C, Asan A, Bai F-Y, de Beer ZW, Begerow D, Berikten D, Boekhout T, Buchanan PK, Burgess T, Buzina W, Cai L, Cannon PF, Crane JL, Damm U, Daniel H-M, van Diepeningen AD, Druzhinina I, Dyer PS, Eberhardt U, Fell JW, Frisvad JC, Geiser DM, Geml J, Glienke C, Gräfenhan T, Groenewald JZ, Groenewald M, de Gruyter J, Guého-Kellermann E, Guo LD, Hibbett DS, Hong SB, de Hoog GS, Houbraken J, Huhndorf SM, Hyde KD, Ismail A, Johnston PR, Kadaifciler DG, Kirk PM, Kõljalg U, Kurtzman CP, Lagneau PE, Lévesque CA, Liu X, Lombard L, Meyer W, Miller A, Minter DW, Najafzadeh MJ, Norvell L, Ozerskaya SM, Öziç R, Pennycook SR, Peterson SW, Pettersson OV, Quaedvlieg W, Robert VA, Ruibal C, Schnürer J, Schroers HJ, Shivas R, Slippers B, Spierenburg H, Takashima M, Taşkoin E, Thines M, Thrane U, Uztan AH, van Raak M, Varga J, Vasco A, Verkley G, Videira SIR, de Vries RP, Weir BS, Yilmaz N, Yurkov A, Zhang N. (2011) The Amsterdam declaration on fungal nomenclature. IMA Fungus 2(1): 105–112. 10.5598/imafungus.2011.02.01.14 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Hidayat I, Meeboon J. (2014) Cercosporabrunfelsiicola (Fungi, Mycosphaerellaceae), a new tropical cercosporoid fungus on Brunfelsiauniflora. Reinwardtia 14(1): е211. 10.14203/reinwardtia.v14i1.417 [DOI]
- Hudson HJ. (1960) Pyrenomycetes of sugar cane and other grasses in Jamaica. I. Conidia of Apiosporacamptospora and Leptosphaeriasacchari. Transactions of the British Mycological Society 43(4): 607–616. 10.1016/S0007-1536(60)80051-4 [DOI] [Google Scholar]
- Hudson HJ. (1963) Pyrenomycetes of sugar cane and other grasses in Jamaica. II. Conidia of Apiosporamontagnei. Transactions of the British Mycological Society 46(1): 19–23. 10.1016/S0007-1536(63)80003-0 [DOI] [Google Scholar]
- Hudson HJ, McKenzie EHC, Tommerup IC. (1976) Conidial states of Apiospora Sacc. Transactions of the British Mycological Society 66(2): 359–362. 10.1016/S0007-1536(76)80075-7 [DOI] [Google Scholar]
- Hyde KD, Fröhlich J, Taylor JE. (1998) Fungi from palms. XXXVI. Reflections on unitunicate ascomycetes with apiospores. Sydowia 50: 21–80. [Google Scholar]
- Jiang N, Li J, Tian CM. (2018) Arthrinium species associated with bamboo and reed plants in China. Fungal Systematics and Evolution 13: 217–229. 10.3114/fuse.2018.02.01 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Jiang N, Liang YM, Tian CM. (2020) A novel bambusicolous fungus from China, Arthriniumchinense (Xylariales). Sydowia 72: 77–83. 10.12905/0380.sydowia72-2020-0077 [DOI] [Google Scholar]
- Jiang N, Fan XL, Tian CM. (2021) Identification and characterization of leaf-inhabiting fungi from Castaneaplantations in China. Journal of Fungi 7(1): 1–64. 10.3390/jof7010064 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Katoh K, Rozewicki J, Yamada KD. (2019) MAFFT online service: Multiple sequence alignment, interactive sequence choice and visualization. Briefings in Bioinformatics 20(4): 1160–1166. 10.1093/bib/bbx108 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Kumar S, Stecher G, Tamura K. (2016) MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for bigger datasets. Molecular Biology and Evolution 33(7): 1870–1874. 10.1093/molbev/msw054 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Kunze G. (1817) Zehn neue Pilzgattungen. Mykol (1): 1–18.
- Kwon SL, Park MS, Jang S, Lee YM, Heo YM, Hong JH, Lee H, Jang Y, Park JH, Kim C, Kim GH, Lim YW, Kim JJ. (2021) The genus Arthrinium (Ascomycota, Sordariomycetes, Apiosporaceae) from marine habitats from Korea, with eight new species. IMA Fungus 12(1): 1–13. 10.1186/s43008-021-00065-z [DOI] [PMC free article] [PubMed] [Google Scholar]
- Larrondo JV, Calvo MA. (1992) New contributions to the study of the genus Arthrinium. Mycologia 84(3): 475–478. 10.1080/00275514.1992.12026164 [DOI] [Google Scholar]
- Liao J, Jiang W, Wu X, He J, Li H, Wang T, Cheng L, Chen W, Mo L. (2022) First report of Apiospora mold on Sugarcane in China caused by Apiosporaarundinis (Arthriniumarundinis). Plant Disease 106(3): е1058. [Epub2022Feb16] 10.1094/PDIS-02-21-0386-PDN [DOI] [PubMed]
- Lin L, Pan M, Bezerra J, Tian CM, Fan XL. (2022) Re-evaluation of the fungal diversity and pathogenicity of Cytospora species from Populus in China. Plant Disease 107(1): 183–196. 10.1094/PDIS-02-22-0260-RE [DOI] [PubMed] [Google Scholar]
- Liu RY, Li DH, Zhang ZX, Liu SB, Liu XY, Wang YX, Zhao H, Liu XY, Zhang XG, Xia JW, Wang YJ. (2023) Morphological and phylogenetic analyses reveal two new species and a new record of Apiospora (Amphisphaeriales, Apiosporaceae) in China. MycoKeys 95: 27–45. 10.3897/mycokeys.95.96400 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Mapook A, Hyde KD, McKenzie EHC, Bhat DJ, Jeewon R, Stadler M, Samarakoon MC, Malaithong M, Tanunchai B, Buscot F, Wubet T, Purahong W. (2020) Taxonomic and phylogenetic contributions to fungi associated with the invasive weed Chromolaenaodorata (Siam weed). Fungal Diversity 101(1): 1–175. 10.1007/s13225-020-00444-8 [DOI] [Google Scholar]
- O’Donnell K, Kistler HC, Cigelnik E, Ploetz RC. (1998) Multiple evolutionary origins of the fungus causing panama disease of banana: Concordant evidence from nuclear and mitochondrial gene genealogies. Proceedings of the National Academy of Sciences of the United States of America 95(5): 2044–2049. 10.1073/pnas.95.5.2044 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Peng C, Crous PW, Jiang N, Fan XL, Liang YM, Tian CM. (2022) Diversity of Sporocadaceae (pestalotioid fungi) from Rosa in China. Persoonia – Molecular Phylogeny and Evolution of Fungi 49: 201–260. 10.3767/persoonia.2022.49.07 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Petrak F. (1925) Mykologische Notizen VIII. Annales Mycologici 23: 1–143. [Google Scholar]
- Pintos Á, Alvarado P. (2021) Phylogenetic delimitation of Apiospora and Arthrinium. Fungal Systematics and Evolution 7(1): 197–221. 10.3114/fuse.2021.07.10 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Pintos Á, Alvarado P. (2022) New studies on Apiospora (Amphisphaeriales, Apiosporaceae): Epitypification of Sphaeriaapiospora, proposal of Ap.marianiae sp. nov. and description of the asexual morph of Ap.sichuanensis. MycoKeys 92: 63–78. 10.3897/mycokeys.92.87593 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Pintos Á, Alvarado P, Planas J, Jarling R. (2019) Six new species of Arthrinium from Europe and notes about A.caricicola and other species found in Carex spp. hosts. MycoKeys 49: 15–48. 10.3897/mycokeys.49.32115 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Réblová M, Miller AN, Rossman AY, Seifert KA, Crous PW, Hawksworth DL, Abdel-Wahab MA, Cannon PF, Daranagama DA, Wilhelm De Beer Z, Huang SK, Hyde KD, Jayawardena R, Jaklitsch W, Gareth Jones EB, Ju YM, Judith C, Maharachchikumbura SSN, Pang KL, Petrini LE, Raja HA, Romero AI, Shearer C, Senanayake IC, Voglmayr H, Weir BS, Wijayawarden NN. (2016) Recommendations for competing sexual-asexually typified generic names in Sordariomycetes (except Diaporthales, Hypocreales, and Magnaporthales). IMA Fungus 7: 131–153. 10.5598/imafungus.2016.07.01.08 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Ronquist F, Teslenko M, van der Mark P, Ayres DL, Darling A, Hohna S, Larget B, Liu L, Suchard MA, Huelsenbeck JP. (2012) MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Systematic Biology 61(3): 539–542. 10.1093/sysbio/sys029 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Saccardo PA. (1875) Conspectus generum pyrenomycetum italicorum additis speciebus fungorum Venetorum novis vel criticis, systemate carpologico dispositorum. Atti della Società Veneto-Trentina di Scienze Naturali 4: 77–100. [Google Scholar]
- Samuels G, McKenzie E, Buchanan DE. (1981) Ascomycetes of New Zealand 3. Two new species of Apiospora and their Arthriniumanamorphs on bamboo. New Zealand Journal of Botany 19(2): 137–149. 10.1080/0028825X.1981.10425113 [DOI] [Google Scholar]
- Samarakoon MC, Hyde KD, Maharachchikumbura SSN, Stadler M, Jones EBG, Promputtha I, Suwannarach N, Camporesi E, Bulgakov TS, Liu JK. (2022) Taxonomy, phylogeny, molecular dating and ancestral state reconstruction of Xylariomycetidae (Sordariomycetes). Fungal Diversity 112(1): 1–88. 10.1007/s13225-021-00495-5 [DOI] [Google Scholar]
- Senanayake IC, Bhat JD, Cheewangkoon R, Xie N. (2020) Bambusicolous Arthrinium species in Guangdong province, China. Frontiers in Microbiology 11: е602773. 10.3389/fmicb.2020.602773 [DOI] [PMC free article] [PubMed]
- Senanayake IC, Rossi W, Leonardi M, Weir A, McHugh M, Rajeshkumar KC, Verma RK, Karunarathna SC, Tibpromma S, Ashtekar N, Ashtamoorthy KS, Raveendran S, Kour G, Singh A, De la Peña-Lastra S, Mateos A, Kolařík M, Antonín V, Ševčíková H, Esteve-Raventós F, Larsson E, Pancorbo F, Moreno G, Altés A, Turégano Y, Du TY, Lu L, Li QR, Kang JC, Gunaseelan S, Kezo K, Kaliyaperumal M, Fu J, Samarakoon MC, Gafforov Y, Teshaboeva S, Kunjan PC, Chamaparambath A, Flakus A, Etayo J, Rodriguez-Flakus P, Zhurbenko MP, de Silva NI, Tennakoon DS, Latha KPD, Manimohan P, Raj KNA, Calabon MS, Ahmadpour A, Heidarian Z, Alavi Z, Alavi F, Ghosta Y, Azizi R, Luo M, Zhao MP, Kularathnage ND, Hua L, Yang YH, Liao CF, Zhao HJ, Lestari AS, Jayasiri SC, Yu FM, Lei L, Liu JW, Karimi O, Tang SM, Sun YR, Wang Y, Zeng M, Htet ZH, Linaldeddu BT, Alves A, Phillips AJL, Bregant C, Montecchio L, Kesel AD, Hustad VP, Miller AN, Fedosova AG, Kučera V, Raza M, Hussain M, Chen YP, Thiyagaraja V, Gomdola D, Rathnayaka AR, Dissanayake AJ, Suwannarach N, Hongsanan S, Maharachchikumbura SSN, Dissanayake LS, Wijayawardene NN, Phookamsak R, Lumyong S, Jones EBG, Yapa PN, Wanasinghe DN, Xie N, Doilom M, Manawasinghe IS, Liu JK, Zhao Q, Xu B, Hyde KD, Song J. (2023) [in press] Fungal diversity notes 1611–1716: Taxonomic and phylogenetic contributions on fungal genera and species emphasis in south China. Fungal Diversity.
- Sharma R, Kulkarni G, Sonawane MS, Shouche YS. (2014) A new endophytic species of Arthrinium (Apiosporaceae) from Jatrophapodagrica. Mycoscience 55(2): 118–123. 10.1016/j.myc.2013.06.004 [DOI] [Google Scholar]
- Stamatakis A. (2014) RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 30(9): 1312–1313. 10.1093/bioinformatics/btu033 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Venkatasubbaiah P, Grand LF, Gerald C. (1991) A new species of Pestalotiopsis on Oenothera. Mycologia 83(4): 511–513. 10.1080/00275514.1991.12026042 [DOI] [Google Scholar]
- von Höhnel F. (1919) Fragmente zur Mykologie. XXII Mitteilungen, nr. 1092 bis 1153. Sitzungsberichte der Akademie der Wissenschaften in Wien 127(8–9): 549–634. [Google Scholar]
- Wang M, Liu F, Crous PW, Cai L. (2017) Phylogenetic reassessment of Nigrospora: Ubiquitous endophytes, plant and human pathogens. Persoonia 39(1): 118–142. 10.3767/persoonia.2017.39.06 [DOI] [PMC free article] [PubMed] [Google Scholar]
- Wang M, Tan XM, Liu F, Cai L. (2018) Eight new Arthrinium species from China. MycoKeys 1: 1–24. 10.3897/mycokeys.39.27014 [DOI] [PMC free article] [PubMed] [Google Scholar]
- White TJ, Bruns T, Lee S, Taylor J. (1990) Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. PCR Protocols: A Guide to Methods and Applications 18: 315–322. 10.1016/B978-0-12-372180-8.50042-1 [DOI] [Google Scholar]
- Yang CL, Xu XL, Dong W, Wanasinghe DN, Liu YG, Hyde KD. (2019) Introducing Arthriniumphyllostachium sp. nov. (Apiosporaceae, Xylariales) on Phyllostachysheteroclada from Sichuan province, China. Phytotaxa 406(2): 91–110. 10.11646/phytotaxa.406.2.2 [DOI] [Google Scholar]
- Zhao YZ, Zhang ZF, Cai L, Peng WJ, Liu F. (2018) Four new filamentous fungal species from newly-collected and hive-stored bee pollen. Mycosphere: Journal of Fungal Biology 9(6): 1089–1116. 10.5943/mycosphere/9/6/3 [DOI] [Google Scholar]
Associated Data
This section collects any data citations, data availability statements, or supplementary materials included in this article.
Supplementary Materials
Isolates and GenBank accession numbers used in the phylogenetic analyses
This dataset is made available under the Open Database License (http://opendatacommons.org/licenses/odbl/1.0/). The Open Database License (ODbL) is a license agreement intended to allow users to freely share, modify, and use this Dataset while maintaining this same freedom for others, provided that the original source and author(s) are credited.
Shuji Li, Cheng Peng, Rong Yuan, Chengming Tian
Data type
docx
Data Availability Statement
All of the data that support the findings of this study are available in the main text or Supplementary Information.
