Towards a Biocatalyst for (S)-Styrene Oxide Production: Characterization of the Styrene Degradation Pathway of Pseudomonas sp. Strain VLB120

Sven Panke; Bernard Witholt; Andreas Schmid; Marcel G Wubbolts

doi:10.1128/aem.64.6.2032-2043.1998

. 1998 Jun;64(6):2032–2043. doi: 10.1128/aem.64.6.2032-2043.1998

Towards a Biocatalyst for (S)-Styrene Oxide Production: Characterization of the Styrene Degradation Pathway of Pseudomonas sp. Strain VLB120

Sven Panke ¹, Bernard Witholt ^1,^*, Andreas Schmid ¹, Marcel G Wubbolts ^1,^†

PMCID: PMC106275 PMID: 9603811

Abstract

In order to design a biocatalyst for the production of optically pure styrene oxide, an important building block in organic synthesis, the metabolic pathway and molecular biology of styrene degradation in Pseudomonas sp. strain VLB120 was investigated. A 5.7-kb XhoI fragment, which contained on the same strand of DNA six genes involved in styrene degradation, was isolated from a gene library of this organism in Escherichia coli by screening for indigo formation. T7 RNA polymerase expression experiments indicated that this fragment coded for at least five complete polypeptides, StyRABCD, corresponding to five of the six genes. The first two genes encoded the potential carboxy-terminal part of a sensor, named StySc, and the complete response regulator StyR. Fusion of the putative styAp promoter to a lacZ reporter indicated that StySc and StyR together regulate expression of the structural genes at the transcriptional level. Expression of styScR also alleviated a block that prevented translation of styA mRNA when a heterologous promoter was used. The structural genes styA and styB produced a styrene monooxygenase that converted styrene to styrene oxide, which was then converted to phenylacetaldehyde by StyC. Sequence homology analysis of StyD indicated a probable function as a phenylacetaldehyde dehydrogenase. To assess the usefulness of the enzymes for the production of enantiomerically pure styrene oxide, we investigated the enantiospecificities of the reactions involved. Kinetic resolution of racemic styrene oxide by styrene oxide isomerase was studied with E. coli recombinants carrying styC, which converted styrene oxide at a very high rate but with only a slight preference for the S enantiomer. However, recombinants producing styrene monooxygenase catalyzed the formation of (S)-styrene oxide from inexpensive styrene with an excellent enantiomeric excess of more than 99% at rates up to 180 U g (dry weight) of cells⁻¹.

Styrene degradation in microbial systems is of considerable interest for two reasons. As an important monomer in the manufacturing of polymers, styrene frequently enters our natural environment. Styrene itself is toxic to living systems in fairly low amounts mainly due to membrane-related effects (5). In addition, the immediate degradation product of styrene in human liver, styrene oxide, is a known carcinogen (15). Furthermore, styrene possesses malodorous properties when present in amounts less than 1 ppm (22). All of this makes efficient removal of styrene from the environment highly desirable, and microorganisms have been found to play a key role in this process (16).

Secondly, reactions typically involved in styrene degradation possess significant potential in synthetic organic chemistry. Rhodococcus rhodochrous NCIMB 13259 was shown to degrade styrene via a dioxygenase attack on the aromatic ring, leading to 3-vinylcatechol after rearomatization (54). 3-Vinyl-1,2-cis-dihydroxycyclohexa-3,5-diene, the transformation product of the dioxygenase reaction, served as the starting point for an enantioselective organic synthesis of (−)-Zeylena, exemplifying a route to cyclohexene oxides with antitumor potential (26). A variety of bacteria from the genus Pseudomonas (22, 30, 38, 54) have been shown to transform styrene through an attack on the vinylic side chain to styrene oxide and subsequently to phenylacetaldehyde. From a biotechnological point of view, this pathway contains at least two potentially useful reactions for the formation of enantiopure styrene oxide, which is known as a valuable building block in the manufacturing of optically active compounds such as pharmaceuticals (17). These reactions could be either the enantiospecific formation of styrene oxide and/or the kinetic resolution of racemic styrene oxide. The enantioselective oxidation of styrene has been observed in a chemical mutant of the styrene degrader Pseudomonas putida S12 (37), for which no genetic data are available, leading to an enantiomeric excess (e.e.) of more than 98%. Resolution could in theory be catalyzed by styrene oxide hydrolases or styrene oxide isomerases. The latter reaction has been found in bacteria, where styrene oxide is converted to phenylacetaldehyde, but the enantioselectivity of the reaction has not been reported (4) or was low (37). The former reaction has been described for bacterial and fungal enzymes, which enantioselectively hydrolyze one enantiomer of racemic styrene oxide and produce an optically active vicinal diol, while the other styrene oxide enantiomer is left behind (42, 48). Until recently, Pseudomonas fluorescens ST has been the only microorganism in which the genes and enzymes that affect styrene degradation have been investigated in more detail (4). In another study, regulatory and structural genes involved in styrene degradation in Pseudomonas sp. strain Y2 have been analyzed and found to be very similar to the P. fluorescens ST genes (51). Up to now, no data on the enantiospecificities of any of the reactions have been published. Obviously, the concomitant presence of enzymes that produce and consume styrene oxide in one host limits the biotechnological potential. Therefore, we used recombinant strains of Escherichia coli producing exclusively either styrene monooxygenase or styrene oxide isomerase. The genes and biotechnological potential of the cognate enzymes involved in styrene degradation in Pseudomonas sp. strain VLB120 were identified, and this knowledge was exploited to design recombinant biocatalysts suited to the production of (S)-styrene oxide at high e.e.

MATERIALS AND METHODS

Media, chemicals, strains, and plasmids.

We used routinely Luria-Bertani (LB) broth (Difco, Detroit, Mich.) or M9 mineral medium (46) supplemented with MT trace element solution (43). When necessary, cultures were supplemented with kanamycin (final concentration, 50 mg/liter), ampicillin (150 mg/liter), chloramphenicol (30 mg/liter), or 1 mM indole. IPTG (isopropyl-β-d-1-thiogalactopyranoside) was added to a final concentration of 0.5 mM to liquid cultures except where otherwise indicated. Cells were routinely grown on horizontal shakers at 200 rpm and 30 or 37°C. Strains and plasmids used in this study are listed in Table 1. Restriction and DNA modification enzymes were obtained from Boehringer Mannheim (Rotkreuz, Switzerland), NEB (Schwalbach, Germany), Gibco (Basel, Switzerland), or Promega (Zurich, Switzerland). Chemicals were obtained from Fluka (Buchs, Switzerland) (styrene, >99%; styrene oxide, >97%; phenylacetic acid, >99%) and Sigma (Buchs, Switzerland) (phenylacetaldehyde, >90%).

TABLE 1.

Bacterial strains and plasmids

Strain or plasmid	Characteristics^a	Source or reference
Strains
Pseudomonas sp.
VLB120	Wild-type Pseudomonas; styrene prototroph	K.-H. Engesser
E. coli
DH10B	F⁻mcrA Δ(mrr hsdRMS-mcrBC) φ80dlacZΔM15 ΔlacX74 deoR recA1 araΔ139 Δ(ara leu)7697 galU galK λ⁻ rpsL endA nupG	Gibco BRL
JM101	supE thi-1 Δ(lac-proAB) F′[traD36 proAB⁺lacI^qlacZΔM15]	46
BL21(DE3)	hsdS gal λcI857(Ts) ind1 S7 (Am) nin5 lacUV5-T7 gene 1	50
CC118	Δ(ara-leu) araD ΔlacX74 galE galK phoA20 thi-1 rpsE rpoB argE(Am) recA1	29
Plasmids
pZero2.1	lacZα-ccdB; cloning vector; Km^r	Invitrogen
pUC18Not	lacZα; cloning vector; Ap^r	24
pUJ9	lacZ; Ap^r	11
pUC18Not/T7*	pUC18Not with T7 promoter and lacZp in tandem; Ap^r	25
pVLT33	E. coli/Pseudomonas shuttle vector; lacI^qoriT RSF1010 oriV; Km^r	10
pCKO1	lacZα; pSC101 oriV; Cm^r	14
pBG63	pGEM7Zf(+) (Promega) derivative; lacZp xylMA; Ap^r	58
pPT7T	pUC18Not/T7* with T7 terminator in the HindIII site; Ap^r	This work
pSPW1	pZero2.1 carrying a 5.7-kb genomic DNA fragment of Pseudomonas sp. strain VLB120; lacZp styScRABCD; Km^r	This work
pSPW2	lacZp styABCD; deletion derivative of pSPW1; Km^r	This work
pSPW3	lacZp styBCD; deletion derivative of pSPW1; Km^r	This work
pSPW4	lacZp styScRABC; deletion derivative of pSPW1; Km^r	This work
pSPW5	lacZp styScRAB; deletion derivative of pSPW1; Km^r	This work
pSPW6	lacZp styScRA; deletion derivative of pSPW1; Km^r	This work
pSPW7	lacZp styCD; deletion derivative of pSPW1; Km^r	This work
p3His	pZero2.1; styScRA-H₆; Km^r	This work
pSTFull	lacZp styAB; with 163 bp of styRA intergenic region; pUC18Not derivative; Ap^r	This work
pSTHalf	lacZp styAB; with 77 bp of styRA intergenic region; pUC18Not derivative; Ap^r	This work
pT7ST-Sc	lacZp T7p stySc; pPT7T derivative; Ap^r	This work
pT7ST-R	lacZp T7p styR; pPT7T derivative; Ap^r	This work
pT7ST-A	lacZp T7p styA; pPT7T derivative; Ap^r	This work
pT7ST-B	lacZp T7p styB; pPT7T derivative; Ap^r	This work
pT7ST-C	lacZp T7p styC; pPT7T derivative; Ap^r	This work
pT7ST-D	lacZp T7p styD; pPT7T derivative; Ap^r	This work
pT7ST-ScD	lacZp T7p styScRABCD; pPT7T derivative; Ap^r	This work
pT7ST-AD	lacZp T7p styABCD; pPT7T derivative; Ap^r	This work
pT7ST-ADm	lacZp T7p styABCD*; pPT7T derivative; Ap^r	This work
pT7ST-ABm	lacZp T7p styAB*; pPT7T derivative; Ap^r	This work
pT7ST-Am	lacZp T7p styA*; pPT7T derivative; Ap^r	This work
pCKST-ABm	lacZp styAB*; pCKO1 derivative; Cm^r	This work
pCKST-B	lacZp styB; pCKO1 derivative; Cm^r	This work
pCKST-ScR	lacZp styScR; pCKO1 derivative; Cm^r	This work
pCKST-Sc	lacZp stySc; pCKO1 derivative; Cm^r	This work
pSPW20	styAp fused to lacZ of pUJ9; Ap^r	This work
pVLST-R	tac styR; pVLT33 derivative; Km^r	This work

Open in a new tab

H₆ denotes a gene that has been extended by six histidine codons at the 3′ end. T7p is the T7 RNA polymerase gene promoter. The asterisk indicates that the translation initiation signals of the gene have been modified.

Isolation and identification of Pseudomonas sp. strain VLB120.

Pseudomonas sp. strain VLB120 was isolated in the area of Stuttgart, Germany, from forest ground with styrene as the sole substrate. Details on its isolation and physiology will be published elsewhere. Sequencing of the first 470 nucleotides of the 5′ end of the 16S rRNA revealed that Pseudomonas sp. strain VLB120 is a member of the genus Pseudomonas but does not belong to any of the previously described species. It is most closely related to P. alcaligenes (LMG 1224-T), P. pseudoalcaligenes (LMG 1225-T and DSM 50188-T), P. oleovorans (DSM 1045-T), and P. aureofaciens (LMG 1245-T). All of these strains have a 16S rRNA sequence identity of 98.7% to Pseudomonas sp. strain VLB120.

Growth and maintenance of Pseudomonas sp. strain VLB120.

Cells were routinely transferred once per month between M9 and MT mineral medium plates. The plates were stored in an atmosphere saturated with styrene at room temperature. All Pseudomonas sp. strain VLB120 cultures were started from such plates. Cells were inoculated into tubes with M9 mineral medium, and styrene was added to a final concentration of 1.7 mM with only the volume of the liquid phase taken into account. From these tubes, larger cultures were started with the same concentration of styrene. Where necessary, the addition of styrene was repeated after 12 h to increase biomass concentration. To test the growth of Pseudomonas sp. strain VLB120 on different substrates, cells were streaked onto M9 mineral medium plates and these were incubated at room temperature in an atmosphere saturated with the respective substrate. Phenylacetic acid was added to the plate to 0.1% (wt/vol).

Construction of a genomic library of Pseudomonas sp. strain VLB120 in E. coli DH10B.

Genomic DNA of Pseudomonas sp. strain VLB120 was prepared from styrene-grown cells by using the Qiagen kit for isolation of genomic DNA (Qiagen, Basel, Switzerland). This preparation was digested with one of the following restriction enzymes: SalI, EcoRI, HindIII, BamHI, XhoI, and KpnI. One microgram of digested DNA was ligated to 50 ng of accordingly digested vector pZero2.1 (Invitrogen, Leek, The Netherlands) (the SalI digest was ligated into the XhoI site of the vector) in 0.5× KGB buffer (50 mM potassium glutamate, 12.5 mM Tris-acetate [pH 7.5], 5 mM magnesium acetate, 25 μg of bovine serum albumin per ml, 0.25 mM β-mercaptoethanol) (46) supplemented with 1 mM ATP at 6°C for 24 h. The ligation mixtures were used to transform E. coli DH10B cells made competent by rubidium chloride (46). Cells were plated on LB medium supplemented with kanamycin and indole and incubated at 30°C.

DNA sequencing.

The DNA sequence of a 5.7-kb XhoI genomic fragment of Pseudomonas sp. strain VLB120 was determined from deletion clones of pSPW1 or from subclones in pUC18Not by using fluorescently labeled −40 forward and reverse primers (MWG Biotech, Ebersberg, Germany) and a Sequenase kit with 7-deaza-dGTP (Amersham, Zurich, Switzerland), according to a cycle-sequencing protocol. The reaction mixes were separated and analyzed on a LICOR sequencer with BaseImagIR version 2.3 software (MWG Biotech). Subsequent data analysis was performed with the DNAstar software package (DNAstar, Madison, Wisconsin), the BlastP algorithm (1) of the GenBank database at the National Center for Biotechnology Information (http://www.ncbi.nlm.nih.gov/), and the FOLD program of the Genetics Computer Group (GCG) software package for mRNA analysis (GCG, Madison, Wisconsin).

DNA manipulation and constructs.

Plasmids for deletion analysis of sty genes were obtained from pSPW1 by digestion with the enzymes indicated in Fig. 1C and by religation. For efficient labeling of translation products, the T7 terminator of pUJ9 was introduced as a 0.4-kb HindIII fragment into the HindIII site of pUC18Not/T7* to yield pPT7T. This plasmid possesses two promoters in tandem (lacZp and the T7 promoter) pointing towards the polylinker of pUC18Not. Either the whole XhoI fragment or isolated parts of it, as indicated in Fig. 1D, were inserted into the polylinker of pPT7T.

Plasmid p3His contains a modified styA gene with six histidine codons added to its 3′ end. To achieve this, PCR was performed with pSPW1 as the template (primer P1, 5′ CCAGGGGCGGCAAGTTCTGCTACGAC 3′; primer P2, 5′ CGCGCGTCTAGATTAGTGATGGTGATGGTGATGGGCCGCGATAGTGGGTGCGAACTGACTGCAC 3′). P1 annealed upstream of the BglII site internal to styA. Sequences identical to pSPW1 DNA are underlined. P2 annealed at the end of styA and introduced six histidine codons (shown in boldface type) before the stop codon of styA and a new XbaI site (in italics) after the stop codon. In the PCR, annealing took place at 57°C for 90 s, extension took place for 1 min at 72°C, and denaturation took place for 45 s at 94°C (for annealing sites, see also Fig. 1B). Plasmid pSPW1 was then digested with BglII and XbaI, eliminating styABCD but retaining stySc (which encodes the potential carboxy-terminal part of a sensor, StySc) and most of styR, and ligated to the amplified fragment digested with the same enzymes. This led to a construct that lacked the 0.6-kb BglII fragment containing the start of styA. Introduction of this fragment in the right orientation led to p3His.

Plasmid pT7ST-ADm contains styA*, that is, styA with its upstream sequences replaced by a sequence containing a new Shine-Dalgarno (SD) sequence. To construct this plasmid, a second PCR was performed with pSPW1 as the template (primer P3, 5′ CCCACGAATTCTAAAAGGAGGAACATATGAAAAAGCGTATCGGTATTGTTGGTGC 3′; primer P4, 5′ CCAGTGCACACAACCAGCAGATCGTAC 3′). P3 annealed at the ATG codon of styA and introduced a new SD sequence (in boldface) and new EcoRI and NdeI sites (in italics). P4 was identical to pSPW1-DNA and primed downstream of the BglII site in styA. A 450-bp fragment was amplified (with annealing for 1 min at 55°C and extension and denaturation as described above), digested with EcoRI and BglII, and ligated into plasmid pT7ST-AD (see Fig. 1D), which had been digested with the same enzymes. The resulting construct was pT7ST-ADm. The open reading frame (ORF) with the altered ribosome binding site was called ORF 3*. pT7ST-ADm served as the source of styA* in various constructs. From this plasmid, styA* and styB were excised as a 2.0-kb EcoRI/SmaI fragment and inserted into pPT7T to yield pT7ST-ABm or into pCKO1 to yield pCKST-ABm. Plasmid pT7ST-Am consists of styA* as a 1.6-kb EcoRI/PstI fragment from pT7ST-ABm inserted into pPT7T. For construction of pCKST-B, the 0.8 kb EcoRI/HindIII fragment with styB from pT7ST-B (see Fig. 1D) was inserted into pCKO1.

To study the regulation of styrene degradation, the 1.9-kb EcoRI/SnaBI fragment of pSPW1 containing styScR was introduced into the EcoRI- and HincII-digested vector pCKO1 to yield pCKST-ScR. Plasmid pCKST-Sc, containing only stySc, was constructed by introducing the 0.9-kb EcoRI/SalI fragment of pSPW1 into pCKO1. Transfer of the 2.0-kb FspI fragment of pSPW1 containing only styR into the HincII site of the polylinker of pVLT33 led to pVLST-R. To obtain pSPW20, containing a translational fusion of the 5′ part of styA to lacZ, pUJ9 was digested with SmaI and ligated to the 0.7-kb HincII fragment of pSPW1 containing the putative promoter region. Furthermore, the 2.2-kb SacI/SmaI fragment of pSPW1 containing styAB was ligated into SacI- and SmaI-digested pUC18Not, leading to pSTFull. Partial digestion of pSTFull with NcoI and EcoRI, treatment with T4 polymerase, and religation yielded pSTHalf, which is similar to pSTFull but has lost the 5′-terminal 86 bp of the insert.

[³⁵S]methionine labeling of translation products.

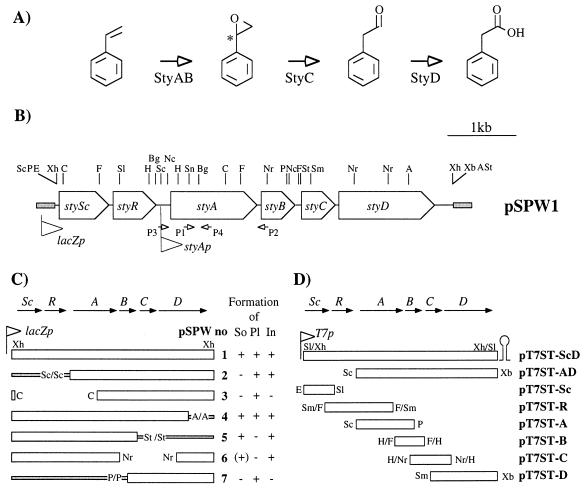

Plasmids carrying genes under control of the T7 promoter (Fig. 1D) were introduced into E. coli BL21(DE3) together with plasmid pVLT33, which provided a lacI^q gene to prevent early expression of the T7 RNA polymerase gene of E. coli BL21(DE3). Cells from an overnight culture were transferred to fresh LB medium supplemented with antibiotics and grown at 30°C to an optical density at 600 nm of 0.8. A volume of 2 ml of the culture was centrifuged, and cells were washed in 1.5 ml of M9 medium and resuspended in 1 ml of the same medium supplemented with 0.2% glucose and 0.02% methionine assay medium (Difco). The cells were incubated for 60 min at 30°C, IPTG was added to 0.6 mM, and the cultures continued to grow for 60 min at 30°C. Subsequently, rifampin was added to 600 mg/liter and the cultures were transferred to 42°C for 45 min and then to 30°C for 30 min. Afterwards, cells were incubated for 5 min with 10 μCi of [³⁵S]methionine (Hartmann Analytic, Braunschweig, Germany), collected by centrifugation, washed, and resuspended in sample buffer (150 mM Tris [pH 6.8], 3.5% sodium dodecyl sulfate [SDS], 25% glycerol, 0.06% bromphenol blue, 0.12% β-mercaptoethanol). After being heated to 95°C, proteins were separated on an SDS–12% polyacrylamide gel which was subsequently fixed in 25% isopropanol–10% acetic acid–65% water, stained for 10 min with Coomassie brilliant blue (Bio-Rad, Glattbrugg, Switzerland), and destained (46), dried, and analyzed by exposing X-ray film to it.

Detection of metabolites and determination of enzyme activities in whole-cell assays.

For β-galactosidase assays, E. coli CC118 was transformed with the plasmids under study. Whole-cell assays for investigating biotransformations were carried out with E. coli JM101. Recombinant strains containing the plasmids under study were incubated in 50 or 100 ml of medium in the presence of the respective antibiotics. At an optical density at 450 nm of 0.3 to 0.4, cells were induced by the addition of IPTG and the incubation was continued for 4 h, during which the cells entered stationary phase. Cells were then either subjected to a β-galactosidase assay, as described elsewhere (34), or used for determination of specific activities. In the latter case, cells were harvested and resuspended to a certain cell dry weight (CDW) in 100 mM potassium phosphate buffer, pH 7.4, containing 1% (wt/vol) glucose. Aliquots of 1 ml were distributed in Pyrex tubes and incubated horizontally on a rotary shaker at 200 rpm. After 3 min, substrate was added to a final concentration of 1.5 mM from a 20-fold stock solution in ethanol. The reaction continued for 5 min in the shaker and was then stopped by incubating the sample on ice and by immediately adding 1 ml of ice-cold ether containing 0.1 mM 1-dodecanol as an internal standard. After addition of saturating amounts of sodium chloride, the water phase was extracted by vigorous shaking for 5 min at 30°C and the phases were separated by centrifugation. The organic phase was dried over anhydrous sodium sulfate and analyzed by gas chromatography.

For separation of the compounds, we used a Chrompack Cp-Sil5CB column (Chrompack, Bergen op Zoom, The Netherlands) with splitless injection and a temperature profile from 40 to 140°C at 10°C min⁻¹ with hydrogen as the carrier gas. Alternatively, a Supelco Beta-DEX 120 column (fused silica capillary column, 30 m, 0.25-mm inner diameter, 0.25-μm film thickness; Supelco, Buchs, Switzerland) was used with split injection (20:1) and an isothermal oven temperature profile at 90°C for separation of styrene oxide enantiomers. Compounds were detected by a flame ionization detector. We usually had recoveries above 80% with respect to the amount of substrate added with this protocol. Substances were identified by retention times with commercially available standards or, in the case of 2-phenylethanol, via gas chromatography-mass spectrometry (results not shown). As a rule, 2.5 g of CDW per liter were applied in an assay. The amount of cells was reduced to 1 g/liter when specific activity for styrene oxide formation exceeded 80 U/g of CDW or 0.028 g/liter and fractions thereof for the determination of specific activities of styrene oxide isomerase.

One unit is defined as the activity that produces 1 μmol of a product from a given substrate in 1 min. Specific activity was calculated as an average activity based on the amount of product formed in a given, constant time per unit, with an awareness of the possibility that the substrate conversion is not linear in time during the assay period. Experiments were repeated at least three times independently.

Determination of e.e. and enantiomeric ratio.

The e.e. was determined from the concentrations of the styrene oxide stereoisomers according to the following equation: e.e. = |(S − R)|/(S + R), with S and R representing the concentrations of the two stereoisomers. To calculate the selectivity of the isomerase reaction, the extent of phenylacetaldehyde formation from racemic styrene oxide was determined and corrected for formation of phenylacetaldehyde due to the injector temperature. Where necessary, the assay time was shortened to ensure that at least 30% of the starting material was left. Under the assumption of treating an irreversible reaction, the enantiomeric ratio, E, for the kinetic resolution of racemic styrene oxide was derived from the e.e. of the remaining substrate and the extent of conversion, as described elsewhere (6).

N-terminal sequencing of StyA.

A hexahistidine affinity tag (H₆) was added to the C terminus of StyA to allow preparation of a protein fraction enriched in a modified StyA-H₆. E. coli JM101(p3His) was grown and induced as described for whole-cell assays, harvested by centrifugation, and treated according to the protocol for nondenaturing isolation of hexahistidine-tagged proteins on nickel-nitrilotriacetic acid spin columns (Qiagen). In short, proteins were loaded onto a Ni-affinity column in the presence of 20 mM imidazole to prevent unspecific binding and eluted with 250 mM imidazole. This protocol yielded a fraction which contained approximately 90% StyA-H₆. Separation of proteins in the resulting enriched fraction by SDS-polyacrylamide gel electrophoresis (PAGE) and transfer of the proteins to polyvinylidene difluoride membranes was performed as described previously (31). The N-terminal amino acid sequence of StyA-H₆ was determined on an Applied Biosystems automatic protein sequencer by automated Edman degradation.

Nucleotide sequence accession number.

DNA sequences were deposited into publicly accessible databases (the 5.7-kb XhoI fragment was assigned GenBank accession no. AF031161; the 16S rRNA sequence was assigned EMBL accession no. AF224883).

RESULTS

Growth of Pseudomonas sp. strain VLB120 on different substrates.

Pseudomonas sp. strain VLB120 was able to use styrene, styrene oxide, phenylacetaldehyde, and phenylacetic acid as growth substrates when plated on M9 mineral medium. The strain did not grow on toluene, benzene, ethylbenzene, 1-phenylethanol, 2-phenylethanol, or 1,2-phenylethanediol. This growth substrate profile strongly suggests that epoxidation of the vinylic side chain was the first step in styrene degradation.

Selection of clones carrying styrene degradation genes from an E. coli gene library.

It is well documented that some mono- and dioxygenases can convert indole in E. coli to indoxyl with subsequent spontaneous formation of indigo (13, 33, 39). Xylene oxygenase from the TOL plasmid is a monooxygenase that catalyzes the oxidation of toluene to benzylalcohol (20). In addition, it oxidizes styrene to styrene oxide (59) and initiates indigo formation in E. coli probably by converting indole to indoxyl (33). In analogy to this, we reasoned that E. coli clones carrying styrene oxidation genes from Pseudomonas sp. strain VLB120 might be able to produce indigo and turn blue when grown on LB medium plates containing indole. Of the six different genomic libraries of Pseudomonas sp. strain VLB120 that we prepared in E. coli DH10B, three yielded blue colonies on LB medium-indole plates after 2 days of incubation (XhoI, BamHI, and KpnI gene libraries). Of these, the library based on XhoI fragments yielded one blue colony per approximately 500 transformants. Plasmid DNA was isolated, and 85% of the 48 colonies contained a 5.7-kb insert in pZero2.1, in the majority of cases together with one of a variety of second inserts. Of the plasmids isolated from these transformants, four conveyed the ability to convert styrene to phenylacetaldehyde to E. coli DHB10 grown in liquid culture with or without induction by IPTG. They all harbored only the 5.7-kb XhoI fragment. One such plasmid was named pSPW1 and served as the basis for further studies. Transformants from the BamHI and the KpnI libraries did not yield clones that showed the desired transformation ability, nor did the restriction patterns of plasmids from such clones match the 5.7-kb XhoI fragment.

Sequence of the 5.7-kb XhoI fragment.

The sequence of both DNA strands was determined. Computer analysis of the sequence revealed six ORFs (ORFs 1 to 6) in the same direction as the lacZp promoter (Fig. 1B). ORF 1 did not possess a SD sequence similar to the known consensus sequence (47). For ORF 6, we reasoned that the translational start with the best SD sequence was most likely the actual translation start (AAGGAGN₇ATG). The properties of the ORFs and their predicted gene products are listed in Table 2. We compared the deduced amino acid sequences of the first two ORFs to entries in the GenBank database by using the BlastP algorithm (1), and homologs with more than 20% sequence identity are listed in Table 3. Homologs to proteins encoded by ORFs 3 to 6 have been discussed elsewhere (see Discussion) (4).

TABLE 2.

Properties of ORFs and their predicted gene products

ORF	Position^a	Potential SD sequence	Size (no. of amino acids)	Predicted molecular wt	Apparent molecular mass (kDa)^b	Protein
1	47–778		244	27,030		StySc
2	842–1465	AAGGAG	208	23,245	27	StyR
3	1646–2893	AAGGTA	416	46,351	47	StyA
4	2948–3460	GGTGGA	171	18,364	19	StyB
5	3530–4039	AAGAGG	170	18,050	18	StyC
6	4054–5544	AAGGAG	497	52,658	55	StyD

Open in a new tab

Relative to the start of the 5.7-kb XhoI fragment.

As deduced from T7 expression studies (see text).

TABLE 3.

Homologs of sty gene-encoded proteins^a

ORF	Homolog	Organism	Function	Sequence identity (%)	Reference
1	TutC	Thauera sp. strain T1	His kinase	42.6^b	7
	NwsA	Bradyrhizobium japonicum	His kinase	41.4^b	19
	NodV	B. japonicum	His kinase	40.2^b	18
	TodS	P. putida F1	His kinase	36.9^b	27
	FixL	B. japonicum	His kinase	33.2^b	3
2	TutB	Thauera sp. strain T1	Transcriptional regulator	52.4	7
	NodW	B. japonicum	Transcriptional regulator	49.0	18
	NwsB	B. japonicum	Transcriptional regulator	46.2	19
	TodT	P. putida F1	Transcriptional regulator	45.7	27
	FixJ	B. japonicum	Transcriptional regulator	41.0	3

Open in a new tab

In the cases of both ORF 1 and ORF 2, many homologs with more than 20% sequence identity were found; only the top five are shown.

Sequence identity was calculated only for the C-terminal part of the listed protein, to correspond to StySc (see text).

Radioactive labeling of proteins encoded on the 5.7-kb XhoI fragment.

DNA fragments covering either the complete XhoI fragment or the single predicted ORFs were placed under the control of a T7 RNA polymerase-driven promoter (Fig. 1D). [³⁵S]methionine labeling of translation products showed that at least five proteins were encoded on the XhoI fragment (Fig. 2). The vector-only control indicated that transcription termination by the T7 terminator was not complete (Fig. 2, lane 1), since three bands were detected. As the bla gene encoding β-lactamase in pPT7T is transcribed from the same strand of DNA as the insert under study, it is likely that these bands correspond to the complete bla gene transcript at 31.6 kDa, the mature β-lactamase immediately under it, and a putative degradation product at approximately 27 kDa. An identical pattern of bands derived from the β-lactamase primary transcript has been found elsewhere (12). While a plasmid carrying ORF 1 did not yield an identifiable product other than that encoded by the vector-only control (not shown), plasmids carrying ORFs 2 to 6 did. Furthermore, for each ORF a translation product that was in good agreement with protein sizes predicted from the DNA sequence and with proteins synthesized from the original XhoI fragment were identified (Fig. 2, lane 2). Based on this, we considered ORFs 2 to 6 to represent the genes styRABCD with their cognate protein products. ORF 1 was tentatively designated stySc (see below). Interestingly, expression of the sty genes from the XhoI fragment led to prominent bands for StyR, StyB and/or StyC, and StyD, but only to a faint band for StyA. Consistent with this, the StyA band was very weak in a recombinant carrying pT7ST-A (Fig. 2, lane 4). However, from previous SDS-PAGE analysis it was likely that StyA could be expressed to significantly higher levels in E. coli JM101(pSPW1) (data not shown). To investigate whether sequences upstream of styA were involved in determining the weak expression of styA from pT7ST-A, we modified the DNA sequences upstream of the translation start of styA. First, the original translation start of StyA was verified by N-terminal sequencing. It read MKKRIGIVGAGTAGLHLGLF and was identical to the sequence predicted from ORF 3. Subsequently, an EcoRI site together with a modified SD sequence was inserted in front of the ATG codon of styA, removing at the same time the original upstream sequences, resulting in pT7ST-Am carrying styA* (Fig. 3A). The sequence exchange led to a very prominent StyA band with the same apparent size as StyA synthesized from pT7ST-A in labeling experiments (Fig. 2, lanes 4 and 5).

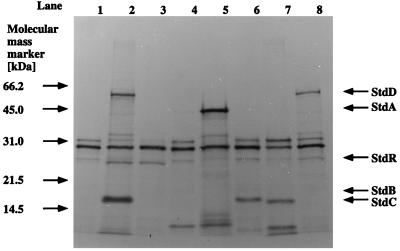

FIG. 2 — [³⁵S]methionine labeling of T7 RNA polymerase-based translation products. *E. coli* BL21(DE3) carrying pPT7T without the insert (lane 1), with the complete 5.7-kb *Xho*I fragment (lane 2), or with fragments containing only one complete ORF (lanes 3 to 8) was induced with IPTG; proteins synthesized under control of the T7 promoter were labeled with [³⁵S]methionine. Protein extracts were separated on an SDS–12% polyacrylamide gel. Lanes: 1, pPT7T; 2, pT7ST-ScD; 3, pT7ST-R; 4, pT7ST-A; 5, pT7ST-Am; 6, pT7ST-B; 7, pT7ST-C; 8, pT7ST-D.

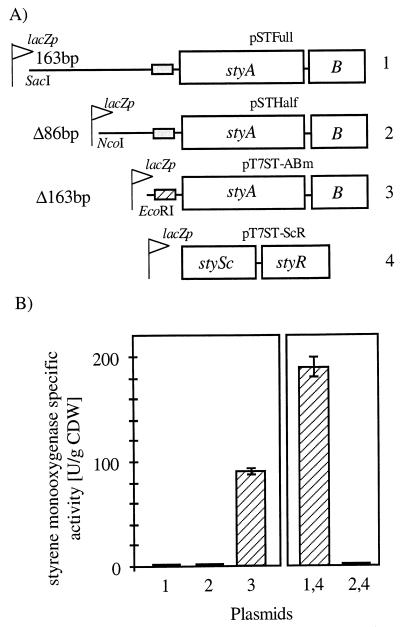

FIG. 3 — Effect of shortening or removing the 163-bp sequence upstream of *styA* in the presence or absence of the regulatory genes *styS*cR. (A) Structure of the investigated plasmids. Drawing is not to scale. The stippled and hatched boxes represent the wild-type SD sequence and altered SD sequences of *styA*, respectively. The latter was inserted to provide translational signals. (B) The left graph shows styrene oxide formation in *E. coli* JM101 cells carrying one of the plasmids, 1 to 3, shown in panel A, measured 4 h after IPTG induction. The right graph shows styrene oxide formation in *E. coli* JM101 cells carrying pSTFull and pSTHalf in the presence of low-copy-number plasmid pCKST-ScR expressing *styS*cR from *lacZp*, measured 4 h after IPTG induction.

Additional bands appeared for constructs carrying styA and styC. These could be explained by taking into account that the fragments used for cloning contained truncated flanking ORFs. Inspection of the DNA sequences of pT7ST-A, pT7ST-Am, and pT7ST-C revealed truncated ORFs coding for proteins that matched the sizes of the additional bands visible in Fig. 2, lanes 4, 5, and 7. In the constructs carrying styA or styA*, a second artificial ORF from the start of styB to the T7 terminator would be expected to encode a gene product of 14.3 kDa, which matches the band observed at 15 kDa reasonably well. In case of pT7ST-C, an ATG codon with a reasonable SD sequence (AGAGGGN₁₃ATG) lies within the truncated styB sequence between the T7 promoter and the predicted translation start of styC. This predicted artificial 14.0-kDa protein matches the observed band at 14 kDa.

Deletion analysis of the 5.7-kb XhoI fragment.

To correlate the information derived from the DNA sequence for styScRABC with functions of the proteins, we performed a deletion analysis of the 5.7-kb XhoI fragment in E. coli JM101 (Fig. 1C). From the nucleotide sequence, we assumed that styABCD were structural genes for conversion of styrene to phenylacetic acid, with styAB encoding the components of a styrene monooxygenase. In partial agreement with this, we found the minimum DNA element needed for indigo formation in E. coli to consist only of styA; cells carrying pSPW2 or pSPW6 produced indigo, while those carrying pSPW3 did not. Given our hypothesis that the reactions that convert indole and styrene are performed by the same enzyme, this would attribute the oxidation activity to StyA. However, to detect styrene oxidation activity in whole-cell assays, elements upstream of styA had to be present as in E. coli JM101(pSPW6). Since indigo formation and accumulation over time is a much more sensitive indication of styrene monooxygenase activity than styrene oxide formation in whole-cell assays, this indicates that elements upstream of styA can increase specific styrene monooxygenase activity but are not necessarily a structural part of the enzyme. The same conclusion resulted from comparison of the transformation abilities of E. coli JM101(pSPW1), which was able to transform styrene to phenylacetaldehyde, and E. coli JM101(pSPW2), which was not. However, inspection of the results obtained with E. coli JM101 carrying pSPW5 and pSPW6 indicated that StyB was necessary for maximal activity of StyA in the presence of the elements upstream of styA, as it increased the rate of styrene oxide formation at least 12-fold.

The analysis also allowed a correlation between the formation of phenylacetaldehyde and 2-phenylethanol from styrene oxide and the expression of styC. This activity was present in E. coli JM101 carrying pSPW7 or pSPW4 but not in E. coli JM101 carrying pSPW6. Deletion of the region upstream of styC did not lead to loss of this activity, and deletion of a part of styD did not impair either of the above-mentioned activities.

Functional analysis of StyB and StyC.

To further investigate the role of StyB, we carried out a series of experiments using plasmids carrying styA*, thus eliminating all of the upstream sequences interfering with styAB expression (see above). Genes styA* and styB were provided on the same or different plasmids, and expression from both genes was driven from the lac promoter. Table 4 shows clearly that in E. coli JM101, the presence of styA* alone was sufficient to oxidize styrene (experiment 3), while expression of styB alone did not lead to detectable styrene oxide formation (experiment 2). Nevertheless, to achieve high levels of activity, the presence of styB was also required (experiment 4 [Table 4]). These results confirmed that gene products other than those of styAB do not play a structural role in styrene monooxygenase function. As shown in experiments 5 and 6 (Table 4), providing styAB on a high-copy-number plasmid increased styrene oxide formation rates relative to those achieved with a low-copy-number plasmid. However, the correct molar ratio of the two proteins appeared to play a role in the efficiency of styrene oxide formation (experiments 4 and 5 [Table 4]). Although these data qualitatively confirm results obtained for equivalent experiments with genes of P. fluorescens ST (4), it is important to note that in contrast to results of the earlier study, the data presented in this report were derived from genetic elements containing only the genes of interest, i.e., styA* and styB, without major portions of upstream DNA.

TABLE 4.

Functional analysis of StyA, StyB, and StyC in E. coli recombinants

Expt	Plasmid	Expressed gene(s)	Copy no.^a	Substrate (relative retention time)^b	Product (relative retention time)^b	Avg sp act ± SD (U/g of CDW)
1	pCKO1		L	Styrene (0.659 ± 0.007)	ND	<0.1
	pPT7T		H
2	pCKO1		L	Styrene (0.651 ± 0.007)	ND	<0.1
	pT7ST-B	styB	H
3	pCKO1		L	Styrene (0.657 ± 0.007)	Styrene oxide (1.086 ± 0.002)	1.5 ± 0.6
	pT7ST-Am	styA*	H
4	pCKST-B	styB	L	Styrene (0.657 ± 0.007)	Styrene oxide (1.088 ± 0.002)	7.0 ± 2.5
	pT7ST-Am	styA*	H
5	pCKST-ABm	styAB*	L	Styrene (0.657 ± 0.007)	Styrene oxide (1.087 ± 0.002)	23 ± 4
	pPT7T		H
6	pCKO1		L	Styrene (0.658 ± 0.007)	Styrene oxide (1.088 ± 0.002)	79 ± 5
	pT7ST-ABm	styAB*	H
7	pT7T		H	Styrene oxide (1.090 ± 0.002)	ND	<5
8	pT7ST-C	styC	H	Styrene oxide (1.090 ± 0.002)	Phenylacetaldehyde (1.019 ± 0.002)	21,000 ± 3,300

Open in a new tab

L, low copy number (below 10); H, high copy number (above 100).

Retention times are given relative to the retention time of the internal standard dodecanol. Relative retention times of authentic standards (average ± SD): styrene, 0.654 ± 0.003; styrene oxide, 1.090 ± 0.006; phenylacetaldehyde, 1.018 ± 0.006. ND, not detected.

The results from the deletion analyses also indicated that StyC was involved in the conversion of styrene oxide to phenylacetaldehyde. This observation was supported by the fact that JM101(pT7ST-C) was able to convert styrene oxide to phenylacetaldehyde while JM101(pPT7T) was not (experiments 7 and 8 [Table 4]). No 2-phenylethanol was formed in this experiment.

Enantioselectivity of styrene oxide formation.

Having clarified the functions of the various structural genes, we determined the enantiospecificity as a key parameter of the cognate enzymes to evaluate their usefulness for biocatalysis. Using E. coli JM101(pSPW5), which carries styScRAB under lacZp promoter control, we have investigated the e.e. of styrene oxide formed in whole-cell biotransformations and found it to be greater than 99% (Fig. 4C) by chiral gas chromatography. (S)-Styrene oxide produced by E. coli JM101(pBG63) expressing the genes for TOL plasmid-derived xylene oxygenase served as a reference (Fig. 4B) (58). The enantiomer formed by styrene monooxygenase eluted at the same time as the major enantiomer formed by xylene oxygenase, indicating that the product consisted of at least 99.5% (S)-styrene oxide.

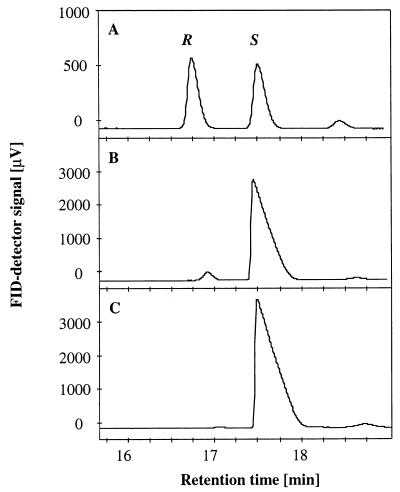

FIG. 4 — Production of (S)-styrene oxide by StyAB. (A) Separation of 1.5 mM racemic styrene oxide on a chiral cyclodextrin column. The peak at 18.7 min is phenylacetaldehyde, which can be formed due to the injector temperature. (B) (S)-Styrene oxide with an e.e. of 93% formed by *E. coli* JM101(pBG63), which produces xylene oxygenase and served as a reference. (C) (S)-Styrene oxide is formed with an e.e. of >99% by *E. coli* JM101(pSPW5), which produces styrene monooxygenase. Columns were intentionally overloaded to obtain a signal for the least abundant enantiomer in panels B and C.

Enantiomeric ratio of styrene oxide consumption.

E. coli JM101(pT7ST-C) recombinants synthesizing styrene oxide isomerase from a high-copy-number plasmid showed a very high reaction rate (experiment 8 [Table 4]). However, the enzyme demonstrated only a slight preference for the transformation of the S enantiomer of racemic styrene oxide. From the enantiomeric excess of remaining styrene oxide and the extent of conversion when terminating whole-cell assays before the complete consumption of styrene oxide, we determined the enantiomeric ratio, E, of styrene oxide conversion to be 1.4.

Expression of the styrene monooxygenase structural genes.

To clarify why we could not obtain measurable styrene oxide formation by E. coli JM101(pSPW2), we constructed two high-copy-number plasmids carrying styAB under lacZp promoter control using either the SacI site 163 bp upstream (pSTFull) or the NcoI site 77 bp upstream (pSTHalf) of the translational start of styA (Fig. 3A) and compared the resulting styrene monooxygenase expression to that from pT7ST-ABm. The latter construct contained the same modified ribosome binding site as pT7ST-Am (see above). As shown in the left panel of Fig. 3B, we were unable to detect formation of styrene oxide with either of the first two constructs, but specific activities were very high with the construct in which all of the upstream DNA sequence had been eliminated. Furthermore, SDS-PAGE analysis of whole-cell extracts from IPTG-induced E. coli JM101 carrying the respective plasmids showed a prominent band at 47 kDa corresponding to the predicted size of StyA with either the original plasmid pSPW1 or pT7ST-ABm (data not shown). This excludes the possibility that the new SD sequence is the sole cause of the differences of translation efficiency between pSTFull or pSTHalf and pT7ST-ABm. No band at 47 kDa was visible with either pSTFull or pSTHalf (results not shown). Apparently, the presence of the 163 bp of wild-type DNA upstream of styA leads to a lack of detectable styrene oxide formation in recombinant strains.

Regulatory functions encoded by stySc and styR.

Amino acid sequence similarities for styScR-encoded assumed or observed proteins suggested that the gene products of these two ORFs represent a two-component regulatory system. With the results obtained so far in mind, it appeared likely that the two proteins together form a positive control system for styrene degradation that also alleviates the block in styrene monooxygenase synthesis, as observed in E. coli JM101(pSPW2). To investigate this further, we repeated the experiments with pSTFull and pSTHalf in the presence of styScR under lacZp promoter control on the low-copy-number plasmid pCKO1 (Fig. 3B, right panel). When styScR were expressed, the production of styrene oxide by StyAB from pSTFull was clearly measurable, while it was not detectable when pSTHalf was present. Part of this effect was also observed with a translational fusion of styA including the upstream region from the SacI site to a lacZ reporter gene. The β-galactosidase activity derived from the reporter gene was increased 21-fold in E. coli CC118(pCKST-ScR, pSPW20) containing styScR compared to E. coli CC118(pCKO1, pSPW20) without the regulatory genes (Fig. 5B, columns 1 and 2). We investigated the functions of styScR in more detail by providing stySc, styR, and the styA-lacZ fusion on different plasmids (Fig. 5B, columns 3 to 6). Basal activity of the reporter protein was found when only stySc was expressed (450 Miller units). However, expression of styR increased β-galactosidase activity 38-fold and expression of stySc and styR at the same time increased the activity 115-fold, relative to stySc expression only.

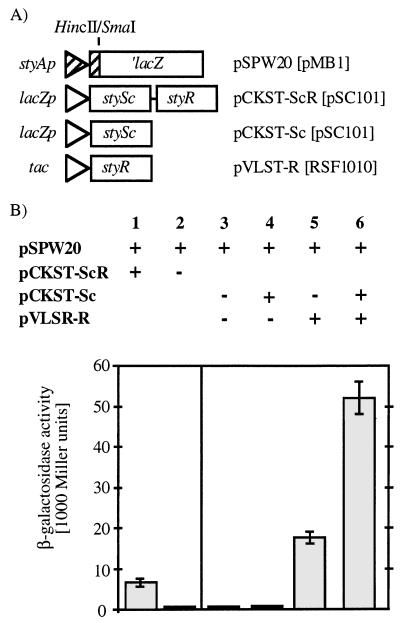

FIG. 5 — Involvement of *styS*c and *styR* in transcriptional regulation of *sty* structural genes. (A) Plasmids used for analysis. The basic replicon determining the plasmid copy number is indicated in brackets. The hatched elements represent the *styAp* promoter and the part of *styA* that has been fused to the ′*lacZ* gene of pUJ9. Drawing is not to scale. (B) Transcriptional activity of IPTG-induced *E. coli* CC118 carrying different plasmid combinations. Left panel, experiment with *styS*cR present on one plasmid; right panel: experiments with *styS*c and *styR* present on two different plasmids. Minus signs indicate that the vector without the insert was present as a control; plus signs indicate the presence of the plasmid shown on the left.

DISCUSSION

Biotechnological potential of styrene oxide monooxygenase.

Enantioselective biotransformations of styrene to styrene oxide or kinetic resolution of racemic styrene oxide and its derivatives have received a lot of attention in recent years (36, 37, 41, 42, 55, 58). P. putida S12 and Mycobacterium sp. strain E3 were shown to produce the two possible stereoisomers of styrene oxide with enantiomeric excesses greater than 98%, albeit with different reaction rates: 200 U/g of CDW for a mutant P. putida S12 and 5 U/g of CDW for Mycobacterium sp. strain E3 (37). Interestingly, E. coli recombinants carrying styAB of Pseudomonas sp. strain VLB120 produce the same enantiomer as the P. putida S12 mutant and E. coli recombinants carrying xylMA from the TOL plasmid upper pathway, the S enantiomer (21, 58). The enantiomeric excess of the reaction catalyzed by StyAB is more than 99% (Fig. 4) and is thus significantly better than that of the reaction catalyzed by xylene oxygenase (58). Furthermore, reaction rates could be increased 8-fold compared to E. coli recombinants synthesizing xylene oxygenase (Fig. 3; Table 4) (58). These results make recombinants synthesizing StyAB promising biocatalysts for future applications.

Biotechnological potential of styrene oxide isomerase.

A second route to optically pure styrene oxide utilizes kinetic resolution of racemic mixtures of styrene oxide. This route has been investigated especially for fungal epoxide hydrolases, where it was proven to produce excellent optical yields (42). Bearing in mind that the first step of styrene transformation in VLB120 is enantioselective and that microbial systems for the enantioselective conversion of epoxides had been described previously (56, 57), we investigated whether the second step, conversion of the epoxide, was also enantioselective. Our results suggest that this is not the case for the Pseudomonas sp. strain VLB120-derived enzyme StyC. Both styrene oxide enantiomers are converted, with only slightly different reaction rates. The poor enantiomeric ratio, E, of 1.4 makes styrene oxide isomerase from Pseudomonas sp. strain VLB120 a poor enzyme for kinetic resolution of styrene oxide enantiomers. A similar observation was made for P. putida S12 grown on phenylacetic acid, which converted (S)-styrene oxide slightly faster than (R)-styrene oxide (37).

Genetics of styrene degradation in Pseudomonas sp. strain VLB120.

Combination of the sequence data and biotransformation studies suggests that Pseudomonas sp. strain VLB120 transforms styrene to styrene oxide through the action of a two-component styrene monooxygenase, StyAB, in which StyA is the epoxidizing component and StyB might function as an enhancer of monooxygenase activity, either as a provider of reducing equivalents whose action might be replaced to a small degree by unspecific reductases of the E. coli host or in an up to now poorly understood mode similar to the action of the HpaC protein of E. coli W (44). As a second step, styrene oxide is isomerized to phenylacetaldehyde by the styrene oxide isomerase StyC, and phenylacetaldehyde is very likely to be converted by the phenylacetaldehyde dehydrogenase StyD to phenylacetic acid. Recently, a similar system from P. fluorescens ST has been analyzed at the sequence and functional levels (4). In the regions of the structural genes, the systems have a high degree of sequence identity (between 91.8 and 96.6%). The equivalent enzymes appear to catalyze identical reactions. To this end, it is noteworthy that although the specific activity of phenylacetaldehyde formation was high in E. coli JM101(pT7ST-C) (experiment 8 [Table 4]), we did not observe a specific protein band by SDS-PAGE (not shown) indicating high specific activity of the enzyme. We assume that formation of small amounts of 2-phenylethanol, which was observed in deletion analyses, is not part of the activity of StyC. We did not detect this reaction product when E. coli JM101(pT7ST-C) was added to whole-cell assays under conditions of excess styrene oxide. Possibly, 2-phenylethanol formation is catalyzed by enzymes of the host. The rate of 2-phenylethanol formation remained thus below the detection level when small amounts (5.6 mg/liter) of cell material were provided but not when cells were added to 2.5 g/liter, as was done in the deletion analyses. In agreement with this, E. coli JM109 was found to convert phenylacetaldehyde to 2-phenylethanol (4). Furthermore, P. putida S12 also appears to convert styrene oxide to phenylacetaldehyde with no formation of 2-phenylethanol (37).

Regulation of styrene degradation.

The protein homologs of StySc and StyR (Table 3) suggest that these proteins constitute a two-component regulatory system. StySc possesses sequence motifs that are typical for signal-transmitting domains of sensors, especially the H box, containing the catalytic histidine typical for its function as a histidine kinase, as well as the N, D, F, and G boxes (49). Given the small size of the protein, which leaves no space for a signal-receiving domain, stySc is likely to be the truncated 3′ part of a larger gene, styS.

StyR displays high similarities over its entire length to a number of putative or proven response regulators which act at the transcriptional level (Table 3). In particular, an aspartate residue (D₅₅ in StyR) is conserved; this residue is assumed or has been shown for the homologs of StyR to receive the phosphate residue from the cognate histidine kinases (7, 19, 27, 28). Furthermore, StyR possesses all of the 10 amino acids that are highly conserved for topological and functional reasons in the CheY superfamily of signal-receiving domains in response regulators (52). Consensus sequences for three classes of transcriptional regulators have been proposed (40), and StyR coincides at 17 of 21 positions spread over the DNA binding domain with the consensus sequence for class 3 transcriptional regulators.

Functional analysis of the regulatory genes.

No StySc protein was detected in T7 expression experiments. Given the predicted size of StySc (27 kDa), it is possible that the band corresponding to the degradation product of β-lactamase comigrates with the respective band in the T7 expression experiment. Alternatively, the signal emitted from StySc could be too low, relative to the intensity of the β-lactamase-related bands, to be detected. On the other hand, it appears reasonable to assume that stySc encodes a functional polypeptide that is produced in E. coli. It has been shown that liberated domains of transcriptional regulators in two-component regulatory systems may retain their activity in a constitutive fashion (2, 35), and expression of stySc augmented transcriptional activity of the putative styA promoter when styR was expressed at the same time (Fig. 5).

Nevertheless, expression of StyR alone suffices to initiate transcription. In this respect, the sty system behaves similarly to the tod system of P. putida F1 (27). In the sty system, as well as in the tod system, this observation implies that there is activation of the transcriptional regulator by either a noncognate histidine kinase or by a chemical phosphorylating agent such as acetyl phosphate (32, 53). The differences in β-galactosidase activities between the experiment with styScR on one plasmid and the experiment with stySc and styR on separate plasmids (Fig. 5, columns 1 and 6) might be explained by differences in the copy numbers of the vectors and promoter strength, leading to the assumption that the level of StyR is higher in cultures of recombinants carrying pVLST-R than of those containing pCKST-R (9, 23, 45). Taken together, functional and DNA sequence data suggest that StyR is a response regulator that may be transformed into its active state by phosphorylation catalyzed by intact StyS in Pseudomonas sp. strain VLB120.

During isolation of pSPW1 from the genomic library, 41 clones that contained the 5.7-kb XhoI fragment were obtained but only 4 of them transformed styrene to phenylacetaldehyde. In the light of the results mentioned before, we assume that providing a heterologous promoter for the transcription of styScR is essential for achieving styrene monooxygenase levels sufficient for the detection of styrene oxide formation in a whole-cell assay. This implies that plasmids that contained the fragment under study in the reverse orientation relative to pSPW1 or where a second insert was inserted between the 5.7-kb XhoI fragment and the lacZp promoter provided by the vector did not lead to detection of styrene oxide formation but did lead to sufficient basal activity to transform indole to indigo in the much more sensitive screening assay on LB medium-indole agar plates.

Analysis of the region between styR and styA.

Genes styR and styA are separated by 180 bp, which apparently prevents the use of heterologous promoters for the synthesis of considerable levels of styrene oxygenase (Fig. 3). From the transcriptional activity assays involving the HincII fragment containing this region (Fig. 5), we postulate that StyR binds to this region and initiates transcription of the downstream genes, thus constituting the styAp promoter.

To observe specific activity levels of biotechnological interest for styrene monooxygenase, we either had to present styScR together with the styAp promoter sequence or eliminate the latter completely and provide a heterologous promoter (Fig. 3). Interestingly, expression of the complete 5.7-kb XhoI fragment from the T7 promoter produced prominent protein bands for Sty proteins whose genes surround styA but not for StyA itself, indicating an inhibition of translation rather than transcription. These observations can be explained by the occurrence of predicted stable mRNA loop structures in the region from the SacI site to the HincII site 78 bp downstream of the ATG codon of styA or from the NcoI site to the HincII site (Fig. 6). The corresponding mRNA is very likely to be produced when a heterologous promoter is present upstream of the styAp promoter (8). Various stem-loop structures that might interfere with initiation of translation of styA, but not of more downstream genes, were predicted. Removal of this sequence would eliminate such structures and should allow efficient synthesis of StyAB, which is what we have observed (Fig. 3; Table 4).

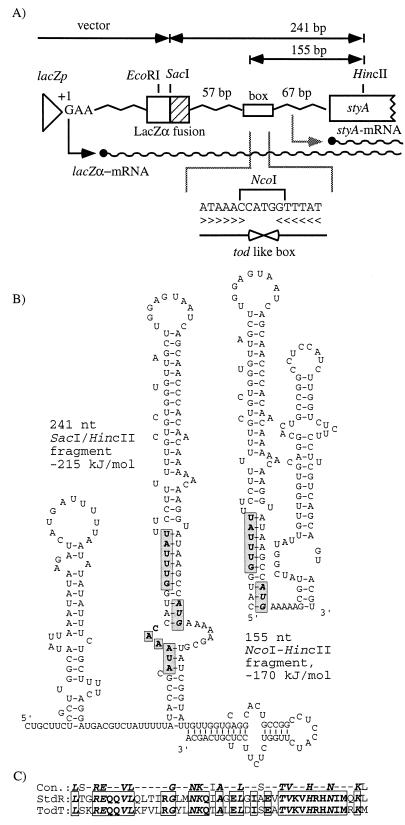

FIG. 6 — Analysis of the region between *styR* and *styA*. (A) Schematic representation of the region as it is present in pSTFull, which contains the complete 163 bp between the *Sac*I site and the ATG codon of *styA*, including the vector-derived *lacZp*. Vector- and insert-derived sequences are indicated. Sequence length numbers refer to the two segments for which mRNA secondary structures were predicted. A putative LacZα fusion peptide is terminated by an insert-derived in-frame stop codon. Known (+1, for *lacZa*-mRNA) or assumed (lightly shaded arrow, for *styA*-mRNA) mRNA synthesis starts are indicated. The inverted repeats of the *tod* box are indicated by repetitive carets, while the larger repeats present in the *sty* system are indicated by open arrows. (B) Predicted mRNA secondary structures when either the region between the *Sac*I site upstream of the 163-bp sequence and the *Hin*cII site downstream of the ATG of *styA* or the region between the *Nco*I and the *Hin*cII site is transcribed. Free energies for the entire structures are given. Relevant sequences are boxed. The *tod* box sequence is printed in boldface type, and the AUG codon of *styA* mRNA is, additionally, italicized. (C) Amino acid sequence comparison of the putative protein regions involved directly in DNA binding for StyR and TodT, with a postulated consensus sequence for the equivalent region of class 3 response regulators derived from the alignment of 19 proteins (see text). Boxed letters indicate identical residues between StyR and TodT; italicized letters indicate identical residues in all three sequences.

Production of StyAB is also triggered when styR is expressed. Centered around a position 75 bp upstream of styA is an inverted repeat that includes a sequence identical to the tod box involved in the regulation of toluene utilization in P. putida F1 (27). Reinvestigating the similarity of the potential helix-turn-helix DNA binding domain—a subset of the DNA binding domain mentioned earlier—of TodT to that of StyR, we found 65% sequence identity in the core region of 43 amino acid residues that is assumed to be DNA binding (Fig. 6C) (40). The similarity between TodT and every other member of the StyR homology group shown in Table 3 (ORF 2) is significantly lower (between 51.2% sequence identity for FixJ and 44.2% for TutB). Furthermore, if the tod box-like sequence is involved in StyR binding, then deletion of a part of it should decrease transcriptional activity of the promoter in the presence of StyR. We found that deletion of the 5′ half of the tod box-like sequence by using the NcoI site present in the box leads to complete abolishment of styrene monooxygenase activity when stySc and StyR are expressed in the same strain (Fig. 3B). We conclude that it is likely that StyR binds to this box and induces mRNA synthesis downstream, avoiding the mRNA secondary structures. Synthesis of styrene monoxygenase from a heterologous promoter requires complete removal of this promoter sequence.

Recently, the regulatory and structural genes involved in styrene degradation in Pseudomonas sp. strain Y2 have been cloned and analyzed (51). They display a high degree of sequence identity to the genes of Pseudomonas sp. strain VLB120 (e.g., 90 and 96% identity for stySc and styR, respectively). In particular, this study supports our hypothesis that stySc represents the truncated version of a larger gene, styS, as the equivalent gene in Pseudomonas sp. strain Y2 consists of 982 amino acids. Furthermore, the starting point for mRNA synthesis of the structural genes in this strain was mapped between a DNA sequence box nearly identical to the tod box and the start of the styrene monooxygenase-epoxidizing component, indicating that the assumptions we have made to explain the inhibitory effect of the styA upstream region in heterologous systems are correct.

In the present work, we have demonstrated that E. coli recombinants carrying cloned genes of styrene monooxygenase from Pseudomonas sp. strain VLB120 convert styrene to (S)-styrene oxide with excellent e.e. at high reaction rates. The results presented here could significantly facilitate the development of an efficient biotransformation process for the production of enantiomerically pure styrene oxide.

ACKNOWLEDGMENTS

This work was supported by the Swiss Priority Program Biotechnology.

We are indebted to K.-H. Engesser for the generous gift of Pseudomonas sp. strain VLB120, to Ed Moore for 16S rRNA sequencing, to R. Brunisholz for N-terminal amino acid sequencing, to J. de Bont and V. de Lorenzo for providing strains, to E. Diáz and J. L. García for providing results prior to publication, and to Martin Held for critical reading of the manuscript. Furthermore, we thank A. Prieto and B. Kessler for helpful discussions.

REFERENCES

1.Altschul S F, Gish W, Miller W, Myers E W, Lipman D J. Basic local alignment search tool. J Mol Biol. 1990;215:403–410. doi: 10.1016/S0022-2836(05)80360-2. [DOI] [PubMed] [Google Scholar]
2.Ames P, Parkinson J S. Constitutively signaling fragments of Tsr, the Escherichia coli serine chemoreceptor. J Bacteriol. 1994;176:6340–6348. doi: 10.1128/jb.176.20.6340-6348.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
3.Anthamatten D, Hennecke H. The regulatory status of the fixL- and fixJ-like genes in Bradyrhizobium japonicum may be different from that in Rhizobium meliloti. Mol Gen Genet. 1991;225:38–48. doi: 10.1007/BF00282640. [DOI] [PubMed] [Google Scholar]
4.Beltrametti F, Marconi A M, Bestetti G, Colombo C, Galli E, Ruzzi M, Zennaro E. Sequencing and functional analysis of styrene catabolism genes from Pseudomonas fluorescens ST. Appl Environ Microbiol. 1997;63:2232–2239. doi: 10.1128/aem.63.6.2232-2239.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
5.Bond J A. Review of the toxicology of styrene. Crit Rev Toxicol. 1989;19:227–249. doi: 10.3109/10408448909037472. [DOI] [PubMed] [Google Scholar]
6.Chen C-S, Fujimoto Y, Girdaukas G, Sih C J. Quantitative analyses of biochemical kinetic resolutions of enantiomers. J Am Chem Soc. 1982;104:7294–7299. [Google Scholar]
7.Coschigano P W, Young L Y. Identification and sequence analysis of two regulatory genes involved in anaerobic toluene metabolism by strain T1. Appl Environ Microbiol. 1997;63:652–660. doi: 10.1128/aem.63.2.652-660.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Czarniecki D, Noel R J, Reznikoff W S. The −45 region of the Escherichia coli lac promoter: CAP-dependent and CAP-independent transcription. J Bacteriol. 1997;179:423–429. doi: 10.1128/jb.179.2.423-429.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.de Boer H, Comstock L J, Vasser M. The tac promoter: a functional hybrid derived from the trp and lac promoters. Proc Natl Acad Sci USA. 1983;80:21–25. doi: 10.1073/pnas.80.1.21. [DOI] [PMC free article] [PubMed] [Google Scholar]
10.de Lorenzo V, Eltis L, Kessler B, Timmis K N. Analysis of Pseudomonas gene products using lacIq/Ptrp-lac plasmids and transposons that confer conditional phenotypes. Gene. 1993;123:17–24. doi: 10.1016/0378-1119(93)90533-9. [DOI] [PubMed] [Google Scholar]
11.de Lorenzo V, Herrero M, Jakubzik U, Timmis K N. Mini-Tn5 transposon derivatives for insertion mutagenesis, promoter probing, and chromosomal insertion of cloned DNA in gram-negative eubacteria. J Bacteriol. 1990;172:6568–6572. doi: 10.1128/jb.172.11.6568-6572.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Dougan G, Saul M, Twigg A, Gill R, Sherrat D. Polypeptides expressed in Escherichia coli K-12 minicells by transposition elements Tn1 and Tn3. J Bacteriol. 1979;138:48–54. doi: 10.1128/jb.138.1.48-54.1979. [DOI] [PMC free article] [PubMed] [Google Scholar]
13.Ensley B D, Rantzkin B J, Osslund T D, Simon M J, Wackett L P, Gibson D T. Expression of naphthalene oxidation genes in Escherichia coli results in the biosynthesis of indigo. Science. 1983;222:167–169. doi: 10.1126/science.6353574. [DOI] [PubMed] [Google Scholar]
14.Fernández S, de Lorenzo V, Pérez-Martin J. Activation of the transcriptional regulator Xy1R of Pseudomonas putida by release of repression between functional domains. Mol Microbiol. 1995;16:205–213. doi: 10.1111/j.1365-2958.1995.tb02293.x. [DOI] [PubMed] [Google Scholar]
15.Foureman G L, Harris C, Guengerich F P, Bend J R. Stereoselectivity of styrene oxidation in microsomes and in purified cytochrome P-450 enzymes from rat liver. J Pharmacol Exp Ther. 1989;248:492–497. [PubMed] [Google Scholar]
16.Fu M H, Alexander M. Biodegradation of styrene in samples of natural environments. Environ Sci Technol. 1992;26:1540–1544. [Google Scholar]
17.Furuhashi K. Biological routes to optically active epoxides. In: Collins A N, Sheldrake G N, Crosby J, editors. Chirality in industry. Chichester, United Kingdom: John Wiley & Sons Ltd.; 1992. pp. 167–186. [Google Scholar]
18.Göffert M, Grob P, Hennecke H. Proposed regulatory pathway encoded by the nodV and nodW genes, determinants of host specificity in Bradyrhizobium japonicum. Proc Natl Acad Sci USA. 1990;87:2680–2684. doi: 10.1073/pnas.87.7.2680. [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Grob P, Michel P, Hennecke H, Göffert M. A novel response-regulator is able to suppress the nodulation defect of a Bradyrhizobium japonicum nodW mutant. Mol Gen Genet. 1993;241:531–541. doi: 10.1007/BF00279895. [DOI] [PubMed] [Google Scholar]
20.Harayama S, Leppik R A, Rekik M, Mermod N, Lehrbach P R, Reineke W, Timmis K N. Gene order of the TOL catabolic plasmid upper pathway operon and oxidation of both toluene and benzyl alcohol by the xylA product. J Bacteriol. 1986;167:455–461. doi: 10.1128/jb.167.2.455-461.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Harayama S, Rekik M, Wubbolts M, Rose K, Leppik R A, Timmis K N. Characterization of five genes in the upper-pathway operon of TOL plasmid pWWO from Pseudomonas putida and identification of the gene products. J Bacteriol. 1989;171:5048–5055. doi: 10.1128/jb.171.9.5048-5055.1989. [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Hartmans S, van der Werf M J, de Bont J A M. Bacterial degradation of styrene involving a novel flavin adenine dinucleotide-dependent styrene monooxygenase. Appl Environ Microbiol. 1990;56:1347–1351. doi: 10.1128/aem.56.5.1347-1351.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Hashimoto-Gotoh T, Franklin F C H, Nordheim A, Timmis K N. Specific-purpose plasmid cloning vectors. I. Low copy number, temperature sensitive, mobilization-defective pSC101-derived containment vectors. Gene. 1981;16:227–235. doi: 10.1016/0378-1119(81)90079-2. [DOI] [PubMed] [Google Scholar]
24.Herrero M, de Lorenzo V, Timmis K N. Transposon vectors containing non-antibiotic resistance selection markers for cloning and stable chromosomal insertion of foreign genes in gram-negative bacteria. J Bacteriol. 1990;172:6557–6567. doi: 10.1128/jb.172.11.6557-6567.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Herrero M, de Lorenzo V, Ensley B, Timmis K N. A T7 RNA polymerase-based system for the construction of Pseudomonas strains with phenotypes dependent on TOL-meta pathway effectors. Gene. 1993;134:103–106. doi: 10.1016/0378-1119(93)90181-2. [DOI] [PubMed] [Google Scholar]
26.Hudlicky T, Seone G, Pettus T. Enantioselective synthesis of (−)-Zeylena from styrene. J Org Chem. 1989;54:4239–4243. [Google Scholar]
27.Lau P C K, Wang Y, Patel A, Labre D, Bergeron H, Brousseau R, Konishi Y, Rawlings M. A bacterial basic region leucine zipper histidine kinase regulating toluene degradation. Proc Natl Acad Sci USA. 1997;94:1453–1458. doi: 10.1073/pnas.94.4.1453. [DOI] [PMC free article] [PubMed] [Google Scholar]
28.Loh J, Garcia M, Stacey G. NodV and NodW, a second flavonoid recognition system regulating nod gene expression in Bradyrhizobium japonicum. J Bacteriol. 1997;179:3013–3020. doi: 10.1128/jb.179.9.3013-3020.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
29.Manoil C, Beckwith J. Tnpho A: a transposon probe for protein export signals. Proc Natl Acad Sci USA. 1985;82:8129–8133. doi: 10.1073/pnas.82.23.8129. [DOI] [PMC free article] [PubMed] [Google Scholar]
30.Marconi A M, Beltrametti F, Bestetti G, Solinas F, Ruzzi M, Galli E, Zennaro E. Cloning and characterization of styrene catabolism genes from Pseudomonas fluorescens. Appl Environ Microbiol. 1996;62:121–127. doi: 10.1128/aem.62.1.121-127.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
31.Matsudaira P. Sequence from picomole quantities of proteins electroblotted onto polyvinylidene difluoride membranes. J Biol Chem. 1987;262:10035–10038. [PubMed] [Google Scholar]
32.McLeary W R, Stock J B, Ninfa A J. Is acetyl phosphate a global signal in Escherichia coli? J Bacteriol. 1993;175:2793–2798. doi: 10.1128/jb.175.10.2793-2798.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]
33.Mermod N, Harayama S, Timmis K N. New route to bacterial production of indigo. Bio/Technology. 1986;4:321–324. [Google Scholar]
34.Miller J H. Experiments in molecular genetics. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1972. [Google Scholar]
35.Monson E K, Weinstein M, Ditta G S, Helinski D R. The FixL protein of Rhizobium meliloti can be separated into a heme-binding oxygen-sensing domain and a functional C-terminal kinase domain. Proc Natl Acad Sci USA. 1992;89:4280–4284. doi: 10.1073/pnas.89.10.4280. [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Morisseau C, Nellaiah H, Archelas A, Furstoss R, Baratti J C. Asymmetric hydrolysis of racemic para-nitrostyrene oxide using an epoxide hydrolase preparation from Aspergillus niger. Enzyme Microb Technol. 1997;20:446–452. [Google Scholar]
37.Nöthe C, Hartmans S. Formation and degradation of styrene oxide stereoisomers by different microorganisms. Biocatalysis. 1994;10:219–225. [Google Scholar]
38.O’Connor K, Buckley C M, Hartmans S, Dobson A D W. Possible regulatory role for nonaromatic carbon sources in styrene degradation by Pseudomonas putida CA-3. Appl Environ Microbiol. 1995;61:544–548. doi: 10.1128/aem.61.2.544-548.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
39.O’Connor K E, Dobson A D W, Hartmans S. Indigo formation by microorganisms expressing styrene monooxygenase activity. Appl Environ Microbiol. 1997;63:4287–4291. doi: 10.1128/aem.63.11.4287-4291.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Pao G M, Saier M H., Jr Response regulators of bacterial signal transduction systems: selective domain shuffling during evolution. J Mol Evol. 1995;40:136–154. doi: 10.1007/BF00167109. [DOI] [PubMed] [Google Scholar]
41.Pedragosa-Moreau S, Archelas A, Furstoss R. Microbiological transformations. 32. Use of epoxide hydrolase mediated biohydrolysis as a way to enantiopure epoxides and vicinal diols: application to substituted styrene oxide derivatives. Tetrahedron. 1996;52:4593–4606. [Google Scholar]
42.Pedragosa-Moreau S, Archelas A, Furstoss R. Microbiological transformations. 28. Enantiocomplementary epoxide hydrolyses as a preparative access to both enantiomers of styrene oxide. J Org Chem. 1993;58:5533–5536. [Google Scholar]
43.Preusting H, van Houten R, Hoefs A, van Langenberghe E K, Favre-Bulle O, Witholt B. High cell density cultivation of Pseudomonas oleovorans: growth and production of poly(3-hydroxyalkanoates) in two-liquid phase batch and fed-batch systems. Biotechnol Bioeng. 1993;41:550–556. doi: 10.1002/bit.260410507. [DOI] [PubMed] [Google Scholar]
44.Prieto M A, Garcia J L. Molecular characterization of 4-hydroxyphenylacetate 3-hydroxylase of Escherichia coli. J Biol Chem. 1994;269:22823–22829. [PubMed] [Google Scholar]
45.Rubens C, Heffron F, Falkow S. Transposition of a plasmid deoxyribonucleic acid sequence that mediates ampicillin resistance: independence from host rec functions and orientation of insertion. J Bacteriol. 1976;128:425–434. doi: 10.1128/jb.128.1.425-434.1976. [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Sambrook J, Fritsch E F, Maniatis T. Molecular cloning: a laboratory manual. 2nd ed. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1989. [Google Scholar]
47.Shine J, Dalgarno L. The 3′ terminal sequence of Escherichia coli 16S ribosomal RNA: complementarity to nonsense triplets and ribosome binding sites. Proc Natl Acad Sci USA. 1974;71:1342–1346. doi: 10.1073/pnas.71.4.1342. [DOI] [PMC free article] [PubMed] [Google Scholar]
48.Spelberg J H L, Rink R, Kellogg R M, Janssen D B. Abstracts of Biotrans ’97. La Grande Motte. 1997. Biocatalysis with bacterial epoxide hydrolase, abstr. PI–35; p. 108. [Google Scholar]
49.Stock J B, Surette M G, Levit M, Park P. Two-component signal transduction systems: structure-function relationships and mechanisms of catalysis. In: Hoch J A, Silhavy T J, editors. Two-component signal transduction. Washington, D.C: American Society for Microbiology; 1995. pp. 25–51. [Google Scholar]
50.Studier F W, Rosenberg A H, Dunn J J, Dubendorff J W. Use of T7 RNA polymerase to direct expression of cloned genes. Methods Enzymol. 1990;185:60–89. doi: 10.1016/0076-6879(90)85008-c. [DOI] [PubMed] [Google Scholar]
51.Velasco A, Alonso S, García J L, Perera J, Díaz E. Genetic and functional analysis of the styrene catabolic cluster of Pseudomonas sp. strain Y2. J Bacteriol. 1998;180:1063–1071. doi: 10.1128/jb.180.5.1063-1071.1998. [DOI] [PMC free article] [PubMed] [Google Scholar]
52.Volz K. Structural conservation in the CheY superfamily. Biochemistry. 1993;32:11741–11753. doi: 10.1021/bi00095a001. [DOI] [PubMed] [Google Scholar]
53.Wanner B L. Is cross regulation by phosphorylation of two-component response regulator proteins important in bacteria? J Bacteriol. 1992;174:2053–2058. doi: 10.1128/jb.174.7.2053-2058.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]
54.Warhurst A M, Fewson C A. Microbial metabolism and biotransformations of styrene. J Appl Bacteriol. 1994;77:597–606. doi: 10.1111/j.1365-2672.1994.tb02807.x. [DOI] [PubMed] [Google Scholar]
55.Weijers C A G M. Enantioselective hydrolysis of aryl, alicyclic and aliphatic epoxides by Rhodotorula glutinis. Tetrahedron Asymmetry. 1997;8:639–647. [Google Scholar]
56.Weijers C A G M, de Bont J A M. Enantioselective degradation of 1,2-epoxyalkanes by Nocardia H8. Enzyme Microb Technol. 1991;13:306–308. [Google Scholar]
57.Weijers C A G M, Haan A D, de Bont J A M. Chiral resolution of 2,3-epoxyalkanes by Xanthobacter Py2. Appl Microbiol Biotechnol. 1988;27:337–340. [Google Scholar]
58.Wubbolts M G, Hoven J, Melgert B, Witholt B. Efficient production of optically active styrene epoxides in two-liquid phase cultures. Enzyme Microb Technol. 1994;16:887–893. [Google Scholar]
59.Wubbolts M G, Reuvekamp P, Witholt B. TOL plasmid-specified xylene oxygenase is a wide substrate range monooxygenase capable of olefin epoxidation. Enzyme Microb Technol. 1994;16:608–615. doi: 10.1016/0141-0229(94)90127-9. [DOI] [PubMed] [Google Scholar]

[B1] 1.Altschul S F, Gish W, Miller W, Myers E W, Lipman D J. Basic local alignment search tool. J Mol Biol. 1990;215:403–410. doi: 10.1016/S0022-2836(05)80360-2. [DOI] [PubMed] [Google Scholar]

[B2] 2.Ames P, Parkinson J S. Constitutively signaling fragments of Tsr, the Escherichia coli serine chemoreceptor. J Bacteriol. 1994;176:6340–6348. doi: 10.1128/jb.176.20.6340-6348.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B3] 3.Anthamatten D, Hennecke H. The regulatory status of the fixL- and fixJ-like genes in Bradyrhizobium japonicum may be different from that in Rhizobium meliloti. Mol Gen Genet. 1991;225:38–48. doi: 10.1007/BF00282640. [DOI] [PubMed] [Google Scholar]

[B4] 4.Beltrametti F, Marconi A M, Bestetti G, Colombo C, Galli E, Ruzzi M, Zennaro E. Sequencing and functional analysis of styrene catabolism genes from Pseudomonas fluorescens ST. Appl Environ Microbiol. 1997;63:2232–2239. doi: 10.1128/aem.63.6.2232-2239.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B5] 5.Bond J A. Review of the toxicology of styrene. Crit Rev Toxicol. 1989;19:227–249. doi: 10.3109/10408448909037472. [DOI] [PubMed] [Google Scholar]

[B6] 6.Chen C-S, Fujimoto Y, Girdaukas G, Sih C J. Quantitative analyses of biochemical kinetic resolutions of enantiomers. J Am Chem Soc. 1982;104:7294–7299. [Google Scholar]

[B7] 7.Coschigano P W, Young L Y. Identification and sequence analysis of two regulatory genes involved in anaerobic toluene metabolism by strain T1. Appl Environ Microbiol. 1997;63:652–660. doi: 10.1128/aem.63.2.652-660.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B8] 8.Czarniecki D, Noel R J, Reznikoff W S. The −45 region of the Escherichia coli lac promoter: CAP-dependent and CAP-independent transcription. J Bacteriol. 1997;179:423–429. doi: 10.1128/jb.179.2.423-429.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B9] 9.de Boer H, Comstock L J, Vasser M. The tac promoter: a functional hybrid derived from the trp and lac promoters. Proc Natl Acad Sci USA. 1983;80:21–25. doi: 10.1073/pnas.80.1.21. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B10] 10.de Lorenzo V, Eltis L, Kessler B, Timmis K N. Analysis of Pseudomonas gene products using lacIq/Ptrp-lac plasmids and transposons that confer conditional phenotypes. Gene. 1993;123:17–24. doi: 10.1016/0378-1119(93)90533-9. [DOI] [PubMed] [Google Scholar]

[B11] 11.de Lorenzo V, Herrero M, Jakubzik U, Timmis K N. Mini-Tn5 transposon derivatives for insertion mutagenesis, promoter probing, and chromosomal insertion of cloned DNA in gram-negative eubacteria. J Bacteriol. 1990;172:6568–6572. doi: 10.1128/jb.172.11.6568-6572.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B12] 12.Dougan G, Saul M, Twigg A, Gill R, Sherrat D. Polypeptides expressed in Escherichia coli K-12 minicells by transposition elements Tn1 and Tn3. J Bacteriol. 1979;138:48–54. doi: 10.1128/jb.138.1.48-54.1979. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B13] 13.Ensley B D, Rantzkin B J, Osslund T D, Simon M J, Wackett L P, Gibson D T. Expression of naphthalene oxidation genes in Escherichia coli results in the biosynthesis of indigo. Science. 1983;222:167–169. doi: 10.1126/science.6353574. [DOI] [PubMed] [Google Scholar]

[B14] 14.Fernández S, de Lorenzo V, Pérez-Martin J. Activation of the transcriptional regulator Xy1R of Pseudomonas putida by release of repression between functional domains. Mol Microbiol. 1995;16:205–213. doi: 10.1111/j.1365-2958.1995.tb02293.x. [DOI] [PubMed] [Google Scholar]

[B15] 15.Foureman G L, Harris C, Guengerich F P, Bend J R. Stereoselectivity of styrene oxidation in microsomes and in purified cytochrome P-450 enzymes from rat liver. J Pharmacol Exp Ther. 1989;248:492–497. [PubMed] [Google Scholar]

[B16] 16.Fu M H, Alexander M. Biodegradation of styrene in samples of natural environments. Environ Sci Technol. 1992;26:1540–1544. [Google Scholar]

[B17] 17.Furuhashi K. Biological routes to optically active epoxides. In: Collins A N, Sheldrake G N, Crosby J, editors. Chirality in industry. Chichester, United Kingdom: John Wiley & Sons Ltd.; 1992. pp. 167–186. [Google Scholar]

[B18] 18.Göffert M, Grob P, Hennecke H. Proposed regulatory pathway encoded by the nodV and nodW genes, determinants of host specificity in Bradyrhizobium japonicum. Proc Natl Acad Sci USA. 1990;87:2680–2684. doi: 10.1073/pnas.87.7.2680. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B19] 19.Grob P, Michel P, Hennecke H, Göffert M. A novel response-regulator is able to suppress the nodulation defect of a Bradyrhizobium japonicum nodW mutant. Mol Gen Genet. 1993;241:531–541. doi: 10.1007/BF00279895. [DOI] [PubMed] [Google Scholar]

[B20] 20.Harayama S, Leppik R A, Rekik M, Mermod N, Lehrbach P R, Reineke W, Timmis K N. Gene order of the TOL catabolic plasmid upper pathway operon and oxidation of both toluene and benzyl alcohol by the xylA product. J Bacteriol. 1986;167:455–461. doi: 10.1128/jb.167.2.455-461.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B21] 21.Harayama S, Rekik M, Wubbolts M, Rose K, Leppik R A, Timmis K N. Characterization of five genes in the upper-pathway operon of TOL plasmid pWWO from Pseudomonas putida and identification of the gene products. J Bacteriol. 1989;171:5048–5055. doi: 10.1128/jb.171.9.5048-5055.1989. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B22] 22.Hartmans S, van der Werf M J, de Bont J A M. Bacterial degradation of styrene involving a novel flavin adenine dinucleotide-dependent styrene monooxygenase. Appl Environ Microbiol. 1990;56:1347–1351. doi: 10.1128/aem.56.5.1347-1351.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B23] 23.Hashimoto-Gotoh T, Franklin F C H, Nordheim A, Timmis K N. Specific-purpose plasmid cloning vectors. I. Low copy number, temperature sensitive, mobilization-defective pSC101-derived containment vectors. Gene. 1981;16:227–235. doi: 10.1016/0378-1119(81)90079-2. [DOI] [PubMed] [Google Scholar]

[B24] 24.Herrero M, de Lorenzo V, Timmis K N. Transposon vectors containing non-antibiotic resistance selection markers for cloning and stable chromosomal insertion of foreign genes in gram-negative bacteria. J Bacteriol. 1990;172:6557–6567. doi: 10.1128/jb.172.11.6557-6567.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B25] 25.Herrero M, de Lorenzo V, Ensley B, Timmis K N. A T7 RNA polymerase-based system for the construction of Pseudomonas strains with phenotypes dependent on TOL-meta pathway effectors. Gene. 1993;134:103–106. doi: 10.1016/0378-1119(93)90181-2. [DOI] [PubMed] [Google Scholar]

[B26] 26.Hudlicky T, Seone G, Pettus T. Enantioselective synthesis of (−)-Zeylena from styrene. J Org Chem. 1989;54:4239–4243. [Google Scholar]

[B27] 27.Lau P C K, Wang Y, Patel A, Labre D, Bergeron H, Brousseau R, Konishi Y, Rawlings M. A bacterial basic region leucine zipper histidine kinase regulating toluene degradation. Proc Natl Acad Sci USA. 1997;94:1453–1458. doi: 10.1073/pnas.94.4.1453. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B28] 28.Loh J, Garcia M, Stacey G. NodV and NodW, a second flavonoid recognition system regulating nod gene expression in Bradyrhizobium japonicum. J Bacteriol. 1997;179:3013–3020. doi: 10.1128/jb.179.9.3013-3020.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B29] 29.Manoil C, Beckwith J. Tnpho A: a transposon probe for protein export signals. Proc Natl Acad Sci USA. 1985;82:8129–8133. doi: 10.1073/pnas.82.23.8129. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B30] 30.Marconi A M, Beltrametti F, Bestetti G, Solinas F, Ruzzi M, Galli E, Zennaro E. Cloning and characterization of styrene catabolism genes from Pseudomonas fluorescens. Appl Environ Microbiol. 1996;62:121–127. doi: 10.1128/aem.62.1.121-127.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B31] 31.Matsudaira P. Sequence from picomole quantities of proteins electroblotted onto polyvinylidene difluoride membranes. J Biol Chem. 1987;262:10035–10038. [PubMed] [Google Scholar]

[B32] 32.McLeary W R, Stock J B, Ninfa A J. Is acetyl phosphate a global signal in Escherichia coli? J Bacteriol. 1993;175:2793–2798. doi: 10.1128/jb.175.10.2793-2798.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B33] 33.Mermod N, Harayama S, Timmis K N. New route to bacterial production of indigo. Bio/Technology. 1986;4:321–324. [Google Scholar]

[B34] 34.Miller J H. Experiments in molecular genetics. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1972. [Google Scholar]

[B35] 35.Monson E K, Weinstein M, Ditta G S, Helinski D R. The FixL protein of Rhizobium meliloti can be separated into a heme-binding oxygen-sensing domain and a functional C-terminal kinase domain. Proc Natl Acad Sci USA. 1992;89:4280–4284. doi: 10.1073/pnas.89.10.4280. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B36] 36.Morisseau C, Nellaiah H, Archelas A, Furstoss R, Baratti J C. Asymmetric hydrolysis of racemic para-nitrostyrene oxide using an epoxide hydrolase preparation from Aspergillus niger. Enzyme Microb Technol. 1997;20:446–452. [Google Scholar]

[B37] 37.Nöthe C, Hartmans S. Formation and degradation of styrene oxide stereoisomers by different microorganisms. Biocatalysis. 1994;10:219–225. [Google Scholar]

[B38] 38.O’Connor K, Buckley C M, Hartmans S, Dobson A D W. Possible regulatory role for nonaromatic carbon sources in styrene degradation by Pseudomonas putida CA-3. Appl Environ Microbiol. 1995;61:544–548. doi: 10.1128/aem.61.2.544-548.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B39] 39.O’Connor K E, Dobson A D W, Hartmans S. Indigo formation by microorganisms expressing styrene monooxygenase activity. Appl Environ Microbiol. 1997;63:4287–4291. doi: 10.1128/aem.63.11.4287-4291.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B40] 40.Pao G M, Saier M H., Jr Response regulators of bacterial signal transduction systems: selective domain shuffling during evolution. J Mol Evol. 1995;40:136–154. doi: 10.1007/BF00167109. [DOI] [PubMed] [Google Scholar]

[B41] 41.Pedragosa-Moreau S, Archelas A, Furstoss R. Microbiological transformations. 32. Use of epoxide hydrolase mediated biohydrolysis as a way to enantiopure epoxides and vicinal diols: application to substituted styrene oxide derivatives. Tetrahedron. 1996;52:4593–4606. [Google Scholar]

[B42] 42.Pedragosa-Moreau S, Archelas A, Furstoss R. Microbiological transformations. 28. Enantiocomplementary epoxide hydrolyses as a preparative access to both enantiomers of styrene oxide. J Org Chem. 1993;58:5533–5536. [Google Scholar]

[B43] 43.Preusting H, van Houten R, Hoefs A, van Langenberghe E K, Favre-Bulle O, Witholt B. High cell density cultivation of Pseudomonas oleovorans: growth and production of poly(3-hydroxyalkanoates) in two-liquid phase batch and fed-batch systems. Biotechnol Bioeng. 1993;41:550–556. doi: 10.1002/bit.260410507. [DOI] [PubMed] [Google Scholar]

[B44] 44.Prieto M A, Garcia J L. Molecular characterization of 4-hydroxyphenylacetate 3-hydroxylase of Escherichia coli. J Biol Chem. 1994;269:22823–22829. [PubMed] [Google Scholar]

[B45] 45.Rubens C, Heffron F, Falkow S. Transposition of a plasmid deoxyribonucleic acid sequence that mediates ampicillin resistance: independence from host rec functions and orientation of insertion. J Bacteriol. 1976;128:425–434. doi: 10.1128/jb.128.1.425-434.1976. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B46] 46.Sambrook J, Fritsch E F, Maniatis T. Molecular cloning: a laboratory manual. 2nd ed. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1989. [Google Scholar]

[B47] 47.Shine J, Dalgarno L. The 3′ terminal sequence of Escherichia coli 16S ribosomal RNA: complementarity to nonsense triplets and ribosome binding sites. Proc Natl Acad Sci USA. 1974;71:1342–1346. doi: 10.1073/pnas.71.4.1342. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B48] 48.Spelberg J H L, Rink R, Kellogg R M, Janssen D B. Abstracts of Biotrans ’97. La Grande Motte. 1997. Biocatalysis with bacterial epoxide hydrolase, abstr. PI–35; p. 108. [Google Scholar]

[B49] 49.Stock J B, Surette M G, Levit M, Park P. Two-component signal transduction systems: structure-function relationships and mechanisms of catalysis. In: Hoch J A, Silhavy T J, editors. Two-component signal transduction. Washington, D.C: American Society for Microbiology; 1995. pp. 25–51. [Google Scholar]

[B50] 50.Studier F W, Rosenberg A H, Dunn J J, Dubendorff J W. Use of T7 RNA polymerase to direct expression of cloned genes. Methods Enzymol. 1990;185:60–89. doi: 10.1016/0076-6879(90)85008-c. [DOI] [PubMed] [Google Scholar]

[B51] 51.Velasco A, Alonso S, García J L, Perera J, Díaz E. Genetic and functional analysis of the styrene catabolic cluster of Pseudomonas sp. strain Y2. J Bacteriol. 1998;180:1063–1071. doi: 10.1128/jb.180.5.1063-1071.1998. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B52] 52.Volz K. Structural conservation in the CheY superfamily. Biochemistry. 1993;32:11741–11753. doi: 10.1021/bi00095a001. [DOI] [PubMed] [Google Scholar]

[B53] 53.Wanner B L. Is cross regulation by phosphorylation of two-component response regulator proteins important in bacteria? J Bacteriol. 1992;174:2053–2058. doi: 10.1128/jb.174.7.2053-2058.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]

[B54] 54.Warhurst A M, Fewson C A. Microbial metabolism and biotransformations of styrene. J Appl Bacteriol. 1994;77:597–606. doi: 10.1111/j.1365-2672.1994.tb02807.x. [DOI] [PubMed] [Google Scholar]

[B55] 55.Weijers C A G M. Enantioselective hydrolysis of aryl, alicyclic and aliphatic epoxides by Rhodotorula glutinis. Tetrahedron Asymmetry. 1997;8:639–647. [Google Scholar]

[B56] 56.Weijers C A G M, de Bont J A M. Enantioselective degradation of 1,2-epoxyalkanes by Nocardia H8. Enzyme Microb Technol. 1991;13:306–308. [Google Scholar]

[B57] 57.Weijers C A G M, Haan A D, de Bont J A M. Chiral resolution of 2,3-epoxyalkanes by Xanthobacter Py2. Appl Microbiol Biotechnol. 1988;27:337–340. [Google Scholar]

[B58] 58.Wubbolts M G, Hoven J, Melgert B, Witholt B. Efficient production of optically active styrene epoxides in two-liquid phase cultures. Enzyme Microb Technol. 1994;16:887–893. [Google Scholar]

[B59] 59.Wubbolts M G, Reuvekamp P, Witholt B. TOL plasmid-specified xylene oxygenase is a wide substrate range monooxygenase capable of olefin epoxidation. Enzyme Microb Technol. 1994;16:608–615. doi: 10.1016/0141-0229(94)90127-9. [DOI] [PubMed] [Google Scholar]

PERMALINK

Towards a Biocatalyst for (S)-Styrene Oxide Production: Characterization of the Styrene Degradation Pathway of Pseudomonas sp. Strain VLB120

Sven Panke

Bernard Witholt

Andreas Schmid

Marcel G Wubbolts

Abstract

MATERIALS AND METHODS

Media, chemicals, strains, and plasmids.

TABLE 1.

Isolation and identification of Pseudomonas sp. strain VLB120.

Growth and maintenance of Pseudomonas sp. strain VLB120.

Construction of a genomic library of Pseudomonas sp. strain VLB120 in E. coli DH10B.

DNA sequencing.

DNA manipulation and constructs.

FIG. 1.

[35S]methionine labeling of translation products.

Detection of metabolites and determination of enzyme activities in whole-cell assays.

Determination of e.e. and enantiomeric ratio.

N-terminal sequencing of StyA.

Nucleotide sequence accession number.

RESULTS

Growth of Pseudomonas sp. strain VLB120 on different substrates.

Selection of clones carrying styrene degradation genes from an E. coli gene library.

Sequence of the 5.7-kb XhoI fragment.

TABLE 2.

TABLE 3.

Radioactive labeling of proteins encoded on the 5.7-kb XhoI fragment.

FIG. 2.

FIG. 3.

Deletion analysis of the 5.7-kb XhoI fragment.

Functional analysis of StyB and StyC.

TABLE 4.

Enantioselectivity of styrene oxide formation.

FIG. 4.

Enantiomeric ratio of styrene oxide consumption.

Expression of the styrene monooxygenase structural genes.

Regulatory functions encoded by stySc and styR.

FIG. 5.

DISCUSSION

Biotechnological potential of styrene oxide monooxygenase.

Biotechnological potential of styrene oxide isomerase.

Genetics of styrene degradation in Pseudomonas sp. strain VLB120.

Regulation of styrene degradation.

Functional analysis of the regulatory genes.

Analysis of the region between styR and styA.

FIG. 6.

ACKNOWLEDGMENTS

REFERENCES

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases

[³⁵S]methionine labeling of translation products.
