Amyloid-related imaging abnormalities (ARIA): radiological, biological and clinical characteristics

Abstract

Excess accumulation and aggregation of toxic soluble and insoluble amyloid-β species in the brain are a major hallmark of Alzheimer’s disease. Randomized clinical trials show reduced brain amyloid-β deposits using monoclonal antibodies that target amyloid-β and have identified MRI signal abnormalities called amyloid-related imaging abnormalities (ARIA) as possible spontaneous or treatment-related adverse events. This review provides a comprehensive state-of-the-art conceptual review of radiological features, clinical detection and classification challenges, pathophysiology, underlying biological mechanism(s) and risk factors/predictors associated with ARIA. We summarize the existing literature and current lines of evidence with ARIA-oedema/effusion (ARIA-E) and ARIA-haemosiderosis/microhaemorrhages (ARIA-H) seen across anti-amyloid clinical trials and therapeutic development. Both forms of ARIA may occur, often early, during anti-amyloid-β monoclonal antibody treatment. Across randomized controlled trials, most ARIA cases were asymptomatic. Symptomatic ARIA-E cases often occurred at higher doses and resolved within 3–4 months or upon treatment cessation. Apolipoprotein E haplotype and treatment dosage are major risk factors for ARIA-E and ARIA-H. Presence of any microhaemorrhage on baseline MRI increases the risk of ARIA. ARIA shares many clinical, biological and pathophysiological features with Alzheimer’s disease and cerebral amyloid angiopathy. There is a great need to conceptually link the evident synergistic interplay associated with such underlying conditions to allow clinicians and researchers to further understand, deliberate and investigate on the combined effects of these multiple pathophysiological processes. Moreover, this review article aims to better assist clinicians in detection (either observed via symptoms or visually on MRI), management based on appropriate use recommendations, and general preparedness and awareness when ARIA are observed as well as researchers in the fundamental understanding of the various antibodies in development and their associated risks of ARIA. To facilitate ARIA detection in clinical trials and clinical practice, we recommend the implementation of standardized MRI protocols and rigorous reporting standards. With the availability of approved amyloid-β therapies in the clinic, standardized and rigorous clinical and radiological monitoring and management protocols are required to effectively detect, monitor, and manage ARIA in real-world clinical settings.

Hampel et al. review amyloid-related imaging abnormalities—ARIA—associated with the use of monoclonal antibodies that target Aβ, including radiological features, detection/classification challenges, pathophysiology, underlying mechanism(s), and associated risk factors and predictors.

Introduction

Historical background and definition of ARIA

Alzheimer’s disease is a primary neurodegenerative disease leading to a clinical dementia syndrome, which is projected to affect 152.8 million people by 2050 worldwide.¹ Translational studies support a descriptive hypothetical model of Alzheimer’s disease pathophysiology, characterized by the accumulation of aggregated amyloid-β (Aβ) species into plaques. This precedes clinical manifestations by 20–30 years, neuroinflammation and the spreading of phosphorylated tau and neuronal loss.^2,3 Currently, monoclonal antibodies that remove Aβ from the brain are in several late-stage randomized clinical trials (RCTs).^4-6

The use of anti-Aβ antibodies has been associated with treatment-emergent MRI signal abnormalities,⁷ coined amyloid-related imaging abnormalities (ARIAs) at the Alzheimer’s Association Research Roundtable in 2011.⁸ ARIA covers two classes of MRI signal abnormalities: ARIA-oedema/effusion (ARIA-E) refers to the extravasation of fluid resulting in interstitial vasogenic oedema or sulcal effusion in the leptomeningeal/subpial space.^8,9 These manifest as hyperintense parenchymal or sulcal abnormalities such as changes to cortical folds on T₂-weighted and fluid-attenuated inversion recovery (FLAIR) sequence images (representative MRI images of ARIA-E shown in Fig. 1).^8-10 ARIA-haemosiderosis/microhaemorrhages (ARIA-H) refers to microhaemorrhages (mH) or macrohaemorrhages observed as hypointense haemosiderin deposition. These reflect iron accumulation following the breakdown of extravasated haemoglobin on gradient recalled echo (GRE)/T₂* images or with enhanced visualization processing by susceptibility weighting imaging (SWI) sequences.^8,11,14 Under the rigorous protocols and conditions of clinical trials, ARIA-E/H have generally been asymptomatic and have usually resolved within 3–4 months with dose adjustment, suspension or discontinuation.^15-17 In the minority of cases when ARIA-E was symptomatic, most were of mild or moderate severity. Rare serious or severe neurological symptoms may require hospitalization and specific monitoring and management (e.g. intensive care unit admission, EEG, corticosteroids, antiepileptics).^7,15-17 The recent accelerated approvals of anti-Aβ antibodies by the US Food and Drug Administration (FDA)^18,19 underscores the importance of safety monitoring and effectively managing ARIA in the real-world clinical setting. This state-of-the-art review provides an overview of the radiological features, detection and classification challenges, pathophysiology, and risk factors/predictors associated with ARIA.

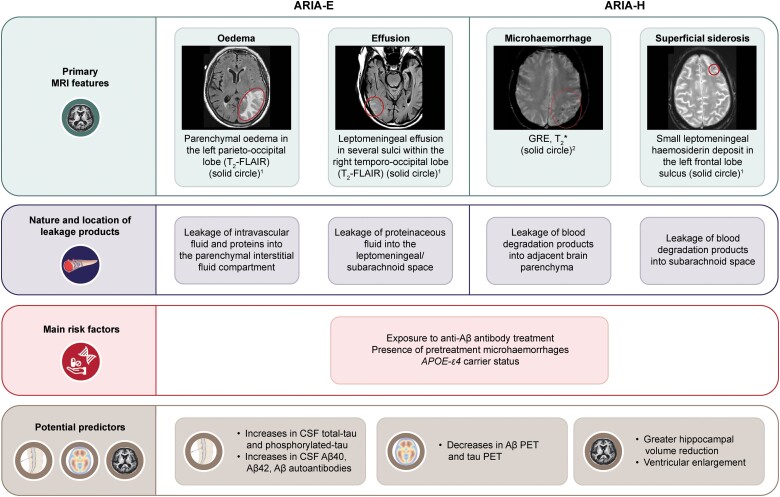

Figure 1.

Main characteristics of ARIA. Figure reproduced with permission from Barakos et al.¹⁰ and Cogswell et al.¹² ARIA are MRI signal abnormalities that present as oedema/effusion (ARIA-E) or microhaemorrhage/superficial siderosis (ARIA-H). ARIA-E refers to the leakage of proteinaceous fluid while ARIA-H refers to leakage of small amounts of iron-containing blood products. Three main risk factors across both ARIA classes include exposure to anti-Aβ antibody treatment, presence of pretreatment microhaemorrhages, and APOE-ε4 carrier status. Biomarkers (i.e. CSF, PET) as potential predictors of future ARIA require further investigation.¹³ Aβ = amyloid-β; FLAIR = fluid-attenuated inversion recovery; GRE = gradient recalled echo.

Radiological features of ARIA

ARIA-E

ARIA-E is characterized as the extravasation of fluid resulting in interstitial vasogenic oedema or sulcal effusion in the leptomeningeal/subpial space.^8,9 ARIA-E severity is heavily dependent on the location and extent of the abnormality (Table 1).^8-10,20-79 The sulcal effusion/exudates in ARIA-E may reflect leakage of proteinaceous fluid that is limited to the leptomeningeal/subpial space.^8,9 Both forms of ARIA-E are typically transient and are not associated with restricted diffusion, thus differentiating it from ischaemia.⁹

Table 1.

MRI rating scale for ARIA-E and ARIA-H

ARIA type	Radiographic severity
	Mild	Moderate	Severe
ARIA-E
Size	<5 cm	5–10 cm	>10 cm
Location	Confined to a single site within sulcus or cortex/subcortical white matter	Observed in one or multiple brain locations	Significant involvement in the sulcus or subcortical white matter in one or more distinct sites
ARIA-H
New incident microhaemorrhages	≤4	5–9	≥10
Focal areas of superficial siderosis	1	2	>2

ARIA-H

ARIA-H is typically characterized as cerebral microhaemorrhages and/or haemosiderosis. Rare macrohaemorrhages have been reported in patients treated with anti-Aβ antibodies. Most cases were asymptomatic, with antibody treatment being discontinued.^16,21,22 Microhaemorrhages are described as lesions (≤10 mm or ≤5 mm in diameter) in brain imaging where actual size criteria depend on the study.^8,16,21,22 The GRE/T₂* MRI sequence has a superior sensitivity to FLAIR and turbo spin-echo T₂. This enables the detection of small quantities of blood products associated with the microhaemorrhages of ARIA-H.²³ The antibody-associated haemosiderin deposits identified on imaging consist of microhaemorrhages, macrohaemorrhages, and superficial siderosis (representative MRI images of ARIA-H are shown in Fig. 1).

ARIA-H microhaemorrhages are generally small, circular or elliptical, very low intensity (compared with surrounding brain matter) lesions in the brain parenchyma on GRE/T₂* MRI sequences.⁸ Microhaemorrhages likely result from microruptures in blood vessels in cortical regions and leakage of small amounts of iron-containing blood products into adjacent brain parenchyma.^8,24

ARIA-H superficial siderosis typically manifests as curvilinear low intensities on GRE/T₂* MRI sequences located near the brain surface. A distinction between the ARIA-H subtypes is that in superficial siderosis, the leakage of blood traverses into the adjacent subpial space or the subarachnoid compartment. In microhaemorrhages, leakage traverses into the perivascular space and surrounding vessel wall.⁸ Similar to ARIA-H microhaemorrhages, the number of areas affected by superficial siderosis determines its severity (Table 1).²⁰

Pathophysiological mechanisms and commonalities between Alzheimer’s disease, cerebral amyloid angiopathy and ARIA

Commonalities between Alzheimer’s disease and cerebral amyloid angiopathy

The accumulation and deposition of Aβ plays a shared role in the pathology of Alzheimer’s disease and cerebral amyloid angiopathy (CAA).²⁵ In CAA, Aβ deposition favours the vascular wall while in Alzheimer’s disease, Aβ deposition occurs in the brain parenchyma.²⁵ CAA is frequently detected in up to 90% of patients with Alzheimer’s disease and in ∼50% of elderly above the age of 80.²⁶ Similar to Alzheimer’s disease, CAA pathology is shown to likely occur years before any symptomatic manifestations.²⁷ When CAA manifestations occur, they often present broadly and consist of cognitive decline, lobar intracranial haemorrhage, or intermittent focal neurological symptoms.^25,27 Despite the overlapping pathology of Aβ deposition in CAA and Alzheimer’s disease but with different focal points of vascular or parenchyma, respectively, the physiological consequence diverge.²⁵ In CAA, Aβ deposition in the walls of small and medium-sized blood vessels leads to downstream effects including gradual vessel stiffening and vessel wall fragility.^25,12-28 Impairment of Aβ degradation and/or clearance may increase CAA severity through diverting Aβ to perivascular drainage pathways.³⁰ CAA often results in tissue injury leading to haemorrhagic or ischaemic brain injury while Alzheimer’s disease elicits loss of neurons and synapses.²⁵ It has also been shown that CAA is associated with Alzheimer’s disease dementia independent of amyloid plaque and tau tangle pathology, further highlighting the substantial heterogeneity underlying the current clinical biological construct of Alzheimer’s disease.^31,32

In a minority of patients, CAA may trigger an autoimmune inflammatory reaction known as CAA-related inflammation (CAA-ri). CAA-ri often occurs spontaneously and can trigger the occurrence of ARIA.^33,34 The MRI findings of CAA and CAA-ri closely resemble ARIA-H and ARIA-E, respectively.^34,35

Putative pathophysiological mechanisms of ARIA

In Alzheimer’s disease, brain parenchymal Aβ plaques are associated with gradual loss of cerebral vascular integrity and reduced perivascular clearance.^10-12,25 In patients with pre-existing Aβ vascular pathology, anti-Aβ immunization may temporarily increase vascular vulnerability due to breakdown of plaques in response to immunization. This increases the mobilization of Aβ aggregates from the parenchyma and vasculature.^10,11,25,36 Aβ₄₀ is the predominant species in vascular walls. Aβ aggregation and deposition may increase the progression of CAA (features of CAA are described in the subsequent sections).^12,37 Aβ₄₂ deposits are the major species in the parenchymal plaques.²⁵ Anti-Aβ antibodies bind to accessible Aβ in the vasculature, further disrupting its vascular integrity.²⁵ Since perivascular clearance pathways are impaired in Alzheimer’s disease and Aβ alterations take place within the walls of blood vessels, an immune response against vessels is initiated, increasing vascular permeability.¹¹ Although often co-localized and disseminated over time, the amyloid vascular accumulation suggests a potential synergy in pathophysiological mechanism.¹¹

ARIA-H may be caused by anti-Aβ-mediated displacement of Aβ from the plaques in the parenchyma to vessel walls, which increases the severity of potentially pre-existing CAA. This results in subsequent extravasation and ultimately leakage of blood products through damaged vessel walls.^11,25,36

In 49% of ARIA-E cases, ARIA-H co-occurred.⁹ Microhaemorrhages may often present and accumulate over time in areas where ARIA-E is resolving or recently resolved.⁹ This suggests a considerable overlap in underlying pathophysiological mechanisms.⁹ In particular, vascular Aβ accumulation and clearance as potential mechanisms support the frequent co-occurrence of ARIA-E and ARIA-H. Further research and familiarity with MRI findings are warranted for proper detection, monitoring and management of ARIA.⁹

Lessons from active amyloid-β immunotherapy

The imaging features of the meningoencephalitis and cortical haemorrhages experienced with active Aβ immunotherapy with AN1792 (Elan Pharmaceuticals) are similar to ARIA.^21,38-42 However, pathological information for ARIA from passively immunized patients for comparison with findings from AN1792 is lacking. Neuropathological studies of patients treated with AN1792 suggest that anti-Aβ antibodies bind to and disrupt brain Aβ plaques. Solubilized Aβ is then translocated to the vasculature where it accumulates in arterial and capillary walls, putatively the intramural peri-arterial drainage pathway,⁴³ increasing CAA severity.⁴⁴ This may provoke vascular inflammation analogous to spontaneous CAA-ri and potentially focal removal of Aβ from CAA-affected vessels mediated by the antibodies. The overall effect is vascular leakage of fluid resulting in ARIA-E (effusion) and blood leakage resulting in ARIA-H (microhaemorrhages).⁴⁵ Poorly understood mechanistic aspects include whether Aβ is transported to the vasculature in association with antibody (i.e. in the form of immune complexes) as a conjugate to apolipoprotein E (APOE) or as unassociated soluble Aβ.⁴⁶ Regarding ARIA-E, the role of astrocyte end-feet and aquaporin 4, which control water flux across the blood–brain barrier, as a cellular and molecular locus of neurovascular interaction is hypothetical.⁴⁷ The common co-occurrence of ARIA-E and ARIA-H—with microhaemorrhages appearing in areas where ARIA-E is resolving or resolved—highlights the dynamic aspects of plaque removal as ARIA co-localizes with foci of Aβ removal as demonstrated by PET scanning.¹¹

Roles of therapeutic variables

Factors associated with the magnitude of extravasation events following anti-Aβ immunization include: the extent of age-related ischaemic vasculature changes, the severity of underlying CAA, the extent and magnitude of transport of soluble Aβ to the vessel wall followed by antibody-mediated removal of Aβ from vessel walls, and the amount of local inflammation represented by infiltration of microglia and T cells to the area due to anti-Aβ complexes at the vessel wall (Fig. 2).^11,25,36 Repeated anti-Aβ antibody therapy may reduce the total Aβ burden, attenuating the risk of extravasation events owing to continued clearance of vascular Aβ and enhanced vessel wall integrity; however, this requires further and long-term study.¹¹

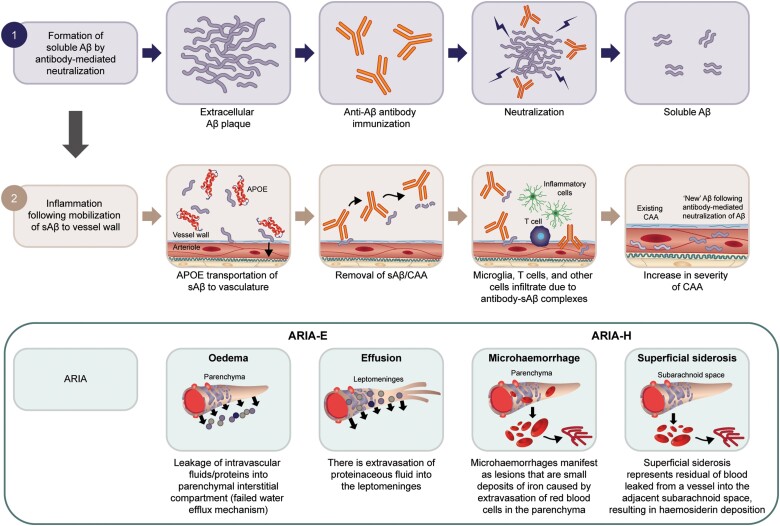

Figure 2.

Proposed pathophysiological mechanisms for ARIA. ARIA may occur due to the pathological deposition of amyloid in cerebral blood vessel walls (also known as cerebral amyloid angiopathy, CAA) or upon introduction of monoclonal antibodies that remove Aβ plaque.^8,25,48 The loss of vascular integrity and impaired clearance often leads to an immune response (inflammation) in the vessel wall. Such effects transiently weaken the vessels leading to leakage of proteinaceous fluid and blood, resulting in ARIA-E or ARIA-H, respectively. Some evidence suggests that with repeated immunization, the risk of extravasation tends to decrease, subsequently decreasing the risk of ARIA.^8,25,48 sAβ = soluble amyloid-β.

RCTs suggest that antibodies binding to different epitopes and recognizing different Aβ conformations (monomers, oligomers, protofibrils, fibrils) play a role in ARIA rate variance.⁴⁹ Higher rates of ARIA are found in antibodies against the N-terminus compared with antibodies targeting mid- and C-terminal regions of Aβ.²⁵ The latter antibodies mobilize fewer Aβ due to their binding propensity to monomeric or oligomeric Aβ.²⁵ Despite higher rates of ARIA, antibodies against the N-terminus of Aβ were most effective in reducing the Aβ burden.⁴⁹

The isotype form of the anti-Aβ antibody [immunoglobulin G (IgG)1, IgG2, IgG4] and the selectivity for specific Aβ forms (soluble or deposited forms) were additional considerations that trigger ARIA or CAA-like manifestations.⁵⁰ IgG1 anti-Aβ triggered ARIA-E and ARIA-H events while IgG2 and IgG4 anti-Aβ were less likely to actuate CAA-like manifestations.⁵⁰ Antibodies more selective in targeting soluble Aβ forms were less likely to bind to cerebrovascular deposits, unlike those targeting insoluble forms.⁵⁰ This may help emphasize that ARIA and CAA share commonalities in their pathophysiological mechanisms and the predisposition of certain groups to ARIA.

Commonalities between cerebral amyloid angiopathy and ARIA

CAA has many clinical, pathophysiological and neuroimaging features similar to ARIA.^8,25,48 The most significant evidence of shared pathophysiology between ARIA and CAA is spontaneous ARIA-E triggered by CAA-ri in the early stages of sporadic and familial Alzheimer’s disease.^25,48 CAA-ri (also known as Aβ-related angiitis) occurs in a minority of patients where the clinical presentation, neuroimaging features and association with APOE ε4 are similar to ARIA-E in patients with Alzheimer’s disease receiving immunotherapy.^25,51 The active stage of CAA-ri is characterized by activation of microglia, T cells and Aβ-containing multinucleated large cells surrounding CAA-positive vessel walls, signifying a spontaneous anti-antibody autoimmune response via Aβ autoantibodies.^12,25,51 Furthermore, the MRI findings of CAA and CAA-ri closely resemble ARIA-H and ARIA-E, respectively.^34,35 In a phase 2 trial of bapineuzumab, vasogenic oedema, now commonly referred to as ARIA-E, occurred spontaneously with CAA, was transient in nature, and resolved on MRI upon discontinuation.⁵² Similarly, cerebral microhaemorrhages, now commonly referred to as ARIA-H, have been shown to occur spontaneously in up to 19%, 32% and 38% of cognitively normal elderly, Alzheimer’s disease patients, and individuals with mild cognitive impairment, respectively.⁵³ ARIA-H is also considered a complication of CAA and small vessel angiopathy.⁵³

Clinical presentation and management of ARIA

Identifying symptoms commonly seen with ARIA may assist treating clinicians in implementing a strategy for appropriate detection, classification, monitoring and management. ARIA-E and ARIA-H events are predominantly reported in patients on active anti-Aβ antibody therapy. However, occasional cases are reported in cognitively normal patients on the usual course of Alzheimer’s disease as well as in patients receiving a placebo treatment.^22,54

ARIA-E events during various clinical trials are found to be mostly clinically asymptomatic with symptomatic cases accounting for 6.1% to 39.3% depending on the investigational therapeutics and doses, with the most commonly reported symptoms being headache, confusion, vomiting, visual or gait disturbance.^{6,10,22,55-58} Management of ARIA-E in RCTs, particularly decisions around continuing, reducing the dose, or withdrawing anti-Aβ antibody therapy, were drug-specific and dose-dependent. Most cases of ARIA-E resolved within a span of weeks to months after withholding or discontinuing anti-Aβ antibody.^11,53,56

Appropriate use recommendations (AUR) for the available anti-Aβ antibodies with accelerated FDA approval for treating patients with early Alzheimer’s disease have proposed ways to potentially mitigate the risk of ARIA.^15,17,59 In general, AURs are written by community experts not as a guideline but as a complement to prescribing information to help physicians in treatment decision and management. Despite AURs being tailored to each specific anti-amyloid antibody, the common considerations for the anti-amyloid antibodies include clinician awareness of individual’s medical history and APOE genotype status. AURs for anti-amyloid therapeutics to date propose a framework for evaluation and management protocols in cases when severe symptoms or signs may be due to ARIA. This includes urgent assessments and early treatment initiation of high-dose steroids. Current AURs propose continued dosing through asymptomatic mild ARIA with serial MRI monitoring.^15,17,59 In asymptomatic moderate ARIA cases, a dose suspension with serial MRI monitoring is recommended.^17,59 Whereas, in cases of severe symptomatic or recurrent ARIA of even mild severity (more than two episodes), treatment discontinuation is recommended.^17,59 In some instances when ARIA was quite severe or symptoms were considered serious, corticosteroids have been empirically administered to alleviate symptoms and reduce recurrence, as with treatment of CAA-ri.^15,33,52

If medical conditions requiring anticoagulation (atrial fibrillation, deep vein thrombosis, pulmonary embolism) emerge, therapy must be discontinued.^15,59 Previous clinical trials have shown that concomitant anti-amyloid treatment with anti-coagulants, antiplatelets or antithrombotics is associated with increased risk of ARIA, particularly ARIA-H warranting potential exclusion in these patient populations.^14,59,60 As new therapies become available, the establishment of uniform guidelines and recommendations on ARIA management will be imperative in ensuring patient safety.

Risk factors of cerebral amyloid angiopathy and commonalities with Alzheimer’s disease

APOE ε4 genotype is a significant risk factor for CAA, Alzheimer’s disease and ARIA.^{8,12,25,61-63} APOE, primarily synthesized by astrocytes and microglia, binds to Aβ peptides with high avidity, amplifying the emergence of Aβ fibrils.²⁵ The APOE ε4 genotype and low Aβ₄₂:Aβ₄₀ ratio may promote CAA.⁶² Since Aβ₄₀ contributes to inhibiting fibril formation, it is another important component of developing severe CAA.⁶² The APOE ε2 genotype is a risk factor for CAA-related intracerebral haemorrhage despite evidence suggesting ε2 carriers have protective effects against Alzheimer’s disease.^64,65 Additional risk factors of CAA include older age and superficial siderosis, the latter being often characterized as ARIA-H in clinical trial context.^35,66

Risk factors and predictors of ARIA

The three main risk factors for ARIA are exposure to anti-Aβ antibody, presence of pre-existing microhaemorrhages, and APOE ε4 carrier status (Fig. 1).^{7,11,22,56,57,67} The presence of baseline microhaemorrhages increases risk for developing ARIA-H with anti-Aβ antibody therapy.^14,34 The extent and incidence of ARIA may vary across anti-Aβ antibody therapies likely attributing to the differing mechanisms of action, therapeutic properties and selectivities to amyloid confirmations.

Results from a retrospective analysis of bapineuzumab trials found the greatest incidence of ARIA-E when the two highest drug doses were used (hazard ratio of 3 in patients receiving 2 or 1 mg/kg dose).¹¹APOE ε4 carriers treated with anti-Aβ antibodies had a greater risk of developing ARIA compared with non-carriers; those who were APOE ε4 homozygous were at greatest risk (Table 2).^11,22APOE genotyping should be suggested for patients considering anti-Aβ antibody drug initiation to enable better risk evaluation, to allow for better patient/family counselling and informed decisions, and to optimize safety monitoring and management of potential treatment-emergent ARIA.^12,59

Table 2.

ARIA findings by APOE ε4

Patients with Alzheimer’s disease treated with bapineuzumab	Retrospective analysis of ARIA-E Sperling et al.11		Prospective secondary analysis of ARIA-H <1 cm Arrighi et al.14
APOE ε4 genotype	Patients who experienced ARIA-E (n; %)	HR (95% CI; P-value)	HR (95% CI)
Non-carriers	5 (6.8)	1.00 (reference)	1.00 (reference)
Heterozygote	18 (17.6)	3.62 (1.30, 10.08; 0.01)	4.16 (1.09, 15.91)
Homozygote	12 (36.4)	7.28 (2.53, 20.95; <0.01)	14.79 (3.92, 55.74)
Patients with Alzheimer’s disease treated with solanezumab	ARIA-E summary table Carlson et al. 22
APOE ε4 genotype	ARIA-E sulcal and/or parenchymal: n	Maximum ARIA-E severity: n	ARIA-H at time of ARIA-E: n
EXPEDITION
Non-carriers	Parenchymal: 1	Mild: 1	>10: 1
Heterozygote	Sulcal: 1	Mild: 1	2–5: 1
Homozygote	Sulcal: 1	Severe: 1	2–5: 1
EXPEDITION 2
Non-carriers	Parenchymal: 3	Mild: 2 Severe: 1	>10: 1 N/A: 2
Heterozygote	Parenchymal: 1	Severe: 1	6–10: 1
Homozygote	Parenchymal: 1	Moderate: 1	1: 1
EXPEDITION-EXT
Non-carriers	Parenchymal: 3	Mild: 2 Moderate: 1	>10: 2 0: 1
Heterozygote	Sulcal: 1 Parenchymal: 1	Mild: 1 Moderate: 1	>10: 1 0: 1
Homozygote	Sulcal: 1 Parenchymal: 1	Mild: 2	>10: 1 2–5: 1

CI = confidence interval; HR = hazard ratio; N/A = not available.

Other ARIA-H risk factors include the extent of brain parenchymal or vascular Aβ deposition, and the level of pre-existing CAA.¹⁴ Severe CAA or brain MRI-detected baseline microhaemorrhages increase ARIA risk.^67,68 It is recommended to identify past medical conditions that may predispose to ARIA or increase the likelihood of ARIA-related complications. Such medical conditions include pre-existing autoimmune or inflammatory conditions, seizures, transient ischaemic attacks, cerebrovascular disease, or substantial changes in the brain white matter.

Protein biomarkers (particularly CSF biomarkers) have potential application in the detection, monitoring and management of ARIA.^68,69 In particular, CSF Aβ autoantibodies are seen in spontaneous ARIA-like events (i.e. CAA-ri), providing a better understanding of the pathophysiology.^68,70 This may also hold promise as a future biomarker for ARIA surveillance and management.^68,70 Recovery from ARIA (following application of appropriate management protocols) is associated with reductions in CSF tau, phosphorylated tau (P-tau), total tau, Aβ₄₀, and autoantibody concentration.^13,68 Analysis of baseline protein CSF biomarkers as potential predictors of future ARIA requires further investigation.¹³ Similarities in pathophysiological mechanisms between CAA-ri and ARIA are not fully understood. Past evidence supports the use of CSF Aβ autoantibodies as a valid biomarker in CAA-ri diagnosis.^48,68 Future studies should assess whether these findings apply to ARIA, and whether monitoring CSF Aβ autoantibodies in patients with Alzheimer’s disease treated with anti-Aβ antibodies offers a viable safety biomarker of ARIA-related adverse events.^48,68

Prevalence of ARIA in the research population

Although most often associated with anti-amyloid trials, ARIA has also been observed in the natural course of Alzheimer’s disease at lower rates. In patients with Alzheimer’s disease dementia who have not received anti-Aβ antibody therapy, ARIA-E prevalence is <0.1% to 0.8% while ARIA-H prevalence is between 9.2% and 33%.^54,71 Previously reported studies suggest that an increase in age correlates to higher odds of ARIA-H and microhaemorrhage rates in Aβ+ populations.⁵⁴

In phase 3 clinical trials, baseline prevalence of ARIA-E was low (∼0.1% and 0.8% depending on the anti-Aβ antibody being tested).^11,22,72 For ARIA-H, the prevalence of spontaneous microhaemorrhage in the general older adult population was relatively high.^73,74 In the population-based Rotterdam Scan Study (n = 1062), 17.8% of participants aged 60–69 had microhaemorrhages. The prevalence increased to 38.3% in those aged ≥80 years.⁷³ A meta-analysis based on five prevalence studies found that microhaemorrhages were present in 23% of patients with Alzheimer’s disease.⁷⁵ In contrast to microhaemorrhages, the prevalence of superficial siderosis was much less common (0.7% in the Rotterdam Study population).⁷⁶

A systematic review of 22 RCTs, 11 secondary analyses of RCTs, and a case report, comprising a total of 15 508 adult patients, found that ARIA-H and ARIA-E generally manifested early during the study course.⁷ Most ARIA-E cases resolved spontaneously once treatment was withheld; though in cases of severely symptomatic ARIA, empirical use of steroids has been reported.⁷ The recurrence rates for ARIA-E after dose re-initiation or adjustment varied from 13.8% to 25.6% across RCTs.⁷ In contrast, ARIA-H cases were generally found to be asymptomatic.⁷

Detection and classification challenges in ARIA

Since the clinical significance of asymptomatic ARIA remains unclear, RCTs include a contingent ARIA protocol as a precaution.⁷⁷ Contingent ARIA protocols may require un-blinding in the case of dose suspensions or need for repeated MRIs. Therefore, treatment allocation can be disclosed to all stakeholders (caregivers, patients and investigators) potentially affecting outcome assessments, especially those requiring caregiving reports.⁷⁷ Future ARIA protocols should consider a blinded radiologist to read the MRI images and include a placebo arm to avoid potential knowledge bias.⁷⁷

ARIA-H detection and classification can be challenging due to the small lesion sizes and the apparent similarity with other types of brain microbleeds.¹² Accurately and consistently measuring the size criteria of microhaemorrhages requires access to advanced technical features.⁸ Furthermore, the problem may be amplified by the ‘blooming effect’. This is where the apparent size of the microhaemorrhage on MRI appears bigger than the size of the histologically defined area of the haemosiderin deposited in the tissue.^8,12 Therefore, training neuroradiologists and using a standardized MRI protocol to quantify the number of microhaemorrhages present is important. Such challenges associated with identification and differentiation between suspected CAA, microhaemorrhages, or haemosiderin deposits (often designated as ARIA-H) are of particular importance when the potential use of anti-amyloid antibody is expanded to include individuals with vascular comorbidities.¹² Thus, there may be a need for consensus or redefinition of terminology for these patient populations in the future. From a technical perspective of image acquisition, MRI sequences that enhance signal loss due to micro-gradients in tissue are typically used for the detection of microhaemorrhages and superficial siderosis. The two general approaches include GRE/T₂* and SWI.

Based on the original Alzheimer’s Association Research Roundtable Workgroup, at minimum, the MRI assessment should be obtained with a 1.5 T scanner, 2D T₂* GRE scan sequence (to identify ARIA-H), T₂ FLAIR (to identify ARIA-E) with slice thickness ≤5 mm and echo time ≥20 ms (Fig. 3).⁸ If available, the MRI assessment should be obtained with a 3 T magnet and include SWI sequences as they are more sensitive at detecting microhaemorrhages.¹² It is recommended to obtain a brain MRI at the time or within 3–4 months of initiating treatment. It is still acceptable if obtained within the past year. Optimally, the same scanner, sequence, magnetic field strength, and protocol should be used for a given individual to improve reliability and ensure patient safety.

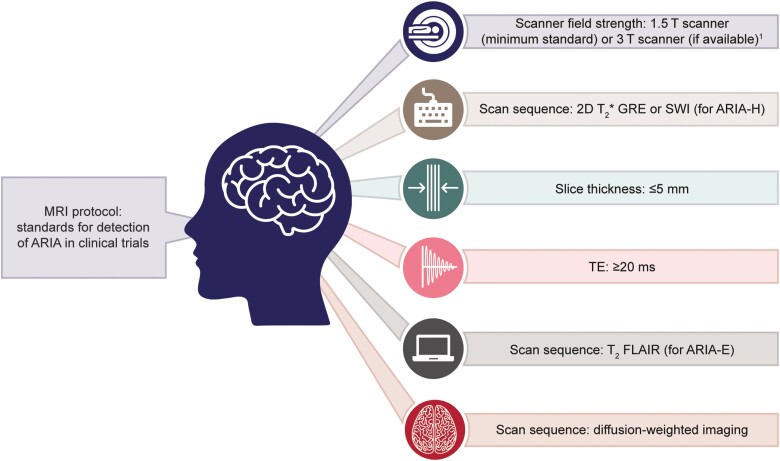

Figure 3.

MRI protocols for detection of ARIA in an anti-amyloid therapy clinical trial. ¹ Owing to the limited availability of higher field units in certain centres, the use of 1.5 T scanners is suggested as a minimum standard despite the greater sensitivity often found with high-field strength scanners. The implementation of more sensitive MRI measures e.g. susceptibility weighting imaging (SWI) to detect ARIA-H should be balanced against the clinical importance of such findings. While a brain MRI obtained within the past year may be acceptable if there have been no clinical changes since the scan was performed, it is preferable to obtain a brain MRI when initiating treatment or within 3–4 months of beginning treatment.⁸ GRE = gradient recalled echo; TE = echo time.

Reliable automated algorithms for the identification of microhaemorrhages or superficial siderosis from medical images are not available.⁸ Determination of a microhaemorrhage or superficial siderosis is based on visual inspection of MRI images by experts. There may be variation among experienced MRI readers owing to factors including features of the image acquisition and image artefacts.⁸ A trial using the Brain Observer MicroBleed Scale found reduced inter-rater disagreement in the number of microhaemorrhages in MRI images, highlighting its potential utility.⁷⁸ Recognizing the technical challenges of detecting ARIA, the Alzheimer’s Association Workgroup provided guidance on how technical consistency and a uniform neuroradiological approach to ARIA might be accomplished (Fig. 3).⁸ In contrast to ARIA, a greater consensus regarding the initial work-up and diagnosis of suspected CAA exists. This is likely due to experience in diagnosing CAA in clinical practice and the availability of validated grading criteria.

Moreover, a quantitative scoring or rating scale and a severity index may uncover the potential relationship between ARIA and clinical symptoms and/or outcomes in a patient.^8,20 This is successfully implemented in CAA and will be useful for diagnosing ARIA in anti-Aβ antibody therapies. Currently, one ARIA-E visual rating scale has been proposed to grade imaging findings.⁷⁹ The scoring sheet ranges from 0 (no abnormalities) to 5 (abnormalities in the entire lobe) and is arranged by region (i.e. frontal, parietal, occipital, temporal, central and infratentorial). It considers three different imaging features: sulcal hyperintensity, parenchymal hyperintensity and gyral swelling.⁷⁹ An MRI severity index of ARIA-E and ARIA-H was adapted by the Advisory Committee Briefing Document.²⁰ This index is divided into three severity categories (mild, moderate and severe), based on the size and site of involvement in ARIA-E and the number of microhaemorrhages or focal areas involved in ARIA-H.²⁰ Given the complexity of ARIA, relatively small sample sizes utilizing such tools currently, and varying experience and expertise levels, further validation of existing and new scales are warranted to assess the clinical relevance of ARIA and its possible implications on management.

Future directions and conclusions

Existing evidence highlights the significant impact of ARIA in the natural course of Alzheimer’s disease and on the use of anti-Aβ antibodies to treat early Alzheimer’s disease. In light of the accelerated FDA approvals of two anti-Aβ therapies,^18,19 current recommendations underline the need for standardized ARIA detection, monitoring and management protocols in real-world clinical settings.^8,15 Management protocols related to therapeutic options, which may in specific cases include steroids, anticonvulsants or other symptomatic agents, are important to have, a priori, in place and will likely evolve as clinical knowledge expands regarding optimal monitoring and management of ARIA.

Current recommendations focus largely on stated requirements for the MRI scanner and associated sequence. It is acknowledged that interrater variability might be a challenge.⁸ The use of a quantitative computer-aided diagnosis (CAD), which combines computational algorithms and clinician’s evaluation of the MRI images,⁸⁰ may support the successful diagnosis of ARIA (e.g. given the difficulties of ARIA-H diagnosis). Future clinical trials involving anti-Aβ antibodies should consider using CAD methodology once it is validated.
