Abstract
The ςS- and ς70-associated forms of RNA polymerase core enzyme (E) of Escherichia coli have very similar promoter recognition specificities in vitro. Nevertheless, the in vivo expression of many stress response genes is strongly dependent on ςS. Based on in vitro assays, it has recently been proposed that the disaccharide trehalose specifically stimulates the formation and activity of EςS and thereby contributes to promoter selectivity (S. Kusano and A. Ishihama, J. Bacteriol. 179:3649–3654, 1997). However, we demonstrate here that a trehalose-free otsA mutant exhibits growth phase-related and osmotic induction of various ςS-dependent genes which is indistinguishable from that of an otherwise isogenic wild-type strain and that stationary-phase cells do not accumulate trehalose (even though the trehalose-synthesizing enzymes are induced). We conclude that in vivo trehalose does not play a role in the expression of ςS-dependent genes and therefore also not in sigma factor selectivity at the promoters of these genes.
Many stress-responsive genes in Escherichia coli require the rpoS-encoded ςS subunit of RNA polymerase for expression. While exponentially growing cells contain very little ςS, entry into stationary phase or exposure to hyperosmolarity, low or high temperature, or acidic pH results in a rapid induction of ςS (for recent reviews on the function and regulation of ςS, see references 6 and 7). Nevertheless, the “housekeeping” ς70 still remains the most abundant sigma factor, with ςS reaching a cellular content of approximately 30% of that of ς70 in stationary phase (10). In contrast to alternative sigma factors, ςS has an in vitro promoter recognition specificity that strongly overlaps with that of ς70. Under standard in vitro transcription conditions, promoter recognition by the RNA polymerase core enzyme (E) associated with either of the two sigma factors can be observed for many genes (20, 23, 24). In vivo, however, especially the strongly stress-responsive genes are clearly dependent on EςS for expression. This discrepancy has been attributed to the artificial conditions of the standard in vitro transcription assay, since variations in the concentrations of different salts, in the sigma factor-to-core enzyme ratio, and in the superhelicity of the DNA templates have been found to selectively improve in vitro recognition by EςS of promoters that in vivo are ςS dependent (2, 13). Yet the observed effects, even when additive, are small, and/or the required conditions are not present in vivo at the time of induction of ςS-dependent genes (e.g., most ςS-dependent genes are induced during the transition into stationary phase, whereas a significant reduction in negative DNA supercoiling is found only in late stationary phase [13]).
Recently, the disaccharide trehalose has also been implicated in the formation and the activity of the EςS holoenzyme (14). Trehalose synthesis is itself under the control of ςS (8, 12), and accumulation of trehalose has been demonstrated in hyperosmotically stressed cells of E. coli, where it serves as an osmoprotectant (3, 17). Trehalose is known as a general stress protectant in many organisms, and its protein- and membrane-protective properties are well documented (1). The hypothesis that trehalose is also important for the selective activation of transcription by EςS was entirely based on in vitro experiments (14). For the present report, we have tested this hypothesis in vivo.
Effect of an otsA mutation on the expression of ςS-dependent genes during entry into stationary phase.
Trehalose synthesis requires two enzymes, trehalose-6-phosphate synthase (encoded by the otsA gene) and trehalose-6-phosphate phosphatase (otsB) (4). otsB and otsA constitute an operon that exhibits ςS-dependent activation in response to high levels of osmolarity or during entry into stationary phase (8, 12). If the above-mentioned hypothesis is correct, a trehalose-free otsA mutant should be impaired in the stationary-phase induction of ςS-dependent genes. This was tested by using lacZ and phoA fusions that represent different classes of ςS-regulated genes. The expression of all these genes is strongly ςS dependent in vivo, but whereas osmY and bolA are negatively regulated by cyclic AMP (cAMP)-cAMP receptor protein (CRP) (15, 16), csiD requires cAMP-CRP for activation (18, 25). While osmY, bolA, and osmB exhibit strong osmotic as well as stationary-phase induction (11, 15, 16, 26), csiD expression is activated exclusively upon carbon starvation (18, 25). Figure 1 demonstrates that an otsA::Tn10 null mutation did not alter stationary-phase induction of any of these genes, i.e., the ability to synthesize trehalose is irrelevant for their in vivo expression.

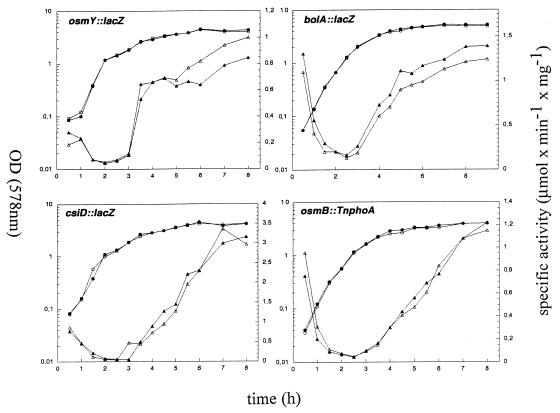

FIG. 1.
Stationary-phase induction of ςS-dependent genes is not affected in trehalose-free strains. The following MC4100-derived strains carrying reporter lacZ or phoA fusions (solid symbols) and their otsA::Tn10 derivatives (open symbols) were tested: RO151 [carrying csi-5(osmY)::lacZ(λplacMu55)] (9), RH95 (carrying λMAV103::bolAp1::lacZYA) (16), DW12 [carrying csi-12(csiD)::lacZ(λplacMu15)] (25), and LB78 (carrying osmB411::TnphoA) (5). Cells were grown in Luria-Bertani medium (19), and optical densities at 578 nm (OD578; circles) and specific LacZ and PhoA activities (triangles) were determined as described previously (references 19 and 5, respectively).
Do stationary-phase cells accumulate trehalose?
The hypothesis that trehalose is involved in the selective activation of ςS-dependent genes during entry into stationary phase (14) relies on trehalose being synthesized under these conditions. Whereas stationary-phase activation of otsA and otsB has been demonstrated (8), several authors have mentioned (as unpublished results) that the activation of the genes did not automatically correlate with an accumulation of trehalose itself (8, 22). Here, we demonstrate that stationary-phase cells do not accumulate trehalose, at least not in amounts comparable to those found after osmotic upshift (Fig. 2). This was invariably observed no matter whether cells were grown in rich or minimal glucose medium or whether early- or late-stationary-phase cells were tested. By contrast and as expected, trehalose accumulation was observed for osmotically stressed cells. As previously reported (3, 17), the intracellular trehalose concentration under these conditions is in the 100 to 200 mM range (with the limit of detection by thin-layer chromatography being at least fivefold lower). But even osmotic upshift did not elicit trehalose production when applied to stationary-phase cells (Fig. 2). Carbon-starved cells may be unable to accumulate trehalose, perhaps because of a reduction in the cellular content of the precursor UDP-glucose (21). Moreover, this result indicates that stationary-phase cells, which are highly osmotolerant, are not dependent on high internal concentrations of trehalose in order to cope with high levels of osmolarity. These data do not exclude the possibility that smaller amounts of trehalose (i.e., below the limit of detection by thin-layer chromatography) are synthesized in stationary-phase cells, as suggested by the fact that the otsBA operon is clearly stationary phase induced. At such lower concentrations, trehalose may have more specific functions or targets, as suggested by the finding that the otsA mutant is partially impaired in stationary-phase thermotolerance (8).

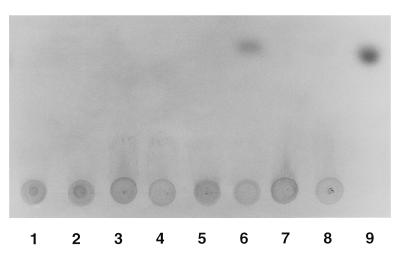

FIG. 2.
Stationary-phase cells do not accumulate trehalose. Strain MC4100 was grown in Luria-Bertani medium (lanes 1 to 4) or M9 minimal medium (19) containing 0.1% glucose (lanes 5 to 8). Exponentially growing cells (lanes 1, 2, 5, and 6) and stationary-phase cells (lanes 3, 4, 7, and 8) were assayed for trehalose accumulation as follows. First, 0.3 M NaCl was added to aliquots of exponentially growing cells (at an optical density at 578 nm [OD578] of 0.3) and of stationary-phase cells (2 h after the onset of stationary phase). Incubation of NaCl-treated (lanes 2, 4, 6, and 8) and NaCl-free (lanes 1, 3, 5, and 7) cultures was continued for 60 min (exponential phase) and 90 min (stationary phase). Cells (corresponding to 10 ml of a culture at an OD578 of 0.5) were harvested, the pellet was resuspended in 15 μl of 15 mM trichloroacetic acid and centrifuged after a 10-min incubation on ice, and the entire supernatants were separated overnight on a thin-layer chromatography plate (Merck) with a butanol-ethanol-water mixture (5:3:2). As a standard, pure trehalose (10 μl of a 10 mM solution) was used (lane 9). The plate was soaked in 20% H2SO4, dried, and incubated at 180°C for 15 min.
Does trehalose play a role in ςS-dependent gene expression in hyperosmotically stressed cells?
Upon osmotic upshift, the intracellular trehalose concentration increases to considerable levels (3, 17). Since these seem to be the only conditions under which the in vivo content of trehalose is at least of the same order of magnitude as that required to observe in vitro effects on holoenzyme formation and the activity of ςS (14), we tested whether osmotic induction of ςS-dependent genes in vivo is affected by the otsA::Tn10 mutation (Fig. 3). Again, this was not the case for osmY, bolA, and osmB (csiD is not osmotically inducible at all).

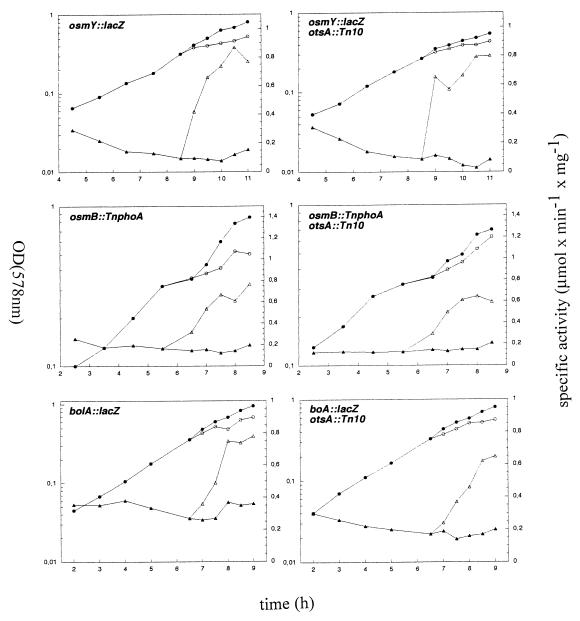

FIG. 3.
Osmotic induction of ςS-dependent genes is not affected in trehalose-free strains. Strains RO151, LB78, and RH95 carrying reporter gene fusions in osmY, osmB, and bolA, respectively (see legend to Fig. 1), and their otsA::Tn10 derivatives were grown in M9 medium with 0.4% glycerol. After growth for more than three generations, mid-log-phase cultures (of an optical density at 578 nm [OD578] of 0.3) were divided into two aliquots each, one of which was supplemented with 0.3 M NaCl. OD578 values (circles) and specific LacZ and PhoA activities (triangles) were determined in NaCl-free (solid symbols) and NaCl-containing (open symbols) cultures.
Conclusions.
While trehalose in high concentrations (0.5 to 1 M) measurably affects the in vitro formation and activity of the EςS holoenzyme form of RNA polymerase (14), we conclude from the data presented here that trehalose is not relevant for ςS-dependent gene expression in vivo. This is so during entry into stationary phase, when trehalose does not measurably accumulate at all, as well as in hyperosmotically stressed exponential-phase cells, where trehalose can accumulate to substantial concentrations. Consequently, trehalose also cannot contribute to in vivo sigma factor selectivity at ςS-regulated promoters.
Acknowledgments
We thank A. Strøm for providing the otsA mutant. We appreciate the support of W. Boos, in whose laboratories this work was carried out.
Financial support was provided by the Deutsche Forschungsgemeinschaft (Schwerpunkt-Programm “Regulatory Networks in Bacteria,” He-1556/5) and the Fonds der Chemischen Industrie.
REFERENCES
- 1.Crowe J H, Hoekstra F A, Crowe L M. Anhydrobiosis. Annu Rev Physiol. 1992;54:579–599. doi: 10.1146/annurev.ph.54.030192.003051. [DOI] [PubMed] [Google Scholar]
- 2.Ding Q, Kusano S, Villarejo M, Ishihama A. Promoter selectivity control of Escherichia coli RNA polymerase by ionic strength: differential recognition of osmoregulated promoters by EςD and EςS holoenzymes. Mol Microbiol. 1995;16:649–656. doi: 10.1111/j.1365-2958.1995.tb02427.x. [DOI] [PubMed] [Google Scholar]
- 3.Dinnbier U, Limpinsel E, Schmid R, Bakker E P. Transient accumulation of potassium glutamate and its replacement by trehalose during adaptation of growing cells of Escherichia coli K-12 to elevated sodium chloride concentrations. Arch Microbiol. 1988;150:348–357. doi: 10.1007/BF00408306. [DOI] [PubMed] [Google Scholar]
- 4.Giaever H M, Styrvold O B, Kaasen I, Strøm A R. Biochemical and genetic characterization of osmoregulatory trehalose synthesis in Escherichia coli. J Bacteriol. 1988;170:2841–2849. doi: 10.1128/jb.170.6.2841-2849.1988. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 5.Gutierrez C, Barondess J, Manoil C, Beckwith J. The use of transposon TnphoA to detect genes for cell envelope proteins subject to a common regulatory stimulus. J Mol Biol. 1987;195:289–297. doi: 10.1016/0022-2836(87)90650-4. [DOI] [PubMed] [Google Scholar]
- 6.Hengge-Aronis R. Back to log phase: ςS as a global regulator in the osmotic control of gene expression in Escherichia coli. Mol Microbiol. 1996;21:887–893. doi: 10.1046/j.1365-2958.1996.511405.x. [DOI] [PubMed] [Google Scholar]
- 7.Hengge-Aronis R. Regulation of gene expression during entry into stationary phase. In: Neidhardt F C, Curtiss III R, Ingraham J L, Lin E C C, Low K B, Magasanik B, Reznikoff W S, Riley M, Schaechter M, Umbarger H E, editors. Escherichia coli and Salmonella: cellular and molecular biology. 2nd ed. Washington, D.C: American Society for Microbiology; 1996. pp. 1497–1512. [Google Scholar]
- 8.Hengge-Aronis R, Klein W, Lange R, Rimmele M, Boos W. Trehalose synthesis genes are controlled by the putative sigma factor encoded by rpoS and are involved in stationary-phase thermotolerance in Escherichia coli. J Bacteriol. 1991;173:7918–7924. doi: 10.1128/jb.173.24.7918-7924.1991. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 9.Hengge-Aronis R, Lange R, Henneberg N, Fischer D. Osmotic regulation of rpoS-dependent genes in Escherichia coli. J Bacteriol. 1993;175:259–265. doi: 10.1128/jb.175.1.259-265.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 10.Jishage M, Iwata A, Ueda S, Ishihama A. Regulation of RNA polymerase sigma subunit synthesis in Escherichia coli: intracellular levels of four species of sigma subunit under various growth conditions. J Bacteriol. 1996;178:5447–5451. doi: 10.1128/jb.178.18.5447-5451.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 11.Jung J U, Gutierrez C, Martin F, Ardourel M, Villarejo M. Transcription of osmB, a gene encoding an Escherichia coli lipoprotein, is regulated by dual signals. J Biol Chem. 1990;265:10574–10581. [PubMed] [Google Scholar]
- 12.Kaasen I, Falkenberg P, Styrvold O B, Strøm A R. Molecular cloning and physical mapping of the otsBA genes, which encode the osmoregulatory trehalose pathway of Escherichia coli: evidence that transcription is activated by KatF(AppR) J Bacteriol. 1992;174:889–898. doi: 10.1128/jb.174.3.889-898.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 13.Kusano S, Ding Q Q, Fujita N, Ishihama A. Promoter selectivity of Escherichia coli RNA polymerase Eς70 and Eς38 holoenzymes—effect of DNA supercoiling. J Biol Chem. 1996;271:1998–2004. doi: 10.1074/jbc.271.4.1998. [DOI] [PubMed] [Google Scholar]
- 14.Kusano S, Ishihama A. Stimulatory effect of trehalose on formation and activity of Escherichia coli RNA polymerase Eς38 holoenzyme. J Bacteriol. 1997;179:3649–3654. doi: 10.1128/jb.179.11.3649-3654.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 15.Lange R, Barth M, Hengge-Aronis R. Complex transcriptional control of the ςS-dependent stationary-phase-induced and osmotically regulated osmY (csi-5) gene suggests novel roles for Lrp, cyclic AMP (cAMP) receptor protein-cAMP complex, and integration host factor in the stationary-phase response of Escherichia coli. J Bacteriol. 1993;175:7910–7917. doi: 10.1128/jb.175.24.7910-7917.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 16.Lange R, Hengge-Aronis R. Growth phase-regulated expression of bolA and morphology of stationary-phase Escherichia coli cells are controlled by the novel sigma factor ςS. J Bacteriol. 1991;173:4474–4481. doi: 10.1128/jb.173.14.4474-4481.1991. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 17.Larsen P I, Sydnes L K, Landfald B, Strøm A R. Osmoregulation in Escherichia coli by accumulation of organic osmolytes: betaines, glutamic acid, and trehalose. Arch Microbiol. 1987;147:1–7. doi: 10.1007/BF00492896. [DOI] [PubMed] [Google Scholar]
- 18.Marschall C, Labrousse V, Kreimer M, Weichart D, Kolb A, Hengge-Aronis R. Molecular analysis of the regulation of csiD, a carbon starvation-inducible gene in Escherichia coli that is exclusively dependent on ςS and requires activation by cAMP-CRP and Lrp. J Mol Biol. 1998;276:339–353. doi: 10.1006/jmbi.1997.1533. [DOI] [PubMed] [Google Scholar]
- 19.Miller J H. Experiments in molecular genetics. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1972. [Google Scholar]
- 20.Nguyen L H, Jensen D B, Thompson N E, Gentry D R, Burgess R R. In vitro functional characterization of overproduced Escherichia coli katF/rpoS gene product. Biochemistry. 1993;32:11112–11117. doi: 10.1021/bi00092a021. [DOI] [PubMed] [Google Scholar]
- 21.Rinas U, Hellmuth K, Kang R, Seeger A, Schlieker H. Entry of Escherichia coli into stationary phase is indicated by endogenous and exogenous accumulation of nucleobases. Appl Environ Microbiol. 1995;61:4147–4151. doi: 10.1128/aem.61.12.4147-4151.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22.Strøm A R, Kaasen I. Trehalose metabolism in Escherichia coli: stress protection and stress regulation of gene expression. Mol Microbiol. 1993;8:205–210. doi: 10.1111/j.1365-2958.1993.tb01564.x. [DOI] [PubMed] [Google Scholar]
- 23.Tanaka K, Kusano S, Fujita N, Ishihama A, Takahashi H. Promoter determinants for Escherichia coli RNA polymerase holoenzyme containing ς38 (the rpoS gene product) Nucleic Acids Res. 1995;23:827–834. doi: 10.1093/nar/23.5.827. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24.Tanaka K, Takayanagi Y, Fujita N, Ishihama A, Takahashi H. Heterogeneity of the principal sigma factor in Escherichia coli: the rpoS gene product, ς38, is a second principal sigma factor of RNA polymerase in stationary phase Escherichia coli. Proc Natl Acad Sci USA. 1993;90:3511–3515. doi: 10.1073/pnas.90.8.3511. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 25.Weichart D, Lange R, Henneberg N, Hengge-Aronis R. Identification and characterization of stationary phase-inducible genes in Escherichia coli. Mol Microbiol. 1993;10:407–420. [PubMed] [Google Scholar]
- 26.Yim H H, Brems R L, Villarejo M. Molecular characterization of the promoter of osmY, an rpoS-dependent gene. J Bacteriol. 1994;176:100–107. doi: 10.1128/jb.176.1.100-107.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
