. 1998 May;180(10):2723–2728. doi: 10.1128/jb.180.10.2723-2728.1998

Interactions between the Promoter Regions of Nitrogenase Structural Genes (nifHDK2) and DNA-Binding Proteins from N2- and Ammonium-Grown Cells of the Archaeon Methanosarcina barkeri 227

Yueh-tyng Chien 1, John D Helmann 1, Stephen H Zinder 1,*
PMCID: PMC107226  PMID: 9573159

Abstract

Transcription initiation in Archaea (archaebacteria) resembles the eucaryotic process, having been shown to involve TATA box-like promoter regions as well as TATA-binding protein and TFIIB homologs. However, little is known about transcription regulation in archaea. We have previously demonstrated that transcripts of nifHDK2 genes, encoding Methanosarcina barkeri nitrogenase, are present in N2-grown cells but not in ammonium-grown cells, indicating that nif transcription is regulated by the nitrogen source. In this study, we detected proteins in M. barkeri cell extracts that bind specifically to DNA containing the putative promoter region of nifHDK2. No binding was found when the promoter region was deleted from the DNA. A competition assay showed that the methyl coenzyme M reductase (mcr) promoter region DNA and the nifH2 promoter region DNA competed for a common factor(s). There was no binding to the nifH2 promoter region by extracts of ammonium-grown cells, but there was binding by these extracts to promoter regions for mcr genes, which are presumably constitutively expressed. Interestingly, extracts of ammonium-grown cells inhibited binding to the nif promoter region by extracts of N2-grown cells. Fractionation of extracts of ammonium-grown cells with a heparin-Sepharose column resolved them into a fraction eluting at 0 M NaCl, which inhibited binding by extracts of N2-grown cells, and a fraction eluting at 0.5 to 0.75 M NaCl, which showed binding to the promoter region. These results are congruent with a model for regulation of nif gene expression in M. barkeri in which a substance present in ammonium-grown cells inhibits DNA binding by a transcription-associated protein or proteins.

It is becoming increasingly apparent that the transcriptional apparatus of archaea (archaebacteria) resembles the system in eucaryotes more than that in eubacteria. RNA polymerases from archaea structurally and functionally resemble those of eucaryotes, especially RNA polymerase II (23). Moreover, a TATA box-like element with consensus sequence 5′-TTA(T/A)ATA-3′ (32) is typically found ca. 25 bp upstream of archaeal transcription starts. No evidence of eubacterium-like sigma factors or promoters in archaea has been found. Instead, homologs of the TATA-binding protein (TBP) (27, 30, 33) and transcription factors TFIIB (10, 31) and TFIIS (24) have been found in archaea. It has been shown that TBP and TFIIB homologs (along with RNA polymerase and promoter DNA) are sufficient for transcription initiation in a cell-free transcription system (37) and that the Methanococcus jannaschii genome contains open reading frames encoding TBP, TFIIB, and TFIIS homologs (3), but no homologs of TFIIA have been found. There have also been demonstrations of functional interactions between archaeal and eucaryotic transcription apparatus components (30, 31, 33, 38).

Thus far the only DNA sequence element other than the TATA box and the initiation site that has been found to promote transcription is a purine-rich region usually (but not always) present directly upstream of archaeal TATA box-like elements (29). Despite these advances, much remains to be learned about transcription and its initiation and regulation in archaea. The size and makeup of the archaeal transcription initiation complex is not known nor is the potential role of upstream activators.

Evidence for regulation of the expression of some archaeal genes at the level of transcription has accrued. Examples include carbon monoxide dehydrogenase genes in Methanosarcina thermophila (36), heat shock genes in Haloferax volcanii (22) and Methanosarcina mazei (9, 26), and nitrogenase genes in methanogens (6, 35). An interesting system in Halobacterium halobium regulates the synthesis of the light-driven proton transporter bacteriorhodopsin (14). In that system, the bat gene product is believed to be a trans-acting inducer which responds to oxygen. Interestingly, a 124-amino-acid stretch of this protein shows significant similarity (30% identity, 56% similarity) to the N terminus of the Klebsiella NifL protein, which is an oxygen-sensing protein that inhibits NifA protein function in eubacteria (17). In eubacteria, the sigma subunit of RNA polymerase is essential for promoter recognition and transcriptional initiation, and several alternative sigma factors have been reported under different growth conditions (16). In contrast, no factors involved in promoter selection, and thus transcription specificity, have so far been identified in archaea.

Our previous results have shown that ammonium-grown cells of Methanosarcina barkeri do not reduce acetylene to ethylene (the standard assay for nitrogenase activity) or show bands cross-reacting with the antibody to eubacterial component 2 in immunoblots (25). Dot blot (6) and Northern blot (7) hybridizations suggest that expression of the nitrogenase structural genes was repressed by ammonium at the level of transcription. Thus, expression of genes involved in nitrogen fixation, an energetically costly process, is highly regulated. In this study, we examined the binding of proteins to the TATA box (TATAAATA) promoter region of nifHDK2 genes found upstream from the transcription start site mapped by primer extension (see Fig. 1). This promoter region contains a 7-bp purine-rich sequence upstream of the TATA box. We also report here the presence of a substance in extracts of ammonium-grown cells (ammonium-grown extracts) that inhibits binding at the TATA box promoter region by the DNA-binding proteins.

FIG. 1.

FIG. 1

Open in a new tab

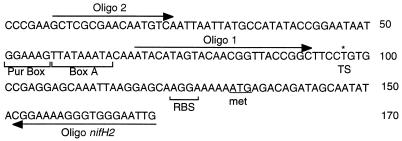

The 5′ end and upstream region of nifH2 in M. barkeri. ∗, transcription start site; Box A, archaeal TATA box promoter; Pur Box, upstream purine-rich region; RBS, ribosome binding site. Oligonucleotides used for PCR amplification of the template DNAs are indicated by arrows.

MATERIALS AND METHODS

Bacterial strains and growth conditions.

M. barkeri 227 (ATCC 43241, DSM 1538, and OCM 35) was obtained from our own culture collection. M. barkeri Fusaro (OCM 83, ATCC 29787, and DSM 804) was purchased from the Oregon Collection of Methanogens. Cells were grown under nitrogen-fixing conditions and in the presence of ammonia, as described previously (6).

Preparation of crude extracts and protein samples from M. barkeri 227 for gel mobility shift assays.

Extracts of N2-grown cells (N2-grown extracts) and ammonium-grown extracts were prepared by loading the cells into a French pressure cell (SLM Aminco, Urbana, Ill.), as described previously (25). The cells were broken at 20,000 lb/in2, and the extract was collected in an N2-flushed vial. Cell debris was removed by centrifugation at 25,000 × g in 50-ml polypropylene tubes with screw caps containing silicone rings (Nalge Co.) loaded inside the anaerobic chamber. Crude extract was stored at −20°C.

A simple fractionation scheme was performed by running crude extract through a heparin-Sepharose column (Pharmacia). The eluted fractions (0 M, 0 to 0.35 M, 0.35 to 0.6 M, and 0.6 to 1.0 M) were collected, dialyzed, and concentrated before use. The ammonium-grown extract was filtered through a 10,000-molecular-weight-cutoff Centricon-10 concentrator (Amicon Division, W. R. Grace and Co., Danvers, Mass.). These preparations were used in the band shift assays.

Preparation of DNA for gel mobility shift assays.

DNA fragments were amplified from M. barkeri chromosomal DNA by PCR with two gene-specific primers. One of these primers was radioactively labeled with [γ32P]dATP and T4 polynucleotide kinase (New England Biolabs). PCR fragments were purified by the Promega Wizard PCR purification kit, according to the manufacturer’s instructions. Oligonucleotides Oligo 2 (5′-GCTCGCGAACAATGTCA-3′) and Oligo nifH2 (TCCAATTCCCACCCTTTTCCG) were used to amplify a 165-bp DNA fragment (Fig. 1), while Oligo 1 (ATACATAGTACAACGGTTACCGGC) and Oligo nifH2 were used to amplify a 103-bp fragment. A DNA fragment (270 bp) containing the promoter region for methyl coenzyme M reductase was prepared by PCR from M. barkeri Fusaro chromosomal DNA by using oligonucleotides Oligo MR1 (5′-TTTCGATCGATACGGTT-3′) and Oligo MR2 (5′-TGTCGTCGTAGATGTCT-3′). A nifH2 DNA fragment (165 bp) containing the promoter region was amplified from M. barkeri 227 by oligonucleotides Oligo 2 and Oligo nifH2 (Fig. 1). These DNA fragments were used to compete with the end-labeled probe prepared as described previously.

Gel mobility shift assays.

Protein-DNA complexes were resolved on low-ionic-strength polyacrylamide gels (12, 13). Protein samples were incubated with approximately 5,000 cpm (0.3 ng) of end-labeled double-stranded DNA fragments in the presence of 0.5 μg of poly(dI-dC) · poly(dI-dC) (Pharmacia) in a final volume of 20 to 40 μl. In early experiments, 0.5 μg of calf thymus DNA (Sigma) was used instead of poly(dI-dC) · poly(dI-dC), but better results were obtained with the latter as nonspecific DNA. Incubations were carried out on ice for 30 to 60 min in a solution of 10 mM Tris-HCl (pH 7.6), 50 mM NaCl, 5% (vol/vol) glycerol, 1 mM EDTA, and 1 mM dithiothreitol. Samples were loaded onto low-ionic-strength 5% (wt/vol) polyacrylamide gels (acrylamide-to-bisacrylamide weight ratio of 37.5:1) which were preelectrophoresed for 1 h at 170 V in 1× TBE buffer consisting of 8.9 mM Tris-HCl (pH 8.0), 8.9 mM boric acid, and 2 mM EDTA. Gels were electrophoresed at 170 V at room temperature until the bromophenol blue had run to the bottom of the gel. They were then laid on top of Whatman 3MM paper, dried, and autoradiographed.

RESULTS

Detection of proteins that bind to the promoter region of nifHDK2.

PCR was used to amplify the region upstream from nifH2 (Fig. 1) with oligonucleotides Oligo 2 and Oligo nifH2, producing a fragment 165 bp long. When Oligo 1 was used in place of Oligo 2, a fragment 103 bp long and lacking the promoter region was produced. These DNA fragments were then used as substrates for band shift assays using crude extracts of M. barkeri cells grown with N2. As shown in Fig. 2A, extracts of N2-grown cells contained factors binding to the fragment containing the promoter region, thereby causing retardation of a fraction of the DNA, while no shifted bands were detected from the DNA fragment lacking the promoter region.

FIG. 2.

FIG. 2

Open in a new tab

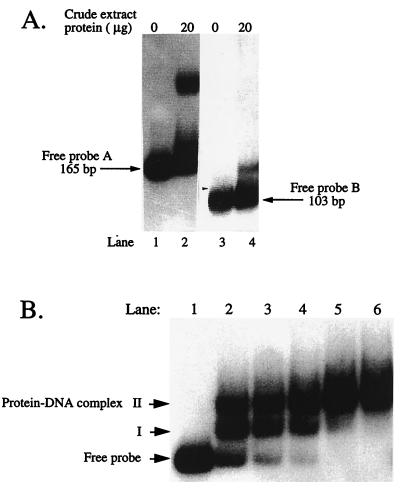

Detection, by gel mobility shift assay, of binding to the promoter region of nifH2 by proteins in a crude extract from N2-grown M. barkeri. (A) Requirement of the TATA box region for binding. Probe A (lanes 1 and 2) is a 165-bp fragment amplified by PCR with oligonucleotides Oligo 2 and Oligo nifH2 (Fig. 1) that contains the promoter region. Probe B (lanes 3 and 4) is the 103-bp product of PCR amplification of oligonucleotides Oligo 1 and Oligo nifH2 and lacks the TATA box. Lanes 2 and 4 received 20 μg of crude protein extract. In each assay, 0.5 μg of calf thymus DNA was added, and other conditions are as described in Materials and Methods. (B) Effect of protein concentration on shifting. Probe A was incubated with 0.5 μg of poly(dI-dC) · poly(dI-dC) DNA and with 0, 2, 4, 8, 16, or 32 μg of protein extract per assay (lanes 1 through 6, respectively).

We examined the effect of protein concentration on the band shift reaction and found that as little as 2 μg of crude extract yielded significant shifting of the DNA into two bands (Fig. 2B), and 16 to 32 μg led to complete shifting into the slower-migrating complex (other preparations of cell extracts usually had lower specific activities than this one but gave similar results). These observations suggest that M. barkeri extracts contain one or more factors that bind specifically to the nifH promoter region. Whether complexes I and II (Fig. 2) represent binding by two different proteins or binding at two sites by a single protein type is not known. Since nitrogenase genes are highly regulated by ammonium, we also examined the ability of ammonium-grown extracts to bind to the nifH2 promoter region. When up to 40 μg of protein from ammonium-grown extracts was used, no shifted bands were observed with the nifH2 promoter region (data not presented; also, see Fig. 4B).

FIG. 4.

FIG. 4

Open in a new tab

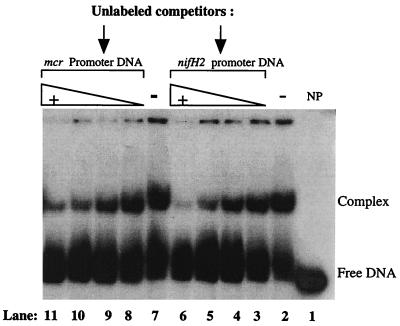

Competition between the nifH2 promoter region and the mcr promoter region from M. barkeri for protein binding to the nifH2 promoter region. Various amounts of unlabeled DNA fragments were added to a reaction mixture containing 0.3 ng of labeled nifH2 promoter region DNA before the extract was added. All binding reaction mixtures contained 60 μg of crude extract (except lane 1) and 0.5 μg of calf thymus DNA. Reaction mixtures contained labeled nifH2 DNA plus either no protein (NP) and unlabeled DNA (lane 1) or 0 (lane 2), 3 (lane 3), 10 (lane 4), 20 (lane 5), or 35 (lane 6) ng of an unlabeled fragment containing the nifH2 promoter. Alternatively, reaction mixtures contained 0 (lane 7), 3 (lane 8), 10 (lane 9), 20 (lane 10), 35 (lane 11) ng of an unlabeled fragment containing the methyl coenzyme M reductase (mcr) promoter.

To characterize these DNA-binding proteins further, we employed a simple fractionation scheme using a heparin-Sepharose column (15). We found, by using NaCl step gradients, that DNA-binding activity eluted maximally in the 0.35 to 0.6 M NaCl fraction, typical of many DNA-binding proteins, and that the DNA shifted by this fraction migrated similarly to complex II (data not presented). High protein concentrations from this fraction led to a substantial portion of the labeled DNA being retained in the sample wells.

Specificity of proteins binding to the nifH2 promoter.

Binding occurred in the presence of nonspecific competitors such as calf thymus DNA (Fig. 2A), poly(dI-dC) · poly(dI-dC) (Fig. 2B), and pBluescript (data not shown). To examine the specificity of DNA binding to the nifH promoter further, we also examined binding to the promoter region for genes encoding the methyl coenzyme M reductase enzyme complex (mcr), which carries out the final step in methanogenesis and is highly expressed and presumably constitutive whether the cells are fixing N2 or not. Unfortunately, the mcr genes from strain 227 have not been cloned so we used closely related M. barkeri Fusaro, which has been sequenced (2) and for which the upstream sequence TTTAAGTA has been proposed to be the promoter.

A labeled PCR product containing the promoter region of the mcr genes (270 bp) was used in gel shift assays to determine whether it would bind proteins in N2-grown M. barkeri extracts (Fig. 3A). Proteins bound to the mcr promoter region at concentrations similar to the nifH2 promoter region and caused a shifted band. The mcr promoter DNA was shifted by ammonium-grown M. barkeri extracts (Fig. 3B), while the nifH2 promoter region was not.

FIG. 3.

FIG. 3

Open in a new tab

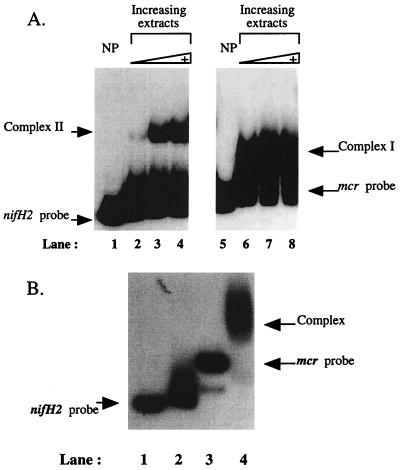

Band shift assays of labeled methyl coenzyme M reductase (mcr) DNA and labeled nifH2 DNA by M. barkeri N2-grown and ammonium-grown extracts. The binding reaction mixtures were as described in the legend to Fig. 2B except that 0.3 ng of labeled nifH2 DNA was used in lanes 1 through 4 and 0.3 ng of labeled mcr DNA was used in lanes 5 through 8. (A) Lane 1, no protein (control); lane 2, 5 μg of N2-grown extract; lane 3, 15 μg of N2-grown extract; lane 4, 40 μg of N2-grown extract; lane 5, no protein (control); lane 6, 5 μg of N2-grown extract; lane 7, 15 μg of N2-grown extract; lane 8, 40 μg of N2-grown extract. (B) Lane 1, no protein (control); lane 2, 40 μg of ammonium-grown extract; lane 3, no protein (control); lane 4, 40 μg of ammonium-grown extract. Lanes 1 and 2 received 0.3 ng of labeled nifH2 DNA, while lanes 3 and 4 received 0.3 ng of labeled mcr extract.

We examined potential competition between the two promoter regions for the DNA-binding proteins. Titration of the crude extracts against a constant amount of promoter-containing DNA fragment (ca. 0.3 ng) gave a clear shifting at ca. 60 μg of protein extract (data not shown). This quantity of crude extract was chosen for the competition assays. The competitions were performed by incubation of M. barkeri crude extracts with the end-labeled nifH2 promoter and increasing amounts of unlabeled nifH2 and mcr promoter DNA. The resulting protein-DNA complexes were resolved by gel electrophoresis (Fig. 4). Like the nifH2 promoter (Fig. 4, lanes 2 through 6), the mcr promoter effectively competed with end-labeled nifH2 DNA fragment (Fig. 4, lanes 7 through 11), suggesting that they are competing for a common factor or factors.

Detection of an inhibitor of binding of proteins to the nifH2 promoter region in extracts of ammonium-grown culture.

As described previously, up to 40 μg of extracts from ammonium-grown cells showed no band shifting of DNA containing the nifH2 promoter. This lack of binding may be due to any number of reasons, including inactive extract. To investigate this phenomenon further, we examined the effect of ammonium-grown extracts on binding by N2-grown extracts. Adding as little as 1 μg of protein from extracts from ammonium-grown cells to 20 μg of protein from N2-grown cells led to complete inhibition of band shifting (Fig. 5). Therefore, there appears to be a substance present in ammonium-grown extracts that inhibits binding of proteins to this DNA but not to mcr DNA. It is unlikely to be competing DNA, since one would not expect inhibition at 1/20 of the concentration used in that case (Fig. 4).

FIG. 5.

FIG. 5

Open in a new tab

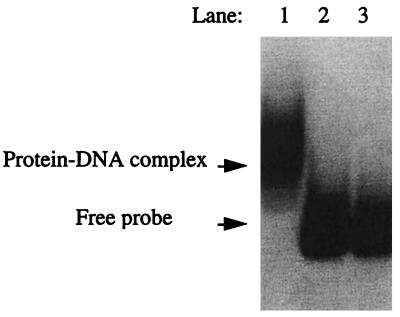

Inhibition of protein binding to the nifH2 promoter region by extracts from ammonium-grown cells of M. barkeri. Binding reaction mixtures were as described in Materials and Methods. The labeled nifH2 DNA fragment was incubated with 20 μg of N2-grown extract and 0 (lane 1), 1 (lane 2), and 5 (lane 3) μg of ammonium-grown extract.

Ammonium-grown extracts were fractionated on a heparin-Sepharose column (Fig. 6A). The pass-through fraction (0 M NaCl) did not bind DNA, while the 0.5 to 0.75 M NaCl fraction did bind DNA (Fig. 6B). We also tested these fractions from the heparin-Sepharose column derived from ammonium-grown extracts for the ability to inhibit DNA binding by N2-grown crude extracts (Fig. 6C). The 0 M NaCl flowthrough fraction was capable of inhibiting that binding, suggesting that an inhibitor was present in that fraction. Some inhibitory activity may be also present in the 0.25 to 0.5 M NaCl fraction.

FIG. 6.

FIG. 6

Open in a new tab

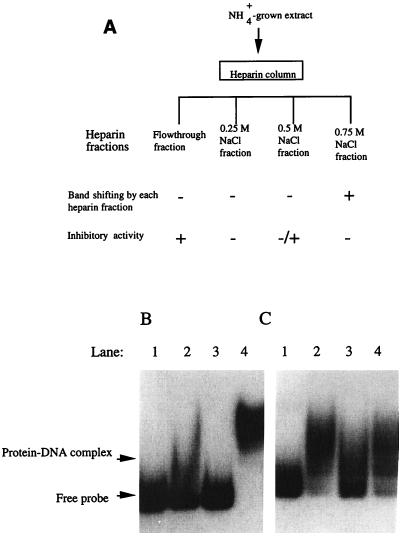

Heparin-Sepharose fractionation of extracts from ammonium-grown cells of M. barkeri. (A) Fractionation scheme of ammonium-grown extracts. The band-shifting and inhibitory activities of the fractions are indicated by + or −. Binding reaction mixtures were as described in Materials and Methods. (B and C) DNA binding (B) and inhibition of DNA binding (C) by N2 extracts by different fractions of ammonium-grown extracts. Each reaction mixture contained 40 μg of a heparin-Sepharose fraction; in addition, 60 μg of N2 extract was used in panel C. Lanes: 1, 0 M NaCl; 2, 0.25 M NaCl; 3, 0.5 M NaCl; 4, 0.75 M NaCl.

We speculated that the inhibitor present in the flowthrough fraction might be a low-molecular-weight intermediate in the NH4+ assimilation pathway. We used band shift assays to test the inhibitory activities of small molecules that are the intermediates of the ammonium assimilation pathway, including glutamine, glutamic acid, and ammonia. However, none of these molecules, alone or together, showed any inhibitory activity when added at a concentration up to 50 mM (data not shown). We also found that the inhibitor did not pass through a 10,000-molecular-weight-cutoff Centricon-10 concentrator. Therefore, we suggest that the inhibitor is a protein.

DISCUSSION

Using band shift mobility assays, we demonstrated the presence of proteins in extracts of N2-grown M. barkeri that bind specifically to the promoter region of nifH2 (Fig. 1). The specificity of this interaction is supported by several lines of evidence: (i) binding to the DNA was not inhibited by various nonspecific sources of DNA, such as poly(dI-dC) · poly(dI-dC) or calf thymus DNA; (ii) binding to the labeled DNA was inhibited by unlabeled DNA containing this promoter region; (iii) there was no binding to the DNA fragment produced by PCR amplification with oligonucleotides Oligo 1 and Oligo nifH2, which lacked the promoter region; and (iv) binding was not detected with extracts from ammonium-grown cells, while there was binding by these extracts to the mcr promoter region.

The appearance of slower-migrating bands with increasing extract concentrations (Fig. 2) in band shift assays using a DNA fragment containing the promoter region indicates successive binding to the site by more than one protein molecule per DNA molecule. There can be more than one protein binding at each step, and the proteins could be the same or different from each other. Likely candidates for part of the DNA-binding protein complex in M. barkeri are TBP and TFIIB homologs, both of which have been found in archaea (10, 31). The TBP typically binds as a monomer, as it contains two nearly identical domains (21, 27). We recently cloned the gene encoding a TBP homolog from M. barkeri (5) and are presently working to overexpress an active form for use in further experiments.

We detected no proteins binding to the nifH promoter region in ammonium-grown extracts. That these ammonium-grown extracts are able to shift the mcr promoter region demonstrates that this lack of binding was specific and not just an artifact of a low-potency extract. The lack of binding to the nifH promoters by extracts of ammonium-grown cells could be due to the lack of specific binding proteins or the presence of a binding inhibitor. Our evidence supports the latter possibility, since as little as 1 μg of ammonium-grown extract inhibited binding by 20 μg of N2-grown extract. Moreover, when fractionated on a heparin-Sepharose column, most of the inhibitory activity was obtained in the pass-through fraction while a fraction eluting at higher salt concentrations showed the ability to bind to the nifH promoter region, indicating that the ability to bind that promoter is present in the ammonium-grown cells but is inhibited under those conditions. That several small molecules (ammonia, glutamate, or glutamine) often used as cellular signals of nitrogen sufficiency (19) did not inhibit DNA binding by N2-grown extracts, and that this inhibitory activity was retained by a 10,000 molecular-weight-cutoff filter, suggests that the inhibitor is a protein, but more characterization is needed.

To determine whether the nif promoter region has binding proteins in common with other promoters, we performed competition assays, using the promoter region from a closely related M. barkeri strain, of the methyl coenzyme M reductase (mcr) genes; these genes encode the central enzyme in methanogenesis, which would presumably be constitutively and highly expressed in the presence of ammonia or under nitrogen-fixing conditions. A DNA fragment harboring this promoter region was readily shifted with extracts from strain 227 (Fig. 3A). Thus, the mcr promoter region readily competed with the nifH promoter for some common part of the transcription initiation machinery (Fig. 4), most likely including the TBP and TFIIB homologs. While the mcr and nifH2 promoter regions compete for DNA-binding proteins, there are clearly differences between them since, in contrast to the nifH2 promoter region, binding to the mcr region occurred in ammonium-grown cells. This phenomenon is difficult to explain as simple binding to a TBP-TFIIB initiation complex and suggests the presence of a protein providing nifH2 specificity, which would potentially interact with the proposed ammonium-growth-specific inhibitor. Such an inhibitor also might bind directly to the TBP or TFIIB.

We had anticipated binding by a repressor in ammonium-grown cells to be the mechanism of ammonia repression, but we failed to find evidence for this (Fig. 4). Indeed, Cohen-Kupec et al. (8) have demonstrated that ammonia repression of nitrogen fixation in the archaeon Methanococcus maripaludis involves repressor binding to a palindromic site associated with the transcription start of the structural nif genes from that organism. We have not found a similar site associated with the nifH2 transcription start, or elsewhere downstream of the promoter area, in M. barkeri. It is not surprising to find that these two methanogens have different mechanisms for regulation of transcription of their nif genes, since the evolutionary distance between them is comparable to that between Klebsiella pneumoniae and Clostridium pasteurianum (39), which also have different mechanisms of regulation (4).

The proposed mechanism of transcription inhibition in ammonium-grown cells does have precedents. For example, the proto-oncogene product p53 (34) in eucaryotes can inhibit TBP function by binding to it, although its binding appears to be at the amino terminus of the TBP, which is not involved in DNA binding (18). Other examples of negative regulators in eucaryotes have also been reported (1, 11, 20, 28). Dr1 binds to TBP and thereby inhibits both basal and activated transcription by preventing interaction of TFIIA and TFIIB with TBP (20); Dr2 interacts with TBP and represses basal transcription (28); and Mot1 (AD1), a global repressor of RNA polymerase II transcription, inhibits TBP binding to DNA by an ATP-dependent mechanism (1). To prove or disprove aspects of this model, we are presently attempting to purify and characterize the DNA-binding proteins and the putative inhibitor protein.

ACKNOWLEDGMENTS

This research was supported by grant DE-FG02-85ER13370 from the U.S. Department of Energy and by USDA Hatch funds.

We thank J. P. Shapleigh for helpful advice and for sharing his facilities with us.

REFERENCES

  • 1.Auble D T, Hansen K E, Mueller C G F, Lane W S, Thorner J, Hahn S. Mot1, a global repressor of RNA polymerase II transcription, inhibits TBP binding to DNA by an ATP-dependent mechanism. Genes Dev. 1994;8:1920–1934. doi: 10.1101/gad.8.16.1920. [DOI] [PubMed] [Google Scholar]
  • 2.Bokranz M, Klein A. Nucleotide sequence of the methyl coenzyme M reductase gene cluster from Methanosarcina barkeri. Nucleic Acids Res. 1987;15:4350–4351. doi: 10.1093/nar/15.10.4350. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Bult C J, White O, Olsen G J, Zhou L, Fleischmann R D, Sutton G G, Blake J A, FitzGerald L M, Clayton R A, Gocayne J D, Kerlavage A R, Dougherty B A, Tomb J-F, Adams M D, Reich C I, Overbeek R, Kirkness E F, Weinstock K G, Merrick J M, Glodek A, Scott J L, Geoghagen N S M, Weidman J F, Fuhrmann J L, Nguyen D, Utterback T R, Kelley J M, Peterson J D, Sadow P W, Hanna M C, Cotton M D, Roberts K M, Hurst M A, Kaine B P, Borodovsky M, Klenk H-P, Fraser C M, Smith H O, Woese C R, Venter J C. Complete genome sequence of the methanogenic archaeon Methanococcus jannaschii. Science. 1996;273:1058–1073. doi: 10.1126/science.273.5278.1058. [DOI] [PubMed] [Google Scholar]
  • 4.Chen J-S, Wang S-Z, Johnson J L. Nitrogen fixation genes in Clostridium pasteurianum. In: Grasshoff P M, Roth L E, Stacey G, Newton W E, editors. Nitrogen fixation: achievements and objectives. London, England: Chapman and Hall; 1990. pp. 483–490. [Google Scholar]
  • 5.Chien Y T, Brabban A D, Zinder S H. Abstracts of the 97th General Meeting of the American Society for Microbiology. Washington, D.C: American Society for Microbiology; 1997. Cloning and functional analysis of the gene encoding TATA-binding protein in the archaeon Methanosarcina barkeri 227, abstr. I-51; p. 330. [Google Scholar]
  • 6.Chien Y-T, Zinder S H. Cloning, DNA sequencing, and characterization of a nifD-homologous gene from the archaeon Methanosarcina barkeri 227 which resembles nifD1 from the eubacterium Clostridium pasteurianum. J Bacteriol. 1994;176:6590–6598. doi: 10.1128/jb.176.21.6590-6598.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Chien Y-T, Zinder S H. Cloning, functional organization, transcript studies, and phylogenetic analysis of the complete nitrogenase structural genes (nifHDK2) and associated genes in the archaeon Methanosarcina barkeri 227. J Bacteriol. 1996;178:143–148. doi: 10.1128/jb.178.1.143-148.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Cohen-Kupec R, Blank C, Leigh J H. Transcriptional regulation in Archaea: in vivo demonstration of a repressor binding site in a methanogen. Proc Natl Acad Sci USA. 1997;94:1316–1320. doi: 10.1073/pnas.94.4.1316. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Conaway R C, Conaway J W. General initiation factors for RNA polymerase II. Annu Rev Biochem. 1993;62:161–190. doi: 10.1146/annurev.bi.62.070193.001113. [DOI] [PubMed] [Google Scholar]
  • 10.Creti R, Londei P, Cammarano P. Complete nucleotide sequence of an archaeal (Pyrococcus woesei) gene encoding a homolog of eukaryotic transcription factor IIB (TFIIB) Nucleic Acids Res. 1993;21:2942. doi: 10.1093/nar/21.12.2942. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Drapkin R, Merino A, Reinberg D. Regulation of RNA polymerase II transcription. Curr Opin Cell Biol. 1993;5:469–476. doi: 10.1016/0955-0674(93)90013-g. [DOI] [PubMed] [Google Scholar]
  • 12.Fried M, Crothers D M. Equilibria and kinetics of lac repressor-operator interactions by polyacrylamide gel electrophoresis. Nucleic Acids Res. 1981;9:6505–6525. doi: 10.1093/nar/9.23.6505. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Garner M M, Revzin A. A gel electrophoresis method for quantifying the binding of proteins to specific DNA regions: application to components of the Escherichia coli lactose operon regulatory system. Nucleic Acids Res. 1981;9:3047–3060. doi: 10.1093/nar/9.13.3047. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Gropp F, Betlach M C. The bat gene of Halobacterium halobium encodes a trans-acting oxygen inducibility factor. Proc Natl Acad Sci USA. 1994;91:5475–5479. doi: 10.1073/pnas.91.12.5475. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Hausner W, Thomm M. Purification and characterization of a general transcription factor, aTFB, from the archaeon Methanococcus thermolithotrophicus. J Biol Chem. 1993;268:24047–24052. [PubMed] [Google Scholar]
  • 16.Helmann J D. Bacterial sigma factors. In: Conaway R C, Conaway J, editors. Transcription: mechanisms and regulation. New York, N.Y: Raven Press; 1994. pp. 1–17. [Google Scholar]
  • 17.Hill S, Austin S, Eydmann T, Jones T, Dixon R. Azotobacter vinelandii NifL is a flavoprotein that modulates transcriptional activation of nitrogen-fixation genes via a redox-sensitive switch. Proc Natl Acad Sci USA. 1996;93:2143–2148. doi: 10.1073/pnas.93.5.2143. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Horikoshi N, Usheva A, Chen J, Levine A J, Weinmann R, Schenk T. Two domains of p53 interact with the TATA-binding protein, and the adenovirus 13S E1A protein disrupts the association, relieving p53-mediated transcriptional repression. Mol Cell Biol. 1995;15:227–234. doi: 10.1128/mcb.15.1.227. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Ikeda T P, Shauger A E, Kustu S. Salmonella typhimurium apparently perceives external nitrogen limitation as internal glutamine limitation. J Mol Biol. 1996;259:589–607. doi: 10.1006/jmbi.1996.0342. [DOI] [PubMed] [Google Scholar]
  • 20.Inostroza J A, Mermelstein F H, Ha I H, Lane W S, Reinberg D. Dr1, a TATA-binding protein-associated phosphoprotein and inhibitor of class II transcription. Cell. 1992;70:477–489. doi: 10.1016/0092-8674(92)90172-9. [DOI] [PubMed] [Google Scholar]
  • 21.Kim J L, Nikolov D B, Burley S K. Co-crystal structure of TBP recognizing the minor groove of a TATA element. Nature. 1993;365:520–527. doi: 10.1038/365520a0. [DOI] [PubMed] [Google Scholar]
  • 22.Kuo Y-P, Thompson D K, St. Jean A, Charlebois R L, Daniels C J. Characterization of two heat shock genes from Haloferax volcanii: a model system for transcription regulation in the Archaea. J Bacteriol. 1997;179:6318–6324. doi: 10.1128/jb.179.20.6318-6324.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Langer D, Johannes H, Thuriaux P, Zillig W. Transcription in Archaea: similarity to that in Eucarya. Proc Natl Acad Sci USA. 1995;92:5768–5772. doi: 10.1073/pnas.92.13.5768. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Langer S D, Zillig W. Putative TFIIS gene of Sulfolobus acidocaldarius encoding an archaeal transcription elongation factor is situated differently downstream of the gene for a small subunit of DNA-dependent RNA polymerase. Nucleic Acids Res. 1993;21:2251. doi: 10.1093/nar/21.9.2251. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Lobo A L, Zinder S H. Nitrogenase in the archaebacterium Methanosarcina barkeri 227. J Bacteriol. 1990;172:6789–6796. doi: 10.1128/jb.172.12.6789-6796.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Macario A J L, Dugan C B, Macario E C D. A dnaK homolog in the archaebacterium Methanosarcina mazei S6. Gene. 1991;108:133–137. doi: 10.1016/0378-1119(91)90498-z. [DOI] [PubMed] [Google Scholar]
  • 27.Marsh T L, Reich C I, Whitelock R B, Olsen G J. Transcription factor IID in the Archaea: sequences in the Thermococcus celer genome would encode a product closely related to the TATA-binding protein of eucaryotes. Proc Natl Acad Sci USA. 1994;91:4180–4184. doi: 10.1073/pnas.91.10.4180. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Merino A, Madden K R, Lane W S, Champoux J J, Reinberg D. DNA topoisomerase I is involved in both repression and activation of transcription. Nature. 1993;365:227–232. doi: 10.1038/365227a0. [DOI] [PubMed] [Google Scholar]
  • 29.Palmer J R, Daniels C J. In vivo definition of an archaeal promoter. J Bacteriol. 1995;177:1844–1849. doi: 10.1128/jb.177.7.1844-1849.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Qureshi S A, Baumann P, Rowlands T, Khoo B, Jackson S P. Cloning and functional analysis of the TATA-binding protein from Sulfolobus shibatae. Nucleic Acids Res. 1995;23:1775–1781. doi: 10.1093/nar/23.10.1775. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Qureshi S A, Khoo B, Baumann P, Jackson S P. Molecular cloning of the transcription factor TFIIB homolog from Sulfolobus shibatae. Proc Natl Acad Sci USA. 1995;92:6077–6081. doi: 10.1073/pnas.92.13.6077. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Reeve J N. Molecular biology of methanogens. Annu Rev Microbiol. 1992;46:165–191. doi: 10.1146/annurev.mi.46.100192.001121. [DOI] [PubMed] [Google Scholar]
  • 33.Rowlands T, Baumann P, Jackson S P. The TATA-binding protein: a general transcription factor in eucaryotes and archaebacteria. Science. 1994;264:1326–1329. doi: 10.1126/science.8191287. [DOI] [PubMed] [Google Scholar]
  • 34.Seto E, Usheva A, Zambetti G P, Momand J, Horikoshi N, Weinmann R, Levine A J, Shenk T. Wild-type p53 binds to the TATA-binding protein and represses transcription. Proc Natl Acad Sci USA. 1992;89:12028–12032. doi: 10.1073/pnas.89.24.12028. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Souillard N, Sibold L. Primary structure, functional organization and expression of nitrogenase structural genes of the thermophilic archaebacterium Methanococcus thermolithotrophicus. Mol Microbiol. 1989;3:541–551. doi: 10.1111/j.1365-2958.1989.tb00200.x. [DOI] [PubMed] [Google Scholar]
  • 36.Sowers K R, Thai T T, Gunsalus R P. Transcriptional regulation of the carbon monoxide dehydrogenase gene (cdhA) in Methanosarcina thermophila. J Biol Chem. 1993;268:23172–23178. [PubMed] [Google Scholar]
  • 37.Thomm M. Archaeal transcription factors and their role in transcription initiation. FEMS Microbiol Rev. 1996;18:159–171. doi: 10.1111/j.1574-6976.1996.tb00234.x. [DOI] [PubMed] [Google Scholar]
  • 38.Wettach J, Gohl H P, Tschochner H, Thomm M. Functional interaction of yeast and human TATA-binding proteins with an archaeal RNA polymerase and promoter. Proc Natl Acad Sci USA. 1995;92:472–476. doi: 10.1073/pnas.92.2.472. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Woese C R. Bacterial evolution. Microbiol Rev. 1987;51:221–271. doi: 10.1128/mr.51.2.221-271.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
