Artificial intelligence for biomarker discovery in Alzheimer’s disease and dementia

Abstract

With the increase in large multimodal cohorts and high throughput technologies, the potential for discovering novel biomarkers is no longer limited by dataset size. Artificial intelligence (AI) and machine learning approaches have been developed to detect novel biomarkers and interactions in complex datasets. We discuss exemplar uses and evaluate current applications and limitations of AI to discover novel biomarkers.

Remaining challenges include a lack of diversity in the datasets available, the sheer complexity of investigating interactions, the invasiveness and cost of some biomarkers, and poor reporting in some studies. Overcoming these challenges will involve collecting data from underrepresented populations, developing more powerful AI approaches, validating the use of noninvasive biomarkers, and adhering to reporting guidelines. By harnessing rich multimodal data through AI approaches and international collaborative innovation, we are well positioned to identify clinically useful biomarkers that are accurate, generalizable, unbiased, and acceptable in clinical practice.

1. Introduction

Biomarkers are defined as measurable characteristics that are indicators of biological processes, pathogenic processes or responses to interventions [1]. These can be subtyped by their application and for this review, we focus on indications of susceptibility or risk, diagnostic, and prognostic biomarkers as defined in Table 1. Improving the clinical management of dementia requires reliable biomarkers that can aid in identifying high-risk populations, early diagnosis, accurate subtyping, and predicting prognosis, drug response, or adverse events [2]. Biomarkers from different biological scales have been investigated in people with dementia, including neuroimaging [3], electrophysiological [4], genetic [5], gene expression [6], protein [7], metabolic [8], gut microbial [9], sleep [10], gait [11], and digital [12] biomarkers. Biomarkers from cerebrospinal fluid (CSF)[13], as well as minimally invasive collectable biological fluids including blood [14], saliva [15], tear [16] and urine [17] have shown promise in improving dementia diagnosis. CSF biomarkers such as CSF amyloid beta (Aβ), total tau (t-tau) and phosphorylated tau (p-tau) have been introduced in some research-based clinical centres and Amyloid-positron emission tomography (PET) can be used to estimate plaque density using florbetapir, flutemetamol, or florbetaben tracers [18]. However, routine clinical use of dementia biomarkers has not reached most clinical settings [19], and dementia continues to be diagnosed on the basis of clinical diagnostic criteria [20]. Advancing biomarker research using an interdisciplinary approach is essential for accelerating the discovery of more reliable and clinically adaptable biomarkers for dementia [21].

Table 1.

Focused Biomarker Subtypes

Subtype	Definition
Susceptibility biomarkers	Indicate the risk of developing specific diseases in future in those without clinically apparent disease.
Diagnostic biomarkers	Detect or confirm diseases or their subtypes.
Prognostic biomarkers	Indicate the likelihood of disease progression in those who have the disease.

Alzheimer’s disease (AD), vascular dementia (VaD), dementia with Lewy bodies (DLB), and frontotemporal dementia (FTD) are the four most common subtypes of dementia. They differ on their rate of progression [22], mortality rate [23], medication response [24], and susceptibility to medication-related adverse events. Early diagnosis and accurate subtyping are important for the safe and effective management of dementia [24], but there are currently few biomarkers available to serve this important clinical need. Moreover, mild neurocognitive disorder or mild cognitive impairment (MCI) is characterized by objective evidence of cognitive impairment that is not severe enough to interfere with independent daily living [25]. It is important to be able to predict conversion to dementia in people with MCI in clinical settings, but we do not have any biomarker that can be routinely used to address this need.

Several methodological challenges impede the discovery and clinical validation of dementia biomarkers, yet traditional statistical approaches are insufficient to help discover novel dementia biomarkers using exponentially growing multi-omics and multimodal data. Artificial intelligence (AI) approaches have already demonstrated their potential for discovering novel dementia biomarkers. Moreover, they may facilitate biomarker discovery by molecular subtyping of dementia and multilayer predictive modelling [26–28]. Hence, in this review, we aim to summarize the contribution of AI towards dementia biomarker discovery and to present its future potential. This review is one of a series of eight articles in a Special Issue on ‘Artificial Intelligence for Alzheimer’s Disease and Related Dementias’ published in Alzheimer’s & Dementia. Together, this series provides a comprehensive overview of current applications of artificial intelligence to dementia, and future opportunities for innovation to accelerate research. Each review focuses on a different area of dementia research, including experimental models [this issue], drug discovery and trials optimization [this issue], genetics and omics [this issue], biomarkers (this article), imaging [this issue], prevention [this issue], applied models and digital health [this issue], and methods optimization [this issue].

1.1. AI and data science methods used in biomarker discovery

AI approaches, and machine learning (ML) in particular, have been successfully used in the analyses of many modalities of data for dementia-related diseases and for exploring different biomarkers. These approaches are key for robust interrogation of complex and multimodal datasets to identify novel patterns and potential biomarkers [29]. The application of AI methods varies according to the biomarker type, and these methods are traditionally grouped by input data and algorithm learning style (Figure 1). Supervised learning uses input data which has a known classification, in the case of biomarker discovery data this is often disease status or a related endophenotype. Supervised learning includes regression, support vector machines, random forest and advanced deep learning methodology. Unsupervised learning methods are often used to explore data and understand structure. These methods include clustering algorithms or dimensional reduction approaches to reduce dataset complexity or to stratify a dataset by feature similarity [29]. Targeted fluid-based biomarker discovery often incorporates a simple classification method, using a ROC curve (receiver operating characteristic curve) to assess the accuracy and performance of novel biomarkers in validation stages [30]. Key to developments in discovery approaches are understanding the performance of AI/ML in increasing the sensitivity and specificity to identify biomarkers for dementia-related diseases. More advanced segmentation and ML techniques including thresholding, supervised and unsupervised learning, probabilistic techniques, atlas-based approaches, fusion of different image modalities and enhanced probabilistic neural networks have been applied to neuroimaging biomarkers [31].

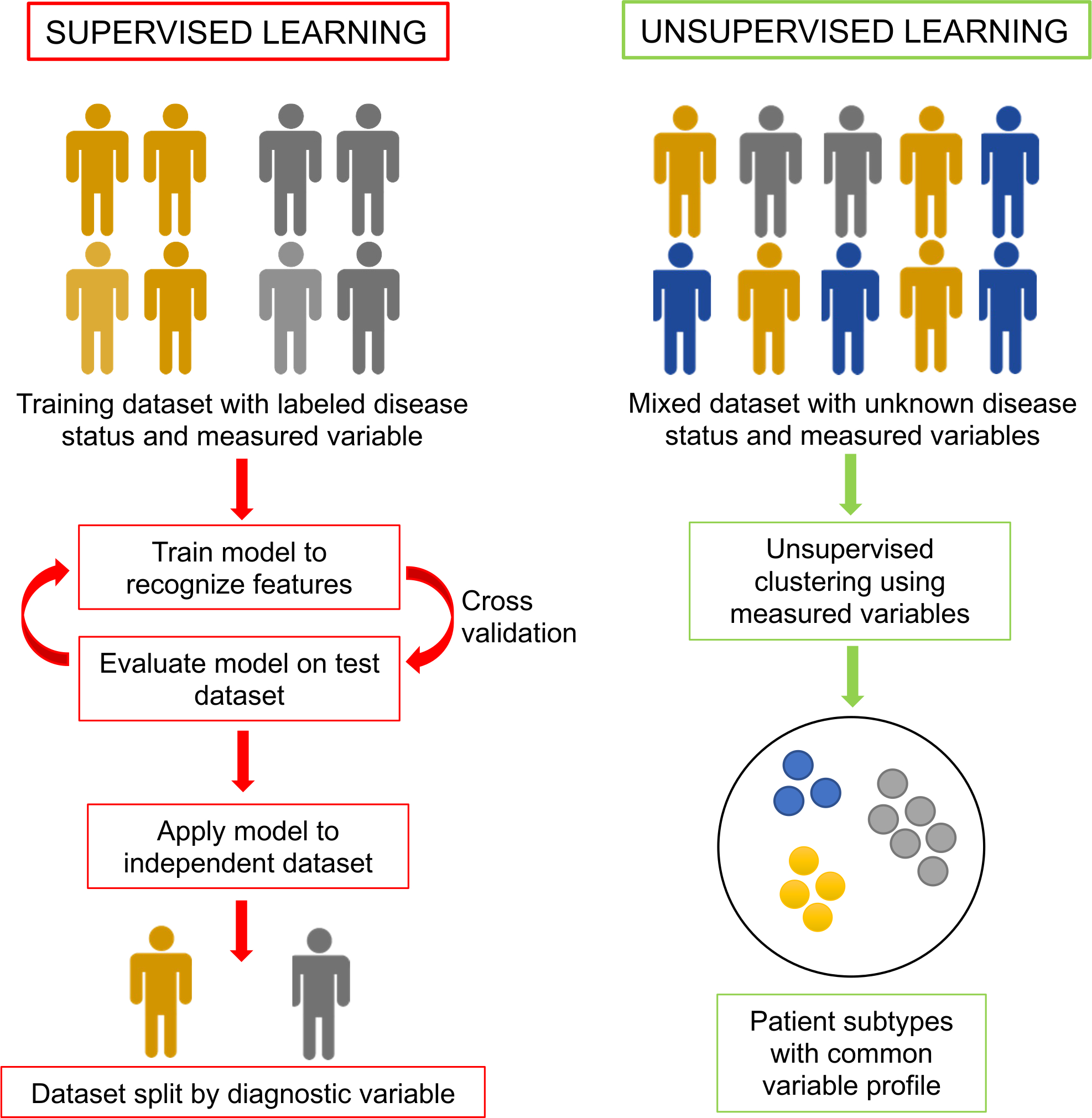

Figure 1. Comparison of Machine Learning Approaches for Biomarker Discovery.

Two ML approaches are utilized in biomarker discovery depending on required outcomes. To define biomarkers based on a known patient phenotype supervised learning can be implemented. In contrast, during data exploration, unsupervised methods can be used to identify patient subtypes.

Among the barriers in current discovery studies, one of the main issues is the lack of adequate sample sizes, which has been recently addressed by the rise of large openly available datasets. Furthermore, with the difficulty of collecting labeled data over time (e.g., due to insufficient follow-up studies), assessing the predictive power of certain biomarkers is a challenge, which can be addressed by applying semi-supervised/unsupervised learning techniques and deep learning (DL) approaches [32]. Good feature representation is reliant on such input data and therefore, accurately and deeply phenotyped cohorts allow the discovery of more robust biomarkers.

2. Susceptibility Biomarkers

2.1. State of the Science

Methods used in the discovery of biomarkers predictive of disease risk are diverse due to the data types in use. Large cohorts with multiple measures over time (longitudinal) and across modalities provide rich opportunities for advanced analytical approaches. In addition to mining previously generated cohorts using platforms, such as Dementias Platform UK and Accelerating Medicines Partnership Program for Alzheimer’s Disease (AMP-AD), other researchers are collecting data with the discovery of susceptibility biomarkers in mind. For example, PREVENT-AD (PResymptomatic EValuation of Experimental or Novel Treatments for AD) is an open-source cohort designed to study pre-symptomatic AD [33]. The Deep and Frequent Phenotyping cohort captures data from fluid biomarkers, digital wearables, imaging and clinical tests assessing cognition repeatedly over a period of time [34]. Approaches required to interrogate these diverse resources are complex and often require methods capable of accounting for noise and confounders.

The key genetic risk biomarkers can be divided into early- and late-onset forms of AD [35]. Family inheritance and mutations in key genes (amyloid precursor protein, Presenilin 1, and Presenilin 2) can be used to identify the rarer early onset subtype of the disease. The Apolipoprotein E (APOE) gene is the prominent risk factor for late onset AD, although carriers of the pathogenic e4 allele only have an increased risk of disease rather than a clear positive diagnosis. Genome-wide association studies (GWAS) continue to identify additional single nucleotide polymorphisms (SNPs) linked to late onset AD. However, each SNP individually only provides a very small contribution towards AD susceptibility [5]. By combining these SNPs, we can create more powerful polygenic risk scores (PRS) that act as better predictors of disease susceptibility [36]. PRS are generated by summing the weighted effect sizes from relevant SNPs in previous GWAS, which are linked to genes from multiple mechanistic pathways. Prediction accuracy is optimized by including two main components, the APOE risk alleles and a combination of supporting SNPs from other risk genes [37,38].

Other analyses use common biomarkers as a starting point to understand more about the dataset. Palmqvist et al. [39] combined a series of known biomarkers using cross validation to understand which biomarkers gave the highest accuracy of prediction for conversion from MCI to AD. Discovery of novel biomarkers, which is key to advance the field, is more likely in datasets where there is a larger selection of assays. For example, in GWAS or imaging studies where multiple measures can be derived from scans. Here, it is often necessary to use more advanced methods. For example, where RNA-sequencing was used for risk biomarker discovery, the authors used network analysis to prioritize relevant genes from the differentially expressed results in a larger dataset containing MCI, controls and AD cases. When hub genes were tested in a prospective cohort an overall accuracy of 0.727 was achieved [40].

An important step in the prediction of AD is the conversion from MCI classification and pre-clinical stages of disease to AD. Biomarkers used in diagnosis can also be used as markers of change. Serum neurofilament light chain was used in multivariate linear mixed effects models alongside estimated years to symptom onset as an early biomarker [41]. Using data from the Alzheimer’s Disease Neuroimaging Initiative (ADNI), researchers performed a comparison between genomic and imaging variables using four different ML approaches to understand the potential of cost-effective, minimally invasive transition biomarkers. The researchers found that by combining relatively easily obtained measurements (i.e., plasma biomarkers, genetic risk, and cognitive scores) the prediction results were competitive with imaging data. When Random Forest and Gradient Boosting approaches were applied plasma analytes measuring APOE and C Reactive Protein were ranked among the most important features [42]. The multimodal dataset of ADNI was also used by Gupta et al. for the classification of AD and MCI subjects. They integrated structural magnetic resonance imaging (MRI), positron emission tomography (PET), CSF (proteins) and APOE genotype using a multiclass support vector machine (SVM) classifier with stratified cross-validation to show the improvement of combining modalities [43]. Proteins measured in the CSF were Aβ₄₂, t-tau, and p-tau_181p and although the CSF features outperformed other modalities in individual comparisons the best predictions were acquired using a combination of the modalities. These results show that using advanced methods and multimodal data will generate integrated markers to improve current susceptibility biomarkers.

2.2. Remaining Challenges

Some of the major remaining challenges faced by risk biomarker studies are basic in nature: many studies focus exclusively on one or few measurements or modalities. This limits the scope for the application of AI and ML approaches and, in line with that, currently applied methods tend to be more traditional and regression-based [44], such as the Cox proportional-hazards model for time to event predictions [45,46]. A variety of potential biomarkers are studied in the context of disease risk predictions, spanning neuropsychiatric and clinical measurements, socioeconomic and lifestyle factors, neuroimaging, genetics and omics, as well as peripheral blood biomarkers. Some of these modalities, such as omics [40] and neuroimaging [47], may lend themselves better to AI approaches, due to their high-dimensional nature. Within omics biomarkers, genetic risk factors are possibly the best studied subset, with predictions based on individual variants as well as combined polygenic scores. However, these approaches are generally limited to basic summing of risk and assume uniform additive genetic effects.

Genetic risk prediction has great potential to expand with novel AI and ML approaches, leveraging large training datasets and allowing for more complex genetic relationships. Delivering on this promise will pose several challenges to ensure that the predictions are robust and do not suffer from overfitting. Additionally, AI approaches to time-to-event prediction in dementia face specific methodological challenges including missing data and heterogenous phenotypes [48]. Dementia is a highly heterogeneous syndrome, encompassing multiple diseases and characterized by substantial variability on neuropathological profiles. Current risk prediction tools focus on modifiable risk factors [49] and although the Cardiovascular Risk Factors, Aging and Dementia (CAIDE) score incorporates APOE e4 status, accuracy of these predictions may be increased by including other key biomarkers. In order to improve risk prediction generally, a focus on prediction of neuropathological signatures and deep phenotyping rather than disease status or clinical symptoms may prove more effective [50].

3. Diagnostic Biomarkers

3.1. State of the Science

Numerous studies have sought plasma biomarkers relevant to AD diagnosis and the past decades have seen several analytes being tested for this purpose [51]. For example, recent studies demonstrated that AD hallmarks in plasma such as Aβ42/40, p-tau181, p-tau231 and p-tau217 can identify brain pathology with high accuracy, further adding significant weight to the growing body of evidence in their use as a non-invasive diagnostic tool for AD [52–54]. Apart from AD hallmarks in blood, an increasing number of studies have discovered a range of other proteins and metabolites in plasma that might also act as diagnostic biomarkers [55,56]. ML has demonstrated to be very useful to extract reliable predictors for the development of diagnostic biomarkers of AD in the past decade. These techniques have been applied to traditional biomarkers, such as neuroimaging [31], nuclear medicine [57] and electroencephalography [58] as well as promising ones, e.g., neuropsychological measures [59] and speech-based digital biomarkers [60]. An example is the use of ML in the construction of metabolite panels from top discriminant metabolites in biofluids [61]. To date, studies have included assays run in CSF, plasma, saliva and brain tissue detecting associations with AD outcomes [62]. Stamate et al. [63] showed that plasma metabolites have the potential to match the AUC of well-established AD CSF biomarkers. Comparing the accuracy of a number of ML methods (decision trees and DL) they reported aspartate and dodecanedioate as the top ranked features.

Prompt and precise diagnosis of dementia subtype is of clinical relevance and might be of paramount importance for studies aimed to assess neuroprotection or disease-modifying approaches to early stages of the disease. Despite the growing amount of data, ML has not yet been incorporated into a clinically available diagnostic tool for AD or other types of dementia. Toschi et al. [64] used a clustering approach on CSF biomarkers to address the heterogeneous AD pathology. Five distinct clusters of samples were generated with unique cellular and molecular profiles. Of them, two clusters showed biomarker profiles linked to neurodegenerative processes not associated with classical AD-related pathophysiology. One cluster was characterized by the neuroinflammation biomarker YKL-40. However, the clinical relevance of these clusters has yet to be established.

3.2. Remaining Challenges

ML and more conventional statistical models have been previously applied to clinical phenotypes in dementia for the prediction of clinical outcomes. However, reaching an adequate performance or prediction accuracy to allow for the use of such models in clinical practice remains challenging [65]. The poor performance of such models highlights the limited informative contribution of clinical phenotypes without biological data [66]. Therefore, using supervised ML techniques based on clinical phenotypes and the integration of known and newly discovered biomarkers, to build a more informed predictive model for prognostic and diagnostic purposes might be a solution [67]. For example, Ashton et al. [67] used data from multiple cohorts to explore plasma neurofilament light assay’s diagnostic performance accuracy across diseases. They found that plasma NfL is clinically useful in identifying atypical parkinsonian disorders in patients with parkinsonism, dementia in individuals with Down syndrome, dementia among psychiatric disorders, and frontotemporal dementia in patients with cognitive impairment.

Heterogeneity within dementia is compounded by the overlap between dementia and other clinically defined neurodegenerative diseases, which complicates the identification of relevant subgroups for personalized treatment [50]. Understanding the relationship between dementia phenotypes and underlying causes is therefore key to the development of targeted approaches to therapy beyond clearly defined genetic subtypes. In response to this impasse, several international consortia are collecting large datasets with multi-layered genomic, environmental and clinical data [29]. Supervised and unsupervised ML methods such as deep learning are valuable and promising tools to exploit these complex datasets, but their use involves dealing with petabytes of data and millions of data features, only easily manipulated on secure high performance computing networks [68]. This is a non-trivial problem. Challenges for storage, computing and data analysis, makes e-infrastructure and expertise mandatory.

4. Prognostic Biomarkers

4.1. State of the Science

Neuroimaging with computerised tomography (CT) or MRI has become a standard tool in the diagnosis of neurodegenerative disease, and shows prognostic potential [69]. PET can also provide objective measures to indicate the presence and progression of dementia. By improving the specificity of PET tracers, we are gaining insights into disease stages in vivo that were only possible in the past using pathological examination [70]. However, PET imaging is expensive and not yet widely available.

One of the first biomarker changes in AD is a 50% decrease in the levels of CSF Aβ₄₂; however, CSF Aβ₄₂ is a marker of amyloid pathology rather than cognitive decline [71]. CSF t-tau and p-tau [72] are increased in AD but not in other tauopathies. CSF tau levels correlate with rapid disease progression [73]. As such, CSF Aβ₄₂ combined with CSF p-tau accurately predicts future AD dementia in those with MCI [74]. Certified reference materials and methods are now available, making it possible to standardise CSF Aβ₄₂ thresholds for prognosis globally [75]. Although CSF and imaging markers have a good prognostic accuracy, their high cost and invasive nature create a need for the development of more accessible markers that may be found in blood, urine, faeces, saliva, or tear fluid [15,76]. Despite accessibility concerns, datasets generated from CSF are ideal for discovery of novel markers due to decreased experimental noise. New markers can then be tested in other modalities such as blood plasma [67]. Repeated, non-invasive measures will also be possible using eye imaging where deposition of Aβ and tau, atrophy of neuronal layers and vascular changes could all be potentially monitored [34,77].

Most of the current prognostic biomarkers for AD were discovered through hypothesis-driven research using conventional statistical approaches to predict disease outcomes. However, AI algorithms have been gaining traction as an alternative approach for prediction, and combining biomarkers from multiple modalities, such as a CSF, MRI, and cognitive performance biomarkers, has been shown in recent studies to improve model performance [78,79]. A recent prime example showed four distinct trajectories of tau deposition in AD [80]. This study highlighted the power of pooled images from diverse studies to identify disease trajectories and individual variability that would be lost when using the Braak staging system, which is more suitable for population-level description. Complex data from a single modality can also benefit from advanced methods; for example, multi-level autoencoder models were used for interpretation of longitudinal methylation data [81]. In a detailed comparison, Chen et al. showed that for this dataset convolutional neural networks were outperformed by other autoencoders and that the informative methylation sites were enriched for expected gene ontologies.

4.2. Remaining Challenges

Early diagnosis of AD is important for prevention and planning therapeutic strategies. To develop screening tests with greater specificity, further research is needed to identify additional biomarkers beyond the main CSF biomarkers currently in use for AD (Aβ42, t-tau, and p-tau), such as Aβ42/Aβ40 ratio and α-synuclein [82,83].

Blood-based biomarkers hold immense promise for evaluating AD prognosis due to their high accessibility and low cost. However, standardized assays and procedures need to be developed to facilitate comparison of biomarker measurements across different batches and laboratories [44]. Additionally, the introduction of specified cut-offs would facilitate use of plasma biomarkers in a clinical setting [44].

Metabolites may also serve as useful prognostic biomarkers for dementia. A metabolomics study that used an SVM classifier and random forests identified distinct sphingolipids and glycerophospholipids associated with AD pathology and preclinical disease progression [84]. The metabolites were implicated in several biologically relevant pathways in AD, including tau phosphorylation, Aβ metabolism, calcium homeostasis, acetylcholine biosynthesis, and apoptosis.

However, there are particular challenges when it comes to employing ML for defining progression from MCI to AD. In addition to the lack of large enough datasets to train ML models effectively and variability of data, the key challenge with feature selection is due to the complex and heterogeneous nature of MCI. This, in combination with the myriad of factors that contribute to disease progression and the limited understanding of underlying disease mechanisms, means that prognostic biomarker discovery will require both clinical and AI knowledge for optimal analysis.

5. Common issues with AD biomarker discovery using ML methodology

5.1. Improvements in Methods

Our field is some way from making full use of this approach for specific management pathways or targeted disease modifying therapies, which would enable individualized precision medicine [85]. With the advent of drugs targeting specific proteinopathies, the role of biomarkers specific to underlying pathologies will be increasingly important.

The majority of AI studies in dementia use the ADNI dataset, which has advantages in its size and availability, but has drawbacks in the limited recruitment of non-Alzheimer dementias and biases within the dataset [86]. We call for wider recruitment of people attending memory clinics with longitudinal data to permit the development and real world validation of biomarkers, such as that collected by the National Alzheimer’s Coordinating Center [87]. In these real-world settings, biomarkers will need to demonstrate clinically relevant benefits. These include cost savings for health systems and quality of life measures for patients [88].

The dementia field may be able to learn from other fields of medicine. AI and big data approaches for developing cancer biomarkers have had a significant impact on cancer care [89] for example the use of RNA profiling for treatment. Molecular biomarkers, for example mutations in the estrogen receptor 1 in breast cancer, are used to predict both treatment outcomes and prognosis. Discovery studies of both prediction and prognosis markers in different cancer types have applied advanced approaches including deep learning and decision trees [90]. Oncology also leads the field on the use of multi-omics data for patient stratification and personalization with clinically validated biomarkers, however a gene expression panel is also used in tests for coronary artery disease and a test for cardiac allograft rejection [91]. In amyotrophic lateral sclerosis, open access data cohorts and data challenges have led to the development and comparison of deep learning models to predict disease progression [92]. Pancotti et al. have ranked model features to better understand the predictive power of different measures and markers but key to interpretability and clinical translation will be replication and explainability of these models. Appropriate method selection is also a key issue for replicable biomarkers. Accessible coding libraries allow users to apply many new methods, however, overfitting due to sample size can be a limiting factor with these approaches and in many cases decision tree based approaches (e.g. random forest or gradient boosting) will still outperform advanced neural network models [93].

Replication of complex models on non-standard datasets such as those found in primary care or brain health clinics also raises issues. Few ML algorithms have been tested in prospective replication studies and discrepancies between training data and real world clinical data make biomarker translation more challenging [94]. Adding to these models higher-order features from different modalities makes the assessment of performance and ranking of features more complex. Additional considerations for the successful application of ML models include the balance of classes within the dataset (e.g. case and control) and the use of a suitable training set [95]. Careful testing of optimized models to take forward for further study is necessary where the order of feature ranking can change between ML methods or even model iterations. Successful features must be robust to these changes. Feature selection itself can be used to improve model performance and a comparison of methods to find the most appropriate model for the dataset is recommended to promote feature stability [96].

Sustained and strategic funding will be required to realize the vision of biomarkers in clinical practice. Given its social and economic impact, government funding is likely to play a big role in facilitating this work. Therefore, we welcome initiatives such as the United States National Institutes of Health’s (NIH) National Institute on Aging, the Canadian Institute Health Research (CIHR) and the United Kingdom the National Institute for Health Research (NIHR) highlighting AD and related dementias as a priority area with multiple grants to facilitate biomarker development and AI translation (e.g. https://www.nia.nih.gov/research/grants-funding/announcements; https://cihr-irsc.gc.ca/e/43629.html; https://www.nihr.ac.uk/documents/nihr-highlight-notice-dementia/27316).

5.2. Improvements in Datasets

As well as improving the speed and power of algorithms [97], to move towards biomarkers that have clinical applicability, much of the future development in the field lies in datasets. Many studies rely on single datasets for discovery, with cross validation to estimate algorithm performance. Given generalizability issues to unseen data, accuracy drops when tested on other research datasets, and substantially when tested on clinical data [98]. This is particularly problematic for AD, a heterogeneous condition, but crucial for successful translation into clinical practice. It is also symptomatic of a larger issue, which is that current datasets used for biomarker discovery lack diversity of participants [99]. Comparisons of known biomarkers between populations have shown a discrepancy in prediction with CSF biomarkers p-tau and t-tau confirming the need for more representative cohorts [100]. In direct response to this bias, the Alzheimer’s Disease Neuroimaging Initiative 4 will be focused on enrolling 50–60% of new participants from underrepresented populations [101]. However, in addition to the collection of representative data, consideration of the analysis approach is important and care should be taken not to simply use a variable to delineate subgroups but rather to consider the complexities in a full analysis [102].

Without addressing this crucial need to better represent the populations for which biomarkers should ultimately improve health outcomes, improving performance metrics using increasingly complex algorithms built on homogenous input data is likely to be unproductive. This is reflected in recent policy updates, including a European Commission White Paper, which places requirements on training data such that it does not lead to discrimination [103].

An advantage of ML is that algorithms can be adaptive, continually learning in response to new data even after deployment. This could help overcome the lack of diversity in current training sets, but means that published performance metrics hold less meaning. Thus, another future direction for the field is to move away from single summary metrics such as accuracy, instead evaluating health outcomes and impact, such as in clinical trials of Software as a Medical Device (SaMD), proposed by the U.S. Food & Drug Administration to regulate AI [104]. Improving risk detection will only have a positive impact if results are followed up appropriately [104,105]. This relies on a number of factors, including health service infrastructure and resources, as well as trust from stakeholders in AI. Ensuring interpretability of models can help foster trust, as can reporting an algorithm’s confidence in its decision [27]. Ultimately, policy and regulation must be based on outcomes for patients [105]. Whilst we move towards this goal, a consensus on reporting performance metrics would aid in comparing results of different biomarkers and ML approaches, which lack standardization [21].

The capabilities of ML to handle high-dimensional datasets mean that it is tempting to continue extending algorithms with multiple biomarkers to try and further improve accuracy. This should be weighed against the clinical feasibility of requiring multiple, often expensive, tests which may not be available equitably. Rather, the power of harnessing ML to analyze multi-omics datasets lies in the ability to develop biomarkers that are sensitive to the multifactorial nature of neurodegenerative diseases, whilst ruling out those which are redundant. Using both complementary and unique methods across biological scales of information, and modalities, is essential [61]. Similarly, whilst bigger datasets seem attractive in ML, they do not necessarily help the issue of bias [106]; rather, more diverse datasets are needed [107]. We suggest that the future of biomarker discovery lies in testing of biomarkers in other datasets to ensure against cohort-effects; their ability to distinguish different types of dementia to improve differential diagnosis, and building infrastructure to improve diversity in data [63,97,108].

6. Future directions of AD biomarker discovery

The search for novel biomarkers to further dementia and AD phenotypes in addition to disease pathogenicity is key. Clinical biomarkers extracted from electronic health records have been used to identify COVID patients and when data becomes available, unsupervised approaches can be used to profile AD cases [109]. For dementia biomarkers, the first step would be to understand the translation of CSF markers to blood (plasma or serum) assays, followed by that in other biofluids (e.g., saliva, urine). Discovery of novel biomarkers and replicating their application requires large datasets and therefore collection of new cohorts continues as well as the need for meta-analysis. Replication in multimodal datasets is key in the pathway to translation to a clinically applicable biomarker. It is likely that fluid biomarkers will be used as part of a battery of tests in a clinical setting alongside clinical assessment of psychiatric and neurological features, cognitive testing and structural brain imaging [94]. Therefore, key to the success of novel biomarker is its performance alongside other measures and whether it can increase the accuracy of the test panel.

AI methods are increasingly used in the discovery of imaging-based biomarkers. For example, use of measures of structural complexity, specifically a mathematical measure called fractal dimensionality, which can be derived from conventional 3D segmented T1 MRI scans [110]. Additionally, MR elastography can be used as a biomarker, by examining regional brain stiffness [111] to understand tissue biomechanical properties. Using this approach, stiffness in affected regions has been found to be lower for dementia patients than healthy controls [112]. More mainstream use of these example measures, which involve specific data acquisition methods, will allow for richer multimodal data to be integrated within AI models that can be used to classify dementia type and severity.

Both brain and eye imaging can provide a significant resource for analysis. AI techniques, especially DL, are widely used in image processing in the brain. In the eye and brain, DL-based solutions have already created opportunities for clinical and research use for automated approaches [113]. The emergence of combined molecular imaging, in combination with brain and eye phenotyping, has just shown promising preliminary data providing evidence of how multimodal imaging could generate information for AI approaches [114]. State-of-the-art AI algorithms show an exceptional capability to learn from complex imaging data. Despite these successes, there is a continuous need for improved image segmentation and classification and noise or artefact reduction to improve image interpretation that still require human decision-makers for prognosis, diagnosis, and monitoring of response to treatment [115,116]. However, with the improved methodologies and the widening biomarker platforms, cross-modality translation and synthesis are on the near horizon.

The evaluation of AI devices by regulatory agencies will be critical to their implementation in real-world settings and like other modalities these biomarkers will need to demonstrate clinically relevant benefits. The U.S. Food and Drug Administration maintains a current list of AI applications at different stages of approval [117]. These are assessed for both safety and effectiveness of the tool. In Europe, there is no AI specific list, although recommendations have been made and a literature review by Muehlematter et al. includes dementia specific devices [118]. Further streamlining and demystifying regulatory processes will be essential for translating this growing academic field for patient benefit.

7. Recommendations and Conclusions

Once identified and validated, novel biomarkers can be considered for clinical translation. Robust analytical pipelines are critical to the long-term use of AI approaches. Guidelines for generating these pipelines are available (e.g., the Findable, Accessible, Interoperable and Reusable (FAIR) Cookbook; https://fairplus.github.io/the-fair-cookbook/content/recipes/introduction/FAIR-cookbook-audience.html), but a commitment to their use is a key recommendation for incorporation of new biomarkers. Additionally, reporting guidelines to support publication of prediction studies are under development by the EQUATOR network. TRIPOD-AI will provide guidelines for diagnostic and prognostic model publication [119].

For new biomarker discovery, however, collaboration and an interdisciplinary approach will be necessary, which is increasingly recognized by funders. The EU Joint Programme - Neurodegenerative Disease Research - seeks multinational, consortium grants. In the United Kingdom, the UK Dementia Research Institute was recently launched with the single biggest investment in dementia research, with collaboration at the heart of its approach. In North America, both the National Institutes of Health Bridge2AI program and Canadian Institutes of Health Research Training Platform grants have an interdisciplinary and intersectoral focus. These programs also recognize the need to improve diversity in the workforce, as well as in participants, so that studies using AI are also representative of society. International initiatives are underway to improve research infrastructure and sharing of data, such as the Deep Dementia Phenotyping (DEMON) Network (demondementia.com), and the Canadian Consortium on Neurodegeneration in Aging. The inclusion of any newly discovered biomarkers will be reliant on sufficient replication and performance in multiple cohorts. Here, data sharing is key and steps made by these communities will be vital in the following stages of developing reproducible markers.

To overcome the remaining challenges in dementia biomarker research, it will be essential to collect additional data from underrepresented populations to reduce bias, develop even more powerful AI approaches to enhance accuracy, validate the use of noninvasive biomarkers to improve practicality and improve adherence to reporting guidelines which are coproduced by multiple stakeholders to improve reproducibility. By harnessing rich multimodal data through AI approaches and international collaborative innovation, we are well positioned to identify biomarkers that are accurate, generalizable, unbiased and ready for translation to clinical practice.

Highlights.

• AI and machine learning approaches may accelerate dementia biomarker discovery.

• Remaining challenges include dataset suitability due to size and bias in cohort selection.

• Multimodal data, diverse datasets, improved ML approaches, real-world validation, and interdisciplinary collaboration are required.

Acronyms

Aβ₄₂

Amyloid Beta

AD

Alzheimer’s Disease

ADNI

Alzheimer’s Disease Neuroimaging Initiative

AI

Artificial Intelligence

APOE

Apolipoprotein E

CSF

Cerebrospinal Fluid

DL

Deep Learning

MCI

Mild Cognitive Impairment

ML

Machine Learning

MRI

Magnetic Resonance Imaging

PET

Positron Emission Tomography

p-tau

Phosphorylated tau

t-tau

Total tau

SNP

single nucleotide polymorphism
