Single-haplotype comparative genomics provide insights into lineage-specific structural variation during cat evolution

Abstract

The role of structurally dynamic genomic regions in speciation is poorly understood due to challenges inherent in diploid genome assembly. Here, we reconstructed the evolutionary dynamics of structural variation in five cat species by phasing the genomes of three interspecies F1 hybrids to generate near-gapless single haplotype assemblies. We discerned that cat genomes have a paucity of segmental duplications relative to great apes, explaining their remarkable karyotypic stability. X chromosomes were hotspots of structural variation, including enrichment with inversions in a large recombination desert with characteristics of a supergene. The X-linked macrosatellite DXZ4 evolves more rapidly than 99.5% of the genome clarifying its role in felid hybrid incompatibility. Resolved sensory gene repertoires revealed functional copy number changes associated with ecomorphological adaptations, sociality, and domestication. This study highlights the value of gapless genomes to reveal structural mechanisms underpinning karyotypic evolution, reproductive isolation, and ecological niche adaptation.

Introduction

Comparative genomics is a powerful approach for inferring the genetic basis of adaptation and speciation. Its success depends on accurate and representative whole-genome alignments that precisely quantify genetic similarities and differences between evolutionary lineages to make predictions regarding the impact of genomic divergence on phenotypic evolution and diversification. The application of long-read sequencing has enabled increasingly precise comparisons between taxa, facilitating the assembly of 92–96% of a diploid genome sequence into chromosomes^1,2. However, tracing the evolutionary history of regions of high structural complexity and allelic divergence has remained challenging. Until the completion of the human telomere-to-telomere (T2T) project^3–5, genomic “dark matter”^6,7 that encompasses satellite arrays, centromeres, segmental duplications, and complex gene families had been missing from nearly all comparative genomic studies. Consequently, for most species, we still have a limited understanding of the evolutionary dynamics of the most repetitive genomic sequences and how their divergence manifests in reproductive isolation and phenotypic innovation.

The cat family Felidae represents a speciose and successful apex predator radiation that occupies diverse biomes across the globe. Previous comparative genomic studies have illuminated their rapid diversification in the Miocene^8,9, frequent post-speciation gene flow^9,10, the impacts of demographic changes on genetic diversity and fitness^11–13, and the genetic consequences of domestication¹⁴. Here, we applied the trio-binning approach¹⁵ to three divergent interspecific crosses amenable to high-resolution haplotype phasing (Fig. 1a) to generate near-gapless genome assemblies from multiple species pairs along the felid phylogeny. Comparisons of these assemblies provided an unprecedented glimpse into the properties of large and complex gene families and functional repetitive elements that were previously inaccessible^14,16,17. We describe insights into the cauldron of repetitive genetic variation with potentially large effects on chromosome function and speciation.

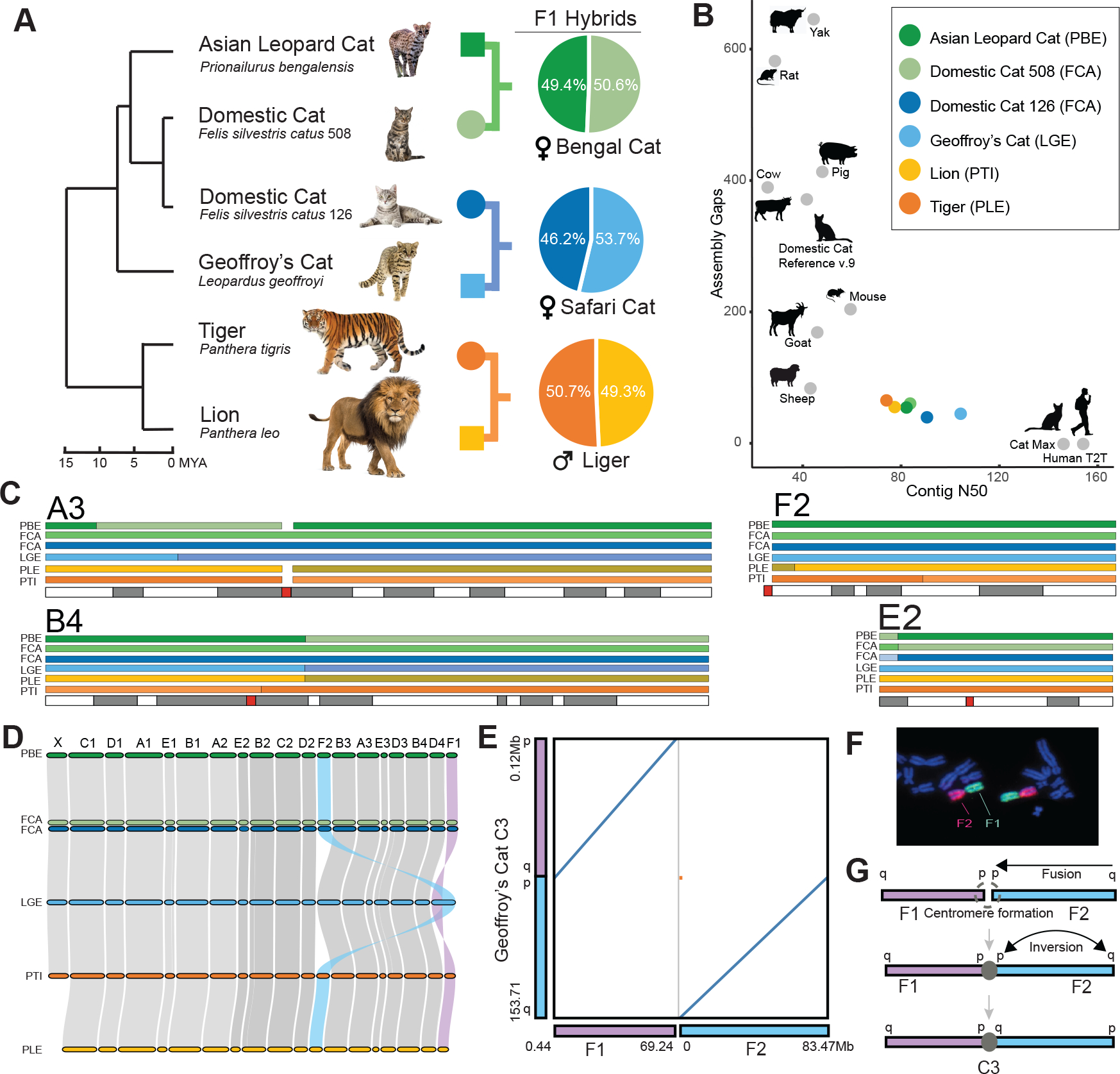

Fig. 1. Assembly and synteny comparisons among the genomes of five cat species.

(A) Phylogeny and timescale of the parent species of the three hybrid trios used for assembly and comparative analysis. Pie charts illustrate the phasing results (% of total reads) for the F1 PacBio CLR long reads. (B) Comparison of contig N50 statistics and number of assembly gaps against other highly contiguous mammalian reference genomes from domestic species. CatMax refers to the theoretical N50 maximum based on domestic cat chromosome sizes. (C) Contig alignments for the six felid single haplotype assemblies from chrsA3, B4, E2, and F2/C3 to the felCat9 diploid domestic cat long-read genome assembly, depicted on the bottom as a G-banded ideogram. Inferred centromere locations are indicated by red bars. The bars above each ideogram are colored by species and represent assembly contigs > 1 Mb. Breaks between contigs are indicated by a black line and a shift in color contrast. The full set of chromosome alignments is found in fig. S1. (D) Synteny plot¹³³ illustrating extensive collinearity of the five species assemblies. Blue and purple alignment tracks highlight the only chromosome number change in Felidae, the Robertsonian fusion of chrF1 and chrF2 present in all felid genera, and the derived C3 chromosome observed in Geoffroy’s cat, and all species of the genus Leopardus. (E) Dot-plot alignment (left) of Geoffroy’s cat chrC3 and domestic cat chrF1 and chrF2 (illustrated with multicolor FISH in F). Note the orange alignment fragment indicating a small centromeric fragment of chrF2 that defines the (G) inversion breakpoint on the ancestral chrF2.

Results

Phased Genome Assembly Reveals Remarkable Collinearity

We used long-read PacBio sequencing to phase and assemble six single haplotype genomes from five cat species (domestic cat, leopard cat, Geoffroy’s cat, tiger, and lion) through the application of trio-binning to three F1 interspecies hybrids¹⁵. The parent species of the crosses diverged ≥4 million years ago (Ma) (Fig. 1a), enabling >99.5% of the long sequence reads to be accurately phased into the parental haplotypes¹⁸ (Fig. 1a, Supplementary Figs. 1–4, Supplementary Table 1). De novo assembly produced ultracontiguous assemblies with contig N50=77–104 Mb (Table 1, Fig. 1b). At least 99.6% of the euchromatic sequence was assembled into chromosome-length scaffolds using Hi-throughput chromosome conformation capture (Hi-C; Supplementary Fig. 5), with an average of just 53 gaps per genome assembly, 15 gapless chromosomes across all species, and 62% of the assembled autosomes containing two or fewer gaps (Fig. 1c, Supplementary Fig. 6), exceeding comparable parameters from all other domestic species reference assemblies (Fig. 1b). The canonical telomeric sequence shared by vertebrates is TTAGGG¹⁹; however, different blocks of microsatellites are found in telomeres of other species of the generalized pattern (TxAyGz)²⁰. To determine which chromosome assemblies extended into one or both telomeres, we searched for telomere-like repeat sequences by requiring 80% of the terminal 100 bases of the chromosome to be labeled as a repeat family or a tandem repeat. Then, we extended the search window progressively. 61% of the chromosomes in the six assemblies likely extend into both telomeres, 32% extend into one telomere, and the remaining 7% lack terminal repeats and are likely incomplete. Only 32% of the assembled chromosomes possess the canonical TTAGGG tandem array at the telomere, while 21 chromosomes terminated with the FA-satellite^21,22(Supplementary Table 2). Felids have a surprising level of intraspecific variation in telomeric sequences, unlike the human genome, whose telomeres uniformly possess the canonical vertebrate telomeric sequence.

Table 1.

Felid single haplotype genome assembly statistics.

Species/Hybrid sequenced	Domestic cat-508 (Bengal cat F1)	Domestic cat-126 (Safari cat F1)	Asian leopard cat (Bengal cat F1)	Geoffroy’s cat (Safari cat F1)	Lion (Liger F1)	Tiger (Liger F1)
Sex of parent haplotype	♀	♀	♀	♀	♂	♀
chromosome #	18, X	18, X	18, X	17, X	18, Y	18, X
# contigs	123	103	132	88	103	135
Largest contig	205,171,639	172,124,406	240,846,738	239,106,607	166,870,000	166,130,000
Ungapped assembly length (Mb)	2,422,283,418	2,425,722,929	2,435,689,660	2,426,362,316	2,297,542,863	2,408,668,598
Contig N50 (Mb)	84,507,663	92,686,623	83,696,501	104,474,415	77,781,637	74,360,613
# scaffolds	71	70	83	46	53	74
Total assembly length (Mb)	2,422,299,418	2,425,747,038	2,435,718,761	2,426,370,816	2,297,568,983	2,408,695,688
Scaffold N50 (Mb)	147,603,332	148,491,486	148,587,958	152,606,360	147,402,474	146,942,463
# chromosome gaps	60	39	56	45	55	65
Complete BUSCO genes (mammalia_odb10)	8,621	8,619	8,621	8,612	8,417	8,630
Percent Complete	93.4	93.4	93.4	93.3	91.2	93.5
Single Copy	8,599	8,596	8,599	8,592	8,383	8,601
Duplicated	154	160	154	152	143	147
Missing	451	447	451	462	666	449
%complete+partial	95.1	95.2	95.1	95.0	92.8	95.1

Pairwise whole-genome alignments between the five species’ assemblies revealed near-complete karyotypic stasis since they diverged from a common ancestor ~11–15 million years ago (Mya)^9,10 (Fig. 1d). The only change in chromosome number is a single Robertsonian translocation of two small acrocentrics (chrF1 and chrF2), producing a medium-size metacentric (chrC3) shared by all species of the Neotropical cat genus Leopardus (Figs. 1e–f)²³. Close inspection of alignments between Leopardus geoffroyi and Felis catus showed that chromosome C3 was the product of a centric fusion, followed by a near chromosome arm-length inversion that reoriented >99% of C3q relative to the ancestral chrF2 homolog (Fig. 1e). All other chromosomal rearrangements between species were inversions several orders of magnitude smaller in size (<2 Mb) (Fig. 2a; Supplementary Table 3). We identified 170 fixed inversions greater than 50bp (Fig. 2a) across the five species phylogeny that samples >50 million years of independent branch length. By comparison, great ape genomes contain the products of 1,326 fixed inversions larger than 50bp ¹(Fig. 2a). Felids and great apes diverged on a very similar evolutionary timescale, matching nearly 1:1 for divergence events (Fig. 2a). Given the similarity in sampled evolutionary history, great ape genomes possess 7.7-fold more rearrangements than felids suggesting that great ape genomes are more structurally prone to chromosome rearrangement than felids.

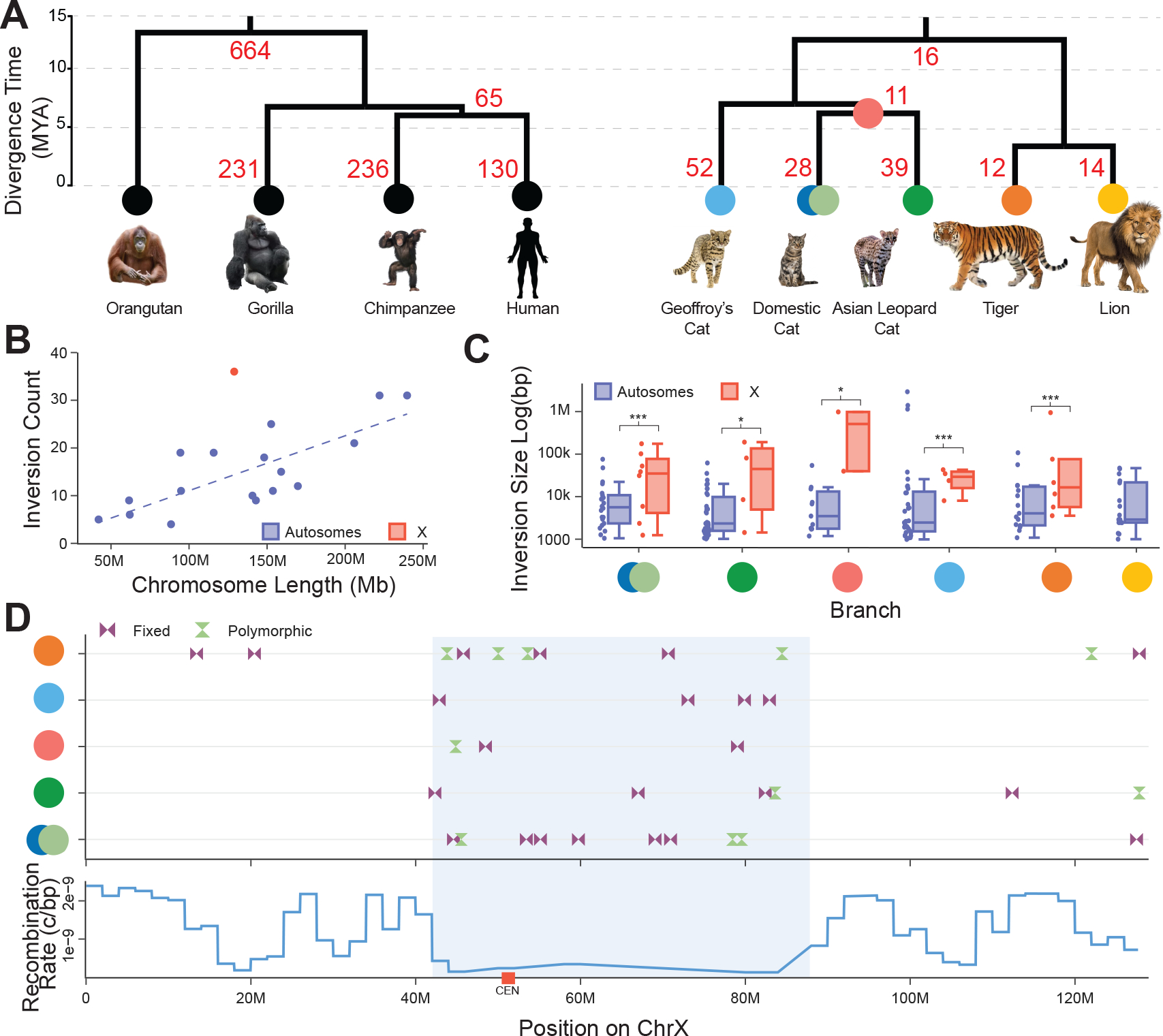

Fig. 2. Felid structural variation.

(A) Comparison of fixed inversions (red numbers) plotted on branches of the phylogeny of felids (right) and great apes (left)(5). Note the similar divergence times between ape and felid species sampled. (B) Per chromosome inversion counts plotted against chromosome length. Autosomes are indicated with blue dots and chrX in red. (C) Comparison of inversion size between the autosomes and chrX for each branch of the phylogeny (colored dots) shown in (A) (except for the lion genome which is derived from the paternal haplotype of the male F1 Liger)(Supplementary Table 3). A one-sided Wilcoxon rank sum test determined significance. Domestic cat (n=40 autosomal inversions, n=11 X inversions, U=2.52, p=5.9e-03), Geoffroy’s cat (n=33 autosomal inversions, n=4 X inversions, U=2.15, p=1.6e-02), Asian leopard cat (n=40 autosomal inversions, n=6 X inversions, U=1.92, p=2.7e-02), domestic cat + Asian leopard cat (n= 17 autosomal inversions, n= 3 X inversions, U=2.59, p=4.8e-03), tiger (n=34 autosomal inversions, n=11 X inversions, U=2.54, p=5.6e-03), lion (n=34 autosomal inversions). Box plots show the interquartile range with the center line representing the median. Whiskers indicate the highest and lowest value within the upper and lower fences (upper fence = 75% quantile + 1.5*interquartile range, lower fence = 50% quantile − 1.5*interquartile range). (D) The physical distribution of fixed and polymorphic inversions (Supplementary Table 4) on chrX for each branch of the phylogeny relative to the tiger genome. The X chromosome genome sequences are otherwise collinear across species. A tiger recombination map estimated from population genomic data (Supplementary Fig. 30) is depicted at the bottom (see Methods) and is highly conserved with the recombination rate profile of the domestic cat X chromosome^9,134. The shaded area refers to a large recombination cold spot shared with domestic cat, human, and pig^9,10. CEN=centromere.

Segmental duplications (SDs) have been hypothesized to be major drivers of chromosome evolution and disease susceptibility in the great ape lineage by promoting non-allelic homologous recombination^24,25, particularly because of their uniquely interspersed distribution ²⁶. In support of this hypothesis, SDs flank 82–86% of known primate inversions²⁷. To determine whether SDs might be a primary driver of felid inversions, we used SEDEF²⁸ to identify SDs in each cat haplotype. The total bases in felid SDs range from 25Mb to 35Mb, or 1 to 1.5% of each genome (Supplementary Fig. 7). Most SDs reside in the small portion of unlocalized sequences, ≤0.4% of the total assembly length (Table 1). The SD frequency (7%) estimated in the human T2T genome²⁹ is 5–7-fold higher than in felid genomes. Compared to great apes, the similar-fold reduction in chromosomal rearrangements and SD frequency in felid genomes supports the hypothesis that the overall frequency of SDs is the primary driver of chromosome evolution in these two lineages. Future analysis of near-gapless genomes in other mammalian lineages with highly variable rates of karyotypic evolution will enable the testing of this hypothesis.

Structural variation is enriched on the X chromosome.

The hemizygous nature of the X chromosome (chrX) in male heterogametic taxa promotes faster rates of evolution relative to the autosomes and the accumulation of loci associated with reproductive isolation and speciation^30,31. Previous studies also revealed a higher fixation rate of inversions on chrX relative to autosomes^32,33. In cats, chrX was an outlier in terms of the number of inversions relative to chromosome length (Fig. 2b). For each branch in the phylogeny, the mean inversion was significantly larger on chrX than the autosomes (Fig. 2c). Inversions accumulated disproportionately in a ~40-Mb recombination cold spot on chrX that is enriched for barriers to gene flow across multiple felid lineages¹⁰ (Fig. 2d). Two thirds (24/36) of the X-linked inversions were fixed versus polymorphic (Supplementary Table 3). 70% of fixed inversions harbored at least one protein-coding gene (mean 1.3 genes/fixed inversion). In contrast, only 33% of polymorphic inversions spanned or overlapped with a single protein-coding gene. In half of these cases, the inversion was located within a long intron (Supplementary Table 4). These results support previous observations in insects³³ and suggest that the fixed X-linked inversions within the 40-Mb recombination cold spot may harbor beneficial alleles given their longer length and enrichment with protein-coding genes. Previous studies of small and big cats also identified signatures of natural selection within the large recombination cold spot^14,34. We hypothesize that this gene-rich, inversion-rich region is a major X-linked supergene locus underpinning felid reproductive isolation that warrants future comparative genomic analyses.

Satellite elements have been implicated in speciation but are poorly represented in diploid genome assemblies^35,36. Cat chrX chromosome harbors the only X-linked speciation gene identified in mammals; the macrosatellite repeat DXZ4³⁷. DXZ4 has been well studied regarding its putative role in mammalian X chromosome inactivation (XCI). Human DXZ4 consists of a single 3-kb tandem repeat array containing 56 monomers, where each repeat contains a single CTCF binding site⁴ (Fig. 3a). Long non-coding RNAs (DANT1 and DANT2) expressed from DXZ4 on the inactive X chromosome (Xi) promote superlooping with other macrosatellites on the Xi³⁸ and facilitates the localization of the Barr Body in female placental mammals to the nucleolar membrane³⁹ (Fig. 3a). The human T2T genome assembly first resolved the DXZ4 array structure, but a complete assembly of DXZ4 sequences in other mammalian taxa is largely lacking, clouding our understanding of its evolution and function. DXZ4 was resolved in all six cat assemblies, revealing a unique compound tandem repeat composed of two highly divergent (mean p-distance=0.67) repeat arrays, RA and RB (Fig. 3b). Both monomer types contain CTCF binding sites, but notably differ in the number and orientation of the sites that are important for CTCF binding affinity and loop extrusion directionality⁴⁰, suggesting divergent superlooping functions between the arrays. The human and mouse genomes notably lack the RB array.

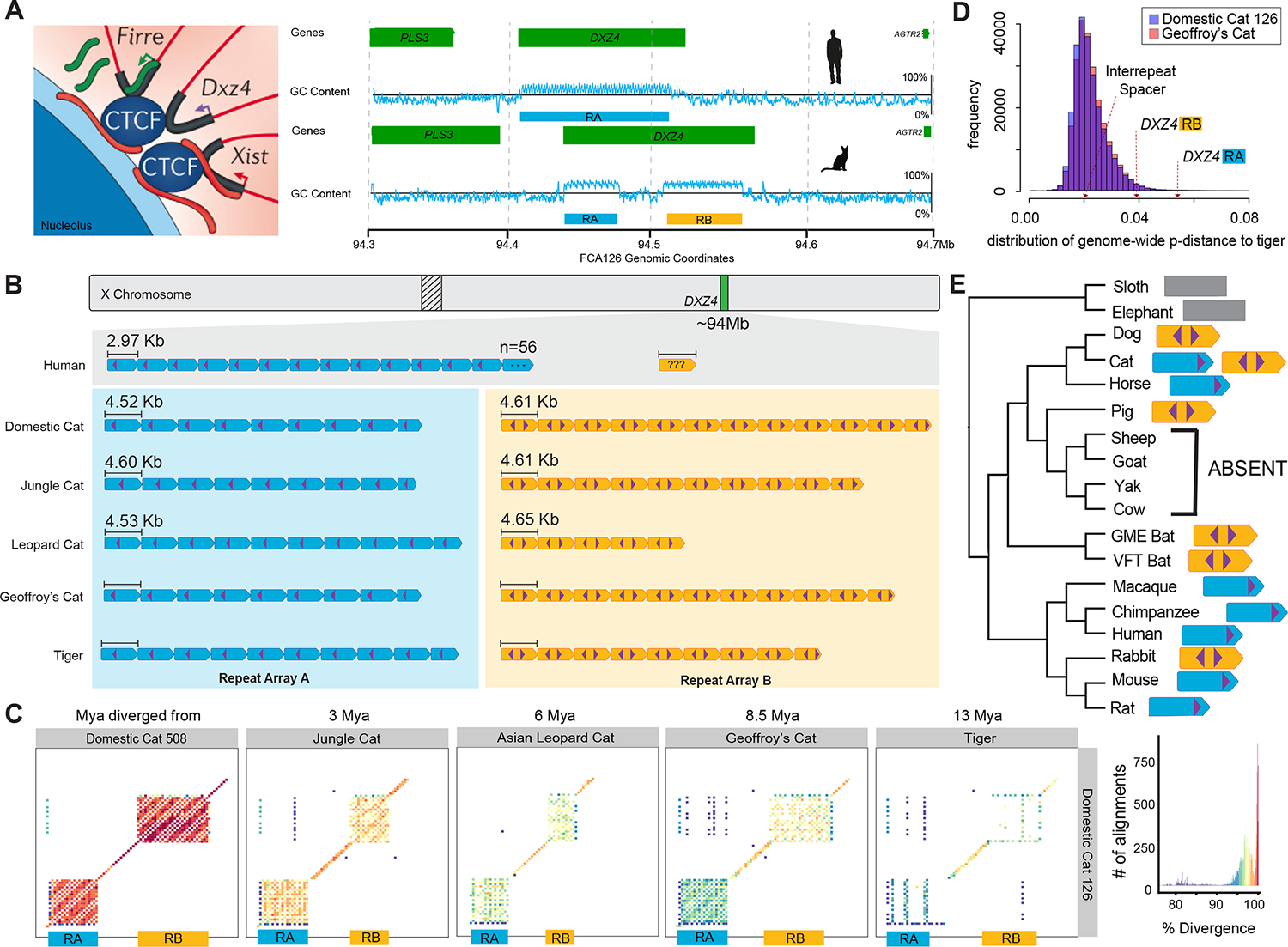

Fig. 3. DXZ4 evolution in placental mammals.

(A) (left) X-linked lncRNAs from Dxz4, Xist, and Firre cooperatively interact in 3D space to anchor the inactive X chromosome to the nucleolus (figure modified from¹³⁵.) (right) Comparison of the human and domestic cat DXZ4 repeat structure and GC content shown in genomic context to flanking genes PLS3 and AGTR2. Felids possess two distinct repeat arrays, RA (blue) and RB (yellow), while human only possesses the RA type. (B) DXZ4 repeat unit size, CTCF binding site composition (purple arrows), and copy number in human (top) and sequenced cat species. The Jungle cat data is from a single haplotype chrX assembly (27). (C) StainedGlass (59) dot-plots showing DXZ4 repeat array divergence between the domestic cat (FCA-126) and other cat species (% identity of between species alignments is shown to the right), in increasing order of evolutionary divergence. Note higher conservation across the central and flanking regions adjacent to the RA and RB arrays. (D) Distribution of genomic divergence rates between tiger-Geoffroy’s cat and tiger-domestic cat across 28,312 5-kb alignment windows. Pairwise divergence values for DXZ4 RA and RB, and the internal spacer region are shown for comparison (E) Phylogeny of placental mammals with DXZ4 repeat array presence (blue=RA type, yellow=RB type, gray=ambiguous) inferred from each genome assembly.

Studies using interspecific backcross hybrids of the domestic cat and Jungle cat (Felis chaus) identified DXZ4 as a major-effect hybrid male sterility locus, with a likely role in reproductive isolation and speciation within the Felis genus³⁷. The germ cells of sterile male hybrid cats possess RA-specific methylation defects and DANT1 misregulation, culminating in the failure of meiotic sex chromosome inactivation (MSCI) and meiotic arrest, hallmark phenotypes in mammalian interspecies hybrids³¹. Evidence that DXZ4 functions in male meiotic silencing was intriguing, given the parallels between the heterochromatic Barr body formed during female XCI and the condensed X-Y body in male MSCI. Although the hybrid sterility phenotype was attributed to DXZ4 interspecific divergence, the precise mechanism is not well understood. Here, our expanded sampling of felid genomes demonstrates that the compound RA and RB repeat structure is copy number variable across all species (Fig. 3b), suggesting copy number-mediated expression effects may play an important role in speciation in other felids. In addition, StainedGlass⁴¹ plots illustrate the rapidity of DXZ4 repeat array sequence divergence (Fig. 3c). RA and RB arrays evolve 2–3 fold faster than the flanking and intervening non-coding spacer sequences. Notably, a genome-wide analysis of pairwise interspecific genetic divergence calculated across 28,312 5-kb alignment windows (94.1% of the multispecies alignment) placed DXZ4 RA in the top 0.5% of the most rapidly evolving genomic loci (Fig. 3d), supporting its role as a speciation gene³⁷.

To determine whether the compound DXZ4 array structure in cats is the exception or the rule in placental mammals, we searched for DXZ4 arrays in long-read genome assemblies from species representing divergent superorders (Fig. 3e, Supplementary Figs. 8–11). Most assemblies possessed a gap within or adjacent to the predicted position of DXZ4 (Supplementary Figs. 12–13). We were able to recover sufficient repeat array resolution at the edge of some assembly gaps to characterize the CTCF array. Although the DXZ4 monomer sequence diverges rapidly to the point of phylogenetic saturation and lack of phylogenetic patterning (Supplementary Fig. 14), we observed conservation of the CTCF binding motif patterns across species from different ordinal lineages. Euarchontoglires (e.g., primates, rodents, rabbits) possessed only RA or RB, while members of Laurasiatheria possess RA, RB, or both types (Fig. 3e). RA and RB were therefore present in the most recent common ancestor of boreoeutherian mammals. Moreover, the repeat unit length is relatively constrained (between 3–4.6 kb) across species despite rapid sequence divergence and little conservation outside the CTCF motif⁴². Given this unusual combination of spatial and structural evolutionary conservation and an extremely fast rate of sequence evolution, we predict that DXZ4 satellite divergence may play a more widespread role in establishing and maintaining species boundaries in other mammalian clades.

Intriguingly, all sampled species from the family Bovidae lack DXZ4 in their assembly, suggesting they may have evolved compensatory mechanisms for its loss. Multiple studies have shown that ablation of DXZ4 has no significant impact on the silenced state of the inactive X chromosome in mouse and human cells^40,43. Nonetheless, the high degree of syntenic, CTCF⁴², and spatial conservation of the DXZ4 repeat array over the past 104 million years of the placental mammal radiation suggest that DXZ4 expression and long-range chromatin interactions are functionally important for some heretofore unidentified cellular role during XCI and MSCI⁴⁴. Pan-autosomal gene downregulation is one noteworthy cellular phenotype shared by in vivo Dxz4-knock-out mice⁴⁵ and sterile feline interspecific hybrid testes³⁷. These observations raise the possibility that DXZ4, acting alone or in concert with other X-linked macrosatellites, may function in RNA-dependent, chrX-autosomal crosstalk associated with the X chromosome “counting” process in XCI⁴⁵ and proper sequestration of the DNA damage response factors from the autosomes to the X-Y body during MSCI^46,47. Gapless X chromosome assemblies from a diverse sampling of mammalian genomes will be critical to understanding the functional relevance of DXZ4 in the X chromosome biology of mammals.

Variation in centromere structure and size

Current human and great ape centromere sequence models portray large tandem repeat arrays of alpha satellites flanked by other satellite repeat types, SDs, transposable elements, and even some genes⁴⁸. Whether centromere structure is conserved across mammalian lineages is poorly understood because they are not sequence-resolved in most genome assemblies. Therefore, we sought to determine whether our assemblies possessed genomic signatures characteristic of centromeric satellites⁵. Given the absence of previously annotated cat centromeric sequences, we first characterized the overall landscape of feline repetitive elements to enable de novo prediction of the most probable centromeric satellites (Supplementary Fig. 15). Interspersed repeats comprise 38% of each genome with a marked distinction between Felinae (Felis, Prionailurus, and Leopardus) and Panthera, with Felinae showing an average SINE insertion rate ~2.7x higher than Panthera, while conversely, the LINE insertion rate in Panthera is ~1.6x higher than Felinae (Supplementary Fig. 16).

Next, we searched for novel repeat enrichment within narrowly defined chromosomal regions for which we had strong a priori evidence classifying that region as centromere-containing based on integrative analysis of comparative mapping approaches^9,14,17 (Supplementary Fig. 17). This strategy identified a single, most probable centromere-containing interval for each chromosome enriched >1,000-fold with a small class of tandem repeats (Supplementary Fig. 18). The location of these intervals was highly conserved across species and consistent with stability of the felid karyotype. Like human and ape centromeres, several better-resolved cat centromeres (e.g., chrE3, Fig. 4a) consisted of a central satellite array of higher-order repeats (HORs). The predominant satellite repeat was 113-bp in length, ~25% smaller than the 151-bp alpha satellite typical of great ape centromeres^5,48 (Supplementary Fig. 19). StainedGlass analysis of these candidate satellite arrays revealed patterns of monomer divergence similar to great ape centromere arrays, with more divergent monomers flanking higher identity monomers within the central satellite array (Fig. 4a). The Geoffroy’s cat possessed the largest centromeric repeat arrays on most chromosomes (Supplementary Fig. 20). This species’ karyotype also has the distinct C3 metacentric chromosome, a product of a Robertsonian chromosome fusion between chrF1 and chrF2 that occurred in the ancestor of the Leopardus lineage ≥3 Mya^9,10. StainedGlass and syntenic alignment plots (Fig. 4b, Supplementary Fig. 21) reveal that Geoffroy’s cat chrC3 centromeric region retains the highest pattern and sequence similarity to the ancestral chrF1 centromeric satellite array.

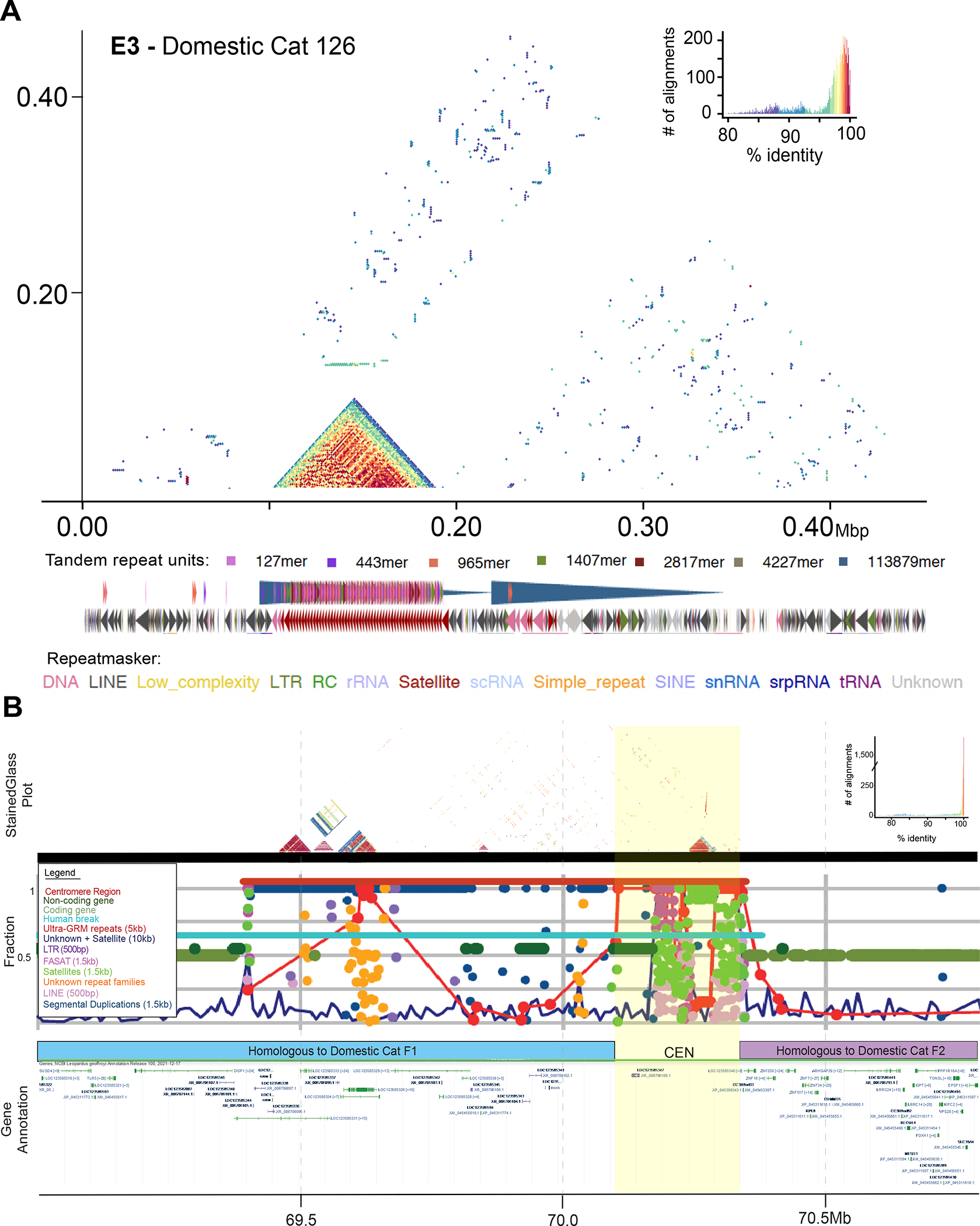

Fig. 4. Centromere annotation and evolution.

(A) StainedGlass⁴¹ dot-plot of domestic cat 126 chrE3 centromere region showing percent identity of self-alignments within the satellite repeat array (colored triangle, with % identity scale and distribution shown in the upper right). Below the chromosome are tracks for tandem repeat annotations (colors indicate different GRM-defined repeat units) and RepeatMasker annotations (key at bottom). (B) Geoffroy’s cat chrC3 centromere region. The bottom two panels display NCBI CpG and gene annotations and inferred homology to the domestic cat F1 and F2 centromeric regions. The top tracks show StainedGlass plots and repeat annotations (and fractions observed on y axis). The most probable centromeric repeat array is highlighted in yellow and supported by alignments in Supplementary Figure 21.

Centromere sizes and repeat composition varied markedly between chromosomes and across felid species. Although we cannot exclude incomplete/collapsed sequences for some of this variation (Supplementary Figs. 22–25), the centromeric regions of three autosomes were gapless in all six felid genomes (chrs. B4, D4, and E2), likely due to reduced satellite array repeat complexity. For example, Felis chrB4 possesses a narrower centromeric interval and lacks the large satellite arrays observed on other chromosomes (Supplementary Fig. 26). Some mammalian families, like equids (donkeys, onagers, zebras), also exhibit considerable variability in the presence/absence of satellite repeats at their centromeres^49,50. By contrast, the chrD4 centromere possesses a mostly conserved satellite array and illustrates the rapidity with which the central satellite monomer array sequences diverge relative to the flanking sequence (Supplementary Figs. 27–28), similar to great apes⁵. These new assemblies pave the way to exploring the potential role of interspecific centromeric satellite variation in felid meiotic drive and speciation⁵¹.

Evolutionary Innovations in Sensory Supergene Families

Olfactory receptor genes (ORGs) encode receptors that detect odorants and represent the largest gene superfamily, dispersed across the majority of mammalian chromosomes⁵² (Fig. 3a). Variation in repertoire size and functional content has been linked to shifts in ecology, diet, and life history traits and are likely crucial components of adaptation to new environments^53,54. Most comparative studies of OR gene variation were based on short-read assemblies, which confound allelic discrimination and gene copy number differences. Indeed, the previous enumeration of differences in OR repertoire sizes between cats and tigers produced opposing results^14,54. We quantified the functional ORG and vomeronasal receptor (V1R) gene profiles within each genome assembly and added published repertoire reconstructions from the Jungle cat (Felis chaus)³⁷ and a Fishing cat (Prionailurus viverrinus) based on Hi-Fi reads⁵⁵. These assemblies showed gapless ORG and V1R gene cluster inclusion with contiguity metrics approaching the single haplotype assemblies (mean cN50=80 vs. 91 Mb).

We observed large ORG copy differences (>10% of the maximum repertoire size) between species (Fig. 5b, Supplementary Table 5). Felids retain >70% functional ORGs (Supplementary Table 6), larger than most mammals⁵⁴. This elevated functional repertoire may reflect their predatory behaviors, with an acute sense of smell to track and locate prey across great physical distances⁵⁶. The tiger is solitary with among the largest home range sizes and habitat diversity of any living felid⁵⁷. It possessed the most extensive functional ORG repertoire and the highest number of gene duplications of any sampled species for air-borne Class II ORGs (Fig. 5b–c, Supplementary Tables 6–7). Several ORGs that are known to bind volatile compounds in the blood (OR1G1: nonanal, OR2W1, and OR51V1: hexanal)^58,59, and the pheromone androstenone (OR7D4)⁵⁸ had relatively high copy numbers (Supplementary Fig. 29). The tiger and Geoffroy’s cat lineages both possessed specific duplications in ORGs associated with blood-associated odorants. By contrast, the ancestor of the domestic cat lineage had the fewest ORG duplication events, potentially reflecting relaxed evolutionary pressure on olfaction before or during domestication.

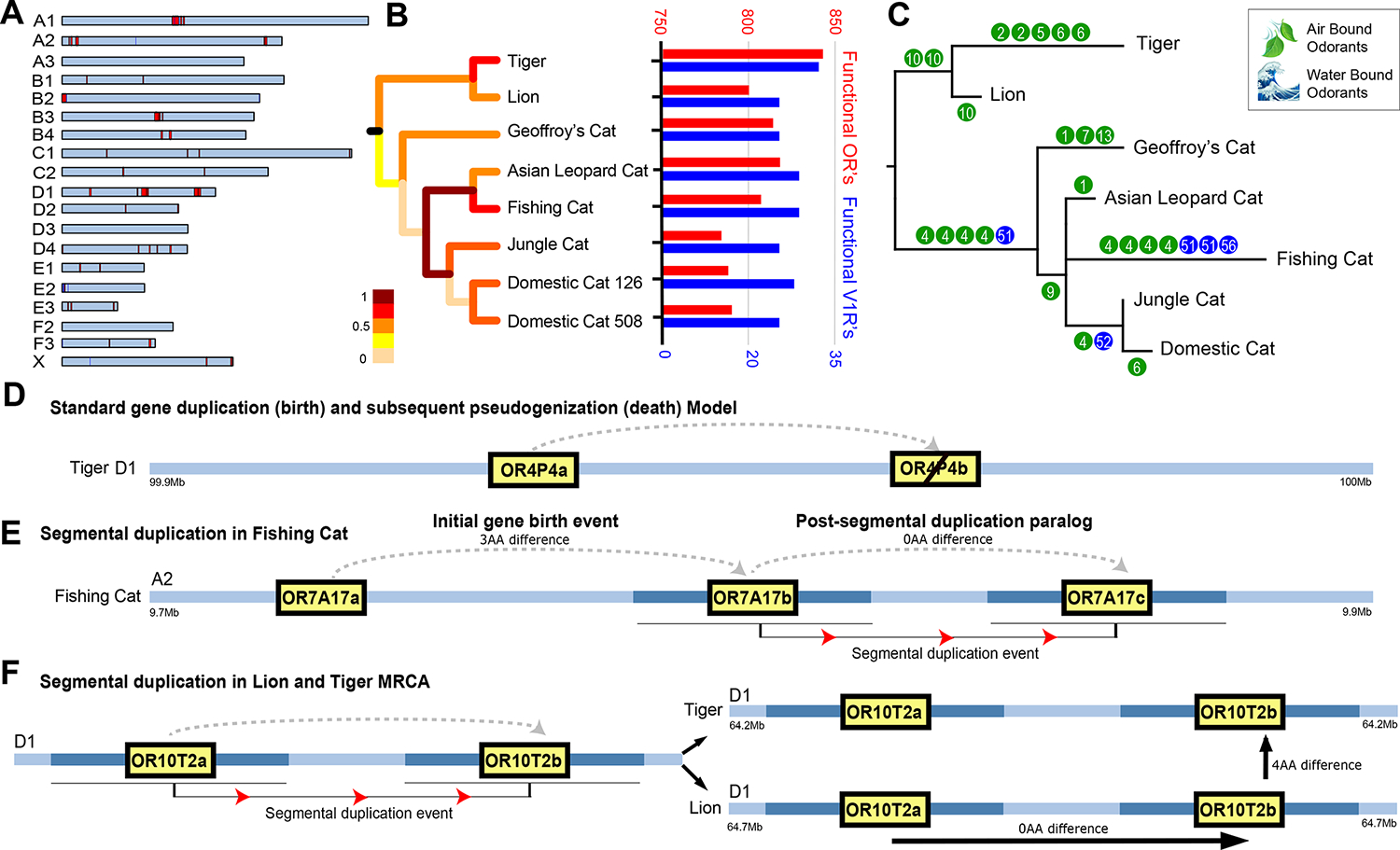

Fig. 5. Olfactory (ORG) and Vomeronasal (V1R) receptor gene evolution in cats.

(A) Chromosomal distribution of ORG (red) and V1R (blue) genes within the domestic cat genome. (B) Phylogeny and rate of ORG family duplications (scale to lower left). Barplots to the right illustrate per/species ORG (navy blue) and V1R (purple) functional gene copy number. (C) Number of per-branch unique ORG retention, classified into class I (blue=“water-borne”) and class II (green=“airborne”) receptor types. Each circle represents a uniquely retained gene, with its subfamily classification depicted by the number. (D-E) Models of ORG birth and death with specific examples. (D) shows the standard birth and death (pseudogenization) model, illustrated by tiger chrD1 (OR4P4a and OR4P4b). (E) illustrates a gene birth followed by paralog birth via segmental duplication in the fishing cat. (F) illustrates a gene birth via segmental duplication in the Panthera ancestor preceding speciation of the lion and tiger lineages.

Class I ORG families (OR51, OR52, OR55, OR56) are generally considered the ‘water-borne’ odorant-binding class, and selection for functional copies is usually rare in terrestrial mammals. The Fishing cat (Prionailurus viverrinus) is one of two felids with pronounced aquatic adaptations such as foot webbing and other otter-like morphological adaptations to the head and tail⁵⁶. The fishing cat possesses one of the largest relative percentages of functional water-borne ORGs (75%), similar to the two domestic cats (74 and 76%), and higher than the other wild felids (Lion: 67%, Tiger: 71%, Geoffroy’s cat: 72%, Leopard cat and Jungle cat: 73%, table S8). Notably, the adaptive importance of water-borne OR receptors to the Fishing cat is reflected in the lack of any Class I-specific pseudogenization events within its lineage and the retention of three functional Class I ORGs that have subsequently been pseudogenized in all other felid species (Fig. 5c, Supplementary Table 9).

Olfactory receptor gene sequences evolve through an evolutionary pattern known as the birth-and-death model⁶⁰ (Fig. 5d). This model assumes new ORGs are ‘born’ through tandem gene duplication and retained via subfunctionalization or neofunctionalization⁶¹. Gene death occurs from nonsense mutations or larger-scale genic deletions. Analysis of the chromosomal regions flanking ORG clusters revealed that while many of the inferred duplication events consisted of the ORG sequence alone, 18 of the 198 detected lineage-specific gene duplications (9.1%) were the product of larger SDs spanning ≥2000bp (Fig. 5e–f), similar to the frequency (10%) of SD-driven ORG duplications in humans⁶². A mean rate of 2.73 amino acid mutations was observed between functional segmentally duplicated ORGs compared to 2.3 amino acids in gene-specific duplicates, suggesting differences in the rate of natural selection acting on ORG evolution may be dependent on the duplication mechanism. This distinction is important because all genes duplicated as part of a larger block may not be targets of selection. Segmental duplication likely explains some of the more extensive ORG repertoires observed in mammals, as in the African elephant, which is estimated to possess over 2,000 functional genes but more than 1,000 pseudogenes⁶³. Future analyses of sensory genes in T2T genomes will allow further exploration of this model of ORG evolution in a range of vertebrate taxa.

Vomeronasal receptors (V1R) detect pheromones and other sociochemicals. We recovered complete V1R gene repertoires for each species, ranging from 67 genes in the Jungle cat to 85 genes in the Tiger (Fig. 5b), with ~36% of V1R genes retaining function across species (Supplementary Tables 10–12). The Tiger genome possessed the most functional V1R loci. Like their large functional ORG repertoire, this is potentially attributable to the large physical distances necessary for tigers to detect scent marks and discriminate potential conspecific and reproductively receptive mates⁶⁴. Most of the estimated gene duplication events occurred in Tiger and Lion genomes. They may reflect divergent adaptations to the use of social/sexual cues in both solitary and social life histories. Interestingly, we observed the highest frequency of non-functional (68%) V1R genes within the Lion genome. Because Lions live in highly cooperative groups in physical proximity, we hypothesize that the increased pseudogenization rate may be the product of relaxed selection on the use of chemical cues for determining sexual status and identifying mates relative to solitary species. Furthermore, while there were no unique lineage or species-specific retention of functional V1R genes like in the ORG family, the only unique V1R gene loss event occurred in the ancestor of the domestic cats, evidence of relaxed selective pressures during domestication¹⁴.

Discussion

Here we applied feline hybrid models to produce multiple well-annotated and near-gapless sequence assemblies spanning felid radiation. Despite their similar evolutionary ages, great ape and felid lineages possess distinct differences in segmental duplication densities that provide a genomic explanation for the striking karyotypic stability observed across the cat radiation. Resolving recalcitrant sequence structures also clarifies how natural selection continues to shape different axes of genomic diversity. The chemosensory system is particularly relevant as gene family variation has large fitness effects, and here we showed that precisely resolved gene repertoires allow for discriminating the ecological relevance of gene birth and death. Notably, large differences in ORG and V1R gene repertoires between the closely related lion and tiger likely mirror the outcome of natural selection on evolved differences in social versus solitary life histories. The private retention of aquatic-borne odorant receptors in the fishing cat also helps to clarify the role of natural selection in ecological niche adaptation. Future studies of sensory gene repertoire variation within species occupying broad geographic ranges and habitats (e.g., tiger, puma, bobcat) using phased assembly approaches will provide critical insights into the genetic basis of local sensory adaptation.

Speciation studies typically focus on the landscape of divergence, seeking outlier loci or ‘islands of speciation’ to uncover the genetic barriers that maintain species boundaries in the face of gene flow⁶⁵. Our study illustrates the rapidity with which functional satellite elements evolve relative to background rates of protein and genic sequence variation and provides additional evidence as to the role of DXZ4’s exceptional divergence in felid speciation. Yet satellites are often invisible to divergence scans as these highly repetitive regions are typically missing^4,37 or misassembled in most diploid genome assemblies. Future genomic prospecting from T2T genomes^3,66 promises to lend new insights into the landscape of genomic and structural divergence in adaptive phenotypic variation. We anticipate exciting breakthroughs inferring the genetic mechanisms of speciation and enabling genomically-informed biodiversity conservation^67–69.

Methods

Biological materials and genome sequencing

Fibroblast cell lines were established at the National Cancer Institute under protocols approved under contract N01-CO-12400. The parent-offspring trio of the Safari cat was composed of a random-bred domestic cat (Felis silvestris catus) dam, a Geoffroy’s cat (Leopardus geoffroyi) sire, and a female F1 offspring. Cell lines were karyotyped to confirm species identity and F1 status (Supplementary Fig. 31). The details of the Bengal cat F1 trio were previously reported^18,70,71. The parent-offspring trio of the Liger was composed of a Tiger dam, a Lion sire, and a male F1 offspring (LxT-3). A karyotype of the F1 male liger was generated (Supplementary Fig. 32).

High molecular weight genomic DNA was extracted from cells using a modified salting-out protocol⁷². PacBio SMRT libraries were size selected (>20-kb) and sequenced on the Sequel IIe instrument to yield approximately 158x and 153x coverage for the Safari and Liger F1, respectively. The Bengal F1 reads¹⁸ were sequenced on the Sequel I platform to 90x coverage.

Illumina fragment libraries (~300-bp average insert size) were prepared for the parent samples of trios using the NEBNext Ultra II FS DNA Library Kit (New England Biolabs Inc.). Samples were sequenced to ~30x coverage with 2×150-bp reads on the NovaSeq 6000 platform.

Hi-C library preparation and sequencing

Fibroblasts were fixed as a monolayer using 1% formaldehyde, divided into ~4.2×10⁶ cell aliquots, snap-frozen in liquid nitrogen, and stored at −80°C⁷³. Cells were lysed, resuspended in 200ul of 0.5x DNase I digestion buffer, and chromatin digested with 1.5 units of DNase I for 4 minutes. Downstream library preparation was performed as described⁷³ and sequenced on the Illumina NovaSeq 6000 to ~78x coverage.

Genome Assembly and Annotation

Haplotype Binning

All Illumina data was processed with FastQC v0.11.8⁷⁴ and adapter trimming using Trim Galore! v0.6.4. Illumina sequences were unavailable for the parents of the F1 Safari cat. Therefore, we used the domestic cat parent (Fca-508) of the Bengal F1 hybrid and published Geoffroy’s cat Illumina data (Oge-3: SRR6071645)¹⁰ for phasing. Long reads were phased into haplotype bins using the trio binning feature of Canu v1.8 (TrioCanu)^15,75.

De novo Assembly

Haplotyped long reads for each species were assembled using NextDenovo v2.2-beta.0 (github:Nextomics/Nextdenovo) with the configuration file (.cfg) altered for inputs: minimap2_options_raw = -x ava-pb, minimap2_options_cns = -x ava-pb. The seed_cutoff= option was adjusted to 32k for all assemblies. Lion Y chromosome contigs were identified using published procedures³⁷.

Contig Polishing and QC

NextPolish v1.3.0⁷⁶ and NextDenovo corrected long reads were used to polish the raw contigs. Changes to the NextPolish configuration file included: genome_size=auto, and task=best, which instructs the program to perform two iterations of polishing using the corrected long reads. The sgs option was removed as polishing with the parental diploid short reads could lead to the conversion of consensus sequence to reflect the alternate haplotypes not present in the F1. The lgs options within the configuration file were left at default settings except for modification for PacBio long reads by adjusting minimap2_options= -x map-pb. Basic assembly stats were generated using QUAST v5.0.2⁷⁷ with the --fast run option selected. BUSCO v4.0.6⁷⁸ was used to assess genome completeness, with the -m genome setting with -l mammalia_odb10 database selected (9,226 single copy genes). Visual assessment of the assemblies was performed through alignment to the domestic cat assembly Fcat_Pben_1.0_maternal_alt (Fca-508: GCA_016509815.1)¹⁸ using nucmer (mummer3.23 package)⁷⁹ with default settings. Delta files were used to generate dot plots using Dot: interactive dot plot viewer for genome-genome alignments (DNAnexus).

We also assessed assembly quality based on k-mer accuracy and completeness. Illumina data from each respective F1-hybrid was used to generate meryl (v1.3) k-mer databases for the two parents and child. Resulting meryl databases were then used to generate hapmer databases using Merqury’s (v1.3) hapmer script ($ sh $MERQURY/trio/hapmers.sh). The parental hapmer databases and child database were then passed to Merqury to evaluate assembly quality. We also assessed assembly quality using Inspector (https://github.com/Maggi-Chen/Inspector) (v1.0.2).

Scaffolding

Polished contigs from the domestic and Geoffroy’s cat were scaffolded using Hi-C data generated from the F1 Safari cat hybrid fibroblasts. Hi-C reads were binned into parental haplotypes prior to scaffolding by aligning the offspring reads to both polished parental assemblies using bwa mem v0.7.17⁸⁴ and the classify_by_alignment (https://github.com/esrice/trio_binning/v0.2.0) program as described in Rice et al.⁸⁸. Haplotyped reads were mapped to polished contigs using the pipeline and scripts described in⁸⁸ (https://github.com/esrice/slurm-hic/) using SALSA v2.2^89,90 with parameters -e none -m yes. We removed all Y chr contigs prior to scaffolding to prevent incorporation of repetitive Y chromosome contigs into paralogous autosomal regions. Previously published Hi-C data for tiger (SRR8616865) and lion (SRR10075807/SRR10075808)(DNA Zoo⁹¹) was used to scaffold their respective assemblies with SALSA parameters -e GATC -m yes. The resulting scaffolds were inspected using QUAST, nucmer, and Hi-C contact maps. RagTag v1.0.1⁹² was used to align scaffolds relative to Fcat_Pben_1.0_maternal_alt (Fca-508: GCA_016509815.1). Selected RagTag parameters included –remove-small, -f 10000 and -j unplaced.txt. RagTag scaffolds were manually inspected with Hi-C maps generated using Juicer v1.5.7⁹³ with option -s for compatibility with DNase Hi-C libraries. Maps were visualized using Juicebox v1.11.08⁹⁴ and Juicebox Assembly Tools with scripts from 3d-dna v.180922.

Genome Annotation

The NCBI annotation pipeline provided the final assembly annotations used in our analyses. Identification and annotation of DXZ4 repeat units were performed manually using GC content traces, CTCF motif annotations, and self-self dot plots for the region using Geneious Prime v2021.0.3 and FlexiDot v1.06⁹⁵. CTCF motifs were annotated using the Geneious Annotate & Predict tool with a sequence motif of GAGTTTCGCTTGATGGCAGTGTTGCACCACGAAT, based on the conserved CTCF motif logo⁹⁶, with the most prevalent nucleotide representative of each position. A max mismatch of 13 was selected to allow for interspecific ambiguity within the motif. CTCF sites annotated using this method corresponded to the approximate location within human DXZ4 repeat units originally described by Chadwick⁹⁷. Independent repeat units were aligned using the Mafft Multiple Aligner v1.4.0, and maximum likelihood trees generated with RAxML v8.2.11⁹⁸ under a GTR+I+G model of sequence evolution. Trees were pruned using Mesquite v3.61⁹⁹ and visualized using FigTree v1.4.4. Mean within- and between-group p-distances for masked (10% gaps masked) DXZ4 repeat unit alignments were calculated using Mega-X v10.0.5¹⁰⁰. To compare the rate of DXZ4 repeat evolution to the remainder of the genome, we created a multiple-sequence alignment (MSA) with the domestic cat genome (Fca126) and Geoffroy’s cat aligned to the tiger SHA reference. The alignment was passed to Tree House Explorer (v1.0.2)¹⁰¹ where the THExBuilder function was used to calculate p-distances in 10kb windows with a strict missing data threshold of 0.0.

Comparative genomic analyses of DXZ4 were assessed with contiguous long-read genome assemblies from all placental mammal superordinal clades¹⁰² downloaded from NCBI. We chose male assemblies, where available, due to their single chrX haplotype. Reference gene annotations for PLS3 and AGTR2 were used with Liftoff to identify the location of DXZ4⁹⁶. Centromere positions were identified using a combination of NCBI annotations, interspecific alignments, and the Atlas of Mammalian Chromosomes, 2^nd Edition¹⁰³. Dot-plots were generated using FlexiDot. We determined the presence/absence of DXZ4 based on the presence of repeat structure, CTCF binding motifs, and location relative to PLS3 and AGTR2. Human, cat, and pig DXZ4 repeat monomers were also queried against the X-chromosome using the discontiguous-megablast BLAST algorithm.

Repetitive Landscape, Centromere Annotation and Analysis

Repeats

Repeats in each of the genomes were masked using RepeatMasker (RepeatMasker-4.1.2-p1; Smit, AFA, Hubley, R & Green, P. RepeatMasker Open-4.0. 2013–2015 <http://www.repeatmasker.org>.) with the Dfam3.5+RepBase (rbrm-20181026) libraries where RepeatMasker was configured to use trf 4.09.1 for identifying tandem repeats, rmblastn (2.10.0+) to generate alignments and called with the -species cat option to mask using the cat-specific libraries. All repeats identified with that RepeatMasker run using the standard cat libraries were then masked as Ns, and RepeatModeler2 ¹⁰⁴(RepeatModeler 2 v2.0.2a; rmblast 2.10.0+; TRF 4.10, RECON, RepeatScout 1.0.6, RepeatMasker 4.1.2=-p1; LTR Structural Analysis: Enabled ( GenomeTools 1.6.2, LTR_Retriever v2.9.0, Ninja 1.10.2, MAFFT 7.453, CD-HIT 4.8.1) was used to model additional repetitive elements with the LTRstruct option enabled (LTR_retriever v2.9.0 configured to use rmblast2.10.+; RepeatMasker; hmmer3.3.2; cdhit4.8.1). All identified repeats were masked, and RepeatModeler2 was run again, and the genomes were N-masked. Finally, to be certain the centromeres had been fully sampled, centromere regions from the final N-masked genomes were used as the input to RepeatModeler to create a final set of repeat models that were added to the Dfam3.5 + RepBase + the 2 previous rounds of RepeatModeler. The three RepeatModeler consensus sequences were extended when the full repeat was not modeled and trimmed when the repeat model ran into a neighboring exon, concatenated, and redundancy was removed.

Segmental duplications

Before identifying segmental duplications, repetitive elements identified using the RepeatMasker/RepeatModeler approach described above, as well tandem repeats identified by GRM¹⁰⁵ and ULTRA¹⁰⁶ (version 0.99.17ultra; using period=10, period=100 and period=4000), were masked. Segmental duplications were defined using SEDEF²⁸ with default parameters.

Centromeres

Initial outer bounds for the centromere region of each chromosome were defined by aligning known bounding markers¹⁰⁷ against each cat genome using blat¹⁰⁸. The location was further refined by identifying human/cat synteny breakpoints by aligning each cat genome to the human genome (GCA_000001405.27_GRCh38.p12_genomic.fna) using nucmer⁷⁹ with default parameters then filtered using a 70% identity filter (delta-filter -i 70). Many felid chromosome arms are painted by separate human chromosomes using Zoo-FISH data, hence synteny breaks should define centromeric regions¹⁰⁹. Reciprocal best alignments were extracted (show-coords -cT) and human/cat breakpoints were identified. To identify the centromere boundary, beginning at the human/cat alignment breakpoint, we move into the centromere analyzing the repeat density of Unknown+Satellite repeats (see RepeatMasker methods) in 25kb windows in 1kb steps. When that repeat density exceeded 0.3, we stepped “back” to the base of the repeat density peak. To identify the position at which there was a significant change in the Unknown+Satellite repeat density, we identified the change point with a probability of at least 0.75¹¹⁰. From that point, we again walked “away” from the centromere using a window size of 1.5kb on the density of all repetitive elements that were enriched >500x within the centromere, to incorporate any missed elements (density >0.25) within 30kb, and to incorporate missed tandem repeats (repeat unit sizes 100 to 4000, window size = 5k; density >0.20). Finally, we checked that any boundary was between and not within a predicted gene.

Sensory Receptor Annotation and Analysis

To identify both olfactory receptor (ORG) and vomeronasal receptor (V1R) genes, we combined both the BLAST⁸⁶ and the Olfactory Receptor Assigner⁵³ algorithms into a single workflow. Initially, genomic regions containing putative sequences were identified by mapping a set of mammal-annotated ORG and V1R sequences, available via RefSeq, to each genome using blastn. A minimum of 85% sequence identity and 200bp covered per hit was used to highlight potential sensory gene sequences and exclude non-specific GPCR-like regions. Genomic regions for each hit were extracted with an additional 500bp up and downstream to ensure start and stop codons were included. ORA uses a set of reference profile hidden Markov models (HMMs) to annotate ORG/V1R genes for each region extracted. Profile HMMs specific to V1Rs were generated using HMMR3¹¹¹. ORG/V1R genes were classified as non-functional if they contained an in-frame stop codon or if they were less than 650bp in length (i.e., not long enough to complete the seven-transmembrane domain). identified ORG/V1R sequences were mapped to the original RefSeq data to confirm they were definitive sensory genes. All ORG/V1R genes were mapped (blastn) between felid genomes to ensure no sequences were missing between species. ORA was used to classify all ORG and V1R genes into 13 subfamilies (OR1/3/7, OR2/13, OR4, OR5/8/9, OR6, OR10, OR11, OR12, OR14, OR51, OR52, OR55, OR56) and seven subfamilies (V1R1, V1R2, V1R3, V1R4, V1R5, V1R48, V1R90, V1R100), respectively.

Maximum likelihood (ML) gene trees per gene family per chromosome were inferred using IQTREE v.1.6.12(GTR+I+G)¹¹² based on multiple sequence alignments generated with Clustal Omega¹¹³. The number of lineage-specific gene duplication events per species was estimated using Notung¹¹⁴. Additionally, by splitting gene trees into all possible subtrees via the ‘ape’ package in R¹¹⁵, gene presence/absence per subtree was used to characterize putative one-to-one orthologs across species. Ambiguous orthologous relationships were further resolved using both genomic coordinates and blast hits. To determine if lineage-specific ORG/V1R gene duplications consisted of only the specific receptor gene or represented the duplication of a larger chromosomal region, 1000bps both up and downstream of each sequence was extracted and analyzed for segmental duplications as described above.

Tiger Recombination Map

Publicly available short-read data for 4 individual Panthera tigris jacksonii (SRR7152390, SRR7152389, SRR7152391, SRR715294) were trimmed, filtered, and mapped to the Panthera tigris (P.tigris_Pti1_mat1.1) reference genome. Mapping results were evaluated and summarized using the Qualimap function bamqc¹¹⁶. Samtools¹¹⁷ was used to remove duplicate reads. Base quality score recalibration (BQSR) was performed using GATK^118,119 by generating an initial reference set of SNPs from the dataset itself. Variants were then called, and all samples were jointly genotyped. Variants were filtered to remove variants in repeatmasked regions using GATK. Variants were further filtered, removing variants within 5bps of an indel and those which did not meet the following quality criteria -e’%QUAL<30 | INFO/DP<16 | INFO/DP>62 | QD<2 | FS>60 | SOR>10 | ReadPosRankSum <−8 | MQRankSum <−12.5 | MQ<40’ in bcftools (https://github.com/samtools/bcftools). VCFtools (https://vcftools.github.io/man_latest.html) was used to remove indels, leaving 3,067,994 biallelic SNPs for further analysis. ReLERNN v.1.0.0, a deep learning approach that uses recurrent neural networks, was used to model the genome-wide recombination rate¹²⁰. A mutation rate of 2.2e-9¹²¹ was used. ReLERNN was run using the simulate, train, predict and bscorrect modules with default settings. Inferred recombination rates were averaged in 2Mb blocks in 50kb sliding windows.

Structural Variant/Inversion Identification and Analysis

Initial Inversion Call Set Detection with PAV

An initial variant call set was generated using PAV¹²²(GitHub commit: 24efbea) with minimap2 (v2.24)¹²³ parameters “-x asm20 --secondary=no -a -t {params.cpu} --eqx -Y -B 2 -z 10000,50 --end-bonus=100” and PAV configuration settings “inv_region_limit: 3000000”, henceforth referred to as the PAV-mm2 call set. The “sv_inv.bed.gz” bed files containing inversion calls for each sample were then used for downstream filtration and validation. As an additional line of validation, we also ran PAV using Long-Read Aligner (LRA) (v 1.3.2)¹²⁴ with parameters “-CONTIG -p s -t”. The resulting “sv_inv.bed.gz” inversion bed file was used for validation of the PAV-mm2 initial call set. Inversions overlapping regions identified as collapsed segmental duplications identified by SDA¹²⁷ were removed from the analysis.

PBSV

CLR reads were mapped to the Geoffroy’s cat reference assembly (O.geoffroyi_Oge1_pat1.0) using pbmm2 (v1.9.0) using the parameters “--sort --median-filter”. The variant call set was generated using PBSV (v2.8.0) by first identifying signatures of structural variants using the discover command “pbsv discover --tandem-repeats tandem_repeats.bed <input.bam> <output.svsig.gz>” where tandem repeats were identified by GRM and ULTRA. Then, variants are called using the call command “pbsv call <reference.fasta> <output.svsig.gz> <output.vcf>”.

Sniffles

CLR reads were mapped to the Geoffroy’s cat reference assembly (O.geoffroyi_Oge1_pat1.0) using pbmm2 (v1.9.0) using the parameters “--sort --median-filter”. Variants were then called using Sniffles (v2.0.7)^125,126 with parameters “-t <cpu_count> -i <input.bam> -v <output.sniffles.vcf> --tandem-repeats <reference-repeats.bed>”.

Long-read Mapping-based Call Set Filtration

Call sets from PAV-LRA, PBSV, and Sniffles were used to filter the initial PAV-mm2 call set by removing variants that were not supported by at least one of the three additional variant call sets. We utilized BEDTools (v2.30.0)⁸⁵ to call inversion variants with a 50% reciprocal overlap. Inversions identified on unplaced scaffolds were excluded. We identified large inversions (>500kbp) not called by PAV with SafFire (https://github.com/mrvollger/SafFire). Input paf files were generated by mapping each assembly to the Geoffroy’s cat reference assembly (O.geoffroyi_Oge1_pat1.0) with minimap2 (v2.24) with parameters “-x asm20 -t <cpu_count> -c --eqx” and then rustybam (https://github.com/mrvollger/rustybam - bioconda v0.1.31) parameters “rb trim-paf sample.paf | rb break-paf --max-size 5000 | rb orient | rb filter --paired-len 100000 | rb stats --paf > sample.SafFire.bed”. Inversions greater than 500kbp were called if supported by both SafFire and Nucmer⁷⁹ based dot plots.

Short-read genotyping and inversion classification

Pangenie (v1.0.1)¹²⁸ classified inversions as species/lineage-specific, paraphyletic with breakpoint use, or polymorphic. Paired-end Illumina datasets for the lion (n=14), tiger (n=14), domestic cat (n=10), and Asian leopard cat (n=10) were downloaded from NCBI’s SRA database and interleaved utilizing Seqkit’s (v0.16.0)¹²⁹ concat function. The interleaved FASTQ files and fully-phased VCF files were then passed to Pangenie using the parameters “-u -s <sample_name> -o <sample_name> -i <sample_interleaved_fastq> -r <reference_assembly> -v <fully_phased_PAV _inversions.vcf>”. We could not genotype Geoffroy’s cat-specific inversions using Illumina data. They were called if supported by inverted alignments to all query species. An initial phylogenetic matrix was constructed by merging inversions across all samples based on 50% reciprocal overlap (calculated by pybedtools v0.9.0)^85,130.

Annotation of SV-overlapping/containing SD’s, Gaps, Genes, and Repetitive Elements

pybedtools (v0.9.0) intersected the breakpoint positions of the inversions with the coordinates of SDs, gaps, genes, and repetitive elements. SciPy’s (v1.7.3)¹³¹ ranksum function (one-sided, greater) determined if inversions flanked by SDs were significantly larger than inversions not flanked by SDs. Inversions flanked by repetitive elements sharing more than 90% identity were identified using pandas (v1.4.0). Repetitive elements within 100kb of the inversion breakpoints were aligned using biopython’s (v1.79)¹³² pairwise2.align.globalmx (upstream_seq, downstream_seq, 1, 0, score_only=True).

Statistics and Reproducibility

The one-sided Wilcoxon rank sum test was used to determine differences in inversion sizes between the autosomes and X chromosomes. In this study, no statistical method was used to predetermine sample size, no data were excluded from the analyses, and the experiments were not randomized. The Investigators were not blinded to allocation during experiments and outcome assessment.

Data Availability

Assemblies are available in NCBI under accession numbers GCA_016509475.2, GCA_016509815.2, GCA_018350155.1, GCA_018350175.1, GCA_018350195.2, GCA_018350215.1. OR gene sequences and DXZ4 alignments are found at: https://figshare.com/s/68266360874d5078bdf5
