Targeted macrophage phagocytosis by Irg1/itaconate axis improves the prognosis of intracerebral hemorrhagic stroke and peritonitis

Summary

Background

Macrophages are innate immune cells whose phagocytosis function is critical to the prognosis of stroke and peritonitis. cis-aconitic decarboxylase immune-responsive gene 1 (Irg1) and its metabolic product itaconate inhibit bacterial infection, intracellular viral replication, and inflammation in macrophages. Here we explore whether itaconate regulates phagocytosis.

Methods

Phagocytosis of macrophages was investigated by time-lapse video recording, flow cytometry, and immunofluorescence staining in macrophage/microglia cultures isolated from mouse tissue. Unbiased RNA-sequencing and ChIP-sequencing assays were used to explore the underlying mechanisms. The effects of Irg1/itaconate axis on the prognosis of intracerebral hemorrhagic stroke (ICH) and peritonitis was observed in transgenic (Irg1^flox/flox; Cx3cr1^creERT/+, cKO) mice or control mice in vivo.

Findings

In a mouse model of ICH, depletion of Irg1 in macrophage/microglia decreased its phagocytosis of erythrocytes, thereby exacerbating outcomes (n = 10 animals/group, p < 0.05). Administration of sodium itaconate/4-octyl itaconate (4-OI) promoted macrophage phagocytosis (n = 7 animals/group, p < 0.05). In addition, in a mouse model of peritonitis, Irg1 deficiency in macrophages also inhibited phagocytosis of Staphylococcus aureus (n = 5 animals/group, p < 0.05) and aggravated outcomes (n = 9 animals/group, p < 0.05). Mechanistically, 4-OI alkylated cysteine 155 on the Kelch-like ECH-associated protein 1 (Keap1), consequent in nuclear translocation of nuclear factor erythroid 2-related factor 2 (Nrf2) and transcriptional activation of Cd36 gene. Blocking the function of CD36 completely abolished the phagocytosis-promoting effects of Irg1/itaconate axis in vitro and in vivo.

Interpretation

Our findings provide a potential therapeutic target for phagocytosis-deficiency disorders, supporting further development towards clinical application for the benefit of stroke and peritonitis patients.

Funding

The National Natural Science Foundation of China (32070735, 82371321 to Q. Li, 82271240 to F. Yang) and the Beijing Natural Science Foundation Program and Scientific Research Key Program of Beijing Municipal Commission of Education (KZ202010025033 to Q. Li).

Research in context.

Evidence before this study

Phagocytosis inefficiency/dysfunction of macrophages is closely related to the occurrence or worsening of various diseases. Literatures have shown that the size of the hematoma after ICH is a well-established predictor of clinical outcomes in patients, and that the decreased phagocytosis and bactericidal ability of host peritoneal macrophages may contribute to bacterial peritonitis. With a focus on phagocytosis, enhanced antibody-dependent macrophage phagocytosis has been successfully used as a cancer immunotherapy in the clinic. Nevertheless, how to enhance macrophage phagocytosis in other diseases requires further research and clinical translation.

Added value of this study

In this work, we demonstrated that Irg1/itaconate axis significantly promoted phagocytosis in macrophages and improved prognosis in mouse models of ICH and acute peritonitis. Mechanistically, with unbiased RNA-sequencing and ChIP-sequencing assays, we uncovered that itaconate alkylated the Kelch-like ECH-associated protein 1 (Keap1), consequently increased the nuclear translocation of nuclear factor erythroid 2-related factor 2 (Nrf2), and subsequently increased the expression of scavenger receptor coding gene Cd36.

Implications of all the available evidence

Our work is the first to demonstrate the novel role of Irg1/itaconate axis in the promotion of phagocytosis in different sources of macrophages (mouse bone marrow-derived macrophages, primary microglia, and peritoneal macrophages), and uncover the Irg1/itaconate axis promoted phagocytosis barely has substrate specificity (erythrocytes, Escherichia coli, live Staphylococcus aureus, and dying neuroblastoma cells). Our findings suggest that itaconate could potentially be used in the treatment of a broad range of phagocytosis-related diseases, supporting further development towards clinical application for the benefit of relevant clinical patients.

Introduction

The innate immune system is finely regulated to respond rapidly to a variety of stimuli, including pathogen (bacterial, fungal, and viral) invasion, host cell death, erythrocyte senescent, and erythrocyte escape from blood vessels.1, 2, 3 Macrophages are congenital immune cells that play an important role in phagocytosis, antigen presentation, and cytokine production.⁴ The dysfunction in phagocytosis of macrophages or microglia, the brain-resident macrophages, is associated with diseases occurring or worsening, such as chronic obstructive pulmonary disease,⁵ atherosclerosis,⁶ Alzheimer's disease,⁷ and stroke.^8,9 In clinic, enhancing antibody-dependent macrophage phagocytosis has been successfully applied as a cancer immunotherapy.¹⁰ Therefore, controlling macrophage phagocytosis is critical for maintaining health and treating diseases.¹¹

Itaconate, a tricarboxylic acid cycle intermediate, is a product of the decarboxylation of cis-aconitate by immune-responsive gene 1 (Irg1) in the mitochondria.¹² Itaconate is an α, β-unsaturated dicarboxylic acid with mildly electrophilic properties, allowing it to act as a Michael acceptor to modify cysteine residue(s) in an alkylation reaction termed itaconation (also known as 2,3-dicarboxypropylation) on cysteine-containing proteins.13, 14, 15, 16, 17 During the microbial invasion, itaconate directly inhibits the isocitrate lyase activity of Pseudomonas indigofera to limit pathogen growth,¹⁸ and itaconyl-CoA, a breakdown product of itaconate metabolism, inhibits methylmalonyl-CoA mutase to restrict the growth of Mycobacterium tuberculosis.¹⁹ Itaconate also potently attenuates intracellular replication of SARS-CoV2, Herpes Simplex Virus-1/2, Vaccinia Virus, and Zika Virus.^20,21 Moreover, itaconate exerts immunomodulatory effects by inhibiting enzymatic activity, such as succinate dehydrogenase²² and ten-eleven translocation DNA dioxygenases²³ in macrophages. Therefore, itaconate is an essential regulator of macrophage activation, inflammation, and M1 polarization.²⁴ However, little is known about whether itaconate participates in macrophage phagocytosis and its underlying mechanisms.

Phagocytosis, the ingestion of bacteria or other material by phagocytes, is a highly conserved and complex process.²⁵ This process is mediated by the engagement of pattern recognition receptors, scavenger receptors, and Fc receptors.²⁶ CD36 is one of the well-studied class B scavenger receptors expressed on macrophages, monocytes, and microglia.²⁷ CD36 recognizes endogenous ligands, such as erythrocytes and apoptotic cells.^8,28 It also functions as a pattern recognition receptor on phagocytes, mediating engulfment and the elimination of foreign agents (bacterial and fungal pathogens).^29,30 Although both CD36 and itaconate are critical in development, maintaining tissue homeostasis, and host defense, whether CD36 is related to itaconate-participated functional regulation remains unknown.

Several disease models have been used to study phagocytosis, such as intracerebral hemorrhagic stroke (ICH),^8,9 peritonitis,³¹ Alzheimer's disease,³² and pneumonia.³³ ICH is associated with significant mortality and morbidity,^34,35 and the hematoma size is a well-established predictor of clinical outcomes in ICH patients.³⁶ Thus, enhancing microglia/macrophage (MMΦ) erythrophagocytosis and accelerating hematoma resolution is a legitimate therapeutic strategy for ICH.³⁷ Bacterial peritonitis is another important disease related to phagocytosis regulation, which results from decreased phagocytosis and bactericidal capacity of host peritoneal macrophages,³⁸ and enhancing macrophage phagocytosis to reduce bacterial bioburden becomes a promising therapeutic option for the treatment of severe bacterial peritonitis. The goal of this study was to investigate whether itaconate modulates macrophage phagocytosis and its underlying mechanisms, thereby advancing future clinical translational studies.

Methods

Animals

Experiments in animals were performed according to the ARRIVE and ICLAS guidelines. All animals used in this study were bred and housed under specific-pathogen-free conditions at Capital Medical University. Mice were housed in a regulated environment (22 ± 2 °C, 55 ± 5% humidity, and 12:12-h light: dark cycle with lights on at 8:00 am) and received a standard diet. Food and water were accessible ad libitum. All procedures on mice were followed National Institutes of Health guidelines for care of animals. Anesthesia and euthanasia of animals were carried out based on the American Veterinary Medical Association Guidelines for the Euthanasia of Animals (2020).

C57BL/6 male mice (6- to 8-week-old, wildtype, WT) were obtained from Vital River (China). Irg1^−/−, Irg1^flox/flox, and Cx3cr1^creERT mice (all on a C57BL/6 background) were generated by Shanghai Model Organism Center, Inc (China). EGFP transgenic mice, which express enhanced EGFP in all tissues except erythrocytes and hair,³⁹ were used to visualize bone marrow-derived macrophages in time-lapse experiments and immunofluorescence staining.

To generate the Irg1^−/− mice, CRISPR/Cas9 technology was used to repair the introduction of mutations by non-homologous recombination, resulting in the Acod1 (Irg1) encoding protein reading frame-shifting and functional loss. To generate the Irg1^flox/flox mice, the principle of homologous recombination was used to modify Irg1 gene by flox through homologous recombination of fertilized eggs. Microglia/macrophage conditional knockout (cKO) mice were then produced by crossbreeding Irg1^flox/flox mice with Cx3cr1^creERT mice (Irg1^flox/flox; Cx3cr1^creERT/+). When Irg1^flox/flox; Cx3cr1^creERT/+ mice became adults, we administered tamoxifen (T5648, Sigma–Aldrich, USA) 100 μL dissolved in corn oil (C805618, Macklin, China) at a concentration of 20 mg/mL once daily for 5 consecutive days to activate the creERT recombination. Age- and sex-matched littermates or WT mice were used as controls. The individual mouse was considered the experimental unit in this study. The PCR primer sequences for genotyping analysis were listed in Supplemental Table S2.

Ethics

All procedures on mice were approved by the Experimental Animal Ethics Committee (AEEI-2020-157 and AEEI-2023-013) of Capital Medical University, Beijing, China.

Cell cultures

Mouse bone marrow-derived macrophages were prepared from 6- to 8-week-old male mice and cultured as described previously.⁸ Briefly, bone marrow cells from the mouse femur were flushed out with α-MEM (KGM11900-1, KeyGEN BioTECH, China). After lysing red blood cells (RBCs) with buffer (00-4300-54, Invitrogen, USA), cells were cultured in the medium supplemented with 10% fetal bovine serum (FBS; 10091148, Gibco, USA), 1% penicillin/streptomycin (KGY0023, KeyGEN BioTECH), and 20 ng/mL murine M-CSF (315-02-100, PeproTech, USA) for 7 d until use.

Mouse primary microglia were prepared from pups at postnatal days 0–1 and cultured as described previously.⁸ Briefly, brain tissue was digested into single cells and cells were maintained in the DMEM/F12 medium (C11330500BT, Gibco) supplemented with 10% FBS and 1% penicillin/streptomycin in vitro. After 14 d culturing, cells were shaken at 200 rpm at 37 °C for 4 h to separate microglia from astrocytes. The medium was changed every 3 d until use.

Mouse macrophage cell line RAW264.7 and mouse neuroblastoma cell line N2A were maintained in DMEM medium (C11995500BT, Gibco) with 10% FBS and passaged every other day.

Phagocytosis assays

Time-lapse imaging

Briefly,⁴⁰ BMDMs extracted from EGFP mice were placed on a stage-top environmental chamber that maintained the cells at 37 °C in 5% CO₂ and was mounted onto a Zeiss inverted microscope (LSM880, Zeiss, Germany). Cells were incubated with pH-sensitive latex beads (4 μm, P35364, Invitrogen) and nuclear dye Hoechst 33342 (C0031, Solarbio, China). Z-stack images were captured every 3–4 min for a total duration of 1 h. Images and videos were obtained by the Zeiss imaging software and analyzed using the ImageJ software (NIH, USA).

Flow cytometry

Briefly,⁴¹ pH-sensitive latex beads (pHrodo Red, Excitation/Emission = 560/585 nm) were incubated with BMDMs for 20 min and unengulfed beads were washed. BMDMs were digested by 0.25% trypsin (KGY0012, KeyGEN BioTECH), washed, and analyzed with an LSRFortessa SORP cytometer (BD Biosciences, USA). Dead cells were distinguished with 7-Aminoactinomycin D (7AAD; 00-6993-50, eBioscience, USA). Unengulfed BMDMs (7AAD⁻PE⁻) were used as a negative control. FlowJo software V10 (SU, USA) was used to analyze the results. The engulfment (%) was calculated by the percentage of beads-engulfing BMDMs (7AAD⁻PE⁺) in all live BMDMs (7AAD⁻). The number of engulfed beads was calculated by the mean fluorescence intensity of beads in beads-engulfing BMDMs (7AAD⁻PE⁺).

Immunofluorescence staining

For in vitro experiments, briefly,⁴² pH-sensitive latex beads, pH-sensitive Escherichia coli (E. coli; P35361, Invitrogen), PKH26-labeled RBCs, or propidium iodide (PI)-labeled dying cancer cells were incubated with cells for 20 min, respectively. Phagocytes were washed and fixed with 4% paraformaldehyde (PFA; P1110, Solarbio), washed, and immunostained. Z-stack images were captured with a confocal microscope (TCS SP8 STED, Leica, Germany). The beads number was calculated by the number of engulfed beads per phagocyte, and the engulfment (%) was calculated by the percentage of engulfed phagocytes in total phagocytes in each field. For in vivo experiments, briefly,⁸ PKH26-labeled RBCs (1 × 10⁶) in 2 μL phosphate buffered solution (PBS; P1010, Solarbio) were injected into the left mouse striatum at 0.4 μL/min (coordinates: x = 2.0 mm, y = 0.8 mm, z = −3.15 mm). Mice were sacrificed and brain sections were used for immunofluorescence staining. Four random perihematomal areas on 6 brain sections at 3 slides per animal were used and quantified by ImageJ software. The RBC number was calculated by the number of engulfed RBCs per microglia/macrophage.

Intracerebral hemorrhage mouse model

As previously described,⁴³ we used collagenase to induce the ICH mouse model. Briefly, mice were deeply anesthetized with isoflurane (mixture of 70% N₂O and 30% O₂; 3% induction, 1–2% maintenance). A burr hole was made in the left striatum (coordinates: x = 2.0 mm, y = 0.8 mm, z = −3.15 mm). Next, 0.5 μL of collagenase VII-S (0.1 U/μL, Sigma–Aldrich) was injected at a speed of 0.1 μL/min. The body temperature of mice was maintained near normothermia (37.0 °C) during surgery with a heating blanket (RWD, China). All efforts were made to minimize the number of animals used and ensure minimal suffering. Body weight, rectal temperature, and survival rate were recorded for each mouse before and after surgery until the endpoint of experiments.

Acute bacterial peritonitis mouse model

As previously described,⁴⁴ Staphylococcus aureus (S. aureus) was grown in Luria Broth (LB) media and shaken overnight at 37 °C. S. aureus density was determined using an ultraviolet–visible spectrophotometer (Nanodrop 2000, Thermo Fisher Scientific, USA) and the corresponding colony-forming units (CFU) were determined on LB agar plates. Viable 1 × 10⁹ CFU S. aureus resuspended in 1 mL of LB was injected into the peritoneal cavity (i.p.). Body weight and survival rate were recorded for each mouse before and after S. aureus injection. All experiments performed using S. aureus were performed in ClassII Biohazard facilities.

Statistical analysis

Animals and cell cultures for each group were randomized with the website www.randomization.com. Each animal was randomly assigned to a cage from all cages, and the order of the trials was randomized daily. Treatment, data collection, and data analyses were blinded by using different investigators or by masking sample labels. Three or more independent experiments were performed for all experiments. For the pooled analysis of results from different independent replications, all mice and independent in vitro experiments from the same experimental group were pooled and a new statistical comparison was performed for the entire pooled experiment, as was done for the individual replications.⁴⁵ A power analysis based on previous studies,^43,46,47 and pilot data indicated that 8 mice per group would provide at least 80% power for detecting a 20% decrease in neurologic deficits at α = 0.05 (2-sided). Sample sizes were excluded the animals which were died or euthanized. To be specific, the ICH mice that died or had a neurological deficit score higher than 20 at 24 h after surgery were euthanized and excluded from the analysis. And the peritonitis animals with obvious abnormal behavior (i.e., exceeding 2 times the standard deviation) were excluded. Data were presented as mean ± SD or displayed using violin plots (medians, quartiles Q25-Q75 and 95% confidence intervals). Mean value was the average data obtained from all animals (in vivo experiments) or from three or more independent experiments (in vitro experiments). All data analysis was performed using GraphPad Prism 8.0.2 (263) Software. For all datasets, the normality was assessed using the Shapiro–Wilk test, and the parametric or non-parametric tests were used accordingly. For comparisons between two groups with normal distribution, unpaired two-tailed Student's t-test followed by Welch's correction was performed. For comparison of more than two groups, ANOVA was used with correction for multiple comparisons tests for parametric-distributed datasets and the Kruskal–Wallis test with Dunn's correction for non-parametric-distributed datasets. To be specific, One-way ANOVA followed by Tukey's multiple comparisons test or Dunnett's multiple comparisons tests, and Two-way ANOVA followed by Sidak's multiple comparisons test or Tukey's multiple comparisons tests were used to determine where those differences occurred. The criterion for statistical significance was p < 0.05. All exact p values were presented in Supplemental Table S3.

Role of funders

The funding sources were not involved in study design, data collection, data analyses, interpretation, or writing of report.

Results

Irg1/itaconate axis promotes macrophage phagocytosis

We extracted bone marrow-derived macrophages (BMDMs) from wild-type (WT) mice (Supplemental Fig. S1a), treated them with itaconate derivative 4-octyl itaconate (4-OI) or vehicle, and performed RNA-sequencing (RNA-seq) analysis (n = 3, Fig. 1a). Gene Set Enrichment Analysis (GSEA) showed that regulation of the phagocytosis-related genes was significantly enriched in 4-OI-treated macrophages (n = 3, Fig. 1b and Supplemental Table S1). We verified the RNA-seq results with real-time RT-PCR (n = 3, p < 0.05 vs. Veh, Fig. 1c). We next incubated macrophages with pH-sensitive latex beads to assess the changes in phagocytosis. Both itaconate (1 mM) and 4-OI (120 μM) significantly increased the total amount of phagocytosed beads and the percentage of beads-engulfing macrophages (n = 3, p < 0.05 vs. Veh, Supplemental Fig. S1b–g). The time-lapse recording revealed that itaconate and 4-OI also increased the beads-engulfing speed and ability of macrophage phagocytosis (n = 8–52, p < 0.01 vs. Veh, Fig. 1d–f and Supplemental Videos S1–S3). Of note, the phagocytosis-enhancing effective dosages of itaconate and 4-OI didn't induce cell death (n = 4 or 5, p > 0.05 vs. Veh, Supplemental Fig. S1h–k).

Fig. 1.

Irg1/itaconate axis promotes macrophage phagocytosis. (a and b) Bone marrow-derived macrophages (BMDMs) isolated from C57BL/6 (WT) mice were treated as indicated to perform RNA-seq analysis. Hierarchical clustering analysis of differentially expressed genes (a) and a GSEA analysis of phagocytosis pathway (b) are shown. (c) The mRNA levels of phagocytosis-related genes in WT BMDMs were analyzed using real-time RT-PCR after treatment 8 h. GAPDH serves as an internal control. n = 3, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. Veh. (d–f) BMDMs isolated from EGFP mice were exposed to indicated treatments before incubated with the pH-sensitive latex beads. The time-lapse recording was performed. Nuclei were stained with Hoechst dye. White arrows indicate beads-engulfing macrophages. Fields calculated for evaluating engulfment (%): Veh n = 11, ITA n = 12, 4-OI n = 8. BMDMs calculated for evaluating beads number: Veh n = 52, ITA n = 39, 4-OI n = 27. ∗∗p < 0.01, ∗∗∗p < 0.001 vs. Veh. Scale bar = 10 μm. (g–i) Indicated BMDMs were treated as indicated and incubated with pH-sensitive latex beads, and then flow cytometry was performed. n = 4, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. corresponding Veh; #p < 0.05, ###p < 0.001 vs. Irg1^+/+ BMDMs. MFI: Mean fluorescence intensity. (j and k) Indicated BMDMs were incubated with pH-sensitive Escherichia coli (E. coli), PKH26-labeled red blood cells (RBCs), or PI-labeled dying cancer cells (CCs) respectively. n = 4, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. corresponding Veh; ##p < 0.01, ###p < 0.001 vs. Irg1^+/+ BMDMs. Scale bar = 10 μm. Data are presented as mean ± SD. (c) Two-way ANOVA followed Sidak's multiple comparisons test. (e and f) Two-way ANOVA followed Tukey's multiple comparisons test. (h, i, and k) Two-way ANOVA followed Tukey's or Sidak's multiple comparisons test.

Immune-responsive gene 1 (Irg1) converts cis-aconitate to itaconate. To further confirm Irg1's role in macrophage phagocytosis, we generated Irg1^−/− mice (Supplemental Fig. S2a) and observed the depletion of Irg1 by real-time RT-PCR (n = 3, p < 0.001 vs. Irg1^+/+, Supplemental Fig. S2b) and Western blotting (Supplemental Fig. S2c), and the depletion of itaconate in Irg1^−/− BMDMs by high-performance liquid chromatography (HPLC) analysis (Supplemental Fig. S2d). As reported elsewhere,⁴⁸ we also found that deficiency of Irg1 didn't affect macrophage maturation, glycolysis, and mitochondrial respiration (n = 3, p > 0.05 vs. Irg1^+/+, Supplemental Fig. S2e–h). As expected, BMDMs extracted from Irg1^−/− mice showed impaired phagocytic activity (n = 4, p < 0.05 vs. Irg1^+/+, Fig. 1g–i and Supplemental Fig. S2i–k), and both itaconate and 4-OI rescued this dysfunction (n = 4, p < 0.05 vs. Veh, Fig. 1g–i and Supplemental Fig. S2i–k), whereas Irg1 overexpression increased phagocytosis of WT BMDMs (n = 3, p < 0.001 vs. Vector, Supplemental Fig. S2l and m). We further incubated macrophages with Escherichia coli (E. coli), red blood cells (RBCs), or dying cancer cells (CCs). Irg1 deficiency markedly attenuated the phagocytosis of E. coli, RBCs, and dying CCs (n = 4, p < 0.05 vs. Irg1^+/+, Fig. 1j and k), while the addition of itaconate/4-OI promoted engulfment in both Irg1^+/+ and Irg1^−/− BMDMs (n = 4, p < 0.05 vs. Veh, Fig. 1j and k). These data suggest that Irg1/itaconate axis plays an important role in the regulation of macrophage phagocytosis.

Irg1/itaconate axis enhances macrophage phagocytosis by activating the Keap1/Nrf2/CD36 axis

Peroxisome proliferator-activated receptor (PPAR)-γ and nuclear factor erythroid 2-related factor 2 (Nrf2) are the most studied phagocytosis-related transcription factors.^42,49,50 Kyoto Encyclopedia of Genes and Genomes (KEGG) and violin plot analyses showed that both PPAR and Nrf2 signaling pathway-related genes were enriched in the 4-OI-treated cells (n = 3, Supplemental Fig. S3a–c). Treating cells with PPARγ inhibitor T0070907 did not inhibit 4-OI-promoted phagocytosis (n = 3, p > 0.05 4-OI+ T0070907 vs. 4-OI+Veh, Supplemental Fig. S3d), while pharmacologic inhibition of Nrf2 transcriptional activity with ML385 decreased the 4-OI-enhanced phagocytosis significantly (n = 3, p < 0.001 4-OI+ML385 vs. 4-OI+Veh, Supplemental Fig. S3e). These results suggest that the Nrf2 signaling pathway plays an important role in Irg1/itaconate axis-regulated macrophage phagocytosis.

Kelch-like ECH-associated protein 1 (Keap1) binds to Nrf2 in cytosol and represses Nrf2 nuclear translocation.⁵¹ Itaconate has electrophilic properties and directly alkylates cysteine residue on the Keap1 to promote Nrf2 transcription of anti-inflammatory and anti-oxidative genes.¹³ As expected, 4-OI did not alter the mRNA levels of Keap1 or Nrf2 (n = 6, p > 0.05 vs. Veh, Supplemental Fig. S3f), but 4-OI significantly increased the nuclear translocation of Nrf2 detected by immunofluorescence staining and Western blotting (n = 3, Fig. 2a and b). We next analyzed Nrf2-transcripting genes by using chromatin immunoprecipitation-sequencing (ChIP-seq) assays. A total of 192 differential binding sites were identified, and 4-OI induced binding of Nrf2 to the transcription start site of target genes (Fig. 2c). Venn diagrams showed there were 44 overlapped differentially expressed genes (4-OI vs. Veh) between results gained from ChIP-seq and RNA-seq analyses, and they were mainly involved in oxidative stress and redox pathway, cellular response to oxidative stress, carboxylic acid transmembrane transport, and mitotic cell cycle process (Fig. 2d and Supplemental Fig. S3g). Among these, genes encoding the scavenger receptor CD36 and proton-coupled divalent metal ion transporter SLC11A1 were the overlapped phagocytosis-related genes between ChIP-seq and RNA-seq assays (Fig. 2d). CD36 neutralizing antibodies largely blocked 4-OI-enhanced phagocytosis in WT BMDMs (n = 4, p < 0.01 4-OI+Ab-CD36 vs. 4-OI+IgA, Fig. 2e), whereas Slc11a1 silencing had modest effects on it (n = 4, p > 0.05 4-OI+siSlc11a1 vs. 4-OI+siCtrl, Supplemental Fig. S3h and i). In addition, ChIP-seq density tracking and our ChIP assay showed 4-OI enhanced the binding of Nrf2 on the transcription start site of Cd36 (Fig. 2f and g). Meanwhile, addition of 4-OI also induced Cd36 overexpression (n = 5, p < 0.01 vs. Veh, Fig. 2h–j).

Fig. 2.

Irg1/itaconate axis increases the nuclear translocation of Nrf2, which increases Cd36 transcription. (a) WT BMDMs were treated with 4-OI or vehicle at different time points. Immunofluorescence staining was performed with Nrf2 antibodies. The dash line indicates the location of nuclei. Scale bar = 10 μm. (b) RAW264.7 cells were treated with 4-OI or vehicle for 8 h, and Western blotting was performed. GAPDH serves as an internal control of the total protein and cytosol portion. Lamin B1 serves as an internal control of the nuclear portion. (c) RAW264.7 cells were treated as indicated for 8 h to perform ChIP-seq analysis using Nrf2 antibodies. A heatmap of differentially binding sites is shown. TSS: transcription start site. (d) Venn diagram and network plot show the overlapped differential expressed genes and upregulated biological processes between RNA-seq and ChIP-seq. (e) WT BMDMs were treated as indicated and incubated with pH-sensitive latex beads. Immunofluorescence staining was performed using Iba-1 antibodies. n = 4, ∗p < 0.05 vs. Veh+IgA; ##p < 0.01 vs. 4-OI+IgA. Scale bar = 10 μm. (f) The density tracking of Nrf2 binding on Cd36 with ChIP-seq analysis is shown. (g) ChIP assay followed by agarose gel electrophoresis was performed using Nrf2 antibodies or IgG in RAW264.7 cells. (h) The differential expressed genes are shown with a volcano plot in WT BMDMs detected using RNA-seq. Cd36 is marked in red. n = 3. (i and j) The expression levels of Cd36 in WT BMDMs were examined using real-time RT-PCR (i) and Western blotting (j). GAPDH serves as an internal control. n = 5, ∗∗p < 0.01 vs. Veh. Data are presented as mean ± SD. (e) One-way ANOVA followed Tukey's multiple comparisons test. (i) Two-tailed Student's t-test followed by Welch's correction.

To confirm itaconate upregulated Cd36 expression through Keap1 itaconation, we mutated candidate cysteines (151 and 288) to serines (Keap1^C151S and Keap1^C288S) as literature showed that these two are the most important itaconation sites^13,52 (Supplemental Fig. S3j and k). 4-OI-induced Nrf2 nuclear translocation (n = 3, Fig. 3a and b) and Cd36 expression (n = 3, p > 0.05 Keap1^C151S 4-OI vs. Keap1^C151S Veh, Fig. 3c–e) were markedly attenuated in Keap1^C151S cells. Interestingly, we noticed that Keap1^C288S promoted Nrf2 nuclear translocation even without 4-OI treatment (n = 3, Fig. 3a and b), but this mutation did not affect 4-OI increased Cd36 expression (n = 3, p < 0.01 Keap1^C288S 4-OI vs. Keap1^C288S Veh, Fig. 3c–e). These results indicate that cysteine 151 is the most important itaconated cysteine on Keap1 in both activating Nrf2 for anti-inflammation^13,53, 54, 55 and phagocytosis promotion. To further confirm the role of Nrf2 in promoting Cd36 overexpression, we transfected WT BMDMs with Nrf2 siRNA or control siRNA.⁵⁶ Real-time RT-PCR results showed that Nrf2 mRNA level was significantly downregulated after Nrf2 siRNA transfection (n = 4, p < 0.01 vs. siCtrl, Supplemental Fig. S3l), and 4-OI-promoted Cd36 overexpression was significantly blocked by Nrf2 siRNA transfection (n = 5, p < 0.001 4-OI+siNrf2 vs. 4-OI+siCtrl, Fig. 3f). Additionally, Nrf2 inhibitor ML385 (n = 4 or 3, p < 0.05 4-OI+ML385 vs. 4-OI+Veh, Fig. 3g–j), but not PPAR-γ inhibitor T0070907 (n = 3, p > 0.05 4-OI+T0070907 vs. 4-OI+Veh, Supplemental Fig. S3m), decreased the 4-OI-upregulated Cd36 overexpression.

Fig. 3.

Irg1/itaconate axis regulates macrophage phagocytosis by regulating the Keap1/Nrf2/CD36 axis. (a–c) RAW264.7 cells infected with indicated mutates were treated as indicated for 8 h. (a, b) Western blotting was performed. GAPDH serves as an internal control of the total protein and cytosol portion. Lamin B1 serves as an internal control of the nuclear portion. (c) The mRNA level of Cd36 was assessed with real-time RT-PCR. GAPDH serves as an internal control. n = 3, ∗∗∗p < 0.001 vs. Veh. ns., not significant vs. Veh. (d and e) RAW264.7 cells infected with different mutates (with EGFP tags) were treated as indicated for 15 h. The protein level of CD36 was assessed with immunofluorescence staining. n = 3, ∗p < 0.05, ∗∗p < 0.01 vs. Veh. ns., not significant vs. Veh. Scale bar = 5 μm. (f) Nrf2 siRNA or control siRNA was transfected respectively into WT BMDMs. The mRNA level of Cd36 was assessed with real-time RT-PCR. n = 5, ∗p < 0.05, ∗∗∗p < 0.001 vs. Veh+siCtrl; ###p < 0.001 vs. 4-OI+siCtrl. (g) Schematic procedure of drug treatment. (h) WT BMDMs were treated as indicated for 8 h and mRNA was extracted to perform real-time RT-PCR. GAPDH serves as an internal control. n = 4, ∗p < 0.05, ∗∗∗p < 0.001 vs. Veh+Veh; ###p < 0.001 vs. 4-OI+Veh. (i and j) BMDMs were isolated from EGFP mice and treated as indicated for 15 h. The immunofluorescence staining using CD36 antibodies was performed. n = 3, ∗∗p < 0.01 vs. Veh+Veh; #p < 0.05 vs. 4-OI+Veh. Scale bar = 25 μm. (k) Schematic diagram of Irg1/itaconate axis promoting macrophage phagocytosis by regulating the Keap1/Nrf2/CD36 axis. Data are presented as mean ± SD. (c and d) Two-way ANOVA followed Sidak's multiple comparisons test. (f, h, and j) One-way ANOVA followed Tukey's multiple comparisons test.

Collectively, these results indicate that itaconate regulates macrophage phagocytosis by regulating the Keap1/Nrf2/CD36 axis, but not through the PPARγ signaling pathway (Fig. 3k).

Irg1/itaconate axis enhances erythrophagocytosis of MMΦ and improves acute outcomes in an ICH mouse model

Intracerebral hemorrhagic stroke (ICH) is an established disease model to study macrophage phagocytosis.^9,57 The activated infiltrating macrophages are one of the most important phagocytes to engulf RBCs, thereby promoting hematoma clearance and brain repair after ICH.^58,59 Heme is a degradation product of RBCs and hemin has been commonly used to mimic ICH toxicity in vitro.⁶⁰ Hemin slightly increased the total amount of engulfed beads (n = 14, p < 0.05 vs. Veh, Fig. 4a and b; n = 3, Supplemental Fig. S4a and c, Supplemental Videos S4 and S5) and the percentage of phagocytic macrophages (n = 4, p < 0.01 vs. Veh, Supplemental Fig. S4a and b, Supplemental Videos S4 and S5), but not the phagocytosis speed (n = 4, p > 0.05 vs. Veh, Fig. 4a and c, Supplemental Videos S4 and S5). Among the hemin-induced differentially regulated genes which were assessed with RNA-seq, Irg1 was only slightly upregulated (n = 3, Fig. 4d and Supplemental Fig. S4d). We further confirmed the upregulation of Irg1 in macrophages (n = 5, p < 0.05 vs. Veh, Fig. 4e and f). These results suggest that Irg1/itaconate axis may be involved in hemin-induced macrophage phagocytosis. Hemin only marginally activated the Irg1/itaconate axis, and enhancing this axis may further augment its phagocytosis capacity.

Fig. 4.

Irg1/itaconate axis promotes macrophage phagocytosis via Nrf2/CD36 axis after ICH in vitro. (a–c) BMDMs isolated from EGFP mice were exposed to different treatments for 12 h. The time-lapse recording was performed after adding the pH-sensitive latex beads. The nuclei were stained with Hoechst dye. White arrows indicate beads-engulfing macrophages. BMDMs calculated for evaluating beads number: Veh n = 14, Hemin n = 14. Fields calculated for evaluating engulfment (%): Veh n = 4, Hemin n = 4. Scale bar = 10 μm. (d) WT BMDMs were treated as indicated for 8 h, and RNA-seq analysis was performed. A volcano plot showed the differential expressed genes. Irg1 is marked in red. n = 3. (e and f) The levels of mRNA (e) and protein (f) of Irg1 in WT BMDMs were examined with real-time RT-PCR and Western blotting. GAPDH serves as an internal control. n = 5, ∗p < 0.05 vs. Veh. (g and h) Proteins were extracted from the RAW264.7 cells which were treated as indicated, and the Western blotting was performed. GAPDH serves as an internal control of the total protein and cytosol portion, and Lamin B1 serves as an internal control of the nuclear portion. (i and j) The mRNA levels of Cd36 (i, n = 9) and protein levels of CD36 (j, n = 4) were assessed with real-time RT-PCR and immunofluorescence staining. ∗∗p < 0.01 vs. Veh+Veh; ###p < 0.001 vs. Hemin+Veh. Scale bar = 10 μm. Data are presented as mean ± SD. (b and c) Two-way ANOVA followed Tukey's multiple comparisons test. (e) Two-tailed Student's t-test followed by Welch's correction. (i and j) One-way ANOVA followed Tukey's multiple comparisons test.

Consistent with slightly increased Irg1 levels, hemin also slightly increased the Nrf2 protein levels in both whole-cell lysate and nuclear fraction, and co-treating cells with 4-OI and hemin dramatically enhanced Nrf2 protein levels, especially in nuclear fraction (n = 3, Fig. 4g and h). Cd36 expression was also significantly elevated in the co-administration of 4-OI with hemin (n = 9 or 4, p < 0.001 Hemin+4-OI vs. Hemin+Veh, Fig. 4i and j). Additionally, co-administration of 4-OI and hemin promoted phagocytosis in both Irg1^+/+ and Irg1^−/− BMDMs assessed by incubating with RBCs (n = 3, p < 0.01 Hemin+ITA, Hemin+4-OI vs. Hemin+Veh, Fig. 5a and b) or pH-sensitive latex beads (n = 3 or 4, p < 0.01 Hemin+ITA, Hemin+4-OI vs. Hemin+Veh, Fig. 5c–g). Moreover, the CD36 neutralizing antibody effectively blocked 4-OI-enhanced phagocytosis in hemin-treated cells (n = 4, p < 0.001 Hemin+4-OI+Ab-CD36 vs. Hemin+4-OI+IgA, Fig. 5h and i). These data indicate that hemin induces phagocytosis mainly through upregulation of CD36 in an itaconate-dependent or -independent manner, enhancing Irg1/itaconate levels certainly augments macrophage engulfment even incubating with hemin.

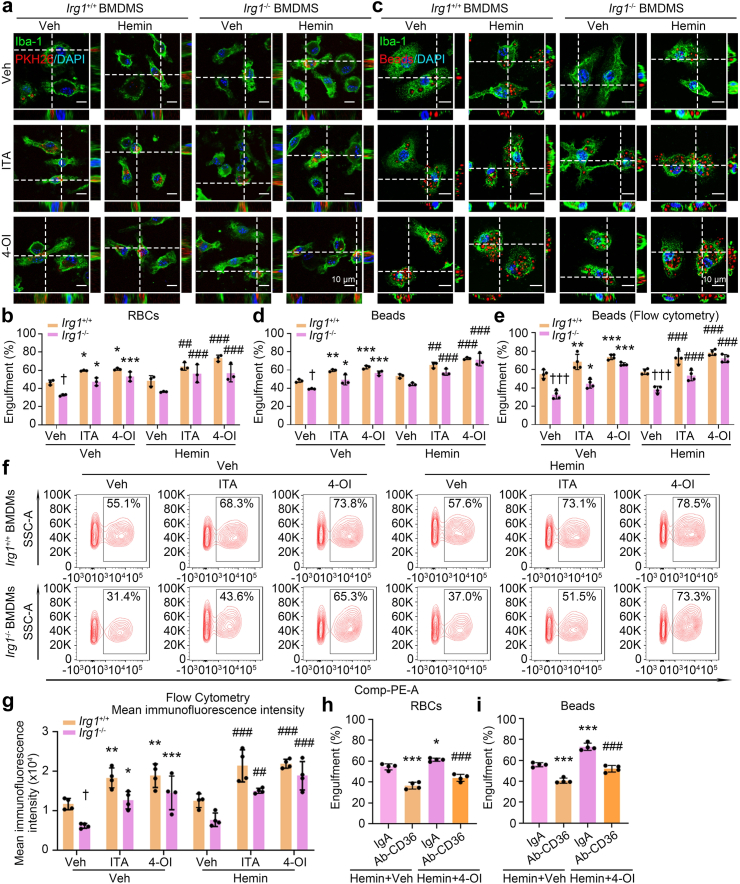

Fig. 5.

Irg1/itaconate axis promotes macrophage phagocytosis after ICH in vitro. (a and b) BMDMs obtained from Irg1^+/+ or Irg1^−/− mice were treated as indicated for 15 h and incubated with PKH26-labeled RBCs. Then, immunofluorescence staining was performed using Iba-1 antibodies. n = 3, ∗p < 0.05, ∗∗∗p < 0.001 vs. corresponding Veh; ##p < 0.01, ###p < 0.001 vs. corresponding Hemin; †p < 0.05 vs. Irg1^+/+ BMDMs. Scale bar = 10 μm. (c and d) The Irg1^+/+ and Irg1^−/− BMDMs were treated as indicated and incubated with pH-sensitive latex beads. Immunofluorescence staining was performed with Iba-1 antibodies. n = 3, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. corresponding Veh; ##p < 0.01, ###p < 0.001 vs. corresponding Hemin; †p < 0.05 vs. Irg1^+/+ BMDMs. Scale bar = 10 μm. (e–g) The Irg1^+/+ and Irg1^−/− BMDMs were treated as indicated and incubated with pH-sensitive latex beads. The flow cytometry was performed. n = 4, ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. corresponding Veh; ##p < 0.01, ###p < 0.001 vs. corresponding Hemin; †p < 0.05, †††p < 0.001 vs. Irg1^+/+ BMDMs. (h) The WT BMDMs were treated as indicated and incubated with PKH26-labeled RBCs. Immunofluorescence staining was performed. n = 4, ∗p < 0.05, ∗∗∗p < 0.001 vs. Hemin+Veh+IgA; ###p < 0.001 vs. Hemin+4-OI+IgA. (i) The WT BMDMs were treated as indicated and incubated with pH-sensitive latex beads. n = 4, ∗∗∗p < 0.001 vs. Hemin+Veh+IgA; ###p < 0.001 vs. Hemin+4-OI+IgA. Data are presented as mean ± SD. (b, d, e, and g) Two-way ANOVA followed Tukey's or Sidak's multiple comparisons test. (h and i) One-way ANOVA followed Tukey's multiple comparisons test.

Microglia, as the resident macrophages in brain tissue, are also primary phagocytes post-ICH,⁶¹ but they may not share identical regulatory mechanisms in phagocytosis.⁶² We treated primary microglia that were isolated from WT mouse brain with hemin (Supplemental Fig. S4e). Hemin upregulated the expression level of Irg1 (n = 4, p < 0.001 vs. Veh, Supplemental Fig. S4f and g). 4-OI also promoted microglia to engulf beads even under hemin incubation (n = 3, p < 0.01 Hemin+4-OI vs. Hemin+Veh, Supplemental Fig. S4h), and 4-OI-enhanced phagocytosis in hemin-treated cells was abolished by administering Nrf2 inhibitor ML385 (n = 3, p < 0.01 Hemin+4-OI+ML385 vs. Hemin+4-OI+Veh, Supplemental Fig. S4i) and CD36 neutralizing antibodies (n = 3, p < 0.001 Hemin+4-OI+Ab-CD36 vs. Hemin+4-OI+IgA, Supplemental Fig. S4j). These results suggest that Irg1/itaconate axis may promote MMΦ phagocytosis via the same Nrf2/CD36 axis. In addition, 4-OI also decreased the inflammatory response in the in vitro cell model of ICH (n = 3 or 6, p < 0.001 Hemin+4-OI vs. Hemin+Veh, Supplemental Fig. S4k–n), which was consistent with the role of itaconate in decreasing inflammatory factor production in diseases such as ischemia-reperfusion injury,²² lipopolysaccharide (LPS)-induced lethal endotoxemia,^15,23 and bacterial endophthalmitis.⁶³

To investigate the effects of Irg1 on MMΦ after ICH in vivo, we generated conditional Irg1 knockout mice by crossing Irg1^flox/flox with Cx3cr1^creERT/+ mouse strains (refers as Irg1 cKO) (Supplemental Fig. S5a–d). We first stereotactically injected PKH26 dye-stained RBCs into the striata of mice. Compared with the control mice (Irg1 flox), MMΦ (Iba1⁺ cells) in Irg1 cKO mice engulfed fewer RBCs in the perihematomal region (n = 5 animals including 10 fields, p < 0.05 vs. Irg1 flox, Fig. 6a). Next, we subjected mice to the collagenase injection which is the most well-established in vivo ICH model (Fig. 6b). Irg1 cKO mice exhibited a significantly larger hematoma volume on 5 d post-ICH (n = 10 animals, p < 0.05 vs. Irg1 flox, Fig. 6c). The delayed hematoma clearance in Irg1 cKO mice ultimately translated into aggravated neurologic and motor dysfunction (n = 10 animals, p < 0.05 vs. Irg1 flox, Fig. 6d). Importantly, Irg1 cKO and control mice had a comparable number (n = 8 animals, p > 0.05 vs. Irg1 flox, Supplemental Fig. S5e and f) and soma area of MMΦ in the perihematomal region (n = 65–80 MMΦ from 7 animals, p > 0.05 vs. Irg1 flox, Supplemental Fig. S5e and g), indicating that impaired hematoma resolution was not due to the dysfunction of migration/recruitment/activation of MMΦ after ICH.

Fig. 6.

Irg1/itaconate axis promotes hematoma clearance and improves acute outcomes after ICH in vivo. (a) Six-to-eight-week-old male Irg1 cKO mice and littermates (Irg1 flox) underwent injection with PKH26-stained WT RBCs. Brain sections were immunostained with Iba-1 antibodies at 5 d post-injury. White arrows indicate RBCs-engulfing microglia/macrophage. n = 5 animals. Fields calculated for evaluating RBCs number: Irg1 flox n = 10, Irg1 cKO n = 10. ∗p < 0.05 vs. Irg1 flox. Scale bar = 10 μm. (b–d) Irg1 cKO and Irg1 flox mice underwent collagenase injection. Schematic experimental procedure (b), hematoma volume (c, n = 10 animals), and behaviors (d, n = 10 animals) are shown. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. Irg1 flox. (e and f) Irg1 cKO mice underwent collagenase injection followed by intracerebroventricular injection of 10 mM Na-ITA (in PBS) or vehicle control (PBS) immediately after ICH onset. The hematoma volume (e, n = 7 animals) and neurobehaviors (f, n = 9 animals) are shown. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. Veh. (g and h) WT mice underwent collagenase injection followed by intraperitoneal injection of 100 mg/kg 4-OI or vehicle immediately after ICH onset. The hematoma volume (g, n = 7 animals) and neurobehaviors (h, n = 6 animals) are shown. (i and j) Nrf2 siRNA or control siRNA (20 pmol/mouse) was intracerebroventricularly injected at 24 h before ICH, and then 100 mg/kg 4-OI or vehicle was intraperitoneally injected immediately after ICH onset. The hematoma volume (i, n = 9 animals) and neurobehaviors (j, n = 10 animals) are shown. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. Veh+siCtrl; #p < 0.05, ##p < 0.01, ###p < 0.001 vs. 4-OI+siCtrl. (k and l) WT mice underwent collagenase injection followed by intracerebroventricular injection of 50 μM Nrf2 inhibitor ML385, Anti-CD36 antibody [JC63.1] (1:50), IgA-Isotype Control (1:50) or vehicle immediately after ICH onset. Then 4-OI was injected intraperitoneally at 2 h post-injury. The hematoma volume (k, n = 10 animals) and neurobehaviors (l, n = 10 animals) are shown. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001 vs. 4-OI+Veh+IgA. Data are presented as mean ± SD. (a, c, e, and g) Two-tailed Student's t-test followed by Welch's correction. (d, f, and h) Two-way ANOVA followed Sidak's multiple comparisons test. (i) One-way ANOVA followed Tukey's multiple comparisons test. (j and l) Two-way ANOVA followed Tukey's multiple comparisons test. (k) One-way ANOVA followed Dunnett's multiple comparisons test.

Moreover, administration of sodium itaconate (Na-ITA) into Irg1 cKO mice rescued hematoma clearance deficiency (n = 7 animals, p < 0.05 vs. Veh, Fig. 6e) and neurobehavior dysfunction (n = 9 animals, p < 0.05 vs. Veh, Fig. 6f), and 4-OI administration into WT mice accelerated hematoma clearance (n = 7 animals, p < 0.05 vs. Veh, Fig. 6g) and improved neurobehavioral deficits (n = 6 animals, p < 0.05 vs. Veh, Fig. 6h). Of note, the number of MMΦ in the perihematomal region was also not notably changed after 4-OI administration (n = 4–7 animals, p > 0.05 vs. Veh, Supplemental Fig. S5h and i). In contrast, mice intracerebroventricularly injected with Nrf2 siRNA, Nrf2 inhibitor ML385, or CD36 neutralizing antibodies exhibited increased hematoma volume (n = 9 or 10 animals, p < 0.05 4-OI+siNrf2 vs. 4-OI+siCtrl, or 4-OI+ML385+IgA, 4-OI+Veh+Ab-CD36 vs. 4-OI+Veh+IgA, Fig. 6i and k), and exacerbated neurobehavior dysfunction after ICH (n = 10 animals, p < 0.05 4-OI+siNrf2 vs. 4-OI+siCtrl, or 4-OI+ML385+IgA, 4-OI+Veh+Ab-CD36 vs. 4-OI+Veh+IgA, Fig. 6j and l). These results indicate that Irg1/itaconate axis enhances erythrophagocytosis of MMΦ by regulating Nrf2/CD36 axis after ICH in vivo.

Irg1/itaconate axis enhances macrophage phagocytosis of S. aureus and improves prognosis after acute peritonitis

Macrophages constitute the first line of defense against invading pathogens.⁶⁴ Staphylococcus aureus (S. aureus) is an opportunistic pathogen that is a leading cause of hospital-acquired, healthcare-associated, and community-acquired infections.^65,66 To explore the role of Irg1/itaconate axis in S. aureus clearance by macrophages, we incubated small amounts of S. aureus with RAW264.7 cells for either 6 or 12 h in vitro. Itaconate and 4-OI both decreased extracellular S. aureus in medium, indicating that Irg1/itaconate axis promoted macrophages to engulf S. aureus (n = 3, Supplemental Fig. S6a). Surprisingly, there were also fewer intracellular S. aureus in cells treated with itaconate and 4-OI, indicating that Irg1/itaconate axis also promoted macrophages to kill S. aureus (n = 3, Supplemental Fig. S6a). Meanwhile, we used a classical method to assess the bactericidal properties of macrophages. The results also showed that itaconate and 4-OI both decreased intracellular S. aureus in cells (n = 3, Supplemental Fig. S6b). These results indicate that Irg1/itaconate axis not only promotes macrophage phagocytosis of S. aureus but also the killing of S. aureus in vitro.

To investigate the effects of Irg1/itaconate axis on S. aureus phagocytosis in vivo, S. aureus was intraperitoneally injected into mice to establish the acute peritonitis mouse model (Fig. 7a). Peritoneal fluid (PF) was collected, and peritoneal macrophages (PMs) were isolated from Irg1 cKO and control mice at different time points. PMs from Irg1 cKO mice engulfed fewer S. aureus (n = 80 PMs from 8 animals, p < 0.001 vs. Irg1 flox, Fig. 7b and Supplemental Fig. S6c–e). Consistent with this, the Irg1 cKO mice had a significantly increased number of extracellular S. aureus in PF (n = 5 animals, p < 0.05 vs. Irg1 flox, Fig. 7c). Bacterial infection induces behavioral alterations.⁶⁷ On 3 and 5 d post-infection, Irg1 cKO mice exhibited decreased travel distance and average speed following S. aureus infection assessed with open field tests (n = 9 animals, p < 0.05 vs. Irg1 flox, Fig. 7d and Supplemental Fig. S6f). Of note, the lack of Irg1 in macrophages didn't induce changes in anxiety-like behaviors or body weight loss (n = 8 or 9 animals, p > 0.05 vs. Irg1 flox, Supplemental Fig. S6g and h).

Fig. 7.

Irg1/itaconate axis enhances macrophage phagocytosis of S. aureus and improves prognosis after acute peritonitis in vivo. (a–d) Male Irg1 cKO and Irg1 flox mice were injected with S. aureus (i.p.). (a) Schematic procedure is shown. (b) Peritoneal macrophages were stained by Wright-Giemsa staining at 30 min after S. aureus infection. Black arrows indicate macrophage-engulfed S. aureus. n = 8 animals. Peritoneal macrophages calculated for evaluating intracellular bacteria: Irg1 flox n = 80, Irg1 cKO n = 80. ∗∗∗p < 0.001 vs. Irg1 flox, Scale bar = 5 μm. (c) The extracellular S. aureus in peritoneal fluids was cultured on the LB agar plates at 30 min after S. aureus infection. n = 5 animals. ∗p < 0.05 vs. Irg1 flox. (d) Motor function was examined after peritonitis by open field test. n = 9 animals. ∗p < 0.05, ∗∗p < 0.01 vs. Irg1 flox. (e and f) MMФ were pharmacologically depleted with the PLX5622 chow for 14 d. (e) Schematic procedure. (f) The extracellular S. aureus in peritoneal fluids was cultured on the LB agar plates at 30 min after S. aureus infection. n = 5 animal. ∗p < 0.05, ∗∗∗p < 0.001 vs. AIN-76A+Veh; ns., not significant vs. PLX5622+Veh. (g and h) Neutrophils were depleted by intraperitoneal injection of 100 μg Ly6G neutralizing antibodies for 4 d. (g) Schematic procedure. (h) The extracellular S. aureus in peritoneal fluids was cultured on the LB agar plates at 30 min after S. aureus infection. n = 5 animals. ∗p < 0.05, ∗∗p < 0.01 vs. anti-IgG2a+Veh; ###p < 0.001 vs. anti-Ly6G+Veh. Data are presented as mean ± SD. (b and c) Two-tailed Student's t-test followed by Welch's correction. (d) Two-way ANOVA followed Sidak's multiple comparisons test. (f and h) One-way ANOVA followed Tukey's multiple comparisons test.

Moreover, neutrophils are important phagocytes post-bacterial infection,⁶⁸ and we also observed plenty of bacteria-engulfing neutrophils in PF, although there was no difference in the number of S. aureus engulfed by neutrophils between Irg1 cKO and control mice (n = 273–286 peritoneal neutrophils from 6 animals, p > 0.05 vs. Irg1 flox, Supplemental Fig. S6i). Furthermore, we fed mice with PLX5622 to deplete macrophages (n = 3 animals, p < 0.05 vs. AIN-76A, Supplemental Fig. S6j and k)^69,70 or injected Ly6G neutralizing antibodies to deplete neutrophils (n = 10 animals, p < 0.001 vs. anti-IgG2a, Supplemental Fig. S6l–n).^71,72 4-OI failed to alter the extracellular bacteria load in the macrophage-depletion mice (n = 5 animals, p > 0.05 PLX5622+4-OI vs. PLX5622+Veh, Fig. 7e and f), but still effectively exhibited bacteria clearance acceleration in the neutrophil-depletion mice (n = 5 animals, p < 0.001 anti-Ly6G+4-OI vs. anti-Ly6G+Veh, Fig. 7g and h), strongly suggesting that macrophages are the main effector cells of Irg1/itaconate axis-enhanced bacterial clearance.

Discussion

Itaconate is an important intermediate metabolite in the tricarboxylic acid cycle. Irg1 is the enzyme catalyzing the decarboxylation of cis-aconitate to itaconate in the mitochondria.^12,73 Itaconate plays a general role in inhibiting bacterial infections,^18,19,63,74 intracellular viral replication,^20,21 and macrophage inflammation.^{13,15,16,22,75} However, whether itaconate controls macrophage phagocytosis and its underlying mechanisms remain unclear. Here, we demonstrated that both itaconate addition and Irg1 overexpression enhanced macrophage engulfing multiple substrates: live S. aureus (the gram-positive bacterium), red blood cells, and dying neuroblastoma cells. Notably, deficiency of Irg1-attenuated phagocytosis was effectively rescued by the administration of itaconate or its derivate 4-OI. These data suggest that Irg1/itaconate axis plays an important role in the regulation of macrophage phagocytosis, a function with potential applications in the treatment of multiple diseases. Interestingly, a recent report also revealed that itaconate promoted phagocytosis of E. coli (the gram-negative bacterium) by bone marrow-derived macrophages (BMDMs) in vitro,⁷⁶ suggesting that Irg1/itaconate axis promoted phagocytosis don't have substrate selectivity.

Phagocytosis is a multi-step cellular process involving target cell recognition, cellular engulfment, and lysosomal digestion, and is regulated by receptor–ligand interactions between the target cell and the phagocytes.⁷⁷ Macrophages clear pathogens, dead/dying cells, myelin debris, and cell fragments to maintain tissue homeostasis.⁷⁸ Scavenger receptors play important roles in regulating macrophage phagocytosis.⁷⁹ CD36 is one of the most well-characterized scavenger receptors that regulates macrophage phagocytosis by binding to modified lipids, erythrocytes or apoptotic cells.⁸⁰ Cells lacking phagocytic abilities acquire phagocytic functions following transfection with CD36.⁸¹ In preclinical studies, CD36 affects the clearance and uptake of hematoma,⁸ myelin debris,⁸² oxidized low-density lipoprotein,⁸³ bacteria,²⁹ and apoptotic cells²⁸ in MMΦ. In clinic, CD36-deficient patients have markedly larger hematoma volumes and aggravated neurological deficits in ICH.⁸⁴ In our study, we found that the gene encoding CD36 was an overlapped phagocytosis-related gene from ChIP-seq and RNA-seq analyses, and was a major effector of Irg1/itaconate/Keap1/Nrf2-promoted phagocytosis in vivo and in vitro. Interestingly, although PPARγ is the most-studied transcription factor of Cd36,⁸⁵ and PPARγ agonists promote macrophage phagocytosis by upregulating CD36 expression,86, 87, 88 we found that treating macrophages with PPARγ inhibitor T0070907 neither affected 4-OI-enhanced CD36 protein level nor -promoted phagocytosis, which indicate that Irg1/itaconate axis regulated macrophage phagocytosis is not through the well-established PPARγ signaling pathway.

Keap1/Nrf2 system forms the major node of cellular and organismal defense against oxidative and electrophilic stresses of both exogenous and endogenous origins.⁸⁹ Itaconate has electrophilic properties and directly alkylates cysteine residue on the Keap1 to promote Nrf2 nuclear translocation, activating anti-inflammatory and anti-oxidative genes expression.¹³ In our study, we also found that 4-OI upregulated Nrf2-dependent anti-oxidative stress and redox pathways, and anti-inflammatory response, which was consistent with the previously discovered effects of itaconate.^13,53, 54, 55^,63 Furthermore, we uncovered that itaconate activated Nrf2 to transcribe Cd36 and then enhanced phagocytosis. Indeed, the direct transcription of Cd36 by Nrf2 is consistent with previous findings generated by our own lab and others.^42,82,90 We next mutated two potential itaconation sites on Keap1 (cysteine 151 and 288) to explore the molecular mechanism of Irg1/itaconate axis-enhanced phagocytosis. Itaconate covalent modifies the cysteine 151 (C151) on Keap1 to promote the anti-inflammation and anti-oxidative effects of Nrf2,^13,53, 54, 55 and cysteine 288 (C288) on Keap1 was identified as a potential itaconation site in a high throughput screening study and hasn't been well studied.⁵² Nevertheless, in our study, C151 was still the most important itaconated residue on Keap1, which led to Nrf2-dependent phagocytosis, but not C288. Consistent with our results, the central linker domain in which C288 is located at Keap1 is required for cytoplasmic sequestration of Nrf2,⁹¹ but the mutation of cysteine residues in the linker domain does not perturb the ability of Keap1 to associate with Nrf2,⁹¹ suggesting that C288 is required for Keap1-mediated repression of Nrf2 under basal conditions and Keap1-dependent ubiquitination of Nrf2, while C151 is required for induced escape by Nrf2 from Keap1-mediated repression and Keap1-dependent itaconation of Nrf2.

To confirm the therapeutic effects of Irg1/itaconate axis in vivo, we established two mouse models: a collagenase-induced ICH model and an S. aureus-injected acute peritonitis model. In the ICH model, we and others, have previously shown activation of microglia and macrophages in the hemorrhagic brain.^8,92 Both populations highly express proinflammatory transcripts and contribute to acute disability after ICH, and they both gradually switch toward reparative phenotypes to aid in ICH brain repair 3–10 days post-hemorrhage.^8,59,93 In our study, conditional knockout of Irg1 in MMΦ mice exhibited impaired erythrophagocytosis, delayed hematoma clearance, and aggravated neurobehavior dysfunction in the subacute phase of ICH, while intraperitoneal injection of 4-OI improved outcomes of ICH mice by enhancing hematoma resolution. These data indicate that Irg1/itaconate axis improves ICH prognosis by promoting erythrophagocytosis of macrophages in vivo. We further demonstrated that Irg1/itaconate axis in MMΦ mainly affected their engulfing ability and the subsequent prognosis in ICH mice via Nrf2/CD36 axis using Nrf2 silencing, pharmacological inhibitors of Nrf2 and CD36 neutralizing antibodies in vivo.

Macrophages are at the crossroads of innate and adaptive immune responses and play an essential role in the control of bacterial infections.⁹⁴ A recent report revealed that itaconate promoted macrophages to engulf E. coli in vitro.⁷⁶ In our study, Irg1/itaconate not only promoted the killing, but also the phagocytosis of S. aureus in vitro. In addition, mice with conditional knockout of Irg1 in macrophages also showed phagocytosis defects to live S. aureus after peritonitis infection, thus affecting motor function during infection. However, intraperitoneal injection of 4-OI improved peritoneal macrophages to engulf live S. aureus. These results suggest that Irg1/itaconate axis promotes the clearance and killing of live bacteria during infection in vitro and in vivo. To identify the target cells of bacterial clearance at 30 min after S. aureus infection caused by intraperitoneal injection of 4-OI, we demonstrated that macrophages, but not neutrophils, were the main effector cells of Irg1/itaconate axis-enhanced bacterial clearance by depleting macrophages or neutrophils. However, a recent report shows that Irg1 is selectively expressed in neutrophils at 24 h after S. aureus-induced pneumonia, and itaconate production impairs neutrophil survival and bacterial killing function.⁹⁵ Therefore, the role of Irg1/itaconate axis in neutrophils in a long-term can be further explored in peritonitis in the future.

Our study has some limitations. We only focused on the acute outcomes of ICH and peritonitis, and a long-term study is necessary to be conducted in the future. In addition, administration of 4-OI, siNrf2, ML385, and CD36 neutralizing antibodies was not specific for macrophages in vivo, so the clearance of hematoma and S. aureus may be synergistic effects of macrophages and other cells. Thus, the development of lipid nanoparticles designed to deliver drugs precisely is a promising therapeutic strategy.

Overall, we found that in different sources of macrophages (mouse bone marrow-derived macrophages, primary microglia, and peritoneal macrophages), different disease models (ICH and peritonitis), Irg1/itaconate axis has a consistent role in promoting macrophage phagocytosis and is regulated by a common Keap1/Nrf2/CD36 molecular mechanism. These findings fill a gap in knowledge regarding the role of itaconate in macrophage phagocytosis, and also provide a vital foundation to develop macrophage-based cell therapy or itaconate-based therapy for treating phagocytosis-related diseases.

Contributors

Conceptualization: ZL, FY, QL Data curation: ZL, LS, DS, LW, FY, QL Formal analysis: ZL, XZ, XW, FY, QL Funding acquisition: QL, FY Investigation: ZL, ZS, LH, LS, YT, WY, FY, QL Methodology: ZL, JA, FY, QL Project administration: JZ, YW, YL, CZ, PW, JA, FY, QL Resources: ZL, ZS, LH, ZX, DS, WW, TL, BZ, FY, QL Software: ZL, WW, DS, CZ, JA, NZ, FY, QL Supervision: FY, QL Validation: ZL, ZS, LS, ZX, DS, FY, QL Visualization: ZL, LW, FY, QL Writing—original draft: ZL, FY, QL Writing—review & editing: ZL, FY, QL.

Data sharing statement

The data that support these findings of the study are available upon request from the corresponding authors.

Declaration of interests

The authors declare no competing interests.
