. 1998 Feb;18(2):1042–1048. doi: 10.1128/mcb.18.2.1042

A Nonimmunoglobulin Transgene and the Endogenous Immunoglobulin μ Gene Are Coordinately Regulated by Alternative RNA Processing during B-Cell Maturation

Rebecca L Seipelt 1,, Brett T Spear 1,2,3, E Charles Snow 1,3, Martha L Peterson 1,2,3,*
PMCID: PMC108816  PMID: 9448001

Abstract

The immunoglobulin (Ig) genes have been extensively studied as model systems for developmentally regulated alternative RNA processing. Transcripts from these genes are alternatively processed at their 3′ ends to yield a transcript that is either cleaved and polyadenylated at a site within an intron or spliced to remove the poly(A) site and subsequently cleaved and polyadenylated at a downstream site. Results obtained from expressing modified genes in established tissue culture cell lines that represent different stages of B-lymphocyte maturation have suggested that the only requirement for regulation is that a pre-mRNA contain competing cleavage-polyadenylation and splice reactions whose efficiencies are balanced. Since several non-Ig genes modified to have an Ig gene-like structure are regulated in cell lines, Ig-specific sequences are not essential for this control. This strongly implies that changes in the amounts or activities of general RNA processing components mediate the processing regulation. Despite numerous studies in cell lines, this model of Ig gene regulation has never been tested in vivo during normal lymphocyte maturation. We have now introduced a non-Ig gene with an Ig gene-like structure into the mouse germ line and demonstrate that RNA from the transgene is alternatively processed and regulated in murine splenic B cells. This establishes that the balance and arrangement of competing cleavage-polyadenylation reactions are sufficient for RNA processing regulation during normal B-lymphocyte development. These experiments also validate the use of tissue culture cell lines for studies of Ig processing regulation. This is the first transgenic mouse produced to test a specific model for regulated mRNA processing.


The immunoglobulin (Ig) genes were among the first discovered to encode more than one gene product; the Ig pre-mRNA is differentially processed at its 3′ end into mRNAs that encode secreted and membrane-associated forms of the Ig protein (1, 8, 30). The mRNA encoding the secreted IgM protein (μs mRNA) is produced when the precursor RNA is cleaved and polyadenylated at the promoter-proximal μs poly(A) site. If the precursor RNA is instead spliced between the Cμ4 and M1 exons, which removes the μs poly(A) site, and is cleaved and polyadenylated at the downstream μm poly(A) site, the mRNA encoding the membrane-associated IgM protein (μm mRNA) is produced. During B-lymphocyte maturation from a resting B cell to an activated B cell or plasma cell, there is a shift in the relative amounts of μs and μm mRNAs produced; plasma cells express relatively more μs mRNA than B cells. How this and other Ig genes are regulated by alternative RNA processing during B-cell maturation has been studied mainly by introducing modified Ig genes into cell lines representing different stages of B-cell maturation (reviewed in reference 26).

By analyzing the processing patterns of modified μ genes, it has been established that cleavage-polyadenylation at the μs poly(A) site and splicing between Cμ4 and M1 are mutually exclusive RNA processing reactions whose efficiencies are suboptimal but balanced. The balance between the efficiencies of the reactions, but not their suboptimal nature, is required for regulation; if the efficiencies of both reactions are improved, regulation is maintained. However, if either reaction is made too strong relative to the other, only one RNA is produced from the modified gene in all cell types (24, 29). These observations led us to propose that a μ gene-like structure, with competing cleavage-polyadenylation and splicing reactions, is sufficient for μ processing regulation. This predicts that alternative RNAs from a gene with a similar arrangement of processing signals would be regulated like μ RNA in B cells and plasma cells. We confirmed this prediction by demonstrating that RNAs from two different non-Ig genes modified to have a poly(A) site within an intron are indeed regulated when expression in B-cell and plasma cell lines is compared (25). Thus, changes in RNA processing patterns during lymphocyte maturation must be mediated, at least in part, by general processing factors rather than gene-specific factors.

In the past, studies of Ig gene regulation have been conducted by using tissue culture cell lines derived from mouse lymphomas, myelomas, and plasmacytomas. The stage of lymphocyte development that each cell line most closely resembles is determined based on the presence of specific cell surface molecules and their Ig secretion status (see, e.g., references 15 and 17). Over the years and in a number of different laboratories, more than 16 different cell lines representing B-cell and plasma cell stages have been transfected with Ig genes, both stably and transiently. While the exact μs/μm, γs/γm, or αs/αm mRNA expression ratio varied among cell lines and experiments, this ratio is always higher in cells of the plasma cell stage than in cells of the pre-B- and B-cell stages. Therefore, tissue culture cells have been considered a valid system with which to study the mechanism regulating alternative processing of Ig RNA. Nevertheless, tissue culture cell lines, since they are derived from tumors and are maintained in continuous culture in vitro, are not normal lymphocytes. In fact, the experimental results obtained from cell lines and from resting and activated natural mouse B cells differ with respect to increases in the rate of Ig gene transcription initiation during lymphocyte maturation (11, 14, 16, 36). The model we have proposed for μ regulation, i.e., that a μ gene-like structure is required and that changes in general processing factors mediate the alternative processing, suggests a very different future experimental approach than models that propose μ gene-specific sequences. Therefore, we felt that it was essential to validate this model by using a more natural experimental system.

Transgenic-mouse technology is a powerful tool that has been used to gain insight into protein function, immunological responses, and transcriptional regulation of gene expression (12). However, this technology has been used only once to address a question of regulation at the level of alternative RNA processing: a transgenic mouse was produced to identify the non-cell-type-specific mRNA processing pattern of a ubiquitously expressed calcitonin/calcitonin gene-related peptide (CGRP) transgene (6). Most tissues in this mouse expressed calcitonin mRNA; CGRP mRNA expression was primarily restricted to neurons. The authors concluded that the CGRPprocessing pathway requires a tissue-specific cellular environment, while production of calcitonin mRNA is the default or nonregulated pathway. We describe here transgenic mice carrying a non-Ig gene, the modified class I major histocompatibility complex (MHC) gene Ddαs (25), that is properly regulated in tissue culture cell lines to test our model that a gene with balanced competing cleavage-polyadenylation and splice reactions will be regulated during normal lymphocyte maturation. Transgene mRNA processing should mimic the endogenous μ gene mRNA processing during normal B-cell differentiation if the balanced competition model holds true in nontransformed cells. In addition, since the transgene is expressed in many tissues, we can assess the contributions that unique cellular environments make to the expression patterns of genes with competing splice and cleavage-polyadenylation reactions.

MATERIALS AND METHODS

Transgene construction, preparation, and injection.

To construct the transgene DdαsTG (Fig. 1), a 2.7-kb EcoRI-BamHI fragment containing the Dd promoter (10) was first cloned into EcoRI-BamHI-cut pGEM4Z (Promega) to obtain the plasmid pGEM4Z-2.7. Next, a 4.5-kb BamHI-HindIII fragment containing the DdBsm(H)αs structural gene (25) was ligated into BamHI- and HindIII-cut pGEM4Z-2.7 to obtain DdαsTG.

FIG. 1.

FIG. 1

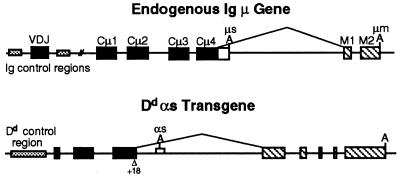

Structure of the endogenous μ gene compared to that of the Ddαs transgene. The transgene was designed to have processing options similar to those in the μ gene, i.e., a poly(A) site (A) in competition with a splice reaction (angled lines above). Two RNAs are processed from each of these genes. Large solid boxes, common exons; open boxes, “exons” ending with a poly(A) site that are unique to poly(A) or μs mRNA; hatched boxes, exons that are unique to RNA that is spliced to remove the competing poly(A) site; smaller stippled boxes, transcriptional control regions.

The DNA fragment containing the transgene was isolated from the vector sequence by digestion with EcoRI and HindIII followed by agarose gel electrophoresis; the fragment was further purified by cesium chloride ultracentrifugation and dialysis. This DNA was checked for quantity and quality by agarose gel electrophoresis and diluted to 5 ng/μl prior to injection. Fertilized (C3H × C57/BL6)F1 eggs were injected and surgically implanted into pseudopregnant ICR/HSD females by Michael Green at the University of Kentucky Transgenic Mouse Facility as described previously (13).

Transgenic-animal screening.

Two to 3 weeks after birth, pups were screened for transgene integration by Southern blot analysis of DNA obtained from tail biopsies (18). DNAs were digested with PstI and probed with a DNA fragment that hybridizes to both the transgenic and endogenous αs poly(A) sites, producing a 2.4-kb endogenous fragment and a 1.7-kb transgenic fragment (data not shown). Individual lines were established from 3 of the 11 originally obtained transgenic founder mice. Imaging analysis of Southern blots allowed us to estimate that the 888 line has 20 copies, the 911 line has 6 copies, and the 916 line has 4 copies of the transgene (data not shown).

Preparation of primary B cells.

Splenocytes from 6- to 8-week-old transgenic littermates were isolated and treated with anti-Thy 1.2 antibodies (hybridoma HO13-4.6; ATCC TIB 99), L3T4 antibodies (hybridoma RL-172/4) (5), and baby rabbit complement (Pel Freez, Inc., Brown Deer, Wis.) to remove T cells. High-density resting B cells isolated from the 70-60% interface of Percoll buoyant density gradients (Pharmacia LKB Biotechnology, Piscataway, N.J.) (7) were washed and diluted to 5 × 106 cells per ml for bulk culture and to 2 × 106 cells per ml for plating in RPMI 1640 medium containing 50 μM 2-mercaptoethanol, 24 mM sodium biocarbonate, 100 U of penicillin and streptomycin (Sigma) per ml, 2 mM glutamine, and 50 μg of gentamicin (BioWhittaker, Walkersville, Md.) per ml, with 10% heat-inactivated fetal calf serum (Sigma). Where indicated, lipopolysaccharide (LPS) from Salmonella enteritidis (Sigma) was used at 50 μg per ml. Untreated cells usually were harvested immediately, while treated cells were harvested after 72 h in culture. In two experiments, treated cells were cultured for 48 h; this did not influence the RNA expression data.

Primary B cells were assayed for DNA synthesis by [3H]thymidine uptake. B cells were plated at 2 × 105/ml in 96-well plates. Six hours prior to harvest, 1 μCi of [3H]thymidine in balanced salt solution (ICN Pharmaceuticals Inc., Costa Mesa, Calif.) was added to each well. Cells were harvested onto glass fiber filters, and [3H]thymidine incorporation was measured with a scintillation counter. Stimulated cells incorporated at least 100-fold more [3H]thymidine than untreated cells (data not shown).

Carbon tetrachloride liver treatment.

Transgenic littermates, aged 6 to 8 weeks, were injected intraperitoneally with 50 μl of 100% mineral oil (Sigma) or 10% carbon tetrachloride–90% mineral oil (J. T. Baker, Phillipsburg, N.J.). Animals were sacrificed at 48 or 72 h postinjection and their liver tissues were removed for RNA analysis; there was no difference in the RNA expression data for these two time points.

RNA preparation and analysis.

Primary B cells were harvested by centrifugation; tissues were collected by dissection. RNA was isolated by using Trizol reagent as directed by the manufacturer (Gibco BRL).

S1 nuclease analysis was performed as detailed previously (25, 29). For analysis of μ RNA, 100 μg of RNA (a combination of specific and carrier RNAs) was hybridized at 50°C for 16 to 20 h with a 640-bp PstI-HindIII μ gene fragment, 32P labeled at its 3′ end, that distinguishes messages spliced at the Cμ4 exon from those cleaved and polyadenylated at the μs poly(A) site (Fig. 2B). After hybridization, samples were diluted with 0.45 ml of S1 buffer and digested with 40 U of S1 nuclease at 42°C for 30 min. For analysis of transgene RNA, 50 μg of RNA (a combination of specific and carrier RNAs) was hybridized at 50°C for 16 to 20 h with a 648-bp BanI-AccI Ddαs gene fragment, 32P labeled at its 3′ end, that distinguishes transcripts spliced at exon 3 from those cleaved and polyadenylated at the αs poly(A) site (Fig. 2B). After hybridization, samples were diluted with 0.225 ml of S1 buffer and digested with 40 U of S1 nuclease at 37°C for 30 min. DNA fragments protected from S1 nuclease digestion were separated on 6% polyacrylamide–7 M urea gels. The gels were dried, and the fragments were quantitated with an Ambis Radioanalytic Imaging System.

FIG. 2.

FIG. 2

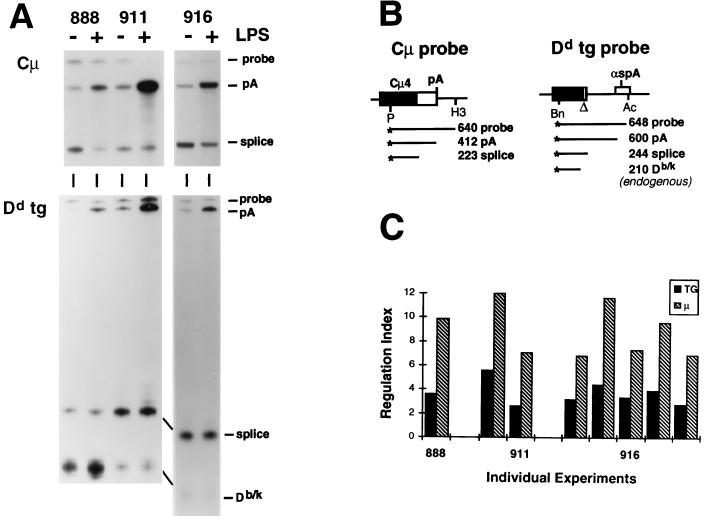

Expression of endogenous μ and transgene RNAs in response to LPS treatment. (A) Small resting splenic B lymphocytes isolated from three different lines of transgenic mice, 888, 911, and 916, were treated with LPS for 72 h (+) and compared to nontreated resting cells (−). RNAs from these cell populations were isolated, and expression of the endogenous μ gene (Cμ) and Dd transgene (Dd tg) was analyzed by S1 nuclease protection with the probes diagrammed in panel B. The positions of the probes and the fragments protected by the cleaved-polyadenylated RNA (pA), the spliced RNA (splice), and the endogenous class I MHC gene (Db/k) are shown. (B) Diagram of the S1 nuclease protection probes that distinguish alternatively processed RNAs. For the Dd tg probe, the triangle indicates the 18-nucleotide insertion into the transgene that distinguishes it from the closely related endogenous MHC Db/k mRNA. P, PstI; H, HindIII; Bn, BanI; Ac, AccI. (C) Quantitation of the regulation index (pA/splice ratios for cells treated with LPS divided by pA/splice ratios for cells not treated with LPS) for individual preparations of B cells from the transgenic mouse lines indicated. TG, transgene.

RESULTS

The class I MHC Dd gene was modified previously to contain a poly(A) site within the third intron so that its structure was similar to that of the Ig μ gene; a 184-bp fragment containing the αs poly(A) site was inserted into the third intron to compete with the exon 3-to-exon 4 splice reaction (Fig. 1). Although the αs site is from the regulated Ig α gene, we previously established that sequences within the secreted poly(A) sites are not specifically required for regulation, because both the μm and simian virus 40 late poly(A) sites could substitute for the μs poly(A) site (29). Two alternative mRNAs were produced from this gene, and their expression was regulated when compared in B-cell and plasma cell lines; like μ mRNA, relatively more spliced RNA was produced in B cells (25). Twelve different poly(A) sites have been placed into this Dd gene; expression from all of these chimeric genes is regulated in cell lines (23). The Ddαs gene also has an 18-bp insert in exon 3 to distinguish it from the endogenous Dd gene. In the cell lines, the Ddαs gene was expressed from the Ig κ promoter linked to the simian virus 40 enhancer. So that it would be more widely expressed in the mouse, the Ddαs gene was cloned back under the control of the natural Dd transcriptional control elements. Previous studies have shown that this Dd gene fragment is expressed similarly to the endogenous Dd gene in transgenic mice (3). Genomic DNA obtained from tail biopsies was used to determine transgene integration into the mouse genome and to screen for germ line transmission to progeny.

mRNA processing in LPS-treated transgenic B cells.

High-density resting splenic B cells isolated with Percoll buoyant density gradients can differentiate in culture to antibody-secreting cells upon treatment with LPS. LPS stimulates resting B cells both to proliferate and to differentiate along the path towards a plasma cell fate, and this is a standard procedure used to study molecular events that occur during these processes (see, e.g., references 19 and 36). In such bulk cultures of resting cells, approximately 25% of the cells respond to the LPS stimulation as measured by limiting dilution (35). The μs-to-μm mRNA expression pattern gradually changed from predominantly μm RNA at time zero of culture to approximately 90% μs mRNA by 72 h of treatment (19). We measured the μs/μm mRNA ratio from the endogenous μ gene in the resting transgenic B cells and in transgenic B cells stimulated for 72 h with LPS to monitor the resting and activated states of the cells. We then measured the pA/splice expression pattern of the transgene RNA in these B-cell populations to determine whether it was able to respond to the changes that occurred in the RNA processing environment within these cells.

Resting splenic B cells isolated from each of the three transgenic mouse lines were either harvested or cultured with LPS. RNAs from these cell populations were analyzed for endogenous μ mRNA processing by S1 nuclease protection analysis (Fig. 2A, upper panel). In each of the experiments shown, the μs/μm RNA expression ratio was seen to increase dramatically in the presence of LPS, as has been seen previously (19), and indicated that the LPS treatment was effective. The regulation index, or change in the μs/μm (pA/splice) mRNA ratio from resting to treated B cells, ranged from 7 to 12 (Table 1; Fig. 2C). This variability is likely due to minor differences in the activation states of the high-density B cells and the efficacy of the LPS treatment. These results also indicate that the presence of the transgene did not adversely affect B-cell development with respect to μ mRNA processing.

TABLE 1.

Transgene and endogenous μ gene expression in resting and activated B cellsa

Mouse line Transgene
Endogenous μ gene
pA/splice ratiob
Regulation (+/− LPS)c pA/splice ratio
Regulation (+/− LPS)
−LPS +LPS −LPS +LPS
888 0.29 1.0 3.6 0.51 5.0 9.9
911 0.36 2.0 5.6 2.0 24 12
0.38 0.98 2.6 1.0 7.4 7.1
916 0.43 1.4 3.2 2.5 17 6.8
0.19 0.84 4.4 0.53 6.2 12
0.42 1.4 3.4 1.4 9.9 7.3
0.22 0.85 3.9 0.34 3.3 9.6
0.23 0.64 2.8 0.53 3.7 6.9
a

Each row represents an independent preparation of resting B cells which was divided to be harvested as resting cells (−LPS) and to be cultured with 50-μg/ml LPS (+LPS).

b

The pA/splice ratios are derived from quantitative S1 nuclease protection analyses; most represent the average from at least three analyses.

c

Regulation is the change in pA/splice ratios in activated (+LPS) compared to resting (−LPS) B cells. The estimated standard deviation for each ratio is <10% for the μ gene and <17% for the transgene.

After determination of the effectiveness of the LPS treatment in each experiment, the transgene RNA processing patterns were analyzed by S1 nuclease protection with RNAs from the resting and LPS-treated B cells (Fig. 2A, lower panel). In all three transgenic lines, the pA/splice RNA expression ratio increased upon LPS treatment (Fig. 2A, upper panel). In each of the eight experiments, there was relatively more pA RNA in the LPS-treated cells than in the resting B cells for both the endogenous μ gene and the Ddαs transgene (Table 1). The transgene regulation index ranged from 3 to 6 and was consistently about half of that of μ; when there was a greater change in the endogenous μ expression, there was a parallel greater change in the transgene expression (Table 1; Fig. 2C). All three transgenic lines showed a similar change in expression upon B-cell activation; therefore, these results must be independent of any positional effects due to transgene integration. The transgene was not expressed as well in the 888 line (Fig. 2A, lower panel) (the transgene RNA signal was much lower relative to the endogenous MHC class I expression than the other two lines); the lower level of transgene expression in the 888 line was seen in all tissues examined (data not shown). Therefore, the 911 and 916 lines were used for additional experiments.

Transgene expression in mouse tissues.

When two different cell types process the same pre-mRNA in different ways, it is generally assumed that one cell type contains a trans-acting RNA processing regulator and that the other cell type, lacking the regulator, processes the pre-mRNA along a default pathway that is dependent only on the general processing machinery (22). This is clearly the case with the splice regulators that participate in sex determination of Drosophila (see, e.g., reference 22). One approach that has been taken previously to identify the cell type that contains trans-acting processing regulators is to ectopically express the regulated gene (see, e.g., reference 6). It was assumed that cell types that normally do not encounter the transcripts to be regulated will process them along a default processing pathway. This then identifies the regulated pathway and thus the cellular environment needed to process the transcript in this way. Since the Ddαs transgene is widely expressed in our mice, we analyzed transgene mRNA processing in a number of different tissues in an attempt to identify the regulated and default processing pathways for this gene. Tissues were isolated from several mice of each transgenic line, and the RNAs were analyzed by S1 nuclease protection (Fig. 3A; Table 2). The pA/splice expression ratio showed variability between mice, but these deviations were not unlike those observed in other transgene studies (32). The results did not provide a clear answer to the question of whether tissues expressed the transgene like resting B cells or like LPS-activated B cells. The resting B-cell pA/splice expression ratio ranged from 0.19 to 0.43, while LPS-treated B-cell expression ratios ranged from 0.64 to 2.0 (Table 1). Mouse tissues had pA/splice expression ratios that ranged from 0.08 to 1.2, overlapping both resting and LPS-activated B-cell expression ratios, with more values falling into the resting B-cell range (compare Tables 1 and 2). Since there was variability among tissues and individual animals and among different preparations of resting and LPS-activated B cells, it could be argued that a distinction between regulated and default cannot easily be made for this gene. This interpretation was also proposed to explain data showing that nonlymphoid cells expressed variable ratios of μs and μm mRNAs. While the μs/μm mRNA ratios in nonlymphoid cells were more similar to those in a plasma cell than to those in a B cell, because of the variability, we suggested that the B-cell and plasma cell ratios were two along a continuum of possible processing patterns rather than one being regulated and one not being regulated (25). One major difference between our current experiments and those published previously was that this study tested expression in normal tissue which was generally not proliferating, while the others examined expression in transformed cell lines which were continually proliferating. To test whether any RNA processing differences were related simply to cell proliferation, we examined transgene expression during liver regeneration in vivo.

FIG. 3.

FIG. 3

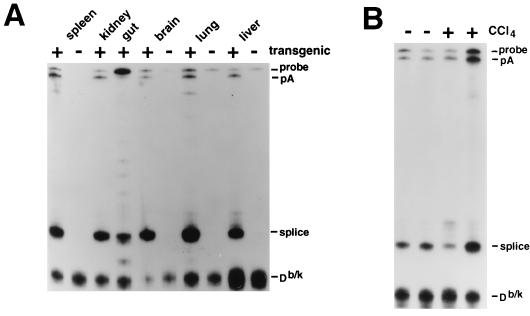

Transgene expression in mouse tissues. (A) S1 nuclease protection analysis of RNAs from the tissues labeled, from both a line 916 transgenic mouse (+) and a nontransgenic littermate (−). (B) S1 nuclease protection analysis of liver RNAs from carbon tetrachloride-treated animals (+) and from mineral oil-treated littermates (−). The probe is as diagrammed in Fig. 2B; protected fragments are labeled.

TABLE 2.

Transgene expression in mouse tissues

Tissue pA/splice ratioa
Line 916
Line 911
Line 888
1 2 3 1 2 3 1 2
Brain 0.09 0.08 0.12
Thymus 0.23 0.39 0.36 0.22 0.20 0.33 0.32
Lung 0.08 0.16 0.22 0.07 0.09 0.10
Heart 0.16 0.25 0.23 0.17 0.16 0.14 0.19
Kidney 0.18 0.79 1.2 0.17 0.18 0.23 0.29
Liver 0.16 0.26 0.33 0.16 0.09
Spleen 0.21 0.41 0.26 0.40 0.35
a

Each column in the table is data from a single animal. Not all tissues were taken from each animal or were informative. The pA/splice ratios are derived from quantitative S1 nuclease protection analyses and represent the averages from at least two analyses.

Under normal conditions, the adult liver is a quiescent organ with a vast majority of cells in the G0 state. Mice treated with 50 μl of 10% carbon tetrachloride (CCl4), a drug that specifically kills hepatocytes in a dose-dependent manner, lose up to 75% of their hepatocytes. Upon cell death, the remaining liver cells proliferate to regenerate the entire liver within 7 to 10 days. Between 48 and 72 h postinjection, hepatocytes proliferate maximally (2, 31). It was previously shown that at 60 h after CCl4 treatment, 32% of hepatocytes were proliferating, as measured by nuclear labeling (31). This compares favorably with the estimate that about 25% of B cells respond to the LPS treatment we used. We examined transgene mRNAs in normal and proliferating liver cells; if the proliferative state of the cell influences transgene RNA processing, then we would expect to see a difference between the RNA ratios derived from mineral oil-treated (nonproliferating) and CCl4-treated (proliferating) livers. Transgenic littermates were treated with either CCl4 or mineral oil (as controls); 48 or 72 h later these animals were sacrificed and their livers were removed. Visual inspection revealed that only CCl4-treated livers were discolored and mottled in appearance, consistent with areas of necrosis and regeneration. RNA from each liver was analyzed for transgene expression by S1 nuclease protection analysis (Fig. 3B). While there was a modest effect of liver cell proliferation on transgene processing in some of these experiments (Table 3), no consistent change could be seen among the four experiments, nor was the change as extensive as that seen between resting and LPS-treated B cells.

TABLE 3.

Transgene expression in the livers of mineral oiland carbon tetrachloride-treated mice

Mouse line pA/splice ratioa
Mineral oil treatment Carbon tetrachloride treatment
911 0.27, 0.37 0.55, 0.56
916 0.30 0.45, 0.48
916 0.24, 0.23 0.39, 0.24
911 0.23, 0.32, 0.23 0.30, 0.33, 0.45
a

Each entry is data from an individual animal; each row in the table represents an independent experiment. The pA/splice ratios are derived from quantitative S1 nuclease protection analyses and represent the averages from at least three analyses.

DISCUSSION

Previously we have shown that regulated μ mRNA processing depends on both the balance and arrangement of the competing splice and cleavage-polyadenylation reactions; no gene-specific sequences are required for this regulation (25). Thus, it is likely that changes in general cleavage-polyadenylation and/or splicing components mediate μ regulation. Since this model is based on results obtained with established tumor cell lines, we felt it was essential to examine this model in vivo during normal B-lymphocyte maturation. Now, using transgenic mice, we show that a non-Ig gene modified to have balanced competing splice and cleavage-polyadenylation reactions is regulated similarly to the endogenous μ gene during LPS-stimulated B-cell activation. These results establish that the balance and arrangement of the two processing signals are indeed sufficient for RNA processing regulation. Therefore, these studies validate previous and continuing regulatory experiments using tissue culture cell lines; the data generated in vivo is consistent with data generated from in vitro tissue culture.

While the pA/splice RNA ratio for the transgene and the μ gene shift in the same direction in resting and LPS-treated B cells, the regulation index, which quantitates the change in this ratio, varies among individual experiments. This is due to minor differences in the B cells isolated from the mice. However, despite this variability, the transgene regulation index is consistently about half of that of the endogenous μ gene for each experiment (Fig. 2; Table 1). There are at least two possible explanations for this 50% difference. One is that there are specific sequences, either in the μ gene or in the transgene, that contribute to the difference seen. The other possibility is that the precise balance between the efficiencies of the splice and cleavage-polyadenylation reactions affects the sensitivity of a transcript to changes in the cellular environment. The latter idea is supported by past experiments with closely related μ genes that differ in the strengths of their splice and cleavage-polyadenylation reactions (24, 2729). The regulation indices of these μ gene derivatives in B-cell and plasma cell lines range from 2 to 22, a much greater difference than that seen between the transgene and endogenous μ gene in this study. These results with related μ genes are more difficult to reconcile with the former explanation, i.e., the presence or absence of specific sequences.

That gene-specific sequences are not required for regulation implies that changes in the levels or activities of general processing factors must mediate the change in RNA processing patterns. For the μ gene this could mean changes in cleavage-polyadenylation factors, splicing factors, or both. Indeed, we recently demonstrated that the level of the polyadenylation component CstF-64, the 64-kDa subunit of cleavage stimulation factor, is modulated between resting and LPS-stimulated B cells and that overexpression of this protein affects endogenous μ RNA processing in a chicken B-cell line (33). This experiment, along with others (20, 28), establishes that changes in cleavage-polyadenylation efficiency are an important component of μ processing regulation. However, while natural mouse B cells respond to LPS stimulation with about a 10-fold increase in CstF-64, consistent differences in the levels of this protein are not seen in tissue culture cell lines (9). This implies that there are additional mechanisms that contribute to μ processing regulation; possibilities include changes in the activity of cleavage-polyadenylation components (9), changes in the splice components (4), and changes in factors that affect the communication between the splice and cleavage-polyadenylation machinery (see, e.g., references 21 and 34). It is easy to imagine that changes in the amounts or activities of general trans-acting factors, relative to each other, can have dramatic effects on an RNA that can be alternatively processed by competing reactions.

The idea that cell-specific levels of several different general factors affect alternative RNA processing complicates the definition of the classical regulated and default pathways wherein a specific trans-acting factor affects processing choices, usually in an all-or-none way. Indeed, we have not been able to clearly assign the B cell or plasma cell as having the regulated or default RNA processing environment. In a survey of μ gene expression in non-B-cell lines, the pA/splice (μs/μm) ratio varied widely but was more similar to that seen in a plasma cell line than to that seen in a B-cell line (25). However, more recently we have examined several μ gene variants in a nonlymphoid cell line and have obtained different results; some μ genes were processed more like a plasma cell, while some were processed more like a B cell (23). In the current study, transgene mRNA expression in different mouse tissues is shown to vary over a range that overlaps both resting and LPS-activated B-cell expression patterns. Thus, the paradigm of regulated and default RNA processing patterns is probably not appropriate for the μ gene, where both alternate RNAs are always coexpressed and it is the ratio of the two that is modulated. Changes in the components for splicing, cleavage-polyadenylation, or both, relative to each other, are likely to be the essential features of μ regulation. Thus, each cell type, both lymphoid and nonlymphoid, may be expected to contain a characteristic concentration of processing factors; these concentrations change, relative to each other, during B-lymphocyte maturation.

ACKNOWLEDGMENTS

We thank Brian Pittner and Suzanna Reid for advice on B-cell preparation and Teresa Roberts for the purified antibodies used in the B-cell preparation procedure.

This work was supported by grants MCB-9507513 and MCB-9106130 from the National Science Foundation (to M.L.P.) and PHS grant GM-45253 (to B.T.S.).

REFERENCES

  • 1.Alt F W, Bothwell A L M, Knapp M, Siden E, Mather E, Koshland M, Baltimore D. Synthesis of secreted and membrane-bound immunoglobulin mu heavy chains is directed by mRNAs that differ at their 3′ ends. Cell. 1980;20:293–301. doi: 10.1016/0092-8674(80)90615-7. [DOI] [PubMed] [Google Scholar]
  • 2.Belayew A, Tilghman S M. Genetic analysis of α-fetoprotein synthesis in mice. Mol Cell Biol. 1982;2:1427–1435. doi: 10.1128/mcb.2.11.1427. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Bieberich C, Scangos G, Tanaka K, Jay G. Regulated expression of a murine class I gene in transgenic mice. Mol Cell Biol. 1986;6:1339–1342. doi: 10.1128/mcb.6.4.1339. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4.Bruce, S. R., and M. L. Peterson. Unpublished data.
  • 5.Ceredig R, Lowenthal J W, Nabholz M, MacDonald H R. Expression of interleukin-2 receptors as a differentiation marker on intrathymic stem cells. Nature. 1985;314:98–100. doi: 10.1038/314098a0. [DOI] [PubMed] [Google Scholar]
  • 6.Crenshaw E B I, Russo A F, Swanson L W, Rosenfeld M G. Neuron-specific alternative RNA processing in transgenic mice expressing a metallothionein-calcitonin fusion gene. Cell. 1987;49:389–398. doi: 10.1016/0092-8674(87)90291-1. [DOI] [PubMed] [Google Scholar]
  • 7.DeBenedette M, Snow E C. Induction and regulation of casein kinase II during B lymphocyte activation. J Immunol. 1991;147:2839–2845. [PubMed] [Google Scholar]
  • 8.Early P, Rogers J, Davis M, Calame K, Bond M, Wall R, Hood L. Two mRNAs can be produced from a single immunoglobulin μ gene by alternative RNA processing pathways. Cell. 1980;20:313–319. doi: 10.1016/0092-8674(80)90617-0. [DOI] [PubMed] [Google Scholar]
  • 9.Edwalds-Gilbert G, Milcarek C. Regulation of poly(A) site use during mouse B-cell development involves a change in the binding of a general polyadenylation factor in a B-cell stage-specific manner. Mol Cell Biol. 1995;15:6420–6429. doi: 10.1128/mcb.15.11.6420. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Evans G A, Margulies D H, Shykind B, Seidman J G, Ozato K. Exon shuffling: mapping polymorphic determinants on hybrid mouse transplantation antigens. Nature. 1984;300:755–757. doi: 10.1038/300755a0. [DOI] [PubMed] [Google Scholar]
  • 11.Gerster T, Picard D, Schaffner W. During B-cell differentiation enhancer activity and transcription rate of immunoglobulin heavy chain genes are high before mRNA accumulation. Cell. 1986;45:45–52. doi: 10.1016/0092-8674(86)90536-2. [DOI] [PubMed] [Google Scholar]
  • 12.Grosveld F, Kollias G, editors. Transgenic mice. 2nd ed. San Diego, Calif: Academic Press Inc.; 1992. [Google Scholar]
  • 13.Hogan B, Costantini F, Lacy E. Manipulating the mouse embryo: a laboratory manual. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory Press; 1986. [Google Scholar]
  • 14.Hogbom E, Matrensson I-L, Leanderson T. Regulation of immunoglobulin transcription rates and mRNA processing in proliferating normal B lymphocytes by activators of protein kinase C. Proc Natl Acad Sci USA. 1987;84:9135–9139. doi: 10.1073/pnas.84.24.9135. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Hyman R, Ralph P, Sarkar S. Cell-specific antigens and immunoglobulin synthesis of murine myeloma cells and their variants. J Natl Cancer Inst. 1972;48:173–184. [PubMed] [Google Scholar]
  • 16.Kelley D E, Perry R P. Transcriptional and post-transcriptional control of immunoglobulin mRNA production during B lymphocyte development. Nucleic Acids Res. 1986;14:5431–5447. doi: 10.1093/nar/14.13.5431. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Kim K J, Kanellopoulos-Langevin C, Merwin R M, Sachs D H, Asofsky R. Establishment and characterization of BALB/c lymphoma lines with B cell properties. J Immunol. 1979;122:549–553. [PubMed] [Google Scholar]
  • 18.Laird P W, Zijderveld A, Linders K, Rudnicki M A, Jaenisch R, Berns A. Simplified mammalian DNA isolation procedure. Nucleic Acids Res. 1991;19:4293. doi: 10.1093/nar/19.15.4293. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Lamson G, Koshland M E. Changes in J chain and μ chain RNA expression as a function of B cell differentiation. J Exp Med. 1984;160:877–892. doi: 10.1084/jem.160.3.877. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Lassman C R, Matis S, Hall B L, Toppmeyer D L, Milcarek C. Plasma cell-regulated polyadenylation at the Igγ2b secretion-specific poly(A) site. J Immunol. 1992;148:1251–1260. [PubMed] [Google Scholar]
  • 21.Lutz C S, Murthy K G, Schek N, O’Connor J P, Manley J P, Alwine J C. Interaction between the U1 snRNP-A protein and the 160 kD subunit of cleavage-polyadenylation specificity factor increases polyadenylation efficiency in vitro. Genes Dev. 1996;10:325–337. doi: 10.1101/gad.10.3.325. [DOI] [PubMed] [Google Scholar]
  • 22.Mattox W, Ryner L, Baker B S. Autoregulation and multifunctionality among trans-acting factors that regulate alternative pre-mRNA processing. J Biol Chem. 1992;267:19023–19026. [PubMed] [Google Scholar]
  • 23.Peterson, M. Unpublished data.
  • 24.Peterson M L. Balanced efficiencies of splicing and cleavage-polyadenylation are required for μs and μm mRNA regulation. Gene Expr. 1992;2:319–327. [PMC free article] [PubMed] [Google Scholar]
  • 25.Peterson M L. Regulated immunoglobulin (Ig) RNA processing does not require specific cis-acting sequences: non-Ig genes can be alternatively processed in B cells and plasma cells. Mol Cell Biol. 1994;14:7891–7898. doi: 10.1128/mcb.14.12.7891. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Peterson M L. RNA processing and the expression of immunoglobulin genes. In: Snow E C, editor. Handbook of B and T lymphocytes. San Diego, Calif: Academic Press; 1994. pp. 321–342. [Google Scholar]
  • 27.Peterson M L, Bryman M B, Peiter M, Cowan C. Exon size affects competition between splicing and cleavage-polyadenylation in the immunoglobulin μ gene. Mol Cell Biol. 1994;14:77–86. doi: 10.1128/mcb.14.1.77. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Peterson M L, Gimmi E R, Perry R P. The developmentally regulated shift from membrane to secreted μ mRNA production is accompanied by an increase in cleavage-polyadenylation efficiency but no measurable change in splicing efficiency. Mol Cell Biol. 1991;11:2324–2327. doi: 10.1128/mcb.11.4.2324. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Peterson M L, Perry R P. The regulated production of μm and μs mRNA is dependent on the relative efficiencies of μs poly(A) site usage and the Cμ4-to-M1 splice. Mol Cell Biol. 1989;9:726–738. doi: 10.1128/mcb.9.2.726. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Rogers J, Early P, Carter C, Calame K, Bond M, Hood L, Wall R. Two mRNAs with different 3′ ends encode membrane-bound and secreted forms of immunoglobulin μ chain. Cell. 1980;20:303–312. doi: 10.1016/0092-8674(80)90616-9. [DOI] [PubMed] [Google Scholar]
  • 31.Schmiedeberg P, Biempica L, Czaja M J. Timing of protooncogene expression varies in toxin-induced liver regeneration. J Cell Physiol. 1993;154:294–300. doi: 10.1002/jcp.1041540212. [DOI] [PubMed] [Google Scholar]
  • 32.Spear B T. Mouse α-fetoprotein gene 5′ regulatory elements are required for postnatal regulation by raf and Rif. Mol Cell Biol. 1994;14:6497–6505. doi: 10.1128/mcb.14.10.6497. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Takagaki Y, Seipelt R L, Peterson M L, Manley J L. The polyadenylation factor CstF-64 regulates alternative processing of IgM heavy chain pre-mRNA during B cell differentiation. Cell. 1996;87:941–952. doi: 10.1016/s0092-8674(00)82000-0. [DOI] [PubMed] [Google Scholar]
  • 34.Wassarman K M, Steitz J A. Association with terminal exons in pre-mRNAs: a new role for the U1 snRNP? Genes Dev. 1993;7:647–659. doi: 10.1101/gad.7.4.647. [DOI] [PubMed] [Google Scholar]
  • 35.Wetzel G D, Kettman J R. Activation of murine B lymphocytes. III. Stimulation of B lymphocyte clonal growth with lipopolysaccharide and dextran sulfate. J Immunol. 1981;126:723–728. [PubMed] [Google Scholar]
  • 36.Yuan D, Tucker P W. Transcriptional regulation of μ-δ heavy chain locus in normal murine B lymphocytes. J Exp Med. 1984;160:564–583. doi: 10.1084/jem.160.2.564. [DOI] [PMC free article] [PubMed] [Google Scholar]
