Molecular and Cellular Biology logoLink to Molecular and Cellular Biology
. 1998 Nov;18(11):6719–6728. doi: 10.1128/mcb.18.11.6719

Inactivation of DNA-Dependent Protein Kinase by Protein Kinase Cδ: Implications for Apoptosis

Ajit Bharti 1, Stine-Kathrein Kraeft 2, Mrinal Gounder 1, Pramod Pandey 1, Shengfang Jin 3, Zhi-Min Yuan 1, Susan P Lees-Miller 4, Ralph Weichselbaum 5, David Weaver 3, Lan Bo Chen 2, Donald Kufe 1, Surender Kharbanda 1,*
PMCID: PMC109255  PMID: 9774685

Abstract

Protein kinase Cδ (PKCδ) is proteolytically cleaved and activated at the onset of apoptosis induced by DNA-damaging agents, tumor necrosis factor, and anti-Fas antibody. A role for PKCδ in apoptosis is supported by the finding that overexpression of the catalytic fragment of PKCδ (PKCδ CF) in cells is associated with the appearance of certain characteristics of apoptosis. However, the functional relationship between PKCδ cleavage and induction of apoptosis is unknown. The present studies demonstrate that PKCδ associates constitutively with the DNA-dependent protein kinase catalytic subunit (DNA-PKcs). The results show that PKCδ CF phosphorylates DNA-PKcs in vitro. Interaction of DNA-PKcs with PKCδ CF inhibits the function of DNA-PKcs to form complexes with DNA and to phosphorylate its downstream target, p53. The results also demonstrate that cells deficient in DNA-PK are resistant to apoptosis induced by overexpressing PKCδ CF. These findings support the hypothesis that functional interactions between PKCδ and DNA-PK contribute to DNA damage-induced apoptosis.

The cellular response to ionizing radiation (IR) and other DNA-damaging agents includes cell cycle arrest and activation of DNA repair. In the event of irreparable DNA damage, cells respond with induction of apoptosis. Apoptosis is an ultrastructurally and biochemically distinct form of cell death that occurs in response to a variety of stimuli and is carried out by a genetically determined cell suicide program (21, 23). Cells undergoing apoptosis exhibit morphological and biochemical characteristics that include blebbing of the cell membrane, a decrease in cell volume, nuclear condensation, and internucleosomal cleavage of DNA (26, 57). However, the intracellular signals that control the induction of apoptosis are unclear.

The induction of apoptosis by a variety of stress inducers, including DNA damage, is associated with activation of aspartate-specific cysteine proteases (caspases) (1, 12, 41, 42). Direct involvement of caspases in the induction of apoptosis is supported by studies with the cowpox virus protein CrmA (48), the baculovirus protein p35 (6), and peptide inhibitors (3, 46, 47). CrmA inhibits the induction of apoptosis in cells treated with Fas ligand or tumor necrosis factor (15, 39, 53). By contrast, IR-induced apoptosis involves activation of a CrmA-insensitive pathway (10). These findings have suggested that DNA damage-induced apoptosis is conferred by signals that are distinct from those activated by Fas and tumor necrosis factor (10). The demonstration that IR induces the activation of caspase 3 and that this event, like IR-induced apoptosis, is mediated by a CrmA-insensitive, p35-sensitive pathway (10) has provided support for caspase 3 as a key effector. IR-induced activation of caspase 3 is associated with proteolytic cleavage of poly(ADP-ribose) polymerase (25, 32, 43) and other proteins. Activation of caspase 3 in irradiated cells is regulated by members of the Bcl-2/Bcl-xL family (10, 14). Bcl-2 and Bcl-xL block the release of cytochrome c from mitochondria of cells treated with IR and other agents (28, 31, 58). In this context, cytochrome c release activates caspase 9, and this event is upstream to activation of caspase 3 (36).

The protein kinase C (PKC) family of serine/threonine kinases consists of multiple isoforms that possess a conserved catalytic domain (29). Studies have demonstrated that the calcium-independent δ isoform is cleaved in cells induced to undergo apoptosis in response to DNA-damaging agents (13, 14). PKCδ is cleaved by caspase 3 at the third variable region (V3) to a 40-kDa catalytically active fragment (13, 14, 17). The finding that overexpression of the PKCδ catalytic fragment (PKCδ CF) is associated with chromatin condensation, nuclear fragmentation, appearance of sub-G1 DNA, and lethality has supported a role for PKCδ cleavage in induction of apoptosis (17). The ubiquitously expressed PKCδ is unique among the PKC isoforms as a substrate for tyrosine phosphorylation (36). Transformation by Ras (11) or v-Src (60) results in tyrosine phosphorylation of PKCδ. Other studies have demonstrated that PKCδ is phosphorylated and activated by c-Abl during the response to DNA damage (59). PKCδ has been shown to activate the MEK-extracellular signal-regulated kinase (ERK) pathway by a mechanism dependent on Raf and independent of Ras (37). In concert with a potential tumor suppressor function (40), PKCδ has also been linked to induction of growth arrest (16, 54) and apoptosis (17).

The DNA-dependent protein kinase (DNA-PK) is essential in the repair of DNA double-strand breaks that form in irradiated cells and in V(D)J recombination (20, 22, 55). DNA-PKcs is the 470-kDa catalytic subunit of DNA-PK that contains a protein kinase homology domain at the C terminus. DNA-PKcs activity is induced by binding to the 70- and 80-kDa Ku heterodimer (2, 33). Ku binds to DNA in double-strand break repair reactions and thereby recruits DNA-PKcs to sites of DNA damage (5, 34, 50). Recent studies have demonstrated that DNA-PKcs is a self-contained kinase that is activated by direct interaction with double-stranded DNA and that the role of Ku is to stabilize the binding of DNA-PKcs to DNA ends (9, 18). DNA-PKcs, but not Ku, is cleaved by caspase-3 during apoptosis (7, 19, 51). The available evidence indicates that DNA-PKcs is cleaved into 240-, 150-, and 120-kDa fragments and that cleavage is associated with loss of DNA-PK activity (51). The 240-kDa fragment is derived from the N terminus, and the 150-kDa fragment, which contains the kinase homology domain, is from the C terminus (51). The 150-kDa fragment can also undergo further cleavage to a 120-kDa protein that retains the kinase domain (51).

The present studies demonstrate that PKCδ interacts with DNA-PKcs. The results show that PKCδ CF phosphorylates the cleaved fragment of DNA-PKcs and inactivates it in vitro. Phosphorylation of DNA-PKcs by PKCδ also inhibits the binding of DNA-PKcs to DNA. We further show that cells deficient in DNA-PK exhibit resistance to apoptosis induced by overexpressing the catalytically active form of PKCδ.

MATERIALS AND METHODS

Cell culture.

U-937 monoblastic leukemia cells (American Type Culture Collection, Rockville, Md.) were grown in RPMI 1640 medium containing 10% heat-inactivated fetal bovine serum (FBS), 100 U of penicillin per ml, 100 mg of streptomycin per ml, and 2 mM l-glutamine. The cell lines SCSV3, SCH8-1, CHO, and CHO/V-3 were cultured in Dulbecco’s modified Eagle’s medium containing 10% heat-inactivated FBS. Irradiation was performed at room temperature with a Gammacell-1000 (Atomic Energy of Canada, Ottawa, Ontario, Canada) under aerobic conditions with a 137Cs source emitting at a fixed-dose rate of 0.76 Gy/min as determined by dosimetry.

Immunoprecipitation and immunoblot analysis.

Cell lysates and immunoprecipitations were prepared as described previously (45). Soluble proteins (150 μg) were incubated with anti-PKCδ (Santa Cruz Biotechnology, Santa Cruz, Calif.) or anti-DNA-PK (Upstate Biotechnology, Inc., Upstate, N.Y.) for 1 h and precipitated with protein A-Sepharose for an additional 1 h. Preimmune rabbit serum (PIRS) was used as a negative control. The resulting immune complexes were washed three times with lysis buffer, separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), and transferred to nitrocellulose filters. Total-cell lysate (30 μg) was used as a positive control. The residual binding sites were blocked by incubating the nitrocellulose paper in 5% dry milk in phosphate-buffered saline (PBS)–0.05% Tween 20 for 1 h at room temperature and then with anti-PKCδ or anti-DNA-PK antibodies for 1 h. The antigen-antibody complexes were visualized by enhanced chemiluminescence (ECL detection system; Amersham). Signal intensities were determined by densitometric analysis (UltroScan; LKB, Bromma, Sweden).

Far-Western analysis.

Purified DNA-PK protein (1 μg; provided by S. P. Lees-Miller) was subjected to SDS-PAGE and transferred to a nitrocellulose filter. Three identical filters were made. The filters were then incubated with purified glutathione S-transferase (GST)–full-length PKCδ (PKCδ FL), GST-PKCδ CF, or GST for 1 h at room temperature. The filters were then analyzed by immunoblotting with anti-PKCδ.

Generation of expression constructs.

FL, CF, and kinase-inactive (CF K-R) PKC were prepared by cloning the appropriate PCR product of human PKCδ into pGEX-2T (Pharmacia Biotech, Uppsala, Sweden). The resultant plasmids, pGEX-PKCδ FL, pGEX-PKCδ CF, and pGEX-PKCδ CF K-R contain a tac promoter controlling the expression of a fusion protein consisting of GST linked to the N terminus of human PKCδ FL or CF. A similar strategy was used for green fluorescence protein (GFP) fusion constructs by cloning the PCR product of PKCδ into a eukaryotic expression vector, pEGFP-c1 (Clontech, Palo Alto, Calif.). The resultant plasmids, pEGFP-PKCδ CF and pEGFP-PKCδ CF K-R, contain the cytomegalovirus promoter controlling the expression of a fusion protein consisting of GFP linked to the N terminus of PKCδ CF.

Dissociation of DNA-PKcs from DNA by PKCδ.

DNA-PK/Ku (1 μg; Promega) was incubated with double-stranded DNA–cellulose (15 μg; Sigma) in kinase buffer (25 mM HEPES [pH 7.4], 75 mM KCl, 10 mM MgCl2, 1 mM dithiothreitol [DTT], 0.2 mM EGTA, 0.1 mM EDTA) for 30 min at room temperature. The DNA-cellulose beads were then washed and resuspended in kinase buffer. The kinase reaction mixtures containing beads, 100 μM ATP, and GST-PKCδ CF or GST-PKCδ CF K-R were incubated for 15 min at 30°C. To ensure that phosphorylation was not due to DNA-PKcs, wortmannin was added to inhibit DNA-PKcs activity (27). The supernatant fraction was obtained by sedimentation of the beads. After the beads were washed with kinase buffer, they and the supernatant fraction were boiled in SDS sample buffer. The proteins were separated by SDS-PAGE (5% polyacrylamide) and analyzed by immunoblotting with anti-DNA-PK.

In vitro phosphorylation of DNA-PKcs by PKCδ.

The recombinant GST-PKCδ CF or GST-PKCδ CF K-R linked to glutathione beads was resuspended in kinase buffer II (KBII) (20 mM Tris-HCl [pH 7.4], [γ-32P]ATP, 20 mM MgCl2, 4 mM DTT). Purified DNA-PK (0.5 μg) in the absence of sonicated DNA was incubated in kinase buffer containing [γ-32P]ATP with GST-PKCδ CF or GST-PKCδ CF K-R at 30°C for 20 min. The reaction was terminated by the addition of SDS-PAGE sample buffer (100 mM Tris-HCl [pH 7.0], 4% SDS, 720 nM 2-mercaptoethanol, 5 mg of bromophenol blue per ml), and the reaction products were analyzed by SDS-PAGE and autoradiography.

In vitro transcription-translation of DNA-PKcs fragments.

Specific DNA-PKcs polypeptides were formed by using a coupled in vitro transcription-translation method (Promega) with templates generated from the cDNA by PCR as described previously (24).

DNA-PKcs polypeptide binding assays.

PKCδ CF binding to in vitro-translated DNA-PKcs polypeptides was tested by incubating GST-PKCδ CF (5 μg) in 20 μl of MB (10 mM Tris [pH 7.4], 150 mM NaCl, 1% Triton X-100, 10% glycerol, 1 mM phenylmethylsulfonyl fluoride, 1 μg of leupeptin per ml, 1 μg of pepstatin per ml, 1 μg of aprotinin per ml) with equal amounts of each [35S]DNA-PKcs in vitro-translated product for 1 to 2 h at 4°C. A separate incubation of the in vitro-translated [35S]DNA-PKcs product with GST was used as a negative control. The beads were washed four times in 1 ml of MB at 4°C, and the proteins were eluted by boiling in SDS sample buffer. The samples were analyzed by SDS-PAGE and autoradiography. Signal intensities were determined by densitometric analysis.

Proteolysis of DNA-PKcs in vitro.

Purified DNA-PKcs (1 μg) was incubated with 2.5 μg of purified recombinant caspase-3 per ml in CB (50 mM HEPES [pH 7.5], 10% glycerol, 2.5 mM DTT, 0.24 mM EDTA) at room temperature. The reaction products were analyzed by SDS-PAGE (7.5% polyacrylamide), transferred to nitrocellulose membranes, and immunoblotted with anti-DNA-PKcs.

Inactivation of the proteolytic fragment of DNA-PKcs by phosphorylation with PKCδ CF.

Purified DNA-PKcs was incubated with or without 2.5 μg of purified recombinant caspase 3 per ml in CB at room temperature for 30 min to 1 h as described above. An aliquot was saved for immunoblotting with anti-DNA-PKcs. The cleaved fragments of DNA-PKcs were mixed with purified GST-PKCδ CF or GST-PKCδ CF K-R linked to GST-beads and further incubated for 15 min at 30°C in KB containing [γ32P]ATP. The GST-PKCδ CF and GST-PKCδ CF K-R were then removed by sedimentation to avoid substrate phosphorylation by PKCδ CF in the next kinase reaction. The supernatants containing the phosphorylated DNA-PKcs fragments were then incubated for an additional 15 min at 30°C with GST-p53 in KBII containing [γ-32P]ATP. The kinase reactions were stopped by boiling in 2× SDS sample buffer. The eluted proteins were analyzed by SDS-PAGE and autoradiography.

Transient transfections.

The cells were transiently transfected with pEGFP, pEGFP-PKCδ CF, or pEGFP-PKCδ CF K-R in the presence of Lipofectamine (Life Technologies, Gaithersburg, Md.). After 12 to 18 h, the cells were harvested and sorted by FACscan analysis.

Confocal microscopy.

The cells were grown on coverslips and transfected with GFP-PKCδ CF or GFP-PKCδ CF K-R. After 48 h, the cells on the coverslips were fixed in 4% paraformaldehyde in PBS (pH 7.4) for 20 min at room temperature. They were permeabilized with 0.1% Triton X-100 and stained with 0.5 μg of 4′,6-diamidino-2-phenylindole (DAPI) per ml for 10 min at room temperature. The coverslips were mounted on slides with antibleach mounting medium (Molecular Probes, Eugene, Oreg.) and viewed by confocal microscopy with an LSM410 microscope (Zeiss) equipped with an argon-krypton and a UV laser.

Cell sorting and propidium iodide staining for cells with sub-G1 DNA.

At 18 h after transfection, the cells were trypsinized and washed with Dulbecco’s modified Eagle’s medium. GFP-positive cells were sorted in a Becton-Dickinson FACS Vantage. The GFP-positive cells were replated in the culture medium–10% heat-inactivated FBS for 40 h and then fixed with 40% ethyl alcohol for 30 min. They were washed with PBS, resuspended in 0.5 μg of propidium iodide per ml in PBS, and incubated with 50 μg of RNase per ml at 37°C for 30 min. Numbers of cells with sub-G1 DNA were assessed by FACScan analysis.

RESULTS

DNA-PKcs associates with PKCδ in vivo.

Whereas IR induces the activation of PKCδ (14), we asked if PKCδ interacts with proteins, such as DNA-PKcs, that are involved in DNA double-strand break repair. Analysis of anti-PKCδ immunoprecipitates with an anti-DNA-PKcs antibody demonstrated reactivity with a protein of >350 kDa (Fig. 1A). PIRS was used as a negative control of immunoprecipitation. As a positive control, analysis of anti-DNA-PKcs immunoprecipitates by immunoblotting with anti-DNA-PKcs demonstrated a similar pattern of reactivity (Fig. 1A). To evaluate the stoichiometry of the interaction between DNA-PKcs and PKCδ, we subjected U-937 cell lysates to immunoprecipitation with anti-PKCδ and analyzed the supernatants and precipitates by immunoblotting with anti-DNA-PKcs. Signal intensities from before and after anti-PKCδ immunoprecipitation were compared by laser densitometric scanning. The results demonstrate that approximately 50% of DNA-PKcs is associated with PKCδ (Fig. 1B). When anti-DNA-PKcs immunoprecipitates were analyzed by immunoblotting with anti-PKCδ in the reciprocal experiment, the results confirmed a constitutive association of DNA-PKcs with PKCδ (Fig. 1C). The interactions between DNA-PKcs and PKCδ are specific, since the anti-DNA-PKcs antibody does not cross-react with PKCδ and the anti-PKCδ antibody does not cross-react with DNA-PKcs (Fig. 1A and C). Activation of caspase 3 in irradiated cells is associated with proteolytic cleavage of PKCδ to an active 40-kDa fragment (hereafter termed PKCδ CF) (14). To assess the interaction of DNA-PKcs with PKCδ CF, U-937 cells were irradiated and harvested at different time intervals. Lysates from control and irradiated cells were subjected to immunoprecipitation with anti-DNA-PKcs. Analysis of the precipitates with anti-PKCδ demonstrated binding between DNA-PKcs and PKCδ CF (Fig. 1D). The finding that DNase has no effect on the coimmunoprecipitation of DNA-PKcs and PKCδ CF indicated that the association between these proteins is not dependent on DNA binding (data not shown).

FIG. 1.

FIG. 1

Open in a new tab

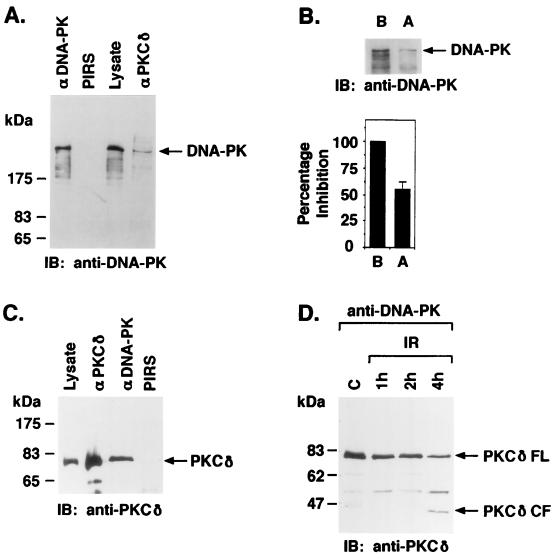

Association of DNA-PKcs and PKCδ. (A) Lysates from U-937 cells were subjected to immunoprecipitation with anti-DNA-PK (αDNA-PK), PIRS or anti-PKCδ (αPKCδ). Immunoprecipitates were analyzed by immunoblotting with anti-DNA-PKcs. Whole-cell lysate (Lysate) was used as a positive control for the immunoblot analysis. (B) Soluble proteins from U-937 cells were subjected to immunoprecipitation with anti-PKCδ. Lysates before and after immunoprecipitation were analyzed by immunoblotting with anti-DNA-PKcs (top). The results are expressed as the mean ± standard deviation (SD) of three independent experiments (bottom). (C) U-937 cell lysates were immunoprecipitated with PIRS, anti-PKCδ, or anti-DNA-PKcs. Immunoprecipitates were analyzed by immunoblotting with anti-PKCδ. Lysate was used as a positive control for the immunoblotting. (D) U-937 cells were treated with 20 Gy of IR and harvested at the indicated times. Lysates were immunoprecipitated with anti-DNA-PKcs, and the precipitates were analyzed by immunoblotting with anti-PKCδ.

DNA-PKcs binds directly to PKCδ in vitro.

To assess the interaction of DNA-PKcs with PKCδ FL and PKCδ CF in vitro, we incubated GST fusion proteins prepared from PKCδ FL and PKCδ CF with U-937 cell lysates. Analysis of the adsorbates with anti-DNA-PKcs demonstrated that whereas both PKCδ FL and PKCδ CF bind to DNA-PKcs, the apparent affinity of the interaction with PKCδ CF is greater than that with PKCδ FL (Fig. 2A). To determine whether the interaction between DNA-PKcs and PKCδ is direct, purified DNA-PKcs was incubated separately with GST-PKCδ FL, GST-PKCδ CF, or GST. After being washed, the bound proteins were separated by SDS-PAGE (5% polyacrylamide) and analyzed by immunoblotting with anti-DNA-PKcs. Reactivity with anti-DNA-PKcs in the GST-PKCδ CF and GST-PKCδ FL, but not GST, adsorbates supported a direct interaction of DNA-PKcs with PKCδ FL and PKCδ CF (Fig. 2B). To further demonstrate direct interaction between DNA-PKcs and PKCδ, purified DNA-PKcs was resolved by SDS-PAGE, transferred to a nitrocellulose filter, and renatured in aquaous buffer. After incubation with GST-PKCδ FL, GST-PKCδ CF, or GST, the filters were washed and probed with anti-PKCδ. Reactivity with anti-PKCδ at the position corresponding to DNA-PKcs confirmed the direct interaction of DNA-PKcs with PKCδ (Fig. 2C). The absence of reactivity when the filters were incubated with GST indicated that binding of DNA-PKcs with PKCδ is specific (Fig. 2B).

FIG. 2.

FIG. 2

Open in a new tab

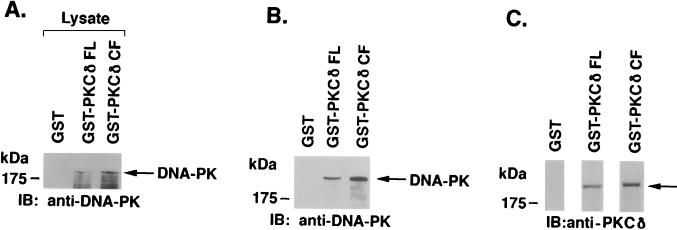

Direct interaction of DNA-PKcs with PKCδ. (A) U-937 cell lysate was incubated with GST, GST-PKCδ FL, or GST-PKCδ CF. The protein adsorbates were analyzed by immunoblotting with anti-DNA-PKcs. (B) Purified DNA-PK (1 μg) was incubated with GST, GST-PKCδ FL, or GST-PKCδ CF. After extensive washing, the bound proteins were eluted by boiling in SDS sample buffer and analyzed by immunoblotting with anti-DNA-PK. (C) Purified DNA-PK (1 μg) was resolved by SDS-PAGE and transferred to three nitrocellulose filters. The filters were incubated with GST, GST-PKCδ FL, or GST-PKCδ CF for 1 h at room temperature and then analyzed by immunoblotting with anti-PKCδ antibody.

PKCδ CF-mediated phosphorylation of DNA-PKcs inhibits DNA-PK binding to DNA in vitro.

To determine whether PKCδ phosphorylates DNA-PK, we incubated GST-PKCδ FL or GST-PKCδ CF with purified DNA-PKcs in the presence of [γ-32P]ATP. The phosphorylation reactions were carried out in the absence of DNA to inhibit DNA-PKcs autophosphorylation. Analysis of the products by autoradiography indicated that DNA-PKcs is a substrate for PKCδ (Fig. 3A, top) PKCδ CF is at least 40 times more active than PKCδ FL, as determined by their phosphorylation of myelin basic protein (Fig. 3A, bottom). The present results also demonstrate approximately 10-fold more phosphorylation of DNA-PKcs by PKCδ CF (Fig. 3A, top).

FIG. 3.

FIG. 3

Open in a new tab

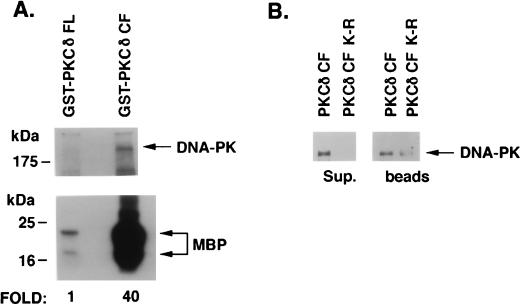

PKCδ CF phosphorylates DNA-PKcs and releases DNA-PKcs from Ku-DNA beads. (A) GST-PKCδ FL or GST-PKCδ CF was incubated with purified DNA-PK–Ku complex (top) or myelin basic protein (MBP) (bottom) in the presence of [γ-32P]ATP for 15 min at 30°C. In vitro kinase reactions were analyzed by SDS-PAGE and autoradiography. (B) Purified DNA-PK/Ku was incubated with DNA beads, and the beads were washed and suspended in kinase buffer. Kinase reaction mixtures containing beads, 20 μM wortmannin, ATP, and GST-PKCδ CF or kinase-inactive GST-PKCδ CF K-R were incubated for 15 min at 30°C. The supernatant fraction was obtained by sedimentation of the beads. The beads and supernatant fractions were boiled in SDS sample buffer. Proteins were separated by SDS-PAGE (5% polyacrylamide) and analyzed by immunoblotting with anti-DNA-PKcs.

Recent studies have demonstrated that c-Abl-mediated phosphorylation of DNA-PK on tyrosine inhibits DNA-PKcs activity (27). Other studies have shown that autophosphorylation of DNA-PKcs inhibits its activity by inducing the dissociation of DNA-PKcs from DNA (8). To further assess the functional significance of the interaction between DNA-PKcs and PKCδ, we asked if PKCδ affects the association of DNA-PKcs with DNA. To address this issue, DNA-PKcs was bound to DNA-beads and incubated in the presence of wortmannin to inhibit DNA-PKcs autophosphorylation and hence its autodissociation from DNA. After being washed to remove unbound DNA-PKcs, the beads were incubated with GST-PKCδ CF or GST-PKCδ CF K-R in the presence of [32P]ATP. The bound and supernatant fractions were then analyzed by immunoblotting with anti-DNA-PKcs. The results demonstrate that addition of GST-PKCδ CF K-R has no detectable effect on the release of DNA-PKcs from DNA (Fig. 3B). By contrast, incubation with GST-PKCδ CF resulted in the release of DNA-PKcs from the beads (Fig. 3B). Whereas DNA-PK requires DNA for activity, these results suggest that PKCδ CF inhibits DNA-PK activity by abrogating the ability of DNA-PK to associate with DNA.

PKCδ CF binds to DNA-PKcs at its catalytic domain.

To determine the regions of DNA-PKcs responsible for the association with PKCδ CF, fragments of the DNA-PKcs polypeptide were generated from mouse DNA-PKcs cDNAs. Fourteen different DNA-PKcs fragments, representing the entire open reading frame, were synthesized by in vitro transcription-translation (Fig. 4A) (24). Purified GST-PKCδ CF was incubated separately with the in vitro-translated fragments of DNA-PK, washed, and analyzed by autoradiography. The signal intensities of GST-PKCδ CF-bound DNA-PKcs fragments were compared to the total amount of product in the reaction mixture by densitometeric scanning. The results demonstrate that DNA-PKcs-6 (amino acids 2333 to 2774; 10 to 15% bound to PKCδ CF), DNA-PKcs-8 (amino acids 3414 to 3850; 12 to 18% bound), DNA-PKcs-9 (amino acids 3757 to 4124; 22 to 25% bound), and DNA-PKcs-15 (amino acids 3414 to 4123; 18 to 25% bound) associate with GST-PKCδ CF but not with GST (Figs. 4B and C and data not shown). Thus, PKCδ CF binds to DNA-PKcs through a 1,790-amino-acid region that in part includes the PK homology domain.

FIG. 4.

FIG. 4

Open in a new tab

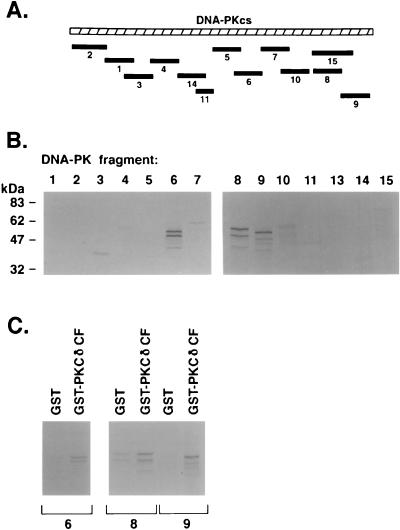

Association of PKCδ CF with specific DNA-PKcs protein fragments. (A) Positions of the DNA-PKcs protein fragments. Protein fragments from various regions of the DNA-PKcs gene were prepared by PCR and in vitro transcription-translation as described in the text. (B) GST-PKCδ CF bound to glutathione-Sepharose was mixed with in vitro-translated products from DNA-PKcs regions to allow binding. After being washed, samples were separated by SDS-PAGE (10% polyacrylamide) and analyzed by autoradiography. (C) GST-PKCδ CF or GST bound to glutathione-Sepharose was mixed with DNA-PKcs fragment 6, 8, or 9. After being washed, the bound proteins were analyzed by SDS-PAGE and autoradiography.

Cleavage of DNA-PKcs by caspase 3 and inhibition of DNA-PKcs activity by phosphorylation with PKCδ CF.

Recent studies have shown that DNA-PKcs kinase activity is reduced in apoptotic cells and that the inhibition correlates with proteolytic cleavage of DNA-PKcs (51). To investigate which protease is responsible for cleaving DNA-PKcs in vitro, we treated purified DNA-PKcs with caspase 3 or interleukin-converting enzyme (ICE). In contrast to ICE, caspase 3 induced the cleavage of purified DNA-PKcs to 240- and 150-kDa fragments (Fig. 5A). Overexposed gels demonstrate a minor cleaved fragment of 120 kDa (data not shown). To determine whether cleavage of DNA-PKcs by caspase 3 inhibits DNA-PKcs activity in vitro, we incubated purified DNA-PK–Ku–DNA complexes with caspase 3 for 30 min to 1 h and used autoradiography to analyze the products of a kinase reaction performed in the presence of [γ-32P]ATP. As assessed by autophosphorylation and/or phosphorylation of the cleaved fragments, the results demonstrate that the 240-kDa cleavage fragment of DNA-PKcs (DNA-PK CL1) is phosphorylated (Fig. 5B). In vitro, DNA-PKcs phosphorylates p53, and this event requires binding of DNA-PKcs to DNA (35). Therefore, to further assess the effect of caspase 3-mediated cleavage on DNA-PK activity, we incubated purified DNA-PK–Ku–DNA complexes with caspase 3 and assessed DNA-PK activity with GST-p53 as a substrate. The results demonstrate that cleavage of DNA-PKcs by caspase 3 inhibits in part the DNA-PKcs activity as assessed by its phosphorylation of p53 (Fig. 5C).

FIG. 5.

FIG. 5

Open in a new tab

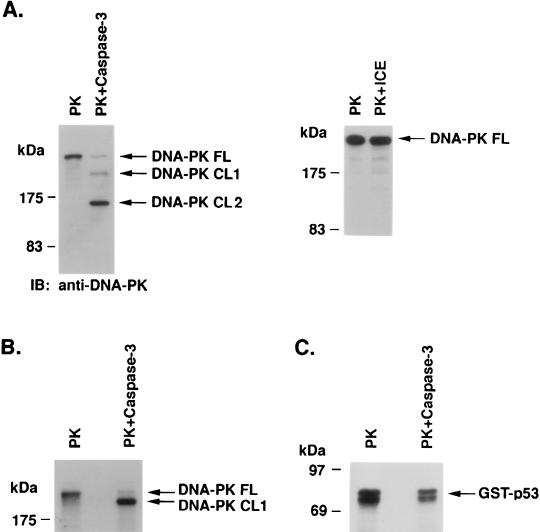

Caspase 3 cleaves DNA-PKcs and partially inhibits DNA-PKcs activity. (A) Purified DNA-PK was incubated with recombinant caspase 3 (2.5 μg/ml) (left) or with recombinant ICE (right) at room temperature for 1 h or 30 min, respectively. The reaction products were subjected to SDS-PAGE and analyzed by immunoblotting with anti-DNA-PKcs. (B and C) Purified DNA-PK/Ku in the presence of DNA-beads was incubated with recombinant caspase 3 for 1 h at room temperature. In vitro kinase reactions containing [γ-32P]ATP were performed in the absence (B) or presence (C) of GST-p53 as the substrate. The reactions were stopped by the addition of SDS sample buffer, and the products were analyzed by SDS-PAGE and autoradiography. DNA-PK CL1 and CL2, DNA-PK-cleaved fragments 1 and 2.

Whereas the present findings demonstrate that cleavage of DNA-PKcs by caspase 3 is associated with partial inhibition of DNA-PKcs activity, we asked whether the cleaved DNA-PKcs fragment is affected by PKCδ CF phosphorylation. To address this issue, we first incubated purified DNA-PK–Ku complexes with in vitro-translated caspase 3 to generate its fragments. The cleaved fragments of DNA-PKcs were then incubated with GST-PKCδ CF, GST-PKCδ CF K-R, or buffer in the presence of [γ-32P]ATP. The DNA-PKcs activity in kinase reaction mixtures was assessed by autophosphorylation or phosphorylation of the DNA-PK CL1 or by using GST-p53 as the substrate. The results demonstrate that autophosphorylation of DNA-PKcs, phosphorylation of the DNA-PKcs CL1, or phosphorylation of p53 by PKCδ CF is associated with inhibition of DNA-PKcs activity (Fig. 6). PKCδ CF binds to DNA-PKcs at the catalytic domain (fragments 8, 9, and 15 [Fig. 4]), and this interaction contributes in part to the inhibition of DNA-PKcs (Fig. 6C). Similarly, cleavage of DNA-PKcs by caspase 3 also partially inhibits DNA-PKcs activity (Fig. 5). However, more pronounced inhibition of DNA-PKcs activity was observed upon PKCδ CF-mediated phosphorylation of DNA-PKcs (Fig. 6C). To assess whether cleavage of DNA-PKcs facilitates the inhibition of DNA-PKcs activity by PKCδ CF-mediated phosphorylation, we performed experiments in which uncleaved DNA-PKcs was incubated with PKCδ CF or PKCδ CF K-R and then analyzed for DNA-PKcs-dependent p53 phosphorylation. The results demonstrate that phosphorylation of uncleaved DNA-PKcs by PKCδ CF inhibits DNA-PKcs activity but not to the extent observed when cleaved DNA-PKcs is phosphorylated by PKCδ CF (Fig. 6C and data not shown). Taken together, these findings indicate that the interaction of PKCδ CF with DNA-PKcs and caspase 3-mediated cleavage of DNA-PKcs independently contribute in part to inhibition of DNA-PKcs activity. However, nearly complete inhibition of DNA-PKcs activity was observed when PKCδ CF phosphorylated the cleaved fragment of DNA-PKcs (Fig. 5 and 6).

FIG. 6.

FIG. 6

Open in a new tab

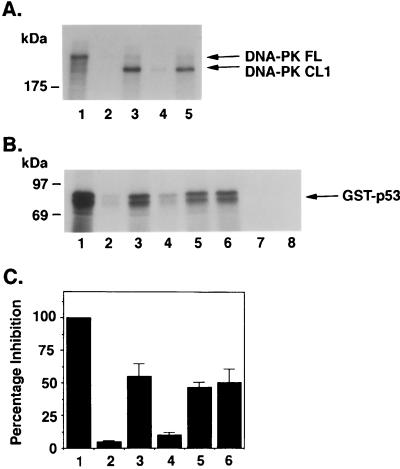

Phosphorylation and inactivation of DNA-PKcs by PKCδ CF. (A and B) Purified DNA-PK–Ku in the presence of DNA-beads was incubated with recombinant caspase 3 for 1 h at room temperature. In vitro phosphorylation of the cleaved fragments of DNA-PK was then performed in the presence of [γ-32P]ATP and GST-PKCδ CF or GST-PKCδ CF K-R for 15 min at 30°C. After phosphorylation of DNA-PKcs and removal of PKCδ-CF or PKCδ CF K-R by sedimentation, kinase reactions were performed in the absence (A) or presence (B) of GST-p53 for an additional 15 min at 30°C. The reactions were stopped by the addition of SDS sample buffer, and the products were analyzed by SDS-PAGE and autoradiography. Lanes: 1, DNA-PK–Ku with DNA; 2, DNA-PK–Ku without DNA; 3, DNA-PK–Ku with DNA and caspase 3; 4, DNA-PK–Ku with DNA caspase 3, and GST-PKCδ CF; 5, DNA-PK–Ku with DNA, caspase 3, and GST-PKCδ CF K-R; 6, DNA-PK–Ku with DNA and GST-PKCδ CF; 7, GST-p53; 8, buffer with [γ-32P]ATP. (C) The percent inhibition of DNA-PKcs-mediated GST-p53 phosphorylation is expressed as the mean ± SD of four independent experiments.

Functional role of DNA-PK–PKCδ complexes in apoptosis.

Both PKCδ and DNA-PKcs are cleaved after apoptotic stimuli of cells (14, 51). If the cleavage and regulation of these proteins is associated with functions in apoptosis, mutant cells of DNA-PKcs may show alterations in apoptotic pathways that are dependent on PKCδ. DNA-PK-deficient (ScSV3, scid) and DNA-PK+ (SCH8-1, scid + human DNA-PKcs) cells (5) were transiently transfected with GFP vectors expressing PKCδ CF. After 48 h, the morphology of GFP-positive cells was analyzed. PKCδ was found to stimulate the disintegration or shrinkage of nuclei of DNA-PK+ cells, indicative of apoptosis (Fig. 7). In striking contrast, DNA-PK-deficient cells failed to demonstrate nuclear shrinkage in response to PKCδ CF. To confirm whether the differential response was due to DNA-PK mutations, we examined a second set of DNA-PK mutant and control Chinese hamster ovary cell lines in the same way. DNA-PK-deficient CHO V-3 cells (52) failed to form PKCδ CF-dependent apoptosis, unlike the DNA-PK+ parental CHO cells (Fig. 8). Thus, DNA-PK is linked to apoptotic mechanisms via PKCδ.

FIG. 7.

FIG. 7

Open in a new tab

Transient overexpression of PKCδ CF in SCH8-1 (DNA-PK+/+) and ScSV3 (DNA-PK−/−) cells. GFP-tagged PKCδ CF was transiently transfected in SCH8-1 (DNA-PK+/+) and ScSV3 (DNA-PK−/−) cells. The cells were stained with DAPI, and the GFP-positive cells were analyzed by confocal microscopy. The results are shown as overlay photographs of DAPI and GFP staining. Arrows indicate apoptotic cells. Bar, 10 μm.

FIG. 8.

FIG. 8

Open in a new tab

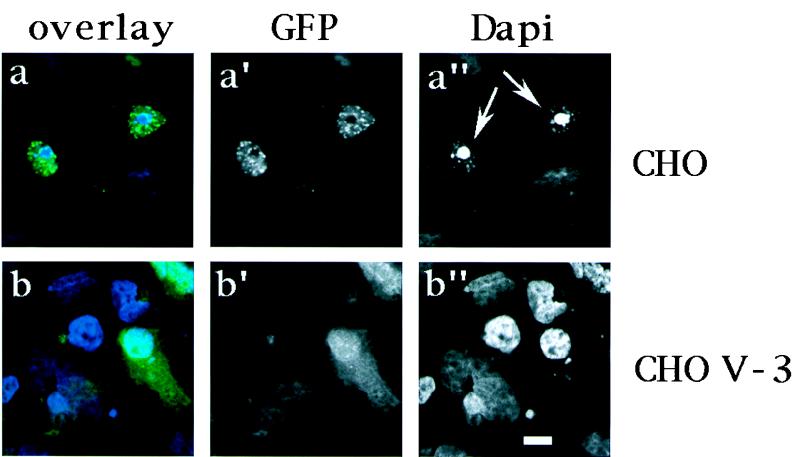

Transient overexpression of PKCδ CF in DNA-PK−/− and DNA-PK+/+ CHO cells. GFP-tagged PKCδ CF was transiently transfected in CHO (DNA-PK+/+) and CHO V-3 (DNA-PK−/−) cells. The cells were stained with DAPI, and the GFP-positive cells were analyzed by confocal microscopy. The results are shown as overlay photographs of DAPI and GFP staining. Arrows indicate apoptotic cells. Bar, 10 μm.

If phosphorylation by PKCδ is required in apoptosis, a PKCδ mutant protein inactivated in kinase activity would be expected to differ in its properties in the above assay. To test this, SCH8-1 and ScSV3 cells were transiently transfected with GFP vectors expressing PKCδ CF or the kinase-inactive mutant PKCδ CF K-R. After 48 h, the cells were sorted for GFP positivity and analyzed for sub-G1 DNA content. Approximately 60% of the cells were apoptotic when PKCδ CF was overexpressed in DNA-PK+/+ cells, in contrast to 20% in DNA-PK−/− cells (Fig. 9). By contrast, only 10% cells were apoptotic when PKCδ CF K-R was transfected into DNA-PK+/+ cells (Fig. 9). Taken together, these findings demonstrate that interaction of DNA-PKcs with PKCδ CF contributes to apoptosis.

FIG. 9.

FIG. 9

Open in a new tab

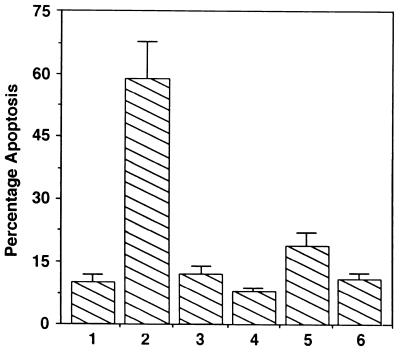

Transient overexpression of PKCδ CF and not PKCδ CF K-R in DNA-PK+/+ cells is associated with induction of apoptosis. GFP-tagged PKCδ CF or PKCδ CF K-R mutant was transiently transfected in SCH8-1 (DNA-PK+/+) (lane 1, GFP; lane 2, GFP-PKCδ CF; lane 3, GFP-PKCδ CF K-R) or ScSV3 (DNA-PK−/−) (lane 4, GFP; lane 5, GFP-PKCδ CF; lane 6, GFP-PKCδ CF K-R) cells. As controls, cells were transfected with GFP-expressing empty vector. The GFP-positive cells were sorted by FACScan analysis and analyzed for DNA content by flow cytometry. The results are expressed as the percentage (mean ± SD of three independent experiments, each performed in duplicate) of cells with sub-G1 DNA content.

DISCUSSION

Caspase-mediated proteolysis in apoptosis.

In addition to PKCδ, substrates that are activated by caspase-mediated cleavage in apoptosis include the p21-activated kinase 2 (PAK2) (49), cytosolic phospholipase A2 (56), sterol regulatory binding proteins (44), the 45-kDa subunit of DNA fragmentation factor (38), and PITSLRE kinase α2-1 (4). Expression of the cleaved fragments of PKCδ or PAK2 in cells induces certain characteristics of apoptosis (17, 49). However, the precise role of these cleaved proteins in apoptosis is unclear. By contrast, other proteins are inactivated by caspases. Previous studies have demonstrated that DNA-PKcs is a substrate of caspase 3 and that cleavage is accompanied by loss of DNA-PKcs activity (7, 19, 51). The functional role of DNA-PK cleavage in the induction of apoptosis, like that for many of the other substrates of caspases, is unknown.

DNA-PKcs is cleaved by caspase 3 at a DEVD/N2713 site into N-terminal 240-kDa and C-terminal 150-kDa fragments. The 150-kDa fragment contains another DWVD/G site that predicts the generation of an additional fragment of 120 kDa (51). In the present studies, cleavage of DNA-PKcs to the 240- and 150-kDa fragments by caspase 3 resulted in partial loss of catalytic activity in the presence of Ku and DNA. Moreover, cleavage of DNA-PKcs also partially inhibited the DNA-PKcs-mediated phosphorylation of p53. These findings suggest that mechanisms other than cleavage of DNA-PKcs by caspase 3 are responsible for the loss of DNA-PKcs activity that has been observed in cells induced to undergo apoptosis (51).

Regulation of DNA-PKcs activity.

DNA-PKcs autophosphorylation inactivates DNA-PKcs by a mechanism in which DNA-PKcs disassociates from Ku (8). Other studies have demonstrated that the c-Abl tyrosine kinase negatively regulates DNA-PKcs activity in the response to DNA damage (27). c-Abl phosphorylates the C-terminal region of DNA-PKcs and induces the disassociation of DNA-PKcs from the DNA-PKcs–Ku complex (24, 27). c-Abl and Ku both bind to the C terminus of DNA-PKcs near the kinase domain, and c-Abl phosphorylates the region of DNA-PKcs to which Ku binds (24). Thus, autophosphorylation and c-Abl-mediated phosphorylation regulate DNA-PKcs activity by mechanisms that oppose the activation of DNA-PKcs through binding to the Ku-DNA complex.

The present studies demonstrate that DNA-PKcs is also regulated by PKCδ. DNA-PKcs constitutively associates with the full-length form of PKCδ in nonapoptotic cells and with PKCδ CF in cells induced to undergo apoptosis. The results indicate that PKCδ, like c-Abl, binds directly to the C terminus of DNA-PKcs at the catalytic domain. PKCδ CF phosphorylates DNA-PKcs and results in the disassociation of DNA-PKcs from DNA. These findings are in concert with the demonstration that interaction of DNA-PKcs with PKCδ inhibits DNA-PKcs activity. Taken together with the finding that cleavage of DNA-PKcs by caspase 3 is partially sufficient to inhibit DNA-PKcs activity, the results support a model in which cleavage of PKCδ to the catalytically active fragment results in association and phosphorylation of DNA-PKcs and thereby complete inhibition of DNA-PKcs activity. Thus, on the basis of these findings, we would propose that in addition to autophosphorylation (8) and c-Abl-mediated phosphorylation (24, 27), DNA-PKcs is downregulated by PKCδ. To our knowledge, DNA-PKcs may be the first substrate found to be regulated by PKCδ CF-mediated phosphorylation.

Recent studies have shown that PKCδ associates constitutively with c-Abl (59). Activation of c-Abl by DNA damage results in c-Abl-dependent phosphorylation of PKCδ. Also, c-Abl-mediated phosphorylation of PKCδ results in activation of PKCδ in vitro and in irradiated cells (59). Whereas c-Abl functions in the downregulation of DNA-PKcs by mediating direct phosphorylation of DNA-PKcs (27), it may also contribute to the interaction of PKCδ and DNA-PKcs by activating PKCδ. In this context, c-Abl associates with PKCδ in a complex that includes DNA-PKcs (27, 59). The activation of PKCδ by c-Abl in the response to DNA damage (59) thus provides a mechanism by which both c-Abl and PKCδ can downregulate DNA-PKcs activity. Subsequent cleavage of PKCδ to the catalytic fragment by caspase 3 would preclude further activation by a c-Abl-dependent mechanism. The constitutive activation of PKCδ CF and thereby the phosphorylation of DNA-PKcs and/or the cleaved CL1 fragment is sufficient to inhibit disassociation of DNA-PKcs from the Ku-DNA complex.

Functional interaction of DNA-PKcs and PKCδ in apoptosis.

Overexpression of PKCδ CF in cells is associated with chromatin condensation, nuclear fragmentation, induction of sub-G1 DNA, and lethality (17). These findings have indicated that cleavage of PKCδ to a kinase-active fragment by caspase 3 contributes to multiple changes that are characteristic of apoptosis. Whereas the mechanistic basis for the proapoptotic effects of PKCδ CF are unclear, the demonstration that PKCδ CF interacts with DNA-PKcs prompted studies on the functional significance of this interaction. Cells deficient in DNA-PKcs were transfected to express PKCδ CF, and the findings were compared to those obtained with cells that express DNA-PK. The results obtained with ScSv3 (DNA-PK−/−) and SCH8-1 (DNA-PK+/+) cells demonstrate that PKCδ CF-induced apoptosis is abrogated in part in DNA-PK-deficient cells. Similar results were obtained with CHO V-3 (DNA-PK−/−) and CHO (DNA-PK+/+) cells transfected to express PKCδ CF. These findings suggest that PKCδ CF induces apoptosis, at least in part by a DNA-PK-dependent mechanism.

The demonstration that cells deficient in DNA-PK are hypersensitive to DNA-damaging agents has supported a direct role for DNA-PKcs in DNA repair (5, 30, 34). The inhibition of DNA-PKcs by PKCδ CF would be expected to inhibit DNA repair and thereby facilitate the DNA fragmentation that is induced in apoptosis. Thus, given that PKCδ inhibits DNA-PKcs activity, it is not evident why DNA-PK−/− cells would be less sensitive to PKCδ CF-induced apoptosis. One potential explanation is that the direct binding of PKCδ CF to DNA-PKcs provides access for DNA-PKcs substrates to phosphorylation by PKCδ CF. In this context, DNA-PKcs associates with and phosphorylates the p53 tumor suppressor and other proteins. The present experiments have not addressed whether the pools of DNA-PKcs that associate with PKCδ are the same as those that form complexes with other proteins. However, it is conceivable that in the absence of DNA-PKcs, PKCδ would not be positioned to interact with a protein that is central to the apoptotic response. Insights into this potential mechanism could be obtained from an analysis of other proteins associated with the PKCδ–DNA-PKcs complex.

ACKNOWLEDGMENTS

We thank Stephen Jackson for critical reading of the manuscript and for invaluable suggestions.

This investigation was supported by PHS grants CA75216 (S.K.) and CA55241 (D.K.) awarded by the National Cancer Institute, DHHS.

REFERENCES

  • 1.Alnemri E S, Livingston D J, Nicholson D W, Salvesen G, Thornberry N A, Wong W W, Yuan J. Human ICE/CED-3 protease nomenclature. Cell. 1996;87:171. doi: 10.1016/s0092-8674(00)81334-3. [DOI] [PubMed] [Google Scholar]
  • 2.Anderson C W, Lees-Miller S P. The nuclear serine/threonine protein kinase DNA-PK. Crit Rev Eukaryotic Gene Expression. 1992;2:283–314. [PubMed] [Google Scholar]
  • 3.Armstrong R C, Aja T, Xiang J, Gaur S, Krebs J F, Hoang K, Bai X, Korsmeyer S J, Karanewsky D S, Fritz L C, Tomaselli K J. Fas-induced activation of the cell death-related protease CPP32 is inhibited by Bcl-2 and by ICE family protease inhibitors. J Biol Chem. 1996;271:16850–16855. doi: 10.1074/jbc.271.28.16850. [DOI] [PubMed] [Google Scholar]
  • 4.Beyaert R, Kidd V J, Cornelis S, Van de Craen M, Denecker G, Lahti J M, Gururajan R, Vandenabeele P, Fiers W. Cleavage of PITSLRE kinases by ICE/CASP-1 and CPP32/CASP-3 during apoptosis induced by tumor necrosis factor. J Biol Chem. 1997;272:11694–11697. doi: 10.1074/jbc.272.18.11694. [DOI] [PubMed] [Google Scholar]
  • 5.Boubnov N V, Weaver D T. Scid cells are deficient in Ku and replication protein A phosphorylation by the DNA-dependent protein kinase. Mol Cell Biol. 1995;15:5700–5706. doi: 10.1128/mcb.15.10.5700. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Bump N J, Hackett M, Hugunin M, Seshagiri S, Brady K, Chen P, Ferenz C, Franklin S, Ghayur T, Li P, Licari P, Mankovich J, Shi L, Greenberg A H, Miller L K, Wong W W. Inhibition of ICE family proteases by baculovirus antiapoptotic protein p35. Science. 1995;269:1885–1888. doi: 10.1126/science.7569933. [DOI] [PubMed] [Google Scholar]
  • 7.Casciola-Rosen L, Nicholson D W, Chong T, Rowan K R, Thornberry N A, Miller D K, Rosen A. Apopain/CPP32 cleaves proteins that are essential for cellular repair: a fundamental principle of apoptotic death. J Exp Med. 1996;183:1957–1964. doi: 10.1084/jem.183.5.1957. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Chan D W, Lees-Miller S P. The DNA-dependent protein kinase is inactivated by autophosphorylation of the catalytic subunit. J Biol Chem. 1996;271:8936–8941. doi: 10.1074/jbc.271.15.8936. [DOI] [PubMed] [Google Scholar]
  • 9.Chu G. Double strand break repair. J Biol Chem. 1997;272:24097–24100. doi: 10.1074/jbc.272.39.24097. [DOI] [PubMed] [Google Scholar]
  • 10.Datta R, Kojima H, Banach D, Bump N J, Talanian R V, Alnemri E S, Weichselbaum R R, Wong W W, Kufe D W. Activation of a CrmA-insensitive, p35-sensitive, pathway in ionizing radiation-induced apoptosis. J Biol Chem. 1997;272:1965–1969. doi: 10.1074/jbc.272.3.1965. [DOI] [PubMed] [Google Scholar]
  • 11.Denning M F, Dlugosz A A, Threadgill D W, Magnuson T, Yuspa S H. Activation of the epidermal growth factor receptor signal transduction pathway stimulates tyrosine phosphorylation of protein kinase C δ. J Biol Chem. 1996;271:5325–5331. doi: 10.1074/jbc.271.10.5325. [DOI] [PubMed] [Google Scholar]
  • 12.Duan H, Orth K, Chinnaiyan A M, Poirier G G, Froelich C J, He W-W, Dixit V M. ICE-LAP6, a novel member of the ICE/Ced-3 gene family, is activated by the cytotoxic T cell protease granzyme B. J Biol Chem. 1996;271:16720–16724. doi: 10.1074/jbc.271.28.16720. [DOI] [PubMed] [Google Scholar]
  • 13.Emoto Y, Kisaki H, Manome Y, Kharbanda S, Kufe D. Activation of protein kinase C δ in human myeloid leukemia cells treated with 1-β-d-arabinofuranosylcytosine. Blood. 1996;87:1990–1996. [PubMed] [Google Scholar]
  • 14.Emoto Y, Manome G, Meinhardt G, Kisaki H, Kharbanda S, Robertson M, Ghayur T, Wong W W, Kamen R, Weichselbaum R, Kufe D. Proteolytic activation of protein kinase Cδ by an ICE-like protease in apoptotic cells. EMBO J. 1995;14:6148–6156. doi: 10.1002/j.1460-2075.1995.tb00305.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Enari M, Hug H, Nagata S. Involvement of an ICE-like protease in Fas-mediated apoptosis. Nature. 1995;375:78–81. doi: 10.1038/375078a0. [DOI] [PubMed] [Google Scholar]
  • 16.Fukumoto S, Nishizawa Y, Hosoi M, Koyama H, Yamakawa K, Ohno S, Morii H. Protein kinase C delta inhibits the proliferation of vascular smooth muscle cells by suppressing G1 cyclin expression. J Biol Chem. 1997;272:13816–13822. doi: 10.1074/jbc.272.21.13816. [DOI] [PubMed] [Google Scholar]
  • 17.Ghayur T, Hugunin M, Talanian R V, Ratnofsky S, Quinlan C, Emoto Y, Pandey P, Datta R, Kharbanda S, Allen H, Kamen R, Wong W, Kufe D. Proteolytic activation of protein kinase C δ by an ICE/CED 3-like protease induces characteristics of apoptosis. J Exp Med. 1996;184:2399–2404. doi: 10.1084/jem.184.6.2399. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Hammarsten O, Chu G. DNA-dependent protein kinase: DNA binding and activation in the absence of Ku. Proc Natl Acad Sci USA. 1998;95:525–530. doi: 10.1073/pnas.95.2.525. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Han Z, Malik N, Carter T, Reeves W H, Wyche J H, Hendrickson E A. DNA-dependent protein kinase is a target for a CPP32-like apoptotic protease. J Biol Chem. 1996;271:25035–25040. doi: 10.1074/jbc.271.40.25035. [DOI] [PubMed] [Google Scholar]
  • 20.Hartley K O, Gell D, Smith G C M, Zhang H, Divecha N, Connelly M A, Admon A, Lees-Miller S P, Anderson C W, Jackson S P. DNA-dependent protein kinase catalytic subunit: a relative of phosphatidylinositol 3-kinase and the ataxia telangiectasia gene product. Cell. 1995;82:849–856. doi: 10.1016/0092-8674(95)90482-4. [DOI] [PubMed] [Google Scholar]
  • 21.Horvitz H R, Shaham S, Hengartner M O. The genetics of programmed cell death in the nematode Caenorhabditis elegans. Cold Spring Harbor Symp Quant Biol. 1994;59:377–385. doi: 10.1101/sqb.1994.059.01.042. [DOI] [PubMed] [Google Scholar]
  • 22.Jackson S P, Jeggo P A. DNA double-strand break repair, V(D)J recombination: involvement of DNA-PK. Trends Biochem Sci. 1995;20:412–415. doi: 10.1016/s0968-0004(00)89090-8. [DOI] [PubMed] [Google Scholar]
  • 23.Jacobson M D, Weil M, Raff M C. Programmed cell death in animal development. Cell. 1997;88:347–354. doi: 10.1016/s0092-8674(00)81873-5. [DOI] [PubMed] [Google Scholar]
  • 24.Jin S, Kharbanda S, Mayer B, Kufe D, Weaver D T. Binding of Ku and c-Abl at the kinase homology region of DNA-dependent protein kinase catalytic subunit. J Biol Chem. 1997;272:24763–24766. doi: 10.1074/jbc.272.40.24763. [DOI] [PubMed] [Google Scholar]
  • 25.Kaufmann S H, Desnoyers S, Ottaviano Y, Davidson N E, Poirier G G. Specific proteolytic cleavage of poly(ADP-ribose) polymerase: an early marker of chemotherapy-induced apoptosis. Cancer Res. 1993;53:3976–3985. [PubMed] [Google Scholar]
  • 26.Kerr J F R, Wyllie A H, Currie A R. Apoptosis: a basic biological phenomenon with wide-ranging implication in tissue kinetics. Br J Cancer. 1972;26:239–257. doi: 10.1038/bjc.1972.33. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Kharbanda S, Pandey P, Jin S, Inoue S, Bharti A, Yuan Z-M, Weichselbaum R, Weaver D, Kufe D. Functional interaction of DNA-PK and c-Abl in response to DNA damage. Nature. 1997;386:732–735. doi: 10.1038/386732a0. [DOI] [PubMed] [Google Scholar]
  • 28.Kharbanda S, Pandey P, Schofield L, Roncinske R, Israel S, Bharti A, Yuan Z-M, Weichselbaum R, Saxena S, Nalin C, Kufe D. Role for Bcl-xL as an inhibitor of cytosolic cytochrome C accumulation in apoptosis. Proc Natl Acad Sci USA. 1997;94:6939–6942. doi: 10.1073/pnas.94.13.6939. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Kikkawa U, Kishimoto A, Nishizuka Y. The protein kinase C family: heterogeneity and its implications. Annu Rev Biochem. 1989;58:31–44. doi: 10.1146/annurev.bi.58.070189.000335. [DOI] [PubMed] [Google Scholar]
  • 30.Kirchgessner C U, Patil C K, Evans J W, Cuomo C A, Fried L M, Carter T, Oettinger M A, Brown J M. DNA-dependent kinase (p350) as a candidate gene for the murine SCID defect. Science. 1995;267:1178–1183. doi: 10.1126/science.7855601. [DOI] [PubMed] [Google Scholar]
  • 31.Kluck R M, Bossy-Wetzel E, Green D R, Newmeyer D D. The release of cytochrome c from mitochondria: a primary site for Bcl-2 regulation of apoptosis. Science. 1997;275:1132–1136. doi: 10.1126/science.275.5303.1132. [DOI] [PubMed] [Google Scholar]
  • 32.Lazebnik Y A, Cole S, Cooke C A, Nelson W G, Earnshaw W C. Nuclear events of apoptosis in vitro in cell-free mitotic extracts: a model system for analysis of the active phase of apoptosis. J Cell Biol. 1993;123:7–22. doi: 10.1083/jcb.123.1.7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Lees-Miller S P, Chen Y, Anderson C W. Human cells contain a DNA-activated protein kinase that phosphorylates simian virus 40 T antigen, mouse p53 and the human Ku autoantigen. Mol Cell Biol. 1990;10:6472–6481. doi: 10.1128/mcb.10.12.6472. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Lees-Miller S P, Godbout R, Chan D W, Weinfeld M, Day R S I, Barron G M, Allalunis-Turner J. Absence of p350 subunit of DNA-activated protein kinase from a radiosensitive human cell line. Science. 1995;267:1183–1185. doi: 10.1126/science.7855602. [DOI] [PubMed] [Google Scholar]
  • 35.Lees-Miller S P, Sakaguchi K, Ullrich S J, Appella E, Anderson C W. Human DNA-activated protein kinase phosphorylates serines 15 and 37 in the amino-terminal transactivation domain of human p53. Mol Cell Biol. 1992;12:5041–5049. doi: 10.1128/mcb.12.11.5041. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Li P, Nijhawan D, Budihardjo I, Srinivasula S M, Ahmad M, Alnemn E S, Wang X. Cytochrome c and dATP-dependent formation of Apaf-1/caspase-9 complex initiates an apoptotic protease cascade. Cell. 1997;91:479–489. doi: 10.1016/s0092-8674(00)80434-1. [DOI] [PubMed] [Google Scholar]
  • 37.Li W, Michieli P, Alimandi M, Lorenzi M V, Wu Y, Wang L H, Heidaran M A, Pierce J H. Expression of an ATP binding mutant of PKC-delta inhibits Sis-induced transformation of NIH3T3 cells. Oncogene. 1996;13:731–737. [PubMed] [Google Scholar]
  • 38.Liu X, Zou H, Slaughter C, Wang X. DFF, a heterodimeric protein that functions downstream of caspase-3 to trigger DNA fragmentation during apoptosis. Cell. 1997;89:175–184. doi: 10.1016/s0092-8674(00)80197-x. [DOI] [PubMed] [Google Scholar]
  • 39.Los M, van de Craen M, Penning L C, Schenk H, Westendorp M, Baeuerle P A, Droge W, Krammer P H, Fiers W, Schulze-Osthoff K. Requirement of an ICE-CED-3 protease for Fas/APO-1-mediated apoptosis. Nature. 1995;375:81–83. doi: 10.1038/375081a0. [DOI] [PubMed] [Google Scholar]
  • 40.Lu Z, Hornia A, Jiang Y-W, Zang Q, Ohno S, Foster D A. Tumor promotion by depleting cells of protein kinase Cδ. Mol Cell Biol. 1997;17:3418–3428. doi: 10.1128/mcb.17.6.3418. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Muzio M, Chinnaiyan A M, Kischkel F C, O’Rourke K, Shevchenko A, Ni J, Scaffidi C, Bretz J D, Zhang M, Gentz R, Mann M, Krammer P H, Peter M E, Dixit V M. FLICE, a novel FADD-homologous ICE/CED-3-like protease, is recruited to the CD95 (Fas/APO-1) death-inducing signaling complex. Cell. 1996;85:817–827. doi: 10.1016/s0092-8674(00)81266-0. [DOI] [PubMed] [Google Scholar]
  • 42.Nicholson D W. ICE/CED3-like proteases as therapeutic targets for the control of inappropriate apoptosis. Nat Biotechnol. 1996;14:297–301. doi: 10.1038/nbt0396-297. [DOI] [PubMed] [Google Scholar]
  • 43.Nicholson D W, Ali A, Thornberry N A, Vaillancourt J P, Ding C K, Gallant M, Gareau Y, Griffin P R, Labelle M, Lazebnik Y A, Munday N A, Raju S M, Smulson M E, Yamin T-T, Yu V L, Miller D K. Identification and inhibition of the ICE/CED-3 protease necessary for mammalian apoptosis. Nature. 1995;376:37–43. doi: 10.1038/376037a0. [DOI] [PubMed] [Google Scholar]
  • 44.Pai J T, Brown M S, Goldstein J L. Purification and cDNA cloning of a second apoptosis-related cysteine protease that cleaves and activates sterol regulatory element binding proteins. Proc Natl Acad Sci USA. 1996;93:5437–5442. doi: 10.1073/pnas.93.11.5437. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Pandey P, Raingeaud J, Kaneki M, Weichselbaum R, Davis R, Kufe D, Kharbanda S. Activation of p38 MAP kinase by c-Abl-dependent and -independent mechanisms. J Biol Chem. 1996;271:23775–23779. doi: 10.1074/jbc.271.39.23775. [DOI] [PubMed] [Google Scholar]
  • 46.Park D S, Stefanis L, Yan C Y I, Farinelli S E, Greene L A. Ordering the cell death pathway. J Biol Chem. 1996;271:21898–21905. doi: 10.1074/jbc.271.36.21898. [DOI] [PubMed] [Google Scholar]
  • 47.Pronk G J, Ramer K, Amiri P, Williams L T. Requirement of an ICE-like protease for induction of apoptosis and ceramide generation by REAPER. Science. 1996;271:808–810. doi: 10.1126/science.271.5250.808. [DOI] [PubMed] [Google Scholar]
  • 48.Ray C A, Black R A, Kronheim S R, Greenstreet T A, Sleath P R, Salvesen G S, Pickup D J. Viral inhibition of inflammation: cowpox virus encodes an inhibitor of the interleukin-1β-converting enzyme. Cell. 1992;69:597–604. doi: 10.1016/0092-8674(92)90223-y. [DOI] [PubMed] [Google Scholar]
  • 49.Rudel T, Bokoch G M. Membrane and morphological changes in apoptotic cells regulated by caspase-mediated activation of PAK2. Science. 1997;276:1571–1574. doi: 10.1126/science.276.5318.1571. [DOI] [PubMed] [Google Scholar]
  • 50.Singleton B K, Priestley A, Steingrimsdottir H, Gell D, Blunt T, Jackson S P, Lehmann A R, Jeggo P A. Molecular and biochemical characterization of xrs mutants defective in Ku80. Mol Cell Biol. 1997;17:1264–1273. doi: 10.1128/mcb.17.3.1264. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 51.Song Q, Lees-Miller S P, Kumar S, Zhang N, Chan D W, Smith G C M, Jackson S P, Alnemri E S, Litwack G, Khanna K K, Lavin M F. DNA-dependent protein kinase catalytic subunit: a target for an ICE-like protease in apoptosis. EMBO J. 1996;15:3238–3246. [PMC free article] [PubMed] [Google Scholar]
  • 52.Taccioli G E, Cheng H-L, Varghese A J, Whitmore G, Alt F W. A DNA repair defect in Chinese hamster ovary cells affects V(D)J recombinant similarly to the murine Scid mutation. J Biol Chem. 1994;269:7439–7442. [PubMed] [Google Scholar]
  • 53.Tewari M, Dixit V M. Fas- and tumor necrosis factor-induced apoptosis is inhibited by the poxvirus crmA gene product. J Biol Chem. 1995;270:3255–3260. doi: 10.1074/jbc.270.7.3255. [DOI] [PubMed] [Google Scholar]
  • 54.Watanabe T, Ono Y, Taniyama Y, Hazama K, Igarashi K, Ogita K, Kikkawa U, Nishizuka Y. Cell division arrest induced by phorbol ester in CHO cells overexpressing protein kinase C-δ subspecies. Proc Natl Acad Sci USA. 1992;89:10159–10163. doi: 10.1073/pnas.89.21.10159. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 55.Weaver D T. What to do at an end: DNA double-strand break repair. Trends Genet. 1995;11:388–392. doi: 10.1016/s0168-9525(00)89121-0. [DOI] [PubMed] [Google Scholar]
  • 56.Wissing D, Mouritzen H, Egeblad M, Poirier G G, Jaattela M. Involvement of caspase-dependent activation of cystolic phospholipase A2 in tumor necrosis factor-induced apoptosis. Proc Natl Acad Sci USA. 1997;94:5073–5077. doi: 10.1073/pnas.94.10.5073. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 57.Wyllie A H. Chromatin cleavage in apoptosis: association with condensed chromatin morphology and dependence on macromolecular synthesis. J Pathol. 1984;142:66–77. doi: 10.1002/path.1711420112. [DOI] [PubMed] [Google Scholar]
  • 58.Yang J, Liu X, Bhalla K, Kaekyung Kim C, Ibrado A M, Cai J, Peng T-I, Jones D P, Wang X. Prevention of apoptosis by Bcl-2: release of cytochrome c from mitochondria blocked. Science. 1997;275:1129–1132. doi: 10.1126/science.275.5303.1129. [DOI] [PubMed] [Google Scholar]
  • 59.Yuan Z-M, Utsugisawa T, Ishiko T, Nakada S, Huang Y, Kharbanda S, Weichselbaum R, Kufe D. Activation of protein kinase C δ by the c-Abl tyrosine kinase in response to ionizing radiation. Oncogene. 1998;16:1643–1648. doi: 10.1038/sj.onc.1201698. [DOI] [PubMed] [Google Scholar]
  • 60.Zang Q, Lu Z, Curto M, Barile N, Shalloway D, Foster D A. Association between v-Src and protein kinase C δ in v-Src-transformed fibroblasts. J Biol Chem. 1997;272:13275–13280. doi: 10.1074/jbc.272.20.13275. [DOI] [PubMed] [Google Scholar]
