Current trends in the development of polymer‐based monolithic stationary phases

Abstract

This review focuses on the development and applications of organic polymer monoliths, with special attention to the literature published in 2021. The latest protocols in the preparation of polymer monoliths are discussed. In particular, tailored surface modification using nanomaterials, the development of chiral stationary phases and development of stationary phases for capillary electrochromatography are reviewed. Furthermore, the optimization of pore forming solvents composition is also discussed. Finally, the use of monolithic stationary phases in sample treatment using solid‐phase extraction and enrichment methods, molecularly imprinted polymers and enzymatic reactors is mentioned.

Abbreviations

CEC

capillary electrochromatography

CSP

chiral stationary phase

GMA‐co‐EDMA

poly(glycidyl methacrylate‐co‐ethylene glycol dimethacrylate)

MOFs

metal‐organic frameworks

MIPs

Molecularly imprinted polymers

MNPs

magnetite nanoparticles

OT‐CEC

open tubular column applicable in CEC

PEGDA

polyethylene glycol diacrylate

SNW‐1

Schiff base network‐1

SPME

solid‐phase microextraction

VPBA

4‐vinylphenylboronic acid

1. INTRODUCTION

Pioneering work in the field of continuous stationary phases was carried out by Hjerten, ¹ who prepared gel by polymerization of N,N´‐methylenebisacrylamide and acrylic acid in the presence of ammonium sulphate. In the next step, synthesized polymers have been compressed inside the column to form continuous separation media that has been applied in the separation of proteins. Independently, Tennikova and Belenkii collaborated with Švec ² , ³ on the preparation of monolithic stationary phases in the format of flat polymer discs based on glycidyl methacrylate and ethylene dimethacrylate. In the early 1990s, Švec and Fréchet expanded this technology and introduced the first polymer monolithic chromatographic columns. ⁴ Due to their simple preparation, high permeability and wide pH stability, ⁵ , ⁶ organic polymer monoliths serve as an excellent alternative to the conventional particle columns ⁷ , ⁸ and, after 30 years of their development, have emerged as an important part of the family of stationary phases. ⁹

The preparation of polymer monolith is easy and straightforward. On the other hand, due to the large amount of experimental variables controlling the properties of the polymer (reaction time, temperature and composition of the polymerization mixture), the preparation of monolithic stationary phases yielding very good separation performance, requires a precisely tuned pore structure and chemistry. ¹⁰ , ¹¹ The stainless steel column, fused‐silica capillary, or microfluidic channel is filled with a polymerization mixture containing functional and crosslinking monomers dissolved in porogenic solvents in the presence of a suitable polymerization reaction initiator. ³ The reaction is then initiated by elevated temperature or UV irradiation. Finally, the column is flushed to remove the unreacted components of the polymerization mixture. ¹² The properties of monolithic stationary phases are easily controlled by the composition of the polymerization mixture, ³ polymerization temperature and reaction time ⁴ , ¹³ and post‐polymerization surface modification. ¹⁴

This review focuses on current trends and applications of polymer‐based monolithic stationary phases, summarizes the literature published in the year of 2021, and follows up to review article from the previous year. ¹⁵

2. CONTROLLING SURFACE CHEMISTRY AND MORPHOLOGY OF POLYMER MONOLITHS

The monolithic stationary phases may serve their purpose only if the surface chemistry corresponds to the desired application. For example, for reversed‐phase liquid chromatography, hydrophobic groups are required, ionisable groups must be present for the separation in ion‐exchange chromatography, and/or the presence of chiral selector in a stationary phase is necessary for chiral separations. ¹⁴ By carefully selecting the individual polymerization mixture components, the hydrodynamic and separation properties, such as porosity, efficiency, selectivity or permeability, can be controlled. ¹⁶

One possibility of preparing a monolithic stationary phase with the desired chemistry is direct copolymerization of crosslinking monomer with a selected functional monomer. Several functional monomers are available commercially, which significantly increases the diversity of possible surface chemistries. ¹⁷ Most of the columns are prepared using either methacrylate functional and crosslinking monomers ¹⁸ , ¹⁹ , ²⁰ or styrene‐based monomers together with divinylbenzene. ²¹ , ²² , ²³ Yet another option for how to prepare a monolithic stationary phase with the required surface chemistry is a post‐polymerization chemical modification based on the reaction of the reactive monolithic surface with derivative agents. For these modifications, reactive monomers, such as glycidyl methacrylate or vinylbenzyl chloride, are utilized the most. ²⁴ A preferable way to achieve the required control of the surface chemistry of the monolith is grafting method. In this technique, functional monomer chains are attached to the surface of the generic monolith by radical polymerization initiated by elevated temperature or UV radiation. ¹⁷ The main advantage of grafting reaction is spatial control over the modification process and large variability in selecting functional monomers that might be used to alter the surface chemistry of a generic monolith.

2.1. Tailored surface modification

Polymer monolithic stationary phases are well known for separating large molecules. ² On the other hand, preparation of polymer‐based monolithic stationary phases providing higher separation power for small molecules is still rather challenging. Several protocols were introduced to improve column efficiency ²⁵ including early termination of polymerization reaction ²⁶ , ²⁷ , ²⁸ or post‐polymerization surface modification with hyper‐cross‐linking reaction. ²⁹ Recently, the selectivity and performance of organic polymer monoliths have been improved by the incorporation of different materials, such as metal‐organic frameworks (MOFs), ³⁰ covalent organic frameworks, ³¹ or other types of nanostructured materials. ³² , ³³ , ³⁴ , ³⁵ , ³⁶ Polymer monoliths prepared by grafting modification reaction with MOFs and graphene oxide ³⁷ were applied for CO₂ capture and adsorption separation.

MOFs are porous materials consisting of the coordination of a metal ions or their clusters with organic ligand and exhibit unique properties including uniform pore sizes, large surface area and tunable surface chemistry. In combination with polymer monoliths, they allow the development of a novel type of composite monolithic stationary phases with improved chromatographic properties. Many immobilization approaches of MOFs onto organic polymer monoliths have been reported. ³⁸ The easiest method how to integrate MOFs into the monolith structure is a direct addition of MOFs crystals in polymerization mixture, ³⁹ where, however, blockage of polymer pores might result in retention loss and subsequent deterioration of analyte mass transfer. MOFs based on terephthalic acid and Zr(IV) (UiO‐66), ⁴⁰ or Cr(III) (MIL‐101(Cr)), ⁴¹ were integrated into polymer monoliths structure and applied as stationary phases in SMPE for determination of penicillin analogues in water with extraction time being only 34 min. ⁴² Lately, a MIL‐53(Al)‐methacrylate composite monolithic capillary column for the reverse phase separation of alkylbenzenes and phenolic compounds has been developed. ⁴³ Although the separation efficiency of these columns is still rather low, the composite materials provided improved chromatographic resolution of small aromatics when compared to bare monolith without any MOFs addition.

In chiral recognition of enantiomers, a complex of the analyte and the chiral stationary phase (CSP) is formed by means of various interactions, for example, hydrogen bond, dipole–dipole interaction, the steric effects, or the van der Waals forces. To describe chiral recognition of two enantiomers, “three‐point interaction model” has been introduced. ⁴⁴ The incorporation of the NH₂ group into the UiO‐66 MOF structure enhances the interactions with the chiral molecules and, thus, provides a binding site for the immobilization of the chiral selectors. ⁴⁵ Direct thermal polymerization of poly(glycidyl methacrylate‐co‐ethylene glycol dimethacrylate) (GMA‐co‐EDMA) mixture with UiO‐66‐NH₂ provided composite monolith that has been subsequently modified by the enzyme cellulase to allow chiral recognition. Poly(GMA‐co‐EDMA) monolith with cellulase, but without the presence of UiO‐66‐NH₂ was prepared for a comparison. While monolith having in the structure both UiO‐66‐NH₂ and the cellulose enzyme separated the racemic mixture of basic drugs metopropol, atenolol, esmolol, bisopropol and propranolol with resolutions of 1.67, 1.50, 1.52, 0.36, 0.44 in less than 15 min, the monolith prepared without MOF showed less cellulose immobilized onto the poly(GMA‐co‐EDMA) monolith and consequently provided poor chiral resolution.

Another way how to improve separation efficiency for small molecules is the development of polymer monolithic materials in combination with nanoparticles. ⁴⁶ Several nanostructures have been used together with polymer monoliths during the last years including carbon nanotubes, ³² , ⁴⁷ iron oxide nanoparticles, ⁴⁸ and gold nanoparticles. ⁴⁹ , ⁵⁰ As is the case in the modification of polymer surface by MOFs, the incorporation of nanomaterials into polymer monoliths improves their separation efficiency. However, due to the low column efficiency of parent monolith, this improvement is only incremental and generally happens with higher concentrations of incorporated nanomaterials. ⁴⁷ , ⁴⁸

Torres‐Cartas et al. ⁴⁶ prepared a monolithic micro‐column modified with magnetic nanoparticles and used the column to separate small phosphorylated compounds. The epoxy group of the generic GMA monolith was modified with magnetic nanoparticles functionalized with the amino group. This approach provided a reproducible layer of nanoparticles on a polymer monolith, as well as robust and permeable columns with sufficient efficiency for the separation of small molecules. Alternatively, a polymethacrylate‐based monolith with incorporated fumed silica nanoparticles that were functionalized with the covalent bond of carbamide moieties has been introduced. ⁵¹ A wide range of analytes, including neutral and polar low molecular weight solutes, nucleobases, nucleosides, organic acids, food additives, vitamins and biological amines, were well separated under HILIC conditions on the prepared carbamide‐fumed silica nanoparticles‐poly(glyceryl monomethacrylate‐co‐ethylene glycol dimethacrylate) monolith.

Chiral separations are a topic of concern in many areas such as pharmaceutical, agrochemical, environmental and food analysis. ⁵² , ⁵³ , ⁵⁴ Hence, the development of CSPs is very important for the successful resolution of enantiomers. In the last two decades, monolithic CSPs have received increased attention due to their natural advantages over traditional particle‐based materials such as high permeability and easy preparation within micro‐ or nanoformats. ¹² , ⁵⁵ , ⁵⁶ The monolithic CSPs can be mainly classified based on the type of chiral selectors as cyclodextrin‐functionalized, polysaccharide‐functionalized, protein‐functionalized, antibiotic‐functionalized, chiral ligand‐exchange and chiral ion‐exchange. ⁵⁷

Native or derivatised β‐cyclodextrine bonded to appropriate supports have been extensively used as chiral HPLC stationary phases ⁵⁸ , ⁵⁹ , ⁶⁰ for the enantiomeric separation of optical isomers. ⁶¹ , ⁶² Recently, Zhao et al. ⁶³ prepared a chiral monolithic stationary phase by direct polymerization of functional monomers allyl‐β‐cyclodextrin and methyl methacrylate together with triallyl isocyanurate and ethylene glycol dimethacrylate as crosslinking monomers. The monolithic stationary phase was prepared in a stainless‐steel column with a diameter of 4.6 mm and a length of 50 mm. The column showed good permeability and satisfactory efficiency (35,560 plates/m for naphthalene). The monolithic stationary phase was used to separate ibuprofen and ephedrine enantiomers with a resolution of 1.89 and 0.98.

Macrocyclic antibiotic daptomycin was used as a chiral selector to prepare a polymer monolithic stationary phase based on poly(GMA‐co‐EDMA) polymer. ⁶⁴ Two approaches were tested to prepare a chiral monolithic stationary phase. In the first approach, generic poly(GMA‐co‐EDMA) monolith was flushed with 10 mg/mL of daptomycin for 24 and 48 h. The amino group in the structure of daptomycin reacted with a reactive epoxy group of GMA. In the second approach, daptomycin was added directly to the polymerization mixture. Daptomycin‐based monolithic stationary phases were tested for the enantioselective nano‐HPLC resolution of 50 racemic drugs of different pharmacological groups. While the monolith with daptomycin immobilized for 24‐h showed no significant separation of tested racemic mixtures, the monolith with 48‐h immobilization provided separation of 14 racemates with a resolution greater than 1. Finally, the monolith with encapsulated daptomycin provided enantioseparation of most tested compounds.

Trypsin is a proteolytic enzyme ⁶⁵ that is generally immobilized on the surface of polymer monoliths to form a microfluidic enzymatic reactor. However, due to many chiral centres, trypsin can also act as a chiral selector. ⁶⁶ Amalia et al. ⁶⁷ prepared a poly(GMA‐co‐trimethylolpropane trimethacrylate) monolithic stationary phase with immobilized trypsin and used it to separate R/S citronellal enantiomers. Although baseline resolution was not achieved, it was possible to identify split peaks with different retention times. Hence, after a proper optimization, trypsin‐immobilized poly(GMA‐co‐trimethylolpropane trimethacrylate) monoliths show the potential to be applied in chiral separation of citronellal enantiomers.

Besides the pressure‐driven applications in liquid chromatography, polymer monoliths have also been applied in capillary electrochromatography (CEC) where the mobile phase is driven through the chromatographic bed by an electric field. ⁶⁸ Neequaye et al. ⁶⁹ prepared poly(carboxy ethyl acrylate‐co‐ethylene glycol dimethacrylate) monolithic stationary phase and n‐octadecyl (C18) ligands were subsequently bonded onto the surface by post‐polymerization functionalization. The resulting monolithic column exhibited a very low electro‐osmotic flow which required the addition of a small amount of 2‐acrylamido‐2‐methylpropane sulfonic acid in the polymerization mixture. The final nonpolar C18 monolithic column separated nonpolar and slightly polar compounds (e.g., alkylbenzenes, polyaromatic hydrocarbons and phenols) by reversed‐phase CEC. The highest efficiency was achieved for alkylbenzenes (57,800 plates/m), while the lowest column efficiency (15,590 plates/m) was observed for alkyl phenol ketones.

A novel open tubular column applicable in CEC (OT‐CEC) with a stable two‐layer copolymer as the stationary phase was prepared for peptides separation and provided a very high separation efficiency. ⁷⁰ At first, a very thin monolithic monolayer of vinylbenzyl chloride and divinylbenzene has been grafted onto the inner capillary wall. Then, the second copolymer layer was formed on this thin monolithic monolayer by reversible addition‐fragmentation transfer polymerization of N‐phenylacrylamide and styrene. The resulting OT‐CEC columns, with an effective length of 1.1 m and a thickness of the polymer layer of about 2 μm provided 2.4 million theoretical plates per column for the mixture of six synthetic peptides. The high separation power of prepared capillary can be attributed to the formed double layer as electrophoretic separations performed on bare capillary and monolayer‐modified capillary provided either unsatisfactory resolution (bare capillary) or low separation efficiency (monolayer‐modified capillary) as shows in Figure 1.

FIGURE 1.

The chromatograms obtained with the OT‐CEC column: the acetone (A), bare capillary (B), monolayer deposited column (C) and two‐layer deposited column (D); mobile phase: 60:40 v/v ACN/20 mM ammonium formate at pH 6.0. Reprinted with permission from Ref. ^{[ 70 ]}

A monolithic capillary column modified with benzoic acid ⁷¹ was developed to separate polar compounds by capillary electrochromatography with a high content of water in the mobile phase. 4‐Vinylbenzoic acid was used as a functional monomer, where the benzene ring provides a strong hydrophobic interaction for retention, and carboxyl groups can be used as an electro‐osmotic flow generator. The column was prepared by direct polymerization of 4‐vinylbenzoic acid together with acryloyloxy‐3‐(methacryloyloxy)‐2‐propanol as a cross‐linking monomer. After a thorough optimization of the composition of the polymerization mixture, the column was characterized using scanning electron microscopy. The monolithic column showed good stability and repeatability and was used for the separation of analytes differing in polarity including short peptides and nucleoside bases. The highest column efficiency was determined for adenine (2,15,000 plates/m).

2.2. Porous properties of polymer monoliths

Porogenic solvents are a crucial part of the polymerization mixture, defining the porous properties of monolithic stationary phases such as monolith morphology, surface area, pore volume and permeability. Porogenic solvents control the porous properties of the monolith by solvation of polymer chains during the initial phases of the polymerization reaction and by the phase separation of the polymers formed within the polymerization mixture. ³ , ⁷² Solvents like methanol, ⁷³ , ⁷⁴ 1‐propanol, ⁷⁵ 1,4‐butanediol, ⁷⁶ , ⁷⁷ hexane, ⁷⁸ , ⁷⁹ cyclohexanol, ⁸⁰ , ⁸¹ decanol, ⁸² , ⁸³ dodecanol, ⁸⁴ , ⁸⁵ and toluene, ⁸¹ , ⁸⁶ have been extensively used in monolith preparations.

Several works have introduced new materials that could be used as porogenic solvents including solid porogens, ⁸⁰ gaseous porogens, ⁸⁷ , ⁸⁸ , ⁸⁹ or supercritical fluids. ⁸⁷ Despite efforts to introduce new materials, liquid porogens are still dominantly used. In recent years, several new types of liquid porogenic solvents have been tested such as polymers, ⁹⁰ ionic fluids, ⁸⁴ and non‐ionic surfactants. ⁹¹ , ⁹²

The main factor affecting porous properties of polymer monoliths, including average pore size, porosity and specific surface area, is the rate of phase separation in the polymerization process. The phase separation (process of macro‐porous structure formation) is controlled by (i) compatibility of the porogens and emerging polymer, (ii) volume of porogenic solvents, (iii) rate of the polymerization and (iv) the amount of crosslinking monomer. Korzhikova‐Vlakh and Tennikova ⁹³ compared theoretical predictions of average pore size for different systems with an experimental data. The average pore size has been predicted by Hildebrand's and Hansen's solubility theories. In Hildebrand's theory, applicable in the description of nonpolar solvents behaviour, the solubility parameter is the square root of the cohesive energy density of the compound. In Hansen's theory, the Hildebrand's total solubility parameter is further subdivided into three terms: dispersion force, hydrogen bonding and polar parameter. Several polymer monoliths combining various monomer–porogenic solvents systems have been prepared by both thermally‐ and UV‐initiated polymerizations and determined average pore sizes were compared with values predicted by both theories. Authors concluded that while Hildebrand's theory cannot be used as universal tool in average pore size prediction, the Hansen's theory is helpful in the selection of porogenic solvents for the same system of monomers and the fixed monomers/porogens ratio. However, for the precise prediction of the average pore size, also additional factors, such as viscosity of the polymerization mixture, must be considered.

Mansour et al. ⁹⁴ focused on the addition of various types of non‐ionic surfactants in polyethylene glycol diacrylate (PEGDA)‐based monoliths. They tested the hypothesis that the addition of surfactants can form a “universal” porogen solvents system. The authors tried eight different surfactants that differed in physical properties, chemical structures and molecular weights. The prepared monolithic columns were characterized by scanning electron microscopy (Figure 2). Only four of the used surfactants provided permeable monoliths that were further chromatographically tested with a mixture of alkylbenzenes in the acetonitrile/water mobile phase (20:80, v/v). The highest efficiency, 17,280 plates/m and methylene selectivity of 1.46 were observed when the porogenic mixture contained 30% Tween 40, 20% decan, 15% decanol and 15% dodecanol. A selected porogenic mixture was further used in the preparation of a series of monolithic columns with various methacrylate‐ and styrene‐based monomers. Columns prepared by copolymerization of PEGDA with lauryl methacrylate and butyl methacrylate and the above‐mentioned porogenic system showed the best efficiencies, 30,500 and 27,700 plates/m.

FIGURE 2.

Scanning electron microscope images of the monolith prepared from poly(ethylene glycol) diacrylate together with different non‐ionic surfactants: C1–polyoxyethylene (4) lauryl ether (Brij L4), C2–sorbitan monooleate (SPAN 80), C3–polyoxyethylene (5) nonylphenylether (IGEPAL CO‐520), C4–polyoxyethylene (9) 1‐pentyloctylether (Tergitol 15S9), C5–2,4,7,9‐tetramethyl‐5‐decyne‐4,7‐diol ethoxylate (TMDDE),C6–polyoxyethylenesorbitan monopalmitate (Tween 40), C6–octylphenol ethoxylate (Triton X‐405), C7–ethylenediamine tetrakis(propoxylate‐block‐ethoxylate) tetrol (Tetronic 701). Reprinted with permission from Ref. ^{[ 94 ]}

Based on these results, the same group explored an effect of chain length, degree of substitution and saturation of Tween surfactant (Tween 20, 40, 60, 80, 85) on the morphology of PEGDA columns and the chromatographic efficiency for small molecules. ⁹⁵ After a comprehensive study combining scanning electron microscopy, surface area, elemental analysis and infrared spectrometry, they found that column with the addition of 30% w/w of Tween 60 showed the best performance with column efficiency of 23,960 plates/m. Moreover, when PEGDA concentration increased while keeping Tween 60 concentration constant, the column efficiency also increased at the expense of the lower column permeability. Finally, the optimized column prepared with 30% PEGDA, 30% Tween 60, 16% decanol and 12% dodecanol in the polymerization mixture provided the highest column efficiency (60,000 plates/m).

These results demonstrate that column efficiency of polymer monoliths can be easily tuned and controlled by the composition of the polymerization mixture. However, obtained efficiencies are far below efficiency of currently available columns packed with superficially porous and sub‐2 μm particles. ⁹ On the other hand, almost unlimited variability in the preparation of polymer monoliths provides no limits in further development and makes them very versatile separation materials.

3. MONOLITHIC MATERIALS FOR SAMPLE PREPARATION

3.1. Enrichment and solid‐phase extraction

Besides the main application of polymer monoliths in liquid chromatography separations, they can also be applied in the field of sample preparation, ⁹⁶ where solid‐phase microextraction (SPME) is one of the most preferred techniques with high efficiency, speed and low solvent consumption. ⁹⁷

Hu et al. ⁹⁸ were the first who coupled online in‐tube SPME with mass spectrometry, where monolithic SPME capillary served as the electrospray emitter. The scheme of the developed device is shown in Figure 3. The ionic liquid‐based monolithic SPME capillary was prepared by copolymerization of 1‐allyl‐methylimidazolium chloride and ethylene glycol dimethacrylate. Highly porous organic polymer provided excellent extraction efficiency toward hydrophobic and anionic compounds and the formation of smaller electrospray droplets also increased the ionization efficiency and stability. An online in‐tube SPME mass spectrometry system was applied to quantify two non‐steroid anti‐inflammatory drugs in plasma and urine with significant pre‐concentration ability and improved efficiency of electrospray ionization. Recoveries ranges for ketoprofen and flurbiprofen determined by spiking of the plasma and urine samples were 86.0−118.5% and 92.4−109.5%, respectively. The values of recoveries significantly exceeding 100% can be–at least to some extent–explained by possible nonspecific sorption or by inhomogeneity in electrospray formation, as they increased at higher concentration of added analyte during spiking analysis.

FIGURE 3.

Diagram of the online in‐tube SPME‐MS system. The sample solution was injected by a sampling pump, and the washing solution of water was infused by the sampling pump using different syringes. The desorption solution was pumped by the other valve. Reprinted with permission from Ref. ^{[ 98 ]}

As is the case in liquid chromatography‐based separations, modification of polymer monoliths with nanoparticles is also important in the development of materials for sample preparation methods. Wang et al. ⁹⁹ described the preparation of a new monolithic column with the incorporation of Schiff base network‐1 (SNW‐1) nanoparticles for the extraction of antiepileptic drugs. The column was prepared by direct thermal copolymerization of the SNW‐1 nanoparticles together with GMA and EDMA in the presence of porogenic solvents and initiator. Subsequently, the monolithic column was coupled to the HPLC system for an online extraction and detection of antiepileptic drugs. The online method provided good linearity, low limits of detection (0.2 ng/mL) and good repeatability for the determination of three antiepileptic drugs in an aqueous solution. The developed method was also successfully applied to determine antiepileptic drugs in human plasma. Recoveries determined by spiking of the plasma sample with the analyte were in the range 88.6–106.1%. Zhang et al. ¹⁰⁰ developed a monolithic capillary column for highly selective recognition of patulin mycotoxin. They prepared a poly(GMA‐co‐PEGDA) monolith modified by gold nanoparticles. Subsequently, the column was filled with patulin aptamer, and the column was incubated for 10 h at 37°C. The prepared column was used to determine patulin in food samples (e.g., apple, orange and pear juice) and provided sensitive and selective determination of patulin with method recoveries of 85.4–106%, determined by spiking of the sample with patulin.

Protein glycosylation and phosphorylation are some of the most important protein post‐translational modifications. Several approaches have been developed for the enrichment of glycoproteins ¹⁰¹ or phosphoproteins. ¹⁰² Recently, preparation of a microbore monolithic column modified with magnetite nanoparticles (MNPs) was successfully applied to enrich phosphopeptides from a tryptic digest of β‐casein. ⁴⁶ The column was prepared by the covalent attachment of amino‐modified MNPs to the polymer surface of generic GMA monolith. As shown in Figure 4, the direct analysis of β‐casein digest provided detection of only one phosphopeptide while the signals of non‐phosphorylated peptides substantially decreased after enrichment and resulted in the detection of five phosphopeptides in the MS spectra.

FIGURE 4.

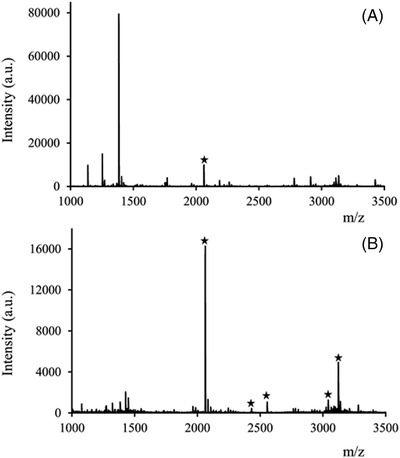

MALDI‐TOF mass spectra of tryptic digest of β‐casein without (A) and with phosphopeptide enrichment using the hybrid monolithic column (B). Reprinted with permission from Ref. ^{[ 46 ]}

Ali et al. ¹⁰³ used attachment of 5‐boronoisophthalic acid to the GMA‐based polymer surface as a novel affinity ligand allowing the selective capture and release of glycoproteins. Boronic acid functionality covalently bonds to cis‐diol containing biomolecules in dependence on pH. In an alkaline environment, boronic acid forms an ester ring with cis‐diol compounds, while in acidic pH, this bond dissociates. ¹⁰⁴ The resulting affinity material was packed in a micropipette tip and applied to selectively enrich glycoproteins, especially lactoferrin, from the human milk.

Using the same reaction of boronic acid functionality, the synthesis of a bi‐functional polymer monolithic column allowing the specific capture of both glycoproteins and phosphopeptides was described by Huang et al. ¹⁰⁵ The column was prepared by direct polymerization of 4‐vinylphenylboronic acid (VPBA) and vinylphosphonic acid with EDMA cross‐linker. Boronate affinity moieties (VPBA) provided specific recognition towards cis‐diol containing glycoproteins in alkaline conditions. To recognize molecules containing phosphate groups, the column was first flushed with ZrCl₄ to form Zr⁴⁺‐phosphate coordination. When zirconium ion was immobilized on the monoliths, the biomolecules containing phosphate groups were selectively captured on immobilized metal affinity chromatography in acidic conditions.

3.2. Molecularly imprinted polymers

Molecularly imprinted polymers (MIPs) are highly selective materials applicable in chromatographic or electrophoretic separations and/or sample preparation. MIPs are synthetic polymers prepared by copolymerization of functional and crosslinking monomers in the presence of a template molecule. After polymerization, the template molecule is removed, causing the formation of selective recognition sites that can subsequently bind the targeted molecules. ¹⁰⁶ The preparation procedures for MIPs in different formats and application fields were widely reviewed last year with a particular focus on chiral MIPs, ¹⁰⁷ sensors for cancer biomarkers, ¹⁰⁸ and determination of DNA, ¹⁰⁹ analysis of protein biomarkers, ¹¹⁰ and their applications in food safety. ¹¹¹

One of the efforts in current analytical chemistry is the miniaturization of analytical systems and integration of individual steps combining sample preparation, separation, and detection. MIPs can be advantageously integrated into miniaturized SPE devices, ¹¹² , ¹¹³ , ¹¹⁴ , ¹¹⁵ where monolithic imprinted polymers can be synthesized directly into capillaries or chip microchannels. ¹¹² Recently, the preparation of MIPs in miniaturized devices ¹¹² has also been reviewed.

Bouvarel et al. ¹¹⁶ prepared miniaturized monolithic MIPs in a capillary with an internal diameter of 100 μm for selective capture of benzoylecgonine, the primary urinary metabolite of cocaine. The monolithic MIP was prepared by photopolymerizing methacrylic acid, trimethylolpropane trimethacrylate, isooctane and cocaine as a template molecule. After washing out the template, the capillary MIP was online coupled to UV detection. Optimization of experimental conditions (e.g., column length and extraction conditions) allowed successful extraction of benzoylecgonine from human urine with limits of detection and quantification of 56.4  and 188.0 ng/mL, respectively.

A MIP in a capillary with an internal diameter of 100 μm was also used for extraction and online detection of ochratoxin A in the beer sample. ¹¹⁷ The MIPs were prepared by the radical polymerization reaction of acrylamide‐2‐methylpropanesulfonic acid, methacrylate substituted polyhedral oligomeric silsesquioxanes, ethylene glycol dimethacrylate and ochratoxin A as a template molecule. The recovery rate of MIP for ochratoxin A was determined to be 84.8%, while non‐imprinted polymer provided only 4.5%.

3.3. Enzymatic reactors

Due to the easy preparation, simple surface modification and favourable highly porous internal structure, polymer‐based monolithic stationary phases successfully serve as a support for enzyme immobilization. ¹¹⁸ Recently, several reviews dealing with the preparation of enzymatic reactors based on polymer monoliths have been published. ¹¹⁹ , ¹²⁰ , ¹²¹

Trypsin‐immobilized poly (GMA‐co‐EDMA) monolithic micro reactor for online digestion of β‐casein was prepared by Amalia et al. ⁶⁷ The effect of the digestion flow rate and the temperature of digestion were investigated to obtain the optimum interaction between the protein and the immobilized trypsin. The number of appeared peaks, as well as the peak intensities at the digestion flow rate of 1 μL/min (residence time 80 min) was higher than that in a flow rate of 5 μL/min (residence time 16 min) and 10 μL/min (residence time 8 min). It was also found that the digestion temperature of 45–50°C provided better conversion of the proteins into peptides than the temperature of 37°C, indicated by higher peak intensities as well as a higher number of identified peaks. A higher digestion temperature is probably advantageous due to the formed temperature gradient in between the interior of the reactor and the outside environment.

A microfluidic platform (Figure 5) reported by Wei et al. ¹²² integrated online protein fractionation, denaturation, digestion and peptide enrichment in a single microfluidic device. The protein sample was first reduced by dithiothreitol and then alkylated by the iodoacetamide in a microfluidic platform, and the denatured sample was then transferred to an enzymatic reactor with trypsin immobilized into the skeleton of the polytrimethylolpropane trimethacrylate monolith to ensure protein digestion of MCF‐7 cells. The immobilized trypsin reactor based on polytrimethylolpropane trimethacrylate monolith proved to be very stable with maintaining more than 86% of enzyme activity when stored at 4°C for 2 months.

FIGURE 5.

The overview of the integrated microfluidic system. (A) Proteins fractionation and online treatment, (B) elution of proteins, (C) online digestion of eluted proteins. AP–polyallyl phenoxyacetate, DTT–dithiothreitol, IAA–iodoacetamide. Reprinted with permission from Ref. ^{[ 122 ]}

4. SUMMARY AND OUTLOOK

This review highlights current trends and the newest approaches in preparing and utilizing organic polymer monolithic materials for the year 2021. Monoliths are often used as prepared by direct copolymerization; however, the tailored modification of their surface usually provides materials with new properties. In recent years, the selectivity and efficiency of polymer monoliths have been improved by the introduction of MOFs or nanoparticles with large surface area, high porosity and easy functionalization, leading to composite materials applicable as stationary phases. Thanks to their simple preparation and surface modification, the monolithic stationary phases were also prepared as CSPs, even at micro‐ or nanoscale.

In addition to the selection of monomers in the polymerization mixture, the properties of monoliths can be controlled by the composition of the porogenic solvents. Although proven systems of the liquid porogenic solvent system still prevail, new combinations that change the porous properties of monoliths, such as morphology, surface area and permeability, have also appeared recently.

The application of monolithic stationary phases is dominant in liquid chromatography‐based separations. However, they can also be successfully applied in the field of sample preparation as demonstrated in this review. For example, the in‐tube SPME capillary was used directly as an electrospray emitter for connection with mass spectrometry. Monolithic materials also allow the immobilization of enzymes and, thus, facilitate the preparation of enzymatic reactors for proteomic analysis. The ultimate advantage of monoliths is their easy miniaturization, providing the preparation of integrated systems that allow multiple‐step sample treatment in one device, which dramatically reduces the consumption of chemicals and the time required for sample preparation.
