Reprogramming Yarrowia lipolytica metabolism for efficient synthesis of itaconic acid from flask to semipilot scale

Jing Fu; Simone Zaghen; Hongzhong Lu; Oliver Konzock; Naghmeh Poorinmohammad; Alexander Kornberg; Rodrigo Ledesma-Amaro; Deni Koseto; Alexander Wentzel; Francesca Di Bartolomeo; Eduard J Kerkhoven

doi:10.1126/sciadv.adn0414

. 2024 Aug 9;10(32):eadn0414. doi: 10.1126/sciadv.adn0414

Reprogramming Yarrowia lipolytica metabolism for efficient synthesis of itaconic acid from flask to semipilot scale

Jing Fu ^1,², Simone Zaghen ¹, Hongzhong Lu ³, Oliver Konzock ¹, Naghmeh Poorinmohammad ¹, Alexander Kornberg ¹, Rodrigo Ledesma-Amaro ², Deni Koseto ⁴, Alexander Wentzel ⁴, Francesca Di Bartolomeo ⁴, Eduard J Kerkhoven ^1,^5,^6,^*

PMCID: PMC11313960 PMID: 39121230

Abstract

Itaconic acid is an emerging platform chemical with extensive applications. Itaconic acid is currently produced by Aspergillus terreus through biological fermentation. However, A. terreus is a fungal pathogen that needs additional morphology controls, making itaconic acid production on industrial scale problematic. Here, we reprogrammed the Generally Recognized As Safe (GRAS) yeast Yarrowia lipolytica for competitive itaconic acid production. After preventing carbon sink into lipid accumulation, we evaluated itaconic acid production both inside and outside the mitochondria while fine-tuning its biosynthetic pathway. We then mimicked the regulation of nitrogen limitation in nitrogen-replete conditions by down-regulating NAD⁺–dependent isocitrate dehydrogenase through weak promoters, RNA interference, or CRISPR interference. Ultimately, we optimized fermentation parameters for fed-batch cultivations and produced itaconic acid titers of 130.1 grams per liter in 1-liter bioreactors and 94.8 grams per liter in a 50-liter bioreactor on semipilot scale. Our findings provide effective approaches to harness the GRAS microorganism Y. lipolytica for competitive industrial-scale production of itaconic acid.

Partial mimicking of the regulatory response to nitrogen limitation enables high itaconic acid production in Y. lipolytica.

INTRODUCTION

Itaconic acid (IA) is a promising platform chemical with extensive applications in food, textile, and pharmaceutical industries (1). IA ranks among the top 12 building block chemicals (2) and can be transformed into various valuable bio-based products. Through cross-linking, IA enables the synthesis of many innovative polymers with remarkable properties (3, 4), e.g., shape memory polymers (5), polymeric hydrogels used for targeted drug delivery (6, 7), and material against bacterial infections (8, 9). In addition, IA is secreted by mammalian immune cells as part of the immune response (10, 11). Recently, IA was shown to act as a signaling molecule in immunomodulation (12), and it is a crucial anti-inflammatory metabolite that limits inflammation (13), exhibiting potential applications in the biomedical field (14).

Currently, commercial IA production relies on biological fermentation rather than chemical synthesis (15), but the microorganisms used are not ideal for cost-competitive economical IA production at the industrial scale. IA is primarily produced by the filamentous fungus Aspergillus terreus, which can produce 160 g/liter IA (16). However, IA production by A. terreus remains challenging. First, A. terreus is a fungal pathogen that can cause lethal infections (17). In addition, morphological control has a substantial effect on the IA production (18), and maintaining the required growth-form pellet needs careful monitoring of fermentation parameters (19). Furthermore, IA production by A. terreus is severely inhibited when Mn²⁺ exceeds the extremely low concentration of 3 μg/liter (16, 20). To prevent this and to produce high IA yields, a cation exchange treatment of analytical-grade glucose (20) or a careful addition of calcium (21, 22) or copper ions (23) is necessary. These factors increase operational costs and increase risks of failed batches (24). Another promising microorganism, Ustilago maydis, a ubiquitous pathogen of corn (25), can produce itaconate (yield of more than 220 g/liter) as solid calcium salt form (24). However, that fermentation requires manual addition of solid calcium carbonate as liquid suspension or powder whenever the pH drops below 6.2. Furthermore, the final product calcium itaconate requires in situ precipitation to alleviate product inhibition, posing a notable challenge to scale up. Besides these two native IA producers, numerous heterologous IA producers were engineered, such as Escherichia coli (26–28), Saccharomyces cerevisiae (29), Corynebacterium glutamicum (30), Aspergillus niger (31, 32), and Yarrowia lipolytica (33–35). However, their IA production was not satisfactory, and production parameters were far from commercialization (36).

Y. lipolytica was recognized as “recommended biological agent for production purposes” by the European Food Safety Authority (37) and has been granted the Generally Recognized As Safe (GRAS) (36) status for various commercial scale processes (38). Y. lipolytica is gaining traction as a biotechnologically relevant cell factory and is arguably regarded as the most promising nonconventional yeast biocatalyst (38). The main advantage of Y. lipolytica as an IA producer, other than the availability of genetic manipulation tools, is due to its considerable metabolic flux toward citric acid (CA) and isocitric acid (ICA), which can be redirected toward IA via the intermediate cis-aconitate. Moreover, pseudo-hyphae formation in Y. lipolytica can be completely abolished by deleting mhy1 (39), providing an easier morphological control compared to A. terreus (18). Y. lipolytica can synthesize and accumulate large quantities of CA (>100 g/liter) and lipids (40) under nutrient restriction (41, 42), such as nitrogen limitation (NL), phosphate limitation (PL), or sulfur limitation (SL). However, Y. lipolytica ordinarily stores low amounts of lipids at nitrogen-replete (NR) conditions (43), which lowers the IA yield. IA is mainly synthesized during the nongrowth (14, 19) phase in A. terreus and U. maydis when carbon source is abundant, but phosphate or nitrogen are limiting (14). However, in Y. lipolytica, there have been conflicting reports about whether IA production is growth associated or not (33–35).

In this study, we engineered Y. lipolytica for efficient IA production in four steps (Fig. 1). We reprogrammed its metabolism and established a competitive IA producer, testing it from a shake flask to a semipilot-scale bioreactor and addressing the following challenges within 4 steps. In step 1, we enhanced cis-aconitate supply by removing carbon flux from the competing lipid storage and by interrupting the glyoxylate cycle and nicotinamide adenine dinucleotide phosphate (NADP⁺)–dependent isocitrate dehydrogenase (IDP). In step 2, we introduced the IA biosynthetic pathway and enhanced IA titer/production by compartmentalizing its production either in the mitochondria or cytosol and by fine-tuning the expression levels of key enzymes. In step 3, we successfully decoupled high flux of cis-aconitate from NL condition by mimicking NL regulations without NL. We optimized carbon distribution between cell growth and IA production in NR conditions by down-regulating the expression of nicotinamide adenine dinucleotide (NAD⁺)–dependent isocitrate dehydrogenase (IDH). Last, in step 4, we optimized fermentation parameters and produced 130.1 g/liter IA in 1-liter bioreactors and 94.8 g/liter IA in 50-liter bioreactors. Overall, our work presents a notable leap and offers effective approaches toward harnessing Y. lipolytica for competitive biotechnological production of IA.

RESULTS

Enhancing cis-aconitate supply by reducing flux in sink pathways

Before establishing heterologous IA biosynthesis, it is desirable to enhance accumulation of the IA precursor cis-aconitate, by reducing the fluxes of alternative sink pathways through CA and isocitric acid (ICA).

To decrease CA-derived lipid accumulation, we deleted three acyltransferase coding genes (DGA1, DGA2, and LRO1) involved in triacylglycerol (TAG) accumulation and the ARE1 gene involved in sterol esterification (SE) in the starting strain OKYL029 (fig. S1). The resulting strain, JFYL007 (also known as Q4 strain (44, 45)), did not form notable lipid droplets (fig. S2), and its lipid content was strongly decreased compared to the wild-type/parental strain OKYL029 under NL or NR conditions, which triggers lipid accumulation (figs. S3 and S4). Because we later found that NR conditions increase IA productivity (step 3), JFYL007 was cultivated in NR medium, and cis-aconitate accumulation increased (Fig. 2), indicating that the lipid accumulation flux was redirected to cis-aconitate. To reduce flux through the ICA sink pathways, we disrupted ICA utilization by the glyoxylate cycle and isocitrate dehydrogenation. Codeletion of isocitrate lyase coding genes ICL1 and ICL2 (JFYL018) resulted in a 1.48-fold increase (Fig. 2). Disruption of isocitrate dehydrogenation involved two isoenzymes, IDP and IDH. The deletion of IDP (JFYL021) only increased cis-aconitate accumulation by 25.8%, but the final biomass decreased. Codeletion of ICL1, ICL2, and IDP (JFYL028) increased cis-aconitate accumulation by 2.93-fold. Contrastingly, five attempts to delete the open reading frames of IDH subunits coding genes IDH1 or IDH2 failed, suggesting that the NAD⁺-dependent IDH is essential for Y. lipolytica survival on YPD medium plates. In NR conditions, no CA or ICA was detected in any of the above strains.

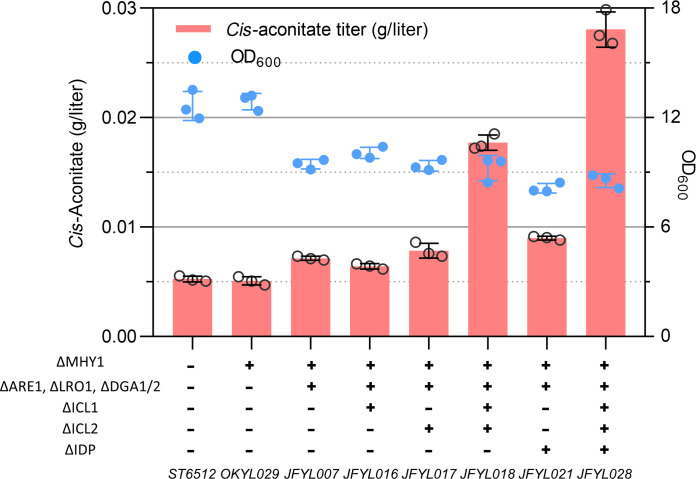

Fig. 2. — Strains were cultivated in 24–deep well plates after 4 days. Data represent the mean of n = 3 biologically independent samples, and error bars show SD.

Enhancing IA production by optimizing its synthetic pathways

In A. terreus, mitochondrial aconitase (ACO) converts CA to ICA in a two-step reaction. Cis-aconitate, the intermediate of this reaction, is transported to the cytosol and converted to IA by cis-aconitate decarboxylase (CAD) (46). Contrastingly in U. maydis, aconitate isomerase (ADI) converts cytosolic cis-aconitate to trans-aconitate, which is then converted to IA by trans-aconitate decarboxylase (TAD) (36). These two IA synthetic routes, both outside and inside mitochondria, were constructed and evaluated in Y. lipolytica (Fig. 1, step 2).

To test whether the earlier cis-aconitate enhancing strategy (Fig. 2E) could increase IA production, we introduced a codon optimized A. terreus CAD gene in the promising strains in step 1. Blocking lipid accumulation increased IA production from 0.027 to 0.049 g/liter (JFYL013), while blocking the glyoxylate cycle increased production of IA to 0.126 g/liter (Fig. 3A). The codeletion of ICL1/2 and IDP resulted in the highest IA accumulation of 0.184 g/liter in JFYL033, which is consistent with their enhanced cis-aconitate accumulation (Fig. 2E). Because several reports showed that subcellular localization of metabolic pathways can efficiently increase product conversion (47–50), CAD was targeted to the mitochondria by fusing it with the mitochondrial leading sequence of the cytochrome c oxidase subunit 4 (cox4). As anticipated, more IA (0.221 g/liter, JFYL058) was produced with mitochondrial CAD, suggesting more efficient transformation to IA (Fig. 3A).

Fig. 3. — Strains were cultivated in 24–deep well plates after 4 days. (A) IA production with the introduction of AtCAD in IA sink pathways blocked strains. (B) IA production in cytosol with three different MTT transporters under pTef and pTefin. (C) IA production in the mitochondria with three different MDT transporters under pTef and pTefin. (D) The combination of promising targets from step 1 and the selected AtMTT. (E) Introducing the ACOd expressed in cytosol increased the IA production, while combining the two IA synthetic pathways in cytosol and mitochondria resulted in unchanged IA production. (F) The comparison of IA production through *cis*-aconitate and *trans-*aconitate. (G) Modulate expression of AtCAD and AtMTT under different promoters and their combination. (H) Increasing the copy number of the selected combination resulted in increased IA production. Strains were cultivated in 24–deep well plates after 4 days. Strains were cultivated in 24–deep well plates after 4 days. All data represent the mean of n = 3 biologically independent samples, and error bars show SD.

Both the cytosolic and mitochondrial IA production routes require transporters. For cytosolic IA production, cis-aconitate [tricarboxylic acid (TCA)] is transported from the mitochondria to the cytosol. Contrastingly, mitochondrial IA production requires IA (dicarboxylic acid) to be transported from the mitochondria to the cytosol (Fig. 1). Therefore, three mitochondrial TCA transporters (MTTs) and three mitochondrial dicarboxylic acid transporters (MDTs) from different species were expressed under two strong promoters, pTef1 and pTefintron, which has a 17 times higher expression level than pTef1 (51). The AtMTT transporter from A. terreus under pTef1 promoter resulted in 0.527 g/liter (JFYL014, Fig. 3B) and showed a decreased IA titer with pTefintron promoter (JFYL036), suggesting that extremely high expression of AtMTT is not beneficial for IA production. Expressing MTTs from Aspergillus kawachii (AkCTP) and U. maydis (UmMTT1) under pTef1 resulted in decreased IA titers (Fig. 3B) compared to JFYL014. On the other hand, pTefintron yielded ca. five times higher IA production, suggesting that these two transporters have low activity. As for MDT transporters, none of the candidates, i.e., S. cerevisiae (SceDIC), Mus musculus (MumDIC), and Arabidopsis thaliana (AthDIC), increased IA production (Fig. 3C). Therefore, the cytosolic pathway was selected for the next studies.

To further enhance AtMTT-facilitated cytosolic IA production, we removed sink pathways. Blocking lipid accumulation yielded higher IA production when expressing CAD and MTT (JFYL014, Fig. 3D), consistent with increased cis-aconitate production (JFYL007, Fig. 2E). Unexpectedly, deletion of ICL1 and ICL2, which improved cis-aconitate (JFYL018 in Fig. 2E) and IA accumulation (JFYL031 in Fig. 3A) without the AtMTT transporter, resulted in decreased IA production (Fig. 3D), which was further worsened by IDP codeletion. Therefore, only disruption of lipid accumulation (i.e., JFYL014) was retained in all later IA strains. Moreover, overexpression of mitochondrial AtACO, which converts CA to cis-aconitate, did not improve IA production (Fig. 3E), while cytosolic overexpression of AtACOd without mitochondrial leading sequence increased the IA titer to 0.696 g/liter. This indicates that considerable amounts of cytosolic CA are transformed to cis-aconitate for IA production. Attempts to facilitate substrate channeling using a flexible Glycine-Serine-Glycine (GSG) linker in an AtACO-AtCAD fusion protein did not result in improved production (fig. S5). In addition, overexpression of both mitochondrial and cytosolic AtCAD (JFYL089, Fig. 3E) showed unchanged IA titers compared to sole cytosolic AtCAD.

IA production through trans-aconitate as an alternative promising pathway (52) derived from U. maydis was then tested. No detectable IA accumulation was observed with expression of TAD (UmTad1, Fig. 3F) and is consistent with no detectable levels trans-aconitate. Expression of UmAdi1 (JFYL092, Fig. 3F) yielded 0.125 g/liter IA, which seemed very promising compared to the cis-aconitate pathway, which only resulted in 0.049 g/liter IA without the AtMTT transporter (JFYL013, Fig. 3A). However, after introducing the AtMTT, production through the trans-aconitate pathway was 0.426 g/liter, lower than production through the cis-aconitate pathway (0.527 g/liter; Fig. 3F). Therefore, cytosolic AtCAD–based IA production with the AtMTT transporter was chosen as the preferred strain.

The promising IA synthetic pathway with cis-aconitate was then fine-tuned by using various promoters and copy numbers of AtMTT and AtCAD (Fig. 3G). It is reported that the expression level of the promoters used in this study are as follows: pTefin > p4UASTef > pGAPDH > pTef > pBR30 and pICL1 (51). When introducing AtCAD without AtMTT, we observed that increasing its expression level within a range increased the IA titer (JFYL039 > JFYL066, JFYL010 > JFYL013, Fig. 3G). However, as CAD was reported to be toxic to cells (52), we observed a decrease in the IA titer when increase the AtCAD expression level (JFYL115 versus JFYL039, JFYL035 versus JFYL010, Fig. 3G). Meanwhile, we also observed that increasing the AtMTT’s expression level separately within a certain level could increase the IA titer (JFYL116 > JFYL040 > JFYL066 > JFYL014, Fig. 3G). However, similarly, when increasing the AtMTT’s expression level by more than 10 times with pTefin, a small decrease in the IA titer was observed (JFYL036 versus JFYL 014, Fig. 3B). This might be caused by the characteristic of the transporter of MTT. Therefore, the expression of AtMTT and AtCAD need to be finely tuned and overexpressed together with the best combination (Fig. 3H). Because the promoter p4UASTef has a complex and repeated structure that might result in genetic instability, the combination of pTef-AtCAD and pGPD-AtMTT was selected for further studies. When integrated in different genetic loci, this promising combination resulted in similar IA production (Fig. 3H), while a notable increase of IA was achieved introducing multiple copy numbers in JFYL077. Specifically, six copies of pTef-AtCAD and pGPD-AtMTT combination yielded the best IA production. However, further overexpression of AtACOd did not show synergistic effect on IA production (fig. S6), indicating a high flux through cis-aconitate.

Mimicking the regulation of NL

The IA producer JFYL066 (JFYL007 with one copy number of AtCAD and AtMTT) produced similar IA titer in both the NR and NL conditions (Fig. 4A) when cultivated until glucose depleted (4 and 8 days, respectively). While titers were similar after glucose depletion, the NL condition resulted in higher IA yield but lower productivity, probably due to low biomass formation. It would therefore be convenient to mimic NL condition by imitating part of its regulation in NR conditions, to achieve both high yield (from NL) and productivity (from NR).

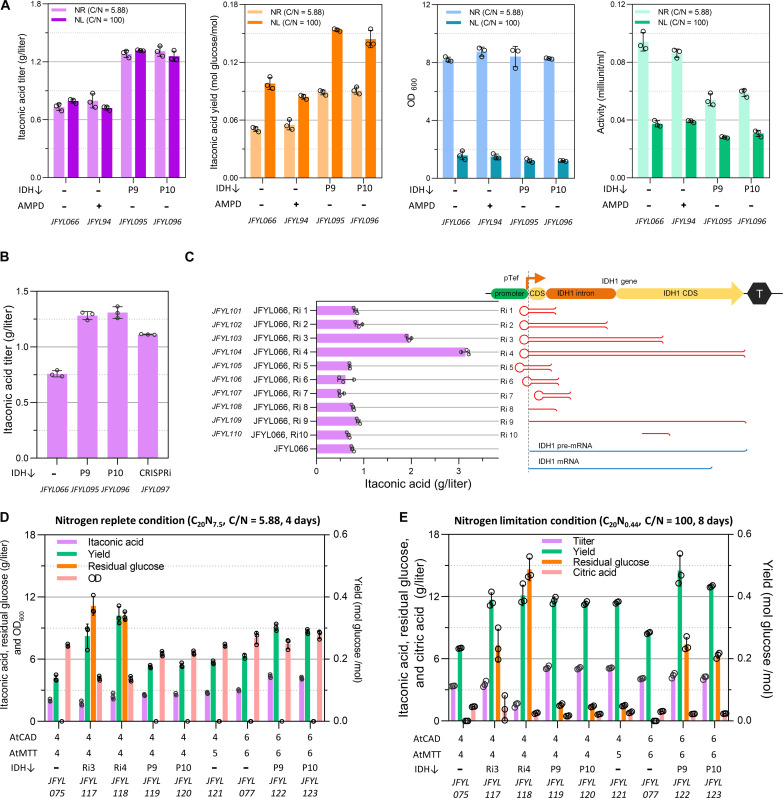

NL increases the activity of adenosine monophosphate (AMP) deaminase (AMPD), which converts AMP into inosine monophosphate. IDH, as AMP-dependent dehydrogenase, is inhibited by low AMP levels (53, 54). Inconsistent with previous reports (33), overexpression of native AMP deaminase (JFYL094) showed no positive effect on IA production (Fig. 4A). Next, IDH was down-regulated by changing its native promoter to weaker promoters, and 10 candidates were tested on the basis of reported RNA sequencing data (55) (fig. S7). Because earlier attempts to delete the IDH open reading frame failed (step 1), obtaining positive transformants proved challenging when the expression level of the promoter was too low. Only two promoters, P9 and P10, were successfully exchanged. The IA titer and yield of these two strains (JFYL095 and JFYL096) increased in both NR and NL conditions compared to JFYL066, while the IDH activity decreased (Fig. 4A). In general, IDH activities and IA yields anticorrelated. However, in the NL conditions, low biomass and IDH activity led to prolonged fermentation time and reduced productivity. However, with down-regulated IDH, IA titer, yield, and productivity all increased in NR conditions (JFYL095 and JFYL096). The IA yields of JFYL095 and JFYL096 in NR condition were similar to JFYL066 in NL condition, indicating that the positive effect of NL on IA production was successfully mimicked in NR condition.

Because down-regulating essential Y. lipolytica genes using weak promoters proved challenging, CRISPR interference (CRISPRi) and RNA interference (RNAi) were used to down-regulate IDH. CRISPRi, allowing for sequence-specific gene repression at the DNA level (56), was reported to work well in Y. lipolytica (57, 58). It is used here by introducing a dCpf1 (FnCpf1 D917A), and four guide RNA (gRNAs) were designed to target the IDH subunit 1 coding gene simultaneously (fig. S8). The resulting strain JFYL097 produced IA (1.12 g/liter) (Fig. 4B), indicating that CRISPRi silencing worked in Y. lipolytica. However, the IA titer was still lower than those with weak promoter exchanged (Fig. 4B). Alongside, we established RNAi in Y. lipolytica (Fig. 4C and fig. S9) by introducing codon optimized Dcr1 (Dicer) and Argo1 (Argonaute) of Saccharomyces castellii (59). After exploring different silencing strengths by varying the length of short hairpin RNA (shRNA) or antisense single-stranded RNA (fig. S9 and table S7), strains with the longest shRNA (Ri3 and Ri4, Fig. 4D), which would be expected to have the strongest silencing, increased IA titer by 157 and 314% (1.95 and 3.14 g/liter), respectively. These results indicate that the RNAi targeting IDH worked and could greatly increase the IA titer. The gene expression level of IDH was decreased (fig. S10) for the IDH down-regulated strains, and the decreased IDH activity was observed by IDH assay (fig. S11).

The IDH down-regulation strategy was then combined with modulation of AtCAD and AtMTT from step 2. JFYL117 and JFYL118 produced higher IA yields than in JFYL075 (Fig. 4E). Unfortunately, because high glucose concentrations were left in the RNAi strains, JFYL118 showed lower IA titer (Fig. 4D). Meanwhile, JFYL119 and JFYL120 produced similar IA titers but lower yields due to higher glucose depletion compared with JFYL118. Moreover, increasing the copy number of AtCAD and AtMTT to six copies could further increase the IA titer and yield, and JFYL122 resulted in the highest titer (4.3 g/liter IA) with a yield of 0.31 mol IA/mol glucose. When NL condition (Fig. 4E) was used, all strains exhibited much higher IA yields but lower productivities. IA with similar titer and yield was produced by JFYL122 in NR condition (4 days) and JFYL077 in NL condition (8 days), indicating that we successfully mimicked the NL and enhanced productivity by down-regulation of IDH and increased the productivity by twofold. Therefore, JFYL122 with six copies of AtCAD and AtMTT and P9 promotor modulated IDH expression was selected for further study because of its superior titer in NR conditions and highest yield in NR conditions, compared with all IDH down-regulated strains.

To present the different flux in NL and NR conditions, we performed flux balance analysis (FBA) by constraining with measured exchange reaction rates and modified biomass compositions from chemostat bioreactor cultivations (Fig. 5). The predicted flux in JFYL007 indicated that the flux of TCA is higher from NL condition than that from NR condition. The higher flux could increase cis-aconitate availability, which contributes to high IA yield. Therefore, our strategy to decouple NL and high flux in TCA by mimicking NL regulations, allowing higher biomass, can result in balanced IA production with both high yield and productivity. Notably, this simulation especially contributes to IA production when NL should be avoided in step 4 in the next section.

Fig. 5. — Strains were cultivated in modified Delft medium with ammonia sulfate or urea in NR or NL conditions in chemostat. All data represent the mean of n = 3 biologically independent samples.

Fermentation engineering and scale-up

The most promising strain (JFYL122) was cultivated in 1-liter fed-batch bioreactors. We tested a widely used nitrogen control strategy (NR switch, NR -> NL) in which high biomass is first generated under NR condition (C/N = 22), and NL conditions were then generated by nitrogen source consumption during biomass accumulation. Unexpectedly, large amounts of CA started to accumulate after 3 days (Fig. 6A), and surpassed the IA titer, with a final titer of 67.5 and 17.1 g/liter, respectively. The predominant CA accumulation (Fig. 6A) was possibly due to complex regulation where both absolute nitrogen amount and C/N ratio affect metabolism. While glucose was fed during the cultivation, nitrogen likely became limiting at day 3, when growth halted at optical density at 600 nm (OD₆₀₀) 120. At this point, abundant CA started to be secreted, indicating that it was not being converted to cis-aconitate. This result contrasts with what we measured before in deep-well plates, where only ca. 1 g/liter CA was produced in NL condition (Fig. 4E). As scale-up conditions were not directly transferable, further fermentation engineering is required to optimize production in bioreactors.

Fig. 6. — (A) JFYL122 was cultivated in 1-liter bioreactors (initial C/N = 22, 65% glucose was fed in pulse form). Data represent the mean of n = 2 biologically independent samples, and error bars show SD. (B) JFYL121 was cultivated in flasks under NR (C₁₀₀N₁₀), NL (C₁₀₀N_2.5), PL, and SL conditions. All data represent the mean of n = 3 independent samples. (C) JFYL122 was cultivated in 1-liter bioreactors under nitrogen switch (initial C₁₀₀N₁₀, from NR to NL), NL (C₁₀₀N_2.5), PL, and SL conditions. (D) The effect of addition of YE in C₁₀₀N₁₀ (C/N = 22) Delft medium. (E) Enhanced IA production with continuous feeding of glucose and YE. The pH was changed from 3.5 to 5.5. (F) IA tolerance measured in BioLector. (G) JFYL122 was cultivated in 1-liter bioreactors under NR, NL, PL, and SL conditions with the continuous feeding of glucose and YE together (pH at 5.5). (H) JFYL122 was cultivated in 1-liter bioreactor, and AS and urea were used as the nitrogen source, respectively. (I) JFYL122 was cultivated in 50-liter bioreactor at semipilot scale. Data for (B) and (F) represent the mean of n = 3 biologically independent samples and error bars show SD. The cultivation in 50 liters was carried out as a single experiment, and all other bioreactor cultivations were carried out in two replicates. The presented cultivations depict a single representative cultivation for (C), (D), (E), (G), (H), and (I).

To reduce CA accumulation, we tested PL, and SL. JFYL122 was grown on different media in shake flasks with higher glucose concentration (100 g/liter) than previously tested (20 g/liter glucose; Fig. 4, D and E). CA only accumulated if nitrogen was the limiting nutrient (NL-bioreactor medium), while both PL and SL gave higher IA titers and yields (Fig. 6B). These conditions were further tested in bioreactors (Fig. 6C), and CA was not detected under PL and SL. These conditions showed higher IA yields but lower glucose consumption rate (fig. S12). These results indicate that NL should be avoided to prevent CA secretion. This can be achieved by feeding nitrogen to support higher OD₆₀₀ and avoiding alternative limiting nutrients.

To increase IA production, we also tested the following conditions. Yeast extract (YE), having low production cost, is frequently used to improve cell growth (60) and to increase productivity. Different concentration of YE were tested in NL-bioreactor medium. YE (2.5 g/liter) largely increased the IA titer to 17.3 g/liter (Fig. 6D) within 3 days. With lower YE supplementation, CA accumulated from day 2, indicating depletion of the nitrogen source. Furthermore, high osmotic pressure is reported as a key factor responsible for inhibition of yeast growth and decrease fermentation performance (61). Therefore, changing from pulsed to continuous feeding could reduce potential osmotic stress effects. Switching from pulsed to continuous feed increased IA production to 24.5 g/liter on the sixth day (Fig. 6E). However, afterwards, cells arrested glucose consumption and IA production. Cells growth and glucose consumption recovered when the pH was increased from 3.5 to 5.5, and IA production resumed (Fig. 6E). Testing IA tolerance in high-throughput microbioreactors (BioLector) with an initial pH of 3.5 showed that 20 g/liter IA interrupts cell growth (Fig. 6F), while it was reported that, at pH 7, Y. lipolytica is tolerant to 60 g/liter IA (34). Therefore, the addition of YE, continuous feeding, and pH of 5.5 were the key factors in later cultivations.

These optimized conditions were combined in 1-liter fed-batch cultivation: The pH was controlled at 5.5, and glucose (600 g/liter) and YE (20 g/liter) were continuously fed. No growth disruption was observed when IA titer exceeded 25 g/liter (Fig. 6G). Higher IA production was observed under PL and SL than NL condition (Fig. 6G). Notably, NR condition increased IA productivity, titer, and yield, indicating that the growth-associated production strategy with nitrogen feeding and mimicking IDH down-regulation works well. This condition was further tested in bioreactors, and 68.1 g/liter IA was produced in 16.75 days (Fig. 6H), using ammonium sulfate as nitrogen source. However, to maintain the pH at 5.5, large volumes of base (6 M KOH) were required (fig. S13) because of the acidification. This drastically increased the cultivation volume, lowering the IA titer after 17 days, although the absolute amount of IA still increases (fig. S13). Ammonium sulfate consumption reduces the pH, while using urea, an alternative and cheap nitrogen source (that does not act as carbon source for Y. lipolytica), will not acidify the medium (62). Thus, using urea as nitrogen source reduced the base feeding volumes and considerably increased IA titer to 130.5 g/liter IA with a yield of 0.320 mol/mol glucose. These results suggested the successful establishment of our engineered strain as a promising candidate for IA production (table S1 and S2).

To verify performance during the scale-up at a semipilot scale, we cultivated the strain JFYL122 in a 50-liter bioreactor using urea as the nitrogen source. Within 2 days, the OD₆₀₀ quickly rose to 160, and we obtained the highest productivity (0.566 g/liter per hour). Because of accidental glucose limitation between days 8 and 9, the cells lost their vitality. After the glucose limitation was removed, the fermentation took an additional 3 days to recover. However, IA production continued afterwards with high productivity. A final titer of 94.1 g/liter IA with a productivity of 0.238 g/liter per hour and a yield of 0.36 mol/mol glucose were reached after day 16.58. The total amount of IA produced during this fermentation was 6161.9 g. These results indicate that our engineered strain JFYL122 exhibited robustness during the scale-up process, making it a promising IA producer at industrial-scale fermentation.

DISCUSSION

IA enables the synthesis of many valuable bio-based products with remarkable properties and exhibits potential applications in the biomedical field. Until recently, commercial IA bioproduction was limited to A. terreus and U. maydis, but industrial-scale production remains challenging. In our work, we successfully reprogrammed the GRAS microorganism Y. lipolytica for enhanced IA production.

During strain development, some strategies that showed positive effects on IA production were either not beneficial or lacked a synergistic effect when combined. While this is common in strain engineering and can be attributed to the complexity of Y. lipolytica metabolism, it posed challenges in enhancing and scaling up IA production. We carefully adjusted three positive strategies to balance growth, titer, yield, and productivity. (i) For the ICA sink node, deletions of both ICL1 in glyoxylate cycle, ICL2 in methylcitrate cycle, and NADP⁺-dependent IDP in the TCA cycle increased cis-aconitate availability and IA titer at low IA concentrations. However, IA titer decreased after introducing the AtMTT transporter (Fig. 3, A and D), indicating that synergistic effects should be evaluated during strain development. Moreover, there is conflicting information about the function and location of ICL2 (63, 64), so the effect of ICL2 deletion on IA production needs further study. (ii) IA production inside the mitochondria was promising compared to cytosolic IA production; however, no suitable IA transporter was found to further enhance IA production. The IA synthetic pathway through trans-aconitate was likely dominant at low cis-aconitate and IA levels. After introducing AtMTT, JFYL093 (trans pathway) produced less IA than JFYL014 (cis pathway), possibly because of a two-step conversion and low-kinetics parameters of TAD, while AtCAD exhibited a high catalytic rate constants (k_cat) and Michaelis constant (K_M) (65). It was also previously reported that trans pathway produced lower IA amount at high IA level due to unused substrate (52). (iii) RNAi for IDH exhibited a considerable effect on IA production (Fig. 4, C and D). However, the biomass was relatively low, and there was considerable residual glucose (Fig. 4D). As decreased IDH activity resulted in reduced glucose consumption rate, a weaker promoter, P9, was selected as it performed best in balancing cell growth and IA productivity. Notably, weak promoter changing in Y. lipolytica sometimes is very time consuming, as it was very hard to obtain positive transformants when the expression level of the promoter was too low. However, RNAi established here could provide much easier and even deeper down-regulation levels. Further study of RNAi by using different lengths of double-stranded RNA of the whole gene or CRISPRi by testing different targeting sites are needed for fine turning of down-regulation of gene expression levels.

NL condition resulted in high IA yield but lower productivity. NR condition not only increased IA titer and productivity but also contributed to IA production during scale-up. To increase IA yield in NR conditions, we successfully mimicked the NL regulation by down-regulating IDH activity with the present of nitrogen source. This approach increased IA yield, retaining high productivity in NR conditions. Furthermore, in NL conditions, down-regulating IDH indeed increased IA yield (Fig. 4, A, D, and E), suggesting a deeper repression than the native regulations in NL. Therefore, the technology developed here can serve as a universal platform for CA or lipid production in Y. lipolytica when NL condition is preferred. It is worth noting that, in addition to conventional deletion and promoter replacement, RNAi and CRISPRi were successfully used to enable the fine modulation of gene expression levels, especially for essential genes like IDH. To the best of our knowledge, RNAi in Y. lipolytica has not been previously reported. These two gene knockdown technologies developed here are promising approaches for fine modulation of gene expression levels and expands the current genetic toolbox for Y. lipolytica engineering.

During the scale-up process we had to address three main challenges that were absent on flask level (excess of CA secretion under NL, IA tolerance, and excess feeding of base). (i) There are two potential reasons for the increased CA during the scale-up from previous reports. First, growth and CA production are all known to be affected by oxygen availability (66). The increased dissolved oxygen level by agitation and aeration could result in increased CA accumulation. Second, it was reported that under low iron concentrations, iron is a factor limiting the activity of the iron-dependent enzyme, ACO (aconitate hydratase; EC 4.2.1.3) (67). Decreased activity of ACO, caused by the iron consumption by higher biomass in bioreactors, could result in blocked flux form CA to cis-aconitate, and therefore, more CA could be detected in the bioreactor run. Further studies of oxygen levels and iron concentrations could be investigated to further increase IA production. In this study, CA secretion can be prevented by avoiding NL condition. It was reported that NL also resulted in decreased IA titer in A. terreus (23, 68). However, avoiding NL conditions can decrease yields. This can be mitigated by IDH knockdown (Fig. 4, D and E, JYFL077 and JFYL122). Furthermore, to reduce excess CA secretion, we compared four limiting conditions (NL switch, NL, PL, and SL) in both flasks and bioreactors (Fig. 6, B and C). CA was reported to accumulate in all NL, PL, and SL conditions, while in our study, CA secretion was totally abolished in PL and SL, which increased IA yield. However, because of low productivity, all nutrient limitations were avoided in this study. (ii) Increasing pH to 5.5 and NR condition enhanced the IA tolerance in our engineered Y. lipolytica strains. It was reported that Y. lipolytica is highly tolerant to IA at pH 7 and can grow with 60 g/liter IA (34). The pK_a values (where K_a is the acid dissociation constant) of IA for its two dissociation modules, are 3.84 and 5.55 (25°C), and most IA at pH 7 is in the ionic form, which might show less toxicity. In our study, cell growth was inhibited at pH 3.5 and 25 g/liter IA, as most of IA is in the acid form. This can be solved by increasing the pH to 5.5 to increase the ratio of IA ionic type (Fig. 6E). Furthermore, IA toxicity might be alleviated by the presence of nitrogen source. It was previously reported that the growth of A. niger was hampered with 10 g/liter IA, but it was shown that the IA toxicity could be alleviated by maintaining nitrogen availability (32). This can be explained by the glutamate-dependent acid resistance mechanism (31), which is used by acid-tolerant microorganisms to reduce acid toxicity by increasing the alkalinity of the cytoplasm (31). Notably, our strategy of mimicking NL regulations to keep the nitrogen source availability might contribute the enhanced IA tolerance. (iii) Switching nitrogen source from ammonium sulfate to urea reduced the fed base volume and increased IA production. To maintain pH at 5.5 while using ammonium sulfate, an excess base (6 M KOH) was fed, and the volume increased greatly. The medium had to be removed to avoid exceeding the maximum working volume. In our previous study, we showed that urea is a drop-in nitrogen source alternative to ammonia sulfate in Y. lipolytica, and there are no concerted changes in the transcriptome (62). Although the biomass decreased when using urea as the nitrogen source, the IA titer and yield both increased compared to ammonium sulfate (Fig. 6H). Notably, without down-regulation of IDH, the FBA shows that, in NR, the flux through cis-aconitate by using urea is lower than that using ammonium sulfate, while in NL, the cis-aconitate flux is similar between urea and ammonium sulfate (Fig. 5). However, by mimicking the regulation of NL, the IA titer, yield, and productivity are higher when using urea (Fig. 6H) instead of ammonium sulfate.

In this study, we used a modular approach to gradually reprogram the metabolism of Y. lipolytica to improve IA production from 0.027 to 130.5 g/liter. We successfully managed to mimic the NL regulations in NR conditions by down-regulating IDH in Y. lipolytica. The NR condition increased IA titer, yield, and productivity, indicating that the growth-associated production strategy with nitrogen feeding and mimicking IDH down-regulation works well. This has interesting implications for lots of other products commonly made in Y. lipolytica and other oleaginous species. Beyond offering insights into the metabolism of Y. lipolytica, our findings present a wide range of synthetic biology strategies for reconstructing and modulating heterologous pathways in microbial cell factories. With successful optimization during the scale-up process, the engineered strain JFYL122 achieved an unprecedented titer of 130.5 g/liter in 1-liter bioreactors and 94.8 g/liter at a semipilot scale, suggesting our engineered Y. lipolytica as a competitive IA producer. Given the increasing interest in harnessing Y. lipolytica as a workhorse, the strategies described in this study provide practical approaches to harness the GRAS Y. lipolytica for competitive industrial-scale production.

METHODS

Strains, media, and cultivation

The E. coli strain DH5α was used for plasmid construction, which was grown at 37°C with shaking in Luria-Bertani broth (Sigma) supplemented with ampicillin (50 μg/ml) for plasmid propagation. All the Y. lipolytica strains constructed in this study were derived from ST6512, which is a W29 background strain (Y-63746 from the ARS Culture Collection, Peoria, USA; a.k.a. ATCC20460/CBS7504) and harbors Cas9 at KU70 locus for marker-free genomic engineering by an EasyClone YALI toolbox (51). The complete list of strains used in this study are listed in table S3.

Y. lipolytica strains were cultivated in the minimal mineral, a modified Delft medium (69) with 0.2 M phosphate buffer, in shake flasks and 24–deep well plates unless stated otherwise. The NR medium contained (NH₄)₂SO₄ (7.5 g/liter), KH₂PO₄ (19.2 g/liter), K₂HPO₄ (10.2 g/liter), MgSO₄•7H₂O (0.5 g/liter), 2 ml of trace metal solution stock, and 1 ml of vitamin solution stock. The trace metals and vitamin solution were added after autoclave. Trace metal solution contained FeSO₄•7H₂O (3.0 g/liter), ZnSO₄•7H₂O (4.5 g/liter), CaCl₂•2H₂O (4.5 g/liter), MnCl₂•4H₂O (1 g/liter), CoCl₂•6H₂O (300 mg/liter), CuSO₄•5H₂O (300 mg/liter), Na₂MoO₄•2H₂O (400 mg/liter), H₃BO₃ (1 g/liter), KI (100 mg/liter), and Na₂EDTA•2H₂O (19 g/liter). The vitamin solution stock contained d-biotin (50 mg/liter), d-pantothenic acid hemicalcium salt (1.0 g/liter), thiamin-HCl (1.0 g/liter), pyridoxin-HCl (1.0 g/liter), nicotinic acid (1.0 g/liter), 4-aminobenzoic acid (0.2 g/liter), and myo-inositol (25 g/liter). The initial pH was set at 6.5 with KOH. C_xN_y was used here to indicate the glucose and nitrogen (ammonia sulfate or urea) amount (grams per liter) with x and y values. C/N was used to indicate the carbon and nitrogen molar ratio. In steps 1 to 3, 20 g/liter glucose and 7.5 g/liter ammonia sulfate were used in this medium to set the NR condition (C/N = 5.88), while in step 3, NL condition (C/N = 100) was achieved with 20 g/liter glucose and 0.44 g/liter ammonia sulfate. In step 4, the media with varying C/N ratios, PL, and SL conditions were provided in table S8 to study the carbon flux distribution between CA and IA for optimal IA fermentation.

In chemostat cultivations, all modified Delft media contained KH₂PO₄ (3 g/liter), MgSO₄•7H₂O (0.5 g/liter), 1 ml of trace metal solution stock, and 1 ml of vitamin solution stock. For the NL condition (C/N ratio 116), the media contained 0.471 g/liter ammonium sulfate or 0.213 g/liter urea (sterile filtered) and 25 g/liter glucose, while for the NR condition (C/N ratio 3), the media contained 5.28 g/liter ammonium sulfate or 2.4 g/liter urea (sterile filtered) and 7.92 g/liter glucose. pH was set at 5.5 with 2 M KOH, and the temperature was set at 28°C.

All Y. lipolytica strains were cultivated at 30°C for shake flask and 24–deep well plate fermentation with a shaking speed of 220 rpm. The 24–deep well plates are purchased from Enzyscreen (plates, CR1424a; lips, CR1224f), and the volume of culture is 2.5 ml.

Cloning and transformation procedures

Plasmids for genome engineering were constructed using a set of vectors from EasyCloneYALI as backbones (51). The construction of plasmid for genome engineering was performed according to EasyCloneYALI instructions. The complete list of plasmids used in this study are listed in table S4. All primers are listed in table S5.

For the gene deletion of ARE1, DGA1, DGA2, LRO1, ICL1, ICL2, IDH1, IDH2, and IDP, equal amounts of two single-stranded oligonucleotides (90 to 120 bp) were used to obtain the repair templates. The pair of oligonucleotides were incubated for 5 min at 98°C and allowed to cool down to room temperature. The EasycloneYALI toolbox was used to construct gRNA plasmids for CRISPR-Cas9 aided gene deletion.

For gene overexpression, the integration plasmids were constructed with different promoters and genes. The codon optimized genes are listed in table S6. The marker-free integration cassettes were obtained by digesting the corresponding plasmids. After purification, around 1 μg of repair fragment was used for transformation. For each transformation, around 500 ng of gRNA plasmid was used.

For IDH1 promoter change, the repair fragments were obtained by overlap polymerase chain reaction (PCR) of the upstream of IDH1, promoter candidate, and downstream of IDH1. AKEC8 was used as the gRNA helper plasmid for IDH1 promoter change.

Establishment of RNAi

The design was illustrated in fig. S9 based on a previous report (59). The codon optimized Dcr1 under pTef and Ago1 under pGAPDH are listed in table S6. The Ri1 to Ri10 are listed in table S7.

Chemostat experiments

Chemostat cultivations were conducted at 28°C using DasGip systems with 1-liter stirrer-pro vessels (Eppendorf) as previously reported (45). Briefly, the working volume was 500 ml kept constant using an overflow pump, and pH was maintained at 5.0 ± 0.1 by automatic addition of 2 M KOH. The agitation was set at 600 rpm, and aeration was maintained with sterile air at 30 liters per hour (1 vvm) and monitored with dissolved oxygen (DO) probes (Mettler). Delft medium was used in batch, and constant feed with a dilution rate of 0.10 hour⁻¹ was initiated after the exponential growth phase to obtain steady-state cultivation. The growth was monitored by the CO₂ exhaust gas. Samples for lipid analysis from JFYL007 and OKYL029 were taken after five residence times of steady-state growth. Each condition was cultivated at least in triplicate.

Lipid body visualization

Lipid body visualization was performed by microscopic analysis. The Bodipy Lipid Probe (2.5 mg/ml in ethanol, Invitrogen) was added to the cell suspension (OD₆₀₀ of around 1) with 10-min incubation at room temperature. A Zeiss Axio Imager M2 microscope (Zeiss, Le Pecq, France) with a 100× objective and Zeiss filters 45 and 46 for fluorescence microscopy were used to acquire the images.

Lipid extraction and quantification

Samples from OKYL029 and JFYL007 chemostat were harvested for measuring intracellular lipid concentration, lipid ratio. Fatty acids were extracted, transformed to fatty acid methyl esters (FAMEs), and quantified by gas chromatography–mass spectrometry (GC-MS) using a published method. GC-MS (Thermo Fisher Scientific Trace 1310 coupled to a Thermo Fisher Scientific ISQ LT) and a ZBFAME column (Phenomenex, 20 m, 0.18-mm inner diameter, 0.15-μm film thickness) were used for the quantification. The fatty acids (C16:0, C16:1, C18:0, C18:1, and C18:2) were considered to calculate intracellular FAME amount, intracellular lipid concentration (total FAME amount per cell dry weight, mg fatty acid/mg dry biomass).

High-performance liquid chromatography analysis

Glucose and other extracellular metabolites in medium were quantified by high-performance liquid chromatography (HPLC) UltiMate 3000 HPLC system (Dionex). Fermentation samples were harvested (samples with high OD from bioreactors were diluted 10 times) and centrifuged for 2 min at 13000g, and the supernatant was used for HPLC analysis. Two HPLC systems were used. Luna 5μ C18 (2), 250*4.6 mm (Phenomenex) was used for testing cis-aconitate. Its mobile phase was composed of 0.02 mM monopotassium phosphate buffer (pH 2.65) to methanol (a ratio of 95:5) with a flow rate of 1 ml/min. An Aminex HPX-87H ion exclusion column (Bio-Rad, Solna, Sweden) was used for testing glucose, IA, CA and other metabolites. H₂SO₄ (5 mM) was used as mobile phase with a flow rate of 0.6 ml/min. Glucose was quantified using a refractive index detector (Shodex, Munich, Germany), and other metabolites were quantified using a UV detector.

Quantitative PCR experiment

Strains were cultivated in Delft medium [(NH₄)₂SO₄ (7.5 g/liter) and glucose (20 g/liter)] at 30°C, 250 rpm. For RNA purification, RNA was isolated from yeast culture grown to an OD₆₀₀ of 1.5 ± 0.1 using a RiboPure Yeast kit (Invitrogen). RNA was quantified by a NanoDrop spectrophotometer (Thermo Fisher Scientific), and cDNA was generated from each RNA prep using a High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems). cDNA (10 ng) was used for each quantitative PCR (qPCR). qPCR results were normalized to the housekeeping gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH). All qPCR primers were designed manually using Benchling. All qPCRs were performed in a StepOnePlus Real-Time PCR System (Applied Biosystems) using SYBR Green JumpStart Taq ReadyMix (Sigma-Aldrich). The ΔΔCt method is used to calculate the relative fold gene expression (70).

IDH assay

The IDH enzyme activity was determined using the IDH activity detection kit (no. MAK062, Sigma, USA), according to the manufacturer’s instruction of the assay kit. Cells were harvested at 48 hours, and the homogenates obtained after the cell disintegration with the glass beads were used for IDH assay.

FBA analysis

The Y. lipolytica genome-scale model (GEM) used in this work were refined on the basis of a published GEM named iYali v4.1.1 (71), during which the flux bounds for reactions y102884, y102948, y000303, y002305, y000659, and y000661 were constrained at zero to reflect the gene deletion and the manual protein compartment annotation. In addition, four reactions were added into GEMs to represent the whole molecular process in synthesis and secretion of itaconate. During the simulation using a python package cobrapy, the mean flux values of the physiological parameters, including the growth rate, production rate and by-product formation rate, were used to constrain GEMs. Afterwards, the minimization of glucose uptake rates was set as the optimizing objective function to solve the fluxes through each reaction based on the Parsimonious FBA procedure (72).

Bioreactor fermentations

Bioreactor fermentations at benchtop level were performed in DasGip 1-L stirrer-pro vessels (Eppendorf, Jülich, Germany) at 30°C. pH was monitored with a pH sensor (Mettler Toledo, Switzerland) and maintained at a set value by automatic addition of 6 M KOH or 2 M HCl. Bioreactor fermentations at semipilot level were performed in New Brunswick BioFlo 610 bioreactor systems. The media are shown in table S8.

IA tolerance experiment

The modified Delft medium, with the addition of MES to a final concentration of 0.2 M to reduce the influence of pH change, was supplemented with various concentrations of IA (0, 5, 10, 20, and 40 g/liter) or NaCl (20 g/liter) as a negative control to test the IA tolerance. The initial pH was 6.5. The strains were cultured in 48–deep well plates in microbioreactors BioLector (m2p-labs) at 30°C with the initial OD₆₀₀ of 0.2. The OD₆₀₀ was measured every 30 min automatically.

Acknowledgments

Funding: The funding for this research was provided by the Novo Nordisk Foundation (grant NNF10CC1016517); the Research Council for Environment, Agricultural Sciences, and Spatial Planning (Formas) under grant 2023-00811; the ÅForsk Foundation (23-587); and the Swedish Research Council (VR) under grant 2019-04624. We extend our gratitude to BRISK2, which is a part of the European Union’s Horizon 2020 Research and Innovation Programme (grant agreement 731101) and to the COST Action YEAST4BIO (CA18229) for support in the semipilot-scale fermentation experiment.

Author contributions: Conceptualization: J.F., S.Z., D.K., F.D.B., and E.J.K. Methodology: J.F., S.Z., H.L., A.W., D.K., F.D.B., and E.J.K. Investigation: J.F., S.Z., O.K., N.P., D.K., A.K., and F.D.B. Visualization: J.F., S.Z., A.K., D.K., and F.D.B. Supervision: R.L.A., D.K., A.W., F.D.B., and E.J.K. Writing—original draft: J.F. and D.K. Writing—review and editing: J.F., S.Z., H.L., D.K., and E.J.K. Resource: J.F., R.L.-A., and E.J.K. Software: H.L. Project administration: D.K., F.D.B., A.W., and E.J.K. Funding acquisition: A.W., and E.J.K. Data curation: J.F., A.K., D.K., and F.D.B. Formal analysis: J.F. and A.K. Validation: D.K. and F.D.B.

Competing interests: The authors declare that they have no competing interests.

Data and materials availability: All data needed to evaluate the conclusions in the paper are present in the paper and/or the Supplementary Materials. The strains can be provided by Sysbio with a completed material transfer agreement. Requests for the strains should be submitted to: eduardk@chalmers.se (E.J.K.).

Supplementary Materials

This PDF file includes:

Figs. S1 to S13

Tables S1 to S8

sciadv.adn0414_sm.pdf^{(1.9MB, pdf)}
