This is a preprint.

It has not yet been peer reviewed by a journal.

The National Library of Medicine is running a pilot to include preprints that result from research funded by NIH in PMC and PubMed.

bioRxiv logoLink to bioRxiv
[Preprint]. 2024 Nov 20:2024.11.18.623945. [Version 1] doi: 10.1101/2024.11.18.623945

Mycobacterial lipoarabinomannan negatively interferes with macrophage responses to Aspergillus fumigatus in-vitro

LE Gonzales-Huerta 1,2,3, TJ Williams 1, R Aljohani 1, B Robertson 1, CA Evans 1,4,5,6, DPH Armstrong-James 1
PMCID: PMC11601501  PMID: 39605324

Abstract

Introduction:

Over 1 million people have chronic pulmonary aspergillosis (CPA) secondary to pulmonary tuberculosis. Additionally, Aspergillus fumigatus (Af) has been reported as one of the most common pathogens associated with mycobacteria in patients with cystic fibrosis. Mycobacterial virulence factors, like lipoarabinomannan, have been shown to interfere with host's intracellular pathways required for an effective immune response, however, the immunological basis for mycobacterial-fungal coinfection is still unknown. We therefore investigated the effect of lipoarabinomannan on macrophage responses against Af.

Methods:

Bone marrow-derived macrophages (BMDMs) were stimulated with non-mannose-capped lipoarabinomannan (LAM) from Mycobacterium smegmatis or mannose-capped lipoarabinomannan (ManLAM) from Mycobacterium tuberculosis for 2 hours and then infected with swollen Af conidia. Cell death was assessed by lactate dehydrogenase release. Cytokine release was measured in supernatant using Enzyme Linked Immuno-Sorbent Assay (ELISA). Colony forming units counting and time-lapse fluorescence microscopy was performed for studying conidia killing by macrophages.

Results:

BMDMs stimulated with LAM showed increased cell death and inflammatory cytokine release in a dose-dependent manner, characterised by a significant increase of IL-1β release. Time-lapse fluorescence microscopy and CFUs revealed that both LAM and ManLAM significantly decrease the capacity of macrophages to kill Af conidia within the first 6 hours of infection.

Conclusions:

The mycobacterial virulence factor, lipoarabinomannan, disrupts macrophage capacity to efficiently clear Af at early stages of infection in-vitro.

Keywords: Aspergillus fumigatus, Pulmonary Aspergillosis, tuberculosis, Mycobacterium tuberculosis, Mycobacterium smegmatis, lipoarabinomannan

INTRODUCTION

Aspergillus fumigatus (Af) is a ubiquitous airborne fungus, and approximately 100-1000 conidia are believed to reach the lower respiratory tract and alveoli each day. Immunocompetent hosts clear fungi in the airway with effective innate immune responses (1). However, immunocompromised individuals, such as patients with neutropenia, cancer, lung transplant recipients, or with high exposures to corticosteroids, are susceptible to develop pulmonary aspergillosis (PA) (2). Additionally, patients with conditions that cause structural damage to the airway and pulmonary parenchyma, such as cystic fibrosis (CF), sarcoidosis, and lung cavitation post-pulmonary tuberculosis, present a higher risk for PA (3), which has an estimated 5-year mortality rate between 50% and 85% (4). In patients with CF, the association between mycobacteria and Af indicates increased mortality (5-7). Furthermore, the burden of PA post-tuberculosis is considered to be substantial (8), however, the causative factors for a close association between these pathogens are still unknown.

The alveolar macrophages are considered the first line of defence against Af. In the alveoli, macrophages take over the task of recognizing and process Af conidia. A protective rodlet protein layer in conidia covers the pathogen-associated molecular pattern (PAMPs) from pattern recognition receptor (PRRs) in immune cells. However, lung tissue and the body temperature of the host provide the necessary conditions for swelling and germination to initiate. The conidia swelling breaks the rodlet layer and exteriorizes galactomannan, chitin, α-glucan, and β-glucan. These components will bind to a diversity of receptors in the macrophage, inducing a mechanism that will kill conidia or inhibit their germination (9). Recognition of β-glucan by TLR-2, induces the plasma membrane receptor to activate the myeloid differentiation primary response 88 (MyD88) downstream to NF-κβ (10). Similarly, TLR-4 recognizes mannan, contributing to MyD88-mediated signalling pathway. Both, lead to increased expression and release of inflammatory cytokines, TNF-α and IL-12 (11). Additionally, C-type lectin receptors (CTL) recognize carbohydrate ligands, intervening in phagocytosis, and collaborating in the release of inflammatory cytokines (12,13). Additionally, Dectin-1 is crucial in the phagocytosis process of conidia, by recognizing β-glucans in Af, it activates the immunoreceptor tyrosine-based activation motif (ITAM). This leads to subsequent triggering of Src/Syk-dependent signalling pathway to contribute in the activation of NF-κβ and NFAT (14,15). Mannose receptor recognizes chitin, internalize it, and has been shown to modulate macrophage activation by increasing the production of IL-10, which dampens the inflammation (16).

NLRs have been also associated with the immune response against Af. Although, NOD2 expression contributes to the inflammatory response through activation of NF-κβ in Af infection(17), the genetic deficiency of NOD2 has been shown to be protective against invasive aspergillosis (18). NLRP3 has been reported to respond effectively to hyphal fragments by triggering the inflammasome assembly, with subsequent caspase-1 activation and IL-1β release, which requires K+ efflux and ROS production (19). Muramyl dipeptide (MDP) is a well-known bacterial ligand for NOD2 (20), but it is absent in Af. It has been suggested that inflammasome assembly is triggered by nucleic acid structures released by Af (21,22).

Lipoarabinomannan is one of the most important virulence factors in mycobacteria. It is constituted by a polymannosylated phosphatidylinositol core with an arabinan moiety. This arabinan termini can be capped with an inositol phosphate residue or with mannose, depending on the mycobacterial specie, and it modifies its immunogenicity (23). Mannose-capped lipoarabinomannan (ManLAM) produced by Mycobacterium tuberculosis, has been shown to interfere with normal phagolysosome function, inflammatory cytokine production, and to inhibit apoptosis (24-26). Alternatively, the lipoarabinomannan produced by Mycobacterium smegmatis, lacks the mannose cap and has been showed to induce a strong TLR-2 mediated immune response, while it decreases phagocytosis (27).

Epidemiological and clinical data suggest that mycobacteria infection potentially facilitates fungal colonization and respiratory disease. Moreover, mycobacterial lipoarabinomannan has been shown to interfere with the cellular mechanisms that are required for an effective response to Af. Therefore, we hypothesize that mycobacterial lipoarabinomannan negatively modulates macrophage responses to Af.

MATERIAL AND METHODS

Culture and preparation of Aspergillus fumigatus (Af)

Af strains CEA-10 (FGSC A1163) was obtained from the Fungal Genetics Stock Center and the American Type Culture Collection (ATCC). A GFP-expressing Af derived from ATCC46645 strain (ATCC46645-eGFP) was kindly given by Frank Ebel. A dsRED-expressing Af (AF293) was a kind gift from Georgios Chamilos. Af was cultured in Sabouraud dextrose agar (Oxiod® Cat. CM0041B) for 3-4 days at 37°C and harvested by washing with DPBS + 0.1% Tween-20. Conidia suspension was filtered using sterile Miracloth™ (Millipore™, Cat. 475855). For swollen conidia, 106 conidia per mL of RPMI-1640 (Gibco® Cat. 11875-093) were incubated in petri-dish at 37°C + 5% CO2 for 3 hours.

Tracking of conidia swelling and germination

Resting Af conidia was harvested and resuspended at a concentration of 5 x 105 in RPMI-1640. LAM (BEI resources, Cat. NR-14849) and ManLAM (BEI resources NR-14848) were added to the media at a concentration of 1 μg/mL. Af conidia were transferred to a 96-well plate (Greiner® Cat. 655090) at a concentration of 105 per well in 200 μL.Conidia were imaged in a widefield inverted microscope (Zeiss® Cell Discoverer 7), with a heated chamber at 37°C and 5% CO2. Cells were imaged every 15 min for 12 hours in a single z-plane.Image analysis was performed using FIJI. Nine conidia, properly focused for at least 9 hours, were selected from each FOV. Manual measurements of conidial diameter were taken for every hour of incubation until point of germination was reached.

Bone marrow-derived macrophages (BMDMs)

Healthy C57BL/6J mice between 8 and 12 weeks old were euthanized with cervical dislocation. Secondary confirmation was performed with dissection of the femoral artery. Bone marrow was flushed out of mice femurs with cold PBS and filtered through a 40 μm cell strainer. Cells were centrifuged and resuspended in 60 mL of cRPMI + 40 ng/mL m-CSF (PeproTech® Cat. 315-02) + 50 μg/mL Gentamicin (Gibco®, Cat. 11540506). Cells were cultured in petri-dishes at 37°C + 5% CO2. After 3 days, additional 5 mL of fresh media was added, and cells incubated for 4 more days to complete differentiation. To recover BMDMs, medium was discarded, replaced with cold PBS + 2 mM EDTA (Millipore® Cat. 324506-100ML) and petri-dishes placed in the fridge for 20min. For experimentation, macrophages were seeded in a 96-well flat bottom plate at a concentration of 5 x 104 per well in 200 μL of cRPMI + 20 ng/mL m-CSF. Cells were activated with overnight with 200 U/mL of IFN-γ (Peprotech® Cat. 315-05). On the day of infection, IFN-γ was removed and cells were stimulated with lipoarabinomannan (BEI resources, Cat. NR-14849 and NR-14848) for 2 hours. Cells were infected with CEA-10 Af or dsRED-Af swollen conidia at MOI=2.

LDH assay

LDH release was tested using the Cytotox-96® Non-Radioactive Cytotoxicity Assay (Promega® Cat. G1780) according to manufacturer’s instructions. 50 μL of fresh supernatant was employed.

Cytokine release

BMDMs, were seeded at 5 x 104 cells per well and treated for 2 hours with LAM or ManLAM [0.1, 0.5, and 1 μg/mL], prior to infection with CEA-10 Af swollen conidia at MOI=2. Supernatant was collected 24 hpi.

Cytokines were studied using the supernatant from tissue culture and a sandwich ELISA kit from Bio-Techne for TNF-α (R&D Systems Cat. DY410), IL-1β (R&D Systems Cat. DY401) and CXCL1/KC (R&D Systems Cat. DY453) according to manufacturer’s instructions in Nunc MaxiSorp™ 96-well plates (Invitrogen™, Cat. 44-2404-21).

Colony forming units (CFUs)

105 cells per well were prepared and treated in a 24 well plate for experimentation. Cells were infected with CEA-10 swollen conidia at MOI=2. At 3 hpi, supernatant was removed, cells were washed with warm PBS and lysed with 500 μL of DPBS (Gibco® Cat. 14190-136) + 0.1% Tween-20 (Sigma-Aldrich®, Cat. 9416-100ML). Serial dilutions were prepared from lysed cells. 100 μL of lysed cells dilution (1:100) was transferred and spread on a 9 mm petri-dish containing 15 mL of Sabouraud agar (Oxiod® Cat. CM0041B), incubated at 37°C for 18-24 hours, and counted manually.

FLARE conidia

Fluorescent Aspergillus Reporter (FLARE) conidia was prepared according to the protocol published by Tobias Hohl’ group (28). dsRED-Af aliquots were centrifuged at 9300 g for 10 min and the supernatant discarded. The pellet is resuspended in 1 mL of 0.05 M NaHCO3 pH 8.3 + 500 μg of biotin-XX, SSE (Invitrogen, Cat. 11524197) and incubated at 4°C for 2 h. Next, Af is centrifuged, and pellet resuspended in 1 mL of 100 mM Tris-HCl pH 8.0 for 1 h at room temperature. Then, Af is centrifuged and Tris-HCl discarded. Pellet is resuspended in 1 mL PBS with 20 μg/mL of Streptavidin-AF633 (Invitrogen, Cat. S21375) and incubated for 40 min at room temperature. Conidia is then centrifuged at 9300 g x 10 min, supernatant removed, and pellet resuspended in PBS. For swollen conidia, fungi are counted, new aliquots of 2x106 or 4x106 conidia per mL are prepared with RPMI-1640 (Gibco® Cat. 11875-093) and incubated at 37°C +5% CO2 for 3 h. Finally, conidia are centrifuged again, medium discarded, and pellet resuspended in culture medium.

Microscopy tracking of conidia killing assay

Macrophages were seeded in a 96-well (Greiner® Cat. 655090) at a concentration of 5 x 104 per well for BMDMs. On the day of infection, IFN-γ and m-CSF was removed to stimulate the macrophages with 1 μg/mL of LAM, ManLAM, in 100 μL of cRPMI without phenol red. After 1 hour, 100 μL of medium with 100 nM of LysoTracker™ Blue DND-22 (Invitrogen™ Cat. L7525) was added to each condition, preserving the mycobacterial ligands’ concentration. After 2 hours of stimulation, the medium was removed and replaced with 200 μL of fresh cRPMI + ligands. Next, 50 μL of medium with 105 FLARE swollen conidia was added. For controls, 50 μL of medium without Af conidia is added to get all condition to 250 μL.

For BMDMs, cells were imaged in an automated high-content widefield inverted microscope (Zeiss® Cell Discoverer 7), with a heated chamber at 37°C and 5% CO2. One FOV per well was set for time-lapse images, acquired with Zen Blue 3.1 software in 16-bit. Cells were imaged every 15min for 6 hours in a single z-plane.

Image analysis was performed using FIJI. Channels for Lysotracker™ Blue DND-22, dsRED and AF633 were split using a FOV from an unstimulated well with Af infection to manually determine the threshold for positivity. These threshold values were set for the rest of FOVs. dsRED and AF633 channels were employed for counting conidia killing manually.

Statistical analysis

All values are shown as biological replicates. All statistical analysis were performed on biological replicates. To determine statistical significance between two unmatched groups Students-T test was used. For significance testing in data normally distributed between more than two groups in one variable, One-way analysis of variance (ANOVA) was applied. Comparisons between two or more groups and two variables were analysed using Two-way ANOVA. Statistical analysis was perform using GraphPad Prism 9.4.1.

RESULTS

Lipoarabinomannan does not alter conidial swelling and germination

We investigated if lipoarabinomannan alters conidial swelling and the incubation time required for germination. No statistically significant differences were found between conditions. Lipoarabinomannan did not change the swelling rate or time of incubation for germination (Figure 1 A, B). Mean diameter for unstimulated CEA-10 conidia was 4.4 μm at 0 hours and reached 7.3 μm by 6 hours. For dsRED-Af, the diameter ranged from 4.5 μm at 0 hours to 7.9 μm at 6 hours.

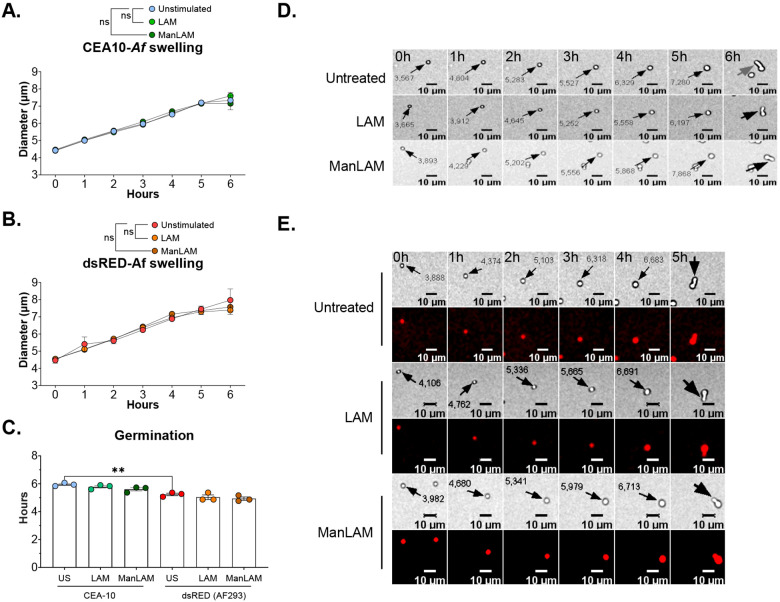

Figure 1. Lipoarabinomannan does not interfere with Af fitness.

Figure 1.

Open in a new tab

A. Conidial diameter of CEA-10 Af strain over time. B. Conidal diameter for ds-RED Af. C. Comparison of the time of incubation at 37°C +5% CO2 required to reach germination. D. Representative images of CEA-10 strain swelling until it reaches germination. E. Representative images of dsRED strain swelling and germination. Statistically significant differences were tested with two-way ANOVA for time-lapse microscopy experiment and one-way ANOVA for germination data. Statistical tests were performed on results from 3 experimental replicates (n=3). Error bars in SEM. p value * < 0.05, ** < 0.01, *** < 0.001, **** < 0.0001.

For CEA-10, germination started approximately at 5.9 hours of incubation. LAM stimulation averaged 5.8 hours, and ManLAM 5.6 hours. Similar results were obtained with dsRED-Af, with unstimulated conidia reaching germination stage at 5.2 hours. For LAM, germination time-point was reached at 5 hours, and for ManLAM at 4.9 hours. These were not statistically significant differences (Figure 1 C).

LAM increases cell death in BMDMs infected with Af

LAM showed to increase cell death in BMDMs in a dose-dependent manner by 12 hpi. Mean values for cell death were 27%, 35.9%, 49.9%, and 54.9% for unstimulated, 0.1 μg/mL, 0.5 μg/mL, and 1 μg/mL of LAM respectively. The statistically significant difference is lost by 24 hpi; however, a clear trend persists with higher mean values for macrophages stimulated with LAM (Figure 2). ManLAM did not produce any statistically significant differences.

Figure 2. LAM increases cell death in Af infection.

Figure 2.

Open in a new tab

A. Cytotoxicity at 6, 12, 18 and 24 hpi measured as LDH release. Three concentrations of LAM (0.1μg/mL, 0.5μg/mL, and 1μg/mL) were tested in uninfected controls (blue) and infected with swollen conidia of CEA-10 Af (red). B. Cytotoxicity at 6, 12, and 24 hpi with ManLAM at 0.1 μg/mL, 0.5 μg/mL, and 1 μg/mL. One-way ANOVA was performed on biological replicates. Error bars in SEM.

LAM increases IL-1β release from Af infected BMDMs

BMDMs stimulated with LAM produced a significant increase of IL-1β release. Mean value for cells stimulated with 1 μg/mL of LAM was 385.8 pg/mL, whereas for unstimulated cells was 16.71 pg/mL (Figure 3). It is important to note that at 24 hpi, more than 80% of LAM-stimulated macrophages had died, but only 57% of unstimulated macrophages were dead at 24 hpi. However, the increasing trend in IL-1β is suggestive of a stronger inflammatory response. Although there was an increasing trend in CXCL1 with higher concentrations of LAM, it was not statistically significant. TNF-α did not show a statistically significant difference. Finally, ManLAM did not have any effect on BMDMs cytokine release.

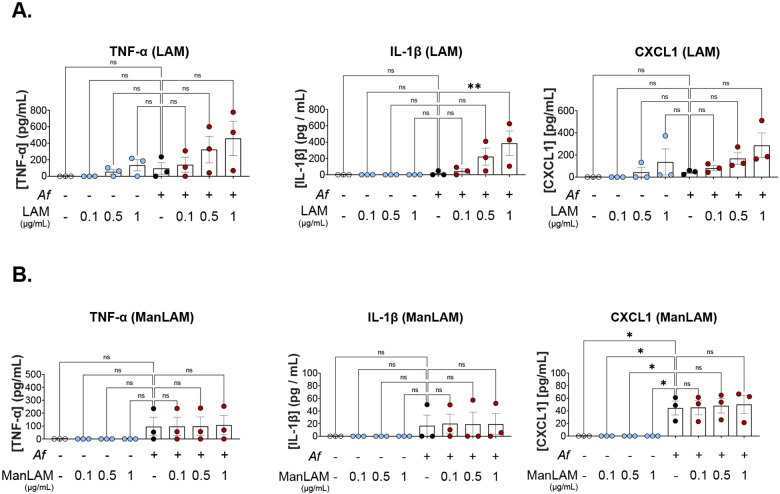

Figure 3. LAM increases IL-1β release with Af infection.

Figure 3.

Open in a new tab

A. Inflammatory cytokine release from BMDMs stimulated with different concentrations of LAM at 24 hpi. B. Inflammatory cytokine release from BMDMs stimulated with different concentrations of ManLAM at 24 hpi. One-way ANOVA was performed on biological replicates. Error bars in SEM.

Mycobacterial lipoarabinomannan reduces BMDMs Af killing rate

Next, we studied the effect 1 μg/mL for LAM and ManLAM on lysosome delivery and conidia killing. Pixels colocalization between LysotrackerBlue and dsRED-expressing conidia showed no statistically significant differences between lipoarabinomannan and unstimulated cells(Figure 4 A).

Figure 4. Mycobacterial ligands reduce macrophages killing rate of conidia.

Figure 4.

Open in a new tab

A. Pearson coefficient for Af-lysosome colocalization over time show increasing trend over time for all conditions without statistically significant differences between them. B. Image of colocalization analysis at 0, 3, and 6 hpi. C. Percentage of killed conidia (counted as single Alexa Fluor 633 positive signal) over time for US, LAM, and ManLAM. D. Comparative images of BMDMs killing Af conidia. White arrows indicate dead Af conidia (single Alexa Fluor 633 positive). E. CFUs results from lysed cells stimulate with LAM and ManLAM at 3hpi. Two-way ANOVA test for colocalization experiment and conidia killing assay. Box-plot centre line, median; +, mean, upper and lower quartiles; whiskers, 10th and 90th percentile. One-way ANOVA for CFUs. Statistical significance was tested on biological replicates (n=3). p value * < 0.05, ** < 0.01, *** < 0.001, **** < 0.0001

Nonetheless, using a FLuorescent Aspergillus REporter (FLARE) conidia (28), which allows the tracking in real-time of fungus clearance, a significant decrease in conidia killing was detected with both, LAM and ManLAM. By 2 hpi, LAM killed 1.7% vs 8.4% from unstimulated controls, which represents 80% less killing. At 6 hpi, LAM killed 10.2% of conidia vs 28.3% from unstimulated cells, or 74% less conidia. For ManLAM, the effect was similar. By 1 hpi, ManLAM cleared 2.5% vs 6.1% in controls. At 6 hpi, BMDMs stimulated with ManLAM cleared only 9.4% of conidia (Figure 1 C D). These findings were confirmed with CFUs counting. At 3 hpi, significant more CFUs were obtained from cells stimulated with LAM and ManLAM. LAM showed a dose effect, with statistically significant difference detected at 0.5 μg/mL but lost at 1 μg/mL. Similarly, ManLAM showed a stronger effect with 0.1 μg/mL than with 0.5 and 1 μg/mL (Figure 4 E).

DISCUSSION

Here, we show that mycobacterial ligand, lipoarabinomannan, negatively modulates macrophage responses to Af conidia at early stages of infection. LAM increased cell death and IL-1β release, while LAM and ManLAM decreased the killing of Af conidia at early stages of infection in an equivalent manner. These results suggest that mycobacterial virulence factors can interfere effectively against early immune response towards Af spores.

Af adaptation to its environment and its metabolic versatility has been highlighted as a factor contributing to its success as an opportunistic pathogen (29). Furthermore, interference with metabolic pathways has been shown to modify its virulence significantly. For example, high availability of glucose and acetate, carbon energy sources, has been shown to change cell-wall components that enhance the resistance to oxidative stress (30). It is unknown if mycobacteria have the capacity to modulate fungal virulence. However, fungi have been shown to produce arabinases, which metabolizes sugars towards L-arabinose and the activation of the pentose-phosphate pathway (31). Whether if lipoarabinomannan can biochemically modulate Af fitness or development via induction of specific metabolic pathways is uncertain. Nonetheless, we showed that neither LAM or ManLAM produced any changes in the growth rate and germination of Af conidia, which suggests that our findings are most likely consequence of the modulation of macrophage responses and not due to early adaptations on fungi fitness, interpreted as growth rate and conidiation capacity (9).

BMDMs stimulation with LAM produced a significant increase in cell death. Mycobacteria have been shown to alter cell death pathways as a survival strategy (32,33). We suggested that these survival strategies prime macrophages to respond abnormally to Af. When macrophages were stimulated with LAM, more cells died faster, releasing significantly more IL-1β. M. smegmatis’ LAM is a strong TLR-2 agonist that leads to activation of NF-κβ. This has been shown to induce a hyperinflammatory response, characterised by increased expression of inflammasome components, and pyroptotic cell death (34,35). Findings with LAM were also consistent in J774A.1 cells (see Extended data), which showed increased cell death in a concentration-dependent manner and increased IL-1β release. This is consistent with NLRP3 inflammasome activation model (36), using LAM as signal 1 (priming), and Af as signal 2 (activation). Further investigation focused on the delivery of lysosome to the phagosome and conidia killing, since lipoarabinomannan has been shown to have the capacity to interfere with phagosome maturation and phago-lysosome fusion (37,38). Both, LAM and ManLAM showed significant decrease in the capacity to kill conidia within the first 6 hours of infection. However, this finding did not correlate with a reduced colocalization of lysosomes with Af. A 3hpi time-point was employed for counting CFUs from lysed macrophages, which corroborated the results using time-lapse microscopy.

Although, ManLAM binds preferentially to mannose receptor in macrophages (39), it also binds and activates TLR-2, eliciting inflammatory cytokine release (40,41). Interestingly, the stimulation of macrophages with 1 μg/mL of ManLAM led to reduced killing rate of conidia, without increased cell death or a differentiated inflammatory cytokine release. Higher concentrations of ManLAM, 10-20 μg/mL (42), have shown increased cytokine release, arrest of calcium-dependent processes, and apoptosis (43). However, we avoided these concentrations since they would have masqueraded priming.

Future studies should aim to characterise more deeply the broader effects of LAM on fungal-driven inflammation kinetically, and the impact on cell exhaustion. The failure to kill Af conidia at early stages of infection suggests that these mechanisms might be compromised. To corroborate the clinical significance of these findings, further testing using human monocyte-derived macrophages from patients with Mtb and atypical mycobacterial infections would be beneficial.

Taking into consideration that deficiency of NOD2 expression is protective for invasive Af infection (18), we could suggest that conditions that boost NOD2 activation lead to undesirable outcomes. NOD2 increases NF-κβ, which primes NLRP3 for activation (49-51). TLR-2 and NOD2 have been characterised as non-redundant systems in the recognition of Mtb, although their synergic response is necessary for the induction of proinflammatory cytokines (46).

We propose that mycobacteria’s virulence factors could shift the early immune response to conidia, since the inflammasome activation has been reported exclusively for hyphae (19,21). Moreover, in a keratitis model it has been reported that TLR-2 – NOD2 synergism provides an enhanced inflammatory cytokine response to conidia (47). By activating the TLR-2 signalling through the MDP anchor in lipoarabinomannan and MDP in mycobacterial cell wall NOD2 activation could be triggered. Theoretically, when Af encounters the macrophage, it can provide an additional stimulus for TLR-2. Via phagocytosis, Af conidia is recognized by NOD2, inducing further activation stimuli. Both, TLR-2 and NOD2 pathways meet downstream with activation of NF-κβ, leading to NLRP3 assembly, formation of the inflammasome, caspase-1 activation and pyroptotic cell death, with subsequent release of IL-1β and Af conidia to the extracellular space. Nonetheless, this will require further investigation.

In conclusion, our results indicates that lipoarabinomannan can modulate macrophage responses to Af, interfering with clearance of fungi. LAM, lipoarabinomannan without mannose cap, induces a hyperinflammatory response characterised by increased release of IL-1β and increased rate of macrophages death.

Extended Data

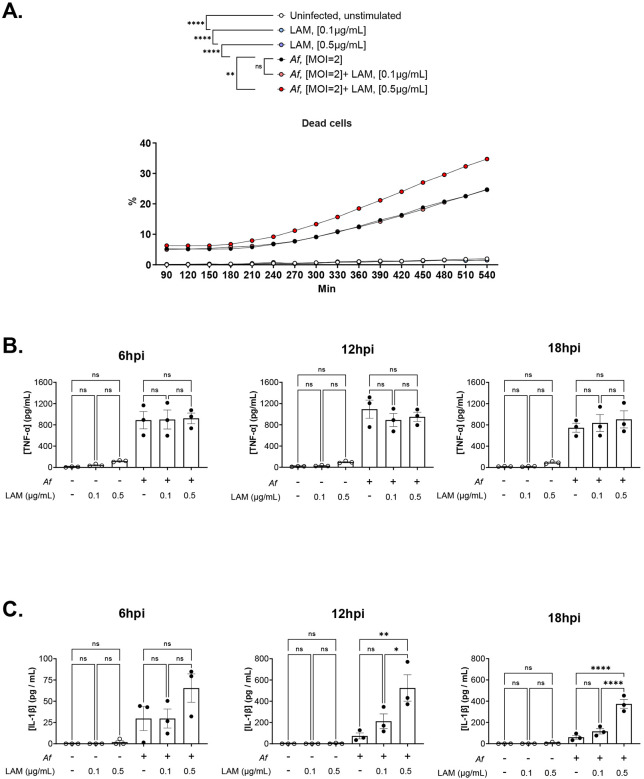

Extended Data 1. LAM increases cell death and IL-1β release in J774A.1 cells infected with Af.

Extended Data 1.

Open in a new tab

A. Time-lapse fluorometric assay using PI as a cell death marker. Percentages were calculated as relative to control with 0.1% TX100. B. Concentration of TNF-α in supernatant from J774A.1 cells infected with Af for 6, 12, and 18 hpi. C. Concentration of IL-1β in supernatant from cells infected with Af for 6, 12, and 18 hpi. Both cytokines were measured simultaneously from the same sample. One-way ANOVA was performed on 3 experimental replicates (n=3). Error bars in SEM.

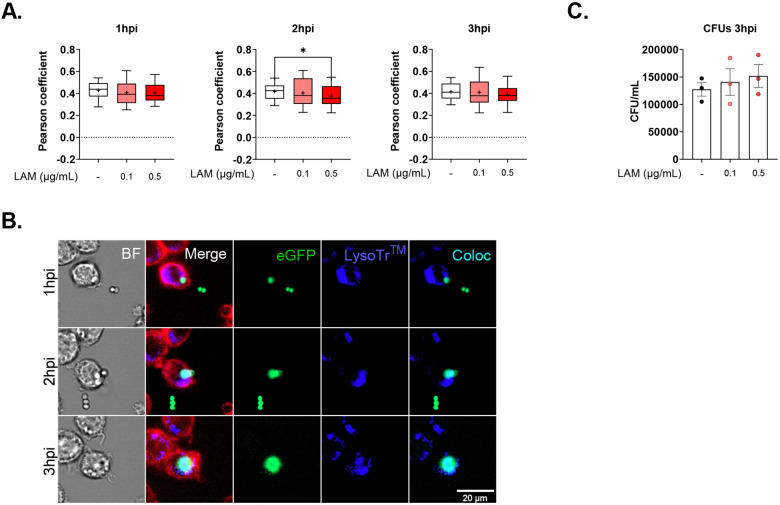

Extended Data 2. LAM reduced phagolysosome fusion at early stages of infection in J774A.1 cells.

Extended Data 2.

Open in a new tab

A. Colocalization of eGFP-Af and Lysotracker™ Blue DND-22 at 1, 2, and 3 hpi presented as Pearson’ Coefficient. Samples pooled from 3 experimental replicates for n=81 cells per condition. B. Representative images widefield time-lapse fluorescence microscopy showing J774A.1 cells, stained with CD45-AF700 (red) stimulated with 0.5μg/mL of LAM infected with eGFP-Af (green) and stained for lysosome LysoTracker™ Blue DND-22 (blue). Colocalized areas can be identified in cyan. C. CFUs obtained from J774A.1 cells lysed at 3 hpi. Two-way ANOVA test for colocalization experiment and one-way ANOVA for CFUs. Box-plot centre line, median; +, mean, upper and lower quartiles; whiskers, 10th and 90th percentile.

FUNDING

L.E.G.-H. was supported by the Wellcome Trust – Imperial College London ISSF Training Fellowship in Global Health Research [204834/Z/16/Z] and by the Peruvian National Fund for Scientific Development, Technology and Innovation of the National Science and Technology Council [FONDECYT-Concytec, 118-2017]. T.J.W. is supported by a Strategic Research Centre Award [TrIFIC, SRC015] from the Cystic Fibrosis Trust. CAE was funded by [099951, https://doi.org/10.35802/099951], a Global Health Trials Award with the UK Foreign, Commonwealth and Development Office, the UK Medical Research Council, and the UK Department of Health and Social Care through the National Institute of Health Research award MR/K007467/1]; the National Institutes of Health Fogarty International Center training grant award D43TW010074-07; and research and fellowship funding from the charity IFHAD: Innovation For Health And Development. D.A.J. is funded by the Wellcome Trust (no. 219551/Z/19/Z), the Medical Research Council (grant no. MR/V037315/1) and the Cystic Fibrosis Trust (grant no. SRC015). D.A.J. is funded by the Department of Health and Social Care (DHSC) Centre for Antimicrobial Optimisation (CAMO), Imperial College London. The views expressed in this publication are those of the authors and not necessarily those of the DHSC, National Health Service or National Institute for Health Research (NIHR).

Footnotes

COMPETING INTERESTS

No competing interests were disclosed.

REFERENCES

  • 1.Latgé JP. Aspergillus fumigatus and aspergillosis. Clin Microbiol Rev. 1999. Apr;12(2):310–50. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Kosmidis C, Denning DW. The clinical spectrum of pulmonary aspergillosis. Thorax. 2015. Mar 1;70(3):270–7. [DOI] [PubMed] [Google Scholar]
  • 3.Kanj A, Abdallah N, Soubani AO. The spectrum of pulmonary aspergillosis. Respir Med. 2018. Aug;141:121–31. [DOI] [PubMed] [Google Scholar]
  • 4.Lowes D, Al-Shair K, Newton PJ, Morris J, Harris C, Rautemaa-Richardson R, et al. Predictors of mortality in chronic pulmonary aspergillosis. Eur Respir J. 2017. Feb;49(2):1601062. [DOI] [PubMed] [Google Scholar]
  • 5.Kobashi Y, Fukuda M, Yoshida K, Miyashita N, Niki Y, Oka M. Chronic necrotizing pulmonary aspergillosis as a complication of pulmonary Mycobacterium avium complex disease. Respirology. 2006. Nov;11(6):809–13. [DOI] [PubMed] [Google Scholar]
  • 6.Takeda K, Imamura Y, Takazono T, Yoshida M, Ide S, Hirano K, et al. The risk factors for developing of chronic pulmonary aspergillosis in nontuberculous mycobacteria patients and clinical characteristics and outcomes in chronic pulmonary aspergillosis patients coinfected with nontuberculous mycobacteria. Med Mycol. 2016. Feb;54(2):120–7. [DOI] [PubMed] [Google Scholar]
  • 7.Zoumot Z, Boutou AK, Gill SS, van Zeller M, Hansell DM, Wells AU, et al. Mycobacterium avium complex infection in non-cystic fibrosis bronchiectasis. Respirology. 2014. Jul;19(5):714–22. [DOI] [PubMed] [Google Scholar]
  • 8.Denning DW, Pleuvry A, Cole DC. Global burden of chronic pulmonary aspergillosis as a sequel to pulmonary tuberculosis. Bull World Health Organ. 2011. Dec 1;89(12):864–72. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.van de Veerdonk FL, Gresnigt MS, Romani L, Netea MG, Latgé JP. Aspergillus fumigatus morphology and dynamic host interactions. Nat Rev Microbiol. 2017. Nov;15(11):661–74. [DOI] [PubMed] [Google Scholar]
  • 10.Chai LYA, Kullberg BJ, Vonk AG, Warris A, Cambi A, Latgé JP, et al. Modulation of Toll-Like Receptor 2 (TLR2) and TLR4 Responses by Aspergillus fumigatus. Infect Immun. 2009. May;77(5):2184–92. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Burgess TB, Condliffe AM, Elks PM. A Fun-Guide to Innate Immune Responses to Fungal Infections. Journal of Fungi. 2022. Aug;8(8):805. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Goyal S, Castrillón-Betancur JC, Klaile E, Slevogt H. The Interaction of Human Pathogenic Fungi With C-Type Lectin Receptors. Front Immunol. 2018. Jun 4;9:1261. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Herbst S, Shah A, Mazon Moya M, Marzola V, Jensen B, Reed A, et al. Phagocytosis-dependent activation of a TLR9-BTK-calcineurin-NFAT pathway co-ordinates innate immunity to Aspergillus fumigatus. EMBO Mol Med. 2015. Mar;7(3):240–58. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Goodridge HS, Reyes CN, Becker CA, Katsumoto TR, Ma J, Wolf AJ, et al. Activation of the innate immune receptor Dectin-1 upon formation of a “phagocytic synapse.” Nature. 2011. Apr 28;472(7344):471–5. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Werner JL, Metz AE, Horn D, Schoeb TR, Hewitt MM, Schwiebert LM, et al. Requisite role for the dectin-1 beta-glucan receptor in pulmonary defense against Aspergillus fumigatus. J Immunol. 2009. Apr 15;182(8):4938–46. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Wagener J, Malireddi RKS, Lenardon MD, Köberle M, Vautier S, MacCallum DM, et al. Fungal Chitin Dampens Inflammation through IL-10 Induction Mediated by NOD2 and TLR9 Activation. PLOS Pathogens. 2014. Apr 10;10(4):e1004050. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.jun Zhang H, ming Qu J, zhou Shao C, Zhang J, xian He L, hong Yuan Z. Aspergillus fumigatus conidia upregulates NOD2 protein expression both in vitro and in vivo1. Acta Pharmacologica Sinica. 2008;29(10):1202–8. [DOI] [PubMed] [Google Scholar]
  • 18.Gresnigt MS, Cunha C, Jaeger M, Gonçalves SM, Malireddi RKS, Ammerdorffer A, et al. Genetic deficiency of NOD2 confers resistance to invasive aspergillosis. Nat Commun. 2018. Jul 6;9(1):2636. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Saïd-Sadier N, Padilla E, Langsley G, Ojcius DM. Aspergillus fumigatus Stimulates the NLRP3 Inflammasome through a Pathway Requiring ROS Production and the Syk Tyrosine Kinase. PLoS One. 2010. Apr 2;5(4):e10008. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Lauro ML, D’Ambrosio EA, Bahnson BJ, Grimes CL. The Molecular Recognition of Muramyl Dipeptide Occurs in the Leucine-rich Repeat Domain of Nod2. ACS Infect Dis. 2017. Apr 14;3(4):264–70. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Karki R, Man SM, Malireddi RKS, Gurung P, Vogel P, Lamkanfi M, et al. Concerted activation of the AIM2 and NLRP3 inflammasomes orchestrates host protection against Aspergillus infection. Cell Host Microbe. 2015. Mar 11;17(3):357–68. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Williams TJ, Gonzales-Huerta LE, Armstrong-James D. Fungal-Induced Programmed Cell Death. J Fungi (Basel). 2021. Mar 20;7(3):231. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Dhiman RK, Dinadayala P, Ryan GJ, Lenaerts AJ, Schenkel AR, Crick DC. Lipoarabinomannan Localization and Abundance during Growth of Mycobacterium smegmatis ▿. J Bacteriol. 2011. Oct;193(20):5802–9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Chávez-Galán L, Ramon-Luing L, Carranza C, Garcia I, Sada-Ovalle I. Lipoarabinomannan Decreases Galectin-9 Expression and Tumor Necrosis Factor Pathway in Macrophages Favoring Mycobacterium tuberculosis Intracellular Growth. Frontiers in Immunology [Internet]. 2017. [cited 2023 Sep 2];8. Available from: https://www.frontiersin.org/articles/10.3389/fimmu.2017.01659 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Vergne I, Gilleron M, Nigou J. Manipulation of the endocytic pathway and phagocyte functions by Mycobacterium tuberculosis lipoarabinomannan. Frontiers in Cellular and Infection Microbiology [Internet]. 2015. [cited 2023 Jan 15];4. Available from: https://www.frontiersin.org/articles/10.3389/fcimb.2014.00187 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Maiti D, Bhattacharyya A, Basu J. Lipoarabinomannan from Mycobacterium tuberculosis promotes macrophage survival by phosphorylating Bad through a phosphatidylinositol 3-kinase/Akt pathway. J Biol Chem. 2001. Jan 5;276(1):329–33. [DOI] [PubMed] [Google Scholar]
  • 27.Liu H, Gui X, Chen S, Fu W, Li X, Xiao T, et al. Structural Variability of Lipoarabinomannan Modulates Innate Immune Responses within Infected Alveolar Epithelial Cells. Cells. 2022. Jan 21;11(3):361. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Jhingran A, Mar KB, Kumasaka DK, Knoblaugh SE, Ngo LY, Segal BH, et al. Tracing Conidial Fate and Measuring Host Cell Antifungal Activity Using a Reporter of Microbial Viability in the Lung. Cell Rep. 2012. Dec 27;2(6):1762–73. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Rhodes JC. Aspergillus fumigatus: Growth and virulence. Medical Mycology. 2006. Sep 1;44(Supplement_1):S77–81. [DOI] [PubMed] [Google Scholar]
  • 30.Ries LNA, Alves de Castro P, Pereira Silva L, Valero C, dos Reis TF, Saborano R, et al. Aspergillus fumigatus Acetate Utilization Impacts Virulence Traits and Pathogenicity. mBio. 2021. Jul 27;12(4):e01682–21. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Seiboth B, Metz B. Fungal arabinan and l-arabinose metabolism. Appl Microbiol Biotechnol. 2011;89(6):1665–73. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Maphasa RE, Meyer M, Dube A. The Macrophage Response to Mycobacterium tuberculosis and Opportunities for Autophagy Inducing Nanomedicines for Tuberculosis Therapy. Frontiers in Cellular and Infection Microbiology [Internet]. 2021. [cited 2023 Jan 10];10. Available from: https://www.frontiersin.org/articles/10.3389/fcimb.2020.618414 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Pajuelo D, Gonzalez-Juarbe N, Tak U, Sun J, Orihuela CJ, Niederweis M. NAD+ Depletion Triggers Macrophage Necroptosis, a Cell Death Pathway Exploited by Mycobacterium tuberculosis. Cell Rep. 2018. Jul 10;24(2):429–40. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Tapping RI, Tobias PS. Mycobacterial lipoarabinomannan mediates physical interactions between TLR1 and TLR2 to induce signaling. J Endotoxin Res. 2003;9(4):264–8. [DOI] [PubMed] [Google Scholar]
  • 35.Wieland CW, Knapp S, Florquin S, de Vos AF, Takeda K, Akira S, et al. Non–Mannose-capped Lipoarabinomannan Induces Lung Inflammation via Toll-like Receptor 2. Am J Respir Crit Care Med. 2004. Dec 15;170(12):1367–74. [DOI] [PubMed] [Google Scholar]
  • 36.Liu T, Zhang L, Joo D, Sun SC. NF-κB signaling in inflammation. Sig Transduct Target Ther. 2017. Jul 14;2(1):1–9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Shukla S, Richardson ET, Athman JJ, Shi L, Wearsch PA, McDonald D, et al. Mycobacterium tuberculosis Lipoprotein LprG Binds Lipoarabinomannan and Determines Its Cell Envelope Localization to Control Phagolysosomal Fusion. PLOS Pathogens. 2014. Oct 30;10(10):e1004471. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Welin A, Winberg ME, Abdalla H, Särndahl E, Rasmusson B, Stendahl O, et al. Incorporation of Mycobacterium tuberculosis Lipoarabinomannan into Macrophage Membrane Rafts Is a Prerequisite for the Phagosomal Maturation Block. Infect Immun. 2008. Jul;76(7):2882–7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Kang PB, Azad AK, Torrelles JB, Kaufman TM, Beharka A, Tibesar E, et al. The human macrophage mannose receptor directs Mycobacterium tuberculosis lipoarabinomannan-mediated phagosome biogenesis. J Exp Med. 2005. Oct 3;202(7):987–99. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Hook JS, Cao M, Weng K, Kinnare N, Moreland JG. Mycobacterium tuberculosis Lipoarabinomannan Activates Human Neutrophils via a TLR2/1 Mechanism Distinct from Pam3CSK4. J Immunol. 2020. Feb 1;204(3):671–81. [DOI] [PubMed] [Google Scholar]
  • 41.Jones BW, Means TK, Heldwein KA, Keen MA, Hill PJ, Belisle JT, et al. Different Toll-like receptor agonists induce distinct macrophage responses. J Leukoc Biol. 2001. Jun;69(6):1036–44. [PubMed] [Google Scholar]
  • 42.Rojas M, García LF, Nigou J, Puzo G, Olivier M. Mannosylated Lipoarabinomannan Antagonizes Mycobacterium tuberculosis-Induced Macrophage Apoptosis by Altering Ca+2-Dependent Cell Signaling. The Journal of Infectious Diseases. 2000. Jul 1;182(1):240–51. [DOI] [PubMed] [Google Scholar]
  • 43.Wojtas B, Fijalkowska B, Wlodarczyk A, Schollenberger A, Niemialtowski M, Hamasur B, et al. Mannosylated lipoarabinomannan balances apoptosis and inflammatory state in mycobacteria-infected and uninfected bystander macrophages. Microbial Pathogenesis. 2011. Jul 1;51(1):9–21. [DOI] [PubMed] [Google Scholar]
  • 44.Borm MEA, van Bodegraven AA, Mulder CJJ, Kraal G, Bouma G. The effect of NOD2 activation on TLR2-mediated cytokine responses is dependent on activation dose and NOD2 genotype. Genes Immun. 2008. Apr;9(3):274–8. [DOI] [PubMed] [Google Scholar]
  • 45.Corridoni D, Shiraishi S, Chapman T, Steevels T, Muraro D, Thézénas ML, et al. NOD2 and TLR2 Signal via TBK1 and PI31 to Direct Cross-Presentation and CD8 T Cell Responses. Frontiers in Immunology [Internet]. 2019. [cited 2023 Jan 11];10. Available from: https://www.frontiersin.org/articles/10.3389/fimmu.2019.00958 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 46.Ferwerda G, Girardin SE, Kullberg BJ, Le Bourhis L, de Jong DJ, Langenberg DML, et al. NOD2 and Toll-Like Receptors Are Nonredundant Recognition Systems of Mycobacterium tuberculosis. PLoS Pathog. 2005. Nov;1(3):e34. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 47.Wu J, Zhang Y, Xin Z, Wu X. The crosstalk between TLR2 and NOD2 in Aspergillus fumigatus keratitis. Molecular Immunology. 2015. Apr 1;64(2):235–43. [DOI] [PubMed] [Google Scholar]
  • 48.Chattoraj P, Yang Q, Khandai A, Al-Hendy O, Ismail N. TLR2 and Nod2 Mediate Resistance or Susceptibility to Fatal Intracellular Ehrlichia Infection in Murine Models of Ehrlichiosis. PLOS ONE. 2013. Mar 19;8(3):e58514. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 49.Boaru SG, Borkham-Kamphorst E, Van de Leur E, Lehnen E, Liedtke C, Weiskirchen R. NLRP3 inflammasome expression is driven by NF-κB in cultured hepatocytes. Biochem Biophys Res Commun. 2015. Mar 13;458(3):700–6. [DOI] [PubMed] [Google Scholar]
  • 50.Elliott EI, Sutterwala FS. Initiation and perpetuation of NLRP3 inflammasome activation and assembly. Immunological Reviews. 2015;265(1):35–52. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 51.Schroder K, Tschopp J. The Inflammasomes. Cell. 2010. Mar 19;140(6):821–32. [DOI] [PubMed] [Google Scholar]
