. 2024 Dec 4;637(8044):230–239. doi: 10.1038/s41586-024-08282-3

Synthetic GPCRs for programmable sensing and control of cell behaviour

Nicholas A Kalogriopoulos 1,#, Reika Tei 1,#, Yuqi Yan 2, Peter M Klein 3, Matthew Ravalin 1, Bo Cai 1, Ivan Soltesz 3, Yulong Li 2,4, Alice Y Ting 1,5,6,7,8,
PMCID: PMC11666456  PMID: 39633047

Abstract

Synthetic receptors that mediate antigen-dependent cell responses are transforming therapeutics, drug discovery and basic research1,2. However, established technologies such as chimeric antigen receptors3 can only detect immobilized antigens, have limited output scope and lack built-in drug control37. Here we engineer synthetic G-protein-coupled receptors (GPCRs) that are capable of driving a wide range of native or non-native cellular processes in response to a user-defined antigen. We achieve modular antigen gating by engineering and fusing a conditional auto-inhibitory domain onto GPCR scaffolds. Antigen binding to a fused nanobody relieves auto-inhibition and enables receptor activation by drug, thus generating programmable antigen-gated G-protein-coupled engineered receptors (PAGERs). We create PAGERs that are responsive to more than a dozen biologically and therapeutically important soluble and cell-surface antigens in a single step from corresponding nanobody binders. Different PAGER scaffolds allow antigen binding to drive transgene expression, real-time fluorescence or endogenous G-protein activation, enabling control of diverse cellular functions. We demonstrate multiple applications of PAGER, including induction of T cell migration along a soluble antigen gradient, control of macrophage differentiation, secretion of therapeutic antibodies and inhibition of neuronal activity in mouse brain slices. Owing to its modular design and generalizability, we expect PAGERs to have broad utility in discovery and translational science.

Subject terms: Synthetic biology, Extracellular signalling molecules, Protein design, Chemical tools


Modular synthetic G-protein-coupled receptors with nanobody-based ligand-recognition domains can be designed and used to programme transgene expression, real-time fluorescence or endogenous G-protein activation in response to soluble or cell-surface ligands, enabling control of diverse cellular behaviours.

Main

Cell-surface receptors sense specific extracellular cues, transmit those signals across the cell membrane and convert them into defined cellular responses. Engineering modular synthetic receptors that can recapitulate this transmembrane signalling is a key challenge for reprogramming cell behaviour. Synthetic receptors derived from T cell receptors (chimeric antigen receptors3) and the Notch receptor4 have enabled diverse applications in medicine1 and basic research2. However, these platforms are limited by their inherent mechanisms of activation (antigen-induced clustering and force, respectively), which restrict both antigen and output scope. GPCRs, the largest and most diverse family of cell-surface receptors, could offer a more flexible scaffold for programming cellular responses with synthetic receptors. GPCRs are seven-transmembrane cell-surface receptors that mediate responses to diverse extracellular signals, including hormones, neurotransmitters, peptides, light, force and odorants. Ligand binding induces a conformational change in the GPCR that, in turn, activates heterotrimeric G proteins and downstream intracellular signalling cascades.

The challenge in harnessing GPCRs for synthetic receptor technology is that they are not structurally modular proteins. Previous efforts to alter their ligand specificity have required labour-intensive structure-guided mutagenesis8,9 and directed evolution10,11. To enable straightforward and modular antigen gating, we engineered a conditional auto-inhibitory domain for GPCR scaffolds. We fused a nanobody and a receptor auto-inhibitory domain to the extracellular N terminus of the GPCR such that binding of the auto-inhibitory domain to the GPCR and binding of the nanobody to an antigen are mutually exclusive. Thus, antigen binding relieves auto-inhibition and enables receptor activation by an agonist (Fig. 1a). Once activated, PAGER can drive diverse native or synthetic outputs, including transgene expression (PAGERTF), endogenous G-protein activation (PAGERG) or real-time fluorescence (PAGERFL).

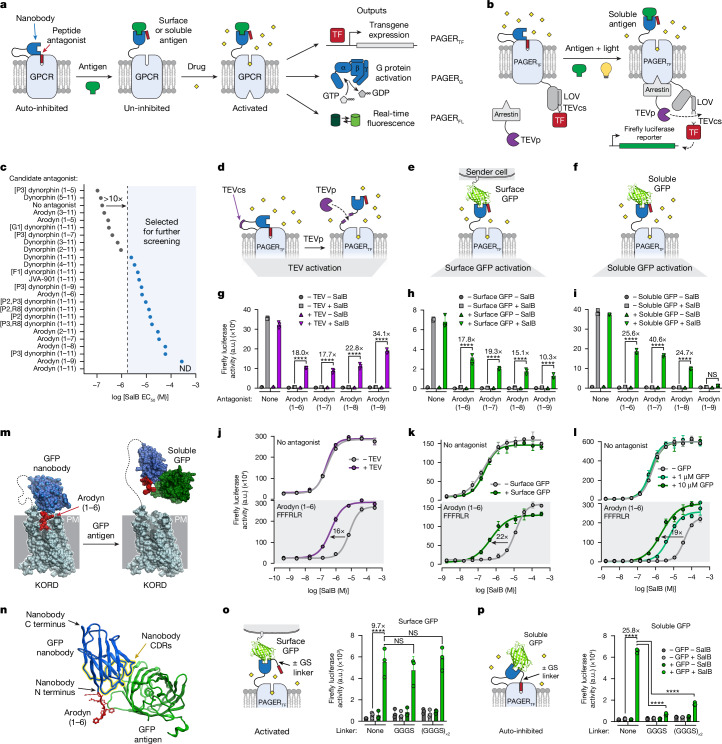

Fig. 1. Design and optimization of PAGER.

Fig. 1

a, PAGER overview. Auto-inhibition by fused peptide antagonist is relieved by antigen binding and allows drug activation of the GPCR. PAGER activation can drive transgene expression (PAGERTF), G-protein activation (PAGERG) or real-time fluorescence (PAGERFL). TF, transcription factor. b, Schematic of PAGERTF, PAGER-driven transgene expression based on SPARK14,15 (specific protein association tool giving transcriptional readout with rapid kinetics). PAGERTF activation results in proteolytic release of a tethered transcription factor. LOV, light-, oxygen- and voltage-sensitive domain. c, Summary of SalB EC50 values for candidate antagonist peptides screened in PAGERTF. n = 3 independent experiments, 3 replicates per condition. ND, not defined. df, Schematics for PAGERTF activation by extracellular TEVp (d), surface-expressed GFP (e) or soluble GFP (f). gi, PAGERTF activity in response to SalB and TEV treatment (g), co-plating with HEK cells presenting surface GFP (h) or soluble GFP (i). n = 3, 5 or 4 independent experiments, respectively, 3 replicates per condition. Data are mean ± s.d. Two-way ANOVA with Tukey’s multiple comparisons test. a.u., absorbance units. jl, SalB dose–response curves for PAGERTF activity with arodyn (1–6) antagonist and TEVp pretreatment (j), co-plating with HEK cells presenting surface GFP (k) or soluble GFP (l). n = 5, 2 or 2 independent experiments, respectively, 3 replicates per condition. Data are mean ± s.d. m, AlphaFold2 model of antagonism and antigen-dependent relief of antagonism in PAGER. PM, plasma membrane. n, AlphaFold2 model highlighting proximity between the CDRs (yellow) and N terminus of the nanobody, where the antagonist peptide (red) is fused. o, PAGERTF variants with flexible Gly-Ser linkers can be activated by surface GFP expressed on co-plated HEK 293T cells. n = 3 independent experiments, 3 replicates per condition. Data are mean ± s.d. (two-way ANOVA with Tukey’s multiple comparisons test. p, PAGERTF variants with flexible Gly-Ser linkers cannot be activated by soluble GFP. n = 3 independent experiments, 3 replicates per condition. Data are mean ± s.d. Two-way ANOVA with Tukey’s multiple comparisons test. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001; NS, not significant.

When selecting the optimal GPCR for the PAGER scaffold, we considered two requirements: (1) it should be activatable by a bioorthogonal small-molecule agonist; and (2) it should be sensitive to the activity of a genetically encodable antagonist that can be fused to the GPCR. We focused on DREADDs9,11,12 (designer receptors exclusively activated by designer drugs), GPCRs that have been engineered to be insensitive to native ligands but activatable by highly selective drug-like small molecules with minimal activity on endogenous receptors.

We started from the κ-opioid receptor DREADD (κORD), owing to the established activity of peptide antagonists for its parent κ-opioid receptor9,13 (κOR). To read out PAGER activation using a transcriptional reporter, we fused a transcription factor to κORD via a light-gated protease-sensitive linker, and co-expressed an arrestin–TEV protease (TEVp) fusion14,15 (PAGERTF) (Extended Data Fig. 1a). PAGERTF activation triggers arrestin–TEVp recruitment, and if light or furimazine are also present, then the tethered transcription factor will be released by proteolysis, translocate to the nucleus and drive reporter gene expression (Fig. 1b and Extended Data Fig. 1b,c). κORD-based PAGERTF was optimized to produce robust expression of a firefly luciferase reporter in response to its small-molecule agonist salvinorin B (SalB) (Extended Data Fig. 1d–f).

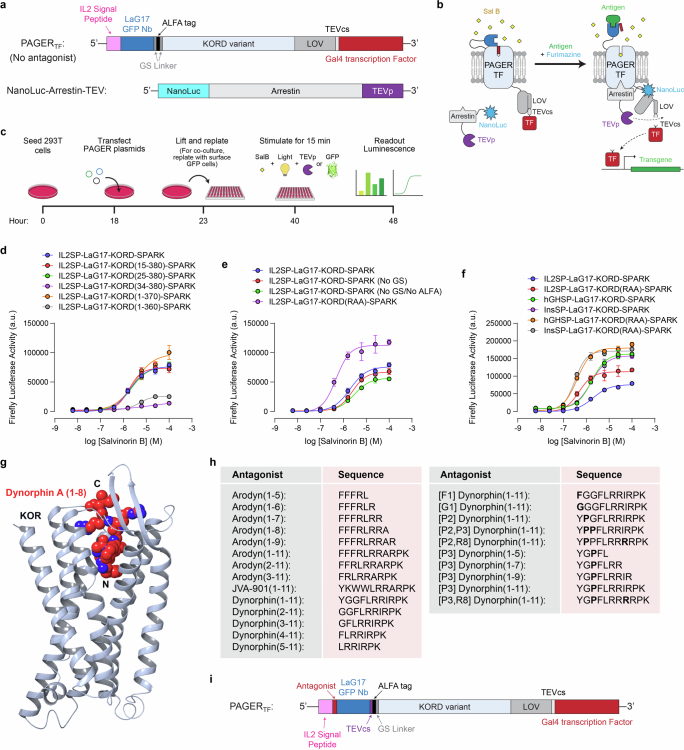

Extended Data Fig. 1. Domain structure and optimization of PAGERTF.

Extended Data Fig. 1

a, Domain structures of PAGERTF (without antagonist) and Arrestin-TEVp. b, Schematic showing how furimazine instead of light can be used to uncage LOV-TEVcs in PAGERTF. This is based on our previous SPARK tools14,15. NanoLuc luciferase fused to arrestin-TEVp is recruited to activated PAGERTF and uncages the LOV domain via BRET when furimazine (NanoLuc’s substrate) is present. Uncaging leads to TEVcs cleavage by TEVp and TF translocation to the nucleus. Alternatively, these same PAGERTF constructs can be uncaged using blue light. c, Schematic and experimental timeline for PAGERTF assay. d–f, Optimization of PAGERTF construct. SalB dose response curves of PAGERTF constructs with various truncations in KORD (d), various linkers or RAA mutation in KORD (e), and various signal peptides (f). RAA refers to V360A/R361A mutations (-RVR- to -RAA-) in the KORD gene. IL2SP, hGHSP, and InsSP are Interleukin-2 (IL2), human growth hormone (hGH) and insulin signal peptides, respectively. Full length KORD (V360A/R361A) with an IL-2 signal peptide was chosen as the optimal PAGERTF construct and used in all subsequent experiments. Plots are mean ± s.d. for 3 technical replicates per condition, representing n = 2 independent experiments. g, Crystal structure of the Kappa-opioid receptor (KOR) in complex with dynorphin A (PDB: 8F7W)13. Dynorphin binds KOR with its N-terminus buried in the orthosteric binding pocket. h, List of candidate peptide antagonists screened in PAGERTF in Fig. 1c. i, Domain structure of α-GFP PAGERTF including an N-terminal antagonist and TEVcs in the extracellular linker between KORD and nanobody.

We then screened a library of antagonist peptides to auto-inhibit PAGERTF. The natural agonist of κOR, dynorphin, is a 17-amino-acid peptide that binds with its N-terminal end buried in the orthosteric site of κOR13 (Extended Data Fig. 1g). We selected 24 candidate antagonists based on mutated or truncated variants of dynorphin (sequences in Extended Data Fig. 1h) and fused them to the extracellular N-terminal end of κORD, separated by a GFP-specific nanobody (LaG17) and a TEVp cleavage site (TEVcs) (Extended Data Fig. 1i). To ensure efficient cell-surface targeting, all constructs were cloned after an IL-2 signal peptide, which leaves no N-terminal ‘scar’ that could interfere with antagonist function. Sixteen out of 24 peptides displayed antagonism in the context of PAGERTF by shifting the half-maximal effective concentration (EC50) of the SalB response more than tenfold (Fig. 1c; full dose-response curves in Supplementary Fig. 1).

Additionally, for PAGER to function as designed, the peptide antagonism must be reversible. To screen the 16 antagonized constructs for this property, we used extracellular recombinant TEVp to cleave off the antagonist and relieve antagonism (Fig. 1d). We found that all 16 constructs were reversibly antagonized—protease treatment re-sensitized PAGERTF to SalB (Extended Data Fig. 2). We selected four constructs that use the dynorphin analogue arodyn16 for auto-inhibition, owing to their high signal-to-noise ratio in PAGERTF (Fig. 1g,j and Supplementary Fig. 2).

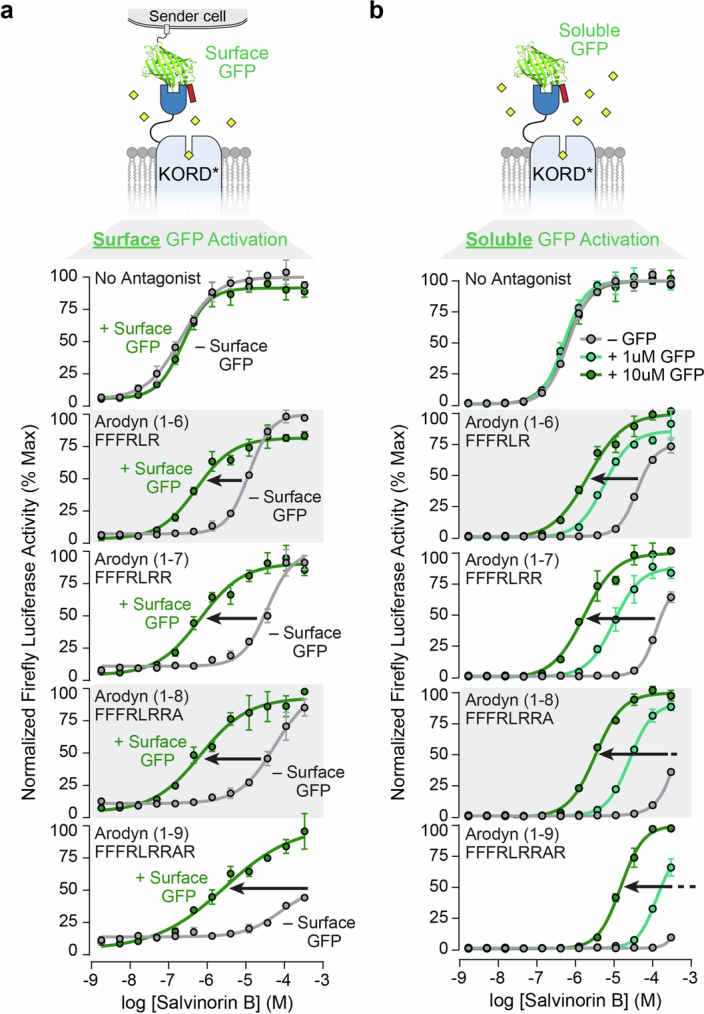

Extended Data Fig. 2. Testing PAGERTF with different antagonist peptides for response to surface or soluble GFP antigen.

Extended Data Fig. 2

a, SalB dose response curves for various PAGERTF constructs with or without co-culture with surface GFP-expressing sender cells. b, SalB dose response curves for various PAGERTF constructs with or without soluble GFP. Data presented here shows the same data (normalized) that is shown in Fig. 1k–l (update callouts) but with additional arodyn peptide antagonists included. Plots are mean ± s.d. for 3 technical replicates per condition, n = 1 independent experiment.

With these activatable PAGERTF constructs, we next tested for the ability of GFP antigen to relieve auto-inhibition and provide robust SalB activation. We performed this test in two separate assays: (1) with surface-expressed GFP introduced via co-culture (Fig. 1e,h,k and Extended Data Figs. 2a); and (2) with soluble recombinant GFP (Fig. 1f,i,l and Extended Data Fig. 2b). All anti-GFP PAGERTF constructs responded in varying degrees to both surface-expressed and soluble GFP. We observed that longer arodyn peptides were better antagonists but were also more difficult to remove with GFP antigen, probably owing to higher affinity for the receptor. For this reason, we selected the shorter arodyn (1–6) peptide, which displayed sufficient antagonism and the greatest response to GFP, for all PAGERTF constructs going forward.

PAGER was designed so that antigen binding sterically occludes the peptide antagonist, preventing it from occupying the orthosteric site; un-inhibited receptor can then be activated by drug (Fig. 1m). We hypothesized that this mechanism is enabled by the proximity between the antigen-binding loops (complementarity-determining regions (CDRs) 1–3) and N-terminal end of the nanobody, where the peptide antagonist is fused (Fig. 1n). This steric activation mechanism should operate for both cell-surface and soluble antigens. With cell-surface antigens however, tensile force between PAGER and the target antigen due to cell-cell contact and endocytosis could also displace the auto-inhibitory domain. To probe the mechanism of PAGER, we varied the linker length between the N terminus of the nanobody and the fused peptide antagonist by inserting one or two copies of a flexible GGGS linker. We hypothesized that flexible linkers might relieve steric occlusion of the antagonist by bound antigen and render PAGER insensitive to soluble antigens. Surface antigens, however, should still be able to activate PAGER using tensile force. Indeed, when including GS linkers between the nanobody and peptide antagonist, anti-GFP PAGERTF could still be activated by surface GFP antigen (Fig. 1o), but its response to soluble GFP antigen was largely abrogated (Fig. 1p).

PAGER can sense and respond to diverse antigens

If PAGER is modular as designed, simply swapping the antigen-binding nanobody for a nanobody that binds a different antigen should produce a functional receptor that can sense and respond to the new antigen. To test the modularity of PAGER, we first replaced the nanobody in anti-GFP PAGERTF with ten other GFP nanobodies and six mCherry nanobodies. These nanobodies bind to diverse epitopes on the surface of GFP and mCherry and should produce different spatial relationships between bound antigen and fused antagonist peptide. We first screened the constructs for expression, auto-inhibition and relief of auto-inhibition by TEVp treatment (Supplementary Fig. 3). All but two anti-GFP PAGERTF constructs passed this initial screen. The remaining nine anti-GFP PAGERTF and all six anti-mCherry PAGERTF constructs showed strong activation in response to soluble recombinant GFP and mCherry, respectively (Extended Data Fig. 3a and Supplementary Fig. 4). The best anti-GFP PAGERTF (containing LaG2 nanobody) could detect soluble GFP down to 1.5 nM, consistent with the published dissociation constant (Kd) of LaG217 (16–19 nM), whereas the best anti-mCherry PAGERTF (containing LaM8 nanobody) could detect 100 nM mCherry protein (Extended Data Fig. 3b). Neither PAGER was responsive to the other fluorescent protein, illustrating the high specificity of these synthetic receptors.

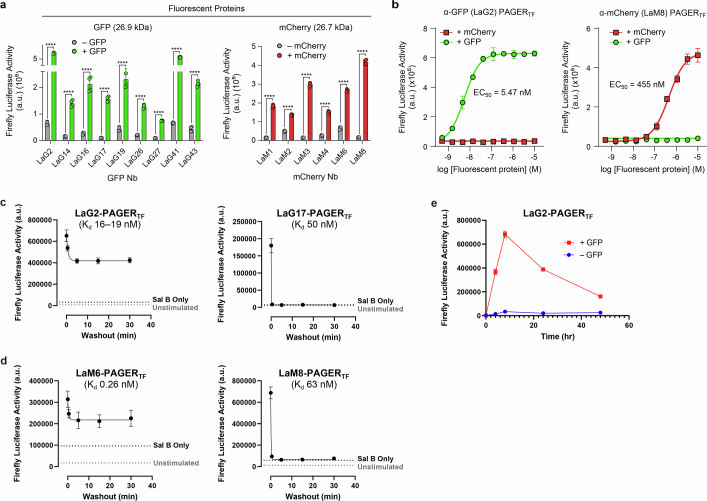

Extended Data Fig. 3. Testing many GFP and mCherry nanobodies in PAGERTF.

Extended Data Fig. 3

a, Different GFP and mCherry-binding nanobodies work in PAGER. HEK cells expressing PAGERTF with the indicated nanobodies were stimulated with Salvinorin B and 1 µM soluble GFP or 10 µM soluble mCherry, for 15 min. Luciferase reporter expression was measured 8 h later. Plots are mean ± s.d. for 4 technical replicates per condition, representing n = 3 independent experiments. p-values were determined using two-tailed Student’s t tests. ****, p < 0.0001. b, mCherry and GFP PAGERs are orthogonal. Data obtained using starred constructs in (a). Plots are mean ± s.d. for 3 technical replicates per condition, representing n = 3 independent experiments. c–d, PAGERTF activity as a function of washout time following 10 μM soluble GFP (c) or mCherry (d) addition. Washout consisted of incubation in blank DMEM for 0 to 30 min. Cells were then treated with 1 μM SalB and firefly luciferase reporter activity was measured 8 h later. Control conditions omit antigen (SalB only) or omit SalB (Unstimulated). Plots are mean ± s.d. for 3 technical replicates per condition, representing n = 2 independent experiments. e, Time-course of luciferase activity after activation of α-GFP PAGERTF in HEK 293 T cells. Luciferase activity was measured 0–48 h after stimulation with 10 μM cognate antigen (GFP) and 1 μM SalB. Plots are mean ± s.d. for 3 technical replicates per condition, n = 1 independent experiment.

We used our panel of anti-GFP and anti-mCherry PAGERTF constructs to examine the relationship between nanobody affinity and PAGER reversibility—that is, the time it takes after antigen washout for PAGERTF to become non-responsive to agonist. PAGERTF containing high-affinity nanobodies such as LaG217 (Kd = 16–19 nM) or LaM617 (Kd = 0.26 nM) continued to be activated by SalB, even 30 min after antigen washout. PAGERTF containing the lower-affinity nanobodies LaG1717 (Kd = 50 nM) and LaM817 (Kd = 63 nM) were unresponsive to SalB immediately following antigen washout (Extended Data Fig. 3c,d). Thus the reversibility and ability of PAGERTF to function as a coincidence detector are largely controlled by the affinity of the nanobody.

We next attempted to generate PAGERTF constructs for different antigens of various types, sizes and folds—including growth factors, cytokines, chemokines, receptor tyrosine kinases, other cancer-expressed surface receptors, a viral protein and a protease—by replacing the nanobody in PAGERTF with nanobodies to each new antigen of interest. In this way, we created PAGERTF for VEGF, HGF, TNF, IL-17, IL-23, soluble IL-6 receptor (sIL-6R), CCL2, EGFR, HER2, CD38, PD-L1, SARS-CoV-2 spike protein and urokinase-type plasminogen activator (uPA) (Fig. 2a, Extended Data Fig. 4 and Supplementary Fig. 5). Each PAGER was responsive to its cognate antigen, but non-responsive to mismatched antigens (Extended Data Fig. 5a).

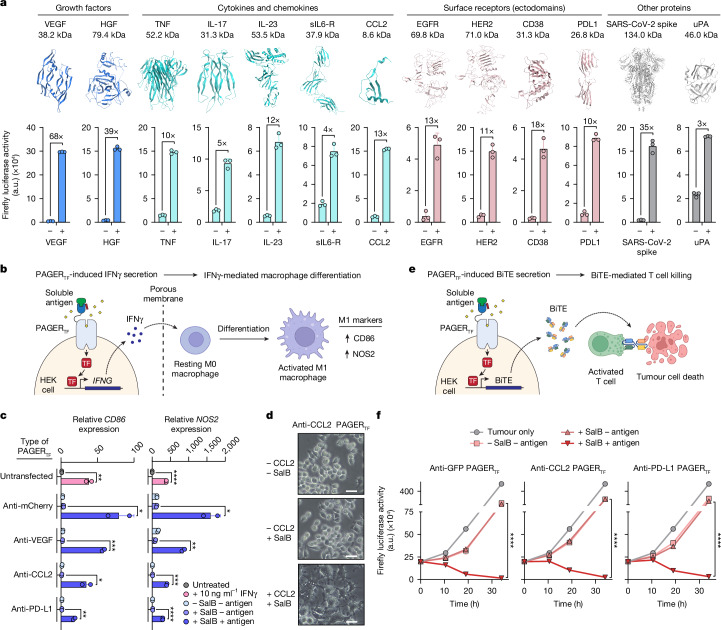

Fig. 2. PAGERTF can detect a wide variety of antigens.

Fig. 2

a, Top, ribbon structures of proteins sensed by PAGERTF. Bottom, bar graphs of PAGERTF activity in response to cognate antigen. Antigen and SalB concentrations are reported in Methods. For anti-VEGF, anti-TNF, anti-IL-17 and anti-uPA PAGERs, n = 3 independent experiments, 3 replicates per condition. For all other PAGERs, n = 2 independent experiments, 3 replicates per condition. Data are mean ± s.d. Two-tailed Student’s t-test. b, Schematic of PAGERTF-driven macrophage differentiation in co-culture. PAGERTF activation in HEK293T cells induces the secretion of mouse IFNγ which passes through a porous membrane and stimulates M1 macrophage differentiation. c, Relative expression of M1 macrophage markers CD86 and NOS2 in co-cultured RAW 264.7 macrophages, determined by quantitative PCR (qPCR). n = 3 experiments, 2 replicates per condition. Data are mean ± s.d. Two-tailed Student’s t-test. d, Representative images of RAW 264.7 macrophages after 48 h of co-culture with anti-CCL2 PAGERTF-IFNγ expressing HEK293T cells. Images are representative of n = 3 experiments. Representative macrophage images for the other PAGERTF constructs in c can be found in Extended Data Fig. 6. Scale bars, 20 μm. e, Schematic of PAGERTF-driven BiTE-mediated T cell killing in co-culture. PAGERTF activation in HEK293T cells induces the secretion of an anti-CD3/CD19 BiTE, which stimulates T cell recognition and killing of Nalm6 tumour cells. Firefly luciferase stably expressed in the Nalm6 cells is used to quantify live Nalm6 tumour cells. f, Time course of Nalm6 tumour cell survival in response to PAGERTF activation by GFP, CCL2 or PD-L1. n = 2 experiments, 3 replicates per condition. Data are mean ± s.d. Two-tailed Student’s t-test.

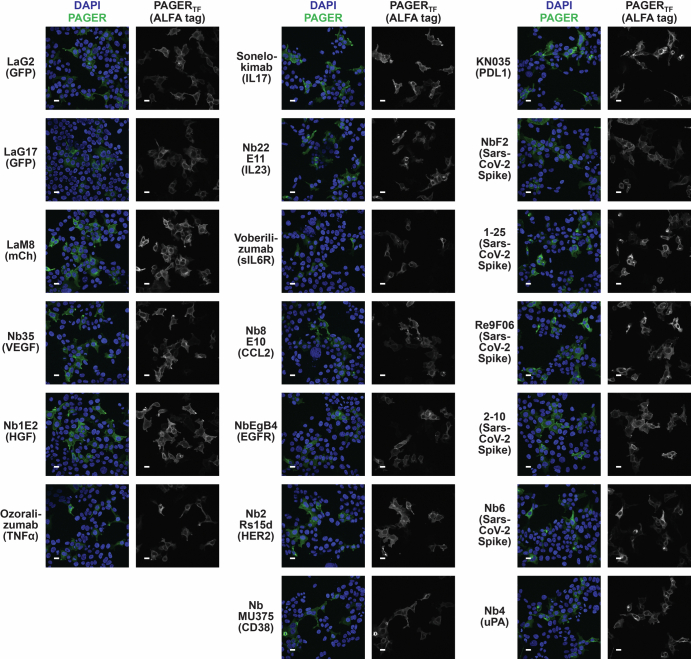

Extended Data Fig. 4. Imaging PAGERTF expression and membrane localization.

Extended Data Fig. 4

Immunofluorescence staining of fixed and permeabilized HEK 293 T cells transiently expressing PAGERTF with the indicated nanobody (target antigen shown in parentheses), using α-ALFA–Alexa Fluor 647 to detect PAGER (green) and DAPI to stain nuclei (blue). Images are representative of more than three fields of view per condition. Scale bars, 20 μm.

Extended Data Fig. 5. PAGERTF detects a wide range of antigens (Related to Fig. 2a).

Extended Data Fig. 5

a, PAGERTF antigen response assay. Same as Fig. 2a, but including comparisons of cognate antigen to two non-cognate antigens for each PAGERTF. The antigens used and their concentrations are labeled above each bar. Plots are mean ± s.d. for 3 technical replicates per condition, n = 1 independent experiment. b, Five nanobodies that bind to the receptor binding domain (RBD) of SARS-CoV2 spike protein as shown (sequences in Supplementary Information) were tested in PAGERTF. c, HEK cells expressing the indicated PAGERTF were treated with 200 nM spike protein and 500 nM SalB for 15 min before luciferase measurement 8 h later. Plots are mean ± s.d. for 3 technical replicates per condition, representing n = 2 independent experiment. p-values were determined using two-way ANOVA with Tukey’s multiple comparisons test to adjust for multiple comparisons. ****, p < 0.0001.

Many nanobodies have been engineered against the receptor-binding domain (RBD) of SARS-CoV-2 spike protein in order to block binding to the ACE2 receptor and viral entry into cells18. We made PAGERTF constructs using five different nanobodies that bind to RBD epitopes that are accessible in trimeric spike protein. All but one produced spike-responsive PAGERTF (Extended Data Fig. 5b,c), further illustrating the modularity and generalizability of PAGER.

To apply PAGERTF, we used it to build sense-and-respond synthetic circuits specifically for coupling antigen detection to the secretion of bioactive molecules. In one circuit (Fig. 2b), PAGERTF expressed in HEK 293T cells was used to detect antigens associated with M2-type anti-inflammatory macrophages: VEGF, which can induce M2 polarization19, and CCL220 and PD-L121, which are present in tumours associated with M2 macrophages. Upon detection of these antigens, activated PAGERTF induced the production and secretion of IFNγ, which acted on co-cultured RAW 264.7 macrophages to convert them to an M1 pro-inflammatory state. Upregulation of the M1 markers CD86 and NOS2 was observed in antigen and SalB-treated samples, but not in negative controls (Fig. 2c). In addition, M1 conversion was evident in images of macrophage morphology (Fig. 2d and Extended Data Fig. 6). These results show the potential of PAGERTF for shifting cell identities in heterogeneous populations.

Extended Data Fig. 6. PAGERTF-induced IFNγ drives macrophage differentiation (Related to Fig. 2b–d).

Extended Data Fig. 6

Representative images of Raw 264.7 macrophages after 48 h of co-culture with the indicated PAGERTF-expressing HEK293T cells. Images are representative of n = 3 experiments and are from the same experiment shown in Fig. 2c,d. Scale bars, 20 μm.

In a second synthetic circuit (Fig. 2e), we used PAGERTF in HEK 293T cells to drive the secretion of a therapeutic antibody in response to tumour antigens. Bispecific T cell engagers (BiTEs) are bispecific antibodies that recruit T cells to tumour cells to drive tumour cell killing22. We used PAGERTF to sense the tumour antigens CCL223 or PD-L124 (or GFP as a control) and respond by secreting an anti-CD3/CD19 BiTE, which increased the killing of co-cultured CD19-expressing Nalm6 tumour cells by primary T cells (Fig. 2f). Collectively, these data demonstrate that PAGERTF can drive biologically diverse and important cellular responses.

Antigen-dependent G-protein activation via PAGER

In PAGERTF, antigen recognition drives transgene expression. For other applications, it may be desirable for antigen recognition to instead modulate endogenous signalling pathways. Because PAGER is based on GPCRs, we explored whether this platform could convert antigen recognition into rapid activation of endogenous G-protein pathways and thereby drive diverse alterations in cell behaviour.

To explore this concept, we returned to the palette of DREADDs12, which include engineered muscarinic acetylcholine receptors (M1–M5) that activate Gαq (M1, M3 and M5) or Gαi (M2 and M4)11. In addition, chimeric DREADDs that activate Gαs or Gα12 have been developed from M3 DREADD25,26. These receptors no longer bind to acetylcholine (their endogenous ligand), but are activated by the orthogonal drugs clozapine N-oxide11 (CNO) and deschloroclozapine27 (DCZ). Although muscarinic GPCRs do not have known peptide antagonists, muscarinic toxin (MT) proteins from Dendroaspis snakes (Extended Data Fig. 7a) can antagonize specific muscarinic receptor subtypes28,29. Thus, we explored the use of MT proteins for auto-inhibition of PAGERG constructs.

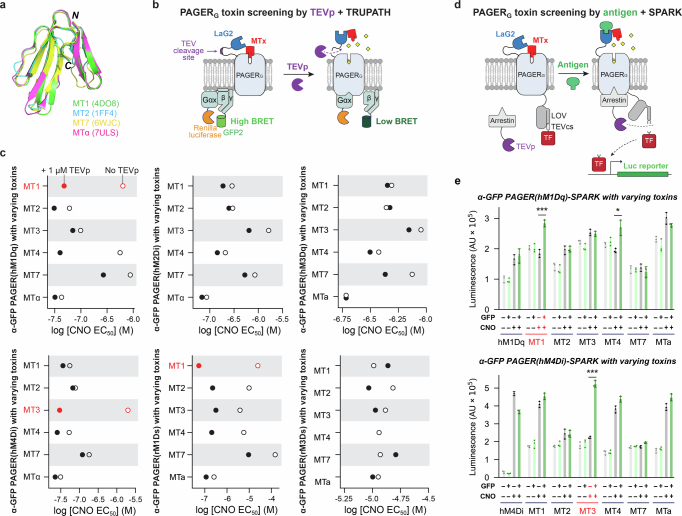

Extended Data Fig. 7. Screening muscarinic toxins in PAGERG for conditional auto-inhibition.

Extended Data Fig. 7

a, Overlay of muscarinic toxins that have experimentally-solved structures (PDB accession code: MT1, 4DO8; MT2, 1FF4; MT7, 6WJC; MTα, 7ULS). b, Schematic of TRUPATH BRET assay used to screen PAGERG constructs containing various muscarinic toxins (MTs). 1 μM recombinant TEV protease (TEVp) was added for 90 min prior to CNO addition to relieve auto-inhibition. c, Results of TRUPATH screen, showing EC50 values for CNO, with and without TEVp pre-treatment. The rM1D-based PAGERG have ICL2–3 from rM3D grafted into hM1Dq. The constructs colored red showed the best dynamic range and were selected as the final PAGERG’s. Full CNO dose-response curves for all constructs are shown in Supplementary Fig. 6. d, Schematic of SPARK-type15 transcriptional assay used to screen different PAGERG scaffolds. HEK cells expressing the indicated variant were treated with 1 uM GFP and 10 μM CNO for 15 min. 8 h later, luciferase reporter expression was quantified. e, Summary of SPARK screening results, showing that MT1 toxin was best for gating PAGERGq, and MT3 toxin was best for gating PAGERGi, in agreement with the data from the TRUPATH assay (b–c). Plots are mean ± s.d. for 3 technical replicates per condition, n = 1 independent experiment. p-values were determined using two-tailed Student’s t tests. *, p < 0.05; ***, p < 0.001.

Starting from M1(Gq) and M4(Gi) DREADDs, we fused a GFP-specific nanobody and one of six possible MTs to their N-terminal ends. A TEVcs was inserted between the nanobody and DREADD to enable testing for reversible auto-inhibition. To measure PAGER-driven Gq or Gi activation, we used the bioluminescence resonance energy transfer (BRET)-based TRUPATH assay30 (Extended Data Fig. 7b). We found that MT1 on M1 DREADD produced the greatest fold change in Gq recruitment with TEVp treatment, indicating strong and reversible inhibition, whereas MT3 was the best toxin for gating M4 DREADD (Extended Data Fig. 7c and Supplementary Fig. 6). We recapitulated these findings in a different assay using luciferase gene expression as readout; the combinations of MT1–hM1Dq and MT3–hM4Di again yielded the greatest difference in luminescence with or without GFP (Extended Data Fig. 7d,e).

None of the MT proteins that we screened auto-inhibited the M3 DREADD (Extended Data Fig. 7c and Supplementary Fig. 6), preventing us from building PAGERGs or PAGERG12 from the chimeric M3-based Gs25 and G1226 DREADDs. However, owing to the high sequence and structural homology between M1 and M3, we could build similar chimeras using M1 instead of M3 to create PAGERGs and PAGERG12 (Extended Data Figs. 7c and 8a and Supplementary Fig. 6). All PAGERG constructs were well-localized to the plasma membrane (Extended Data Fig. 8b).

Extended Data Fig. 8. Domain structures and characterization of PAGERG.

Extended Data Fig. 8

a, Domain structures of optimized PAGERGq, PAGERGs, PAGERGi, and PAGERG12. The W442A mutation was found to improve membrane localization of M1 DREADD by reducing constitutive receptor internalization (Uwada et al., J Cell Sci, 2014) and thus introduced to both PAGERGq and PAGER12. b, Immunofluorescence staining of HEK 293 T cells stably expressing PAGERG’s, using α-ALFA–Alexa Fluor 647 (PAGER; green) and DAPI (nuclear stain; blue). Images are representative of n = 2 independent experiments. Scale bars, 20 μm. c, Raw BRET data from TRUPATH assay shown in Fig. 3i–l. Plots are mean ± s.d. (3 technical replicates per condition, representing n  =  4 independent experiments). d, Testing cross-activation in each TRUPATH assay by all four PAGERG’s. Plots are mean ± s.d. for 3 technical replicates per condition, n = 1 independent experiment. e, Raw BRET values for data in (d).

With our panel of optimized PAGERGq, PAGERGs, PAGERGi and PAGERG12 constructs, we performed a series of assays to test their coupling to endogenous G-protein pathways (Fig. 3a–d). First, we used western blotting to show antigen and CNO-dependent stimulation of ERK phosphorylation, a conserved downstream response to G-protein activation (Fig. 3e–h). Second, we used the TRUPATH assay to confirm antigen and DCZ-dependent activation of the corresponding G-protein partner for each PAGERG (Fig. 3i–l and Extended Data Fig. 8c–e). Third, we used fluorescent reporters to image second messengers specific to each G-protein pathway. For anti-GFP PAGERGq, we detected relocalization of a fluorescent diacylglycerol (DAG) lipid-binding protein31 to the plasma membrane 30–60 s after PAGER activation by antigen and DCZ (Extended Data Fig. 9a–c). These kinetics are consistent with the known timescale of phospholipase C-mediated DAG production at the plasma membrane, downstream of Gq activation31. We also used the Ca2+ indicator GCaMP6s32 to image mCherry and DCZ-dependent increases in cytosolic Ca2+ driven by anti-mCherry PAGERGq (Fig. 3m and Extended Data Fig. 9d–e,j).

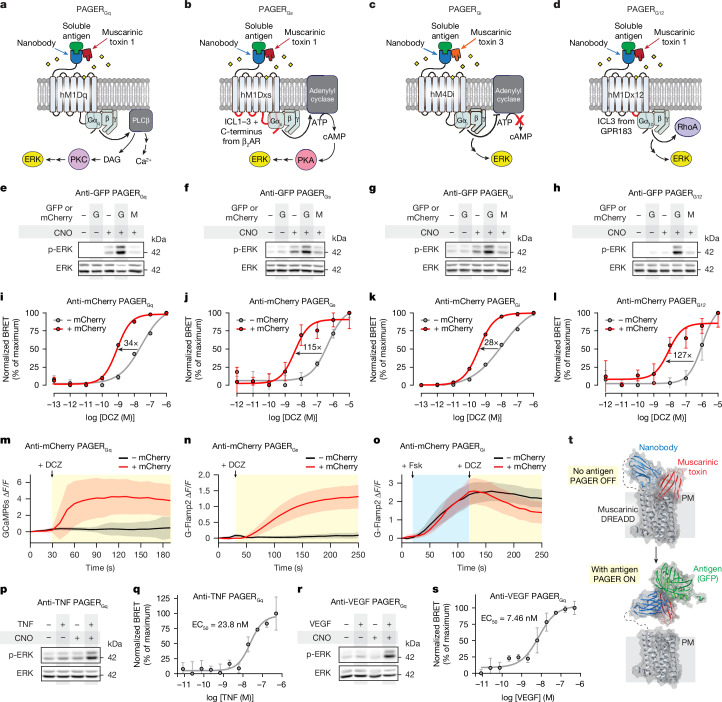

Fig. 3. PAGERG couples antigen recognition to activation of endogenous G-protein signalling.

Fig. 3

ad, Schematics for PAGERGq (a), PAGERGs (b), PAGERGi (c) and PAGERG12 (d), showing designs and downstream signalling induced by their activation. β2AR, β2-adrenergic receptor. eh, Western blots showing phosphorylation of ERK (p-ERK) in response to activation of PAGERGq (e), PAGERGs (f), PAGERGi (g) and PAGERG12 (h). G and M indicate GFP and mCherry, respectively. HEK cells were stimulated with 100 nM CNO and 1 μM GFP for 5 min before analysis. n = 3 independent experiments. il, DCZ dose–response curves for PAGERGq-mediated (i), PAGERGs-mediated (j), PAGERGi-mediated (k) and PAGERG12-mediated (l) G-protein activation using TRUPATH BRET assay. HEK cells were stimulated with 1 μM mCherry. n = 4 independent experiments, 3 replicates per condition. Data are mean ± s.d. mo, Representative kinetic measurements of second messenger levels in HEK cells expressing anti-mCherry PAGERGq (m), PAGERGs (n) or PAGERGi (o). The calcium indicator GCaMP6s (for PAGERGq) or the cAMP indicator G-Flamp2 (for PAGERGs and PAGERGi) were monitored by microscopy during the addition of 3 nM DCZ in the presence or absence of 1 μM mCherry. For PAGERGi, 2 µM forskolin (Fsk) was first added to increase cAMP levels prior to DCZ addition. n = 50 cells from 3 independent experiments. Data are mean ± s.d. For kinetic measurements across a range of DCZ concentrations, see Extended Data Fig. 9. p–s, PAGERGq can be programmed to respond to different antigens. p,r, Western blots showing phosphorylation of ERK after 5-min stimulation with 100 nM CNO and 100 nM antigen for anti-TNF (p) and anti-VEGF (r) PAGERGq. n = 3 independent experiments. q,s, Antigen dose–response curves for anti-TNF (q) and anti-VEGF (s) PAGERGq-mediated Gq protein activation using TRUPATH BRET assay. n = 2 independent experiments, 3 replicates per condition. Data are mean ± s.d. t, AlphaFold2-predicted structure of PAGERGq showing auto-inhibition by muscarinic toxin (MT1, red) and release of auto-inhibition upon nanobody (blue) binding to antigen (GFP, green).

Extended Data Fig. 9. Antigen-gated control of second messengers by PAGERG.

Extended Data Fig. 9

a, Representative images showing antigen-dependent control of endogenous DAG lipid production with PAGERGq. HEK cells expressing α-GFP PAGERGq and DAG probe were treated with 1 μM GFP and 100 nM CNO and imaged over time. b, Representative profile plot of DAG probe signal across cell membranes (marked by yellow dashed line in (a), at t = 0 min (black) and t = 1 min (red). c, Time-course plot of experiment in (a). Plots show mean ± s.d. for 28 and 27 individual cells, respectively, examined over n = 3 independent samples. d, Representative images showing antigen-dependent control of cytosolic Ca2+ with PAGERGq. HEK cells expressing α-mCherry PAGERGq and GCaMP6s32 were preincubated with 2 μM mCherry for 3 min, stimulated with 100 nM CNO and imaged over time. e, Time-course plots of experiment in (d) at several different DCZ concentrations. f, Representative images showing antigen-dependent control of cytosolic cAMP with PAGERGs. HEK cells expressing α-mCherry PAGERGs and G-Flamp233 reporter were preincubated with 2 μM mCherry for 3 min, stimulated with 100 nM CNO and imaged over time. g, Time-course plots of experiment in (f) at several different DCZ concentrations. h, Representative images showing antigen-dependent control of cytosolic cAMP with PAGERGi. HEK cells expressing α-mCherry PAGERGi and G-Flamp2 reporter were preincubated with 2 μM mCherry for 3 min and stimulated with 2 μM forskolin (Fsk) for 100 seconds before addition of 25 nM CNO. i, Time-course plots of experiment in (h) at several different DCZ concentrations. Plots in (e, g, i) show mean from 50 cells, representing n = 3 independent experiments. j–l, DCZ dose-response curves generated from data in (e, g, i). Plots are mean ± s.d. for 50 cells, representing n = 3 independent experiments. All scale bars, 20 μm.

For PAGERGs and PAGERGi, we used a fluorescent indicator of cAMP (G-Flamp233), which increases in response to stimulatory Gs and decreases in response to inhibitory Gi. In HEK cells expressing G-Flamp233 and either anti-mCherry PAGERGs or anti-mCherry PAGERGi, we could observe mCherry-dependent increases (Fig. 3n and Extended Data Fig. 9f,g,k) or decreases (Fig. 3o and Extended Data Fig. 9h,i,l) in cAMP.

To test the antigen modularity of PAGERG, we replaced the mCherry nanobody in PAGERGq with a TNF nanobody (ozoralizumab34; Kd = 20.2 pM) or VEGF scFv (brolucizumab35; Kd = 28.4 pM). The resulting constructs elicited Gq activation in the presence of cognate antigens as measured by phospho-ERK and TRUPATH assays (Fig. 3p–s). TNF is an important pro-inflammatory cytokine that is released by macrophages during host defence36. Our dose titration showed that anti-TNF PAGERGq could respond to TNF concentrations as low as 2 nM. VEGF is released by tumour cells, macrophages and platelets during angiogenesis and inflammation37. Anti-VEGF PAGERGq could detect 0.2 nM VEGF, a lower concentration than is released during idiopathic myelofibrosis, for example38 (1–85 nM).

Finally, we studied the mechanism of PAGERG activation. For both anti-GFP PAGERGq and anti-GFP PAGERGi, reducing the affinity of MT to the receptor resulted in increased binding of GFP to PAGER, indicating that MT intramolecular binding to receptor competes sterically with antigen binding to nanobody (Fig. 3t and Extended Data Fig. 10a,b). Moreover, GFP nanobodies with higher reported affinity were better overall at competing with MTs (Extended Data Fig. 10c) and they elicited better GFP-dependent activation of PAGERGq (Extended Data Fig. 10d). Notably, truncation of MT or extending the linker between MT and nanobody by even a few amino acids resulted in lack of antagonism or loss of antigen-dependent activation, respectively (Extended Data Fig. 10e). As with PAGERTF, the reversibility and ability of PAGERG to function as a coincidence detector are largely controlled by the nanobody affinity (Extended Data Fig. 10f,g). Our observations suggest that PAGERG operates by a similar steric occlusion mechanism to PAGERTF and highlight the importance of balancing strong antagonism with facile displacement by antigens.

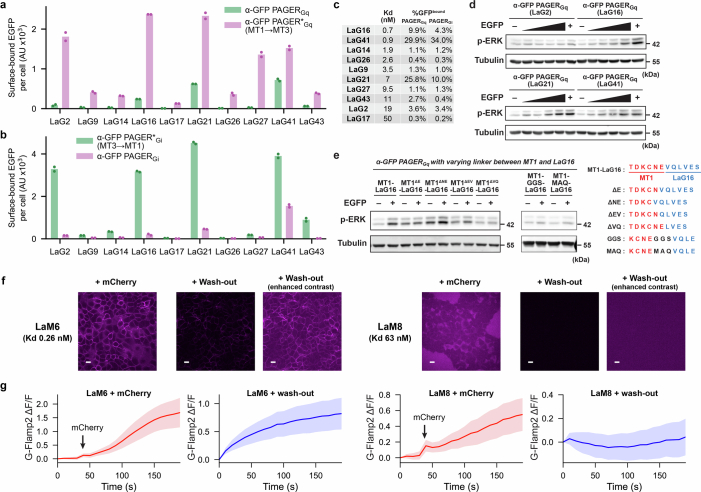

Extended Data Fig. 10. Evaluation of different nanobodies and toxin truncations in PAGERG.

Extended Data Fig. 10

a, Varying GFP nanobodies in original α-GFP PAGERGq (MT1-LaGx-hM1Dq; green) or in α-GFP PAGER*Gq (MT3-LaGx-hM1Dq; magenta) where MT1 autoinhibitory domain was swapped with MT3 toxin. MT1 has higher reported affinity to M1 receptor than MT3. HEK cells expressing PAGERGq with the indicated nanobody were treated with 10 μM GFP for 15 min, washed, and then analyzed by FACS. Quantitation was based on the average GFP signal per cell. Data representative of n  =  2 biologically independent samples. b, Same assay as (a) but with α-GFP PAGER*Gi (MT1-LaGx-hM4Di; green) and α-GFP PAGERGi (MT3-LaGx-hM4Di; magenta). MT3 has higher reported affinity to M4 receptor than MT1. Data representative of n  =  2 biologically independent samples. c, Table summarizing reported affinities (Kd) of α-GFP nanobodies along with the amount of GFP bound onto PAGERGx (divided by the maximum amount of GFP bound in the lack of any antagonism). d, Western blots showing phosphorylation of endogenous ERK in response to GFP and CNO activation of PAGERGq with four different GFP nanobodies. HEK cells expressing the indicated α-GFP PAGERG were stimulated with 100 nM CNO and 0, 0.5, 5, 50, 500, or 5000 μM antigen for 3 min, before cell lysis and analysis. Phospho-ERK increase started becoming apparent at 50 nM antigen. Similar results were obtained in two independent experiments. e, Similar assay as (d) with 1 μM antigen, but using PAGERGq variants containing toxin truncations or linkers between MT1 and nanobody. Truncations or linker sequences of the variants used are shown on the right. Similar results were obtained in two independent experiments. f, HEK cells co-expressing G-Flamp2 and α-mCherry PAGERGs with LaM6 (high affinity; Kd 0.26 nM) or LaM8 (low affinity; Kd 63 nM) nanobody were preincubated in 3 nM DCZ and imaged over time, and 1 μM mCherry was added at t = 30 s (red plots). After 3 min, cells were washed with 3 nM DCZ for three times and imaged over time (blue plots). Plots are mean ± s.d. for 50 cells, representing n = 2 independent experiments. g, Representative images showing mCherry bound to HEK cells. Left images (+mCherry) were obtained 3 min after mCherry addition, and right images (+Wash-out) were obtained after washing cells with 3 nM DCZ three times. Scale bars, 20 μm.

Customized cell behaviours driven by PAGERG

We explored the ability of PAGERG to produce customized cellular responses to antigens specified by the nanobody component of PAGER. In neurons, Gq and Gi signalling can produce activation or silencing of neuronal activity, respectively, and this has led to the widespread use of Gq- and Gi-coupled DREADDs for drug-dependent modulation of neuronal function12. PAGERG applications go beyond DREADDs by conferring antigen dependence, enabling activation or inhibition of neuronal activity only when both drug and soluble or cell-surface antigen are present.

To test PAGERG in this context, we transduced cultured rat cortical neurons with anti-mCherry PAGERGq and fluorescent DAG-binding probe. Stimulation of neurons with recombinant mCherry and CNO, but not CNO alone, produced DAG synthesis at the plasma membrane (Extended Data Fig. 11a,b). We also plated mCherry-expressing HEK cells on top of cultured neurons expressing anti-mCherry PAGERGq (Fig. 4a). When CNO was added, the DAG probe accumulated at HEK–neuron contact sites, consistent with local Gq activation and DAG lipid synthesis (Extended Data Fig. 11c).

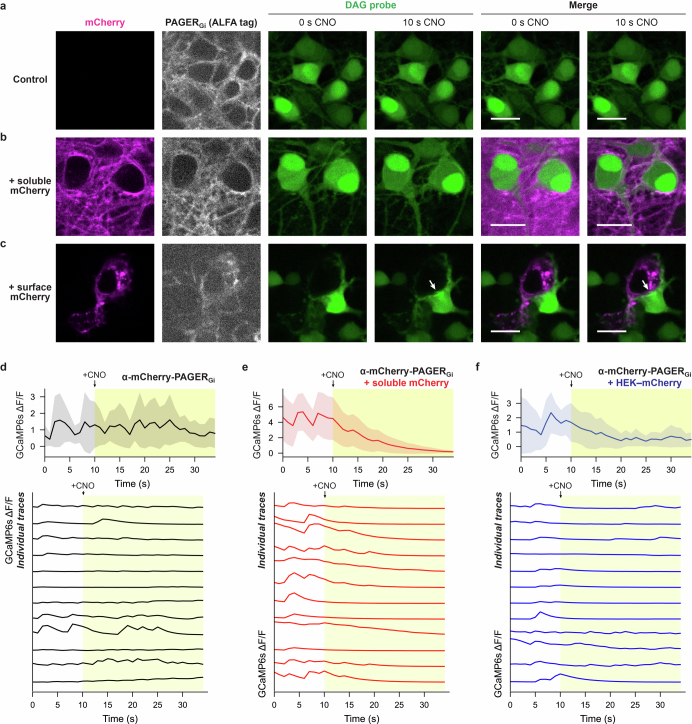

Extended Data Fig. 11. PAGERG mediates antigen-dependent control of neuronal activity in culture.

Extended Data Fig. 11

a–c, Representative images of antigen-gated DAG production in neurons. Rat cortical neurons expressing α-mCherry PAGERGq and DAG probe (C1PKCγ-mCherry31) were stimulated with 100 nM CNO and imaged over time. In (b), neurons were preincubated with 1 μM mCherry (no washout). In (c), HEK cells expressing surface mCherry (pink) were plated on top of neurons. Note the DAG probe accumulation at sites of HEK-neuron contact (arrowheads). Scale bars, 20 μm. Similar results were obtained in three independent experiments. d–f, Calcium traces in rat cortical neurons co-expressing α-mCherry PAGERGi and GCaMP6s, with no antigen (d), with 1 μM mCherry (e), or co-plated with HEK cells expressing surface mCherry (f). CNO was added at t = 10 s to a final concentration of 30 nM. Plots are mean ± s.d. of Δ(F–Fbase)/Fbase in GCaMP6s signal (where Fbase is the minimum signal recorded in the time window) for 12 neurons, representing n = 2 independent experiments. This is similar to data presented in Fig. 4a–d but using CNO instead of DCZ.

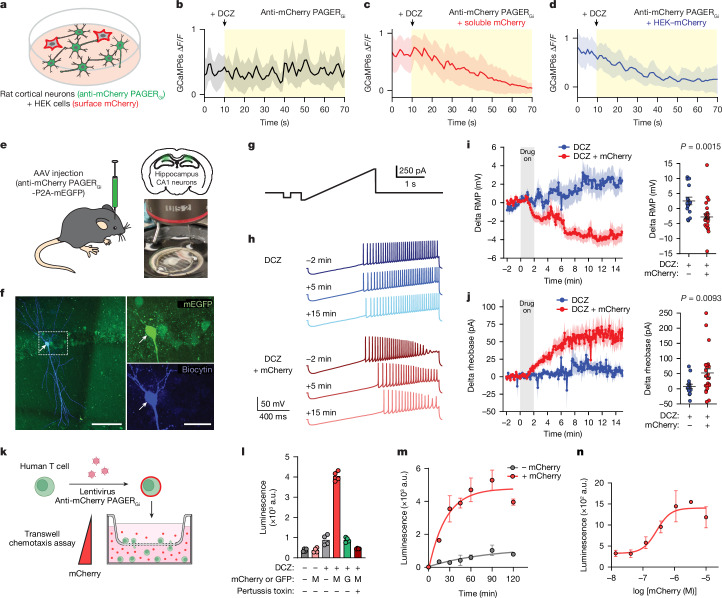

Fig. 4. PAGERG controls diverse cell behaviours in acute brain slices and primary T cells.

Fig. 4

a, Schematic of co-culture experiment for PAGERGi control of neuronal activity. bd, Calcium traces in rat cortical neurons co-expressing anti-mCherry PAGERGi and GCaMP6s with or without soluble (1 μM) or surface mCherry. DCZ was added at t = 10 s to a final concentration of 2 nM. Data are mean ± s.d. for n = 50 cells from 3 independent experiments. e, Schematic for PAGERGi-mediated neuronal inhibition in acute brain slices. f, Maximum intensity projection showing mEGFP labelling in PAGER-expressing neurons in CA1 (representative of n = 14 assessed cells). Biocytin labelling shows a recorded neuron (arrow). Scale bar: left, 100 μm; right, 30 μm. g, Current clamp protocol for monitoring intrinsic electrical property dynamics of PAGERGi-expressing neurons. h, Representative traces of evoked action potential alterations following DCZ (100 nM) with or without mCherry (1 µM) application. Neurons displayed greater intrinsic property shifts associated with reduced excitability when presented with DCZ plus mCherry rather than DCZ alone. i,j, Changes in RMP (i) and rheobase currents required to evoke action potentials (j), upon 2-min DCZ addition. n = 15 cells, 7 mice (DCZ); n = 26 cells, 6 mice (DCZ plus mCherry). Data are mean ± s.e.m. Mixed linear model regression analysis; Z = 3.17, P = 0.0015 (i); Z = 2.60, P = 0.0093 (j). k, Schematic for PAGERGi-mediated chemotaxis in Boyden chamber. T cells expressing anti-mCherry PAGERGi in the top chamber migrate through a porous membrane towards soluble mCherry in the bottom chamber. l, Bar graph representing the number of T cells in the bottom chamber after 2 h exposure to 10 μM mCherry in the bottom chamber. n = 4 independent experiments from 2 independent T cell donors, 4 replicates per condition. Data are mean ± s.d. m, Time-course measurement of anti-mCherry PAGERGi T cell migration. n = 2 independent experiments, 4 replicates per condition. Data are mean ± s.d. n, mCherry dose-response of anti-mCherry PAGERGi T cell migration. n = 1 independent experiment, 4 replicates. Data are mean ± s.d.

Next, to test the ability of PAGERGi to confer antigen-dependent neuronal inhibition, we transduced cultured neurons with anti-mCherry PAGERGi and the calcium indicator GCaMP6s for real-time imaging of neuronal activity. Untreated neurons and CNO or DCZ-only treated neurons exhibited transient fluctuations in basal calcium (Fig. 4b, Extended Data Fig. 11d and Supplementary Video 1). However, addition of soluble mCherry along with CNO or DCZ strongly suppressed calcium activity within seconds, as did co-culturing with HEK cells that express cell-surface mCherry (Fig. 4c,d, Extended Data Fig. 11e,f and Supplementary Videos 2 and 3). These examples show that PAGERG has the potential to be used for spatially specific control of neuronal activity with genetically targetable antigens.

We then tested PAGERGi in the more complex setting of intact mammalian brain tissue. Adult mice were injected with adeno-associated virus (AAV) encoding anti-mCherry PAGERGi (LaM6-PAGER-Gi-P2A-mEGFP) under a pan-neuronal synapsin promoter. Acute slices were prepared from the hippocampus and whole-cell patch clamp was used to record from CA1 neurons displaying GFP expression (Fig. 4e,f). Cell-intrinsic properties were evaluated before, during and after a 2-min bath application of 100 nM DCZ, either alone or paired with soluble mCherry to activate PAGER. Samples in the mCherry group were preincubated in 1 µM mCherry for more than 30 min to ensure sufficient time for antigen penetration into brain slices.

We used a stepwise current injection followed by a continuous ramp protocol to monitor resting membrane potential (RMP), input resistance and rheobase values throughout each recording39,40 (Fig. 4g,h). Neurons displayed a greater hyperpolarizing shift in RMP when presented with DCZ plus mCherry than with DCZ alone (Fig. 4i). Similarly, the rheobase current needed to evoke action potentials increased in DCZ plus mCherry neurons, compared with DCZ-only samples (Fig. 4j). We also observed a similar time course trend for decreasing input resistance in DCZ plus mCherry neurons, consistent with hM4Di-mediated inhibition41, and no correlation between PAGER expression and baseline electrophysiology responses in neurons (Extended Data Fig. 12). Our results are consistent with PAGERG providing antigen-dependent control of neuronal activity when expressed in the mouse brain.

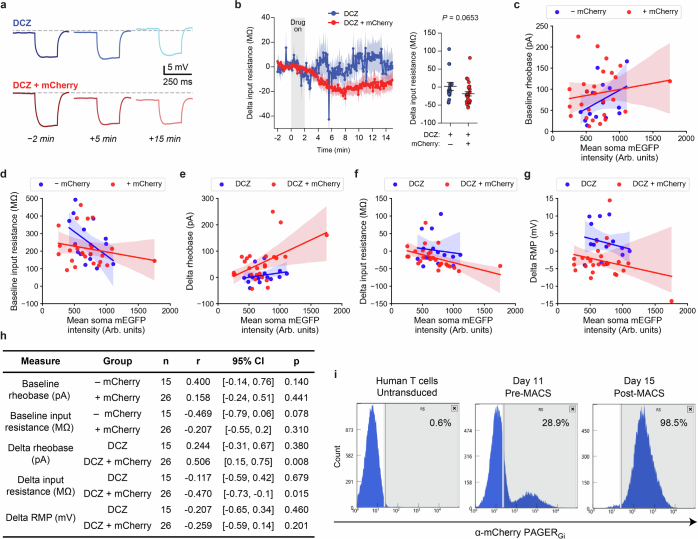

Extended Data Fig. 12. PAGERG expression in acute brain slices and primary T cells.

Extended Data Fig. 12

a, Representative traces of voltage responses to −100pA stepwise current injections relative to onset of 2 min bath application of DCZ (100 nM) ± soluble mCherry (1 µM). Dashed line at −65 mV. b, Changes in input resistance upon 2-minute DCZ addition. n = 15 cells/7 animals DCZ, n = 26 cell/6 animals DCZ+mCherry. Plots show mean ± S.E.M. (Mixed linear model regression analysis; Z = 1.84, P = 0.0653). c–h, Correlation between PAGERGi-associated mEGFP expression and neuronal intrinsic properties. The degree of mEGFP expression, as an indicator of PAGERGi expression levels in neurons, supports PAGERGi alone having no impact on baseline rheobase (c) or input resistance (d) properties, including in the presence of soluble mCherry. Construct expression levels were correlated with the degree of rheobase (e) and input resistance (f) shifts following DCZ+mCherry exposure, but not with DCZ alone. Resting membrane potential (RMP) shifts were not specifically linked to mEGFP expression levels (g). PAGERGi-associated mEGFP mean signal intensity was measured from widefield images acquired prior to the start of each whole cell recording, within a freehand selection surrounding the soma made in ImageJ. Pearson correlation was used for analyses, as summarized in (h). i, Histograms showing percent of human primary T cells expressing α-mCherry PAGERGi after lentiviral transduction, on Day 11 before MACS enrichment and on Day 15 after MACS enrichment.

We then explored the utility of PAGERG for controlling the behaviour of T cells. The migration of T cells into solid tumours is a limiting factor for overall survival in patients with cancer, and therefore strategies to modulate the homing of T cells are of therapeutic interest42. Chemokine receptors are natural Gi-coupled GPCRs that stimulate the directed migration of many cell types along a chemical gradient43. We hypothesized that PAGERGi could potentially recapitulate the Gi signalling downstream of chemokine receptors and thereby drive T cell chemotaxis toward an arbitrary antigen44. To test this, we transduced human primary T cells with anti-mCherry PAGERGi and used a transwell chemotaxis assay to assess migration along an mCherry gradient (Fig. 4l). We observed that T cells expressing anti-mCherry PAGERGi (Extended Data Fig. 12h) migrate towards mCherry in the presence of DCZ, but not towards a non-cognate antigen (GFP) (Fig. 4m). Inhibition of Gi activation using pertussis toxin blocked PAGER-mediated migration, suggesting that PAGER mediates chemotaxis through a similar pathway to native chemokine receptors. In a time-course experiment, we could detect PAGER-mediated migration within minutes of antigen exposure (Fig. 4n), and as little as 100 nM mCherry was needed to stimulate migration (Fig. 4o). Collectively, our data suggest that PAGERG can be used to reprogram complex cellular behaviours in response to soluble or cell-attached antigens of interest.

Real-time fluorescent sensors based on PAGER

As a third readout, we explored the use of PAGER for real-time fluorescence detection of antigen binding to cells. GPCR activation-based sensors (GRABs) are a class of sensors that are widely used in neuroscience for real-time fluorescence detection of neurotransmitters, neuromodulators and neuropeptides45,46. GRABs are designed from GPCRs and install a conformation-sensitive circularly permuted fluorescent protein between transmembrane segments 5 and 6 to respond to binding of the receptors to their cognate ligands. Many antigens of interest, however, do not have natural GPCRs that can be exploited for development of GRAB-type sensors. In these cases, we explored whether PAGER fused to conformation-sensitive circularly permuted GFP (cpEGFP) could be used for real-time detection of diverse antigens (PAGERFL).

First, we attempted to develop a GRAB-type sensor from M4 DREADD (Extended Data Fig. 13a,b), from which PAGERGi was made. Starting from wild-type human M4, we inserted cpEGFP between transmembrane segments 5 and 6, screened many linkers on either side of cpEGFP, optimized the cpEGFP sequence, and obtained an acetylcholine (ACh) sensor, hM4-1.0, with good membrane trafficking, a maximal response of around twofold, and an apparent affinity of approximately 225 nM (Extended Data Fig. 13c–e). We then introduced the DREADD binding pocket mutations into hM4-1.0 (Extended Data Fig. 13f), producing DCZ1.0, which resulted in 1.7-fold fluorescence turn-on in response to the DREADD ligand DCZ and other designed drugs (Extended Data Fig. 13g–j). We confirmed that this sensor does not couple with downstream Gi protein, unlike hM4Di (Extended Data Fig. 13k), thus minimizing its potential to perturb native biology.

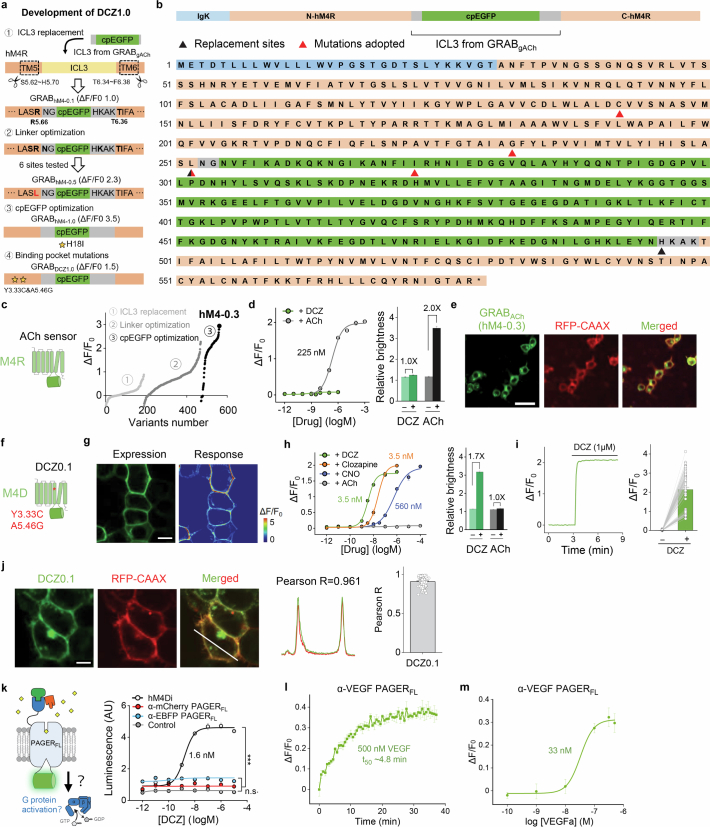

Extended Data Fig. 13. Engineering PAGERFL.

Extended Data Fig. 13

a, Summary of DCZ1.0 development. DCZ1.0 is the receptor portion of PAGERFL, lacking the nanobody and toxin. Starting from M4R, we ① screened cpEGFP insertion sites within the ICL3 loop in gACh sensor2; ② optimized key residues (shown in bold) in the linkers; and ③ optimized critical residues in cpEGFP. b, Sequence of optimized DCZ1.0 sensor. The residues related to ICL3 replacement and mutations incorporated during the optimization process are marked. c, Summary of ACh sensor screening and optimization. The number of ACh sensor variants tested during each optimization process is shown in x-axis. The final optimized variant was named hM4-1.0. d, Response (left) and relative brightness (right) of hM4-1.0 to various concentrations of ACh and DCZ. n = 300 cells from 3 independent experiments. Error bars=S.E.M. e, Membrane expression of hM4-1.0 in HEK293T cells. RFP-CAAX is a membrane-targeted RFP. Scale bars, 50 μm. n = 3 independent experiments. f, DCZ1.0 incorporates the two additional DREADD mutations compared to hM4-1.0. g, Representative images of expression and response of DCZ1.0 sensor to 1 μM DCZ. Scale bars, 10 μm. h, Drug response curves (left) and relative brightness (right) of DCZ1.0. n = 300 cells from 3 independent experiments. Error bars=S.E.M. i, Fluorescence time traces (left) showing the rate of EGFP fluorescence onset after 1 μM DCZ addition. Group summary (right) of ΔF/F0 with or without DCZ addition. n = 126 cells from 3 independent experiments. Error bars=S.E.M. j, Example fluorescence images and intensity line scan profiles of DCZ1.0 (green), RFP-CAAX (red), and merged image in the presence of DCZ (1 μM). The white line indicated the ROI for intensity profiling, and the Pearson R was calculated and used to indicate the membrane trafficking index of the sensor. n = 112 cells from 3 independent experiments. Error bars=S.E.M. Scale bars, 10 μm. k, G protein and coupling were measured using the split-luciferase complementation assay3 in cells expressing α-mCherry PAGERFL (red), α-EBFP PAGERFL (blue) in the presence of the indicated concentrations of DCZ; The DCZ-responsive DREADD hM4Di (black) was used as a positive control and no receptor (grey) was used as a negative control. AU, arbitrary units. n = 3 independent experiments. Error bars=S.E.M. (one-way ANOVA with Tukey’s multiple comparisons test; *** p < 0.005; n.s.=not significant). l–m, Response of α-VEGF PAGERFL developed by swapping nanobody with α-VEGF nanobody (Nb35). l, Fluorescence time trace showing the rate of EGFP fluorescence onset after VEGF addition. DCZ was present at 100 nM. m, Response of α-VEGF PAGERFL to various concentrations of VEGF. DCZ was present at 100 nM. F0 is the intensity of sensors with 100 nM DCZ addition. n = 300 cells from 3 independent experiments. Error bars=S.E.M.

From DCZ1.0, we produced our first PAGERFL that was responsive to mCherry antigen (anti-mCherry PAGERFL) by appending the mCherry nanobody LaM6 fused to the inhibitory toxin MT3 (Fig. 5a,b). Fluorescence measurements showed 300-fold sensitization to DCZ in the presence of mCherry but not non-cognate antigen (BFP) (Fig. 5c–e). Anti-BFP PAGERFL, generated by replacing LaM6 with the GFP- and BFP-binding LaG2 nanobody, showed 130-fold sensitization to DCZ in the presence of BFP but not mCherry (Fig. 5f–h). We then performed time-lapse imaging in HEK cells with sequential addition of DCZ and antigen (Fig. 5i–l). Whereas binding of mCherry to anti-mCherry PAGERFL was rapid (time constant (t50) = 24 s), the green fluorescence response of PAGERFL was slower, with a t50of 3.1 min. This lag time may reflect the mechanism of PAGERFL, in which the EGFP-enhancing conformational change occurs only after toxin unbinding, mCherry binding and DCZ-mediated activation. Nonetheless, PAGERFL gives much faster readout than PAGERTF (translational readout occurs 4–24 h after antigen exposure; Extended Data Fig. 3e) and should enable applications that are not accessible to PAGERTF.

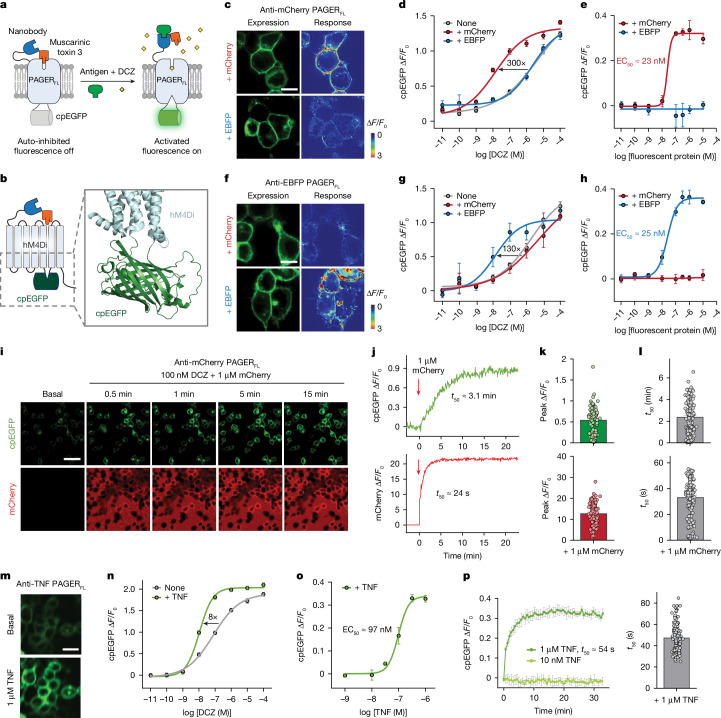

Fig. 5. PAGERFL for real-time fluorescence detection of extracellular antigens.

Fig. 5

a, Schematic of PAGERFL, based on GRABs1,2. PAGERFL activation results in GPCR conformational changes, causing increased fluorescence of an inserted cpEGFP. b, Schematic and model structure of cpEGFP insertion between helices 5 and 6 in PAGERFL. c, Representative images of expression and response of anti-mCherry PAGERFL after 30 min treatment with 100 nM DCZ and 1 μM mCherry or EBFP (control). Scale bar, 10 μm. d, DCZ dose–response curves for anti-mCherry PAGERFL ± 1 μM mCherry or EBFP. n = 300 cells from 3 independent experiments. Data are mean ± s.e.m. e, Antigen dose-response of anti-mCherry PAGERFL with mCherry or EBFP and 100 nM DCZ. n = 300 cells from 3 independent experiments. Data are mean ± s.e.m. fh, As ce, but with anti-EBFP PAGERFL. Scale bar, 10 μm. Data are mean ± s.e.m. i, Representative images of anti-mCherry PAGERFL at various timepoints after 1 μM mCherry addition. n = 3 independent experiments. Scale bar, 50 μm. j, Time traces of mCherry and cpEGFP fluorescence from i. k, Summary data for peak response of mCherry and cpEGFP fluorescence in anti-mCherry PAGERFL. n = 96 cells from 3 independent experiments. Data are mean ± s.e.m. l, Summary data showing the t50 of mCherry and cpEGFP fluorescence in anti-mCherry PAGERFL. n = 144 cells from 4 independent experiments. Data are mean ± s.e.m. m, Representative images of anti-TNF PAGERFL before versus after 1 μM TNF addition in the presence of 100 nM DCZ. n = 3 independent experiments. Scale bar, 20 μm. n, DCZ dose–response curves for anti-TNF PAGERFL with or without 300 nM TNF. n = 300 cells from 3 independent experiments. Data are mean ± s.e.m. o, TNF dose–response curve for anti-TNF PAGERFL with 100 nM DCZ. n = 300 cells from 3 independent experiments. Data are mean ± s.e.m. p, Time traces (left) and summary data (right) of cpEGFP fluorescence response for anti-TNF PAGERFL. n = 137 cells from 3 independent experiments. Data are mean ± s.e.m.

To test the modularity of PAGERFL, we replaced the GFP-binding nanobody with nanobodies against TNF (ozoralizumab) or VEGF (Nb35). Anti-TNF PAGERFL localized well to the plasma membrane of HEK 293T cells, and the application of 1 μM TNF elicited fluorescence increase in the presence of DCZ (Fig. 5m,n). The response magnitude (ΔF/F0) and kinetics of anti-TNF PAGERFL and anti-VEGF PAGERFL were similar to those of anti-mCherry PAGERFL (Fig. 5o,p and Extended Data Fig. 13l,m). Collectively, our results show that PAGER can be successfully merged with the GRAB sensor scaffold to enable real-time detection of antigens.

Discussion

PAGER is a versatile platform for the detection of diverse extracellular signals and conversion into a range of user-specified intracellular responses. The high modularity of PAGER, its ability to respond to both surface and soluble antigens, the built-in drug gating, and its ability to drive antigen-dependent transgene expression, G-protein activation or real-time fluorescence distinguish this platform from other technologies and suggest broad applicability in cell biology and neuroscience.

Early strategies to develop synthetic receptors focused on mutation of natural receptors via site-directed mutagenesis8,9 or directed evolution10,11 to alter ligand specificity. This approach is generally time-, labour- and resource-intensive and needs to be repeated for every new synthetic receptor. An alternative approach alters ligand specificity by replacing the sensing domains of native receptors with other ligand-binding domains such as single-chain antibody variable fragments (scFvs) or nanobodies. This more modular approach has produced chimeric antigen receptors3, synthetic Notch receptor4 (synNotch), synthetic intramembrane proteolysis receptors5 (SNIPRs), modular extracellular sensor architecture (MESA) receptors6 and generalized extracellular molecule sensor (GEMS) receptors7.

Despite their considerable contributions to advancing mammalian cell engineering, particularly with regards to therapeutics, these technologies still have important limitations. One prevailing constraint is the general lack of ability to respond to soluble antigens. A few examples have addressed this by using two non-overlapping binders against a single antigen to drive receptor dimerization6,7. However, suitable pairs of antigen recognition domains are rarely available, limiting the generalizability of this approach. Other platforms47 have been shown to work with dimeric antigens that drive receptor clustering and endocytosis; since many antigens of interest are not dimeric, however, the scope of such methods is limited.

By contrast, PAGER requires a single antigen-binding domain and converts it into a synthetic receptor for detection of tethered or soluble antigens in a single cloning step. PAGER works on a multitude of antigen types, including monomeric and multimeric antigens. PAGER is also differentiated from other technologies by its built-in drug control, which provides temporal specificity and increases signal-to-background ratio. Moreover, PAGER offers a diverse array of outputs, including transgene expression, fluorescence and control of endogenous G-protein pathways.

In the field of GPCR engineering, many powerful technologies have been developed to convert GPCR activation into a range of intracellular readouts, including BRET and Förster resonance energy transfer signals30, fluorescence intensity changes45,48, RNA editing49 and gene expression driven by transcription factors14,15,50, CRISPR–Cas951 or response elements52. By providing new programmability on the input side of GPCRs—where much less progress has been made than on the output side—PAGER not only provides a new technology but can be merged with existing GPCR technologies to make them more useful. We demonstrate this here by creating PAGERTF from SPARK components, and PAGERFL from GRAB components, but many more fusions of PAGER with existing technologies are possible.

PAGER does have important limitations, which are explained in detail in Supplementary Information. We have also provided ‘General guidelines for designing and validating PAGERs’ in Methods, which provides detailed step-by-step instructions on how to design, validate, and use novel PAGERs.

In future work, the PAGER platform could be improved and extended in a number of ways. Instead of requiring three separate transgenes, the design of PAGERTF could be simplified to require only two, similar to how we simplified our calcium integrator FLARE53 to produce single-chain FLARE54 (scFLARE). For in vivo applications, it would be beneficial to remove the requirement for light or furimazine15, which are currently needed to uncage the LOV domain of PAGERTF. To improve the orthogonality of PAGERTF, we could mutate its intracellular loops to abolish recognition of Gi, drawing inspiration from a DREADD that recruits arrestin without coupling to any of the G proteins55. Finally, we note that PAGER’s antigen-gated, auto-inhibited design could be extended to other classes of proteins beyond GPCRs—for example, to produce antigen-gated enzymes or ion channels.

Methods

Plasmid constructs and cloning

Constructs used for transient expression in HEK293T cells were cloned into the pAAV viral vector. For stable expression, the constructs were cloned into the pCDH viral vector. For all constructs, standard cloning procedures were used. PCR fragments were amplified using Q5 polymerase (NEB). Vectors were digested with NEB restriction enzymes and ligated to gel-purified PCR products using T4 ligation, Gibson, NEB HiFi, or Golden Gate assembly. Ligated plasmids were introduced into competent XL1-Blue, NEB5-alpha, or NEB Stable bacteria via heat shock transformation.

Cell lines

HEK293T and RAW 264.7 cells were obtained from ATCC (tested negative for mycoplasma) and cultured as monolayers in complete growth medium: Dulbecco’s Modified Eagle Medium (DMEM, Corning) containing 4.5 g l−1 glucose and supplemented with 10% Fetal Bovine Serum (FBS, VWR), 1% (v/v) GlutaMAX (Gibco), and 1% (v/v) Penicillin-Streptomycin (Corning, 5,000 units ml−1 of penicillin and 5,000 μg ml−1 streptomycin). Nalm6 B-ALL cells stably expressing GFP and firefly luciferase (Nalm6-GL) cells were provided by Crystal Mackall and cultured between 0.25–1.5 × 106 cells  per ml in complete growth medium: RPMI-1640 Medium (Corning) supplemented with 10% Fetal Bovine Serum (FBS, VWR), 1% (v/v) GlutaMAX (Gibco), and 1% (v/v) Penicillin-Streptomycin (Corning, 5,000 units ml−1 of penicillin and 5,000 μg ml−1 streptomycin). All cell lines were cultured at 37 °C under 5% CO2. For experimental assays, HEK293T cells were grown in 6-well, 12-well, 24-well, or 96-well plates pretreated with 20 µg ml−1 human fibronectin (Millipore) for at least 10 min at 37 °C.

Source of primary human T cells

Buffy coats from healthy donors were purchased from the Stanford Blood Center under an IRB-exempt-protocol. Primary human T cells were purified by negative selection using the RosetteSep Human T cell Enrichment kit (StemCell Technologies) and SepMate-50 tubes. T cells were cryopreserved at 4 × 106 cells per ml in CryoStor CS10 cryopreservation medium (StemCell Technologies) until use. T cells were cultured in complete growth medium: RPMI-1640 Medium (Corning) supplemented with 10% Fetal Bovine Serum (FBS, VWR), 1% (v/v) GlutaMAX (Gibco), 40 units ml−1 rhIL-2 (PeptoTech), and 1% (v/v) Penicillin-Streptomycin (Corning, 5,000 units ml−1 of penicillin and 5,000 μg ml−1 streptomycin).

Expression and purification of recombinant GFP and mCherry

Recombinant His-tagged GFP and mCherry were expressed in E. col BL21(DE3). In brief, a 5 ml starter culture in 2× YT supplemented with antibiotic was grown overnight at 37 °C. The starter culture was diluted into 1 l of the same medium and grown at 37 °C to an OD600 of ~0.8. and induced with 1 mM IPTG at 22 °C for 18 h. Cells were collected by centrifugation and lysed with Bacterial Protein Extraction Reagent (BPER, Thermo Scientific) supplemented with protease inhibitor cocktail per the manufacturer’s instructions. Lysate was filtered using a 5-μm syringe filter and purified by FPLC on a Ni-NTA column. Eluted protein was dialysed overnight at 4 °C into 20 mM Tris pH 7.5, 150 mM NaCl. GFP storage buffer included 1 mM TCEP. Protein concentration was determined with spectrophotometry and diluted to 500 μM. Protein was aliquoted and frozen at −80 °C for long term storage.

HEK293T cell transient transfection

A 1 mg ml−1 solution of PEI Max (Polysciences, 24765) was prepared for transient transfection as follows. Polyethylenimine (PEI, 500 mg) was added to 450 ml of Milli-Q H20 in a 500 ml glass beaker while stirring with a stir bar. Concentrated HCL was added dropwise to the solution until the pH was less than 2.0. The PEI solution was stirred until PEI was dissolved (~2–3 h). Concentrated NaOH was then added dropwise to the solution until the pH was 7.0. The volume of the solution was then adjusted to 500 ml, filter-sterilized through a 0.22-μm membrane, and frozen in aliquots at −20 °C. Working stocks were kept at 4 °C for no more than 1 month.

For transient transfection, HEK293T cells were grown in 6-well, 12-well, or 24-well plates pretreated with 20 µg ml−1 human fibronectin (Millipore) for at least 10 min at 37 °C. Cells were grown to a confluency of ~70–90% prior to transfection. DNA transfection complexes were made by mixing DNA and 1 mg ml−1 PEI solution in serum-free DMEM at a 1 μg DNA: 5 μl PEI (1 mg ml−1): 100 μl serum-free DMEM. Complexes were allowed to form for 20 min at room temperature. After 20 min, complexes were diluted in complete DMEM up to the growth volume per well size (2.5 ml for 6-well, 1 ml for 12-well, and 500 μl for 24-well). The entire well volume of the HEK293T cells was replaced with the diluted complexes and allowed to transfect cells at 37 °C for 5–24 h. Complete transfection protocols including amounts of DNA and length of transfection are described for each experiment below.

Firefly luciferase reporter PAGERTF experiments

HEK293T cells were plated in human fibronectin-coated 6-well dishes at a density of 750,000 cells per well and allowed to grow overnight (~18 h) at 37 °C until they reached ~70–90% confluency. After ~18 h, the cells were transfected with 350 ng of the indicated Antagonist-Nanobody-GPCR-eLOV-TEVcs-Gal4 (PAGERTF) receptor plasmid, 100 ng of NanoLuc-β-arrestin2-TEVp plasmid, and 150 ng of UAS-Firefly Luciferase (FLuc) plasmid. Cells were transfected for 5 h at 37 °C. After 5 h of transfection, cells from each well were lifted and resuspended in 6 ml of complete DMEM to make an ~400,000 cells per ml single cell suspension, and 100 μl of cell suspension (~40,000 cells) was plated per well in a human fibronectin-coated white, clear bottom 96-well plate in triplicate. Plates were wrapped in aluminum foil to protect them from light and incubated at 37 °C overnight (~18 h). After ~18 h, cells should be stimulated.

Stimulation was performed in a dark room with a red light source (red light does not open the LOV domain). Stimulation solutions were optimized for each given antigen and PAGER receptor. Unless otherwise indicated, PAGERs were stimulated as follows: GFP (LaG17/LaG2/LaG16)-PAGERs were stimulated with 1 μM GFP, 1 μM SalB, and 1× furimazine; mCherry (LaM6)-PAGERs were stimulated with 1 μM mCherry, 1 μM SalB, and 1× furimazine; VEGF (Nb35)-PAGERs were stimulated with 500 nM VEGF, 500 nM SalB, and 1× furimazine; HGF (Nb1E2)-PAGERs were stimulated with 250 nM HGF, 250 nM SalB, and 1× furimazine; TNF (ozoralizumab)-PAGERs were stimulated with 500 nM TNF, 250 nM or 500 nM SalB, and 1× furimazine; IL-17 (Sonelokimab)-PAGER was stimulated with 500 nM IL-17, 100 nM SalB, and 1× furimazine, IL-23 (Nb22E11)-PAGER was stimulated with 250 nM IL-23, 500 nM SalB, and 1× furimazine; sL6R (Voberilizumab)-PAGER was stimulated with 500 nM sIL-6R, 500 nM SalB, and 1× furimazine; CCL2 (Nb8E10)-PAGER was stimulated with 1 μM CCL2, 500 nM SalB, and 1× furimazine; EGFR (NbEgB4)-PAGERs were stimulated with 500 nM EGFR ECD, 100 nM or 250 nM or 500 nM SalB, and 1× furimazine; HER2 (Nb2Rs15d)-PAGERs were stimulated with 500 nM HER2 ECD, 500 nM or 1 μM SalB, and 1× furimazine; CD38 (NbMU375)-PAGER was stimulated with 1 μM CD38 ECD, 500 nM SalB, and 1× furimazine; PD-L1 (KN035)-PAGER was stimulated with 1 SalBPD-L1 ECD, 500 nM SalB, and 1× furimazine; SARS-CoV-2 RBD (NbF2)-PAGER was stimulated with 200 nM SARS-CoV-2 spike protein, 500 nM or 1 μM SalB, and 1× furimazine; uPA (Nb4)-PAGER was stimulated with 500 nM uPA, 250 nM or 500 nM SalB, and 1× furimazine.

For stimulations, growth medium was removed from the 96-well plate by flicking off and dabbing excess on a paper towel. To initiate stimulation, 100 μl stimulation solution was added to each well for a total of 15 min. After 15 min, stimulation solution was removed by flicking off and dabbing excess on a paper towel, and 100 μl of complete DMEM was added back to each well. Plates were again wrapped in aluminum foil and placed in 37 °C incubator for 8 h. After 8 h post-stimulation, medium was removed from 96-well plate by flicking off and dabbing excess on paper towel. Wells were washed once with 125 μl DPBS, and then 50 μl of 1× Bright-Glo (2× diluted 1:1 in DPBS; Promega) was added to each well and incubated for 1 min. After 1 min, firefly luciferase luminescence was measured using a Tecan Infinite M1000 Pro plate reader using the following parameters: 1,000 ms acquisition time, green-1 filter (520–570 nm), 25 °C linear shaking for 10 s.

In experiments where TEVp was used to activate PAGER, 1 μM recombinant TEVp was added to PAGER-expressing cells for 90 min prior to stimulation. In some experiments where indicated, exogenous ambient room white light was used to uncage the LOV domain instead of furimazine-dependent NanoLuc BRET. In these experiments, furimazine was not included in the stimulation solutions; all else remained the same. In some experiments where indicated, SalB or antigeSalB n dose–response curves were analysed. In these experiments, the concentrations of SalB or antigen were included in the stimulation solutions at different concentrations as indicated; all else remained the same.

HEK293T co-culture for trans assays

For trans assays using co-plated HEK293T cells, cells were cultured in 6-well and 12-well plates as described above. Receiver cells in 12-well plates were transfected with 140 ng of the indicated pAAV-Antagonist-Nanobody-PAGER-eLOV-TEVcs-Gal4 receptor plasmid, 40 ng of pAAV-NanoLuc-βarrestin2-TEVp plasmid, and 60 ng of pAAV-UAS-Firefly Luciferase (FLuc) plasmid. Sender cells in 6-well plates were transfected with 2 μg of pAAV-GFP-PDGFR transmembrane domain (surface-expressed GFP). Cells were transfected for 5 h in a 37 °C incubator. After 5 h, cells were lifted with trypsin, washed with DPBS, and resuspended in 6.25 ml or 2.5 ml of complete DMEM per well for 6-well and 12-well plates, respectively. Sender and receiver cells were mixed at a 4:1 sender:receiver ratio and then 100 μl of cell mixtures were plated into 96-well white, clear-bottom microplates at a density of 40,000 cells per well. Plates were wrapped in aluminum foil and incubated for ~18 h in a 37 °C incubator, then the stimulations and luciferase reporter assay were performed as described above.

HEK293T and macrophage differentiation co-culture assay

HEK293T cells were plated in human fibronectin-coated 6-well dishes at a density of 750,000 cells per well and allowed to grow overnight (~18 h) at 37 °C until they reached ~70–90% confluency. After ~18 h, the cells were transfected with 350 ng of the indicated PAGERTF receptor plasmid, 100 ng of NanoLuc-βarrestin2-TEVp plasmid, and 75 ng of UAS-mouse IFNγ plasmid. Cells were transfected for 5 h at 37 °C. After 5 h of transfection, cells from each well were lifted and resuspended to 1 × 106 cells per ml in complete DMEM. 250 μl of cell suspension (~250,000 cells) were plated in the top chamber of fibronectin-coated 24-well Transwells (8-μm pore size). Plates were wrapped in aluminum foil to protect them from light and incubated at 37 °C overnight (~18 h). After ~18 h, cells were stimulated in a dark room under red light with 100 μl of 500 nM Sal B, 1× furimazine, and antigen (2 μM mCherry, 500 nM VEGF, 500 nM CCL2, or 1 μM PD-L1) for 15 min. After 15 min, stimulations were removed and replaced with 200 μl complete DMEM. Immediately following stimulation, 400 μl of 2.5 × 105 RAW 264.7 macropahge cells (~100,000 cells) were placed in the bottom chamber of the Transwell. A final concentration of 10 ng ml−1 mouse IFNγ was added to the bottom chamber of the positive control well. Plates were then wrapped in aluminum foil to protect them from light and incubated at 37 °C for 48 h before being readout by imaging to assess morphological changes and qPCR with reverse transcription (RT–qPCR) to measure induction of the M1 macrophage markers CD86 and NOS2. Images of macrophages (at 20×) were taken using an Echo Rebel inverted microscope. Schematic summary of HEK293T and macrophage differentiation co-culture assay was created, in part, using BioRender.

RT–qPCR for macrophage markers

At time of collection, the medium from each samples was aspirated, and cold D-PBS was immediately added to each well. The cells were then pelleted, and RNA was extracted using the RNeasy Mini Kit (Qiagen, 74104). To synthesize cDNA, 1 µg of total RNA (8 µl) from each group was combined with 2 µl of Superscript IV VILO Master Mix (Thermo Scientific, 11756050) and subjected to the following thermocycling protocol: 25 °C for 10 min, 50 °C for 10 min, and 85 °C for 5 min. After reverse transcription, the cDNA was diluted tenfold in nuclease-free water. qPCR was conducted in 384-well plates using the CFX Connect Real-Time System (Bio-Rad), with a total reaction volume of 10 µl per well. Each reaction consisted of 2.5 µl of diluted cDNA template, 2.5 µl of 1 µM forward and reverse primers, and 5 µl of 2× Maxima SYBR Green/ROX qPCR Master Mix (Thermo Scientific, K0221). The following primer sequences were used: UBC-FWD: GACCCTGACAGGCAAGACCATC; UBC-REV: CTGTGGTGAGGAAGGTACGTCTG; CD86-FWD: CTGTCAGTGATCGCCAACTTCAGTG; CD86-REV: CCTTGCTTAGACGTGCAGGTC; NOS2-FWD: CCTTGTGCTGTTCTCAGCCCAAC; NOS2-REV: CAGGGATTCTGGAACATTCTGTGC.

The thermal cycling protocol included an initial denaturation step at 95 °C for 3 min, followed by 40 cycles of 95 °C for 10 s and 60 °C for 30 s. A melt-curve analysis was performed from 65 °C to 95 °C, with 0.5 °C increments. Housekeeping gene Ubc was used as the reference gene for normalization. Data were analysed as follows: first, ΔCT was calculated as target CT – Ubc (housekeeping control) CT; second, ΔΔCT was calculated as target ΔCT – untreated (negative control) ΔCT; and finally, relative gene expression was calculated as 2ΔΔCT for each sample.

HEK293T, T cell and tumour killing co-culture assay

HEK293T cells were plated in human fibronectin-coated 6-well dishes at a density of 750,000 cells per well and allowed to grow overnight (~18 h) at 37 °C until they reached ~70–90% confluency. After ~18 h, the cells were transfected with 350 ng of the indicated PAGERTF receptor plasmid, 100 ng of NanoLuc-βarrestin2-TEVp plasmid, and 25 ng of UAS-CD3-CD19 BiTE plasmid. Cells were transfected for 5 h at 37 °C. After 5 h of transfection, cells from each well were lifted and resuspended in 6 ml of complete DMEM to make an ~400,000 cells per ml single cell suspension, and 100 μl of cell suspension (~40,000 cells) was plated per well in a human fibronectin-coated clear 96-well plate in triplicate. Plates were wrapped in aluminum foil to protect them from light and incubated at 37 °C overnight (~18 h). After ~18 h, cells were stimulated in a dark room under red light with 50 μl of 250 nM Sal B, 1× furimazine, and antigen (2 μM GFP, 500 nM CCL2, or 1 μM PD-L1) for 15 min. After 15 min, stimulations were removed and replaced with 200 μl complete RPMI + 40 units ml−1 human IL-2 containing 100,000 primary human T cells and 100,000 Nalm6-GL cells (1:1 effector:target). Plates were then wrapped in aluminum foil to protect them from light and incubated at 37 °C for 36 h. 30 μl aliquots were taken from each well every 10–12 h to measure tumour cells remaining over time. Stably expressed firefly luciferase in the Nalm6-GL cells was used to measure tumour cells remaining. To readout the amount of luciferase activity in each sample, 30 μl of 2× Bright-Glo (Promega) was added to the 30 μl cell aliquots from each samples and incubated for 1 min. After 1 min, firefly luciferase luminescence was measured using a Tecan Infinite M1000 Pro plate reader using the following parameters: 1,000 ms acquisition time, green-1 filter (520–570 nm), 25 °C linear shaking for 10 s. Schematic summary of HEK293T, T cell, and tumour killing co-culture assay was created, in part, using BioRender.

TRUPATH G-protein activation BRET assay

HEK293T cells were plated in human fibronectin-coated 6-well dishes at a density of 1,250,000 cells per well and allowed to adhere and grow for 2–4 h at 37 °C. After ~2-4 h, the cells were transfected 1:1:1:1 with 250 ng of the indicated G-protein PAGER receptor plasmid, 250 ng of the corresponding Gα-RLuc8 TRUPATH plasmid (GαsS-RLuc8, Gαq-RLuc8 or Gα12-RLuc8), 250 ng of Gβ3 TRUPATH plasmid, and 250 ng Gγ9-GFP2 TRUPATH plasmid. For Gαi1 TRUPATH with PAGERGi, a 1:1:1:1 ratio of components using 100 ng of each plasmid was used. Cells were incubated at 37° and transfection was allowed to proceed for ~20–24 h. After transfection, cells from each well were lifted and resuspended in 6 ml of complete DMEM to make an ~200,000 cells per ml single cell suspension, and 100 μl of cell suspension (~20,000 cells) was plated per well in a human fibronectin-coated white, clear bottom 96-well plate in triplicate. Plates were incubated at 37 °C for ~20–24 h. For protease activation of G-protein-PAGERs, cells were treated with 1 μM TEVp for 90 min followed by stimulation with various concentrations of CNO and 10 μM CTZ400a (substrate for TRUPATH assay) for 5 min before reading out BRET. For antigen activation of PAGERG’s, cells were treated with 1 μM mCherry for 15 min followed by stimulation with various concentrations of CNO and 10 μM CTZ400a (for Gαi1 and Gαq TRUPATHs) or 10 μM Prolume Purple (for GαsS and Gα12 TRUPATHs) for 5 min before reading out BRET. BRET was readout using a Tecan Infinite M1000 Pro plate reader using the following parameters: filter 1 magenta (370 to 450 nm), 500 ms integration time; filter 2 green (510 to 540 nm), 500 ms integration time; 25 °C. Data are presented as NET BRET and displayed as scatter plots with variable slope (four parameter) non-linear regression lines.

Lentivirus generation

To generate lentivirus, HEK293T cells were cultured in T25 flasks and transfected at ~70% confluency with 2.5 μg of the pCDH lentiviral transfer vector of interest and packaging plasmids psPAX2 (1.25 μg) and pMD2.g (1.25 μg) with 25 µl PEI (1 mg ml−1; Polysciences). Approximately 72 h post-transfection, the cell medium was collected and centrifuged for 5 min at 300g to remove cell debris. Medium containing lentivirus was used immediately for transduction or was aliquoted into 0.5 ml aliquots, flash-frozen in liquid nitrogen, and stored at –80 °C for later use. Frozen viral aliquots were thawed at 37 °C prior to infection.

HEK293T stable cell line generation

HEK293T cells were plated on six-well human fibronectin-coated plates. When cells reached ~70–90% confluency, cells were transduced with lentivirus for 1–3 days. The cells were then lifted and replated om a T25 flask, and stably expressing cells were selected for in complete DMEM containing 1 μg ml−1 puromycin for at least 1 week. Cells were split and expanded when they reached ~80–90% confluency. Cells were maintained under this puromycin selection until the time of experiments. Construct expression was confirmed by flow cytometry, immunofluorescence imaging, or functional characterization.

Quantification of p-ERK by western blotting

Antigen was added at indicated concentration to HEK 293T cells stably expressing PAGERG. 3 min later, 300 nM of CNO in 500 μl blank DMEM was added to a final concentration of 100 nM, and the cells were incubated for another 3 min. Cells were then lysed with RIPA lysis buffer supplemented with protease and phosphatase inhibitors (50 mM Tris-HCl, pH 7.4, 150 mM NaCl, 1% Triton X-100, 0.5% sodium deoxycholate, 0.1% SDS, 1 mM EDTA, 1× Halt Protease Inhibitor Cocktail from Thermo Scientific, 1× Phosphatase Inhibitor Cocktail from Cell Signaling Technology). After sonication and centrifugation, the lysate supernatants were mixed with 6× Laemmli sample buffer to prepare the sample for western blotting. The membrane was blotted with 1:1,000 dilutions of antibodies for phospho-p44/42 MAPK (phospho-Erk1/2; Cell Signaling Technology 9101), p44/42 MAPK (Erk1/2; Cell Signaling Technology 9107), and β-Tubulin (Cell Signaling Technology 86298).

Fluorescence imaging of PAGER localization and secondary messenger reporters

Confocal imaging was performed on a Zeiss AxioObserver inverted confocal microscope with 10× and 20× air objectives, and 40× and 63× oil-immersion objectives, outfitted with a Yokogawa spinning disk confocal head, a Quad-band notch dichroic mirror (405/488/568/647), and 405 (diode), 491 (DPSS), 561 (DPSS) and 640 nm (diode) lasers (all 50 mW). The following combinations of laser excitation and emission filters were used for various fluorophores: GFP (491 laser excitation; 528/38 emission), mCherry/Alexa Fluor 568 (561 laser excitation; 617/73 emission), Alexa Fluor 647 (647 excitation; 680/30 emission), and differential interference contrast. Acquisition times ranged from 100 to 500 ms. All images were collected using SlideBook (Intelligent Imaging Innovations) and processed using FIJI/ImageJ.

Immunofluorescence staining of PAGER localization

HEK 293T cells expressing the indicated PAGERTF or PAGERG construct were fixed in 4% paraformaldehyde for 10 min at room temperature, followed by membrane permeabilization by treating with 0.5% Triton-X in PBS for 10 min. The cells were then incubated in 0.1% Tween-20 in PBS supplemented with 1% BSA for 30 min for blocking, followed by 1:1,000 anti-ALFA–AlexaFluor647 in blocking buffer for 1 h to stain for PAGER localization. After three washes in 0.1% Tween-20 in PBS, 1 µg ml−1 DAPI in PBS was added as a nuclear marker, and the cells were analysed by confocal microscopy.

Fluorescent DAG assay

An mCherry-based fluorescent DAG biosensor was made by C-terminally tagging mCherry to the C1PKCγ from Addgene plasmid #2120532 and cloning into the pCDH lentivirus backbone. HEK 293T cells stably co-expressing anti-GFP (LaG16) PAGERGq and C1PKCγ-mCherry were incubated in 1:1,000 anti-ALFA–AlexaFluor647 and 1 μM EGFP for 3 min. Cells were then located under the microscope and time-lapse images were obtained every 4 s, and 1 ml of 150 nM CNO was added (to a final concentration of 100 nM) between the first and the second frame. Images at the first time frame (t = 0) and 15th time frame (t = 60 s) were used for analysis.

Images were analysed using FIJI/ImageJ software. Regions of interest (ROIs) were manually added to images and the difference in mean of cytosolic mCherry fluorescence (Δ(F − F0)/F0) in each cell was quantified to plot the time course of C1PKCγ-mCherry signal. Note: cytosolic mCherry fluorescence was used as a readout for the depletion of DAG probe from cytosol upon membrane recruitment.

GCaMP6s calcium assay

A GFP-based fluorescent calcium biosensor was made by cloning GCaMP6s from Addgene plasmid #4075333 into the pCDH lentivirus backbone. HEK 293T cells stably co-expressing anti-mCherry (LaM6) PAGERGq and GCaMP6s were equilibrated in HBSS (Gibco; HBSS, calcium, magnesium, no phenol red) for 10 min at room temperature. Cells were then placed in 500 μl of HBSS (with or without 1 μM mCherry) and located under the microscope. Time-lapse images were obtained every 10 s, and 1 ml of CNO or DCZ was added (to a final concentration of 0.3–100 nM) at t = 30 s.

Images were analysed using FIJI/ImageJ software. ROIs were manually added to images and the difference in mean of cytosolic GFP fluorescence (Δ(F − F0)/F0) in each cell was quantified to plot the time course of GCaMP6s signal. The maximum difference at each DCZ concentration was calculated to obtain dose–response curves.

G-Flamp2 cAMP assay

A GFP-based fluorescent cAMP biosensor was made by cloning G-Flamp2 from Addgene plasmid #19278234 into the pCDH lentivirus backbone. For PAGERGs, HEK 293T cells stably expressing G-Flamp2 and anti-mCherry (LaM6) PAGERGs were equilibrated in HBSS (Gibco; HBSS, calcium, magnesium, no phenol red) for 10 min at room temperature. Cells were then placed in 500 μl of HBSS (with or without 1 μM mCherry) and located under the microscope. Time-lapse images were obtained every 10 s, and 1 ml of CNO or DCZ was added (to a final concentration of 0.3–100 nM) at t = 30 s.

For PAGERGi, HEK 293T cells stably expressing G-Flamp2 and anti-mCherry (LaM6) PAGERGi were equilibrated in HBSS (Gibco; HBSS, calcium, magnesium, no phenol red) for 10 min at room temperature. Cells were then placed in 500 μl of HBSS (with or without 1 μM mCherry) and located under the microscope. Time-lapse images were obtained every 10 s, and 500 μl of 2 μM forskolin was added (to a final concentration of 1 μM) at t = 20 s, followed by 1 ml of CNO or DCZ (to a final concentration of 0.3–100 nM) at t = 120 s.

Images were analysed using FIJI/ImageJ software. ROIs were manually added to images and the difference in mean of cytosolic GFP fluorescence (Δ(F − F0)/F0 for PAGERGs, Δ(F – Fmax)/Fmax for PAGERGi, where Fmax is a maximum signal upon forskolin stimulation) in each cell was quantified to plot the time course of G-Flamp2 signal. The maximum difference at each DCZ concentration was calculated to obtain dose–response curves.

AAV1/2 generation

To generate supernatant AAV, HEK293T cells were cultured in 6-well plate and transfected at approximately 80% confluency in opti-MEM reduced serum medium (Gibco). Per each well, the AAV vector containing the gene of interest (360 ng) and AAV packaging/helper plasmids AAV1 (180 ng), AAV2 (180 ng), and DF6 (720 ng) incubated with 10 μl PEI in 200 μl opti-MEM were used for transfection. After 20 h, the cell medium was replaced with complete DMEM. The cell medium containing the AAV was collected 48 h post transfection and filtered using a 0.45-μm filter. For in vivo expression, AAV1/2 was produced in a large scale (3× 15-cm plates) accordingly and purified using a HiTrap heparin column (GE Healthcare) as previously described56.

GCaMP6s neuronal activity assay

All procedures were approved and carried out in compliance with the Stanford University Administrative Panel on Laboratory Animal Care, and all experiments were performed in accordance with relevant guidelines and regulations. Before dissection, 35 mm glass bottom dishes (CellVis) were coated with 0.001% (w/v) poly-l-ornithine (Sigma-Aldrich) in DPBS (Gibco) at room temperature overnight, washed three times with DPBS, and subsequently coated with 5 μg ml−1 of mouse laminin (Gibco) in DPBS at 37 °C overnight. Cortical neurons were extracted from embryonic day 18 Sprague Dawley rat embryos (Charles River Laboratories, strain 400) by dissociation in Hank’s balanced salt solution with calcium and magnesium (Gibco). Cortical tissue was digested in papain according to the manufacturer’s protocol (Worthington), then 5 × 105 cells were plated onto each dish in neuronal culture medium at 37 °C under 5% CO2. The neuronal culture medium is neurobasal (Gibco) supplemented with 2% (v/v) B27 supplement (Life Technologies), 0.5% (v/v) fetal bovine serum, 1% (v/v) GlutaMAX, 1% (v/v) penicillin-streptomycin, and 1% (v/v) sodium pyruvate (Gibco, 100 mM).

On division 3 and division 6, half of the medium was removed from each dish and replaced with neuronal culture medium. On division 6 after the medium change, each well was infected with 35 μl of AAV1/2 (10 μl of GCaMP6s AAV and 25 μl of anti-mCherry (LaM6) PAGERGi AAV). Neurons were wrapped in aluminum foil and allowed to express in the incubator.

For HEK–neuron coculture experiments, HEK 293T cells were plated in a 6-well plate and transfected with surface mCherry on a day before the imaging. 8 h after transfection, the HEK cells were collected in PBS without using trypsin. The cells were pelleted and resuspended in neuron culture medium supplemented with 2.5 μM cytosine β-d-arabinofuranoside hydrochloride (AraC; Sigma-Aldrich C6645). HEK cells were resuspended at 5 × 105 cells per ml (for 1:2 HEK:neuron co-culture) or 1 × 105 cells per ml (for 1:10 HEK:neuron co-culture). Five-hundred microlitres of the resuspended cells were plated on each neuron-plated imaging dish (2 ml culture medium) to make the final AraC concentration 0.5 μM.

On division 13, cells were preincubated in HBSS for 10 min, and then incubated in 1:1,000 anti-ALFA–AlexaFluor647 and 1 μM mCherry in HBSS for 3 min. Cells were then located under the microscope and time-lapse images were obtained every 1 s, and 1 ml of 50 nM CNO or 3 nM DCZ was added (to a final concentration of 33 nM or 2 nM) at t = 10 s.

Images were analysed using FIJI/ImageJ software. ROIs were manually added to images and the mean of cytosolic GFP fluorescence in each cell was quantified to plot the time course of GCaMP6s signal in the form of Δ(F – Fmin)/(Fmax − Fmin).

Neuronal electrophysiology assay in brain slices

Subjects

Adult female C57BL/6 mice (Jackson Laboratory) were used for slice electrophysiology experiments. All procedures were carried out in accordance with the National Institutes of Health guidelines for animal care and use, and were approved by the Administrative Panel on Laboratory Animal Care of Stanford University (protocol 30183). Mice were group housed (2–5 per cage), received ad libitum access to food and water, and were maintained on a 12 h light/dark cycle throughout the study under standard housing conditions (21 ± 2 °C; 50 ± 15% humidity).

Slice electrophysiology

Mice received a stereotaxic injection bilaterally into CA1 (M/L: ±1.5; A/P: −2.3; D/V: −1.35 mm) when 4–8 weeks old of 400 nL AAV1/2 vector containing an hSyn-α-mCherry-PAGER-Gi-P2A-mEGFP expression cassette (1.9 × 1013 genome copies (GC) ml−1). At 3–6 weeks following initial injection, mice were deeply anaesthetized by ketamine/xylazine and then transcardially perfused with an ice-cold protective recovery solution containing (in mM): 92 N-methyl-d-glucamine (NMDG), 26 NaHCO3, 25 glucose, 20 HEPES, 10 MgSO4, 5 sodium ascorbate, 3 sodium pyruvate, 2.5 KCl, 2 thiourea, 1.25 NaH2PO4, 0.5 CaCl2, titrated to a pH of 7.3–7.4 with HCl57. Hippocampus-containing coronal brain slices (250 µm) were cut in ice-cold protective recovery solution using a vibratome (VT1200S, Leica Biosystems) and then incubated in 35 °C protective recovery solution for 12 min. Subsequently, brain slices were maintained in room temperature artificial cerebrospinal fluid (aCSF) consisting of (in mM): 126 NaCl, 26 NaHCO3, 10 glucose, 2.5 KCl, 2 MgCl2, 2 CaCl2, 1.25 NaH2PO4. All solutions were equilibrated with 95% O2/5% CO2.

Intracellular recordings were performed in a submerged chamber perfused with oxygenated aCSF at 3 ml min−1 and maintained at 33 °C by a chamber heater (BadController V, Luigs and Neumann). CA1 neurons were visualized using differential interference contrast illumination on an Olympus BX61WI microscope (Olympus Microscopy) with an sCMOS camera (Flash 4.0 LT+, Hamamatsu). Epifluorescence illumination from an LED lamp (Solis-3C, Thorlabs) was used to identify GFP-positive transfected neurons. Recording pipettes were pulled from thin-walled borosilicate capillary glass (King Precision Glass) using a P97 puller (Sutter Instruments) and were filled with (in mM): 126 potassium gluconate, 10 HEPES, 4 KCl, 4 ATP-Mg, 0.3 GTP-Na, 10 phosphocreatine (pH-adjusted to 7.3 with KOH, osmolarity 290 mOsm), as well as 0.2% biocytin. Pipettes had a 3–5 MΩ tip resistance.

Whole-cell recordings were performed on GFP-positive CA1 neurons in the dorsal hippocampus (A/P: −1.7–2.6 mm). Pipette capacitance was neutralized for all recordings and holding current was adjusted so that all cells began recordings with an initial membrane potential of −65 mV. Neuronal properties were assessed longitudinally, across 5 s sweeps, featuring repeated current injection patterns including a brief hyperpolarizing current step (−100 pA, 200 ms), followed shortly later (300 ms) by a linearly ramping current delivery (−150 to +500 pA, across 2 s). Input resistance (Rin) was calculated from the change in steady-state membrane potential resulting from hyperpolarizing current injections. RMP was measured as the average value during the period (500 ms) in each sweep prior to any current injection. All action potentials were counted during the ramping current delivery and the rheobase value was the current being delivered when the first action potential of each sweep was evoked.

At the end of recordings, brain slices were fixed in 4% paraformaldehyde with 0.2% picric acid in 0.1 M phosphate buffer for 24 h at 4 °C. Biocytin-filled neurons were labelled by washing sections in PBS, permeabilizing with 0.5% Triton X-100 (Sigma-Aldrich) in TBS and then overnight incubation at 4 °C in Alexa Fluor 405-conjugated streptavidin (1:1,000, Molecular Probes). Sections were then washed and mounted in Vectashield (Vector Laboratories), before collecting z-stack images of the biocytin and mEGFP signals in the hippocampus using a Zeiss LSM 710 confocal microscope using a 20× 0.8 NA objective.

Data were excluded from cells where the initial Rin was >500 mΩ, as well as individual sweeps where the RMP was >−50 mV or where no action potentials were detected. Responses were tracked during bath application of DCZ (100 nm, Tocris) or the same dose of DCZ combined with soluble mCherry (1 µM). All cells recorded with DCZ + mCherry also underwent a prior preincubation in mCherry (1 µM; range: 30–150 min, mean: 73.4 min). Recordings in DCZ alone were avoided after >1 DCZ + mCherry experiment per day to reduce potential cross contamination. Data were collected from n = 15 cells, 7 mice with DCZ, n = 26 cell, 6 mice DCZ + mCherry. Recordings were only performed in brain slices naïve to prior DCZ exposures. Data were acquired in pClamp software (Molecular Devices) using a Multiclamp 700B amplifier (Molecular Devices), low-pass filtered at 2 kHz, and digitized at 10 kHz (Digidata 1440 A, Molecular Devices). Data analysis was performed using custom written Python scripts.

Statistical analysis

Graphs and statistical analyses were generated using Python (with Pandas, Seaborn, Scipy and Statsmodels packages). To account for the nested data produced in whole-cell electrophysiology experiments where multiple cells are recorded from each animal, differences between treatment groups were evaluated by a mixed linear model regression analysis58. Sex was not considered in the current study design and a sex-based analysis was not performed, with our current data being restricted entirely to female samples. Analysis of neuronal responses was conducted blinded to treatment groups.

Lentiviral transduction of primary human T cells

On day 0, primary human T cells were thawed and activated with anti-CD3/CD28 human T-Expander Dynabeads (Thermo Fisher Scientific) at a 1:1 bead to cell ratio. On day 2, 1 ml of 500,000 cells per ml T cell suspension was added to each well of a 24-well non-tissue culture treated plate. To each well, 1.6 µl of 10 mg ml−1 polybrene (for 8 µg ml−1 in 2 ml final) was added to each well. One millilitre of lentivirus was added per well. Plates with T cell/virus mixes were spun at 1,000g for 2 h at 32 °C in an aerosol tight plate holder. After the 2 h spin, cells were resuspended, moved to 6-well plates, and incubated for 24 h at 37 °C under 5% CO2. On day 4, Dynabeads were removed by magnetic separation and lentivirus was removed by centrifugation. Cells were maintained between 0.4 × 106 and 2 × 106 cells per ml and expanded until day 11–12. On day 11-12, PAGER-expressing T cells were enriched by magnetic-activated cell sorting (MACS; using an ALFA–biotin antibody (NanoTag) and ALFA–biotin antibody (NanoTagbiotin microbeads (Miltenyi)) or by fluorescent-activated cell sorting (FACS; using ALFA-647 antibody (NanoTag)). Typically, enriched T cells were >95% PAGER+ . PAGER+ T cells were used for experiments on days 14–19.

T cell migration assays

In a 96-well Transwell plate (3 μm pore size; Corning), 80 μl of 1.25 × 106 PAGER + T cells ml−1 ( ~ 100,000 cells) were plated in the top chamber. T cells were let to settle for 1 h at 37 °C under 5% CO2. After 1 h, 0.8 μl 100 nM DCZ was added to the top chamber of each well and 240 μl of medium containing 1 nM DCZ and cognate (10 μM mCherry) or non-cognate (10 μM GFP) antigen was added to the bottom chamber of each well. This way, the DCZ concentration was equal across the entire well (that is, no DCZ gradient formed) and only a gradient of antigen (mCherry or GFP) was formed over time. T cells were incubated at 37 °C under 5% CO2 for 2 h to let chemotaxis migration to occur. For experiments where pertussis toxin (PTX) was used to assess the role of Gi activation in PAGER-mediated chemotaxis, after PAGER+ T cells were added to the top chamber of each well, 1 μl of 16 μg ml−1 PTX was added to the cells (final 200 ng ml−1 PTX) and let incubate at 37 °C under 5% CO2 for 3 h before adding DCZ/antigen-containing medium in the bottom chambers. For time course experiments, separate wells were set up for each time point and DCZ/antigen-containing medium was added to the bottom chambers at different times so all wells could be collected together.

After incubation for 2 h to allow for chemotaxis, T cells that migrated from the top chamber, across the porous membrane, to the bottom chamber were collected; all of the medium in the bottom chamber (~240 μl) was moved to wells of a 96-well v-bottom plate and the centrifuged in swinging bucket rotor at 1,000g for 5 min. Medium in the wells was removed by flicking off and dabbing excess on paper towel. One-hundred microlitres DPBS was added to each well of the 96-well v-bottom plate and pipetted up and down 10 times to resuspend any potential T cells in the wells. This cell suspension was then moved to a white 96-well solid-bottom plate where CellTiter-Glo 2.0 was used to create a luminescent signal proportional to the number of T cells present. 100 μl of CellTiter-Glo 2.0 was added to each well and mixed by hand for 1 min, let incubate for 10 min at room temperature in the dark, and then luminescence was measured using a Tecan Infinite M1000 Pro plate reader using the following parameters: 1,000 ms acquisition time, green-1 filter (520–570 nm), 25 °C linear shaking for 10 s. Schematic summary of T cell migration assay was created, in part, using BioRender.

The development of GRABDCZ sensors

We chose human M4R as the sensor scaffold and embarked on a systematic optimization process. This process included screening and optimizing the insertion sites, the amino acid composition of the linker, and the critical residues in cpEGFP to enhance the maximum response and fluorescence of sensors. Subsequently, specific DCZ sensors were developed by introducing binding pocket mutations based on these sensors.

  • ICL3 replacement: we replaced the ICL3–cpEGFP of the previously developed GRABgACh sensor1 with the corresponding ICL3 of hM4R. A replacement library was generated using 9 sites (S5.62 to H5.70) from the N terminus and 5 sites (T6.34 to F6.38) from the C terminus. After screening, we created a prototype ACh sensor named hM4-0.1, which exhibited a 100% ΔF/F fluorescence response to 100 μM ACh. The replacement sites of hM4-0.1 are located between R5.66 and T6.36 in hH4R.

  • Linker optimization: the amino acid composition of the linker was found to be critical to the sensor’s dynamic range. We performed site-saturation mutagenesis on 6 residues of the linker. Through this process, we identified a variant named hM4-0.5, with an R5.66 L mutation, which resulted in a ~ 130% increase in ΔF/F0.

  • cpEGFP optimization: building on our screening experience in developing GRAB sensors2,3, we selected four residues in the cpEGFP for individual randomizations. This led to the development of the hM4-1.0 sensor with an H18I mutation, showing a maximal response of ~350% to 100 μM ACh.

  • Binding pocket mutations: to develop specific DCZ sensors, we introduced Y3.33 C and A5.46 G mutations11,59 based on the hM4-1.0, resulting in the creation of DCZ1.0, which exhibited a ~150% response to 1 μM DCZ.

Fluorescence imaging of GRAB sensors and PAGERFL

The Opera Phenix high-content screening system (PerkinElmer) was utilized for GRAB sensors and PAGERFL imaging, equipped with a 20× 0.4-NA objective, a 40× 0.6-NA objective, a 40× 1.15-NA water-immersion objective, a 488-nm laser, and a 561-nm laser. GFP and RFP signals were collected using a 525/50 nm emission filter and a 600/30 nm emission filter, respectively. HEK293T cells expressing GRABDCZ1.0 or PAGERFL were imaged before and after adding specified DCZ/antigens while being bathed in Tyrode’s solution. The change in fluorescence intensity of GRABDCZ1.0 was determined by calculating the change in the GFP/RFP ratio and expressed as ΔF/F0. F0 is the intensity of sensors in the basal (no DCZ/antigen) condition.

Mini G-protein luciferase complementation assay

HEK293T cells were cultured in 6-well plates until they reached 60–70% confluence. At this point, the specified wild-type receptor or sensor, along with the corresponding LgBit-mGi construct, were co-transfected into the cells. Around 24–36 h post-transfection, the cells were detached using a cell scraper, suspended in PBS, and then transferred to 96-well plates (white with a clear flat bottom) containing Nano-Glo Luciferase Assay Reagent (Promega) diluted 1,000-fold in PBS at room temperature. Following this, solutions with varying DCZ concentrations and 1 μM antigens were added to the wells. After a 10-min reaction in the dark at room temperature, luminescence was measured using a VICTOR X5 multi-label plate reader (PerkinElmer).

Quantification and Data Analysis

All graphs were created using GraphPad Prism 9 or matplotlib (Python). Error bars represent s.d. unless otherwise noted. For scatter plots, variable slope (four parameter) non-linear regression lines were used. For comparison between two groups, P values were determined using two-tailed Student’s t-tests. For multiple comparisons, P values were determined using two-way ANOVA with Tukey’s multiple comparisons test to adjust for multiple comparisons. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001; NS, not significant.

General guidelines for designing and validating PAGERs

A workflow for developing and optimizing new PAGERs is outlined below. These steps are generally the same no matter which type of PAGER (PAGERTF, PAGERG, or PAGERFL) is being developed, but specific notes and tips for the creation of different types of PAGERs are also included.

Choosing an antigen binding domain

The specificity and sensitivity of a given PAGER is primarily determined by the antigen binding domain that is used. If available, we recommend using a nanobody for the antigen binding domain, as we have had the most success building functional PAGERs with this class of binder; ~50% of all nanobodies tested resulted in functional PAGERs. Other binding domains that have their N terminus proximal to the binding interface may also work. When possible, we suggest starting with 2–3 high-affinity binders against your antigen of interest to test in PAGER, as the affinity of binders for antigen in the context of PAGER may be different (oftentimes lower) than their published affinities.

Construct design

The relative position of the binder and the antagonist is critical. The antagonist should be fused directly to the N terminus of the binder (no linker between). This is because proximity of the antagonist to the CDR loops of the binder creates the steric occlusion of the antagonist upon antigen binding that is necessary for PAGER activation. Even short linkers between the antagonist and binder may make PAGER insensitive to soluble antigen. In our constructs, we also typically omit the first 2–3 amino acids of the nanobody (for example, MAQ) so as to place the antagonist as near to the nanobody CDRs as possible.

The linker between the binder and the GPCR is less critical but needs to be sufficiently long to allow the antagonist to reach the GPCR active site. This linker is also a convenient location to insert an epitope tag to detect PAGER expression. We generally use ALFA tag due to its small size and non-perturbative helical structure. Importantly, we highly recommend including a TEVcs (ENLYFQ/S) in this linker, as it is useful for assessing antagonism in newly generated PAGER constructs (described in step 3 below).

Signal peptides are included in all PAGER constructs to promote surface expression of the receptor. For PAGERG and PAGERFL, we use the native signal peptide of muscarinic toxin. PAGERTF requires a signal peptide that does not leave any residues on the N terminus of the antagonist (that is, no P′ residues in the cleavage sequence of the signal peptide), as the N-terminal residues of the arodyn peptide antagonist in PAGERTF are essential for peptide binding and antagonism. All PAGERTF constructs we developed utilize an IL-2 signal peptide, which does not leave an N-terminal scar, but other scarless signal peptides could also be used.

Screening for expression, localization, and reversible auto-inhibition

We recommend first screening candidate PAGERs in HEK293T cells before moving to other cell types of interest. We have found that PAGER expression, surface localization, and antagonism are the key features that determine overall PAGER functionality. To assess all these aspects simultaneously, we devised a screen using recombinant TEVp and the extracellular TEVcs discussed in step 2 above. In this approach, a dose–response curve of PAGER agonist (SalB for PAGERTF or DCZ/CNO for PAGERG/PAGERFL) should be conducted with and without pretreatment with recombinant TEVp (we typically pretreat PAGER-expressing cells with 1 μM TEV for 90 min, but as little as 30 min is also sufficient). In the absence of TEVp, a dose-dependent activation of PAGER should be observed, as increasing concentrations of agonist will outcompete the fused antagonist and activate the receptor; this alone confirms whether the PAGER is expressed and activatable. With TEVp pretreatment, the antagonist should be cleaved, sensitizing the PAGER to the agonist, and result in the dose–response curve shifting to the left; this confirms surface localization (since the recombinant TEVp can only act on plasma membrane localized PAGERs) and reversible antagonism. As further validation, immunofluorescence and flow cytometry should be conducted to confirm PAGER expression and surface localization.

In our experience, any PAGER that fails this TEV test (that is, does not show a clear dose–response curve with a leftward shift upon TEVp pretreatment) has also been unresponsive to antigen. Furthermore, 83% of PAGERs that passed this test went on to be responsive to antigen. Therefore, this screen is a simple intermediate step to save time and resources by narrowing the list of candidate PAGERs to those with a high likelihood of success prior to antigen screening.

Screening for response to antigen

PAGERs that pass the TEVp screen should then be tested using the target antigen. The agonist concentration that yielded the highest signal:noise in the TEV screen (+TEV/–TEV) should be used for antigen testing. We generally recommend performing antigen dose–response curves to determine the overall affinity and sensitivity of each PAGER to the antigen of interest.

Ideally, you might have multiple PAGERs that respond to your antigen of interest. In this case, it is important to consider your downstream application when choosing which PAGER to move forward with. PAGERs with higher affinity binders offer higher sensitivity to the antigen but may also exhibit slow or irreversible antigen binding, while PAGERs with lower-affinity binders typically provide lower sensitivity but higher reversibility, enabling activation only during coincidence detection of antigen and agonist (Sal B or DCZ/CNO). The concentration of antigen that you wish to detect using PAGER should also be considered; to detect higher concentrations of antigen, a low sensitivity PAGER may suffice, but to detect lower concentrations of antigen, a high sensitivity PAGER may be required. All these factors should guide the selection of a PAGER with characteristics best suited for the user’s downstream applications.

Optimization of PAGER expression in a cell type of interest

In our studies, choosing the right promoter for the target cell type was a key factor for successful PAGER expression. For example, CMV promoter worked best in HEK 293T cells while SFFV promoter worked best for T cells. The expression and delivery method also depend on the target cell type. Expression methods commonly used for your cell type of interest are a good starting point, but testing multiple approaches is likely to help identify the best method for optimal PAGER expression. Of note, the larger size of PAGERTF compared to PAGERG or PAGERFL (~3 kb vs ~2 kb) and the two additional gene components of PAGERTF (the arrestin–TEVp and the transcriptional response element) require co-transduction of two or three viruses into the target cells. Combining two PAGERTF components into a single lentivirus may facilitate the reconstitution of all components by requiring one less virus to be co-transduced. As with other multiple component systems, proper relative expression of the components needs to be achieved and often needs to be determined empirically.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Online content

Any methods, additional references, Nature Portfolio reporting summaries, source data, extended data, supplementary information, acknowledgements, peer review information; details of author contributions and competing interests; and statements of data and code availability are available at 10.1038/s41586-024-08282-3.

Supplementary information

Supplementary Information (2.6MB, pdf)

This file contains supplementary discussion, table of antibodies used in the study, table of genetic constructs used in the study, table of nanobodies (and nanobody sequences) used in the study, table of sources of antigens used in the study, representative annotated amino acid sequences of genetic constructs use in the study, supplementary figures and figure legends, supplementary video legends and supplementary references

Reporting Summary (1.7MB, pdf)
Supplementary Video 1 (2.8MB, avi)
Supplementary Video 2 (2.6MB, avi)

Acknowledgements

The authors are grateful to the St Jude Children’s Research Hospital Collaborative Research Consortium on GPCRs, the Chan Zuckerberg Biohub–San Francisco, Phil and Penny Knight Initiative for Brain Resilience (KIG-104), Stanford Cancer Institute, Wu Tsai Neurosciences Institute of Stanford University and the NIH (MH135934 to A.Y.T. and I.S., F32CA257159 to N.A.K., NS121106 to I.S.) for funding this work. Support from the National Natural Science Foundation of China (31925017 to Y.L.) and the New Cornerstone Science Foundation through the New Cornerstone Investigator Program and the XPLORER PRIZE (to Y.L.) is also acknowledged. R.T. was supported by the Life Sciences Research Foundation Fellowship (sponsored by Astellas Pharma) and JSPS Overseas Research Fellowship. The authors thank S. Lee and M. Lin for providing rat cortices; S. Malhotra for assistance with slice electrophysiology preparations; Sean A. Yamada-Hunter, Louai Labanieh and Crystal L. Mackall for helpful discussions and protocols related to T cells; and R. Hernandez-Lopez for helpful discussions and equipment access. Images in Figs. 2b,e and 4 were created with BioRender. We thank Tony Kalogriopoulos for his unwavering guidance, support, encouragement, and inspiration; may his memory be eternal.

Extended data figures and tables

Author contributions

N.A.K. and A.Y.T. conceived the project. N.A.K. and A.Y.T. designed and characterized PAGERTF. R.T., N.A.K. and A.Y.T. designed and characterized PAGERG. Y.Y. and Y.L. designed and characterized PAGERFL. M.R. designed the TEVp assay to screen for reversible inhibition of PAGER. The remaining authors contributed to PAGER applications as follows: N.A.K. and B.C. conducted PAGERTF applications; R.T. applied PAGERG in neuron culture; P.M.K. and I.S. applied PAGERG in mouse brain; and N.A.K. applied PAGERG in T cells. N.A.K., R.T. and A.Y.T. wrote the manuscript with input and edits from other authors.

Peer review

Peer review information

Nature thanks Bryan Roth, Ofer Yizhar and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Data availability

All data supporting the findings of this study are available within the paper and its Supplementary Information. No separate datasets were generated or analysed for the current study.

Code availability

Custom scripts were developed using a combination of ImageJ macros and Python for automated image intensity calculation and data processing. The matplotlib library in Python was used for data visualizations. All custom Python scripts used in this study are available upon request.

Competing interests

N.A.K., A.Y.T., M.R., and R.T. are inventors on a provisional patent (US Provisional Patent Application no.: 63/516,900) related to this work. A.Y.T. is a scientific advisor to Third Rock Ventures and Nereid Therapeutics.

Footnotes

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

These authors contributed equally: Nicholas A. Kalogriopoulos, Reika Tei

Change history

1/27/2025

A Correction to this paper has been published: 10.1038/s41586-025-08607-w

Extended data

is available for this paper at 10.1038/s41586-024-08282-3.

Supplementary information

The online version contains supplementary material available at 10.1038/s41586-024-08282-3.

References

  • 1.Mitra, A. et al. From bench to bedside: the history and progress of CAR T cell therapy. Front. Immunol.14, 1188049 (2023). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Larson, R. C. & Maus, M. V. Recent advances and discoveries in the mechanisms and functions of CAR T cells. Nat. Rev. Cancer21, 145–161 (2021). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Labanieh, L. & Mackall, C. L. CAR immune cells: design principles, resistance and the next generation. Nature614, 635–648 (2023). [DOI] [PubMed] [Google Scholar]
  • 4.Morsut, L. et al. Engineering customized cell sensing and response behaviors using synthetic Notch receptors. Cell164, 780–791 (2016). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Zhu, I. et al. Modular design of synthetic receptors for programmed gene regulation in cell therapies. Cell185, 1431–1443.e16 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Daringer, N. M., Dudek, R. M., Schwarz, K. A. & Leonard, J. N. Modular extracellular sensor architecture for engineering mammalian cell-based devices. ACS Synth. Biol.3, 892–902 (2014). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Scheller, L., Strittmatter, T., Fuchs, D., Bojar, D. & Fussenegger, M. Generalized extracellular molecule sensor platform for programming cellular behavior. Nat. Chem. Biol.14, 723–729 (2018). [DOI] [PubMed] [Google Scholar]
  • 8.Jacobson, K. A., Gao, Z.-G. & Liang, B. T. Neoceptors: reengineering GPCRs to recognize tailored ligands. Trends Pharmacol. Sci.28, 111–116 (2007). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Vardy, E. et al. A new DREADD facilitates the multiplexed chemogenetic interrogation of behavior. Neuron86, 936–946 (2015). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Di Roberto, R. B., Chang, B. & Peisajovich, S. G. The directed evolution of ligand specificity in a GPCR and the unequal contributions of efficacy and affinity. Sci. Rep.7, 16012 (2017). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Armbruster, B. N., Li, X., Pausch, M. H., Herlitze, S. & Roth, B. L. Evolving the lock to fit the key to create a family of G protein-coupled receptors potently activated by an inert ligand. Proc. Natl Acad. Sci. USA104, 5163–5168 (2007). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Roth, B. L. DREADDs for neuroscientists. Neuron89, 683–694 (2016). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Wang, Y. et al. Structures of the entire human opioid receptor family. Cell186, 413–427.e17 (2023). [DOI] [PubMed] [Google Scholar]
  • 14.Kim, M. W. et al. Time-gated detection of protein–protein interactions with transcriptional readout. eLife6, e30233 (2017). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Kim, C. K., Cho, K. F., Kim, M. W. & Ting, A. Y. Luciferase-LOV BRET enables versatile and specific transcriptional readout of cellular protein-protein interactions. eLife8, e43826 (2019). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Carroll, F. I. & Carlezon, W. A. Development of κ opioid receptor antagonists. J. Med. Chem.56, 2178–2195 (2013). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Fridy, P. C. et al. A robust pipeline for rapid production of versatile nanobody repertoires. Nat. Methods11, 1253–1260 (2014). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Schoof, M. et al. An ultrapotent synthetic nanobody neutralizes SARS-CoV-2 by stabilizing inactive Spike. Science370, 1473–1479 (2020). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Wheeler, K. C. et al. VEGF may contribute to macrophage recruitment and M2 polarization in the decidua. PLoS ONE13, e0191040 (2018). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Sierra-Filardi, E. et al. CCL2 shapes macrophage polarization by GM-CSF and M-CSF: identification of CCL2/CCR2-dependent gene expression profile. J. Immunol.192, 3858–3867 (2014). [DOI] [PubMed] [Google Scholar]
  • 21.Gianchecchi, E., Delfino, D. V. & Fierabracci, A. Recent insights into the role of the PD-1/PD-L1 pathway in immunological tolerance and autoimmunity. Autoimmun. Rev.12, 1091–1100 (2013). [DOI] [PubMed] [Google Scholar]
  • 22.Goebeler, M.-E. & Bargou, R. C. T cell-engaging therapies — BiTEs and beyond. Nat. Rev. Clin. Oncol.17, 418–434 (2020). [DOI] [PubMed] [Google Scholar]
  • 23.Li, M., Knight, D. A., Snyder, L. A., Smyth, M. J. & Stewart, T. J. A role for CCL2 in both tumor progression and immunosurveillance. OncoImmunology2, e25474 (2013). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Blank, C., Gajewski, T. F. & Mackensen, A. Interaction of PD-L1 on tumor cells with PD-1 on tumor-specific T cells as a mechanism of immune evasion: implications for tumor immunotherapy. Cancer Immunol. Immunother.54, 307–314 (2005). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Schulz, R., Korkut-Demirbaş, M., Venturino, A., Colombo, G. & Siegert, S. Chimeric GPCRs mimic distinct signaling pathways and modulate microglia responses. Nat. Commun.13, 4728 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Inoue, A. et al. Illuminating G-protein-coupling selectivity of GPCRs. Cell177, 1933–1947.e25 (2019). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Nagai, Y. et al. Deschloroclozapine, a potent and selective chemogenetic actuator enables rapid neuronal and behavioral modulations in mice and monkeys. Nat. Neurosci.23, 1157–1167 (2020). [DOI] [PubMed] [Google Scholar]
  • 28.Servent, D. & Fruchart-Gaillard, C. Muscarinic toxins: tools for the study of the pharmacological and functional properties of muscarinic receptors. J. Neurochem.109, 1193–1202 (2009). [DOI] [PubMed] [Google Scholar]
  • 29.Maeda, S. et al. Structure and selectivity engineering of the M1 muscarinic receptor toxin complex. Science369, 161–167 (2020). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.DiBerto, J. F., Olsen, R. H. J. & Roth, B. L. in Bioluminescence: Methods and Protocols, vol. 2 (ed. Kim, S.-B.) 185–195 (Springer, 2022); 10.1007/978-1-0716-2473-9_13.
  • 31.Oancea, E., Teruel, M. N., Quest, A. F. G. & Meyer, T. Green fluorescent protein (GFP)-tagged cysteine-rich domains from protein kinase C as fluorescent indicators for diacylglycerol signaling in living cells. J. Cell Biol.140, 485–498 (1998). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Chen, T.-W. et al. Ultra-sensitive fluorescent proteins for imaging neuronal activity. Nature499, 295–300 (2013). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Liu, W., Liu, C., Ren, P.-G., Chu, J. & Wang, L. An improved genetically encoded fluorescent cAMP indicator for sensitive cAMP imaging and fast drug screening. Front. Pharmacol.13, 902290 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Ishiwatari-Ogata, C. et al. Ozoralizumab, a humanized anti-TNFα nanobody compound, exhibits efficacy not only at the onset of arthritis in a human TNF transgenic mouse but also during secondary failure of administration of an Anti-TNFα IgG. Front. Immunol.13, 853008 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Veritti, D., Sarao, V., Gorni, G. & Lanzetta, P. Anti-VEGF drugs dynamics: relevance for clinical practice. Pharmaceutics14, 265 (2022). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Parameswaran, N. & Patial, S. Tumor necrosis factor-α signaling in macrophages. Crit. Rev. Eukaryot. Gene Expr.20, 87–103 (2010). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Duffy, A. M., Bouchier-Hayes, D. J. & Harmey, J. H. in Madame Curie Bioscience Database (Landes Bioscience, 2013).
  • 38.Raimondo, F. et al. Elevated vascular endothelial growth factor (VEGF) serum levels in idiopathic myelofibrosis. Leukemia15, 976–980 (2001). [DOI] [PubMed] [Google Scholar]
  • 39.Zhu, H. et al. Chemogenetic inactivation of ventral hippocampal glutamatergic neurons disrupts consolidation of contextual fear memory. Neuropsychopharmacol39, 1880–1892 (2014). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Nguyen, Q.-A. et al. Acetylcholine receptor based chemogenetics engineered for neuronal inhibition and seizure control assessed in mice. Nat. Commun.15, 601 (2024). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Shan, Q., Fang, Q. & Tian, Y. Evidence that GIRK channelsmediate the DREADD-hM4Di receptor activation-induced reduction in membrane excitability of striatal medium spiny neurons. ACS Chem. Neurosci.13, 2084–2091 (2022). [DOI] [PubMed] [Google Scholar]
  • 42.Melero, I., Rouzaut, A., Motz, G. T. & Coukos, G. T-Cell and NK-Cell Infiltration into Solid Tumors: A Key Limiting Factor for Efficacious Cancer Immunotherapy. Cancer Discov4, 522–526 (2014). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 43.Neptune, E. R. & Bourne, H. R. Receptors induce chemotaxis by releasing the βγ subunit of Gi, not by activating Gq or Gs. Proc. Natl Acad. Sci.94, 14489–14494 (1997). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 44.Park, J. S. et al. Synthetic control of mammalian-cell motility by engineering chemotaxis to an orthogonal bioinert chemical signal. Proc. Natl Acad. Sci.111, 5896–5901 (2014). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Wang, H. et al. A tool kit of highly selective and sensitive genetically encoded neuropeptide sensors. Science382, eabq8173 (2023). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 46.Jing, M. et al. An optimized acetylcholine sensor for monitoring in vivo cholinergic activity. Nat. Methods17, 1139–1146 (2020). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 47.Piraner, D. I. et al. Engineered receptors for soluble cellular communication and disease sensing. Nature10.1038/s41586-024-08366-0 (2024). [DOI] [PMC free article] [PubMed]
  • 48.Huppertz, M.-C. et al. Recording physiological history of cells with chemical labeling. Science383, 890–897 (2024). [DOI] [PubMed] [Google Scholar]
  • 49.Zhang, X. et al. Post-transcriptional modular synthetic receptors. Preprint at bioRxiv10.1101/2024.05.03.592453 (2024).
  • 50.Barnea, G. et al. The genetic design of signaling cascades to record receptor activation. Proc. Natl Acad. Sci. USA105, 64–69 (2008). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 51.Kipniss, N. H. et al. Engineering cell sensing and responses using a GPCR-coupled CRISPR–Cas system. Nat. Commun.8, 2212 (2017). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 52.Cheng, Z. et al. Luciferase reporter assay system for deciphering GPCR pathways. Curr. Chem. Genomics4, 84–91 (2010). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 53.Wang, W. et al. A light- and calcium-gated transcription factor for imaging and manipulating activated neurons. Nat. Biotechnol.35, 864–871 (2017). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 54.Sanchez, M. I., Nguyen, Q.-A., Wang, W., Soltesz, I. & Ting, A. Y. Transcriptional readout of neuronal activity via an engineered Ca2+-activated protease. Proc. Natl Acad. Sci. USA117, 33186–33196 (2020). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 55.Nakajima, K. & Wess, J. Design and functional characterization of a novel, arrestin-biased designer G protein-coupled receptor. Mol. Pharmacol.82, 575–582 (2012). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 56.Kim, C. K. et al. A molecular calcium integrator reveals a striatal cell type driving aversion. Cell183, 2003–2019.e16 (2020). [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 57.Ting, J. T., Daigle, T. L., Chen, Q. & Feng, G. in Patch-Clamp Methods and Protocols (eds Martina, M. & Taverna, S.) 221–242 (Springer, 2014); 10.1007/978-1-4939-1096-0_14.
  • 58.Aarts, E., Verhage, M., Veenvliet, J. V., Dolan, C. V. & van der Sluis, S. A solution to dependency: using multilevel analysis to accommodate nested data. Nat. Neurosci.17, 491–496 (2014). [DOI] [PubMed] [Google Scholar]
  • 59.Zhang, S. et al. Molecular basis for selective activation of DREADD-based chemogenetics. Nature612, 354–362 (2022). [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary Information (2.6MB, pdf)

This file contains supplementary discussion, table of antibodies used in the study, table of genetic constructs used in the study, table of nanobodies (and nanobody sequences) used in the study, table of sources of antigens used in the study, representative annotated amino acid sequences of genetic constructs use in the study, supplementary figures and figure legends, supplementary video legends and supplementary references

Reporting Summary (1.7MB, pdf)
Supplementary Video 1 (2.8MB, avi)
Supplementary Video 2 (2.6MB, avi)

Data Availability Statement

All data supporting the findings of this study are available within the paper and its Supplementary Information. No separate datasets were generated or analysed for the current study.

Custom scripts were developed using a combination of ImageJ macros and Python for automated image intensity calculation and data processing. The matplotlib library in Python was used for data visualizations. All custom Python scripts used in this study are available upon request.


Articles from Nature are provided here courtesy of Nature Publishing Group

RESOURCES
