. 2024 Dec 12;146(51):35377–35389. doi: 10.1021/jacs.4c14164

Harnessing Oxetane and Azetidine Sulfonyl Fluorides for Opportunities in Drug Discovery

Oliver L Symes †, Hikaru Ishikura †, Callum S Begg †, Juan J Rojas †, Harry A Speller †, Anson M Cherk †, Marco Fang †, Domingo Leung †, Rosemary A Croft †, Joe I Higham †, Kaiyun Huang †, Anna Barnard †, Peter Haycock †, Andrew J P White †, Chulho Choi ††, James A Bull †,*
PMCID: PMC11673132  PMID: 39666854

Abstract

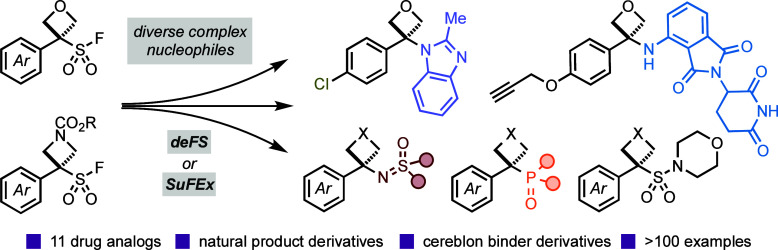

graphic file with name ja4c14164_0009.jpg

Four-membered heterocycles such as oxetanes and azetidines represent attractive and emergent design options in medicinal chemistry due to their small and polar nature and potential to significantly impact the physiochemical properties of drug molecules. The challenging preparation of these derivatives, especially in a divergent manner, has severely limited their combination with other medicinally and biologically important groups. Consequently, there is a substantial demand for mild and effective synthetic strategies to access new oxetane and azetidine derivatives and molecular scaffolds. Here, we report the development and use of oxetane sulfonyl fluorides (OSFs) and azetidine sulfonyl fluorides (ASFs), which behave as precursors to carbocations in an unusual defluorosulfonylation reaction pathway (deFS). The small-ring sulfonyl fluorides are activated under mild thermal conditions (60 °C), and the generated reactive intermediates couple with a broad range of nucleophiles. Oxetane and azetidine heterocyclic, -sulfoximine, and -phosphonate derivatives are prepared, several of which do not have comparable carbonyl analogs, providing new chemical motifs and design elements for drug discovery. Alternatively, a SuFEx pathway under anionic conditions accesses oxetane-sulfur(VI) derivatives. We demonstrate the synthetic utility of novel OSF and ASF reagents through the synthesis of 11 drug analogs, showcasing their potential for subsequent diversification and facile inclusion into medicinal chemistry programs. Moreover, we propose the application of the OSF and ASF reagents as linker motifs and demonstrate the incorporation of pendant groups suitable for common conjugation reactions. Productive deFS reactions with E3 ligase recruiters such as pomalidomide and related derivatives provide new degrader motifs and potential PROTAC linkers.

Introduction

Precise control of molecular properties and conformation is essential in drug discovery.1 Effective interactions with targeted biological sites require complementary electron density surfaces, modulated through combinations of polar, aromatic, and hydrophobic sites. Small polar groups such as oxetanes,2 sulfoximines,3 and phosphine oxides4 have emerged as valuable bioisosteres that mimic the spatial electronic properties of more common functional groups and potentially enhance binding through tailoring polarity and H-bonding properties. These groups are also beneficial in providing increased three-dimensionality and in influencing metabolic stability, solubility, absorption, distribution, and pKa. Thus, these small polar motifs have provided genuine new design options for medicinal chemists.

Oxetanes are a notable example of such a motif, with nine oxetane-containing compounds currently in clinical trials (Figure 1a).2a Carreira’s seminal studies established oxetanes as valuable replacements for carbonyl and gem-dimethyl functionalities, expanding their medicinal chemistry potential by advancing the chemistry of oxetanone and oxetane-Michael acceptors.5,6 We have demonstrated the Lewis and Brønsted acid-catalyzed formation of oxetane carbocations from oxetanols, facilitating trapping with arenes, thiols, and alcohols to generate 3,3-disubstituted derivatives (Figure 1b).7,8 Very recently, Zhang and co-workers also developed a Lewis acid activation of oxetanyl trichloroacetimidates for the generation of oxetane carbocations.9 These advancements, along with the development of alternative electrophiles10,11 and other cross-coupling and radical processes,12 accentuate the significance of oxetanes in drug discovery.13

Figure 1.

Figure 1

Open in a new tab

(A) Oxetanes and azetidines in clinical candidates and marketed drugs; (B) current strategies to access 3,3-disubstituted oxetanes and azetidines; and (C) this work: oxetane and azetidine SFs for new opportunities in drug discovery.

Similarly, azetidines are undergoing extensive investigation and though less represented than their five- and six-membered counterparts are rapidly gaining prominence in approved drugs (Figure 1a).14 Pioneering work by Baran stimulated the adoption of azabicyclo[1.1.0]butane (ABB) strain-release reagents, enabling late-stage “azetidinylation” of secondary amines (Figure 1b).15 Aggarwal leveraged 3-lithiated ABBs as nucleophiles in the modular synthesis of azetidine scaffolds.16,17 Radical processes18 and additions to alkylidene-azetidines19 have been developed to generate valuable 3,3-substiuted azetidine derivatives.

Recently, we introduced a unique deFS coupling process of OSFs with neutral amine nucleophiles.20 SFs typically react with nucleophiles in Sulfur–Fluoride Exchange (SuFEx) reactions to yield S(VI) derivatives such as sulfonamides and sulfonate esters.21 In contrast to sulfonyl chlorides, sulfonyl fluorides are notably more stable and can persist intact through further reactions. The combination of high stability with selective activation22 has made the SF functional group ideal for applications in drug discovery and chemical biology23 and was coined a “click reagent” by Sharpless in an influential report in 2014.21a 3-Aryloxetane-3-sulfonyl fluorides did not show the expected SuFEx reactivity. Instead, these reagents underwent selective deFS upon mild thermal activation (60 °C) to generate oxetane carbocations that were trapped with a variety of amine nucleophiles to yield amino-oxetanes as potential isosteres of amides. Amine libraries were directly coupled, and the deFS reaction demonstrated high functional group tolerance.

Here, we demonstrate the potent capabilities of oxetane sulfonyl fluorides (OSFs) and azetidine sulfonyl fluorides (ASFs) as versatile, customizable reagents for the generation of a diverse array of novel pharmacophore motifs (Figure 1c). The facile generation of carbocations from OSF reagents is exploited to synthesize several novel oxetane analogs of biologically active molecules and marketed drugs. We present the inaugural synthesis of ASFs and demonstrate their compatibility with the deFS coupling chemistry, offering an attractive alternative to azabicyclo[1.1.0]butane (ABB) reagents and their derivatives. Control of the solvent and nucleophile strength unlocks the previously challenging SuFEx reaction pathway for these reagents, resulting in novel strained ring S(VI) motifs. Finally, we demonstrate the potential for forming new degrader motifs or PROTAC linker units through coupling with E3 ligase ligands. With a repertoire exceeding 100 novel oxetane and azetidine fragments, our study underlines the synthetic versatility of OSF and ASF reagents as a flexible platform to facilitate access to innovative chemical space in drug discovery.

Results and Discussion

Four-membered ring sulfonyl fluorides were prepared initially through a three-step sequence from the readily available tertiary alcohols (Scheme 1a). Thiol alkylation of the aryloxetanols used either a lithium triflimide catalyst or inexpensive iron chloride as a catalyst in a modified sequence to enable a more scalable and reliable process (see below and SI for further details). Subsequent oxidation, for which flash chromatography was not required, and an elimination/fluorination sequence readily provided the sulfonyl fluoride reagents. Large-scale preparation of PMP OSF derivative 1 on >2 g and OTIPS OSF derivative 2 on >5 g scale was achieved in single runs. Pleasingly, the azetidine derivatives proceeded in a similar manner and afforded a series of N-Cbz-ASFs (11–15) through the thiol alkylation–oxidation–elimination/fluorination sequence (Scheme 1a). Cyclobutane derivatives were also prepared through this sequence (16, 17) and tolerated more electron-poor arenes. To date, heteroarene and electron-poor arene containing OSF and ASF reagents are not directly accessible. In each case, the OSF and ASF reagents were stable solids stored at −20 °C for >1 year. OSF 1 and ASF 1 were characterized by X-ray crystallography and displayed comparable conformations. Each of the OSF reagents was demonstrated to react through the unusual deFS pathway to generate amino-oxetanes (see SI for further details). The conditions involve simply warming at 60 °C in acetonitrile in the presence of K2CO3 as base, which minimizes the formation of a minor oxetane fluoride side product. Previously, we demonstrated that the suitable selection of OSF reagent and amine nucleophile could be applied to the preparation of 10 oxetane analogs of benzamide drugs, with the amino-oxetane providing potential bioisosteric replacement. Here, we applied alternative OSF reagents to form directly oxetane analogs of amides (Scheme 1b), including highly chelating nucleophiles that would have been challenging in Lewis acid catalysis and thus highlighting the ease and tolerance of these thermal conditions. Isopropyl OSF 3 reacted readily with 2-methylquinolin-8-amine to form an analog of CDN1163, a SERCA activator of interest for the treatment of diabetic-induced immune dysfunction.24 Phenoxyarylether OSF 10 reacted similarly with 2-picolylamine to form the oxetane analog of a MAPK14 inhibitor.25 Oligobenzamides have been applied as α-helix mimetics and show promising potential as anticancer agents but often suffer from poor aqueous solubility.26 JY-1-106 disrupts the Bcl-xL/Bak protein–protein interaction by mimicking the α-helical BH3 domain of Bak.27meta-Isopropoxy-containing OSF 5 allowed access to an oxetane analog of JY-1-106 with increased three-dimensionality.

Scheme 1. (A) Preparation of oxetane, azetidine, and cyclobutane-sulfonyl fluorides from tertiary alcohols and (B) direct access to oxetane analogs of biologically relevant compounds; (C) post-deFS arene functionalization; (D) use of OTIPS OSF 2 for rapid access to oxetane analogs of biologically relevant compounds.

Scheme 1

Open in a new tab

Compounds 1–4, 6, 8, 9, 25, and 29 were reported in ref (20).

Sulfide prepared using Li-catalysis.

deFS conditions: OSF (1.0 equiv), amine (1.2 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C, 2–5 h.

For full details of the reaction conditions, see the Supporting Information.

Conditions: Tf2O (1.08 equiv), pyridine (2.0 equiv), CH2Cl2 (0.5 M), 0–25 °C, 3 h.

Conditions: Pd2(dba)3 (1.5 mol %), tBuBrettPhos (4.5 mol %), KCl (2.0 equiv), KF (0.5 equiv), 1,4-dioxane (0.25 M), 130 °C, 16 h.

Conditions: Pd(OAc)2 (2 mol %), dppf (2 mol %), Et3N (3.0 equiv), formic acid (2.0 equiv), DMF (0.1 M), 60 °C, 1 h.

Conditions: chloromethyl ethyl ether (1.1 equiv), K2CO3 (2.0 equiv), acetone (0.2 M), 40 °C, 24 h.

Six of the nine current oxetane-containing clinical candidates are substituted in the 3-position with an amine functional group, whereby the oxetane plays a crucial role in reducing the basicity of the amine to appropriate levels. Consequently, the application of oxetanes as analogs of benzylic amines may have advantages in controlling pKa as well as affecting metabolism at benzylic sites. Benzodioxole is a scaffold frequently seen across natural products and approved medicines, and several oxetane analogs of marketed drugs containing benzylic amines were efficiently accessed from benzodioxole OSF 7. Analogs of fipexide (21), piribedil (22), fenoverine (23), and medibazine (24) were all prepared directly by reacting the suitable amine nucleophiles under the deFS conditions (Scheme 1b).

Employing OTIPS OSF 2 in the deFS coupling led to cleavage of the TIPS group by the liberated fluoride anion, unmasking the phenol group of amino-oxetane products and providing a handle for divergent functionalization. The revealed phenol functionality of morpholine-oxetane 25 was readily alkylated (26, 27) or converted to the triflate and applied in palladium-catalyzed processes including Buchwald–Hartwig amination, Suzuki–Miyaura cross-coupling, and sulfonylation reactions (30–32, Scheme 1c).28 Through this strategy, OTIPS OSF reagent 2 was readily converted to diverse oxetane analogs of important biologically active compounds with variation of the arene (Scheme 1d). The reaction of OTIPS OSF 2 with a primary amine followed by deoxygenative chlorination29 gave aryl chloride 34, an oxetane analog to moclobemide, a marketed antidepressant. The reaction with a secondary amine and subsequent deoxygenation gave an oxetane analog of donepezil (36), an Alzheimer’s medication. Similarly, reaction with 2,3-dichloroaniline and phenol alkylation gave an oxetane analog of the rice herbicide etobenzanid (38). These sequences demonstrate the particular value of the OTIPS OSF 2 reagent for the divergent preparation of oxetane derivatives.

Merging Pharmacophores

The merger of polar functional groups into new combined pharmacophores presents opportunities for new design options for medicinal chemists. We envisaged that the mild functional group-tolerant conditions of the deFS reaction would enable the installation of oxetanes to combinations of functional groups by employing a new range of nucleophiles to form attractive novel motifs. Moreover, the incorporation of oxetane, with its similarity to the carbonyl functionality, may provide further isosteres for acyl-derivatives of functional groups. Investigation of temperature and equivalents of nucleophiles allowed optimization for each nucleophile class (see SI for further details).

First, we examined NH-azole nucleophiles, which are essential components of drug structures (Scheme 2a). Azoles containing electron-withdrawing groups were of particular interest, which may be mimicked by the electron-withdrawing nature of the oxetane.30 A range of substituted pyrazoles was well tolerated, providing oxetano-pyrazoles in moderate to excellent yields (39–46, 60 °C, 1.2 equiv pyrazole).31 Pyrazoles bearing 4-bromo and 4-Bpin groups were well tolerated and introduced an additional synthetic handle. The reaction with 3-methylpyrazole was regioselective at the less hindered nitrogen atom. OTIPS OSF 2 gave phenolic product 44 in quantitative yield, with similar regioselectivity. Azole oxetane derivatives 45, 46, and 60’ were further characterized by X-ray crystallography. Unlike typical conjugated diarylketones, the nonconjugated π systems in oxetanes 45 and 60’ are rotated nearly 90° (dihedral angles 89.9° and 79.1°, respectively) to minimize steric interactions, inducing a twisted conformation and creating an atropisomeric axis in the solid state, with one atropisomer crystallizing as a conglomerate.32

Scheme 2. Defluorosulfonylative Coupling of Oxetane Sulfonyl Fluorides with a Diverse Array of Nucleophiles.

Scheme 2

Open in a new tab

All reactions in parts A–C performed on a 0.2 mmol scale unless otherwise stated. Conditions: NH-azoles: OSF (1.0 equiv), nucleophile (imidazole = 3.0 equiv; pyrazole = 1.2 equiv; triazole = 3.0 equiv, tetrazole = 3.0 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C (pyrazoles) or 70 °C (imidazoles, triazoles, and tetrazoles), 2–5 h; sulfoximines, sulfonimidamide, and sulfilimine: OSF (1.0 equiv), S = NH nucleophile (3.0 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C, 2 h; phosphorus nucleophiles: OSF (1.0 equiv), nucleophile (3.0 equiv), K2CO3 (3.0 equiv, only with secondary phosphine oxides), acetonitrile (0.3 M), 60 °C, 2 h. Reported regiomeric ratios (r.r.) determined by relative 1H NMR integrations of the crude reaction mixture.

Reaction performed at 70 °C for 2 h.

Compound 47 reported in ref (20).

Reaction performed on a 0.07 mmol scale.

Reactions performed in the absence of K2CO3.

Reaction performed on a 0.1 mmol scale.

Reaction performed on a 0.15 mmol scale.

Tf2O (1.08 equiv), pyridine (2.0 equiv), CH2Cl2 (0.5 M), 0–25 °C, 3 h.

Pd2(dba)3 (1.5 mol %), tBuBrettPhos (4.5 mol %), KCl (2.0 equiv), KF (0.5 equiv), 1,4-dioxane (0.25 M), 130 °C, 16 h.

Slightly elevated temperatures (70 °C) improved the reactivity with imidazole nucleophiles, yielding oxetanimidazoles 47–52 from the corresponding PMP and OTIPS OSF reagents. Interestingly, a significant change in regioselectivity was observed when reacting OTIPS OSF 2 in comparison to PMP OSF 1 (49: r.r. 53:47; 50: r.r. 90:10), which is seen also in later examples (53, 54). This may be explained through formation of a different intermediate from OTIPS OSF 2 proceeding through the quinone methide rather than the carbocation intermediate,33 which changes the angle of attack of the nucleophile from ca. 90° to the arene plane in the carbocation (p orbital) to ca. 107° in the quinone methide (Bürgi–Dunitz angle; LUMO π* orbital). Benzimidazole and theophylline were also reactive (51, 52), as well as 1,2,4- and 1,2,3-triazoles and benzotriazole, which generated the corresponding oxetano-triazoles in high yields (53–58). TMSN3, in the absence of K2CO3, afforded oxetane azide 59 in 85% yield, whereby the liberated fluoride anion presumably activates the azide nucleophile and in the process is effectively scavenged as TMSF. Substituted NH-tetrazoles gave a mixture of regioisomers with a general preference for the 3-substituted product due to steric influence of the carbon substituent (60–63). Notably, the corresponding carbonyl derivatives of such N-heterocycles are unstable and represent intermediates in acylation processes by acting as an effective leaving group, often with the azole providing a catalyst, including histidine catalysis.34 As such, these stable oxetane-heterocycle derivatives may mimic acylation intermediates previously unusable for drug discovery purposes.

Sulfoximines, the monoaza analogs of sulfones, have themselves become of significant interest in medicinal chemistry.3 The imine nitrogen can introduce a stereogenic center and has been shown to instill properties beneficial to drug compounds, including improved solubility, increased polarity, and hydrogen-bond donor and acceptor capabilities. Functionalization of this imine nitrogen can tune the chemical and biological features of sulfoximine derivatives.35 Pleasingly, the sulfoximine nitrogen trapped the oxetane carbocation to generate the corresponding N-oxetane-sulfoximine fragments (Scheme 2b). High yields were achieved with excess nucleophile (3.0 equiv, 60 °C, 85% 73), though the reverse stoichiometry gave a similar yield (87%, 73). A wide variety of sulfoximines were amenable to the deFS coupling, including bulky bis-alkyl- (64), cyclic- (65), alkyl-aryl- (66), and diarylsulfoximines (67). Saturated heterocycles (68, 69) and electron-poor pyridyl (70) groups were well tolerated. Moreover, potentially reactive sites including a sensitive BCB sulfoximine (72) were unaffected and successfully coupled under the mild thermal conditions. 4-Bromophenylmethyl sulfoximine reacted readily with different OSF reagents (7 and 132, see Scheme 6), providing a handle for further diversification. N-Oxetane-sulfoximine 75 was characterized by X-ray crystallography, revealing a turn conformation about the Ar–C–N=S bond with a gauche arrangement (67.3°) with respect to the oxetane ring, stabilized by π-stacking interactions (d = 3.676 Å) between the oxetane and sulfoximine aryl groups in the solid state. Sulfonimidamides (the monoaza analogs of sulfonamides) and sulfilimines (the aza-analog of sulfoxides) also reacted successfully, to afford new oxetane functionalized derivatives (76, 77).

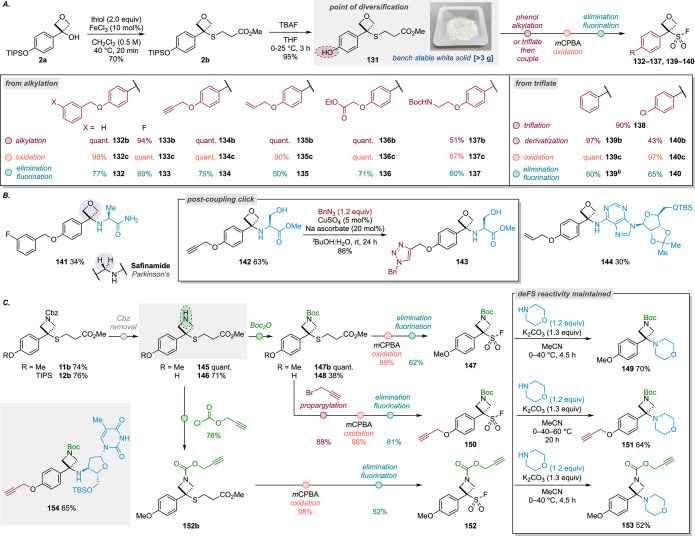

Scheme 6. Divergent Synthesis of Oxetane and Azetidine Sulfonyl Fluorides.

Scheme 6

Open in a new tab

For full details of the reaction conditions, see the Supporting Information.

Preparation of 139 was previously reported in ref (20).

Phosphorus functional groups have been underexplored as medicinal chemistry motifs. Phosphonate and phosphate groups have been deployed in pro-drugs to facilitate cell membrane permeability,36 while phosphine oxides are only recently becoming more extensively examined following the approval of Brigatinib.37 There is an increasing interest in the incorporation of these motifs into drug-like molecules to modulate LogD and solubility. We hypothesized that alkyl phosphite reagents could be used to trap the oxetane carbocation and provide the corresponding phosphorylated oxetane products. We expected the liberated fluoride to effect dealkylation in an Arbuzov mechanism to reveal the P=O bond. Triethylphosphite successfully reacted in this manner with PMP OSF 1 to form oxetane phosphonate 80 (Scheme 2c). Improved yields were afforded by performing the reaction in the absence of K2CO3, supporting dealkylation by the released fluoride (Scheme 2c, inset table). Trialkylphosphites reacted to provide a variety of methyl (78), ethyl (80, 84, 85), and isopropyl (79) oxetane-phosphonates in good yields.38 Phosphonites were well tolerated and afforded the corresponding phosphinates in good yields (81, 82). Bulky methoxydiphenylphosphine provided phosphine oxide (83). Secondary phosphine oxides were found to react through the oxygen rather than the phosphorus, confirmed by the small-molecule X-ray crystal structure of 87. In solution, secondary phosphine oxides exist in equilibrium with their phosphinous acid form, which is presumably trapped through the oxygen atom preferentially by the oxetane carbocation, with oxidation to provide the more stable P(V) products observed.

The new oxetane-containing motifs were amenable to further derivatization (Scheme 2d). Oxetane azide 59 underwent copper-catalyzed azide–alkyne cycloaddition (CuAAC) to afford triazole 88, expanding the potential scope of oxetane 1,2,3-triazoles available. The bromide handle of N-oxetane-sulfoximine 73 was further functionalized through palladium-catalyzed Sonogashira and Buchwald–Hartwig cross-coupling transformations in good yields. OTIPS OSF 2 reacted efficiently with 2-methyl benzimidazole with concomitant TIPS deprotection to afford oxetane-benzimidazole 91 in a high yield. The phenol was converted to an aryl chloride through triflation and palladium-catalyzed chlorination to generate an oxetane analog of chlormidazole (92), a marketed antifungal treatment.

Unlocking SuFEx Reactivity

Extrusion of the anionic SO2F group in the deFS process is dependent primarily on the solvent polarity and temperature. Polar solvents (methanol and acetonitrile) effectively stabilize the oxetane carbocation to the extent that a mild rise in temperature promotes the entropically driven loss of SO2. We envisaged that the application of harder nucleophiles, with less polar solvents such as THF, would increase the rate of the SuFEx pathway over that of the deFS. Organolithium reagents MeLi and PhLi were applied in THF at −78 °C, with slow warming to 0 °C to cleanly afford the corresponding oxetane sulfones 93 and 94 (Scheme 3).

Scheme 3. OSF SuFEx Scope.

Scheme 3

Open in a new tab

Reactions performed on a 0.1 mmol scale unless otherwise specified. For full details of the reaction conditions, see the Supporting Information.

Reaction performed in acetonitrile (0.3 M).

Reaction performed on a 0.2 mmol scale.

Degradation observed over extended periods in MeCN-d3 or on silica gel.

Unstable in CDCl3.

Reaction performed on a 0.06 mmol scale.

Interestingly, TMSCF3 reacted rapidly through the SuFEx pathway to afford the CF3-oxetanesulfone (95) even in acetonitrile at 60 °C. Low-molecular-weight sulfones such as 93 and 95 would have been challenging to obtain by the thiol alkylation from oxetanols since it would require gaseous thiol nucleophiles (e.g., MeSH). Oxetane sulfonamide motifs were accessed through the addition of lithium amide nucleophiles (amine + nBuLi) to a solution of OSF in THF at −78 °C to room temperature, producing another previously unknown substitution pattern on oxetanes. Good yields were obtained with secondary amines, benzylamine, and anilines (96, 97, 98). Morpholine sulfonamide 96 was characterized by X-ray crystallography. OTIPS OSF 2 reacted without the deprotection of the silyl group (99). The reaction with the anion of imidazole, formed with NaH, gave the sulfonyl imidazole, which could be isolated and characterized, including by X-ray crystallography. Sulfonyl imidazole 100 exhibited poor acidic stability (decomposition observed in CDCl3) with the extrusion of SO2.39 Treatment with HCl led to the formation of oxetanol and oxetane chloride through trapping of the oxetane carbocation by residual water or Cl anions.

Unlike the reaction with TMSN3, which gave oxetane azide 59 above, the reaction with the harder nucleophile NaN3 gave sulfonyl azide 101 in good yields. Cyclobutane-sulfonyl fluoride 16 also underwent SuFEx with deprotonated amine nucleophiles (102), and exhibited comparable reactivity to its OSF counterpart (see SI for comparison). Phenolates (NaH deprotonation) or phenols with Cs2CO3 generated sulfonate esters in good yields (103, 104). Similarly, sodium trifluoroethanoate underwent SuFEx (105). As such, we envisage that a broad range of SuFEx chemistry is applicable to the OSF reagents when the nucleophiles are sufficiently reactive at room temperature.

Azetidine Sulfonyl Fluorides (ASFs)

For the first time, we report the reactivity of ASFs as reagents for the mild synthesis of 3-aryl-3-substituted azetidines. Reacting PMP(Cbz)ASF 11 with morpholine in acetonitrile in the presence of triethylamine or K2CO3 effected the deFS reaction without any observable SuFEx reactivity (Scheme 4a). The Cbz group was readily removed by using TMSI to give NH azetidine-amine 107 in 78% yield, unveiling the additional vector for growth and further derivatization. The NH-amino-azetidines also represent potential isosteres of amidines with differences in conformation and subtle differences in pKa.40

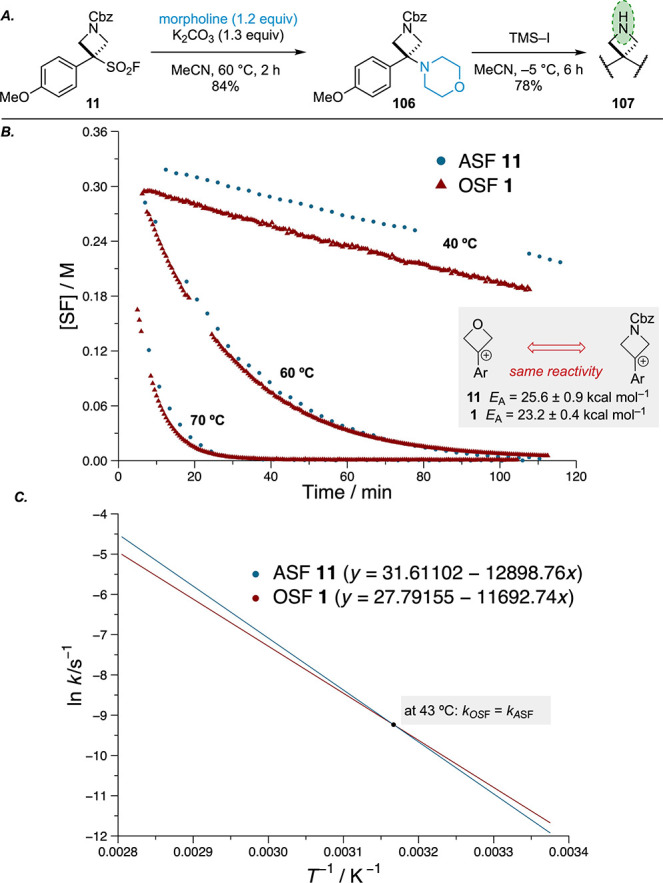

Scheme 4. (A) deFS Reaction of PMP(Cbz)ASF 11, (B) Kinetic Profiles at Different Temperatures, and (C) Arrhenius Plots.,

Scheme 4

Open in a new tab

Kinetic data for PMP OSF 1 taken from ref (20).

Profiles at 40 °C do not overlap due to discrepancies in the absolute amounts of internal standard/PMP(Cbz)ASF 11, but the rates of consumption are evidently very similar, seen by the parallel lines.

The kinetics of the deFS process with PMP OSF (1) and PMP(Cbz)ASF (11) was examined by heating at 60 °C in MeCN-d3 in the presence of triethylamine and morpholine as a coupling partner. This study revealed a remarkably similar profile for the consumption of these reagents, with only a slightly larger activation energy for the deFS of the azetidine reagent (difference of 2.4 kcal mol–1; Scheme 4b).

The similar reactivity was also reflected in the comparable yield in the reaction of PMP OSF (1) and PMP(Cbz)ASF (11) with morpholine amino-oxetane (86%) vs amino-azetidine (106, 84%). Despite the small kinetic differences between PMP(Cbz)ASF 11 and PMP OSF 1, the larger activation energy of PMP(Cbz)ASF 11, coupled with an also larger Arrhenius pre-exponential factor, results in a situation where the rate of deFS of PMP(Cbz)ASF 11 is higher at higher temperatures and the rate of deFS of PMP OSF 1 is higher at lower temperatures (Scheme 4c). At 43 °C, the rates of deFS of both species appear to be equal (kOSF = kASF).

PMP(Cbz)ASF 11 was reacted with a diverse range of primary and secondary amines as well as anilines, providing amino-azetidines (Scheme 5). Like with OSFs, the functional group tolerance was broad, and sensitive functionalities such as free alcohols, tertiary amines, esters, and pyridines were well tolerated as well as complex late-stage examples, providing azetidine functionalized fluoxetine (121) and amlodipine (122). NH-Azoles, sulfoximines,41 and phosphorus-based nucleophiles were also successful (123–129) providing a series of novel motifs. Azetidine sulfonyl fluorides were amenable to SuFEx reactivity using alkoxides, shown here with cholesterol, demonstrating the potential for conjugation with complex molecules (130).

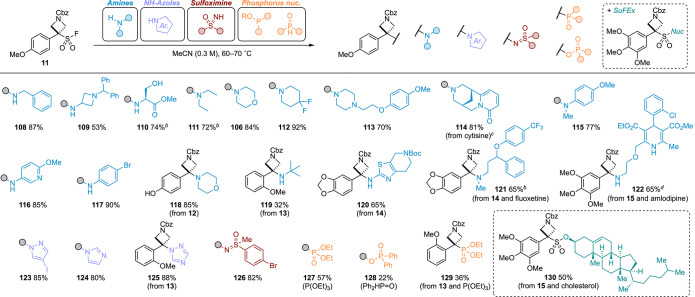

Scheme 5. deFS and SuFEx Reaction of ASFs (11–15) with Different Nucleophiles.

Scheme 5

Open in a new tab

Conditions: Amines: ASF (1.0 equiv), amine (1.2 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C, 2–5 h; NH-azoles: ASF (1.0 equiv), nucleophile (imidazole = 1.2 equiv; pyrazole = 1.2 equiv; triazole = 3.0 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C, 2–5 h; sulfoximine: ASF (1.0 equiv), sulfoximine (3.0 equiv), K2CO3 (1.3 equiv), acetonitrile (0.3 M), 60 °C, 2 h; phosphorus nucleophiles: ASF (1.0 equiv), nucleophile (3.0 equiv), K2CO3 (3.0 equiv, only with phosphine oxide), acetonitrile (0.3 M), 60 °C, 2 h; SuFEx: ASF (1.0 equiv), alcohol (2.0 equiv), NaH (1.5 equiv), THF (0.3 M), 0 °C to rt, 21 h.

Hydrochloride salt of fluoxetine and 2.6 equiv of K2CO3 used.

Amine as limiting reagent and PMP(Cbz)ASF 11 in slight excess (1.2 equiv), performed on a 0.1 mmol scale.

Benzenesulfonate salt of amlodipine and 2.6 equiv of K2CO3 used.

Divergent Access to OSF and ASF Reagents and Linkers

To enable divergent access to the aryl OSF reagents for the deFS or SuFEx processes, we targeted phenol sulfide 131 as a strategic point for diversification (Scheme 6a). To access this material on a multi gram scale, we initially redeveloped the thiol alkylation. Employing an FeCl3 catalyst (10 mol %) generated sulfide 2b in good yield and was scaled up to 14 mmol/6.0 g (see SI for further discussion). The TIPS group was readily removed to generate the diversifiable intermediate 131 as a bench stable white solid, which was stable to storage at room temperature for >6 months. From here, the phenol was effectively alkylated with benzyl bromide in quantitative yield by using K2CO3 in acetone. The oxidation–elimination/fluorination process afforded benzyl OSF 132. Applying 3-fluorobenzyl bromide gave the corresponding OSF reagent (133), which was reacted with H-Ala-NH2 hydrochloride to generate an oxetane analog of the drug safinamide, which contains a benzylamine (141, Scheme 6b, see SI for X-ray crystal structure).

Given the potential to react with complex and functional biomolecules under mild conditions, we next reacted phenol 131 with alkyl halides to install propargylic, allyl, ester, and amine functionality to enable potential application as linkers, generating OSF reagents 134–137 (Scheme 6a). Allyl and ethyl ester OSFs (135, 136) were further characterized by X-ray crystallography (see SI for the structures). Alternatively, the phenol was treated with Tf2O to afford aryl triflate 138, which was applied to palladium-catalyzed deoxygenation and chlorination reactions to generate OSFs 139 and 140.42 Propargylic OSF 134 readily reacted with serine methyl ester hydrochloride to provide amino-oxetane 142 in 63% yield (Scheme 6b). The propargylic ether was then demonstrated to undergo CuAAC under standard conditions (143). Allyl OSF 135 reacted similarly through a deFS pathway with an adenosine derivative (144).

A similar approach was applied to vary the ASF reagents and to modify the N-group. Removal of the Cbz was achieved using TMSI to provide the free NH azetidine in quantitative yield with PMP derivative 145. Using the OTIPS derivative gave phenol 146. In both cases, the azetidine nitrogen could be selectively functionalized with Boc anhydride. PMP derivative 145 was converted to PMP(Boc)ASF 147, and pleasingly, the deFS reactivity of this ASF was retained, confirmed with efficient coupling with morpholine (149). Having proven that the Cbz protecting group, which was crucial in our catalytic methods,8 was not required for deFS reactivity, it greatly widens the potential for differently N-functionalized ASFs. Curiously, PMP(Boc)ASF 147 required lower reaction temperatures, from 0 °C and slowly warming to 40 °C to avoid unproductive formation of the arylazetidin-3-ol and azetidine fluoride.

Our attention turned to the incorporation of additional linking groups and click handles to allow potential applications as di- and trifunctional linking reagents considering the azetidine N-vector. From phenol 148 alkylation with propargyl bromide followed by conversion to the ASF gave trifunctional reagent 150. This reagent performed well in the deFS reaction with morpholine (151) as well as with a derivative of thymidine (154). Next, we targeted the installation of a click handle through the azetidine nitrogen atom. The reaction of NH azetidine 145 with propargyl chloroformate formed the propargyl carbamate, which was converted to ASF 152. The deFS reactivity was similarly maintained in the reaction with morpholine to generate an amino-azetidine bearing additional N-functionality (153).

Targeted protein degradation is a burgeoning field in drug discovery, involving the use of bifunctional small molecules to promote ubiquitination of a protein of interest by an E3 ligase and so initiate subsequent proteasomal degradation.43 The glutarimide scaffold is effective in binding the cereblon E3 ligase and is found in the most clinically successful degraders, thalomid (thalidomide), revlimid (lenalidomide), and pomalyst (pomalidomide). Proteolysis-targeting chimeras (PROTACs) offer exciting potential as new modalities in drug discovery and typically consist of an inhibitor, a linker, and an E3 ligase binder. Linker design is itself crucial both to efficacy and physicochemical properties of the PROTAC compounds.44 We envisaged that the use of functionalized OSF and ASF reagents would allow the introduction of cereblon-binding motifs (CBMs) and provide new linker designs that may offer potentially advantageous physicochemical or solubility properties. The inclusion of oxetanes or azetidine derivatives would also provide notably different conformations in comparison to amide, ether, or amine links, and hence how the binding elements are displayed.45 Moreover, the direct modification of lenalidomide or pomalidomide as small-molecule derivatives can have a significant effect on degradation potency and profiles, offering exciting new opportunities for drug discovery as molecular glues (e.g., 155, Scheme 7a).46 Golcadomide is a pomalidomide-derived molecular glue degrader from Calgene/Bristol-Myers Squibb currently entering phase III clinical trials for large β-cell lymphoma (NCT06356129).47 Hence, there is significant interest in the generation of new cereblon-binding derivatives.

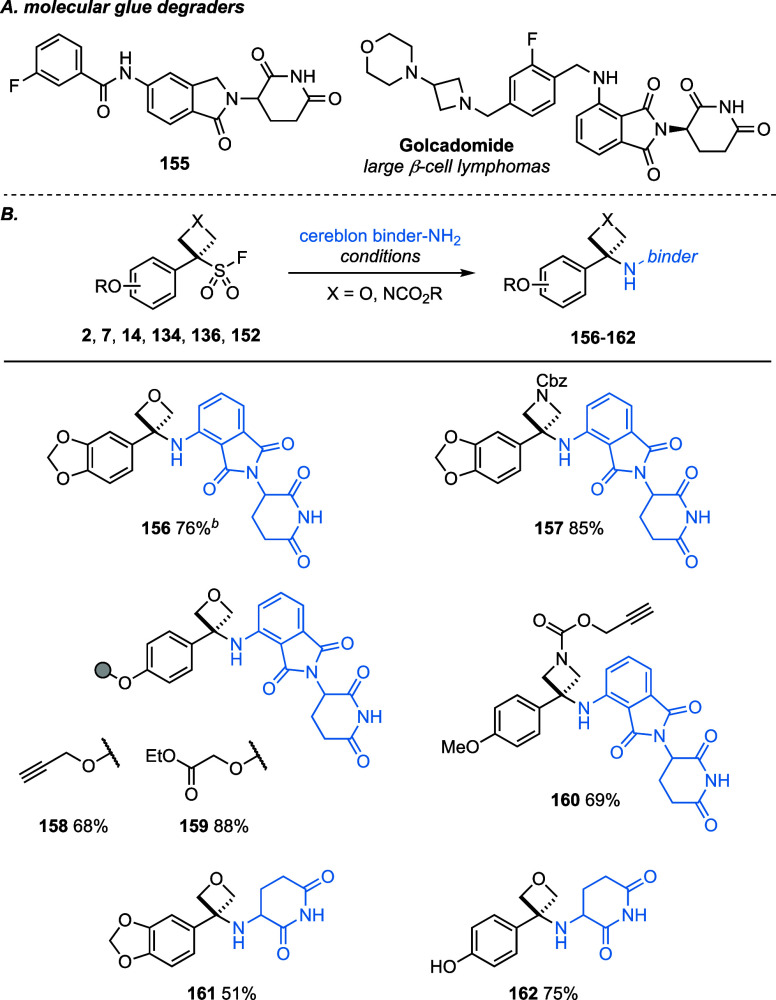

Scheme 7. (A) Emergent Molecular Glue Degraders and (B) Multifunctional OSFs and ASFs as Potential PROTAC Linkers and Molecular Glue Precursors.

Scheme 7

Open in a new tab

Reactions performed on a 0.1 mmol scale unless otherwise specified. For full details of the reaction conditions, see the Supporting Information.

Reaction performed on 0.2 mmol scale.

We first examined the reaction of benzodioxole OSF 7 and (Cbz)ASF 14 reagents to form pomalidomide derivatives (Scheme 7b). Pomalidomide is commonly employed in degrader design but suffers from limited synthetic derivatization as a nucleophile due to the electron-poor aniline and its low solubility in common organic solvents.48 Performing reactions under more dilute conditions (0.05 M acetonitrile) with slightly elevated temperature (80 °C) and prestirring facilitated greater dissolution in the reaction media. Subsequent addition of excess OSF or ASF led to effective formation of the desired amino-oxetane and azetidine in excellent yields (156, 157).49 Using OSF reagents 134 and 136 functionalized with further reactive handles, pomalidomide-oxetanes 158 and 159 were generated, whereby the propargylic and ethyl ester tails provide the opportunity to attach an inhibitor for a protein of interest. Pomalidomide-azetidine 160 was cleanly afforded from ASF 152, offering the potential for further functionalization through the alkyne handle. The exploration of novel, glutarimide-bearing CBMs is providing new design options for molecular glues and PROTACs.50 Commercially available and inexpensive 2-aminoglutarimide HCl salt reacted directly with OSFs 7 and 2, providing 161 and 162 with the necessary cereblon-binding motif.

Conclusions

In conclusion, we have extensively demonstrated the powerful potential of oxetane sulfonyl fluorides (OSFs) and azetidine sulfonyl fluorides (ASFs) to access a broad chemical space of significant medicinal relevance. Divergent routes toward OSF and ASF reagents have been developed. Eleven oxetane analogues of marketed drugs and bioactive compounds have been synthesized using these reagents to demonstrate their synthetic utility in a drug discovery context. OSFs and ASFs have been shown to be compatible with a broad range of nucleophile types, including primary and secondary amines, anilines, NH-azoles, sulfoximines, sulfonimidamides, and phosphorus reagents, to enable merging of these valuable pharmacophores. The SuFEx reaction pathway of the OSFs can now be fully exploited to access novel oxetano-S(VI) motifs. These novel motifs provide new design options for medicinal chemistry that may find use as valuable novel bioisosteres or replacement groups for medicinal chemists. We propose these oxetane and azetidine structures as much broader, valuable chemical motifs beyond bioisosteres. These novel combinations of polar functional groups are likely to confer favorable properties in their own right and access new chemical and intellectual property space. Moreover, the OSF and ASF reagents readily react with functional molecules, enabling possible applications in the linkerology of PROTAC degraders or in molecular glues. We expect this work to highlight the value of these reagents in discovery for facile diversification and to offer new opportunities in drug discovery.

Acknowledgments

We gratefully acknowledge EPSRC (EP/Y007859/1 and DTP studentship to O.L.S), The Royal Society [University Research Fellowship, URF\R\201019 (to J.A.B.), and Research Grants (RG150444 and RGF\EA\180031)], Imperial College London for a Presidents Scholarship (to HI and RAC), Pfizer for studentship funding (to J.J.R.), and Sir Henry Dale Fellowship jointly funded by the Wellcome Trust and the Royal Society (213435/Z/18/Z, to A. B.).

Data Availability Statement

The data underlying this study are available in the published article and its Supporting Information. Raw and processed characterization data for all novel compounds can be found at the Imperial College London Research Data Repository: 10.14469/hpc/14851.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/jacs.4c14164.

  • Experimental details and procedures, characterization data, X-ray crystallography data and further discussion (PDF)

  • 1H, 13C, 19F, 31P, and 11B NMR spectra for selected compounds (PDF)

The authors declare no competing financial interest.

Notes

A version of this manuscript was deposited on the preprint repository ChemRxiv.51

Supplementary Material

ja4c14164_si_001.pdf (11.3MB, pdf)
ja4c14164_si_002.pdf (36.3MB, pdf)

References

  1. a Hughes J. P.; Rees S. S.; Kalindjian S. B.; Philpott K. L. Principles of Early Drug Discovery. Br. J. Pharmacol. 2011, 162, 1239–1249. 10.1111/j.1476-5381.2010.01127.x. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Tinworth C. P.; Young R. J. Facts, Patterns, and Principles in Drug Discovery: Appraising the Rule of 5 with Measured Physicochemical Data. J. Med. Chem. 2020, 63, 10091–10108. 10.1021/acs.jmedchem.9b01596. [DOI] [PubMed] [Google Scholar]
  2. a Rojas J. J.; Bull J. A. Oxetane in Drug Discovery Campaigns. J. Med. Chem. 2023, 66, 12697–12709. 10.1021/acs.jmedchem.3c01101. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Bull J. A.; Croft R. A.; Davis O. A.; Doran R.; Morgan K. F. Oxetane: Recent Advances in Synthesis, Reactivity, and Medicinal Chemistry. Chem. Rev. 2016, 116, 12150–12233. 10.1021/acs.chemrev.6b00274. [DOI] [PubMed] [Google Scholar]; c Wuitschik G.; Carreira E. M.; Wagner B.; Fischer H.; Parrilla I.; Schuler F.; Rogers-Evans M.; Müller K. Oxetane in Drug Discovery: Structural and Synthetic Insights. J. Med. Chem. 2010, 53, 3227–3246. 10.1021/jm9018788. [DOI] [PubMed] [Google Scholar]; d Carreira E. M.; Fessard T. C. Four-Membered Ring-Containing Spirocycles: Synthetic Strategies and Opportunities. Chem. Rev. 2014, 114, 8257–8322. 10.1021/cr500127b. [DOI] [PubMed] [Google Scholar]
  3. a Lücking U. Sulfoximines: A Neglected Opportunity in Medicinal Chemistry. Angew. Chem., Int. Ed. 2013, 52, 9399–9408. 10.1002/anie.201302209. [DOI] [PubMed] [Google Scholar]; b Frings M.; Bolm C.; Blum A.; Gnamm C. Sulfoximines from a Medicinal Chemist’s Perspective: Physicochemical and in Vitro Parameters Relevant for Drug Discovery. Eur. J. Med. Chem. 2017, 126, 225–245. 10.1016/j.ejmech.2016.09.091. [DOI] [PubMed] [Google Scholar]; c Lücking U. Neglected Sulfur(VI) Pharmacophores in Drug Discovery: Exploration of Novel Chemical Space by the Interplay of Drug Design and Method Development. Org. Chem. Front. 2019, 6, 1319–1324. 10.1039/C8QO01233D. [DOI] [Google Scholar]; d Mäder P.; Kattner L. Sulfoximines as Rising Stars in Modern Drug Discovery? Current Status and Perspective on an Emerging Functional Group in Medicinal Chemistry. J. Med. Chem. 2020, 63, 14243–14275. 10.1021/acs.jmedchem.0c00960. [DOI] [PubMed] [Google Scholar]
  4. Finkbeiner P.; Hehn J. P.; Gnamm C. Phosphine Oxides from a Medicinal Chemist’s Perspective: Physicochemical and in Vitro Parameters Relevant for Drug Discovery. J. Med. Chem. 2020, 63, 7081–7107. 10.1021/acs.jmedchem.0c00407. [DOI] [PubMed] [Google Scholar]
  5. a Wuitschik G.; Rogers-Evans M.; Müller K.; Fischer H.; Wagner B.; Schuler F.; Polonchuk L.; Carreira E. M. Oxetanes as Promising Modules in Drug Discovery. Angew. Chem., Int. Ed. 2006, 45, 7736–7739. 10.1002/anie.200602343. [DOI] [PubMed] [Google Scholar]; b Wuitschik G.; Rogers-Evans M.; Buckl A.; Bernasconi M.; Märki M.; Godel T.; Fischer H.; Wagner B.; Parrilla I.; Schuler F.; Schneider J.; Alker A.; Schweizer W. B.; Müller K.; Carreira E. M. Spirocyclic Oxetanes: Synthesis and Properties. Angew. Chem., Int. Ed. 2008, 47, 4512–4515. 10.1002/anie.200800450. [DOI] [PubMed] [Google Scholar]
  6. Ishikura H.; Bull J. A. Recent Advances in the Synthesis of 3,3-Disubstituted Oxetanes. Adv. Heterocycl. Chem. 2024, 144, 159–209. 10.1016/bs.aihch.2024.04.004. [DOI] [Google Scholar]
  7. For selected works:; a Croft R. A.; Mousseau J. J.; Choi C.; Bull J. A. Structurally Divergent Lithium Catalyzed Friedel–Crafts Reactions on Oxetan-3-ols: Synthesis of 3,3-Diaryloxetanes and 2,3-Dihydrobenzofurans. Chem. - Eur. J. 2016, 22, 16271–16276. 10.1002/chem.201604031. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Croft R. A.; Mousseau J. J.; Choi C.; Bull J. A. Lithium-Catalyzed Thiol Alkylation with Tertiary and Secondary Alcohols: Synthesis of 3-Sulfanyl-Oxetane as Bioisosteres. Chem. - Eur. J. 2018, 24, 818–821. 10.1002/chem.201705576. [DOI] [PMC free article] [PubMed] [Google Scholar]; c Croft R. A.; Dubois M. A. J.; Boddy A. J.; Denis C.; Lazaridou A.; Voisin-Chiret A. S.; Bureau R.; Choi C.; Mousseau J. J.; Bull J. A. Catalytic Friedel-Crafts Reactions on Saturated Heterocycles and Small Rings for sp3-sp2 Coupling of Medicinally Relevant Fragments. Eur. J. Org. Chem. 2019, 2019, 5385–5395. 10.1002/ejoc.201900498. [DOI] [Google Scholar]; d Dubois M. A. J.; Croft R. A.; Ding Y.; Choi C.; Owen D. R.; Bull J. A.; Mousseau J. J. Investigating 3,3-Diaryloxetanes as Potential Bioisosteres through Matched Molecular Pair Analysis. RSC Med. Chem. 2021, 12, 2045–2052. 10.1039/D1MD00248A. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. For related chemistry on azetidines:; a Denis C.; Dubois M. A. J.; Voisin-Chiret A. S.; Bureau R.; Choi C.; Mousseau J. J.; Bull J. A. Synthesis of 3,3-Diarylazetidines by Calcium(II)-Catalyzed Friedel–Crafts Reaction of Azetidinols with Unexpected Cbz Enhanced Reactivity. Org. Lett. 2019, 21, 300–304. 10.1021/acs.orglett.8b03745. [DOI] [PubMed] [Google Scholar]; b Dubois M. A. J.; Lazaridou A.; Choi C.; Mousseau J. J.; Bull J. A. Synthesis of 3-Aryl-3-Sulfanyl Azetidines by Iron-Catalyzed Thiol Alkylation with N-Cbz Azetidinols. J. Org. Chem. 2019, 84, 5943–5956. 10.1021/acs.joc.9b00613. [DOI] [PubMed] [Google Scholar]
  9. Tain D.; Chem G.; Wang X.; Zhang H. J. Modular Access to Functionalized Oxetanes as Benzoyl Bioisosteres. J. Am. Chem. Soc. 2024, 146, 18011–18018. 10.1021/jacs.4c04504. [DOI] [PubMed] [Google Scholar]
  10. a Hamzik P. J.; Brubaker J. D. Reactions of Oxetan-3-tert-butylsulfinimine for the Preparation of Substituted 3-Aminooxetanes. Org. Lett. 2010, 12, 1116–1119. 10.1021/ol100119e. [DOI] [PubMed] [Google Scholar]; b Jung H. H.; Buesking A. W.; Ellman J. A. Highly Functional Group Compatible Rh-Catalyzed Addition of Arylboroxines to Activated N-tert-Butanesulfinyl Ketimines. Org. Lett. 2011, 13, 3912–3915. 10.1021/ol201438k. [DOI] [PubMed] [Google Scholar]; c Spránitz P.; Sőregi P.; Hegedüs K.; Igriczi B.; Szakács G.; Jemnitz K.; Szabó P.; Galushchak Y.; Mykhailiuk P. K.; Soós T. Strain-Release-Driven Modular Synthesis of Oxetane-Based Amide Bioisosteres: Concise, Robust and Scalable Approach. Angew. Chem., Int. Ed. 2024, 63, e202410554 10.1002/anie.202410554. [DOI] [PubMed] [Google Scholar]
  11. For selected works on oxetane Michael acceptors:; a McLaughlin M.; Yazaki R.; Fessard T. C.; Carreira E. M. Oxetanyl Peptides: Novel Peptidomimetic Modules for Medicinal Chemistry. Org. Lett. 2014, 16, 4070–4073. 10.1021/ol501590n. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Powell N. H.; Clarkson G. j.; Notman R.; Raubo P.; Martin N. G.; Shipman M. Synthesis and structure of oxetane containing tripeptide motifs. Chem. Commun. 2014, 50, 8797–8800. 10.1039/C4CC03507K. [DOI] [PubMed] [Google Scholar]; c Phelan J. P.; Patel E. J.; Ellman J. A. Catalytic Enantioselective Addition of Thioacids to Trisubstituted Nitroalkenes. Angew. Chem., Int. Ed. 2014, 53, 11329–11332. 10.1002/anie.201406971. [DOI] [PubMed] [Google Scholar]
  12. a Duncton M. A. J.; Estiarte M. A.; Johnson R. J.; Cox M.; O’Mahony D. J. R.; Edwards W. T.; Kelly M. G. Preparation of Heteroaryloxetanes and Heteroarylazetidines by Use of a Minisci Reaction. J. Org. Chem. 2009, 74, 6354. 10.1021/jo9010624. [DOI] [PubMed] [Google Scholar]; b Ravelli D.; Zoccolillo M.; Mella M.; Fagnoni M. Photocatalytic Synthesis of Oxetane Derivatives by Selective C–H Activation. Adv. Synth. Catal. 2014, 356, 2781–2786. 10.1002/adsc.201400027. [DOI] [Google Scholar]; c Green S. A.; Vásquez-Céspedes S.; Shenvi R. A. Iron-Nickel Dual-Catalysis: A New Engine for Olefin Functionalization and the Formation of Quaternary Centers. J. Am. Chem. Soc. 2018, 140, 11317–11324. 10.1021/jacs.8b05868. [DOI] [PMC free article] [PubMed] [Google Scholar]; d Chen T. G.; Zhang H.; Mykhailiuk P. K.; Merchant R. R.; Smith C. A.; Qin T.; Baran P. S. Quaternary Centers by Nickel-Catalyzed Cross-Coupling of Tertiary Carboxylic Acids and (Hetero)Aryl Zinc Reagents. Angew. Chem., Int. Ed. 2019, 58, 2454–2458. 10.1002/anie.201814524. [DOI] [PMC free article] [PubMed] [Google Scholar]; e Kolahdouzan K.; Khalaf R.; Grandner J. M.; Chen Y.; Terrett J. A.; Huestis M. P. Dual Photoredox/Nickel-Catalyzed Conversion of Aryl Halides to Aryl Aminooxetanes: Computational Evidence for a Substrate-Dependent Switch in Mechanism. ACS Catal. 2020, 10, 405–411. 10.1021/acscatal.9b03596. [DOI] [Google Scholar]; f McAlpine I. J.; Liu P.; Engle K. M.; Kang T.; Erbay T. G.; Xu K. L.; Gallego G. M.; Burtea A.; Nair S. K.; Patman R. L.; Zhou R.; Sutton S. C. Multifaceted Substrate–ligand Interactions Promote the Copper-Catalyzed Hydroboration of Benzylidenecyclobutanes and Related Compounds. ACS Catal. 2020, 10, 13075–13083. 10.1021/acscatal.0c03622. [DOI] [PMC free article] [PubMed] [Google Scholar]; g Murray P. R. D.; Bussink W. M. M.; Davies G. H. M.; van der Mei F. W.; Antropow A. H.; Edwards J. T.; D’Agostino L. A.; Ellis J. M.; Hamann L. G.; Romanov-Michailidis F.; Knowles R. R. Intermolecular Crossed [2 + 2] Cycloaddition Promoted by Visible-Light Triplet Photosensitization: Expedient Access to Polysubstituted 2-Oxaspiro[3.3]Heptanes. J. Am. Chem. Soc. 2021, 143, 4055–4063. 10.1021/jacs.1c01173. [DOI] [PubMed] [Google Scholar]; h Dong Z.; MacMillan D. W. C. Metallaphotoredox-Enabled Deoxygenative Arylation of Alcohols. Nature 2021, 598, 451–456. 10.1038/s41586-021-03920-6. [DOI] [PMC free article] [PubMed] [Google Scholar]; i Lyon W. L.; MacMillan D. W. C. Expedient Access to Underexplored Chemical Space: Deoxygenative C(sp3)-C(sp3) Cross-Coupling. J. Am. Chem. Soc. 2023, 145, 7736–7742. 10.1021/jacs.3c01488. [DOI] [PMC free article] [PubMed] [Google Scholar]; j Dubois M. A. J.; Rojas J. J.; Sterling A. J.; Broderick H. C.; Smith M. A.; White A. J. P.; Miller P. W.; Choi C.; Mousseau J. J.; Duarte F.; Bull J. A. Visible Light Photoredox-Catalyzed Decarboxylative Alkylation of 3-Aryl-Oxetanes and Azetidines via Benzylic Tertiary Radicals and Implications of Benzylic Radical Stability. J. Org. Chem. 2023, 88, 6476–6488. 10.1021/acs.joc.3c00083. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. For selected other leading synthetic approaches to more highly substituted oxetanes, and incorporating medicinally relevant substituents, see:; a Davis O. A.; Croft R. A.; Bull J. A. Synthesis of Diversely Functionalised 2,2-Disubstituted Oxetanes: Fragment Motifs in New Chemical Space. Chem. Commun. 2015, 51, 15446–15449. 10.1039/C5CC05740J. [DOI] [PubMed] [Google Scholar]; b Paul S.; Filippini D.; Ficarra F.; Melnychenko H.; Janot C.; Silvi M. Oxetane Synthesis via Alcohol C–H Functionalization. J. Am. Chem. Soc. 2023, 145, 15688–15694. 10.1021/jacs.3c04891. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. a Meanwell N. A. Improving Drug Design: An Update on Recent Applications of Efficiency Metrics, Strategies for Replacing Problematic Elements, and Compounds in Nontraditional Drug Space. Chem. Res. Toxicol. 2016, 29, 564–616. 10.1021/acs.chemrestox.6b00043. [DOI] [PubMed] [Google Scholar]; b Bauer M. R.; Di Fruscia P.; Lucas S. C. C.; Michaelides I. N.; Nelson J. E.; Storer R. I.; Whitehurst B. C. Put a Ring on It: Application of Small Aliphatic Rings in Medicinal Chemistry. RSC Med. Chem. 2021, 12, 448–471. 10.1039/D0MD00370K. [DOI] [PMC free article] [PubMed] [Google Scholar]; c Mughal H.; Szostak M. Recent Advances in the Synthesis and Reactivity of Azetidines: Strain-Driven Character of the Four-Membered Heterocycle. Org. Biomol. Chem. 2021, 19, 3274–3286. 10.1039/D1OB00061F. [DOI] [PubMed] [Google Scholar]; d Bhutani P.; Joshi G.; Raja N.; Bachhav N.; Rajanna P. K.; Bhutani H.; Paul A. T.; Kumar R. U.S. FDA Approved Drugs from 2015-June 2020: A Perspective. J. Med. Chem. 2021, 64 (5), 2339–2381. 10.1021/acs.jmedchem.0c01786. [DOI] [PubMed] [Google Scholar]; e Marshall C. M.; Federice J. G.; Bell C. N.; Cox P. B.; Njardarson J. T. An Update on the Nitrogen Heterocycle Compositions and Properties of U.S. FDA-Approved Pharmaceuticals (2013–2023). J. Med. Chem. 2024, 67, 11622–11655. 10.1021/acs.jmedchem.4c01122. [DOI] [PubMed] [Google Scholar]
  15. a Gianatassio R.; Lopchuk J. M.; Wang J.; Pan C. M.; Malins L. R.; Prieto L.; Brandt T. A.; Collins M. R.; Gallego G. M.; Sach N. W.; Spangler J. E.; Zhu H.; Zhu J.; Baran P. S. Organic Chemistry: Strain-Release Amination. Science 2016, 351, 241–246. 10.1126/science.aad6252. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Lopchuk J. M.; Fjelbye K.; Kawamata Y.; Malins L. R.; Pan C. M.; Gianatassio R.; Wang J.; Prieto L.; Bradow J.; Brandt T. A.; Collins M. R.; Elleraas J.; Ewanicki J.; Farrell W.; Fadeyi O. O.; Gallego G. M.; Mousseau J. J.; Oliver R.; Sach N. W.; Smith J. K.; Spangler J. E.; Zhu H.; Zhu J.; Baran P. S. Strain-Release Heteroatom Functionalization: Development, Scope, and Stereospecificity. J. Am. Chem. Soc. 2017, 139, 3209–3226. 10.1021/jacs.6b13229. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. a Fawcett A.; Murtaza A.; Gregson C. H. U.; Aggarwal V. K. Strain-Release-Driven Homologation of Boronic Esters: Application to the Modular Synthesis of Azetidines. J. Am. Chem. Soc. 2019, 141, 4573–4578. 10.1021/jacs.9b01513. [DOI] [PubMed] [Google Scholar]; b Gregson C. H. U.; Noble A.; Aggarwal V. K. Divergent,Strain-Release Reactions of Azabicyclo[1.1.0]Butyl Carbinols: Semipinacol or Spiroepoxy Azetidine Formation. Angew. Chem., Int. Ed. 2021, 60, 7360–7365. 10.1002/anie.202100583. [DOI] [PMC free article] [PubMed] [Google Scholar]; c Tyler J. L.; Noble A.; Aggarwal V. K. Four-Component Strain-Release-Driven Synthesis of Functionalized Azetidines. Angew. Chem., Int. Ed. 2022, 61, e202214049 10.1002/anie.202214049. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. a Andresini M.; Degennaro L.; Luisi R. The Renaissance of Strained 1-Azabicyclo[1.1.0]Butanes as Useful Reagents for the Synthesis of Functionalized Azetidines. Org. Biomol. Chem. 2020, 18, 5798–5810. 10.1039/D0OB01251C. [DOI] [PubMed] [Google Scholar]; b Tyler J. L.; Aggarwal V. K. Synthesis and Applications of Bicyclo[1.1.0]Butyl and Azabicyclo[1.1.0]Butyl Organometallics. Chem. - Eur. J. 2023, 29, e202300008 10.1002/chem.202300008. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. a Hsu C. M.; Lin H. B.; Hou X. Z.; Tapales R. V. P. P.; Shih C. K.; Miñoza S.; Tsai Y. S.; Tsai Z. N.; Chan C. L.; Liao H. H. Azetidines with All-Carbon Quaternary Centers: Merging Relay Catalysis with Strain Release Functionalization. J. Am. Chem. Soc. 2023, 145, 19049–19059. 10.1021/jacs.3c06710. [DOI] [PubMed] [Google Scholar]; b Rodríguez R. I.; Corti V.; Rizzo L.; Visentini S.; Bortolus M.; Amati A.; Natali M.; Pelosi G.; Costa P.; Dell’Amico L. Radical strain-release photocatalysis for the synthesis of azetidines. Nat. Catal. 2024, 7, 1223. 10.1038/s41929-024-01206-4. [DOI] [Google Scholar]
  19. a Wang H.; Liu C. F.; Martin R. T.; Gutierrez O.; Koh M. J. Directing-Group-Free Catalytic Dicarbofunctionalization of Unactivated Alkenes. Nat. Chem. 2022, 14, 188–195. 10.1038/s41557-021-00836-6. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Gudelis E.; Krikštolaitytė S.; Stančiauskaitė M.; Šachlevičiu̅tė U.; Bieliauskas A.; Milišiu̅naitė V.; Jankauskas R.; Kleizienė N.; Sløk F. A.; Šačkus A. Synthesis of New Azetidine and Oxetane Amino Acid Derivatives through Aza-Michael Addition of NH-Heterocycles with Methyl 2-(Azetidin- or Oxetan-3-Ylidene)Acetates. Molecules 2023, 28, 1091. 10.3390/molecules28031091. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Rojas J. J.; Croft R. A.; Sterling A. J.; Briggs E. L.; Antermite D.; Schmitt D. C.; Blagojevic L.; Haycock P.; White A. J. P.; Duarte F.; Choi C.; Mousseau J. J.; Bull J. A. Amino-Oxetane as Amide Isosteres by an Alternative Defluorosulfonylative Coupling of Sulfonyl Fluoride. Nat. Chem. 2022, 14, 160–169. 10.1038/s41557-021-00856-2. [DOI] [PubMed] [Google Scholar]
  21. a Dong J.; Krasnova L.; Finn M. G.; Sharpless B. K. Sulfur(VI) Fluoride Exchange (SuFEx): Another Good Reaction for Click Chemistry. Angew. Chem., Int. Ed. 2014, 53, 9430–9448. 10.1002/anie.201309399. [DOI] [PubMed] [Google Scholar]; b Barrow A. S.; Smedley C. J.; Zheng Q.; Li S.; Dong J.; Moses J. E. The Growing Applications of SuFEx Click Chemistry. Chem. Soc. Rev. 2019, 48, 4731–4758. 10.1039/C8CS00960K. [DOI] [PubMed] [Google Scholar]
  22. a Lee C.; Cook A. J.; Elisabeth J. E.; Friede N. C.; Sammis G. M.; Ball N. D. The Emerging Applications of Sulfur(VI) Fluorides in Catalysis. ACS Catal. 2021, 11, 6578–6589. 10.1021/acscatal.1c01201. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Frye N. L.; Daniliuc C. G.; Studer A. Radical 1-Fluorosulfonyl-2-Alkynylation of Unactivated Alkenes. Angew. Chem., Int. Ed. 2022, 61, e202115593 10.1002/anie.202115593. [DOI] [PMC free article] [PubMed] [Google Scholar]; c Wei M.; Liang D.; Cao X.; Luo W.; Ma G.; Liu Z.; Li L. A Broad-Spectrum Catalytic Amidation of Sulfonyl Fluorides and Fluorosulfates. Angew. Chem., Int. Ed. 2021, 60, 7397–7404. 10.1002/anie.202013976. [DOI] [PubMed] [Google Scholar]; d Lin M.; Luo J.; Xie Y.; Du G.; Cai Z.; Dai B.; He L. SuFEx Reactions of Sulfonyl Fluorides, Fluorosulfates, and Sulfamoyl Fluorides Catalyzed by N-Heterocyclic Carbenes. ACS Catal. 2023, 13, 14503–14512. 10.1021/acscatal.3c03820. [DOI] [Google Scholar]
  23. a Narayanan A.; Jones L. H. Sulfonyl Fluorides as Privileged Warheads in Chemical Biology. Chem. Sci. 2015, 6, 2650–2659. 10.1039/C5SC00408J. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Jones L. H.; Kelly J. W. Structure-Based Design and Analysis of SuFEx Chemical Probes. RSC Med. Chem. 2020, 11, 10–17. 10.1039/C9MD00542K. [DOI] [PMC free article] [PubMed] [Google Scholar]; c Carneiro S. N.; Khasnavis S. R.; Lee J.; Butler T. W.; Majmudar J. D.; am Ende C. W.; Ball N. D. Sulfur(vi) Fluorides as Tools in Biomolecular and Medicinal Chemistry. Org. Biomol. Chem. 2023, 21, 1356–1372. 10.1039/D2OB01891H. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. a Mengeste A. M.; Lund J.; Katare P.; Ghobadi R.; Bakke H. G.; Lunde P. K.; Eide L.; Mahony G. O.; Göpel S.; Peng X. R.; Kase E. T.; Thoresen G. H.; Rustan A. C. The Small Molecule SERCA Activator CDN1163 Increases Energy Metabolism in Human Skeletal Muscle Cells. Curr. Res. Pharmacol. Drug Discovery 2021, 2, 100060 10.1016/j.crphar.2021.100060. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Nguyen H. T.; Noriega Polo C.; Wiederkehr A.; Wollheim C. B.; Park K. S. CDN1163, an Activator of Sarco/Endoplasmic Reticulum Ca2+ ATPase, up-Regulates Mitochondrial Functions and Protects against Lipotoxicity in Pancreatic β-Cells. Br. J. Pharmacol. 2023, 180, 2762–2776. 10.1111/bph.16160. [DOI] [PubMed] [Google Scholar]
  25. Michelotti E. L.; Moffett K. K.; Nguyen D.; Kelly M. J.; Shetty R.; Chai X.; Northrop K.; Namboodiri V.; Campbell B.; Flynn G. A.; Fujimoto T.; Hollinger F. P.; Bukhtiyarova M.; Springman E. B.; Karpusas M. Two Classes of P38α MAP Kinase Inhibitors Having a Common Diphenylether Core but Exhibiting Divergent Binding Modes. Bioorg. Med. Chem. Lett. 2005, 15, 5274–5279. 10.1016/j.bmcl.2005.08.038. [DOI] [PubMed] [Google Scholar]
  26. a Algar S.; Martín-Martínez M.; González-Muñiz R. Evolution in Non-Peptide α-Helix Mimetics on the Road to Effective Protein-Protein Interaction Modulators. Eur. J. Med. Chem. 2021, 211, 113015 10.1016/j.ejmech.2020.113015. [DOI] [PubMed] [Google Scholar]; b Prabhakaran P.; Barnard A.; Murphy N. S.; Kilner C. A.; Edwards T. A.; Wilson A. J. Aromatic Oligoamide Foldamers with a “Wet Edge” as Inhibitors of the α-Helix-Mediated P53-HDM2 Protein-Protein Interaction. Eur. J. Org. Chem. 2013, 2013, 3504–3512. 10.1002/ejoc.201300069. [DOI] [Google Scholar]
  27. Yap J. L.; Cao X.; Vanommeslaeghe K.; Jung K. Y.; Peddaboina C.; Wilder P. T.; Nan A.; MacKerell A. D.; Smythe W. R.; Fletcher S. Relaxation of the Rigid Backbone of an Oligoamide-Foldamer-Based α-Helix Mimetic: Identification of Potent Bcl-x L Inhibitors. Org. Biomol. Chem. 2012, 10, 2928–2933. 10.1039/c2ob07125h. [DOI] [PubMed] [Google Scholar]
  28. a Emmett E. J.; Hayter B. R.; Willis M. C. Palladium-Catalyzed Three-Component Diaryl Sulfone Synthesis Exploiting the Sulfur Dioxide Surrogate DABSO. Angew. Chem., Int. Ed. 2013, 52, 12679–12683. 10.1002/anie.201305369. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Wolfe J. P.; Tomori H.; Sadighi J. P.; Yin J.; Buchwald S. L. Simple, Efficient Catalyst System for the Palladium-Catalyzed Amination of Aryl Chlorides, Bromides, and Triflates. J. Org. Chem. 2000, 65, 1158–1174. 10.1021/jo991699y. [DOI] [PubMed] [Google Scholar]
  29. Pan J.; Wang X.; Zhang Y.; Buchwald S. L. An Improved Palladium-Catalyzed Conversion of Aryl and Vinyl Triflates to Bromides and Chlorides. Org. Lett. 2011, 13, 4974–4976. 10.1021/ol202098h. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Schiesser S.; Chepliaka H.; Kollback J.; Quennesson T.; Czechtizky W.; Cox R. J. N-Trifluoromethyl Amines and Azoles: An Underexplored Functional Group in the Medicinal Chemist’s Toolbox. J. Med. Chem. 2020, 63, 13076–13089. 10.1021/acs.jmedchem.0c01457. [DOI] [PubMed] [Google Scholar]
  31. Increased equivalents of pyrazole or use of Cs2CO3 as base led to observation of the SuFEx product (See SI for discussion).
  32. In the phenolic derivative (46), the planar configuration is stabilized by a C11(9) hydrogen-bonded network between the phenolic OH and the indazole nitrogen, preventing any axial chirality.
  33. Liu S.; Zang Y.; Huang H.; Sun J. In(OTf)3-Catalyzed Synthesis of 2,3-Dihydro-1H-Benzo[e]Indoles and 2,3-Dihydrobenzofurans via [3 + 2] Annulation. Org. Lett. 2020, 22, 8219–8223. 10.1021/acs.orglett.0c02729. [DOI] [PubMed] [Google Scholar]
  34. Jarvo E. R.; Copeland G. T.; Papaioannou N.; Bonitatebus P. J.; Miller S. J. A Biomimetic Approach to Asymmetric Acyl Transfer Catalysis. J. Am. Chem. Soc. 1999, 121, 11638–11643. 10.1021/ja9931776. [DOI] [Google Scholar]
  35. Andresini M.; Tota A.; Degennaro L.; Bull J. A.; Luisi R. Synthesis and Transformations of NH-Sulfoximines. Chem. - Eur. J. 2021, 27, 17293–17321. 10.1002/chem.202102619. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. a Wiemer A. J.; Wiemer D. F. Prodrugs of Phosphonates and Phosphates: Crossing the Membrane Barrier. Top. Curr. Chem. 2014, 360, 115–160. 10.1007/128_2014_561. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Wiemer A. J. Metabolic Efficacy of Phosphate Prodrugs and the Remdesivir Paradigm. ACS Pharmacol. Transl. Sci. 2020, 3, 613–626. 10.1021/acsptsci.0c00076. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. a Huang W. S.; Liu S.; Zou D.; Thomas M.; Wang Y.; Zhou T.; Romero J.; Kohlmann A.; Li F.; Qi J.; Cai L.; Dwight T. A.; Xu Y.; Xu R.; Dodd R.; Toms A.; Parillon L.; Lu X.; Anjum R.; Zhang S.; Wang F.; Keats J.; Wardwell S. D.; Ning Y.; Xu Q.; Moran L. E.; Mohemmad Q. K.; Jang H. G.; Clackson T.; Narasimhan N. I.; Rivera V. M.; Zhu X.; Dalgarno D.; Shakespeare W. C. Discovery of Brigatinib (AP26113), a Phosphine Oxide-Containing, Potent, Orally Active Inhibitor of Anaplastic Lymphoma Kinase. J. Med. Chem. 2016, 59, 4948–4964. 10.1021/acs.jmedchem.6b00306. [DOI] [PubMed] [Google Scholar]; b Markham A. Brigatinib: First Global Approval. Drugs 2017, 77, 1131–1135. 10.1007/s40265-017-0776-3. [DOI] [PubMed] [Google Scholar]
  38. Despite a high in situ yield (72%), diisopropyl phosphonate ester (79) was afforded in lower isolated yield due to instability on silica gel.
  39. For sulfur heterocycle exchange:; a Cruite J. T.; Nowak R. P.; Donovan K. A.; Ficarro S. B.; Huang H.; Liu H.; Liu Y.; Marto J. A.; Metivier R. J.; Fischer E. S.; Jones L. H. Covalent Stapling of the Cereblon Sensor Loop Histidine Using Sulfur-Heterocycle Exchange. ACS Med. Chem. Lett. 2023, 14, 1576–1581. 10.1021/acsmedchemlett.3c00371. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Borne A. L.; Brulet J. W.; Yuan K.; Hsu K.-L. Development and Biological Applications of Sulfur–Triazole Exchange (SuTEx) Chemistry. RSC Chem. Biol. 2021, 2, 322–337. 10.1039/D0CB00180E. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. pKa of azetidines has been reported to be ∼ 11.29.; Searles S.; Tamres M.; Block F.; Quarterman L. A. Hydrogen Bonding and Basicity of Cyclic Imines. J. Am. Chem. Soc. 1956, 78, 4917–4920. 10.1021/ja01600a029. [DOI] [Google Scholar]
  41. For a recent example of an N-(3-azetidinyl)-sulfoximine in the patent literature, see:; Hudkins R. L.; Bensen D. C.. (Tyra Biosciences Inc.). Indazole Compounds. International Patent WO 2024/138112 A1, 2024.
  42. Phenyl OSF 139 and 4-Cl-phenyl OSF 140 were unreactive under the standard deFS conditions but were reactive to SuFEx processes. Cyclobutane sulfonyl fluorides (16 and 17; Scheme 1) readily underwent deFS, indicative of the more stabilized carbocation, but afforded low yields with amine nucleophiles.
  43. a Sakamoto K. M.; Kim K. B.; Kumagai A.; Mercurio F.; Crews C. M.; Deshaies R. J. Protacs: Chimeric Molecules That Target Proteins to the Skp1-Cullin-F Box Complex for Ubiquitination and Degradation. Proc. Natl. Acad. Sci. U. S. A. 2001, 98, 8554–8559. 10.1073/pnas.141230798. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Schapira M.; Calabrese M. F.; Bullock A. N.; Crews C. M. Targeted Protein Degradation: Expanding the Toolbox. Nat. Rev. Drug Discovery 2019, 18, 949–963. 10.1038/s41573-019-0047-y. [DOI] [PubMed] [Google Scholar]
  44. Bashore F. M.; Foley C. A.; Ong H. W.; Rectenwald J. M.; Hanley R. P.; Norris-Drouin J. L.; Cholensky S. H.; Mills C. A.; Pearce K. H.; Herring L. E.; Kireev D.; Frye S. V.; James L. I. PROTAC Linkerology Leads to an Optimized Bivalent Chemical Degrader of Polycomb Repressive Complex 2 (PRC2) Components. ACS Chem. Biol. 2023, 18, 494–507. 10.1021/acschembio.2c00804. [DOI] [PMC free article] [PubMed] [Google Scholar]
  45. For discussion of conformation, see reference (7), (2c), (11b), and:; Roesner S.; Saunders G. J.; Wilkening I.; Jayawant E.; Geden J. V.; Kerby P.; Dixon A. M.; Notman R.; Shipman M. Macrocyclisation of Small Peptides Enabled by Oxetane Incorporation. Chem. Sci. 2019, 10, 2465–2472. 10.1039/C8SC05474F. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. a Wang Z.; Shaabani S.; Gao X.; Ng Y. L. D.; Sapozhnikova V.; Mertins P.; Krönke J.; Dömling A. Direct-to-Biology, Automated, Nano-Scale Synthesis, and Phenotypic Screening-Enabled E3 Ligase Modulator Discovery. Nat. Commun. 2023, 14, 8437. 10.1038/s41467-023-43614-3. [DOI] [PMC free article] [PubMed] [Google Scholar]; b Nishiguchi G.; Caine E. A.; McGowan K.; Shi Z.; Aggarwal A.; Mayasundari A.; Price J.; Yang L.; Li Y.; Fu X.; Mascibroda L. G.; Das S.; Daniels D. L.; Urh M.; Klco J. M.; Riching K. M.; Rankovic Z. Structure–Activity Relationship of Potent, Selective, and Orally Bioavailable Molecular Glue Degraders of CK1α. ACS Med. Chem. Lett. 2024, 15, 1692–1698. 10.1021/acsmedchemlett.4c00250. [DOI] [PMC free article] [PubMed] [Google Scholar]
  47. Study Details | Study to Compare the Effectiveness and Safety of Golcadomide Plus R-CHOP vs Placebo Plus R-CHOP in Participants With Previously Untreated High-risk Large B-cell Lymphoma | ClinicalTrials.gov. https://clinicaltrials.gov/study/NCT06356129?term=golcadomide&aggFilters=phase:3&rank=1 (accessed Sep 5, 2024).
  48. Brownsey D. K.; Rowley B. C.; Gorobets E.; Gelfand B. S.; Derksen D. J. Rapid Synthesis of Pomalidomide-Conjugates for the Development of Protein Degrader Libraries. Chem. Sci. 2021, 12, 4519–4525. 10.1039/D0SC05442A. [DOI] [PMC free article] [PubMed] [Google Scholar]
  49. Excess OSF/ASF was necessary to ensure full consumption of the pomalidomide and enable effective isolation of the products.
  50. Norris S.; Ba X.; Rhodes J.; Huang D.; Khambatta G.; Buenviaje J.; Nayak S.; Meiring J.; Reiss S.; Xu S.; Shi L.; Whitefield B.; Alexander M.; Horn E. J.; Correa M.; Tehrani L.; Hansen J. D.; Papa P.; Mortensen D. S. Design and Synthesis of Novel Cereblon Binders for Use in Targeted Protein Degradation. J. Med. Chem. 2023, 66, 16388–16409. 10.1021/acs.jmedchem.3c01848. [DOI] [PubMed] [Google Scholar]
  51. Symes O. L.; Ishikura H.; Begg C. S.; Rojas J. J.; Speller H. A.; Cherk A. M.; Fang M.; Leung D.; Croft R. A.; Higham J. I.; Huang K.; Barnard A.; Haycock P.; White A. J. P.; Choi C.; Bull J. A. Harnessing Oxetane and Azetidine Sulfonyl Fluorides for Opportunities in Drug Discovery [preprint]. ChemRxiv 2024, 10.26434/chemrxiv-2024-l567g. [DOI] [PMC free article] [PubMed] [Google Scholar]
