Abstract
Objective: To develop predictive models for assessing deep vein thrombosis (DVT) risk among lumbar disc herniation (LDH) patients and evaluate their performances. Methods: A retrospective study was conducted on 798 LDH patients treated at the First Hospital of Hebei Medical University from January 2017 to December 2023. The patients were divided into a training set (n = 558) and a test set (n = 240) using computer-generated random numbers in a ratio of 7:3. Patients without DVT in the training set were categorized as the non-DVT group (n = 463), while those diagnosed with DVT were the DVT group (n = 95). Univariate analysis was performed to compare clinical data between the two groups. Data with statistical significance were used for the development of a Logistic regression model, Gradient boosting model, and Random Forest model. Model performance was evaluated through receiver operating characteristic (ROC) curve analysis and calibration curve assessment. Results: In the training set, univariate analysis revealed significant differences in age, platelets (PLT), cholesterol (TC), triglycerides (TG), glycated hemoglobin (HbAlc), D-dimer (D-D), fibrinogen (FIB), activated partial thromboplastin time (APTT), prothrombin time (PT), and thrombin time (TT) between the non-DVT group and the DVT group (all P<0.05). Predictive models were constructed based on these indicators. The areas under the ROC curves (AUCs) in the training set were as follows (in descending order): Random Forest model (0.978) > Gradient boosting model (0.943) > Logistic regression model (0.919). In the test set, the AUCs were: Random Forest model (0.952) > Gradient boosting model (0.941) > Logistic regression model (0.908). The DeLong test indicated that the AUC of the Random Forest model in the training set was significantly higher than that of the Logistic regression model (P<0.05); however, no significant difference was observed between the other two models. Calibration curves demonstrated that the predictive probabilities from all three models closely aligned with actual DVT incidence in both sets. Conclusion: The Logistic regression model, Gradient boosting model, and Random Forest model constructed in this study exhibit good predictive value for the occurrence of DVT in LDH patients, aiding in the optimization of clinical management of clinical management. Among them, the Random Forest model performed the best of the three.
Keywords: Lumbar disc herniation, deep vein thrombosis, risk factor, Logistic regression model, Gradient boosting model, Random Forest model
Introduction
Lumbar disc herniation (LDH) is a prevalent condition in orthopedic spine disorders, primarily stemming from degenerative alterations in the nucleus pulposus, fibrous ring, and cartilage plate of the lumbar intervertebral disc. These alterations lead to the protrusion of nucleus pulposus through the ruptured fibrous ring, compressing and irritating the nerve roots and cauda equina. This, in turn, causes lumbar pain and radicular pain in the lower limbs [1]. The progression of LDH is often prolonged, with a high recurrence rate. Throughout this extended course, patients not only experience a marked decline in their quality of life but also may have restricted physical activities due to pain, resulting in prolonged bed rest. These lifestyle alterations inevitably diminish blood circulation to the lower extremities, contributing to venous stasis in the leg veins [2,3]. Such hemodynamic changes create an environment conducive to the development of deep vein thrombosis (DVT), a thrombotic condition that insidiously manifests within the deep venous system, predominantly affecting the lower limbs. Notably, early symptoms of DVT are often subtle and challenging for patients to recognize; thus, they are frequently overlooked [4]. If left untreated or inadequately managed, thrombus can dislodge and travel to the pulmonary artery, leading to fatal pulmonary embolism or precipitating severe complications such as myocardial infarction and even sudden cardiac death - thereby posing significant threats to patient safety [5,6]. Early and accurate prediction of DVT occurrence holds paramount significance for improving the prognosis among LDH patients. However, there is limited information on the incidence rates and the risk factors for DVT in this patient population. Therefore, this study aims to identify the key risk factors for DVT in LDH patients and develop predictive models based on these factors. The objective is to enhance clinical capabilities for early detection of DVT risk in LDH patients, thereby facilitating more proactive preventive measures and reducing the incidence of DVT.
Materials and methods
Patients
A retrospective cohort study was conducted on 798 patients diagnosed with LDH who underwent treatment at The First Hospital of Hebei Medical University between January 2017 and December 2023. The participants were stratified into a training cohort (n = 558) and a test cohort (n = 240) using computer-generated randomization in a ratio of 7:3. The training cohort was employed for model validation. This study was approved by the Ethics Committee of The First Hospital of Hebei Medical University.
Inclusion criteria: (1) Clinically confirmed diagnosis of primary LDH; (2) Age >18 years; (3) Receipt of conservative management; (4) Availability of complete requisite data. Exclusion criteria: (1) Presence of other musculoskeletal conditions; (2) History of DVT; (3) Long-term usage of anticoagulant or antiplatelet medications; (4) Significant cardiac, hepatic, or renal impairment; (5) Severe cardiovascular, cerebrovascular, malignant neoplasms, coagulation abnormalities, or infectious ailments; (6) Pregnancy or lactation; (7) Loss to follow-up.
DVT diagnosis
A color Doppler ultrasound device operating at a probe frequency of 9.0 MHz was used for diagnosis. The patient was positioned in a supine posture with the lower limbs slightly extended and externally rotated, ensuring relaxation and encouraging regular deep breathing. Intermittent compression was applied to assess the femoral vein, superficial femoral vein, deep femoral vein, popliteal vein, posterior tibial vein, anterior tibial vein, peroneal vein, and calf muscle interosseous venous network for the presence of any thrombus indicative of DVT.
Data collection
A comprehensive review of the literature on DVT risk factors informed the data collection process. The hospital’s electronic information system was employed to collect the following data: age, gender, body mass index (BMI), smoking history, underlying diseases (hypertension, diabetes, hyperlipidemia), hospital stay, and laboratory tests measured within 24 hours of admission [red blood cells (RBC), white blood cells (WBC), platelets (PLT), hemoglobin (Hb), cholesterol (TC), triglycerides (TG), fasting blood glucose (FBG), glycated hemoglobin (HbAlc), D-dimer (D-D), fibrinogen (FIB), activated partial thromboplastin time (APTT), prothrombin time (PT), and thrombin time (TT)].
Statistical methods
Statistical analysis was performed using SPSS 26.0. Qualitative data were presented as frequency and percentage [n (%)], and the Chi-square test was applied for comparison. Following univariate analysis, Logistic regression model, Gradient boosting model, and Random Forest model were developed using RStudio software. The discriminative ability and calibration of these models were evaluated by receiver operating characteristic (ROC) curve and calibration curve analyses. Comparisons of the area under the ROC curve (AUC) were conducted using the DeLong test. A P-value of less than 0.05 was considered a significant difference.
Results
Univariate analysis of clinical data in the training set and test set
In the training set, 463 patients without DVT were included in the non-DVT group, while 95 patients with DVT were included in the DVT group. In the DVT group, the proportion of patients with age >52 years, PLT>306 × 109/L, TC≤5.6 mmol/L, TG>1.0 mmol/L, HbAlc>6.5%, D-D>0.4 mg/L, FIB>4.5 g/L, APTT≤30 s, PT≤9 s, and TT≤14 s were significantly higher than in the non-DVT group (all P<0.05). In the test set, 193 patients were included in the non-DVT group and 47 patients were included in the DVT group. In the DVT group, the proportion of patients with age >52 years, male sex, BMI≤23.1 kg/m2, smoking history, combined hyperlipidemia, PLT>306 × 109/L, TG>1.0 mmol/L, HbAlc>6.5%, D-D>0.4 mg/L, FIB>4.5 g/L, APTT≤30 s, PT≤9 s, and TT≤14 s were significantly higher than in the non-DVT group (all P<0.05). Details are shown in Table 1.
Table 1.
Univariate analysis of clinical data [n (%)]
| Data | Training set | Test set | ||||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|||||||
| Non-DVT group (n = 463) | DVT group (n = 95) | χ2 | P | Non-DVT group (n = 193) | DVT group (n = 47) | χ2 | P | |
| Age | 29.130 | <0.001 | 42.969 | <0.001 | ||||
| ≤52 years | 299 (64.58) | 33 (37.74) | 134 (69.43) | 8 (17.02) | ||||
| >52 years | 164 (35.42) | 62 (65.26) | 59 (30.57) | 39 (82.98) | ||||
| Gender | 1.102 | 0.294 | 6.067 | 0.014 | ||||
| Female | 142 (30.67) | 24 (25.26) | 59 (30.57) | 6 (12.77) | ||||
| Male | 321 (69.33) | 71 (74.74) | 134 (69.43) | 41 (87.23) | ||||
| BMI | 2.683 | 0.101 | 7.349 | 0.007 | ||||
| ≤23.1 kg/m2 | 265 (57.24) | 63 (66.32) | 106 (54.92) | 36 (76.60) | ||||
| >23.1 kg/m2 | 198 (42.76) | 32 (33.68) | 87 (45.08) | 11 (23.40) | ||||
| Smoking history | 162 (34.99) | 37 (38.95) | 0.538 | 0.463 | 70 (36.27) | 25 (53.19) | 4.526 | 0.033 |
| Hypertension | 147 (31.75) | 26 (27.37) | 0.707 | 0.400 | 56 (29.02) | 14 (29.79) | 0.135 | 0.713 |
| Diabetes | 83 (17.93) | 13 (13.68) | 0.996 | 0.318 | 32 (16.24) | 5 (10.64) | 1.023 | 0.312 |
| Hyperlipidemia | 96 (20.73) | 18 (18.95) | 0.155 | 0.694 | 51 (26.42) | 5 (10.64) | 5.265 | 0.022 |
| Length of stay | 1.060 | 0.303 | 0.013 | 0.909 | ||||
| ≤8 days | 126 (27.21) | 21 (22.11) | 55 (28.50) | 13 (27.66) | ||||
| >8 days | 337 (72.79) | 74 (77.89) | 138 (71.50) | 34 (72.34) | ||||
| RBC | 0.337 | 0.562 | 3.558 | 0.059 | ||||
| ≤6.2 × 1012/L | 210 (45.36) | 40 (42.11) | 91 (47.15) | 15 (31.91) | ||||
| >6.2 × 1012/L | 253 (54.64) | 55 (57.89) | 102 (52.85) | 32 (68.09) | ||||
| WBC | 2.928 | 0.087 | 0.003 | 0.958 | ||||
| ≤8.3 × 109/L | 320 (69.11) | 74 (77.89) | 143 (74.09) | 35 (74.47) | ||||
| >8.3 × 109/L | 143 (30.89) | 21 (22.11) | 50 (25.91) | 12 (25.53) | ||||
| PLT | 43.130 | <0.001 | 10.327 | 0.001 | ||||
| ≤306 × 109/L | 329 (71.06) | 34 (35.79) | 138 (71.50) | 22 (46.81) | ||||
| >306 × 109/L | 134 (28.94) | 61 (64.21) | 55 (28.50) | 25 (53.19) | ||||
| Hb | 1.173 | 0.279 | 0.366 | 0.545 | ||||
| ≤131 g/L | 262 (56.59) | 48 (50.53) | 108 (55.96) | 24 (51.06) | ||||
| >131 g/L | 201 (43.41) | 47 (49.47) | 85 (44.04) | 23 (48.94) | ||||
| TC | 6.819 | 0.009 | 0.111 | 0.739 | ||||
| ≤5.6 mmol/L | 275 (59.40) | 70 (73.68) | 116 (60.10) | 27 (57.45) | ||||
| >5.6 mmol/L | 188 (40.60) | 25 (26.32) | 77 (39.90) | 20 (42.55) | ||||
| TG | 134.140 | <0.001 | 38.927 | <0.001 | ||||
| ≤1.0 mmol/L | 376 (81.21) | 21 (22.11) | 146 (75.65) | 13 (27.66) | ||||
| >1.0 mmol/L | 87 (18.79) | 74 (77.89) | 47 (24.35) | 34 (72.34) | ||||
| FBG | 2.176 | 0.140 | 1.803 | 0.179 | ||||
| ≤4.5 mmol/L | 121 (26.13) | 18 (18.95) | 51 (26.42) | 8 (17.02) | ||||
| >4.5 mmol/L | 342 (73.87) | 77 (81.05) | 142 (73.58) | 39 (82.98) | ||||
| HbAlc | 22.116 | <0.001 | 16.281 | <0.001 | ||||
| ≤6.5% | 372 (80.35) | 55 (57.89) | 154 (79.79) | 24 (51.06) | ||||
| >6.5% | 91 (19.65) | 40 (42.11) | 39 (20.21) | 23 (48.94) | ||||
| D-D | 221.946 | <0.001 | 108.087 | <0.001 | ||||
| ≤0.4 mg/L | 409 (88.34) | 16 (16.84) | 175 (90.67) | 9 (19.15) | ||||
| >0.4 mg/L | 54 (11.66) | 79 (83.16) | 18 (9.33) | 38 (80.85) | ||||
| FIB | 121.750 | <0.001 | 20.423 | <0.001 | ||||
| ≤4.5 g/L | 351 (75.81) | 16 (16.84) | 141 (73.06) | 18 (38.30) | ||||
| >4.5 g/L | 112 (24.19) | 79 (83.16) | 52 (26.94) | 29 (61.70) | ||||
| APTT | 60.940 | <0.001 | 14.970 | <0.001 | ||||
| ≤30 s | 201 (43.41) | 83 (87.37) | 83 (43.01) | 35 (74.47) | ||||
| >30 s | 262 (56.59) | 12 (12.63) | 110 (56.99) | 12 (25.53) | ||||
| PT | 269.848 | <0.001 | 103.901 | <0.001 | ||||
| ≤9 s | 39 (8.42) | 80 (84.21) | 16 (8.29) | 36 (76.60) | ||||
| >9 s | 424 (91.58) | 15 (15.79) | 177 (91.71) | 11 (23.40) | ||||
| TT | 40.825 | <0.001 | 16.268 | <0.001 | ||||
| ≤14 s | 240 (51.84) | 83 (87.37) | 93 (48.19) | 38 (80.85) | ||||
| >14 s | 223 (48.16) | 12 (12.63) | 100 (51.82) | 9 (19.15) | ||||
BMI: body mass index; RBC: red blood cell count; WBC: white blood cell count; PLT: platelet; Hb: hemoglobin; TC: cholesterol; TG: triglycerides; FBG: fasting blood glucose; HbAlc: glycated hemoglobin; D-D: D-dimer; FIB: fibrinogen; APTT: activated partial thromboplastin time; PT: prothrombin time; TT: thrombin time.
Construction of the predictive models
The occurrence of DVT was considered as the dependent variable (assigned values: 0 = absent, 1 = present). Age, PLT, TC, TG, HbAlc, D-D, FIB, APTT, PT, and TT were included as independent variables in the logistic regression analysis. The assignments are detailed in Table 2. The results indicated that TG, D-D, FIB, APTT, PT, and TT were significant independent factors influencing the occurrence of DVT in patients, as presented in Table 3. Subsequently, a Logistic regression model was developed with the specific formula: logit (P) = -2.550 + 2.433 × TG + 2.924 × D-D + 2.644 × FIB - 3.107 × APTT - 4.553 × PT - 1.570 × TT. A line chart was generated to visualize the model performance, depicted in Figure 1.
Table 2.
Assignment of independent variables
| Independent variable | Assignment |
|---|---|
| Age | 0 = ≤52 years; 1 = >52 years |
| PLT | 0 = ≤306 × 109/L; 1 = >306 × 109/L |
| TC | 0 = ≤5.6 mmol/L; 1 = >5.6 mmol/L |
| TG | 0 = ≤1.0 mmol/L; 1 = >1.0 mmol/L |
| HbAlc | 0 = ≤6.5%; 1 = >6.5% |
| D-D | 0 = ≤0.4 mg/L; 1 = >0.4 mg/L |
| FIB | 0 = ≤4.5 g/L; 1 = >4.5 g/L |
| APTT | 0 = ≤30 s; 1 = >30 s |
| PT | 0 = ≤9 s; 1 = >9 s |
| TT | 0 = ≤14 s; 1 = >14 s |
PLT: platelets; TC: cholesterol; TG: triglycerides; HbAlc: glycated hemoglobin; D-D: D-dimer; FIB: fibrinogen; APTT: activated partial thromboplastin time; PT: prothrombin time; TT: thrombin time.
Table 3.
Logistic regression analysis
| Independent variable | B | SE | Wald | P | OR (95% Cl) |
|---|---|---|---|---|---|
| Age | 0.588 | 0.609 | 0.934 | 0.334 | 1.801 (0.546-5.941) |
| PLT | 0.906 | 0.633 | 2.045 | 0.153 | 2.474 (0.715-8.561) |
| TC | -0.074 | 0.605 | 0.015 | 0.903 | 0.929 (0.284-3.042) |
| TG | 2.433 | 0.618 | 15.493 | <0.001 | 11.397 (3.393-38.282) |
| HbAlc | 1.071 | 0.668 | 2.572 | 0.109 | 2.920 (0.788-10.815) |
| D-D | 2.924 | 0.661 | 19.574 | <0.001 | 18.613 (5.097-67.976) |
| FIB | 2.644 | 0.681 | 15.072 | <0.001 | 14.071 (3.703-53.465) |
| APTT | -3.107 | 0.852 | 13.307 | <0.001 | 0.045 (0.008-0.237) |
| PT | -4.553 | 0.768 | 35.122 | <0.001 | 0.011 (0.002-0.047) |
| TT | -1.570 | 0.702 | 5.000 | 0.025 | 0.208 (0.053-0.824) |
| Constant | -2.550 | 0.813 | 9.830 | 0.002 | - |
PLT: platelets; TC: cholesterol; TG: triglycerides; HbAlc: glycated hemoglobin; D-D: D-dimer; FIB: fibrinogen; APTT: activated partial thromboplastin time; PT: prothrombin time; TT: thrombin time.

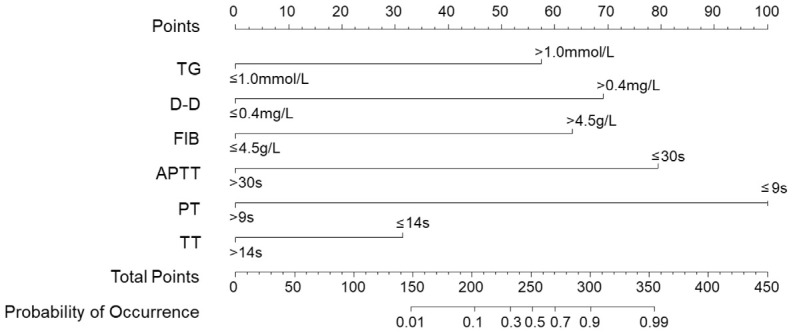

Figure 1.
Line chart. TG: triglycerides; D-D: D-dimer; FIB: fibrinogen; APTT: activated partial thromboplastin time; PT: prothrombin time; TT: thrombin time.
For the Gradient boosting model, age, PLT, TC, TG, HbAlc, D-D, FIB, APTT, PT, and TT were used as independent variables. The model was optimized with the following parameters: shrinkage = 0.01, cv.folds = 10, n.trees = 2000, interaction.depth = 1. The optimal generalization error was achieved when n.trees = 1280. Furthermore, the model determined the relative importance of each independent variable, ranked in descending order as: PT, D-D, TG, FIB, APTT, PLT, TT, HbAlc, age, and TC, as illustrated in Figure 2.

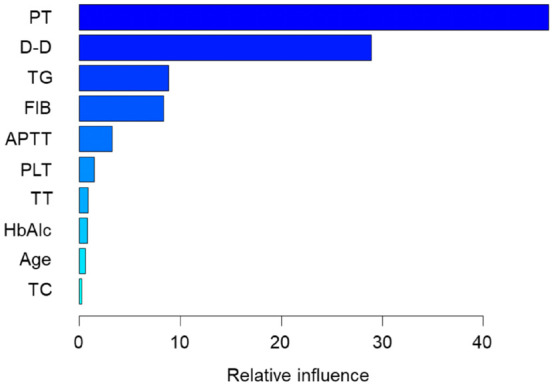

Figure 2.
Relative importance of variables in the Gradient boosting model. PT: prothrombin time; D-D: D-dimer; TG: triglycerides; FIB: fibrinogen; APTT: activated partial thromboplastin time; PLT: platelets; TT: thrombin time; HbAlc: glycated hemoglobin; TC: cholesterol.
For the Random Forest model, age, PLT, TC, TG, HbAlc, D-D, FIB, APTT, PT, and TT were used as independent variables. The model parameters were set to ntree = 500, mtry = 3, with stable error performance. The mean decrease Gini values of the variables were ranked in descending order as follows: PT, D-D, FIB, TG, APTT, PLT, TT, age, HbAlc, and TC, as depicted in Figure 3.

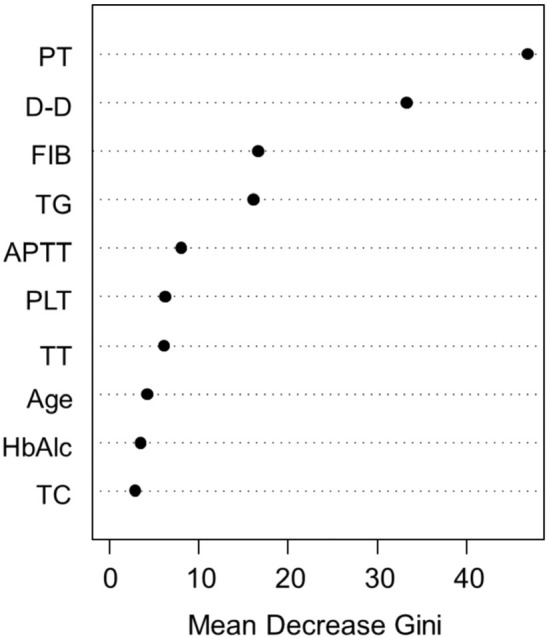

Figure 3.
Relative importance of variables in the Random Forest model. PT: prothrombin time; D-D: D-dimer; FIB: fibrinogen; TG: triglycerides; APTT: activated partial thromboplastin time; PLT: platelets; TT: thrombin time; HbAlc: glycated hemoglobin; TC: cholesterol.
Validation of performance of predictive models
In the training set, AUCs were ranked in descending order as follows: the Random Forest model (0.978, 95% CI: 0.963-0.992) > the Gradient boosting model (0.943, 95% CI: 0.904-0.982) > the Logistic regression model (0.919, 95% CI: 0.866-0.952). Similarly, in the test set, AUCs followed a similar pattern with the Random Forest model (0.952, 95% CI: 0.928-0.977) > Gradient boosting model (0.941, 95% CI: 914-967) > the Logistic regression model (0.908, 95% CI: 0.856-0.960), as illustrated in Figure 4.

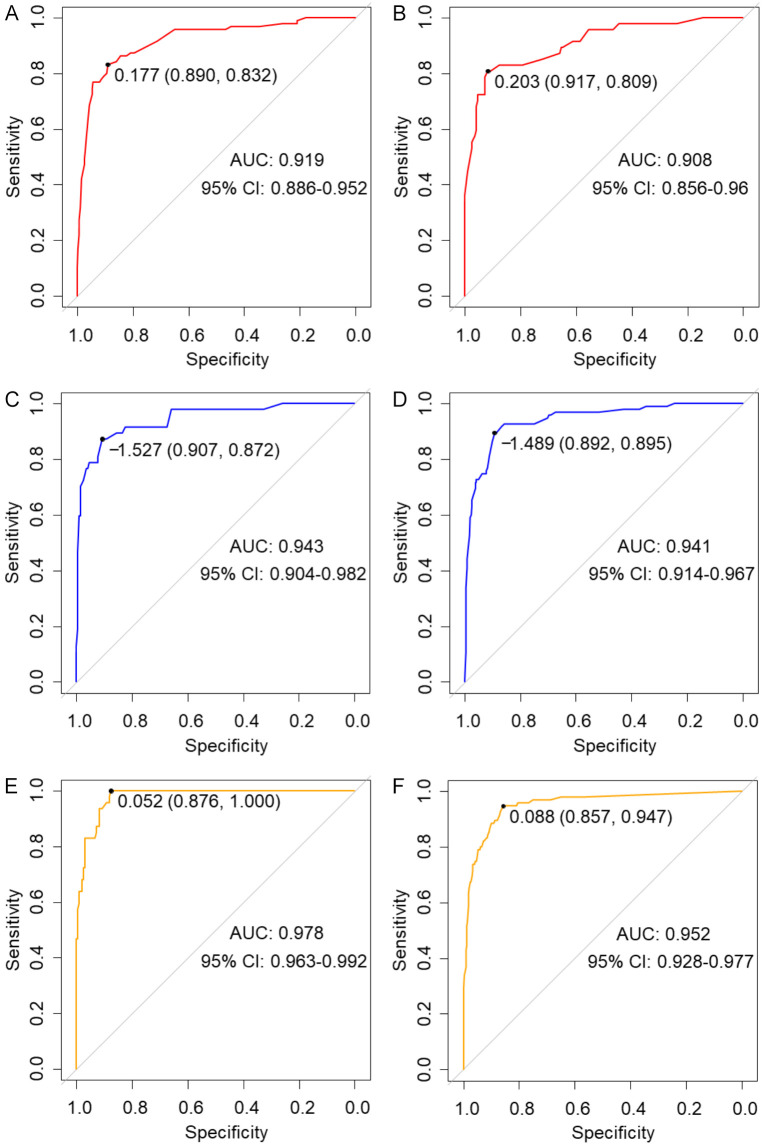

Figure 4.
ROC curve analysis for the performance of three predictive models. A: Logistic regression model in training set; B: Logistic regression model in test set; C: Gradient boosting model in training set; D: Gradient boosting model in test set; E: Random Forest model in training set; F: Random Forest model in test set.
The DeLong test indicated that the AUC of the Random Forest model in the training set was significantly greater than that of the Logistic regression model (P<0.05); however, no significant difference was observed between the other two models, as detailed in Table 4. The calibration curves demonstrated a close alignment between the predicted probability of DVT incidence and the actual occurrence across both training and test sets for all three models, as illustrated in Figure 5.
Table 4.
Comparison of AUC for predictive models
| Training set | Test set | |||
|---|---|---|---|---|
|
|
|
|||
| Z | P | Z | P | |
| Logistic regression model VS Gradient boosting model | 0.914 | 0.361 | 1.101 | 0.271 |
| Gradient boosting model VS Random Forest model | 1.652 | 0.099 | 0.598 | 0.550 |
| Logistic regression model VS Random Forest model | 3.209 | 0.001 | 1.468 | 0.142 |

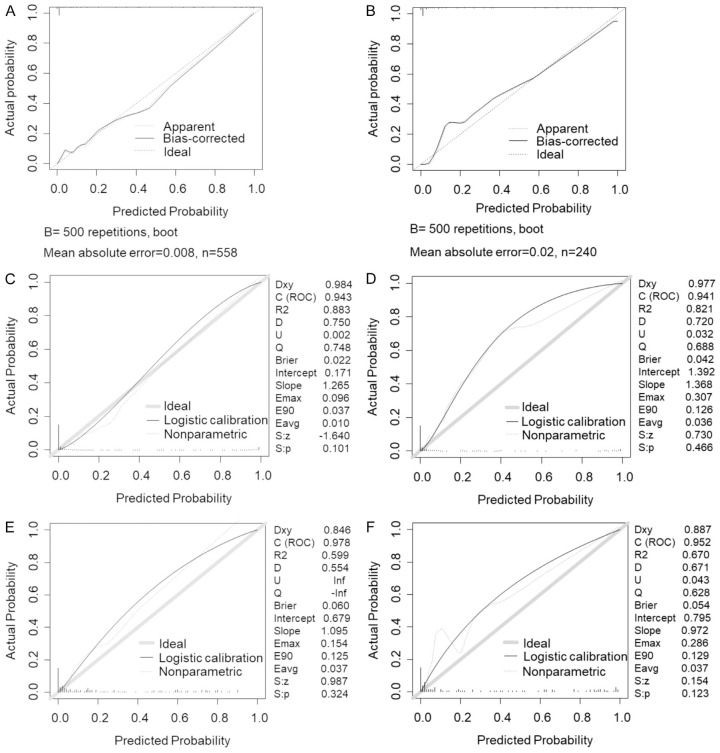

Figure 5.
Calibration curves for three predictive models. A: Logistic regression model in training set; B: Logistic regression model in test set; C: Gradient boosting model in training set; D: Gradient boosting model in test set; E: Random Forest model in training set; F: Random Forest model in test set.
Discussion
DVT can pose an immediate threat to a patient’s life [7], making prompt diagnosis and treatment crucial. While venography is considered as the ‘gold standard’ for DVT diagnosis due to its high precision in visualizing deep veins using contrast-enhanced X-rays [8,9], its invasive nature limits clinical use due to the potential renal burden from contrast agents. Presently, clinical DVT diagnosis relies heavily on imaging modalities like color Doppler ultrasound. However, diagnostic delays may occur in cases lacking specific symptoms or when patients cannot undergo these tests [10]. Therefore, it is essential to identify the DVT risk factors in patients with LDH and to develop a predictive model.
The development of DVT is widely believed to be associated with blood hypercoagulability, endothelial cell injury, and reduced blood flow. Several contributing factors have been identified [11]. Previous research [12-14] has demonstrated that age, gender, hypertension, alcohol consumption, and smoking are significant risk factors for the occurrence of DVT. Based on these factors, clinicians can identify high-risk populations for DVT and initiate early preventive measures. Univariate analysis in this study revealed significant differences in age, PLT, TC, TG, HbAlc, D-D, FIB, APTT, PT, and TT between the non-DVT group and the DVT group in the training set. Logistic regression analysis further identified TG, D-D, FIB, APTT, PT, and TT as independent influencing factors for DVT among patients. This can be attributed to the fact that elderly patients generally exhibit higher blood viscosity, which, in combination with vascular endothelial ageing, predisposes them to hypercoagulability and an increased risk of thrombosis [15]. Elevated TC and TG levels can reduce blood flow velocity, further increasing the risk of thrombosis. These lipid abnormalities can also damage endothelial cells, leading to inflammatory responses that promote clot formation. Additionally, elevated TC levels are linked to atherosclerosis, where plaque deposition on arterial walls can rupture, causing platelets to aggregate and clot formation [16,17]. HbAlc is as a crucial marker for glucose control, with higher levels indicating poorer glucose control. Even in a non-diabetic population, an increase in glycemic index is associated with an elevated risk of blood clotting [18]. D-D is commonly utilized to assess the extent of thrombosis and fibrinolysis. Elevated D-D levels indicate ongoing clot breakdown, as fibrinolysin degrades fibrin in clots [19]. However, various diseases, including sepsis, can also elevate D-D levels [20]. FIB, APTT, PT, and TT reflect body’s coagulation function, with abnormal values suggesting impaired coagulation [21]. Elevated FIB levels may suggest increased blood viscosity and heightened tendency for blood clotting, raising the risk of DVT [22]. Therefore, it is imperative to implement comprehensive preventive measures targeting the identified risk factors. Regular monitoring of the patient’s TG, D-D, FIB, APTT, PT, and TT levels is essential for early detection of DVT. Additionally, vigilant observation of changes in the patient’s condition is essential for promptly addressing any potential complications.
In the era of precision medicine, disease prediction models play a crucial role in managing disease risk. This study developed three predictive models to assess the risk of DVT in LDH patients based on identified risk factors. Logistic regression, a widely utilized statistical method in medical research, is part of the general linear regression family and is particularly effective in handling binary or multi-class dependent variables. In this study, the Logistic regression model exhibited AUCs of 0.919 and 0.908 for the training and test sets, respectively. In recent years, driven by the rapid advancement of information technology and artificial intelligence, there has been a growing trend towards constructing risk prediction models using machine learning methods. Gradient boosting, a machine learning technique utilized for regression and classification tasks, constructs a robust learner through iterative training and refinement of weak learners to minimize the loss function [23]. In this study, the constructed Gradient boosting model achieved AUC values of 0.943 and 0.941 on the training set and test set, respectively. Random Forest model, an ensemble learning method that enhances model accuracy and stability by constructing multiple decision trees and aggregating their predictions [24]. The AUC values for the training set and test set of the Random Forest model developed in this study were 0.978 and 0.952, respectively. All three models demonstrated strong discriminative ability, with the AUC ranking as follows: Random Forest model > Gradient boosting model > Logistic regression model. The DeLong test revealed a significantly higher AUC for the Random Forest model compared to the Logistic regression model in the training set. This difference may be attributed to the more stringent assumptions of the Logistic regression model, including independence of observed variables, absence of interaction effects, and linear relationship between logit (P) and independent variables. In contrast, the Random Forest model imposes fewer assumptions, is less sensitive to multicollinearity and less susceptible to overfitting. Additionally, it provides insight into feature importance. All three models exhibited high precision. Considering the current results, the application of Random Forest models should be prioritized for prediction and decision-making in practical contexts, while integrating Gradient boosting models for a more comprehensive analysis. Furthermore, it is crucial to acknowledge the limitations inherent in Logistic regression models and consider more flexible modeling approaches.
While this investigation has yielded valuable findings, several limitations must be acknowledged. First, the data were sourced exclusively from clinical records at a single medical facility, which may introduce selection and information biases. Furthermore, the retrospective nature limits the ability to establish causal relationships; thus, only correlational outcomes can be inferred. Additionally, using univariate analysis for variable selection in model construction may have led to the omission of relevant factors that could influence DVT occurrence. Consequently, future research should use multicenter prospective cohort studies with larger sample sizes to explore more variables such as genetic predispositions, lifestyle patterns, and medication use so as to enhance prognostic precision.
In summary, the Logistic regression model, Gradient boosting model, and Random Forest model constructed in this study all demonstrated good predictive value for the occurrence of DVT in LDH patients, offering potential benefits for optimizing clinical management. Among them, the Random Forest model exhibited the best performance and should be prioritized for use in clinical settings.
Acknowledgements
This work was supported by Sci-Tech Plan Project of Hebei Province Administration of Traditional Chinese Medicine (2021130).
Disclosure of conflict of interest
None.
