. 2025 Mar 5;12:382. doi: 10.1038/s41597-025-04726-1

Comprehensive global inventory of submarine mud volcanoes

Simone Napoli 1, Daniele Spatola 1,✉, Daniele Casalbore 1,2, Luigi Lombardo 3, Hakan Tanyas 3, Francesco Latino Chiocci 1,2
PMCID: PMC11882810  PMID: 40044677

Abstract

Systematic morphometric studies of submarine potential geohazard elements such as mud volcanism are still limited in the scientific literature. To fill this gap and contribute to the global geohazard databases, we present a comprehensive inventory of submarine mud volcanoes (MVs) considering their spatial location and characteristics. The “Global inventory of submarine mud volcanoes” database here presented includes a large dataset, providing an overview of the morphometric analyses we performed as well as the considerations that arose from them. These cover basic marine geological and applied geohazard aspects. We explored frequency-area distribution patterns within this dataset, as typical of other geoscientific branches. This effort is a first step towards a shared and open knowledge of MVs, through which the marine geology community would further investigate the genesis of such phenomena and contribute to society in making informed decisions on related submarine geohazards.

Subject terms: Natural hazards, Geomorphology

Background & Summary

State of the art of mud volcanoes

Mud volcanoes (MVs, Fig. 1) are positive morphologies of variable size formed by vertical migration of overpressured fluids (gas, mainly CH4 and CO2, and water) together with fine-grained sediments, commonly known as “argille scagliose”1,2, “diapiric mélange”3, “mud slurry”4 or “mud breccia”5–7.

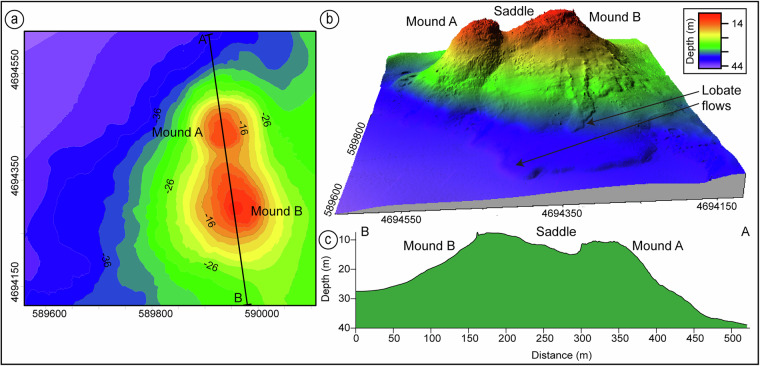

Fig. 1.

Fig. 1

Open in a new tab

(a) Bathymetric map showing the occurrence of a submarine mud volcano complex composed by two mounds (A and B) mapped in the Scoglio d’Affrica offshore (northern Tyrrhenian Sea). (b) 3D view of the mud volcano complex. (c) Bathymetric profile A-B (modified from Spatola et al.78).

MVs usually have a subcircular diagnostic shape and sometimes show a gas plume escaping from the seabed8. They can be found in irregular or scattered clusters over a wide water depth range9,10. More than 1100 mud volcanoes are documented onshore and on continental shelves (less than 200 m) and at least 103–106 mud volcanoes are expected on continental slopes and abyssal plains11. Knowledge of the activity and morphology of the deep-sea mud volcanoes is still rather limited as at depth bathy-morphological data are usually at low resolution12.

Submarine MVs are found in different geological environments (e.g. active continental margins, open seas) (Fig. 2), especially where compressional tectonic settings facilitate the development of high pore pressures6, and in areas with high sedimentation rates such as deltas and confined sedimentary basins13,14.

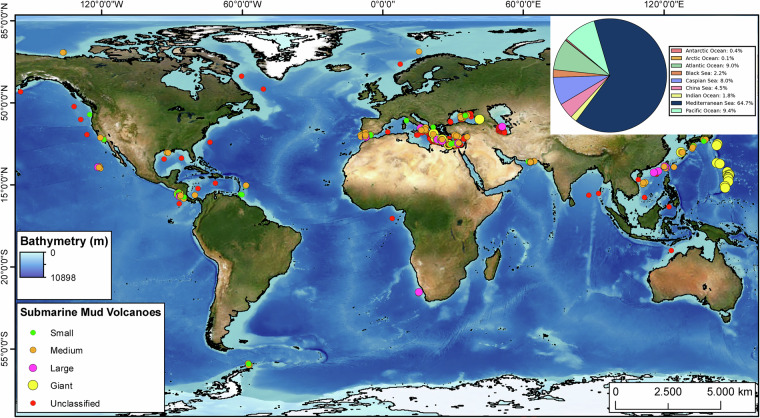

Fig. 2.

Fig. 2

Open in a new tab

Location and size of submarine mud volcanoes (N = 1003). Background bathymetry from General Bathymetric Chart of the Oceans (GEBCO; https://www.gebco.net/data_and_products/gridded_bathymetry_data/). Inset top right: percentages of submarine MVs locations. Inset bottom left: submarine MVs divided by size (small, medium, large or giant). Unclassified submarine MVs (i.e. those lacking morphometric parameters; see Table S3 in the supplementary information) are showed as red points7,9,14,79–81.

Mud volcanoes morphologies (with distinctive features such as gryphons and bubbling mud pools) depend on a multitude of variables, including characters and viscosity of the extruded mud breccia, the state of activity of the mud volcano, and the frequency of the eruptive events6,15,16. Conical mud volcanoes are typically produced by the progressive superimposition of mud flows from a central vent, while the development of mud pies or plateau-like mud volcanoes is usually associated with increased water content in the mud breccia14,17,18.

A thick mud breccia with low water content generates a conical mud volcano with steep slopes and a thin mud breccia with high water content results in a low-elevation structure with a flatter top. Alternatively, the different morphologies depend on the size of the pipe-like feeder channel: a small conduit provides significantly less mud breccia volume generating conical mud volcanoes19. The occurrence of MVs appears to be linked to various geological predisposing factors such as tectonic activity, sedimentary load, existence within the stratigraphic succession of thick fine-grained plastic sedimentary units and the presence of hydrocarbons13,20–23.

Recently, Dimitrov24 suggested pore-fluid pressure, buoyancy contrasts and tectonic force as the three driving mechanisms for the genesis of MVs. To date, two formation models have been proposed in the scientific literature:

  1. the “solid model” proposes the genesis of the mud volcano on the crest of the diapiric structure affected by the fluid migration9,21,25;

  2. the “fluid model” proposes the genesis of the mud volcano as a pure consequence of the ascent of fluidified mud along faults and fractures, providing migration paths in a variety of geodynamic settings (intracontinental, continent–ocean, intraoceanic)26–30. In both models, the fluid migration is crucial for the formation of these positive features9,31–33.

Numerous studies suggest that MVs are important geohazard elements for submarine infrastructures (e.g. oil rigs, telecommunications cables, pipelines, windfarms, etc.) since they are unstable sedimentary structures34,35 often associated with cyclical explosive eruptions24,36, with highly variable intervals of years or decades, involving the release of large amounts of hydrocarbons (mainly methane) and mud into the hydrosphere/atmosphere37–41. Hence the importance of assessing their worldwide spatial distribution (Fig. 2). It is estimated that onshore and shallow water mud volcanoes release 2.2 and 6 Tg yr−1 of methane to the atmosphere42,43 and that at least 27 Tg yr−1 of methane may escape from deep water mud volcanoes with significant implications for the balance of atmospheric greenhouse gases9,44. The flux of carbon from submarine MVs plays a key role in biogeochemical processes near the seabed (e.g. anaerobic oxidation of methane, AOM)45,46.

The underestimation of the mud volcanic hazard (both marine and onshore) is due to their episodic activity; for instance in Italy, it is demonstrated by two recent such as the paroxysmal in the last decade one off the Scoglio d’Affrica (northern Tyrrhenian Sea)47,48 and another, with causalities, that occurred on 27 September 2014 at the Macalube di Aragona in southern Sicily49,50.

Classification of mud volcanoes

The increasing resolution accuracy, spatial resolution, and accessibility of multibeam digital elevation models (DEMs), quantitative hosted surface analysis, and geomorphometry, have become fundamental in the field of submarine geomorphology51–53. The morphometry of certain volcano types has been widely discussed54. Specifically, these include cinder cones55–57, oceanic shields58,59, subglacial volcanoes60,61, seamounts2,62–64, and extraterrestrial volcanoes ranging from Martian volcanoes to pancake domes on Venus65–67. Conversely, systematic morphometric studies on submarine mud volcanoes are still relatively few6,68,69 due to the limited amount of available data.

In the recent scientific literature, various classifications of mud volcanoes have been proposed based on different criteria, including period time and intensity of the eruption42 or the activity of mud volcanoes70. The following morphological classifications of mud volcanoes have been suggested:

  1. Etiope and Milkov11 proposed a dimensional classification of mud volcanoes based on a collection of data from 120 MVs (marine and onshore) scattered around the world. They classified mud volcanoes in small‐size (<0.5 km2), medium‐size (0.5–9 km2), large‐size (>9 km2) and giant-size mud volcanoes (>20 km2) (classification used in this paper and reported in Fig. 2 and in Tables S1, S2 in the supplementary information).

  2. Kopf6 and later Authors such as Omrani and Raghimi71 classified mud volcanoes on the basis of the mean slope values into mud cones (>5°) and mud pies (<5°).

  3. Bonini and Mazzarini72 using the maximum diameter Dmax and the mud volcano shape index (or axis ratio) Dmax /Dmin, defined four main morphological classes (A, B, C and D) of onshore mud volcanoes.

  4. Komatsu et al.73 for Martian mud volcanoes defined the following morphological types: cones with typical H/D ratios of 0.071–0.1 (T1), shield-shaped features or cakes with H/D ratios of 0.003–0.044 (T2) and round mounds or domes with H/D ratios of 0.075–0.143 (T3).

Objectives and organization

To date, the scientific literature includes only one available geodatabase of submarine mud volcanoes, compiled by Kioka and Ashi68. In terms of reviews, the most comprehensive is likely the one prepared by Kopf et al.6. Building on these existing scientific publications, this study aims to create a more complete, though not entirely exhaustive, morphometric inventory of submarine mud volcanoes. The inventory is based on both published data (e.g. location, height, diameter, and, when available, water depth and mean slope) and derived data (e.g. inferred locations of submarine mud volcanoes not explicitly reported by authors, perimeter, area, volume, aspect ratio, and height/radius ratio). The primary novelty of this study lies in the development of a comprehensive and detailed dataset of submarine mud volcanoes, which includes valuable information such as morphological classifications. Notably, this represents the first complete dataset on mud volcanoes, addressing a significant gap in previous research. For instance, the earlier database by Kioka and Ashi68 included a limited set of dimensional characteristics (e.g. height and diameter) for 258 MVs against 700 MVs of our dataset74. In contrast, we have calculated the key morphometric parameters commonly employed in recent marine geomorphological studies54. This dataset serves as a crucial resource for the scientific community, facilitating deeper insights into the dynamic genesis and evolutionary models of submarine mud volcanoes.

Methods

Morphometric parameters of submarine MVs

The following section reports the description of the main morphometric parameters adopted in the present study for the characterization of submarine MVs. We recall that some of the information presented in Tables S1–S3 is derived from a thorough literature review. These data were supplemented with morphometric parameters calculated using a semi-automatic method to extract key parameters, following recent literature on submarine volcanic settings in the Tyrrhenian Sea63, the Canary Islands75, and the Sicily Channel64.

  1. Size parameters: the mean radius of each mud volcano R is defined as R = (Dmean)/2, where the mean basal diameter Dmean = (Dmax + Dmin)/276, or it is taken as the representative diameter available in the scientific literature. The basic perimeters are respectively calculated as 2π(√(Dmax2 + Dmin2)/2) or 2πR, the basic areas as πDmaxDmin/4 or πDmean2/4 and the volumes as πDmaxDminH/12 or πDmean2H/12.

  2. Shape parameters: we calculate shape parameters such as aspect/basal ratio (bsr, Dmin/Dmax), mud volcano shape index commonly known as elongation or axis ratio (Dmax/ Dmin), height versus radius of the mud volcano’s body (H/R), vertical relief to area ratio (Height/Area), compactness factor (comf = Perimeter/(√4* π* Area)), ellipticity index (ei = (π*(Dmax /2)2)/Area), dissection index (di = (Perimeter/2*Area)*(√(Area/π)), and eccentricity (e = (√(Dmax /2)2 − (Dmin /2)2/ Dmax /2)75,77.

  3. Slope parameter: the mean surface slope of the analysed submarine mud volcanoes, if not reported in the scientific literature, is given by arctan(H/R), with H as the maximum height.

Data Record

The dataset is available at “Global inventory of submarine mud volcanoes” (https://zenodo.org/records/13120956)74. This dataset includes a file.KMZ named “Geodatabase” including different types of information such as name, geographic coordinates, water depth (and associated hydrostatic pressures), height (H), diameter (Dmean, Dmax and/or Dmin), slope, shape, size of 700 submarine MVs (Table S1 in supplementary information). The data has been formatted as a.KML file to ensure compatibility with all GIS platforms.

Technical Validation

All data were manually entered and cross-checked by multiple authors. Comprehensive validation procedures were conducted to ensure data accuracy, including thorough checks of the published metadata. To identify and exclude potential outliers and/or duplicates, we analysed the distributions and characteristics of each MVs by georeferencing all occurrence points. However, we encourage users to report any errors or submit additional records to the corresponding author to help maintain the dataset’s accuracy and relevance. All updates will be subjected to the same rigorous technical validation process outlined earlier.

Usage Notes

Future geodatabase development

The geodatabase we realised has intrinsic limitations, being partly based on published data. Future development of the geodatabase primary includes the addition of missing information, the implementation with newly discovered submarine mud volcanoes and the incorporation of geophysical, geotechnical, geochemical, and biological data. The geodatabase will also be extended to terrestrial onshore mud volcanoes and/or fluid escape structures. These developments need the researchers to participate in the continuous evolution and improvement of the geodatabase and possibly in launching an international initiative to collect and compare MVs characters, involving research groups that study these landforms. Consequently, the geodatabase should be a dynamic platform, receptive to feedback from the scientific community. If this goal will be achieved, the geodatabase gradually will transform into a nexus for collaborative research initiatives, with topics and interests ranging from geology to ecology to engineering.

Supplementary information

Supplementary information (13.6KB, docx)
Table S1, Table S2, Table S3 (254.8KB, xlsx)

Author contributions

Simone Napoli: Writing – review & editing, Writing – original draft, Methodology, Investigation, Data curation, Conceptualization. Daniele Spatola: Writing – review & editing, Writing – original draft, Supervision, Methodology, Investigation, Data curation, Conceptualization. Daniele Casalbore: Review & editing, Supervision. Luigi Lombardo: Review & editing. Hakan Tanyas: Review & editing. Francesco Latino Chiocci: Review & editing.

Code availability

No customized code was produced to create or analyse this dataset. Specifically, we used ArcGIS software to create the dataset, however our inventory can be opened with any GIS software (open-sourced or licensed).

Competing interests

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Footnotes

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

The online version contains supplementary material available at 10.1038/s41597-025-04726-1.

References

  • 1.Bianconi, G. G. Storia naturale dei terreni ardenti, dei vulcani fangosi, delle sorgenti infiammabili, dei pozzi idropirici, e di altri fenomeni geologici operati dal gas idrogene e della origine di esso gas. (Tipi di Jacopo Marsigli, 1840).
  • 2.Rappaport, Y., Naar, D. F., Barton, C. C., Liu, Z. J. & Hey, R. N. Morphology and distribution of seamounts surrounding Easter Island. Journal of Geophysical Research102, 24713–24728, 10.1029/97JB01634 (1997). [Google Scholar]
  • 3.Ridd, M. Mud volcanoes in New Zealand. AAPG Bulletin54, 601–616 (1970). [Google Scholar]
  • 4.Harrison, J. Coastal Makran. The Geographical Journal97, 1–15 (1941). [Google Scholar]
  • 5.Cita, M. B., Ryan, W. B. F. & Paggi, L. in Annales geologiques des Pays helleniques Vol. 30 543–570 (1981).
  • 6.Kopf, A. J. Significance of mud volcanism. Reviews of Geophysics40, 10.1029/2000RG000093 (2002).
  • 7.Planke, S., Svensen, H., Hovland, M., Banks, D. A. & Jamtveit, B. Mud and fluid migration in active mud volcanoes in Azerbaijan. Geo-Marine Letters23, 258–268, 10.1007/s00367-003-0152-z (2003). [Google Scholar]
  • 8.Judd, A. in Mud Volcanoes, Geodynamics and Seismicity: Proceedings of the NATO Advanced Research Workshop on Mud Volcanism, Geodynamics and Seismicity Baku, Azerbaijan 20–22 May 2003. 147–157 (Springer).
  • 9.Milkov, A. V. Worldwide distribution of submarine mud volcanoes and associated gas hydrates. Marine Geology167, 29–42, 10.1016/S0025-3227(00)00022-0 (2000). [Google Scholar]
  • 10.Judd, A. & Hovland, M. Seabed Fluid Flow: The Impact on Geology, Biology and the Marine Environment. Cambridge University Press, Cambridge (2007).
  • 11.Etiope, G. & Milkov, A. V. A new estimate of global methane flux from onshore and shallow submarine mud volcanoes to the atmosphere. Environmental Geology46, 997–1002, 10.1007/s00254-004-1085-1 (2004). [Google Scholar]
  • 12.Wu, T. et al. Morphology and activity of the helgoland mud volcano in the sorokin trough. northern black sea.99, 227–236 (2019). [Google Scholar]
  • 13.Limonov, A. F., Woodside, J. M., Cita, M. B. & Ivanov, M. K. The Mediterranean Ridge and related mud diapirism: a background. Marine Geology132, 7–19, 10.1016/0025-3227(96)00150-8 (1996). [Google Scholar]
  • 14.Mazzini, A. & Etiope, G. Mud volcanism: An updated review. Earth-Science Reviews168, 81–112, 10.1016/j.earscirev.2017.03.001 (2017). [Google Scholar]
  • 15.León, R. et al. Sea-floor features related to hydrocarbon seeps in deepwater carbonate-mud mounds of the Gulf of Cádiz: from mud flows to carbonate precipitates. Geo-Marine Letters27, 237–247 (2007). [Google Scholar]
  • 16.Niemann, H. & Boetius, A. in Handbook of hydrocarbon and lipid microbiology 205–214 (Springer-Verlag Berlin, 2010).
  • 17.Dupré, S. et al. Seafloor geological studies above active gas chimneys off Egypt (Central Nile Deep Sea Fan). Deep Sea Research Part I: Oceanographic Research Papers54, 1146–1172, 10.1016/j.dsr.2007.03.007 (2007). [Google Scholar]
  • 18.Odonne, F. et al. Mud volcano growth by radial expansion: Examples from onshore Azerbaijan. Marine Petroleum Geology112, 104051 (2020). [Google Scholar]
  • 19.Asada, M., Moore, G. F., Kawamura, K. & Noguchi, T. Mud volcano possibly linked to seismogenic faults in the Kumano Basin, Nankai Trough, Japan. Marine Geophysical Research42, 1–16 (2021). [Google Scholar]
  • 20.Treves, B. Mud volcanoes and shale diapirs. Their implications in accretionary processes. A review. Acta naturalia de l’Ateneo parmense21, 31–37 (1985). [Google Scholar]
  • 21.Ivanov, M. K., Limonov, A. F. & van Weering, T. C. E. Comparative characteristics of the Black Sea and Mediterranean Ridge mud volcanoes. Marine Geology132, 253–271, 10.1016/0025-3227(96)00165-X (1996). [Google Scholar]
  • 22.Graue, K. Mud volcanoes in deepwater Nigeria. Marine Petroleum Geology17, 959–974 (2000). [Google Scholar]
  • 23.Kholodov, V. Mud volcanoes: distribution regularities and genesis (Communication 2. Geological–geochemical peculiarities and formation model). Lithology Mineral Resources37, 293–310 (2002). [Google Scholar]
  • 24.Dimitrov, L. Mud volcanoes – the most important pathways for degassing deeply buried sediments. Earth Science Review59, 49–76, 10.1016/S0012-8252(02)00069-7 (2002). [Google Scholar]
  • 25.Pape, T. et al. Hydrocarbon seepage and its sources at mud volcanoes of the Kumano forearc basin, Nankai Trough subduction zone. Geochemistry, Geophysics, Geosystems15, 2180–2194 (2014). [Google Scholar]
  • 26.Hovland, M. & Judd, A. G. Seabed pockmarks and seepages: impact on geology, biology and the marine environment (1988).
  • 27.Fowler, S. et al. Mud volcanoes and structural development on Shah Deniz. Journal of Petroleum Science Engineering28, 189–206 (2000). [Google Scholar]
  • 28.Yusifov, M. & Rabinowitz, P. D. Classification of mud volcanoes in the South Caspian Basin, offshore Azerbaijan. Marine and Petroleum Geology21, 965–975, 10.1016/j.marpetgeo.2004.06.002 (2004). [Google Scholar]
  • 29.Sung, Q.-C., Chang, H.-C., Liu, H.-C. & Chen, Y.-C. Mud volcanoes along the Chishan fault in Southwestern Taiwan: A release bend model. Geomorphology118, 188–198 (2010). [Google Scholar]
  • 30.Zhong, S., Zhang, J., Luo, J., Yuan, Y. & Su, P. Geological characteristics of mud volcanoes and diapirs in the Northern Continental Margin of the South China Sea: Implications for the mechanisms controlling the genesis of fluid leakage structures. Geofluids2021, 5519264 (2021). [Google Scholar]
  • 31.Brown, K. M. The nature and hydrogeologic significance of mud diapirs and diatremes for accretionary systems. Journal of Geophysical Research: Solid Earth95, 8969–8982 (1990). [Google Scholar]
  • 32.Tinivella, U., Accaino, F. & Della Vedova, B. Gas hydrates and active mud volcanism on the South Shetland continental margin, Antarctic Peninsula. Geo-Marine Letters28, 97–106 (2008). [Google Scholar]
  • 33.Woodside, J., Ivanov, M. & Limonov, A. Neotectonics and fluid flow through seafloor sediments in the Eastern Mediterranean and Black Seas. Intergovernmental Oceanographic Commission (1997).
  • 34.Ercilla, G. & Casas, D. S. Submarine mass movements: sedimentary characterization and controlling factors. Earth Sciences3, 99–128 (2012). [Google Scholar]
  • 35.Nagarajan, V. et al. Systematic assessment of mineral distribution and diversity of microbial communities and its interactions in the Taiwan subduction zone of mud volcanoes. Environmental Research216, 114536 (2023). [DOI] [PubMed] [Google Scholar]
  • 36.Kalinko, M. Mud volcanoes, reasons of their origin, development and fading. Vnigri40, 30–54 (1964). [Google Scholar]
  • 37.Etiope, G. Mud volcanoes and microseepage: The forgotten geophysical components of atmospheric methane budget (2005).
  • 38.Deville, E. & Guerlais, S.-H. Cyclic activity of mud volcanoes: evidences from Trinidad (SE Caribbean). Marine Petroleum Geology26, 1681–1691 (2009). [Google Scholar]
  • 39.Manga, M. & Bonini, M. Large historical eruptions at subaerial mud volcanoes, Italy. Natural Hazards Earth System Sciences12, 3377–3386 (2012). [Google Scholar]
  • 40.Maestrelli, D. et al. Dynamic triggering of mud volcano eruptions during the 2016–2017 Central Italy seismic sequence. Journal of Geophysical Research: Solid Earth122, 9149–9165 (2017). [Google Scholar]
  • 41.Wang, C.-Y. & Manga, M. in Water and Earthquakes 61–82 (Springer, 2021).
  • 42.Dimitrov, L. & Woodside, J. Deep sea pockmark environments in the eastern Mediterranean. Marine Geology195, 263–276, 10.1016/S0025-3227(02)00692-8 (2003). [Google Scholar]
  • 43.Dimitrov, L. I. Mud volcanoes—a significant source of atmospheric methane. Geo-Marine Letters23, 155–161 (2003). [Google Scholar]
  • 44.Sauter, E. J. et al. Methane discharge from a deep-sea submarine mud volcano into the upper water column by gas hydrate-coated methane bubbles. Earth and Planetary Science Letters243, 354–365, 10.1016/j.epsl.2006.01.041 (2006). [Google Scholar]
  • 45.Knittel, K. & Boetius, A. Anaerobic oxidation of methane: progress with an unknown process. Annual review of microbiology63, 311–334 (2009). [DOI] [PubMed] [Google Scholar]
  • 46.Paull, C. et al. Seafloor geomorphic manifestations of gas venting and shallow subbottom gas hydrate occurrences. Geosphere11, 491–513 (2015). [Google Scholar]
  • 47.Casalbore, D. et al. Morpho-acoustic characterization of a shallow-water mud volcano offshore Scoglio d’Affrica (Northern Tyrrhenian Sea) responsible for a violent gas outburst in 2017. Marine Geology428, 106277, 10.1016/j.margeo.2020.106277 (2020). [Google Scholar]
  • 48.Di Bella, L. et al. The influence of shallow-water methane emissions on foraminiferal assemblages: The case of Scoglio d’Affrica (Northern Tyrrhenian Sea, Mediterranean Sea). Marine Petroleum Geology170, 107130 (2024). [Google Scholar]
  • 49.Napoli, R., Currenti, G., Giammanco, S., Greco, F. & Maucourant, S. Imaging the Salinelle Mud Volcanoes (Sicily, Italy) using integrated geophysical and geochemical surveys. Annals of Geophysics (2020).
  • 50.Nespoli, M. et al. Gravity Data Allow to Image the Shallow‐Medium Subsurface Below Mud Volcanoes. Geophysical Research Letters50, e2023GL103505 (2023). [Google Scholar]
  • 51.Czarnecki, M. & Bergin, J. in Proceedings of the Fourth Working Symposium on Oceanographic Data Systems, La Jolla, IEEE Computer Society. 15–24.
  • 52.Malinverno, A. A simple method to estimate the fractal dimension of a self‐affine series. Geophysical Research Letters17, 1953–1956 (1990). [Google Scholar]
  • 53.Grosse, P., van Wyk de Vries, B., Euillades, P. A., Kervyn, M. & Petrinovic, I. A. Systematic morphometric characterization of volcanic edifices using digital elevation models. Geomorphology136, 114–131, 10.1016/j.geomorph.2011.06.001 (2012). [Google Scholar]
  • 54.Grosse, P., van Wyk de Vries, B., Petrinovic, I. A., Euillades, P. A. & Alvarado, G. E. Morphometry and evolution of arc volcanoes. Geology37, 651–654, 10.1130/G25734A.1 (2009). [Google Scholar]
  • 55.Bemis, K. G. & Ferencz, M. Morphometric analysis of scoria cones: the potential for inferring process from shape. (2017).
  • 56.Dóniz-Páez, J. Volcanic geomorphological classification of the cinder cones of Tenerife (Canary Islands, Spain). Geomorphology228, 432–447 (2015). [Google Scholar]
  • 57.Riedel, C., Ernst, G. & Riley, M. Controls on the growth and geometry of pyroclastic constructs. Journal of Volcanology Geothermal Research127, 121–152 (2003). [Google Scholar]
  • 58.Michon, L. & Saint‐Ange, F. Morphology of Piton de la Fournaise basaltic shield volcano (La Réunion Island): Characterization and implication in the volcano evolution. Journal of Geophysical Research: Solid Earth113 (2008).
  • 59.Bleacher, J. E. & Greeley, R. Relating volcano morphometry to the developmental progression of Hawaiian shield volcanoes through slope and hypsometric analyses of SRTM data. Journal of Geophysical Research: Solid Earth113 (2008).
  • 60.Pedersen, G. & Grosse, P. Morphometry of subaerial shield volcanoes and glaciovolcanoes from Reykjanes Peninsula, Iceland: effects of eruption environment. Journal of Volcanology Geothermal Research282, 115–133 (2014). [Google Scholar]
  • 61.Ackiss, S. E. Investigating the Mineralogy and Morphology of Subglacial Volcanoes on Earth and Mars, Purdue University (2019).
  • 62.Smith, D. K. Shape analysis of Pacific seamounts. Earth and Planetary Science Letters90, 457–466, 10.1016/0012-821X(88)90143-4 (1988). [Google Scholar]
  • 63.Sulli, A. et al. Growth and geomorphic evolution of the Ustica volcanic complex at the Africa-Europe plate margin (Tyrrhenian Sea). Geomorphology374, 107526, 10.1016/j.geomorph.2020.107526 (2020). [Google Scholar]
  • 64.Spatola, D. et al. The Graham Bank (Sicily Channel, central Mediterranean Sea): Seafloor signatures of volcanic and tectonic controls. Geomorphology318, 375–389, 10.1016/j.geomorph.2018.07.006 (2018). [Google Scholar]
  • 65.Hemmi, R. & Miyamoto, H. High-Resolution Topographic Analyses of Mounds in Southern Acidalia Planitia, Mars: Implications for Possible Mud Volcanism in Submarine and Subaerial Environments. Geosciences8, 152, 10.3390/geosciences8050152 (2018). [Google Scholar]
  • 66.Gilichinsky, M., Demidov, N. & Rivkina, E. Morphometry of volcanic cones on Mars in perspective of Astrobiological Research. International journal of astrobiology14, 537–545 (2015). [Google Scholar]
  • 67.Smith, D. K. Comparison of the shapes and sizes of seafloor volcanoes on Earth and “pancake” domes on Venus. Journal of Volcanology Geothermal Research73, 47–64 (1996). [Google Scholar]
  • 68.Kioka, A. & Ashi, J. Episodic massive mud eruptions from submarine mud volcanoes examined through topographical signatures. Geophysical Research Letters42, 8406–8414, 10.1002/2015GL065713 (2015). [Google Scholar]
  • 69.Shnyukov, E. & Yanko-Hombach, V. Mud volcanoes of the Black Sea Region and their environmental significance. (Springer Nature, 2020).
  • 70.Mazzini, A. et al. When mud volcanoes sleep: Insight from seep geochemistry at the Dashgil mud volcano, Azerbaijan. Marine Petroleum Geology26, 1704–1715 (2009). [Google Scholar]
  • 71.Omrani, H. & Raghimi, M. Origin of the mud volcanoes in the south east Caspian Basin, Iran. Marine Petroleum Geology96, 615–626 (2018). [Google Scholar]
  • 72.Bonini, M. & Mazzarini, F. Mud volcanoes as potential indicators of regional stress and pressurized layer depth. Tectonophysics494, 32–47 (2010). [Google Scholar]
  • 73.Komatsu, G. et al. Small edifice features in Chryse Planitia, Mars: assessment of a mud volcano hypothesis. Icarus268, 56–75 (2016). [Google Scholar]
  • 74.Napoli, S., Spatola, D., Casalbore, D. & Chiocci, F. L. Global inventory of submarine mud volcanoes.10.5281/zenodo.13120956 (2024). [DOI] [PubMed] [Google Scholar]
  • 75.Romeo-Ruiz, C., García-Cacho, L., Araña, V., Luque, A. Y. & Felpeto, A. Submarine volcanism surrounding Tenerife, Canary Islands: Implications for tectonic controls, and oceanic shield formingprocesses. Journal of Volcanology and Geothermal Research103, 105–119, 10.1016/S0377-0273(00)00218-3 (2000). [Google Scholar]
  • 76.Settle, M. The structure and emplacement of cinder cone fields. American Journal of Science279, 1089–1107 (1979). [Google Scholar]
  • 77.Spatola, D. et al. Morphology of the submerged Ferdinandea Island, the ‘Neverland’of the Sicily Channel (central Mediterranean Sea). Journal of Maps19, 2243305, 10.1080/17445647.2023.2243305 (2023). [Google Scholar]
  • 78.Spatola, D. et al. Seafloor characterisation of the offshore sector around Scoglio d’Affrica islet (Tuscan Archipelago, northern Tyrrhenian Sea). Journal of Maps, 10.1080/17445647.2022.2120836 (2023).
  • 79.Soloviev, V. & Ginsburg, G. D. Formation of submarine gas hydrates. Bulletin of the Geological Society of Denmark41, 86–94 (1994). [Google Scholar]
  • 80.Camerlenghi, A. & Pini, G. A. Mud volcanoes, olistostromes and Argille scagliose in the Mediterranean region. Sedimentology56, 319–365, 10.1111/j.1365-3091.2008.01016.x (2009). [Google Scholar]
  • 81.Wu, T. et al. Characteristics and formation mechanism of seafloor domes on the north‐eastern continental slope of the South China Sea. Geological Journal55, 1–10 (2020). [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary information (13.6KB, docx)
Table S1, Table S2, Table S3 (254.8KB, xlsx)

Data Availability Statement

No customized code was produced to create or analyse this dataset. Specifically, we used ArcGIS software to create the dataset, however our inventory can be opened with any GIS software (open-sourced or licensed).

Articles from Scientific Data are provided here courtesy of Nature Publishing Group
