Generative model for the first cell fate bifurcation in mammalian development

Abstract

The first cell fate bifurcation in mammalian development directs cells toward either the trophectoderm (TE) or inner cell mass (ICM) compartments in preimplantation embryos. This decision is regulated by the subcellular localization of a transcriptional co-activator YAP and takes place over several progressively asynchronous cleavage divisions. As a result of this asynchrony and variable arrangement of blastomeres, reconstructing the dynamics of the TE/ICM cell specification from fixed embryos is extremely challenging. To address this, we developed a live imaging approach and applied it to measure pairwise dynamics of nuclear YAP and its direct target genes, CDX2 and SOX2, key transcription factors of TE and ICM, respectively. Using these datasets, we constructed a generative model of the first cell fate bifurcation, which reveals the time-dependent statistics of the TE and ICM cell allocation. In addition to making testable predictions for the joint dynamics of the full YAP/CDX2/SOX2 motif, the model revealed the stochastic nature of the induction timing of the key cell fate determinants and identified the features of YAP dynamics that are necessary or sufficient for this induction. Notably, temporal heterogeneity was particularly prominent for SOX2 expression among ICM cells. As heterogeneities within the ICM have been linked to the initiation of the second cell fate decision in the embryo, understanding the origins of this variability is of key significance. The presented approach reveals the dynamics of the first cell fate choice and lays the groundwork for dissecting the next cell fate bifurcations in mouse development.

1. Introduction

Early development of most well-studied model organisms follows a largely deterministic developmental pattern where differentiation can be attributed to pre-existing asymmetries derived from sperm entry and/or nonuniformly distributed maternal factors [1]. In the mouse, the leading model for studying mammalian development, such early asymmetries are not major factors contributing to differentiation [2,3]. Instead, differentiation, first detected after the fourth cleavage that generates the 16-cell morula, is driven by self-organization [4]. Because mouse embryos do not follow an invariant cleavage pattern, the morulae vary in shapes and arrangements of blastomeres [5,6,7,8,9]. This geometric variability has been shown to be an essential component of differentiation, with geometric cues driving cells towards their respective fates [10,11,12]. Furthermore, spatial and temporal variability in cleavage patterns and resulting gene expression variability have been proposed to be a driver of robustness in the first cell fate decisions [9,8,13,14]. As a consequence of this unique mode of development, quantitative models of the early mouse embryo must be distinct from the essentially deterministic models that suffice for embryos that depend on the invariant pattern of cleavages and preexisting asymmetries.

Here we establish such a model for the first cell fate bifurcation in the mouse embryo, as cells are directed to either the inner cell mass (ICM), precursor of the fetus and certain extraembryonic tissues, or the trophectoderm (TE), precursor of the placental cell types (Fig. 1A). The specification of these two cell types is associated with the expression of well-known lineage-specific transcription factors (TFs), such as SOX2 (ICM) and CDX2 (TE) [15,16]. Both CDX2 and SOX2 are regulated by the Hippo signaling pathway and its downstream effector, the Yes-associated protein (YAP), where YAP serves as an activator of Cdx2 and a repressor of Sox2 expression [17,15,18,19] (Fig. 1B). YAP activity is determined by its subcellular localization, which in turn is regulated by apicobasal polarity of cells, with polarized cells localizing YAP to the nucleus and apolar cells sequestering YAP in the cytoplasm [17,20,21].

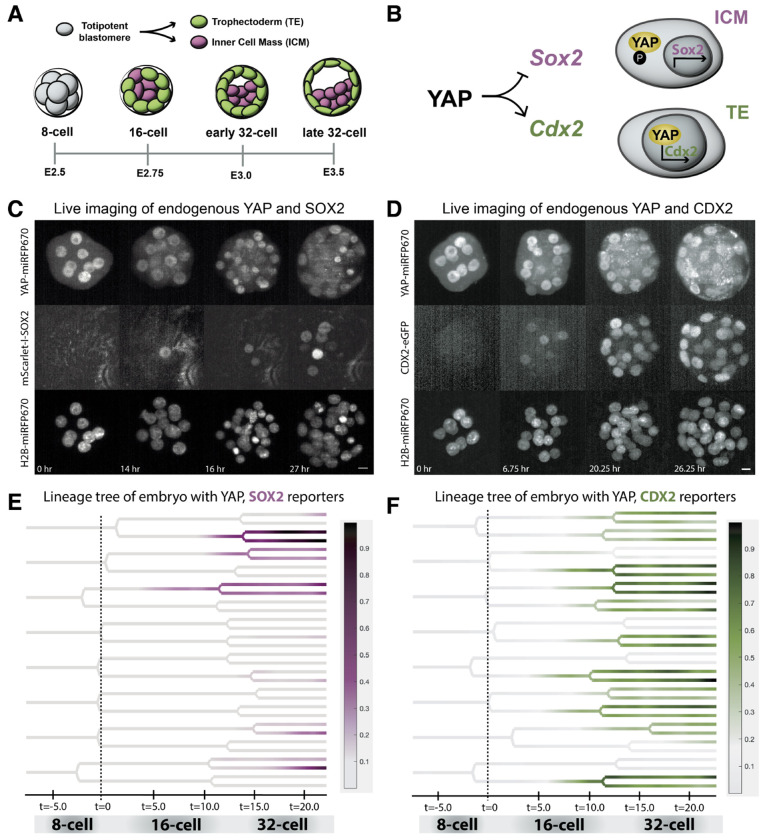

Fig. 1: Live imaging of endogenously tagged YAP-miRFP670, mScarlet-I-SOX2, and CDX2-eGFP during the first fate decision in preimplantation embryos.

(A) A developmental timeline of TE and ICM specification. The first cell differentiation event, between TE (green) and ICM (purple), initiates at the 16-cell stage, establishing distinct inner, ICM, and outer, TE, cell populations in the 32-cell stage embryo. Embryos in this study are imaged through the 32-cell stage. Days post-fertilization are denoted by embryonic day (E). (B) Sox2 and Cdx2 expression is regulated by YAP. In ICM cells, YAP is phosphorylated and retained in the cytoplasm, allowing for Sox2 expression. In TE cells, YAP is predominantly localized to the nucleus where it activates expression of Cdx2. (C) Time lapse images of a representative embryo, expressing YAP-miRFP670, mScarlet-I-SOX2, and H2B-miRFP670, from the 8-cell through the late 32-cell stage. A z-stack was acquired every 15 minutes for YAP and H2B channels and every 30 minutes for the SOX2 channel. Maximum intensity projections (MIPs) are shown. Unit of time is hours. Scale bar: 10μm. (D) Same as (C) for a representative embryo, expressing YAP-miRFP670, CDX2-eGFP, and H2B-miRFP670, from the 8-cell through the late 32-cell stage. (E) Lineage trees from an embryo expressing YAP-miRFP670 and mScarlet-I-SOX2, tracked until the first cell division into the 33-cell stage. Expression of mScarlet-I-SOX2 intensity (minmax normalized from 0 to 1) is colormapped in purple onto the branches of the lineage tree. t=0 is defined as the average time of division from the 8-16 cell stage. Unit of time is hours. (F) Same as (E) for an embryo expressing YAP-miRFP670 and CDX2-eGFP, tracked until the first cell division into the 33-cell stage. Minmax normalized CDX2-eGFP intensity is colormapped in green.

Segregation of ICM and TE fates largely takes place between the 8- to 32-cell stages. At the 8-cell stage, gene expression variability among cells is low, and individual cells display bipotency towards ICM and TE fates [22]. By the 32-cell stage, TE cells line the outside of the embryo and ICM cells are located on the inside. This sequence of events was largely deduced from images of fixed embryos, which offer only snapshots of nuclear YAP and its transcriptional effects, with limited live imaging datasets of individual components available to date [23,24,25]. Using these datasets for quantitative understanding and modeling of the underlying dynamics is a highly challenging task [26,13,27,28,29,30]. Using live imaging together with computational cell segmentation and tracking, we acquire a view of the simultaneous dynamics of nuclear YAP and its downstream targets within lineages of all blastomeres. To model variability in the observed dynamics, we choose a dynamic Bayesian network approach which is a well-established strategy for modeling gene expression time series [31,32,33,34,35]. The resulting generative model reveals the dynamics and variability of the first cell fate choice in mammalian development.

2. RESULTS

Live imaging YAP and its target genes

Taking advantage of the simplicity of the network that controls the first mammalian cell fate choice, as well as the small cell number at which this choice takes place, we sought to characterize the dynamics of YAP and its targets by live imaging. As the first step towards this goal, we established or used already existing fluorescent reporters of YAP (YAP-miRFP670; [25]), CDX2 (CDX2-eGFP; [23]) and SOX2 (mScarlet-I-SOX2; this study). To generate a SOX2 reporter mouse line, we targeted mScarlet-I to the N-terminus of the endogenous Sox2 allele (Supp. Fig. S1A). mScarlet-I expression displayed the expected pattern of endogenous SOX2 based on previous analysis of fixed samples, with expression initiating in a few cells at the late 16-cell stage and mScarlet-I present in all ICM cells at the blastocyst stage (Fig. 1C, Supp. Fig. S1E,F). Furthermore, treatment of embryos with the Rho-associated kinase (ROCK) inhibitor caused an increase in the number of cells expressing mScarlet-I-SOX2, in agreement with a previous report ([18], Supp. Fig. S1B,C,D). These data indicate that the established reporter is suitable for monitoring endogenous SOX2 dynamics.

We used light sheet microscropy to image the joint dynamics of YAP-miRFP670 and CDX2-eGFP or YAP-miRFP670 and mScarlet-I-SOX2, along with H2B-miRFP720 to identify cell nuclei (Fig. 1C,D). Nuclei were then segmented and tracked using our previously established pipeline [36] to construct complete lineage trees of developing embryos. To quantify the dynamics of YAP and its targets within each lineage, fluorescent intensities for each reporter were extracted from nuclear masks (Fig. 1E,F, Methods). Every embryo in our dataset was imaged from the 8- to the end of the 32-cell stage, with the final cells defining 32 branches of expression histories. For each tree branch of every embryo, we sought to ultimately characterize the dynamics of YAP and its targets in the (y, S, C) phase space, where y is the nuclear concentration of YAP, and S and C are the total nuclear levels of SOX2 and CDX2, respectively.

Cells in mouse embryos exhibit random, normally distributed timing of cleavages at the 16- and 32-cell stages [9]. We normalized the time for each branch of every embryo by warping it to align cell division times at every cell cycle (Methods). The expression of both YAP targets was heterogeneous, both in the timing and levels of expression (Fig. 2A,B). This was accompanied by heterogeneity in the corresponding YAP trajectories.

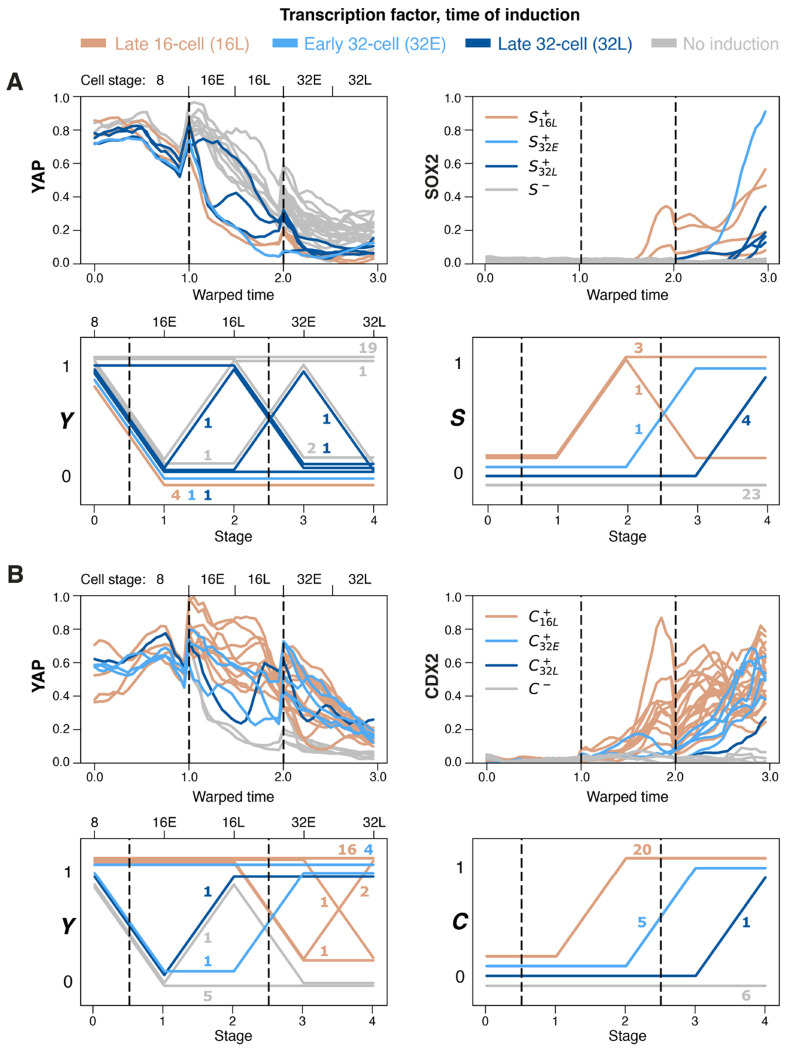

Fig. 2: Dynamics of nuclear YAP concentration and expression of SOX2 and CDX2.

(A) Extracted and discretized dynamics of YAP localization and SOX2 expression in the cell lineages of one representative embryo. Imaging starts at the 8-cell stage and all cells undergo 2 division rounds. Color: each branch is colored according to its induction class ($S_{16L}^{+},S_{32E}^{+},S_{32L}^{+},S^{-}$), i.e., stage of SOX2 induction. See below for the description of stages. Top left and right, x-axis: linearly warped time, with division times aligned for all branches. Top left, y-axis: average YAP reporter intensity in segmented nuclei, smoothed and minmax normalized between 0 and 1. Top right, y-axis: total SOX2 reporter intensity in each segmented nucleus, smoothed and minmax normalized between 0 and 1. Bottom left and right, x-axis: 5 stages, 0(8): 8-cell stage, 1(16E): first half of 16-cell stage, 2(16L): second half of 16-cell stage, 3(32E): first half of 32-cell stage, 4(32L): second half of 32-cell stage. Black dashed vertical lines indicate 8/16 cell and 16/32 cell division times. Bottom left, y-axis: same as top left, where YAP is averaged over every stage and discretized (Methods). Bottom right, y-axis: same as bottom left but for discretized total SOX2 reporter intensity. 32 branches of YAP localization histories are shown, grouped by their YAP behavior and induction class. Number of branches in each group is enumerated next to the discretized trajectory. (B) Same as (A) for YAP and CDX2 in a different representative embryo. Each branch is colored according to its stage of CDX2 induction.

As the first step towards modeling the observed dynamics, we coarse-grained the phase space by distinguishing only two levels for each variable, which effectively views YAP as either cytoplasmic or nuclear and each of its targets as either expressed or not. To this end, we first separated 16- and 32-cell stages into early (E) and late (L) stages resulting in 5 stages of interest: 8, 16E, 16L, 32E, 32L, indexed by i = 0 … 4. For every stage, the expression levels for YAP, SOX2 and CDX2 were binarized (Methods). In particular, YAP concentration was z-scored at every timepoint and averaged over each stage; pooling the data, we defined universal stage-dependent thresholds (Supp. Fig. S2B) to characterize YAP as either nuclear (1) or cytoplasmic (0). To binarize the expression of each downstream TF, after appropriate normalization, we applied a stage-independent threshold to its values at the end of 16L, 32E, and 32L to define positive (1) and negative (0) cells at these stages (N=6 embryos for SOX2, N=9 embryos for CDX2, Supp. Fig. S2C,D). We characterized YAP as nuclear for all cells at stage 8 and all cells as negative for both TFs at stages 8 and 16E.

As a result of the above coarse-graining, imaging data from every embryo was decomposed into 32 binarized trajectories indexed by stage, i = 0 … 4. More precisely, YAP dynamics and expression of its downstream gene $g$ were each described by binary sequences of length 5, $y={\left\{y_i\right\}}_{i=0\dots 4}\in \{0,1{\}}^5$, and $G={\left\{G_i\right\}}_{i=0\dots 4}\in \{0,1{\}}^5$ for $G=S,C$ (Fig. 2A, B). Coarse-graining allowed us to classify the trajectories by their time of expression induction, i.e., $\mathrm{m}\mathrm{i}\mathrm{n}\left\{i:G_i=1\right\}$. For $G=S,C$, we denoted the classes of trajectories inducing expression at 16L, 32E and 32L stages as $G_{16L}^{+},G_{32E}^{+},G_{32L}^{+}$, respectively. Note that, after induction, a trajectory can potentially switch back to 0. Such loss of expression was very rare though possible for both TFs (see, e.g., Fig. 2A). The rest of the trajectories never induced the TF, and we denoted the corresponding class as $G^{-}$. We observed that trajectory classes might exhibit different YAP coarse-grained dynamics (Fig. 2A,B). To systematically explore the role of YAP in setting the times at which cells express SOX2 and CDX2, we proceeded to model the coarse-grained dynamics in $(y,G)$ phase space using dynamic Bayesian networks.

Bayesian modeling of pairwise dynamics

Bayesian networks model the data using directed acyclic graphs that define factorization of the joint probability distribution of the nodes providing, for every node, the probability distribution conditional on its parents [33]. In our case, each node corresponds to the levels of nuclear YAP, $y_i$ or one of its targets, $G_i$, at a timepoint $i$. For each node, we chose its parents from the nodes corresponding to the same or the previous timepoint. Thus, we adopted a dynamic Bayesian network framework, with ${\left\{y_i\right\}}_{i=0\dots 4}$ and ${\left\{G_i\right\}}_{i=0\dots 4}$ in the nodes.

Having binarized all the variables, we assumed Bernoulli distribution for every node. We assumed that YAP localization is memory-less and therefore $y$ can be modeled as a Markov chain. YAP localization affects transcription of downstream genes. Assuming no prior information on the timescales of molecular processes that connect subcellular YAP localization and the expression of its targets, we explored several architectures for the Bayesian network downstream of $y$ (Fig. 3A). The networks were assumed to be non-homogeneous, with time-dependent conditional probability distributions (CPDs). The simplest network assumed fast effect of YAP localization on the downstream protein concentration, captured by ${\left\{\left(y_i,G_i\right)\right\}}_{i=0\dots 4}$ edges, and conditional (on $y$) independence of $G_{i+1}$ on $G_i$ for every $i$ (M1 model). We also considered networks that connect $G$ nodes into another chain. These models include fast (M2), or slow, captured by ${\left\{\left(y_i,G_{i+1}\right)\right\}}_{i=0\dots 3}$ edges, timescales for the effect of $y$ on $G$ (M3). Finally, we included a network that combined the fast and slow timescales (M4). To summarize, we chose 4 candidate models to test for every dataset.

Fig. 3: Modeling gradual induction of CDX2 and SOX2 with dynamic Bayesian networks.

(A) Bayesian network architectures considered. Y_i: binarized nuclear YAP concentration at stage i = 0…4. G_i: total nuclear level of a TF at stage i. G = C for CDX2 and G = S for SOX2. The winning M3 model is shown with the solid outline. (B) Table summarizing frequencies of binarized (y, G) observations at every stage. Left: CDX2, N = 9 embryos. Right: SOX2, N = 6 embryos. 8 observations (cells) per embryo for i = 0; 16 cells per embryo for i = 1, 2; 32 cells per embryo for i = 3, 4. (C) A schematic of an embryo simulated from a Bayesian network (Methods). A synthetic embryo is a collection of 8 independent lineage trees (sample trees for lineages 1 and 8 are shown). Every lineage is comprised of 13 synthetic cells: one cell undergoing 2 rounds of division over 5 stages. For a lineage, left: nuclear YAP (y = 1) is shown in olive, cytoplasmic YAP (y = 0) in grey. Right: gene expressed (G = 1) is shown in green, not expressed (G = 0) in grey. (D) Frequencies of CDX2 induction classes over 3000 simulated embryos. Bar: mean frequency, error bar: one standard deviation around the mean. (E) Top: posterior distribution of y for cells inducing CDX2 at 16L stage (i.e., conditioned on C₂ = 1). Linewidth of a trajectory is proportional to its posterior probability. Posterior probabilities are marked next to the corresponding, most prominent branches. Bottom: same for induction at 32E stage. (F) Top: same as (E) for all CDX2+ cells (C₄ = 1). Bottom: posterior distribution of C trajectory for cells with nuclear YAP at 16L stage (i.e., conditioned on Y₂ = 1). (G) Same as (D) for SOX2. (H) Same as (E) for cells inducing SOX2 at 16L stage (top) or inducing SOX2 at 32L stage (bottom). (I) Top: posterior distribution of S for cells losing nuclear YAP at 8/16 cell division (i.e., conditioned on Y₁ = 0). Linewidth of a trajectory is proportional to its posterior probability. Posterior probabilities are marked next to the corresponding, most prominent branches. Bottom: same for cells losing nuclear YAP at 16/32 cell division (Y₂ = 1, Y₃ = 0).

For each $(y,G)$ pair, we sought to select the best model out of the 4 candidates. Having decomposed every embryo into 32 trajectories as described above, we used maximum likelihood estimation to fit the parameters of every candidate model to hundreds of observations (trajectories) in the $(y,G)$ phase space. YAP-CDX2 models were fit to N = 9 embryos resulting in n = 288 observations, and for YAP-SOX2, N = 6, n = 192. These datasets could be summarized for every stage (Fig. 3B). The dynamic nature of the data, however, allowed us to extract dependencies between the variables at adjacent stages and fit the transition matrices which fully define each model. Bayesian formalism could then be used for model selection via Bayesian Information Criterion (BIC). BIC employs the maximum likelihood approach simultaneously penalizing models for the number of parameters to prevent overfitting. Interestingly, the same network architecture (M3, Fig 3A) was selected via BIC for both TFs (Supp. Fig. S3A). This network suggests a delay of the effect of YAP localization on nuclear protein levels at the timescale of several hours (half cell cycle length, Supp. Fig. S2A) for both TFs. The selected model also includes dependence of TF level on its previous state. Thus, the winning M3 network structure allows to formulate data-driven hypotheses on the timescales of regulation of SOX2 and CDX2 by YAP.

The CPDs, or transition probability matrices, of the winning M3 network fitted to the data provide insight into the dynamics of both YAP localization and downstream TF expression. There are 1024 $(y,G)$ trajectories that are theoretically possible, and the joint probability distribution provided by the network assigns a probability to each of them. More precisely, the probability distribution over trajectories is decomposed into the product of the initial probability distributions $p\left(y_0\right)$ and $p\left(G_0\right)$, and CPDs of the form $p\left(y_{i+1}\mid y_i\right)$ and $p\left(G_{i+1}\mid G_i,y_i\right)$ for i = 0 … 3. Both TFs are not initially expressed, fixing their initial condition at 0, $p\left(G_0=0\right)=1$. At the same time, the initial condition for $y$ is always fixed at 1, giving $p\left(y_0=1\right)=1$, and $p\left(y_{i+1}\mid y_i\right)$ describing YAP localization dynamics for later stages. E.g., the transition matrix

$$p\left(y_1\mid y_0\right)=\begin{array}{lll}& & y_1\\ y_0& 0& 1\\ 1& 0.35& 0.65\end{array}$$ (1)

contains in its columns the probabilities of excluding YAP from the nucleus $\left(p\left(y_1=0\mid y_0=1\right)=0.35\right)$ and retaining it $\left(p\left(y_1=1\mid y_0=1\right)=0.65\right)$ at the 8- to 16-cell state division. At the 8/16 division, it is known that most cells divide asymmetrically, giving rise to one cell with nuclear and one cell with cytoplasmic YAP. The CPD in eq. (1) corresponds to 70% rate of asymmetric division which is in agreement with available data [37,38,6,39]. We obtained analogous probabilities of YAP state transitions between every two consecutive timepoints. Similarly, we fit the CPDs for every G_i node and its parents. A simple example is provided by the SOX2 transitions at the early-to-late 32-cell stage:

$$p\left(S_4\mid S_3,y_3\right)=\begin{array}{llll}& & & S_4\\ S_3& y_3& 0& 1\\ 0& 0& 0.47& 0.53\\ 0& 1& 0.97& 0.03\\ 1& 0& 0.03& 0.97\\ 1& 1& 0& 1\end{array}$$ (2)

From this CPD, one can conclude that, for cells with nuclear YAP ($y_3=1$) and for SOX2+ cells at the 32E stage $\left(S_3=1\right)$, the state of SOX2 propagates to the 32L stage with probability close to 1. However, for SOX2− cells with cytoplasmic YAP at the 32E stage $\left(S_3=0,y_3=0\right)$, SOX2 gets induced by the 32L stage ($S_4=1$) in a non-deterministic fashion, with probability 0.53. Non-deterministic elements (transition probabilities away from 0 or 1) were also contained in CPDs at other stages for the YAP-SOX2 model as well as for some CPDs of the YAP-CDX2 model. This feature observed in both models provides another motivation for our probabilistic modeling approach.

Although some progress in probing YAP-CDX2 and YAP-SOX2 associations is possible by direct analysis of the observed trajectories, modeling can be used for inference. Bayesian modeling can be used to calculate posterior probabilities exactly or approximately, via sampling. As we illustrate below, our trained Bayesian models can be used to augment the empirical dataset by synthetic trajectories consistent with the inferred transition matrices. Such use of Bayesian models for statistical analysis of system dynamics is common in other contexts [40,41] and could be applied here to sample from the posterior distribution of any embryonic statistic.

Model-based inference

We used Bayesian networks trained on pairwise dynamic data for $(y,G)$ to generate synthetic embryos. Every embryo in our synthetic dataset starts with 8 cells, each undergoing two rounds of division over 5 stages resulting in 32 cells at the final stage (Fig. 3C, Methods). An embryo is comprised of 8 independently sampled lineage trees, each starting with one cell sampling from the initial distribution $p\left(y_0,G_0\right)=p\left(y_0\right)p\left(G_0\right)$. The cells in each tree undergo transitions in the $(y,G)$ phase space, sampling from the corresponding transition matrices. At divisions, expression values for daughter cells are independently sampled conditional on their mother. Every synthetic embryo could then be viewed as an ensemble of 32 trajectories of expression histories of cells at the 32L stage and their predecessors. These trajectories are pairwise independent for cells from different lineage trees but are not necessarily independent within one lineage. Ultimately, this approach can be applied to any dynamic Bayesian network to simulate expression dynamics of any number of variables, taking into account lineage relationships.

Since YAP is a key regulator for both CDX2 and SOX2, it is natural to ask whether particular features of YAP dynamics are a necessary or sufficient condition for induction of these TFs. Furthermore, as shown above, the expression dynamics of YAP targets in different cells can be classified by the timing of their induction. We asked whether the cells that belong to different classes could be distinguished by differences in their YAP localization time courses. If YAP were the sole activator of CDX2, it could be expected that early expression of CDX2 would be associated with more persistent levels of nuclear YAP. In contrast, one might expect that the first cells to express SOX2 should be characterized by early loss of nuclear YAP. Note that similar questions naturally arise whenever one regulator controls several targets, e.g., in the context of tissue patterning by morphogen gradients [42].

We used Bayesian inference to investigate variability in the induction timing of YAP targets, and the extent to which this variability can be explained by differences in nuclear YAP. We first generated thousands of 32L embryos describing dynamics in the $(y,G)$ phase space, independently for $G=S$ and $G=C$. Each trajectory in an embryo belongs to one of the $G_{16L}^{+},G_{32E}^{+},G_{32L}^{+},G^{-}$ classes indicating its time of induction (see Live imaging YAP and its targets for definition). Thus, we could estimate the expected frequency of each class for $G$, as well as the inter-embryonic variability of the frequencies.

Analyzing the simulated data, we found that CDX2 is most frequently induced at 16L or 32E stages (Fig. 3D), at proportions 0.64 ± 0.12 and 0.13 ± 0.8, respectively. Trained Bayesian networks were then used to predict the joint posterior distribution for y dynamics of a cell/trajectory conditional on its induction class (Fig. 3E, Methods). Interestingly, we observed little difference in the time courses of nuclear YAP in cells that induced CDX2 at the 16L and 32E stages, with both distributions mainly concentrating on cells with consistently nuclear YAP (70% and 55%, respectively). Therefore, YAP dynamics cannot be reliably used as a predictor of CDX2 induction timing (see Supp. Fig. S3C for a representative time course). In CDX2+ cells (C₄ = 1), 71% were predicted to have consistently nuclear YAP, with 96% of the trajectories having nuclear YAP at 16L stage (Fig. 3F), identifying nuclear YAP at this stage as a necessary condition for CDX2 expression by 32L stage. At the same time, nuclear YAP at 16L stage was predicted to result in CDX2 induction with overwhelming probability, making it a sufficient condition for CDX2 expression by 32L stage.

For SOX2, induction was predicted to be most likely at 16L or 32L stages (0.22 ± 0.10 and 0.11±0.06 frequency, respectively, Fig. 3G). Conditioning on SOX2 classes of induction, we found that early loss of nuclear YAP was a necessary condition for the early onset of SOX2 expression (Fig. 3H). More precisely, all $S_{16L}^{+}$ cells were predicted to have removed YAP from the nucleus at the 8/16 cell division. At the same time, most of $S_{32L}^{+}$ cells were also predicted to lose YAP at one of the divisions, with probability 0.32 at 8/16 division and probability 0.59 at 16/32 cell division. Thus, loss of nuclear YAP at a division is a necessary condition for SOX2 induction. However, trajectories losing nuclear YAP at each of the divisions can fail to induce SOX2 at the next stage (Fig. 3I). Specifically, after loss of nuclear YAP at 8/16 division, cells do not induce SOX2 at 16L with probability 0.38, and after YAP loss at 16/32 division, there is no SOX2 expression with probability 0.43. In summary, loss of YAP at a division is a necessary but not sufficient condition for induction of SOX2. Most cells induce SOX2 at the second half of the subsequent cell cycle, however, some cells may delay SOX2 induction or never induce it by the 32L stage (see Supp. Fig. S3D for representative examples).

Model-based data fusion

Importantly, having trained Bayesian networks for pairwise dynamics, we could establish a framework for modeling dynamics in the joint $(y,C,S)$ phase space. Indeed, the M3 architectures of $(y,C)$ and $(y,S)$ models could be fused via their common Markov chain in $y$ variable (Fig. 4A). With separate datasets for $(y,C)$ and $(y,S)$, we can train different parts of the network independently, accounting for missing data (Methods). The fused network was used to generate synthetic $(y,C,S)$ lineages and simulate embryos comprised of 8 lineage trees analogously to pairwise models. Expression of every simulated lineage could be viewed as a branching trajectory in the $(y,C,S)$ phase space, i.e., on a ${\{0,1\}}^3$ cube (Supp. Fig. S4A). At every stage $i,\left(C_i,S_i\right)\in {\{0,1\}}^2$ which led us to classify trajectories for every $i$ into 4 classes (states): $C^{+}{S}^{-}$ if $C_i=1,S_i=0,C^{-}{S}^{+}$ if $C_i=0,S_i=1$, double positive, $C^{+}{S}^{+}$, if $C_i=1,S_i=1$, and double negative, $C^{-}{S}^{-}$, if $C_i=0,S_i=0$.

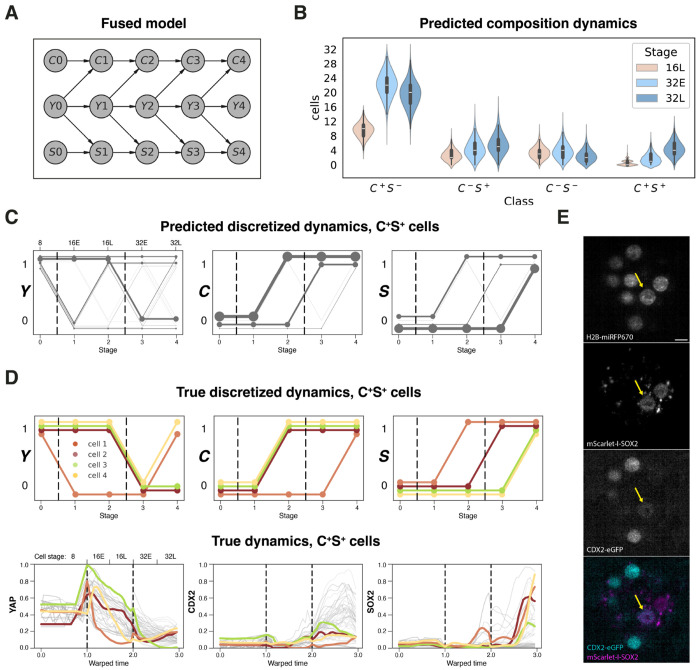

Fig. 4: Modeling joint dynamics of YAP, CDX2 and SOX2 with a fused Bayesian network.

(A) The structure of the network that was used for data fusion. C_i: (binarized) nuclear CDX2 level at stage i, S_i: (binarized) nuclear SOX2 level at stage i, Y_i: (binarized) nuclear YAP concentration at stage i. (B) Violin plot showing posterior marginal distributions for the numbers of cells in four possible classes at 16L, 32E and 32L stages. Distributions are smoothed with kernel density estimation. 3000 embryos were simulated. (C) Left: posterior distribution of y for C⁺ S⁺ cells (i.e., conditioned on C₄ = 1, S₄ = 1). Linewidth of a trajectory is proportional to its posterior probability. Middle: same for C. Right: same for S. (D) Top: Discretized trajectories of Y , S and C for 4 C⁺ S⁺ cells identified in 2 embryos simultaneously expressing YAP-miRFP670, CDX2-eGFP and mScarlet-I-SOX2. Bottom: nuclear YAP concentration (left), total nuclear levels of CDX2 (middle) and total nuclear levels of SOX2 (right) for the same 4 cells as in top. Data from all other cells in the 2 embryos are shown in gray. Values on y-axis were smoothed and minmax normalized between 0 and 1 within every embryo. x-axis: linearly warped time, with division times aligned. Black dashed vertical lines: 8/16 cell and 16/32 cell division times. (E) Light sheet microscopy images of an embryo simultaneously expressing YAP-miRFP670, CDX2-eGFP, mScarlet-I-SOX2, and H2B-miRFP720. Arrow: a cell that was classified as C⁺ S⁺. A z-slice is shown. Scale bar: 10μm.

We characterized the composition of a synthetic embryo at every stage $i$ by the numbers $N_{\text{class}}\left(i\right)$ of cells in the four classes (Supp. Fig. S4B). With the number of cells fixed at every stage, the number of double negative, $C^{-}{S}^{-}$, cells can always be inferred from the rest. In other words, every simulated embryo can be described by its trajectory in the $\left(N_{C^{+}{S}^{-}},N_{C^{-}{S}^{+}},N_{C^{+}{S}^{+}}\right)$ phase space. Synthesizing embryos with the fused model, we could extract the joint probability distribution of cell state proportions at every stage. In particular, we could sample from the marginal distributions at every stage (Fig. 4B). E.g., at the final stage, the fused model predicts that one can expect 19.5 ± 3.4 $C^{+}{S}^{-}$ cells, 5.7 ± 2.7 $C^{-}{S}^{+}$ cells, 2.5 ± 1.6 $C^{-}{S}^{-}$ cells, and 4.4 ± 2.0 $C^{+}{S}^{+}$ cells in an embryo.

Interestingly, the fused model predicted the appearance of double positive $C^{+}{S}^{+}$ cells by the 32L stage in most embryos. Furthermore, we could extract the posterior marginal distributions of $y,C$, and $S$ in the $C^{+}{S}^{+}$ class (Fig. 4C). While different YAP trajectories can give rise to a $C^{+}{S}^{+}$ cell at the 32L stage, this behavior was predicted to most frequently result from loss of YAP at the 16/32 division (with $y=[1,1,1,0,0]$ with 33% probability). 60% of the $C^{+}{S}^{+}$ cells were predicted to induce CDX2 at $i=2$, 16L stage. At the same time, we saw SOX2 induction at $i=4$, 32L stage, with probability 55%.

To validate our findings, we imaged the joint dynamics of YAP-miRFP670, CDX2-eGFP and mScarlet-I-SOX2, along with H2B-miRFP720, in 2 embryos expressing all four reporters. Applying the same pipeline for segmentation, signal extraction and following the same discretization guidelines for each regulator as before, we identified 4 $C^{+}{S}^{+}$ cells in these embryos (see Fig. 4E for a representative example). We then compared the discretized profiles of $y,C$ and $S$ in these embryos (Fig. 4D) to our predictions. While the identified $C^{+}{S}^{+}$ cells indeed demonstrated variable $y,C$ and $S$ trajectories, more frequent trajectories for each variable coincided with the modes of the corresponding posterior marginal distributions predicted by the model in $C^{+}{S}^{+}$ cells, further validating our approach.

Discussion

The molecular components and cellular processes involved in the first cell fate bifurcation in mammalian development have been mainly elucidated based on data from fixed embryos. However, understanding the expression dynamics of this bifurcation requires access to lineages of individual blastomeres, which is impossible to obtain from fixed embryos, due to the well-recognized variations in blastomere arrangements and other sources of gene expression variability at this stage. Here, we present a live imaging and cell tracking approach which reveals dynamics of nuclear YAP and its transcriptional effects across cell cycles. We also demonstrate that the time series extracted from blastomere lineages enable probabilistic modeling and model-based inferences about the dynamic process of cell allocation to the ICM and TE compartments.

Our modeling approach relies on the formalism of dynamic Bayesian networks. Bayesian networks provide a decomposition of the joint probability distribution of the nodes which can be used to calculate posterior probabilities and test specific hypotheses. Using this approach, we analyzed the necessity and sufficiency of specific features of YAP dynamics for the expression of two downstream targets, CDX2 and SOX2. Our model predicted that nuclear YAP at 16L stage is both required and sufficient for CDX2 expression, however, YAP was not a good predictor of the exact timing of expression onset. This indicates that additional modifiers are likely variable in cells that contribute to the regulation of CDX2 expression alongside YAP. A possible candidate is the Notch pathway, that has been shown to regulate Cdx2 in parallel to Hippo signaling [43,44,45].

In the case of SOX2 we find that removal of YAP from the nucleus is required for SOX2 expression. As YAP removal mainly occurs at either the 8/16 or the 16/32 cell divisions and SOX2 expression follows with some delay, we find that SOX2 in mostly activated in two waves: at the 16L and 32L cell stages. Interestingly, however, YAP removal is not sufficient for SOX2 expression, as we find significant stochasticity in whether SOX2 is induced or not in these cells. Indeed, SOX2 was shown to be prematurely activated in only a subset of cells of 8-cell stage embryos lacking TEAD4 or YAP [19]. These observations highlight that we are lacking critical regulators of SOX2 in the embryo, either an additional repressor or an activator, whose activity is highly heterogeneous among ICM cells. The timing of ICM fate establishment has been shown to have implications for the subsequent cell fate decision, when ICM cells differentiate into epiblast and primitive endoderm cells, with early specifying ICM cells displaying a bias towards the epiblast fate [46,47,48,37,49]. SOX2, in particular, may have important roles in this process, as it is an upstream regulator of Fgf4 expression, a key ligand produced by epiblast cells [50]. Therefore, revealing the sources of variability in the timing of ICM fate acquisition and, specifically, understanding the drivers of SOX2 induction is important for investigating the dynamics of the next cell fate decision.

Bayesian networks can account for missing data and can be used for data fusion [33]. We have demonstrated this by integrating pairwise observations into the joint description of YAP, CDX2, and SOX2. This allowed us to reveal the frequencies and origins of double positive cells in the embryo. These cells most frequently arise from early CDX2 induction, followed by loss of nuclear YAP (likely an internalization event) and subsequent induction of SOX2. This is in agreement with previous observations of CDX2 positive inner cells resulting from internalization events [24,23], which will likely completely downregulate CDX2 and assume an ICM identity. In the future, this data fusion approach can be extended to synthesize trajectories that include other important variables, such as cell shape and polarity and cell cycle progression.
