Abstract
Objective: To investigate the clinical efficacy of combining immunotherapy and targeted therapy with transcatheter arterial chemoembolization (TACE) for advanced liver cancer. Methods: A retrospective analysis was performed on 144 patients with advanced liver cancer, divided into three groups based on treatment choice: TACE group, the TACE + immunotherapy group, and the TACE + immunotherapy + targeted therapy group, with 48 patients in each group. Short-term efficacy, T lymphocyte subsets (CD4+, CD8+, CD4+/CD8+), Th1/Th2 cytokines (interleukin-2 [IL-2], tumor necrosis factor-alpha [TNF-α], IL-4, IL-6), tumor markers (carcinoembryonic antigen, alpha-fetoprotein, carbohydrate antigen 199 [CA199], CA125), angiogenesis-related factors (vascular endothelial growth factor, vascular endothelial growth factor receptor, basic fibroblast growth factor, platelet-derived growth factor), and liver function indicators (alanine aminotransferase, aspartate aminotransferase, total bilirubin, albumin), adverse reactions, and long-term prognosis were compared. Results: Disease control rates for the three groups were 47.92%, 56.25%, and 77.08%, respectively. Objective response rates were 19.00%, 25.00%, and 45.83% (all P < 0.05). The combined therapy group showed significantly improved CD4+, CD8+, CD4+/CD8+, tumor markers, angiogenesis factors, and liver function indicators compared to the other groups (all P < 0.05). Progression-free and cumulative survival rates were also significantly better in the combined therapy group (both P < 0.05). Conclusion: Combining immunotherapy and targeted therapy with TACE offers significant advantages in treating advanced liver cancer, including improved tumor control, enhanced survival, better liver function, reduced tumor marker levels, and enhanced immune response, with a favorable safety profile.
Keywords: Immunotherapy, targeted therapy, transcatheter arterial chemoembolization, liver cancer
Introduction
Liver cancer is a prevalent malignant tumor, primarily affecting middle-aged and elderly individuals. According to the 2022 National Cancer Report, the incidence of primary liver cancer in China ranks fourth among all malignant tumors, with its mortality rate second only to lung cancer [1]. With societal development and lifestyle changes, the incidence of liver cancer has been rising, with an increasing trend among younger populations [2,3].
The pathogenesis of liver cancer remains unclear, but risk factors include smoking, hepatitis virus infection, dietary exposure, and genetic predisposition. The disease often presents insidiously, with early-stage patients showing minimal clinical symptoms, leading to rapid progression. Due to low early screening rates in China, over 85% of patients are diagnosed at advanced stages, missing the optimal window for surgical treatment. This significantly limits treatment options and adversely affects life expectancy and quality of life [4,5].
Transcatheter arterial chemoembolization (TACE) is the preferred treatment for intermediate to advanced liver cancer due to its minimal invasiveness and rapid postoperative recovery [6,7]. However, survival benefits from TACE alone are not robust in some patients. Recent advancements in targeted therapies, molecular treatments, and immunotherapies offer new hope for these patients [8-11].
The immune system plays a critical role in liver cancer progression. Programmed death-1 (PD-1), an immune checkpoint receptor, facilitates tumor immune escape, contributing to tumor development. Blocking PD-1 can elicit anti-tumor responses. Camrelizumab, a PD-1 inhibitor developed in China, enhances immune function by blocking the PD-1 pathway, showing promising results as a first-line treatment for liver cancer [12]. Lenvatinib, a multi-targeted tyrosine kinase inhibitor, demonstrates strong anti-angiogenic and anti-proliferative effects, although long-term use may lead to resistance [13].
Despite these advancements, monotherapies, including TACE, immunotherapy, or targeted therapy alone, often yield suboptimal survival outcomes. Therefore, combination therapies are increasingly utilized to enhance therapeutic efficacy [14]. The Chinese Society of Clinical Oncology guidelines recommend combination therapies for patients with advanced primary liver cancer [15]. Although recent studies have explored combined targeted and immunotherapy approaches, outcomes have varied.
This study explores the short-term clinical effects and long-term prognosis of combining TACE with camrelizumab and lenvatinib in treating advanced liver cancer. Additionally, it examines the treatment’s effects on immune function, tumor markers, and angiogenesis, aiming to provide robust clinical evidence for optimizing advanced liver cancer management.
Materials and methods
Data collection
This retrospective study analyzed patients with advanced liver cancer treated at Harbin Medical University Cancer Hospital between November 2021 and November 2022. The study received approval from the Ethics Committee of the Harbin Medical University Cancer Hospital (Ethics Approval No.: YD2024-01).
Inclusion criteria: (1) Newly diagnosed patients meeting the diagnostic criteria for intermediate or advanced liver cancer [16]. (2) No prior treatment with targeted therapies, immunotherapies, or medications affecting study outcomes. (3) Age ≥ 18 years. (4) Complete clinical data available.
Exclusion criteria: (1) Concurrent immune or infectious diseases. (2) Neurological or psychiatric disorders. (3) Pregnant or breastfeeding women.
Treatment methods
Patients were categorized into three groups based on voluntary treatment choice: TACE group, TACE + immunotherapy group, and TACE + immunotherapy + targeted therapy group, with 50 patients per group. Due to dropout, 48 patients remained in each group.
TACE Group: Under anesthesia, the right femoral artery was punctured, and a 5F catheter was inserted for digital subtraction angiography to determine tumor location and size. Chemotherapy was administered through the feeding artery using carboplatin (Qilu Pharmaceutical Co., Ltd., National Drug Approval No.: H20020181) 200-300 mg, doxorubicin (Pfizer Pharmaceuticals (Wuxi) Co., Ltd., National Drug Approval No.: H20013334) 20-60 mg, and mitomycin (Zhejiang Hai Zheng Pharmaceutical Co., Ltd., National Drug Approval No.: H33020854) 10-20 mg. Embolization was performed with superfluid iodized oil, lobaplatin, and gelatin sponge particles. Postoperative care included gastric and liver protection.
TACE + Immunotherapy Group: Camrelizumab (Suzhou Shengdiya Biopharmaceutical Co., Ltd., National Drug Approval No.: S20190027) was added to TACE treatment, starting 7 days post-TACE and administered intravenously (3 mg/kg) every 21 days for 2 cycles.
TACE + Immunotherapy + Targeted Therapy Group: Lenvatinib (Eisai Co., Ltd., National Drug Approval No.: HJ20200044) was added to the treatment regimen, with oral administration beginning 7 days post-TACE in 3-week cycles for 2 cycles.
Observation indicators
Short-term clinical efficacy evaluation
Efficacy was assessed 6 months post-treatment. Complete remission (CR) indicated lesion disappearance; partial remission (PR) was a ≥ 30% reduction in lesion diameter; stable disease (SD) indicated a 20-30% reduction; and progressive disease (PD) failed to meet these criteria. Objective response rate was calculated as CR + PR, and disease control rate as CR + PR + SD [17].
Biomarker and cytokine analysis
Fasting venous blood samples (5 mL × 2) were collected before and 2 months after treatment. T lymphocyte subpopulations (CD4+, CD8+, CD4+/CD8+) were analyzed using flow cytometry (Beckman Coulter, USA). ELISA kits (Shanghai Enzyme-linked Biotechnology Co., Ltd.) were used to measure:
Tumor Markers: carcinoembryonic antigen (CEA) (ml038471), alpha-fetoprotein (AFP) (ml092666), carbohydrate antigen 199 (CA199) (ml024075), CA125 (ml063596).
Angiogenesis Factors: basic fibroblast growth factor (bFGF) (ml062440), vascular endothelial growth factor (VEGF) (ml064281), vascular endothelial growth factor receptor (VEGFR) (ml062541), platelet-derived growth factor (PDGF) (ml063163).
Cytokines: interleukin 2 (IL-2) (ml098761), tumor necrosis factor alpha (TNF-α) (ml098760), IL-4 (ml058093), IL-6 (ml058097).
Liver function assessment
Liver function was evaluated before treatment (baseline) and 2 months post-treatment in all groups. Key indicators included alanine aminotransferase (ALT), aspartate aminotransferase (AST), albumin (ALB), and total bilirubin (TBIL).
Adverse reaction evaluation
Adverse reactions during treatment were recorded, covering hematologic, gastrointestinal, urinary, circulatory, respiratory, skin, subcutaneous tissue, and immune system events. Adverse reactions were categorized by severity [18]:
Grade 1: Asymptomatic or mild symptoms. Grade 2: Requiring local or non-invasive treatment. Grade 3: Prolonged hospitalization needed. Grade 4: Life-threatening reactions. The incidence of adverse reactions in each group was analyzed.
Long-term prognosis assessment
Patients were followed up for 2 years through outpatient visits or telephone interviews. Disease progression or death served as primary outcomes.
Statistical analysis
Data were analyzed using SPSS 22.0. Measurement data were expressed as mean ± standard deviation (x̅± sd), and compared using one-way ANOVA (F-test). Count data were expressed as percentages and compared using the chi-square test (χ2). Ordinal data were analyzed using the rank-sum test. Kaplan-Meier curves were used to compare overall survival, with P < 0.05 considered statistically significant.
Results
Comparison of general data
No significant differences were found among the three groups in age, gender, tumor size, pathological classification, or TNM stage (all P > 0.05). See Table 1.
Table 1.
Comparison of general data
| Group | Age (years) | Gender (n) | Tumor size (n) | Pathological classification (n) | TNM staging (n) | ||||
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
||||||
| Male | Female | ≤ 5 cm | > 5 cm | Combined hepatocellular-cholangiocarcinoma | Intrahepatic cholangiocarcinoma | Stage III | Stage IV | ||
| TACE + immunotherapy + targeted therapy group (n=48) | 58.9±9.4 | 30 | 18 | 12 | 36 | 1 | 47 | 29 | 19 |
| TACE + immunotherapy group (n=48) | 59.5±10.1 | 28 | 20 | 10 | 38 | 2 | 46 | 26 | 22 |
| TACE group (n=48) | 58.6±11.2 | 33 | 15 | 9 | 39 | 1 | 47 | 24 | 24 |
| Statistics | 0.096 | 1.135 | 0.576 | 0.514 | 1.066 | ||||
| P | 0.909 | 0.567 | 0.750 | 0.773 | 0.587 | ||||
Note: TACE: transcatheter arterial chemoembolization.
Comparison of short-term efficacy
The TACE + immunotherapy + targeted therapy group showed significantly higher objective response and disease control rates than the TACE and TACE + immunotherapy groups (both P < 0.05). See Table 2.
Table 2.
Comparison of short-term efficacy
| Group | CR (n) | PR (n) | SD (n) | PD (n) | Objective response rate (%) | Disease control rate (%) |
|---|---|---|---|---|---|---|
| TACE + immunotherapy + targeted therapy group (n=48) | 4 | 18 | 15 | 11 | 45.83a,b | 77.08a,b |
| TACE + immunotherapy group (n=48) | 2 | 10 | 15 | 21 | 25.00a | 56.25a |
| TACE group (n=48) | 1 | 8 | 14 | 25 | 19 | 47.92 |
| χ2 | 9.218 | 9.060 | ||||
| P | 0.010 | 0.011 |
Note: CR: Complete remission; PR: Partial remission; SD: Stable disease; PD: Progressive disease; TACE: transcatheter arterial chemoembolization. Compared to TACE group;
P < 0.05.
Compared to TACE + immunotherapy group;
P < 0.05.
Comparison of T lymphocyte subpopulation levels
Baseline levels of CD4+, CD8+, and CD4+/CD8+ were similar across all groups (all P > 0.05). Post-treatment, CD4+ and CD4+/CD8+ levels increased in all groups (all P < 0.05), with the TACE + immunotherapy + targeted therapy group showing the greatest improvement (all P < 0.05). See Table 3.
Table 3.
Comparison of T lymphocyte subsets
| Indicators | CD4+ | CD8+ | CD4+/CD8+ | |||
|---|---|---|---|---|---|---|
|
|
|
|
||||
| Before treatment | After treatment | Before treatment | After treatment | Before treatment | After treatment | |
| TACE + immunotherapy + targeted therapy group (n=48) | 29.24±4.51 | 38.45±5.63*,a,b | 28.35±4.64 | 29.16±3.49 | 1.01±0.21 | 1.33±0.24*,a,b |
| TACE + immunotherapy group (n=48) | 30.12±5.34 | 32.12±4.01*,a | 28.65±7.20 | 29.40±4.12 | 1.03±0.26 | 1.10±0.21*,a |
| TACE group (n=48) | 29.46±4.49 | 30.08±3.71 | 28.19±4.25 | 29.01±4.47 | 1.01±0.33 | 1.06±0.31 |
| t | 0.438 | 44.570 | 0.086 | 0.113 | 0.087 | 15.458 |
| P | 0.646 | < 0.001 | 0.918 | 0.893 | 0.917 | < 0.001 |
Note: TACE: transcatheter arterial chemoembolization. Compared with before treatment within the group;
P < 0.05.
Compared to TACE group;
P < 0.05.
Compared to TACE + immunotherapy group;
P < 0.05.
Comparison of liver function indicators
Before treatment, ALT, AST, TBIL, and ALB levels were comparable among groups (all P > 0.05). Post-treatment, ALT, AST, and TBIL levels decreased while ALB levels increased (all P < 0.05). The TACE + immunotherapy + targeted therapy group exhibited the most favorable liver function outcomes (all P < 0.05). See Table 4.
Table 4.
Comparison of liver function indicators
| TACE + immunotherapy + targeted therapy group (n=48) | TACE + immunotherapy group (n=48) | TACE group (n=48) | F | P | ||
|---|---|---|---|---|---|---|
| ALT (U/L) | Before treatment | 98.27±15.44 | 97.79±14.38 | 97.49±17.23 | 0.030 | 0.970 |
| After treatment | 41.04±10.19*,a,b | 58.33±9.21*,a | 64.67±8.25 | 83.905 | < 0.001 | |
| AST (U/L) | Before treatment | 58.79±9.23 | 59.22±11.49 | 58.59±10.21 | 0.046 | 0.955 |
| After treatment | 40.56±7.27*,a,b | 43.45±6.31*,a | 48.90±6.28 | 19.737 | < 0.001 | |
| ALB (g/L) | Before treatment | 28.37±4.55 | 27.91±5.12 | 28.56±6.18 | 0.189 | 0.828 |
| After treatment | 36.02±4.24*,a,b | 32.46±4.83*,a | 30.43±3.12 | 22.590 | < 0.001 | |
| TBIL (μmol/L) | Before treatment | 68.83±12.35 | 69.07±15.12 | 68.42±11.46 | 0.030 | 0.970 |
| After treatment | 45.42±7.11*,a,b | 53.68±9.27*,a | 58.90±7.29 | 35.082 | < 0.001 |
Note: Compared with before treatment within the group;
P < 0.05.
Compared to TACE group;
P < 0.05.
Compared to TACE + immunotherapy group;
P < 0.05.
ALT: alanine aminotransferase; AST: aspartate aminotransferase; ALB: albumin; TBIL: total bilirubin; TACE: transcatheter arterial chemoembolization.
Comparison of Th1/Th2-related cytokines and angiogenesis-related factors
At baseline, there were no significant differences among the groups (all P > 0.05). Post-treatment, IL-4 and IL-6 levels increased, while IL-2, TNF-α, PDGF, bFGF, VEGF, and VEGFR levels decreased (all P < 0.001). The TACE + immunotherapy + targeted therapy group demonstrated significantly better cytokine and angiogenesis factor profiles than the other groups (all P < 0.001). See Table 5.
Table 5.
Comparison of Th1/Th2 related cytokines and angiogenesis-related indicators
| TACE + immunotherapy + targeted therapy group (n=48) | TACE + immunotherapy group (n=48) | TACE group (n=48) | F | P | ||
|---|---|---|---|---|---|---|
| IL-2 (ng/L) | Before treatment | 26.88±3.37 | 27.04±4.21 | 26.71±5.04 | 0.072 | 0.931 |
| After treatment | 14.52±3.06*,a,b | 18.27±3.25*,a | 22.31±4.08 | 59.762 | < 0.001 | |
| TNF-α (ng/L) | Before treatment | 35.41±4.03 | 34.97±5.22 | 34.78±5.16 | 0.214 | 0.807 |
| After treatment | 20.55±4.17*,a,b | 25.16±3.94*,a | 28.11±4.14 | 41.768 | < 0.001 | |
| IL-4 (ng/L) | Before treatment | 32.38±5.13 | 31.86±6.05 | 32.15±7.32 | 0.084 | 0.920 |
| After treatment | 54.24±6.19*,a,b | 43.87±6.56*,a | 38.24±6.42 | 77.392 | < 0.001 | |
| IL-6 (ng/L) | Before treatment | 19.68±3.35 | 20.11±4.13 | 19.82±4.93 | 0.132 | 0.877 |
| After treatment | 13.02±2.29*,a,b | 15.83±3.17*,a | 17.24±3.09 | 26.755 | < 0.001 | |
| PDGF (μg/L) | Before treatment | 2.11±0.24 | 2.19±0.31 | 2.28±0.49 | 2.645 | 0.075 |
| After treatment | 1.16±0.25*,a,b | 1.54±0.28*,a | 1.85±0.21 | 92.964 | < 0.001 | |
| bFGF (ng/L) | Before treatment | 155.27±23.04 | 160.12±34.91 | 158.94±30.17 | 0.346 | 0.708 |
| After treatment | 115.37±14.29*,a,b | 127.42±12.98*,a | 135.95±11.45 | 30.561 | < 0.001 | |
| VEGF (ng/L) | Before treatment | 452.49±37.50 | 446.72±49.74 | 453.10±51.33 | 0.274 | 0.761 |
| After treatment | 374.01±24.45*,a,b | 407.63±27.85*,a | 424.19±23.51 | 48.476 | < 0.001 | |
| VEGFR (ng/L) | Before treatment | 7287.19±354.21 | 7308.41±421.07 | 7314.69±445.38 | 0.060 | 0.942 |
| After treatment | 5832.34±219.24*,a,b | 6345.61±247.72*,a | 6541.18±223.64 | 121.041 | < 0.001 |
Note: Compared with before treatment within the group;
P < 0.05.
Compared to TACE group;
P < 0.05.
Compared to TACE + immunotherapy group;
P < 0.05.
IL: interleukin; TNF-α: tumor necrosis factor-alpha; TACE: transcatheter arterial chemoembolization; bFGF: basic fibroblast growth factor; VEGF: vascular endothelial growth factor; VEGFR: vascular endothelial growth factor receptor; PDGF: platelet-derived growth factor.
Comparison of tumor marker levels
There were no significant differences in CEA, AFP, CA199, and CA125 levels before treatment (all P > 0.05). After treatment, all groups showed reductions in these tumor markers (all P < 0.001). The TACE + immunotherapy + targeted therapy group had the most significant decrease in tumor marker levels (all P < 0.001). See Table 6.
Table 6.
Comparison of tumor marker levels
| Group | CEA (μg/L) | AFP (μg/L) | CA199 (U/L) | CA125 (U/L) | ||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|||||
| Before treatment | After treatment | Before treatment | After treatment | Before treatment | After treatment | Before treatment | After treatment | |
| TACE + immunotherapy + targeted therapy group (n=48) | 95.33±14.68 | 24.16±7.73*,a,b | 334.58±42.19 | 101.48±17.29*,a,b | 181.09±21.34 | 42.36±10.27*,a,b | 78.43±13.42 | 35.29±9.93*,a,b |
| TACE + immunotherapy group (n=48) | 96.01±15.24 | 30.22±8.51*,a | 328.64±43.17 | 130.42±22.31*,a | 178.44±29.36 | 61.19±12.38*,a | 80.21±15.12 | 42.16±10.21*,a |
| TACE group (n=48) | 95.20±12.47 | 53.99±10.24 | 330.18±49.22 | 178.93±25.97 | 177.26±30.14 | 112.36±24.29 | 80.34±16.77 | 61.04±12.56 |
| F | 0.045 | 151.025 | 0.226 | 149.914 | 0.249 | 222.624 | 0.238 | 70.995 |
| P | 0.956 | < 0.001 | 0.798 | < 0.001 | 0.780 | < 0.001 | 0.789 | < 0.001 |
Note: Compared with before treatment within the group;
P < 0.05.
Compared to TACE group;
P < 0.05.
Compared to TACE + immunotherapy group;
P < 0.05.
CEA: carcinoembryonic antigen; AFP: alpha-fetoprotein; CA: carbohydrate antigen; TACE: transcatheter arterial chemoembolization.
Comparison of adverse reaction incidence
TACE + immunotherapy + targeted therapy group: 7 cases of gastrointestinal discomfort, 4 cases of fatigue, 1 case of hand-foot syndrome (25% incidence). TACE + immunotherapy group: 7 cases of gastrointestinal discomfort, 5 cases of fatigue, 4 cases of hand-foot syndrome (33.33% incidence). TACE group: 10 cases of gastrointestinal discomfort, 5 cases of hand-foot syndrome, 3 cases of fatigue (37.50% incidence). There was no statistically significant difference in the incidence of adverse reactions among the groups (P=0.961). See Table 7.
Table 7.
Comparison of incidence of adverse reactions
| Group | Grade 1 (n) | Grade 2 (n) | Grade 3 (n) | Grade 4 (n) | Total incidence (%) |
|---|---|---|---|---|---|
| TACE + immunotherapy + targeted therapy group (n=48) | 7 | 3 | 2 | 0 | 25 |
| TACE + immunotherapy group (n=48) | 9 | 4 | 2 | 1 | 33.33 |
| TACE group (n=48) | 10 | 4 | 3 | 1 | 37.50 |
| U | 0.080 | ||||
| P | 0.961 |
Note: TACE: transcatheter arterial chemoembolization.
Comparison of progression-free survival and overall survival
At follow-up, the TACE + immunotherapy + targeted therapy group had 31 patients remaining progression-free, with a progression-free survival rate of 64.60% and a median progression-free survival time of 18.90 (17.72, 20.08) months. The TACE + immunotherapy group had 26 progression-free patients, with a rate of 54.20% and a time of 15.61 (14.35, 16.88) months. The TACE group had 13 progression-free patients, with a rate of 27.10% and a time of 15.13 (14.04, 16.22) months. These differences were statistically significant (Log Rank =13.753, P=0.001; Figure 1A).

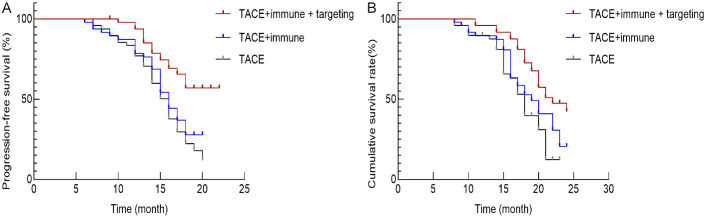

Figure 1.
Kaplan-Meier curve among groups. A: Comparison of progression-free survival; B: Comparison of overall survival.
Regarding overall survival, 25 patients in the TACE + immunotherapy + targeted therapy group remained alive at the time of study, with a cumulative survival rate of 52.10% and a median survival time of 20.83 (19.73, 21.93) months. In the TACE + immunotherapy group, 21 patients survived, with a survival rate of 43.80% and a time of 18.79 (17.43, 20.15) months. The TACE group had 17 surviving patients, with a rate of 35.40% and a time of 17.46 (16.26, 18.65) months. These differences were also statistically significant (Log Rank =12.314, P=0.002; Figure 1B).
Discussion
Liver cancer typically presents with an insidious onset, leading to late-stage diagnoses in most patients. Fewer than 30% of patients are eligible for surgical intervention, and even among those, the postoperative recurrence rate remains high. Thus, enhancing the survival and prognosis of advanced liver cancer patients is a critical clinical challenge.
TACE offers several benefits, including minimal invasiveness and a favorable safety profile. It effectively controls tumor progression and prolongs survival, establishing itself as a primary treatment for advanced liver cancer. However, studies indicate that TACE may reduce chemotherapy sensitivity, limiting its efficacy in eradicating residual tumor cells around the lesion. Additionally, TACE can induce tumor cell ischemia and hypoxia, triggering the secretion of VEGF-related factors, which promotes tumor angiogenesis and recurrence, complicating treatment [19-21]. Therefore, combining TACE with other therapies is often necessary to achieve improved therapeutic outcomes.
In recent years, immunotherapy, particularly the blockade of the PD-1/PD-L1 pathway, has shown promise in inhibiting tumor progression [22]. Camrelizumab, a PD-1 inhibitor developed in China, enhances T lymphocyte function and has been proposed as a first-line treatment for liver cancer [23]. Previous studies reported a short-term efficacy rate of 56.9% and a survival rate of 64.3% for camrelizumab in combination with TACE for intermediate to advanced liver cancer [24]. In this study, the short-term efficacy was 56.25% and the survival rate was 43.80%. The discrepancies may result from differences in patient populations, disease severity, and treatment regimens across studies.
Targeted therapies inhibit tumor cell proliferation and angiogenesis. Clinical guidelines recommend lenvatinib, sorafenib, and donafenib as first-line treatments for advanced liver cancer. Lenvatinib, in particular, effectively suppresses microvascular regeneration following TACE. A retrospective study involving 61 advanced liver cancer patients demonstrated that lenvatinib provided significant clinical benefits with a favorable safety profile [25]. However, some studies have reported acquired resistance to lenvatinib within six months of treatment, leading to poor long-term outcomes [26]. This resistance likely arises because while most tumor cells are eliminated by lenvatinib, surviving cells adapt to the drug, fostering potential tumor recurrence and metastasis. Thus, combining lenvatinib with other therapies is necessary to achieve sustained clinical benefits.
In tumor tissues, the blood vessels differ structurally and functionally from normal vessels. Anti-angiogenic therapies can remodel the tumor microenvironment. Since angiogenesis is closely linked to immune regulation, targeted therapies not only inhibit tumor cell proliferation and neovascularization but also modulate the immune landscape of the tumor microenvironment. By combining PD-1/PD-L1 pathway inhibition with VEGF inhibitors, these therapies can reduce immune suppression and improve the efficacy of immunotherapy [27,28]. Previous studies have shown that combining lenvatinib with camrelizumab offers high therapeutic efficacy and safety in patients undergoing TACE [29].
This study found that patients receiving TACE combined with lenvatinib and camrelizumab had significantly higher objective response and disease control rates than those receiving TACE alone or TACE with camrelizumab. The disease control rate reached 77.06%, indicating that combining immunotherapy with targeted therapy enhances tumor control and achieves better short-term survival outcomes. Additionally, the combination therapy group exhibited improved liver function and lower tumor marker levels, further supporting these findings.
Angiogenesis-related factors, including PDGF, bFGF, VEGF, and VEGFR, supply nutrients to tumors, promoting tumor proliferation and differentiation [30]. This study showed that combining TACE with lenvatinib and camrelizumab significantly reduced these factors’ levels, demonstrating strong anti-angiogenic effects.
T lymphocyte levels are critical in tumor progression. Previous studies indicated that camrelizumab could boost T lymphocyte activity, exerting a potent anti-tumor effect [31]. This study expanded on these findings by demonstrating that combined immunotherapy and targeted therapy not only increased T lymphocyte subpopulation levels but also improved Th1/Th2-related cytokine profiles. These immune enhancements were significantly greater than those observed in the TACE or TACE + camrelizumab groups, highlighting the immune-boosting potential of the combination therapy.
Patients receiving combined immunotherapy and targeted therapy showed significantly improved progression-free survival and overall survival compared to those treated with TACE alone or TACE + camrelizumab. Importantly, no Grade 4 or higher adverse reactions occurred in the combination therapy group. Adverse reactions were generally mild and resolved with symptomatic treatment, underscoring the safety of this therapeutic strategy.
This study has several limitations: The study’s single-center approach and small sample size may introduce bias. The clinical effects of TACE combined with immunotherapy and targeted therapy on different liver cancer types were not evaluated, necessitating further research to obtain more accurate efficacy data.
In conclusion, the combination of immunotherapy, targeted therapy, and TACE demonstrates significant advantages in treating advanced liver cancer, including better tumor control, enhanced survival outcomes, improved liver function, reduced tumor marker levels, strengthened immune function, and a strong safety profile. These findings provide valuable insights for clinical practice and warrant broader clinical application.
Disclosure of conflict of interest
None.
References
- 1.Chi Y, Gong Z, Xin H, Wang Z, Liu Z. Long noncoding RNA lncARSR promotes nonalcoholic fatty liver disease and hepatocellular carcinoma by promoting YAP1 and activating the IRS2/AKT pathway. J Transl Med. 2020;18:126. doi: 10.1186/s12967-020-02225-y. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 2.Chandra V. Immunomodulating effects of transarterial embolization. Radiol Imaging Cancer. 2022;4:e229012. doi: 10.1148/rycan.229012. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 3.Liu L, Qin S, Zhang Y. The evolving landscape of checkpoint inhibitor combination therapy in the treatment of advanced hepatocellular carcinoma. Target Oncol. 2021;16:153–163. doi: 10.1007/s11523-020-00787-x. [DOI] [PubMed] [Google Scholar]
- 4.Xiao LS, Hu CY, Cui H, Li RN, Hong C, Li QM, Huang CY, Dong ZY, Zhu HB, Liu L. Splenomegaly in predicting the survival of patients with advanced primary liver cancer treated with immune checkpoint inhibitors. Cancer Med. 2022;11:4880–4888. doi: 10.1002/cam4.4818. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 5.Finn RS, Ikeda M, Zhu AX, Sung MW, Baron AD, Kudo M, Okusaka T, Kobayashi M, Kumada H, Kaneko S, Pracht M, Mamontov K, Meyer T, Kubota T, Dutcus CE, Saito K, Siegel AB, Dubrovsky L, Mody K, Llovet JM. Phase Ib study of lenvatinib plus pembrolizumab in patients with unresectable hepatocellular carcinoma. J. Clin. Oncol. 2020;38:2960–2970. doi: 10.1200/JCO.20.00808. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 6.Zheng R, Zhang S, Zeng H, Wang S, Sun K, Chen R, Li L, Wei W, He J. Cancer incidence and mortality in China, 2016. J Natl Cancer Cent. 2022;2:1–9. doi: 10.1016/j.jncc.2022.02.002. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 7.Qiu G, Xie K, Jin Z, Jiang C, Liu H, Wan H, Huang J. The multidisciplinary management of hepatocellular carcinoma with portal vein tumor thrombus. Biosci Trends. 2021;15:148–154. doi: 10.5582/bst.2021.01173. [DOI] [PubMed] [Google Scholar]
- 8.Mi S, Nie Y, Xie C. Efficacy and safety of preoperative transarterial chemoembolization for hepatocellular carcinoma: a systematic review and meta-analysis. Scand J Gastroenterol. 2022;57:1070–1079. doi: 10.1080/00365521.2022.2057198. [DOI] [PubMed] [Google Scholar]
- 9.Mo A, Zhang Q, Xia F, Huang Z, Peng S, Cao W, Mei H, Ren L, Su Y, Gao H, Chen W. Preoperative transcatheter arterial chemoembolization and prognosis of patients with solitary large hepatocellular carcinomas (≥5 cm): multicenter retrospective study. Cancer Med. 2023;12:7734–7747. doi: 10.1002/cam4.5529. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 10.Li S, Zhao M. Authors’ reply to “Re: hepatic artery infusion chemotherapy using fluorouracil, leucovorin, and oxaliplatin versus transarterial chemoembolization as initial treatment for locally advanced hepatocellular carcinoma: a propensity score-matching analysis”. J Vasc Interv Radiol. 2022;33:461. doi: 10.1016/j.jvir.2021.12.023. [DOI] [PubMed] [Google Scholar]
- 11.Mei J, Tang YH, Wei W, Shi M, Zheng L, Li SH, Guo RP. Hepatic arterial infusion chemotherapy combined with PD-1 inhibitors plus lenvatinib versus PD-1 inhibitors plus lenvatinib for advanced hepatocellular carcinoma. Front Oncol. 2021;11:618206. doi: 10.3389/fonc.2021.618206. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 12.Hu B, Yu M, Ma X, Sun J, Liu C, Wang C, Wu S, Fu P, Yang Z, He Y, Zhu Y, Huang C, Yang X, Shi Y, Qiu S, Sun H, Zhu AX, Zhou J, Xu Y, Zhu D, Fan J. IFNα potentiates anti-PD-1 efficacy by remodeling glucose metabolism in the hepatocellular carcinoma microenvironment. Cancer Discov. 2022;12:1718–1741. doi: 10.1158/2159-8290.CD-21-1022. [DOI] [PubMed] [Google Scholar]
- 13.Yang Y, Wang C, Sun H, Jiang Z, Zhang Y, Pan Z. Apatinib prevents natural killer cell dysfunction to enhance the efficacy of anti-PD-1 immunotherapy in hepatocellular carcinoma. Cancer Gene Ther. 2021;28:89–97. doi: 10.1038/s41417-020-0186-7. [DOI] [PubMed] [Google Scholar]
- 14.Zhao Y, Zhang YN, Wang KT, Chen L. Lenvatinib for hepatocellular carcinoma: from preclinical mechanisms to anti-cancer therapy. Biochim Biophys Acta Rev Cancer. 2020;1874:188391. doi: 10.1016/j.bbcan.2020.188391. [DOI] [PubMed] [Google Scholar]
- 15.Chinese Society of Clinical Oncology Guideline Working Committee. Guidelines for the Diagnosis and Treatment of Primary Hepatocellular Carcinoma (CSCO 2020) Beijing: People’s Medical Publishing House; 2020. [Google Scholar]
- 16.Medical Administration Bureau of the National Health Commission of the People’s Republic of China. Standards for the diagnosis and treatment of primary hepatocellular carcinoma (2017 Edition) Chinese J Pract Surg. 2017;37:705–720. [Google Scholar]
- 17.Yang XN, Wu YL. Response evaluation criteria in solid tumors-RECIST. Evid Based Med. 2004;4:85–90. 111. [Google Scholar]
- 18.Freites-Martinez A, Santana N, Arias-Santiago S, Viera A. Using the common terminology criteria for adverse events (CTCAE - Version 5.0) to evaluate the severity of side effects of antineoplastic treatments. Actas Dermo-Sifiliográficas. 2020;112:90–92. doi: 10.1016/j.ad.2019.05.009. [DOI] [PubMed] [Google Scholar]
- 19.Sun M, Shang P, Bai J, Li S, Li M. High-intensity focused ultrasound ablation combined with transcatheter arterial chemoembolization improves long-term efficacy and prognosis of primary liver cancer. J Clin Lab Anal. 2021;35:e23633. doi: 10.1002/jcla.23633. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 20.Li N, Yang P, Fang J. Transarterial chemoembolization (TACE) plus apatinib vs. TACE alone for hepatocellular carcinoma. Clin Res Hepatol Gastroenterol. 2022;46:102022. doi: 10.1016/j.clinre.2022.102022. [DOI] [PubMed] [Google Scholar]
- 21.Tada T, Kumada T, Hiraoka A, Hirooka M, Kariyama K, Tani J, Atsukawa M, Takaguchi K, Itobayashi E, Fukunishi S, Tsuji K, Ishikawa T, Tajiri K, Ochi H, Yasuda S, Toyoda H, Ogawa C, Nishimura T, Hatanaka T, Kakizaki S, Shimada N, Kawata K, Tanaka T, Ohama H, Nouso K, Morishita A, Tsutsui A, Nagano T, Itokawa N, Okubo T, Arai T, Imai M, Naganuma A, Koizumi Y, Nakamura S, Joko K, Iijima H, Hiasa Y Real-life Practice Experts for HCC (RELPEC) Study Group and the Hepatocellular Carcinoma Experts from 48 clinics in Japan (HCC 48) Group. Safety and efficacy of atezolizumab plus bevacizumab in elderly patients with hepatocellular carcinoma: a multicenter analysis. Cancer Med. 2022;11:3796–3808. doi: 10.1002/cam4.4763. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22.Chui NN, Cheu JW, Yuen VW, Chiu DK, Goh CC, Lee D, Zhang MS, Ng IO, Wong CC. Inhibition of CMTM4 sensitizes cholangiocarcinoma and hepatocellular carcinoma to T cell-mediated antitumor immunity through PD-L1. Hepatol Commun. 2022;6:178–193. doi: 10.1002/hep4.1682. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 23.Zhang X, Wang J, Shi J, Jia X, Dang S, Wang W. Cost-effectiveness of atezolizumab plus bevacizumab vs sorafenib for patients with unresectable or metastatic hepatocellular carcinoma. JAMA Netw Open. 2021;4:e214846. doi: 10.1001/jamanetworkopen.2021.4846. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24.Du SY, Weng L, Wu M. Clinical efficacy of TACE combined with camrelizumab in the treatment of patients with intermediate and advanced primary hepatocellular carcinoma. J Pract Hepatol. 2023;26:116–119. [Google Scholar]
- 25.Chuma M, Uojima H, Hiraoka A, Kobayashi S, Toyoda H, Tada T, Hidaka H, Iwabuchi S, Numata K, Itobayashi E, Itokawa N, Kariyama K, Ohama H, Hattori N, Hirose S, Shibata H, Tani J, Imai M, Tajiri K, Moriya S, Wada N, Iwasaki S, Fukushima T, Ueno M, Yasuda S, Atsukawa M, Nouso K, Fukunishi S, Watanabe T, Ishikawa T, Nakamura S, Morimoto M, Kagawa T, Sakamoto M, Kumada T, Maeda S. Analysis of efficacy of lenvatinib treatment in highly advanced hepatocellular carcinoma with tumor thrombus in the main trunk of the portal vein or tumor with more than 50% liver occupation: a multicenter analysis. Hepatol Res. 2021;51:201–215. doi: 10.1111/hepr.13592. [DOI] [PubMed] [Google Scholar]
- 26.Xu W, Wu FL, Chen SB, Zhang Y, Li Y, Wang J, Liu Y, Zhang Y, Zhang Y, Li Y, Zhang H. The effect of oxaliplatin, tegeol chemotherapy combined with ranvartinib in the treatment of elderly patients with advanced liver cancer and its influence on serum tumor markers. Chin J Gerontol. 2022;42:563–565. [Google Scholar]
- 27.Finn RS, Qin S, Ikeda M, Galle PR, Ducreux M, Kim TY, Kudo M, Breder V, Merle P, Kaseb AO, Li D, Verret W, Xu DZ, Hernandez S, Liu J, Huang C, Mulla S, Wang Y, Lim HY, Zhu AX, Cheng AL IMbrave150 Investigators. Atezolizumab plus bevacizumab in unresectable hepatocellular carcinoma. N Engl J Med. 2020;382:1894–1905. doi: 10.1056/NEJMoa1915745. [DOI] [PubMed] [Google Scholar]
- 28.Rizzo A, Dadduzio V, Ricci AD, Massari F, Di Federico A, Gadaleta-Caldarola G, Brandi G. Lenvatinib plus pembrolizumab: the next frontier for the treatment of hepatocellular carcinoma? Expert Opin Investig Drugs. 2022;31:371–378. doi: 10.1080/13543784.2021.1948532. [DOI] [PubMed] [Google Scholar]
- 29.Ren Z, Xu J, Bai Y, Xu A, Cang S, Du C, Li Q, Lu Y, Chen Y, Guo Y, Chen Z, Liu B, Jia W, Wu J, Wang J, Shao G, Zhang B, Shan Y, Meng Z, Wu J, Gu S, Yang W, Liu C, Shi X, Gao Z, Yin T, Cui J, Huang M, Xing B, Mao Y, Teng G, Qin Y, Wang J, Xia F, Yin G, Yang Y, Chen M, Wang Y, Zhou H, Fan J ORIENT-32 study group. Sintilimab plus a bevacizumab biosimilar (IBI305) versus sorafenib in unresectable hepatocellular carcinoma (ORIENT-32): a randomiSed, open-label, phase 2-3 study. Lancet Oncol. 2021;22:977–990. doi: 10.1016/S1470-2045(21)00252-7. [DOI] [PubMed] [Google Scholar]
- 30.Llovet JM, Villanueva A, Marrero JA, Schwartz M, Meyer T, Galle PR, Lencioni R, Greten TF, Kudo M, Mandrekar SJ, Zhu AX, Finn RS, Roberts LR AASLD Panel of Experts on Trial Design in HCC. Trial design and endpoints in hepatocellular carcinoma: AASLD consensus conference. Hepatology. 2021;73(Suppl 1):158–191. doi: 10.1002/hep.31327. [DOI] [PubMed] [Google Scholar]
- 31.Zuo YF, Chen XL, Wu SF, Zhang Y, Li Y, Wang J, Liu Y, Zhang Y, Zhang Y, Li Y, Zhang H. Efficacy of camrelizumab-assisted transarterial chemoembolization in the treatment of primary hepatocellular carcinoma and its influence on t lymphocyte subsets and tumor marker levels. J Clin Pharm Ther. 2024;22:56–60. [Google Scholar]
