Spatial domain detection using contrastive self-supervised learning for spatial multi-omics technologies

Abstract

Recent advances in spatially resolved single-omic and multi-omics technologies have led to the emergence of computational tools to detect and predict spatial domains. Additionally, histological images and immunofluorescence (IF) staining of proteins and cell types provide multiple perspectives and a more complete understanding of tissue architecture. Here, we introduce Proust, a scalable tool to predict discrete domains using spatial multi-omics data by combining the low-dimensional representation of biological profiles based on graph-based contrastive self-supervised learning. Our scalable method integrates multiple data modalities, such as RNA, protein, and H&E images, and predicts spatial domains within tissue samples. Through the integration of multiple modalities, Proust consistently demonstrates enhanced accuracy in detecting spatial domains, as evidenced across various benchmark data sets and technological platforms.

Spatially resolved multi-omics technologies enable the profiling of multiple omic measurements, such as the transcriptome and proteome, in individual tissue sections, leading to an improved understanding of regulatory mechanisms along spatial coordinates (Liu et al. 2020; Nature 2021; Li 2023; Zhang et al. 2023). These spatial technologies have already revolutionized our understanding of human tissue architecture and the impact on tissue architecture from disease (Asp et al. 2019; Maniatis et al. 2019; Chen et al. 2020; Ji et al. 2020). Examples of these types of multi-omics technologies include measuring RNA and protein (DBiT-seq [Liu et al. 2020] or the 10x Genomics Visium Spatial Proteogenomics [SPG] [https://www.10xgenomics.com/products/spatial-gene-and-protein-expression] platform). In addition, the standard 10x Genomics Visium platform (https://www.10xgenomics.com/products/spatial-gene-expression) could also be viewed as a multi-omics technology through the integration of transcriptome data with a paired brightfield image after the tissues are stained with hematoxylin and eosin (H&E).

A standard step in the analysis of spatial multi-omics data is to identify discrete spatial domains. These domains can be further investigated for potential markers of tissue architecture corresponding to morphology (Maynard et al. 2021) or unique niche-specific domains that might appear in complex diseases, such as cancer (Denisenko et al. 2024). However, similar to single-cell data, it remains challenging to leverage supervised learning approaches to predict discrete spatial domains because of cell segmentation. Therefore, most existing tools used in practice today identify discrete spatial domains with either unsupervised or self-supervised learning approaches (Hu et al. 2021b; Li et al. 2022b; Zeng et al. 2022; Long et al. 2023).

To identify discrete spatial domains from spatial multi-omics data, one approach is to ignore the spatial information entirely, consider only one of the omic data modalities (e.g., RNA), and apply unsupervised clustering methods used for single-cell, such as k-means (Lloyd 1982), and Louvain and Leiden (Traag et al. 2019) algorithms. However, these approaches assume independence between the spatial coordinates and often lead to discontinuous or incoherent spatial domains (Maynard et al. 2021). A second approach is to continue with only one omic data modality but to incorporate spatial information to account for the correlation of molecular information between the spatial coordinates. Some examples of these methods include (i) unsupervised learning approaches (BayesSpace [Zhao et al. 2021], Giotto [Dries et al. 2021], STAGATE [Dong and Zhang 2022], CCST [Li et al. 2022a]) and (ii) self-supervised learning approaches (GraphST [Long et al. 2023], SpaceFlow [Ren et al. 2022], ConGI [Zeng et al. 2023], CAST [Tang et al. 2024]). In particular, the methods using contrastive self-supervised learning aim to maximize the similarity between adjacent spatial coordinates and dissimilarity between nonadjacent spatial coordinates, while also showing great promise in their ability to detect discrete spatial domains using only one data modality. A third set of tools aims to leverage more than one omic data modality, while also leveraging the spatial coordinates. SpaGCN (Hu et al. 2021a) combines gene expression, spatial information, and histology image for spatial clustering using a graph convolutional neural network. However, this tool is designed to work only with hematoxylin and eosin images. In this work, we aimed to address these limitations.

Inspired by the graph-based autoencoder and contrastive self-supervised learning frameworks for single-omic data, here, we introduce Proust, a computationally scalable algorithm using contrastive self-supervised learning to predict discrete domains specifically designed spatial multi-omics data. We introduce an overview of the algorithm and compare the performance of our method to existing domain detection algorithms. By combining the lower-dimensional representation of multi-omic features that aggregate local tissue context through graph-based autoencoders, Proust identifies more biologically accurate and coherent tissue structures compared to existing state-of-the-art methods. In addition, we demonstrate how Proust can be used to detect discrete spatial domains in spatial tissue sections. Finally, we show how our method is computationally efficient and scalable in terms of memory and time, and we provide open-source software implemented in Python.

Results

Overview of Proust to detect spatial domains integrating multiple data modalities

Proust is a graph-based contrastive self-supervised learning framework to predict discrete spatial domains using spatial multi-omics data. For the purposes of clarity, we describe how Proust can detect spatial domains with two omic data modalities (RNA and proteins) (Fig. 1). However, these ideas can be generalized to other types of multi-omics, for which we give examples of using RNA and brightfield images. Considering RNA and protein, Proust takes as input gene expression counts, multi-channel immunofluorescence (IF) images, and spot-level spatial position. The first step involves constructing a neighborhood graph structure based on the relative distance between spots. Next, graph-based convolutional autoencoders are trained separately for gene expression and extracted image features, aggregating genomic and protein information from neighboring locations. Furthermore, the framework uses contrastive self-supervised learning (Supplemental Fig. S1) to refine the latent embedding that maximizes similarities between adjacent spots while minimizing those between nonadjacent spots. The reconstructed gene expression and image features obtained from the graph-based decoder are used to extract the top principal components (PCs), which are used in conjunction with a model-based clustering algorithm, mclust (Scrucca et al. 2016), to identify spatial domains.

Figure 1.

Overview of Proust for detecting discrete domains using spatial multi-omics data. For the purposes of clarity, we introduce Proust with two specific omic data modalities—RNA and protein—but these ideas can be generalized to other multi-omics, such as RNA and brightfield images. First, Proust constructs a graph structure based on the Euclidean distance between spatial coordinates. Next, graph-based convolutional autoencoders are trained separately for gene expression and protein information extracted from an immunofluorescence (IF) image. The latent embeddings are refined using contrastive self-supervised learning (CSL). The top principal components (PCs) from the reconstructed gene and image features are concatenated to create a hybrid profile for downstream clustering analysis.

Proust increases accuracy of spatial domain and marker gene detection

Proust was first applied to a CK-p25 mouse coronal brain tissue data set (Welch et al. 2022), measured on the 10x Genomics Visium Spatial Proteogenomics platform (Fig. 2A). This data set includes transcriptome-wide gene expression and an immunofluorescence image measuring γH2AX, a protein involved in DNA repair. The resulting predicted spatial domains from Proust were compared to other methods—GraphST, SpaGCN, and STAGATE—that employ graph convolutional neural networks (Supplemental Fig. S2). In one of the CK-p25 mouse brain tissue replicates, Proust identified spatial domains 12, 15, 19, and 18, corresponding to well-known mouse hippocampus (HPC) subfields, including CA1, CA2&3, dentate gyrus, and other HPC subfields, respectively, as per the Allen Brain Atlas (https://mouse.brain-map.org/static/atlas). Additional analysis showed that Proust consistently detected similar hippocampal subfields despite minor adjustments in the predefined number of clusters (Supplemental Fig. S3). Proust's latent embeddings showed distinct HPC regions that were well separated from other brain regions (Fig. 2B). On the other hand, the compared methods did not detect these finer granularity subfields in the HPC, instead only identifying the HPC broadly (Fig. 2C). As noted in the original paper, γH2AX is associated with the enrichment of reactive microglia (RM) (Welch et al. 2022). To evaluate the expression of marker genes within the spatial domains identified by Proust, we conducted a subregional analysis. This analysis revealed expression levels of reactive microglia marker genes, including cystatin Cst7, major histocompatibility complex (MHC) class I gene H2-D1, galectin gene Lgals3bp, and lipase Lpl in identified domains (Fig. 2D; Supplemental Fig. S4). These genes showed increased expression within the HPC subregions detected by Proust, aligning with areas of γH2AX⁺ capture, which suggests that Proust's ability to integrate gene expression data with protein information supports the identification of more refined spatial structures. By incorporating the additional protein channel, Proust demonstrates its capacity to reveal spatially resolved gene expression patterns that correspond with known subfields in the hippocampus, such as the dentate gyrus and CA regions.

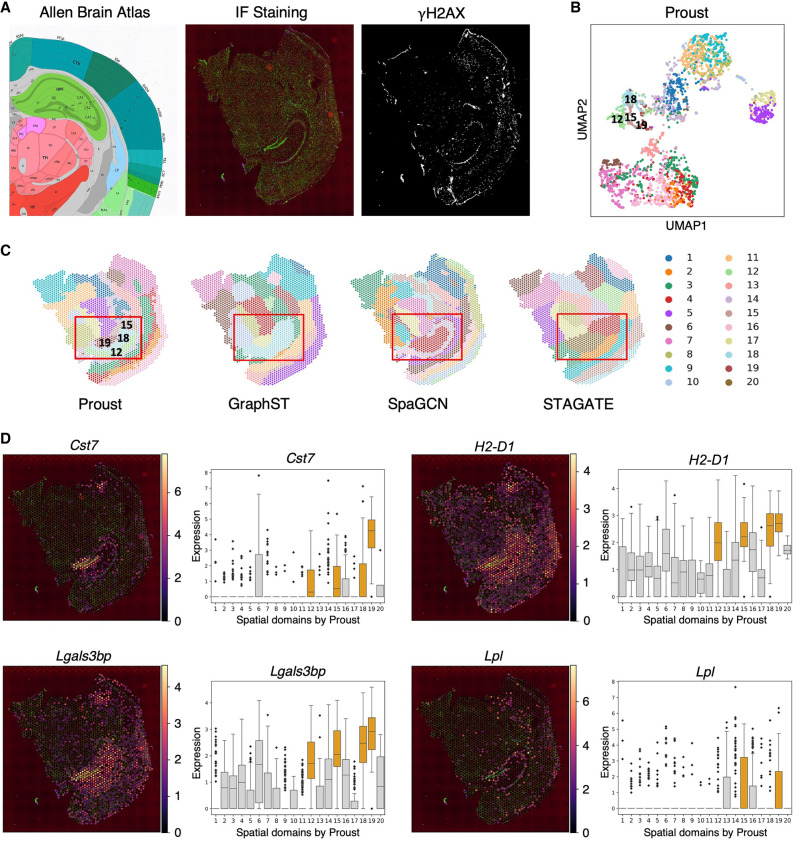

Figure 2.

Proust improves the detection of hippocampal spatial domains in CK-p25 mouse coronal brain tissue by integrating gene expression with proteins of interest. (A) From left to right: annotation of mouse hippocampus subfields from the Allen Reference Brain Atlas; merged DAPI and γH2AX immunofluorescence images; and IF staining of γH2AX. (B) UMAP representation of spots colored by spatial domains detected by mclust using Proust's latent embeddings. (C) Predicted spatial domains by Proust, GraphST (Long et al. 2023), SpaGCN (Hu et al. 2021a), and STAGATE (Dong and Zhang 2022) with k = 20 domains. (D) Spatial expression level of four RM marker genes across the entire tissue slice and box plots of corresponding marker genes stratified by k = 20 domains identified by Proust. Hippocampal subregions are depicted in orange; other regions are depicted in gray.

Next, to evaluate the performance of the spatial domains detected by Proust, we used four Visium SPG human dorsolateral prefrontal cortex (DLPFC) brain tissue slices obtained from neurotypical donors (Huuki-Myers et al. 2024), each with paired multiplexed IF images stained for nuclei and four cell types (Fig. 3A; Supplemental Fig. S5). The four tissue sections included manually annotated spatial domains for white matter (WM) along with six morphological domains (Layers 1–6 or L1–6). Using the Adjusted Rand Index (ARI) as a performance measure, we compared the similarity of these manual annotations to the predicted spatial domains. We evaluated the performance of Proust along with five existing clustering methods that are commonly used for spatial domain detection, namely GraphST (Long et al. 2023), SpaGCN (Hu et al. 2021a), STAGATE (Dong and Zhang 2022), BayesSpace (Zhao et al. 2021), and k-means (Lloyd 1982).

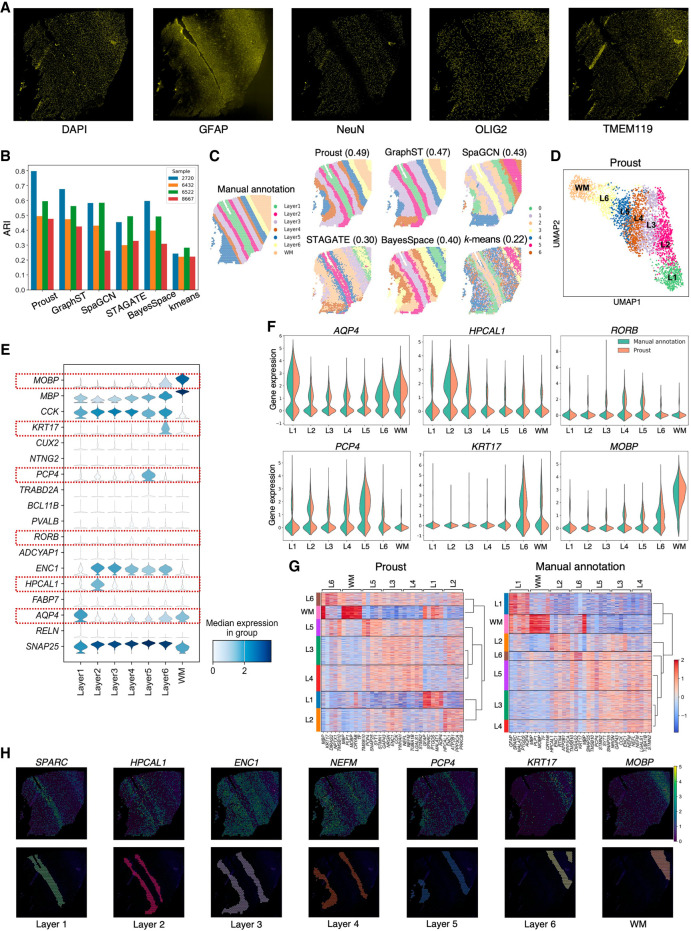

Figure 3.

Proust improves the accuracy of predicting spatial domains compared to existing methods. Data from sample Br6432 from Visium SPG human DLPFC data set (Huuki-Myers et al. 2024), unless noted otherwise. (A) Immunofluorescence images of five protein channels: nuclei (DAPI), neurons (RBFOX3 [also known as NeuN]), oligodendrocytes (OLIG2), astrocytes (GFAP), and microglia (TMEM119). (B) Box plot of Adjusted Rand Index (ARI) across four samples. (C) Manual annotation of tissue slice from donor Br6432 and predicted spatial domains by the six methods. Labels do not indicate corresponding biological layers assigned by the algorithms. (D) UMAP visualization of spots from donor Br6432 colored by Proust predictions. (E) Stacked violin plot of marker gene distribution for white matter and sublayers of gray matter based on literature in each spatial domain assigned by Proust. Red rectangles are highlighted marker genes in F. (F) Violin plots of marker gene expression for Proust and manually annotated domains. (G) Heat maps of the top five differentially expressed genes (centered and scaled) across layers from Proust and manual annotations. A dendrogram on the right shows hierarchical clustering. (H) Selected cluster-based marker genes expression and visualization of individual clusters identified by Proust. Layers were annotated according to the laminar organization indicated by the manual annotation.

It was found that the two GNN-based autoencoder and contrastive self-supervised learning frameworks (Proust and GraphST) resulted in the highest ARI, followed by SpaGCN, BayesSpace, STAGATE, with k-means showing the lowest Adjusted Rand Index across the four tissue sections (Fig. 3B). However, Proust, which integrated both RNA and protein data modalities, outperformed the other methods in recognizing more coherent and biologically meaningful gray and white matter layers (Fig. 3C; Supplemental Fig. S6). We also compared the Silhouette scores (Rousseeuw 1987) of Proust and three other GCN-based methods to assess the degree of separation between clusters in the human DLPFC Visium SPG samples (Supplemental Fig. S7; see Supplemental Note S1 for comments on the Silhouette index).

Using Proust domains, we found that the Uniform Manifold Approximation and Projection (UMAP) (McInnes et al. 2018) embeddings revealed separate cortical layers ordered in known morphological layers (Fig. 3D). Using previously known marker genes for the cortical layers (Maynard et al. 2021), Proust domains resulted in laminar-specificity with the known marker genes (AQP4 for L1, HPCAL1 for L2 and L3, RORB for L4, PCP4 for L5, KRT17 for L6, and MOBP for WM) (Fig. 3E; Supplemental Fig. S8), which also had more similar expression distributions in the manually annotated domains than GraphST (Fig. 3F; Supplemental Figs. S9, S10). However, using a data-driven approach, differentially expressed genes using Proust domains led to a more biologically meaningful hierarchical clustering of identified layers with white matter and L6 grouped together, as opposed to the manual annotation, where, instead, white matter and L1 are grouped together (Fig. 3G,H).

Proust flexibly weights data modalities to detect spatial domains

One advantage of Proust is the flexibility to weight multi-omics profiles (or data modalities), such as RNA and protein (Fig. 1), to detect spatial domains particularly in the context of either healthy or diseased tissue. Here, we use as an example a 10x Genomics Visium SPG data set profiling human inferior temporal cortex tissue sections collected from individuals with late-stage Alzheimer's disease (AD) (Kwon et al. 2023). In this data set, the IF images contained five protein channels, namely nuclei (DAPI), amyloid-beta (Aβ), hyperphosphorylated tau (pTau), microtubule associated protein 2 (MAP2), and astrocytes (GFAP) (Fig. 4A; Supplemental Fig. S11; Kwon et al. 2023). Also, the role of protein information is different from previous data sets, as some protein channels are not useful to identify morphological domains. For example, Aβ is sparsely distributed throughout the tissue associated with AD pathology. Furthermore, Aβ and pTau are only detected at the protein level. In this section, we demonstrate how Proust can flexibly weigh the multiple data modalities to accurately identify spatial domains, even in diseased tissue.

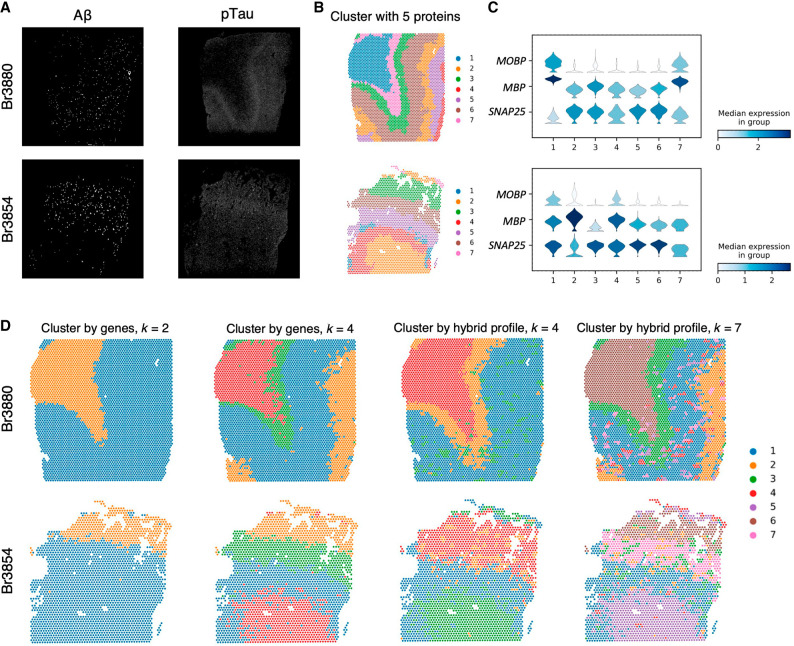

Figure 4.

Proust achieves distinct spatial domain detection with different protein channels and weights assigned to transcriptomics and proteomics on Visium SPG human inferior temporal cortex tissue slices from donor Br3880 and Br3854. (A) Immunofluorescence staining images of Aβ and pTau. (B) Proust clustering result using five protein channels (DAPI, Aβ, pTau, MAP2, and GFAP), top 30 PCs from reconstructed gene expression, top five PCs from reconstructed extracted image features, and k = 7 clusters. (C) Stacked violin plot of the distribution of marker genes (MOBP for oligodendrocytes/WM, SNAP25 for neurons/gray matter) in each spatial domain assigned by Proust. (D) Proust clustering result using two protein channels (Aβ and pTau). The first two columns show clustering results using transcriptomics only when k = 2 and k = 4 clusters, respectively. The last two columns show clustering results using a hybrid profile of transcriptomics and proteomics, with the top 10 PCs from reconstructed gene expression and the top 10 PCs from reconstructed extracted image features when k = 4 and k = 7 clusters, respectively.

For example, Proust can use all five protein channels to create a hybrid profile (top 30 PCs from the reconstructed gene expression and the top five PCs from the reconstructed extracted image features) to identify spatial domains (Fig. 4B; Supplemental Fig. S12), which can be used to visualize marker genes associated with the white and gray matter (Fig. 4C). Alternatively, we can compare predicted spatial domains from Proust (i) only using gene expression (and ignoring proteins) (Fig. 4D, columns 1 and 2 using k = 2 or k = 4, respectively) and (ii) using gene expression and only two pathology-related protein channels (Aβ and pTau) (Fig. 4D, columns 3 and 4 using k = 4 or k = 7, respectively).

In the latter case, Proust can weigh the RNA and protein information separately by controlling the number of PCs extracted from each data modality. This can lead to detected spatial domains corresponding to known morphology in healthy tissue, pathologies associated with disease, or both. For instance, in the tissue slice from Br3880, Proust identified spotty areas (cluster 3) and a layer (cluster 2), which are visually correlated to Aβ- and pTau-captured areas when clustering by a hybrid profile for k = 4 clusters. In contrast, spatial domains corresponding to only cortical layers were detected when clustering by genes alone with the same number of clusters (Fig. 4D). Upon increasing the number of clusters to seven, Proust distinguished additional sublayers within the gray matter with higher precision while retaining regions associated with Aβ and pTau (Supplemental Fig. S13). These results demonstrated that Proust is able to detect relevant spatial domains of interest by leveraging different protein channels and flexibly adjusting the number of PCs from each data modality into the hybrid profile. Finally, it was also observed that Proust's performance improved when the broad and connected spatial pattern is evident in IF images to complement expression information.

Proust accurately detects spatial domains with expression and histology images

Next, we demonstrate how Proust can be generalized to other types of multi-omics, specifically with gene expression and H&E brightfield images, rather than IF staining, measured on the 10x Genomics Visium Spatial Expression platform. To evaluate the performance of Proust, we compared the predicted spatial domains to results from five existing clustering algorithms on N = 12 Visium human dorsolateral prefrontal cortex tissue slices that have manually annotated spatial domains to be used as a gold standard (Maynard et al. 2021). The three RGB channels were included separately at the pixel level in the image feature extraction steps and autoencoder model training. Proust achieved the highest ARI with a median (across N = 12 tissue sections) value of 0.60 and exhibited comparable performance to that of GraphST (median ARI = 0.53) (Fig. 5A). This suggests that Proust was also effective when applied to histology images. Additionally, the cortical layers segmented by Proust were more biologically consistent with manual annotations and exhibited greater spatial continuity, whereas other methods tended to produce more fragmented results (Fig. 5B; Supplemental Fig. S14). In particular, Proust was able to identify thinner layers, such as Layer 2, and provide coherent sublayers within the gray matter, as demonstrated in samples 151,509 and 151,674. Although Proust and GraphST yielded similar ARIs, the UMAP plots of latent embeddings from Proust displayed a clearer separation of adjacent clusters and reflected more nuanced distinctions in identified spatial domains (Fig. 5C; Supplemental Fig. S15). These results suggest that Proust can also effectively extract histology image features that distinguish neighboring layers and refine the detection of coherent spatial regions and functional domains.

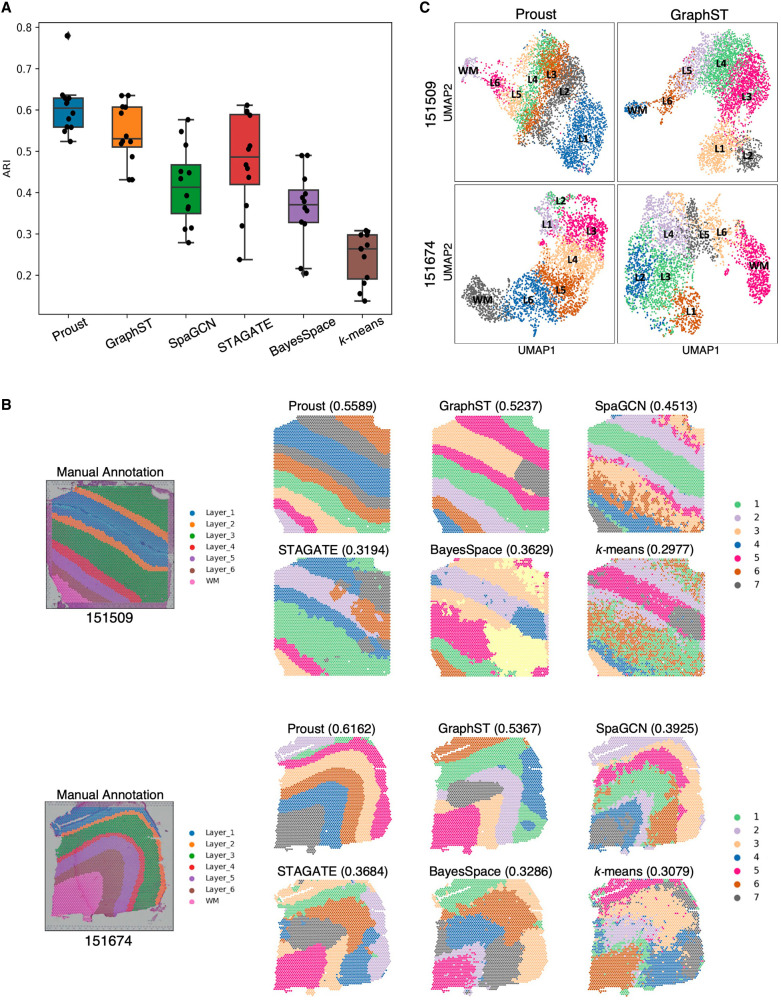

Figure 5.

Evaluating and comparing the performance of Proust in layer segmentation with other popular existing methods on the Visium human DLPFC data set that contains H&E images. (A) Box plot of clustering accuracy in 12 DLPFC samples across Proust and five other existing methods based on Adjusted Rand Index (ARI). (B) Manual annotation of tissue slices 151,509 and 151,674 and spatial domains assigned by the six methods. (C) UMAP visualization of reduced dimensions from Proust and GraphST for 151,509 and 151,674.

Discussion

Proust is a novel framework that utilizes spatially resolved transcriptomics, IF staining for protein channels, and spatial location information for the identification of spatial domains in individual tissue sections. Inspired by GraphST, Proust leverages a similar GCN-based autoencoder and contrastive self-supervised learning framework to detect spatial domains. In settings where additional protein information is unavailable, it is expected that Proust and GraphST will perform similarly. However, in settings where protein information is available, we demonstrate here that Proust improves upon GraphST by combining transcriptomics and proteomics. Specifically, Proust captures complex dependencies and spatial patterns, allowing for spatial segmentation of tissue structures with high accuracy. In principle, Proust's framework could easily be extended and applied in other multi-omics settings including measuring RNA and chromatin accessibility (spatial ATAC–RNA-seq) (Zhang et al. 2023) or measuring RNA and metabolomics (spatial metabolomics) (Alexandrov 2023).

In this work, we demonstrate how Proust outperformed five popular existing methods in layer segmentation on human and mouse brain data sets generated from the 10x Visium platform, identifying biologically meaningful layers consistent with manual annotations in human DLPFC and improving the detection of mouse hippocampus structures enriched with proteins of interest. Additionally, Proust is an adaptable framework that allows users to adjust the weights assigned to gene and protein information as needed. By selecting different protein channels and adjusting top PCs of different data modalities used in the downstream clustering step, Proust can better capture the spatial domains enriched with specific proteins of interest. For instance, when assigning higher weights to IF protein images, Proust can detect regions that contain sufficient levels of protein associated with disease within identified broad biological layers, as shown in the Visium SPG human inferior temporal cortex data set. Future work could focus on strategies to identify optimal weight adjustment in a data-driven way. Furthermore, Proust can incorporate histology information in addition to spatial transcriptomics when IF images are unavailable in the data set, thus making it a versatile tool for spatial analysis using various image types. Overall, Proust's flexibility allows users to fine-tune their analysis and obtain more accurate results tailored to their specific research questions and data types.

The use of Proust has some limitations and caveats. We recognize the challenge of selecting appropriate weights between different data modalities, especially when there is no manual annotation or ground truth available. Users may find it difficult to decide how much weight to give to each modality, which can impact the clustering results. We suggest starting with the default values in Proust (30 PCs for gene expression and five PCs for images), which have been shown to work well across a range of data sets. However, we recommend experimenting with different numbers of PCs depending on the specific data set and research questions. We also provide the option for users to specify how much variance they want to capture from each modality. This allows the algorithm to automatically select the appropriate number of PCs based on the user's preferences.

Second, we assume that adjacent spots or tissue areas have similar biological profiles in the gene and protein space. This assumption of the universal law of geography led to the implementation of graph-based neural networks for feature learning for both data modalities. However, for some proteins, such as Aβ, expression may be disconnected on the spot level, especially in the late stages of progressive diseases, potentially making it challenging for Proust to accurately identify all regions where the protein occurs, as individual spots may absorb dissimilar neighboring information during model training. To address this issue, a potential solution is to enhance the graph structure with weighted edges based on the similarity of spot-level protein information or to incorporate intermodality contrastive learning to maximize the mutual information between gene expression and proteomics (Yuan et al. 2021; Zeng et al. 2023).

Another limitation is that Proust is currently only designed to identify spatial domains within one tissue section. Further work is needed to extend Proust to multiple tissue sections. Other ways this framework could be extended is to explore the use of statistical inference here as a way to explore the uncertainty of the predicted spatial domains. Additionally, because Proust is designed for spot-level information extraction when spatial coordinates for spot centroids are provided in 10x Visium data sets, it fails to recover pixel-level protein information from IF images unless strong signals of associated spatially resolved gene expression are present. Additional applications could be explored including technologies with subcellular resolution. Another caveat is that image processing as a form of noise reduction is a crucial step before utilizing Proust, as the method may be affected by pixel values that result from technical artifacts.

The average computational time and peak GPU memory usage for analyzing the four tested data sets are ∼2 min and 1 GB per tissue sample on a high-performance computing cluster. We anticipate that data sets with more spots and protein channels will require more memory and processing time (Supplemental Fig. S16; Supplemental Note S2). Thus, we recommend enabling the GPU option during model training to achieve quicker performance.

Methods

Data availability

CK-p25 mouse coronal brain data set

The CK-p25 mouse coronal brain tissue data set (Welch et al. 2022) was measured on the 10x Genomics Visium SPG platform. The data are available from the 10x Genomics website (https://www.10xgenomics.com/resources/datasets/). In this data set, the IF images captured γH2AX, a protein involved in DNA repair. To enhance the γH2AX gray-scale image and reduce noise, we established a threshold of six standard deviations above the mean pixel values and applied a max filter with a 10 × 10 image box to facilitate the detection of protein-rich regions by Proust.

DLPFC Visium SPG

The human DLFPC brain tissue was measured on the 10x Genomics Visium SPG platform (Huuki-Myers et al. 2024). The source data are also publicly available from the Globus endpoint “jhpce#spatialDLPFC” and also listed at http://research.libd.org/globus/.

ITC

The human inferior temporal cortex tissue sections collected from individuals with late-stage Alzheimer's disease were profiled with the 10x Genomics Visium SPG platform (Kwon et al. 2023). The source data are also publicly available from the Globus endpoint “jhpce#Visium_SPG_AD”, also listed at http://research.libd.org/globus. In this data set, the IF images contained five protein channels, namely nuclei (DAPI), amyloid-beta (Aβ), hyperphosphorylated tau (pTau), microtubule associated protein 2 (MAP2), and astrocytes (GFAP). We used the preprocessed grayscale images from VistoSeg (Tippani et al. 2023) and enhanced them in a manner similar to that employed in analyzing the Visium SPG mouse CK-p25 brain tissue data set. To amplify the influence of protein information on spatial segmentation, we decreased the number of top PCs for transcriptomics to 10 while increasing those for proteomics to 10 from the default setting to create a hybrid biological profile.

DLPFC Visium H&E

The human DLFPC brain tissue was measured on the 10x Genomics Visium Spatial platform with H&E images (Maynard et al. 2021). The raw data are publicly available from the Globus endpoint “jhpce#HumanPilot10x” and also listed at http://research.libd.org/globus.

Spatially resolved gene expression preprocessing

We evaluated the performance of Proust by testing it on four Visium data sets generated from the 10x Genomics platform. In Visium, the capture area measures 6.5 × 6.5 mm. The spots have a diameter of 55 µm (equivalent to an area of 2375 µm²) and are spaced 100 µm center-to-center in a honeycomb pattern (i.e., each spot is surrounded by six adjacent neighbors). Each tissue slide contains a total of 4992 sequenced spots, capturing around 35,000 genes. The raw gene count matrix is generated by aligning Visium sequencing data with the fiducial frame on the histology or immunofluorescence staining image of the tissue slice. Two-dimensional (2D) spatial positions are provided as pixel coordinates of spot centroids. The first three test data sets were generated using Visium SPG, which include multiplexed immunofluorescence images of proteins of interest from the corresponding tissue area. Additionally, we evaluated the transferability of Proust on a Visium data set containing H&E images of the tissue slice.

To prepare the data sets for analysis, spots outside the tissue area are removed before applying Proust's standard preprocessing steps for gene expression using the SCANPY package (Wolf et al. 2018). The spatially resolved gene expression information is represented by an N × G matrix for N spots and G types of genes, with spot centroid locations indicated by 2D spatial coordinates (x, y). Spike-in and mitochondrial genes are filtered out, and those expressed in fewer than three spots are excluded. Raw gene counts are then (1) normalized by library size, (2) log-transformed, and (3) scaled to unit variance, with any values exceeding a standard deviation of 10 clipped. The top 3000 highly variable genes (HVGs) are selected as input for the subsequent model training.

Image feature extraction

Protein density can vary across different spatial regions, offering valuable information that can be integrated with spatial transcriptomics to enhance tissue architecture inference. Spot-level protein information is obtained by first splitting the full-resolution image into d × d circumscribed grids centered on each spot centroid, where d is the ceiling rounding for the spot diameter. To improve computational efficiency, we reduce the size of each image grid to 48 × 48 pixels for 10x Genomics data sets, as the spot diameter is usually larger than or around 100 pixels. This downsizing is achieved by using the OpenCV Python package (Bradski 2000), where the updated pixel value of the new interpolated image is calculated as a weighted average of input pixel values from a sliding window grid in the original image. The grid size is determined by the ratios of the original image's width and height to those of the resized image. To ensure that different modalities of data can be jointly analyzed and achieve optimal model performance in identifying spatial patterns using gene expression and protein data, pixel values are normalized to the same range as the preprocessed gene expression prior to model training.

Next, as is common practice in image processing, we implement a simple convolutional neural network (CNN) autoencoder to extract protein features from interpolated image grids (Supplemental Note S5). The model takes the resized image grid I for each spot as input. The encoder consists of two fully connected inner layers with a kernel size of 5 × 5, each followed by an average pooling layer with a kernel size of 2 and stride of 2. The decoder consists of two transposed convolutional layers to reconstruct latent representations and images with the same dimensions as those of the intermediate output from the encoder. A Rectified Linear Unit (ReLU) activation function is applied after each convolution step, which allows the CNN model to learn complex and abstract features from images by introducing nonlinearity to the output. We train this model by minimizing the self-reconstruction loss of image grids using the following equation:

$$L_{\mathrm{recon}}=\sum _{i=1}^{N_{\mathrm{spot}}}{\Vert I-H\Vert }_2,$$

where H is the reconstructed image grid. We use the Adam optimizer to minimize the reconstruction loss with an initial learning rate of 1 × 10⁻³. The default number of iterations is set to 800. The latent embeddings produced by this CNN-based autoencoder capture continuous spot-level spatial patterns for each protein channel instead of describing pixel-level intensity. This approach enables us to focus on the broad changes in protein distribution within the stained tissue slice, which complements our analysis of spatially resolved gene expression (Supplemental Fig. S17; Supplemental Note S3).

Graph convolutional autoencoder

Graph structure based on spatial information

Incorporating spatial information along with biological features is crucial for identifying coherent spatial domains, as it allows for considering neighboring information from the nearest spots. To leverage the spatial information, Proust first converts the spot-level spatial coordinates into an undirected neighbor graph G = (V, E) with a pre-defined (or user-defined) neighbor number k. Here, G represents the graph, V represents spots, and E represents connected edges between each pair of spots (i, j) ∈ V. The structure of the graph G based on spatial proximity is measured using the adjacency matrix A ∈ ℝ^N×N, where N is the number of spots. For a given spot i, the adjacency matrix assigns a value of 1 to A_ij if spot j is among the k-nearest neighbors selected based on the Euclidean distance; otherwise, it assigns a value of 0. To normalize the influences across spots, a symmetric normalized Laplacian matrix $L=I_n+D^{-\frac{1}{2}}A{D}^{-\frac{1}{2}}$ is constructed, which also takes into account the information from each spot itself. The degree matrix D is a diagonal matrix with elements $D_{ii}={\sum }_j^N{A}_{ij}$ being the number of edges (i.e., neighbors) attached to each spot. When constructing the graph structure, we set k = 6 to reflect the hexagonal structure of spots in the Visium assay.

GCN-based autoencoder to reconstruct transcriptomic and proteomic features

We construct an autoencoder using a graph convolutional network (GCN) to learn a latent representation Z_i for spot i by aggregating information from neighboring spots j’s that share similar biological profiles. In this approach, the GCN-based autoencoder takes preprocessed biological features X and spatial information stored in L as input and outputs the reconstructed spot-level feature matrix H.

The (t + 1)-th layer representation in the encoder for spot i is constructed using a trainable weight matrix $W_e^t$ and a trainable bias vector $b_e^t$, with a nonlinear activation function ReLU denoted by σ(·). The encoder representation is formulated as follows:

$$Z_i^{t+1}=\sigma \left(L{Z}_i^t{W}_e^t+b_e^t\right).$$

We denote Z⁰ as the original feature matrix X as input and Z as the final output of the encoder. The latent representation Z is then fed into a decoder to reconstruct the feature space H iteratively. The (t − 1)-th layer representation in the decoder is constructed using a trainable weight matrix $W_d^t$ and a trainable bias vector $b_d^t$, with the same activation function ReLU. The decoder representation is formulated as follows:

$$H_i^{t-1}=\sigma \left(L{H}_i^t{W}_d^t+b_d^t\right),$$

where the first inner layer $H^{t_{\max }}$ in the decoder is set as the final latent space Z from the encoder, and H⁰ is the reconstructed feature matrix H.

The autoencoder for gene expression data takes the preprocessed gene counts as input. On the other hand, the autoencoder for protein information takes the extracted image features as input, which are flattened for each channel before being fed into the encoder. This image autoencoder is three-dimensional, where the first dimension is the number of observations (i.e., spots), the second dimension is the number of protein or image (i.e., RGB channels for H&E histology images) channels, and the third dimension is the protein features. By training separate autoencoders for transcriptomic and proteomic data, the model can capture distinct patterns and features specific to each modality, which can then be integrated before the downstream clustering procedure.

Contrastive self-supervised learning

Proust addresses the challenge of distinguishing spots from similar spatial domains by implementing contrastive self-supervised learning (CSL) adapted from Deep Graph Infomax (Veličković et al. 2019) to learn more discriminative reconstructed biological features (Supplemental Fig. S1). Contrastive self-supervised learning is a method for training deep neural networks to extract representations of data by comparing similar and dissimilar pairs of samples without relying on labeled data. This refinement step enables the learning of attributes that are common between data groups and attributes that separate one data group from another. In the data augmentation part, we generate a corrupted neighboring graph structure $\left(X^{\mathrm{\prime }},A\right)$, as opposed to the original structure (X, A), by randomly shuffling biological features while preserving the distance-based graph representing the spatial proximity between pairs of spots. We then feed the real and corrupted graph structures into a shared GCN-based autoencoder to obtain corresponding spot-level latent representations Z and Z′, respectively. A local neighborhood context S_i for a given spot i is summarized with a read-out function defined as follows:

$$S_i=\mathcal{R}\left(Z_i\right)=\sigma \left({\displaystyle \frac{1}{k}\sum _{j=1}^k{Z}_j+Z_i}\right),$$

where k is the number of nearest neighbors for each individual spot. To maximize the mutual information between spot embeddings and local neighborhood embeddings, we calculate a discriminative score for context-spot representation pairs using a simple bilinear scoring function as the following:

$$\mathcal{D}\left(Z_i,S_i\right)=\sigma \left(Z_i^{T}W{S}_i\right),$$

where W is a trainable scoring matrix and σ(·) is the logistic sigmoid function. A positive pair formed by Z_i with the corresponding real local representation S_i (or corrupted $Z_i^{\mathrm{\prime }}$ with $S_i^{\mathrm{\prime }}$) will be assigned a higher probability score, whereas a negative pair formed by Z_i with the corrupted local representation $S_i^{\mathrm{\prime }}$ (or corrupted $Z_i^{\mathrm{\prime }}$ with real local representation S_i) will be assigned a lower probability score. CSL refines the final latent embeddings from the encoder before reconstructed layers in the decoder. We train the GCN-based autoencoder with CSL by minimizing an overall loss combined with the self-reconstruction loss of the autoencoder and contrastive loss:

$$\mathrm{Loss}=\alpha L_{\mathrm{recon}}+\beta \left(L_{\mathrm{CSL}}+L_{\mathrm{CS}{\mathrm{L}}_{\mathrm{corrupt}}}\right),$$

where

$$L_{\mathrm{CSL}}=-{\displaystyle \frac{1}{2N}\left(\sum _{i=1}^N{\mathbb{E}}_{\left(X,A\right)}\left[\log \mathcal{D}\left(Z_i,S_i\right)\right]+\sum _{j=1}^N{\mathbb{E}}_{\left(X^{\mathrm{\prime }},A\right)}\left[\log \left(1-\mathcal{D}\left(Z_j^{\mathrm{\prime }},S_j\right)\right)\right]\right),}$$

$$\begin{array}{rl}{L}_{\mathrm{CS}{\mathrm{L}}_{\mathrm{corrupt}}}& =-{\displaystyle \frac{1}{2N}(\sum _{i=1}^N{\mathbb{E}}_{\left(X^{\mathrm{\prime }},A\right)}[\log \mathcal{D}(Z_i^{\mathrm{\prime }},S_i^{\mathrm{\prime }}\left)\right]}\\ & +\sum _{j=1}^N{\mathbb{E}}_{\left(X,A\right)}\left[\log \right(1-\mathcal{D}\left(Z_j,S_j^{\mathrm{\prime }})\right)]).\end{array}$$

Hence, this supplementary process helps the GCN-based autoencoder to reconstruct the updated biological features, which brings similar spots together and differentiates dissimilar ones while preserving the fundamental information from the original input matrix (Supplemental Fig. S17). The Adam optimizer is utilized for training this deep learning architecture with an initial learning rate of 1 × 10⁻³. The default number of iterations is set to 600.

Clustering and refinement

After training GCN-based autoencoders with preprocessed transcriptomic and proteomic features, Proust extracts the top principal components from the reconstructed gene expression and extracted protein features separately. These components are then concatenated to create a hybrid biological profile for cluster assignment using a nonspatial clustering algorithm called mclust (Scrucca et al. 2016). The default number of PCs used for transcriptomics is 30, and the default number of PCs used for proteomics is five (Supplemental Fig. S18). Users can adjust the number of PCs to give adjusted weights for the two data modalities based on their needs (Supplemental Note S4). We pre-set the cluster count in mclust to correspond with the number of clusters in data sets that have manual annotations. For data sets without prior knowledge of the correct cluster count, we evaluated various cluster numbers and chose the one yielding the highest Silhouette score (Rousseeuw 1987). After clustering, Proust also offers an optional refinement step in which a given spot i is relabeled to the most common spatial domain of its r nearest surrounding spots. The default setting for r is 10.

Evaluation and comparison

Adjusted Rand Index

To evaluate the performance of the Proust framework, we use the Adjusted Rand Index to measure the agreement between identified spatial domains and manual annotation for individual tissue slices. Let $\hat{Y}$ represent the assigned spatial clusters and Y represent the ground truth of clusters of N spots. Then,

$$\mathrm{ARI}=\frac{\sum _{ls}\left(\begin{array}{c}{N}_{ls}\\ 2\end{array}\right)-\sum _l\left(\begin{array}{c}{N}_l\\ 2\end{array}\right)\sum _s\left(\begin{array}{c}{N}_s\\ 2\end{array}\right)/\left(\begin{array}{c}N\\ 2\end{array}\right)}{\left[\sum _l\left(\begin{array}{c}{N}_l\\ 2\end{array}\right)+\sum _s\left(\begin{array}{c}{N}_s\\ 2\end{array}\right)\right]/2-\sum _l\left(\begin{array}{c}{N}_l\\ 2\end{array}\right)\sum _s\left(\begin{array}{c}{N}_s\\ 2\end{array}\right)/\left(\begin{array}{c}N\\ 2\end{array}\right)},$$

where l and s ∈ m clusters, $N_l={\sum }_i^{N}I\left(\widehat{y_i}=l\right)$, $N_s={\sum }_i^{N}I\left(y_i=s\right)$, $N_{ls}={\sum }_i^{N}I\left(\widehat{y_i}=l\right)I\left(y_i=s\right)$. I(·) is an indicator function that follows I(a = b) = 1 when a = b, otherwise 0. The ARI ranges from 0 to 1, wherein a higher value indicates a better match between clustering results with the manual annotation.

Existing methods

We benchmark Proust against the following existing methods for spatial domain detection:

GraphST: GraphST is a graph contrastive self-supervised learning framework that incorporates spatial information and gene expression for spatial clustering (Long et al. 2023). We followed the tutorial with default parameter settings and set r = 50 during refinement.

SpaGCN: SpaGCN combines gene expression, spatial information, and histology image for spatial clustering using graph convolutional neural network (Hu et al. 2021a). We followed the tutorial to use SpaGCN with the default parameter settings. The “histology” option is disabled when no histology information is available in the data set.

STAGATE: STAGATE is a method that utilizes an autoencoder and graph attention mechanism to learn a latent representation by incorporating spatial information and gene expression (Dong and Zhang 2022). We followed the tutorial with default parameter settings and set the cell type–aware module “alpha” to 0.

BayesSpace: BayesSpace is a spatial clustering method that utilizes a Markov random field with a Bayesian framework. The method assigns greater importance to adjacent spots by incorporating a prior that considers the spatial proximity of the spots (Zhao et al. 2021). We followed the tutorial with default parameter settings and set the number of iterations “nrep” to 10,000.

k-means: k-means is a clustering algorithm that partitions a set of n data points into k clusters, where each data point belongs to the cluster with the nearest centroid profile (Lloyd 1982). As the only method compared that is not specifically designed for ST data, k-means is used as the baseline comparison. We followed the tutorial from the bluster R/Bioconductor package with default parameter settings (https://bioconductor.org/packages/bluster).

STACI: This newly developed method (Zhang et al. 2022) jointly analyzes spatial transcriptomics and chromatin imaging data with overparameterized graph-based autoencoders. However, it is not evaluated here as it was not available as a package at the time.

Software availability

The Proust algorithm is implemented in Python and is available on GitHub (https://github.com/JianingYao/proust) and as Supplemental Code. We used Proust version 1.0 for the analyses in this manuscript. The code to reproduce all preprocessing, analyses, and figures in this manuscript is available on GitHub (https://github.com/JianingYao/proust_paper) and as Supplemental Code.
