. 2025 Aug 8;30:102899. doi: 10.1016/j.fochx.2025.102899

In vitro identification and in vivo metabolic profiling of chemical constituents in Moringa oleifera seeds

Jiahong Wang b, Juan Cao c, Hao Wang b, Yudie Zhang b, Li Jiang c, Jiaohan Zhan c, Yanxiu Sun c, Yiyang Du a, Tingxu Yan a, Ying Jia a,⁎, Bosai He a,⁎
PMCID: PMC12391776  PMID: 40896649

Abstract

Moringa oleifera seeds (MOS), recognized as a nutritionally valuable food, are rich in diverse bioactive compounds and widely utilized for disease prevention and adjunctive therapy. However, their in vitro chemical constituents and in vivo blood-absorbed/metabolized components remain underexplored. This study pioneered the application of UPLC-Q-Exactive Orbitrap-MS to characterize MOS-derived compounds in vitro and in vivo, concurrently elucidating major constituents' fragmentation pathways via mass spectrometry. In vitro, 81 chemical components of MOS were preliminarily characterized. 38 blood-borne components, comprising 11 prototypes and 27 metabolites, were identified in serum samples from MOS-treated rats. A validated LC-MS/MS method was developed to quantify the pharmacokinetics of key bioactive compounds (6-gingerol, vanillin, and eugenol) in rat plasma. These findings establish a theoretical foundation for clarifying MOS composition, evaluating its dietary applications, and guiding further exploration of its pharmacological potential.

Keywords: Moringa oleifera seeds, Chemical composition analysis, Metabolism in vivo, Pharmacokinetics

Highlights

  • •

    First UPLC-Q-Exactive MS analysis of MOS chemical constituents in vitro and in vivo.

  • •

    81 MOS compounds identified, including glucosinolates, flavonoids, and phenolic acids.

  • •

    38 serum components (11 prototypes, 27 metabolites) characterized in MOS-treated rats.

  • •

    Elucidated mass fragmentation patterns of key MOS components for metabolic research.

1. Introduction

Moringa oleifera Lam. (Moringa), a perennial tropical deciduous tree of the Moringaceae family, is indigenous to India and Africa. It is colloquially termed the “drumstick tree” due to its elongated, triangular-shaped pods. (Jaglan et al., 2025). The seeds of this species possess exceptional nutritional value. In vitro analyses confirm MOS as a rich source of proteins (36 %), lipids (38.7 %), vitamins (notably vitamin E: 100 mg/752 g dried seeds), minerals (magnesium: 100 mg/635 g; copper: 2.100 mg/5 g), and glucosinolates. (Oyeyinka & Oyeyinka, 2018). MOS additionally exhibits significant pharmacological properties, including antioxidant and hypoglycemic activities (Oboh, Oyeleye, Akintemi, & Olasehinde, 2018; Sharma, Wichaphon, & Klangpetch, 2020). These bioactive attributes have facilitated the global cultivation of MOS as a valuable cash crop.

MOS contains diverse bioactive constituents: all essential and semi-essential amino acids, alongside numerous non-essential amino acids (Aderinola, Fagbemi, Enujiugha, Alashi, & Aluko, 2018). Phytochemical investigations haincludingfied multiple polyphenolic compounds in MOS, including flavonoids, phenolic acids, tannins, etc., exhibiting a total phenolic content (TPC) ranging from 4581 to 4953 mg/100 g (Govardhan Singh, Negi, & Radha, 2013). Experimental studies mechanistically link these phenolic constituents to MOS's anti-inflammatory, antioxidant, and hypoglycemic effects (Oboh et al., 2018; Sharma et al., 2020). Glucosinolates emerge as a predominant phytochemical class in MOS, constituting 2.5–20 % of its chemical composition (Chen et al., 2019), characterized by structural homogeneity with acetylated isomers (Sayed, Omar, Emam, & Farag, 2022). In vivo studies validate their anti-inflammatory, anticancer, and gut microbiota-modulating properties (L. Huang, Yuan, & Wang, 2020; Jaja-Chimedza et al., 2018), positioning MOS glucosinolates as promising candidates for natural therapeutics and functional foods.

Over 100 chemical constituents have been documented in MOS. However, characterization predominantly employs Gas Chromatography-Tandem Mass Spectrometry (GC–MS/MS) or conventional phytochemical isolation. Given the prevalence of non-volatile and thermally labile constituents in MOS, High-Performance Liquid Chromatography-Mass Spectrometry (HPLC-MS) offers advantages by enabling room-temperature separation while preserving structural integrity (X.-F. Huang et al., 2024), coupled with high resolution for macromolecules (Sayed et al., 2022; Xu, Chen, & Guo, 2019).

Quadrupole-Orbitrap high-resolution mass spectrometry (Q-Exactive Orbitrap-MS) has emerged as a premier analytical platform in phytochemical research, distinguished by superior mass resolution, exceptional mass accuracy, extended mass range, and broad dynamic range (Wołoszyn-Durkiewicz & Myśliwiec, 2019). This technology enables simultaneous detection of ionic species via full-scan acquisition with auto-triggered MS/MS fragmentation in dual ionization modes, effectively mitigating matrix interference inherent in traditional herbal analyses (F. Jiang et al., 2024; Liu, Li, Fu, Zhang, & Tang, 2024). When integrated with Ultra-Performance Liquid Chromatography (UPLC), the system enhances chromatographic resolution and accelerates compound identification, establishing a robust framework for systematic phytochemical profiling(Ogurtsova et al., 2022). This investigation employed an optimized pharmacognostic workflow to conduct dual-phase characterization of MOS aqueous extracts—encompassing comprehensive in vitro chemical mapping and preliminary in vivo metabolite tracking. This integrated strategy facilitates holistic constituent identification while providing foundational data for elucidating pharmacodynamic mechanisms and metabolic pathways.

2. Materials and methods

2.1. Materials and reagents

MOS were procured from commercial suppliers in Fujian and Guangdong provinces between June 2021 and September 2022. HPLC-grade methanol and acetonitrile were obtained from Thermo Fisher Scientific (Waltham, MA, USA). Formic acid was acquired from Chengdu Kolon Chemical Co. (Chengdu, China). Ultra-pure water was generated using a Millipore Milli-Q® water purification system (Shanghai, China). The following reference standards were purchased from Chengdu Krom Biotechnology Co., Ltd. (Chengdu, China) with certified purities:Moringin (benzyl 4-((2S,3R,4S,5S,6R)-3,4,5-trihydroxy-6-(hydroxymethyl)tetrahydro-2H- pyran-2-yloxy)isothiocyanate; ≥98 %); 6-Gingerol ((5S)-5-hydroxy-1-(4-hydroxy-3- methoxyphenyl)decan-3-one; ≥98 %); Syringaldehyde (4-hydroxy-3,5- dimethoxybenzaldehyde; ≥98 %); Vanillin (4-hydroxy-3-methoxybenzaldehyde; ≥98 %); p-Coumaric acid ((E)-3-(4-hydroxyphenyl)prop-2-enoic acid; ≥98 %); 7-Hydroxycoumarin (7-hydroxy-2H-chromen-2-one; ≥98 %); Vitexin (apigenin-8-C-β -D-glucopyranoside; ≥98 %); Glucomoringin (benzyl 4-((2S,3R,4S,5S,6R)-3,4,5- trihydroxy-6-(hydroxymethyl) tetrahydro-2H-pyran-2-yloxy)-1-thioglucopyranosate; ≥97 %).

2.2. Animals

Male adult Sprague-Dawley (SD) rats (220–250 g) were procured from Liaoning Longevity Company, qualified number: SCXK (liao) 2020–0001, No. 210726221101071034/1137. They were housed in SPF Animal Laboratory Center, Shenyang Pharmaceutical University (License No. SCXK (Liao) 2020), where the temperature was maintained between 22 and 25 °C, the humidity was kept constant at 40–65 %, and a 12-h light-dark cycle was maintained, and were given free diet and water. Cages and daily drinking water were sterilized using high pressure. All animal experiments were operated strictly according to Laboratory Animal Management in China, conducted under the guidance of Laboratory Animal Care and Use, and approved by the Laboratory Animal Welfare and Ethics Committee of Shenyang Pharmaceutical University (approval no. SYPU-IACUC-S2022–08.04-201).

2.3. Sample preparation

2.3.1. Test solution preparation

MOS kernels were homogenized and sieved (80 mesh). The powder (accurately weighed) underwent aqueous extraction (1:10, w/v) using deionized water. Cell disruption was performed for 2 min followed by ultrasonication (45 min). This extraction procedure was repeated twice. Combined filtrates were concentrated under reduced pressure using a rotary evaporator. The concentrate was diluted appropriately, filtered through a 0.22-μm organic microporous membrane (discarding initial 1 mL filtrate), and the subsequent filtrate served as the test solution.

2.3.2. Reference solution preparation

Individual stock solutions of moringin, 6-gingerol, syringaldehyde, vanillin, p-coumaric acid, 7-hydroxycoumarin, vitexin, and glucomoringin were prepared by dissolving accurately weighed reference standards in methanol within separate 5-mL volumetric flasks. Aliquots of each stock solution were quantitatively transferred to a 10-mL volumetric flask and diluted to volume with methanol, yielding the mixed reference solution.

2.3.3. MOS intragastric solution preparation

Sieved MOS powder (80 mesh) was accurately weighed and extracted with deionized water (1:10, w/v) using identical disruption and ultrasonication parameters (2 min disruption, 45 min ultrasonication × 2). Combined filtrates were concentrated under reduced pressure to obtain a standardized solution (2.12 g/mL equivalent raw material). The solution was stored at −20 °C until administration.

2.4. Preparation of serum samples

2.4.1. Serum collection

Blood samples (1 mL) were collected from the retro-orbital plexus of six male SD rats into 1.5 mL centrifuge tubes at predefined intervals (0 [pre-dose], 0.5, 1, 2, 4, and 6 h) following intragastric administration of MOS concentrate (3 mL; 25.44 g raw material equivalent/kg body weight). Rats were fasted for 12 h with ad libitum water access prior to dosing. Collected blood samples were clotted for 45 min at ambient temperature, then centrifuged at 4000 rpm (10 min, 4 °C). Serum supernatants were aliquoted and stored at −80 °C pending analysis. Post-experiment, rats were euthanized via cervical dislocation under deep anesthesia induced by intraperitoneal sodium pentobarbital injection.

2.4.2. Serum pretreatment

Aliquots (200 μL) of thawed serum underwent protein precipitation with three volumes of methanol. After vortex-mixing (30 s) and vigorous agitation (3 min), samples were centrifuged (10,000 rpm, 5 min, 4 °C). Supernatants were transferred and evaporated to dryness under nitrogen stream (35 °C). Residues were reconstituted in 100 μL methanol, vortex-mixed (3 min), sonicated to complete dissolution, and centrifuged (10,000 rpm, 5 min, 4 °C). Resulting supernatants (2 μL injection volume) were subjected to LC-MS/MS analysis.

2.5. UPLC-Q-Exactive Orbitrap-MS analysis

Chromatographic separation was performed on a Thermo Vanquish UPLC system (Thermo Fisher Scientific, USA) equipped with an ACQUITY UPLC® HSS T3 column (100 mm × 2.1 mm, 1.7 μm; Waters, Milford, MA, USA). The mobile phase consisted of (A) acetonitrile and (B) 0.1 % aqueous formic acid. Separation was achieved under the following gradient conditions at 0.3 mL/min flow rate and 35 °C column temperature: 0–0.8 min, 2 % A; 0.8–2.8 min, 2 % → 70 % A; 2.8–5.6 min, 70 % → 90 % A; 5.6–6.4 min, 90 % → 100 % A; 6.4–8.0 min, 100 % A; 8.0–8.1 min, 100 % → 2 % A; 8.1–10.0 min, 2 % A. Injection volume was 5 μL.

Mass spectrometric detection employed a Q-Exactive Orbitrap mass spectrometer (Thermo Fisher Scientific, USA) with electrospray ionization (ESI) source. Operational parameters were as follows: Nebulization gas: High-purity nitrogen. Collision gas: High-purity helium. Scan range: m/z 100–1000. Acquisition mode: Full MS/dd-MS2. Spray voltage: ±3.0 kV (positive/negative modes). Stepped normalized collision energies: 20 %, 40 %, 60 %. Desolvation temperatures: 310 °C (positive mode), 350 °C (negative mode). Capillary temperature: 320 °C.

2.6. Pharmacokinetic study of MOS

2.6.1. Analytical conditions

Chromatographic separation employed an ACQUITY UPLC® HSS C18 column (2.1 mm × 50 mm, 1.8 μm; Waters, Milford, MA, USA) at 0.4 mL/min flow rate and 30 °C. The mobile phase consisted of (C) 0.1 % aqueous formic acid and (D) methanol. Gradient elution: 0–2 min, 90 % → 45 % C (10 % → 55 % D); 2–5 min, 45 % → 10 % C (55 % → 90 % D); 5–6 min, 10 % C (90 % D); 6–6.1 min, 10 % → 90 % C (90 % → 10 % D); 6.1–8 min, 90 % C (10 % D). Injection volume was 4 μL. Mass spectrometric conditions matched those described in Section 2.5.

2.6.2. Standard solution preparation

Stock solutions of 6-gingerol, vanillin, and syringaldehyde were prepared in methanol. Serial dilutions yielded standard solutions at these concentrations: 6-Gingerol: 35.7, 178.5, 357, 892.5, 1785, 3570, 8930, 17850 ng/mL. Vanillin: 17.72, 88.6, 177.2, 443, 886, 4430, 8860 ng/mL. Syringaldehyde: 40.56, 202.8, 405.6, 1014, 2028, 4056, 10140, 20280 ng/mL. Quality control (QC) samples were similarly prepared at low, medium, and high concentrations: 6-Gingerol: 89.2, 1389, 13390 ng/mL. Vanillin: 44.3, 664.5, 6645 ng/mL. Syringaldehyde: 101.4, 1521, 15210 ng/mL.

2.6.3. Internal standard solution

Sulfamethoxazole (IS; 1.008 mg/mL stock in methanol) was diluted to 10 ng/mL working solution. Aliquots were stored at 4 °C.

2.6.4. Calibration standards

Pooled blank plasma (180 μL) from six rats was spiked with 20 μL serial standard solutions. Calibration standards were prepared as per Section 2.6.5 with these concentrations: 6-Gingerol: 3.57, 17.85, 35.7, 89.3, 178.5, 357, 893, 1785 ng/mL. Vanillin: 1.772, 8.86, 17.72, 44.3, 88.6, 177.2, 443, 886 ng/mL. Syringaldehyde: 4.056, 20.28, 40.56, 101.4, 202.8, 405.6, 1014, 2028 ng/mL.

2.6.5. Plasma sample processing

Rats received MOS concentrate (2.5 mL/rat; 32.2 g crude equivalent/kg) via gavage. Blood (0.5 mL) was collected from the orbital plexus into heparinized tubes at: 0 (pre-dose), 0.083, 0.25, 0.5, 0.75, 1, 1.5, 2, 4, 6, 8, 12, and 24 h post-dosing. Plasma was separated by centrifugation (10,000 rpm, 5 min, 4 °C).

2.6.6. LC-MS/MS method validation

2.6.6.1. Selectivity

Pooled blank plasma from six rats was processed without internal standard (Section 2.6.5) and analyzed (4 μL injection). Fortified plasma samples (spiked with mixed standards and IS) and 0.5-h post-dose plasma samples were similarly processed (2 μL injection). Chromatograms were evaluated for interference at analyte retention times.

2.6.6.2. Calibration curve and the lower limit of quantification

Calibration standards (duplicates) were processed per Section 2.6.5. Linear regression (weighting factor: 1/x2) of peak area ratios (analyte/IS) versus nominal concentrations established calibration curves. The lower limit of quantification (LLOQ) was determined as the lowest concentration with ≤20 % relative error and ≤ 20 % relative standard deviation (RSD).

2.6.6.3. Precision and accuracy

QC samples (low, medium, high; n = 6 per level) were analyzed across three validation days. Intra-day precision (RSD) and accuracy (% nominal) were determined from single-day replicates. Inter-day values were derived from pooled three-day data.

2.6.6.4. Extraction recovery and matrix effect

Recovery: Fortified pre-extraction samples (n = 6 per QC level) were compared with post-extraction spiked samples. Matrix effect: Post-extraction fortified samples were compared with neat standards. Matrix factor (MF) was calculated as: MF = (peak area of post-extraction spike) / (peak area of neat standard).

2.6.6.5. Stability

QC samples (low: ∼3 × LLOQ; high: ∼ULOQ; n = 3) were assessed for: Room temperature stability (24 h). Post-preparation stability (12 h, 4 °C). Freeze-thaw stability (3 cycles, −80 °C). Long-term stability (15 d, −80 °C).

2.6.6.6. Sample analysis and pharmacokinetics

Plasma concentrations were quantified against daily calibration curves. QC samples (≥5 % of total injections) were interspersed throughout analytical batches. Pharmacokinetic parameters (Tₘₐₓ, Cₘₐₓ, AUC₀₋ₜ, AUC₀₋∞, t₁/₂) were derived via non-compartmental analysis (DAS 2.0). Data are expressed as mean ± SD (GraphPad Prism 8.0; SPSS 22.0 for statistical comparisons).

2.7. Data processing

By referring to HMDB, METLIN, LipidMaps, and other databases and related literature, the structural formulas of various chemical components and the cleavage rules of compounds in MOS were collected and sorted out. Xcalibur 4.1 software was used to process the mass spectral data, and the molecular formula was calculated by high-resolution mass spectrometry. The possible compound cleavage rules were speculated based on the existing literature information. The mass spectral deviation range ppm ≤ 5 × 10–6 was preliminary speculated based on the literature for other compounds. The first reported compounds were identified by mass spectrometry according to their cleavage regularity.

3. Results and discussion

3.1. Composition characteristics of MOS aqueous extract

Comprehensive phytochemical profiling of MOS aqueous extract was conducted via UPLC-Q-Exactive Orbitrap-MS. Total ion chromatograms (TIC) and MS/MS spectra acquired in dual ionization modes (Fig. 1, Table 1) facilitated compound characterization. Chromatographic peak processing through Xcalibur 4.1 software enabled annotation against established databases and literature references, utilizing both molecular formula matching and diagnostic fragment ion analysis. Eighty-one constituents were identified, categorized as: 5 glucosinolates, 7 alkaloids, 11 flavonoids (including glycosylated forms), 3 anthraquinones, 4 coumarins, 20 phenolic acids, 1 sesquiterpenoid, 1 polysaccharide, 15 organic acids, 8 amino acids, and 6 miscellaneous compounds (Table 1).

Fig. 1.

Fig. 1

Open in a new tab

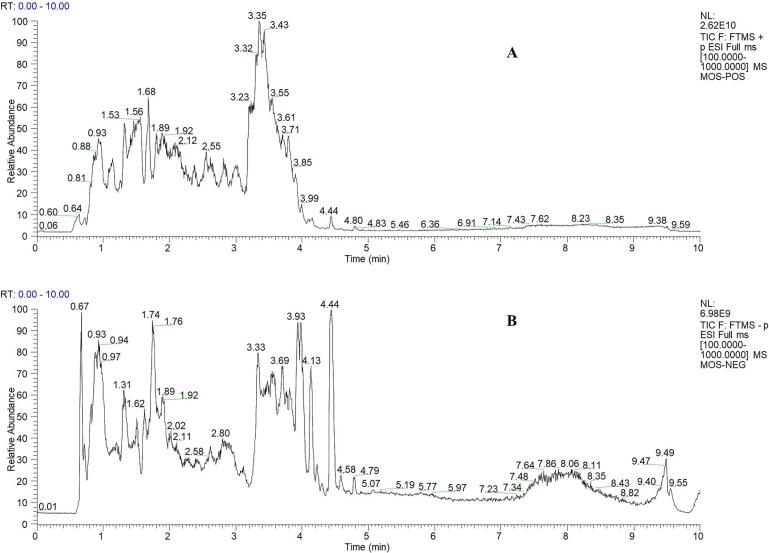

UPLC-Q-Extractive chromatograms. (A) TIC diagram of MOS in positive ion mode. (B) TIC diagram of MOS in negative ion mode.

Table 1.

List of compounds identified of MOS in positive and negative ion mode.

No. TR Theoretical m/z (Da) Measured m/z(Da) Error
(ppm)		 MS/MS Predicted
Formula		 Compounds Type
1 0.46 131.0462 131.0411 −3.89 87.0460，113.0255 C4H8N2O3 L-Asparagine [M-H]−
2 0.57 131.0714 131.0720 4.57 85.0305 C6H12O3 2-Hydroxycaproic acid [M-H]−
3 0.67 177.0546 177.0550 2.14 121.1016，135.0812 C10H8O3 7-Methoxycoumarin [M + H]+
4 0.76 175.1190 175.1187 −1.71 175.1188，116.0705，70.0651，60.0556 C6H14N4O2 L-Arginine [M + H]+
5 0.80 120.0655 120.0651 −3.33 74.0600，102.0217，56.0497 C4H9NO3 L-Threonine [M + H]+
6 0.82 146.0459 146.0466 4.79 102.0570，128.0362 C5H9NO4 L-Glutamic acid [M-H]−
7 0.92 195.0510 195.0514 2.05 75.0097，99.0097，129.0202 C6H12O7 Gluconic acid [M-H]−
8 0.93 105.0193 105.0196 2.85 59.0151，72.9943，75.0099 C3H6O4 Glycolic acid [M-H]−
9 0.96 191.0561 191.0567 3.14 111.0096，87.0088，85.0304，173.0096 C7H12O6 Quinic acid [M-H]−
10 1.00 115.0037 115.0044 6.08 71.0139，115.0138 C4H4O4 Fumaric acid [M-H]−
11 1.04 209.0303 209.0308 2.39 85.0306，129.0203 C6H10O8 Saccharic acid [M-H]−
12 1.08 115.0037 115.0042 4.34 71.0149 C4H4O4 Fumaric acid [M-H]−
13 1.09 341.1089 341.1088 −2.93 161.0463，101.0245，89.0244，71.0139，59.0139 C12H22O11 Trehalose [M-H]−
14 1.10 133.0142 133.0150 5.66 115.0037，71.0139，72.9931，89.0244 C4H6O5 L-Malic acid [M-H]−
15 1.14 287.0550 287.0544 −0.64 153.0179，258.0519 C15H10O6 Kaempferol [M + H]+
16 1.19 191.0197 191.0202 2.62 85.0305，111.0097，129.0203，154.9993 C6H8O7 Isocitric acid [M-H]−
17 1.21 173.0092 173.0096 2.31 111.0098 C6H6O6 Aconitic acid [M-H]−
18 1.25 147.1128 147.1122 −4.08 84.0442，129.0180 C6H14N2O2 l-Lysine [M + H]+
19 1.25 205.0972 205.0978 3.20 188.0702，146.0598 C11H12N2O2 L-tryptophan [M + H]+
20 1.26 164.0473 163.0478 3.06 145.0413，119.0358 C9H8O3 p-Coumaric acid [M-H]−
21 1.27 191.0197 191.0204 3.66 111.0097，87.0098，85.0305 C6H8O7 Citric acid [M-H]−
22 1.38 106.0499 106.0495 −3.77 60.0334，87.0438 C3H7NO3 l-Serine [M-H]−
23 1.52 182.0812 182.0805 −3.57 165.0544，147.0439，136.0755，123.0439，119.0490 C9H11NO3 L-Tyrosine [M + H]+
24 1.54 117.0193 117.0198 4.27 116.0718，99.0087，73.0295，72.0173 C4H6O4 Succinic acid [M-H]−
25 1.56 177.0546 177.0548 0.16 121.0650，105.0699 C10H8O3 4-Methylumbelliferone [M + H]+
26 1.65 147.0299 147.0306 4.76 87.0097，85.0305，129.0202 C5H8O5 Citiamalate [M-H]−
27 1.75 424.0377 424.0383 3.93 74.9919，96.9610，195.0341，259.0129，274.9907 C14H19NO10S2 Glucosinalbin [M-H]−
28 1.88 219.1743 219.1747 0.35 175.1191，116.0707，70.0497，60.0557 C15H22O Nootkatone [M + H]+
29 1.93 199.0600 199.0608 −1.00 171.0804，153.0659 C9H10O5 Ethyl gallate [M + H]+
30 2.05 243.0623 243.0635 2.29 110.0257，200.0569，216.0727 C9H12N2O6 Uridine [M-H]−
31 2.42 492.1534 492.1556 4.58 107.0491，184.0425，185，0456 C20H29NO11S N-[4-(β-L-rhamnopyranosyl)benzyl]-1-O-α-d-glucopyranosyl-thiocarboxamide [M + H]+
32 2.48 586.0906 586.0921 2.59 96.9611，344.0807，259.0132，274.9905，290.9866，74.9585 C20H29NO15S2 3-hydroxyglucomoringin [M-H]−
33 2.67 474.1428 474.1423 −1.79 107.0490，166.0313,328.0843,408.1104 C20H27NO0S Moringin glucoside [M + H]+
34 3.11 333.0671 331.0672 3.71 125.0253 C13H16O10 Galloyl-hexose [M-H]−
35 3.15 299.0772 299.0751 −3.39 137.0523,93.0357 C13H16O8 p-hydroxybenzoic acid glucoside [M-H]−
36 3.15 408.0428 408.0424 3.51 96.9610，80.9663，74.9920，328.0861 C14H19NO9S2 Glucotropaeolin [M-H]−
37 3.15 328.1391 328.1372 −5.60 292.1173,264.1227,208.0968,166.0860,97.0283,69.0334 C15H21NO7 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 1 [M + H]+
38 3.19 359.0984 359.0975 −2.50 197.0459，179.0355 C15H20O10 Methoxypolygoacetophenoside [M-H]−
39 3.25 315.0722 315.0721 3.15 153.0565，108.0227 C13H16O9 Protocatechuic acid hexose [M-H]−
40 3.26 515.1195 515.1210 2.91 179.0355，135.0460 C25H24O12 Di-O-Caffeoylquinic acid
isomer		 [M-H]−
41 3.30 570.0957 570.0962 0.09 96.9611，74.9910，328.0859，259.0128，274.9902 C20H29NO14S2 Glucomoringin [M-H]−
42 3.32 344.1162 344.1162 −4.82 107.0493，238.0712 C15H21NO6S Niazinin A [M + H]+
43 3.32 353.0878 353.0880 −0.05 191.0567，179.0356，135.0461 C16H18O9 Caffeoylquinic acid isomer 1 [M-H]−
44 3.32 328.1391 328.1387 −1.15 292.1172,264.1227,208.0966,166.0860,97.0283,69.0335 C15H21NO8 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 [M + H]+
45 3.36 153.0193 153.0200 4.57 109.0303，123.0460 C7H6O4 Protocatechuic acid [M-H]−
46 3.40 339.0721 339.0722 3.37 177.0120，133.0303 C15H16O9 Esculin [M-H]−
47 3.42 337.0929 337.0931 0.60 119.0511，163.0483，173.0460，191.0567 C16H18O8 p-Coumaroyl Qiiinic acid isomer 1 [M-H]−
48 3.43 353.0878 353.0878 0.02 191.0566，179.0355，135.0459 C16H18O9 Caffeoylquinic acid isomer 2 [M-H]−
49 3.45 179.0350 179.0356 3.91 135.0461 C9H8O4 Caffeic acid [M-H]−
50 3.47 367.1035 367.1038 3.90 193.0511，134.0383，173.0461 C17H20O9 Feruloylquinic acid isomer 1 [M-H]−
51 3.51 447.0946 447.0940 1.34 269.1034，327.0512 C22H16N4O7 Carminic acid [M-H]−
52 3.54 337.0929 337.0933 4.71 119.0511，163.0483，173.0460，191.0567 C16H18O8 p-Coumaroyl Qiiinic acid isomer 2 [M-H]−
53 3.54 353.0878 353.0882 1.13 191.0567，179.0355，135.0460 C16H18O9 Caffeoylquinic acid isomer 3 [M-H]−
54 3.55 137.0244 137.0251 1.81 109.0301，93.0355 C7H6O3 3,4-Dihydroxybenzaldehyde [M-H]−
55 3.58 612.1062 612.1069 2.93 74.9919，96.9610，195.0336，259.0131，274.9898 C22H31NO15S2 4-(2′-acetyl-α-L-rhamnosyloxy)-benzyl isothiocyanate isomer [M-H]−
56 3.59 367.1035 367.1028 1.31 193.0511，134.0383，173.0461 C17H20O9 Feruloylquinic acid isomer 2 [M-H]−
57 3.60 298.1285 298.1298 1.25 107.0490，136.0758，152.0704 C14H19NO6 Marumoside A [M + H]+
58 3.61 431.0984 431.0990 3.70 311.0564，283.0615，269.0457 C21H20O10 Apigenin glucoside isomer 1 [M-H]−
59 3.62 463.0882 463.0889 1.77 300.0277，301.0344，271.0251，255.0303 C21H20O12 Isoquercitrin [M-H]−
60 3.62 593.1512 593.1517 1.57 285.0403，284.0328，255.0302，227.0353 C27H30O15 Kaempferol-3-O-rutinoside/Kaempferol-O-hexose-rhamnose [M-H]−
61 3.65 549.0886 549.0890 2.72 300.0276，301.0344，271.0250，255.0301 C24H22O15 Quercetin malonylglucoside isomer1 [M-H]−
62 3.69 447.0933 447.0938 1.65 255.0302，284.0328，285.0394，227.0354 C21H20O11 Astragalin [M-H]−
63 3.70 367.1035 367.1032 2.40 193.0511，134.0383，173.0461 C17H20O9 Feruloylquinic acid isomer 3 [M-H]−
64 3.71 477.1038 477.1043 3.14 314.0340，271.0249，243.0300 C22H22O12 Isorhamnetin-3-O-Glucoside [M-H]−
65 3.74 353.0878 353.0877 −0.28 191.0566，179.0356，135.0460 C16H18O9 Caffeoylquinic acid isomer 4 [M-H]−
66 3.76 337.0929 337.0926 2.36 119.0511，163.0483，173.0460，191.0567 C16H18O8 p-Coumaroyl Qiiinic acid isomer 3 [M-H]−
67 3.76 609.1461 609.1469 3.18 300.0277，301.0344，271.0251，255.0303 C27H30O16 Rutin [M-H]−
68 3.81 431.0984 431.0986 3.22 311.0563，283.0614，269.0454 C21H20O10 Apigenin glucoside isomer 2 [M-H]−
69 3.82 431.0984 431.0987 3.27 269.0454，311.0563，413.0881 C21H20O10 Emodin-8-O-glucoside [M-H]−
70 3.83 463.0882 463.0888 3.69 300.0276，301.0344，271.0250，255.0301 C21H20O12 Quercetin glycoside isomer 1/Isoquercitrin [M-H]−
71 3.88 187.0976 187.0981 2.67 97.0669，125.0981，123.0825，126.1014 C9H16O4 Azelaic acid [M-H]−
72 3.88 433.1124 433.1129 0.26 283.0594，313.0698 C21H20O10 Vitexin [M + H]+
73 3.90 151.0401 151.0408 4.63 92.0267，121.0303，136.0174 C8H8O3 Vanillin [M-H]−
74 4.10 201.1132 201.1138 2.98 139.1137，183.1032 C10H18O4 Sebacic acid [M-H]−
75 4.12 137.0244 137.0250 4.37 93.0355 C7H6O3 4-Hydroxybenzoic acid [M-H]−
76 4.26 179.0703 179.0704 0.18 161.0958，133.1010，105.0697 C10H10O3 3-Methoxycinnamic acid [M + H]+
77 4.42 312.0900 312.0888 −1.21 107.0490，206.0477 C14H17NO5S Moringin [M + H]+
78 4.57 183.0652 183.0654 0.20 123.0439，155.0703，95.0489 C9H10O4 Syringaldehyde [M + H]+
79 4.71 163.0390 163.0390 0.55 135.0442，105.0447，95.0492 C9H6O3 7-Hydroxycoumarin [M + H]+
80 4.82 295.1904 295.1890 −4.69 277.1191，117.1025 C17H26O4 6-Gingerol [M + H]+
81 5.30 181.0718 181.0723 2.76 163.0615，101.0245，89.0244，71.0139，59.0138 C6H14O6 Mannitol [M-H]−
Open in a new tab

Methodological rationale: Preliminary solvent screening (ethanol, water, ethyl acetate, n-butanol, petroleum ether) revealed superior pharmacological activity in aqueous extracts, thus justifying aqueous extraction. Dose-response evaluation of three concentrations (1, 2.12, and 4 g/mL) established 2.12 g/mL as the optimal extraction concentration for subsequent analyses.

3.1.1. Structure analysis of glucosinolates

Glucosinolates constitute the principal phytochemical constituents in MOS. Structurally classified by their side chain characteristics, these compounds are categorized into three groups: (1) aliphatic glucosinolates with linear/branched alkyl chains; (2) aromatic glucosinolates containing benzene rings; and (3) indolic glucosinolates featuring indole ring systems (Ares, Valverde, Nozal, Bernal, & Bernal, 2016). Our analysis identified five glucosinolate derivatives in M. oleiferaseeds, predominantly aromatic subtypes. To elucidate their fragmentation mechanisms, glucomoringin was selected as a representative compound for detailed mass spectrometric characterization.

In negative ionization mode, the precursor ion ([M-H]− at m/z 570.0962) exhibited three distinct fragmentation pathways (Fig. 2A). Pathway 1: Direct neutral loss of HSO4− (97.9674 Da), yielding the diagnostic fragment at m/z 96.9610. Pathway 2: Cleavage of the C (1′)-S bond followed by sequential loss of the glucose moiety (162.0528 Da) and aromatic substituents, generating characteristic fragments at m/z 328.0871 and 74.9910. Pathway 3: S—C bond scission adjacent to the thioglucose unit, producing the m/z 195.0338 fragment. Subsequent sulfate-hydroxyl exchange at the C(2) position of glucose yielded complementary ions at m/z 259.0128 and 274.9910, consistent with established fragmentation patterns (Jaja-Chimedza et al., 2018; Prieto, López, & Simal-Gandara, 2019).

Fig. 2.

Fig. 2

Open in a new tab

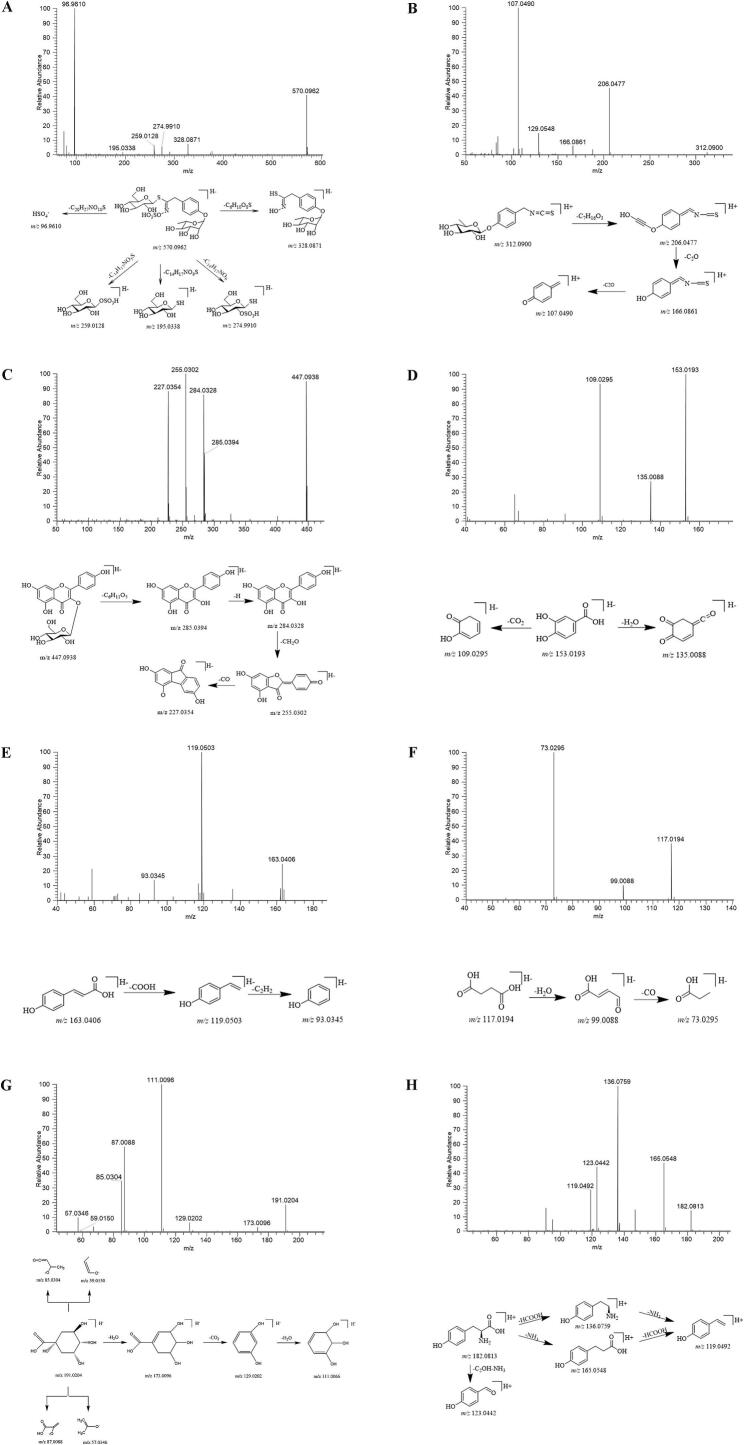

Structure resolution of the major compounds in MOS. (A) Fragmentation pattern of Glucomoringin. (B) Fragmentation pattern of moringin. (C) Fragmentation pattern of Astragalin. (D) Fragmentation pattern of Protocatechuic acid. (E) Fragmentation pattern of p-coumaric acid. (F) Fragmentation pattern of Succinic acid. (G) Fragmentation pattern of Quinic acid. (H) Fragmentation pattern of L-Tyrosine.

3.1.2. Structure analysis of alkaloid compounds

Alkaloids represent a structurally diverse class of nitrogen-containing secondary metabolites characterized by basic heterocyclic frameworks. These compounds are systematically categorized based on their core C—N skeletal architectures, encompassing subclasses such as pyrrolidines, pyridine derivatives, quinolines, isoquinolines, and indole alkaloids. Phytochemical profiling of MOS has revealed seven phenethylamine-type alkaloids, three of which—moringin, marumoside A, and niazinin A—are recognized as chemotaxonomic markers unique to this species (Abdelsayed, Abdel Motaal, & Hanafi, 2021; Gao et al., 2022; Ma et al., 2018). These compounds share conserved structural motifs comprising a β-d-glucopyranosyl unit linked to a phenethylamine core via O-glycosidic bonding.

The fragmentation behavior is exemplified by moringin ([M + H]+ m/z 312.0900) under positive ionization (Fig. 2B). Primary cleavage occurs at the glycosidic bond (C—O, m/z − 146.0423), generating aglycone fragments at m/z 166.0865 (phenethylamine moiety) and m/z 206.0477 (glucosyl‑oxygenated intermediate). Subsequent isothiocyanate elimination (−97 Da, C₂H₃NS) induces aromatic ring rearrangement, yielding the diagnostic ion at m/z 107.0490 (C₆H₅NO−), indicative of ortho-aminophenolic structural reorganization.

3.1.3. Structure analysis of flavonoids and flavonoid glycosides

Flavonoids constitute a class of polyphenolic compounds characterized by a 15‑carbon skeleton comprising two aromatic rings (A and B) interconnected via a heterocyclic pyran ring (C-ring). These phytochemicals are systematically classified into subclasses—including flavonols, flavones, isoflavones, dihydroflavones, and dihydroisoflavones—based on structural variations in the C-ring configuration, inter-ring conjugation patterns, and oxidation states of the central carbon framework. During mass spectrometric analysis, flavonoids undergo characteristic fragmentation patterns in both ionization modes, predominantly through cleavage of the C-ring followed by sequential neutral losses (CO: 28 Da, CO₂: 44 Da, H₂O: 18 Da). The resultant A-ring and B-ring-derived fragments serve as diagnostic markers for structural elucidation.

Five distinct flavonoid subclasses have been identified in MOS through advanced analytical methodologies (Adebayo, Arsad, & Samian, 2018; Liao, Cheng, Diao, Sun, & Zhang, 2017; Zhou et al., 2022). To illustrate the fragmentation behavior, astragalin (m/z 447.0938 [M-H]−) demonstrates a representative cleavage pathway (Fig. 2C) (Zhou et al., 2022). Initial glycosidic bond rupture generates fragm227.0354 cross 285.0394 (aglycone) and m/z 284.0328 (radical aglycone). Subsequent C-ring-centered fragmentation yields characteristic daughter ions at m/z 255.0302 (retro-Diels-Alder product) and m/z 227.0354 (cross-ring cleavage derivative), confirming the compound's substitution pattern.

3.1.4. Structure analysis of phenolic acids

Phenolic acids represent a class of aromatic phytochemicals characterized by hydroxyl and carboxyl substituents on their benzene nuclei, conferring strong ionization efficiency in negative ion mode during mass spectrometric analysis. Based on their carbon frameworks, these compounds are subclassified into two structural archetypes: (1) C6-C1 derivatives (benzoic acid derivatives, e.g., protocatechuic acid) and (2) C6-C3 derivatives (cinnamic acid derivatives, e.g., p-coumaric acid). The characteristic fragmentation patterns of these subclasses are exemplified through protocatechuic acid and p-coumaric acid analyses.

The deprotonated molecular ion [M-H]− of protocatechuic acid (m/z 153.0193) undergoes sequential decarboxylation (−44 Da, CO2 loss) followed by dehydration (−18 Da, H2O loss), generating diagnostic fragment ions at m/z 109.0292 and m/z 135.0088, respectively (Fig. 2D). This cleavage pattern aligns with established fragmentation pathways for ortho-dihydroxybenzoic acid derivatives (Zhou et al., 2022). Similarly, p-coumaric acid ([M-H]− m/z 163.0406) demonstrates a primary neutral loss of CO2 (44 Da) yielding m/z 119.0503, with subsequent side-chain cleavage producing the m/z 93.0345 fragment through allylic bond rupture (Fig. 2E).

3.1.5. Structure analysis of organic acid compounds

Organic acids constitute a class of phytochemicals characterized by the presence of at least one carboxyl functional group (-COOH) in their molecular architecture, exhibiting optimal ionization efficiency in negative ion mode during mass spectrometric analysis. Their fragmentation patterns are dominated by characteristic decarboxylation (−44 Da, CO2 loss). High-resolution tandem mass spectrometry has enabled the identification of eight distinct organic acid derivatives in MOS.

Under negative ionization conditions, succinic acid ([M-H]− m/z 117.0194) demonstrates sequential neutral losses, yielding diagnostic fragment ions at m/z 99.0088 (−18 Da, H₂O loss) and m/z 73.0295 (additional CO₂ elimination) (Fig. 2F). Similarly, quinic acid ([M-H]− m/z 191.0204) exhibits two predominant fragmentation pathways. A cascade of dehydration (−18 Da) → decarboxylation (−44 Da) → secondary dehydration (−18 Da), generating successive fragments at m/z 173.0096 → m/z 129.0202 → m/z 111.0096; Six-membered ring cleavage via retro-aldol fragmentation, producing complementary ions at m/z 87.0088 (C₃H₃O₃−) with its dehydrated form m/z 85.0304, and m/z 57.0346 (C₂H₅O₂−) accompanied by m/z 59.0150 (C₂H₃O₂−) (Fig. 2G).

3.1.6. Structure analysis of amino acid compounds

Amino acids constitute essential nutritional components in biological systems. Tandem mass spectrometric analysis has identified eight distinct amino acid derivatives in MOS, corroborating previous phytochemical investigations ((Piraud et al., 2003; Zhou et al., 2022). The fragmentation behavior of these compounds is exemplified through the analysis of L-tyrosine (Fig. 2H). The protonated molecular ion [M + H]+ of L-tyrosine (m/z 182.0813) undergoes two principal cleavage pathways. Intramolecular rearrangement yielding the m/z 123.0442 fragment via neutral loss of NH₃ (−17 Da) and CO₂ (−44 Da); Sequential decarboxylation (−44 Da) followed by deamination (−17 Da), generating successive fragments at m/z 165.0548 → m/z 136.0759 → m/z 119.0492 through α‑carbon backbone cleavage.

Additional phytoconstituents identified in MOS extracts include polyphenolic derivatives (e.g., 6-gingerol) and aromatic aldehydes (protocatechualdehyde, vanillin), with complete structural assignments and spectral data presented in Table 1.

3.2. Results of identification of transitional components in serum

TIC of blank serum and drug-containing serum were acquired in both positive and negative ionization modes. Using Xcalibur 4.1 data processing software, background interference was subtracted from post-administration sample chromatograms, yielding processed TIC with blank subtraction as illustrated in Supplementary Figs. 1 and 2. Subsequent analysis with TraceFinder 4.1 software identified 11 prototype constituents in serum samples, comprising 2 glucosinolates, 2 alkaloids, 1 flavonoid, 2 phenolic acids, and 4 miscellaneous compounds, with detailed characterization data presented in Table 2. All detected components demonstrated mass spectral consistency with reference MOS standards in vitro.

Table 2.

Identification of the prototype components from compound MOS granule in serum of rats.

No. TR Theoretical m/z (Da) Measured m/z(Da) Error
(ppm)		 MS/MS Predicted Formula Compounds Type
P1 1.27 137.0244 137.0245 −0.73 137.0244,135.9714,109.1268 C7H6O3 Protocatechualdehyde [M-H]−
P2 1.72 163.0400 163.0406 −3.68 162.8394,119.0503 C9H8O3 p-Coumaric acid [M-H]−
P3 3.30 408.0428 408.0431 −0.74 96.960,80.9653 C14H19NO9S2 Glucotropaeolin [M-H]−
P4 3.33 570.0962 570.0957 0.88 96.960,80.965,74.9910,328.0859,259.0128,274.9902 C20H29NO14S2 Glucomoringin [M-H]−
P5 3.37 328.1391 328.1398 −2.13 292.1184,264.1235,166.0865,97.0285,69.0337 C15H21NO7 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 [M + H]+
P6 3.61 312.0900 312.0912 −3.85 107.0490,166.0865,79.0541 C14H17NO5S Moringin [M + H]+
P7 3.87 153.0192 153.0194 −1.05 109.0295,135.0086 C7H6O4 Protocatechuic acid [M-H]−
P8 3.97 151.0402 151.0400 1.66 92.027,136.0168 C8H8O3 Vanillin [M-H]−
P9 4.01 433.1124 433.1117 1.62 283.0615,313.0718,271.0593,163.0596,85.0282 C21H20O10 Vitexin [M + H]+
P10 4.69 183.0652 183.0663 4.10 123.0439,155.0703,95.049 C9H10O4 Syringaldehyde [M + H]+
P11 5.03 293.1759 293.1762 −1.02 236.11,221.1548,177.0922 C17H26O4 6-Gingerol [M-H]−
Open in a new tab

Compound Discoverer (CD) software was employed for structural elucidation through systematic analysis of mass-to-charge ratios, isotopic distribution patterns, and characteristic fragmentation profiles. Comparative analysis of molecular ions and secondary fragment ions against established metabolite databases and published literature enabled tentative identification of metabolic derivatives. This comprehensive approach revealed 27 distinct MOS-derived metabolites in rat serum following oral administration, with complete analytical results tabulated in Table 3.

Table 3.

Identification of the metabolites from compound MOS granule in serum of rats.

No. TR Theoretical m/z (Da) Measured m/z(Da) Error
(ppm)		 MS/MS Predicted Formula Compounds Type
M1 1.08 216.9812 216.9816 −1.54 93.035,137.0246,172.9930 C7H6O6S Protocatechualdehyde
Sulfation		 [M-H]−
M2 1.59 194.0459 194.0453 3.09 150.0561,93.035 C9H9NO4 Protocatechualdehyde
Glycine		 [M-H]−
M3 1.68 344.1340 344.1326 4.06 308.1130,280.1082,182.08136,137.0793,97.029,69.0337 C15H21NO8 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 Hydroxylation [M + H]+
M4 1.79 326.1057 326.1047 3.07 92.027,206.0477,136.0758 C15H19NO5S Moringin Methylation [M + H]+
M5 2.40 208.0615 208.0616 −0.55 134.0613,149.0482 C10H11NO4 Vanillin Glycine [M-H]−
M6 3.40 385.1605 385.1615 −2.62 343.1160,133.0612,107.04939 C17H24N2O8 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 Glycine [M + H]+
M7 3.52 232.9761 232.9752 3.86 109.0290,135.0435 C7H6O7S Protocatechuic acid Sulfation [M-H]−
M8 3.63 166.0321 166.0325 2.22 107.0493,120.0809 C8H7NOS 4-Hydroxybenzyl
isothiocyanate		 [M + H]+
M9 3.64 458.1992 4458.1955 2.44 107.0493,206.0598, C19H27N3O8S Moringin Glutamine conjugation [M + H]+
M10 3.65 633.2072 633.2046 4.12 253.10696,107.0493 C25H36N4O13S methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 GSHconjugation [M + H]+
M11 3.67 242.9968 242.9961 2.78 163.0406,119.0505 C9H8O6S p-Coumaric acid Sulfation [M-H]−
M12 3.74 388.1602 388.1606 −0.91 301.1299,203.0530,165.0550,133.0550,130.0500 C17H25NO9 methyl N-[[4-(3,4,5-trihydroxy-6-methyloxan-2-yl)oxyphenyl]methyl]carbamate isomer 2 Hydration Acetylation [M + H]+
M13 3.79 386.1142 386.1149 −1.82 107.0492,89.0598,241.0647 C16H21N2O7S Moringin Glycine [M + H]+
M14 3.92 354.1006 354.0991 4.25 107.04922,217.08557,129.0544 C16H19NO6S Moringin Acetylation [M + H]+
M15 4.17 463.0882 463.0870 2.51 287.0930,175.0527 C21H20O12 Vitexin Hydroxylation [M-H]−
M16 4.19 463.1237 463.1235 0.54 283.1695,337.1633 C22H22O11 Vitexin Hydroxylation Methylation [M + H]+
M17 4.53 528.0548 528.0532 −0.82 80.9652,96.960 C17H25N2O11S3 Glucotropaeolin Cysteine [M-H]−
M18 4.59 291.1602 291.1599 1.03 221.1547,179.0718, C17H24O4 6-Gingerol Dehydrogenation [M-H]−
M19 4.63 177.0557 177.0559 −1.08 162.0322,145.0297,119.0462 C10H10O3 p-Coumaric acid Methylation [M-H]−
M20 4.67 240.0866 240.0824 1.75 95.086,123.1170,183.1746 C14H16N2O5 Syringaldehyde Glycine [M + H]+
M21 4.68 584.0749 584.0752 −0.52 96.9610,424.0403,328.0854,259.0140,
195.0805		 C20H27NO15S2 Glucotropaeolin glucuronide [M-H]−
M22 4.82 277.1798 277.1806 −2.78 137.0594,277.1181,179.1063 C17H24O3 6-Gingerol Desaturation [M + H]+
M23 4.89 275.1642 275.1636 1.93 275.1646,159.0807 C17H22O3 6-Gingerol Desaturation Dehydrogenation [M + H]+
M24 5.02 307.1915 307.1911 1.32 293.2226,235.1326 C18H28O4 6-Gingerol Methylation [M + H]+
M25 5.18 352.2129 352.2137 −2.27 177.0929,277.1796 C19H31NO5 6-Gingerol Glycine [M-H]−
M26 5.29 281.2475 281.2461 4.97 147.0653,135.0806,107.0856 C18H32O2 6-Gingerol Reduction Methylation [M + H]+
M27 7.99 607.1304 593.1517 1.20 431.3503,311.2234,283.2651,413.8943 C27H30O15 Vitexin Glucuronide [M-H]−
Open in a new tab

3.2.1. Identification of glucosinolates metabolites

Comparative analysis between authentic and blank serum samples using the aforementioned data processing methodology enabled the preliminary identification of two glucosinolate prototype constituents and two metabolic derivatives. Metabolic profiling revealed that glucosinolates primarily undergo phase I hydrolytic metabolism (deglycosylation) followed by phase II conjugation reactions, including glucuronidation and cysteinyl conjugation.

The metabolic interconversion network between glucomoringin (P4) and its derivatives in serum is illustrated in Fig. 3A and D. Hydrolytic removal of a glucose residue from glucomoringin yields glucotropaeolin (P3), which subsequently undergoes phase II modifications via glucuronyl and cysteinyl conjugation to produce secondary metabolites M17 and M21, respectively. Representative metabolite M21 was selected for fragmentation pathway elucidation. In negative ionization mode, M21 exhibited a deprotonated molecular ion ([M-H]− at m/z 584.0752), corresponding to the molecular formula C20H27NO15S2 as calculated by CD software. Collision induced dissociation (CID) generated characteristic fragment ions at m/z 424.0403, 328.0854, 259.0140, and 96.9610, demonstrating fragmentation patterns consistent with glucotropaeolin-derived conjugates. While spectral data confirmed conjugation with cysteine, the specific binding site remained undetermined. Based on these analytical findings, M21 was tentatively characterized as a cysteinyl-conjugated glucotropaeolin derivative. The complete mass spectral profile and proposed fragmentation pathway are presented in Fig. 3B and C.

Fig. 3.

Fig. 3

Open in a new tab

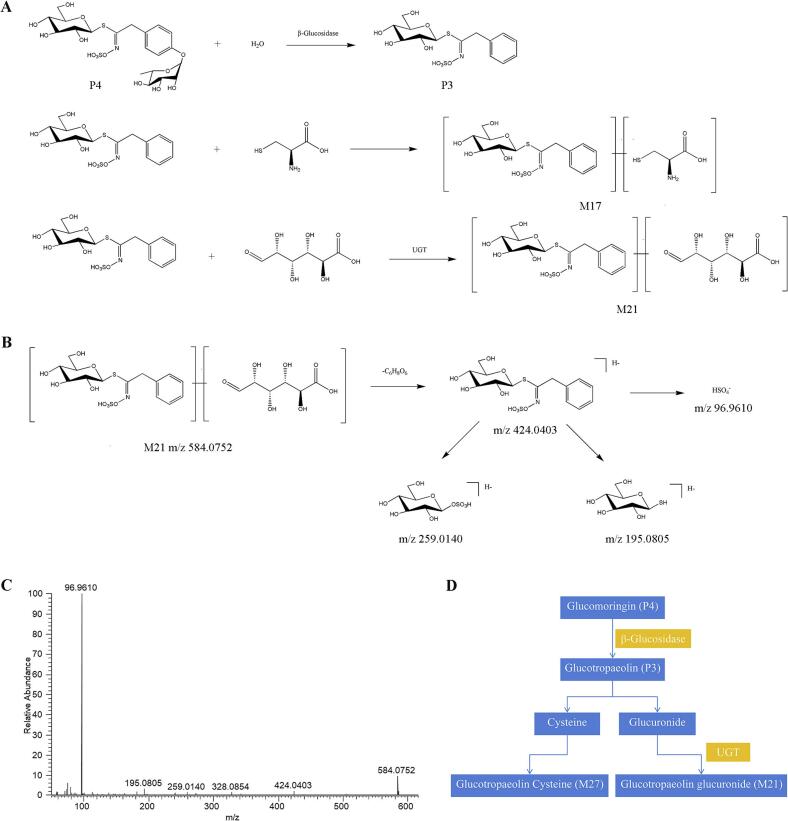

Analysis of prototype components and metabolite lysis pathway of glucosinolate in vivo. (A) The possible metabolic pathways of glucomoringin in the rat serum. (B) Proposed fragmentation pathways of M21 in the negative ion mode. (C) Product ion spectra of M21 in the negative ion mode. (D) The possible interactive metabolic network diagram of glucomoringin in the rat serum.

3.2.2. Identification of alkaloid metabolites

Serum analysis of rats revealed two alkaloid prototype constituents and nine metabolic derivatives. Metabolic profiling indicated predominant phase II conjugation reactions including acetylation, methylation, glucuronidation, and glutamine conjugation (Fig. 4A and D). Using moringin (P6) as a representative compound, we characterized its biotransformation pathway involving phase II modifications to generate acetylated (M14), methylated (M4), glycine-conjugated (M13), and glutamine-conjugated (M9) derivatives, alongside phase I hydrolytic deglycosylation yielding 4-hydroxybenzyl isothiocyanate (M8).

Fig. 4.

Fig. 4

Open in a new tab

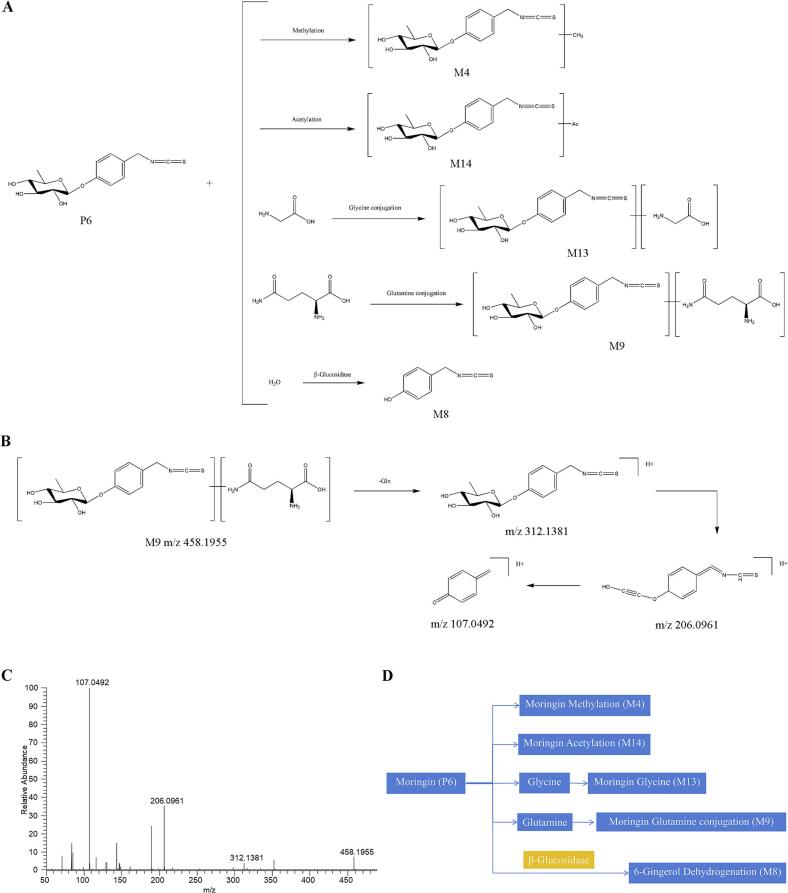

Analysis of prototype components and metabolite lysis pathway of alkaloid in vivo. (A) The possible metabolic pathways of moringin in the rat serum. (B) Proposed fragmentation pathways of M9 in the positive ion mode. (C) Product ion spectra of M9 in the positive ion mode. (D) The possible interactive metabolic network diagram of moringin in the rat serum.

For metabolite M9, structural elucidation was performed via mass spectrometric analysis. In positive ionization mode, M9 exhibited a protonated molecular ion ([M + H]+ at m/z 458.1955), corresponding to the molecular formula C19H27N3O8S as calculated by CD software. CID generated diagnostic fragment ions at m/z 312.1381, 206.0961, and 107.0492, exhibiting high concordance with characteristic moringin-derived fragments. While spectral patterns confirmed glutamine conjugation, the specific binding site remained undetermined. Based on these findings, M13 was tentatively identified as a moringin-glutamine conjugate. The complete mass spectral data and proposed fragmentation pathway are illustrated in Fig. 4B and C.

3.2.3. Identification of flavonoids metabolites

Serum analysis following intragastric administration of MOS aqueous extract revealed four flavonoid derivatives, comprising one prototype constituent and three metabolic derivatives (Najmanová, Vopršalová, Saso, & Mladěnka, 2020; Yue et al., 2022), The proposed biotransformation pathway for these compounds is depicted in Fig. 5A and C. Representative metabolite M15 was selected to demonstrate its fragmentation behavior. The metabolite M15 was taken as an example to illustrate the cleavage pathway of this compound.

Fig. 5.

Fig. 5

Open in a new tab

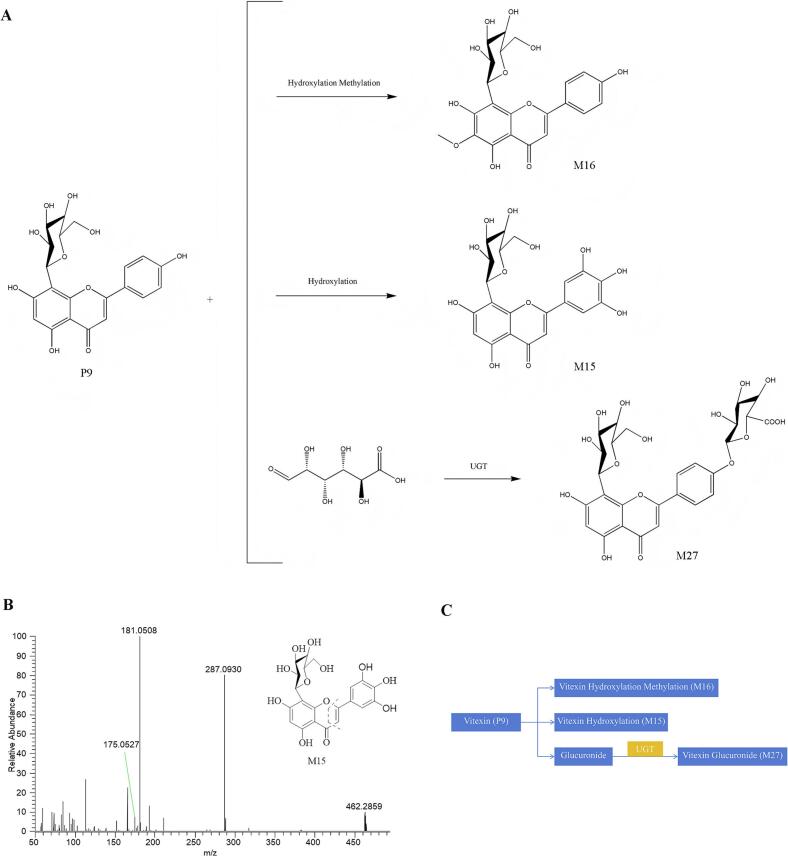

Analysis of prototype components and metabolite lysis pathway of flavonoid in vivo. (A) The possible metabolic pathways of flavonoids in the rat serum. (B) Product ion spectra of M15 in the positive ion mode. (C) The possible interactive metabolic network diagram of vitexin in the rat serum.

In positive ionization mode, M15 displayed a protonated molecular ion ([M + H]+ at m/z 463.0870), corresponding to the molecular formula C21H20O12 as calculated via CD software. CID generated characteristic fragment ions at m/z 287.0930 and 175.0527, consistent with retro-Diels-Alder fragmentation of the flavonoid C-ring. Structural analysis suggested hydroxylation modifications on the B-ring of the flavonoid aglycone, though the specific substitution site remained undetermined. Based on these spectral features, M15 was tentatively identified as a polyhydroxylated vitexin derivative. The full mass spectral profile and proposed fragmentation pathway are illustrated in Fig. 5B.

3.2.4. Identification of phenolic acids metabolites

Comparative analysis with blank biological matrices identified five phenolic acid derivatives in serum samples from rats receiving MOS aqueous extract via intragastric administration, comprising two prototype constituents and three metabolic derivatives. The biotransformation processes predominantly involved methylation and sulfation conjugation, with the proposed metabolic pathway illustrated in Fig. 6A and D.

Fig. 6.

Fig. 6

Open in a new tab

Analysis of prototype components and metabolite lysis pathway of phenolic acids in vivo. (A) The possible metabolic pathways of phenolic acids in the rat serum. (B) Proposed fragmentation pathways of M11 in the negative ion mode. (C) Product ion spectra of M11 in the negative ion mode. (D) The possible interactive metabolic network diagram of phenolic acids in the rat serum.

Representative metabolite M11 was selected to elucidate its fragmentation pathway. In negative ionization mode, M11 exhibited a precursor ion ([M-H]− at m/z 242.0132), corresponding to the molecular formula C₉H₈O₆S as calculated by CD software. CID generated characteristic secondary fragment ions at m/z 162.0562 and 119.0505, consistent with the diagnostic fragmentation pattern of p-coumaric acid derivatives. These spectral features supported the structural assignment of M11 as a p-coumaric acid-sulfate conjugate. The full mass spectral profile and proposed fragmentation pathway are presented in Fig. 6B and C.

3.2.5. Identification of other metabolite

Pharmacokinetic analysis revealed 14 additional compounds in post-administration rat serum, comprising 4 prototype constituents and 10 metabolic derivatives (S. Z. Jiang, Wang, & Mi, 2008). The prototype constituents consisted of three aldehyde derivatives and one polyphenolic compound. Aldehyde metabolism primarily involved phase II conjugation reactions, with the postulated biotransformation pathway illustrated in Fig. 7A and C. Polyphenolic compounds underwent phase I dehydrogenation followed by phase II modifications including methylation and glycine conjugation, as detailed in Table 2, Table 3. Representative metabolite M25 ([M-H]− with m/z 352.2137) demonstrated characteristic fragmentation patterns through collision-induced dissociation, generating diagnostic fragment ions at m/z 177.0929 and 277.1796 corresponding to 6-gingerol derivatives. Structural elucidation confirmed M26 as a 6-gingerol-glycine conjugate, with its secondary fragmentation patterns and proposed cleavage pathway presented in Fig. 7B and D.

Fig. 7.

Fig. 7

Open in a new tab

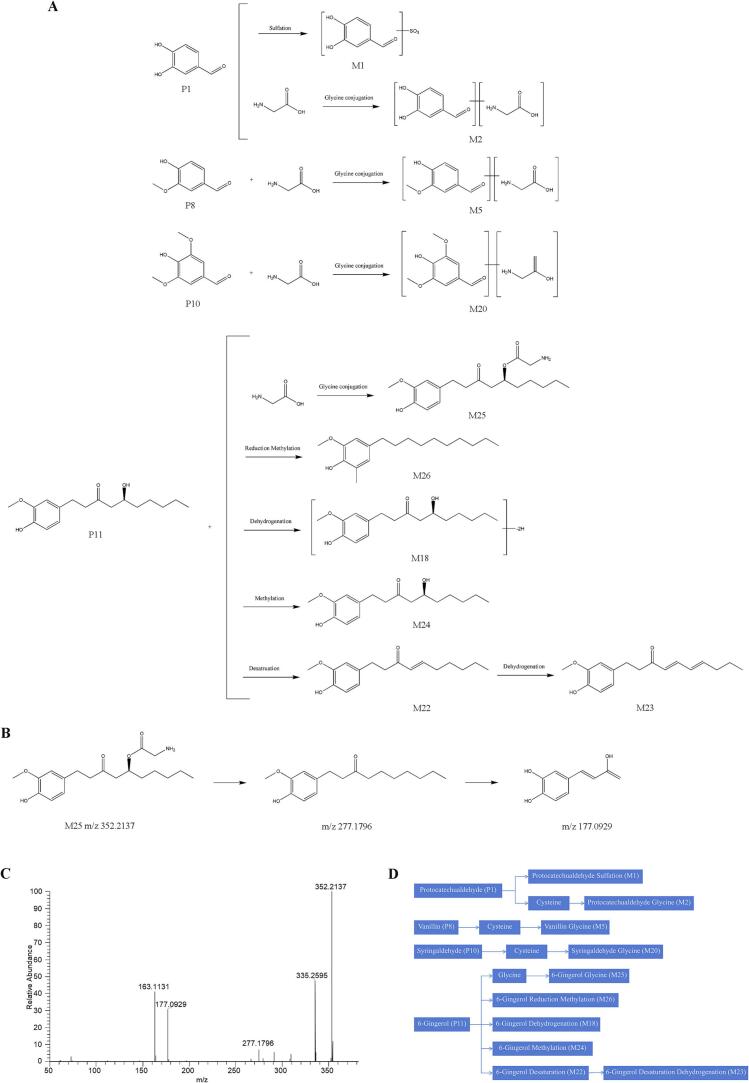

Analysis of prototype components and metabolite lysis pathway of others in vivo. (A) The possible metabolic pathways of others in the rat serum. (B) Proposed fragmentation pathways of M25 in the negative ion mode. (C) Product ion spectra of M25 in the negative ion mode. (D) The possible interactive metabolic network diagram of others in the rat serum.

3.3. Pharmacokinetic results

3.3.1. LC-MS/MS method validation

3.3.1.1. Selectivity

Method selectivity was confirmed by comparative chromatographic analysis of blank plasma, fortified plasma, and post-administration samples (Supplementary Fig. 3). No endogenous or metabolic interference was observed at retention times corresponding to 6-gingerol, vanillin, eugenol, or IS.

3.3.1.2. Calibration curve and LLOQ

Linear ranges were established: 3.57–1785 ng/mL (6-gingerol), 1.772–886 ng/mL (vanillin), and 4.056–2028 ng/mL (syringaldehyde). All analytes demonstrated satisfactory linearity (r > 0.99) within their respective ranges. Calibration parameters and lower quantification limits (LLOQ) are detailed in Supplementary Table 1.

3.3.1.3. Precision and accuracy

Intra-day and inter-day precision (RSD ≤ 15 %) and accuracy (RE within ±15 %) met bioanalytical validation criteria. Results across QC levels (n = 18) complied with acceptance limits (Supplementary Table 2).

3.3.1.4. Extraction recovery and matrix effect

Mean extraction recoveries exceeded 80.9 % for all analytes (IS recovery: 90.8 %). The internal standard-normalized matrix factor exhibited RSD < 15 % across six plasma lots (Supplementary Table 3).

3.3.1.5. Stability

Analytes remained stable (RSD < 10 %) under all tested conditions: ambient temperature (24 h), post-preparative (12 h, 4 °C), freeze-thaw cycles (3×), and long-term storage (−80 °C, 15 d) (Supplementary Table 4).

3.3.2. Pharmacokinetic studies

LC-MS/MS quantified plasma concentrations of three bioactive components following oral administration of MOS aqueous extract in rats. Mean plasma concentration-time profiles (Fig. 8) and pharmacokinetic parameters (Supplementary Table 5) were established.

Fig. 8.

Fig. 8

Open in a new tab

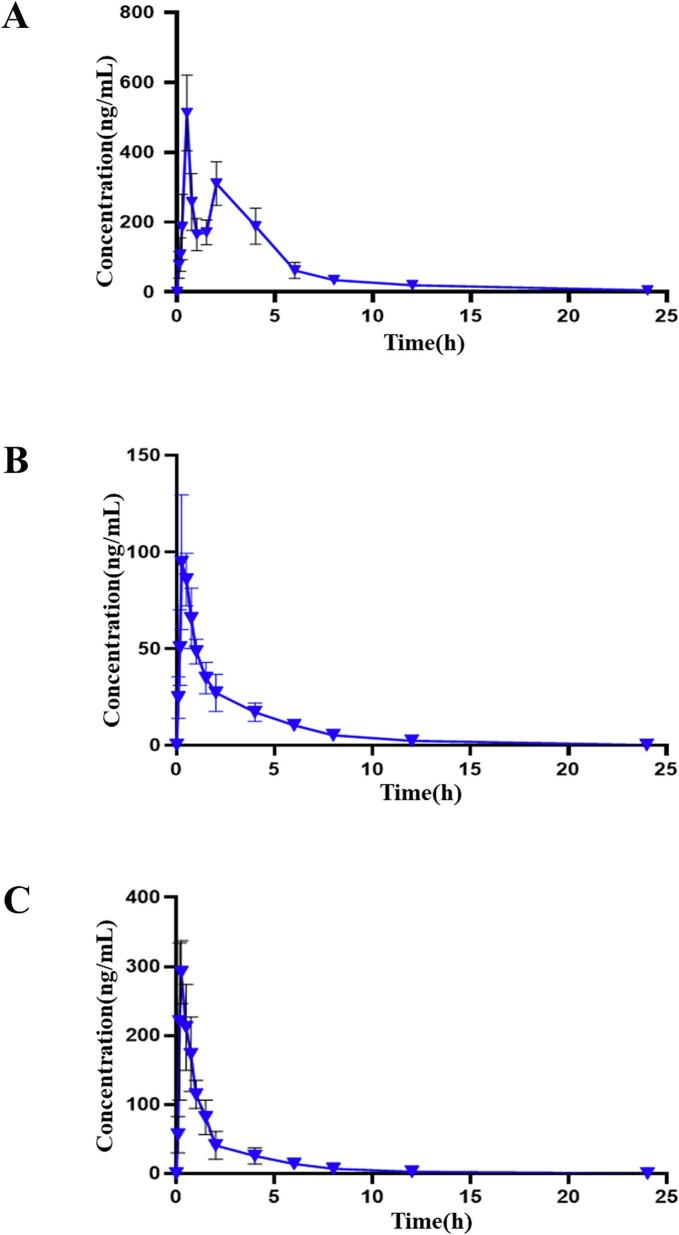

Mean plasma concentration-time curves of each component in the administered rats. (A) Mean plasma concentration-time profiles of 6-Gingerol. (B) Mean plasma concentration-time profiles of Vanillin. (C) Mean plasma concentration-time profiles of Syringaldehyde (mean ± SD, n = 6).

The validated method simultaneously determined 6-gingerol, vanillin, and syringaldehyde concentrations across timepoints. Chromatographic optimization revealed superior analyte response in negative ionization mode using methanol-0.1 % aqueous formic acid versus acetonitrile-water or methanol-water systems, yielding enhanced ionization efficiency and reduced background noise. Plasma pretreatment methodologies were evaluated, with protein precipitation demonstrating comparable extraction efficiency to liquid-liquid extraction (chloroform/ethyl acetate/isopropanol) while offering operational advantages.

6-Gingerol exhibited biphasic absorption kinetics, potentially attributable to enterohepatic recirculation (Wang et al., 2014) and metabolic interconversion between parent compound and glucuronide metabolites (Feng et al., 2018). The initial absorption peak (T₁ ≈ 0.5 h) corresponds to direct intestinal absorption, while the secondary peak (T₂ ≈ 4–6 h) likely reflects microbial deglucuronidation and subsequent reabsorption. Vanillin and syringaldehyde demonstrated rapid pharmacokinetics: Tmax: 0.33 ± 0.13 h (vanillin); 0.28 ± 0.11 h (syringaldehyde). t1/2: 2.54 ± 0.82 h (vanillin); 3.34 ± 2.30 h (syringaldehyde).

These parameters indicate swift distribution and elimination, consistent with the steep terminal elimination phases observed in Fig. 8. The established pharmacokinetic profiles provide critical insights for clinical translation of MOS-based formulations.

4. Conclusion

This study systematically characterized MOS constituents in vitro and in vivo using UPLC-Q-Exactive Orbitrap-MS. We identified 81 chemical components in aqueous extracts and 38 blood-borne compounds (11 prototypes; 27 metabolites) in rat serum, establishing diagnostic fragmentation patterns for key phytochemicals. The developed UPLC-MS/MS method enabled rapid quantification of 6-gingerol, vanillin, and syringaldehyde pharmacokinetics in rat plasma, revealing biphasic absorption kinetics for 6-gingerol and rapid elimination profiles for all three markers.

Translational implications: Sulfated metabolites (e.g., M6, M7 in Supplementary Data) identified during in vivo analysis may serve as stability markers for MOS-based functional foods, given their resistance to enzymatic degradation. The quantified phenolic compounds (vanillin, syringaldehyde) could be potentially applied as standardization markers for nutraceutical formulations targeting metabolic disorders.

Study limitations and future directions: While enterohepatic recirculation was implicated in 6-gingerol pharmacokinetics, fecal sampling was not performed, potentially overlooking gut microbiota-mediated metabolites like deglycosylated flavonoids. Future investigations should integrate metabolomic profiling of intestinal contents to comprehensively map microbial biotransformation pathways.

These findings provide both a chemical foundation for MOS quality control and pharmacokinetic insights guiding clinical translation of MOS-derived therapeutics.

CRediT authorship contribution statement

Jiahong Wang: Writing – original draft, Methodology, Funding acquisition, Formal analysis, Conceptualization. Juan Cao: Validation, Methodology, Investigation. Hao Wang: Validation, Methodology, Data curation. Yudie Zhang: Validation, Software, Methodology. Li Jiang: Visualization, Validation. Jiaohan Zhan: Validation, Methodology. Yanxiu Sun: Visualization, Validation, Software. Yiyang Du: Methodology, Funding acquisition, Conceptualization. Tingxu Yan: Methodology, Funding acquisition, Formal analysis. Ying Jia: Resources, Project administration, Funding acquisition. Bosai He: Writing – review & editing, Supervision, Conceptualization.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgements

This research was supported by National Natural Science Foundation of China (No. 82374333, No. 82173961); SPU Excellent Youth Program (YQ202310); Liaoning Provincial Department of Education Fund (LJ212410163006, LJ212410163018); the Young and Middle Aged Teachers' Career Development Support Project of Shenyang Pharmaceutical University (No. ZQN202201); Key Laboratory of polysaccharide bioactivity evaluation of TCM of Liaoning Province-Liaoning Distinguished Professor Project for Ying Jia (2017); High-level innovation and entrepreneurship team of Liaoning Province (XLYC2008029); Liaoning Revitalization Talents Program (XLYC2203200).

Footnotes

Appendix A

Supplementary data to this article can be found online at https://doi.org/10.1016/j.fochx.2025.102899.

Contributor Information

Ying Jia, Email: jiayingsyphu@126.com.

Bosai He, Email: hbspharma@163.com.

Appendix A. Supplementary data

Supplementary material

mmc1.docx (16.3MB, docx)

Data availability

The raw data supporting this study have been deposited in the OMIX repository at China National Center for Bioinformation (CNCB/NGDC) under accession number [OMIX011128].

Public link: https://ngdc.cncb.ac.cn/omix/repository/OMIX011128.

References

  1. Abdelsayed E.M., Abdel Motaal A., Hanafi R.S. Novel UPLC-MS/MS method for standardization of niazimicin content in edible seeds and leaves of Moringa oleifera lam. Journal of Food and Drug Analysis. 2021;29(1):128–143. doi: 10.38212/2224-6614.3282. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Adebayo I.A., Arsad H., Samian M.R. Total phenolics, total flavonoids, antioxidant capacities, and volatile compounds gas chromatography-mass spectrometry profiling of Moringa oleifera ripe seed polar fractions. Pharmacognosy Magazine. 2018;14(54):191–194. doi: 10.4103/pm.pm_212_17. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Aderinola T.A., Fagbemi T.N., Enujiugha V.N., Alashi A.M., Aluko R.E. Amino acid composition and antioxidant properties of Moringa oleifera seed protein isolate and enzymatic hydrolysates. Heliyon. 2018;4(10) doi: 10.1016/j.heliyon.2018.e00877. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Ares A.M., Valverde S., Nozal M.J., Bernal J.L., Bernal J. Development and validation of a specific method to quantify intact glucosinolates in honey by LC–MS/MS. Journal of Food Composition and Analysis. 2016;46:114–122. doi: 10.1016/j.jfca.2015.12.002. [DOI] [Google Scholar]
  5. Chen R., Wang X.J., Zhang Y.Y., Xing Y., Yang L., Ni H., Li H.H. Simultaneous extraction and separation of oil, proteins, and glucosinolates from Moringa oleifera seeds. Food Chemistry. 2019;300 doi: 10.1016/j.foodchem.2019.125162. [DOI] [PubMed] [Google Scholar]
  6. Feng S.X., Li X.H., Wang M.M., Hao R., Li M.M., Zhang L., Wang Z. A sensitive HPLC-MS method for simultaneous determination of thirteen components in rat plasma and its application to pharmacokinetic study of Tanreqing injection. Journal of Pharmaceutical and Biomedical Analysis. 2018;148:205–213. doi: 10.1016/j.jpba.2017.10.006. [DOI] [PubMed] [Google Scholar]
  7. Gao Q., Wei Z., Liu Y., Wang F., Zhang S., Serrano C., Li L., Sun B. Characterization, large-scale HSCCC separation and neuroprotective effects of polyphenols from Moringa oleifera leaves. Molecules. 2022;27(3) doi: 10.3390/molecules27030678. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Govardhan Singh R.S., Negi P.S., Radha C. Phenolic composition, antioxidant and antimicrobial activities of free and bound phenolic extracts of Moringa oleifera seed flour. Journal of Functional Foods. 2013;5(4):1883–1891. doi: 10.1016/j.jff.2013.09.009. [DOI] [Google Scholar]
  9. Huang L., Yuan C., Wang Y. Bioactivity-guided identification of anti-adipogenic isothiocyanates in the Moringa (Moringa oleifera) seed and investigation of the structure-activity relationship. Molecules. 2020;25(11) doi: 10.3390/molecules25112504. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Huang X.-F., Xue Y., Yong L., Wang T.-T., Luo P., Qing L.-S. Chemical derivatization strategies for enhancing the HPLC analytical performance of natural active triterpenoids. Journal of Pharmaceutical Analysis. 2024;14(3):295–307. doi: 10.1016/j.jpha.2023.07.004. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Jaglan P., Kaushik D., Kumar M., Singh J., Oz F., Shubham S.…Rani R. A critical review on Moringa oleifera: Current status, physicochemical attributes, and food industrial applications. Natural Product Research. 2025;39(8):2293–2307. doi: 10.1080/14786419.2024.2387833. [DOI] [PubMed] [Google Scholar]
  12. Jaja-Chimedza A., Zhang L., Wolff K., Graf B.L., Kuhn P., Moskal K.…Raskin I. A dietary isothiocyanate-enriched moringa (Moringa oleifera) seed extract improves glucose tolerance in a high-fat-diet mouse model and modulates the gut microbiome. Journal of Functional Foods. 2018;47:376–385. doi: 10.1016/j.jff.2018.05.056. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Jiang F., Liu J., Li Y., Lu Z., Liu Q., Xing Y.…Zhong G. Signal interference between drugs and metabolites in LC-ESI-MS quantitative analysis and its evaluation strategy. Journal of Pharmaceutical Analysis. 2024;14(7) doi: 10.1016/j.jpha.2024.02.008. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Jiang S.Z., Wang N.S., Mi S.Q. Plasma pharmacokinetics and tissue distribution of [6]-gingerol in rats. Biopharmaceutics and Drug Disposition. 2008;29(9):529–537. doi: 10.1002/bdd.638. [DOI] [PubMed] [Google Scholar]
  15. Liao M., Cheng X., Diao X., Sun Y., Zhang L. Metabolites identificaion of two bioactive constituents in Trollius ledebourii in rats using ultra-high-performance liquid chromatography coupled to quadrupole time-of-flight mass spectrometry. Journal of Chromatography. B, Analytical Technologies in the Biomedical and Life Sciences. 2017;1068-1069:297–312. doi: 10.1016/j.jchromb.2017.10.061. [DOI] [PubMed] [Google Scholar]
  16. Liu Y., Li M., Fu X., Zhang Y., Tang C. An integrated strategy of UPLC-Q-TOF/MS and HPTLC/PAD-DESI-MSI for the analysis of chemical variations: A case study of Tibetan medicine Tiebangchui. Journal of Pharmaceutical Analysis. 2024;14(4) doi: 10.1016/j.jpha.2023.11.014. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Ma N., Tang Q., Wu W.T., Huang X.A., Xu Q., Rong G.L.…Song J.P. Three constituents of Moringa oleifera seeds regulate expression of Th17-relevant cytokines and ameliorate TPA-induced psoriasis-like skin lesions in mice. Molecules. 2018;23(12) doi: 10.3390/molecules23123256. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Najmanová I., Vopršalová M., Saso L., Mladěnka P. The pharmacokinetics of flavanones. Critical Reviews in Food Science and Nutrition. 2020;60(18):3155–3171. doi: 10.1080/10408398.2019.1679085. [DOI] [PubMed] [Google Scholar]
  19. Oboh G., Oyeleye S.I., Akintemi O.A., Olasehinde T.A. Moringa oleifera supplemented diet modulates nootropic-related biomolecules in the brain of STZ-induced diabetic rats treated with acarbose. Metabolic Brain Disease. 2018;33(2):457–466. doi: 10.1007/s11011-018-0198-2. [DOI] [PubMed] [Google Scholar]
  20. Ogurtsova K., Guariguata L., Barengo N.C., Ruiz P.L., Sacre J.W., Karuranga S.…Magliano D.J. IDF diabetes atlas: Global estimates of undiagnosed diabetes in adults for 2021. Diabetes Research and Clinical Practice. 2022;183 doi: 10.1016/j.diabres.2021.109118. [DOI] [PubMed] [Google Scholar]
  21. Oyeyinka A.T., Oyeyinka S.A. Moringa oleifera as a food fortificant: Recent trends and prospects. Journal of the Saudi Society of Agricultural Sciences. 2018;17(2):127–136. doi: 10.1016/j.jssas.2016.02.002. [DOI] [Google Scholar]
  22. Piraud M., Vianey-Saban C., Petritis K., Elfakir C., Steghens J.P., Morla A., Bouchu D. ESI-MS/MS analysis of underivatised amino acids: A new tool for the diagnosis of inherited disorders of amino acid metabolism. Fragmentation study of 79 molecules of biological interest in positive and negative ionisation mode. Rapid Communications in Mass Spectrometry. 2003;17(12):1297–1311. doi: 10.1002/rcm.1054. [DOI] [PubMed] [Google Scholar]
  23. Prieto M.A., López C.J., Simal-Gandara J. Glucosinolates: Molecular structure, breakdown, genetic, bioavailability, properties and healthy and adverse effects. Advances in Food and Nutrition Research. 2019;90:305–350. doi: 10.1016/bs.afnr.2019.02.008. [DOI] [PubMed] [Google Scholar]
  24. Sayed A.M.E., Omar F.A., Emam M.M.A., Farag M.A. UPLC-MS/MS and GC-MS based metabolites profiling of Moringa oleifera seed with its anti- helicobacter pylori and anti-inflammatory activities. Natural Product Research. 2022;36(24):6433–6438. doi: 10.1080/14786419.2022.2037088. [DOI] [PubMed] [Google Scholar]
  25. Sharma P., Wichaphon J., Klangpetch W. Antimicrobial and antioxidant activities of defatted Moringa oleifera seed meal extract obtained by ultrasound-assisted extraction and application as a natural antimicrobial coating for raw chicken sausages. International Journal of Food Microbiology. 2020;332 doi: 10.1016/j.ijfoodmicro.2020.108770. [DOI] [PubMed] [Google Scholar]
  26. Wang X., Zhao X., Gu L., Lv C., He B., Liu Z., Hou P., Bi K., Chen X. Simultaneous determination of five free and total flavonoids in rat plasma by ultra HPLC-MS/MS and its application to a comparative pharmacokinetic study in normal and hyperlipidemic rats. Journal of Chromatography. B, Analytical Technologies in the Biomedical and Life Sciences. 2014;953-954:1–10. doi: 10.1016/j.jchromb.2014.01.042. [DOI] [PubMed] [Google Scholar]
  27. Wołoszyn-Durkiewicz A., Myśliwiec M. The prognostic value of inflammatory and vascular endothelial dysfunction biomarkers in microvascular and macrovascular complications in type 1 diabetes. Pediatric Endocrinology, Diabetes, and Metabolism. 2019;25(1):28–35. doi: 10.5114/pedm.2019.84710. [DOI] [PubMed] [Google Scholar]
  28. Xu Y.B., Chen G.L., Guo M.Q. Antioxidant and anti-inflammatory activities of the crude extracts of Moringa oleifera from Kenya and their correlations with flavonoids. Antioxidants. 2019;8(8) doi: 10.3390/antiox8080296. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Yue Z.X., Gu Y.X., Yan T.C., Liu F.M., Cao J., Ye L.H. Phase I and phase II metabolic studies of Citrus flavonoids based on electrochemical simulation and in vitro methods by EC-Q-TOF/MS and HPLC-Q-TOF/MS. Food Chemistry. 2022;380 doi: 10.1016/j.foodchem.2022.132202. [DOI] [PubMed] [Google Scholar]
  30. Zhou Y., Chen H., Xue J., Yuan J., Cai Z., Wu N., Zou L., Yin S., Yang W., Liu X., Chen J., Liu F. Qualitative analysis and componential differences of chemical constituents in Lysimachiae Herba from different habitats (Sichuan Basin) by UFLC-triple TOF-MS/MS. Molecules. 2022;27(14) doi: 10.3390/molecules27144600. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary material

mmc1.docx (16.3MB, docx)

Data Availability Statement

The raw data supporting this study have been deposited in the OMIX repository at China National Center for Bioinformation (CNCB/NGDC) under accession number [OMIX011128].

Public link: https://ngdc.cncb.ac.cn/omix/repository/OMIX011128.

Articles from Food Chemistry: X are provided here courtesy of Elsevier

RESOURCES
