Epigenetic signatures on plasma cell-free DNA to detect kidney allograft rejection in a non-invasive way: development of a 10-plex digital PCR assay

Abstract

The standard of care for the follow-up of kidney allograft recipients combines non-invasive but non-specific biomarkers and kidney biopsies for the gold standard histology-based diagnosis, limited by the sampling bias, haemorrhagic risk, and low cost-effectiveness. We hypothesized that a targeted epigenetic analysis of cell-free DNA (cfDNA) would combine non-invasiveness and specificity for the diagnosis of kidney allograft rejection. We developed an in silico pipeline to identify 9 specific methylation signatures of epithelial or endothelial cell types in glomerular and tubular kidney compartments. Methylation-specific digital Polymerase Chain Reaction (dPCR) were designed and validated for these markers and combined in a 10-plex dPCR. In a retrospective cohort of 170 plasma cfDNA from adult kidney transplant recipients, we evaluated the diagnostic properties of our biomarkers for predicting rejection, evaluated on solid biopsy according to Banff 2022 classification. Combining the dedicated biomarkers with standard-of-care blood tests (donor-specific antibody (DSA), estimated glomerular filtration rate (eGFR)) produced a prediction model with an Area under the Curve (AUC) for biopsy-proven kidney transplant rejection vs. no rejection greater than with DSA and eGFR alone (AUC = of 0.884 vs. 0.776, p = 0.0005). In an alternative model for the prediction of any graft lesion of Banff classification vs. pristine biopsies (all Banff score = 0) epigenetic kidney biomarkers outperformed DSA (AUC = 0.754 vs. 0.596, p = 0.004). Thus, epigenetic signatures derived from the combination of kidney cell type specific methylation marker of cfDNA constitute a promising non-invasive diagnostic and theragnostic tool for kidney transplant patients.

Supplementary Information

The online version contains supplementary material available at 10.1186/s40364-025-00834-7.

To the Editor,

Rejection is a cause of kidney allograft failure limiting the benefits of the best treatment for end-stage kidney disease [1]. Screening tests for rejection in blood (creatinine, donor specific antibodies (DSA), donor-derived cell free DNA (cfDNA)) or urine (proteinuria and chemokines) are non-specific and require biopsy for confirmation [2–5]. cfDNA methylation to quantify organ or cell-specific injuries is promising, notably in cancer, but has not been studied in kidney transplantation [6–8]. Here, we discover, develop and validate a set of kidney-specific cfDNA methylation marks quantified by digital PCR, and determine its diagnostic performance for predicting kidney allograft biopsy results.

Kidney-specific methylation marks in humans

We reanalyzed publicly available methylome data of 21 human tissues and cell types of interest in triplicate from Gene Expression Omnibus (GSE186458) [9]. From 15,678,715CpG islands available in ≥ 2 replicates for 21 anatomical regions, we identified specific methylation of whole kidney and renal subcompartments (tubular/glomerular epithelial cells, podocytes, peritubular/glomerular endothelial cells) vs. all other anatomical regions (Fig. 1). 9 kidney-specific biomarkers was selected, with special attention given to their negativity in blood cells, the main contaminants of plasma cfDNA with cellular DNA.

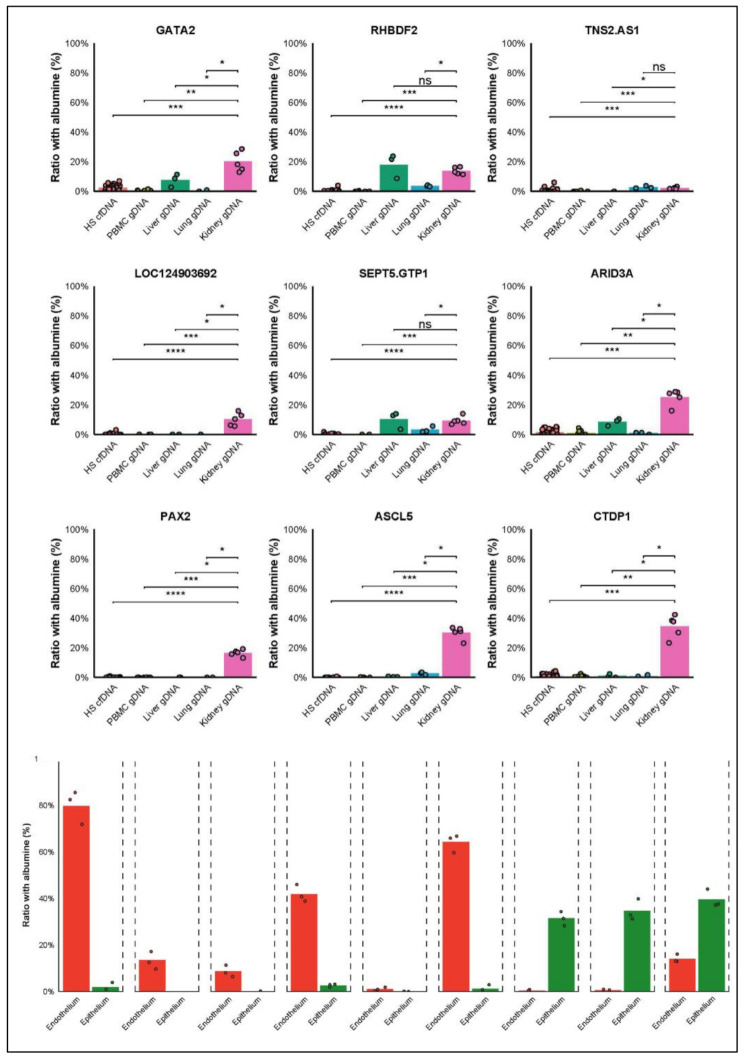

Fig. 1.

Organ and cell-type specificity of methylation marks. Relative quantification of each epigenetic kidney biomarker in synthetic and tissue control samples (Top). In control sample of tissue and Peripheral blood mononuclear cells. n = 50 plasma-cfDNA samples from healthy subjects (red), n = 10 gDNA from Peripheral blood mononuclear cells isolated from healthy patient blood, n = 3 gDNA from liver and lung and n = 5 gDNA from kidney qualified by a certified pathologist as healthy peritumoral tissues. Relative quantification of each epigenetic kidney biomarker on kidney endothelial and epithelial cell gDNA (Down). Each biomarker is normalized relative to the number of genomes in each sample represented by the internal control Albumin gene. n = 3 gDNAs from Epithelial cell adhesion molecule positive kidney tubular epithelial cells fraction, n = 3 gDNAs from CD105 (+) kidney tubular endothelial cells fraction

We selected “CTDP1” for both vascular and epithelial renal fractions, “ARID3A”, “GATA2”, “LOC124903692”, “RHBDF2”, “SEPT5-GP1BB” and “TNS2-AS1” for the renal endothelial fraction, “PAX2” and “ACSL5” for the renal epithelial fraction.

Simultaneous quantification of a kidney-specific panel of CfDNA methylation markers by 10plex dPCR

Primer and probes design, concentrations and coupling were designed for multiplex quantification of the biomarkers, with albumin as internal control. High methylation rate (58 to 98%) in methylated controls, and none in unmethylated controls validated the assay. dPCR was reproducible (mean standard deviation ≤ 0.05%) and sensitive on serial dilutions (detection limit of 1 to 4 copies after bisulfite conversion causing 67 to 80% DNA loss from a minimal input of 0.03 ng = 9–10 DNA copies per biomarker) (Supplementary_Data_2). Quantification of genomic DNA (gDNA) from healthy human organs was significantly higher in the kidney compared to other samples. Detection of our biomarkers in blood cells gDNA and healthy subject cfDNA was minimal, supporting its use for detecting organ injury. Methylation was also found in the lung for TNS2.AS1 and in the liver for SEPT5.GTP1 and RHBDF2, respectively, suggesting that deconvolution might improve kidney-specific quantifications in multiple organ injuries [6]. Furthermore, we studied gDNA from flow cytometry-isolated cell types to evaluate the cell-specificity of our markers within the kidney. Endothelial and epithelial biomarkers were enriched respectively in endothelial and epithelial cells. Low albeit specific relative amounts of SEPT5.GTP1 and TNS2.AS1 (< 10% ratio with albumin) in sorted endothelial cells is relevant to the reported variety of endothelial cells in the kidney. On the opposite, CTDP1 qualified as a pan-renal marker found in both renal epithelial and endothelial gDNA sample, as predicted in silico. Together, these results verify the kidney-specific nature of our candidate biomarkers.

Diagnostic performances of the CfDNA methylation signature for the diagnosis of kidney allograft rejection

We performed our 10plex dPCR in 170 plasmas collected from EDTA or PAXgene tubes before kidney allograft biopsy. 44 biopsies showed rejection (34/89 indication biopsies, 10/76 surveillance biopsies – 24 Antibody-mediated rejection, 13 T-cell mediated rejection and 7 mixed rejection) and associated in univariate analysis with eGFR & DSA, but also with methylation markers for the whole kidney (CTDP1) and renal endothelial cells (LOC124903692, ARID3A, TNS2.AS1, GATA2). In multivariate analysis, eGFR (p = 0.0013), DSA (p = 0.0075) and LOC124903692 (p = 0.00106) remained significantly associated with rejection (Fig. 2). A model combining eGFR, DSA and an epigenetic signature (derived from a regression model including methylation marks significantly associated with rejection) predicted rejection better than eGFR + DSA or methylation markers alone (AUC = 0.884 vs. 0.776 & 0.745 respectively), suggesting that it could detect the pathogenicity of DSA [10]. In another multivariate analysis, the presence of any lesion (not limited to rejection) was associated with DSA (p = 0.1077), LOC124903692 (p = 0.0624), another kidney endothelial marker (SEPT5, p = 0.1104) and the whole kidney marker CTDP1 (p = 0.1039). The presence of any Banff lesion was predicted by methylation markers (AUC = 0.754), whereas DSA performed poorly (AUC = 0.596). These results suggest that the methylation biomarkers are associated with a variety of kidney injuries including antibody-mediated rejection. Thus, quantification of methylated cfDNA is a promising non-invasive technique to improve the prediction of histological kidney injury, needing validation in prospective studies.

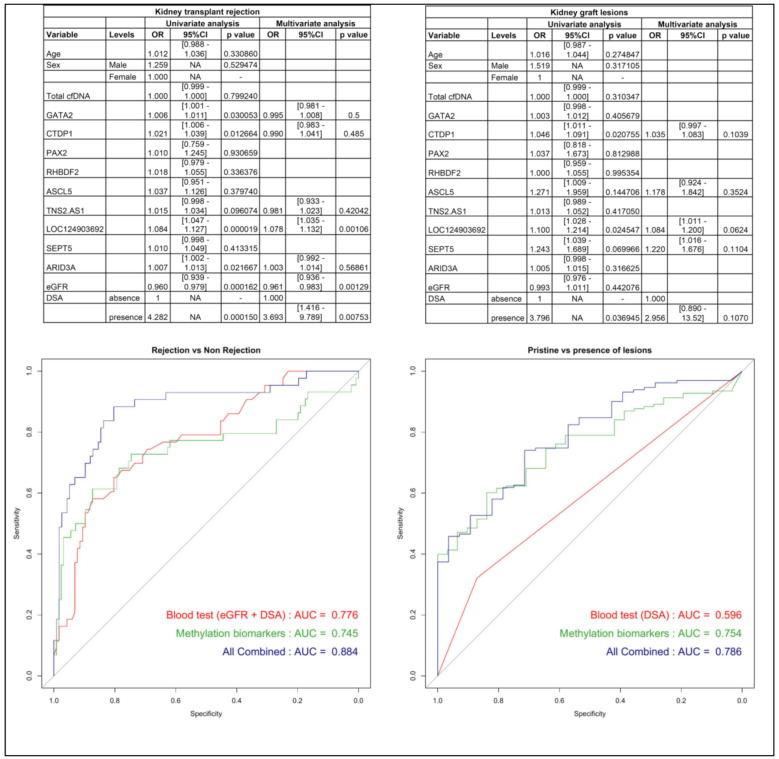

Fig. 2.

Predictive value of cfDNA methylation markers for kidney injury, compared to classical biomarkers. Univariate and multivariate analysis for kidney transplant rejection or any Banff lesion on biopsy (Up). OR: odds ratio. CI : Confidence Interval

ROC curves of prediction models for presence of any Banff lesion on biopsy (Down). DSA: Donor specific antibody. eGFR: estimated Glomerular Filtration Rate

Supplementary Information

Below is the link to the electronic supplementary material.

Abbreviations

AUC

Area under the Curve

cfDNA

Cell-free DNA

dPCR

Digital-PCR

DSA

Donor-specific antibodies

eGFR

Estimated glomerular filtration rate

gDNA

Genomic DNA

Author contributions

YV and PG wrote the manuscript, analysed and interpreted the patient data regarding the clinical performance of the in vitro diagnosis test to diagnose kidney transplant rejection.GP, PB, CMa developed the 10-plex digital-PCR assay and analysed biological samples to generate epigenetic biomarkers quantification database.YV, CM and JH oversaw flow cytometry EpCAM+ and CD105+ cells sorting by FACS.TB and SG were both in charge of generated epigenetic database core collection, performed data quality control and in silico analysis for epigenetic biomarkers discovery.DA, PG, VV, GC, RS, TDN collected, reviewed and interpreted medical data.SF, MR, VVe, DB oversaw fresh kidney tissues qualification and solid biopsy interpretation based on the Banff histological classification score.FA & BP both participated in the selection of patients eligible to a kidney nephrectomy to collect the most quality fresh organ tissues.All authors read and approved the final manuscript.

Funding

This work has been funded by the company CGenetix, French-based start-up, headquarter located 7 rue de Laborde, PARIS, 75010.

Data availability

The dataset used and/or analysed during the current study are available in the GEO repository (GSE186458): https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE186458 as published by Loyfer, N., Magenheim, J., Peretz, A. et al. A DNA methylation atlas of normal human cell types. Nature 613, 355–364 (2023). 10.1038/s41586-022-05580-6.

Declarations

Ethics approval and consent to participate

Ethics approval were obtained for each collaborating hospitals and Centre de Ressources Biologiques (Rouen (NCT06910527), Pitié-Salpétrière (CODECOH : CD-2009-965), Kremlin-Bicêtre (CODECOH : DC-2023-5792), Reims (CODECOH : AC20246510), Amiens (CODECOH : AC20183320). All patients gave consent to participate.

Consent for publication

Not applicable.

Competing interests

YV, GP, TB, PB, CMa, SG, CM : CGenetix’s employee. PG: author of a patent on methylated cfDNA for the diagnosis of kidney disease. The other authors declare that they have no competing interests.
