Abstract
The acaricidal activities of fourteen essential oils and fourteen of their major monoterpenoids were tested against house dust mites Dermatophagoides pteronyssinus. Five concentrations were used over two different time intervals 24 and 48 h under laboratory conditions. In general, it was noticed that the acaricidal effect based on LC 50 of either essential oils or monoterpenoids against the mite was time dependant. The LC 50 values were decreased by increasing of exposure time. Clove, matrecary, chenopodium, rosemary, eucalyptus and caraway oils were shown to have high activity. As for the monoterpenoids, cinnamaldehyde and chlorothymol were found to be the most effective followed by citronellol. This study suggests the use of the essential oils and their major constituents as ecofriendly biodegradable agents for the control of house dust mite, D. pteronyssinus.
Keywords: Natural acaricides, Essential oils, Monoterpenoids, House dust mite, Dermatophagoides pteronyssinus
INTRODUCTION
Among several species of the family Pyroglyphidae, Dermatophagoides pteronyssinus and D. farinae, have been found to be the predominant mites of household dust accounting for about 80%~90% of the total mite populations and are important sources of allergens worldwide inside homes in humid geographic areas (Hallas, 1991; Arlian et al., 1992). Both house dust mites are found in homes in various areas of Egypt (Rezk, 2004; Rezk et al., 1996). They are a major cause of respiratory allergies including asthma (Colloff et al., 1992; Solarz, 2001a; 2001b). They are also identified as etiologic agent of sensitization and asthma-triggering in children (Lau et al., 1989; Arshad and Hide, 1992).
Control of house dust mite is usually done by three different approaches: the first is a physical method such as exceptional cleaning standards (Adilah et al., 1997; Nishioka et al., 1998), the second is reducing the humidity levels (Bischoff et al., 1998) and the third reducing allergens by effective acaricides (Mitchell et al., 1985; Green et al., 1989). The latter option must only be employed after careful consideration. Although good control was obtained by the currently used synthetic acaricides (benzylbenzoate and tannic acid), the risk to human health would be a potential problem. This problem has led to research efforts to develop safer and efficient alternatives in controlling mites in the indoor environment. Thus, the use of plant-derived acaricides has drawn attention and has been considered as a promising alternative to chemical acaricides (Miyazaki et al., 1989; McDonald and Tovey, 1993; Tovey and McDonald, 1997; Kim, 2001; Kim et al., 2003; Rezk and Gadelhak, 2004; Rembold, 2005). Comparative data obtained by McDonald and Tovey (1993) showed that citronella oil and tee tree oil were as effective as 0.5% benzyl benzoate (synthetic acaricide). Recently, Lee (2004) compared the oil of Foeniculum vulgare and five of its commercial constituents (monoterpenoids) with benzyl benzoate against D. farinae and D. pteronyssinus. He found that both fenchone isomers and anisaldehyde were more effective than benzyl benzoate. However, thymol was as effective as benzyl benzoate as acaricide.
Therefore, the present work has been devoted to evaluating the miticidal activity of some commonly available essential oils and their major constituents against the house dust mite, D. pteronyssinus, the most important vector in asthma, in order to find new natural miticides.
MATERIALS AND METHODS
Stock culture of house dust mite
The house dust mite, D. pteronyssinus, was isolated from mattress dust and reared on a finely-ground mixture of dust, dried yeast and dried milk (1:1:0.5) in complete darkness (de Saint Georges-Gridelet, 1987). Stock jars were kept in an incubator at an average temperature of (25±2) °C and relative humidity of (80±5)%. Considerable numbers of different stages were available after five months for experimentation.
Plant essential oils
Fourteen essential oils were used in the present study namely: caraway, chenopodium, cinnamon, clove, eucalyptus, rosemary, garlic, geranium, lemon grass, matrecary, peppermint, rose, fennel and thyme. These oils were supplied by the Faculty of Pharmacy, University of Alexandria, Egypt.
Identification and determination of essential oils composition
The essential oil constituents (Table 1) were analyzed by gas chromatography (Hewlett-Packard 58590 II Plus) coupled with a HP-5989 B mass spectrometer detector and equipped with column HP-5 (30 m×0.25 mm×0.025 µm). Temperature program: initial temperature, 70 °C; hold 2 min; temperature rate 4 °C/min, final temperature 250 °C; hold 30 min; column flow rate 0.8 ml He/min constant, injection temperature 250 °C; injection volume 1 µl/min. The mass spectrometry was accomplished with Wiley library ID 275, and setting as: electron impact ionization mode with 70 eV electron energy. Scan mass range m/z 45~50, detector temperature 250 °C.
Table 1.
Relative abundance of major constituents of the tested essential oils
| Essential oil | Major constituents | Abundance (%) |
| Caraway | L-carvone | 58.0 |
| Limonene | 38.4 | |
| Chenopodium | p-cymene | 33.3 |
| Pinene-2-ol | 11.7 | |
| Ascaridole | 10.0 | |
| Cinnamon | Cinnamaldehyde der. | 36.1 |
| Cinnamic aldehyde | 12.3 | |
| Clove | Eugenol | 62.3 |
| β-caryophyllene | 19.2 | |
| Eucalyptus | 1,8-cineole | 45.1 |
| Α-pinene | 14.9 | |
| Α-terpineol | 11.6 | |
| Garlic | Pentdecane | 12.1 |
| Hexadecane | 11.6 | |
| Geranium | Citronellol | 31.0 |
| Citronellol formate | 14.0 | |
| Lemon grass | Limonene | 91.1 |
| Terpinene | 2.2 | |
| Matrecary | Camphor | 51.4 |
| p-cymene | 20.1 | |
| Thymol | 9.5 | |
| Peppermint | Menthol | 46.1 |
| p-menthone | 18.3 | |
| Rose | Citronellol | 34.4 |
| Geranoil | 20.4 | |
| Rosemary | 1,8-cineole | 28.6 |
| Camphor | 20.2 | |
| Thyme | p-cymene | 31.5 |
| Thymol | 18.5 | |
| Fennel | Anthol | 47.6 |
| Pinene | 11.7 | |
| 1,8-cineole | 10.3 |
Monoterpenoids
Fourteen monoterpenoidal constituents of the tested essential oils, namely: eugenol, (S & R) carvone, borneol, carveol, benzyl alcohol, thymol, camphor, menthol, chlorothymol, cinnamaldehyde, carvacrol, cineol, and citronellol and geraniol were supplied by Aldrich Chemical Company. The structures of the tested monoterpenoidal constituents are shown in Fig.1.

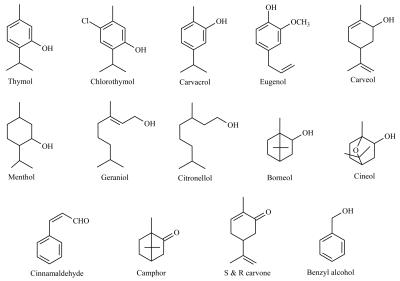

Fig. 1.
Structures of the tested monoterpenoidal constituents
Experimental treatments
Following preliminary experiments for either essential oil or monoterpenoid, five concentrations of 25×10−6, 50×10−6, 100×10−6, 250×10−6 and 500×10−6 per 0.5 g of dust and a control were selected. Each concentration was mixed with 0.5 g of house dust and placed on a microcell (3 cm×1.5 cm). Ten mites were introduced on top of the microcell with the aid a brush. Five replicates were maintained for each tested concentration. All experiments were conducted under laboratory conditions as the stock cultures were maintained. Mortality counts were done after 24 and 48 h of exposure. The LC 50 values and their confidence limits (CL) were computed according to Finney (1971).
RESULTS
The effect of fourteen plant essential oils namely: caraway, chenopodium, clove, cinnamon, eucalyptus, fennel, garlic, geranium, lemon, matrecary, peppermint, rose, rosemary and thyme, on the mortality of house dust mite, D. pteronyssinus (Trouessart), is presented in Table 2. Five concentrations were used over time intervals 24 and 48 h under laboratory conditions. There was no mortality recorded in the controls. The 24 h-LC 50 results showed that clove oil was the most effective (LC 50=29.78×10−6) followed by matrecary (104.45×10−6), chenopodium (117.53×10−6), fennel (156.42×10−6) and caraway (158.05×10−6). According to the GC-MS analysis (Table 1), clove oil contains 62.3% of eugenol and 19.2% of caryophyllene. Matrecary oil containing camphor 51.4%, p-cymene 20.1%, and thymol 9.5%, showed good activity after 24 h of the treatment with LC 50 value of 104.45×10−6. The result of the tested oils after 48 h showed that clove oil was the most effective followed by matrecary, chenopodium, rosemary and eucalyptus. From the obtained results, clove was the most promising oil tested against the house dust mite with the LC 50 values being 29.78×10−6 and 21.17×10−6 after 24 and 48 h, respectively.
Table 2.
The acaricidal activities of some essential oils against house dust mites Dermatophagoides pteronyssinus
| Essential oil | Time (h) | LC50 (×10−6) | 95% fiducial limits |
|
| Lower | Upper | |||
| Caraway | 24 | 158.05 | 179.66 | 192.89 |
| 48 | 92.01 | 40.82 | 207.72 | |
| Chenopodium | 24 | 117.53 | 97.23 | 142.19 |
| 48 | 76.02 | 53.71 | 160.10 | |
| Cinnamon | 24 | 390.51 | 260.52 | 586.83 |
| 48 | 189.55 | 153.91 | 233.74 | |
| Clove | 24 | 29.78 | 19.61 | 44.94 |
| 48 | 21.17 | 15.97 | 27.97 | |
| Eucalyptus | 24 | 275.42 | 183.93 | 414.46 |
| 48 | 89.84 | 49.17 | 164.29 | |
| Fennel | 24 | 156.42 | 122.40 | 185.09 |
| 48 | 94.46 | 81.42 | 109.61 | |
| Garlic | 24 | 736.30 | 94.01 | 6054.90 |
| 48 | 571.31 | 271.73 | 1215.82 | |
| Geranium | 24 | 181.53 | 146.07 | 225.93 |
| 48 | 118.56 | 62.37 | 226.61 | |
| Lemon | 24 | 300.66 | 213.32 | 425.03 |
| 48 | 103.63 | 71.16 | 391.43 | |
| Matrecary | 24 | 104.45 | 87.16 | 125.24 |
| 48 | 71.64 | 14.52 | 349.55 | |
| Peppermint | 24 | 274.27 | 175.57 | 431.16 |
| 48 | 125.73 | 59.74 | 267.41 | |
| Rose | 24 | 669.07 | 320.64 | 1405.82 |
| 48 | 409.28 | 160.34 | 1064.27 | |
| Rosemary | 24 | 375.71 | 238.48 | 594.90 |
| 48 | 89.47 | 12.59 | 635.43 | |
| Thyme | 24 | 488.65 | 259.86 | 919.04 |
| 48 | 269.59 | 216.46 | 335.96 | |
The acaricidal activities of fourteen monoterpenoids against D. pteronyssinus were examined by direct application and are presented in Table 3. Responses varied according to the compound tested and the time exposure. On the basis of LC 50 values, the compound most toxic against D. pteronyssinus was cinnamaldehyde (64.38×10−6), followed by chlorothymol (90.45×10−6), citronellol (159.48×10−6), and menthol (253.68×10−6). After 48 h, the obtained results of cinnamaldehyde and chlorothymol are comparable to each other with LC 50 values being 48.05×10−6 and 45.81×10−6 respectively.
Table 3.
The effects of some monoterpenoids against house dust mites Dermatophagoides pteronyssinus
| Chemical | Time (h) | LC50 (×10−6) | 95% fiducial limits |
|
| Lower | Upper | |||
| Carvacrol | 24 | 318.33 | 157.69 | 652.63 |
| 48 | 115.48 | 86.49 | 154.50 | |
| Camphor | 24 | 1026.58 | 353.78 | 3018.48 |
| 48 | 420.66 | 187.83 | 953.23 | |
| Citronellol | 24 | 159.48 | 123.13 | 170.07 |
| 48 | 64.89 | 72.81 | 207.01 | |
| Carvone (R) | 24 | 669.07 | 320.64 | 1405.82 |
| 48 | 253.13 | 118.33 | 547.46 | |
| Carvone (S) | 24 | 643.89 | 72.81 | 6170.07 |
| 48 | 159.48 | 123.13 | 207.01 | |
| Carveol | 24 | 309.36 | 272.15 | 437.58 |
| 48 | 85.37 | 72.01 | 101.15 | |
| Cineol | 24 | 808.80 | 328.02 | 2023.69 |
| 48 | 488.05 | 259.86 | 919.04 | |
| Cinnamaldehyde | 24 | 64.38 | 56.48 | 73.36 |
| 48 | 48.05 | 2.98 | 738.35 | |
| Chlorothymol | 24 | 90.45 | 76.63 | 106.79 |
| 48 | 45.81 | 37.21 | 56.32 | |
| Borneol | 24 | 638.65 | 272.14 | 1506.23 |
| 48 | 393.00 | 261.25 | 595.48 | |
| Benzyl alcohol | 24 | 669.07 | 320.64 | 1405.82 |
| 48 | 181.79 | 114.12 | 270.20 | |
| Geraniol | 24 | 431.96 | 58.03 | 3329.67 |
| 48 | 127.66 | 67.71 | 241.62 | |
| Menthol | 24 | 253.68 | 73.06 | 907.36 |
| 48 | 136.89 | 24.69 | 779.96 | |
| Thymol | 24 | 345.93 | 127.45 | 957.04 |
| 48 | 125.24 | 47.05 | 335.15 | |
DISCUSSION
This study showed the effectiveness of some essential oils and their monoterpenoidal constituents against house dust mite D. pteronyssinus. Because of the strong activities of clove oil and some others, GC-MS was used to identify the essential oils components and their essential oil activity. Thymol and the structurally related compounds like p-cymene are effective as acaricides (Lee, 2004). This observation is supported by the obtained results of chenopodium oil which also contains 33.3% of p-cymene. Matrecary oil exhibited high activity due to the presence of camphor 51.4%, p-cymene 20.1% and thymol 9.5%. Perhaps, there is a joint effect of those components leading to improved activity against mite. Rezk and Gadelhak (2004) studied the effect of thymol and eugenol against the adult stage of the house dust mite, D. pteronyssinus. They showed that thymol and eugenol had almost the same effect against the tested mite.
Interestingly, the similarity of the effect of rosemary and eucalyptus oils after 48 h may be due to 1,8-cineol as a major component which accounted for 28.6% and 45.1%, respectively (Table 1).
The chlorinated compound of thymol (chlorothymol) was much more effective than thymol itself indicating the important role of chlorine atom on the miticidal activity. Much more interesting results emerged from the potent effect of cinnamaldehyde. Therefore, cinnamaldehyde and chlorothymol merit further study as potential dust mite control agents or as lead compounds.
The public perception and acceptance of using washing product containing natural essential oils may be more positive. The most promising oil tested was clove which increased its potency over the test time. The toxic effect of these oils may be due to their fumigant and/or contact action. The vapor of some of these essential oils has been shown to kill pyroglyphidae mites (Watanabe et al., 1989). Further screening of these essential oils in solution is required. Criteria for choosing the most suitable oil would include its acaricidal activity with time and temperature, volatility, the acceptability of fragrance, and adverse effects on fabrics. Essential oils may also be particularly suitable for inclusion in carpet washing solutions to aid in maintaining mite control.
In conclusion, in our comprehensive screening, four essential oils, clove, matrecary, chenopodium and fennel and two monoterpenoids cinnamaldehyde and chlorothymol emerged as potential plant derived agents that provide promising results against house dust mites, D. pteronyssinus. The plant essential oils as a source for the control of the adult stage of house dust mite is a safe and effective approach, because many of them are selective to pests, with few if any harmful effects on non-target organisms and the environment (Susan and Ward, 1987; Kim et al., 2003; Kwon and Ahn, 2002). These studies suggest that essential oils and their major constituents are potentially effective, environmentally acceptable, inexpensive, simple and alternative approach for the control of house dust mites.
References
- 1.Adilah N, Fitzharris P, Crane J, Siebers RW. The effect of frequent vacuum cleaning on the house dust mite allergen. New Z Med J. 1997;28:438–439. [PubMed] [Google Scholar]
- 2.Arlian LG, Bernstein D, Friedman S. Prevalence of dust mites in the homes of people with asthma living in eight different geographic areas of the United States. J Allergy Clin Immunol. 1992;90(3):292–300. doi: 10.1016/S0091-6749(05)80006-5. [DOI] [PubMed] [Google Scholar]
- 3.Arshad SH, Hide DW. Effect of environmental factors on the development of allergic disorders in infancy. J Allergy Clin Immunol. 1992;90(2):235–241. doi: 10.1016/0091-6749(92)90077-F. [DOI] [PubMed] [Google Scholar]
- 4.Bischoff ER, Fischer A, Liebenberg B, Kniest FM. Mite control with low temperature washing. II. Elimination of living mites on clothing. Clin Exp Allergy. 1998;28(1):60–65. doi: 10.1046/j.1365-2222.1998.00192.x. [DOI] [PubMed] [Google Scholar]
- 5.Colloff MJ, Ayres J, Carswell F, Howarth PH, Merrett TG, Mitchell EB, Walshaw MJ, Warner JO, Warner JA, Woodcock AA. The control of allergens of dust mites and domestic pest: a position paper. Clin Exp Allergy. 1992;22(s2):1–28. doi: 10.1111/j.1365-2222.1992.tb01763.x. [DOI] [PubMed] [Google Scholar]
- 6.de Saint Georges-Gridelet D. Vitamin requirements of the European house dust mite, Dermatophagoides pteronyssinus (Acari: Pyroglyphidae), in relation to its fungal association. J Med Entomol. 1987;24(4):408–410. doi: 10.1093/jmedent/24.4.408. [DOI] [PubMed] [Google Scholar]
- 7.Finney J. Probit Analysis. 2nd Ed. Cambridge, UK: Cambridge University Press; 1971. [Google Scholar]
- 8.Green WF, Nicholas NR, Salome CM, Woolcock AJ. Reduction of house dust mites and mite allergens: effect of spraying carpets and blankets with Allersearch DMS, an acaricide combined with an allergen reducing agent. Clin Exp Allergy. 1989;19(2):203–207. doi: 10.1111/j.1365-2222.1989.tb02365.x. [DOI] [PubMed] [Google Scholar]
- 9.Hallas TE. The biology of mites. Allergy. 1991;46:6–9. doi: 10.1111/j.1398-9995.1991.tb00641.x. [DOI] [PubMed] [Google Scholar]
- 10.Kim HK. Acaricidal Activities of Phenylpropenes Identified in Cinnamomum Cassia Bark against Dermatophagoides spp. (Acari: Pyroglyphidae) Suwon, Korea: Seoul National University; 2001. M.S. Thesis. [Google Scholar]
- 11.Kim EH, Kim HK, Ahn YJ. Acaricidal activity of clove bud oil compounds against Dermatophagoides pteronyssinus and Dermatophagoides farinae (Acari: Pyroglyphidae) J Agric Food Chem. 2003;51(4):885–889. doi: 10.1021/jf0208278. [DOI] [PubMed] [Google Scholar]
- 12.Kwon JH, Ahn YJ. Acaricidal activity of butylidenephathalide identified in Cnidium officinale rhizome against against Dermatophagoides farinae and Dermatophagoides pteronyssinus (Acari: Pyroglyphidae) J Agric Food Chem. 2002;50(16):4479–4483. doi: 10.1021/jf020293a. [DOI] [PubMed] [Google Scholar]
- 13.Lau S, Falkenhorst G, Weber A, Werthmann I, Lind P, Buettner-Goetz P, Wahn U. High mite allergen exposure increases the risk of sensitization in atopic children and young adults. J Allergy Clin Immunol. 1989;84(5):718–725. doi: 10.1016/0091-6749(89)90300-X. [DOI] [PubMed] [Google Scholar]
- 14.Lee HS. Acaricidal activity of constituents identified in Foeniculum vulgere fruit oil against Dermatophagoides spp. (Acari: Pyroglphidae) J Agric Food Chem. 2004;52(10):2887–2889. doi: 10.1021/jf049631t. [DOI] [PubMed] [Google Scholar]
- 15.McDonald LG, Tovey E. The effectiveness of benzyl benzoate and some essential plant oils as laundry additives for killing house dust mites. J Allergy Clin Immunol. 1993;92(5):771–772. doi: 10.1016/0091-6749(93)90022-8. [DOI] [PubMed] [Google Scholar]
- 16.Mitchell EB, Wilkins S, McCallum J, Platt-Mills TA. Reduction of house dust mites allergen in the home. Uses of the acaricides. Clin Allergy. 1985;15(3):235–240. doi: 10.1111/j.1365-2222.1985.tb02280.x. [DOI] [PubMed] [Google Scholar]
- 17.Miyazaki Y, Yatagai M, Takaoka M. Effect of essential oils on the activity of house dust mites. Jpn J Biometeorol. 1989;26:105–108. [Google Scholar]
- 18.Nishioka K, Yasueda H, Saito H. Preventive effect of bedding encasement with micro fine fibers on mite sensitization. J Allergy Clin Immunol. 1998;101(1):28–32. doi: 10.1016/S0091-6749(98)70189-7. [DOI] [PubMed] [Google Scholar]
- 19.Rembold H. Control of the house dust mite, Dermatophagoides farinae, by neem seed extract. J Allergy Clin Immunol. 2005;115(2):S131. doi: 10.1016/j.jaci.2004.12.538. [DOI] [Google Scholar]
- 20.Rezk HA. Evaluation of some environmental factors affecting the population density of house dust mites in the homes of asthmatic patients in Egypt. Alex J Pharm Sci. 2004;18(1):11–16. [Google Scholar]
- 21.Rezk HA, Gadelhak GG. Acaricidal activity of two plant essential oils on the adult stage of the house dust mite, Dermatophagoides pteronyssinus Trouessart (Acari: Pyroglyphadae) Phtophaga. 2004;XIV:667–673. [Google Scholar]
- 22.Rezk HA, Abd El-Hamid MM, Abd El-latif MA. House dust mites in Alexandria region, Egypt. Alex J Agric Res. 1996;41(2):209–216. [Google Scholar]
- 23.Solarz K. Risk of exposure to house dust pyroglyphid mites in Poland. Ann Agric Environ Med. 2001;8(1):11–24. [PubMed] [Google Scholar]
- 24.Solarz K. Pyroglyphidae (Acari: Astigmata) in Poland. Distribution, biology, population ecology and epidemiology. Acta Zool Cracov. 2001;44:435–528. [Google Scholar]
- 25.Susan MP, Ward GW. House dust sensitivity and environmental control. Immunol Allergy North Am. 1987;7:447–461. [Google Scholar]
- 26.Tovey E, McDonald LG. A simple washing procedure with eucalyptus oil for controlling house dust mites and their allergens in clothing and bedding. J Allergy Clin Immunol. 1997;100(4):464–466. doi: 10.1016/S0091-6749(97)70136-2. [DOI] [PubMed] [Google Scholar]
- 27.Watanabe F, Tadaki S, Takaoka M, Ishino M, Morimoto I. Killing activities of the volatiles emitted from essential oils for Dermatophagoides pteronyssinus, Dermatophagoides farinae and Tyrophagus putrescentiae . Shoyakugaku Zasshi. 1989;43:163–168. [Google Scholar]
