Skip to main content
NCBI home page
Heart logoLink to Heart
. 1999 Mar;81(3):257–261. doi: 10.1136/hrt.81.3.257

Transcatheter closure of patent foramen ovale using the Amplatzer septal occluder to prevent recurrence of neurological decompression illness in divers

K Walsh 1, P Wilmshurst 1, W Morrison 1
PMCID: PMC1728953  PMID: 10026348

Abstract

OBJECTIVE—Large flap valve patent foramens may cause paradoxical thromboembolism and neurological decompression illness in divers. The ability of a self expanding Nitinol wire mesh device (Amplatzer septal occluder) to produce complete closure of the patent foramen ovale was assessed.
PATIENTS—Seven adults, aged 18-60 years, who had experienced neurological decompression illness related to diving. Six appeared to have a normal atrial septum on transthoracic echocardiography, while one was found to have an aneurysm of the interatrial septum.
METHODS—Right atrial angiography was performed to delineate the morphology of the right to left shunt. The defects were sized bidirectionally with a precalibrated balloon filled with dilute contrast. The largest balloon diameter that could be repeatedly passed across the septum was used to select the occlusion device diameter. Devices were introduced through 7 F long sheaths. All patients underwent transthoracic contrast echocardiography one month after the implant.
RESULTS—Device placement was successful in all patients. Device sizes ranged from 9-14 mm. The patient with an aneurysm of the interatrial septum had three defects, which were closed with two devices. Right atrial angiography showed complete immediate closure in all patients. Median (range) fluoroscopy time was 13.7 (6-35) minutes. Follow up contrast echocardiography showed no right to left shunting in six of seven patients and the passage of a few bubbles in one patient. All patients have been allowed to return to diving.
CONCLUSION—The Amplatzer septal occluder can close the large flap valve patent foramen ovale in divers who have experienced neurological decompression illness. Interatrial septal aneurysms with multiple defects may require more than one device.

 Keywords: patent foramen ovale; decompression illness; Amplatzer septal occluder

Full Text

The Full Text of this article is available as a PDF (102.6 KB).

Figure 1  .

Figure 1

Open in a new tab

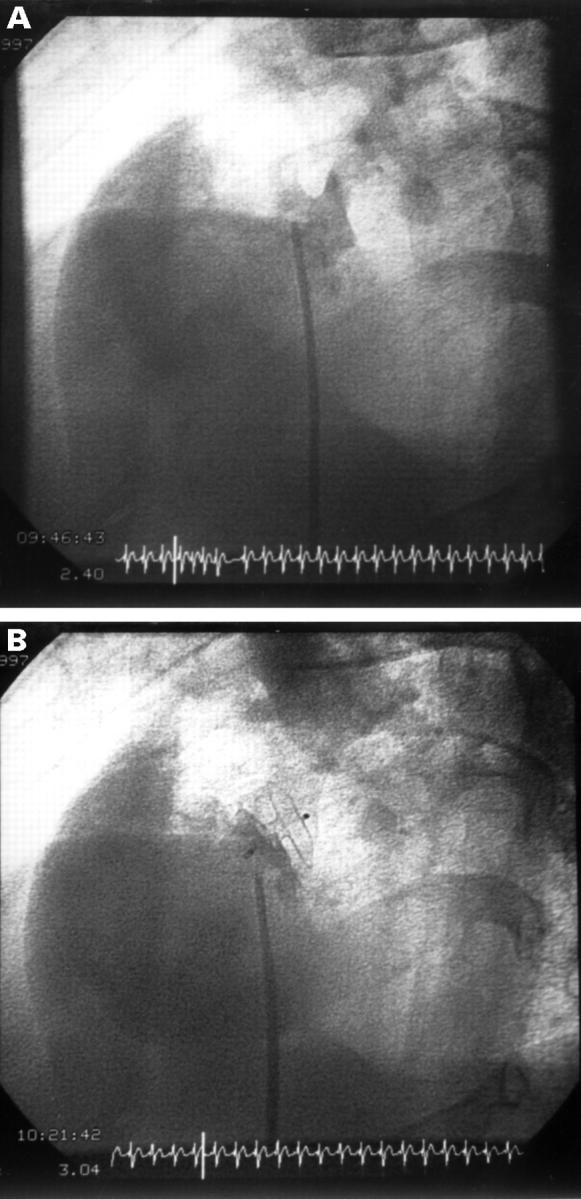

(A) Right atrial angiogram with the catheter pointing towards the foramen ovale, showing passage of contrast across the foramen into the left atrium. (B) After placement of a 9 mm Amplatzer septal occluder there is complete angiographic occlusion of the foramen ovale.

Figure 2  .

Figure 2

Open in a new tab

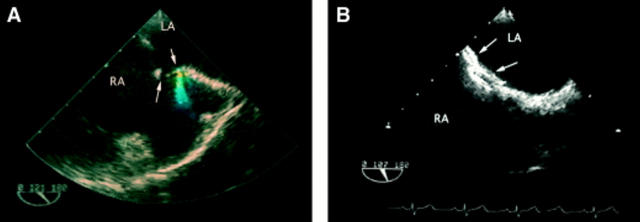

(A) Transoesophageal echocardiogram of the patient with an aneurysm of the interatrial septum. The aneurysm bulges into the right atrium and two small defects (indicated by the arrows) are identified in this longitudinal plane. A left to right colour jet can be seen passing through the upper defect. (B) Two Amplatzer septal occluders have been placed. The arrows indicate each of the devices, which are aligned sequentially on the atrial septum. There was no residual flow on contrast echocardiography. LA, left atrium; RA, right atrium.

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Bridges N. D., Hellenbrand W., Latson L., Filiano J., Newburger J. W., Lock J. E. Transcatheter closure of patent foramen ovale after presumed paradoxical embolism. Circulation. 1992 Dec;86(6):1902–1908. doi: 10.1161/01.cir.86.6.1902. [DOI] [PubMed] [Google Scholar]
  2. Cabanes L., Mas J. L., Cohen A., Amarenco P., Cabanes P. A., Oubary P., Chedru F., Guérin F., Bousser M. G., de Recondo J. Atrial septal aneurysm and patent foramen ovale as risk factors for cryptogenic stroke in patients less than 55 years of age. A study using transesophageal echocardiography. Stroke. 1993 Dec;24(12):1865–1873. doi: 10.1161/01.str.24.12.1865. [DOI] [PubMed] [Google Scholar]
  3. Ende D. J., Chopra P. S., Rao P. S. Transcatheter closure of atrial septal defect or patent foramen ovale with the buttoned device for prevention of recurrence of paradoxic embolism. Am J Cardiol. 1996 Jul 15;78(2):233–236. [PubMed] [Google Scholar]
  4. Guffi M., Bogousslavsky J., Jeanrenaud X., Devuyst G., Sadeghi H. Surgical prophylaxis of recurrent stroke in patients with patent foramen ovale: a pilot study. J Thorac Cardiovasc Surg. 1996 Aug;112(2):260–263. doi: 10.1016/S0022-5223(96)70247-7. [DOI] [PubMed] [Google Scholar]
  5. Hagen P. T., Scholz D. G., Edwards W. D. Incidence and size of patent foramen ovale during the first 10 decades of life: an autopsy study of 965 normal hearts. Mayo Clin Proc. 1984 Jan;59(1):17–20. doi: 10.1016/s0025-6196(12)60336-x. [DOI] [PubMed] [Google Scholar]
  6. Hausdorf G., Schneider M., Franzbach B., Kampmann C., Kargus K., Goeldner B. Transcatheter closure of secundum atrial septal defects with the atrial septal defect occlusion system (ASDOS): initial experience in children. Heart. 1996 Jan;75(1):83–88. doi: 10.1136/hrt.75.1.83. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Hausmann D., Mügge A., Daniel W. G. Identification of patent foramen ovale permitting paradoxic embolism. J Am Coll Cardiol. 1995 Oct;26(4):1030–1038. doi: 10.1016/0735-1097(95)00288-9. [DOI] [PubMed] [Google Scholar]
  8. Homma S., Di Tullio M. R., Sacco R. L., Mihalatos D., Li Mandri G., Mohr J. P. Characteristics of patent foramen ovale associated with cryptogenic stroke. A biplane transesophageal echocardiographic study. Stroke. 1994 Mar;25(3):582–586. doi: 10.1161/01.str.25.3.582. [DOI] [PubMed] [Google Scholar]
  9. Knauth M., Ries S., Pohimann S., Kerby T., Forsting M., Daffertshofer M., Hennerici M., Sartor K. Cohort study of multiple brain lesions in sport divers: role of a patent foramen ovale. BMJ. 1997 Mar 8;314(7082):701–705. doi: 10.1136/bmj.314.7082.701. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Louie E. K., Konstadt S. N., Rao T. L., Scanlon P. J. Transesophageal echocardiographic diagnosis of right to left shunting across the foramen ovale in adults without prior stroke. J Am Coll Cardiol. 1993 Apr;21(5):1231–1237. doi: 10.1016/0735-1097(93)90251-u. [DOI] [PubMed] [Google Scholar]
  11. Mehan V. K., Sideris E. B., Meier B. Use of the reversed button device to treat an atrial septal aneurysm associated with a patent foramen ovale. Br Heart J. 1995 Nov;74(5):563–565. doi: 10.1136/hrt.74.5.563. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Moon R. E., Camporesi E. M., Kisslo J. A. Patent foramen ovale and decompression sickness in divers. Lancet. 1989 Mar 11;1(8637):513–514. doi: 10.1016/s0140-6736(89)90064-0. [DOI] [PubMed] [Google Scholar]
  13. Schenck M. H., Sterba R., Foreman C. K., Latson L. A. Improvement in noninvasive electrophysiologic findings in children after transcatheter atrial septal defect closure. Am J Cardiol. 1995 Oct 1;76(10):695–698. doi: 10.1016/s0002-9149(99)80199-4. [DOI] [PubMed] [Google Scholar]
  14. Schneider B., Zienkiewicz T., Jansen V., Hofmann T., Noltenius H., Meinertz T. Diagnosis of patent foramen ovale by transesophageal echocardiography and correlation with autopsy findings. Am J Cardiol. 1996 Jun 1;77(14):1202–1209. doi: 10.1016/s0002-9149(96)00163-4. [DOI] [PubMed] [Google Scholar]
  15. Sharafuddin M. J., Gu X., Titus J. L., Urness M., Cervera-Ceballos J. J., Amplatz K. Transvenous closure of secundum atrial septal defects: preliminary results with a new self-expanding nitinol prosthesis in a swine model. Circulation. 1997 Apr 15;95(8):2162–2168. doi: 10.1161/01.cir.95.8.2162. [DOI] [PubMed] [Google Scholar]
  16. Van Camp G., Schulze D., Cosyns B., Vandenbossche J. L. Relation between patent foramen ovale and unexplained stroke. Am J Cardiol. 1993 Mar 1;71(7):596–598. doi: 10.1016/0002-9149(93)90518-h. [DOI] [PubMed] [Google Scholar]
  17. Wilmshurst P. T., Byrne J. C., Webb-Peploe M. M. Neurological decompression sickness. Lancet. 1989 Apr 1;1(8640):731–731. doi: 10.1016/s0140-6736(89)92251-4. [DOI] [PubMed] [Google Scholar]
  18. Wilmshurst P. T., Byrne J. C., Webb-Peploe M. M. Relation between interatrial shunts and decompression sickness in divers. Lancet. 1989 Dec 2;2(8675):1302–1306. doi: 10.1016/s0140-6736(89)91911-9. [DOI] [PubMed] [Google Scholar]
  19. Wilmshurst P., Davidson C., O'Connell G., Byrne C. Role of cardiorespiratory abnormalities, smoking and dive characteristics in the manifestations of neurological decompression illness. Clin Sci (Lond) 1994 Mar;86(3):297–303. doi: 10.1042/cs0860297. [DOI] [PubMed] [Google Scholar]
  20. Wilmshurst P., Walsh K., Morrison L. Transcatheter occlusion of foramen ovale with a button device after neurological decompression illness in professional divers. Lancet. 1996 Sep 14;348(9029):752–753. doi: 10.1016/S0140-6736(05)65638-3. [DOI] [PubMed] [Google Scholar]

Articles from Heart are provided here courtesy of BMJ Publishing Group

RESOURCES
