Unusually Reactive and Selective Carbonyl Ylides for Three-Component Cycloaddition Reactions

Abstract

Conditions are described for the Rh-catalyzed formation of highly-functionalized dihydro-and tetrahydrofuran products via three-component reactions of aldehydes, α-alkyl-α-diazoesters, and dipolarophiles. The alkyl-substituted carbonyl ylides that are generated in this fashion are highly reactive in cycloaddition reactions, and display a scope of reactivity that is much broader than three-component reactions of carbonyl ylides derived from ethyl diazoacetate or α-aryl-α-diazoesters. The reactions of alkyl-substituted carbonyl ylides proceed with high regioselectivity and diastereoselectivity that are rationalized by an asynchronous, endo-selective transition state.

INTRODUCTION

Dipolar cycloadditions are powerful reactions that rapidly build structurally complex heterocycles, and the multicomponent nature of dipolar cycloaddition reactions have been used to great effect in discovery chemistry.¹ Metal-catalyzed cycloadditions involving carbonyl ylides can generate stereochemically complex products from three simple starting materials.² The scope of such cycloadditions is broad when carbonyl ylides are formed by intramolecular processes.² In contrast, analogous three-component reactions involving aldehydes, diazo compounds and dipolarophiles had been relatively limited in terms of selectivity and substrate scope.³ Because of competing dioxolane formation,^3a,4,5 the scope is generally limited to highly activated dipolarophiles (e.g. maleate), and mixtures of regio- and stereoisomers are often obtained.

In an elegant study, Jamison investigated the Rh-catalyzed reactions of carbonyl ylides derived from trimethylsilyldiazomethane and dicobalt-hexacarbonyl complexes of propargyl aldehydes.^3e The diastereoselectivity and the substrate scope of the Jamison system was high. However, regioselectivity was an issue for many of those transformations.^3e Muthusamy described Rh-catalyzed reactions of cyclic diazoamides, aldehydes and dimethyl acetylenedicarboxylate that proceed with high diastereoselectivity, but regioselectivity was low when ethyl acrylate was substituted as the dipolarophile.^3f Nair demonstrated that reactions of diazomalonate, aromatic aldehydes, and β-nitrostyrene proceed with high regio- and stereocontrol.^3g Despite these considerable advances, there was still not a general three-component method for combining aldehydes, diazocompounds and dipolarophiles with broad scope and control over regio- and diastereoselectivity. Accordingly, we sought to develop three-component reactions that would parallel the large scope of cycloadditions with cyclic carbonyl ylides.²

We recently demonstrated that carbonyl ylides of structure 1 could be generated from α-alkyl-α–diazoesters at low temperature with catalytic Rh₂Piv₄.^4g Such ylides were not previously accessible due to the propensity of the precursor Rh-carbenoids to undergo β–hydride elimination.⁶ Ylides 1 were shown to react with excess aldehyde at −78 °C to produce dioxolanes in high diastereoselectivity. We reasoned that the alkyl substituents of 1 destabilize the formal negative charge on the ylide, and consequently that ylides 1 should display enhanced reactivity toward exogeneous dipolarophiles (Scheme 1). Herein, it is demonstrated that Rh₂Piv₄ catalyzed, three-component reactions of aldehydes, α-alkyl diazoesters and dipolarophiles give a diverse range of tetrahydrofuran (2) or dihydrofuran products (Scheme 1) with an unusual reaction scope and high selectivity. The high regio- and diastereoselectivity is rationalized by the asynchronous, endo-transition state displayed in Scheme 1.

Scheme 1.

Cycloadditions of alkyl-substituted carbonyl ylides

RESULTS AND DISCUSSION

Dirhodium tetrapivalate has previously been shown^4g to be an efficient catalyst for the formation of carbonyl ylides from α-alkyl–α-diazoesters and benzaldehyde derivatives. It was found that methyl vinyl ketone was able to intercept the carbonyl ylide generated from benzaldehyde and tert-butyl 2-diazohydrocinnamate in the presence of Rh₂Piv₄ at −78 °C to form the functionalized tetrahydrofuran product with high regio- and diastereoselectivity. Following an optimization study (Table 1), it was found that yields were the highest when benzaldehyde was used as the limiting reagent with a small excess of tert-butyl 2-diazohydrocinnamate and methyl vinyl ketone. However, when these conditions were applied to the analogous system with tert-butyl 2-diazopropanoate, the reaction did not go to completion and yields were lower. For this system, as well as for other in which the diazoester is substituted with a simple alkyl chain (R = Me, Bu), it was necessary for 1.7 equivalents of diazo compound to be used to push the reaction to near-completion. Hashimoto’s dirhodium tetrakis[N-phthaloyl-(S)-tert-leucinate catalyst⁷ was tested for asymmetric induction in the reaction of p-anisaldehyde, tert-butyl 2-diazohydrocinnamate, and methyl vinyl ketone, however the product that was obtained was racemic. Rh₂(OAc)₄ and Cu(acac)₄ were also examined as catalysts in the reaction between methyl vinyl ketone, benzaldehyde and tert-butyl 2-diazohydrocinnamate at −78 °C. β-Hydride elimination predominated with Rh₂(OAc)₄, and tetrahydrofuran 5 (R = Bn) was obtained in less than 20% yield. The tetrahydrofuran products were not formed at all in the reaction with Cu(acac)₂, which lead to products that we have not yet been able to identify.

Table 1.

Optimization Study

^aNMR yield

^bReaction was carried out at room temperature

The conditions from Table 1 were applied to a variety of alkynes and alkenes with a single activating group to give products 3–7 (Scheme 2). Successful reactivity was observed for α-diazopropionate, α-diazobutanoate, α-diazooctanoate, α-diazo-5-methylhexanoate, α-diazo-4-[1,3]dioxolan-2-yl-butanoate, and α-diazo-hydrocinnamate with a range of aromatic aldehydes or with propargyl aldehydes. Dipolarophiles include methyl propiolate, ethyl acrylate, methyl vinyl ketone, acrylonitrile and propargyl methyl ketone. Prior use of such dipolarophiles in three-component reactions with carbonyl ylides had been limited, and in those instances ≤3:1 regioselectivity was observed.3e,f The 3-component reactions in Scheme 2 generally proceeded with excellent selectivity: high selectivity (>88:12) was observed for 11 of the 12 examples in Scheme 2, and only one isomer (>95:5) was observed in 7 cases. The exceptional case was the reaction of acrylonitrile, benzaldehyde and tert-butyl 2-diazohydrocinnamate, which proceeded to give 7 with high regioselectivity but with poor stereoselectivity. For the formation of 5f, cyclopentane formation via intramolecular C–H activation was a competing side reaction, but the use of excess benzaldehyde (4.0 equiv) and dipolarophile (4.0 equiv) did give 5f in acceptable yield (51%). By contrast, intramolecular C–H activation was not a competing side reaction for the formation of 5e from tert-butyl α-diazo-5-methylhexanoate.

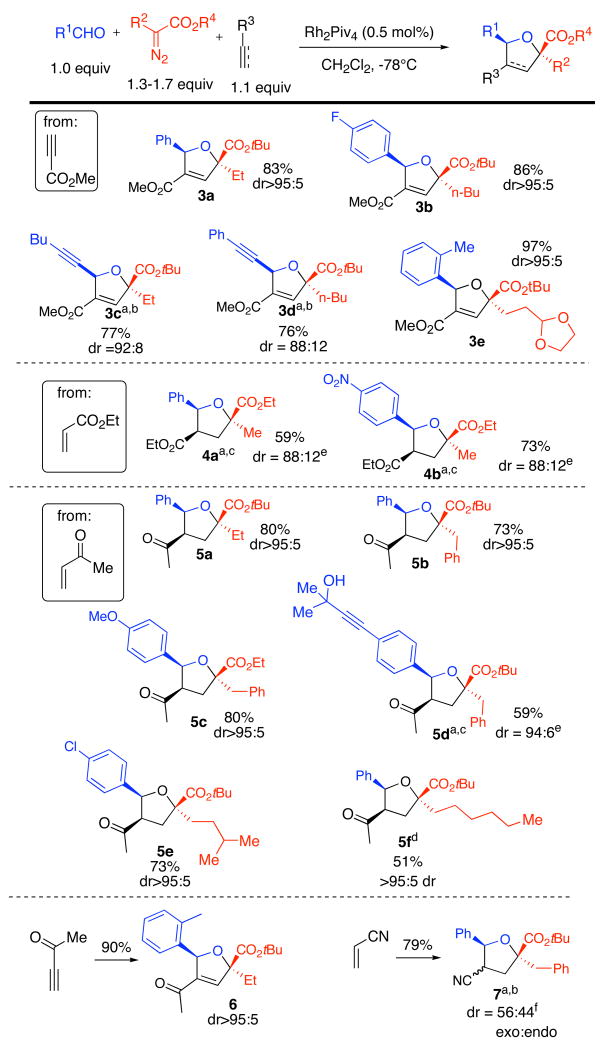

Scheme 2. Three-component coupling reactions of dipolarophiles with a single activating group.

^aTwo diastereomers were detected upon analysis of the ¹H NMR spectrum of the crude. Other isomeric materials were not detected. ^bYield of both diastereomers. ^cYield of diastereomer shown. ^dThe reaction was carried out with 1.0 equiv of t-butyl-α-diazooctanoate, 4.0 equiv of benzaldehyde and 4.0 equiv. of methyl vinyl ketone. ^eThe relative stereochemistry of the minor isomer was not determined. ^fStereochemical assignments were made on the basis of 1H NMR analysis (see Supporting information).

More highly substituted dipolarophiles also combine efficiently with alkyl substituted carbonyl ylides to give products 8–17, as shown in Scheme 3. Of the dipolarophiles in Scheme 3, only maleic anhydride and dimethyl acetylenedicarboxylate have been utlized previously^2b,2d,3b in 3-component reactions involving carbonyl ylides. Unsymmetrical dipolarophiles also react efficiently with alkyl-substituted carbonyl ylides: the reactions of cyclohexenone, methyl methacrylate, and dimethyl 2-ethylidenemalonate proceed with high regioselectivity to give 8, 11 and 17, respectively. Diethyl azodicarboxylate successfully leads to the tetrahydrooxa-3,4-diazole 10. Strain can also be used to activate dipolarophiles:^3e,8 prochiral cyclopropene 13 and chiral cyclopropene 15 react efficiently to give 14 and 16, respectively. Excellent regio- and diastereoselectivity (>95:5) was observed in all cases in Scheme 3 except for the reaction of methyl methacrylate, which gave 11 with 1:1 diastereoselectivity, and the reaction of maleic anhydride which gave 9b with 91:9 diastereoslectivity. A variety of functional groups are tolerated by the reactions in Schemes 2 and 3, including esters, alkynes, nitriles, oxazolidinones, alcohols, nitro-groups, and methoxy groups.⁹ As in the formation of 5f, cyclopentane formation via intramolecular C–H activation was a competing side reaction for the formation of 12b. However, the use of excess 4-fluorobenzaldehyde (4.0 equiv) and dipolarophile (4.0 equiv) gave 12b in good yield (63%).

Scheme 3. Three-component coupling reactions of dipolarophiles with multiple substitutents.

Diastereomer ratios were determined by analysis of the ¹H NMR spectra of the crude: no other isomeric materials were observed. ^aIsolated yield of diastereomer shown. ^bIsolated yield of both diastereomers. ^cThe reaction was carried out with 1.0 equiv of t-butyl-α-diazooctanoate, 4.0 equiv of 4-fluorobenzaldehyde and 4.0 equiv. of dimethyl acetylenedicarboxylate. ^dStereochemical assignments were made on the basis of ¹H NMR analysis (see Supporting information).

The reactions in scheme 2 and scheme 3 are subject to some limitations. Attempts to use 1-hexene, phenyl acetylene, norbornene, and vinyl trimethylsilane were unsuccessful, and led primarily to dioxolane products. An attempt to utilize tert-butyl α-diazoisovalerate led only to β–hydride elimination. Reactions with dimethyl maleate, ethyl-trans-crotonate, 3-pentyn-2-one, and acrolein gave the desired products in very low yield (≤ 10%). When alkyl aldehydes were used (propionaldehyde and pivaldehyde), only β-hydride elimination was observed. An attempt to utilize tert-butyl α-diazo-α-cyclohexylacetate led only to β–hydride elimination.

The generation and rapid reactivity of alkyl-substituted carbonyl ylides at low temperature is key to selective reactivity. At higher temperatures, the selectivity and yields are poor. When tert-butyl 2-diazohydrocinnamate is reacted with benzaldehyde and methyl vinyl ketone at rt, the tetrahydrofuran product is formed in only 16% yield, while the amount of β-hydride elimination (68% based on the diazo compound) is increased. Analogous reactions of ethyl diazoacetate or methyl phenyldiazoacetate with benzaldehyde and ethyl acrylate are less successful at −78 °C or at rt: The reaction with ethyldiazoacetate forms primarily diethyl maleate and diethyl fumarate at −78 °C or at rt. The reaction with methyl phenyldiazoacetate formed the desried product in low yield (31% based on ¹H NMR analysis) with competing epoxide¹⁰ formation (18%); the remainder of the mass balance was unreacted aldehyde (16%) and a complex mixture of products.

To demonstrate that the cycloaddition was complete at −78 °C, the reaction of benzaldehyde, tert-butyl 2-diazohexanoate, and methyl propiolate was carried out according to the general procedure. Following the addition of the diazo compound, the reaction was allowed to stir at −78 °C for five minutes; then ethyl propiolate was added (1.1 equiv) and the reaction was allowed to warm up to room temperature. Analysis of the crude ¹H NMR spectrum revealed that cycloaddition had only occurred with methyl propiolate. A control experiment was run in which both methyl propiolate (1.1 equiv) and ethyl propiolate (1.1 equiv) were added prior to diazo addition. Crude ¹H NMR analysis revealed a ~1:1 mixture of both cycloadducts.

Regio- and stereochemical assignments were made on the basis of X-ray crystal structures for compounds 5b, 9a, and 14; NOE experiments on 17 and on both diastereomers of compound 3c; and chemical shift anisotropy analysis of the ¹H NMR spectra for all compounds. In the majority of the cases studied, the major product arises from an endo approach of the dipolarophile to the ylide conformer A (Figure 2). An exceptional case was compound 17 derived from dimethyl 2-ethylidenemalonate in which the major product was formed by exo approach to the conformer A. Exo/endo isomers were also observed for 7 and 11, in which the dipolarophiles were acrylonitrile and methyl methacrylate, respectively. Products arising from cycloaddition with the minor ylide conformer, conformer B, were observed for 3c and 3d where propargyl aldehydes were employed. The minor isomers of 4a, 4b, 5d and 9b were not definitively assigned, but in analogy to our prior observations in dioxolane formation,^4g we assume that they also arise from endo approach of the dipolarophile to the minor ylide conformer B.

Figure 2.

Proposed model to explain diastereoselectivity

When cyclopropenes 13 and 15 are used as dipolarophiles, the cyclopropene controls the endo-selectivity of the cycloadditions to provide the cycloaddition adducts 14 and 16 as single diastereomers. The sense of diastereoselectivity is in accord with that observed by Molchanov and coworkers in reactions between cyclic carbonyl ylides and substituted cyclopropenes.⁸ With the trisubstituted cyclopropene 15, the regioselectivity of dipolar cycloaddition is apparently controlled by steric considerations: the preferred regioisomer is derived from the transition state where the less substituted end of the cyclopropene is aligned with the more substituted end of the carbonyl ylide, as shown in Figure 3.

Figure 3.

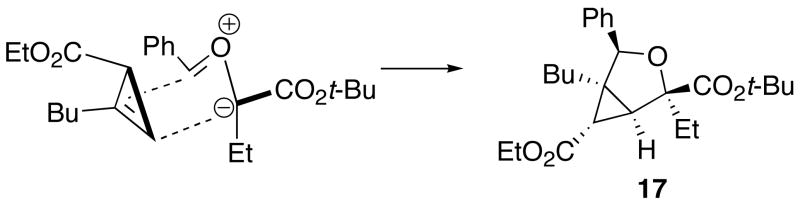

Proposed model for the formation of 17

CONCLUSIONS

In summary, general conditions are described for the Rh-catalyzed formation of highly-functionalized dihydro- and tetrahydrofuran via three-component reactions of aldehydes, α-alkyl-α-diazoesters, and dipolarophiles with selectivity over dioxolane formation. Alkyl substituted carbonyl ylides are highly reactive in such transformations, and the scope of reactivity is broad relative to analogous carbonyl ylides derived from ethyl diazoacetate or α-aryl-α-diazoesters. Products are formed in good yields and with excellent regio- and diastereoselectivity when the reactions are carried out at − 78 °C in the presence of catalytic Rh₂Piv₄. A model invoking an asynchronous, endo transition state is proposed to explain the nature of diastereoselectivity.

EXPERIMENTAL SECTION

Representative procedure for three component dipolar cycloaddition reactions: synthesis of 4-acetyl-2α-ethyl-5β-phenyl-tetrahydrofuran-2β-carboxylic acid ethyl ester (5a)

In a flame-dried round bottomed flask, Rh₂Piv₄ (1.5 mg, 0.002 mmol), benzaldehyde (54 mg, 0.51 mmol), and methyl vinyl ketone (39 mg, 0.56 mmol) were dissolved in anhydrous CH₂Cl₂ (2.5 mL) and cooled by a bath of dry ice/acetone (−78 °C) under a nitrogen atmosphere. tert-Butyl 2-diazobutanoate (146 mg, 0.86 mmol) was dissolved in anhydrous CH₂Cl₂ (1 mL) and added to the reaction mixture over 1 hour via syringe pump. After the addition was complete, the reaction mixture was allowed to stir for an additional 5 minutes and was then allowed to warm up to room temperature. Mesitylene (61 mg, 0.51 mmol) was added to the reaction mixture and an ¹H NMR spectrum was taken to estimate the yield and isomer ratio(s). The solvent was subsequently removed and the residue was chromatographed on silica gel to give 123 mg (0.39 mmol, 76%) of 5a as a colorless oil. A similar experiment starting with 50 mg (0.47 mmol) of benzaldehyde, 37 mg (0.52 mmol) of methyl vinyl ketone, and 136 mg (0.80 mmol) of tert-butyl 2-diazobutanoate gave 124 mg (0.39 mmol, 83%) of 5a. ¹H NMR (400 MHz, CDCl₃, δ): 7.43-7.38 (m, 2H), 7.33-7.21 (m, 3H), 5.32 (d, J = 7.2 Hz, 1H), 3.46 (app dt, J = 7.6 Hz, 3.5 Hz, 1H), 2.85 (dd, J = 13.5 Hz, 3.5 Hz, 1H), 2.07 (dd, J = 13.3 Hz, 7.4 Hz, 1H), 2.00-1.88 (m, 1H), 1.82-1.72 (m, 1H), 1.59 (s, 9H), 1.42 (s, 3H), 0.98 (t, J = 7.4 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃, δ): 207.2 (u), 172.6 (u), 138.1 (u), 128.4 (dn), 128.0 (dn), 126.5 (dn), 87.0 (u), 82.9 (dn), 81.0 (u), 57.0 (dn), 37.8 (u), 32.4 (u), 30.5 (dn), 28.0 (dn), 8.58 (dn); IR (CHCl₃, cm⁻¹): 2981, 2937, 1731, 1714, 1615, 1457, 1370, 1254, 1124, 1061, 908, 845, 701, 662; HRMS-ESI m/z: [M+Na], calcd for C₁₉H₂₆O₄Na, 341.1729; found 341.1719.
