Preclinical evaluation of light-activatable, bispecific anti-human CD3 antibody conjugates as anti-ovarian cancer therapeutics

Abstract

The administration of anti-CD3 antibodies, either unmodified or in bispecific formats, has been shown to kill tumors. However, their activity needs to be carefully controlled. We have approached this problem by inhibiting their anti-CD3 activity until it is required. Folated anti-human CD3 antibody bispecific conjugates were therefore synthesised in which the folate portion of the conjugates remained free to bind to folate receptor (FR) expressing cancer cells, whilst their anti-CD3 activity was reversibly inhibited. On irradiation with UV-A light, the T-cell binding activity of the anti-CD3 antibody can be restored only when and where it is required, i.e., adjacent to a tumor. Conjugate bound to FR expressed on normal tissues in other parts of the body remains inactive. This report describes the preclinical in vivo testing of these conjugates in transgenic mice whose T-cells express human CD3 molecules. When the ‘cloaked’ conjugates were reactivated in the region of the primary tumor, both primary tumor growth and liver metastasis were markedly reduced. That the deliberate targeting of T-cell activity locally to the primary tumor also resulted in reduced distant metastatic growth was a key finding. Light-activatable bispecific antibody conjugates similar to those described here offer a means to control T-cell targeting with a much higher degree of specificity to tumors because they minimize potentially dangerous and unwanted side effects in non-illuminated areas. The addition of light-specific targeting to the inherent tumor specific targeting of therapeutic antibody conjugates could result in the development of safer treatments for patients.

Introduction

Seminal work by Ellenhorn et al.¹ demonstrated that the in vivo administration of low levels of anti-CD3 antibodies could not only prevent tumor growth, but also induce immunity against further injections of tumor. The level of anti-CD3 administered was critically important because higher levels of anti-CD3 resulted in immuno-suppression and more rapid tumor growth. This work led to proposals that immune recruitment to specific areas of the body via targeting T-cells to tumors could be a major step forward in tumor therapy.^2,3 This process is normally brought about by using antibodies that bind to specific CD antigens on the T-cell surface (usually CD3 and/or CD28), and cause T-cell activation. However, the administration of such anti-CD antibodies can cause very dangerous cytokine storms,^4,5 as might have occurred in the human volunteers at Northwich Park.^6,7 Whilst the approach is clearly very powerful, it requires close control of both the amount and the location of the active antibody.

Bispecific antibodies were developed to minimize these problems and focus T-cell activation to the site of the tumor.^2,3 In these bispecific constructs, one binding site of the antibody reacts with a tumor specific antigen (TSA), whilst the other reacts with the T-cell CD antigen.^2,3,8–10 This should result in T-cells being targeted directly to the tumor surface. In practice, the constructs contain active anti-T-cell antibodies when they are injected, so they can bind to, and activate, peripheral T-cells in areas of the body that are well away from the tumor. Perhaps more importantly, there are very few, if any, truly specific tumor antigens.^11–13 Normal tissues that express low levels of the TSA are also targeted, leading to the possibility of damaging side effects. The problem is not so much the binding selectivity of the antibody, but more the distribution of TSA throughout the body.

If a construct was created in which the potentially toxic anti-CD antibody portion of the bispecific antibody were to be initially inactive, then this would provide a means to circumvent both of these inherent problems. Peripheral T-cells would not be activated, and all tissues which expressed the TSA would remain unharmed until the anti-CD3 (T-cell targeting) activity was restored. We had previously demonstrated a procedure to photo-reversibly deactivate antibodies in such a way that antibody activity could be restored by localized irradiation with UV-A light.14,15 This procedure was therefore used to construct photo-activatable, folated, anti-human CD3 conjugates in which the anti-CD3 portion was initially inactive.¹⁶

The folate receptor (FR) has been suggested as a therapeutic target^4,17,18 because many human carcinomas are known to express high levels of the receptor,^18,19 and folic acid is both readily available and easily coupled to toxins and antibodies. Unfortunately, folate receptors are also expressed on a number of healthy tissue types, including the kidney and lung.¹⁹ Therapeutic antibodies that are directed to their targets by folate will also be directed to these healthy tissues, potentially leading to harmful side effects. These side effects will not occur when the therapeutic anti-CD3 antibody has been rendered reversibly inert prior to its administration.

Two anti-human CD3 antibodies, OKT3 and UCHT1, were first folated to enable them to bind to FR-expressing tumor cells.¹⁶ After this initial treatment, anti-CD3 T-cell targeting activity was inhibited by a coating of photocleavable 1-(2-nitrophenyl)ethanol groups.¹⁴ These photo-activatable, folated and NPE coated anti- CD3¹⁶ conjugates bind to the FR-expressing murine ovarian cell line M5076²⁰ in vitro both before and after irradiation, whilst T-cell binding only occurs after irradiation.¹⁶ In clinical use, the conjugate will be administered and allowed to bind to the target, then local irradiation with UV light will reactivate the anti-T cell antibody only where it is required. The conjugate will then bind and activate killer T-cells, thereby killing the tumor. Two critical components were necessary for the preclinical assessment of the efficacy of this approach: transgenic mice that expressed human CD3 on their T-cells, thus allowing us to employ anti-human CD antibodies; and a tumor that expressed folate receptors on its surface and was capable of growing in the transgenic mice. Toward this end, C57BL6/human CD3e transgenic mice were obtained.²¹ As the FR-expressing ovarian carcinoma M5076 originated in C57BL6 mice, we could then directly study the effects of the antihuman CD3 targeting conjugates on the growth of this murine tumor in the transgenic mice.

Results

NPE-OKT3-folate and NPE-UCHT1-folate preparations.

Two anti-human CD3 antibodies UCHT1 and OKT3 were folated to enable them to bind to FR-expressing M5076 cancer cells.¹⁶ The folated antibodies were then coated with NPE residues to reversibly inactivate their activity.^15,16 The folation had to be carried out prior to the anti-CD3 activity being inhibited, probably because both NPE and folate bind via the same amine residues on the antibody.¹⁶ In all conjugates, the folate portion of the conjugate remained free to bind to the FR-expressing cancer cells even after the anti-CD3 activity was rendered inert by the NPE coating.¹⁶ Indeed, the NPE coating appeared to increase the availability of the folate to bind to M5076 cells rather than decrease it.¹⁶ On irradiation with UV light, the NPE cleaves and the anti-CD3 activity was restored.

Four NPE-UCHT1-folate conjugates and one NPE-OKT3-folate conjugate were selected for this study. Two conjugates had higher levels of folate substitution, and three had low levels of folate substitution. All five conjugates had minimal levels of anti-CD3 activity. Their in vitro T-cell and M5076 tumor cell binding capabilities are listed in Table 1. The data demonstrates that folation irreversibly decreases the activity of the anti-CD3 antibodies by about 30%. When the folated-conjugates are coated with NPE their anti-CD3 activities reduce to nearly background levels, but after irradiation the conjugates regain 25–30% of their original uncloaked binding capacities.^15,16,22 This degree of reactivation is acceptable given that the most important parameter in the actual application of these conjugates is the degree of inactivation achieved.

Table 1.

The T-cell binding and M5076 binding characteristics of various folated-anti-human CD3 conjugates as measured by flow cytometry

Antibody conjugate	Mean T-cell		Mean cancer
	binding		cell binding
IgG Control	2.3	2.2	20
OKT3	139	153	32
OKT3-Folate (5.3 res folate)	121	129	nd
NPE-OKT3-Folate (31 res NPE)	7.1	8.8	94
NPE-OKT3-Folate + UV	77	71	nd
IgG Control	2	2.2	20
UCHT1 (a)	134	111	28
UCHT1-Folate (9 res folate)	93	nd	nd
NPE-UCHT1-Folate (33 res NPE)	8	6	68
NPE-UCHT1-Folate + UV	35	32	48
IgG Control	2	2	28
UCHT1 (b)	98	163	36
UCHT1-Folate (2.4 res folate)	64	110	57
NPE-UCHT1-Folate (44 res NPE)	4.7	6.8	76
NPE-UCHT1-Folate + UV	25	46	nd
IgG Control	3	nd	4
UCHT1 (c)	74	nd	4.8
UCHT1-Folate (1.4 res folate)	44	nd	6
NPE-UCHT1-Folate (48 res NPE)	4	nd	19
NPE-UCHT1-Folate + UV	34	nd	7
IgG Control	3	nd	nd
UCHT1 (d)	84	nd	nd
UCHT1-Folate (2.1 res folate)	57	nd	nd
NPE-UCHT1-Folate (27 res NPE)	5	nd	nd
NPE-UCHT1-Folate + UV	23	nd	nd

The values given are the mean fluorescence of the single fluorescent peak. UV irradiation of NPE coated conjugates was carried out for 10 min; res, no of residues per antibody molecule; nd, not determined.

Tumor growth studies.

Tumor growth when anti-CD3-folate conjugates were added with the diced tumor. We had previously demonstrated that co-injection of 5 µg of an anti-murine CD3 antibody (145-2C11) with tumor pieces could reduce the growth of a M5706 ovarian tumor in wild type C57BL6 mice.²² It was not known whether folated human anti-CD3 conjugates would be as effective. Two new factors had to be taken into consideration: firstly, that the folation procedure had deactivated approximately 30% of the antibody; and, secondly, that whilst all of the transgenic mice expressed human CD3 on their T-cells, they also expressed murine CD3. Our folated anti-human CD3 conjugates might not, therefore, be expected to be as effective in stimulating a T-cell response.

We carried out an initial experiment in which 5 µg of various folated-UCHT1 conjugates (batch a) were co-injected with transplanted tumor pieces. After four weeks the transgenic animals were killed and their primary subcutaneous tumors excised along with their livers. The weight of the primary tumor was measured, and the weight and appearance of the livers was noted as a measure of metastasis. The results are summarized in Figure 1 (See also Table 2, where the detailed results for each animal are listed). As can be seen from the data, final primary tumor weights in all treated animals were markedly reduced, with the in vitro irradiation group having by far the smallest tumors, even smaller than the tumors found in animals which had received the fully active uncoated folated-UCHT1. This implied an additive effect of the NPE coating, or its hydrolysis products, to the inherent anti-CD3 activity in reducing final tumor growth. The lowest reductions were, as expected, in animals that received NPE inactivated conjugate, although even this treatment had some effect, possibly through the presence of a very small amount of residually active conjugate. There was also an obvious difference in the condition of the livers in the groups treated with both fully active folated-anti-CD3 conjugates, and in vitro irradiated NPE-UCHT-folate conjugates. The livers in both of these groups had the firm texture and dark reddish-brown appearance of normal livers, whilst livers from the control group were very soft and light pink in color, and included many obvious small white tumor colonies. This reduction in metastasis to the liver was confirmed by reductions in weights of the livers in these 2 groups. As the tumors in the in vivo irradiated group were not as small as those obtained with the in vitro activated group, this implied that not enough conjugate had been reactivated by 5 minutes in vivo UV irradiation. We therefore decided to both increase the amount of antibody injected to 10 µg instead of 5 µg per mouse, and the in vivo irradiation time to 15 minutes for all further experiments.

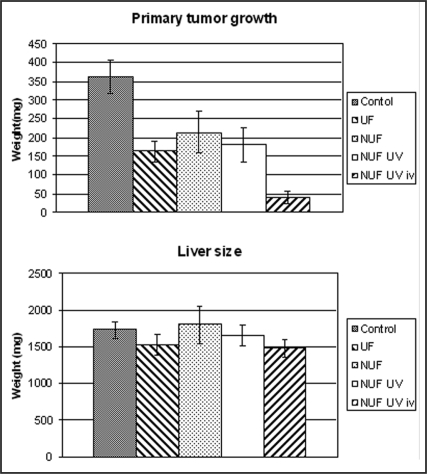

Figure 1.

Results for final tumor growth and liver weight when tumor pieces were co-injected with UCHT1-Folate conjugates (batch a). Control animals received medium without antibody. UF animals received UCHT1-Folate. NUF animals received NPE-UCHT1-Folate conjugates and half of these animals were irradiated in vivo for 5 min. NUF UV iv treated animals received NPE-UCHT1-Folate conjugates after they had been irradiated for 5 min in vitro in a quartz cuvette. All mice received 5 µg of antibody conjugate. All error bars represent ± 1 SE in this and all further figures.

Table 2.

Results for final tumor growth when tumor pieces were co-injected with various UCHT1-Fol conjugates (batch a)

Group	Sex	Body	Tumor	Live	Liver
		(gm)	(mg)	(mg)	appearance
Control	F	22.8	575	2200	Riddled
	F	25.3	200	1260	Normal
	F	25.1	362	1520	Riddled
	F`	26.6	428	1700	Riddled
	M	34.5	320	1700	Riddled
	M	29.2	338	1740	Riddled (large nodules)
	M	34.1	>320	>2000	Riddled
Mean ± SD			363 ± 115	1731 ± 305
UCHT1-Fol	F	24.5	63	1190	Normal
	F	24.9	171	1290	Normal
	F	22.9	154	1210	Normal
	M	34.8	129	1870	Normal
	M	33.2	220	1850	Normal
	M	29.7	245	1750	Normal
Mean ± SD			164 ± 65	1526 ± 329
UCHT1-Fol-NPE	F	23.0	159	1170	Normal
	F	21.6	114	1130	Normal
	F	24.5	163	2250	Riddled
	M	34.6	415	2750	Riddled
	M	30.9	82	1760	Normal
	M	29.0	350	1760	Normal
Mean ± SD			214 ± 136	1803 ± 625
UCHT1-Fol-NPE	F	22.8	124	1360	Normal
+ UV in vivo	F	25.3	185	1420	Normal
	F	25.1	346	1290	Normal
	M	34.5	72	1790	Normal
	M	29.2	280	1900	Pale
	M	34.1	75	2170	Normal
Mean ± SD			180 ± 113	1655 ± 352
UCHT1-Fol-NPE	F	28.4	68	1420	Normal
+ UV in vitro	F	27.8	148	1350	Normal
	F	25.7	72	970	Normal
	M	32.1	44	1670	Normal
	M	33.1	128	1830	Normal
	M	31.6	96	1640	Normal
Mean ± SD			93 ± 39	1480 ± 304

Individual animal data from each animal experiment. 5 ug conjugate per mouse. 5 min UV irradiation, both in vitro and in vivo. Riddled means that the number of small colonies were too numerous to count. Riddled livers were always very pale pink due to the amount of tumor. Healthy normal livers were a dark red/brown color.

This experiment, and previous work,²² established that we could reduce the growth of the murine ovarian carcinoma when tumor and antibody were co-injected. In clinical applications, the tumor would be established before it was discovered. In all subsequent experiments mice were injected with diced tumor and left for tumors to establish before treatment was commenced. This situation more accurately represents the human experience.

Tumor growth when anti-CD3-folate conjugates were added four days after tumor growth had been initiated. In all further experiments, tumor pieces were transplanted by subcutaneous injection and left to grow for four days to small, established, palpable masses. After this tumor growth stage, 10 µg of each antibody conjugate was injected. In vivo irradiation, through a shaved patch of skin, was then carried out for 15 min. As in vitro irradiation produces a very similar control to the animals receiving uncoated folated-antibody, this group was discontinued to further minimize the number of animals needed.

In a first experiment, OKT3-folate conjugates were administered near to the tumor, under the same bald patch, 4 days after the tumor. These tumors grew much faster than expected, necessitating that the animals be killed after 22, rather than 28 days; however, the results were again promising (Fig. 2, Table 3) with the exception of the group treated with uncoated folated-OKT3 conjugate, which had no effect on this occasion. This surprising result was attributed to the sample of folated-OKT3 having somehow denatured, previous preliminary experiments in which only 5 µg of folated-OKT3 conjugates were co-injected with tumour had markedly reduced tumour growth in a similar fashion to that found with folated-UCHT1 as described above. The in vivo irradiated group had much smaller primary tumors and all their livers appeared normal in color, although two animals had 3–4 large (3 mm diameter) tumor colonies visible on their surface. The control animals had large primary tumors and three animals had livers riddled with tumor colonies. This reduction in liver metastasis was also reflected in the gross liver weights.

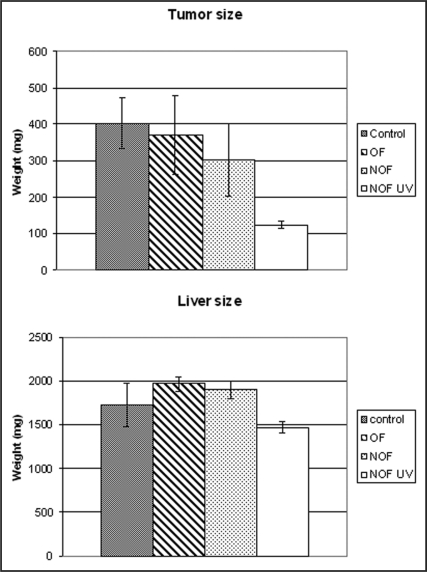

Figure 2.

Final tumor weights given by animals to whom OKT3-Fol conjugates were administered four days after tumor initiation. Control animals received medium alone. OF animals received OKT3-Folate. NOF animals received NPE-OKT3-Folate conjugates and half of these animals were irradiated in vivo for 15 min. All mice received 10 µg of antibody conjugate.

Table 3.

Final tumor weights from animals to whom OKT3-Folate conjugates were administered 4 days after tumor initiation

Group	Sex	Body	Tumor	Liver	Liver
		(gm)	(mg)	(mg)	appearance
Control	F	12.9	168	1100	Riddled
	F	23.8	348	1420	Very Pale
	F	21.0	387	1110	Normal
	F	21.5	400	1170	Normal
	M	31.9	126	1930	Normal
	M	32.8	505	1880	Normal
	M	31.6	686	2070	Riddled
	M	30.7	606	3160	Riddled
Mean ± SD			403 ± 195	1730 ± 698
OKT3-Fol	F	24.9	356	2150	Riddled
	F	24.2	303	1850	Normal
	F	24.3	464	2240	Riddled
	M	29.5	945(IP)	2120	Riddled
	M	26.9	42	1690	Normal
	M	28.5	154	1710	Normal
	M	26.4	336	2010	Riddled
Mean ± SD			371 ± 289	1969 ± 220
OKT3-Fol-NPE	F	25.3	276	1170	Normal
	F	27.9	775(IP)	2830	Riddled
	F	25.4	215	1970	Riddled Large colonies
	M	29.7	273	1820	Normal
	M	28.8	138	2010	Riddled Large colonies
	M	30.6	133	1610	Normal
Mean ± SD			302 ± 240	1901 ± 549
OKT3-Fol-NPE	F	24.2	92	1360	Normal
+ UV in vivo	F	24.9	129	1200	Normal
	F	25.8	160	1440	Few large colonies
	M	28.6	136	1590	Normal
	M	29.7	123	1710	Few large colonies
	M	29.2	104	1520	Normal
Mean ± SD			124 ± 24	1470 ± 73

IP signifies that the tumor had also spread intraperitonally.

A second experiment was therefore performed using a NPE-UCHT1-folate conjugate (batch b). The results are summarized in Figure 3. (Results from individual animals are given in Table 4). As expected, the animals treated with unirradiated NPE-UCHT1-folate had tumors and livers very similar to the control untreated group. However, both primary tumors and liver metastasis were markedly reduced when a second group that had the same conjugated injected was irradiated in vivo for 15 min to reactivate the conjugate. The uncoated, folated-UCHT1 group was, as expected, very effective at reducing primary tumor growth, but did not have as great an effect on reducing liver metastasis as judged by both liver condition and weight. These results were repeated in a further experiment using the same NPE-UCHT1-folate conjugate (Table 5). Here the tumor grew much more vigorously, but both primary tumor growth and liver metastasis were again markedly reduced in the treated animals. Indeed, no metastatic growth was apparent in the liver.

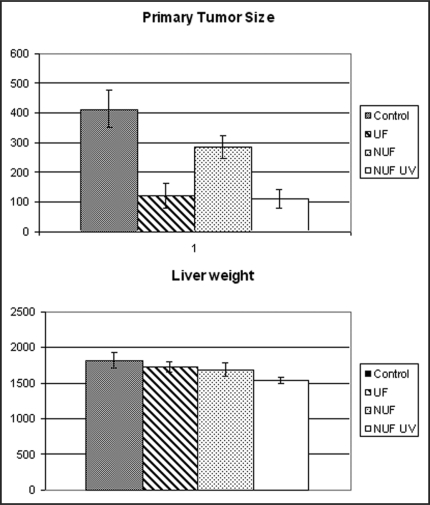

Figure 3.

Final tumor weights given by animals to whom UCHT1-Fol (batch b) conjugates were administered four days after tumor initiation. Control animals received medium without antibody. UF animals received UCHT1-Folate. NUF animals received NPE-UCHT1-Folate conjugates and half of these animals were irradiated in vivo for 15 min All mice received 10 µg of antibody conjugate.

Table 4.

Final tumor weights from male animals to whom UCHT1-Folate (batch b) conjugates were administered 4 days after tumor initiation

Group	Body	Tumor	Liver	Liver
	(gm)	(mg)	(mg)	appearance
Control	30.3	520	2110	Riddled
	30.7	672	1840	Riddled
	29.7	275	1950	Riddled
	24.3	364	1440	Few small nodules
	29.4	170	1600	Riddled
	27.7	380	1550	Riddled
	29.3	510	2230	Riddled
Mean ± SD		413 ± 169	1818 ± 299
UCHT1-Folate	31.1	32	1680	3 nodules good color
	31.3	265	1920	Very pale
	31.2	34	1800	1 nodule
	28.4	23	1540	Normal
	29.4	112	1590	Normal
	28.5	274	2060	Riddled
	30.8	100	1520	Normal
Mean ± SD		120 ± 108	1730 ± 205
UCHT1-Folate-NPE	25.8	420	1610	Normal
	26.1	340	1600	Many nodules
	25.0	139	1330	5 or 6 nodules
	28.3	280	1730	Some nodules
	30.6	248	1860	Unhealthy, very pale
	30.8	284	1980	Riddled
Mean ± SD		285 ± 94	1685 ± 227
UCHT1-Fol-NPE	30.7	40	1600	Normal
+ UV in vivo	26.4	41	1410	3 nodules
	27.8	<5	1470	Normal
	26.9	93	1420	3 nodules
	27.8	175	1690	Normal
	28.5	217	1600	Normal
	28.9	212	1570	3 nodules
Mean ± SD		112 ± 89	1537 ± 105

Table 5.

Final tumor weights from a second group of male animals to whom UCHT1-Folate conjugates (batch b) were administered four days after tumor initiation

Group	Body	Tumor	Liver	Liver
	(gm)	(mg)	(mg)	appearance
Control	29.5	510	2730	Riddled
	31.1	1380	3130	Riddled
	31.5	890	3890	Riddled
	28.0	385	3620	Riddled
Mean ± SD		791 ± 450	3342 ± 515
UCHT1-Fol-NPE	27.0	115	1410	Normal
+ UV in vivo	31.0	258	1330	Normal
	26.8	42	1270	Normal
	29.2	155	1510	Normal
Mean ± SD		142 ± 90	1380 ± 104

The experiments were repeated using a further two batches (c and d) of NPE-UCHT1-folate to establish whether the above effect was reproducible from batch to batch (Tables 6–8). Primary tumor growth and liver metastatic growth were considerably reduced on all occasions. Data from all of the NPE-UCHT1-folate experiments (Tables 4–8) is summarized in Figure 4. The average value for the size of the primary tumors (29 animals) in untreated animals was 426 ± 46.7 mg (mean ± SE); this decreased to 141 ± 16.6 mg (mean ± SE) when the animals were treated with UCHT1-Fol-NPE conjugates and irradiated for 15 min with UV light (30 animals). The difference between these means is 285 mg and the SE between the means is 49.5 mg. As the ratio of these two values is 5.75 the probability of these results occurring by chance is much less than p < 0.001 using normal distribution tables. Similarly the liver weight in untreated animals was 1856 ± 138 mg and treated animals 1389 ± 54 mg (both mean ± SE). Here the ratio of the difference between the means (467 mg) and the standard error between the means (149 mg) is 3.14, the probability of this difference occurring by chance is 0.002 > p > 0.001 using normal distribution tables.

Table 6.

Final tumor weights from female animals to whom UCHT1-Folate conjugates (batch c) were administered four days after tumor initiation

Group	Body	Tumor	Liver	Liver
	(gm)	(mg)	(mg)	appearance
Control	27.5	470	1630	Mottled with colonies
	27.5	550	1620	Large colonies
	27.1	520	2440	Riddled
	23.7	430	990	Light but many colonies
	26.4	380	1610	Mottled mushy
	21.8	460	1910	Riddled
Mean ± SD		468 ± 61	1700 ± 47
UCHT1-Fol-NPE	24.8	140	1330	Normal
+ UV in vivo				but Pale
	26.0	180	1340	Normal
	26.1	220	1320	Few Large Colonies
	25.8	420	1730	Riddled
	24.7	90	1240	Normal
Mean ± SD		210 ± 127	1392 ± 193

Table 8.

Final tumor weights from female animals to whom UCHT1-Folate conjugates (batch d) were administered four days after tumor initiation

Group	Body	Tumor	Liver	Liver
	(gm)	(mg)	(mg)	appearance
Control	24.1	390	1490	Lots of colonies
	25.5	210	900	Pale
	22.7	260	800	Pale
	25.5	110	1250	Normal
	25.7	210	1200	Normal
	24.8	150	1200	Normal
	28.7	180	1310	Normal
Mean ± SD		216 ± 91	1164 ± 238
UCHT1-Fol-NPE	21.4	80	870	Normal
UV in vivo	21.2	120	840	Normal
	25.4	110	1330	Pale
	22.0	70	910	Normal
	26.7	70	1400	Normal
	26.1	220	1210	Normal
	20.9	50	680	Normal
	24.1	80	1130	Normal
Mean ± SD		100 ± 53	1040 ± 258

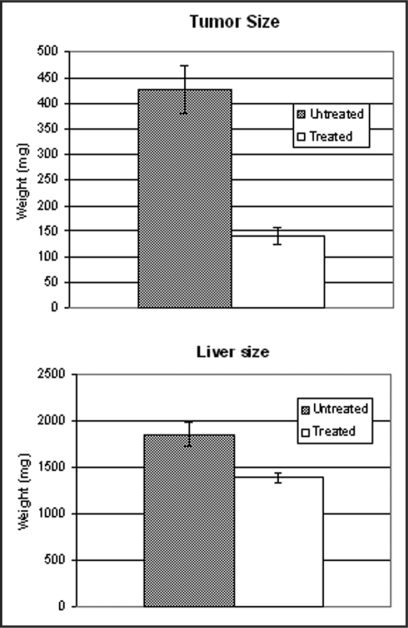

Figure 4.

A summary of final tumor sizes and liver weights in all of the animals treated with NPE-UCHT-Folate conjugates (batches b, c and d) followed by UV irradiation in vivo for 15 min, as compared to control untreated animals which only received an injection of media.

Discussion

Tumor-bearing, immunocompetent transgenic mice that express human CD3 on their leukocytes were treated with several different batches of NPE-coated, folated-anti-human CD3 antibodies. In all cases where the conjugate was administered four days after the tumor, irradiation of the conjugate in vivo next to the primary tumor reduced both primary tumor growth and metastatic liver growth. It is not yet known if the treatment prevents the tumor from metastasising or inhibits the growth of metastatic deposits. If reduction in metastasis occurs through an immunization effect similar to the protection against further injections of the same or different tumors that has been previously reported,^1,23,24 then this result could be of great importance in human clinical use because the treatment could prevent reoccurrences of tumors. Of particular relevance is the very recent work of Kabingu et al.²⁵ who reported that localized photodynamic therapy (PDT) directed to subcutaneous murine tumors reduced the growth of the same tumor at distant sites (the lungs). They attributed this result to the systemic immune response to the tumor being upregulated by the generation of CD8⁺ memory T-cells. This was thought to be a consequence of the PDT causing massive inflammation and cytokine release adjacent to the primary tumor. As our approach deliberately targets the immune response directly to the tumor surface, a much more efficient polyclonal T-cell response should be elicited,⁹ and it is probable that this upregulation of T-cell activity is involved in the killing of the liver metastatic deposits. This leads to the intriguing possibility that localized irradiation by light of accessible secondary metastatic deposits could be used to treat inaccessible primary tumors and other metastases. In clinical use, anti-CD3 conjugates could be reactivated through the skin as described here, or by irradiating the interior of patient following a de-bulking operation (and an injection of inactive conjugate). A further option would be to deliver the light to deep-seated tumors via light through an optical probe. We have previously demonstrated that 360 nm light delivered through a 10 cm long × 1 cm diameter dental probe efficiently removes NPE residues.²⁹

We used a bispecific conjugate in which the antibody is folated to allow the conjugate to target cancer tissues that express elevated levels of FR. The conjugates are only active after irradiation, which prevents normal tissues and organs that also express FR from being damaged. Most bispecific therapeutic antibodies are composed of two antibody binding sites. One of the binding sites binds to a tumor antigen and the other to a T-cell. The two different binding sites may both be present in the same antibody molecule or a conjugate of more than one antibody can be made. In either case, the photo-activation technique described here could be used to greatly enhance the specificity of any therapeutic T-cell re-targeting conjugate. Many otherwise valuable antibodies, raised against different types of tumor cells, have been discarded in the past because they had unacceptable levels of both specific and non-specific cross reactions with normal tissue. The possibility of forming a bispecific conjugate in which the anti-CD3 portion is inactive until irradiated might allow these discarded antibodies to be reconsidered, thereby potentially increasing the range of tumors that can be treated. Higher doses of conjugate could also be administered. More conjugate would be available to target the tumor, whilst normal tissues similarly targeted because they express lower levels of the same TSA would remain unaffected.

Given that the task of identifying truly tumor-specific markers has proved to be challenging, research has concentrated on alternative recombinant strategies to produce tumor-targeting Fv antibodies from phage display libraries^8–10,27,28 with higher binding affinities. Antibodies have also been humanized to prevent first-generation, rodent-derived therapeutic antibodies from being scavenged by a patient's immune defences.²⁹ Unfortunately, neither of these approaches affects the levels of non-specific cross reactions that can occur, or the distribution of the targeted marker in the body. These advances in antibody technology may, however, be combined with the photo-activation technology described here. It could prove possible to build extremely effective, highly tumor-specific, cancer targeting conjugates in the near future using light-specific targeting in conjunction with the inherent tumor targeting of natural or recombinant antibody conjugates.

We also propose that use of the immunocompetent C57BL6 transgenic mouse line, in which the mice express human CD3 on their T-cells, is also a major advance on the models currently available to study bispecific anti-CD3 retargeting antibodies. In a recent article, Schlereth et al.⁹ grew human Ep-CAM transfected murine tumors in C57BL6 mice, and treated the mice with anti-human Ep-CAM-/murine CD3 bispecific antibodies (BiTE or bispecific T-cell engager). They demonstrated that both primary subcutaneous growth and disseminated lung growth could be potently inhibited by repeated injections with small amounts of this BiTE without an obvious need for co-stimulation of T cells by secondary agents. They also discussed the concept that use of immunocompetent mice was far superior to use of NOD/SCID mice with human tumors and human T-cells. They described the use of immunocompetent mice as the ‘next important step’ in preclinical studies because tissue distribution of the BiTE could be better examined, and side effects related to tumor lysis and polyclonal T-cell activation could be predicted. However, they had to use murine CD3 antibodies in their conjugates. If the transgenic mice described in this study are utilized, then human CD3 bispecific therapeutic constructs could be directly studied prior to their use in clinical trials.

Materials and Methods

Antibodies and cell lines.

The CD3⁺ T-cell line H9 was obtained from ECACC. The UCHT1 secreting hybridoma (IgG2a subclass) was obtained from Cancer Research UK. OKT3 was purchased from Ortho Biotech. The FR-expressing murine ovarian cell line M5076,²⁰ was kindly supplied by Dr. GA Turner.

Coupling of folate residues to the UCHT1 and OKT3 anti-human CD3 antibodies.

Folic acid (5 mg/ml) was converted to its NHS ester by the addition of N-hydroxysuccinimide and dicyclohexylcarbodiimide (DCC) in dimethylformamide as previously described.¹⁶ 30 µl aliquots of this solution were added per ml to UCHT1 or OKT3 (1.0 mg/ml) dissolved in 0.1 M sodium bicarbonate. These reaction conditions reproducibly coupled around two folate residues per antibody molecule with a 75% antibody yield.¹⁶

Coating of the folated-UCHT1 with 2-nitrobenzyl groups.

Folated-UCHT1 and folated-OKT3 (0.75 mg/ml) dissolved in 0.1 M sodium bicarbonate were coated with NPE by the addition of 10 µl and 20 µl (per ml) NPE-chloroformate, respectively. After an o/n incubation, dialysis and centrifugation, the final yield of NPE coated folated antibodies was approximately 0.2 mg/ml with around 40 NPE residues per antibody molecule.

T-cell binding assay.

The human T-cell line, H9, was grown in RPMI-1640 media. 10 µl aliquots of the diluted antibody conjugates (all diluted to 0.05 mg/ml) were added to 250 µl aliquots of a H9 cell suspension (10⁶ cells/ml) and were left to bind for 30 min at 4°C. After washing the cells were resuspended in 200 µl of goat anti mouse FITC antibody (BD Pharmingen, 5 µl/ml in PBS) for a further 30 min. After further washing, the cells were resuspended in 500 µl PBS and their fluorescence (5,000 gated cells) was measured using a Becton Dickinson flow cytometer.

Cancer cell binding assay.

This assay was carried out under identical conditions to those used in the T-cell binding assay above, except in these assays, the FR-expressing mouse cancer cell line M5076 was used as the target cell. The M5076 cells were maintained as a suspension in folate restricted media to upregulate their FR expression.¹⁶

Provision of C57BL6/humanCD3⁺ the mice.

The mice transfected with the human CD3ε gene originated at the Beth Israel Deaconess Hospital (BIDH), Harvard²¹ as an AJ8/C57BL6 colony, but had since been repeatedly back crossed with wild type C57BL6 to a completely C57BL6 phenotype by Novartis. These mice were kindly provided by Novartis with the permission of BIDH.

(1) Double positive stock. In order to carry out our efficacy studies, we required a mouse line whose T-cells could bind our anti-human T-cell conjugates. Six pairs of double positive homozygous C57BL6/humanCD3+ transgenic mice were obtained, and these were first inbred to establish a larger stock colony. Keeping the mice as a double positive colony negated the need for expensive phenotyping and waste of mice that a heterozygous colony would incur. However, these mice have very few T-cells because they carry two copies of the human T-cell gene. This also means that the stock colony should be maintained in an isolator; otherwise they are very susceptible to helicobacter infections.

(2) Heterozygous mice. For experimental work, normal wild type C57BL6 female mice were purchased and bred with our double positive males to generate heterozygote +/− mice with one copy of the human CD3 gene and one copy of the mouse gene. These mice had normal numbers of T-cells which all expressed many copies of the human CD3 marker.²¹

Tumor growth.

C57BL6 mice were purchased at eight weeks old, and were injected with tumor after they had been left for at least one week to acclimatise to their new surroundings. Frozen M5076 tumor pieces were thawed from liquid nitrogen storage. These were diced as finely as possible in 199 medium and 50 µl of diced tumor was injected subcutaneously into each animal using a fine gauge needle. After 3–4 weeks, the tumors were excised and freshly diced tumor (50 µl) was injected into the transgenic mice. This procedure was found to give more reproducible final primary tumor growth than the injection of M5076 cells straight from tissue culture. In a preliminary experiment, the tumor was simultaneously injected with 50 µl of medium containing a UCHT1-folate conjugate (batch a). In all other experiments the tumor was injected and allowed to establish for four days before being treated with the conjugates. Controls had only medium injected and were irradiated for the same length of time as the in vivo treated group. Control tumors excised from each experiment were diced, and used to inject all groups in the next experiment to minimise the numbers of mice required. All relevant local ethical committee and government licences were obtained to carry out the animal procedures.

In order to enable in vivo photolysis a small area (15–20 mm diameter) on the flank of the mice was shaved using hair clippers. The tumor and antibody were injected under this shaven area, either together or four days apart, and the shaven area was irradiated for 5–15 min with a hand held lamp (see below) from a distance of 2–3 cm above the mouse. Irradiation was carried out approximately 15 minutes after injection of the conjugates. The mice were held under light anaesthesia during the irradiation to ensure that all the animals received the same reproducible dose of UV light. This also allowed the numbers of animals used in each group to be kept to a minimum.

Photolysis of conjugates.

Antibody samples were irradiated in vitro in a quartz cuvette for 10 min with a VL-206BL UV-A hand held lamp (2 × 6 W tubes) that had a total UV-A irradiance of approximately 16 mW/cm₂ at a working distance of 1 cm.

Table 7.

Final tumor weights from male animals to whom UCHT1-Folate conjugates (batch d) were administered four days after tumor initiation

Group	Body	Tumor	Liver	Liver
	(gm)	(mg)	(mg)	appearance
Control	36.5	250	1850	Bad pale color
	35.1	570	1680	Bad color, mottled
	33.0	340	2320	Riddled
	37.2	330	1460	Mottled
	36.6	480	2060	Horrid
Mean ± SD		394 ± 129	1874 ± 333
UCHT1-Fol-NPE	30.3	120	1820	Slight mottle
in vivo	32.1	260	1870	Normal
	34.3	230	1930	Slight mottle
	28.5	40	1470	Normal
	31.3	210	1500	Pale
	27.5	110	1470	Normal
Mean ± SD		162 ± 84	1676 ± 218
