Thiazide effects and side effects: insights from molecular genetics

One of the longest running debates in clinical medicine shows no sign of disappearing; just when it seems that thiazides have reassumed their role as front-line drugs to treat hypertension¹, new concerns emerge^2-4, leading some to question their role, once again⁵. Thiazides are effective antihypertensives with long track-records and low cost. The major concerns about their use arise from their tendency to cause hypokalemia, impair glucose tolerance, increase serum cholesterol, and increase serum uric acid. Few medical controversies have generated as much heat, with well-established camps staking out positions that appear resistant to change^6-9. ALLHAT, the largest study of antihypertensive mono-therapy ever performed¹⁰, was intended to identify the best first-line treatment of high risk hypertensive individuals; yet despite its size, and the numerous resulting publications, its implications and authority continue to be disputed. The goal of this review is not take sides in this debate, but rather to inject a distinct, and sometimes neglected, perspective; during the past 15 years, remarkable developments in molecular biology and human genetics have provided substantial insights into the pathogenesis of hypertension and mechanisms and side effects of diuretics. Diuretic proponents and antagonists alike often neglect these developments when addressing the topic; it is the purpose of this Brief Review to integrate these developments into the debate with the goal of generating questions that can be addressed scientifically.

How thiazides reduce blood pressure

Thiazide diuretics were developed during the 1950s when chemists and physiologists at Merck Sharpe and Dohme tested derivatives of sulfonamide-based carbonic anhydrase inhibitors, with the goal of discovering drugs that enhance the excretion of sodium with chloride, rather than sodium bicarbonate^*. Although these drugs lower arterial pressure effectively, the mechanisms have long perplexed investigators¹¹. Thiazides reduce cardiac output acutely by reducing extracellular fluid (ECF) and plasma volume, but ECF volume returns toward baseline during chronic use and vasodilation supervenes¹². At steady state, therefore, the predominant effect of thiazides is vasodilation, rather than volume-contraction. Based on this sequence of physiological effects, and on the difficulty in detecting any ECF volume depletion during chronic treatment, many authorities suggest that the primary mechanism by which thiazide diuretics reduce arterial pressure involves direct vasodilatation, perhaps mediated by alterations in vascular ion transport^13-15; others, however, emphasize that salt depletion is necessary¹², suggesting that vasodilatation is secondary to ECF volume contraction. In support of this are studies showing that thiazides are not effective in end stage renal disease¹⁶.

Significant effort has been directed toward determining the mechanisms by which thiazides dilate blood vessels. One possibility is that the drugs alter membrane ion flux in vascular smooth muscle. In vitro, thiazides open large-conductance calcium-activated potassium channels, thereby hyperpolarizing vascular smooth muscle cells and causing vasorelaxation¹⁷. In vivo, hydrochlorothiazide causes mild dilation of human forearm blood vessels, but this effect is observed at a concentration that is higher than achieved during oral drug use¹⁸. The effect appears related, at least in part, to the carbonic anhydrase-inhibiting capacity of hydrochlorothiazide, which alkalinizes the cell¹⁹. The carbonic anhydrase-inhibiting potency of thiazide diuretics varies between congeners; thus the vascular effects of these drugs would be expected to vary as well.

Despite the evidence for direct vasodilation, the predominant activity of thiazide diuretics is to inhibit a directly-coupled Na-Cl cotransporter (the NCC, gene symbol SLC12A3) along the distal convoluted tubule (DCT) of the kidney. The drugs are quite specific inhibitors of this protein, as they do not inhibit the furosemide-sensitive Na-K-2Cl cotransporter²⁰ or the amiloride-sensitive Na channel²¹. The NCC is expressed by DCT cells of rodents²², rabbits²³, and humans²². While there is some evidence that it may be expressed in bone²⁴ and intestine²⁵, it is not expressed by vascular smooth muscle or cardiac tissue²⁶. Mutations in SLC12A3 cause Gitelman syndrome (GS)²⁷, a syndrome of hypokalemia and alkalosis. These mutations, which disrupt the function of NCC²⁸, reduce arterial pressure by approximately 8 mm Hg^{29, 30}, an effect similar to the reduction in arterial pressure that occurs during thiazide treatment of hypertension (see Figure 1). Surprisingly, however, the hypotension in GS is mediated by vasodilation and not by ECF volume depletion^31-34, even though SLC12A3 is expressed by kidney cells but not by vascular smooth muscle cells. Individuals with GS have up-regulation of nitric oxide production, reduced peripheral resistance, and vascular hypo-reactivity³⁴. Angiotensin II signaling is blunted, with reduced expression of the α-subunit of the Gq-binding protein, and reduced downstream cellular events, such as intracellular Ca and IP₃ release³⁴. While potassium deficiency itself has been suggested as contributing to this vasodilatation³⁴, this seems unlikely to be the predominant cause, as dietary potassium loading, rather than deficiency, typically dilates vessels and reduces blood pressure³⁵. Thus, it seems very likely that blood pressure in GS is low because renal salt wasting in some way causes secondary vasodilatation.

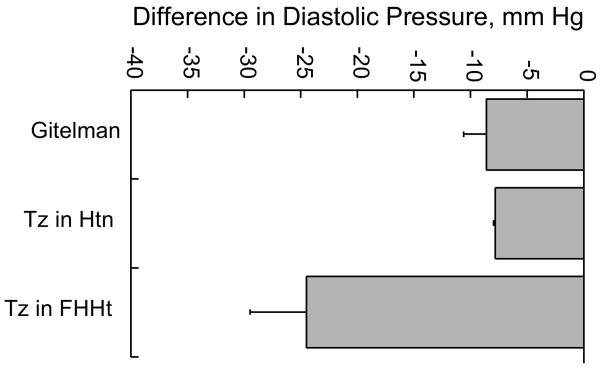

Figure 1.

Difference in diastolic pressure between individuals with Gitelman Syndrome (who lack the thiazide-sensitive Na-Cl cotransporter) and normal relatives (Gitelman), between essential hypertensives, before and during treatment with a thiazide (Tz in Htn), and between individuals affected with familial hyperkalemic hypertension, before and during treatment with a thiazide (Tz in FHHt). Data are mean ± SEM and are taken from ³⁰, ³⁶, ⁸⁸.

Recently, an additional molecular and genetic discovery has highlighted the impact of disordered renal sodium transport on human vascular responsiveness. Familial hyperkalemic hypertension (FHHt, also called pseudohypoaldosteronism type 2 or Gordon syndrome) is a rare autosomal dominant disease; one of the clinical features is extraordinary sensitivity to the blood pressure-lowering effects of thiazide diuretics³⁶. Whereas, in essential hypertension, thiazides reduce systolic pressure by 8-10 mm Hg, in FHHt, thiazides reduce systolic pressure by as much as 40 mmHg (see Figure 1)³⁶. Yet, like Gitelman syndrome, FHHt is a disease of the kidney DCT, resulting in this case from activation of NCC ^{37, 38}. Yet the hypertension in FHHt is mediated, at least in part, by enhanced vasoreactivity, because these individuals demonstrate an exaggerated response to a ‘cold pressor test’³⁹. Thus, a disease that alters kidney tubule function to engender salt retention leads, at steady state, to vasoconstriction. In this state, the effect of thiazides to reduce arterial pressure is enhanced.

Clearly, these observations in genetic syndromes do not exclude a direct effect of thiazides on blood vessels as contributing to their hypotensive effectiveness. Yet they do indicate that it is not necessary to invoke direct effects on vascular smooth muscle to explain the vasodilatation that is observed during their use. In view of the fact that the protein product that is dysfunctional in GS and is hyperfunctional in FHHt is not expressed by vascular smooth muscle or endothelial cells²⁶, the observations of altered vascular reactivity in these states compel a mechanism by which renal salt loss relaxes blood vessels indirectly; this model is consistent with the concept of reverse whole body autoregulation, as postulated by Tobian ^{40, 41} based partly on the work of Guyton and colleagues⁴². Acutely, when ECF volume depletion occurs owing to salt-wasting, cardiac output tends to decline resulting in reactive vasoconstriction. Chronically, however, cardiac output (tissue perfusion) is regulated according to metabolic needs ⁴³, and vasodilation supervenes, returning cardiac output toward baseline; this transforms hypotension from hypovolemic to vasodilatory.

The data discussed so far suggest that thiazides reduce arterial pressure primarily by inhibiting NCC in the kidney, but these conclusions are inferential. A more direct test would be to determine whether thiazide diuretics reduce blood pressure in individuals who lack functional NCC (GS)^#. A hint that such effects might occur in humans is the observation that thiazides do enhance NaCl excretion in GS, albeit to a reduced extent⁴⁸. While this could reflect incomplete loss of NCC function, most GS mutants are completely inactive²⁸. One potential explanation would be that the effects in GS result from carbonic anhydrase inhibition, as thiazides inhibit this enzyme⁴⁹. Another alternative would be an effect in the collecting duct, where thiazides have been shown by some⁵⁰, but not other⁵¹, investigators, to inhibit salt transport. Consistent with this latter idea, Eladari and co-workers recently reported thiazide-sensitive NaCl reabsoprtion in kidneys and isolated collecting ducts of NCC-deficient mice (ASN abstract 2007, see attachment)

Thiazide-induced Hypokalemia

When thiazides were introduced into clinical medicine, relatively high doses were employed (up to 150 mg/day of hydrochlorothiazide) and hypokalemia was common and severe. During the 1970s, the first of several debates about unwanted consequences of thiazides arose. Hypokalemia was deemed hazardous by many investigators; associations with ventricular arrhythmias were especially worrisome⁵². Multiple approaches were developed to prevent or treat hypokalemia, and a series of polemics addressing this issue were published (One was titled, ‘Our national obsession with potassium’⁵³, engendering a response, entitled, ‘Our appropriate concern about potassium’⁵²). It is now recognized that the best balance between effectiveness and side effects is obtained with much smaller doses. In the ALLHAT study, at 4 years of follow-up, serum K concentration was 0.3 mmol/L lower in individuals who received chlorthalidone 12.5 to 25 mg daily, than in individuals treated with amlodipine¹⁰, which is probably metabolically neutral.

Unlike loop diuretics, thiazides do not affect K transport directly⁵⁴; instead they stimulate K secretion indirectly. Hypokalemia results primarily from increased distal Na and fluid delivery, owing to upstream transport inhibition, coupled with enhanced aldosterone effect⁵⁴. An underappreciated additional mechanism involves their ability to lower the luminal calcium concentration along distal tubules. This activates epithelial Na channels (which are inhibited by calcium), and favors K secretion⁵⁵. This could be one reason that loop diuretics, which increase distal calcium delivery, generate less hypokalemia. Another reason may be that the compensatory response to loop diuretics derives from increased electroneutral NaCl reabsorption in the DCT, which would not be expected to enhance potassium secretion. Instead, thiazide diuretics induce adaptation primarily along the connecting and collecting tubule, where enhanced electrogenic Na reabsorption stimulates K secretion. Thiazides also enhance K secretion by activating flow-sensitive maxi-K channels; these channels are molecularly distinct from the K secretory channels described above⁵⁶.

Some observational studies have suggested that diuretic-induced hypokalemia may be associated with an increased incidence of arrhythmias^57-59, but the data are limited and definitive conclusions have not been reached. Insight into the cardiac risks posed by hypokalemia may be gleaned from individuals with GS. Such individuals live as if they were on maximal doses of thiazide diuretics throughout their lives. The serum potassium concentration of affected individuals averages 2.6 mmol/L, much lower than levels obtained during thiazide treatment, and hypokalemia in GS is typically associated with profound hypomagnesemia⁶⁰. Foglia and colleagues⁶¹ reported that QT intervals were slightly prolonged in approximately half of individuals with GS, but continuous ambulatory electrocardiography, and exercise testing were normal. They concluded that the results did not suggest a strong tendency for hypokalemic-arrhythmias, although they noted that more profound hypokalemia leading to potentially hazardous arrhythmias might occur under unusual circumstances. A few case reports of GS-associated cardiac rhythm disorders have been published, but surprisingly few⁶²; while these data are reassuring, they do not exclude risks related to superimposed disease

Thiazide-induced Hyperglycemia

Although concern about hypokalemic arrhythmias from thiazide use continues, its preeminence has been replaced by concern about other metabolic side effects. Recently, this led the National Heart Lung and Blood Institute to convene a working group to examine mechanisms, consequences, and prevention of diuretic-induced dysglycemia. Their preliminary report⁶³ summarizes many aspects of the problem, which will not be repeated here. Yet the report concludes that hypokalemia is the most likely cause of diuretic-induced hyperglycemia, and cites experimental and observational data supporting this conclusion. These data are convincing, but there are indications that non-renal effects of thiazides may also be involved. The non-diuretic thiazide diazoxide is used treat hypoglycemia, not by inducing hypokalemia, but because it hyperpolarizes the islet cell membrane in the pancreas, inhibiting calcium influx, and thus the calcium-dependent release of insulin⁶⁴. There is evidence that hydrochlorothiazide, hydroflumethiazide, and indapamide have similar effects⁶⁵ although this has been disputed⁶⁶. Alternatively, or additionally, thiazides might increase serum glucose by activating the renin/angiotensin/aldosterone system, perhaps in concert with sympathetic activity. There is evidence that the effects of thiazides on serum glucose can be mitigated by inhibiting the renin/angiotensin/aldosterone axis⁶⁷, which of course also attenuates hypokalemia⁶⁸. To date, it has not been possible to separate the effects of potassium depletion from direct drug-induced hyperglycemia.

Once again, mechanistic insight into the causes of diuretic-induced hyperglycemia might be gleaned from studies of individuals with inherited alterations in NCC; individuals with FHHt, who suffer from hyperkalemia, are typically treated with thiazide diuretics, but in this case the diuretics simply reduce the elevated potassium towards normal. Mayan and colleagues reported that thiazides increased plasma glucose in individuals with FHHt, while reducing K to 4.6 mM³⁶; they suggest that this excludes hypokalemia as the cause of the glucose intolerance. In contrast, individuals with GS live life lacking a thiazide-sensitive Na-Cl cotransporter and develop profound hypokalemia. It has been reported that ‘hyperglycemia is not observed in GS’³⁶, but specific data supporting this contention are limited. Recently, however, Lifton and colleagues analyzed glucose and lipids in 17 individuals with GS and in 9 unaffected relatives, all from a large previously-described Amish kindred^{30, 69}. Subjects were not significantly different in age (mean ∼55 years) or gender, but the mean serum [K] of GS subjects was 3.0 mmol/L vs. 4.1 mmol/L, in unaffected relatives. Surprisingly, there were no significant differences in glucose or insulin during fast, or 1h or 2h after glucose challenge (personal communication, Richard Lifton), despite the presence of severe and persistent hypokalemia (and strong stimulation of the renin/angiotensin/aldosterone axis). There were also no differences in lipid profiles between the two groups. It might be argued that the Amish individuals do not share concomitant risk factors for diabetes, such as obesity, that are common in the rest of the U.S. population, and BMI has been shown to correlate with the magnitude of thiazide-induced hyperglycemia⁷⁰, but demographic factors account for only a small fraction of the risk for hyperglycemia⁷¹. Thus, the data that exist with respect to the impact of genetic NCC deficiency do not support a dominant role for hypokalemia (or hypomagnesemia) on glucose tolerance. Clearly, these data do not disprove a role for hypokalemia, but they compel the continued search for alternative hypotheses and suggest that it might be possible to develop structurally dissimilar NCC-inhibitors that do not affect glucose tolerance. Conversely, if the hyperglycemia results from the intrinsic diuretic effectiveness of the drugs or drug-related hypokalemia, then alternative approaches to prevent or treat it must be considered.

Thiazide-induced Structural Kidney Damage

Recently, another potential adverse effect of thiazide treatment has been described. Rats that received thiazides chronically showed evidence of ‘subtle glomerular injury characterized by periglomerular fibrosis and wrinkling and thickening of the glomerular basement membrane’ (see Figure 2A)³. The kidneys showed evidence of oxidative stress, as well, and the adverse effects were not mimicked by diet-induced potassium deficiency. The authors speculate that the changes might have resulted from glomerular ischemia; they suggest that diuretic treatment of humans may damage the kidney and ‘may not be necessary in many patients with chronic kidney disease’ to control hypertension³.

Figure 2.

Morphological effects of diuretics, of Bartter syndrome, and of NCC knockout on kidney tissue. Note the structural similarities among panels A-C. A: thiazide treatment of rats, from³; focal glomerular injury characterized by wrinkling and thickening of the glomerular basement membrane, with splitting of Bowman's capsule, glomerular collapse, and periglomerular fibrosis (grey arrow). Thickening of peritubular basement membrane in vicinity of the glomerulus (black arrow). Original magnification X630. B: thiazide treatment of rats, from⁷²; dysplasia and degeneration of distal convoluted tubule segments (D) with peritubular inflammation and fibrosis (black arrow), whereas other tubule segments (connecting tubule, CN, and proximal tubule, P) are structurally intact. Magnification X360. C: kidney from Bartter syndrome patient, from⁷⁴, shows atrophy of one glomerulus (grey arrow) and severe juxtaglomerular hyperplasia affecting a second (black arrow). Magnification X210. D-F: absence of glomerular changes from control (D), metolazone-treated (for 6 days, E), and NCC-knockout mice (F). Panels A, B, and C, used with permission³, ⁷², ⁷⁴.

The effects of thiazides on kidney structure reported by Reungiui and colleagues are similar to effects of thiazide treatment on DCT segments described previously by Loffing and colleagues⁷². In those studies thiazide treatment of rats led to apoptosis of epithelial cells, and to a remarkable transformation of the DCT to form a pseudo-stratified, dedifferentiated epithelium (see Figure 2B). Tubules of treated animals contained squamous and degenerating cells and massive lysosomal bodies. Inflammatory cells and layers of fibroblasts surrounded the damaged tubular profiles. Remarkably, the tubular damage was strictly confined to the early DCT (the DCT1), a segment in which the predominant apical sodium entry pathway is the NCC. Damage was not seen along the late DCT (DCT2), a segment that expresses both NCC and the epithelial sodium channel at its apical membrane. Other nephron segments, as well as glomeruli, remained structurally intact, although these segments and glomeruli lie very near to DCT segments, and might be susceptible to damage by association. Loffing and colleagues considered a variety of explanations for the observed effects of thiazides on the DCT structure. They speculated that blockade of sodium entry into the DCT1 causes cellular toxicity either directly, by lowering the intracellular sodium concentration, or indirectly, by intracellular calcium loading. Cellular entry of calcium along the DCT is strongly stimulated when apical sodium transport is inhibited by acute thiazide application⁷³.

Insight into the consequences of diuretic treatment on kidney tissue of humans can be gleaned from an analysis of individuals with Bartter syndrome (BS) and GS; these syndromes are genetic mimics of effects of loop and thiazide diuretics on kidney tubule transport. BS is characterized by profound juxtaglomerular hyperplasia and secondary glomerular atrophy⁷⁴. These changes (see Figure 2C) can appear quite similar to those described during chronic thiazide treatment of rats. Global glomerular sclerosis, focal and segmental glomerulosclerosis, and periglomerular fibrosis have also been reported in some individuals with BS⁷⁵, and BS can lead to chronic kidney disease. Unlike BS, however, GS has not been reported to cause chronic kidney disease, although one case of ESRD has been reported, in a patient with the unusual feature of severe hypocalcemia⁷⁶. Kidney biopsies from individuals with GS, while rarely reported, typically show some hyperplasia and hypertrophy of the juxtaglomerular apparatus, but not glomerular ischemia or sclerosis⁷⁷. Thus, lifelong deficiency of the NCC does not cause substantial renal damage in humans. Although the structural and functional changes in rat kidney reported ^{3, 78} are impressive, it is best to be circumspect before imputing similar changes to human use, as effects may differ between species. Our groups^{22, 23, 79-81} have provided evidence for species-dependent differences in transport protein expression patterns. In rats, the distribution of basolateral calcium extruding pathways is restricted largely to more distal segments of the DCT and connecting tubule; in humans these transport proteins are expressed along much longer segments. If the cellular toxicity of thiazide diuretics is induced by calcium loading, the expression of calcium exit pathways along much of the DCT may protect human DCT cells from damage. As an example, Loffing and colleagues studied the renal morphology of mice lacking the NCC (see Figure 2D-F), mimicking the effects of life-long thiazide treatment. Those studies showed that DCT segments are markedly shortened and atrophic, with normal architecture beginning at the transition from DCT1 to DCT2⁸². Scarring of glomeruli, however, was not described; in follow-up studies, the glomerular morphology of NCC knockout mice was compared with the morphology of mice treated with metolazone for 7 days and with untreated controls. There was no evidence of glomerular fibrosis in any of the groups.

Overall, there is little evidence that thiazide diuretics, when taken by humans chronically at low or moderate doses, increase the risk for chronic kidney disease or structural renal damage. Thiazides are known to reduce GFR functionally; in rats, thiazides reduce GFR by activating tubuloglomerular feedback⁸³. In ALLHAT, an analysis of individuals with baseline estimated glomerular filtration rates (GFR) less than 60 mL/min per 1.73 m² found that GFR after 6 years of treatment was lower with a thiazide diuretic than with amlodipine; it was not, however, lower than with lisinopril⁸⁴, a drug usually considered renal protective. Of note, thiazides also reduce proteinuria in hypertensive patients treated with drugs that block the renin/angiotensin system^{85, 86}. Thus, a small decline in GFR does not necessarily imply renal toxicity.

NCC deficiency and essential hypertension

A final insight into effects of thiazide diuretics may come from novel genetic approaches. GS and BS are autosomal recessive salt-wasting disorders that reduce blood pressure, owing to mutations in salt transport genes along the loop of Henle and DCT. Recently, Lifton and colleagues tested whether a single mutant copy of these genes might lower blood pressure, without causing frank disease, thereby protecting individuals from hypertension⁸⁷. They reported that the mean systolic pressure was 6.3 mm Hg lower in individuals from the Framingham Heart Study offspring cohort who inherited a single copy of mutant salt transporting genes than it was in unaffected relatives; this difference was maintained throughout life and was associated with a 59% reduction in the risk of hypertension by age 60. These results suggest that thiazide administration may mimic a naturally occurring phenotype, one that would be expected to have a favorable effect on lifespan. It will be of interest to determine whether metabolic or cardiovascular effects result from this ‘experiment of nature’.

Summary and Conclusions

The presence of vasodilatation in individuals with GS argues that thiazide-induced vasodilation reflects whole body autoregulation, owing to renal actions, although a component of drug-induced direct vasodilatation can't be excluded. The absence of hyperglycemia observed to date in patients with GS raises the possibility that glucose intolerance during thiazide treatment may be, at least in part, independent of effects on NCC. While thiazides cause structural changes when administered to rats, these effects are clearly species-specific and restricted to discrete tubule segments, suggesting that they may not occur in humans. While no medication is free of side effects or risks, the current evidence continues to suggest that the beneficial effects of thiazide diuretics outweigh the hazards, for many, though not all, hypertensive individuals. Although these observations do not resolve questions about potential salutary or harmful effects of thiazides, they do suggest novel approaches to separate pharmacological and physiological effects of the drugs. Such insights might be used to develop antihypertensive agents that possess only the good, and none of the bad, aspects of diuretics. While such a goal may never be met fully, even partial success should benefit our patients.
