{meso-Tetra­kis[p-(hept­yloxy)phen­yl]­porphyrinato}silver(II)

Jun-Xu Liao a,b, Hong-Bin Zhao a,c,*, De-Liang Yang c, Liang Chen c, Bang-Ying Wang c
PMCID: PMC3200905  PMID: 22065718

Abstract

The title compound, [Ag(C72H84N4O4)], crystallizes with the AgII cation on a centre of symmetry. The macrocyclic 24-membered ring core is planar with a mean deviation of 0.0311 (15) Å and the four-coordinate AgII cation fits into its center, at 2.0814 (19) and 2.0872 (19) Å, from the surrounding pyrrole-N atoms, in agreement with what is found in related compounds. The p-heptyl­oxyphenyl groups are rotated 75.51 (5) and 84.45 (8)° with respect to the porphyrin mean plane, due to steric hindrance with the pyrrole-H atoms of the macrocycle.

Related literature

For background information on metalloporphyrins and their derivatives, see: Fu et al. (2009 ▶); Jurow et al. (2010 ▶); Taniguchi & Lindsey (2010 ▶); Zenkevich et al. (2001 ▶). For related structures, see: Scheidt et al. (1986 ▶); Xu et al. (2007 ▶).graphic file with name e-67-m1316-scheme1.jpg

Experimental

Crystal data

  • [Ag(C72H84N4O4)]

  • M r = 1177.30

  • Monoclinic, Inline graphic

  • a = 15.850 (1) Å

  • b = 19.1896 (12) Å

  • c = 10.3285 (7) Å

  • β = 91.724 (1)°

  • V = 3140.0 (4) Å3

  • Z = 2

  • Mo Kα radiation

  • μ = 0.37 mm−1

  • T = 185 K

  • 0.24 × 0.17 × 0.10 mm

Data collection

  • Bruker APEX CCD diffractometer

  • Absorption correction: multi-scan (SADABS; Sheldrick, 2004 ▶) T min = 0.916, T max = 0.964

  • 18310 measured reflections

  • 5544 independent reflections

  • 4385 reflections with I > 2σ(I)

  • R int = 0.035

Refinement

  • R[F 2 > 2σ(F 2)] = 0.036

  • wR(F 2) = 0.091

  • S = 1.02

  • 5544 reflections

  • 369 parameters

  • H-atom parameters constrained

  • Δρmax = 0.53 e Å−3

  • Δρmin = −0.20 e Å−3

Data collection: SMART (Bruker, 2002 ▶); cell refinement: SAINT (Bruker, 2002 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶) and PLATON (Spek, 2009 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Crystal structure: contains datablock(s) global, I. DOI: 10.1107/S160053681103385X/bg2416sup1.cif

e-67-m1316-sup1.cif (25.4KB, cif)

Structure factors: contains datablock(s) I. DOI: 10.1107/S160053681103385X/bg2416Isup2.hkl

e-67-m1316-Isup2.hkl (271.5KB, hkl)

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Acknowledgments

This work was supported by the National Analytical Research Center of Electrochemistry and Spectroscopy, Changchun Institute of Applied Chemistry, Changchun, China.

supplementary crystallographic information

Comment

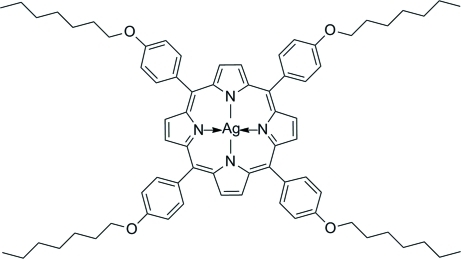

Porphyrins, metalloporphyrins, and their derivatives are applied in many fields, such as biomimetic catalysts (Fu et al., 2009), molecular electronic components (Jurow et al., 2010), artificial photosynthesis (Taniguchi et al., 2010) or electron transfer and energy migration (Zenkevich et al., 2001). In this paper, the structure of Silver(II)meso-tetrakis[p-(heptyloxy)phenyl]porphyrinate (I) is reported.

The compound crystallizes with the AgII cation in a centre of symmetry (Fig. 1). The macrocyclic 24-membered ring core is planar with a mean deviation of 0.0311 (15) Å and the four coordinate AgII ion fits into its center, at 2.0814 (19) and 2.0872 (19) Å, from the surrouding pyrrole N atoms, in agreement with what found in related compounds (Scheidt et al., 1986; Xu et al., 2007).

The p-heptyloxyphenyl groups are rotated at angles of 75.51 (5)° and 84.45 (8)° with respect to the porphyrin mean plane, due to steric hindrance with the pyrrole-H atoms of the macrocycle.

Experimental

0.03mmol meso-tetrakis[p-(heptyloxy)phenyl] porphyrin and 0.06mmol AgNO3 were dissolved in 20 ml chloroform, refluxed for 6 hours, and the solvent was removed by a rotary evaporator, the residue was purified by column chromatography with chloroform, then recrystallized from a methanol/chloroform solution, and a purple solid was obtained (yield=23%). Single crystals were obtained from recrystallization from a dichloromethane solution at room temperature.

Refinement

H atoms were placed in calculated positions (C—H = 0.95, 0.98 or 0.99 Å) and refined in riding mode, with Uiso(H) = xUeq(C), where x = 1.5 for methyl and 1.2 for all other H atoms.

A Platon run (Spek, 2009) detects solvent accessible voids of 78 Å3, which indicate that the structure may contain disordered solvent molecules (dichloromethane). However, efforts to locate the solvent molecules failed because the residual electron density is small (the highest peak of residual density is 0.529 e Å-3).
