Adipose Stem Cell Coating of Biomimetic β-TCP Macrospheres by Use of Laboratory Centrifuge

Abstract

Biomimetic materials such as coral exoskeletons possess unique architectural structures with a uniform and interconnected porous network that can be beneficial as a scaffold material. In addition, these marine structures can be hydrothermally converted to calcium phosphates, while retaining the original structural properties. The ability of biomaterials to stimulate the local microenvironment is one of the main focuses in tissue engineering, and directly coating the scaffold with stem cells facilitates future potential applications in therapeutics and regenerative medicine. In this article we describe a new and simple method that uses a laboratory centrifuge to coat hydrothermally derived beta-tricalcium phosphate macrospheres from coral exoskeleton with stem cells. In this research the optimal seeding duration and speed were determined to be 1 min and 700 g. Scanning electron micrographs showed complete surface coverage by stem cells within 7 days of seeding. This study constitutes an important step toward achieving functional tissue-engineered implants by increasing our understanding of the influence of dynamic parameters on the efficiency and distribution of stem cell attachment to biomimetic materials and how stem cells interact with biomimetic materials.

Introduction

The development of biomaterials, combined with advances in tissue engineering, is yielding promising results for repair, replacement, or modification of various tissues and organs.¹ Scaffold materials, depending on the desired applications, generally vary in their compositional makeup, but the general consensus of developing more bioactive scaffolds remains unchanged. Enhancing the bioactivity of the scaffold would allow for faster engineered tissue generation and recovery period. Coral exoskeletons have been successfully used as biomaterial constructs and can be hydrothermally converted² to biocompatible calcium phosphates while retaining architectural structure.³ Specifically, Foraminifera exoskeletons possess an interconnected and uniform porous network and have been shown to stimulate osteoblast proliferation while reducing monocyte activities.⁴ With the continual development in the application of stem cells in tissue engineering, it is not difficult to envision the potential therapeutic efficacy of combining biomimetic materials with stem cells. Cells isolated from the host patient onto the scaffold would need to be seeded onto the scaffold construct. The success of cell seeding depends on the efficiency, the time required for the cells to attach to the scaffold, the viability of cells, and the uniform spatial distribution of the cells throughout the scaffold. One of the key factors affecting the efficiency of cell seeding is the morphology and architecture of the scaffold material, which plays an important role in cell attachment and viability. Studies have shown, for example, that smaller scaffold pore diameters (∼30 μm) enhance cell-seeding efficiency^5,6 compared with larger pore sizes (∼70 μm). It is also crucial to try to achieve a uniform cell distribution throughout the scaffold because this will allow uniform tissue growth, while limiting any adverse effects from contact inhibition.⁷ Furthermore, since stem cells are anchorage dependent, the faster the cells are able to attach to the scaffold during the cell seeding process, the more tissue growth will be accelerated and cell viability enhanced. Several techniques are currently used for seeding cells onto scaffold, and this can include simply seeding the cells directly onto the scaffold material and allowing the cells to grow over time, preferably undisturbed, with the expectation of cellular attachment and migration onto the scaffolds.⁸ More dynamic techniques can include a setup similar to bioreactors in which there is a constant flow of media; such a setup features oscillatory pressure through the scaffold material after the cells have been seeded.^9,10 These methods can achieve the intended goal; however, they are limited by the amount of time required for seeding and often require high concentrations of cells because not all the cells can completely adhere to the material and there is an initial loss of cell viability.

During the last decade a number of problems were observed that restricted the use of stem cells in the physiologic environment. The best type of therapeutic stem cells are still not known, the number of stem cells that can be isolated from a single patient is insufficient, not enough stem cells can be kept alive in cultivation, and the tissues become damaged during transplantation. These facts highlight the need for better practices and procedures in stem cell cultivation and targeted placement. Increasingly, there is also a need for better and simpler placement or coating processes and biomaterials and devices with which to process and guide these cells into functional tissues.¹¹

In this article we focus on the use of a common laboratory centrifuge to facilitate the transfer of stem cells into porous scaffolds, which provide a quick, simple, and functional method for stem cell incorporation and coating.

Materials and Methods

Scaffold preparation

The scaffold material was prepared by using marine exoskeletons (Foraminifera), hydrothermally converting them to beta-tricalcium phosphate (β-TCP), and characterizing them according to previously published methodology.⁴ In brief, Foraminifera material was cleaned in sodium hydrochlorite and subject to hydrothermal conversion at 220°C by means of chemical exchange between ammonium hydrogenphosphate (Sigma Aldrich, Sydney, Australia).

Isolation and culture of adipose-derived stem cells

Adult Fischer rats (Rattus norvegicus) were used for the isolation of rat adipose-derived stem cells (ADSCs). Animals were housed and cared for under standard conditions and were euthanized in a CO₂ chamber. The inguinal fat pad was then harvested, and ADSCs were isolated. All subsequent steps were conducted under sterile conditions. The harvesting methods for adipose tissue used followed established protocol and methods by Bunnell et al.¹² Fat pads were rinsed twice in Dulbecco's modified Eagle's medium (DMEM; Gibco). The fat pad was then minced with a pair of scissors to form a fine slurry, which was then digested in collagenase type 1 (Gibco) for 45 min at 37°C. The suspension was centrifuged at 1600 g for 10 min at 4°C to separate adipocytes by the addition of Ficoll to separate and remove the interface between the Ficoll and DMEM. This was then resuspended in 8 mL of DMEM to dilute any residual Ficoll. The cells were washed twice in DMEM and centrifuged at 1000 g. Upon completion of the final wash the pellet was resuspended in basal growth media DMEM Glutmax/F12 (Gibco) with 10% fetal bovine serum (FBS, Invitrogen) and 1% antibiotics/antimycotics (ABAM; Invitrogen). Two-milliliter aliquots of the suspension were placed in T25 culture flasks (Nunc) and incubated at 37°C at 5% CO₂ for 2 days until ADSCs adhered to the culture flask. Nonadherent cells were eliminated by aspirating floating cells and replacing the media. ADSCs were passaged three times before use in experiments.

Rat adipose tissue–derived stem cells were grown in medium consisting of DMEM (Invitrogen) containing 1 g/L glucose, supplemented with 10% FBS, 100 U/mL penicillin, and 100 mg/mL streptomycin sulfate. The cells were incubated in a humidified, 37°C, 5% CO₂ incubator, with growth medium being replaced every 3–4 days. The cells were expanded to 80%–90% confluence prior to trypsinization for passage or scaffold seeding.

Stem cell coating of scaffold

The scaffold material, measuring 1.4 mm in diameter, was coated individually by separately placing each sphere in a 15-mL Falcon tube containing 1 mL of the cell suspension (6×10⁶ cells). The tubes were placed in a laboratory centrifuge (Eppendorf Centrifuge 5702) for 1, 2, and 3 min at 700 g. Following this the cap of the tubes were released slightly and placed back in a 37°C incubator with 5% CO₂. After 48 h to allow the cells to adhere, the scaffolds from each tube were carefully transferred back into a 24-well plate with fresh media for 3, 5, and 7 days.

Protein quantification

At each time point, the scaffolds were first washed three times with PBS and transferred to 1.5-mL Eppendorf tubes with 300 μL of Triton X-100 lysis buffer for 24 h. The protein content from the cell lysate was determined by BioRad DC Protein assay kit according to the manufacturer's instructions (10 μL of the lysate with 25 μL of Reagent A and 200 μL of Reagent B). Protein standards were made with various concentrations of bovine serum albumin. The resulting values were compared with a standard curve, which was generated for each separate experiment with a fresh set of standards.

Cell adherence and cell viability

After 7 days of culture, the media was removed and washed three times with PBS, and 500 μL of TrypLe was added for 10 min followed by the addition of 1 mL of ADSC media to neutralize the TrypLe reaction. Following this, 100 μL of the media was extracted and 1 μL of propidium iodide was added for 10 min. The ADSC viability and the respective number of cells attached to the scaffold were assessed by Invitrogen Tali^™ Cytophotometer and in accordance to manufacturer's instructions and guidelines.

Scanning electron microscopy

At each predetermined time point, the medium was removed and the scaffolds were immersed in 300 μL of 4% formaldehyde for 1 h followed by serial graduation of ethanol (60%, 70%, 80%, 90%, and 100%). The scaffolds were subsequently air-dried for 24 h before being characterized by a Zeiss Supra 55VP scanning electron microscope coupled with a back scattered electron detector under variable pressure at 2.2×10⁶ Torr.

Statistical analysis

All values are presented as the mean±standard deviation. All data were examined based on three to five different measurement values. The data were analyzed by single-factor analysis of variance (ANOVA) in which significantly different pairs were defined as having p<0.05. All samples were measured in triplicate, and the experiment was repeated three times. Metric data were analyzed by one-way ANOVA followed by Scheffe's post hoc test at a significance level of 0.05. For the protein analysis, the samples were loaded in triplicate and standardized with the plate blank.

Results

Optimization of ADSC coating

A schematic diagram of the experimental setup is shown in Fig. 1. The centrifuge times tested included 1, 2, and 3 min, after which the scaffolds were grown for 5 days before cellular protein analysis. The cellular protein content from the scaffolds was used to indicate the number of cells coated onto the scaffolds. As a mean of standardizing, protein content was subtracted with the amount of protein found in cell-free macrosphere scaffolds. The protein content presented in Fig. 2 showed that 1-min coating provided the most optimal cell seeding on the β-TCP macrospheres. There was a significantly greater amount of cellular protein from the cells from the 1-min centrifuge time compared with longer duration of spinning and with static seeding. With 2- and 3-min centrifugation, cells were still able to be seeded on the scaffold but at a significantly lower number compared with the 1-min centrifugation.

FIG. 1.

A schematic diagram detailing the experimental setup from conversion of the scaffold material to the coating of the adipose-derived stem cells (ADSCs); 2500 rpm=700 g.

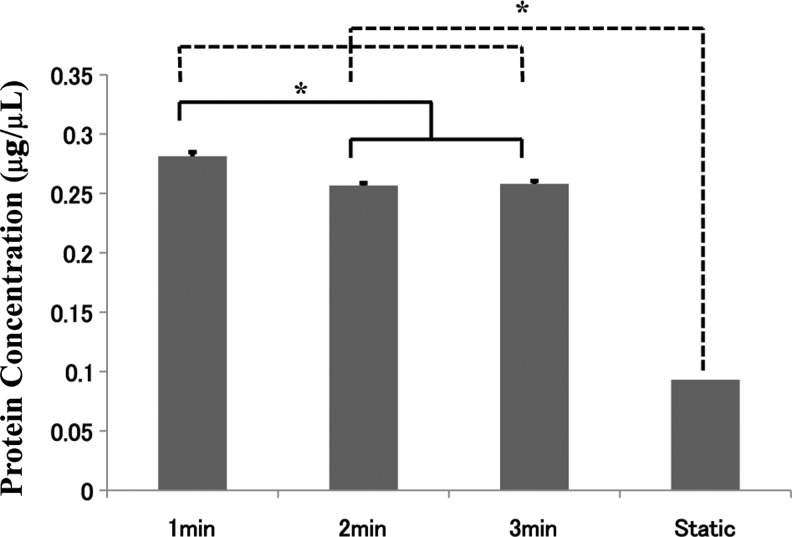

FIG. 2.

Seeding of ADSCs on the scaffold after 1, 2, and 3 min of centrifugation and static seeding. One-minute centrifugation resulted in the highest cellular protein concentration. *Statistically significant (p<0.05).

Protein and cellular analysis

Since 1-min centrifugation produced the most efficient results, subsequent experiments and characterization were based on the 1-min coating time. Figure 3 shows the approximate numbers of cells that were seeded over 3, 5, and 7 days, and Fig. 4 shows the associated cell viability. A significant increase in cell number occurred over the 7-day period, with an approximate cell number of 1×10⁴ cells/mL seeded onto the scaffold, utilizing 2×10⁶ cells initially. The cell viability also showed an increase over the 7-day period and rose from approximately 78% to 95%. The cellular proteins were also determined over the same experimental period of 3, 5, and 7 days, and the results are presented in Fig. 5. The results show once again that the cellular proteins increased over the 7-day period, which reinforces and complements the results for the number of cells that were seeded onto the scaffold.

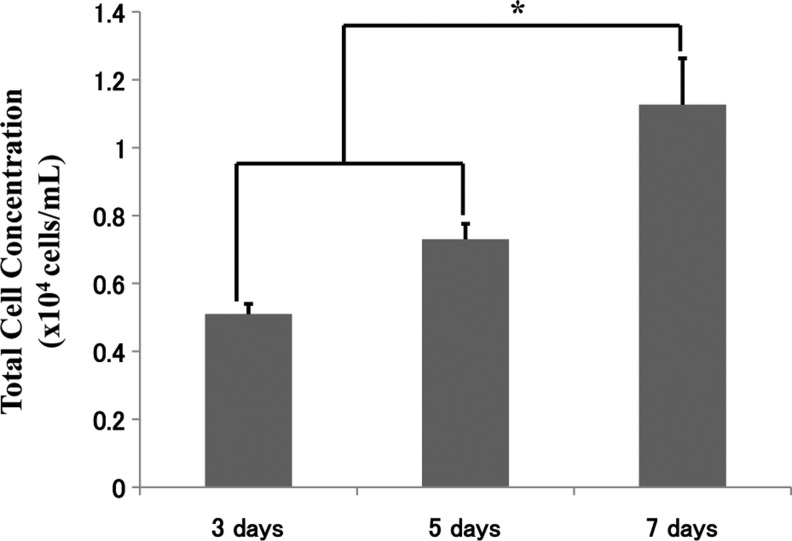

FIG. 3.

The number of ADSCs attached to the β-TCP macrospheres after 3, 5, and 7 days, showing continual cell growth over this period time. *Statistically significant (p<0.05).

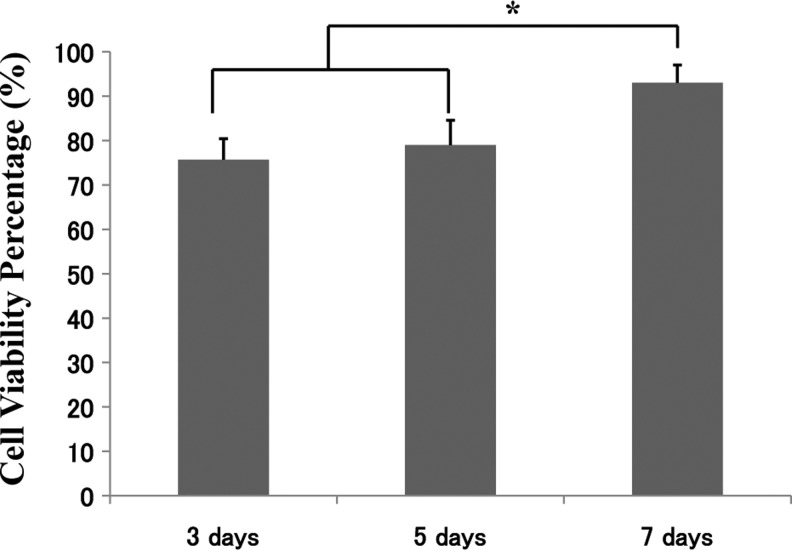

FIG. 4.

The associated cell viability between 3 and 7 days from Fig. 2, showing increase cell viability. *Statistically significant (p<0.05).

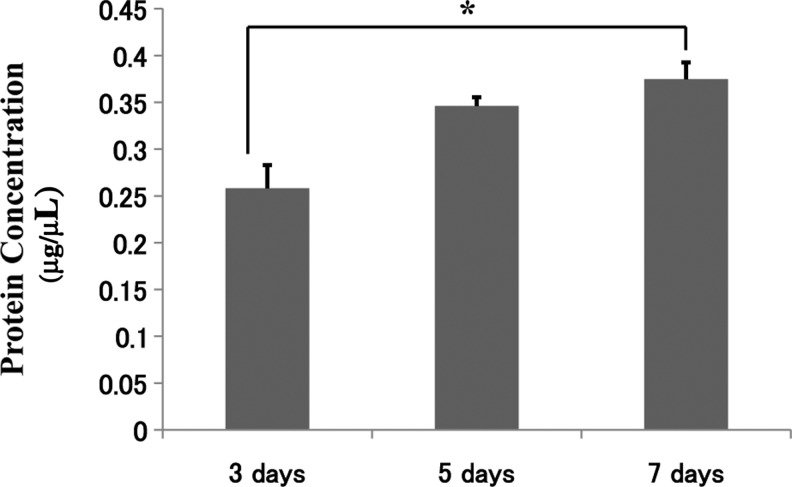

FIG. 5.

Cellular protein analysis after ADSC coating at 3, 5, and 7 days, showing continual growth of the cells on the scaffold. *Statistically significant (p<0.05).

Scanning electron imaging of ADSC coating

In addition to being able to seed a significant number of ADSCs onto the scaffold, achieving homogeneity in the cellular distribution is also important. Scanning electron microscopy images were taken at 3 and 7 days to determine the distribution of the cells on the scaffolds. Figure 6a–c shows the cellular distribution at 3 days, and it can be seen that the cells not only adhered to the scaffold but were also distributed among the pores and throughout the surface of the scaffold. Figure 6d–f shows that after 7 days, the cells were able to coat the majority of the scaffold, and a significant difference could be seen compared with 3 days.

FIG. 6.

Scanning electron microscopy images showing ADSC-seeded macrospheres after 3 days (a–c) showing ADSCs growing in the surface crater and spreading across the material. After 7 days of seeding (d–f), ADSCs completely covered the scaffold material.

Discussion

In the development of suitable biomaterials for tissue engineering applications, one of the fundamental goals is stimulating the local environment surrounding the scaffold. With the emergence of stem cells and their wide array of applications in tissue engineering, many successful techniques have been developed over the years to introduce cells into biomaterials. Unfortunately seeding efficiencies have not yet reached an optimal level in which low-density cells can be seeded and be ready for implantation in a limited amount of time. The aim of this research was to determine whether marine exoskeleton that has been hydrothermally converted to β-TCP can be coated with ADSCs to improve its therapeutic efficiency. The interest in using marine exoskeleton arises from its unique architectural structure which has advantages as a scaffold matrix for bone ingrowth. In addition, by hydrothermal conversion, the calcium carbonate exoskeleton can be easily converted to various derivatives of calcium phosphate. By using a laboratory centrifuge to coat the scaffold with ADSCs, this technique can provide a quick and easy method for coating other biomaterials with ADSCs.

To improve the efficiency of the ADSC coating on the β-TCP macrospheres, initial experiments were done to determine the optimal duration for seeding the cells on the scaffold. The rotational speed of the centrifuge was set at 700 g because the harmonics of the centrifuge prevented smooth rotation at speeds below 448 g, which would result in cell shearing and possible cell damage.¹³ With higher rotational speed, this would increase the possibility of the cells being spun down too fast and limit the amount of cells that can be seeded onto the scaffold. From the initial optimization process it was found that 1-min centrifugation seeded the greatest number of cells onto the scaffold. Increasing the centrifugation time to 2 and 3 min seeded the cells at a significantly lower concentration. We hypothesize that with increasing time, the cells are completely pushed through the scaffold or around it to the bottom of the tube. Therefore increasing the centrifugation time would not increase the likelihood of more cells being seeded onto the scaffold but rather increase the risk of damaging some of the cells. As such, by using 1-min centrifugation, the β-TCP macrospheres were evaluated over a 7-day period. Even though it was confirmed that ADSCs can be seeded onto the scaffold, it was equally important to determine how these ADSCs behaved after being seeded and whether they would continue to proliferate or eventually become apoptotic. During the 7-day experimental period the results showed that both the cell numbers and cellular proteins were increased, indicating the ADSCs were seeded successfully and were proliferating on the scaffold material. In addition to this, cell viability results showed an initial viability of 78% and this was increased to 95% at 7 days, which affirmed that the cells were viable and are capable of inducing and stimulating the surrounding local environment once implanted. Furthermore, coating the scaffold through using the centrifuge allowed homogenous seeding, which can reduce the amount of time needed to prepare scaffolds for implantation. From the scanning electron microscopy images presented in Fig. 6, it can be seen that after 3 days the ADSCs were seeded within the pore craters of the macrospheres and were homogenously distributed. While most of the pore craters were covered by the ADSCs, there remained some pore craters that still had visible exposed pores. However, at 7 day there was complete coverage of the ADSCs on the β-TCP macrospheres. It is important to note that depending on the intended application, a confluent coating of the scaffold might not be ideal because this can prevent migration of other crucial cells¹⁴ and as such, the confluency of the coating can be controlled and tailored to a specific application by limiting the growth period. It is envisaged that the combined effect of the stem cell coating with the biomimetic β-TCP spheres can be applied in non–load-bearing implant applications. As previously mentioned, the scaffold construct possesses uniform and interconnected pores providing an ideal environment for improved bone ingrowth and vascularization. Combined with the ADSC coating, this can hopefully stimulate faster and improved bone regrowth over time. Future studies will investigate in depth the in vivo efficacy of this potentially beneficial strategy.

Conclusion

In conclusion, the experiments presented here show that hydrothermally derived β-TCP can be seeded and coated with ADSCs by means of a common laboratory centrifuge at a higher number compared with static seeding, while still retaining the cell activity levels. This quick and easy method for homogenous cell coverage of scaffolds thereby enhances the therapeutic efficacy of the scaffold material.
