Applications and Emerging Trends of Hyaluronic Acid in Tissue Engineering, as a Dermal Filler, and in Osteoarthritis Treatment

Abstract

Hyaluronic acid (HA) is a naturally occurring biodegradable polymer with a variety of applications in medicine including scaffolding for tissue engineering, dermatological fillers, and viscosupplementation for osteoarthritis treatment. HA is available in most connective tissues in body fluids such as synovial fluid and the vitreous humor of the eye. HA is responsible for several structural properties of tissues as a component of extracellular matrix (ECM) and is involved in cellular signaling. Degradation of HA is a step-wise process that can occur via enzymatic or non-enzymatic reactions. A reduction in HA mass or molecular weight via degradation or slowing of synthesis affects physical and chemical properties such as tissue volume, viscosity, and elasticity. This review addresses the distribution, turnover, and tissue-specific properties of HA. This information is used as context for considering recent products and strategies for modifying the viscoelastic properties of HA in tissue engineering, as a dermal filler, and in osteoarthritis treatment.

1. Introduction to hyaluronic acid

Hyaluronic acid (HA), also named hyaluronan, is a high molecular weight (10⁵–10⁷ Da) naturally occurring biodegradable polymer. HA is an unbranched non-sulfated glycosaminoglycan (GAG) composed of repeating disaccharides (β-1,4-D-glucuronic acid (known as uronic acid) and β-1,3-N-acetyl-D-glucosamide) (Figure 1) [1–3]. HA can include several thousand sugar molecules in the backbone. HA is a polyanion that can self-associate and that can also bind to water molecules (when not bound to other molecules) giving it a stiff, viscous quality similar to gelatin [4].

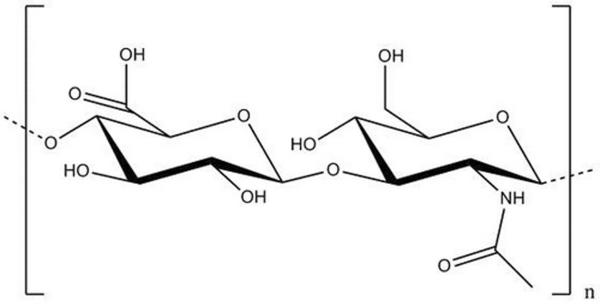

Figure (1).

Chemical structure of hyaluronic acid (HA), which is made of disaccharide repeats of N-acetylglucosamine and glucuronic acid.

Hyaluronic acid is one of the major elements in the extracellular matrix (ECM) of vertebrate tissues. It is available in almost all body fluids and tissues, such as the synovial fluid, the vitreous humor of the eye, and hyaline cartilage (Table 1) [5–8]. This biopolymer functions as a scaffold, binding other matrix molecules including aggrecan [2]. It is also involved in several important biological functions, such as regulation of cell adhesion and cell motility, manipulation of cell differentiation and proliferation, and providing mechanical properties to tissues [6]. Several cell surface receptors such as CD44, RHAMM, and ICAM-1 have been shown to interact with HA influencing cellular processes including morphogenesis, wound repair, inflammation, and metastasis [9–12]. Moreover, HA is responsible for providing the viscoelasticity of some biological fluids (synovial fluid and vitreous humor of the eye) and controlling tissue hydration and water transport (Table 1) [4]. In addition, HA has been found during embryonic development in the umbilical cord, suggesting materials composed of HA may persuade favorable conditions for tissue regeneration and growth [13–17].

Table (1).

Examples of body tissues/fluids that contain HA. Table was regenerated with permission [92].

Tissue or body fluid	Concentration (μg/g; μg/mL)	Remarks
Umbilical cord	4100	High molecular weight HA.
Joint (synovial) fluid	1400–3600	Decreasing HA concentration occurs due to increasing the synovial fluid volume under inflammatory conditions.
Vitreous body	140–500	During tissue maturation, HA concentration increases.
Cartilage	-	HA works as a scaffold for binding other matrix molecules such as aggrecan.
Dermis	200–500	HA is used as a “rejuvenating” agent in cosmetic dermatology.
Epidermis	100	High HA concentration was observed around cells that synthesized dermis.
Thoracic lymph	0.2–50	HA molecular weight affects inflammatory response and cell binding.

HA's characteristics including its consistency, biocompatibility, and hydrophilicity have made it an excellent moisturizer in cosmetic dermatology and skin-care products [4]. Moreover, its unique viscoelasticity and limited immunogenicity have led to its use in several biomedical applications such as viscosupplementation in osteoarthritis treatment, as an aid in eye surgery, and for wound regeneration [4, 5]. In addition, HA has currently been explored as a drug delivery agent for different routes such as nasal, oral, pulmonary, ophthalmic, topical, and parenteral [4, 18–22].

2. History of hyaluronic acid

In 1934, Karl Meyer and his colleague John Palmer were the first investigators who discovered and isolated HA from the vitreous body of cows' eyes [2, 4]. In the 1950s, the chemical structure of HA was solved by this group. They found that HA is composed of two sugar molecules (D-glucuronic acid (known as uronic acid) and D-N-acetyl glucosamine) and called it hyaluronic acid (hyaluronan). This name is derived from “hyalos” (the Greek word for glass + uronic acid). Initially, they isolated HA as an acid but it behaved like a salt in physiological conditions (sodium hyaluronate) [2, 4, 5]. Several years after them in 1942, Ender Balazs patented the first application of HA as a substitute for egg white in bakery products [4].

The first biomedical application of HA took place in late 1950s when HA was used for a vitreous substitution/replacement during eye surgery. For medical applications, HA was initially isolated from umbilical cords and shortly afterward, from rooster combs [4, 5]. Later on, HA was isolated from other sources and the structural/biological characteristics of this polysaccharide were investigated more deeply in several laboratories [4].

3. Properties of hyaluronic acid

3.1. Chemical properties of hyaluronic acid

Structural studies showed that the two sugar molecules, D-glucuronic acid and D-N-acetyl glucosamine, in the HA disaccharide structure are connected together through alternative β-1,4 and β-1,3 glycosidic bonds (Figure 1) [2, 4]. The hyaluronic acid backbone is stiffened in physiological solution via a combination of internal hydrogen bonds, interactions with solvents, and the chemical structure of the disaccharide. HA molecular investigations suggested that the axial hydrogen atoms form a non-polar face (relatively hydrophobic) and the equatorial side chains form a more polar face (hydrophilic) which led to a twisted ribbon structure for HA called a coiled structure [4].

HA's structural characteristics hinge on this random coiled structure in solution. At very low concentrations, chains entangle each other, leading to a mild viscosity (molecular weight dependent). On the other hand, HA solutions at higher concentrations have a higher than expected viscosity due to greater HA chain entanglement that is shear-dependent. For instance, a 1% solution of high molecular weight HA (Mw > ~1000 kDa) can behave like jelly, but when shear stress is applied it will easily shear thin and can be injected via a thin needle [4]. As such, HA is known as a “pseudo-plastic” material. This rheological property (concentration and molecular weight dependent) of HA solutions has made HA ideal for lubrication in biomedical applications [4].

In addition to the unique viscosity of HA, the viscoelasticity of HA is another characteristic resulting from entanglement and self-association of HA random coils in solution [2]. It was suggested that the molecular self-association of HA occurs by forming anti-parallel double helices, bundles and ropes. Further experiments verified that HA chain-chain association indeed occurred in solution. Moreover, studies proposed that hydrogen bonding between adjacent saccharides occurred alongside mutual electrostatic repulsion between carboxyl groups, thus stiffening HA networks [4, 7, 23]. Viscoelasticity of HA can be tied to these molecular interactions which are also dependent on concentration and molecular weight.

Electrostatic and ionic effects on HA have also been evaluated as a function of counter-ion type and valency. Studies suggested that these greatly affect rheological and hydrodynamic properties of HA. In one study, the effect of electrostatic and ionic interactions was investigated by comparing HA solution properties in deionized water (D.I.), 0.5 M NaCl, and 0.5 M NaOH. The role of hydrogen bonds was investigated by comparing concentration-dependent solution properties. This revealed the effect of electrostatic shielding and also the profound effect of alkaline pH on HA chain stiffness. The study also showed that solution properties affect the hydrogen bonding and electrostatic interaction between the solution and HA resulting in a change in HA chain stiffness [2, 24]. Moreover, the hydrodynamic radius of HA was found to be greater in D.I. water than in 0.5 M NaCl or 0.5 M NaOH (D.I. water > 0.5M NaCl > 0.5M NaOH). The high pH shrank the volume occupied by HA (i.e. the apparent size of the polymer chains). The volume occupied by HA chains was decreased by more than 100 times when changing from D.I. water to 0.5 M NaOH. This dramatic change was attributed to increased electrostatic interactions and hydrogen bond formation resulting in the reduction of the hydrodynamic radius of HA [2].

3.2. Biological properties of hyaluronic acid

As mentioned before, hyaluronic acid performs several structural tasks in the extracellular matrix (ECM) as it binds with cells and other biological components through specific and non-specific interactions. Several extracellular matrix proteins are stabilized upon binding to HA. Specific molecules and receptors that interact with HA are involved in cellular signal transduction; molecules such as aggrecan, versican, and neurocan, and receptors including CD44, RHAMM, TSG6, GHAP, ICAM-1 and LYVE-1 are examples of cell components that bind to HA [4]. Between these receptors, CD44 (cell surface glycoprotein) and RHAMM (receptor for HA-mediated motility) seem to have received more attention since they have been found to be involved in cancer metastases [25–27]. CD44 is a structurally variable and multifunctional cell surface glycoprotein on most cell types and is perhaps the best characterized transmembrane HA receptor so far. Due to its wide distribution and based on current knowledge, CD44 is currently considered to be the primary HA receptor on most cell types [28].

New receptors for HA have been identified recently and the function of some HA receptors have recently been described. RHAMM has been found on surface of the cells, as well as in the cytosol and nucleus. It regulates cellular responses to growth factors and plays a role in cell migration, particularly for fibroblasts and smooth cells [4, 29, 30]. TSG6, a 35 kDa glycoprotein with a link module in the N-terminus, has also been reported to bind with HA [31]. GHAP (glial hyaluronate-binding protein) is a naturally occurring versican degradation product which forms a fine net surrounding myelinated optic nerve axons, although no or only faint staining of GHAP is noticed in the optic nerve head. GHAP could also bind to HA. It one study, HA and GHAP vanished from optic chiasm and contralateral optic nerves treated with hyaluronidase [32, 33].

ICAM-1 (intracellular adhesion molecule-1) has been reported as an active cell surface receptor for HA. According to the literature, this protein is responsible for removing HA from lymph and blood plasma, which likely encompasses most of the HA turnover. HA binds to ICAM-1 expressed on lymphocytes and endothelial cells [34]. In the urothelium, HA inhibits adherence of immune complexes to polymorphonuclear cells [34]. It also prevents leukocyte migration and aggregation[34]. Another study showed that binding HA to ICAM-1 does not induce endocytosis, which further complicates the role of ICAM-1 as a receptor for HA [35].

LYVE-1 (lymphatic vessel endothelial HA receptor) is related close to CD44. LYVE-1 is preferentially available on lymphatic endothelial cells that do not express CD44 [36]. In addition, LYVE-1 is available in the sinusoidal endothelium of liver and spleen and is expressed in discrete populations of activated macrophages. It has been shown that HA endocytosis is mediated by LYVE-1 in transfected fibroblasts [37–39]. It is also shown that LYVE-1 has a significant regulatory function in the catabolism of HA in the aforementioned organs and a role in HA signaling or cellular migration and differentiation [2, 38].

Toll-like receptors (TLRs) are a group of receptors which are members of the interleukin-1 receptor family. TLR-4 is widely available in tissues, including liver, brain, heart, and kidney [40, 41]. TLRs work as activator for monocytes, macrophages and dendritic cells, and therefore act as initiator for defending against bacterial infection [42–45]. Tetra and hexasaccharides (low molecular weight HA) but not intermediate or high molecular weight HA (80,000–600,000 kDa) binds to TLR-4 (e.g. mature dendritic cells) [46]. Upon inflammation and tissue injury, high molecular weight HA in extracellular matrix is broken down into lower molecular weight HA fragments, which can activate an innate immune response. This activation was reported to result from the binding of low molecular weight HA fragments to TLR-2 and/or TLR-4 receptors [47, 48].

Hyaluronic acid also stimulates gene expression in macrophages, endothelial cells, eosinophils, and certain epithelial cells. High molecular weight HA does not seem to be involved in gene expression and only low/intermediate molecular weight HA (2×10⁴−4.5×10⁵ Da) is known to promote gene expression [4, 46, 49]. As an example, HA is known to have an important role in wound healing and scar formation. Products of HA degradation (low molecular weight HA) were found to contribute to the scar formation process. Moreover, scar formation was minimized when high molecular weight HA was found in wound fluid during fetal wound healing. These results suggested that the molecular weight of HA plays a significant role in wound healing and scar formation. The findings also suggested that high molecular weight HA favored cell quiescence and supported tissue integrity, whereas production of HA fragments signaled injury and initiated the inflammatory response [2, 4, 50].

HA can be a key player in the activation or suppression of inflammation. Over the early steps of inflammation, HA participates in the improvement of cell infiltration [51]. It facilitates an increase in pro-inflammatory cytokines TNF-α, IL-1b and IL-8 through a CD44-mediated mechanism [52]. The inflammatory response can also be propagated by releasing TSG-6, an HA binding protein, which is simulated by TNF-α [53, 54]. HA also affects the adhesion of cytokine-activated lymphocytes to the endothelium [55]. The free radical scavenging and antioxidant characteristics of HA influence suppression of the inflammatory response [46, 56]. In addition, HA may also operate as a negative feedback loop in inflammatory activation.

Cell proliferation is an important phase of the tissue repair process after damage (e.g. by inflammation) [54]. HA is necessary for fibroblast detachment from the extracellular matrix and mitosis [57, 58]. HA has a mitogenic influence directly on cells however the relief of detachment permits mitosis to take place and therefore HA has a function in cell proliferation indirectly [59]. In the early stages of wound repair when increased HA synthesis takes place, cell migration is promoted [60–64]. The newly deposited ECM rich in HA provides an open, hydrated environment that aids cell migration via CD44 and RHAMM [2, 65–69].

The key element of wound repair is angiogenesis. The angiogenic characteristics of low molecular weight HA oligosaccharides have been explained in detail elsewhere [2, 46, 70–78]. When ECM forms, the peripheral keratinocytes undergo an increase in mitosis and proliferation before migration across the new matrix. The matrix, rich in HA, supports and develops the proliferating basal keratinocytes and aids their movement via a CD44-mediated mechanism [79–83]. After re-epithelialization has taken place, remodeling occurs for the new matrix [84]. The remodeling process can lead to scarring. Matrix rich in HA observed in fetal wounds suggests that HA may decrease collagen deposition, thereby improving remodeling and decreasing scarring [2, 85, 86].

4. Synthesis of hyaluronic acid

Hyaluronic acid is a natural polymer biologically synthesized by cells in the body via an enzymatic process. HA production is a unique, highly controlled, and continuous process, HA is produced and secreted by cells including fibroblasts, keratinocytes, or chondrocytes. The Golgi network is the production site for most glycosaminoglycans. In tissues such as skin and cartilage where HA comprises a large portion of the tissue mass, the level of HA synthesis is very high. HA is naturally synthesized by hyaluronan synthases (HAS1, HAS2, and HAS3), a class of integral membrane proteins [4, 87, 88]. In HA production by hyaluronan synthase enzymes, large linear polymers of the repeating disaccharide units are made. The mechanism of HA synthesis involves chain extension by addition of a monosaccharide (alternating addition of glucuronic acid and N-acetyl glucosamine) to the reducing end of the chain [2, 4, 10]. The number of repeat disaccharides in a completed HA molecule can reach as high as 10,000 or more and a molecular weight of around 4 million Daltons (molecular weight of each disaccharide is about 400 Daltons). Since the average length of a disaccharide is about 1 nm, a HA molecule of 10,000 repeats could extend 10 μm if stretched from end to end (approximately equal to the diameter of a human erythrocyte) [4, 10, 89, 90].

5. Degradation of hyaluronic acid

Degradation of HA is a step-wise process that can occur via enzymatic or non-enzymatic reactions. Three types of enzymes (hyaluronidase, β-D-glucuronidase, and β-N-acetyl-hexosaminidase) are involved in enzymatic degradation of hyaluronic acid. These enzymes are found in various forms, in the intercellular space and in serum. Hyaluronidase cleaves high molecular weight HA into smaller fragments while the other two enzymes degrade the fragments by removing non-reducing terminal sugars [4, 91, 92]. It was observed that cleavage can occur in a single glycosidic bond on the HA backbone causing fragmentation or the enzyme can remove a single monosaccharide unit from the HA backbone [91]. Enzymes not only help to degrade HA but also play an important role defining HA. For instance, enzymes available in the cytosol of cells are involved in the trimming of oligosaccharides [91].

Non-enzymatic mechanisms of HA degradation include thermal or shear stress. Ultrasonication degrades HA in a non-random fashion. Studies suggested that high molecular weight HA chains degraded slower than low molecular weight HA chains subjected to ultrasonication [2, 91]. Heat is another type of stress leading to HA degradation. Rheological studies on HA solutions showed that increasing temperature resulted in degradation and decreased viscosity exponentially as a function of temperature [91].

In addition, chemical reactions such as acidic/alkaline hydrolysis and degradation by oxidants are categorized as non-enzymatic degradation pathways for HA [91–93]. These types of degradation occur in a random fashion often resulting in disaccharide fragment production. Acidic hydrolysis degrades the glucuronic acid moiety. On the other hand, alkaline hydrolysis occurs on N-acetylglucosamine units [91]. HA can also degrade via oxidation. Reactive oxygen species (ROS) can be generated from cells as a consequence of aerobic respiration. Superoxide anions, hydroxyl radicals, and hypochloride are examples of species that cause HA chain cleavage. ROS are proposed to be involved in several inflammatory and degenerative processes such as arthritis but their mechanism of action in the disease are myriad and still largely defined [2, 91].

6. Turnover and possible pathways for elimination of hyaluronic acid

Studies showed that the concentration of HA in the human body varies from a high concentration of 4 g/kg in umbilical cord, 2–4 g/L in synovial fluid, 0.2 g/kg in dermis, and about 10 mg/L in thoracic lymph, to a low concentration of 0.1–0.01 mg/L in normal serum. In an average human body (70 kg), the total HA content is approximately 15 g [2, 4]. From this 15 g, the largest amount was found in the extracellular matrix (ECM) of skin and musculoskeletal tissue. Depending on the location in the body, most of the HA is catabolized within days. Studies indicated that the normal half-life of HA varied from 1–3 weeks in inert tissues such as cartilage to 1–2 days in the epidermis of skin. The half-life in blood was much shorter (2–5 minutes). Besides the enzymatic degradation and non-enzymatic degradation pathways described previously, two more pathways are engaged in HA catabolism: turnover (internalization and degradation within tissue) and release from the tissue matrix, drainage into the vasculature, and clearance via lymph nodes, liver, and kidney (Figure 2) [2].

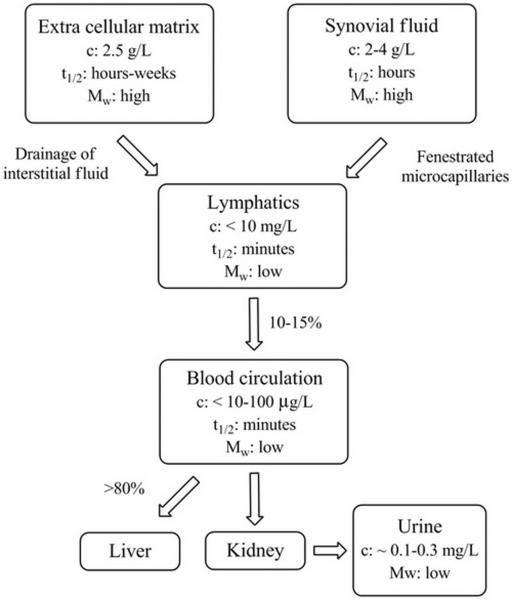

Figure (2).

HA catabolic pathway in the body. Arrows show the flow of HA. Concentration (c), half-life (t_1/2), and molecular weight (M_w) of HA within the organ systems are indicated. Figure was regenerated with permission [2]. High Mw > ~1000 kDa and low Mw < ~450 kDa.

In structural tissues like bone or cartilage with no or little lymphatic drainage, HA degradation occurs in situ with other ECM molecules such as collagens and proteoglycans. On the other hand, in skin and joints, a minimal fraction (approximately 20–30%) of HA degrades in situ. Approximately, 50% of HA in the body is available in skin tissue. Since HA is restricted to the small intracellular space of skin tissue, its half-life is a bit longer at days to weeks [2, 92]. Usually, the HYAL enzymes (hyaluronidases) are assumed to be the predominant catabolic mechanism involved in this process throughout the vertebrate body. However, HA catabolism can take place by either enzymatic degradation or scission by reactive oxygen species (ROS). Both mechanisms take place at the same time, but the relative contribution is unclear [92].

Hyaluronidases are an enzyme protein family with a high degree of sequence homology. There are six genes tightly clustered at two chromosomal locations. Three genes encode for HYAL1, HYAL2, and HYAL3 hyaloronidases. HYAL1 and HYAL2 form the major hyadonidases of somatic tissues. HYAL2, which is fixed to plasma membrane, cleaves high molecular weight HA to a product of approximately 20 kDa. HYAL1 seems to be a lysosomal enzyme, cleaving HA mainly into tetrasaccharides. HYAL3 is broadly expressed however its function is not well understood. Three additional genes encode for HYAL4, PHYAL1 (pseudogene HYAL1), and SPAM1 (Sperm Adhesion Molecule-1) hyaluronidases. The mechanisms of action for these three hyaluronidases are still unknown [94].

HA can also be eliminated through the lymphatic system draining the extracellular space of relatively dense tissues. First, high molecular weight HA is partially degraded before it releases from the tissue matrix. Upon release from the tissue matrix, degraded HA enters the lymphatic system. HA metabolic degradation mostly takes place in the lymphatic system as HA drains through peripheral tissues to the blood circulation [2]. One of the functions of the lymphatic system is to collect filtered plasma and interstitial fluid and transport them back to the blood circulation. Studies showed that most of the subcutaneously injected radio-labeled HA is picked up and degraded in lymphatic tissue [2, 92]. Remaining HA enters into the blood circulation and is rapidly removed in the liver by sinusoidal endothelial cells or eliminated via kidneys. In the blood circulation, the liver eliminates about 80% of HA and kidneys clear 10% of HA from bloodstream (Figure 2). As mentioned before, the daily turnover of HA is on the order of one-third (5 g) of the total HA body content (15 g) [2].

Synovial fluid is one of the body fluids containing high molecular weight HA. Lubrication and viscoelasticity are provided by the high molecular weight HA in synovial fluid. In a healthy joint, high levels (2–4 g/L) of HA with high molecular weight (approximately 6–7 MDa) are required for synovial fluid to function properly. In order to maintain synovial fluid lubrication and viscoelasticity, macromolecules including HA are continuously secreted by synoviocytes into the synovial fluid. Every time pressure is increased, fluid is pushed out of the joint cavity into micro-capillaries embedded in the synovium. Therefore, HA escapes through the interstitial drainage pores in the synovial lining (diameter 30–90 nm). It is also suggested that high molecular weight HA can form a layer at the tissue-fluid interface forming a “shell” that is not drained into micro-capillaries. The normal intra-articular turnover time for HA was found to be less than 40 hours. Studies showed that both HA molecular weight and concentration are decreased in patients with arthritis resulting in a significant reduction in synovial fluid functionality. Moreover, studies showed that production and secretion of ROS in arthritic joints degraded the HA in synovial fluid and cartilage [2, 4, 95–97].

7. Biomedical application of hyaluronic acid

7.1. Application of hyaluronic acid in tissue engineering

Since hyaluronic acid is one of the main components of body tissues, its potential for tissue engineering applications has been highly touted. HA is highly soluble at room temperature and has a high rate of elimination and turnover depending on its molecular weight and location in the body. Each of these properties could be a barrier for HA scaffold fabrication and structural integrity. To overcome these limitations, modification and crosslinking of hyaluronic acid have been proposed [5, 98, 99]. To chemically modify HA, thee functional groups of HA (the carboxylic acid, the primary and secondary hydroxyl groups, and the N-acetyl group) have been targeted. All of these HA modifications have been divided into two categories: “monolithic” and “living” [18]. Monolithic terminally-modified HA derivatives cannot be used for crosslinking in the presence of live cells or tissues. Living HA derivatives, however, can be used for crosslinking and covalent bond formation in the presence of cells. Living HA derivatives are needed in most cases for clinical and preclinical applications in 3D cell cultures and cell delivery in vivo. This topic has been thoroughly addressed elsewhere [18], but key highlights are offered below.

Currently, water-soluble carbodiimide crosslinking [100], polyvalent hyadrazide crosslinking [101], divinyl sulfone crosslinking [102], disulfide crosslinking [56], and photocrosslinking of hydrogels through glycidyl methacrylate-HA conjugation [103] have been introduced for tissue engineering applications of HA. Chemical crosslinking of HA combines desirable biological and mechanical properties, even for bone or cartilage tissue engineering [5, 98]. Moreover, crosslinking extends the HA degradation process in vivo and provides long-term stability. Crosslinking HA at various densities has been used for multiple applications including orthopedics, cardiovascular medicine, and dermatology [98].

Common functional groups used for radical polymerization are acrylates and methacrylates because these functional groups immediately react with radicals generated during photopolymerization. Carboxyls on the HA backbone are functional groups often used for modifications to introduce methacrylates. The reaction of glycidyl methacrylate with HA to create GMHA conjugates is another approach for HA functionalization and photocrosslinking. Crosslinking of GMHA macromers into hydrogels facilitated the production of a range of degradation and material characteristics [18, 103]. Photocrosslinking produced dense and strong gels. In addition, a range of complex fluids (microgels) were developed using low degrees of crosslinking. GMHA hydrogels were also copolymerized with acrylated versions of poly(ethylene glycol) (PEG) and PEG-peptide macromers [104]. Moreover, IPNs of the GMHA and N-dimethylacrylamide have also been produced to develop high moduli hydrogels. These gels were shown to be biocompatible, however, encapsulation in these high modulus gels has not been achieved before [18, 105–107]. Photopolymerization has also been performed by grafting poly(2-hydroxyethyl methacrylate) or cinnamic acid to HA [18, 108, 109].

Photocrosslinked HA hydrogels have been shown to be used for different applications including cartilage tissue engineering, cardiac repair, molecule delivery, valvular engineering, control of stem cell behavior, and microdevices [18]. Studies have suggested positive results for cell growth on photocrosslinked HA networks incorporated with chondrocytes. Chondrocytes within the HA hydrogel retained viability and were able to generate cartilage within the porous network [98, 110]. This type of photopolymerization has also been used in heart valve applications to mimic cardiac valve development [25]. In another study, IPNs of collagen within an HA hydrogel were developed with advantages of both mechanical stability of photocrosslinked HA networks and cellular adhesion to collagen [18, 111].

Several studies have reported the encapsulation of mesenchymal stem cells (MSCs) or chondrocytes into this type of HA hydrogels to regenerate damaged cartilage tissue. A novel study extended the advantage of redox-initiated HA hydrogels to cardiac repair [112]. Photocrosslinked HA is also being studied for valvular engineering due to the presence of HA within the structure of the native valve. Studies showed that valvular interstitial cells (VICs) are not easy to culture in ordinary culture mediums with peptide- and protein-modified surfaces but these cells adhered to and proliferated on HA hydrogels [18, 113]. Moreover, photocrosslinked HA was suggested for use in 3D stem cell encapsulation to regulate the differentiation of trapped stem cells. For example, HA hydrogels have been introduced into microbioreactor systems which allow for the 3D cultivation of hESCs [18, 114].

HA has also been combined with other polymers such as polypyrrole to develop multifunctional copolymers. HA functionalized with polypyrrole is electronically conductive and supports cell growth. This copolymer could offer unique properties for tissue engineering applications [115, 116]. In one study, N -(1-aminoprop-3-yl) pyrrole was conjugated with HA using carbodiimide chemistry. Then, PyHA was electrochemically polymerized to form a stable, biocompatible 20–40 nm HA coating on conducting polymer substrates including indium tin oxide, platinum, and polystyrene sulfonate-doped polypyrrole surfaces. These covered surfaces were hydrophilic and resistant to fibroblast and astrocyte attachment. The immobilized HA films were stable under physiological conditions for three months [18, 117].

Benzyl derivatives of HA are another category of polymeric scaffolds used for tissue engineering of cartilage to modulate degradation rates. Studies on these derivatives suggested the potential of benzyl esters of HA as a scaffold for chondrocytes in cartilage tissue engineering. These scaffolds are hydrophobic and degrade at predictable rates. In an early study, implanting one of these cell-seeded scaffolds in mice showed development of cartilage. In a recent human clinical study, the benzyl HA scaffold was used for cartilage regeneration. After implantation of the scaffold, the graft had integrated with surrounding cartilage and developed “normal”-looking tissue in the damaged area. Another study showed evidence of chondrocyte differentiation, collagen type II and aggrecan production, and an overall down regulation of collagen type I using this type of scaffold. Similar studies conducted with rat mesenchymal stem cells (MSCs) loaded into benzyl HA grafts suggested that the implants exhibited properties conducive to both chondrocyte differentiation as well as the formation of fibrocartilaginous tissue in vivo [98, 118].

Since HA is a biocompatible natural polymer, development of scaffolds based on HA appears to be suitable for surfaces contacting blood. For example, HA crosslinked with divinyl sulfone (DVS) in the presence of ultraviolet light has been suggested as a “non-activating” surface for cell adhesion in heart valve tissue engineering. In one study a DVS-crosslinked HA scaffold was seeded with smooth muscle cells. This research showed that smooth muscle cells increased the synthesis of elastin and collagen, essential components of aortic valve tissues, compared to cells cultured on plastic culture plates [88, 98, 119].

To synthesize artificial extracellular matrices (ECMs) for regenerative medicine applications, modification of glycosaminoglycans (GAGs) including HA has also been reported [18]. For this purpose, thiol modification of the HA carboxylate groups has been reported in a research study. Thiol-modified HA forms a biocompatible hydrogel spontaneously via self-crosslinking when exposed to the air. Crosslinking with difunctional electrophiles is possible in the presence or absence of cells [18, 120, 121]. The first preclinical application of crosslinked thiolated HA and gelatin was explored for mesenchymal stem cell delivery to full-thickness defects in the patellar groove of rabbit femoral articular cartilage. The defects totally healed after 12 weeks [18]. In another study, HA was modified via bromoacetate (haloacetate-modified HA) to form a hydrogel. Similar to thiol-modified HA, this modification resulted in a biocompatible hydrogel that could be used for tissue regeneration. Cells failed to proliferate on the scaffold unless gelatin was added, suggesting attachment and visibility on the gelatin-containing scaffolds [18, 122].

Hydrazide modification using adipic dihydrazide has also been employed to develop HA derivatives. Dihyadrazide-modified HA are able to form hydrazine linkages with ketones and aldehydes as well as acylhydrazides with acylating agents, thus allowing crosslinking and hydrogel formation or conjugation of drugs or polypeptides to HA backbone [18, 123]. Other techniques including tyramine modification of HA, aldehyde modification of HA, and huisgen cycloaddition (click chemistry) have also been introduced to produce HA hydrogels for cell delivery and to simulate ECM in regenerative medicine [18, 124–126].

Auto-crosslinked and in situ crosslinked HA hydrogels are another category of crosslinking used for tissue engineering. The requirement for surgical implantation is the major limitation of most scaffolds used for tissue engineering. Application of HA that crosslinks after injection has been introduced for three main reasons. First, the injectable HA could be filled into defects of any shape and crosslinked in situ. Second, crosslinkable HA may adhere to the native tissue resulting in mechanical or chemical interlocking and a cohesive scaffold-tissue interface. Third, injection and laparoscopic methods can be used to reduce the invasiveness of the surgical procedure [127]. Studies showed that HA crosslinked using adipic acid dihydrazide and aldehyde chemistry could form a flexible hydrogel in situ upon mixing [128]. In another study, poly(lactic-coglycolic acid) nanoparticles were mixed with HA of similar chemistry to develop an in situ crosslinkable system with drug delivery potential. Although such in situ crosslinking has been shown to form flexible hydrogels with reasonable mechanical properties, potential cytotoxicity of the reactions used in these techniques are still an important issue to consider [129].

In all of the described techniques, chemical reactions have been used to either modify the HA backbone or to crosslink HA for hydrogel formation. In most cases, the proposed crosslinking chemical reaction and/or reagents used have still shown cytotoxicity. In the case of HA backbone functionalization, pre-crosslinking modifications require an additional step to hydrogel formation which can make the overall scaffold fabrication more complex. Therefore, there is a demand for in situ crosslinking strategies to develop simple techniques free of chemical reactions for HA based scaffold fabrication with low or no toxicity issues.

7.2. Application of hyaluronic acid as a dermal filler

The influence of sun exposure, gravity, and years of facial muscle movements starts to appear as wrinkles on the skin. During the aging process, basic changes in the skin, soft tissue, and skeletal support of the face occur resulting in a breakdown of the tissues under the skin leaving lines or other facial defects [130, 131]. Skin aging can be divided in two categories: internal aging and external aging.

Internal aging of skin causes various histological changes in different skin layers such as flattening of the epidermal-dermal interface, a decrease in the number of melanocytes and Langerhans cells in the epidermis, a loss of dermal papillae, dermal atrophy, a decrease in the number of mast cells, fibroblasts, and blood vessels, a loss of elastic tissue in the fine subepidermal elaunin network, and abnormal thickening and fragmentation of elastic tissue in the reticular dermis [131]. Internal aging also reduces several skin functions such as type I and type III collagen production, the epidermal turnover rate, and melanocyte activity [131, 132].

External aging is influenced by sun exposure and UV radiation and also causes histological changes which are different from some of the changes caused by internal aging. External aging is typified by damage of elastic tissue and decrease in cellularity. Photodamage induces elastosis, the overgrowth of abnormal elastic fibers, and an increase in population of histiocytes, fibroblasts, and mast cells [131, 132]. In both internal and external aging, collagen content and melanocyte activity are decreased and wound healing is abnormal [131].

To address age-related changes in skin quality and appearance, several treatments have been proposed (Table 2). Development of soft-tissue fillers (dermal fillers) can help lines and wrinkles to be filled temporarily (or `permanently') [130]. It seems an ideal dermal filler should be temporary but long-lasting (months to a year or longer), having minimum side effects and no allergenic effect, easy to administer, having minimum pain or no pain upon injection, and a reasonable cost for both the physician and the patient [130]. Depending on the residence time in tissue, dermal fillers are categorized as temporary, semipermanent (at least 18 months), and permanent. They are also classified based on their composition with primary ingredients such as collagen (bovine, porcine, or human), animal or synthetic hyaluronic acid, poly-L-lactic acid, calcium hydroxyapatite, polymethyl methacrylate, and polyacrylamide gel (Table 3) [3, 131, 133, 134].

Table (2).

Treatments proposed to enhance age-related changes in skin quality [131].

Treatment	Remarks
Skin protections and skin cares	Sunscreens help to diminish changes in skin quality and appearance caused by sun exposure. Daily skin care is recommended to improve the quality and appearance of aged skin.
Chemical peels	Chemical peels applied directly to the skin use alpha-hydroxy acid, salicylic acid, trichloroacetic acid, or phenol can improve the appearance of aged skin.
Nonablative therapies	In nonablative therapies, light or thermal energy from various sources (visible and infrared lasers, intense pulsed light, light-emitting diodes, and radiofrequency) are used to improve skin texture, discoloration, and scarring.
Ablative therapies	Ablative therapies are laser treatments in which the laser induces ablation of water-containing tissue (epidermal tissue).
Botulinum toxin type A	Local injection of botulinum toxin causes temporary muscle denervation, resulting in relaxation of hyperfunctional facial muscles and smoothing of the skin overlying these muscles.
Dermal fillers	Dermal fillers are used to recover soft-tissue volume of the skin and remove skin wrinkles.

Table (3).

Different types of dermal fillers and some of the commercially available products [3,131, 133, 137].

Material	Brand name	Description	Duration	Biodegradability
Autologous fat	Viable Fat	-	Temporary	Biodegradable
Hyaluronic acid	Restylene®	Crosslinked HA (20 mg/mL)	Temporary 6–12 months	Biodegradable
	Prelane®	Crosslinked HA (20 mg/mL)	Temporary 6–12 months
	Juvéderm™	Crosslinked HA (24 mg/mL)	Temporary up to 12 months
	Elevess®	Crosslinked HA (28 mg/mL)	Temporary months
	Hylaform®	Crosslinked HA (5 mg/mL)	Temporary 3–6 months
Collagen	Zyderm®	3.5% bovine collagen+0.3% lidocaine	Temporary 3–4 months	Biodegradable
	Zyplast®	3.5% crosslinked bovine collagen+0.3% lidocaine	Temporary 3–6 months
	CosmoDerm®	3.5% human collagen+0.3% lidocaine	Temporary 3–5 months
	CosmoPlast®	3.5% crosslinked human collagen+0.3% lidocaine	Temporary 3–5 months
	ArteFill®	20% PMMA microspheres+80% bovine collagen (3.5%)+0.3% lidocaine	Permanent	Not biodegradable
Calcium hydroxyapatite	Radiessa®	Calcium hydroxyapatite microspheres in aqueous gel	Semipermanent 2–5 years	Biodegradable
Poly-L-lactic acid	Sculptra®	Injectable PLLA microspheres suspended in sodium carboxymethylcellulose gel	Semipermanent 18–24 months	Biodegradable
β-tricalcium phosphate with hyaluronic acid	Atlean®	-	Semipermanent	Biodegradable
Polyacrylamide gel	Aquamid®	-	Permanent	Not biodegradable
	Bio-Alcamid®
Polymethyl methacrylate	Arteplast®	-	Semipermanent	Not biodegradable
	Artecoll®
	Artefill®
	Dermalive®
	Dermadeep®
Dimenthylsiloxane polymers	Silicone	-	Permanent	Not biodegradable

Hyaluronic acid has been approved by the Food and Drug Administration (FDA) as a dermal filler. In 2006, cosmetic injections of HA were known to be the second most popular non-surgical procedure for women and the third most popular procedure for men [135–138]. HA has a very short half-life and, therefore, is chemically crosslinked to extend duration as a dermal filler [139]. HA is not involved in the structure of collagen and does not enhance the shortage of HA in aged skin, but simply works by augmenting volume [130, 135].

A set of chemical modifications are required to apply to HA as a dermal filler. HA employed to make dermal fillers is usually provided to the manufacturer in a dry powder form. Combining this powder with water forms a viscous solution of HA. This solution is known as free HA, which is uncrosslinked and unmodified. If this product was to be used as a dermal filler, it would be rapidly eliminated from the injection site by drainage or degradation pathways (less than a week). To overcome the lack of residence of HA solutions, dermal fillers were developed using crosslinked HA. The crosslinking creates a polymer network, transforming a viscous solution to a weak gel. HA gel imparts a physical and chemical barrier to deter drainage or degradation. Therefore, residence time increases by crosslinking HA [130].

The two crosslinkers employed in HA dermal fillers currently on the US market are 1,4-butanediol diglycidal ether (BDDE), and divinyl sulfone (DVS). Both of them react to hydroxyl groups on HA chains and give similar outcomes; slowing down the drainage and degradation of dermal fillers injected into the skin [130]. In the US, collagen-based fillers were used by physicians for the treatment of lines and wrinkles through the 1980s and the 1990s. In Europe, however, dermal fillers were developed that would soon influence the majority of US doctors to use fillers for their patents. This revolution started with the development of HA fillers [136].

Since its launch in Europe in 1996, HA has become the “gold standard” in fillers for treating wrinkles, hydrating skin, and increasing volume [3]. Many dermal fillers have been developed since that time. Restylane®, Perlane® (FDA approved), and Sub-Q® (not FDA approved) from Q-Med AB (Upsala, Sweden) is made from HA beads within a solution of HA. Hylaform®,Captique™, Juvéderm™ (FDA approved), Surgiderm® (not FDA approved), and Voluma® (not FDA approved) from Allergan (Irvine, CA, USA) are produced from crosslinked HA in a single state (no beads) (See Table 3 for more HA dermal fillers) [3].

In the US, Hylaform ® was the first HA-based filler available for use. This product was developed by Genzyme Biosurgery (New Jersey, US) and was marketed by Inamed® (Santa Barbara, CA, US) before acquisition by Allergan, Inc. (Irvine, CA, US) in 2006. Hylaform® is a sterile, colorless gel material in which HA is crosslinked with divinyl sulfone. It is FDA approved (April, 2004) and derived from an avian source (rooster comb). The HA is 20% crosslinked (4.5–6.0 mg/ml) with a particle size of ~500 μm. The main disadvantage of this product is longevity, as most would report that the benefits generally last for 3–4 months [136]. Captique™ is the second FDA-approved (December 2009) HA filler developed by Genzyme/Inamed/Allergan; now Mentor Corporation (Santa Barbara, CA, US). Capitique™ was manufactured based on Genzyme's patented non-animal stabilized HA technology. This prevented the possibility of immunological issues related to the previous avian source HA based dermal fillers such as Hyaform®. Again, the HA is 20% crosslinked by divinyl sulfone (4.5–6.0 mg/ml) and gel particle size of ~500 μm. Captique™ was also shown to have treatment duration anywhere between 3 to 6 months [136].

The next HA-based dermal filler approved by FDA in the US was Restylane® (December, 2003). It is a non-animal HA derivative made from fermentation of equine streptococci and crosslinked with 1,4-butandiol diglycidylether (BDDA). The HA (20 mg/ml) is only lightly crosslinked (1%) with a particle size of ~400 μm. Restylane® has lower degree of crosslinking with different crosslinking chemistry, higher HA concentration, and smaller particle size comparing to previous products. The FDA approved this product for mid-dermal applications including deep wrinkle correction, lip augmentation, nasolabial fold correction, and for glabellar creases. The application of Restylane® in clinical trials dates back to the 1990s. In two European clinical trials by Duranti et al. and Olenius (both in 1998), the duration of effect was found to be ~8 months. Restylane® has been employed for the past several years by numerous doctors with acceptable results (~6 to 12 months). It was reported that Restylane® can be injected easily with small-gauge needles such as gauge 30. The major concern for Restylane® injection is mild reaction at the site of injection and pain during the injection [136]. Juvéderm™ is another dermal filler currently available in the market. It is manufactured by Lea Derm, a subdivision of Corneal Group (Paris, France). The product was developed by Inamed® (Santa Barbara, CA) and currently is distributed by Allergan Inc. (Irvine, CA, US). It is a non-animal stabilized HA containing high crosslinked HA made by Streptococcus equi bacteria. Six different formulations of Juvéderm™ have been developed with concentrations ranging from 18 mg/g to 30 mg/g. These are known to be highly viscous dermal fillers. The HA is crosslinked (6%) with a patented single-phase BDDE chemistry, phosphate buffered to 6.5–7.3 pH [140]. The higher HA concentration and greater crosslinking supports the notion that treatment via Juvéderm™ can last between 6 to 12 months [136].

The main differences between these dermal fillers are the source of HA, concentration, particle size of beads (if included in the formulation), degree and type of crosslinking, and inclusion or lack of anesthetic. For the available dermal fillers, the source of HA are either avian (found primarily in rooster combs) or bacteria (mostly from the synthetic fermentation of the Staphylococcus equine bacterium). The concentration of HA has an important role in dermal fillers. Dermal fillers with high HA concentration tend to have better `volume' and longer duration of effect; however, their high viscosity can be an issue when injecting using fine needles. In all HA fillers, a single ether crosslink was typically utilized. Recently, HA fillers have utilized greater degrees of crosslinking. Crosslinking can potentially improve resistance to degradation, making for a longer lasting treatment, but increasing the difficultly of injection [3].

Current HA-based dermal fillers have maximum treatment duration up to 12 months (Table 3). To extend this treatment duration, HA with higher molecular weight or more crosslinking can be used, however injectability of the HA solution drops by increasing HA molecular weight and corsslinking. This makes the dermal filler difficult to administer, possibly producing pain for the patient. Therefore, the development of dermal filler products with enhanced injectability and longer duration is desired.

7.3. Application of hyaluronic acid in osteoarthritis treatment

Osteoarthritis (OA) is the most common disease associated with aging, affecting many people with about 70% of these individuals aged 65 and over. OA is characterized by the slow degradation of cartilage, pain, and increasing disability. The disease can have an impact on several aspects of a patient's life, including functional and social activities [141, 142]. Current pharmacological therapies target palliation of pain and include analgesics (i.e. acetaminophen, cyclooxygenase-2-specific inhibitors, non-steroidal anti-inflammatory drugs, tramadol, opioids), intra-articular therapies (glucocorticoids and hyaluronan), and topical treatments (i.e. capsaicin, methylsalicylate). If none of these therapies work, surgical joint replacement is the last option, which is costly and highly invasive [142].

Synovial spaces are the cavities of the joints that facilitate movement of adjacent bones. Synovial spaces are formed by a surface of cartilage, synovium, and synovial fluid. The synovial fluid is a clear, colorless or sometimes yellowish liquid secreted into the joint cavity by the synovioum. The synovial fluid volume is approximately 2 mL in normal human knee joints and contains electrolytes, low molecular weight organic molecules, and macromolecules such as glycosaminoglycans (GAGs). GAGs present in the synovial fluid are chondrotin-4-sulfate (2%), with the remaining 98% made up of HA [141].

The mechanical function of the synovial fluid can be attributed to its rheological properties, more specifically its viscoelastic properties. Synovial fluid viscoelasticity depends on HA concentration, molecular weight, and molecular weight distribution, and on the physical and non-covalent interactions within the HA molecule as well as with other molecules such as proteins and ions [5]. HA molecules overlap and interact though physical entanglement or temporary interactions with ions and proteins at physiological conditions. These interactions, which are dependent on HA molecular weight and concentration, determine the formation of the transient network structure that is responsible for the viscoelasticity of synovial fluid [141, 142]. In OA, HA loses these functionalities as a result of reduced HA molecular weight and concentration; thus, decreasing the viscoelastic properties of synovial fluid [95, 141, 143].

The viscoelastic behavior of synovial fluid can be described by the elastic modulus (G″) and viscous modulus (G″) as a function of frequency [94, 95, 144]. The degradation of synovial fluid is evident from its rheological properties. Generally, aging is the main reason for a reduction in HA molecular weight or HA concentration (Table 4). After damage or aging, synovial fluid cannot provide the required viscoelastic response to compression and tangential forces arising in everyday life, allowing cartilage-cartilage contact and increasing wear of the joint surface [141, 142]. Intra-articular treatment with HA and hylans (uncrosslinked HA and crosslinked HA, respectively) has recently been accepted as a common therapy for reducing pain associated with OA [141, 142]. Currently, products such as Hyalgan® (HA), Orthovisc® (HA) and Synvisc® (hylan GF 20) are available as viscosupplements for intra-synovial injection in osteoarthritis treatment (Table 5) [141, 144–146].

Table (4).

Properties of healthy synovial fluid and osteoarthritic synovial fluid [105, 144, 145, 150].

	HA molecular weight (MDa)	HA concentration (mg/mL)	Viscoelastic properties		Zero shear viscosity (Pa.s)
			Elastic modulus (G') (Pa) at 2.5 Hz	Viscous modulus (G”) (Pa) at 2.5 Hz
Healthy Young Synovial Fluid	6.3–7.6	2.5–4	23	7	6–175
Osteoarthritic Synovial Fluid	1.6–3.48	1–2	7	5	0.01–1

Table (5).

Some of the HA viscosupplements available in the North American market. [141, 144–147]. Adapted data from reference [146] were used with permission.

Brand name (Generic name)	Molecular weight (kDa)	Approved dosing*	Amount per injection (mL)	Approved indications
Durolane® (Hyaluronic acid, 2%)	1000	1 injection	3	Knee or hip, mild or moderate
Fermathron® (Sodium hyaluronate, 1%)	1000	3–5 injections	2	Knee, mild or moderate
Hyalgan® (Sodium hyaluronate, 1%)	500–730	3–5 injections	2	Knee, shoulder, or hip
NeoVisc® (Sodium hyaluronate, 1%)	1000	3–5 injections	2	Synovial fluid replacement following arthrocentesis
Orthovisc® (Sodium hyaluronate, 1.4%)	1000–2900	3 injections	2	Knee
Ostenil® (Sodium hyaluronate, 1%)	1000–2000	3 injections	2	Degenerative or traumatic synovial joint disorders, including knee joint
Supartz® (Sodium hyaluronate, 1%)	620–1170	3–5 injections	2.5	Knee nonresponsive to conservative therapy
Suplasyn® (Sodium hyaluronate, 1%)	500–730	3–6 injections	2	Synovial fluid replacement following arthrocentesis
Synvisc® (Hylan G-F 20; Crosslinked HA)	6000–7000	3 injections	2	Knee nonresponsive to 0.8% conservative therapy

^*The number of weekly intra-articular injections per treatment course, excluding Durolane®, which is given as a single injection.

In the 1970s, the first studies on the application of HA for human knee OA were performed by Rydell and Balasz (1971) and Peyron and Balasz (1974). In 1974, Peyron injected different volumes of HA into 23 knees and obtained positive results; reducing pain and increasing patient function. Since then, many HA viscosupplements have been made from different sources of HA including rooster combs (Table 5). Similar to dermal fillers, increasing HA concentration and the degree of crosslinking can enhance the performance viscosupplements for OA treatment; however, the high viscosity of these modified products may cause difficulties during administration [97]. In 1997, the FDA approved HA viscosupplementation for OA treatment. Currently, several viscosupplements including Hyalgan®, Supartz®, Orthovisc®, Synvisc®, and Euflexxa® are available on the market. Each of these products differ in their method of production, molecular weight, dosing instructions, and possibly clinical outcomes [147].

Several clinical trials have demonstrated the efficacy and tolerability of intraarticular HA for the treatment of pain associated with OA. These studies have shown three injections of Synvisc® (crosslinked HA) can provide relief of knee pain up to 6 months. A competing product, Hyalgan® (sodium hyaluronate solution), requires 6 injections to reach the same efficacy of Synvisc® [97, 145, 148, 149]. While Synvisc® was shown to be more efficient in reducing pain, its structure (high molecular weight HA due to crosslinking) increases the force required to inject (Table 6). Unlike Synvisc®, Hyalgan® has a lower viscosity, making injection easier, but Hyalgan® is not as effective as Synvisc® due to lower viscoelastic properties (elastic and viscous moduli) [144, 145, 149]. Moreover, Orthovisc®, one of the viscosupplements with the highest HA concentration, has lower viscosity than Synvisc® but it is not reported to be as effective as Synvisc® [144, 145, 149]. This creates a need for development of products with enhanced injectability and yet reasonable viscoelastic behavior (Synvisc® elastic and viscous moduli values) for osteoarthritis treatment.

Table (6).

Properties of Hyalgan® and Synvisc®. Data were adapted from Hyalgan® product information, Orthovisc® product information, Synvisc® product information, and references [105, 144, 145].

Brand name	Molecular weight (kDa)	Viscoelastic properties		Number of injections	Duration of pain relief
		Elastic modulus (G') (Pa) at 2.5 Hz	Viscous modulus (G”) (Pa) at 2.5 Hz
Hyalgan® (Uncrosslinked)	500–730	0.6	3	3–5	6 months
Orthovisc® (Uncrosslinked)	1000–2900	60	46	3	6 months
Synvisc® (Crosslinked polymer)	6000–7000	111± 13	25±2	3	6 months

8. Conclusion

Hyaluronic acid is a naturally occurring biomolecule abundantly available in body tissues and fluids. Due to the prevalence of hyaluronic acid in the body and its desirable properties, HA has been utilized in several types of biomedical products. This article reviewed the physical and chemical characteristics of HA as applied to tissue engineering, dermal filling, and viscosupplementation. In each application, difficulties such as potential toxicity of crosslinking techniques, high viscosity of HA solutions, and rapid elimination have been raised as limitations to improve biomedical products derived from HA. To overcome these limitations, current and emerging strategies to modify HA were reviewed as potential approaches.

Other biomedical applications of HA are also emerging (e.g. drug conjugation and delivery, therapeutic and/or immune modulation effects, etc.). New chemical modifications performed on HA are also appearing in the literature. In particular, new strategies for safely crosslinking HA in situ represent an important paradigm for generating new strategies for tissue engineering and viscosupplementation. Formulations that improve product performance will also utilize physical interactions between components (e.g. interactions between HA nanoparticles). Utilizing particle/polymer or particle/particle interactions may provide new approaches to tune the viscoelastic properties of HA formulations as applied to tissue engineering, dermal filling, and osteoarthritis treatment.
