. 1981 May;67(5):1370–1382. doi: 10.1172/JCI110165

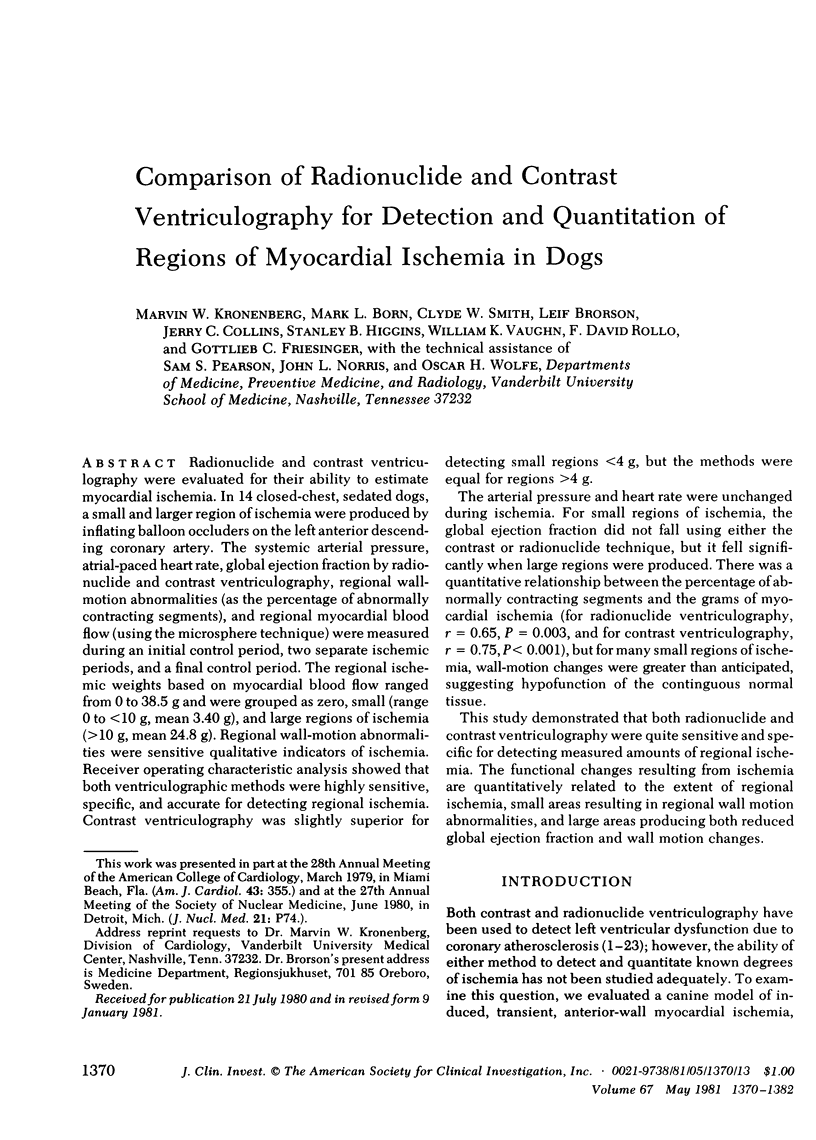

Comparison of radionuclide and contrast ventriculography for detection and quantitation of regions of myocardial ischemia in dogs.

M W Kronenberg, M L Born, C W Smith, L Brorson, J C Collins, S B Higgins, W K Vaughn, F D Rollo, G C Friesinger, S S Pearson, J L Norris, O H Wolfe
PMCID: PMC370703  PMID: 7229030

Abstract

Radionuclide and contrast ventriculography were evaluated for their ability to estimate myocardial ischemia. In 14 closed-chest, sedated dogs, a small and larger region of ischemia were produced by inflating balloon occluders on the left anterior descending coronary artery. The systemic arterial pressure, atrial-paced heart rate, global ejection fraction by radionuclide and contrast ventriculography, regional wall-motion abnormalities (as the percentage of abnormally contracting segments), and regional myocardial blood flow (using the microsphere technique) were measured during an initial control period, two separate ischemic periods, and a final control period. The regional ischemic weights based on myocardial blood flow ranged from 0 to 38.5 g and were grouped as zero, small (range 0 to less than 10 g, mean 3.40 g), and large regions of ischemia (greater than 10 g, mean 24.8 g). Regional wall-motion abnormalities were sensitive qualitative indicators of ischemia. Receiver operating characteristic analysis showed that both ventriculographic methods were highly sensitive, specific, and accurate for detecting regional ischemia. Contrast ventriculography was slightly superior for detecting small regions less than 4 g, but the methods were equal for regions greater than 4 g. The arterial pressure and heart rate were unchanged during ischemia. For small regions of ischemia, the global ejection fraction did not fall using either the contrast or radionuclide technique, but it fell significantly when large regions were produced. There was a quantitative relationship between the percentage of abnormally contracting segments and the grams of myocardial ischemia (for radionuclide ventriculography, r = 0.65, P = 0.003, and for contrast ventriculography, r = 0.75, P less than 0.001), but for many small regions of ischemia, wall-motion changes were greater than anticipated, suggesting hypofunction of the continguous normal tissue. This study demonstrated that both radionuclide and contrast ventriculography were quite sensitive and specific for detecting measured amounts of regional ischemia. The functional changes resulting from ischemia are quantitatively related to the extent of regional ischemia, small areas resulting in regional wall motion abnormalities, and large areas producing both reduced global ejection fraction and wall motion changes.

Full text

PDF
1370

Images in this article

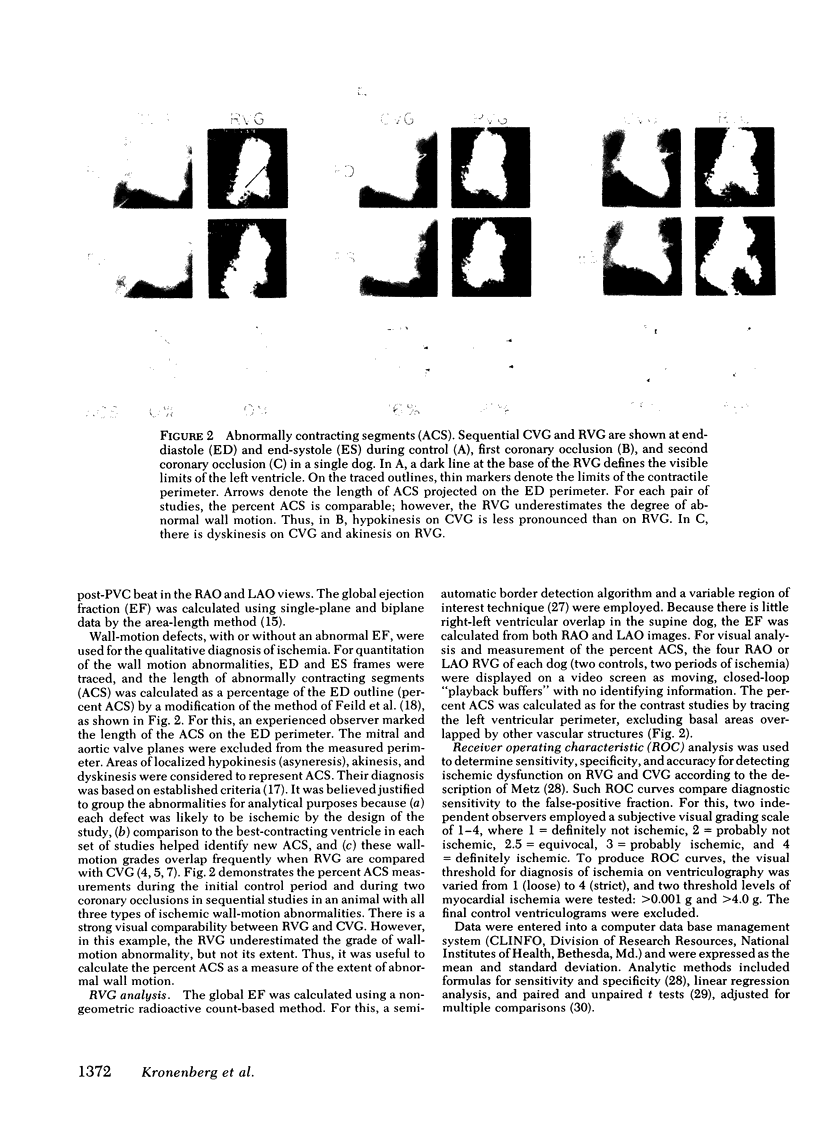

1372Image
on p.1372

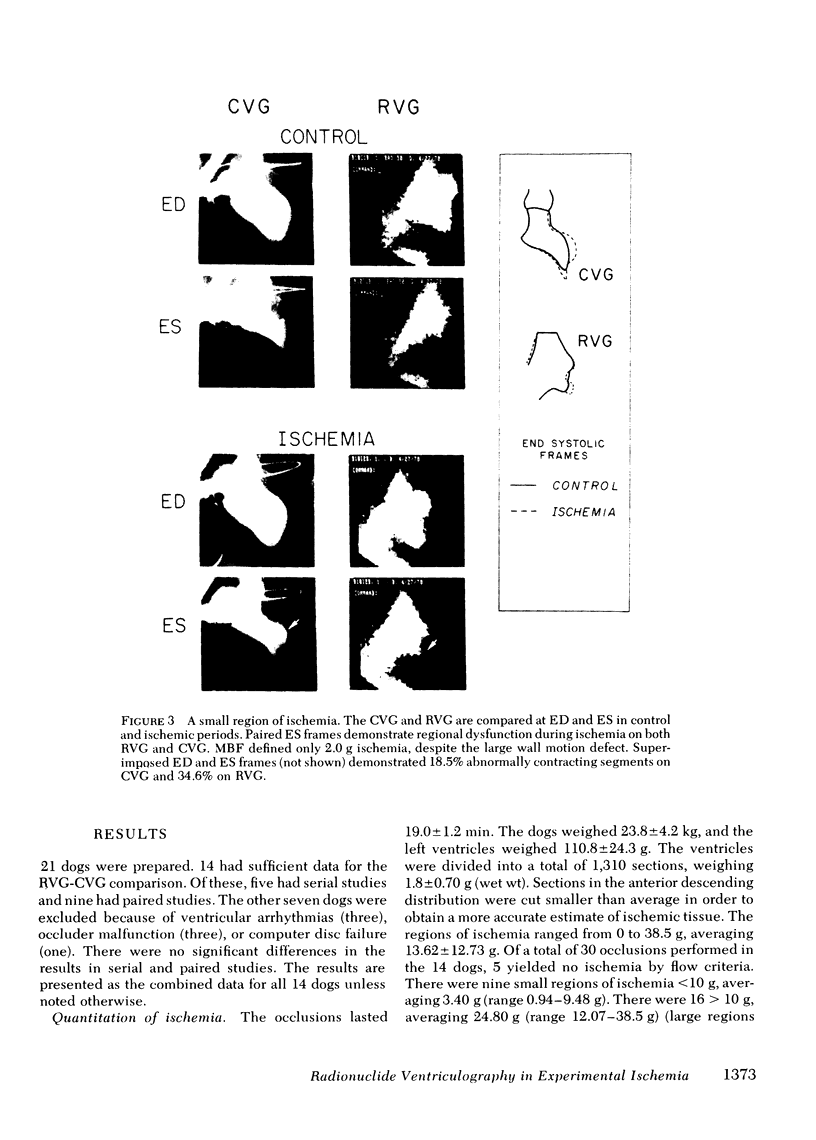

1373Image
on p.1373

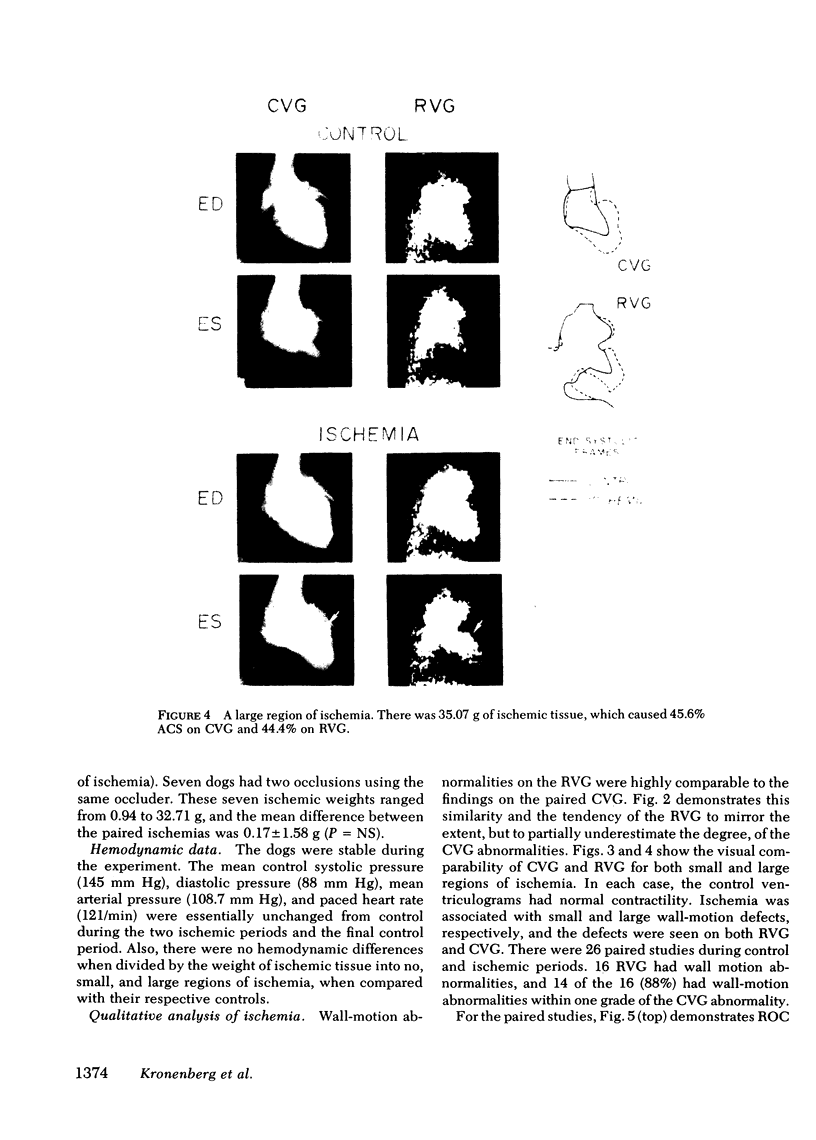

1374Image
on p.1374

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Berger H. J., Reduto L. A., Johnstone D. E., Borkowski H., Sands J. M., Cohen L. S., Langou R. A., Gottschalk A., Zaret B. L., Pytlik L. Global and regional left ventricular response to bicycle exercise in coronary artery disease. Assessment by quantitative radionuclide angiocardiography. Am J Med. 1979 Jan;66(1):13–21. doi: 10.1016/0002-9343(79)90476-5. [DOI] [PubMed] [Google Scholar]
  2. Bodenheimer M. M., Banka V. S., Fooshee C. M., Helfant R. H. Comparative sensitivity of the exercise electrocardiogram, thallium imaging and stress radionuclide angiography to detect the presence and severity of coronary heart disease. Circulation. 1979 Dec;60(6):1270–1278. doi: 10.1161/01.cir.60.6.1270. [DOI] [PubMed] [Google Scholar]
  3. Borer J. S., Bacharach S. L., Green M. V., Kent K. M., Epstein S. E., Johnston G. S. Real-time radionuclide cineangiography in the noninvasive evaluation of global and regional left ventricular function at rest and during exercise in patients with coronary-artery disease. N Engl J Med. 1977 Apr 14;296(15):839–844. doi: 10.1056/NEJM197704142961503. [DOI] [PubMed] [Google Scholar]
  4. Borer J. S., Kent K. M., Bacharach S. L., Green M. V., Rosing D. R., Seides S. F., Epstein S. E., Johnston G. S. Sensitivity, specificity and predictive accuracy of radionuclide cineangiography during exercise in patients with coronary artery disease. Comparison with exercise electrocardiography. Circulation. 1979 Sep;60(3):572–580. doi: 10.1161/01.cir.60.3.572. [DOI] [PubMed] [Google Scholar]
  5. Burow R. D., Strauss H. W., Singleton R., Pond M., Rehn T., Bailey I. K., Griffith L. C., Nickoloff E., Pitt B. Analysis of left ventricular function from multiple gated acquisition cardiac blood pool imaging. Comparison to contrast angiography. Circulation. 1977 Dec;56(6):1024–1028. doi: 10.1161/01.cir.56.6.1024. [DOI] [PubMed] [Google Scholar]
  6. Caldwell J. H., Hamilton G. W., Sorensen S. G., Ritchie J. L., Williams D. L., Kennedy J. W. The detection of coronary artery disease with radionuclide techniques: a comparison of rest-exercise thallium imaging and ejection fraction response. Circulation. 1980 Mar;61(3):610–619. doi: 10.1161/01.cir.61.3.610. [DOI] [PubMed] [Google Scholar]
  7. Dove J. T., Shah P. M., Schreiner B. F. Effects of nitroglycerin on left ventricular wall motion in coronary artery disease. Circulation. 1974 Apr;49(4):682–687. doi: 10.1161/01.cir.49.4.682. [DOI] [PubMed] [Google Scholar]
  8. Dwyer E. M., Jr Left ventricular pressure-volume alterations and regional disorders of contraction during myocardial ischemia induced by atrial pacing. Circulation. 1970 Dec;42(6):1111–1122. doi: 10.1161/01.cir.42.6.1111. [DOI] [PubMed] [Google Scholar]
  9. Falsetti H. L., Carroll R. J., Marcus M. L. Temporal heterogeneity of myocardial blood flow in anesthetized dogs. Circulation. 1975 Nov;52(5):848–853. doi: 10.1161/01.cir.52.5.848. [DOI] [PubMed] [Google Scholar]
  10. Feild B. J., Russell R. O., Jr, Dowling J. T., Rackley C. E. Regional left ventricular performance in the year following myocardial infarction. Circulation. 1972 Oct;46(4):679–689. doi: 10.1161/01.cir.46.4.679. [DOI] [PubMed] [Google Scholar]
  11. Gelberg H. J., Brundage B. H., Glantz S., Parmley W. W. Quantitative left ventricular wall motion analysis: a comparison of area, chord and radial methods. Circulation. 1979 May;59(5):991–1000. doi: 10.1161/01.cir.59.5.991. [DOI] [PubMed] [Google Scholar]
  12. Hecht H. S., Mirell S. G., Rolett E. L., Blahd W. H. Left-ventricular ejection fraction and segmental wall motion by peripheral first-pass radionuclide angiography. J Nucl Med. 1978 Jan;19(1):17–23. [PubMed] [Google Scholar]
  13. Herman M. V., Heinle R. A., Klein M. D., Gorlin R. Localized disorders in myocardial contraction. Asynergy and its role in congestive heart failure. N Engl J Med. 1967 Aug 3;277(5):222–232. doi: 10.1056/NEJM196708032770502. [DOI] [PubMed] [Google Scholar]
  14. Heyndrickx G. R., Millard R. W., McRitchie R. J., Maroko P. R., Vatner S. F. Regional myocardial functional and electrophysiological alterations after brief coronary artery occlusion in conscious dogs. J Clin Invest. 1975 Oct;56(4):978–985. doi: 10.1172/JCI108178. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Irvin R. G., Cobb F. R. Relationship between epicardial ST-segment elevation, regional myocardial blood flow, and extent of myocardial infarction in awake dogs. Circulation. 1977 Jun;55(6):825–832. doi: 10.1161/01.cir.55.6.825. [DOI] [PubMed] [Google Scholar]
  16. Jennings R. B., Sommers H. M., Herdson P. B., Kaltenbach J. P. Ischemic injury of myocardium. Ann N Y Acad Sci. 1969 Jan 31;156(1):61–78. doi: 10.1111/j.1749-6632.1969.tb16718.x. [DOI] [PubMed] [Google Scholar]
  17. Kasser I. S., Kennedy J. W. Measurement of left ventricular volumes in man by single-plane cineangiocardiography. Invest Radiol. 1969 Mar-Apr;4(2):83–90. doi: 10.1097/00004424-196904020-00005. [DOI] [PubMed] [Google Scholar]
  18. Kent K. M., Borer J. S., Green M. V., Bacharach S. L., McIntosh C. L., Conkle D. M., Epstein S. E. Effects of coronary-artery bypass on global and regional left ventricular function during exercise. N Engl J Med. 1978 Jun 29;298(26):1434–1439. doi: 10.1056/NEJM197806292982602. [DOI] [PubMed] [Google Scholar]
  19. Kerber R. E., Marcus M. L., Ehrhardt J., Wilson R., Abboud F. M. Correlation between echocardiographically demonstrated segmental dyskinesis and regional myocardial perfusion. Circulation. 1975 Dec;52(6):1097–1104. doi: 10.1161/01.cir.52.6.1097. [DOI] [PubMed] [Google Scholar]
  20. Kerber R. E., Marcus M. L., Wilson R., Ehrhardt J., Abboud F. M. Effects of acute coronary occlusion on the motion and perfusion of the normal and ischemic interventricular septum. Circulation. 1976 Dec;54(6):928–935. doi: 10.1161/01.cir.54.6.928. [DOI] [PubMed] [Google Scholar]
  21. Kronenberg M. W., Wooten N. E., Friesinger G. C., Page D. L., Higgins S. B., Collins J. C., O'Connor J. L., Price R. R., Brill A. B. Scintigraphic characteristics of experimental myocardial infarct extension. Circulation. 1979 Nov;60(5):1130–1140. doi: 10.1161/01.cir.60.5.1130. [DOI] [PubMed] [Google Scholar]
  22. Maddox D. E., Holman B. L., Wynne J., Idoine J., Parker J. A., Uren R., Neill J. M., Cohn P. F. Ejection fraction image: a noninvasive index of regional left ventricular wall motion. Am J Cardiol. 1978 Jun;41(7):1230–1238. doi: 10.1016/0002-9149(78)90880-9. [DOI] [PubMed] [Google Scholar]
  23. Marcus M. L., Kerber R. E., Ehrhardt J., Abboud F. M. Three dimensional geometry of acutely ischemic myocardium. Circulation. 1975 Aug;52(2):254–263. doi: 10.1161/01.cir.52.2.254. [DOI] [PubMed] [Google Scholar]
  24. Marcus M. L., Tomanek R. J., Ehrhardt J. C., Kerber R. E., Brown D. D., Abboud F. M. Relationships between myocardial perfusion, myocardial necrosis, and technetium--99m pyrophosphate uptake in dogs subjected to sudden coronary occlusion. Circulation. 1976 Oct;54(4):647–653. doi: 10.1161/01.cir.54.4.647. [DOI] [PubMed] [Google Scholar]
  25. Metz C. E. Basic principles of ROC analysis. Semin Nucl Med. 1978 Oct;8(4):283–298. doi: 10.1016/s0001-2998(78)80014-2. [DOI] [PubMed] [Google Scholar]
  26. Mueller T. M., Marcus M. L., Ehrhardt J. C., Chaudhuri T., Abboud F. M. Limitations of thallium-201 myocardial perfusion scintigrams. Circulation. 1976 Oct;54(4):640–646. doi: 10.1161/01.cir.54.4.640. [DOI] [PubMed] [Google Scholar]
  27. Niess G. S., Logic J. R., Russell R. O., Jr, Rackley C. E., Rogers W. J. Usefulness and limitations of thallium-201 myocardial scintigraphy in delineating location and size of prior myocardial infarction. Circulation. 1979 May;59(5):1010–1019. doi: 10.1161/01.cir.59.5.1010. [DOI] [PubMed] [Google Scholar]
  28. Okada R. D., Kirshenbaum H. D., Kushner F. G., Strauss H. W., Dinsmore R. E., Newell J. B., Boucher C. A., Block P. C., Pohost G. M. Observer variance in the qualitative evaluation of left ventricular wall motion and the quantitation of left ventricular ejection fraction using rest and exercise multigated blood pool imaging. Circulation. 1980 Jan;61(1):128–136. doi: 10.1161/01.cir.61.1.128. [DOI] [PubMed] [Google Scholar]
  29. Pavel D. G., Zimmer M., Patterson V. N. In vivo labeling of red blood cells with 99mTc: a new approach to blood pool visualization. J Nucl Med. 1977 Mar;18(3):305–308. [PubMed] [Google Scholar]
  30. Rackley C. E. Quantitative evaluation of left ventricular function by radiographic techniques. Circulation. 1976 Dec;54(6):862–879. doi: 10.1161/01.cir.54.6.862. [DOI] [PubMed] [Google Scholar]
  31. Rerych S. K., Scholz P. M., Newman G. E., Sabiston D. C., Jr, Jones R. H. Cardiac function at rest and during exercise in normals and in patients with coronary heart disease: evaluation by radionuclide angiocardiography. Ann Surg. 1978 May;187(5):449–464. doi: 10.1097/00000658-197805000-00002. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Rivas F., Cobb F. R., Bache R. J., Greenfield J. C., Jr Relationship between blood flow to ischemic regions and extent of myocardial infarction. Serial measurement of blood flow to ischemic regions in dogs. Circ Res. 1976 May;38(5):439–447. doi: 10.1161/01.res.38.5.439. [DOI] [PubMed] [Google Scholar]
  33. Rudolph A. M., Heymann M. A. The circulation of the fetus in utero. Methods for studying distribution of blood flow, cardiac output and organ blood flow. Circ Res. 1967 Aug;21(2):163–184. doi: 10.1161/01.res.21.2.163. [DOI] [PubMed] [Google Scholar]
  34. Sesto M., Schwarz F. Regional myocardial function at rest and after rapid ventricular pacing in patients after myocardial revascularization by coronary bypass graft or by collateral vessels. Am J Cardiol. 1979 May;43(5):920–928. doi: 10.1016/0002-9149(79)90354-0. [DOI] [PubMed] [Google Scholar]
  35. Sharma B., Goodwin J. F., Raphael M. J., Steiner R. E., Rainbow R. G., Taylor S. H. Left ventricular angiography on exercise. A new method of assessing left ventricular function in ischaemic heart disease. Br Heart J. 1976 Jan;38(1):59–70. doi: 10.1136/hrt.38.1.59. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Slutsky R., Karliner J., Ricci D., Schuler G., Pfisterer M., Peterson K., Ashburn W. Response of left ventricular volume to exercise in man assessed by radionuclide equilibrium angiography. Circulation. 1979 Sep;60(3):565–571. doi: 10.1161/01.cir.60.3.565. [DOI] [PubMed] [Google Scholar]
  37. Swain J. L., Morris K. G., Bruno F. P., Cobb F. R. Comparison of multigated radionuclide angiography with ultrasonic sonomicrometry over a wide range of ventricular function in the conscious dog. Am J Cardiol. 1980 Dec 1;46(6):976–982. doi: 10.1016/0002-9149(80)90354-9. [DOI] [PubMed] [Google Scholar]
  38. Theroux P., Franklin D., Ross J., Jr, Kemper W. S. Regional myocardial function during acute coronary artery occlusion and its modification by pharmacologic agents in the dog. Circ Res. 1974 Dec;35(6):896–908. doi: 10.1161/01.res.35.6.896. [DOI] [PubMed] [Google Scholar]
  39. Tzivoni D., Diamond G., Pichler M., Stankus K., Vas R., Forrester J. Analysis of regional ischemic left ventricular dysfunction by quantitative cineangiography. Circulation. 1979 Dec;60(6):1278–1283. doi: 10.1161/01.cir.60.6.1278. [DOI] [PubMed] [Google Scholar]
  40. Vatner S. F., Millard R. W., Patrick T. A., Heyndrickx G. R. Effects of isoproterenol on regional myocardial function, electrogram, and blood flow in conscious dogs with myocardial ischemia. J Clin Invest. 1976 May;57(5):1261–1271. doi: 10.1172/JCI108394. [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Wyatt H. L., Forrester J. S., da Luz P. L., Diamond G. A., Chagrasulis R., Swan H. J. Functional abnormalities in nonoccluded regions of myocardium after experimental coronary occlusion. Am J Cardiol. 1976 Mar 4;37(3):366–372. doi: 10.1016/0002-9149(76)90285-x. [DOI] [PubMed] [Google Scholar]
