. Author manuscript; available in PMC: 2015 Jan 1.
Published in final edited form as: Lasers Med Sci. 2013 Apr 26;29(1):10.1007/s10103-013-1319-0. doi: 10.1007/s10103-013-1319-0

Effect of red and near infrared wavelengths on low-level laser (light) therapy induced healing of partial-thickness dermal abrasion in mice

Asheesh Gupta 1,2,3, Tianhong Dai 4,5, Michael R Hamblin 6,7,8
PMCID: PMC3766381  NIHMSID: NIHMS472924  PMID: 23619627

Abstract

Low-level laser (light) therapy (LLLT) promotes wound healing, reduce pain, inflammation, and prevent tissue death. Studies have explored the effects of various radiant exposures on the effect of LLLT, however studies of wavelength dependency in in vivo models are less common. In the present study, healing effects of LLLT mediated by different wavelengths of light in the red and near infrared (NIR) wavelength region (635, 730, 810 and 980 nm) delivered at constant fluence (4 J/cm2) and fluence rate (10 mW/cm2) were evaluated in a mouse model of partial-thickness dermal abrasion. 635 and 810 nm wavelengths were found to be effective in promoting healing of dermal abrasions. However, treatment using 730 and 980 nm wavelengths showed no sign of stimulated healing. Healing was maximally augmented in mice treated with 810 nm as evidenced by a significant wound area reduction (p < 0.05), enhanced collagen accumulation, and complete re-epithelialization as compared to other wavelengths and non-illuminated controls. A significant acceleration of re-epithelialization and cellular proliferation revealed by immunofluorescence staining for cytokeratin-14 and proliferating cell nuclear antigen (PCNA) (p < 0.05) was evident in 810 nm compared with other groups. Photobiomodulation mediated by red (635 nm) and NIR (810 nm) light suggests that the biological response of the wound tissue depends on the wavelength employed. The effectiveness of 810 nm agrees with previous publications, and together with the partial effectiveness of 635 nm and ineffectiveness of 730 and 980 nm can be explained by the absorption spectrum of cytochrome c oxidase, the candidate mitochondrial chromophore in LLLT.

Keywords: Cytokeratin-14, Low-level laser (light) therapy, Near infrared, Partial-thickness abrasion, Photobiomodulation, Proliferating cell nuclear antigen (PCNA)

Introduction

The use of laser or other light sources at non-thermal irradiances for healing, and relief of pain and inflammation (among other medical applications) is known as low-level laser (or light) therapy (LLLT), phototherapy or photobiomodulation. In past few decades large numbers of reports demonstrating positive effects of LLLT in various in vitro [1–7], in vivo [5, 8–12] and clinical studies [13–16] have been published. LLLT has emerged in recent years as a non-invasive physical modality for various musculoskeletal, neurological and cutaneous disorders [17]. LLLT involves exposing cells or tissue to low-levels of red and near infrared (NIR) light, and is referred to as ‘low-level’ because of the use of light at energy or power densities that are low compared to other forms of laser therapy that are used for ablation, cutting, and thermally coagulating tissue.

The mechanism associated with the photobiostimulation by LLLT is not yet fully understood. It appears that LLLT has a wide range of effects at the molecular, cellular, and tissular levels. The basic biological mechanism behind the effects of LLLT is thought to be through absorption of red and NIR light by chromophores, in particular cytochrome c oxidase (CCO) which is unit IV in the respiratory chain located within the mitochondria [18], and perhaps also chromophores in the plasma membrane of cells, and thereafter a cascade of events occur in the mitochondria, leading to biostimulation of various processes [19]. Absorption spectra obtained for CCO in different oxidation states were recorded and found that to be very similar to the action spectra for biological responses to LLLT [18]. It is assumed that this absorption of light energy may cause photodissociation of inhibitory nitric oxide from CCO [20] leading to enhancement of enzyme activity [21], increased electron transport [22], oxygen consumption, mitochondrial respiration and ATP production [23]. In turn, LLLT by altering the mitochondrial or cellular redox state can induce the activation of numerous intracellular signaling pathways; alter the affinity of transcription factors concerned with cellular migration, proliferation, survival, tissue repair and regeneration [18].

Although LLLT is now used to treat a wide variety of ailments, it still remains somewhat controversial as a therapy for two principle reasons: firstly there remain uncertainties about the fundamental molecular and cellular mechanisms responsible for transducing signals from the photons incident on the cells to the biological effects that take place in the irradiated tissue. Secondly a large number of dosimetry parameters which are mainly categorized in two ways, i.e. the irradiation or the ‘medicine’ (wavelength, irradiance or power density, pulse structure, coherence, polarization); and the delivered fluence or dose’ (energy, fluence, irradiation time, repetition regimen). A less than optimal choice of parameters can result in reduced effectiveness of the treatment, or even a negative therapeutic outcome [17]. As a result, many of the published studies on LLLT include negative results simply because of an inappropriate choice of light source and dosage [24]. It is important to consider that there is an optimal dose of light for any particular application, and doses higher or lower than this optimal value may have no therapeutic effect. In fact, one important point that has been demonstrated by multiple studies is the concept of a biphasic dose response depicted by LLLT [17]. Laser radiation or non-coherent light has a wavelength and radiant exposure dependent capability to alter cellular behavior in the absence of significant heating [25]. Phototherapy includes wavelengths of between 500–1,100 nm and typically involves the delivery of 1–4 J/cm2 to treatment sites. There is a considerable debate in the literature about the differences between the cellular effects of monochromatic laser-light and polychromatic light from non-laser light sources [16, 26]. In this context, earlier our group demonstrated that LLLT stimulated healing of excision-type dermal wounds in mice and reported no difference between non-coherent 635 ± 15 nm light and coherent 632.8 nm laser [8] irradiations performed using same spot size and same fluence (2 J/cm2). While the various studies exploring the effects of different power and energy densities on the outcome of the treatment however, the studies of the wavelength dependency, especially in in vivo models are less widespread. In view of the wide variety of different light sources available to perform LLLT it is important to define all parameters exactly so that studies can be compared with each other.

Since light has a wavelength dependent capability to alter cellular behavior, hence in the present study, healing effects of LLLT mediated by different wavelengths of light in the red and NIR wavelength region (635, 730, 810 and 980 nm) delivered at constant fluence (4 J/cm2) and fluence rate (10 mW/cm2) were evaluated in a mouse model of partial-thickness dermal abrasion. This study aimed to identify the light wavelength that would augment healing process by improving wound contraction, cellular proliferation, collagen deposition and re-epithelialization in partial-thickness dermal abrasions.

In this study, we used a mouse model of a partial-thickness dermal abrasion to mimic the dermal scrape in humans (skin trauma including sports, road accidents and combat situations). Dermal abrasions are wounds that rub or tear off the upper layer of the skin comprising of epidermis, and partially damaged dermis up to subcutaneous layer. Human wound healing is governed by re-epithelialization not by contraction, which is commonly observed in excision-type wound healing in animals. The animal possesses a subcutaneous panniculus carnosus muscle, which contributes to the repair via contraction and collagen formation. However, this structure is absent in humans. The present partial-thickness dermal abrasion mouse model was used to evaluate the effect of LLLT in a wound healing model where re-epithelialization is the dominant mode of healing rather than wound contraction and which also represents a high clinical relevance. Further, in this study the re-epithelialization and cellular proliferation in the LLLT-induced partial-thickness dermal abrasion were monitored by using specific molecular markers viz. cytokeratin-14 and proliferating cell nuclear antigen (PCNA) respectively.

Methods

Animals

The experiments were approved by the Subcommittee on Research Animal Care of Massachusetts General Hospital (IACUC) and were in accordance with NIH guidelines. Adult male BALB/c mice (Charles River Laboratories, Wilmington, MA), 7–8 week old and weighing 18–20 g, were used in this study. The animals were housed one per cage (to prevent cage-mate attacks on wounds) and had access to food and water ad libitum. The mice were maintained on a 12-hour light/dark cycle under a room temperature of 21 °C.

Mouse model of partial-thickness dermal abrasion

The animals were anesthetized by an intra-peritoneal (i.p.) injection of a ketamine–xylazine cocktail (90 mg/kg ketamine and 10 mg/kg xylazine) before wounding procedure and during follow-up treatment. The dorsal surface of the mouse was shaved using an electric fur clipper, and the underlying skin was cleaned with sterile 70% isopropanol. Mouse skin was then scraped with no. 15 sterile scalpel blades (Feather Safety Razor Co. Ltd., Osaka, Japan) until a reddened area appeared. This procedure resulted in partial-thickness skin abrasions with removed epidermis, and partially damaged dermis up to subcutaneous layer with some oozing of a small amount of blood, and surface became dark red. Each wound measured approximately 1.2 cm×1.2 cm. The wound was left uncovered during the whole period of experiments. The previous histological analysis revealed that epidermis and partially dermis up to subcutaneous layer were completely injured.

Experimental design

Four light sources were used in this study for irradiation. A non-coherent light source with interchangeable 30-nm band pass filters (LumaCare, London, UK) was used to deliver 635 ± 15 nm light; a 730-nm diode laser (Pharmacyclics Cambridge, UK); an 810-nm diode laser (Acculaser, Photothera Inc., Carlsbad, CA); and a 980-nm diode laser (V-Raser, HoyaConBio, Fremont, CA). All the lasers were coupled into a fiber-optic that was arranged to deliver a light spot centered on the dorsal surface of the mouse with the dermal abrasion. The fluence rates were measured with a power meter (PM 100D with Standard head, Thorlabs Gmbh, Dachau, Germany) and adjusted to be 10 mW/cm2. Table 1 depicts irradiation parameters for partial-thickness dermal abrasion in mice.

Table 1.

Irradiation parameters for partial-thickness dermal abrasion in mice.

Wavelength (nm) 635 ± 15 730 810 980
Mode CW lamp CW laser CW laser CW laser
Fluence rate (mW/cm2) 10 10 10 10
Fluence (J/cm2) 4 4 4 4
Power (mW) 22.5 22.5 22.5 22.5
Energy (J) 9 9 9 9
Time of irradiation/day (min) 6.6 6.6 6.6 6.6
Spot size on mouse (cm2)* 2.25 2.25 2.25 2.25
Number of animals 6 6 6 6
(Controls, n = 6)
Open in a new tab
*

Spot size was defined by the area of the square window in aluminum-foil (1.5 cm × 1.5 cm) used to cover the mouse body. Each wound measured approximately 1.2 cm×1.2 cm. CW, continuous-wave.

A total of 30 mice were randomly divided into five groups of 6 mice per group, comprising of four experimental and one non-illuminated control group. Experimental groups of mice received a single illumination with 635, 730, 810, or 980 nm light irradiation respectively (at the constant fluence of 4 J/cm2) 30 minutes post-injury. The irradiations were performed in the same manner with the different probes. The spot of the light beam had an area of 2.25 cm2 that covered the entire dermal abrasion including the surrounding normal tissue to stimulate unwounded dermal cells (keratinocytes and endothelial cells) to migrate into wounded area. Non-illuminated control mice with dermal abrasions were kept anesthetized for the same length of time as the illuminated mice. Control abrasions received no light and were left to heal spontaneously.

Irradiation was delivered once daily for seven consecutive days. The wounds were observed daily and wound images were acquired on 0, 1, 2, 4 and 8 day post-injury using a charge-coupled device camera (CCD) (Olympus PEN E-PL1). Mice were sacrificed by CO2 inhalation on the eighth day post-injury and skin samples were carefully collected to include the adjacent healthy tissue and all the healed tissue to perform histopathological and immunohistochemistry analysis.

Wound area measurement

Wound surface area was monitored by capturing the video images of each partial-thickness abrasion together with a ruler (mm) using the Olympus digital camera and downloaded to a computer. The first image of each abrasion wound from the different groups was obtained on the day of injury (day 0). The subsequent images were captured on first, second, fourth and eighth day post-injury. The wound area analysis was performed by Fiji (ImageJ) software and values were expressed in mm2. Repeated measurements were accurate to within 2%.

Histological studies

The regenerated skin tissues were preserved in 10% phosphate-buffered formalin (Fisher Sci., USA) for 18–24 h, processed, and then embedded in paraffin. Serial tissue sections of 4-μm thickness were prepared, and stained with hematoxylin and eosin (H&E) and observed for histological changes under light microscope (Axiophot, Carl Zeiss Microscope, Thornwood, NY). Gomori Trichrome (GT) staining (Leica Microsystem, USA) for collagen was also performed on paraffin sections, followed by photomicrography.

Immunohistochemistry for PCNA and cytokeratin-14

PCNA is a 36 kDa polypeptide and is known to be strongly expressed in the nuclear region of cells where DNA synthesis is occurring. Cytokeratin-14 is a 50 kDa polypeptide found in the basal cells of squamous epithelia, glandular epithelia, myoepithelium, mesothelial cells and also found in keratinocytes surrounding the club hair during hair production resting phase (telogen). Epithelialization originated from adnexal structures in which epithelial islets showed positive staining for cytokeratin-14 and PCNA. In the present study, changes in the mitotic rate (cell proliferation) and re-epithelialization following dermal abrasion in mice treated with LLLT were studied immunohistochemically (IHC) using PCNA and cytokeratin-14 primary antibodies respectively.

Briefly, sections were deparaffinized in Citrisolv solution (Fisher Sci., USA) and rehydrated with descending ethanol series. After antigen retrieval (DAKO North America Inc., CA), tissue sections were permeabilized with Triton-X 100 (0.1%) followed by blocking with 10% goat serum in PBS at 37 °C for 30 min. After that tissue sections were incubated with the primary antibody against rabbit polyclonal to PCNA (Abcam, MA) (1:500) at 4 °C for overnight and fluorescence-labeled secondary antibody (Alexa Fluor-680 goat anti-rabbit IgG, Invitrogen, CA) (1:500) in dark for 1 h at room temperature, washed with PBS, coverslipped with mounting media including diamidino-2-phenylindole (DAPI) (SlowFade Gold anti-fade reagent, Invitrogen CA). Negative controls were treated with PBS instead of primary antibody.

For cytokeratin-14 IHC staining, a primary antibody against mouse monoclonal to cytokeratin-14 (Abcam, MA) was used. Tissue sections were processed in similar way as PCNA until the permeabilization step. After that, a further procedure was performed using Vector Mouse-on-Mouse (M.O.M.) Immunodetection Kit’s (Vector Lab Inc., Burlingame, CA) following instructions supplied by the manufacturer. Briefly, tissue sections were incubated for 30 min at room temperature with anti-cytokeratin-14 (1:200) followed by incubation with M.O.M. biotinylated anti-mouse IgG reagent (2nd antibody) for 10 min at room temperature. Then, the tissue sections were incubated in dark for 5 min at room temperature with Fluorescein Avidin DCS (Vector Labs). Between the incubations, the tissue sections were extensively washed in PBS. The sections were then mounted with cover slips using mounting medium with DAPI.

Fluorescent images were obtained using an Olympus Fluoview FV1000-MPE multiphoton confocal microscope (Olympus Corporation, Tokyo, Japan) to image the LLLT treated tissue sections. The microscope used excitation wavelengths of 488 nm for Fluorescein, 647 nm for Alexa Fluor-680 and 405 nm for DAPI-associated fluorescence. DAPI was used as nuclear counter stain. The emission signals were observed using a set of band-pass filters: for DAPI (425–475 nm), Fluorescein (505–556 nm) and Alexa Fluor-680 (660–760 nm) and images acquired using Olympus Fluoview FV10-ASW software, version 3.0a (Olympus Corporation, Tokyo, Japan). Further, images were merged and signals of the integrated fluorescence intensity were quantitatively analyzed at 60X magnification using Fiji (ImageJ) software. In the confocal fluorescence micrographs, the fluorescence from PCNA, cytokeratin-14 and DAPI was pseudo-colored red, green and blue respectively to make superimposition more visible.

Statistical analysis

Data are presented as mean ± SE. Differences in the wound surface area and integrated immunofluorescence intensity (PCNA and cytokeratin-14) between the non-illuminated control and different wavelengths of light treated groups were compared for statistical significance using one-way ANOVA followed by Dunnett’s post-hoc test using Graph Pad Prism 5.0 (Graph Pad Software Inc., La Jolla, CA, USA). A p-value < 0.05 was considered statistically significant.

Results

Wound area evaluation after LLLT

In the present study we compared four different wavelength ranges of red and NIR light centered at 635, 730, 810 and 980 nm delivered at a constant fluence (4 J/cm2) and fluence rate (10 mW/cm2), to study dermal wound healing response variation with wavelength. Table 2 depicts the effect of light treatment with different wavelengths on wound area. Illuminated wounds treated with different wavelengths exhibited wound contraction from day 1 till observation of day 8 post-injury. However, non-illuminated control wounds initially expanded on day 1 post-injury and at day 2 control wounds were the same size as the original size on day 0. From day 4 onwards, control wound exhibited a gradual reduction in wound area. Day 4 and 8 post-injury revealed that the mice treated with 810 nm had a significant reduction in wound area compared with the non-illuminated control mice (p < 0.05). However, no significant differences were detected in other groups treated with 635, 730 and 980 nm light at 4 and 8 day post-injury (Table 2).

Table 2.

Effect of the wavelength of light on wound surface area (mm2) of partial-thickness dermal abrasion in mice.

Post-wounding day Control Wavelength of light
635 nm 730 nm 810 nm 980 nm
Day 0 147.0 ± 2.1 143.8 ± 1.2 148.2 ± 1.9 146.7 ± 1.7 145.8 ± 1.4
Day 1 169.0 ± 1.6 (−15) 117.6 ± 1.6*(18) 134.6 ± 3.4* (9) 112.9 ± 3.2* (23) 126.5 ± 8.0*(13)
Day 2 146.9 ± 10.5 104.1 ± 2.1* (28) 119.2 ± 2.7*(20) 91.2 ± 3.5*(38) 114.3 ± 8.4*(22)
Day 4 91. 0 ± 10.4 (38) 95.3 ± 1.1 (34) 105.7 ± 3.0 (29) 67.2 ± 4.1*(54) 101.9 ± 7.0 (30)
Day 8 59.2 ± 6.4 (60) 52.3 ± 1.5 (64) 48.0 ± 3.3 (68) 41.9 ± 3.6* (71) 60.5 ± 4.1 (59)
Open in a new tab

Values are mean ± SE; N = 6 per group; Numbers in parenthesis indicate percentage of wound contraction;

*

p < 0.05 compared with non-illuminated control. Wounds received no illumination (control) and single exposure daily to different wavelengths 635, 730, 810 or 980 nm light delivered at constant fluence (4 J/cm2) and fluence rate (10 mW/cm2).

Morphological changes after LLLT

Multiple cross-sections of H&E stained sections of light treated and untreated dermal wound tissues of mice were examined for epithelial regeneration, formation of granulation tissue and fibrogenesis. The non-illuminated control wounds showed denuded epithelium and the wound itself showed a number of inflammatory cells, such as neutrophils and lymphocytes, and scattered fibroblasts at day 8 post-injury (Fig. 1). In contrast, the histopathological examinations indicated that 635 and 810 nm were effective in promoting repair of partial-thickness dermal abrasion in mice. The most pronounced stimulation of wound healing as evidenced by enhanced organization and initiation of fibrogenesis, neo-vascularization and complete re-epithelialization was observed in 810 nm compared to the 635 nm treated wounds. However, 730 and 980 nm treated wounds showed no sign of healing. Moreover, 980 nm treatment revealed edema, denuded epithelium and persisting inflammatory infiltrate in wound bed (Fig. 1).

Fig. 1.

Fig. 1

Open in a new tab

Histopathological changes on eighth day post-injury in partial-thickness dermal abrasion in mice. H & E stained sections of non-illuminated control show denuded epidermis and infiltration of inflammatory cells in the wound bed. On the other hand 635 and 810 nm light treatment resulted in enhanced fibrosis, collagen accumulation, neovascularization and re-epithelialization. Healing effect was more pronounced in the 810 nm compared with the 635 nm light. 810 nm light treatment showed wound surface with well-organized thick epithelium. However, 730 and 980 nm light treated wounds showed no sign of healing. 980 nm light treatment showed edema and denuded epidermis with marked infiltration of inflammatory cells in wound bad. Scale bar, 100 μm (bottom panels). d, dermis; e, epidermis; f, fibrosis; me, migrating tongue of the epidermis; n, necrotic tissue. Arrows show denuded epithelialization in case of non-illuminated control and light (730 and 980 nm) treated wounds.

The extent of collagen deposition in the wound granulation tissue was examined by trichrome staining (Fig. 3). 810 nm treatment resulted in enhanced collagen accumulation in the wounds compared with the other light treated groups and non-illuminated control. Non-illuminated control wounds had a loose reticular arrangement of collagen, whereas collagen was compact and well aligned in the 810 nm treated wounds (Fig. 2).

Fig. 3.

Fig. 3

Open in a new tab

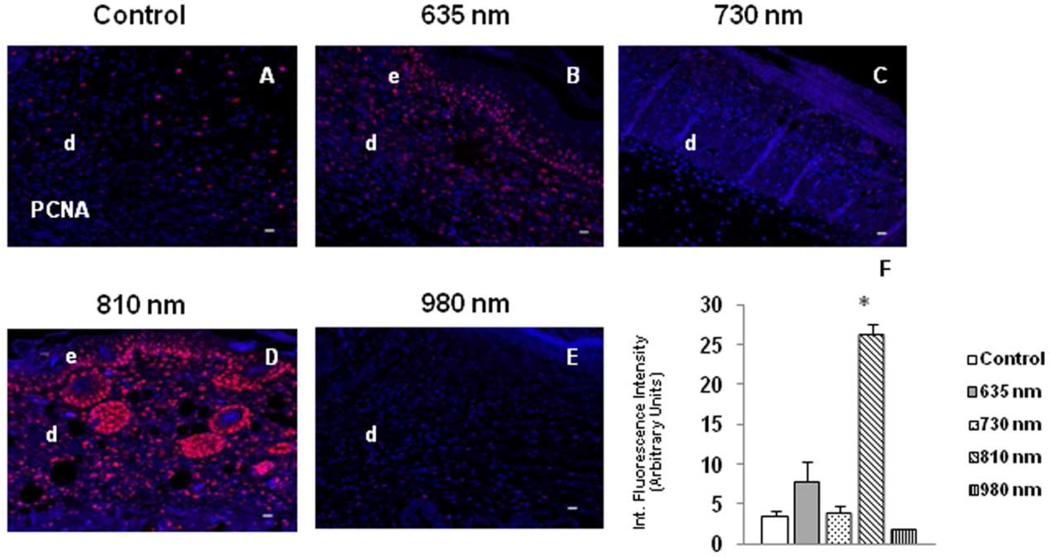

Representative images of PCNA immunofluorescence staining on eighth day post-injury in partial-thickness dermal abrasion in mice showing enhanced cellular proliferation as evidenced by increased expression of PCNA in 810 nm light treated wound compared with the non-illuminated control and other light (635, 730 and 980 nm) treated groups. (A–E) Immunofluorescence of PCNA and DAPI are represented by red and blue pseudo-color respectively. DAPI is used for nuclear counter stain. Scale bar, 20 μm (bottom panels). d, dermis; e, epidermis. (F) Integrated immunofluorescence intensity of PCNA was quantitatively analyzed from digital immunofluorescence images using Fiji (ImageJ) software. Data are expressed as mean value of integrated immunofluorescence intensity of PCNA ± SE; N= 6 per group; *p < 0.05 compared with the non-illuminated control and other light (635, 730 and 980 nm) treated groups.

Fig. 2.

Fig. 2

Open in a new tab

Trichrome staining shows collagen on eighth day post-injury in partial-thickness dermal abrasions in mice. Sections of non-illuminated control and other light (635, 730 and 980 nm) treated groups showed less and irregularly arranged collagen, whereas 810 nm light treatment showed compact and well-aligned collagen fibers. Scale bar, 50 μm (bottom panels).

IHC localization of PCNA and cytokeratin-14 after LLLT

Figure 3 and 4 show the IHC staining for PCNA and cytokeratin-14 after treatment with different wavelengths of light at eighth day post-injury. Quantitative analysis of immunofluorescence intensity revealed a significant increase in PCNA located in the epidermis-dermis (3–14 folds) and also in epidermal cytokeratin-14 expression (6–20 folds) in 810 nm treated wounds compared with the non-illuminated control and other light treated wounds (p < 0.05). However, 635 nm treatment showed a trend for increasing PCNA and cytokeratin-14 expression compared with the controls that did not reach significance. There was no difference in the expression of PCNA and cytokeratin-14 in 730 and 980 nm light treated wounds compared with the control. Negative control demonstrated no staining (not shown).

Fig. 4.

Fig. 4

Open in a new tab

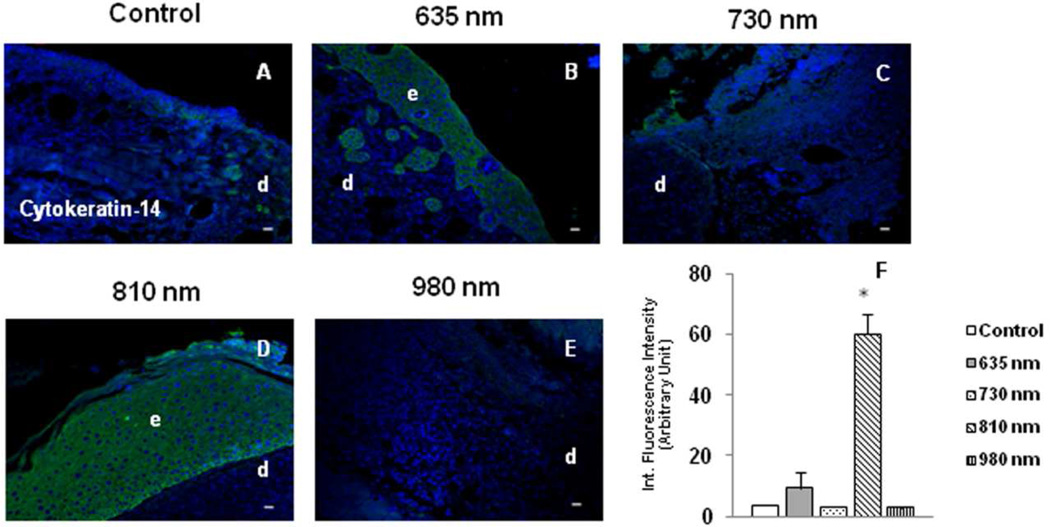

Representative images of cytokeratin-14 immunofluorescence staining on eighth day post-injury in partial-thickness dermal abrasion in mice showing complete re-epithelialization as evidenced by enhanced expression of cytokeratin-14 in 810 nm light treated wound compared with the non-illuminated control and other light (635, 730 and 980 nm) treated groups. (A–E) Immunofluorescence of cytokeratin-14 and DAPI are represented by green and blue pseudo-color respectively. DAPI is used for nuclear counter stain. Scale bar, 20 μm (bottom panels). d, dermis; e, epidermis. (F) Integrated immunofluorescence intensity of cytokeratin-14 was quantitatively analyzed from digital immunofluorescence images using Fiji (ImageJ) software. Data are expressed as mean value of integrated immunofluorescence intensity of cytokeratin-14 ± SE; N= 6 per group; *p < 0.05 compared with the non-illuminated control and other light (635, 730 and 980 nm) treated groups.

Discussion

A light beam applied to live tissue will have different effects on the tissue components dependent upon the wavelength of the radiation and the tissue component susceptibility to different wavelengths. The aim of this study was to evaluate the effects of the light wavelength by delivering at constant fluence (4 J/cm2) and fluence rate (10 mW/cm2) of four different wavelengths (635, 730, 810 and 980 nm) of light in a mouse model of partial-thickness dermal abrasion. The results of the present study indicated that light irradiated wounds resulted in significant reduction in wound area. Interestingly, marked difference between illuminated and non-illuminated control wounds was observed at day 1 post-injury. Control wounds showed an expansion on day 1 in wound area being almost 15% bigger than it was immediately after wounding. However, the illuminated wounds treated with different wavelengths decreased in wound area after light delivery on day 1 and 2 post-injury. However, later days of post-injury (4 and 8) demonstrated no significant differences in wound area contraction of control compared with the light treated groups (635, 730 & 980 nm). Remarkably, the wound area was found significantly reduced in 810 nm light treated wounds at day 4 and 8 post-injury compared with control. In this study, we demonstrated that both, red (635 nm) and NIR (810 nm) light can significantly enhance the healing of partial-thickness dermal abrasions. Similarly, other studies have also reported that He-Ne laser (632.8 nm) and other wavelengths (660–670 nm) irradiation at fluence of 1–6 J/cm2 stimulated healing in normal and impaired wounds (burns and diabetic) by re-epithelialization and granulation tissue formation [8, 9, 11, 27, 28].

Interestingly, results of the present study indicate that NIR lasers at 730 or 980 nm did not produce the same beneficial positive effects on dermal abrasion. The most pronounced stimulation of healing in dermal abrasion was observed in 810 nm treatment as evidenced by significant wound area contraction and enhanced collagen accumulation, neo-vascularization and complete re-epithelialization compared with the 635 nm treated and non-illuminated control. A significant enhancement of re-epithelialization and cellular proliferation revealed by positive immunofluorescence staining for cytokeratin-14 and PCNA across the wound surface and dermal granulation tissue was evident in 810 nm treatment. The rapid wound healing in 810 nm treated mice might be attributed to the photobiostimulative effects on the non-wounded healthy tissue, which in turn inducing the unwounded keratinocytes and endothelial cells in the surrounding skin to migrate into the wounded area and promoting re-epithelialization and angiogenesis. The fact that red and NIR light can penetrate into deep tissue injury allows non-invasive treatment to be carried out for augmented healing processes. Visible red light (660 nm) is readily absorbed by blood and skin surface components thereby limiting its tissue penetration to < 10 mm. NIR laser 810 nm is not readily absorbed and has a much larger depth of tissue penetration of 30–40 mm or greater and thereby providing greater deposition of photons in the wound bed [11]. The effectiveness of 810 nm light agrees with previous publications, which showed positive healing effects of 810 nm in in vitro and in vivo studies performed on cortical neurons, bone-marrow derived dendritic cells and traumatic brain injury mouse models [7, 12]. These studies suggested that LLLT at 810 nm wavelength and lower fluence is capable of inducing mediators of cell signaling processes which in turn may be responsible for the beneficial stimulatory effects of the LLLT, however; at higher fluences beneficial effects are reduced.

Light must be absorbed by a photoacceptor to exert photobiomodulation effects on living biological systems. Indeed, recent studies identified mitochondrial photoacceptor-cytochrome c oxidase (CCO) as a principal tissue chromophore for visible/ NIR spectral light [18, 23]. During LLLT, absorption of red or NIR photons by CCO in the mitochondrial respiratory chain causes an increase in cellular respiration that leads to an increase in the production of ATP, which is required for numerous cellular functions providing both energy and phosphates required for the regulation of cellular functions [20]. CCO has distinct absorption bands in the red (around 665 nm) and in the NIR (around 810 nm) regions [29]. There is a minimum absorption of light by CCO at 730 nm, and there have been reports that this wavelength is ineffective in preserving cultured cortical neurons from cyanide toxicity [21] and also did not improve neurobehavioral performance of mice after closed-head traumatic brain injury [12], while 665–670 and 810–830 nm wavelengths were highly active in healing process [12, 29]. In the present study, 980 nm wavelength was found ineffective. However, it should be mentioned that several reports show that 980 nm is an active wavelength in LLLT applications [30, 31]. It is entirely possible that our finding that 980 nm was ineffective only meant that we used sub-optimal irradiation dosage parameters. In other words, if the fluence or fluence rate of 980 nm laser was lower than we used (or possibly higher) the effect on dermal healing might have been positive.

In conclusion, the findings of the present study would suggest that photobiostimulation induced healing for partial-thickness dermal abrasion in mice treated with red (635 nm) and NIR (810 nm) light is attributed to modulating various phases of the wound healing process which includes cellular proliferation, neo-vascularization, collagen accumulation and re-epithelialization of the wound bed. However, healing was more pronounced in 810 nm as compared to 635 nm light treatment which could be attributed to the greater penetration and to the absorption spectrum of cytochrome c oxidase, the candidate mitochondrial chromophore in LLLT.

Acknowledgements

This work was funded by the US NIH (R01AI050875). Asheesh Gupta was supported by BOYSCAST Fellowship 2010–11 (Department of Science and Technology, Govt. of India). Tianhong Dai was supported by an Airlift Research Foundation Extremity Trauma Research Grant (grant 109421). We would like to acknowledge and deeply thank Jie Zhao, PhD for her expertise and guidance with confocal microscopy and Peggy Sherwood and Julie LaGraves for their technical help with histology.

Contributor Information

Asheesh Gupta, Wellman Center for Photomedicine, Massachusetts General Hospital, Boston, MA 02114; Department of Dermatology, Harvard Medical School, Boston, MA 02115; Defence Institute of Physiology & Allied Sciences, Delhi 110 054, India.

Tianhong Dai, Wellman Center for Photomedicine, Massachusetts General Hospital, Boston, MA 02114; Department of Dermatology, Harvard Medical School, Boston, MA 02115.

Michael R. Hamblin, Wellman Center for Photomedicine, Massachusetts General Hospital, Boston, MA 02114 Department of Dermatology, Harvard Medical School, Boston, MA 02115; Harvard-MIT Division of Health Sciences and Technology, Cambridge, MA 02139.
