. 2015 Feb 16;5:8490. doi: 10.1038/srep08490

Phosphate ytterbium-doped single-mode all-solid photonic crystal fiber with output power of 13.8 W

Longfei Wang 1,2, Dongbing He 1,2, Suya Feng 1,2, Chunlei Yu 1,2, Lili Hu 1,2, Jianrong Qiu 3, Danping Chen 1,2,a
PMCID: PMC4329557  PMID: 25684731

Abstract

Single-mode ytterbium-doped phosphate all-solid photonic crystal fiber (AS-PCF) with 13.8 W output power and 32% slope efficiency was reported. By altering the diameter of the rods around the doped core and thus breaking the symmetry of the fiber, a polarization-maintaining AS-PCF with degree of polarization of >85% was also achieved, for the first time to knowledge, in a phosphate PCF.

Rare-earth (RE) doped double-clad fibers have been investigated for many years1,2; one of the primary objectives is to enlarge their core diameter and shorten the length, which is especially important in single-frequency fiber laser3 and pulsed laser4,5,6. Many solutions have been suggested to break the limitation of the core diameter in a traditional silica step-index fiber, including chirally-coupled-core (CCC) fibers7, leaky channel fibers8, gain-guiding fibers9, photonic bandgap fiber10, multi-trench fiber11, distributed modal filtering rod fiber12, large pitch fiber13, photonic crystal fibers (PCF)14,15,16,17, and so forth. To date, a single-mode large mode area (LMA) PCF with a core diameter up to 100 µm14, a large pitch fiber (LPF), modified version of PCF, with core diameter of ~135 µm13, and a LPF with 100 W output power and a short length of 40 cm were demonstrated18. However, typical LMA-PCFs are made of silica, and the photonic crystal cladding (PCC) contains hollows19,20,21,22 that limit the further improvement of PCF performance. On one hand, although PCF with heavily doped core contributes to increase the pump absorption efficiency and thus shorten the fiber, the rare-earth-solubility (RES) in silica is at a low level23,24,25,26,27. In addition, although using the Ge-doped background glass contributes to enhance the refractivity of the background and thereby increase the doping level in silica glass18, the enhanced RE increases the difficulty in handling the refractive indices of the core, which leads to index-mismatching between the core and the background glass, restricting the core diameter scalability of the PCF18. By contrast, the RES of a phosphate glass is almost ten times higher than silica28,29,30,31, and adjusting the indices of the glasses is remarkably convenient32,33,34,35,36,37. The high doping level contributes to remarkably increase the pump absorption of the fiber with length of several millimeters30,38, which is of importance in high power single frequency fiber with low noise and narrow laser linewidth and ultrafast fiber laser and amplifier with high stability, high repetition rate, low timing jitter, and low nonlinear effects39,40,41,42. On the other hand, the hollows in the PCC in a traditional silica and phosphate PCF14,30,43 complicate the splice process of the PCF with the commercially pigtailed optical devices such as the fiber-coupled pump source, thereby weakening the application potential of this kind of fiber in industry7. Fortunately, the all-solid (AS)44 PCF was suggested to solve this issue and make the splice process convenient, as in step-index fiber. Consequently, a high absorption, short length, and rigid LMA-PCF can be expected by adopting the soft glass and the AS structure. After the suggestion of the first Nd3+-doped phosphate multimode AS-PCF44, the Nd3+-doped silicate AS-PCF45, and Nd3+-doped phosphate single mode AS-PCF with core diameter up to 40 µm46 were obtained.

In this paper, we demonstrate an Yb3+-doped phosphate single mode all-solid photonic crystal fiber with output power of 13.8 W and core diameter of 17 µm. By breaking the symmetry of the fiber, a polarization-maintaining PCF with polarization extinction ratio of 11 dB was obtained for the first time in a phosphate PCF.

Figure 1 (a) shows the end-face of the fiber. The fiber is composed of three kinds of phosphate glasses. The 1-cell core is composed of Yb3+- doped phosphate glass (G0) with active dopant level of 6 wt.%. The inner cladding consists of glasses G1 (light grey area) and G2 (dark grey dots). The outer cladding was formed by G2. The compositions of G0, G1, and G2 are P2O5-Al2O3-K2O-BaO-Nb2O5-Sb2O3-La2O3-Yb2O3, P2O5-Al2O3-K2O-BaO-Nb2O5-Sb2O3-La2O3-Y2O3, and P2O5-Al2O3-Na2O-MgO-B2O3-La2O3-Y2O3, respectively. The refractive indices of G0, G1, and G2 are 1.5385, 1.5378, and 1.5143 at 1053 nm, respectively, measured by V prism method with accuracy of 5 × 10−5. The considerably large glass-forming region ensures a larger refractive index difference in the glasses, compared with silica, without the addition of any other dopants, such as germanium and fluorine37,38. The glasses were all provided by the Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences. Stack-and-draw method was used to prepare the fiber preform44. A G0 rod with diameter of 20 mm, a G1 tube with inner diameter of 12 mm and outer diameter of 20 mm, and two G2 rods with 12 mm and 20 mm in diameter, respectively, are fabricated. All of the rods and tube are made of the bulk glasses and have length of ~20 cm. Then, after appropriate acid treatment, the G1 tube and the G2 rod with 12 mm diameter are drawn into rods with 1 mm in diameter by the rod-in-tube method. The G0 rod and the G2 rod with 20 mm-diameter are also drawn into 1 mm rods. After this, the rods were closed packed in a die and then the acquired fiber perform was fed into the fiber fabrication tower and drawn into fibers with desired outer diameters. The ratio of the rod diameter, d, and the center-to-center distance between two nearest rods, Λ, is 0.6. A relatively large value of d/Λ and thereby a smaller core diameter of 17 µm was chose here because a larger core diameter, resulting from a small d/Λ value, necessitates a lower numerical aperture (NA) which induces a larger bend loss in our present 40-cm fiber. Further increasing the pump absorption, through raising the doping level and so forth, can contribute to shorten the fiber length and thus make the fiber with a larger core diameter immune to bend and other disturbance.

Figure 1. The microscopic image of (a) the AS-PCF, and (b) the PM-AS-PCF.

Figure 1

Open in a new tab

A fiber with 40 cm in length and an outer diameter of ~235 µm was used to build the laser. The NA and the normalized diameter of the inner cladding were 0.27 and ~115 µm, respectively. The doped core of the fiber was 17 µm in diameter, with a calculated effective NA of ~0.06 at around 1 µm. The core diameter is 1.7 times larger than that reported in Ref. 24, 25. Furthermore, the doped part has a loss of 2.3 dB/m at ~1330 nm and a pumping absorption coefficient (PAC) of ~27 dB/m at 970 nm. Both properties were measured using the cutback method. Please note that the PAC and the propagation loss of the fiber here are not optimal, which will weaken fiber performance, including the fiber length, slope efficiency, and maximum output power. Nevertheless, by optimizing pump wavelength, using a heavily doped core (>12 wt.%), which can be easily realized for phosphate glass29,47, and improving the fiber fabrication technology to decrease the propagation loss, the performance of our AS-PCF will considerably improve. A fiber-coupled laser diode operating at 970 nm was used as the pumping source. The maximum output power and the diameter of the spot size of the pump source is 80 W and 100 µm, respectively. A collimating lens was utilized to align the pumping beam, and a coupling lens with NA of 0.3 served as the laser input couple. Please note that the NA of the coupling lens is larger than that of inner cladding in the fiber, resulting in a relatively low pump coupling efficiency of ~65%. But the coupling efficiency can be easily improved by using a low NA coupling lens or by using a lower-index G3 glass to increase the NA of pump waveguide. The cavity was composed of a butt-coupled dichroic mirror with high reflectivity at around 1 µm, and a cleaved fiber end with ~4.5% Fresnel reflectivity.

The laser performance is shown in Figure 2 and the spectrum is shown in Figure 3. A maximum output power of ~13.8 W was extracted with the slope efficiency of 32% from the fiber. No rollover was found at the highest output power, implying that the maximum power of the laser is only limited by the maximum available pump power. Please note that both the output power and slope efficiency were lower than the results reported in Ref. 24.To further figure out the performance of our fiber, an AS-PCF without doped core is used to measure the propagation loss of the pump power in the inner cladding to be as large as 10 dB/m, leading to an effective pump absorption of 17 dB/m for the doped core. Such high loss is ascribed to the impurity introduced when preparing the low-index rods in the PCC by rod-in-tube method and the fiber preform, and is the main reason reducing the output power as well as the slope efficiency. However, by improving the fabrication technology, such as processing the glass rods and the tube more sophisticatedly, the loss of the inner cladding can be reduced and thus the laser performance can be improved. The laser spectrum has a full width at half maximum (FWHM) of ~3 nm with the central wavelength at 1047 nm. The beam quality factor (M2) of the laser is measured to be 1.07. The M2 factor and the far-field intensity profile of the laser are shown in Figure 4.

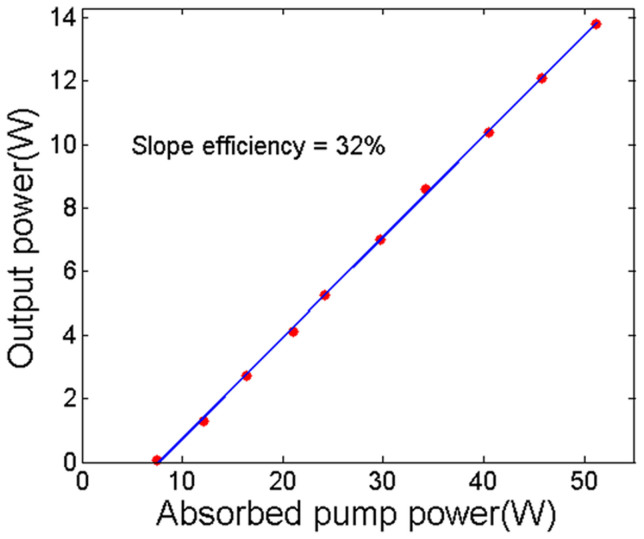

Figure 2. Measured laser output power plotted against the absorbed pump power.

Figure 2

Open in a new tab

Figure 3. Spectrum of the fiber laser.

Figure 3

Open in a new tab

Figure 4. Measured beam quality factors of the AS-PCF.

Figure 4

Open in a new tab

Inset, the beam profile in the far field.

By changing the diameter of two rods around the doped core of the non-PM-AS-PCF (Figure 1 (a))48,49 to make the fiber asymmetrical50, the PM-AS-PCF was realized for the first time to knowledge in a phosphate PCF. The ratio of diameter of the larger rod d2 and Λ is 1, as shown in Figure 1 (b). Furthermore, based on Figure 1 (b) the presence of these two larger rods can be observed to make the core elliptical, which is also beneficial for improving the form birefringence51,52. The PM property was characterized through the setup shown in Figure 5. The output power is characterized by a Glan-Taylor Calcite Polarizer using the definition of the degree of polarization DOP = |P1 − P2|/(P1 + P2) where P1 is the maximum and P2 the minimum power obtained by rotation the polarizer. The DOP for this fiber of 40 cm in length was measured at different pump powers, as shown in Figure 6 in which the DOP of the non-PM-AS-PCF was also plotted. According to Figure 6, the PM-AS-PCF has a stable and high DOP (>85%, equivalent to a polarization extinction ratio of >11 dB) in every pump power. By contrast, the DOP of the Non-PM-AS-PCF is low (<20% in general) and unstable, confirming the satisfactory PM property of the PM-AS-PCF.

Figure 5. Setup for characterizing the polarization properties of the fiber.

Figure 5

Open in a new tab

Figure 6. DOP vs. absorbed pump power for the polarizing and the non-polarizing AS-PCF.

Figure 6

Open in a new tab

In conclusion, a phosphate single mode Yb-doped all-solid photonic crystal fiber with 13.8 W output power and core diameter of 17 µm is reported. The polarization-maintaining PCF with degree of polarization of >85% was also, for the first time to knowledge, fabricated and characterized in a phosphate PCF. By developing the PAC and the propagation loss of the fiber, a shortened fiber with higher slope efficiency and output power can be obtained.

Author Contributions

L.W. wrote the main manuscript text, co-authors D.C., J.Q. and L.H. checked the paper, and D.H., S.F. and C.Y. are responsible for the experiment. All authors reviewed the manuscript.

Acknowledgments

This research was supported by the Chinese National Natural Science Foundation (No. 51272262).
