. 2015 Feb 3;72(4):206–215. doi: 10.1111/cod.12329

Chromium released from leather – I: exposure conditions that govern the release of chromium(III) and chromium(VI)

Yolanda S Hedberg 1,2,✉, Carola Lidén 1, Inger Odnevall Wallinder 2
PMCID: PMC4415597  PMID: 25653094

Abstract

Background

Approximately 1–3% of the adult population in Europe is allergic to chromium (Cr). A new restriction in REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) based on the ISO 17075 standard has recently been adopted in the EU to limit Cr(VI) in consumer and occupational leather products.

Objectives

The aim of this study was to critically assess key experimental parameters in this standard on the release of Cr(III) and Cr(VI) and their relevance for skin exposure.

Material and methods

Four differently tanned, unfinished, leather samples were systematically investigated for their release of Cr(III) and Cr(VI) in relation to surface area, key exposure parameters, temperature, ultraviolet irradiation, and time.

Results

Although the total release of Cr was largely unaffected by all investigated parameters, except exposure duration and temperature, the Cr oxidation state was highly dynamic, with reduced amounts of released Cr(VI) with time, owing to the simultaneous release of reducing agents from the leather. Significantly more Cr(III) than Cr(VI) was released from the Cr-tanned leather for all conditions tested, and it continued to be released in artificial sweat up to at least 1 week of exposure.

Conclusions

Several parameters were identified that influenced the outcome of the ISO 17075 test.

Keywords: allergic contact dermatitis, chromium(III), chromium(VI), ISO 17075, leather, metals, occupational, restriction

The amount of chromium (Cr) released from leather, and its oxidation state (trivalent or hexavalent) and speciation (chemical form, e.g. Cr(III) oxalate), are key parameters for both ecotoxicological and human health considerations (1–5). Contact allergy to Cr is the third most common metal allergy, after allergy to nickel and cobalt, affecting approximately 1–3% of the adult general population (6). It is a severe allergy with a poor prognosis (7,8). Cr(VI) in cement has been an important cause of Cr allergy in construction workers. Prevention of Cr allergy among construction workers by limiting Cr(VI) in cement has been shown to be successful in Nordic countries and Germany (9,10). Cr compounds may be present in cosmetic products. Annex IV of the Cosmetic Products Regulation (11) lists Cr-containing colorants allowed in cosmetic products under certain conditions, such as that they are rinse-off products or free from Cr ions [Cr(VI)]. Annex II lists substances that are prohibited in cosmetic products, including several Cr compounds. Published recommendations on the Cr content in detergents and cosmetics suggest that the level should normally not exceed 1 ppm (12,13). Leather products have, since the 1990s, attracted increasing attention as a cause of Cr allergy and dermatitis (14,15). More than 90% of the leather produced worldwide (∼ 2 billion m2) is Cr-tanned (16–18). Between 7% and 50% of ∼ 9500 leather products tested and reported since the year 2000 contain Cr(VI) at concentrations above the limit of detection (3 mg/kgleather) of the ISO 17075 standard (19–23). A limitation of Cr(VI) in leather was initially proposed by Denmark (24), and it is anticipated that a restriction will enter into force within the EU in 2015 (25). It is based on the ISO 17075 standard (26) for leather products, which stipulates Cr(VI) determination in leather by extraction of leather powder in de-aerated phosphate buffer for 3 hr. The scientific literature, the ISO standard and the restriction all focus on the release of Cr(VI) from leather, without considering the release of Cr(III). The main arguments are that Cr(III) is assumed to be retained within the leather, whereas Cr(VI) is soluble (27,28), that chromate [Cr(VI)] is considered to be a more potent allergen, and that Cr(VI) compounds are able to induce allergy and dermatitis at lower exposure levels than most Cr(III) compounds (6,27,29,30).

Cr contact dermatitis requires a Cr(III)–protein conjugate to be formed in the skin (5,31). Cross-reactivity between Cr(III) and Cr(VI) in Cr-allergic individuals has been suggested (5,32), as chromate can be reduced to Cr(III) in the skin. This means that a person who is Cr-allergic may react to both Cr(III) and Cr(VI). However, this depends on many factors (condition of the skin, skin diffusion properties of the compound, concentration, and sensitizing species). It has been observed in several studies that different Cr(III) and Cr(VI) compounds have different skin diffusion properties, skin solubility, and sensitizing potential, characteristics that depend on many factors such as charge, size, and speciation (4,33–35).

The aim of this study was to quantify the release of Cr(III) and Cr(VI) from differently tanned, unfinished leather samples, and to investigate the influence of stipulated test conditions of the ISO 17075 standard, and other key exposure parameters, such as temperature, duration, surface area, and solution de-aeration.

Material and Methods

Leather

Four differently tanned, unfinished leather samples (all from cattle) from normal production were received from three European tanneries. All materials were tanned and post-tanned, but not coated and finished (so-called crust leather). Detailed descriptions of general leather processing steps, always including the tanning and post-tanning steps, are given in (16,18). The leather and tanning procedures are described below:

  1. CrCrgloves: Cr-tanned (post-tanning: Cr), intended for use in working gloves (generally low-price leather);

  2. CrCr: Cr-tanned (post-tanning: Cr and synthetic tannins);

  3. Crveg: Cr-tanned (post-tanning: vegetable and synthetic tannins);

  4. Vegveg: vegetable-tanned (post-tanning; vegetable tanning by mimosa).

The CrCr and Crveg leather samples were selected to investigate the effect of post-tanning. These samples had been identically treated and Cr-tanned, but with different post-tanning processes, by the same tannery. The Vegveg leather was investigated for comparative reasons.

Exposure conditions

The leather samples were exposed (extracted) at the different experimental settings described in Table1. Ultrapure water (18.2 MΩ/cm) was used as the solvent for all solutions, and all equipment was acid-cleaned (10% HNO3 for at least 24 hr) and then subjected to four subsequent rinsing events with ultrapure water prior to use. Triplicate samples of each leather sample and one blank sample (without leather) were exposed in parallel for all experimental conditions. Two different solutions were investigated, namely artificial sweat (ASW) (initial pH 6.5) and phosphate buffer (initial pH 8.0), as shown in Table1. Phosphate buffer is the extraction solution stipulated in the standard (26), whereas ASW, according to EN 1811:2011 (36), is considered to be of higher relevance for skin exposure.

Table 1.

Experimental conditions stipulated in the ISO 17075 protocol (26) and conditions used in this study of chromium release from leather

Parameters ISO 17075 This study
Leather preparation Powdered (by SiC grinding), undefined surface area Whole surfaces of defined geometrical surface areas; small pieces, cut into sizes of approximately 2 × 2 × 1 mm3
Extraction solution Phosphate buffer: 22.8 g/l K2HPO4.3H2O, adjusted to pH 8.0 ± 0.1 with phosphoric acid; de-aeration Phosphate buffer: 22.8 g/l K2HPO4.3H2O, adjusted to pH 8.0 ± 0.1 by phosphoric acid; no de-aeration (all samples) and de-aeration (only CrCrgloves and Vegveg)
Artificial sweat (all samples): 5.0 g/l NaCl, 1.0 g/l urea, 1.0 g/l lactic acid (pH 6.5 ± 0.05 with NaOH); no de-aeration
Extraction time period 3 hr 1, 3, 8 and 168 hr (all samples)
1 + 1 + 1 hr [repeated exposure of the same leather samples (CrCrgloves and Vegveg)]
Extraction agitation 50–150 per min (gentle agitation, smooth circular movement) 22 cycles per min, 12° bi-linear agitation
Extraction temperature Not defined 20–25°C (all samples); 30°C (CrCrgloves and Vegveg); 45°C (CrCrgloves and Vegveg)
Sample mass to solution volume ratio 2 g/100 ml (0.2 g/l) 1 g/50 ml (0.2 g/l)
Solution aeration De-aerated by purging with nitrogen for ∼ 5 min prior to exposure, closed vessels during exposure Aerated, closed vessels (all samples)a; de-aerated by purging with nitrogen for ∼ 5 min prior to exposure, closed vessels during exposure (CrCrgloves and Vegveg)
Solid–liquid separation Membrane filtration (polytetrafluoroethylene or nylon) 0.45 µm Centrifugation (all samples)a
Membrane filtration (Supor, 0.2 µm, non-acid-cleanedb) (CrCrgloves and Vegveg)
Liquid sample preparation Solution transferred through cartridges filled with reverse phase (removal of interfering dyes) Acidified (AAS analysis); frozen prior to analysis (spectrophotometry)
UV irradiation and visible light conditions Conditions not defined; no UV irradiation Darkness (all samples)a; 15-W UV lamp ∼ 25 cm above the leather samples in solution (open vessels) (CrCrgloves and Vegveg)
Open in a new tab

AAS, atomic absorption spectroscopy; UV, ultraviolet.

a

Standard conditions for most results presented in this article, if not indicated otherwise.

b

Lowest risk for contamination and adsorption found for Ni, Cu and Zn in (37).

To investigate the effect of repeated exposure, a sequential exposure was conducted, denoted ‘1 + 1 + 1 hr’ in Table1, and compared with a continuous 3-hr exposure. In the sequential exposure, identical triplicate samples were exposed in three consecutive fresh solutions, for 1 hr in each (50 ml each, as for the non-sequential exposure). Each solution was analysed separately, denoted ‘1st hr, 2nd hr, 3rd hr’ in Fig. 2. Membrane filtration as a solid–liquid separation technique has previously been shown to cause artefacts related to other metals (zinc and copper) in trace concentrations (37). The comparison between membrane filtration and centrifugation (704 relative centrifugal force) as separation techniques showed no significant differences in measured Cr concentrations under given conditions in the investigated samples (File S1, Table S1). The membrane filter used was a polyethersulfone membrane from Acrodisc with the trade name Supor, supplied by VWR, Stockholm, Sweden, had a pore size of 0.2 µm, a polypropylene housing (Ø 25 mm), and was recommended for trace element analysis in (38). This suggests that both techniques could be used within this context.

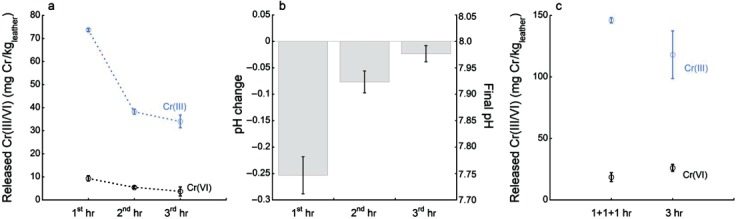

Figure 2.

Figure 2

Open in a new tab

Amounts of released Cr(III) (blue) and Cr(VI) (black) normalized to dry leather mass (a) and corresponding changes in solution pH (b) of CrCrgloves in phosphate buffer (20–25°C) for triplicate samples subsequently exposed for three 1-hr periods (1 + 1 + 1 hr) without drying between each period (<1 min), as compared with triplicate samples continuously exposed for 3 hr (c). The dotted lines in (a) are only intended to provide guidance for the eye.

Cr speciation analysis

The total Cr content in acidified solution samples was determined by means of flame atomic absorption spectroscopy with 0 (ultrapure water), 0.5, 1.5, 5, 10, 15 and 45 mg/l Cr (in 1% HNO3) as calibration standards. Quality controls of known concentration were measured after at least every fifth sample, and the instrument was re-calibrated when the measured concentration deviated by > 10% from the nominal concentration. The limit of detection in the samples was estimated to 0.015 mg/l (three times the highest standard deviation of the blank samples), and the limit of determination was estimated to be 0.05 mg/l (10 times the standard deviation). All reported Cr concentrations were significantly above the limit of determination. The Cr(VI) concentration in non-acidified solution samples (frozen prior to determination) was determined via the formation of a pink complex formed with diphenylcarbazide (39), spectrophotometrically measured at 540 nm. Calibration samples were prepared from the blank extraction/exposure solution (ASW or phosphate buffer) and known concentrations of Cr(VI). All samples, phosphoric acid (70 vol.%) and the diphenylcarbazide solution (1.0 g of 1,5-diphenylcarbazide in 100 ml of acetone acidified with one drop of glacial acetic acid) had the same volume ratio as stipulated in ISO 17075 (26), corresponding to 96 vol.% sample, 2 vol.% phosphoric acid, and 2 vol.% diphenylcarbazide solution, respectively. The calibration standards were prepared at concentrations of 0, 125, 250, 500 and 1000 µg/l Cr(VI). All calibration curves were linear (R2 = 0.9964–0.9999). The limit of determination was estimated to be ∼ 60 µg/l Cr(VI). All reported values exceeded the limit of determination.

All release data presented are normalized to the dry mass of the leather, mg/kgleather (1 mg/kgleather corresponds in this study to 0.02 mg/l for 1 g of sample), normalized to the leather geometric surface area, mg/cm2 (1 mg/cm2 corresponds in this study to 20 mg/l for a 1-cm2 sample), and as average values of triplicate samples with the corresponding blank concentration, if positive, subtracted. The thickness of the dry leather samples ranged from 1 mm (CrCrgloves) to 2.5 mm (Crveg). Blank concentrations were below the limits of determination for Cr(VI) and for total Cr. Cr(III) was determined as the total Cr with any detected Cr(VI) subtracted.

Statistical analysis

To identify the statistical significance of observed differences in experimental findings, a Student t-test of unpaired data with unequal variance was employed between two different datasets. Differences are counted and denoted as ‘significant’ when p < 0.05, with higher significance for a smaller p-value.

Results

Effect of sample area (powdering)

The ISO 17075 standard test (26) stipulates abrasion of the leather to a powder to increase the investigated surface area. The influence of sample size on the release of Cr(III) and Cr(VI) was investigated for all four leathers by comparing whole surfaces (approximately 15–40 cm2, depending on thickness) and finely cut pieces [as in (40,41)] of the same leather (approximately 40–85 cm2) of a total mass of 1 g, as shown in Fig. 1. The finely cut Cr-tanned samples all showed significantly (p < 0.01) increased amounts of released Cr(III) as compared with the whole surfaces. The CrCrgloves showed a significant reduction (p < 0.01) in the ratio of released Cr(VI) to total released Cr (whole surface, 18.1%; finely cut pieces, 8.2%).

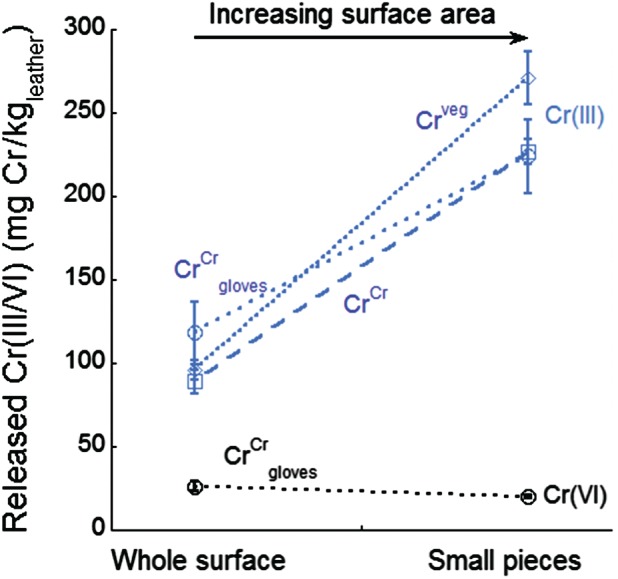

Figure 1.

Figure 1

Open in a new tab

Amounts of released Cr(III) (blue) and Cr(VI) (black) measured in phosphate buffer after 3 hr of exposure at 20–25°C for whole leather samples and finely cut pieces, both of a total mass of 1 g. The error bars show the standard deviation between triplicate samples. The amounts of released Cr(III) in solution were below the limit of detection for Vegveg, as were the amounts of Cr(VI) released from the CrCr, Crveg and Vegveg samples. The dotted lines are only intended to provide guidance for the eye.

Effect of de-aeration

Both de-aerated and aerated conditions were investigated in this study. No significant differences were observed in the case of released Cr(III) or for the released fraction of Cr(VI) (per total Cr released). However, a significant (p < 0.05) reduction in released Cr(VI) was evident under de-aerated conditions as compared with aerated settings (File S1, Table S2).

Initial kinetics

The extraction time in the standardized test is stipulated as 3 hr. Figure 2 shows the amounts of Cr(III) and Cr(VI) released from the different samples into phosphate buffer after the first, second and third hour in sequence (1 + 1 + 1 hr) (identical triplicate samples exposed in three subsequent fresh solutions, 1 hr in each) as compared with a continuous 3-hr exposure (0–3 hr). The amounts of Cr(III) released were significantly reduced (p < 0.0001) between the first hour and the second hour of exposure, whereas no significant difference was observed between the second hour and the third hour of exposure (Fig. 2a). Similar observations were made for the release of Cr(VI) (first hour to second hour: p < 0.05, non-significant changes between the second hour and third hour) (Fig. 2a). The pH of the phosphate buffer solution dropped predominantly during the first hour of exposure, to a significantly (p < 0.01) lower extent than during the second hour and the third hour (p < 0.05 as compared with the second hour) of exposure (Fig. 2b). The pH drop during the first hour of exposure (− 0.26 pH) was comparable (p = 0.58) to the pH change observed for the continuous 3-hr exposure (− 0.28 pH). No significant differences in amounts of released Cr(III) (p = 0.13) were observed between the sum of the sequential exposure (1 + 1 + 1 hr) and the continuous 3-hr exposure. However, significantly more (p < 0.05) Cr(VI) was released during the continuous 3-hr exposure than during the sequential exposure (Fig. 2c). Similar trends were observed for the release of Cr(III) and Cr(VI) normalized to the surface area (File S1, Figure S1).

Cr release for 1 week in ASW

The kinetics of Cr release into ASW were investigated for 1, 3, 8 and 168 hr of exposure of whole leather samples (15–40 cm2) under conditions simulating prolonged contact with the skin, for example shoes or working gloves (Fig. 3). Cr(III), but not Cr(VI), was released from all leather samples when they were exposed to (immersed in) ASW. Cr(III) was released in relatively large amounts, and continued to be released even after 3 hr of exposure. The largest Cr(III) release was observed from CrCrgloves, with > 3000 mg/kgleather after 168 hr of exposure. The CrCrgloves sample was the thinnest sample, and hence had the largest surface area per mass among the samples investigated (Fig. 3a). When normalized to the exposed geometrical surface area, the release of Cr(III) did not differ significantly between the Cr-tanned samples (Fig. 3b). The release rate (Fig. 3c) was highest (p < 0.05 as compared with CrCr after 1 and 8 hr, and Crveg after 8 hr) for CrCrgloves up to 8 hr of exposure, but highest (p < 0.05) for CrCr after 168 hr of exposure. All samples showed relatively similar Cr release rates (0.00031–0.00045 mg/cm2/h) after 168 hr (1 week), but differences in initial kinetics (Fig. 3c). The solution pH was reduced during exposure of all leather samples (Fig. 3d), with a larger reduction for longer durations, and reached a final pH of 4.4, at the lowest, which is the natural pH of tanned leather (42).

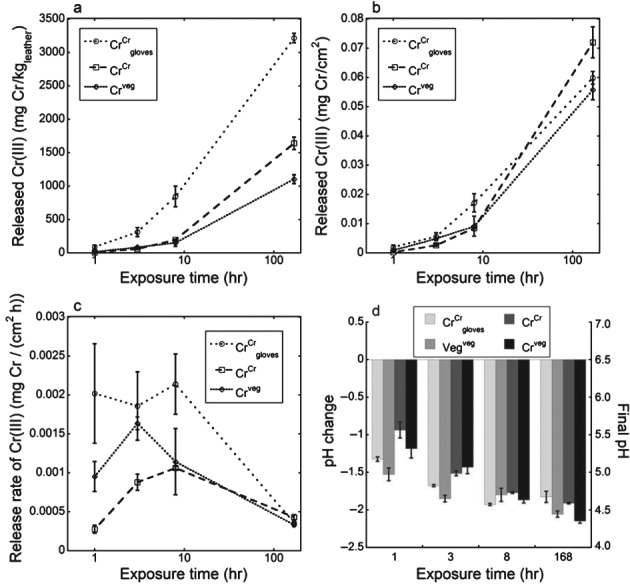

Figure 3.

Figure 3

Open in a new tab

Amounts of released Cr(III) normalized to dry leather mass (a), surface area (b), and surface area and exposure time [release rate (c)], and corresponding solution pH changes (d), in artificial sweat, initial pH 6.5, 20–25°C, whole (non-cut) surfaces after 1, 3, 8 and 168 hr of exposure. The amounts of Cr released and measured in solution from the vegetable-tanned leather sample (Vegveg) were below the limit of detection in all cases. The error bars represent the standard deviation for triplicate samples. The dotted lines are only intended to provide guidance for the eye.

Effect of temperature and ultraviolet (UV) irradiation at wet exposure

The influence of temperature on the release of Cr(III) and Cr(VI) was investigated for CrCrgloves in ASW. An increase in temperature from ambient laboratory temperature up to 45°C increased the release of Cr(III) in ASW significantly (p < 0.01, factor of 3.3) (Fig. 4a). Similar findings (a factor of 1.6) were observed between ambient room temperature and 30°C (approximate non-occluded skin temperature), being non-significant (p = 0.07) when normalized per dry mass (Fig. 4a), but significant (p < 0.05) when normalized to surface area (File S1, Figure S2). As judged from the large pH drop at higher temperatures (Fig. 4b), other leather constituents, including acids, were released to significantly higher extents at higher temperatures. This trend was significant (p < 0.05) for both CrCrgloves and Vegveg for all temperatures investigated (Fig. 4b). As no Cr(VI) was released and measured in solution from CrCrgloves in the acidic (pH 4.4–6.5) ASW, the effect of UV irradiation was investigated while the sample was immersed in phosphate buffer (Fig. 4c,d) at a solution temperature of 20–25°C. UV irradiation did not induce any significant changes (p > 0.05) in Cr(III) or Cr(VI) release, or solution pH (Fig. 4c,d). Similar trends were observed when Cr release was normalized to the surface area (File S1, Figure S2).

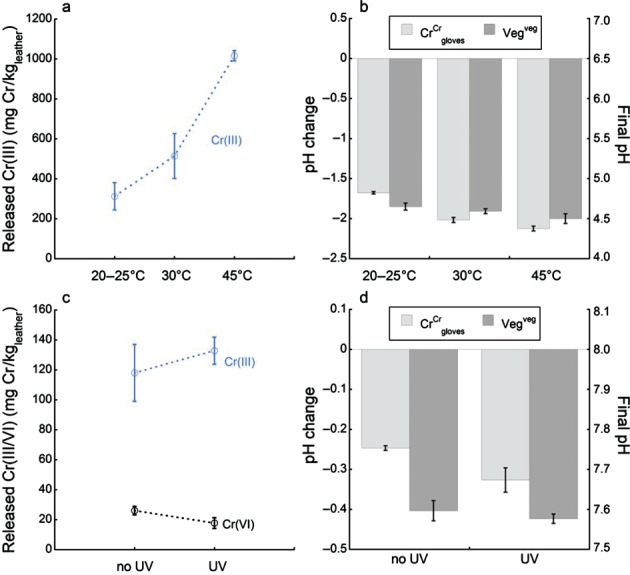

Figure 4.

Figure 4

Open in a new tab

Amounts of released Cr(III) (blue) and Cr(VI) (black) in solution and normalized to dry leather mass (a, c), and corresponding changes in solution pH (b, d), of CrCrgloves and Vegveg in artificial sweat (ASW) (a, b) and phosphate buffer (c, d) after 3 hr at 20–25°C, 30°C, and 45°C (a, b), or at 20–25°C [no ultraviolet (UV) irradiation as compared with UV irradiation] (c, d). Released Cr(III) and Cr(VI) concentrations in solution were below the limit of detection for Vegveg, and the Cr(VI) concentration was below the limit of detection for CrCrgloves in ASW (a). The dotted lines in (a) and (c) are only intended to provide guidance for the eye.

Discussion

This study shows that several test parameters of the ISO 17075 affect the amount of detected Cr(VI). Cutting/grinding of the sample, as required by the test protocol, could possibly result in an underestimation of the release of Cr(VI); however, this should be further investigated. As expected, an increased surface area, as provided by finely cut pieces, resulted in an increased amount of released Cr(III). The reduced amount of released Cr(VI) analysed in solution is most likely a result of the parallel release of acids and/or reducing agents from the leather (43). It could also be related to a lower Cr(VI) content in the inner parts of the leather (44,45).

The ISO 17075 protocol stipulates that the extraction solution (phosphate buffer) should be de-aerated during exposure to avoid oxidation of any released Cr(III) by dissolved oxygen. However, such conditions are not necessarily relevant for skin or environmental exposure. The phosphate buffer as extraction solution and its reduced dissolved oxygen content (de-aerated conditions) stipulated by ISO 17075 (26) have been highly debated in terms of its potential to oxidize any released Cr(III) (24,41). However, non-significant differences in the ratio of Cr(III) and Cr(VI) released into solution were observed in this study when parallel exposures in aerated and de-aerated phosphate buffer solutions were compared. Similar findings have been reported in the literature (41). The oxidation by radicals from certain lipids in leather can increase the amount of Cr(VI) detected in phosphate buffer (41,42,44,46–51). Released reducing species can, on the other hand, reduce the Cr(VI) content in phosphate buffer (43). It must hence be emphasized that the standard test protocol may not reflect the total Cr(VI) content of the leather sample (42).

One of the major challenges in the determination of Cr(VI) released from leather products by the use of spectrophotometry is the colouring of the extraction solution caused by the release of leather constituents, tanning chemicals, and/or dyes. Different solid-phase extraction techniques have been described in the literature, and preparation steps have been suggested. However, none of these suggestions guarantees a high accuracy and lack of artefacts for any kind of leather material (28,42–44,52,53).

The ISO 17075 standard does not consider the influence of temperature and UV irradiation, which are parameters of relevance for skin contact. The effects of temperature and UV irradiation have mostly been investigated in the literature for Cr(VI) in leather under dry conditions (heating or UV irradiation under dry conditions). Heating (often > 80°C) during leather manufacture or processing (e.g. shoe making) may increase the amount of Cr(VI) in the leather in the presence of certain fatty acids and atmospheric oxygen (28,41,45,54–58). Similar trends have been observed for UV-irradiated leather in the presence of certain fatty acids and oxygen under dry conditions (28,41,44,45,54,56,58,59). Shoe making, which involves both dry heating and, sometimes, alkaline glues, can trigger the formation of Cr(VI) in leather (57). In this study, the effects of both temperature and UV irradiation (aiming to mimic skin and outdoor exposure), which are parameters known to suppress the formation of Cr(VI), were investigated under wet conditions (53). The observed differences between wet and dry conditions (literature findings) in terms of the release and formation of Cr(VI) in leather are expected, as longer duration of storage at a relative humidity exceeding 35%, increased relative humidity and increased water content in the leather are conditions known to reduce the Cr(VI) content (41,42,60).

In this study, it was shown that the geometrical surface area of leather exposed to the solution is a more relevant parameter than the leather dry mass for normalization of release data. The results indicate that Cr release is limited by diffusion processes, at least when the leather is immersed in the same solution.

It has been stated that all extractable Cr(VI) in the leather is released during the first 3 hr (42). Our results indicate, however, that 3 hr may, in some cases, be too short for all Cr(VI) present in the leather to be released. This is indicated for Cr(VI) released during the sequential exposures (1 + 1 + 1 hr, in total 3 hr), for which the released concentrations were well above the detection limit also during the last hour of the sequential exposure. The results suggest that Cr(VI) might still be released after 3 hr in the case of leather with high extractable amounts of Cr(VI) (as in this study). It is of importance for further discussions on allergic Cr contact dermatitis to consider that the release of, for example, acids from the leather is also time-dependent, and predominantly takes place during the first hour of exposure. This might be important for repeated skin contact, as these acids may be able to reduce any released Cr(VI) (43), an ability that is possibly lost after long-term repeated exposure.

The available literature data suggest significantly higher release of Cr(III) than of Cr(VI) (21,40,45,61), as confirmed in this study. This is also in agreement with other studies investigating the release of Cr(III) and Cr(VI) from Cr-tanned leather (20,21,40,45,61). It is considered less likely that Cr(VI) will be released in sweat and under conditions of prolonged skin contact, unless the leather is exposed to a very dry environment, UV irradiation, and/or oxidizing or alkaline species. The amount of Cr(VI) released from CrCrgloves (at most 26.1 mg/kgleather) in the present study is among the higher values reported in the literature (< 1–96 mg/kgleather) (19–22,41). Nevertheless, no Cr(VI) was observed to be released from that leather into ASW, which is in agreement with previous studies (42,43,62). Prolonged (> 3 hr) exposures in ASW showed that Cr(III) would be, by far, the predominant released species. Even though alarming reports exist on the significance of Cr(III) in leather for the increasing prevalence of Cr allergy (22,29,63), Cr(III) is not addressed in the EU limitation on Cr in leather that will enter into force in 2015. This may, to some extent, be explained by the general awareness of Cr(VI) as an important allergen, the current use of potassium dichromate [Cr(VI)] in diagnostic patch testing, and the significantly lower concentration of Cr(VI) (as dichromate) than of trivalent chromium compounds that is required to induce dermatitis in Cr-allergic patients (29,64,65).

Conclusions and Future Perspectives

  1. Significantly more Cr(III) than Cr(VI) was released for all conditions and investigated leather samples.

  2. There is a possibility that the measured amounts of released Cr(VI) in the extraction solution are underestimated when the leather sample is ground or cut into small pieces as compared with whole leather surfaces, owing to the parallel release of reducing species from the leather. This requires further investigation.

  3. The temperature was shown to substantially influence the release of Cr in ASW. It is suggested that this parameter should be investigated to determine whether it should be defined in the ISO 17075 test protocol.

  4. The Cr speciation in solution was shown to be extremely dynamic and influenced by a large number of leather, solution and environmental parameters.

  5. Corresponding effects on the release of Cr(III) are essentially unexplored, and need to be considered in future studies.

  6. Several conditions, such as prolonged and repeated skin exposure to Cr-tanned leather, relative humidity and water content in the leather, UV irradiation, and heat, may change the extent and oxidation form of released Cr and the reducing capacity of reducing leather-specific agents released in parallel. Some of them are investigated in Part II of this study, and further studies should also investigate the amount of Cr actually deposited on the skin during contact with Cr-tanned leather.

Acknowledgments

The authors thank Maria-Elisa Karlsson (KTH) for experimental help and language/grammar check, and Dr S. Rydin (Nordeconsult Sweden AB) and the Swedish Tannery organization for discussions.

Supporting Information

Additional Supporting Information may be found in the online version of this article:

File S1. Chromium released from leather – I: exposure conditions that govern the release of chromium(III) and chromium(VI).

cod0072-0206-sd1.docx (182KB, docx)

References

  • 1.Vignati DAL, Dominik J, Beye ML, Pettine M, Ferrari BJD. Chromium(VI) is more toxic than chromium(III) to freshwater algae: a paradigm to revise? Ecotox Environ Safe. 2010;73:743–749. doi: 10.1016/j.ecoenv.2010.01.011. [DOI] [PubMed] [Google Scholar]
  • 2.Unceta N, Séby F, Malherbe J, Donard OFX. Chromium speciation in solid matrices and regulation: a review. Anal Bioanal Chem. 2010;397:1097–1111. doi: 10.1007/s00216-009-3417-1. [DOI] [PubMed] [Google Scholar]
  • 3.Dhal B, Thatoi H, Das N, Pandey B. Chemical and microbial remediation of hexavalent chromium from contaminated soil and mining/metallurgical solid waste: a review. J Hazard Mater. 2013;250:272–291. doi: 10.1016/j.jhazmat.2013.01.048. [DOI] [PubMed] [Google Scholar]
  • 4.Samitz M, Shrager J. Patch test reactions to hexavalent and trivalent chromium compounds. Arch Dermatol. 1966;94:304–306. [PubMed] [Google Scholar]
  • 5.Siegenthaler U, Laine A, Polak L. Studies on contact sensitivity to chromium in the guinea pig. The role of valence in the formation of the antigenic determinant. J Invest Dermatol. 1983;80:44–47. doi: 10.1111/1523-1747.ep12531034. [DOI] [PubMed] [Google Scholar]
  • 6.Thyssen JP, Menné T. Metal allergy – a review on exposures, penetration, genetics, prevalence, and clinical implications. Chem Res Toxicol. 2010;23:309–318. doi: 10.1021/tx9002726. [DOI] [PubMed] [Google Scholar]
  • 7.Hald M, Agner T, Blands J, Ravn H, Johansen JD. Allergens associated with severe symptoms of hand eczema and a poor prognosis. Contact Dermatitis. 2009;61:101–108. doi: 10.1111/j.1600-0536.2009.01577.x. [DOI] [PubMed] [Google Scholar]
  • 8.Bregnbak D, Thyssen JP, Zachariae C, Johansen JD. Characteristics of chromium-allergic dermatitis patients prior to regulatory intervention for chromium in leather: a questionnaire study. Contact Dermatitis. 2014;71:338–347. doi: 10.1111/cod.12291. [DOI] [PubMed] [Google Scholar]
  • 9.Geier J, Krautheim A, Uter W, Lessmann H, Schnuch A. Occupational contact allergy in the building trade in Germany: influence of preventive measures and changing exposure. Int Arch Occup Environ Health. 2011;84:403–411. doi: 10.1007/s00420-010-0581-8. [DOI] [PubMed] [Google Scholar]
  • 10.Stocks SJ, McNamee R, Turner S, Carder M, Agius RM. Has European Union legislation to reduce exposure to chromate in cement been effective in reducing the incidence of allergic contact dermatitis attributed to chromate in the UK? Occup Environ Med. 2012;69:150–152. doi: 10.1136/oemed-2011-100220. [DOI] [PubMed] [Google Scholar]
  • 11.EC. 2009. Available at: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2009:342:0059:0209:en:PDF (last accessed 14 November 2014)
  • 12.Basketter D, Briatico-Vangosa G, Kaestner W, Lally C, Bontinck W. Nickel, cobalt and chromium in consumer products: a role in allergic contact dermatitis? Contact Dermatitis. 1993;28:15–25. doi: 10.1111/j.1600-0536.1993.tb03318.x. [DOI] [PubMed] [Google Scholar]
  • 13.Basketter DA, Angelini G, Ingber A, Kern PS, Menné T. Nickel, chromium and cobalt in consumer products: revisiting safe levels in the new millennium. Contact Dermatitis. 2003;49:1–7. doi: 10.1111/j.0105-1873.2003.00149.x. [DOI] [PubMed] [Google Scholar]
  • 14.Thyssen JP, Jensen P, Carlsen BC, Engkilde K, Menné T, Johansen JD. The prevalence of chromium allergy in Denmark is currently increasing as a result of leather exposure. Br J Dermatol. 2009;161:1288–1293. doi: 10.1111/j.1365-2133.2009.09405.x. [DOI] [PubMed] [Google Scholar]
  • 15.Carøe C, Andersen KE, Thyssen JP, Mortz CG. Fluctuations in the prevalence of chromate allergy in Denmark and exposure to chrome-tanned leather. Contact Dermatitis. 2010;63:340–346. doi: 10.1111/j.1600-0536.2010.01798.x. [DOI] [PubMed] [Google Scholar]
  • 16.Thanikaivelan P, Rao JR, Nair BU, Ramasami T. Recent trends in leather making: processes, problems, and pathways. Crit Rev Environ Sci Technol. 2005;35:37–79. [Google Scholar]
  • 17.Beghetto V, Zancanaro A, Scrivanti A, Matteoli U, Pozza G. The leather industry: a chemistry insight part I: an overview of the industrial process. Sci Ca'Foscari. 2013;1:13–22. [Google Scholar]
  • 18.Covington AD. Modern tanning chemistry. Chem Soc Rev. 1997;26:111–126. [Google Scholar]
  • 19.German Federal Institute for Risk Assessment. 2007. Chromium (VI) in leather clothing and shoes problematic for allergy sufferers. Available at: http://www.bfr.bund.de/en/press_information/2007/10/chromium__vi__in_leather_clothing_and_shoes_problematic_for_allergy_sufferers_-9575.html (last accessed 14 November 2014)
  • 20.Thyssen JP, Strandesen M, Poulsen PB, Menné T, Johansen JD. Chromium in leather footwear – risk assessment of chromium allergy and dermatitis. Contact Dermatitis. 2012;66:279–285. doi: 10.1111/j.1600-0536.2011.02053.x. [DOI] [PubMed] [Google Scholar]
  • 21.Hansen MB, Rydin S, Menné T, Johansen JD. Quantitative aspects of contact allergy to chromium and exposure to chrome-tanned leather. Contact Dermatitis. 2002;47:127–134. doi: 10.1034/j.1600-0536.2002.470301.x. [DOI] [PubMed] [Google Scholar]
  • 22.Hansen MB, Menné T, Johansen JD. Cr(III) and Cr(VI) in leather and elicitation of eczema. Contact Dermatitis. 2006;54:278–282. doi: 10.1111/j.0105-1873.2006.00824.x. [DOI] [PubMed] [Google Scholar]
  • 23.Ollenhauer-Ries C. Beseitigung von Chrom VI aus Lederartikeln. Leder & Häute Markt. 2007;4:8. [Google Scholar]
  • 24.Johansen JD, Strandesen M, Poulsen P. Survey and Health Assessment (Sensitisation Only) of Chromium in Leather Shoes. Copenhagen, Danish Ministry of the Environment, Environmental Protection Agency; 2011. [Google Scholar]
  • 25.European Chemicals Agency (Echa) 2013. Available at: http://echa.europa.eu/en/view-article/-/journal_content/title/seac-concludes-on-scientific-opinions-for-two-restriction-proposa-1 (last accessed 14 November 2014)
  • 26.ISO. 2007. Leather – Chemical Tests – Determination of Chromium(VI) Content. ISO 17075,. International Organization for Standardization,Geneva.
  • 27.Morris GE. ‘Chrome’ dermatitis: a study of the chemistry of shoe leather with particular reference to basic chromic sulfate. Arch Dermatol. 1958;78:612–618. doi: 10.1001/archderm.1958.01560110058008. [DOI] [PubMed] [Google Scholar]
  • 28.Long A, Cory N, Wood C. Potential chemical mechanisms causing false positive results in hexavalent chromium determination. J Soc Leath Technol Chem. 2000;84:74–78. [Google Scholar]
  • 29.Hansen MB, Johansen JD, Menné T. Chromium allergy: significance of both Cr(III) and Cr(VI) Contact Dermatitis. 2003;49:206–212. doi: 10.1111/j.0105-1873.2003.0230.x. [DOI] [PubMed] [Google Scholar]
  • 30.Fregert S, Rorsman H. Patch test reactions to basic chromium (III) sulfate. Arch Dermatol. 1965;91:233–234. doi: 10.1001/archderm.1965.01600090041007. [DOI] [PubMed] [Google Scholar]
  • 31.Shmunes E, Katz SA, Samitz M. Chromium–amino acid conjugates as elicitors in chromium-sensitized guinea pigs. J Invest Dermatol. 1973;60:193–196. doi: 10.1111/1523-1747.ep12724462. [DOI] [PubMed] [Google Scholar]
  • 32.Cohen HA. Carrier specificity of tuberculin-type reaction to trivalent chromium. Arch Dermatol. 1966;93:34–40. [PubMed] [Google Scholar]
  • 33.Fregert S, Rorsman H. Allergic reactions to trivalent chromium compounds. Arch Dermatol. 1966;93:711–713. [PubMed] [Google Scholar]
  • 34.Samitz M, Katz S, Shrager JD. Studies of the diffusion of chromium compounds through skin. J Invest Dermatol. 1967;48:514–520. [PubMed] [Google Scholar]
  • 35.Gammelgaard B, Fullerton A, Avnstorp C, Menné T. Permeation of chromium salts through human skin in vitro. Contact Dermatitis. 1992;27:302–310. doi: 10.1111/j.1600-0536.1992.tb03284.x. [DOI] [PubMed] [Google Scholar]
  • 36.CEN. 2011. Reference test Method for Release of Nickel from all Post Assemblies which are Inserted into Pierced Parts of the Human Body and Articles Intended to Come into Direct and Prolonged Contact with the Skin. EN-1811:2011,. European Committee for Standardization, Brussels.
  • 37.Hedberg Y, Herting G, Odnevall Wallinder I. Risks of using membrane filtration for trace metal analysis and assessing the dissolved metal fraction of aqueous media – a study on zinc, copper and nickel. Environ Pollut. 2011;159:1144–1150. doi: 10.1016/j.envpol.2011.02.014. [DOI] [PubMed] [Google Scholar]
  • 38.UN. 2009. The Globally Harmonized System of Classification and Labelling of Chemicals, Annex 10, Guidance on transformation/dissolution of metals and metal compounds in aqueous media.
  • 39.Pflaum RT, Howick LC. The chromium–diphenylcarbazide reaction. J Am Chem Soc. 1956;78:4862–4866. [Google Scholar]
  • 40.Rydin S. Investigation of the Content of Cr (VI) and Cr (III) in Leather Products on the Danish Market. Copenhagen, Danish Environmental Protection Agency; 2002. [Google Scholar]
  • 41.Graf D. Formation of Cr (VI) traces in chrome tanned leathers: causes, prevention, and latest findings. J Am Leather Chem Assoc. 2001;96:169–179. [Google Scholar]
  • 42.Pastore P, Favaro G, Ballardin A, Danieletto D. Evidence of Cr(VI) formation during analysis of leather: proposal of an alternative method of analysis through the ion-chromatographic approach and post-column reaction. Talanta. 2004;63:941–947. doi: 10.1016/j.talanta.2004.01.010. [DOI] [PubMed] [Google Scholar]
  • 43.Hedberg Y, Lidén C, Odnevall Wallinder I. Correlation between bulk- and surface chemistry of Cr-tanned leather and the release of Cr(III) and Cr(VI) J Hazard Mater. 2014;280:654–661. doi: 10.1016/j.jhazmat.2014.08.061. [DOI] [PubMed] [Google Scholar]
  • 44.Hauber C, Germann H. Untersuchungen zur Entstehung und Vermeidung von Chromat in Leder. Leder & Häute Markt. 1999;9:25–30. [Google Scholar]
  • 45.Meyndt R, Germann H. Relationships in the formation of hexavalent chrome [Cr(VI)] World Leather. 2011:14–17. [Google Scholar]
  • 46.Cory NJ, Hanna A, Germann H-P, Schneider S, Stanley A. A practical discussion session to deal with opportunities for improvement of customer/end user satisfaction. J Am Leather Chem Assoc. 1997;92:119–125. [Google Scholar]
  • 47.Font J, Cuadros RM, Reyes MR, Costa-Lopez J. Influence of various factors on chromium (6) formation by photo-ageing. J Soc Leath Technol Chem. 1999;83:300–306. [Google Scholar]
  • 48.Fuck W, Gutterres M, Marcílio N, Bordingnon S. The influence of chromium supplied by tanning and wet finishing processes on the formation of Cr (VI) in leather. Braz J Chem Eng. 2011;28:221–228. [Google Scholar]
  • 49.Chandra Babu N, Asma K, Raghupathi A, Venba R, Ramesh R, Sadulla S. Screening of leather auxiliaries for their role in toxic hexavalent chromium formation in leather – posing potential health hazards to the users. J Clean Prod. 2005;13:1189–1195. [Google Scholar]
  • 50.Palop R, Parareda J, Ballús O, Marsal A. Leather ageing and hexavalent chromium formation as a function of the fatliquoring agent. Part II: chrome retanned leathers. J Soc Leath Technol Chem. 2008;92:233–237. [Google Scholar]
  • 51.Palop R, Parareda J, Ballús O, Marsal A. Leather ageing and hexavalent chromium formation as a function of the fatliquoring agent. Part I. Chrome tanned leathers. J Soc Leath Technol Chem. 2008;92:200–204. [Google Scholar]
  • 52.Jambunathan S, Dasgupta P. Determination of hexavalent chromium in leather extracts by the diphenylcarbazide (IUC-18) procedure: pitfalls and refinements. J Soc Leath Technol Chem. 2000;84:63–73. [Google Scholar]
  • 53.Hauber C. 2000. Formation, prevention & determination of Cr(VI) in leather – a short overview of recent publications, UNIDO report.
  • 54.Sammarco U. Formazione di Cr (VI) nelle pelli e possibilità di eliminazione. Cuoio, Pelli, Materie Concianti. 1998;74:83–94. [Google Scholar]
  • 55.Hauber C. Sources, detection and avoidance of hexavalent chromium in leather and leather products, UNIDO report. 1999. [Google Scholar]
  • 56.Saddington M. Trivalent chromium to hexavalent chromium. Leather. 1999;201:33. [Google Scholar]
  • 57.Nickolaus G. 2000. Aachen Untersuchungen zur Entstehung und Vermeidung von Chrom VI-Verbindungen im Verlauf der Lederverarbeitung. In: 52 VGCT Meeting.
  • 58.Gong Y, Liu X, Huang L, Chen W. Stabilization of chromium: an alternative to make safe leathers. J Hazard Mater. 2010;179:540–544. doi: 10.1016/j.jhazmat.2010.03.037. [DOI] [PubMed] [Google Scholar]
  • 59.Font J, Cuadros R, Lalueza J, Orus C, Reyes M, Costa-Lopez J, Marsal A. Presence of chromium (VI) in sheepskins: influence of tannery processes. J Soc Leath Technol Chem. 1999;83:91–95. [Google Scholar]
  • 60.Graf D. The influence of the relative humidity of air during storage on the formation lowering of Cr(VI) in chrome tanned leathers. World Leather. 2000;13:38. [Google Scholar]
  • 61.Nygren OE, Wahlberg J. Speciation of chromium in tanned leather gloves and relapse of chromium allergy from tanned leather samples. Analyst. 1998;123:935–937. doi: 10.1039/a707458a. [DOI] [PubMed] [Google Scholar]
  • 62.Samitz M, Gross S. Extraction by sweat of chromium from chrome tanned leathers. J Occup Environ Med. 1960;2:12–14. [PubMed] [Google Scholar]
  • 63.Hansen MB, Menné T, Johansen JD. Cr(III) reactivity and foot dermatitis in Cr(VI) positive patients. Contact Dermatitis. 2006;54:140–144. doi: 10.1111/j.0105-1873.2006.00802.x. [DOI] [PubMed] [Google Scholar]
  • 64.Nethercott J, Paustenbach D, Adams R. A study of chromium induced allergic contact dermatitis with 54 volunteers: implications for environmental risk assessment. Occup Environ Med. 1994;51:371–380. doi: 10.1136/oem.51.6.371. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 65.Allenby C, Goodwin B. Influence of detergent washing powders on minimal eliciting patch test concentrations of nickel and chromium. Contact Dermatitis. 1983;9:491–499. doi: 10.1111/j.1600-0536.1983.tb04470.x. [DOI] [PubMed] [Google Scholar]
