. 1994 Sep 13;91(19):9067–9071. doi: 10.1073/pnas.91.19.9067

Expression of tobacco mosaic virus coat protein and assembly of pseudovirus particles in Escherichia coli.

D J Hwang 1, I M Roberts 1, T M Wilson 1
PMCID: PMC44748  PMID: 8090770

Abstract

The bidirectional self-assembly of tobacco mosaic virus (TMV, common or U1 strain) has been studied extensively in vitro. Foreign single-stranded RNA molecules containing the TMV origin-of-assembly sequence (OAS, 75-432 nt in length) are also packaged by TMV coat protein (CP) in vitro to form helical pseudovirus particles. To study virus assembly in vivo requires an easily manipulated model system, independent of replication in plants. The TMV assembly machinery also provides a convenient means to protect and recover chimeric gene transcripts of almost any length or sequence for a variety of applications. Native TMV CP expressed in and purified from Escherichia coli formed nonhelical, stacked aggregates after dialysis into pH 5 buffer and was inactive for in vitro assembly with TMV RNA. U1 CP derivatives in which the second amino acid was changed from Ser to Ala or Pro, nonacetylated N termini found in two natural strains of the virus, failed to remediate these anomalous properties. However, in vivo coexpression of CP and single-stranded RNAs (up to approximately 2 kb) containing the TMV OAS gave high yields of helical pseudovirus particles of the predicted length (up to 7.4 +/- 1.4 micrograms/mg of total bacterial protein). If the OAS-containing RNA was first recruited into bacterial polyribosomes, elongation of pseudovirus assembly was blocked. In vivo, E. coli expression of a full-length cDNA clone of the TMV genome (6.4 kb) resulted in high, immunodetectable levels of CP and assembly of sufficient intact genomic RNA to initiate systemic infection of susceptible tobacco plants.

Full text

PDF

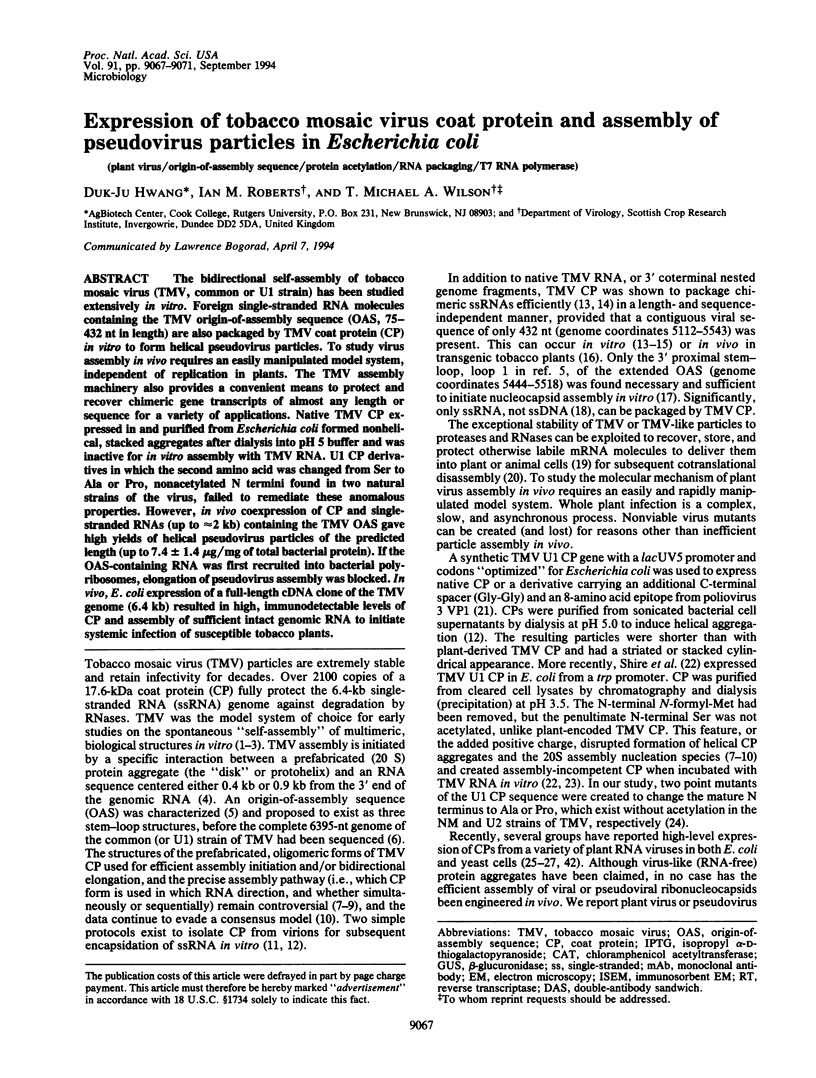

9067

Images in this article

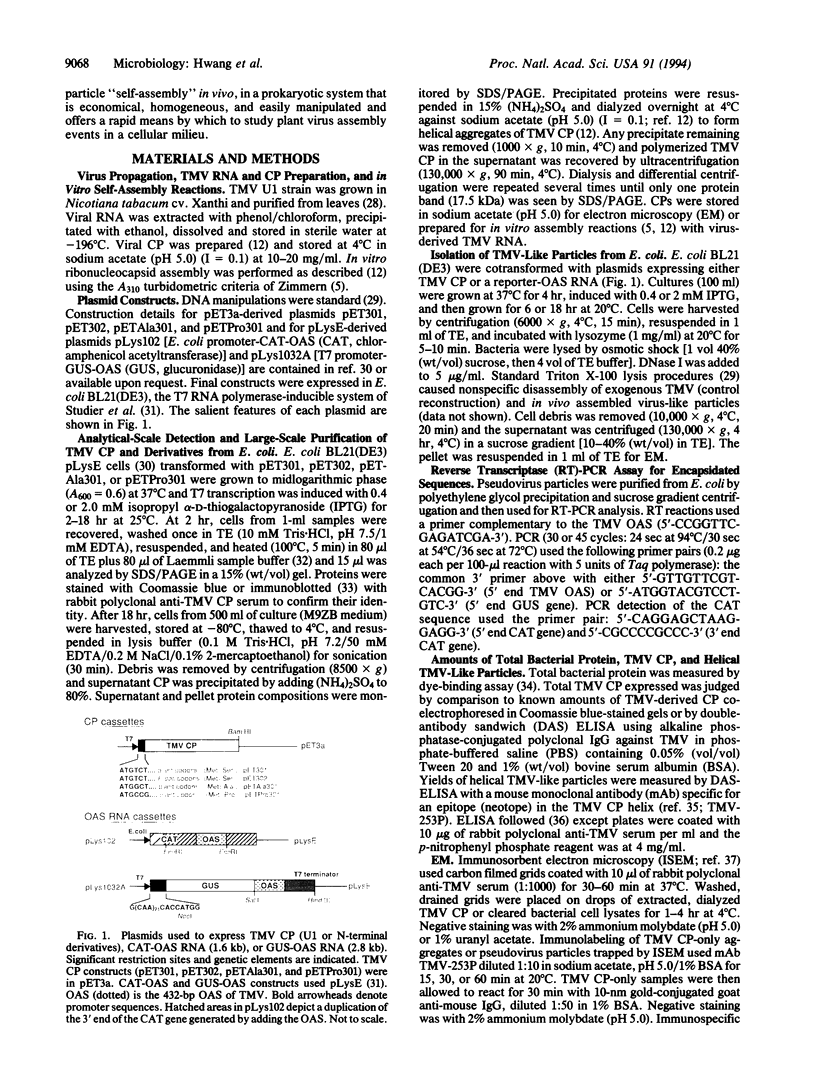

9068Image
on p.9068
9069Image
on p.9069
9069Image
on p.9069
9070Image
on p.9070

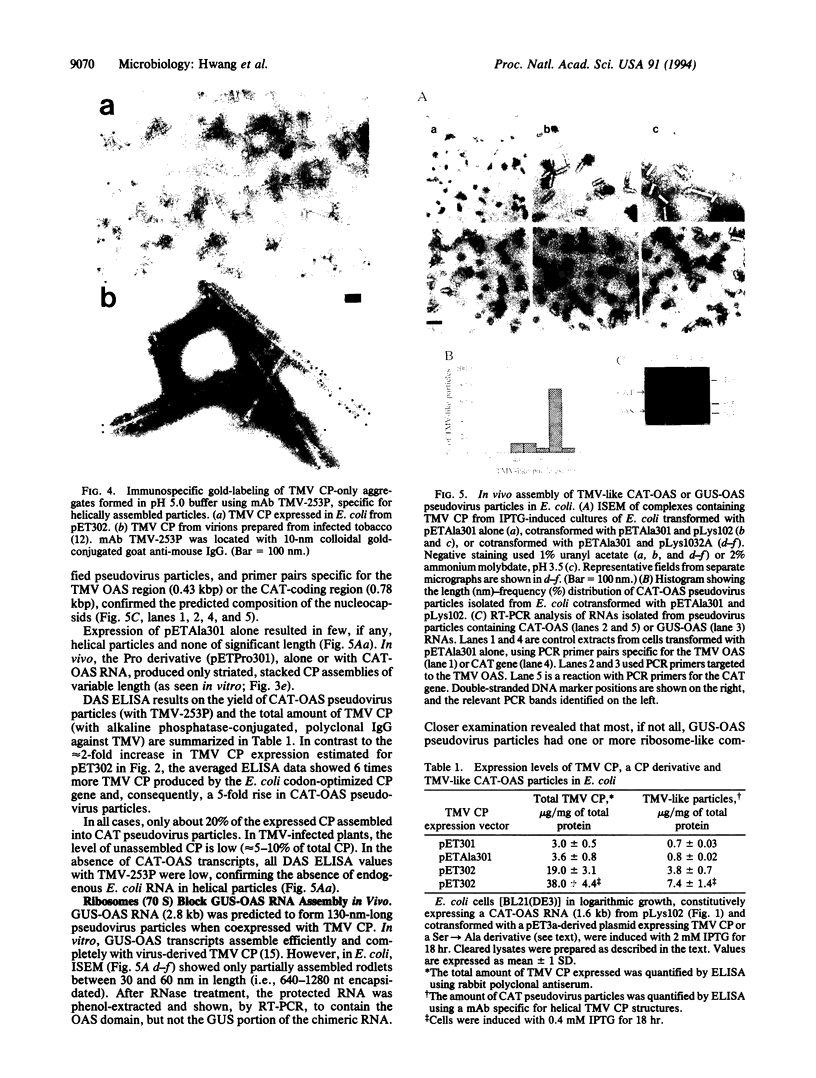

9070Image
on p.9070

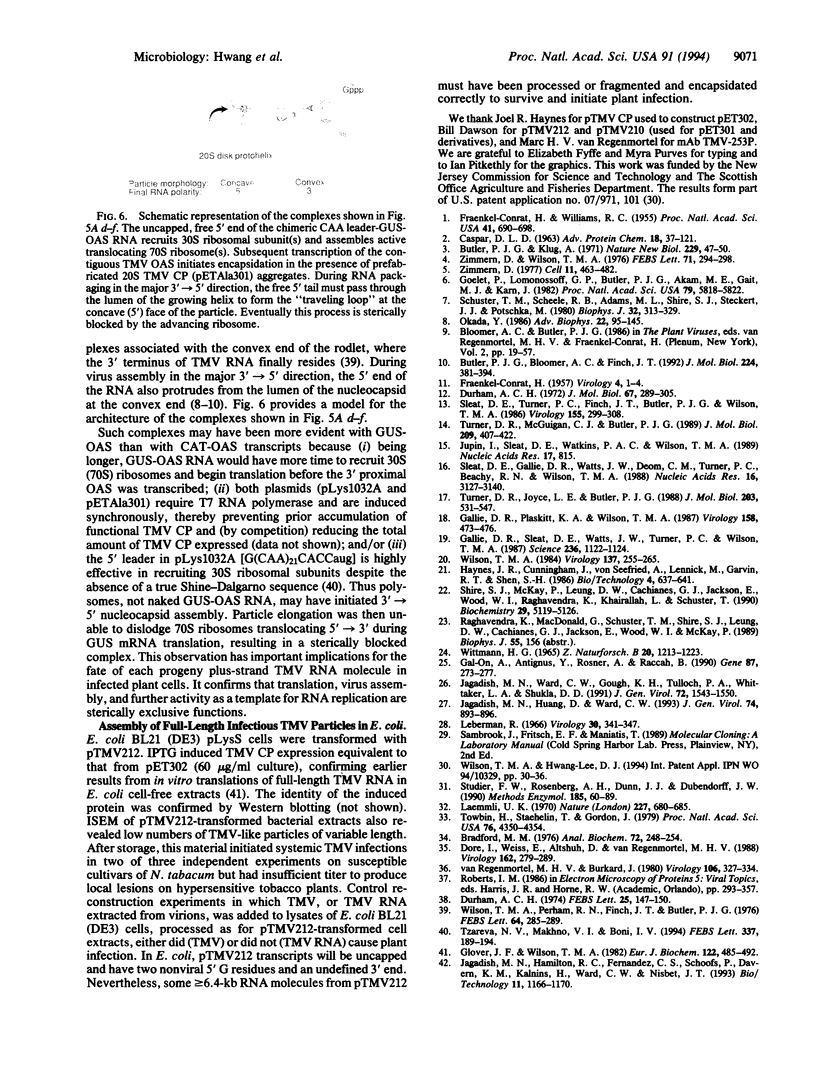

9071Image
on p.9071

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Bradford M. M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal Biochem. 1976 May 7;72:248–254. doi: 10.1016/0003-2697(76)90527-3. [DOI] [PubMed] [Google Scholar]
  2. Butler P. J., Bloomer A. C., Finch J. T. Direct visualization of the structure of the "20 S" aggregate of coat protein of tobacco mosaic virus. The "disk" is the major structure at pH 7.0 and the Proto-helix at lower pH. J Mol Biol. 1992 Mar 20;224(2):381–394. doi: 10.1016/0022-2836(92)91002-7. [DOI] [PubMed] [Google Scholar]
  3. Butler P. J., Klug A. Assembly of the particle of tobacco mosaic virus from RNA and disks of protein. Nat New Biol. 1971 Jan 13;229(2):47–50. doi: 10.1038/newbio229047a0. [DOI] [PubMed] [Google Scholar]
  4. CASPAR D. L. ASSEMBLY AND STABILITY OF THE TOBACCO MOSAIC VIRUS PARTICLE. Adv Protein Chem. 1963;18:37–121. doi: 10.1016/s0065-3233(08)60268-5. [DOI] [PubMed] [Google Scholar]
  5. Dore I., Weiss E., Altschuh D., Van Regenmortel M. H. Visualization by electron microscopy of the location of tobacco mosaic virus epitopes reacting with monoclonal antibodies in enzyme immunoassay. Virology. 1988 Feb;162(2):279–289. doi: 10.1016/0042-6822(88)90467-9. [DOI] [PubMed] [Google Scholar]
  6. Durham A. C.H. The cause of irreversible polymerisation of tobacco mosaic virus protein. FEBS Lett. 1972 Sep 1;25(1):147–152. doi: 10.1016/0014-5793(72)80473-3. [DOI] [PubMed] [Google Scholar]
  7. Durham A. C. Structures and roles of the polymorphic forms of tobacco mosaic virus protein. I. Sedimentation studies. J Mol Biol. 1972 Jun 20;67(2):289–305. doi: 10.1016/0022-2836(72)90242-2. [DOI] [PubMed] [Google Scholar]
  8. FRAENKEL-CONRAT H. Degradation of tobacco mosaic virus with acetic acid. Virology. 1957 Aug;4(1):1–4. doi: 10.1016/0042-6822(57)90038-7. [DOI] [PubMed] [Google Scholar]
  9. Fraenkel-Conrat H., Williams R. C. RECONSTITUTION OF ACTIVE TOBACCO MOSAIC VIRUS FROM ITS INACTIVE PROTEIN AND NUCLEIC ACID COMPONENTS. Proc Natl Acad Sci U S A. 1955 Oct 15;41(10):690–698. doi: 10.1073/pnas.41.10.690. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Gal-On A., Antignus Y., Rosner A., Raccah B. Nucleotide sequence of the zucchini yellow mosaic virus capsid-encoding gene and its expression in Escherichia coli. Gene. 1990 Mar 15;87(2):273–277. doi: 10.1016/0378-1119(90)90312-f. [DOI] [PubMed] [Google Scholar]
  11. Gallie D. R., Plaskitt K. A., Wilson T. M. The effect of multiple dispersed copies of the origin-of-assembly sequence from TMV RNA on the morphology of pseudovirus particles assembled in vitro. Virology. 1987 Jun;158(2):473–476. doi: 10.1016/0042-6822(87)90225-x. [DOI] [PubMed] [Google Scholar]
  12. Gallie D. R., Sleat D. E., Watts J. W., Turner P. C., Wilson T. M. In vivo uncoating and efficient expression of foreign mRNAs packaged in TMV-like particles. Science. 1987 May 29;236(4805):1122–1124. doi: 10.1126/science.3472350. [DOI] [PubMed] [Google Scholar]
  13. Glover J. F., Wilson T. M. Efficient translation of the coat protein cistron of tobacco mosaic virus in a cell-free system from Escherichia coli. Eur J Biochem. 1982 Mar 1;122(3):485–492. doi: 10.1111/j.1432-1033.1982.tb06463.x. [DOI] [PubMed] [Google Scholar]
  14. Goelet P., Lomonossoff G. P., Butler P. J., Akam M. E., Gait M. J., Karn J. Nucleotide sequence of tobacco mosaic virus RNA. Proc Natl Acad Sci U S A. 1982 Oct;79(19):5818–5822. doi: 10.1073/pnas.79.19.5818. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Jagadish M. N., Hamilton R. C., Fernandez C. S., Schoofs P., Davern K. M., Kalnins H., Ward C. W., Nisbet I. T. High level production of hybrid potyvirus-like particles carrying repetitive copies of foreign antigens in Escherichia coli. Biotechnology (N Y) 1993 Oct;11(10):1166–1170. doi: 10.1038/nbt1093-1166. [DOI] [PubMed] [Google Scholar]
  16. Jagadish M. N., Huang D., Ward C. W. Site-directed mutagenesis of a potyvirus coat protein and its assembly in Escherichia coli. J Gen Virol. 1993 May;74(Pt 5):893–896. doi: 10.1099/0022-1317-74-5-893. [DOI] [PubMed] [Google Scholar]
  17. Jagadish M. N., Ward C. W., Gough K. H., Tulloch P. A., Whittaker L. A., Shukla D. D. Expression of potyvirus coat protein in Escherichia coli and yeast and its assembly into virus-like particles. J Gen Virol. 1991 Jul;72(Pt 7):1543–1550. doi: 10.1099/0022-1317-72-7-1543. [DOI] [PubMed] [Google Scholar]
  18. Jupin I., Sleat D. E., Watkins P. A., Wilson T. M. Direct recovery of in vitro transcripts in a protected form suitable for prolonged storage and shipment at ambient temperatures. Nucleic Acids Res. 1989 Jan 25;17(2):815–815. doi: 10.1093/nar/17.2.815. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Laemmli U. K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature. 1970 Aug 15;227(5259):680–685. doi: 10.1038/227680a0. [DOI] [PubMed] [Google Scholar]
  20. Leberman R. The isolation of plant viruses by means of "simple" coacervates. Virology. 1966 Nov;30(3):341–347. doi: 10.1016/0042-6822(66)90112-7. [DOI] [PubMed] [Google Scholar]
  21. Okada Y. Molecular assembly of tobacco mosaic virus in vitro. Adv Biophys. 1986;22:95–149. doi: 10.1016/0065-227x(86)90004-3. [DOI] [PubMed] [Google Scholar]
  22. Schuster T. M., Scheele R. B., Adams M. L., Shire S. J., Steckert J. J., Potschka M. Studies on the mechanism of assembly of tobacco mosaic virus. Biophys J. 1980 Oct;32(1):313–329. doi: 10.1016/S0006-3495(80)84959-9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Shire S. J., McKay P., Leung D. W., Cachianes G. J., Jackson E., Wood W. I., Raghavendra K., Khairallah L., Schuster T. M. Preparation and properties of recombinant DNA derived tobacco mosaic virus coat protein. Biochemistry. 1990 May 29;29(21):5119–5126. doi: 10.1021/bi00473a017. [DOI] [PubMed] [Google Scholar]
  24. Sleat D. E., Gallie D. R., Watts J. W., Deom C. M., Turner P. C., Beachy R. N., Wilson T. M. Selective recovery of foreign gene transcripts as virus-like particles in TMV-infected transgenic tobaccos. Nucleic Acids Res. 1988 Apr 25;16(8):3127–3140. doi: 10.1093/nar/16.8.3127. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Studier F. W., Rosenberg A. H., Dunn J. J., Dubendorff J. W. Use of T7 RNA polymerase to direct expression of cloned genes. Methods Enzymol. 1990;185:60–89. doi: 10.1016/0076-6879(90)85008-c. [DOI] [PubMed] [Google Scholar]
  26. Towbin H., Staehelin T., Gordon J. Electrophoretic transfer of proteins from polyacrylamide gels to nitrocellulose sheets: procedure and some applications. Proc Natl Acad Sci U S A. 1979 Sep;76(9):4350–4354. doi: 10.1073/pnas.76.9.4350. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Turner D. R., Joyce L. E., Butler P. J. The tobacco mosaic virus assembly origin RNA. Functional characteristics defined by directed mutagenesis. J Mol Biol. 1988 Oct 5;203(3):531–547. doi: 10.1016/0022-2836(88)90190-8. [DOI] [PubMed] [Google Scholar]
  28. Turner D. R., McGuigan C. J., Butler P. J. Assembly of hybrid RNAs with tobacco mosaic virus coat protein. Evidence for incorporation of disks in 5'-elongation along the major RNA tail. J Mol Biol. 1989 Oct 5;209(3):407–422. doi: 10.1016/0022-2836(89)90006-5. [DOI] [PubMed] [Google Scholar]
  29. Tzareva N. V., Makhno V. I., Boni I. V. Ribosome-messenger recognition in the absence of the Shine-Dalgarno interactions. FEBS Lett. 1994 Jan 10;337(2):189–194. doi: 10.1016/0014-5793(94)80271-8. [DOI] [PubMed] [Google Scholar]
  30. Wilson T. M., Perham R. N., Finch J. T., Butler P. J. Polarity of the RNA in the tobacco mosaic virus particle and the direction of protein stripping in sodium dodecyl sulphate. FEBS Lett. 1976 May 1;64(2):285–289. doi: 10.1016/0014-5793(76)80310-9. [DOI] [PubMed] [Google Scholar]
  31. Wittmann H. G. Die primäre Proteinstruktur von Stämmen des Tabakmosaikvirus. IV: Aminosäuresequenzen (1 bis 61 und 135 bis 158) des Proteins des Tabakmosaikvirus-Stammes U2. Z Naturforsch B. 1965 Dec;20(12):1213–1223. [PubMed] [Google Scholar]
  32. Zimmern D. The nucleotide sequence at the origin for assembly on tobacco mosaic virus RNA. Cell. 1977 Jul;11(3):463–482. doi: 10.1016/0092-8674(77)90065-4. [DOI] [PubMed] [Google Scholar]
  33. Zimmern D., Wilson T. M. Location of the origin for viral reassembly on tobacco mosaic virus RNA and its relation to stable fragment. FEBS Lett. 1976 Dec 1;71(2):294–298. doi: 10.1016/0014-5793(76)80954-4. [DOI] [PubMed] [Google Scholar]
