Morphological and ecological divergence of Lilium and Nomocharis within the Hengduan Mountains and Qinghai-Tibetan Plateau may result from habitat specialization and hybridization

Abstract

Background

Several previous studies have shown that some morphologically distinctive, small genera of vascular plants that are endemic to the Qinghai-Tibetan Plateau and adjacent Hengduan Mountains appear to have unexpected and complex phylogenetic relationships with their putative sisters, which are typically more widespread and more species rich. In particular, the endemic genera may form one or more poorly resolved paraphyletic clades within the sister group despite distinctive morphology. Plausible explanations for this evolutionary and biogeographic pattern include extreme habitat specialization and hybridization. One genus consistent with this pattern is Nomocharis Franchet. Nomocharis comprises 7–15 species bearing showy-flowers that are endemic to the H-D Mountains. Nomocharis has long been treated as sister to Lilium L., which is comprised of more than 120 species distributed throughout the temperate Northern Hemisphere. Although Nomocharis appears morphologically distinctive, recent molecular studies have shown that it is nested within Lilium, from which is exhibits very little sequence divergence. In this study, we have used a dated molecular phylogenetic framework to gain insight into the timing of morphological and ecological divergence in Lilium-Nomocharis and to preliminarily explore possible hybridization events. We accomplished our objectives using dated phylogenies reconstructed from nuclear internal transcribed spacers (ITS) and six chloroplast markers.

Results

Our phylogenetic reconstruction revealed several Lilium species nested within a clade of Nomocharis, which evolved ca. 12 million years ago and is itself nested within the rest of Lilium. Flat/open and horizon oriented flowers are ancestral in Nomocharis. Species of Lilium nested within Nomocharis diverged from Nomocharis ca. 6.5 million years ago. These Lilium evolved recurved and campanifolium flowers as well as the nodding habit by at least 3.5 million years ago. Nomocharis and the nested Lilium species had relatively low elevation ancestors (<1000 m) and underwent diversification into new, higher elevational habitats 3.5 and 5.5 million years ago, respectively. Our phylogeny reveals signatures of hybridization including incongruence between the plastid and nuclear gene trees, geographic clustering of the maternal (i.e., plastid) lineages, and divergence ages of the nuclear gene trees consistent with speciation and secondary contact, respectively.

Conclusions

The timing of speciation and ecological and morphological evolutionary events in Nomocharis are temporally consistent with uplift in the Qinghai-Tibetan Plateau and of the Hengduan Mountains 7 and 3–4 million years ago, respectively. Thus, we speculate that the mountain building may have provided new habitats that led to specialization of morphological and ecological features in Nomocharis and the nested Lilium along ecological gradients. Additionally, we suspect that the mountain building may have led to secondary contact events that enabled hybridization in Lilium-Nomocharis. Both the habitat specialization and hybridization have probably played a role in generating the striking morphological differences between Lilium and Nomocharis.

Electronic supplementary material

The online version of this article (doi:10.1186/s12862-015-0405-2) contains supplementary material, which is available to authorized users.

Background

The Hengduan Mountains (H-D Mountains) are located in southwestern China east of the Qinghai-Tibetan Plateau (QTP) and represent one of the world’s most biodiverse regions [1]. Many endemic vascular plant species of the H-D Mountains exhibit high levels of morphological and ecological divergence from their closest, more widespread allies. Thus, the endemics are often treated within their own genera. However, molecular phylogenetic studies have revealed that the some of these endemic genera are nested within the widespread ones. Examples include representatives of Asteraceae (Sinacalia), Brassicaceae (Solms-laubachia), Liliaceae (Lloydia), Primulaceae (Pomatosace), Genetianaceae (Lomatogoniopsis), and Amaryllidaceae (Milula) (see more detail information in Table 1, [2–8]). The contrasting morphological diversity and nested phylogenetic status of genera in the H-D Mountains may result from extreme habitat specialization and/or hybridization events. The H-D mountains provide many unique habitats due to their topographic complexity [9], while repeated phases of uplift of the mountain range may have enabled opportunities for hybridization [10, 11] via secondary contact. Continued research is needed to better understand the mechanisms driving morphological diversity of vascular plants within the H-D Mountains.

Table 1.

Morphologically distinctive plant species that are endemic to the QTP but phylogenetically indistinct (i.e., nested within) from allies

Endemic OTU(s)	Phylogenetically indistinct allies	Distinctive morphology of endemic	Morphology of allies	Geographic range of allies	Family	Reference
Lomatogoniopsis T. N. Ho & S. W. Liu	Lomatogonium A. Braun	2n = 12; Petals bearing one nectary each; Nectaries appendaged, not in pits	2n = 18; Petals bearing two nectarines each; Nectaries not appendaged, in pits	Throughout the temperate Northern Hemisphere	Gentianaceae	[9, 84]
Milula Prain	Allium L.	n = 10; inflorescence spicate; sepals fused over 1/3 or more of length	n = 16 or multiples; inflorescence umbellate; sepals free or fused only at base	Throughout the Northern Hemisphere and in Africa, and Central and South America	Liliaceae	[9, 85]
Parapteropyrum	Fagopyrum	woody; flowers bisexual	herbaceous; flowers monoecious	QTP and adjacent regions to the south and east	Polygonaceae	[86]
Parasenecio W. W. Smith & J. Small	Sinacalia H. Robinson & Brettell	capitula discoid; roots not tuberous	capitula radiate; roots tuberous	Throughout temperate China	Asteraceae	[9, 87]
Pomatosace Maximowicz	Androsace L.	fruit capsule operculate	fruit capsule opening along longitudinal slits	Temperate Northern Hemisphere except eastern North America and temperate South America	Primulaceae	[9, 88, 89]
Solms-laubachia Muschler	Parrya R. Brown; Desideria Pampanini	unique suite of characters	unique suite of characters	Temperate, subarctic, and arctic areas in eastern and central Asia and North America	Brassicaceae	[3, 9, 90, 91]

The Lilium-Nomocharis complex represents an exceptional study system for morphological diversification and hybridization in the H-D Mountains. Nomocharis Franchet. is endemic to the H-D Mountains and adjacent QTP. Nomocharis appeared somewhat similar to Lilium when the former was first described in 1889 [12, 13] but was erected as a new genus because of its highly distinctive open-plate flowers and dark-colored tepal bases with special structures (Figs. 1 and 2) [12–15]. Currently, there are eight recognized species of Nomocharis, of which seven are circumscribed in two traditional sections [14, 15], and one is a recently described hybrid species, N. gongshanensis Y. D. Gao & X. J. He [16]. Recent molecular phylogenetic studies show strong support for Nomocharis nested within Lilium [16, 17]. In contrast to Nomocharis, Lilium comprises approximately 120 species and is widespread throughout the Northern Hemisphere, including areas within the QTP and H-D mountains [18–20].

Fig. 1.

Pictures of Nomocharis aperta in western Yunnan: (a-c), population from Zhongdian, Yunnan showed spot variation; (c-e), population of Fugong, Yunnan showed variations in tepal color; (f-h), habits of N. aperta under different habitats; (i-j), anatomical pictures showed two types of N. aperta from Zhongdian and Fugong, as well as a comparison of outer and inner tepals

Fig. 2.

Pictures from western China showing Nomocharis: (a-c), N. basilissa; (d-f), N. farreri; (g-i), N. gongshanensis; (j-l), N. meleagrina

The goals of our present study are to use a molecular phylogeny as a framework to 1) determine whether the timing of morphological and ecological evolutionary events in Nomocharis are consistent with phases of uplift in the H-D Mountains and QTP, and 2) detect additional hybridization events with the Lilium-Nomocharis species of the H-D Mountains and QTP.

Results

Phylogenetic analyses

A large ITS dataset confirmed the phylogentic position of Nomocharis within Lilium and showed no major differences compared with previous studies (e.g., [16, 17, 21]). Our extensive sampling of Nomocharis enabled us to resolve three sublclades within the genus: Eunomocharis, Ecristata, and the Non-Nomocharis lilies (Lilium species, N-N, hereafter). The Eunomocharis and Ecristata subclades are congruent with traditional classifications based on morphology [13]. The N-N lilies are morphologically divergent from Nomocharis and have characteristics more like other Lilium (Fig. 3). Nomocharis and the N-N lilies are sister to a clade comprised of Lilium sect. Liriotypus (i.e., European lilies) and that these two clades are sister to the rest of Lilium (Additional file 1: Figure S1).

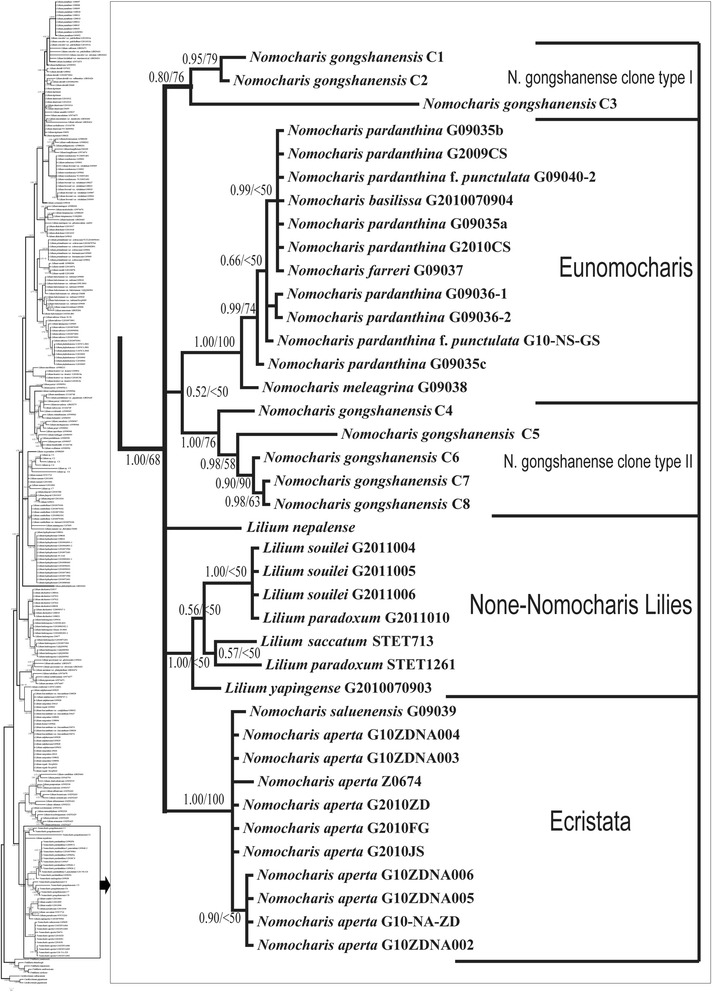

Fig. 3.

Maximum credibility tree showing monophyletic clade of Nomocharis and its relatives reconstructed using Bayesian analysis of ITS data and Lilium species from around the world. The position of this clade is indicated on the tree (for details see Additional file 1: Figure S1). Support values shown on braches; Bayesian posterior probabilities (PP) on left and parsimony bootstrap (BS) on right. Clade names based on Balfour [12]

Major clades of the plastid consensus trees were the same in the Bayesian and MP reconstructions, so we present only the Bayesian consensus (Fig. 4). The plastid data resolved two large clusters consisting of seven major clades (Fig. 4). Cluster I (PP = 1.00, BS = 99 %) comprised two major clades of species of Lilium that are primarily distributed throughout the Sino-Japanese Forest subkingdom [22]. Cluster II (PP = 1.0, BS = 90 %) contained Nomocharis and species of Lilium that occur within the H-D Mountains and adjacent Himalayas.

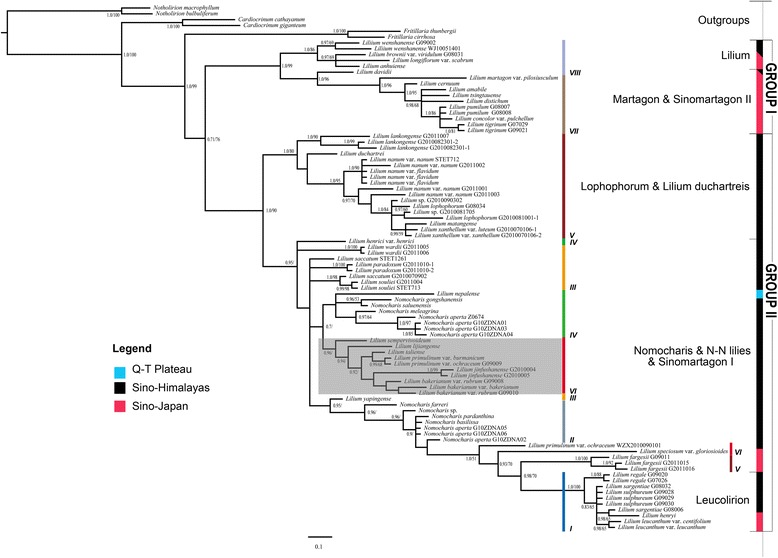

Fig. 4.

Maximum credibility tree resulting from a Bayesian analysis of combined plastid DNA. Clade names based on Comber [23] and Liang [19]. Distributional areas of clades indicated by color. Support values shown on braches; Bayesian posterior probabilities (PP) on left and parsimony bootstrap (BS) on right. Lineages identified in network (Fig. 5) were also marked for references. The Sinomartagon I clade is highlighted for its conflicting position compared to the ITS result in Additional file 1: Figure S1

Within the plastid phylogeny, Nomocharis formed a poorly resolved grade with species of the Sinomartagon and Leucolirion clades. Most of the species of Sinomartagon that associated with Nomocharis and the N-N lilies occur in the Sinomartagon I clade in the ITS topology and represent all Sinomartagon species that inhabit the H-D Mountains and QTP [23, 24]. Despite poor resolution of Nomocharis within the plastid phylogeny, the genus roughly comprised its traditionally recognized sections, sects. Ecristata and Eunomocharis. A clade of Ecristata included N. aperta accessions and N. saluenensis, which have been have been historically treated in the section. The Ecristata clade also contained clones N. gongshanensis, which is the hybrid species, L. nepalense, and N. meleagrina, which is morphologically similar to species of Eunomocharis by having whorled leaves and has traditionally been circumscribed in that section. A grade of sect. Eunomocharis also included one accession of N. aperta (Franchet) E.H. and Lilium yapingense, an N-N lily species.

Overall, Nomocharis and the N-N lilies exhibited poorly resolved relationships within cluster II of the plastid phylogeny and did not form a monophyletic group.

Statistical parsimony network

Our parsimony network was complex but relatively well resolved (Fig. 5). Interior haplotypes and their descendants appear to represent eight lineages, most of which are present in the dichotomously branching plastid phylogeny (Fig. 4). The network supported the plastid tree topology in showing that geographically proximal species have more closely related haplotypes irrespective of morphological similarities or classification in traditional subgenera. Notably, the plastid tree and network also agreed in the placement of Nomocharis. In the network, Nomocharis was divided into two lineages, II and IV, and separated by Lineage III in which N-N lilies were included (Fig. 5). Haplotypes of the Nomocharis and the N-N lilies of lineages III and IV exhibit a shared history with Sinomartagon and Leucolirion species of lineage VI and VII as well as with species of a Lilium clade (lineage VIII, compare to Fig. 4).

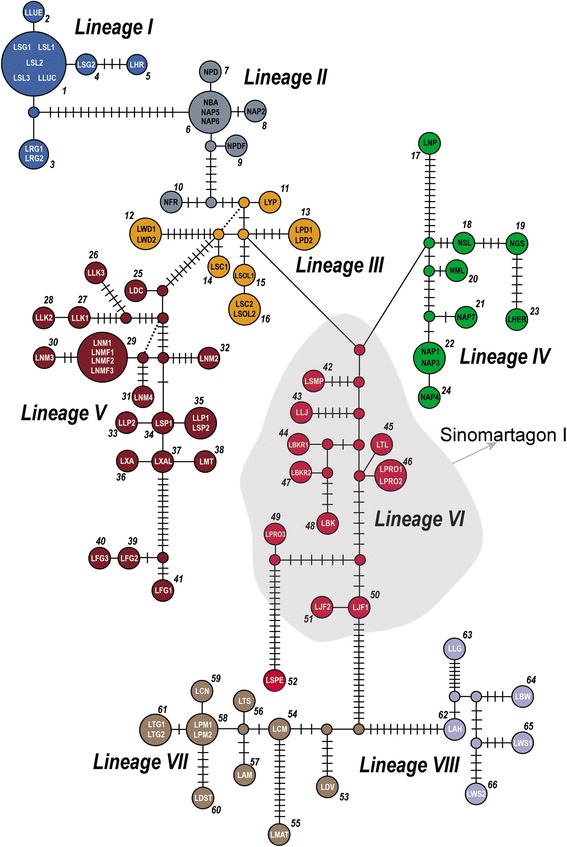

Fig. 5.

Parsimony network conducted by TCS [58] using combined plastid DNA matrix. Sixty-six haplotypes were identified and clustered in eight lineages with different colors. Circle sizes correspond to the number of taxa possessing the haplotype. Species names are abbreviated by the generic first letter and two or three letters of the species epithet (Table 2). Inferred haplotypes (not present in the data set) are depicted as black lines, and unnamed dots indicated the missing interior haplotypes. The Sinomartagon I clade was highlighted for its conflict position compared to the ITS result in Additional file 1: Figure S1

Divergence time estimate and biogeography inferences

We performed divergence time dating using two secondary calibration points applied to our ITS plastid dataset. According to dating using the plastid dataset, and we inferred that the last shared ancestor of the Lilium-Nomocharis occurred around 13.19 Mya and Nomocharis evolved 6.5 Mya (Fig. 6). The ITS dataset recovered a slightly older age of approximately 14 Mya for the last shared ancestor of Lilium-Nomocharis and ca. 12 Mya for the evolution of Nomocharis (Fig. 7). Overall, the ITS dates for major diversification events are older than the plastid dates (Figs. 6 and 7).

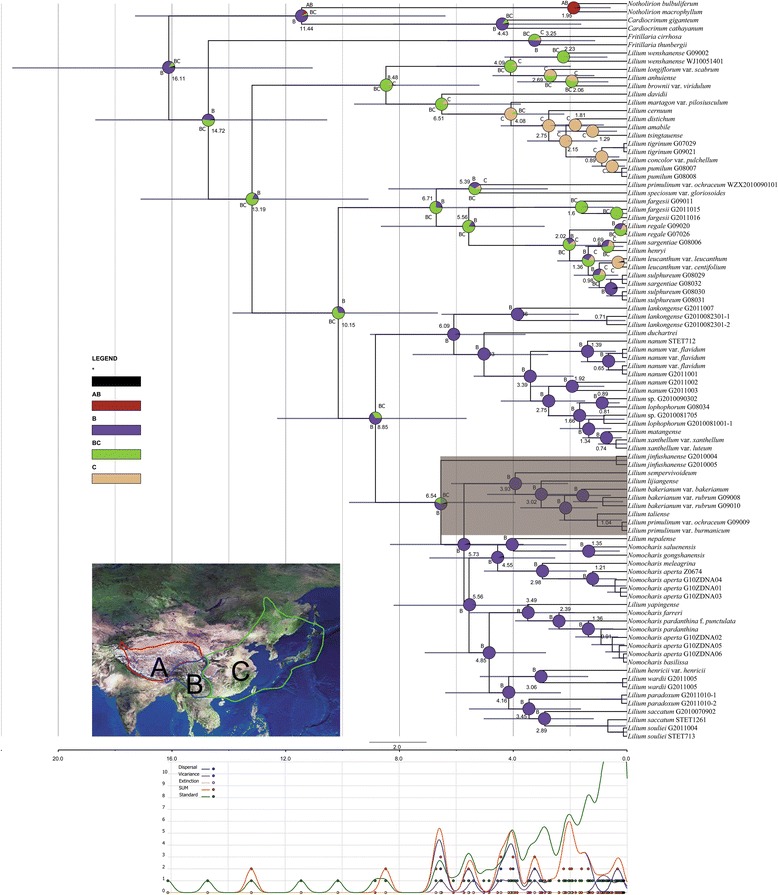

Fig. 6.

Ultrametric chronograms showing divergence time dating and biogeographic results based on the combined plastid DNA phylogeny. Scale bar at bottom indicating branch length of 2 Mya. Mean divergence age given on nodes. Bars on nodes indicate the 95 % HPD for divergence ages. Pie charts show probabilities of ancestral area reconstructions, colors of pie slices defined in legend. The bottom chart summarized the biogeographic event through time. The Sinomartagon I clade was highlighted for its conflict position compared to the ITS result in Additional file 1: Figure S1

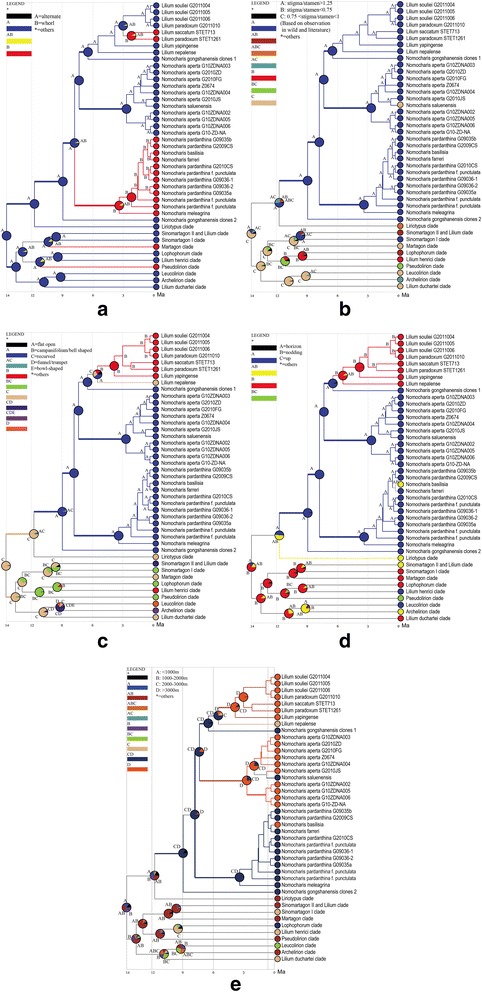

Fig. 7.

The ancestral state reconstructions of leaf, flower, and ecological characters. Pie charts show probabilities of ancestral area reconstructions, colors of pie slices defined in legend. Reconstructions of a, leaf arrangement, b, stigma:stamen ratio, c, corolla shape, d, corolla orientation with respect to the ground, and e, elevational range

The results from Bayesian Binary Method (BBM) of biogeographic analysis show that the last shared ancestor of Lilium-Nomocharis arose in the H-D Mountain region (B: 78.4 %; Fig. 6), while the results from the DEC method in Lagrange support a broader ancestral area within the H-D Mountains and the adjacent Sino-Japanese Floristic Subkingdom (SJFS; BC: 21.4 %; Fig. 6). The results obtained from BBM and DEC may not be incongruent because no significant geographic boundary separated the H-D Mountains and the SJFS areas until at least late Miocene (~7 Mya), which is the earliest date postulated for the H-D Mountain uplift [25, 26]. Lilium-Nomocharis began intensive diversification in the late Miocene (ca. 11–5 Mya, Fig. 6 or ca. 13–6 Mya, Fig. 7). The three Nomocharis lineages, Eunomocharis, Ecristata, and the N-N lilies, originated approximately between ca. 8 Mya (ITS, Fig. 7) and 6 Mya (plastid, Fig. 6) and underwent diversification during the late Pliocene beginning ca. 7–4 Mya (Figs. 6 and 7 respectively).

Ancestral state reconstruction (ASR)

We performed our ancestral state reconstructions using a reduced ITS dataset and they showed that floral characters were more phylogenetically dependent than vegetative ones (Fig. 7). Leaf arrangement patterns showed the greatest lability within clades (Fig. 7a). Overall whorled leaves arose at least four times in Lilium, including two shifts to whorled leaved within Nomocharis and the N-N lilies occurring approximately 4 Mya and 2.5 Mya, respectively (Fig. 7). Our results show that nodding flowers with recurved tepals and roughly equal stigma and stamen lengths are most likely the ancestral condition for Lilium (Fig. 7b, c, d). Ancestors of Nomocharis had longer stigmas than stamen, and this feature also was a synapomorphy within the sympatric Sinomartagon I clade (Fig. 7b). However, one species of Nomocharis, N. saluenensis, experienced a reversion to the roughly equal condition about 1 Mya (Fig. 7b). There appeared to be a correlation between floral orientation and corolla shape; namely that species with campanifolium and recurved petals have nodding flowers, and species with flat open and funnel/trumpet shaped flowers are horizon in orientation (Fig. 7c, d). This seems to be true among modern species and reconstructed ancestors. Recurved and campanifolium petals and the nodding habit evolved in the last shared ancestor of the N-N lilies around 7.5 Mya, and distinguish them from Nomocharis, which retained flat/open flowers and horizon orientation (Fig. 7c, d). The elevation reconstruction indicate that the ancestors of Nomocharis and the N-N lilies occurred at low (<1000 m) elevations and that radiations into different elevations habitats occurred around 5.5 Mya in the N-N lilies and around 3.5 Mya in the Ecristata clade of Nomocharis (i.e., including N. aperta accessions and N. saluenensis; Fig. 7e).

Discussion

Morphological divergence and habitat specialization

Traditionally, classification of Lilium has focused primarily on floral morphology, especially orientation of the flowers with respect to the ground and corolla shape. Thus, nodding flowers and campaniform corollas have been used to support a close relationship between the N-N lilies, which include L. nepalense, L. souliei, L. paradoxum, L. saccatum and L. yapingense (Additional file 3: Figure S3, Additional file 4: Figure S4), and sect. Lophophorum (e.g., Lilium nanum, Additional file 4: Figure S4h, k, and L. lophophorum, Additional file 3: Figure S3d, e, f, of sect. Lophophorum), which shares the same floral features [23]. However, our ITS phylogeny is in contrast to traditional classification of the N-N lilies with sect. Lophophorum and shows that the N-N species are nested within Nomocharis, which is otherwise monophyletic (Figs. 3, Additional file 1: Figure S1). The N-N lilies share few apparent morphological traits in common with Nomocharis and, in particular, lack the unique floral characters that have classically been used to delimit Nomocharis from Lilium.

N-N lilies and traditional Nomocharis may exhibit morphological dissimilarities despite their close evolutionary relationships due to habitat specialization. The N-N lilies may have expanded their habitats into diverse elevations around 5.5 Mya that became available after the last QTP orogeny, which occurred ca. 7 Mya [27, 28] (Fig. 5e). Similarly, uplift of the H-D Mountains probably provided new habitat for an ancestor of the Ecristata clade of Nomocharis. Within the QTP, the N-N lilies tend to occupy higher elevations than the Nomochrais species of the H-D Mountains. Differential adaptations to elevation may explain the strikingly different floral morphology of Nomocharis and the N-N species [29]. In particular, the N-N lilies live almost exclusively in alpine meadows. Thus, N-N lilies are exposed to torrential downpours in alpine meadows compared to traditional Nomocharis species, which grow in the herbaceous layer beneath bamboo canopies (Additional file 5: Figure S5b, h) [19, 20]. The N-N lilies may have evolved nodding flowers ca. 7.5 Mya during QTP uplift and campaniform corollas as advantageous protections for their delicate reproductive structures against harsh precipitation conditions [30, 31]. Although the nodding, campaniform flowers probably provide protection from rainfall for the N-N lilies, they may also have reduced pollen transfer efficiency as an evolutionary trade-off [13, 14]. In contrast, Nomocharis species are probably not limited by the need for protection from heavy rainfall, and may experience higher pollen transfer efficiency by virtue of their horizontally arranged, plate-shaped flowers [13, 14].

The profound effects of habitat specialization within the H-D Mountains and QTP regions on morphology is supported by evidence of convergent evolution among sympatric, distantly related Lilium-Nomocharis species. In particular, Nomocharis and N-N lilies share some morphological traits in common with species of the Lophophorum clade, despite their differences and with which they are sympatric in alpine areas of the QTP. Shared traits especially include inner perianth-segments that have crested or fringed glandular bases (e.g., L. nanum and L. lophophorum Additional file 6: Figure S6) and that are sometimes anthocyanin rich (e.g., L. henrici Additional file 6: Figure S6). These shared morphological traits appear to represent convergent evolution. Morphological convergence within QTP alpine plant genera has been noted in other plant genera including in Androsace (Primulaceae) [5], Pseudoeriocoryne (Asteraceae: Cardueae) [32], Rheum (Polygonaceae) [33] and the Ligularia-Cremanthodium-Parasenecio complex (Asteraceae) [2]. An alternative explanation for the shared morphology between Nomocharis and Lophophorum is hybridization. However, the monophyly of Lophophorum is supported by both ITS and plastid phylogenies (Figs. 3 and 4). Thus, convergence seems to better explain the morphological similarities and supports habitat specialization of Nomocharis and the N-N lilies within the H-D Mountains and QTP.

Detecting the environmental drivers of convergence remain beyond the scope of this study. However, it is noteworthy that many alpine plant groups exhibit floral traits that are well-adapted to the frequent but unpredictable rains experienced in alpine habitats [34–36]. For example, the nodding flower orientation is thought to have evolved to avoid pollen damage and nectar dilution by rainfall [30, 31, 37, 38]. Floral orientation may also be strongly affected by niche features such as the presence and abundance of various types of pollinators. In particular, the horizontal orientation may increase the precision of pollen transfer in bilaterally symmetrical flowers (e.g. Lilium and Nomocharis) under some pollination syndromes [35, 36, 39]. However, morphological convergence among alpine plants may also be strongly affected by understudied environmental interactions, such as with the intense solar radiation experienced during the daytime in alpine areas or the cold night time temperatures [31]. Overall, morphological convergence within the QTP and H-D Mountains habitats is likely linked to the extreme morphological divergence between QTP and H-D Mountains endemics and their widespread relatives. Thus, morphological convergence among QTP and H-D Mountains species of Lilium-Nomocharis and within other plant groups merits more attention in future studies.

Hybridization

Our ITS and plastid gene trees reveal several signatures of possible hybridization. In particular, the gene trees exhibit incongruence. In the ITS phylogeny, Nomocharis and the N-N lilies form a clade in the ITS tree (Fig. 3) that is sister to Lilium sect. Liriotypus. This is in contrast to the plastid phylogeny, which shows poor resolution of Nomocharis and the N-N lilies and places them among species of sects. Sinomartagon, Martagon (Fig. 4). Incongruence between nuclear and plastid and nuclear gene trees is known to result from hybridization, but can also result from incomplete lineage sorting, which is common among vascular plants, and horizontal gene transfer, which is not [40, 41].

Another signature of hybridization may be the strong geographic clustering observed in the plastid phylogeny (Fig. 4) among clades, which are distantly related in the nuclear phylogeny (Fig. 3, Additional file 1: Figure S1). The sympatry of clades with closely related plastid genomes is consistent with secondary contact. Moreover, hybridization in Lilium-Nomocharis is most likely to occur among species that occur within reasonably close proximity due to the limited dispersability of seeds [42] and typically also of pollen via wind or pollinators [43].

If hybridization did occur between Nomocharis (including N-N lilies) and sympatric Lilium, it must have occurred following the evolution of the latter, ca. 12 Mya (Fig. 7). If the dates in the plastid phylogeny can be taken to represent the times of contact, then hybridization events occurred in Nomocharis 5.73 Mya with Sinomartagon and 4.85 Mya with Leucolirion species. These events seem to post-date late orogenies of the QTP ca. 7 Mya and pre-date uplift of the H-D Mountains, in the late Neogene (ca. 3.4 Mya, [25, 26]). However, 95 % CIs for the dates include the orogenic periods (Fig. 6) and may also be consistent with ecological expansion of some Nomocharis species into new elevational ranges (Fig. 7e).

Conclusions

Lilium-Nomocharis exhibits complex phylogenetic relationships typical of a pattern in which QTP and H-D Mountains endemic, morphologically and ecologically distinct vascular plant groups such as Nomocharis, are included within widespread ones, such as Lilium. Our phylogenetic results show that Nomocharis itself is paraphyletic and includes some species traditionally classified as Lilium; here, the N-N clade. Species of the N-N clade exhibit typical Lilium morphology, which distinguishes them from the Nomocharis species. Features characteristic of Nomocharis, such as horizon oriented and flat/open flowers are probably ancestral to the group, and evolved before the uplift of the QTP. However, such features may have enabled the invasion of the QTP and, later, the H-D Mountains by Nomocharis and should be the subject of future studies. Despite their differences, Nomocharis and the N-N clade have probably evolved some similarities due to differently timed expansions into diverse elevational habitats. Our phylogenetic results also show some circumstantial evidence for hybridization in among traditional Lilium and Nomocharis species, and that may help to explain the complex phylogenetic relationships within the Lilium-Nomocharis complex.

Methods

Plant materials

We reconstructed a molecular phylogeny of Lilium and Nomocharis using nuclear ITS and 294 total accessions, of which 67 were obtained from GenBank, 227 were collected with necessary permissions by the author, of which 30 were newly sequenced for this study (Table 2, Additional file 8: Table S1). Note that only 90 accessions used for our phylogenetic reconstruction have been sequenced for all plastid markers and ITS (Table 2, Additional file 8: Table S1). For molecular phylogenetic reconstructions of plastid DNA, we focused our sampling efforts on Nomocharis and its Lilium allies; namely Lilium species that are geographically and/or evolutionarily close to Nomocharis. Of particular note, we sampled L. henrici Franchet, L. xanthellum F. T. Wang & T. Tang, L. saccatum S. Y. Liang that are endemic to the H-D Mountains and have been sparsely sampled in previous studies. Among Nomocharis species, only N. synaptica Sealy, which is native to India, was not sampled. Additionally, we included representative species of Lilium from across the geographic and phylogenetic distribution of the genus. Altogether, for the plastid phylogeny we sampled 14 Nomocharis accessions representing seven of eight species, thirteen Lilium species for their geographic or evolutionary proximity to Nomocharis, and 29 additional Lilium species (Table 2). We selected representative accessions of other genera from within the Lilieae tribe as outgroups including two each of Notholirion, Cardiocrinum and Fritillaria (see [44]). Of the total 360 sequences that we used in this study, two hundred and sixty-five are new to our study, and these have collection, voucher, and Genbank accession information provided in Table 2. We have deposited downstream sequencing data, namely alignments and phylogenetic trees, in TreeBase (Submission number: 17567).

Table 2.

Materials and GenBank accession numbers of five chloroplast makers and accession information

					Genbank accession numbers (bold indicated contributed by this study)
Taxon name	Voucher(SZ)	GPS coordinates	Distribution	Abbreviation of taxa	matK	rbcL	trnL-trnF	rpl32-trnL	psbA-trnH
Lilium amabile Palibin	G09017	N45°14′1.75″, E124°43′21″	C	LAM	KF850798	KF850875	KF850981	KF850909	KF850830
Lilium anhuiense D. C. Zhang & J. Z. Shao	G09001	N30°0′13.51″, E117°32′55″	C	LAH	KF850803	KF850880	KF850994	KF850922	KF850835
Lilium bakerianum Collett & Hemsley var. rubrum Stearn	G09008	N24°58′29″, E102°36′38″	B	LBKR1	HQ692243	HQ692342	KF851009	KF850937	HQ692442
Lilium bakerianum Collett & Hemsley var. rubrum Stearn	G09010	N26°23′10″, E102°47′15″	B	LBKR2	HQ692244	HQ692343	KF851010	KF850938	HQ692443
Lilium bakerianum var. bakerianum Collett & Hemsley	LQQ200901	N29°38′12″, E102°07′29″	B	LBK	HQ687300	HQ687318	HQ687354	HQ687336	KF850837
Lilium brownii var. viridulum Baker	G08031	N34°20′42″, E106°00′42″	BC	LBW	HQ692218	HQ692317	KF850992	KF850920	HQ692417
Lilium cernuum Komarov	G09018	N45°14′1″, E124°43′21″	C	LCM	KF850799	KF850876	KF850982	KF850910	KF850831
Lilium concolor Salisbury var. pulchellum (Fischer) Regel	G09012	N42°13′14″, E124°17′07″	BC	LCN	JN785993	JN786053	KF850983	KF850911	JN786023
Lilium davidii Duchartre ex Elwes	G2010062901	N29°03′37″, E107°12′07″	BC	LDV	HQ692179	HQ692279	KF850986	KF850914	HQ692378
Lilium distichum Nakai ex Kamibayashi	G09013	N42°14′28″, E127°25′11″	C	LDST	JN785999	JN786059	KF850989	KF850917	JN786029
Lilium duchartrei Franchet	G08018	N33°03′39″, E104°41′34″	B	LDC	KF850807	KF850884	KF851018	KF850946	KF850841
Lilium fargesii Franchet	G09011	N34°00′29″, E107°47′28″	B	LFG1	HQ687301	HQ687319	HQ687355	HQ687337	JN786032
Lilium fargesii Franchet	G2011015	N32°39′30″, E106°32′50″	B	LFG2	JN786006	JN786066	KF851035	KF850963	JN786036
Lilium fargesii Franchet	G2011016	N32°41′47″, E106°32′24″	B	LFG3	JN786007	JN786067	KF851036	KF850964	JN786037
Lilium henrici var. henrici Franchet	G09054	N27°47′10″, E98°32′42″	B	LHER	HQ687305	HQ687323	HQ687359	HQ687341	KF850850
Lilium henryi Baker	G08042	N27°21′15″, E106°13′55″	C	LHR	KF850804	KF850881	KF851002	KF850930	KF850836
Lilium jinfushanense L. J. Peng & B. N. Wang	G2010004	N29°01′54″, E107°11′18″	C	LJF1	HQ692257	HQ692356	KF851007	KF850935	HQ692456
Lilium jinfushanense L. J. Peng & B. N. Wang	G2010005	N29°02′18″, E107°12′37″	C	LJF2	HQ692258	HQ692357	KF851008	KF850936	HQ692457
Lilium lankongense Franchet	G2010082301-2	N27°47′07″, E99°38′42″	B	LLK1	HQ692247	HQ692346	KF851012	KF850940	HQ692446
Lilium lankongense Franchet	G2010071201-1	N27°07′35″, E100°14′31″	B	LLK2	HQ692248	HQ692347	KF851013	KF850941	HQ692447
Lilium lankongense Franchet	G2011007	N27°47′22″, E98°35′51″	B	LLK3	KF850828	KF850905	KF851049	KF850977	KF850873
Lilium leucanthum (Baker) Baker var. centifolium (Stapf ex Elwes) Stearn	Z0647	N30°32′37″, E104°17′33″	BC	LLUC	HQ692231	HQ692330	KF851015	KF850943	HQ692430
Lilium leucanthum (Baker) Baker var. leucanthum	G08030	N33°03′20″, E104°40′14″	BC	LLUE	HQ692230	HQ692329	KF851014	KF850942	HQ692429
Lilium lijiangense L. J. Peng	G09005	N26°21′44″, E102°48′45″	B	LLJ	KF850805	KF850882	KF851006	KF850934	KF850838
Lilium longiflorum Thunberg var. scabrum Masamune	Z05100	N26°21′44″, E102°48′45″	C	LLG	KF850802	KF850879	KF850993	KF850921	KF850834
Lilium lophophorum (Bureau & Franchet) Franchet	G08034	N30°52′05″, E108°52′01″	B	LLP1	HQ692196	HQ692296	KF851021	KF850949	HQ692395
Lilium lophophorum (Bureau & Franchet) Franchet	G2010081001-1	N29°08′32″, E100°04′50″	B	LLP2	HQ687303	HQ687321	HQ687357	HQ687339	HQ692403
Lilium martagon L. var. pilosiusculum Freyn	Em003	N46°44′49″, E84°25′57″	C	LMAT	KF850801	KF850878	KF850988	KF850916	KF850833
Lilium matangense J. M. Xu	G07009	N31°56′56″, E102°38′10″	B	LMT	HQ687302	HQ687320	HQ687356	HQ687338	KF850840
Lilium nanum Klotzsch	STET712	N28°30′04″, E98°07′49″	B	LNM1	HQ687295	HQ687313	HQ687349	HQ687331	KF850844
Lilium nanum Klotzsch	G2011001	N29°46′22″, E95°40′52″	B	LNM2	JN786008	JN786068	KF851037	KF850965	JN786038
Lilium nanum Klotzsch	G2011002	N29°46′22″, E95°40′52″	B	LNM3	JN786009	JN786069	KF851038	KF850966	JN786039
Lilium nanum Klotzsch	G2011003	N29°46′22″, E95°40′52″	B	LNM4	JN786010	JN786070	KF851039	KF850967	JN786040
Lilium nanum var. flavidum (Rendle) Sealy	G2011009	N28°30′04″, E98°07′49″	B	LNF1	KF850823	KF850900	KF851044	KF850972	KF850868
Lilium nanum var. flavidum (Rendle) Sealy	G2011009	N28°30′04″, E98°07′49″	B	LNF2	KF850824	KF850901	KF851045	KF850973	KF850869
Lilium nanum var. flavidum (Rendle) Sealy	G2011009	N28°30′04″, E98°07′49″	B	LNF3	KF850825	KF850902	KF851046	KF850974	KF850870
Lilium nepalense D. Don	YY10080907	N28°50′54″, E85°20′06″	A	LNP	HQ687299	HQ687317	HQ687353	HQ687335	N/A
Lilium paradoxum Stearn	G2011010	N29°37′47″, E94°24′14″	B	LPD1	KF850826	KF850903	KF851047	KF850975	KF850871
Lilium paradoxum Stearn	G2011010	N29°37′47″, E94°24′14″	B	LPD2	KF850827	KF850904	KF851048	KF850976	KF850872
Lilium primulinum Baker var. burmanicum (Franchet) Stearn	G2010082801	N27°20′36″, E100°09′23″	B	LPRO1	HQ692238	HQ692337	KF851003	KF850931	HQ692437
Lilium primulinum Baker var. ochraceum (Franchet) Stearn	WZX2010090101	N27°01′20″, E100°13′24″	B	LPRO2	HQ692236	HQ692335	KF851004	KF850932	HQ692435
Lilium primulinum Baker var. ochraceum (Franchet) Stearn	G09009	N26°00′50″, E98°37′04″	B	LRPO3	HQ692240	HQ692339	KF851005	KF850933	HQ692439
Lilium pumilum Redouté	G08007	N35°47′49″, E104°03′49″	C	LPM1	HQ692180	HQ692280	KF850979	KF850907	HQ692379
Lilium pumilum Redouté	G08008	N35°47′56″, E104°03′06″	C	LPM2	HQ692181	HQ692281	KF850980	KF850908	HQ692380
Lilium regale E. H. Wilson	G09020	N31°29′38″, E103°36′49″	B	LRG1	HQ692192	HQ692292	KF850995	KF850923	HQ692391
Lilium regale E. H. Wilson	G07026	N31°30′23″, E103°33′29″	B	LRG2	HQ692191	HQ692291	KF850996	KF850924	HQ692390
Lilium saccatum S. Yun Liang	G2010070902	N29°37′47″, E94°24′14″	B	LSC1	HQ687297	HQ687315	HQ687351	HQ687333	KF850845
Lilium saccatum S. Yun Liang	STET1261	N29°46′22″, E95°40′52″	B	LSC2	HQ687298	HQ687316	HQ687352	HQ687334	KF850846
Lilium sargentiae E. H. Wilson	G08032	N29°04′37″, E107°12′08″	B	LSG1	HQ692214	HQ692313	KF850997	KF850925	HQ692413
Lilium sargentiae E. H. Wilson	G08006	N31°06′26″, E103°33′37″	B	LSG2	HQ692213	HQ692312	KF850998	KF850926	HQ692412
Lilium sempervivoideum H. Léveillé	G09006	N27°49′34″, E102°15′34″	B	LSMP	KF850806	KF850883	KF851016	KF850944	KF850839
Lilium sp.	G2010090302	N28°12′27″, 99°58′14″	B	LSOL1	KF850808	KF850885	KF851019	KF850947	KF850842
Lilium sp.	G2010081705	N28°08′27″, 99°18′15″	B	LSOL2	KF850809	KF850886	KF851020	KF850948	KF850843
Lilium souliei (Franchet) Sealy	G2011004	N28°30′04″, E98°07′49″	B	LSOL3	JN786012	JN786072	KF851040	KF850968	JN786042
Lilium souliei (Franchet) Sealy	STET713	N28°30′04″, E98°07′49″	B	LSOL4	JN786013	JN786073	KF851041	KF850969	JN786043
Lilium speciosum Thunberg var. gloriosoides Baker	G09032	N30°05′15″, E117°29′25″	C	LSP	KF850797	KF850874	KF850978	KF850906	KF850829
Lilium sulphureum Baker ex J. D. Hooker	G09028	N23°15′03″, E104°16′03″	B	LSL1	HQ692226	HQ692325	KF850999	KF850927	HQ692425
Lilium sulphureum Baker ex J. D. Hooker	G09029	N23°15′03″, E104°16′03″	B	LSL2	HQ692225	HQ692324	KF851000	KF850928	HQ692424
Lilium sulphureum Baker ex J. D. Hooker	G09030	N25°50′26″, E98°54′38″	B	LSL3	HQ692224	HQ692323	KF851001	KF850929	HQ692423
Lilium taliense Franchet	G2010071801	N28°04′10″, E99°46′29″	B	LTL	HQ692209	HQ692308	KF851011	KF850939	HQ692408
Lilium tigrinum Ker Gawler	Z0692	N31°48′40″, E104°26′51″	BC	LTG1	HQ692193	HQ692293	KF850984	KF850912	HQ692392
Lilium tigrinum Ker Gawler	G0833	N34°03′13″, E107°30′15″	BC	LTG2	HQ692195	HQ692295	KF850985	KF850913	HQ692394
Lilium tsingtauense Gilg.	G201101	N36°10′1″, E120°34′23″	C	LTS	KF850800	KF850877	KF850987	KF850915	KF850832
Lilium wardii Stapf ex F. C. Stern	G2011007	N29°58′21″, E95°21′48″	B	LWD1	JN786014	JN786074	KF851042	KF850970	JN786044
Lilium wardii Stapf ex F. C. Stern	G2011008	N29°57′43″, E 94°47′27″	B	LWD2	JN786015	JN786075	KF851043	KF850971	JN786045
Lilium wenshanense L. J. Peng & F. X. Li	G09002	N26°00′50″, E98°37′04″	B	LWS1	HQ692232	HQ692331	KF850990	KF850918	HQ692431
Lilium wenshanense L. J. Peng & F. X. Li	WJ10051401	N31°50′32″, E104°39′36″	B	LWS2	HQ692235	HQ692334	KF850991	KF850919	HQ692434
Lilium xanthellum F. T. Wang & Tang var. luteum S. Yun Liang	G2010070106-1	N29°02′39″, E99°42′41″	B	LXAL	HQ692255	HQ692354	KF851017	KF850945	HQ692454
Lilium xanthellum var. xanthellum F. T. Wang & Tang	G2010070106-2	N29°02′39″, E99°42′41″	B	LXA	HQ687304	HQ687322	HQ687358	HQ687340	HQ692451
Lilium yapingense Y. D. Gao et X. J. He	G2010070903	N27°12′20″, E98°44′24″	B	LYP	HQ687296	HQ687314	HQ687350	HQ687332	KF850847
Nomocharis aperta (Franchet) E. H. Wilson	Z0674	N27°47′41″, E99°54′27″	B	NAP7	HQ687306	HQ687324	HQ687360	HQ687342	KF850853
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA01	N28°1′8″, E99°45′41″	B	NAP1	KF850811	KF850888	KF851023	KF850951	KF850854
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA02	N27°31′14″, E99°52′43″	B	NAP2	KF850812	KF850889	KF851024	KF850952	KF850855
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA03	N27°30′30″, E99°48′33″	B	NAP3	KF850813	KF850890	KF851025	KF850953	KF850856
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA04	N27°26′33″, E99°48′33″	B	NAP4	KF850814	KF850891	KF851026	KF850954	KF850857
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA05	N28°1′8″, E99°45′41″	B	NAP5	KF850815	KF850892	KF851027	KF850955	KF850858
Nomocharis aperta (Franchet) E. H. Wilson	G10ZDNA06	N28°1′8″, E99°45′41″	B	NAP6	KF850816	KF850893	KF851028	KF850956	KF850859
Nomocharis basilissa Farrer ex W. E. Evans	G2010070904	N27°12′20″, E98°44′24″	B	NBA	HQ687308	HQ687326	HQ687362	HQ687344	N/A
Nomocharis farreri (W. E. Evans) Harrow	G09037	N25°58′43″, E98°40′20″	B	NFR	HQ687309	HQ687327	HQ687363	HQ687345	KF850860
Nomocharis gongshanensis Y. D. Gao et X. J. He	G09003	N27°46′09″, E98°26′58″	B	NGS	KF850810	KF850887	KF851022	KF850950	KF850848
Nomocharis meleagrina Franchet	G09038	N27°46′18″, E98°27′20″	B	NML	HQ687310	HQ687328	HQ687364	HQ687346	KF850861
Nomocharis pardanthina f. punctulata Sealy	G09040	N27°46′09″, E98°26′58″	B	NPDF	HQ687307	HQ687325	HQ687361	HQ687343	KF850852
Nomocharis pardanthina Franchet	G09036	N25°42′28″, E100°06′27″	B	NPD	HQ687311	HQ687329	HQ687365	HQ687347	KF850851
Nomocharis saluenensis I. B. Balfour	G09039	N27°46′13″, E98°26′44″	B	NSL	HQ687312	HQ687330	HQ687366	HQ687348	KF850849
Cardiocrinum cathayanum (E. H. Wilson) Stearn	G09045	N30°04′10″, E117°48′11″	C	/	KF850819	KF850896	KF851031	KF850959	KF850864
Cardiocrinum giganteum (Wallich) Makino	Z05023	N29°02′18″, E107°12′37″	B	/	KF850820	KF850897	KF851032	KF850960	KF850865
Fritillaria cirrhosa D. Don	G09048	N27°19′40″, E102°27′44″	B	/	KF850818	KF850895	KF851030	KF850958	KF850863
Fritillaria thunbergii Miquel	G09100	N32°6′2″, E118°56′27″	C	/	KF850817	KF850894	KF851029	KF850957	KF850862
Notholirion bulbuliferum (Lingelsheim ex H. Limpricht) Stearn	G07002	N31°45′43″, E102°15′35″	B	/	KF850822	KF850899	KF851034	KF850962	KF850867
Notholirion macrophyllum (D. Don) Boissier	G09043	N29°2′34.77″, E100°32′30.01″	AB	/	KF850821	KF850898	KF851033	KF850961	KF850866

We surveyed the morphology of Nomocharis, its close allies, and major lineages throughout Lilium. In particular, we used photographs of specimens observed in the field, field collected materials, and greenhouse specimens to assess macromorphological traits of 14 species of Nomocharis and closely related species of Lilium. To evaluate the same characters more broadly in 10 major lineages of Lilium (based on our phylogenetic results) we examined preserved specimens available to us, utilized the Chinese Virtual Herbarium, and obtained data from the literature (e.g., Flora of China [20]).

DNA extraction, Polymerase Chain Reaction (PCR) and sequencing

We selected the nuclear marker ITS and the cpDNA regions trnL-F, rbcL, matK, rpl32-trnL and psbA-trnH to reconstruct the molecular phylogeny of Lilium-Nomocharis. We chose the five cpDNA makers because three of them have been proposed as DNA barcodes for their high resolution and amplification success [45], and the other two have shown suitable variation in preliminary analyses (data not shown). For PCR amplifications of nuclear and plastid markers, we used total DNA extractions from fresh or silica gel-dried leaf tissue using a modified cetyltrimethyl-ammonium bromide (CTAB) protocol by Doyle and Doyle [46] or the Plant Genomic DNA Kit (TIANGEN Biotech, Beijing, China). We amplified all six markers using the primers listed in Table 3. All PCR reactions were performed with 50 ng genomic DNA in 20 μl reactions in a GeneAmp PCR System 9700 (Applied Biosystems, USA). The ITS reactions were performed using the following thermocycler protocol: 94 °C denaturation for 2 min; 35 cycles of 94 °C denaturation for 30 s, 55 °C primer annealing for 30 s, and 72 °C extension for 60 s; and a final extension of 72 °C for 10 min. For the plastid markers, the amplification conditions were the same except that primer annealing was performed at 52 °C for 45 s each cycle. Our amplified PCR products were sent to Invitrogen Biotech Co. Ltd. (Shanghai, China) for purification and sequencing, which was done on an ABI-3730XL DNA sequencer. For each sequenced accession, forward and reverse sequencing reactions were performed for increased coverage. Sequencing of the psbA-trnH spacer failed in two species, Nomocharis basilissa and Lilium nepalense, due to homopolymers at ~200 bp from the 5’ end. Thus, all data for this marker for these two species was considered missing (i.e., '?’, [47]) in downstream phylogenetic analyses.

Table 3.

Primers and sequences statistics of nuclear and chloroplast makers used in present study

Region	Forward-primer (5′-3′)	Reverse-primer (5′-3′)	Reference	Alignment length (bp)	Variable sites	Parsimony informative sites
ITS	GGAAGTAAAAGTCGTAACAAGG	TCCTCCGCTTATTGATATGC	[92]	673	398	287
rbcL	ATGTCACCACAAACAGAGAC	TCACATGTACCCGCAGTAGC	[93]	796	84	42
matK	CGATCTATTCATTCAATATTTC	TCTAGCACACGAAAGTCGAAGT	[94]	392	33	23
trnL intron and trnL-trnF spacer	CGAAATCGGTAGACGCTACG	ATTTGAACTGGTGACACGAG	[95]	786	57	34
rpl32-trnL(UAG)	CAGTTCCAAAAAAACGTACTTC	CTGCTTCCTAAGAGCAGCGT	[45]	842	138	100
psbA-trnH	ACTGCCTTGATCCACTTGGC	CGAAGCTCCATCTACAAATGG	[96]	613	24	19
			Total plastid	3429	336	218

Molecular analysis

We aligned our DNA sequences using ClustalX [48] and then by eye in MEGA4.0 [49] following the guidelines of Morrison [50]. We trimmed the sequences to the limits of the ITS and the plastid regions, respectively, by comparing with examples deposited in Genbank. We positioned gaps to minimize nucleotide mismatches. We combined the five cpDNA markers into a single dataset, and all six aligned, and curated datasets were used to calculate uncorrected pairwise nucleotide differences in PAUP* version 4.0b10 [51]. Our nuclear ITS dataset contained a total of 294 accessions, inclusive of our eight outgroups. The ITS matrix contained 673 characters of which 398 were variable and 271 were parsimony-informative. There were 90 accessions for which sequences of all chloroplast markers were available, including for six outgroups. Details of the five chloroplast makers are presented in Table 3. The combined cpDNA alignment was 3429 bp long and contained 336 variables sites, of which 218 (or 6.3 %) were parsimony informative.

For phylogenetic analyses, we combined all five plastid sequences, because chloroplast genes have shared evolutionary histories within the chloroplast genome and because they do not recombine. We treated the ITS dataset independently. Bayesian phylogenetic analyses of the combined chloroplast dataset and the ITS dataset were conducted using MrBayes version 3.1.2 [52] with the GTR+ G + I and GTR+ G models of nucleotide substitution, respectively. These models were selected under the Akaike information criterion (AIC) using MrModeltest version 2.2 [53]. For each of the two datasets, we performed two simultaneous Bayesian analyses that started from a random tree and ran for 10 million generations with sampling every 1000 generations. Within each simultaneous run, four independent MCMC chains were used and the temperature increment between chains was adjusted to 0.2 based on mixing observed in preliminary analyses. Variation in likelihood scores was examined graphically for each independent run using Tracer 1.4 [54] and was used to determine apparent stationarity. Based on observations in Tracer, the first 25 % (2500) of posterior trees were discarded from each run as “burn-in” and posterior probabilities (pp) of clades were calculated from the remaining trees. Following burnin, we selected the best tree from among the simultaneous analyses of the plastid and ITS dataset, independently, using maximum clade credibility.

Maximum parsimony (MP) analyses of the ITS and the combined chloroplast makers were carried out using PAUP* [51]. Characters were treated as unordered and unweighted. A heuristic search was performed with 1000 replicate analyses, random stepwise addition of taxa, tree-bisection-reconnection (TBR) branch swapping, and maximum trees set to 50,000. We summarized the resulting equally parsimonious topologies using majority-rule consensus and calculated bootstrap values from one million replicate analyses using fast stepwise addition of taxa. We retained the bootstrap values for clades consistent with the majority-rule consensus tree.

We carried out topological testing using Kishino-Hasegawa (KH) tests in PAUP*, because KH tests are known to exhibit very low type I error rates [55]. To perform the tests, we used a reduced dataset, which consisted of one sequence for each major evolutionary lineage that was mutually represented in the plastid and nuclear gene trees (Additional file 7: Figure S7). We confirmed that the selected samples produced the same arrangements of evolutionary lineages as the entire plastid and nuclear alignments by generating maximum likelihood (ML) trees using the GTR+ G + I and GTR+ G models, respectively (data not shown). Major lineages were manually organized into plastid and nuclear cladograms in Mesquite [56] (Additional file 7: Figure S7). The reduced alignments plus the cladograms were loaded into PAUP* for performing the KH tests. Specifically, we used the tests to determine if each tree represented a significantly better fit for the dataset from which it was reconstructed compared to tree resulting from the other dataset. We performed the KH tests under the GTR+ G + I and GTR+ G models for the plastid and nuclear datasets using a normal test distribution.

Statistical parsimony network

We expected that strictly bifurcating trees may not completely describe the evolutionary relationships within Lilium-Nomocharis, because hybridization in Lilium-Nomocharis has been postulated [13, 17, 57] and incomplete lineage sorting has been detected in many plant lineages [40]. Therefore, we used the statistical parsimony network approach implemented in TCS v.1.21 [58] to further evaluate evolutionary relationships within the Lilium-Nomocharis complex using the combined chloroplast sequences. We built the parsimony network using eighty-four accessions sequenced for all cpDNA markers except psbA-trnH, which was missing data for two taxa (see above). We tested whether removal of psbA-trnH would change relationships among species, by reconstructing a bifurcating plastid phylogeny without the marker, and it showed no differences compared to the tree constructed using whole dataset (results not shown). For the network analysis, we considered each indel as a single mutation event, and all indels were reduced to single characters (arbitrarily A or T) in a final alignment. The resulting plastid matrix was 3037 characters in length and contained 66 plastid haplotypes representing 84 accessions of Lilium-Nomocharis. We eliminated loops from the parsimony based on the principle that haplotypes with interior positions in the network are assumed to be ancestral [59].

Divergence estimation

Molecular dating in Liliales has been previously performed using distantly related fossils [60], calibrations from previous studies [44, 61], and single calibration points [17]. In particular, Bremer [60] dated nodes in the monocot phylogeny using fossils closely related to palms, aroids, grasses, and cattails and found that Liliales evolved approximately 112 Mya and began diversifying 82 ± 10 Mya. Deriving calibration points from Bremer [60], Patterson and Givnish [44] inferred the divergence time of the tribe Lilieae as 12 Mya and Vinnersten and Bremer [61] concluded that the monophyletic lineage comprised of Lilium, Nomocharis and Fritillaria diverged 6 ± 2.9 Ma. Gao et al. [17] provided a detailed review of Liliales fossils and performed dating using a single, reliable fossil of Smilax, Smilax wilcoxensis Berry [62], to calibrate the divergence between Liliaceae and Smilaceae. Their results showed that Lilieae evolved approximately 16mya. Despite these efforts, it has been widely discussed and shown that single calibration points and caibrations derived from prior studies lead to less reliable, and often younger, clade ages [63–65].

We sought to more rigorously date events in Lilium-Nomocharis by applying two calibration points for dating analyses in BEAST (Additional file 2: Figure S2) [66, 67]. For one calibration, we constrained the divergence time of Liliaceae and Smilacaceae using Smilax wilcoxensis. In brief, Smilax wilcoxensis is known from the early Eocene (∼48.6–55.8 Mya) of the Tennessee Wilcox Formation [62, 68], which is assigned a relative age based on pollen [69, 70]. Specifically, we calibrated the Liliaceae-Smilacaceae node using a uniform prior with a lower bound (paleontologically upper) of 48.6 Mya and an upper bound of 131 Mya. Thus, we asserted our belief that Smilacaceae cannot be younger than Smilax wilcoxensis or older than the Barremian (i.e., 131 Mya), from which the oldest flowering plant fossil is known [71]. For the second calibration, we used Ripogonum tasmanicum Conran, et al. [72] to constrain the age of the ancestor of the monotypic Ripogonanceae and Philesiaceae (following Angiosperm Phylogeny Website, [73]). Ripogonum tasmanicum is reported from the Tasmanian Macquarie Harbour Formation [72], which is approximately 51–52 million years old based on a foraminiferal index [74]. Thus, we constrained the Ripogonanceae and Philesiaceae split using a uniform prior with a lower bound of 51 Mya and an upper bound of 131 Mya. The prior asserts our belief that Ripogonaceae cannot be younger than its fossil or older than the earliest known flowering plant.

The two fossils facilitated establishing calibration points that were well outside of the Nomocharis-Lilium complex. Therefore, we applied these two calibrations to infer the split between Lilium and Fritillaria using a dataset comprised of three cpDNA markers (aptF-H, matK and rbcL, see Additional file 9: Table S2, Additional file 2: Figure S2) that included 45 representative Liliales species and more than 3000 bp [75]. We applied the result mean and 95 % Highest Posterior Density (HPD) to constrain the Lilium and Fritillaria node using a normal prior distribution in an analysis of our plastid dataset. We take these results (Additional file 2: Figure S2) to be our best estimates of ages within Lilium-Nomocharis. More vetted fossils closer to Lilium may eliminate the need for the second dating step in the future.

Divergence time estimations were performed using BEAST ver. 1.5.3 [67] identically for the cpDNA and ITS datasets. The normal prior distribution on the age of the Lilium stem node (i.e., the split of Lilium and Fritillaria) was set using a mean of 14.92 Mya and a standard deviation of 2.5. The chosen standard deviation gave a 95 % HPD of 10.81-19.03 Ma, which was slightly narrower than the actual result of 6.32–25.71 Ma. A likelihood ratio test in PAUP 4.10b [51] rejected strict clocks for both datasets (P < 0.01), therefore we used an uncorrelated lognormal (UCLN), relaxed clock [76]. We used the GTR + G + I and GTR + G models of nucleotide substitution for combined plastid and nuclear ITS dataset, respectively. For the distribution of divergence times, a pure birth branching process (Yule model) was chosen as a prior. BEAST analyses were run on the Cyberinfrastructure for Phylogenetic Research (CIPRES) Science Gateway (http://www.phylo.org/portal2). We ran two independent Markov chains, each for 50,000,000 generations, initiated with a random starting tree, and sampled every 1000 generations. The first 20 % of sampled trees from all runs were discarded as burn-in based on visual inspection in Tracer version 1.4 [54].

Ancestral Area Reconstructions (AAR)

We used the Bayesian Binary method (BBM) in Reconstruct Ancestral States in Phylogenies 2.1b (RASP 2.0) [77–79] to reconstruct the biogeographic history of Lilium-Nomocharis on the ITS consensus phylogeny constructed from BEAST trees. Based on prior studies (e.g., [20, 80]) three areas of endemism were recognized: Qinghai-Tibetan Plateau (QTP, A), H-D Mountains (HDM, B), the geographic region now covered by Sino-Japanese Forest subkingdom (SJFS, C; A-C stand for each region in the RASP analyses, Table 2). We compared BBM results to results from Lagrange, which implements a likelihood method and the Dispersal-Extinction-Cladogenesis (DEC) model [81]. In Lagrange, we set migration probabilities among the three areas of endemism to 1.0 throughout time and did not limit the number of areas that a widespread taxon could occupy (Additional file 10: Table S3). We allowed Lagrange to estimate the extinction and dispersal parameters required for the DEC model.

Ancestral state reconstruction (ASR)

We reconstructed the ancestral states for four, variable macro morphological characters and the habitat characteristic, elevation, in Lilium-Nomocharis. We selected variable macromorphological characters with states that could be evaluated with confidence given the coarse availability of specimen data (see Taxon sampling above). Specifically, we performed reconstructions for corolla shape, flower orientation, the ratio of stigma versus stamen length, and leaf arrangement (Additional file 11: Table S4). We selected these characters from among other plausible ones, because they have previously been used to delimit species within Lilium and Nomocharis [19, 20, 80] but they have not been previously considered within a phylogenetic framework. For corolla shape, we coded species as having flat or open flowers, campaniform or bell shaped flowers, recurved, funnel or trumpet shaped, or bowl-shaped. Flower orientation states were coded as nodding, horizon, and up (i.e., upward facing). For stigma-stamen ratio, we coded states as being greater than 1.25, less than 0.75, or between 0.75 and 1.25. Using these ranges for stigma-stamen ratios enabled us to code species visually. Leaf arrangement was coded as being alternate or whorled. The whorled leaf character was assigned to species that have 3+ leaves arising from a single node and species with scattered leaves arising asynchronously [82]. For elevation, we acquired information from floras and specimen records on GBIF (http://www.gbif.org/). We treated elevation as categorical by using 1000 ft. increments for our discrete character states.

To reconstruct the ancestral character states we used BBM in RASP, which is not limited to historical biogeographic applications. We performed the reconstructions of ancestral morphological states across the dated ITS consensus tree resulting from the BEAST analysis and using the character matrices presented in Additional file 9: Table S2. We modified the BEAST consensus tree using TreeGraph 2.0 [83] by pruning outgroups and collapsing the major clades except Nomocharis. We did this to avoid confounding the issue with outgroups, which were not completely sampled or studied, and to simplify the reconstructions for less well sampled clades outside of Nomocharis. Branch length and divergence time information were preserved. The Bayesian analyses in RASP were carried out using default settings except that we ran the analyses for 1,000,000 MCMC generations and used the F81 + G model for changes between states.

Additional files

Additional file 1: Figure S1. ^{(1.9MB, png)}

Reconstructed phylogenetic relationship of whole Lilium-Nomocharis based on Bayesian inferences of ITS dataset. Names of terminal clades based on Comber [23] and Liang [19]. The Sinomartagon I clade is highlighted.

Additional file 2: Figure S2. ^{(264.6KB, pdf)}

Divergence dating of major clades of Liliales using two fossil calibrations (1 and 2).

Additional file 3: Figure S3. ^{(8.7MB, tif)}

Pictures from western China showing: a-c Lilium henrici var. henrici; d-f L. lophophorum; g-i L. saccatum; j-l L. yapingense.

Additional file 4: Figure S4. ^{(8.9MB, tif)}

Pictures from western China showing: a-e Lilium xanthellum with variations on tepal morphology within a same locality; g-i, flower of L. souilei, L. nanum and L. nepalense; j-l, habit of L. souilei, L. nanum and L. nepalense.

Additional file 5: Figure S5. ^{(9.6MB, tif)}

Pictures from western China showing Nomocharis: a-c, N. pardanthina; d-f, N. saluenensis; g-i, N. pardanthina f. punctulata.

Additional file 6: Figure S6. ^{(9.6MB, tif)}

Outer and inner tepals comparison in a, Lilium henrici; b, L. lophophorum; c-d, two types of L. xanthellum; e, L. yapingense; f, L. saccatum; g, Nomocharis saluenensis; h, N. pardanthina f. punctulata; i-j, two types of N. aperta (Zhongdian and Fugong, respectively); k, N. basilissa; l, N. gongshanensis; m, N. pardanthina; n, N. meleagrina.

Additional file 7: Figure S7. ^{(379.7KB, pdf)}

Results of KH tests for ITS and combined plastid datasets.

Additional file 8: Table S1. ^{(29.4KB, xlsx)}

Sources of ITS sequence data.

Additional file 9: Table S2. ^{(11.6KB, xlsx)}

Genbank accessions used in diversification dating of major clades of Liliales.

Additional file 10: Table S3. ^{(8.8KB, xlsx)}

The matrix of model used in AAR analysis of LARANGE.

Additional file 11: Table S4. ^{(12.9KB, xlsx)}

Morphological character states used in ancestral state reconstruction.
