Abstract
"Craigite," the mixed-air clathrate hydrate found in polar ice caps below the depth of air-bubble stability, is a clathrate mixed crystal of approximate composition (N2O2).6H2O. Recent observations on the Byrd Station Antarctic core show that the air hydrate is present at a depth of 727 m, well above the predicted depth for the onset of hydrate stability. We propose that the air hydrate occurs some 100 m above the equilibrium phase boundary at Byrd Station because of "piezometry"--i.e., that the anomalous depth of hydrate occurrence is a relic of a previous greater equilibrium depth along the flow trajectory, followed by vertical advection of ice through the local phase-boundary depth. Flowline trajectories in the ice based on numerical models show that the required vertical displacement does indeed occur just upstream of Byrd Station. Air-hydrate piezometry can thus be used as a general parameter to study the details of ice flow in polar ice caps and the metastable persistence of the clathrate phase in regions of upwelling blue ice.
Full text
PDF

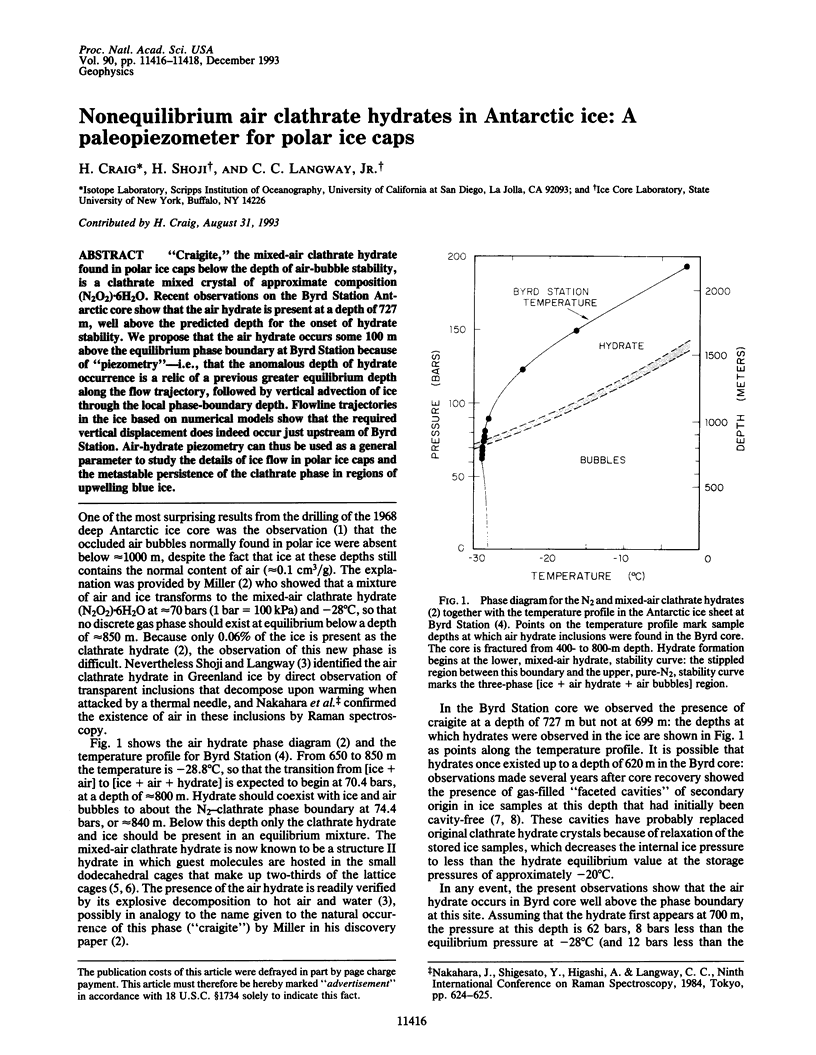

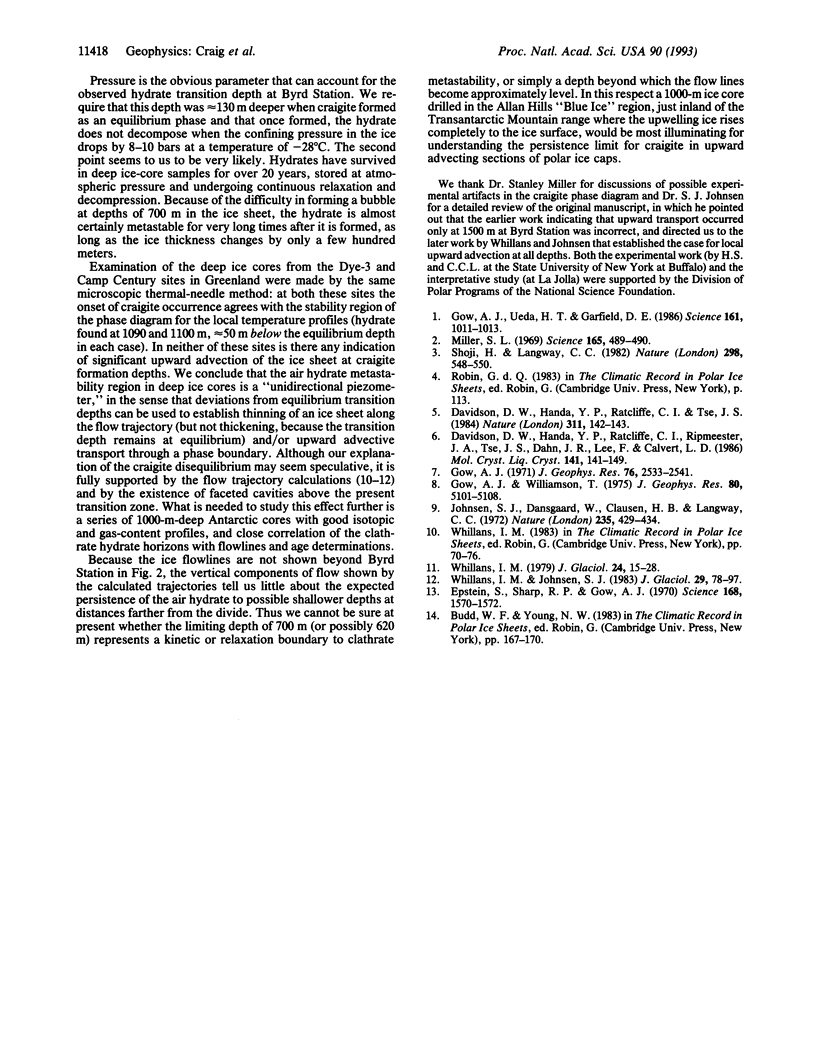

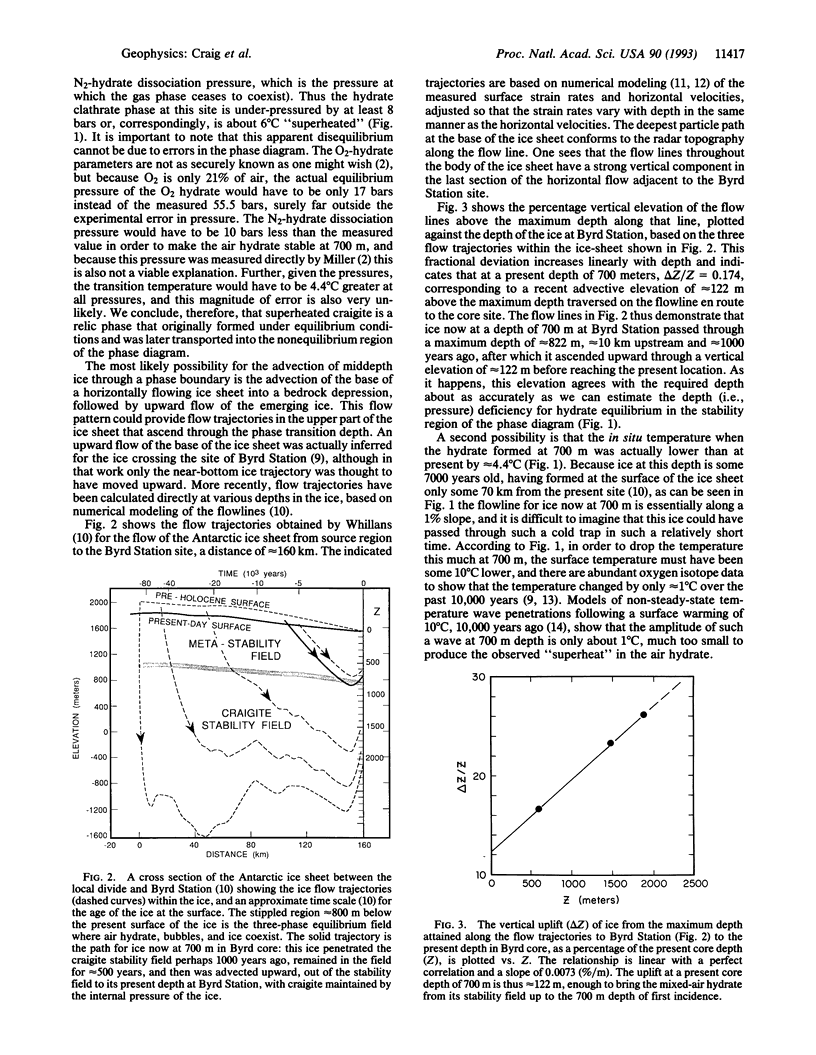

Images in this article
Selected References
These references are in PubMed. This may not be the complete list of references from this article.
- Epstein S., Sharp R. P., Gow A. J. Antarctic ice sheet: stable isotope analyses of byrd station cores and interhemispheric climatic implications. Science. 1970 Jun 26;168(3939):1570–1572. doi: 10.1126/science.168.3939.1570. [DOI] [PubMed] [Google Scholar]
- Gow A. J., Ueda H. T., Garfield D. E. Antarctic ice sheet: preliminary results of first core hole to bedrock. Science. 1968 Sep 6;161(3845):1011–1013. doi: 10.1126/science.161.3845.1011. [DOI] [PubMed] [Google Scholar]
- Miller S. L. Clathrate hydrates of air in antarctic ice. Science. 1969 Aug 1;165(3892):489–490. doi: 10.1126/science.165.3892.489. [DOI] [PubMed] [Google Scholar]
