Abstract
Curare, a selective skeletal muscle relaxant, has been used clinically to reduce shivering and as an anesthetic auxiliary in abdominal surgery. It is also widely used in animal experiments to block neuromuscular junction activity. Effective doses of curare diminish muscle contraction without affecting brain function, but at higher doses it is known to be lethal. However, the exact dose of curare initiating muscle relaxation vs. lethal effect has not been fully characterized in mice. In this study we carefully examined the dose-response for achieving muscle inactivity over lethality in both male and female mice (C57BL6/J). The most striking finding of this study is that female mice were highly susceptible to curare; both the ED50 and LD50 were at least 3-fold lower than male littermates. This study shows that gender-specific differences can be an important factor when administering skeletal muscle relaxants, particularly curare or other analogous agents targeted to the neuromuscular junction.
Key terms: Curare, dose response, gender, muscle activity, oxygen consumption
INTRODUCTION
Curare has long been used by the Indians of South America as an arrow poison for hunting wild game (Bisset, 1992). After it became known that curare affects voluntary muscles selectively without affecting the brain and heart it was widely used in modern medicine as an auxiliary in general anesthesia, frequently with cyclopropane (Anderson, 2010; Lee, 2003). Curare has recently been used in humans to reduce shivering (Hovland et al., 2006), and is also used in animal experimentation to block shivering (Hovland et al., 2006; Kashimura et al., 1992; Nonogaki et al., 1991), to diagnose myasthenia gravis (a muscle disease) (Biesecker and Koffler, 1988; Somnier and Trojaborg, 1993) and to manipulate neurosysnaptic transmission (Witoonpanich et al., 1989) etc. Curare acts as a neuromuscular blocking agent by binding to the acetylcholine receptor (AChR) at the neuromuscular junction and preventing nerve impulses from activating skeletal muscles (Bowman, 2006). Although high doses of curare are lethal, low doses are well tolerated and the effect is completely reversible (Clement, 1978). However, it is not known if curare has a gender-specific effect on physical activity and whole body metabolic rate. In this study we therefore examined the dose-dependent effects of curare on both male and female mice littermates by monitoring physical activity, core body temperature (Tc), whole animal oxygen consumption, circadian rhythm and feeding behavior.
METHODS
Experimental Animals
Age-matched (12–18 weeks old) male and female mice (C57BL/6J) littermates were housed at a temperature of 22±1 °C with a 12:12-h light: dark cycle and relative humidity about 50%. Diet (2014, Harlan Teklad) and water was provided ad libitum. The study protocol was approved by the Ohio State University Institutional Animal Care and Use Committee. All of the animal procedures were carried out at our AAALAC-accredited animal facility and conducted in accordance with the Guide for the Care and Use of Laboratory Animals.
Curare dose response
Tubocurarine hydrochloride (curare with better solubility profile) was purchased from Sigma-Aldrich, St. Louis, MO. Curare solution (0.9% NaCl solution) was administered intraperitonially in various quantities as reported in Table 1. The mice were individually monitored for at least 30 minutes after treatment for drug effect. Dose and percentage of death were fitted into a dose-response graph in GraphPad Prism 3.0 software to calculate the LD50 (dose at which 50% of the mice died). From the dose-response curves an effective sub-lethal dose (EDi), at which mice became immobile for few minutes, was determined for both male and female mice.
TABLE 1.
Dose-dependent effect of curare (tubocurarine) on male and female mice
Dose (mg/kg) | Female | Male | ||||
---|---|---|---|---|---|---|
Total animals tested | Mortality | Immobility | Total animals tested | Mortality | Immobility | |
0.04 | 10 | 0 | 0 | 10 | 0 | 0 |
0.05 | 10 | 0 | 0 | 10 | 0 | 0 |
0.06 | 10 | 0 | 3 | 10 | 0 | 0 |
0.08 | 11 | 0 | 4 | 10 | 0 | 0 |
0.1 | 10 | 2 | 7 | 10 | 0 | 0 |
0.2 | 11 | 5 | 11 | 10 | 0 | 1 |
0.3 | 10 | 6 | 10 | 10 | 0 | 3 |
0.4 | 11 | 9 | 11 | 10 | 2 | 6 |
0.5 | 10 | 9 | 10 | 7 | 2 | 6 |
0.6 | 10 | 10 | 10 | 8 | 5 | 8 |
0.8 | 10 | 8 | 10 | |||
1 | 9 | 9 | 9 |
Monitoring of circadian rhythm and basal metabolic rate (BMR)
To determine if administration of curare affects the metabolic rate in male and female mice differently, we measured oxygen consumption (VO2), RER (respiratory exchange ratio) and physical activity (measured by infrared sensors installed around each housing cage). These experiments were performed at 25±1.0 °C using a Comprehensive Lab Animal Monitoring System (oxymax/CLAMS) equipped with a temperature-controlled environmental chamber from Columbus Instruments, Columbus, OH, USA. The mice were given EDi at 10AM following 18 hours acclimatization at 25±1.0 °C and metabolic measurements were recorded.
Core body Temperature measurement in mice exposed to cold
Core body temperature (Tc) was measured by thermal transponders (IPTT300, Bio Medic Data System, Seaford, DE). Mice were administered with EDi of curare and allowed to recover for 30 minutes and then challenged with 4 °C. Tc, oxygen consumption and physical activity were continuously monitored using oxymax/ CLAMS.
Statistical analysis
Mortality data were analyzed using student't' test (nonparametric) using Graph pad Prism software and p < 0.05 was considered significant.
RESULTS
We were interested in studying the role of muscle shivering over non-shivering thermogenic (NST) mechanisms contributing to heat production and Tc maintenance (Bal et al., 2012). Therefore we chose to utilize curare, which has been shown to reduce shivering (Hovland et al., 2006; Kashimura et al., 1992). We first set out to optimize the dose that would minimize shivering by using different doses of curare in both male and female mice. Interestingly, the LD50 of curare for the female mice was very low (0.22 mg/kg) as compared to male mice (0.75 mg/kg) (Figure 1A). At doses below LD50, curare completely immobilizes the mice for ~10 minutes, after which mice can be used for experimental studies with maximal inhibition of shivering for the next ~5 hours. The ED50 for achieving complete immobility was calculated to be 0.38 mg/kg for males, while that for the female mice was 0.01 mg/kg (Figure 1A). The difference in percentage mortality between male and female groups was found to be statistically significant by applying a student't' test (p=0.003). The number of animals used in this study for each dose of curare and number of animals affected is presented in Table 1. These data suggest that females are highly susceptible to curare and one-third dose for males is sufficient to achieve complete immobility. Therefore, for all the remaining studies reported here, we chose 0.4 mg/kg for male and 0.1 mg/kg for female mice as their respective effective dose to achieve immobility (EDi). The immobility induced at these doses (0.4 mg/kg for male and 0.1 mg/kg for female mice) was completely reversible within ~10 minutes.

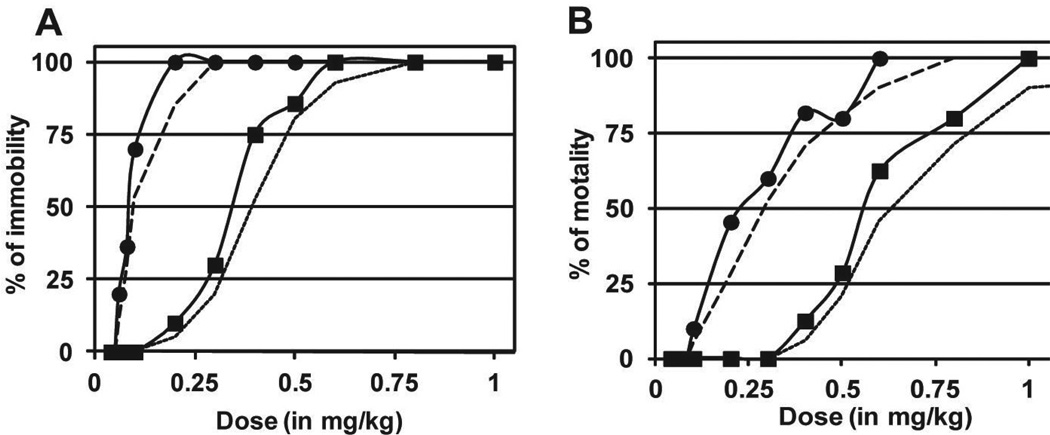

Figure 1. Comparison of curare dose response for male vs. female mice.
(A) Immobility curve and (B) survival curve. Solid circles represent female mice and solid squares are the male mice. Dashed and dotted lines are the trend lines for females and males, respectively.
Administration of curare causes an immediate effect on physical activity and mice are immobilized for a short period. Therefore, we studied if curare has a long-lasting effect on metabolism (measured as whole body O2 consumption) and physical activity on both male and female mice. O2 consumption remained unchanged regardless of gender and dose administered (EDi). Following curare (EDi) administration, physical activity remained low for ~3 hours both in males (Figure 2A) and in females (Figure 2B). Other parameters, including Tc, respiratory exchange ratio (RER or respiratory quotient), energy expenditure measured at 25±1 °C did not show any significant difference (Supplemental Figure). At EDi, both male and female mice were able to tolerate the acute cold challenge of 4 °C (maintained Tc around 37.0 °C) and were able to upregulate their metabolism to meet the thermogenic demands during cold stress, which is reflected in the increase in O2 consumption (Figure 2C and 2D).

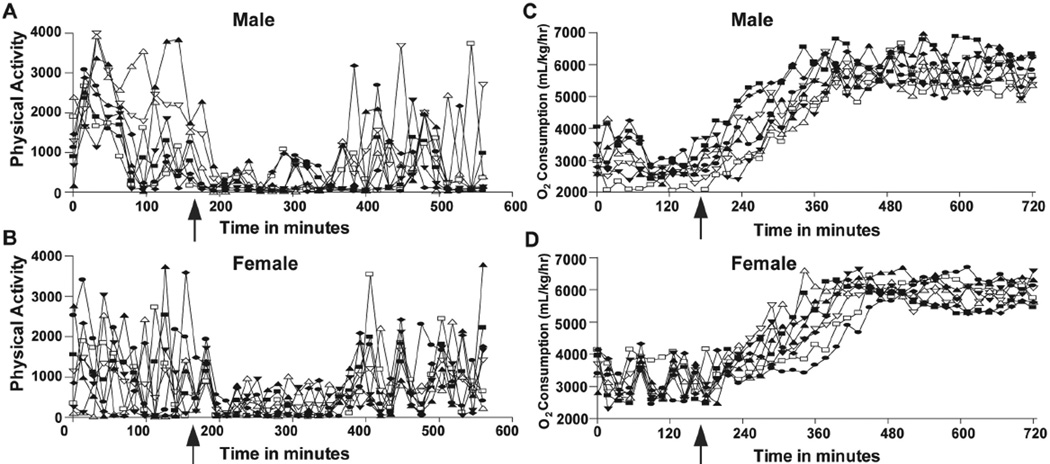

Figure 2. Physiological and metabolic effects of curare.
Effect on physical activity of male mice (A) and physical activity of female mice (B) at 25±1.0 °C. Effect on VO2 in male mice (C) and female mice (D) upon acute cold challenge. Individual data on 8 male and female mice are presented. The time of administration of curare is indicated by arrows. In C and D the cold challenge was started 30 minutes after curare administration.
DISCUSSION
Curare has been used as a muscle relaxant in clinical surgery until recently, when safer alternatives became available. Many of these newer muscle relaxants have similar chemical structures/moieties and also have an analogous mode of action through AChR (Bowman, 2006). Although widely used as a muscle relaxant in clinical surgery, gender-specific differences have not been reported previously. However, it was recently administered in a female patient to reduce shivering (Hovland et al., 2006) and one report suggested that female patients should receive a lower dose of curare (Bennett, 1968), indicating that gender-specific differences may exist. This is the first study to report that female mice are more sensitive to curare at a concentration three fold (LD50) lower than males, but the exact mechanism is unclear. We used reproductively mature mice; the reproductive cycle of the female mice and their hormonal status were not considered. However, we expect that there is very little chance of overlap between the reproductive cycles of the 103 female mice used in the present study. Therefore, the role of reproductive hormones in the observed sensitivity of female mice to curare can be ruled out. This difference between males and females might be due to intrinsic gender-specific differences in recruitment and activation of neuromuscular junctions (Green et al., 1984; Simoneau et al., 1985) and/or gender-specific differences in ability of clearance of the drug from the body. Although the rate of metabolic clearance of curare in mice is not known, clearance for another plant-derived alkaloid, strychnine, has been reported to be slower in female mice, which may be the basis of higher sensitivity of female mice towards these alkaloids (Durkin, 2010). Another interesting finding of this study is that the ED50 and LD50 for curare are close. Therefore, the curare dose for a given experiment should be chosen carefully to avoid lethality-induced differential results. Our study highlights the importance of a gender-specific difference in the curare dose-response relationship. Therefore it calls for careful reevaluation of dose response in females before administering muscle relaxants including curare-like molecules.
Acknowledgments
This work was supported in part by National Institutes of Health Grant R01 HL64014 to M. P. N.C.B. was supported by a postdoctoral fellowship from the American Heart Association.
REFERENCES
- Anderson R. A TORTURED PATH: Curare’s Journey from Poison Darts to Paralysis by Design. Mol Interventions. 2010;10:252–258. doi: 10.1124/mi.10.5.1. [DOI] [PubMed] [Google Scholar]
- Bal NC, Maurya SK, Sopariwala DH, Sahoo SK, Gupta SC, Shaikh SA, Pant M, Rowland LA, Bombardier E, Goonasekera SA, Tupling AR, Molkentin JD, Periasamy M. Sarcolipin is a newly identified regulator of muscle-based thermogenesis in mammals. Nat Med. 2012;18:1575–1579. doi: 10.1038/nm.2897. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Bennett AE. The history of the introduction of curare into medicine. Anesth Analg. 1968;47:484–492. [PubMed] [Google Scholar]
- Biesecker G, Koffler D. Resistance to experimental autoimmune myasthenia gravis in genetically inbred rats. Association with decreased amounts of in situ acetylcholine receptor-antibody complexes. J Immunol. 1988;140:3406–3410. [PubMed] [Google Scholar]
- Bisset NG. War and hunting poisons of the New World. Part 1. Notes on the early history of curare. J Ethnopharmacol. 1992;36:1–26. doi: 10.1016/0378-8741(92)90056-w. [DOI] [PubMed] [Google Scholar]
- Bowman WC. Neuromuscular block. Br J Pharmacol. 2006;147:S277–S286. doi: 10.1038/sj.bjp.0706404. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Clement JG. Effect of ethanol, pentobarbital and morphine on the toxicity of hemicholinium-3 and d-tubocurarine in mice. Arch Int Pharmacodyn Ther. 1978;236:60–65. [PubMed] [Google Scholar]
- Durkin PR. Strychnine: Human Health and Ecological Risk Assessment. RD, NW Atlanta, Georgia 30309: USDA/Forest Service, Southern Region, 1720 Peachtree; 2010. [Google Scholar]
- Green HJ, Fraser IG, Ranney DA. Male and female differences in enzyme activities of energy metabolism in vastus lateralis muscle. J Neurol Sci. 1984;65:323–331. doi: 10.1016/0022-510x(84)90095-9. [DOI] [PubMed] [Google Scholar]
- Hovland A, Nielsen EW, Kluver J, Salvesen R. EEG should be performed during induced hypothermia. Resuscitation. 2006;68:143–146. doi: 10.1016/j.resuscitation.2005.05.019. [DOI] [PubMed] [Google Scholar]
- Kashimura O, Sakai A, Yanagidaira Y, Ueda G. Thermogenesis induced by inhibition of shivering during cold exposure in exercise-trained rats. Aviat Space Environ Med. 1992;63:1082–1086. [PubMed] [Google Scholar]
- Lee C. Conformation, action, and mechanism of action of neuromuscular blocking muscle relaxants. Pharmacol Ther. 2003;98:143–169. doi: 10.1016/s0163-7258(03)00030-5. [DOI] [PubMed] [Google Scholar]
- Nonogaki K, Iguchi A, Yatomi A, Uemura K, Miura H, Tamagawa T, Ishiguro T, Sakamoto N. Dissociation of hyperthermic and hyperglycemic effects of central prostaglandin F2 alpha. Prostaglandins. 1991;41:451–462. doi: 10.1016/0090-6980(91)90051-g. [DOI] [PubMed] [Google Scholar]
- Simoneau JA, Lortie G, Boulay MR, Thibault MC, Theriault G, Bouchard C. Skeletal muscle histochemical and biochemical characteristics in sedentary male and female subjects. Can J Physiol Pharmacol. 1985;63:30–35. doi: 10.1139/y85-005. [DOI] [PubMed] [Google Scholar]
- Somnier FE, Trojaborg W. Neurophysiological evaluation in myasthenia gravis. A comprehensive study of a complete patient population. Electroencephalogr Clin Neurophysiol. 1993;89:73–87. doi: 10.1016/0168-5597(93)90088-7. [DOI] [PubMed] [Google Scholar]
- Witoonpanich R, Vejjajiva A, Limpisvasti S. Regional curare test in the study of neuromuscular transmission in hyperthyroidism. J Med Assoc Thai. 1989;72:187–191. [PubMed] [Google Scholar]
