. 1991 Dec 1;88(23):10916–10920. doi: 10.1073/pnas.88.23.10916

Simultaneous visualization of chromosome bands and hybridization signal using colloidal-gold labeling in electron microscopy.

R Fetni 1, R Drouin 1, N Lemieux 1, P E Messier 1, C L Richer 1
PMCID: PMC53043  PMID: 1961763

Abstract

Electron microscopy (EM) is seldom used with in situ hybridization to localize DNA sequences because banding methods for chromosome identification could not be coupled to EM techniques. We have applied an immunochemical replication-banding method specific for EM to solve this problem. A thymidine synchronization/BrdUrd release protocol allows BrdUrd incorporation only into late replicating bands. A biotinylated DNA probe is hybridized in situ to its complementary sequence. The biotinylated probe and the BrdUrd-substituted DNA are simultaneously localized by different reporter/detection systems using different-sized colloidal gold particles as electron-dense tags. We demonstrate the high precision of this mapping procedure by localizing on long prophase chromosomes (greater than 1000 bands per haploid set) the pXBR-1 sequence to a small subregion of the centromeric subband Xp11.1-Xq11.1. This localization to a part of an individual prophase subband is the most precise localization ever reported on human banded mitotic chromosomes.

Full text

PDF

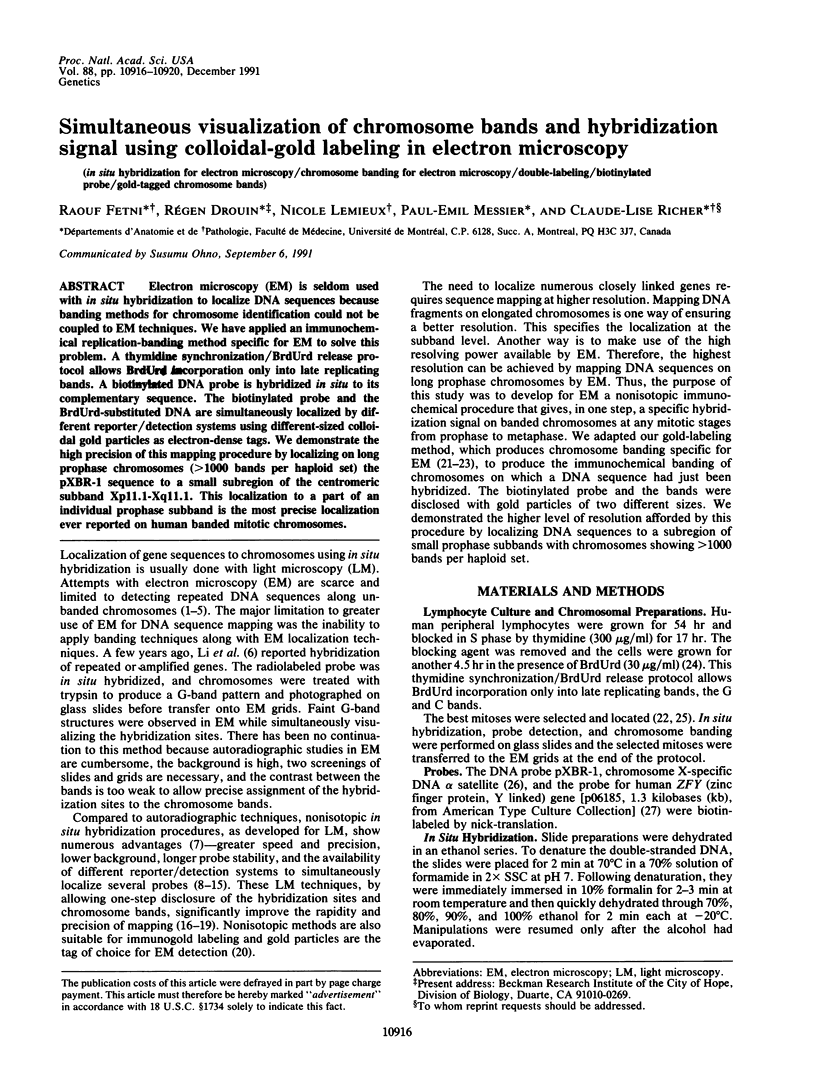

10916

Images in this article

10917Image
on p.10917
10917Image
on p.10917

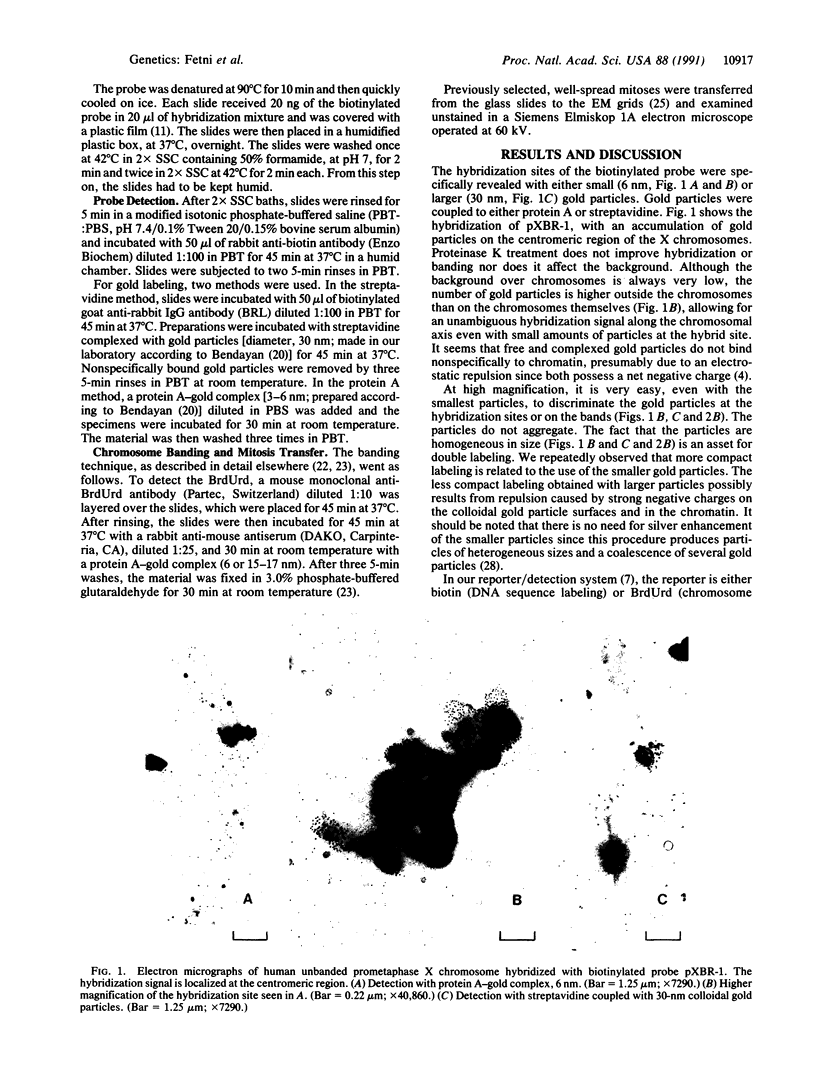

10917Image
on p.10917

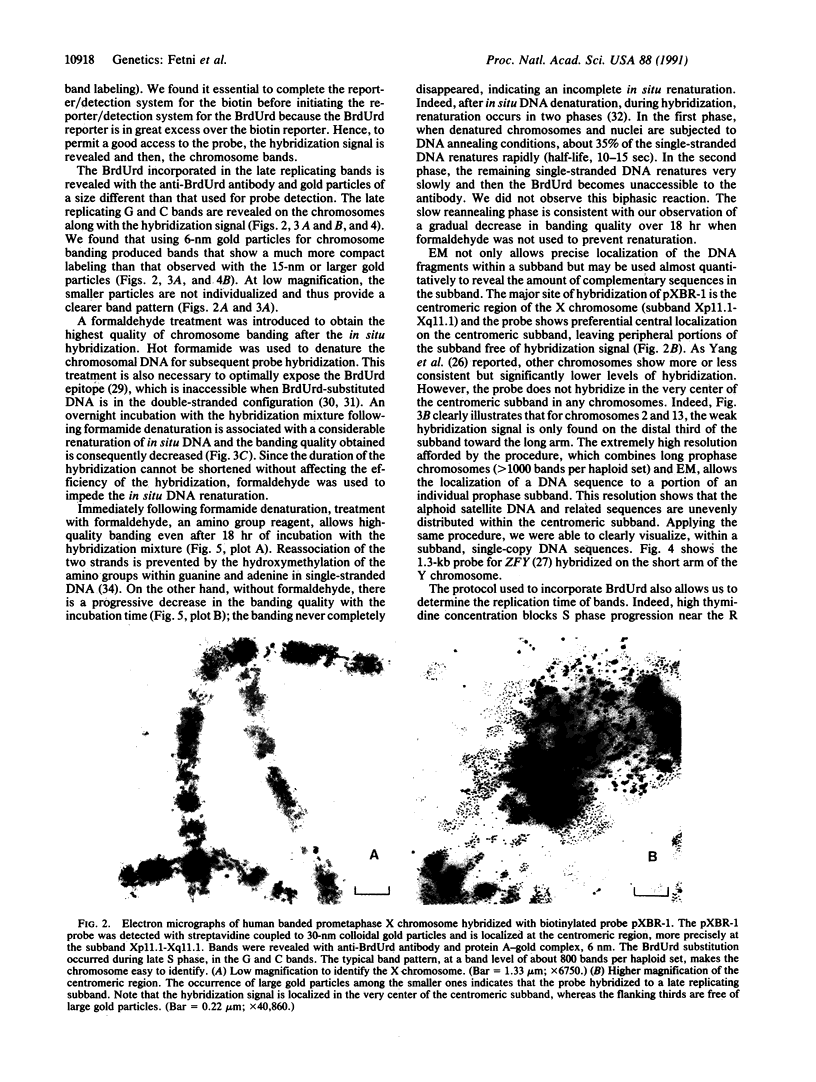

10918Image
on p.10918
10918Image
on p.10918

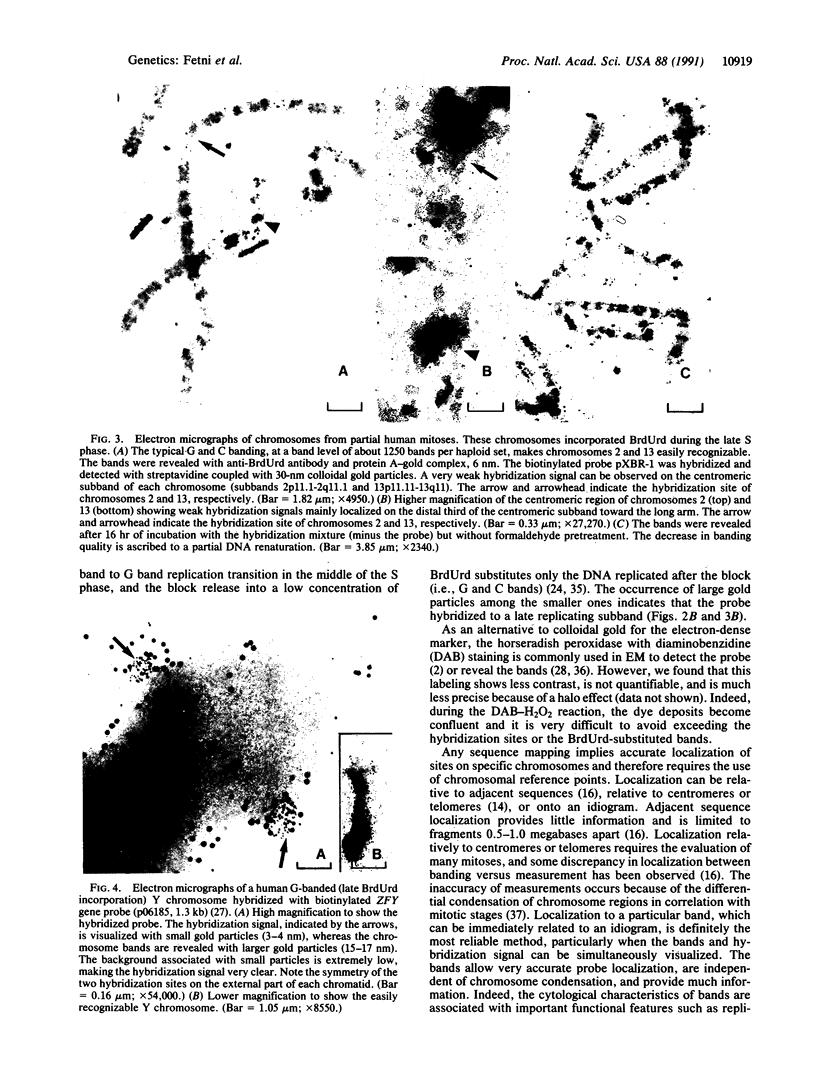

10919Image
on p.10919
10919Image
on p.10919

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Bhatt B., Burns J., Flannery D., McGee J. O. Direct visualization of single copy genes on banded metaphase chromosomes by nonisotopic in situ hybridization. Nucleic Acids Res. 1988 May 11;16(9):3951–3961. doi: 10.1093/nar/16.9.3951. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Cherif D., Bernard O., Berger R. Detection of single-copy genes by nonisotopic in situ hybridization on human chromosomes. Hum Genet. 1989 Mar;81(4):358–362. doi: 10.1007/BF00283691. [DOI] [PubMed] [Google Scholar]
  3. Cherif D., Julier C., Delattre O., Derré J., Lathrop G. M., Berger R. Simultaneous localization of cosmids and chromosome R-banding by fluorescence microscopy: application to regional mapping of human chromosome 11. Proc Natl Acad Sci U S A. 1990 Sep;87(17):6639–6643. doi: 10.1073/pnas.87.17.6639. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Drouin R., Lemieux N., Richer C. L. Chromosome condensation from prophase to late metaphase: relationship to chromosome bands and their replication time. Cytogenet Cell Genet. 1991;57(2-3):91–99. doi: 10.1159/000133121. [DOI] [PubMed] [Google Scholar]
  5. Drouin R., Lemieux N., Richer C. L. High-resolution R-banding at the 1250-band level. 1. Technical considerations on cell synchronization and R-banding (RHG and RBG). Cytobios. 1988;56(225):107–125. [PubMed] [Google Scholar]
  6. Drouin R., Messier P. E., Richer C. L. DNA denaturation for ultrastructural banding and the mechanism underlying the fluorochrome-photolysis-Giemsa technique studied with anti-5-bromodeoxyuridine antibodies. Chromosoma. 1989 Sep;98(3):174–180. doi: 10.1007/BF00329681. [DOI] [PubMed] [Google Scholar]
  7. Drouin R., Messier P. E., Richer C. L. Dynamic G- and R-banding of human chromosomes for electron microscopy. Chromosoma. 1989 Jun;98(1):40–48. doi: 10.1007/BF00293333. [DOI] [PubMed] [Google Scholar]
  8. Drouin R., Messier P. E., Richer C. L. Human chromosome banding specific for electron microscopy. Cytogenet Cell Genet. 1988;47(3):117–120. doi: 10.1159/000132526. [DOI] [PubMed] [Google Scholar]
  9. Fan Y. S., Davis L. M., Shows T. B. Mapping small DNA sequences by fluorescence in situ hybridization directly on banded metaphase chromosomes. Proc Natl Acad Sci U S A. 1990 Aug;87(16):6223–6227. doi: 10.1073/pnas.87.16.6223. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. GROSSMAN L., LEVINE S. S., ALLISON W. S. The reaction of formaldehyde with nucleotides and T2 bacteriophage DNA. J Mol Biol. 1961 Feb;3:47–60. doi: 10.1016/s0022-2836(61)80007-7. [DOI] [PubMed] [Google Scholar]
  11. Gratzner H. G. Monoclonal antibody to 5-bromo- and 5-iododeoxyuridine: A new reagent for detection of DNA replication. Science. 1982 Oct 29;218(4571):474–475. doi: 10.1126/science.7123245. [DOI] [PubMed] [Google Scholar]
  12. Hamkalo B. A., Narayanswami S., Lundgren K. Localization of nucleic acid sequences by EM in situ hybridization using colloidal gold labels. Am J Anat. 1989 Jun-Jul;185(2-3):197–204. doi: 10.1002/aja.1001850212. [DOI] [PubMed] [Google Scholar]
  13. Hutchison N. J., Langer-Safer P. R., Ward D. C., Hamkalo B. A. In situ hybridization at the electron microscope level: hybrid detection by autoradiography and colloidal gold. J Cell Biol. 1982 Nov;95(2 Pt 1):609–618. doi: 10.1083/jcb.95.2.609. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Kurnit D. M. DNA helical content during the C-banding procedure. Cytogenet Cell Genet. 1974;13(4):313–329. doi: 10.1159/000130283. [DOI] [PubMed] [Google Scholar]
  15. Lawrence J. B., Singer R. H., McNeil J. A. Interphase and metaphase resolution of different distances within the human dystrophin gene. Science. 1990 Aug 24;249(4971):928–932. doi: 10.1126/science.2203143. [DOI] [PubMed] [Google Scholar]
  16. Li C. B., Wu M., Margitich I. S., Davidson N. Gene mapping on human metaphase chromosomes by in situ hybridization with 3H, 35S, and 32P labeled probes and transmission electron microscopy. Chromosoma. 1986;93(4):305–312. doi: 10.1007/BF00327588. [DOI] [PubMed] [Google Scholar]
  17. Lichter P., Tang C. J., Call K., Hermanson G., Evans G. A., Housman D., Ward D. C. High-resolution mapping of human chromosome 11 by in situ hybridization with cosmid clones. Science. 1990 Jan 5;247(4938):64–69. doi: 10.1126/science.2294592. [DOI] [PubMed] [Google Scholar]
  18. Manuelidis L., Chen T. L. A unified model of eukaryotic chromosomes. Cytometry. 1990;11(1):8–25. doi: 10.1002/cyto.990110104. [DOI] [PubMed] [Google Scholar]
  19. Manuelidis L., Langer-Safer P. R., Ward D. C. High-resolution mapping of satellite DNA using biotin-labeled DNA probes. J Cell Biol. 1982 Nov;95(2 Pt 1):619–625. doi: 10.1083/jcb.95.2.619. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Messier P. E., Drouin R., Richer C. L. Electron microscopy of gold-labeled human and equine chromosomes. J Histochem Cytochem. 1989 Sep;37(9):1443–1447. doi: 10.1177/37.9.2768813. [DOI] [PubMed] [Google Scholar]
  21. Messier P. E., Jean P., Richer C. L. Easy transfer of selected mitoses from light to electron microscopy. Cytogenet Cell Genet. 1986;43(3-4):207–210. doi: 10.1159/000132322. [DOI] [PubMed] [Google Scholar]
  22. Moens P. B., Pearlman R. E. Satellite DNA I in chromatin loops of rat pachytene chromosomes and in spermatids. Chromosoma. 1989 Oct;98(4):287–294. doi: 10.1007/BF00327315. [DOI] [PubMed] [Google Scholar]
  23. Moran R., Darzynkiewicz Z., Staiano-Coico L., Melamed M. R. Detection of 5-bromodeoxyuridine (BrdUrd) incorporation by monoclonal antibodies: role of the DNA denaturation step. J Histochem Cytochem. 1985 Aug;33(8):821–827. doi: 10.1177/33.8.3860561. [DOI] [PubMed] [Google Scholar]
  24. Narayanswami S., Hamkalo B. A. High resolution mapping of Xenopus laevis 5S and ribosomal RNA genes by EM in situ hybridization. Cytometry. 1990;11(1):144–152. doi: 10.1002/cyto.990110117. [DOI] [PubMed] [Google Scholar]
  25. Page D. C., Mosher R., Simpson E. M., Fisher E. M., Mardon G., Pollack J., McGillivray B., de la Chapelle A., Brown L. G. The sex-determining region of the human Y chromosome encodes a finger protein. Cell. 1987 Dec 24;51(6):1091–1104. doi: 10.1016/0092-8674(87)90595-2. [DOI] [PubMed] [Google Scholar]
  26. Pinkel D., Straume T., Gray J. W. Cytogenetic analysis using quantitative, high-sensitivity, fluorescence hybridization. Proc Natl Acad Sci U S A. 1986 May;83(9):2934–2938. doi: 10.1073/pnas.83.9.2934. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Raap A. K., Marijnen J. G., Vrolijk J., van der Ploeg M. Denaturation, renaturation, and loss of DNA during in situ hybridization procedures. Cytometry. 1986 May;7(3):235–242. doi: 10.1002/cyto.990070303. [DOI] [PubMed] [Google Scholar]
  28. Tkachuk D. C., Westbrook C. A., Andreeff M., Donlon T. A., Cleary M. L., Suryanarayan K., Homge M., Redner A., Gray J., Pinkel D. Detection of bcr-abl fusion in chronic myelogeneous leukemia by in situ hybridization. Science. 1990 Oct 26;250(4980):559–562. doi: 10.1126/science.2237408. [DOI] [PubMed] [Google Scholar]
  29. Viegas-Pequignot E., Dutrillaux B., Magdelenat H., Coppey-Moisan M. Mapping of single-copy DNA sequences on human chromosomes by in situ hybridization with biotinylated probes: enhancement of detection sensitivity by intensified-fluorescence digital-imaging microscopy. Proc Natl Acad Sci U S A. 1989 Jan;86(2):582–586. doi: 10.1073/pnas.86.2.582. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Vogel W., Mehnert K., Pentz S. Demonstration of chromosome replication by BrdU antibody technique and electron microscopy. Hum Genet. 1990 Feb;84(3):237–240. doi: 10.1007/BF00200566. [DOI] [PubMed] [Google Scholar]
  31. Yang T. P., Hansen S. K., Oishi K. K., Ryder O. A., Hamkalo B. A. Characterization of a cloned repetitive DNA sequence concentrated on the human X chromosome. Proc Natl Acad Sci U S A. 1982 Nov;79(21):6593–6597. doi: 10.1073/pnas.79.21.6593. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Zhang F. R., Heilig R., Thomas G., Aurias A. A one-step efficient and specific non-radioactive non-fluorescent method for in situ hybridization of banded chromosomes. Chromosoma. 1990 Oct;99(6):436–439. doi: 10.1007/BF01726696. [DOI] [PubMed] [Google Scholar]
