Vitamin D Deficiency is Associated with Increased Risk of Nonalcoholic Steatohepatitis in Adults with Nonalcoholic Fatty Liver Disease: possible role for MAPK and NF-kB?

Abstract

Objective

To determine the relationship of serum vitamin D deficiency to histologic features of NAFLD, and associated demographic, clinical, laboratory, and transcriptomic data in the well characterized NASH CRN cohort.

Methods

Serum vitamin D 25(OH)D (VD) was quantified by liquid chromatography-tandem mass spectrometry in 190 adults (>18 yrs) with biopsy-proven NAFLD. Subjects were categorized according to their level of VD as either sufficient (>30ng/ml), insufficient (≥20≤30ng/ml), or deficient (VDD; <20 ng/ml). Multivariable logistic regression was used to investigate the association of VDD and the presence of definite nonalcoholic steatohepatitis (NASH) and individual histological features of NAFLD after adjusting for age, sex, race, BMI, ALT, and diabetes status. Hepatic transcriptomic data was compared between VDD and non-VDD subjects.

Results

VDD was present in 55% of subjects and was independently associated with definitive NASH (OR 3.15, 95% CI 1.62–6.15, p=0.001), increased lobular inflammation (OR=1.98, 95%CI, 1.08–3.61, p=0.026), more ballooning (OR=2.38, 95%CI, 1.32–4.30, p=0.004), and the presence of fibrosis (OR=2.32, 95%CI, 1.13–4.77, p=0.022). There was a significant inverse relationship between lower levels of serum resistin and increased VD level category (p=0.013). The KRT10, SEMA3B, SNORD3C, ARSD, and IGKV4-1 genes were differentially expressed (FDR<0.05) between VDD and non-VDD subjects. Gene ontology and pathway analysis suggest activation of the MAPK and NF-kB pathways in VDD NAFLD subjects.

Conclusions

VDD is prevalent among U.S. adult NAFLD patients and is independently associated with a definitive diagnosis of NASH and increased histological severity. Novel associations in pro-inflammatory pathways were identified that suggest the mechanism for VDD in the pathogenesis of NASH and support dietary and/or lifestyle modifications to increase vitamin D levels in these patients.

INTRODUCTION

Vitamin D, specifically the biologically active vitamin D metabolite 1,25-dihydroxyvitamin D [calcitriol: 1,25(OH)2D], is known to exert important physiological effects in addition to well-known effects on calcium metabolism. Vitamin D receptors (VDRs) are ubiquitously expressed in several tissues, including gut, liver, adipose tissues, cardiac and skeletal muscles, β-cells, and immune cells such as lymphocytes, dendritic cells, and monocytes/macrophages(1). Vitamin D3 (VD3) is inversely associated with obesity and insulin resistance (IR), and there is increasing evidence that vitamin D deficiency (VDD) may contribute to the development of diabetes mellitus, and the metabolic syndrome (MetS) (2, 3). VDD may also have a potential role in autoimmune and inflammatory processes through production of pro-inflammatory cytokines (2–4). VDD continues to be largely undertreated in children and adults worldwide (4). Recently, in adolescents in the U.S., 14% to 55% were reported to be vitamin D deficient with 25-hydroxy vitamin D (25(OH)D) concentrations < 20 ng/mL(5, 6). In the US, obese Black Americans are at particularly high risk for VDD; higher rates of VDD, obesity and T2DM were found in African Americans as compared to Caucasians (7, 8). Recent studies of VDD in humans and animal models indicate that VDD also contributes to increased oxidative stress, systemic inflammation, decreased adiponectin levels, toll-like receptor activation and non-alcoholic fatty liver disease (NAFLD)(2, 9–13).

NAFLD is the most common liver disease in developed countries, affecting one of every three adults (14) and about 10% of children (15). NAFLD has emerged as a major risk factor for diabetes and cardiovascular disease, independent of obesity (16, 17). Given the potential for NAFLD to progress to NASH, the more severe form of the disease, with the risk of further progression to cirrhosis and hepatocellular cancer, it is imperative that metabolic risk factors and pathological mechanisms are identified. VDD has emerged as a risk factor for NAFLD; several large epidemiologic studies using surrogate markers of NALFD such as alanine aminotransferase (ALT) levels or abdominal imaging studies, suggest VDD is prevalent among cases of suspected NAFLD compared to controls without evidence of liver disease (18–20). However, this association failed to persist upon multivariate analysis controlling for covariates in some studies (19–20). A recent meta-analysis concluded that NAFLD patients have decreased 25(OH)D levels compared to controls (21). VDD has also been associated with an increased likelihood of steatosis, fibrosis, and necroinflammation in both children and adults in biopsy-proven NAFLD (2, 22–25), but other studies have failed to find an association (26, 27). Two recent rat studies by our group (9) and Nakano et al (28) showed that VDD leads to insulin resistance, increased inflammation and exacerbates the severity of NAFLD. Nakano et al also showed that phototherapy leading to increased VD levels can improve hepatocyte apoptosis, inflammation, fibrosis, and IR (28). In our previous rodent study we found activation of the NF-kB pathway and increased hepatic expression of Toll-like receptor (TLR) genes TLR-2, -4 and -9 as well as resistin, hemeoxygenase, and interleukins (IL)-1β, -4, -6, suggesting that VDD may contribute to NASH pathogenesis through TLR activation and stimulation of a downstream inflammatory response (9).

The goal of this study was to determine the relationship of serum vitamin D levels to histologic features of NAFLD, and associated demographic, clinical, transcriptomic and laboratory data in the well characterized multi-center NASH CRN cohort.

METHODS

Study population

This study was approved as an ancillary study of the NASH CRN. All subjects gave written informed consent and the study was approved by the institutional review board at each local site of the NASH CRN. The inclusion and exclusion criteria for patients enrolled in NASH CRN studies are published (29, 30). For this study a total of 190 NASH CRN adult subjects (age≥18 years) with biopsy-proven NAFLD (defined as >5% steatosis) and available serum for evaluation of serum vitamin D levels. Subjects were randomly chosen to approximate equivalent representation of each clinical center, while maximizing the number of subjects with available transcriptomic and cytokine level data. Histological features of fatty liver disease were assessed by the pathology committee of NASH CRN in a centralized consensus review format using criteria previously described (31). The quality of liver biopsy specimens was similar to previous reports (29–31). Subjects were categorized according to their level of serum vitamin D as either vitamin D sufficient (vitamin D >30 ng/ml), vitamin D insufficient (vitamin D≥20≤30 ng/ml) or vitamin D deficient (<20 ng/ml). Demographic information such as age, gender, ethnicity, race, household income, and medical history to identify co-morbidities and medications were obtained from patient interviews during screening. A physical exam including body weight and height measures was performed following the NASH CRN protocol (29, 30). Laboratory data including hepatic, hematologic, metabolic, lipid, and serum iron assessments were analyzed for subjects with values collected within 6 months of the liver biopsy. Total dietary consumption of and supplementation of vitamin D and calcium were determined from the Block 98 food frequency questionnaire (NutritionQuest, Berkeley, CA); alcohol consumption was determined from the AUDIT-C questionnaires completed during study visits closest to the time of biopsy (available in 73% of subjects). Exercise habits were determined from a Physical Activity Questionnaire (available in 68% of subjects). The prevalence of the metabolic syndrome (MetS) in this cohort was defined using the World Health Organization criteria.

Serologic data

Serum samples were collected in the morning following a 12 h fast and stored at −80°C until use. Serum TNF-α, IL-6 IL-1β IL-8, resistin and adiponectin levels, determined using Luminex technology and the human cytokine LINCOplex kit (Catalog number HCYTO-60K, Millipore, St. Charles, MO), were available in 68%, 67%, 58%, 67%, 67% and 66% of subjects, respectively. The lower limit of detection for these assays was 0.66, 0.79 and 0.19 pg/mL, respectively.

Total serum vitamin D 25(OH)D (25(OH)D2 + 25(OH)D3 was measured in 190 adults (>18 yrs) by liquid-liquid extraction using heptane, derivatization with 4-phenyl-1,2,4-triazoline-3,5-dione, and liquid chromatography-tandem mass spectrometry [Xevo TQ-MS mass spectrometer (Waters, Milford, Connecticut)] at the University of Washington Clinical Mass Spectrometry Facility (a CLIA certified laboratory) supervised by A.N.H (32). Serum 25(OH)D measurements were calibrated against SRM 972 from the National Institute of Standards and Technology. The limit of quantification is 1 ng/mL and the inter-assay imprecision is 8.6–9.2% CV.

Determination of average total monthly hours of sunlight by clinical center

Using the “Comparative Climatic Data For the United States Through 2010” published by the National Climatic Data Center (http://www.ncdc.noaa.gov/) we determined the mean hours of sunshine for each NASH CRN enrolling center city at the time of sample collection for each subject. Monthly data for each NASH CRN site are presented in supplementary tables 1–12. This data is the average of 50.25 years (range 30–68 years). The following formula was used:

$$\%\text{SUNSHINE}\times [(\#\text{CLEAR DAYS}\times 0.85)+(\#\text{PARTLY CLOUDY DAYS}\times 0.45)+(\#\text{CLOUDY DAYS}\times 0.10)]\times 24=\text{Mean hours of sunlight}$$

• SUNSHINE - average percentage of possible (percentage of the day which is daylight hours for that location during that month)

• CLEAR DAYS - defined as 70% - 100% sunshine; mean value of 85% was used.

• PARTLY CLOUDY DAYS - defined as 30% – 60% sunshine; mean value of 45% was used.

• CLOUDY DAYS - defined as 0% – 20% sunshine; mean value of 10% was used.

Determination of metabolic equivalents (METs)

Since physical activity (and socio-economic status) have been defined as risk factors for VDD (33), we extrapolated data from the Physical Activity and Modified (PA) Questionnaires used in the NASH CRN Database 1 and PIVENS Studies and convert to Metabolic Equivalents (METs) minutes per week as previously described (34).

RNA isolation and RNA sequencing library construction

RNA was isolated from flash frozen liver tissue using either the RNAqueous-Micro Kit (Life Technologies, Grand Island, NY) or the miRNeasy kit (Qiagen, Germantown, MD) according to the manufacturer’s protocol. Quality of the isolated RNAs was assessed using an Agilent Bioanalyzer to determine an RNA Integrity Number (RIN) value. Only RNAs with RIN≥7.0 were used for sequencing. RNA concentrations were determined using a NanoDrop ND-1000 spectrophotometer. RNA-seq libraries were constructed from 100 ng of RNA using the TruSeq Stranded Total RNA Sample Prep Kit (Illumina), with ribosomal depletion. Libraries were clustered on a flowcell using the TruSeq Paired-end Cluster Kit, v3 using a cBot clustering instrument (Illumina), followed by paired-end sequencing on a HiScanSQ (Illumina) for 50 cycles in either direction. After the run was completed, the reads were demultiplexed and FASTQ files were generated using Illumina’s Casava software for each sample output. Read quality was analyzed by generating QC plots.

Sequence alignment and gene counts

Libraries were processed via a custom Galaxy workflow created for paired end, stranded data (35–37). Read alignment to Ensembl’s GRCh37.66 gtf (38) was performed using TopHat (v1.4.1) (39). The single-paired flag was set to “paired,” library type was set to “FR First Strand,” and mean inner distance between pairs was set to 170. All other TopHat parameters were set to defaults. HTSeq-count was used to generate gene counts following conversion of BAM files into SAM files with mode set to “Intersection (nonempty),” stranded set to “Reverse,” and minimum alignment quality set to 0 and all other set to default parameters (40).

Normalization and differential expression

The R Bioconductor package edgeR was used to determine differential expression between VDD (n=31) or not VDD (i.e., 25(OH)D3 levels ≥20ng/ml; n=38) (41). A standard edgeR workflow was utilized (i.e., normalize the data, filter the genes, build a model matrix for the comparison, estimate dispersions/coefficient of variation, run the negative binomial generalized linear model, test for significance including multiple testing correction). For normalization, edgeR calculates TMM (trimmed mean of M-values) between each pair of samples that corrects for both sequencing depth variation between samples and possible under-sampling of genes due to highly expressed genes in a sample. TMM calculates a set of scaling factors for the library sizes to minimize these two technical factors of RNAseq data. Count data was filtered to remove genes which had a TMM normalized count of <1 in >90% of the libraries. This resulted in 19,057 genes being included in the linear model fit. Then a model matrix was built to perform the 2 group comparison. The biological coefficient of variation (CV) was 29%. Finally, a negative binomial general linear model fit was run for VDD yes vs. no, with adjustment for multiple comparisons using a FDR < 0.05.

Pathway and functional annotation analysis

Enrichment for Gene Ontology terms was performed using AmiGO 2 v2.2.3 (42). Pathway analysis was performed by searching the Reactome pathway database v50 (43). Gene-annotation enrichment analysis and functional annotation clustering was performed using DAVID v6.7 (44).

Statistical analysis

Baseline demographic, clinical, and laboratory characteristics were recorded as numbers and percentage for categorical data and means and standard deviation for continuous data. Differences between vitamin D level categories were assessed using the Kruskal Wallis test for continuous variables and Fisher’s Exact test for categorical data. Trends across categories were analyzed using non-parametric trend test (STATA command nptrend) for continuous variables and Cochran-Mantel-Haenszel Stratified Test of Association for categorical data (STATA command emh). Binary and ordinal markers such as the presence of definitive NASH and NAS were analyzed using logistic regression and ordinal logistic regression, respectively using VDD as a nominal variable (i.e., patients with sufficient and insufficient vitamin D levels were merged into the control group). Models were adjusted for covariates defined a priori, including age, sex, race, BMI, ALT, season and the presence of metabolic syndrome and diabetes type 2. Factors thought to contribute to vitamin D levels, measured on a continuous scale, were analyzed using univariate and stepwise multivariable linear regression. These included age, sex, race, ethnicity, BMI, household income level, mean amount of sunlight during the month of sample collection, mean weekly metabolic equivalents, dietary and supplemental vitamin D (mg/day). A p value of <0.10 was used as a cutoff for incorporation into the model. Statistical analysis was performed using STATA version 12.1 (StataCorp LP, College Station, TX) or R version 3.1.3 (45). Nominal, two-sided p-values were used and were considered to be statistically significant if p<0.05.

RESULTS

Patient characteristics

One hundred ninety subjects with biopsy-proven NAFLD were evaluated in the present study. VDD was present in 55% (105 subjects) of this cohort, with 26% and 19% classified as vitamin D insufficient and sufficient, respectively. Overall the majority of subjects in this study cohort were non-Hispanic whites (77%), obese (71%) and female (53%). Patient characteristics including clinical, demographic, racial, and specific dietary/behavioral factors thought to effect vitamin D levels, such as dietary and supplemental vitamin D and calcium consumption, household income, weekly metabolic equivalent expenditure and compiled average sunlight for each site during the month of sample collection are summarized in Table 1. There was a significant positive trend for increased age with higher serum vitamin D levels. There were significant differences between groups for supplemental calcium consumption as well as for average sunlight at the time of serum collection. There was a positive trend of increased dietary vitamin D consumption across groups, which failed to attain statistical significance (p=0.059). No other differences between groups were observed including for BMI, race, ethnicity or the presences of obesity, diabetes, or the metabolic syndrome.

Table 1.

Patient characteristics according to vitamin D level category

Characteristic*	Vitamin D deficient < 20 ng/ml	Vitamin D insufficient 20–30 ng/ml	Vitamin D sufficient >30 ng/ml	P value#	P trend†
Number	105 (55)	49 (26)	36 (19)
Age (yrs)	46.5 ± 10.2	48.1 ± 11.5	50.5 ± 12.3	0.072	0.023
Male (No.)	54 (61)	20 (22)	15 (17)	0.378	0.215
BMI (kg/m2)	35.4 ± 6.8	33.6 ± 6.5	33.5 ± 6.2	0.204	0.115
Obese (≥30 BMI)	80 (59)	32 (24)	23 (17)	0.167	0.083
Waist circum. (cm)	111 ± 13	107 ± 16	109 ± 14	0.237	0.337
Waist-to-hip ratio	0.95 ± 0.08	0.95 ± 0.08	0.94 ± 0.08	0.708	0.408
Diabetes mellitus	19 (54)	7 (20)	9 (26)	0.496	0.517
Metabolic Syndrome	71 (58)	26 (21)	26 (21)	0.122	0.113
Race (No.)				0.246	0.107
White	77 (52)	36 (25)	34 (23)
Black	4 (80)	1 (20)	0 (0)
Asian	7 (54)	5 (38)	1 (8)
American Indian or Alaska Native	6 (86)	0 (0)	1 (14)
Native Hawaiian or Pacific Islander	1 (100)	0 (0)	0 (0)
Other	5 (50)	5 (50)	0 (0)
Ethnicity (No.)				0.213	0.078
Non-Hispanic	87 (53)	43 (26)	34 (21)
Hispanic	18 (69)	6 (23)	2 (8)
Household income				0.370	0.791
<$15,000	9 (50)	3 (17)	6 (33)
$15,000–$29,999	13 (65)	6 (30)	1 (5)
$30,000–$49,999	24 (60)	11 (28)	5 (12)
≥$50,000	58 (53)	29 (26)	23 (21)
Dietary vitamin D (mg/day)	131 ± 93	156 ± 116	187 ± 180	0.163	0.059
Supplemental vitamin D (mg/day)	109 ± 168	85 ± 152	206 ± 201	0.067	0.130
Dietary calcium (mg/day)	728 ± 444	722 ± 385	719 ± 439	0.991	0.978
Supplemental calcium (mg/day)	136 ± 321	109 ± 241	431 ± 519	0.020	0.013
Metabolic Equiv. (wk)	128 ± 48	127 ± 65	128 ± 57	0.730	0.873
Avg. Sunlight (mo)+	152 ± 70	197 ± 73	196 ± 58	0.0001	<0.001

^*Values are means ± sd or n(%)

^#Differences between vitamin D level categories were assessed using the Kruskal Wallis test for continuous variables and Fisher’s Exact test for categorical data.

^†Trends across categories were analyzed using non-parametric trend test (Stata nptrend test) for continuous variables or Cochran-Mantel-Haenszel Stratified Test of Association for categorical data

Association of VDD and nonalcoholic steatohepatitis in NAFLD subjects

There was a significant difference in the proportion of subjects given the diagnoses of “not NASH/borderline NASH compared to definitive NASH” according to their serum vitamin D level category. Subjects with VDD were more likely to be diagnosed as “definitive NASH” (67%), compared to subjects in either the vitamin D insufficient (47%) or sufficient (53%) categories (p= 0.045, Fisher's exact). VDD was associated with the presence of definitive NASH (univariate logistic regression, OR 2.01, 95% CI 1.13–3.69, p=0.017). The estimated magnitude of the odds ratio increased adjusting for covariates age, sex, BMI, race, ALT level, and the presence of diabetes mellitus, (stepwise multivariable logistic regression; OR 3.15, 95% CI 1.62–6.15, p=0.001; Fig 1A). There was no significant difference in the absolute VD3 levels between patients with and without NASH (median 17.85, range (4.9–54.5); median 20.7, range (2.3–45.3), p=0.16, Wilcoxon rank sum test, respectively). It is important to note that this study was not powered to detect a difference if VD3 levels between subjects with or without NASH.

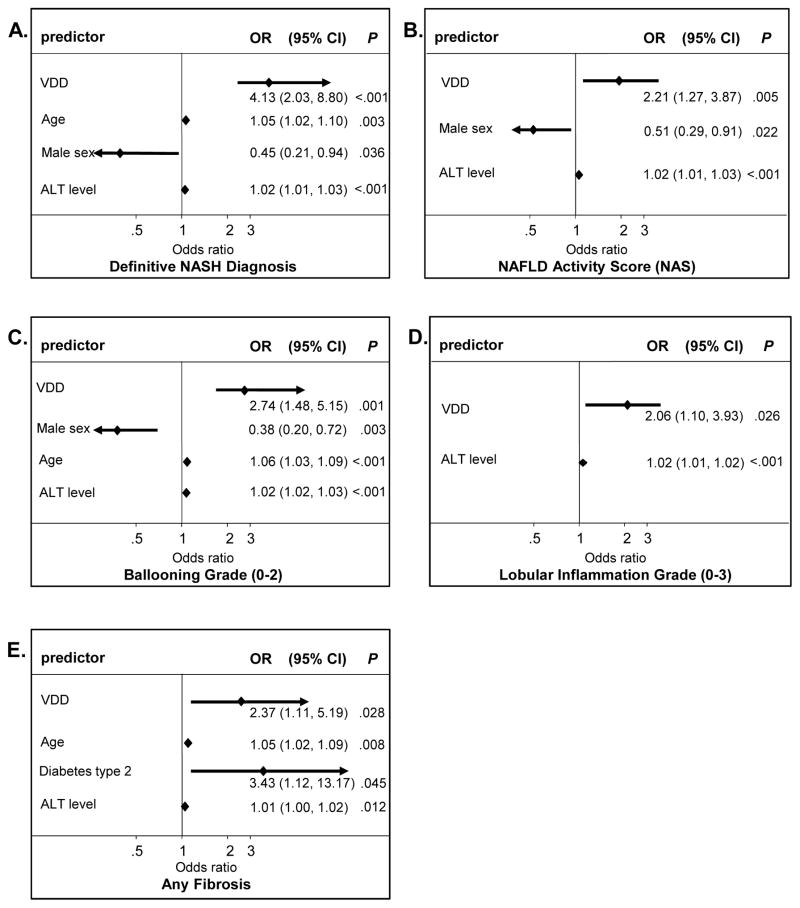

Figure 1. Multivariable logistic regression analysis for histologic features of NASH.

Multiple logistic regression analysis was used to model the independent risk of the presence (yes versus no) of a definitive diagnosis of NASH (Panel A) and advanced histological disease features (Panels B–E) for VDD and including potential confounding variables age, male sex, race, diabetes, metabolic syndrome, BMI, ALT level and season of the year.

Relationship of VDD and histologic severity of NAFLD

We analyzed the relationship of VDD and histologic features of NAFLD using stepwise ordinal and logistic regression after adjusting for covariates defined a priori, including age, sex, BMI, race, ALT, and diabetes status. Increased histologic severity of NAFLD, as evidenced by a higher NAFLD Activity Score (NAS), was associated with VDD (OR=1.90, 95%CI, 1.13–3.23, p=0.016; Fig. 1B). In agreement with an association with NAS, VDD was also associated with more ballooning (OR=2.38, 95%CI, 1.32–4.30, p=0.004; Fig. 1C) and a higher lobular inflammation grade (OR=1.98, 95%CI, 1.08–3.61, p=0.026; Fig. 1D). Lastly, VDD was associated with the presence of any fibrosis (OR=2.32, 95%CI, 1.13–4.77, p=0.022; Fig. 1E). VDD was not associated with grade of steatosis or other histologic features of NAFLD such as Mallory bodies, acidophils or megamitochondria. Furthermore, we found that neither mean sunlight or dietary vitamin D levels were associated with any of the histological features of NASH shown in Fig 1. This suggests that the in vivo physiological state of VDD per se was associated with the observed worsened histological features of NASH rather than the main contributory factors of VDD alone.

Differences in laboratory tests between VD level category groups

Mean levels of routine clinical laboratory assessments and pro-inflammatory cytokines/adipokines IL-1β, IL-6, IL-8, TNF-α, resistin and adiponectin are shown in Table 2. There was a significant difference between the VD groups in the level of resistin and number of leukocytes, but no differences in aminotransferases or metabolic abnormalities including fasting insulin and glucose levels, HOMA-IR and plasma lipid levels.

Table 2.

Laboratory value differences among different vitamin D level categories

Variable*	Vitamin D deficient (<20 ng/ml)	Vitamin D insufficient (20–30 ng/ml)	Vitamin D sufficient (>30 ng/ml)	P value #	P trend†
Glucose (mg/dL)	105 ± 29	106 ± 33	109 ± 32	0.786	0.643
Insulin (μU/mL)	25.1 ± 21.6	21.5 ± 13.9	21.6 ± 12.1	0.558	0.390
HOMA-IR	6.7 ± 5.9	5.7 ± 4.3	6.0 ± 4.1	0.682	0.585
HbA1c (%)	6.0 ± 1.1	6.0 ± 1.1	5.9 ± 0.9	0.828	0.628
ALT (U/L)	72 ± 43	74 ± 45	96 ± 68	0.276	0.161
AST (U/L)	48 ± 26	50 ± 28	63 ± 44	0.309	0.227
AST/ALT	0.75 ± 0.31	0.73 ± 0.24	0.72 ± 0.22	0.945	0.800
Direct bilirubin (mg/dL)	0.82 ± 0.45	0.77 ± 0.43	0.75 ± 0.30	0.751	0.690
Total bilirubin (mg/dL)	0.15 ± 0.09	0.14 ± 0.06	0.16 ± 0.07	0.130	0.104
GGT (U/L)	62 ± 65	55 ± 39	83 ± 109	0.708	0.546
Uric acid (mg/dL)	6.6 ± 1.8	6.5 ± 1.3	6.5 ± 1.5	0.954	0.917
Platelets (K/cmm)	239 ± 66	238 ± 60	228 ± 63	0.508	0.260
Leukocytes (K/cmm)	7.2 ± 2.2	6.3 ± 1.8	6.8 ± 2.4	0.017	0.049
Hemoglobin (g/dL)	14.5 ± 1.5	14.3 ± 1.4	14.3 ± 1.1	0.296	0.142
Calcium (mg/dL)	9.4 ± 0.4	9.4 ± 0.5	9.6 ± 0.4	0.349	0.231
Serum ferritin (ng/mL)	244 ± 228	303 ± 349	395 ± 501	0.327	0.139
Total cholesterol (mg/dL)	197 ± 46	195 ± 45	199 ± 45	0.930	0.969
Triglycerides (mg/dL)	184 ± 121	189 ± 199	180 ± 120	0.878	0.780
LDL (mg/dL)	122 ± 39	118 ± 40	123 ± 42	0.842	0.993
HDL (mg/dL)	42 ± 11	43 ± 10	46 ± 10	0.163	0.057
IL-6 (pg/ml)	8.7 ± 10.5	24 ± 62	9.5 ± 17.2	0.671	0.467
IL-1β (pg/ml)	0.53 ± 0.46	0.34± 0.28	0.59 ± 0.60	0.174	0.686
TNF-α (pg/ml)	9.6 ± 17.7	7.2 ± 3.7	7.3 ± 3.7	0.970	0.970
IL-8 (pg/ml)	3.9 ± 3.3	3.3 ± 3.1	5.3 ± 6.1	0.156	0.605
Resistin (ng/ml)	17.0 ± 7.7	15.8 ± 9.4	12.5 ± 6.0	0.044	0.013
Adiponectin (mg/ml)	10.6 ± 4.9	11.8 ± 7.6	12.4 ± 8.0	0.880	0.619
Vitamin D 25(OH)D2	3.5 ± 7.9	1.6 ± 2.4	1.7 ± 2.9	0.540	0.286
Vitamin D 25(OH)D3	13.8 ± 4.0	24.1 ± 2.6	37.0 ± 6.4	0.0001	<0.001

^*Values are means ± sd

^#Differences between vitamin D level categories were assessed using the Kruskal Wallis test.

^†Trends across categories were analyzed using the non-parametric trend test (Stata nptrend test).

Factors affecting serum vitamin D 25(OH)D3 levels

In this study we collected data on several variables thought to influence serum vitamin D levels, as shown in Table 3 (2, 3, 26, 32, 46, 47). Linear regression analysis was performed to investigate the relationship of these factors to vitamin D 25(OH)D3 levels in this population. In univariate analysis Hispanic ethnicity was associated with decreased serum vitamin D 25(OH)D3 levels (β= −0.16, p=0.029). Increased BMI (β= −0.14, p=0.052) and non-white race (β= −0.14, p=0.054) were also associated with decreased serum vitamin D 25(OH)D3 levels, but failed to reach statistical significance. Mean sunlight at the time of sample collection (β=0.31, p<0.001), increased age (β= 0.17, p=0.018) and dietary vitamin D consumption (β=0.17, p=0.047) were associated with higher vitamin D 25(OH)D3 levels. To investigate the relationship between the combined effects of these factors on 25(OH)D3 levels, forward stepwise multivariable linear regression modeling was performed; a p-value of <0.10 was used as a cutoff for incorporation into the model. Overall, Hispanic ethnicity (β= −0.18, p=0.038) and BMI (β= −0.20, p=0.018), were inversely associated with serum vitamin D 25(OH)D3 levels, while mean sunlight at the time of sample collection (β=0.27, p=0.002), was positively associated with serum vitamin D 25(OH)D3 levels.

Table 3.

Factors affecting serum vitamin D 25(OH)D3 levels defined by regression analysis

	Univariate regression				Multivariable regression†
Variable	Coefficient	S.E.	β	P value	Coefficient	S.E.	β	P value
Age	0.15	0.06	0.17	0.018
Male sex	−1.39	1.44	−0.07	0.335
Race	−1.06	0.55	−0.14	0.054
Hispanic ethnicity	−4.55	2.06	−0.16	0.029	−5.36	2.55	−0.18	0.038
BMI (kg/m2)	−0.21	0.11	−0.14	0.052	−0.28	0.12	−0.20	0.018
Avg. Sunlight	0.04	0.01	0.31	<0.001	0.04	0.01	0.27	0.002
Income level	0.35	0.72	0.04	0.626
Metabolic Equiv. (wk)	−0.01	0.02	−0.04	0.648
Dietary vitamin D (mg/day)	0.01	0.01	0.17	0.047
Suppl. vitamin D (mg/day)	0.01	0.004	0.13	0.129

^†stepwise forward linear regression using p<0.1 cutoff for inclusion into the model

Hepatic transcriptomic profiling of VDD subjects

To investigate if VDD is associated with changes in hepatic gene expression in NAFLD, we compared available hepatic transcriptomic profiling data obtained by RNA sequencing in a subset of our cohort; 31 VDD subjects as compared to 38 subjects with vitamin D 25(OH)D3 levels ≥20ng/ml. Four protein coding genes and the gene for the small nucleolar RNA (snoRNA), C/D box 3C (SNORD3C), were differentially expressed between these groups at FDR <0.05. As shown in Table 4, the KRT10 (Keratin 10), ARSD (Arylsulfatase D), and SNORD3C genes were down-regulated, while the SEMA3B (Sema Domain, Immunoglobulin Domain (Ig), Short Basic Domain, Secreted), IGKV4-1 (Immunoglobulin Kappa Variable 4-1) were up-regulated in the VDD subjects. An additional four protein encoding genes and another snoRNA gene (SNORD3D), were differentially expressed between these groups at 0.05<FDR <0.1. These included the upregulated IGLV8-61 (Immunoglobulin Lambda Variable 8-61), FOS (v-Fos FBJ Murine Osteosarcoma Viral Oncogene Homolog) and SLC51B (Solute Carrier Family 51, Beta Subunit) genes and the SNORD3D and TFF3 (Trefoil Factor 3) genes, which were down regulated. The potential relationship to NASH pathogenesis, shown in Table 4, was identified for each gene by screening the DAVID Bionformatics Database (44) and through a review of the literature. Higher order functional analysis was investigated for the top 10 differentially expressed genes shown in Table 4 by searching for enrichment of Gene Ontology (GO) terms using AMIGO2 (43) (supplemental table 13) and pathway analysis was performed by searching the Reactome pathway database (44) (supplemental table 14). Similar results were obtained in both analyses and included many immune-related GO terms and Reactome pathways. The DAVID Bionformatics Database also identified a cluster of annotations (Enrichment Score: 2.01) related to Immunoglobulin-like domains, which identified the IGLV8-6, IGKV4-1 and SEMA3B genes (supplemental table 15).

Table 4.

Top 10 differentially expressed genes in hepatic tissue between VDD and non-VDD subjects

Gene Name	Gene Symbol	logFold change	Raw P value	Adj. P value	Potential relationship to NASH pathogenesis
Keratin 10	KRT10	−2.33	4.71E-08	9.72E-04	KRT10 loss causes MAPK activation (63) Enhanced Akt and NFκB activity (64)
Sema Domain, Immunoglobulin Domain (Ig), Short Basic Domain, Secreted	SEMA3B	1.72	2.97E-07	0.003	Induces apoptosis (65) Activates MAPK and induces IL8 (67)
Small Nucleolar RNA, C/D Box 3C	SNORD3C	−2.99	7.06E-06	0.035	Unknown
Arylsulfatase D	ARSD	−0.46	8.31E-06	0.035	Localized to the endoplasmic reticulum, function unknown (68)
Immunoglobulin Kappa Variable 4-1	IGKV4-1	1.10	8.69E-06	0.035	FcεRI mediated NF-kB, MAPK and TLR activation (57, 58)
Small Nucleolar RNA, C/D Box 3D	SNORD3D	−2.29	2.49E-05	0.077	Unknown
Solute Carrier Family 51, Beta Subunit	SLC51B	1.55	2.88E-05	0.077	Basolateral bile acid transporter; increased enterohepatic bile reabsorption activates VDR and MAPK signaling (69).
Immunoglobulin Lambda Variable 8–61	IGLV8-61	1.69	2.97E-05	0.077	FcεRI mediated NF-kB, MAPK and TLR activation (57, 58)
V-Fos FBJ Murine Osteosarcoma Viral Oncogene Homolog	FOS	1.82	3.51E-05	0.080	Forms AP-1; activated by FcεRI, MAPK; induces cytokine and chemokine release; activates TGFβ (59)
Trefoil Factor 3	TFF3	−2.13	4.35E-05	0.089	Decreased hepatic TFF3 is associated with greater insulin resistance (70)

DISCUSSION

In this study, we report an inverse association between worsened histologic features of NAFLD and vitamin D 25(OH)D3 levels after adjusting for potential confounding variables. VDD was also associated with a definitive diagnosis of NASH. While a number of studies have investigated the association of VDD and NAFLD compared to non-disease controls using surrogate diagnostic measures such as liver enzyme levels or ultrasonography, relatively few studies have attempted to investigate whether VDD would be associated with biopsy-proven NASH and histologic disease severity in adults (2). Our findings are in agreement with the majority of these studies (22, 25, 26). The role of VDD in studies performed in children with biopsy-proven NAFLD have also shown conflicting results (23, 24, 27). There were several similarities between our findings and those of Bril et al (26), despite the fact these studies were discrepant in regard to an association of VDD with histological severity. For example, both studies found that VDD subjects were significantly younger than subjects with sufficient or insufficient VD levels and that a lower proportion of Caucasians compared to non-Caucasians and a higher proportion of Hispanics compared to non-Hispanics were VDD compared to the other two categories. Moreover, neither study found differences in liver enzymes, plasma lipids, or fasting glucose and insulin levels between the groups. We did however find significantly higher leukocyte counts in VDD subjects which likely reflects the overall induction of inflammation in these subjects.

The association of VDD with worsened NASH pathology including increased NAS and lobular inflammation is in agreement with our recent study in a rat model of NAFLD and VDD (9). The observed increased levels of serum resistin in this study is also consistent with the increased in hepatic resistin gene expression seen in our rat model. However, we did not see decreased serum adiponectin or an increase in other proinflammatory cytokines levels in our study. Resistin has been shown to be elevated in NAFLD subjects and is associated with increased insulin resistance and NF-kB activation (48, 49). Moreover, our novel hepatic transcriptome profiling results implicate activation of the MAPK and NF-kB inflammatory pathways. This study clearly demonstrates the relationship between NAFLD activity/severity and VDD based on liver biopsy results. However, as in previous reports, this relationship could not be found between serum markers of disease severity and VDD (2, 22, 25, 26). It should also be noted that since VDD is also common in patients with non-cholestatic chronic liver diseases it cannot be ruled out that parenchymal damage may have a causative role in the development of VDD (50, 51). Moreover, the lack of beneficial effects of vitamin D supplementation in a number of different disease treatment trials questions the etiological role of VDD (52, 53).

We also sought to investigate potential factors which could contribute to VDD in this cohort. Using the “Comparative Climatic Data For the United States Through 2010” published by the National Climatic Data Center, we compiled sunlight data for each month at each of the eight NASH CRN clinical sites. As expected, we found that the mean hours of sunlight during the month of sample collection was an independent predictor of higher VD3 levels. We also found that a higher BMI and Hispanic ethnicity was inversely associated with VD3 levels. BMI has previously been associated with VDD which may be due to sequestration of VD3 within adipose tissue, although this remains unclear (46). It is likely that the association of lower VD3 levels and Hispanic ethnicity we observed is due to decreased formation of pre-VD3, from pro-VD3 due to absorption of UV radiation by melanin as a result of the darker skin pigmentation in these subjects (47).

Recent studies have provided insight into new physiologic functions of VD3 (i.e., a protective anti-inflammatory role), in addition to the classic action of VD3 in bone mineral metabolism, corresponding with the identification of widespread tissue distribution of the vitamin D receptor (2). Recent studies have shown that VD3 suppresses several pathways involved in inflammation and cytokine production including MAPK and NF-kB (54–56). In cultured human adipocytes, VD3 protects against macrophage-induced activation of NF-kB and MAPK signaling and subsequent release of several cytokines and chemokines, via up-regulation of IκBα expression and reduced NFκB p65 phosphorylation and down-regulation of phosphorylated p38 MAPK and phosphorylated Erk1/2, respectively (54). In a similar study, Mutt et al have shown that VD3 inhibits IκB phosphorylation-mediated NF-κB translocation into the nucleus in LPS-induced primary adipocytes and bone marrow-derived human mesenchymal stromal cells differentiated into adipocytes, resulting in decreased IL-6 secretion and transcription (55). Since increased accumulation of macrophages in adipose tissue is a hallmark of obesity and NAFLD, these studies provide a mechanistic link between VDD and the inflammatory response which is a key pathogenic event in NAFLD. In addition, dietary vitamin D supplementation decreased MAPK and NF-kB activation in a murine model of colon cancer (56).

The results of our hepatic transcriptome profiling are in agreement with the above studies implicating up-regulation of the MAPK and NF-kB inflammatory pathways in our VDD NAFLD subjects. For example, Reactome pathway analysis revealed several common Reactome pathways for 5 of the top 12 DE genes, which includes four immunoglobulin genes (i.e., IGKV4-1, IGLV8-61, IGHG1, IGKC) and the transcription factor FOS. The common Reactome pathways for these genes include: Fc epsilon receptor (FcεRI) signaling, FcεRI mediated MAPK activation, FcεRI mediated NF-kB activation, Classical antibody-mediated complement activation, FcγR activation, Creation of C4 and C2 activators and initial triggering of complement. FcεRI is the high affinity IgE receptor which is present on mast cells, and other antigen presenting cells including macrophages and dendritic cells. Binding of IgE to FcεRI induces a number inflammatory autocrine and paracrine effects including activation of the MAPK, NF-kB, TGF-β and Toll-like receptor (TLR) signaling pathways resulting in production of cytokines and chemokines such as TNF-α, IL-1, IL-8, MCP-1 and other inflammatory mediators, thus facilitating amplification of both innate and acquired immune responses (57, 58). Binding of IgE to FcεRI also strongly activates the transcription factor FOS (57, 58). FOS is then phosphorylated and stabilized by ERK through activation of the MAPK pathway (59). Together with JUN, FOS dimerizes to form the transcription factor AP-1, which is a major regulator of inflammation, apoptosis, differentiation and transformation (59). AP-1 synergizes with SMAD3 and SMAD4 at TRE binding sites to activate genes in response to induction of TGF-β signaling (60). Interestingly, a recent study showed that VD3 ameliorated TGF-β-induced fibrogenesis in primary hepatic stellate cells and that this response was in part dependent upon certain SNPs in the VDR gene (61). For example, stellate cells with the VDR A1012G GG genotype (rs4516035) had no reduction in TGF-β following VD3 treatment in contrast to subjects without this variant. These authors also showed that NAFLD subjects with the VDR A1012G GG genotype had lower VDR expression then the other genotypes for this SNP, suggesting this SNP may contribute to VDD-mediated pathogenesis in NAFLD (61).

Several other differentially expressed genes in our study also point to involvement of the MAPK and NF-kB pathways in VDD NAFLD patients. The keratin 10 gene, KT10, which was decreased 5-fold, was the most significantly DE gene in VDD subjects. Previous studies have shown that VD3 upregulates KT10 expression (62), and that MAPK is activated in KT10 (−/−) knockout mice (63). Moreover, KT10 expression in the basal epidermis in transgenic mice, leads to impaired NF-kB activity via inhibition of Akt, in these cells (64). Together these studies suggest that VDD mediated decreased expression of KT10 leads to MAPK activation and potential enhanced Akt and NF-kB activity. In contrast, semaphorin 3B (gene SEMA3B; increased >3-fold in VDD subjects) was associated with decreased Akt phosphorylation via binding neuropilin-1, but also subsequent increased apoptosis (65), which we have recently shown to be associated with NASH (66). SEMA3B expression also leads to neuropilin-1 mediated MAPK activation, and subsequent release of the chemokine IL-8 in vitro (67). Although we did not observe increased serum IL-8 levels in our VDD subjects, in a related hepatic transcriptomic study, we found IL8 to be one of the most significantly upregulated genes in patients with NASH compared to subjects with steatosis alone (unpublished observations).

We recognize limitations to the current study, including more sensitive measures of abdominal fat distribution and insulin sensitivity and the relatively small number of subjects with hepatic transcriptome data, which likely reduced the number of genes which were significantly differentially expressed between NAFLD subjects with VDD and those with sufficient VD levels. The lack of an association between circulating biomarkers (e.g., cytokines) and VDD status may be due to the timing of biospecimens collection in relation to VDD. In addition, the pleiotropic role of cytokines in diverse biological processes, most of which utilize the circulatory system as the mode of transportation, can make the identification of specific biological relationships (e.g., cytokines and VDD status) difficult to discern from a single peripheral measure. As usual in association studies of this type we cannot prove causality; whether these observations represent a novel mechanism linking VDD to inflammation, parenchymal damage and NASH severity will need to be confirmed by detailed mechanistic studies.

In summary, we have found that VDD in our NAFLD subjects was associated with a definitive diagnosis of NASH, increased lobular inflammation, more ballooning and the presence of fibrosis. Taken together the results of hepatic transcriptomic profiling in VDD subjects compared to subjects with VD3≥20ng/ml suggests that the MAPK, NF-kB, TGF-β and Akt pathways may be involved in the increased histologic severity seen in our VDD NAFLD subjects. These data are in agreement with a recent study by our group in a rat model of NAFLD and VDD which also showed that VDD was associated with increased disease severity and up-regulation of hepatic inflammatory and TLR genes (9).

STUDY HIGHLIGHTS.

1. WHAT IS CURRENT KNOWLEDGE

• There is an inverse association between serum vitamin D levels with BMI and insulin resistance levels.

• VDD is associated with a pro-inflammatory immune response.

• VDD has emerged as a risk factor for diabetes mellitus, metabolic syndrome and NAFLD.

• The relationship between VDD and NASH pathogenesis is poorly documented.

2. WHAT IS NEW HERE

• VDD was independently associated with definitive NASH, increased NAS, lobular inflammation and ballooning and the presence of fibrosis after adjusting for age, sex, race, BMI, ALT, and diabetes status.

• Serum resistin levels are significantly increased in VDD NAFLD patients.

• Hepatic transcriptomic profiling suggests that the MAPK and NF-kB pathways are activated in VDD NAFLD patients.
