Variable Selection in the Functional Linear Concurrent Model

Abstract

We propose methods for variable selection in the context of modeling the association between a functional response and concurrently observed functional predictors. This data structure, and the need for such methods, is exemplified by our motivating example: a study in which blood pressure values are observed throughout the day, together with measurements of physical activity, location, posture, affect or mood, and other quantities that may influence blood pressure. We estimate the coefficients of the concurrent functional linear model using variational Bayes and jointly model residual correlation using functional principal components analysis. Latent binary indicators partition coefficient functions into included and excluded sets, incorporating variable selection into the estimation framework. The proposed methods are evaluated in simulations and real-data analyses, and are implemented in a publicly available R package with supporting interactive graphics for visualization.

1. Introduction

Portable, unobtrusive devices capable of monitoring blood pressure, physical activity, heart rate, location, and other quantities have made it possible to concurrently collect many data streams on study participants in parallel. In this and similar data settings, the functional linear concurrent model (FLCM) provides a useful framework for understanding the association between the functional response and functional covariates at a specific time. This model can be written

$$Y_i(t)={\beta }_0(t)+\sum _{k=1}^p{X}_{ik}(t){\beta }_k(t)+{\delta }_i(t),$$ (1)

and has been previously studied in the context of a relatively small number of predictors p [1, 2, 3]. However, the presence of a large number of data streams – a context that is becoming increasingly common – necessitates the incorporation of variable selection methods into the estimation of model (1). This problem has not yet been addressed, and the development of such methods is the main contribution of this manuscript.

Our approach begins with the expansion of coefficient functions β_k(t) in model (1) in terms of a spline basis. Sparsity is induced by setting all spline coefficients for a given coefficient function to zero, at least approximately; to do so we use tools from Bayesian variable selection, in particular by specifying spike-and-slab priors for groups of spline coefficients. To model correlation in residual curves δ_i(t), we use a functional principal components expansion. We jointly estimate all model parameters using a computationally efficient variational Bayes algorithm and choose the tuning parameter, the nonzero “spike” prior variance, using cross validation. All methods are implemented in the publicly available R package vbvs.concurrent.

As noted above, the estimation of parameters in the FLCM has been the subject of several previous papers, although none of these have focused on variable selection. Indeed, variable selection is the subject of a small but growing literature in functional data analysis. [4] developed variable selection tools for the linear scalar-on-function regression model; more recently, [5] and [6] have proposed methods for function-on-scalar regression models. Each of these made use of group penalties (e.g. group lasso or group MCP) for spline coefficients and, by recasting the functional regression model as a standard linear model, could apply off-the-shelf software for estimation and penalization. Because of the form of the least-squares estimate of the FLCM, it is not obvious that this strategy is applicable in the current setting. [6] also noted the importance of accounting for residual correlation when performing variable selection in a functional response model and used a “pre-whitening” approach to address this issue. In contrast, we jointly model the residual correlation structure and the regression coefficients in a Bayesian framework.

Variational Bayes algorithms have enjoyed some popularity in the functional data analysis literature, largely due to the computation efficiency of these approaches in comparison to Monte Carlo sampling and, in some cases, frequentist estimation methods. [7] and [8] developed variational algorithms for scalar-on-function regressions, and [9] used variational Bayes for function-on-scalar regression. [10] and [11] used variational approximations in a Bayesian approach to functional principal components analysis; this work is relevant in particular to our residual decomposition, although it did not address the incorporation of covariates in the mean structure. Recently, [12] used variational Bayes to combine a factor analysis related to Bayesian functional principal components analysis with the registration of features across curves.

Our method for variable selection is related to a recent EM-based approach to variable selection in the standard linear model [13]. In contrast to previous spike-and-slab normal mixture formulations, in which the spike distribution is considered to be a point mass at zero [14, 15], [13] posited a continuous spike prior. Doing so allowed the derivation of a closed-form EM algorithm and introduced the spike prior variance as a tuning parameter whose adjustment results in a sequence of progressively sparser models. Here, we adapt this basic approach to the context of variable selection in the FLCM and estimate parameters using variational Bayes rather than an EM algorithm.

The FLCM is a special case of function-on-function regression. Most generally, the linear function-on-function regression model allows response functions and predictor functions to be observed on different domains, and supposes a coefficient surface that relates the predictor functions to each point in the response domain via integration [16, 1]. Recent work for function-on-function regression has extended the basic model to allow for multiple functional predictors and scalar covariates, and has developed various estimation strategies [17, 18, 19]. In addition to the FLCM, another common special case of function-on-function regression is the historic functional regression model [20]. The historic model allows the response Y_i(t) at time t to be influenced only by X_i(s) for s ≤ t; conceptually, this prevents future observations of the predictor functions to influence the response in the present. For more information regarding function-on-function regression and its special cases, see [21, Section 6].

Given this literature, our focus on the FLCM is driven by our motivating data, described in more detail in the following Section. Both responses and predictors are sparse and irregular across subjects, but are measured on the same time points within subjects. Thus, concurrent associations can be modeled but long term associations in the context of a historical model would be difficult to estimate and, indeed, are biologically unlikely. For more densely observed data, a historical model incorporating variable selection may be more appropriate.

Our presentation of methods in Section 3 will be general, but we first motivate our work by a discussion of data collected in the Masked Hypertension Study in Section 2. Simulations are conducted in Section 4, and an analysis of the motivating data is presented in Section 5. We end with a discussion in Section 6.

2. The Masked Hypertension Study

Elevated blood pressure, or hypertension, is associated with increased risk of several common diseases, most notably diabetes, myocardial infarction, and stroke. Hypertension diagnoses have historically been based solely on blood pressure measurements taken in the clinic setting, but a growing body of work demonstrates that out-of-clinic blood pressure provides a more complete assessment of cardiovascular health. Indeed, the term “masked hypertension” was coined to describe individuals with normal clinic blood pressure but elevated ambulatory or daytime blood pressure [22]; in the Masked Hypertension Study (888 subjects), 16% of participants with normal clinic blood pressure had masked hypertension [23].

Understanding daytime blood pressure level depends on frequent measurement as a participant engages in normal activities, and a 24-hour ambulatory blood pressure (ABP) monitoring device is used to this end. Briefly, participants in the Masked Hypertension Study wore a portable blood pressure cuff that measured blood pressure every 28 minutes over a 24-hour monitoring period; the relatively sparse measurement is attributable to the requirement that participants stop activities to ensure an accurate reading and the requirement, for this study, that they complete a 2-minute diary entry immediately after each reading. Subject-level ABP measurements over the course of the day are the functional response in our FLCM.

Previous analyses of ambulatory blood pressure have mostly focused on average daytime (or nighttime) blood pressure [24, 25, 23]. However, individual ambulatory blood pressure readings are thought to depend on the specific context at the time of measurement, which changes throughout the day. Blood pressure may vary, for example, based on recent physical activity, mood, posture, location, activity type, and other factors. In the Masked Hypertension Study, these were assessed using accelerometers to quantify the intensity of activity and ecological momentary assessments, brief diary entries completed on a pre-programmed electronic diary (Palm Pilot Tungsten 3) immediately after each blood pressure reading, to quantify other variables. Physical activity and entries in the electronic diary over the course of the day are the 32 functional covariates in our proposed FLCM.

A subset of the data collected in the Masked Hypertension Study is shown in Figure 1. The left panel shows systolic blood pressure (SBP) measurements, the outcome in our application, for 40 participants taken between 10:00am and 10:00pm. Clear differences between participants exist, but there is also substantial within-subject variability over the course of the day. Remaining panels in Figure 1 show, for the same 40 participants, the measurements of frustration level, physical activity in the minute preceding ABP measurement, and a binary variable indicating whether the participant is working (according to the participant’s self-reported current activity).

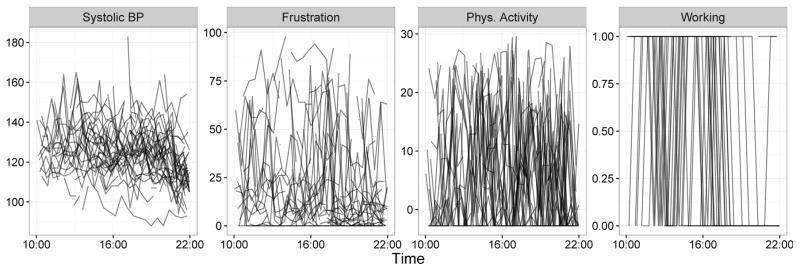

Figure 1.

Observed ambulatory systolic blood pressure data for 40 participants between 10:00am and 10:00pm.

The potential for time-specific dependence of blood pressure on recent activity and other contextual variables was one factor in the design of the Masked Hypertension Study and motivates our use of the FLCM. The number of these variables requires selection methods to prevent overfitting and provide accurate predictions. It is also hoped that the results of our variable selection analysis can be used to limit the length of ecological momentary assessments (i.e. the number of questions asked following each blood pressure reading) in future studies to reduce the burden on participants.

3. Methods

Our goal is to fit the functional linear concurrent model while inducing sparsity in the estimated coefficient functions. As part of our strategy, we model residuals using a functional principal components expansion. That is, we expand the residuals δ_i(t) in (1) in terms of a shared basis to obtain

$$Y_i(t)=\sum _{k=1}^p{X}_{ik}(t){\beta }_k(t)+\sum _{k=1}^{K_{\mathrm{\Psi }}}{c}_{ik}{\psi }_k(t)+{\epsilon }_i(t).$$ (2)

In (2), the ψ_k(t) are the functional principal component basis functions (FPCs) and the c_ik are the random subject-specific loadings; together, these account for correlation within residual curves. The ε_i(t) is thus a mean-zero uncorrelated error curve, which we will assume to have a constant variance ${\sigma }_{\epsilon }^2$. The intercept β₀(t) is omitted from (2) because both predictors X_ik(t) and responses Y_i(t) are centered prior to estimation (see Section 3.3 for details).

Model (2) is conceptual in that predictor and response curves are observed on a finite grid which is, in our case, sparse and irregular across subjects. Nonetheless, it is useful for framing our approach and emphasizing the functional nature underlying the observed data. In Section 3.1 we detail the model specification for observed data, while in Sections 3.2 and 3.3 we describe our fitting algorithm and practical considerations, respectively.

3.1. Model specification for observed data

We specify our model with sparse and irregular data in mind, although the following applies equally to curves measured on a dense grid shared across subjects. For subject i, 1 ≤ i ≤ I, assume that the response and predictor curves are observed at time points t_i = {t_i1, …, t_iJi}. Let functions evaluated at t_i denote J_i × 1 vectors of those functions on the observed time points (e.g. Y_i(t_i) = [Y_i(t_i1), …, Y_i(t_iJi )]^T, X_ij(t_i) = [X_ij(t_i1), …, X_ij(t_iJi )]^T, and β_k(t_i) = [β_k(t_i1), …, β_k(t_iJi )]^T ).

Coefficient functions β_k(t) in (2) are expanded in terms of a fixed spline basis Θ(t) made up of K_Θ functions θ₁(t), …, θK_Θ (t). Let Θ(ti) be the J_i × K_Θ spline evaluation matrix on the grid t_i; then ${\beta }_k({\mathit{t}}_i)=\mathbf{\Theta }({\mathit{t}}_i){\mathit{b}}_k^{\beta }$ where ${\mathit{b}}_k^{\beta }$ is the vector of spline coefficients for the kth coefficient function. For the fixed effects in (2) evaluated on t_i, substitution yields

$$\begin{array}{l}\sum _{k=1}^p{X}_{ik}({\mathit{t}}_i)·{\beta }_k({\mathit{t}}_i)=\sum _{k=1}^p{X}_{ik}({\mathit{t}}_i)·[\mathbf{\Theta }({\mathit{t}}_i){\mathit{b}}_k^{\beta }]\\ =\sum _{k=1}^p[(X_{ik}({\mathit{t}}_i)\otimes {\mathbf{1}}_{K_{\mathrm{\Theta }}})·\mathbf{\Theta }({\mathit{t}}_i)]{\mathit{b}}_k^{\beta }\\ \equiv \sum _{k=1}^p{\mathit{X}}_{ik}^{\ast }{\mathit{b}}_k^{\beta }\end{array}$$

where “·” is the element-wise product, “⊗” is the Kronecker product, and 1_K is a length K column vector with each entry equal to 1. Defining ${\mathit{X}}_i^{\ast }=[{\mathit{X}}_{i1}^{\ast }\mid \dots \mid {\mathit{X}}_{ip}^{\ast }]$ and ${\mathit{b}}^{\beta }={\left[{\left({\mathit{b}}_1^{\beta }\right)}^T\mid \dots \mid {\left({\mathit{b}}_{K_{\mathrm{\Theta }}}^{\beta }\right)}^T\right]}^T$, we have that

$$\sum _{k=1}^p{X}_{ik}({\mathit{t}}_i)·{\beta }_k({\mathit{t}}_i)={\mathit{X}}_i^{\ast }{\mathit{b}}^{\beta }.$$ (3)

Lastly, we note that β(t_i), the J_i × p matrix of coefficient functions evaluated on the grid t_i, is given by Θ(t_i)B^β where B^β is the matrix of spline coefficients with kth column equal to ${\mathit{b}}_k^{\beta }$.

Variable selection is induced through our prior specification on the ${\mathit{b}}_k^{\beta }$. For each k, our spike-and-slab prior is

$${\mathit{b}}_k^{\beta }~\mathit{N}[0,(1-{\gamma }_k)v_0{\sigma }_{\epsilon }^2{\mathit{I}}_{K_{\mathrm{\Theta }}}+{\gamma }_k{v}_1{\sigma }_{\epsilon }^2{\mathit{I}}_{K_{\mathrm{\Theta }}}]$$

where γ_k is the latent binary inclusion indicator, v₀ and v₁ control the spike and slab variances, respectively, and I_K is a K × K identity matrix. Each γ_k is assigned a Bernoulli prior with probability p_γ; in turn, p_γ is assigned a Beta[.5, .5] prior. Choices for v₀ and v₁ are discussed in Section 3.3.

FPC basis functions ψ_k(t) in (2), like coefficient functions β_k(t), are expanded in terms of a fixed spline basis; for notational convenience we use the same basis Θ(t). We let ${\psi }_k({\mathit{t}}_i)=\mathbf{\Theta }({\mathit{t}}_i){\mathit{b}}_k^{\psi }$ where ${\mathit{b}}_k^{\psi }$ is the vector of spline coefficients for the kth FPC basis function. Substituting this expansion for the FPC basis functions in (2) yields

$$\begin{array}{l}\sum _{k=1}^{K_{\mathrm{\Psi }}}{c}_{ik}{\psi }_k({\mathit{t}}_i)=\sum _{k=1}^{K_{\mathrm{\Psi }}}{c}_{ik}[\mathbf{\Theta }({\mathit{t}}_i){\mathit{b}}_k^{\psi }]\\ =[{\mathit{c}}_i^T\otimes \mathbf{\Theta }({\mathit{t}}_i)]{\mathit{b}}^{\psi }\end{array}$$ (4)

where c_i = [c_i1, …, c_iKΨ]^T and ${\mathit{b}}^{\psi }={\left[{({\mathit{b}}_1^{\psi })}^T\mid \dots \mid {({\mathit{b}}_{K_{\mathrm{\Psi }}}^{\psi })}^T\right]}^T$. In contrast to the situation for fixed effects, in which the predictor functions are known and spline coefficients must be estimated, here both c_i and b^ψ are unknown. A useful expression equivalent to that in (4) emphasizing that the c_i must be estimated is [Θ(t_i)B^ψ]c_i, where B^ψ is the matrix of spline coefficients with kth column equal to ${\mathit{b}}_k^{\psi }$.

The prior specification for parameters in the residual FPC decomposition draws on probabilistic and Bayesian PCA for non-functional data [26, 27]. In particular, scores c_i are given independent standard Normal priors c_i ~ N[0, I_KΨ] and, for each k, spline coefficients are given Normal priors ${\mathit{b}}_k^{\psi }~\mathrm{N}[0,{\sigma }_{{\psi }_k}^2{\mathit{I}}_{K_{\mathrm{\Theta }}}]$. Variances ${\sigma }_{{\psi }_k}^2$ and ${\sigma }_{\epsilon }^2$ are modeled using uninformative inverse gamma priors. Thus, our complete model specification is

$$\begin{array}{lll}\hfill Y_i({\mathit{t}}_i)& ~\hfill & \mathrm{N}[{\mathit{X}}_i^{\ast }{\mathit{b}}^{\beta }+[{\mathit{c}}_i^T\otimes \mathbf{\Theta }({\mathit{t}}_i)]{\mathit{b}}^{\psi },{\sigma }_{\epsilon }^2{\mathit{I}}_{J_i}]\text{for}\text{subjects}1\le i\le I;\hfill \\ \hfill {\mathit{b}}_k^{\beta }& ~\hfill & \mathrm{N}[0,(1-{\gamma }_k)v_0{\sigma }_{\epsilon }^2{\mathit{I}}_{K_{\mathrm{\Theta }}}+{\gamma }_k{v}_1{\sigma }_{\epsilon }^2{\mathit{I}}_{K_{\mathrm{\Theta }}}]\text{for}1\le k\le p\hfill \\ \hfill {\gamma }_k& ~\hfill & \text{Bernoulli}[p_{\gamma }]\text{for}1\le k\le p\hfill \\ \hfill p_{\gamma }& ~\hfill & \text{Beta}[.5,.5]\hfill \\ \hfill {\mathit{b}}_k^{\psi }& ~\hfill & \mathrm{N}[0,{\sigma }_{{\psi }_k}^2{\mathit{I}}_{K_{\mathrm{\Theta }}}]\text{for}1\le k\le K_{\mathrm{\Psi }}\hfill \\ \hfill {\mathit{c}}_i& ~\hfill & \mathrm{N}[0,{\mathit{I}}_{K_{\mathrm{\Psi }}}]\text{for}\text{subjects}1\le i\le I\hfill \\ \hfill {\sigma }_{{\psi }_k}^2& ~\hfill & \text{IG}[.5,.5]\text{for}k=1\dots K_{\mathrm{\Psi }}\hfill \\ \hfill {\sigma }_{\epsilon }^2& ~\hfill & \text{IG}[.5,.5].\hfill \end{array}$$ (5)

3.2. Variational algorithm

To estimate the parameters in (5) we implement a variational Bayes algorithm as an alternative to sampler-based estimation. This approach is motivated by three factors: i the general accuracy of variational algorithms, at least for posterior modes, to estimate model parameters; ii the computational efficiency of variational algorithms; and iii the emphasis on prediction accuracy rather than on posterior inference, making accurate estimation sufficient for many cases. We also argue that traditional Markov chain Monte Carlo implemented in a Gibbs sampler, for example, would perform poorly for the proposed model: the mean structure and FPC decomposition of the residual curves in the proposed model are highly correlated, which is expected to lead to poor mixing. Some possible directions for future work to address these concerns are noted in Section 6.

For a detailed introduction to variational Bayes, see [28] and [29, Chapter 10]; here be briefly review the general methodology. Variational Bayes methods seek an approximation q(ϕ) to the full posterior p(ϕ|y) for parameter vector ϕ and data y. To this end, q is restricted to a class of functions that are more tractable than the full posterior distribution. In our algorithm, we assume that for some partition {ϕ₁, ···, ϕ_L} of ϕ the posterior distribution factors such that $q(\mathit{\varphi })={\prod }_{l=1}^L{q}_l({\varphi }_l)$, and each q_l is a parametric density function. Within this class, we wish to choose the element q^* that minimizes the Kullback-Leibler distance from p(ϕ|y). It can be shown that the optimal component densities $q_l^{\ast }$ are given by

$$q_l^{\ast }({\varphi }_l)\propto exp\{E_{{\varphi }_{-l}}log[p(\mathit{y},\mathit{\varphi })]\}\propto exp\{E_{{\varphi }_{-l}}log[p({\varphi }_l\mid \text{rest})]\}$$

where rest ≡ {y, ϕ₁, …, ϕ_l−1, ϕ_l+1, …, ϕ_L} is the collection of the observed data and all parameters other than f_l, and p(ϕ_l|rest) is the full conditional distribution of ϕ_l.

The parameters of the $q_l^{\ast }$ are updated iteratively and deterministically using expressions involving the current estimates of the remaining parameters and the data. This suggests an algorithm of the following form:

1. Initialize parameter estimates;

2. Update the mean and variance of b^β;

3. For 1 ≤ k ≤ p, update the mean of γ_k; update p_γ;

4. Update the mean and variance of b^ψ;

5. For 1 ≤ i ≤ I, update the mean and variance of c_i;

6. For 1 ≤ k ≤ p, update ${\sigma }_{{\psi }_k}^2$; update ${\sigma }_{\epsilon }^2$;

7. Repeat steps 2–6 until convergence

The complete variational algorithm is given in the Supplementary Materials. We initialize parameters so that b^β = 0, γ_k = 1 for all k, b^ψ = 0, and c_ik is drawn from a standard Normal for all i and k. Variational algorithms are often monitored for convergence through a lower bound on the divergence between the true posterior and the variational approximation; we have found that monitoring convergence through estimated coefficients is also reasonable, as is using a fixed (relatively large) number of iterations.

3.3. Practical concerns

3.3.1. Centering and scaling

Similar to non-functional variable selection settings, we recommend that predictor functions are centered to have mean zero and scaled to have variance one over their domain. Additionally, we center the response function so that the intercept can be omitted from (2).

From observed predictors X̃_ik(t) we construct normalized predictors $X_{ik}(t)=\frac{{\stackrel{\sim }{X}}_{ik}(t)-{\mu }_k(t)}{\sqrt{{\text{Var}}_k(t)}}$ where μ_k(t) and Var_k(t) are the mean and variance curves. Estimates of the mean and variance curves can be obtained from a two-stage procedure. First, one estimates μ̂_k(t) by smoothing observed predictors X̃_ik(t) over t; second, one estimates ${\widehat{\text{Var}}}_k(t)$ by smoothing [X̃_ik(t) − μ̂_k(t)]². Several smoothing approaches could be used in these steps, including popular spline-based approaches. However, due in part to the sparsity and irregularity of the grid on which our motivating data are observed, spline-based smoothing results in negative estimates of ${\widehat{\text{Var}}}_k(t)$ for some values of k and t. In our application we instead use K nearest neighbors to estimate the mean and variance. Specifically, for time t we define the neighborhood S(t) as the set {t_ij: i ∈ 1, …, I, j ∈ 1, …, J_i} of K observed grid points nearest to t in Euclidean distance. Based on this neighborhood we construct estimates

$${\widehat{\mu }}_k(t)=\frac{1}{K}\sum _{t_{ij}\in S(t)}{\stackrel{\sim }{X}}_{ik}(t_{ij})\text{and}{\widehat{\text{Var}}}_k(t)=\frac{1}{K}\sum _{t_{ij}\in S(t)}{[{\stackrel{\sim }{X}}_{ik}(t_{ij})-{\widehat{\mu }}_k(t)]}^2.$$

In these sums, the index i in the predictor X̃_ik corresponds to the subject i in the argument t_ij. This normalization approach is also used to obtain centered and scaled responses Y_i(t) from observed responses Ỹ_i(t).

An alternative is to center at the subject level by, for example, defining a subject-specific neighborhood S_i(t) = {t_ij:j ∈ 1, …, J_i}. Doing so would model the effect of changes in predictors relative to each subject’s mean and variance. How to best implement this for sparse data is not obvious, and our efforts in this direction for our data did not yield results meaningfully different from those using the above approach.

3.3.2. Tuning parameters

Our variational algorithm estimates coefficient functions for fixed values of v₀ and v₁, which control the spike and slab variances. We fix v₁ to be relatively large to avoid unnecessary penalization on selected coefficients. Allowing v₀ to have a small but positive value, rather than setting the spike variance to zero, helps to absorb negligible nonzero coefficient functions into the spike distribution. We treat v₀ as a tuning parameter and choose its value via five-fold cross validation in which subjects, rather than observations within subjects, are partitioned into training and validation sets.

The values of K_Θ and K_Ψ, the number of spline basis functions in our expansions and the number of FPCs in our decomposition of the residual curves, are also fixed outside of our variational algorithm. Because we don’t impose smoothness through penalization, the value of K_Θ acts as an implicit tuning parameter. The effect of the choice of K_Θ should be carefully evaluated in applications, potentially through the use of cross validation. For K_Ψ, a useful strategy in practice is to initially use a large value to allow the examination of a scree plot, and then to select a smaller value that nonetheless explains a large proportion of the residual variance. Alternatively, it may be possible to use an information criterion to inform the choice of both K_Θ and K_Ψ, as proposed in [30] for a model involving a FPC decomposition with parameters estimated by an EM algorithm.

3.3.3. Rotation of FPCs

The Bayesian FPC analysis, like similar approaches, does not explicitly introduce orthogonality in the estimated basis functions. Although the estimation approach is valid even without these constraints, the interpretation of the FPC analysis is more straightforward when FPCs are orthogonal. For this reason, we suggest that estimated basis functions be rotated into an equivalent orthonormal space at the convergence of the variational algorithm.

3.3.4. Implementation

Lastly, we note that all methods are implemented in the R package vbvs.concurrent, installable from GitHub using the following code:

install.packages(“devtools”)
devtools::install_github(“jeff-goldsmith/vbvs.concurrent”)

This package contains code for fitting the FLCM with the proposed method, as well as an estimation algorithm that uses variational Bayes without variable selection and an OLS-based approach. Helper functions for implementing five-fold cross validation to select v₀, extracting coefficients, and making predictions are also included. Interactive graphics for these FLCM methods can be produced using the refund.shiny package [31, 32]; this package can be installed from GitHub or CRAN.

4. Simulations

We now conduct simulations to explore the properties of the methods developed in Section 3. For reference, we also compare to a variational Bayes algorithm analogous to our proposal except that it omits the variable selection step; that is, we fit the FLCM using only a “slab” prior on regression coefficients.

We generate response curves according to the model

$$Y_i(t)=\sum _{k=1}^{50}{X}_{ik}(t){\beta }_k(t)+\sum _{k=1}^2{c}_{ik}{\psi }_k(t)+{\epsilon }_i(t).$$ (6)

with t ∈ [0, 1]. We set β₁(t) = sin(2πt), β₂(t) = cos(2πt), β₃(t) = 1, and β_k(t) = 0 for k = 4, …50. We additionally fix ψ₁(t) = sin(2πt) and ψ₂(t) = cos(2πt). Principal component scores are generated using c_i1 ~ N [0, 9] and c_i2 ~ N [0, 1], and uncorrelated errors ε_i(t) are generated from a standard Normal distribution. The number of observations J_i for subject i is drawn uniformly from {10, …, 15} and the grid t_i on which the response Y_i(t) and the predictors X_ik(t) are observed is drawn from a Unif[0, 1]. Observed covariate functions X_ik(t_i) are generated independently from a standard Normal distribution. Under this design, the signal-to-noise ratio varies over t from a minimum of 0.2 to a maximum of 1.

Two hundred and fifty datasets are generated according to the above design for each I {25, 50, 100, 200}. For each dataset, we fit the FLCM using variational Bayes with and without variable selection (abbreviated VBVS and VB, respectively). Throughout this Section, we fix K_Θ = 5 and K_Ψ = 3. The latter choice is made to demonstrate performance under modest misspecification of the FPC model for residual curves; additional results K_Ψ = 0 are described briefly in this Section and presented more fully in an Appendix. The slab variance v₁ is set to 100, and for VBVS the spike variance v₀ is chosen by five-fold cross validation. Code implementing our simulations is available in the Supplementary Material.

The VBVS and VS methods are first evaluated for their estimation accuracy. The top rows Figure 2 shows estimated coefficients across all 250 replicates using the sample size I = 50, separately for VBVS and VB. We present estimates of nonzero coefficient functions β₁(t), β₂(t), and β₃(t), and zero coefficient function β₄(t) as a representative of results for β_k(t) for k = 4, …50. The bottom row of Figure 2 shows boxplots of the integrated squared error $\text{ISE}={\int }_0^1{[{\beta }_k(t)-{\widehat{\beta }}_k(t)]}^{2}dt$ for the same coefficient functions and for each sample size. Boxplots are shown on the log scale.

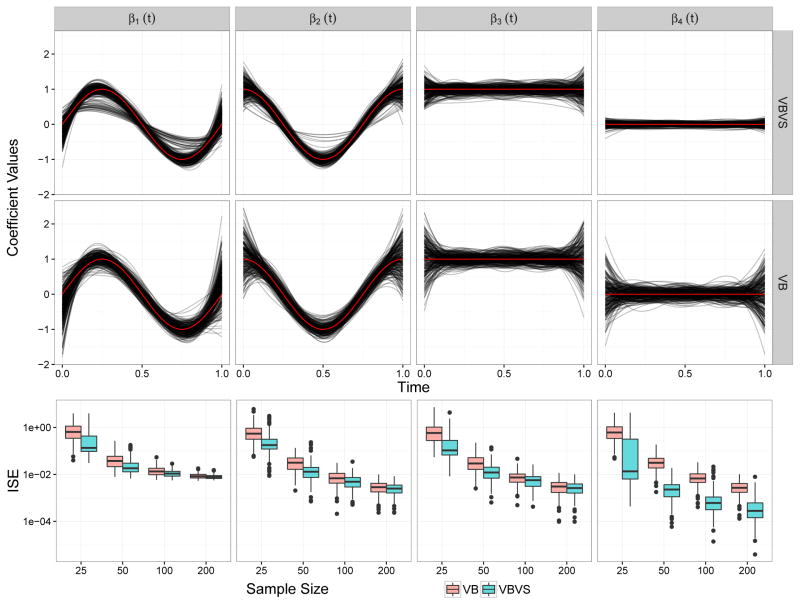

Figure 2.

The top rows show estimated coefficient functions in black using the VBVS and VB method with I = 50; true coefficient functions are overlaid in red. Results for β_k(t) with k ∈ {1, 2, 3, 4} appear in separate columns. The bottom rows show boxplots of integrated squared errors for the same coefficient functions, separately for VBVS and VB and for each sample size included in the simulation.

The results in Figure 2 indicate that VBVS outperforms VB in terms of estimation accuracy for nonzero coefficient functions and, especially, for zero coefficient functions. The difference between approaches decreases as sample size increases, which is expected, but persists even when I = 200. For I = 50, some large outlying ISEs are observed for the VBVS method. These correspond to over-penalized estimates, readily identifiable in the top panel, that occur when the coefficient function is not selected as by the VBVS algorithm. Such outliers occur more frequently for β₁(t) than other coefficients because scores c_i1 for the first FPC, which has the same form as β₁(t), have relatively high variance. Nonetheless, the estimated coefficient functions appear largely unbiased for the true functions shown in red, and the frequency of outlying ISEs drops for larger sample sizes.

Figure 3 includes panels showing, for each sample size, the proportion of replicates in which coefficient functions were selected by VBVS; the overall model size for VBVS; and the computation time for VBVS and VB. True positive rates are roughly .4 for a sample size of 25, but increase quickly as sample size grows; meanwhile, true negative rates begin around .6 for the smallest sample size and also increase quickly. The impact of these results on model size are apparent in the middle panel of Figure 3. When I = 25 the model size distribution is bimodal, with no or all variables being included with some frequency, but model size quickly converges to a narrow distribution around the true value.

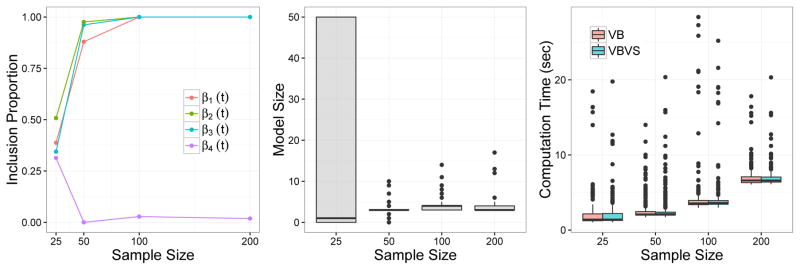

Figure 3.

The left panel shows the proportion of replicates in which coefficient functions were selected by the VBVS approach. The middle panel shows the total model size for the VBVS approach. The right panel shows the computation time, in seconds, for a single model fit of the VBVS and VB approaches.

Computation times, shown in the right panel of Figure 3, are generally low but include some outliers and increase roughly quadratically with sample size. Computation times are shown for single model fits, and are comparable comparing the VBVS and VB methods. This does not, however, reflect the increased burden for VBVS required by cross validation to choose tuning parameters. The extent of this burden depends on the nature of the cross validation procedure used (e.g. on the size of the grid considered for v₀). Given the generally low computation times for a single model fit, the computational burden for VBVS even with cross validation is manageable.

Additional simulation results included in an appendix show analogous results for K_Ψ = 0. Briefly, for this choice VBVS also outperforms VB in the ways described above. However, the results for VBVS with K_Ψ = 0 are generally worse than for VBVS with K_Ψ = 3, which suggests that accounting for residual correlation when it exists improves the accuracy of variable selection and estimation.

5. Application results

In this section we undertake analyses of the Masked Hypertension Study, introduced in Section 2. For the present analysis, we have restricted the dataset to the 563 participants with at least 10 ambulatory blood pressure measurements taken approximately every half-hour over the period 10:00am to 10:00pm in a single day. While both systolic and diastolic measurements were taken, we focus here on systolic BP as the outcome of interest. Additional variables were collected using ecological momentary assessments and accelerometers. In particular, we have measures of mood (excited; frustrated; happy; tired; angry; anxious), alcohol and caffeine consumption, activity type (relaxing; working; doing chores; commuting; exercising; having a meal; none of these), current exertion level, current pain rating, posture (sitting/reclining; moving; standing), location (at work; at home; other), and physical activity in the first, second, third, fourth, and fifth minute preceding the blood pressure measurement. Because completion of the ecological momentary assessment requires the participant to be awake, and because the accelerometer was removed during sleep, we restrict our analysis to observations between 10:00am and 10:00pm. In addition to the time-varying covariate functions, we include baseline systolic and diastolic blood pressures (the mean of nine readings taken by a trained technician over three visits to the clinic), as well as age, BMI, and sex; these are included as covariate functions that are constant over time. In total, there are 32 predictor functions in our analysis.

We apply the methods described in Section 3 to these motivating data, and have two main objectives. First, in Section 5.1, we focus on the ability of the proposed methods to improve prediction accuracy, for various sample sizes, in comparison to fitting the FLCM without variable selection. Second, in Section 5.2, we perform an analysis of the complete dataset and interpret the results. Throughout, we set v₁ = 100 and use five-fold cross validation to choose v₀; the choice of K_Θ and K_ψ is discussed separately in Sections 5.1 and 5.2.

5.1. Predictive performance

To examine the effect of variable selection on prediction accuracy in the FCLM in the Masked Hypertension Study, we randomly sample participants without replacement from the complete data to construct non-overlapping training and validation sets. We then fit model 1 to the training data using the methods described in Section 3; we also fit a variational approach without variable selection for comparison. Fitted values Ŷ_i(t_ij) for subjects i in the validation set are computed from the regression coefficients estimated from the training data and compared to observed values. We record which variables are selected, the estimated coefficients β̂_k(t), and the average prediction mean squared error $\mathit{APMSE}=\frac{1}{{\sum }_i{J}_i}{\sum }_i{\sum }_{j\in J_i}{\left(Y_i(t_{ij})-{\widehat{Y}}_i(t_{ij})\right)}^2$ for subjects i in the validation set.

Training sets are chosen to include I ∈ {25, 50, 100, 200} subjects. Validation sets include 350 subjects for each training sample size so that the APMSE is based on the same number of subjects in all cases. The use of relatively small training sets in this Section is intended to emphasize the importance of variable selection on prediction accuracy when analyzing real data, and augments the simulations in Section 4. Considering a sequence of training set sizes facilitates a discussion of fitting the FLCM with and without variable selection as sample size grows. An application to the complete data follows in Section 5.2.

The above process, beginning with the training and validation sampling and ending with the computation of the APMSE for the validation set, is repeated 250 times for each training set size. For this analysis we set K_Θ = 5 and K_ψ = 2, although similar results are obtained for other choices of these values.

Figure 4 shows the frequency with which each possible variable is selected across the 250 replications when the training set consists of 100 subjects. As expected, clinical SBP was selected as relevant in almost all replications. Surprisingly, however, other variables are never or only rarely selected. This may suggest that the variation observed in Figure 1 is either measurement error or biological variation not directly attributable to measured covariates; it may also suggest the effects of concurrently observed covariates are too small to be included in our predictive model. Additional discussion of this result appears in Section 6.

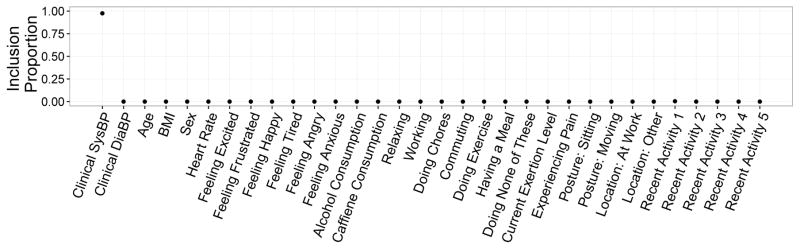

Figure 4.

Proportion of the 250 replicates with training set size 100 in which potential covariates were selected by the proposed method.

Figure 5 shows the APMSE for each replication separately for each training set size. In addition to the variational Bayes algorithms with and without variable selection (again abbreviated VBVS and VB, respectively), we include two other models for comparison. First, we include an “intercept only” model to confirm that the FLCM improves over using the in-sample mean for these data. Second, based on the results in Figure 4, the “Clinical SBP Only” model fits the FLCM with only clinical SBP as a predictor; because there is a single predictor, this model is fit with no variable selection.

Figure 5.

Boxplots of the average prediction mean squared error (APMSE) for each of four approaches: intercept only, variational Bayes without variable selection (VB), variational Bayes with variable selection (VBVS), and a model with only clinical SBP as a predictor. Panels show results for varying training set sizes I.

The VBVS approach outperforms the VB approach in terms of APMSE for all training set sizes, emphasizing the detrimental effect of including unimportant covariates on prediction accuracy. Comparing APMSE across panels indicates that the VBVS approach has reasonable performance even for small samples sizes. Perhaps surprisingly, the VBVS approach modestly but consistently outperforms the Clinical SBP Only model even though, in most cases, the VBVS method only selects clinical SBP as a predictor. We speculate that this improvement stems from the heavy penalization applied to non-selected covariates in the VBVS approach, in place of their complete omission from the Clinical SBP Only model. Lastly, the outlying APMSE values for the VBVS method are generally the result of cases in which no variables are selected, and occur less frequently for larger sample sizes.

The panels of Figure 6 show the estimated coefficient functions for clinical SBP and current exertion level for the VB, VBVS, and Clinical SBP Only model fits across the 250 replications with I = 100. Recall that predictor functions are centered and scaled, meaning that coefficient functions represent the change in systolic ABP (mmHg) for a one standard deviation increase in the predictor. Estimated coefficient functions for the effect of SBP are more variable for VB than for VBVS, illustrating the added noise in estimates when unimportant predictors are included; meanwhile, the estimates for the VBVS and Clinical SBP Only models are nearly indistinguishable. Estimates of the coefficient for exertion are near but not exactly equal to zero for the VBVS approach in each replication, in contrast to the noisy estimates of the VB method. Across replications, the coefficient for clinical SBP is positive over the course of the day; it declines very gradually until the late afternoon, at which time the coefficient function decreases more rapidly. This dip may reflect a weakening of the association between clinic SBP, which is taken in the daytime, and ambulatory SBP readings in the evening.

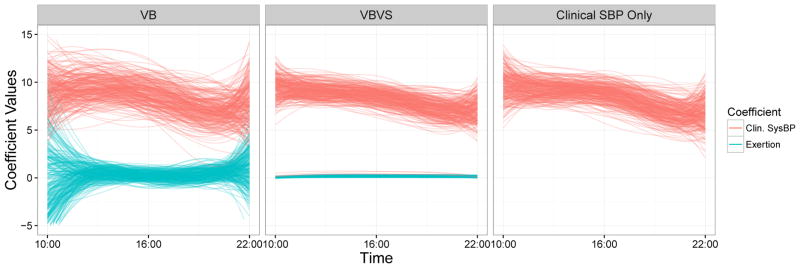

Figure 6.

Estimated coefficient functions for clinical SBP and current exertion level for VB, VBVS, and Clinical SBP Only models.

5.2. Full data analysis

Our study of prediction accuracy in Section 5.1 explored the importance of variable selection in the context of the FLCM for a range of training set sizes. We now present results from the analysis of our subset (I = 563) of the Masked Hypertension Study data using the proposed VBVS approach; once again, we compare to the VB approach to provide context.

The values of K_Θ and K_ψ act as tuning parameters, and we select them using the techniques described in Section 3.3.2. To choose K_ψ, we first set K_Θ = 12 and fit the FLCM using VBVS with K_ψ = 10. Results of this model fit indicate that the first four functional principal components suffice to explain 99% of the residual variance, and we set K_ψ = 4 for the remainder of our analyses. We then choose K_Θ ∈ {6, 9, 12} and v₀ using cross validation, and find that K_Θ = 6 slightly outperforms the larger options.

Coefficient functions estimated using VB and VBVS are shown in the left and right panels of Figure 7. In both panels, we highlight the coefficient functions for clinical SBP and for current exertion level to aid in comparing these to estimates shown in Figure 6. In the VBVS analysis, only clinical SBP is selected as an important predictor; the estimate and its interpretation is similar to that in Figure 6. Remaining coefficient functions are shrunk toward zero over their full domain. There are two clear groups of estimated coefficient functions in the VB analysis: most are clustered near zero, while the coefficient for clinical SBP alone is far from zero. The comparison of these results with those for VBVS indicates the effect of the “spike” prior on the magnitude and variability of coefficient functions for non-selected covariates.

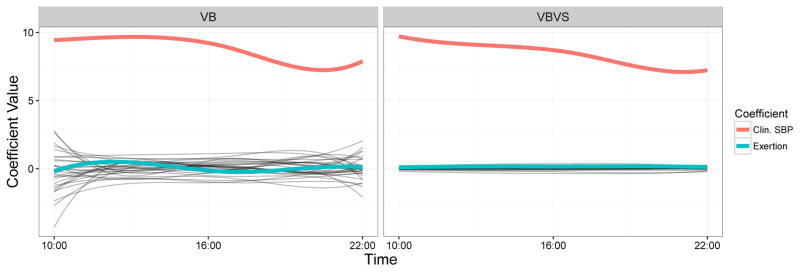

Figure 7.

Coefficient functions for each covariate, estimated using variational Bayes without variable selection (“VB”, left panel) and with variable selection (“VBVS”, right panel), in the full data analysis. Coefficients for clinic SBP and Exertion are colored to correspond to Figure 5; other coefficients are shown in black.

Our proposed approach jointly models the coefficient functions using a spike-and-slab prior and residual correlation using an FPC decomposition. While our emphasis in this manuscript is on the former, the results of the FPC analysis are useful in understanding the structure of the variability that is unexplained by covariate functions. To illustrate these results for the Masked Hypertension Study, Figure 8 shows $\pm \sqrt{{\lambda }_k}{\psi }_k(t)$ for k = 1 and 2 in the left and right panels, respectively. The first FPC is largely a mean shift, indicating that some participants have uniformly higher or lower ambulatory SBP than expected based on their covariates. Those who are higher show a masked hypertension effect relative to their expected value, meaning that ambulatory BP is higher than expected based on clinic BP, while those who are lower show a relative white-coat effect in which the clinic setting induces higher BP than is observed in ambulatory settings. The second FPC highlights distinct time-of-day effects: participants with high scores for FPC 2 have greater than expected ambulatory SBP in the morning and afternoon and lower than expected SBP in the evening. Thus the second FPC may differentiate those who have more work stress than home stress and vice versa. The first and second FPCs explain 85% and 12% percent of the smooth residual variance, respectively.

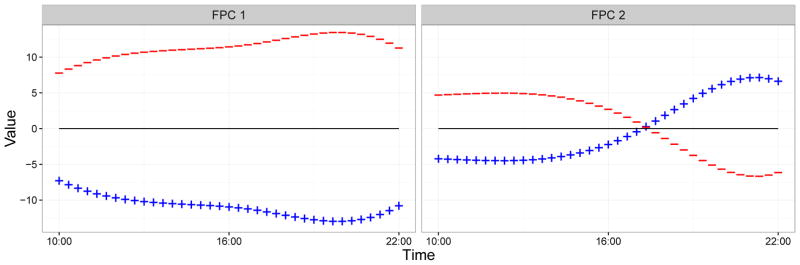

Figure 8.

Illustration of the FPC basis functions. The panels are $\pm \sqrt{{\lambda }_k}{\psi }_k(t)$ for k = 1 (left) and k = 2 (right).

6. Concluding remarks

We have developed methods for variable selection in the functional linear concurrent model; although we are motivated by a specific application, the methods are general and broadly useful. There are several key contributions to the functional data analysis literature: the use of Bayesian variable selection methods, in contrast to the currently-used group lasso or similar approaches; jointly modeling the regression coefficients with sparsity and the residual covariance structure; support for both densely- and sparsely-sampled functional responses; and the availability of robust, user-friendly code in an R package.

In our application, it is perhaps surprising that so few of the collected variables were selected as predictors of systolic blood pressure: these variables were recorded specifically because such associations were anticipated. There are several implications of this finding that are worth considering. First, we acknowledge that measurement of relevant variables may be imperfect. As with all surveys, the ecological momentary assessment relies on self-report; for variables like happiness or anger, there may be individual-level differences in the ratings of these emotions. Multiple parallel data streams also requires careful alignment of recording devices; it is possible that the accelerometer and ambulatory blood pressure monitor were mis-aligned for some participants, although steps were taken to prevent this. Second, we note that the subject-level patterns uncovered by the FPCA decomposition of the residuals indicates subject-level effects that are unexplained by baseline variables or covariate functions, and there remains substantial unexplained variation in ambulatory blood pressure readings. Whether this is natural biological variation, measurement error, or the result of other concurrent covariates is unclear. Lastly, we emphasize that although only clinical SBP was selected as a predictor of ambulatory SBP, the proposed approach was necessary to make this finding. We also acknowledge that it is possible that some EMA variables are statistically significantly associated with ambulatory BP, but the effects are sufficiently small to be omitted in our prediction-focused analysis.

Several future directions for statistical work are possible. Adaptations of our methods for other functional regression settings, such as function-on-scalar and scalar-on-function, are possible. In function-on-scalar regression specifically, our joint modeling approach may have important benefits over the “pre-whitening” approach of [6]: extensions to multilevel functional responses appears more straightforward in the Bayesian setting. Including an explicit penalty on the smoothness of coefficient functions for selected covariates would be similar to estimation strategies without variable selection; however, how to include both smoothness and sparsity constraints in our current framework is not clear. The development of a sampling-based Bayesian approach is also reasonable, although it should be undertaken with some care. In [33], the authors pose a function-on-scalar regression with an FPCA decomposition of residual curves and use a Hamiltonian Monte Carlo sampler [34], implemented in Stan [35]; a similar implementation may be appropriate here. Alternative approaches to modeling residual correlation can also be considered; in [9] a Wishart prior models this correlation, and Gibbs sampling worked well. Whether a similar approach is suitable for higher-dimensional curves and sparse data is unclear. Lastly, a mixture of the concurrent functional model and the historic functional model [20] could be relevant for including the effect of recent physical activity on current blood pressure, although based on our findings for the Masked Hypertension Study such methodological developments may not be necessary.
