Plantar fasciitis in athletes: diagnostic and treatment strategies. A systematic review

Summary

Background:

Plantar fasciitis (PF) is reported in different sports mainly in running and soccer athletes. Purpose of this study is to conduct a systematic review of published literature concerning the diagnosis and treatment of PF in both recreational and élite athletes. The review was conducted and reported in accordance with the PRISMA statement.

Methods:

The following electronic databases were searched: PubMed, Cochrane Library and Scopus. As far as PF diagnosis, we investigated the electronic databases from January 2006 to June 2016, whereas in considering treatments all data in literature were investigated.

Results:

For both diagnosis and treatment, 17 studies matched inclusion criteria. The results have highlighted that the most frequently used diagnostic techniques were Ultrasonography and Magnetic Resonance Imaging. Conventional, complementary, and alternative treatment approaches were assessed.

Conclusions:

In reviewing literature, we were unable to find any specific diagnostic algorithm for PF in athletes, due to the fact that no different diagnostic strategies were used for athletes and non-athletes. As for treatment, a few literature data are available and it makes difficult to suggest practice guidelines. Specific studies are necessary to define the best treatment algorithm for both recreational and élite athletes.

Level of evidence:

Ib.

Introduction

The medial longitudinal arch of the foot is sustained by the plantar fascia, a specific subcutaneous structure of dense connective tissue. It can act as a beam when the metatarsals are subjected to important bending forces (propulsion) and a truss when the foot absorbs forces of impact expanded during landing and in the stance phase of gait. The plantar fascia extends from the calcaneus to the distal part of metatarsophalangeal joints of each toe and is divided in central, medial, and lateral sections. The broadest and strongest component of the fascia is the central portion1,2. Plantar fasciitis (PF), which is characterized by pain, sharpened with the first walking in the morning or after a long period of rest, develops on the plantar fascia insertion and can be unilateral or bilateral3. It is a common cause of foot pain in adults4 worsening the patients’ quality of life5. PF affects both sexes, either in élite or recreational athletes and women are affected slightly more often than men6,7. In the United States, more than 1 million patients per year receive healthcare for PF, which is provided by family physician8. Even podiatrists, orthopaedic surgeons, physical therapists, and chiropractors are involved in the treatment of PF. In 2007 the cost of treatment of PF in the United States was estimated among $ 192 to $ 376 million9.

In the past PF was defined as chronic inflammatory condition, nowadays PF is considered a degenerative pathology, more similar to tendinopathy and to a chronic disease which is evident at the site of the attachment of plantar fascia at the medial tubercle of the calcaneus. PF is also referred to plantar heel pain syndrome, heel spur syndrome, plantar fasciopathy or painful heel syndrome4,10,11. The acute phase of PF can turn into a chronic phase, which is characterized by a clinical remission and from the progression of the plantar fascia degeneration process3.

The risk factors associated with the onset of PF are intrinsic and extrinsic. The intrinsic risk factors are associated with body characteristics and include anatomic, functional and degenerative factors. The extrinsic risk factors are associated with physical activities and include overuse, incorrect training and inadequate footwear (Tab. I)4.

Table I.

Principal risk factors associated with Plantar fasciitis.

Principal risk factors		Causes
Intrinsic	Anatomic risk	Pes planus
		Pes cavus
		Overpronation
		Leg-length discrepancy
		Excessive lateral tibial torsion
		Excessive femoral anteversion
		Overweight
	Functional risk	Gastrocnemius and soleus muscles tightness
		Achilles tendon tightness
		Gastrocnemius, soleus and intrinsic foot muscles weakness
	Degenerative risk	Aging of the heel fat pad
		Atrophy of the heel fat pad
		Plantar fascia stiffness
Extrinsic	Overuse	Mechanical stresses and microtearing
	Incorrect training	A too-fast increase in the distance, intensity, duration or frequency of activities that involve repetitive impact loading of the feet
	Inadequate footwear	Poorly cushioned surface
		Inappropriate replacement of shoes

PF is experienced in both recreational and élite athletes and is reported in different sports6. A recent review concerning ankle and foot injuries in sport, has pointed out that Achilles tendinopathy is the most frequently investigated injury, mostly in running and soccer athletes. Other frequently reported pathologies were stress fracture or PF, mainly reported in basketball players and runners, respectively12. These data are in agreement with those detected in élite athletes who competed at the London 2012 Olympic Games13. The incidence of PF in runners ranges from 4.5 to 10%, and represents the third most frequently experience running-related musculoskeletal injuries after medial tibial stress syndrome (incidence ranging from 13.6 to 20%) and Achilles tendinopathy (incidence ranging from 9.1 to 10.9%)14, in accordance with those previously reported by Taunton et al.7. A recent prospective study that analysed the novice running-related injuries, has revealed that PF accounts for about 5%, after medial tibial stress syndrome (10%), patellofemoral pain (10%), medial meniscal injury (9%), and Achilles tendinopathy (7%)15. In ultra-marathon runner athletes PF has an incidence of about 11%16.

The high incidence of PF in runners is not a surprising event if one takes into account the biomechanics of running17,18. It is well-known that during running, the vertical ground reaction force acting of foot can double/triple the body weight of athlete and the plantar fascia and longitudinal arch are implicated in the force absorption mechanism. Foot and lower limbs muscles also play a pivotal role in movement patterns of gait and run cycle and, as expected, in the onset and progression of PF. Noteworthy, it was highlighted a difference in rearfoot load in recreational runners with PF, with respect to the stage of disease and with respect to the healthy runners19, maybe related to plantar fascia stiffness20. This is particularly interesting concerning the development of specific therapeutic and rehabilitation strategies, although more data about plantar loading in athletes are needed.

Diagnosis of PF

The cardinal symptom of PF is the intense and acute heel pain localized primarily where plantar fascia attaches to the anterior calcaneus. Generally, the pain presents on first walking in the morning or after a rest period, but it can also occur after extensive walking or standing. In athletes, the pain can appear after a period of intense training, normally declines with the warm up and reappears at the end of training. Foot stiffness and heel swelling is also present4,21.

A first approach to diagnose PF is the palpation of both the medial tubercle of the calcaneus and proximal portion of the plantar fascia. For differential diagnosis, ankle passive dorsiflexion, and ankle dorsiflexion/eversion test can be performed to evaluate tarsal tunnel syndrome. Moreover, the Windlass test can be performed to evaluate the plantar fascia loading, albeit this test is characterized by low sensitivity22. These manipulations will trigger pain in the subject4,11,21. The intrinsic and extrinsic risks associated with the onset and progression of PF are also assessed (Tab. II).

Table II.

Principal diagnostic elements for Plantar fasciitis.

Foot palpation	Medial tubercle of the calcaneus
	Proximal portion of the plantar fascia
	Ankle passive dorsiflexion/eversion and Windlass test
Evaluation of intrinsic and extrinsic risks	Anatomic and functional examination
	Physical activity
Imaging techniques	Plain radiography
	Bone scans
	Ultrasonography, sonoelastography
	Magnetic Resonance Imaging
	Nerve conduction study
Blood analysis	Inflammation markers

In the case of uncertain diagnosis or when patient presents a persistent heel pain, instrumental analysis can be performed. Diagnostic imaging is recommended when patient suffers of persistent heel pain after 4–6 months of conservative approaches (see below) or in case of atypical symptoms or signs23. Plain radiography, magnetic resonance imaging (MRI), diagnostic ultrasonography (US), nerve conduction study and bone scans can be carried out for differential diagnosis. The radiography and bone scans are principally used to rule out bone tumours or fractures4. Moreover, plain radiography can detect the presence of subcalcaneal spurs, though their presence is not always associated with the diagnosis of PF21. On the contrary, the other instrumental analyses are used to evaluate the plantar fascia thickness, in order to confirm the diagnosis of PF or plantar fascia rupture and are also used to evaluate inflammatory processes4,21,24. In case of bilateral heel pain or in young subjects, specific inflammation markers are also assessed (Tab. II)24.

Treatment of PF

Considering both anamnesis of patient and his physical characteristics, physicians have established a tailored treatment protocol. The crucial aims of PF management are the reduction of pain, the improvement of quality of life, including both the return to daily physical activity and physical fitness.

Different approaches are available for the treatment of PF, including drug-, instrumental-, physical-, and surgical-therapy. Furthermore, a growing number of studies are exploring complementary and alternative strategies (Tab. III).

Table III.

Principal treatment strategies for management of Plantar fasciitis.

Drugs	NSAIDs
Instrumental	Laser
	Extracorporeal shock waves therapy
	Iontophoresis
	Ultrasound
	Cryoultrasound
	Low-dose radiotherapy
Physical	Massage/manual treatments of soft tissues
	Osteopathic or manipulative treatments
	Stretching
	Orthotic devices
	Low-dye taping and kinesiotaping
Surgery	Partial or complete fasciotomy
	Radiofrequency microtenotomy
	Ultrasonic tenotomy
Complementary and alternative strategies	Autologous whole blood and platelet-rich plasma injection
	Botulinum toxin injection
	Dehydrated amniotic membrane injection

The goal of the non-steroidal anti-inflammatory drugs (NSAIDs) is the reduction of pain. Nowadays is largely accepted that NSAIDs are not used for counteract the physiopathology of PF, considering that PF is a degenerative rather than inflammatory disease. Injections of corticosteroids were also used to treat PF symptoms, preferably ultrasound-guided, because US can be considered an useful tool for monitoring response to treatment25. Nevertheless, the side effects of this treatment are not to be underestimated (e.g. fascia rupture and infection)4,21.

Instrumental therapy include laser, extracorporeal shock waves, iontophoresis and ultrasound therapy21. Cryoultrasound therapy, a recent strategy that combines ultrasound with cryotherapy, could also be an efficient treatment for pain relief in PF26. Low-dose radiotherapy is another effective therapeutic option in the treatment of enthesiopathies, like PF, with a significant advantage in terms of pain control27.

Physical therapy includes massage, manipulative or osteopathic treatments, ice treatments, stretching exercises for foot and lower limbs muscles. Both prefabricated and custom made orthotic devices (e.g. heel cups, insoles and night splints) were used to improve PF symptoms, thanks to the reduction of the pressure on the plantar fascia. Low-dye taping and kinesiotaping are also considered for the treatment of PF4,6,11. Noteworthy, the weight loss is the primary treatment for overweight people (Table III)4,6.

An alternative recent therapy is the injection of platelet-rich plasma that contains a large number growth factors, to promote healing of injured tissues. Autologous whole blood, botulinum toxin, dehydrated amniotic membrane injections were also considered28–30.

Surgical intervention is performed when PF symptoms persist after different and repetitive conservative treatments. Generally, partial or complete surgical intervention is recommended after 6–12 months of not effective conservative treatments. Noteworthy side effects for the surgical treatment are reported (e.g. infections, nerve damage and chronic pain)11,21. In recalcitrant PF, literature reported promising outcomes with minimally invasive radiofrequency microtenotomy28.

Recent systematic reviews and meta-analysis have evaluated the different treatments available for PF with the aim of determining the most favourable ones. The effectiveness of corticosteroid injections has been shown, albeit the effects are short lasting. With respect to other injection modalities, botulinum toxin injections appear better than corticosteroid injections and corticosteroid injections are better than autologous blood ones29–31. Worthy of note is the effect of dehydrated amniotic membrane injection in the short-term pain relief, with respect to other injection therapies29. However, it is necessary to take into consideration that the number of studies regarding these emerging treatments are very limited. Orthotics devices and corticosteroid injections are reported as the best treatment for PF in many studies32. Specific stretching exercises for the treatment of PF are the best statistically significant long-term results33.

The complete recovery from PF symptoms is a very long process, which usually occurs within two years4. Thanks to conservative therapies, about 85–90% of subjects with PF can be successfully treated11,28. Plantar fascia rupture may be a consequence of PF especially in athletes that are subjected to an excessive overload. Nevertheless an adequate post injury protocol can achieve favourable results with complete return to activity34.

Recreational and élite athletes who present PF, need to adapt the training parameters such as frequency, intensity and session lasting, because of persistent pain. Obviously, this may be a serious problem because can restrain athletes from sport for a long period, determining the loss of fitness and performances. Indeed, the goal of all athletes is a fast return to pre-injury performances.

At present, a lot of literature evaluated the diagnosis and treatment of PF in non-athlete subjects, even if this pathology has a high incidence in athletes35. Therefore, the purpose of this study is to conduct a systematic review of published literature concerning the diagnosis and treatment of PF in both élite and recreational athletes.

Methods

The review was conducted and reported in accordance with the PRISMA statement. The study was conducted and meets the ethical standards of the Muscles, Ligaments and Tendon Journal36.

Databases and search strategy

The following electronic databases were searched: PubMed, Cochrane Library and Scopus.

The keywords utilized were “plantar fasciitis”, “plantar fasciitis and sport”, “plantar fasciitis and élite athletes”, “plantar fasciitis and athletes”, “diagnosis of plantar fasciitis”, “treatment of plantar fasciitis”, “plantar fasciopathy”, “plantar fasciopathy and sport”, “plantar fasciopathy and élite athletes”, “plantar fasciopathy and athletes”, “diagnosis of plantar fasciopathy” and “treatment of plantar fasciopathy”.

As far as PF diagnosis, the electronic databases were investigated from January 2006 until June 2016, whereas for treatments all data were considered until June 2016.

Selection criteria for diagnostic strategies

In order to find the most current diagnostic strategies for plantar fasciitis we included articles that met the following inclusion criteria:

• athletes and non-athletes aged between 18 years and 75 years;

• in 40% or more of the sample size was diagnosed with PF;

• comparison of different diagnostic methods and/or comparison between healthy and affected limbs;

• evaluation of at least 10 subjects;

• articles published in English.

Exclusion criteria were as follows:

• military personnel;

• biomechanical studies;

• subjects with systemic diseases in addition to PF.

Conference abstracts were evaluated but deemed not suitable because of limited body of data related to the study design and to the intervention program.

Selection criteria for treatment strategies

Élite athletes are those who dedicate a great time to training in some physical sport disciplines and compete either as individual or as team member at an international, major national or professional level37. Analysing current literature we only found 3 studies concerning PF in élite athletes38–40, so our research was also extended to recreational ones.

In further analysis, we considered articles that met the following inclusion criteria:

• aged between 18 years and 75 years;

• randomized controlled trials related to both sexes;

• case-reported/case-series studies;

• all types of individual or team sports;

• written in English.

Conference abstracts were evaluated but deemed not suitable because of the limited information available regarding the study design.

Data extraction

Articles were initially screened by title and abstract. Articles unclear from their title or abstract were re-viewed according the selection criteria through full-text.

Two Authors (F.P. and I.R.) independently extracted data from the studies that met the inclusion criteria and they were blinded to each other’s. In case of disagreement, a third opinion was sought (C.C.). For the 9 studies concerning the diagnosis strategies, the data included were the diagnostic methods and the number of participants. For the 8 studies related to the treatment strategies, the data included were: sport practiced, medical history of subjects, clinical examination, number of participants, treatment plan and outcomes evaluation.

Assessment of risk of bias

With respect of diagnosis and treatment strategies, the level of evidence were stratified according to the Oxford Centre for Evidence-Based Medicine (OCEBM)41.

Results and discussion

Diagnostic strategies

Overview of the inclusion process

The reviewing process is presented in Figure 1a. From the initial records retrieved from different databases were excluded duplicate articles, review articles, conference proceeding and book chapters.

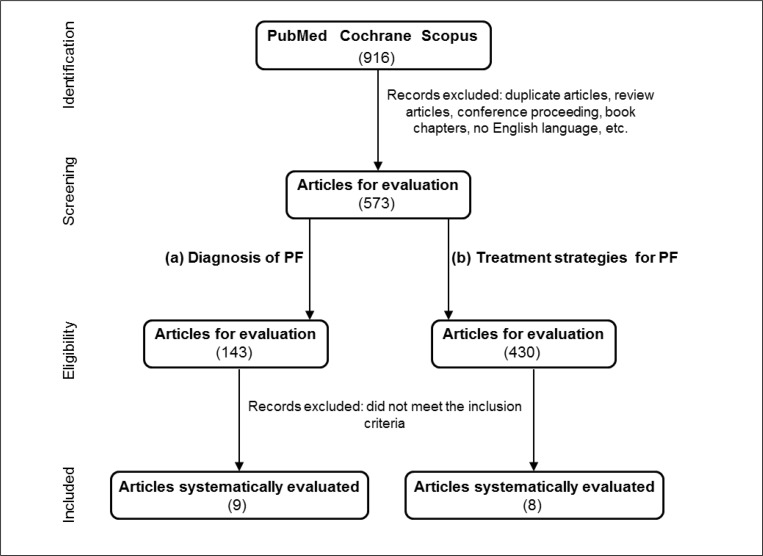

Figure 1.

Summary of studies identification and selection for diagnosis (a) and treatment (b) of Plantar fasciitis in athletes.

From 143 selected articles, 134 did not meet the inclusion criteria as previously reported in methods section. Finally, a total of 9 articles were included in this review42–50. The level of evidence of the included articles, according to OCEBM Level of Evidence, is comprised between II and IV.

Details of the included articles

In the 9 studies included, 2 studies used MRI42,44, 6 used US assessment45–50, and 1 study compared US with MRI43.

On the basis of literature data, there are not specific studies about diagnosis of PF in élite or non-élite athletes, except for one article that has studied42 overuse ankle injuries in 18 professional Irish dancers with foot and ankle self-reported questionnaire and MRI. Only 7 athletes showed PF and 3 dancers did not report ankle pain.

Among the other eight articles selected, only one43 made a distinction between athletes and not athletes in study population, supposing that participation in competitive sports involving repetitive movements can produces microtears of some fibres of plantar fascia. Sonographic signs like plantar fascia thickness, echogenity, presence or absence of fibre rupture were compared with MRI findings in a total of 23 heels. Five of those were athletes, even if Authors did not specify if professional or recreational. Patients were compared with contralateral heel when symptoms were unilateral and with healthy subjects when symptoms were bilateral43.

Karabay et al. have assessed the same US signs in 23 PF patients compared with a control group of 23 asymptomatic subjects45. In a retrospective blinded study, three radiologists have evaluated thickness and stiffness of plantar fascia with US B-mode and longitudinal elastography between 18 PF feet and 18 healthy subjects46.

Sonoelastography was used in another three studies47,49,50. In the first study plantar fascia thickness was measured in 80 patients and 50 asymptomatic controls with B-mode US and real-time sonoelastography47. In the second study 20 patients and 30 healthy volunteers, all with normal B-mode US findings, were assessed with sonoelastography49. In the last study Authors aimed to evaluate reproducibility of sonoelastography with quantitative analysis of echovariation in 23 healthy and 21 symptomatic subjects50.

A cross-sectional observational study has investigated the presence of soft tissue hyperaemia with power Doppler US in 30 PF participants compared with 30 people age and sex matched48.

In a retrospective case series 112 MRI findings were reviewed to confirm PF diagnosis. In the first group of 50 patients with persistent heel pain despite appropriate treatment, 38 confirm the diagnosis of PF. In the second group of 62 patients with atypical symptoms or signs, MRI showed other pathologies in 18 patients44.

Imaging studies are not necessary for diagnosis, they are used when pain is resistant to conventional treatment and persist after 4–6 months of conservative treatment and are useful to differentiate other possible causes of heel pain23. Imaging studies play a key role in diagnosis and especially in management of PF if physicians are in doubt. Plain radiography is not helpful in direct diagnosis, but is often done to rule out other pathological condition51.

Traditional ultrasound evaluation, termed B-mode, is a high resolution real-time examination which offer the unique advantage of dynamic assessment and is very useful in guided injection treatment52. Radiologist can use in addition power Doppler assessment in the imaging of active inflammation and elastography that provides a measure of tissue stiffness with gentle manual compression. At US normal plantar fascia is an uniform, fibrillary structure measuring 4 mm or less, whereas in PF plantar fascia has hypoechoic thickening (> 4 mm), decreased echogenicity and sometimes perifascial effusion45,53. Softer stiffness than healthy control can be demonstrated with sonoelastography that is very useful for early diagnosis and in cases of inconclusive B-mode US findings46,47,49,50. Hypervascularity involving the fascia and its adjacent soft tissue can be assessed with color Doppler even if clinicians does not consider it as essential for diagnosis48.

The diagnostic accuracy of US is comparable to that of MRI in the diagnosis, so clinicians should reserve MRI in selected cases: to confirm diagnosis of PF in patients with persistent or atypical heel pain or to detect other pathologies that may contribute to the aetiology and may be partially responsible for patients complaints (i.e. stress or occult fractures and vascular necrosis)43,44.

Treatment strategies

Overview of the inclusion process

Concerning to the 430 selected articles about PF treatment, 422 did not meet the inclusion criteria as previously reported in methods section. The remaining 8 articles were included in this review (Fig. 1b)38–40,54–58.

Details of the included articles

The details of the reviewed articles are reported in Table IV. Of the eight studies included, three are related to élite athletes38–40 and five are related to recreational athletes54–58. Studies concerning élite athletes are two case studies39,40 and one case series38, even if only one athlete had PF. In these selected articles, the athletes were one soccer player39 and one runner40, both of 29 years old, and one Australian football player38. After the diagnosis of PF, the athletes were subjected to different treatments. In particular, the soccer player was submitted to conservative treatments including taping, orthotic devices, drug and physical therapy, but these approaches did not determine pain relief. Later on, the athlete received two corticosteroid injections, after which he experienced the plantar fascia rupture. The latter was positively treated by platelet-rich plasma therapy39. The Australian football player received pregame a ropivacaine injection, and postgame a steroid injection. Both treatments led to an improvement of pain38. Firstly, the runner received conventional therapy with limited pain relief. After, he received the ischemic compression therapy associated with calf stretching, which determined an immediate symptoms improvement40.

Table IV.

Details of treatment strategies for Plantar fasciitis in élite and non-élite athletes of the reviewed articles.

Study	Level of Evidence 41	Sport	No. of subjects	Clinical examination	Treatment plan	Outcomes
Suzue et al., 201439	IV	Soccer	1 élite athlete (29 years old, male)	MRI showed hyperplasia of the plantar fascia insertion at the calcaneus.	Conservative treatments including taping, insoles, anti-inflammatory drugs, physical therapy were applied. Two injections of Rinderon®: one was applied 2 months after his first visit to the hospital, and the second 4 months apart. PRP conservative treatment was performed at 4 and 8 weeks after the injury.	After (i) no pain improvement was highlighted. After (ii) partial rupture of plantar fascia was assessed. After (iii) gradual repair of the ruptured fascia was observed and RTA 5 months after injury.
James et al., 201038	IV	Australian football	1 élite athlete	PF diagnosis	Ultrasound guided local ropivacaine injection applied pregame. Ultrasound guided local steroid injection applied post game.	After (i) good pain relief during game without any complication was assessed. After (ii) partial improvement in symptoms was assessed.
Nguyen, 201040	IV	Run	1 élite athlete (29 years old, male)	PF diagnosis after progressive increase of pain for at least 10–12 months.	Conservative treatments including calf stretching, light massage, a few days rest from running, ice, use of tennis ball and soft drink bottle under the foot at home were applied. Orthotic therapy. IC and calf stretching.	After (i) only pain reduction for 2–3 days was observed. After (ii) limited improvement in symptoms was assessed. After (iii) immediate pain relief was assessed and athlete returns to pre-injury level of running.
Moretti et al., 200656	II	Run	20 competitive level runners and 34 recreational joggers (ranging in age from 30–42 years).	Presence of a chronic pain at the proximal insertion of the plantar fascia for at least 6 months, which failed to respond to conservative treatments (medical, physical therapy, local injection and orthotic devices). Presence of heel spur on the lateral X-ray view of foot was assessed.	4 treatment sessions, once weekly, of low-dose ESWT (2000 pulses being delivered at each session at an average of 0.04 mJ/mm2).	Good/excellent results and persistent improvement lasting 24 months were evaluated with VAS. Good correlation with inflammatory signs were assessed. 50 patients were able to resume their athletic activity as high as before treatment; 4 patients were not able to resume athletic activities because of persistence of symptoms.
Rompe et al., 200358	II	Run	45 recreational athletes (both sex, ranging in age from 32–61 years).	Presence of symptoms of PF for at least 12 months was assessed. Over a period of more than 6 months, at least 3 attempts of conservative treatment had failed to provide pain relief.	After 4 weeks of treatment wash-out, subjects were randomized into two treatment groups: (i) ESWT (n=22, 3 treatment sessions of 2100 shocks at 16 mJ/mm2 at 4 Hz, with 1-week interval); (ii) sham treatment group (n=23).	The primary outcome measures performed with VAS after 6 and 12 months follow-up revealed an improvement in pain on first walking in both groups, with a statistically significant difference between groups in favour of treatment group. The same result was highlighted for the secondary outcome measures.
Saxena et al., 2012 55	II	Not specified	37 athletically active subjects (both sex, ranging in age from 22–72 years).	Patients had to have a clinical diagnosis of PF for more than 6 months, with prior treatment of at least 3 conservative modalities. All EPF patients had to have had a corticosteroid injection, custom orthoses and refrain from running/sport for minimum of 2 months.	Subjects were divided into 3 groups: (i) ESWT (n=11, 3 treatment sessions of 4 Hz for 2000 shocks at .24 mJ/mm2, after a gradual ramp-up of 500 shocks starting at .1 mJ/mm2, every 7±3 days); (ii) pESWT group (n=14); (iii) EPF group (n=12).	Outcomes evaluation on VAS and RM highlighted a statistical improvement for both EPF and ESWT groups, with EPF group significantly better than both ESWT and pESWT groups. Athletes in ESWT group were able to RTA in a time ranging between immediate and 2 months after treatment, while the EPF group was able to RTA in an average of 2.8 months.
Saxena et al., 200457	II	Run Basketball Cycling	16 athletically active subjects (study group, both sex, ranging in age from 20–72 years); 10 nonathletic subjects (control group, both sex, ranging in age from 43–58 years).	Presence of symptoms of PF for a minimum of 12 months and conservative treatment for a minimum of 6 months (rest, physiotherapy, ice massage, steroid injection, night splint, cast-boot, and prescription foot orthosis .	All patients underwent to an uniportal EPF; a low, below-knee, removable cast-boot was used for a total of 4 weeks for post-operative patients, not weight bearing for the first 2 weeks was recommended.	Outcomes evaluation on MPFS revealed a statistically significant improvement for both groups, though the score increase for control group was less then study group. The mean RTA for study group was 2.7±0.7 months. The mean RTA was significantly longer in the control group with respect to study group. Complications were noted in both groups.
Hansberger et al. 201554	IV	Cross country Track and field Lacrosse	7 physically active subjects (4 cross country athletes, 2 track athletes, 1 lacrosse athlete, and 1 university employee; both sex; ranging in age from 18–40 years).	Subjects had: (i) pain or tenderness in the medial arch and at the insertion of the plantar fascia at the medial tubercle of the calcaneus; (ii) pain with walking or dorsiflexion of the toes, especially in the morning; (iii) plantar fascia pain was either acute (n=5) or chronic (n=3), unilateral or bilateral.	PRRT were assessed; number of treatments ranging from 1 to 6.	A single session of PRRT resulted in an immediate statistically significant reductions of pain as revealed on NPRS. PRRT has also produced a statistical amelioration in the DPA and PSFS. The subjects who completed PRRT multiple sessions highlighted complete resolution of pain on NPRS. PRRT appeared to have long-lasting results for a majority of athletes without any continued intervention.

PF: Plantar fasciitis; MRI: magnetic resonance imaging; RTA: return-to-activity; IC: ischaemic compression; PRRT: Primal Reflex Release Technique™; PRP: platelet-rich plasma; NPRS: numerical pain rating scale; DPA: disability in the physically active scale; PSFS: patient specific functional scale; EPF: endoscopic plantar fasciotomy; ESWT: extracorporeal shock wave therapy; pESWT: placebo extracorporeal shock wave therapy; VAS: visual analog scores; RM: roles and maudlsey scorers; MPFS: modified plantar fascia score; n: numbers of subjects.

With respect to outcomes therapy, all studies selected have discussed the ability of athletes to maintain their level of training or their ability to perform competitions. This is in accordance with the goal of athletes. Nevertheless, this represents a critical point for the comparative analysis of different treatments because the ability of athletes to continue their physical activity is correlated with their personal perception of pain. On the basis of these three articles it is not possible to determine which is the best treatment for PF in élite athletes. However, is important to underline that side effects have been reported only for corticosteroid injections. Albeit reported the short-term positive effect of this treatment31, it is also well documented that corticosteroid injections are correlated to the risk of the plantar fascia rupture31,59. However, a recent review and meta-analysis study has not showed this major adverse effect29.

Of the eight studies included, four of them considered PF treatments for recreational athletes55,57,58,60 and one considered both competitive and recreational athletes56. Most of the studies concerns runners, even if one study included basketball players and cyclist57 and one study included, but not specified, different sports from running55. The number of subjects per study is ranging between 754 and 5456, studies are related to both sex and included subjects of different age. All subjects had previously tried conservative treatments, who have failed to determine a pain relief (Tab. IV).

The extracorporeal shock wave therapy (ESWT) is the most frequently reported treatment. In particular, one study56 has considered the effect of low-dose ESWT treatment on both competitive and recreational joggers. The results have highlighted a good or excellent pain improvement assessed by Visual Analog Scale (VAS). Data have been confirmed at 24-month follow-up. Moreover, the treatment has determined a reduction of inflammatory signs at follow-up. Only four athletes on 54 (8%) were unsatisfactory. Adverse effects were not reported in this study.

One study58 has assessed the effects of ESWT with respect to a sham treatment. In agreement with previous reported study, the results have underlined the lasting pain improvement evaluated by VAS, at 6 and 12 months follow-up. Data have been confirmed also by secondary outcomes. At 12-month follow-up 3 on 22 subjects in treatment group and 3 on 23 subjects in sham group have considered the treatment ineffective. However, concurrent treatments have been reported for both treatment and sham groups, even if it remains at a comparable level between groups. These studies have also revealed that patients have considered the therapy unpleasant but without major adverse effects.

One study55 has compared ESWT treatment with both placebo group (pESWT) and surgical therapy (EPF). The therapy outcomes, assessed by VAS and Roles and Maudlsey (RM), have determined a statistical improvement for both ESWT and EPF group, but EPF group was significantly better than the other groups. In contrast, athletes of ESWT group were able to return-to-activity in a time ranging between immediate and two months after treatment, while EPF group was able to return-to-activity after an average of 2.8 months. Athletes belonging to pESWT group were able to return-to-activity in a time ranging between immediate and six months. No adverse effects of treatments were reported.

The other two selected studies have evaluated surgical treatment and rehabilitative physical therapy, respectively (Tab. IV). The results concerning the plantar fasciotomy57 have highlighted an excellent/good pain relief evaluated by Modified Plantar Fascia Score (MPFS). Athletes were able to return-to-activity after an average of 2.7 ± 0.7 months after surgery. Adverse effects of treatment were reported. With respect to the Primal Reflex Release Technique (PRRT)54 is a manual-therapy approach that involves down regulation of an overstimulated autonomic nervous system with the aim to reduce patterns of pain.

The results have highlighted that only a single session is able to determine an immediate amelioration in pain as assessed by the Numeric Pain Rating Scale (NPRS), the Disability in the Physically Active (DPA) Scale, and the Patient Specific Functional Scale (PSFS). The beneficial effects have also appeared to be long-lasting. Unfortunately, this study has not discussed the return-to-activity of athletes. On the basis of the reviewed articles the ESWT seems to be a good strategy for the management of PF in recreational athletes. ESWT offers the advantage of a fast return-to-activity after treatment or the possibility to combine therapy and physical activity. Authors report also good results with both PRRT and uniportal endoscopic plantar fasciothomy strategies, even if the latter imply a return-to-activity longer than ESWT.

The limitation of this review is related to the fewer available studies concerning both diagnosis and treatment of PF in élite and recreational athletes. For this reason we have not imposed an assessment of methodological quality of selected articles but we included all studies founded during literature reviewed process. On the basis of these evidence, we can not perform a meta-analysis. As regards the treatment of PF we would like to underline that studies included are heterogeneous in term of treatment strategies, number of subjects, primary and secondary outcomes, and follow-up.

Conclusion

In this review of the literature it has not been possible to highlight any specific diagnostic algorithm for PF in both recreational and élite athletes. There are not evidence of different diagnostic strategies for athletes and non-athletes.

Different associations gave their clinical recommendations61,62 for PF but there are not specific Practice Guidelines neither for élite athletes nor for recreational athletes. Despite of the literature, causes of PF are multifactorial and remain poorly understood for many patients in clinical practice. Clinical Practice Guidelines from the Orthopaedic Section of the American Physical Therapy Association61 recommend that clinicians should assess the presence of limited ankle dorsiflexion range of motion, high body mass index in nonathletic individuals, running, and work-related weight-bearing activities, particularly under conditions with poor shock absorption, as risk factors for the development of heel pain/plantar fasciitis (moderate grade of evidence). Diagnosis of PF is made on the basis of a clinical assessment or after an accurate physical examination using the following physical examination findings:

• plantar medial heel pain (most noticeable with initial steps after a period of inactivity but also worse following prolonged weight bearing);

• heel pain precipitated by a recent increase in weightbearing activity;

• pain with palpation of the proximal insertion of the plantar fascia;

• positive Windlass test (evaluation of plantar fascia loading);

• negative tarsal tunnel tests (dorsiflexion/eversion test);

• limited active and passive talocrural joint dorsiflexion range of motion;

• abnormal Foot Posture Index Score (quantification of standing foot posture);

• high body mass index in nonathletic individuals.

Physicians can classify a patient with the International Classification of Functioning, Disability and Health (ICF) impairment-based category of heel pain (with code b28015: Pain in lower limb, and code b2804: Radiating pain in a segment or region).

Clinicians should use validated self-reported questionnaire (strong level of evidence: IA) like the Foot and Ankle Ability Measure (FAAM), the Foot Function Index (FFI) or the Foot Health Status Questionnaire (FHSQ) that are cross-cultural adapted and validated in different languages, in order to define activity limitation, physical impairments and participation restrictions associated61.

Concerning treatment in athletes is quite difficult to suggest practice guidelines on the basis of few literature data. Specific studies are necessary to define the best treatment algorithm for both recreational and élite athletes.
